1. Introduction
Electric vehicles are regarded as a vital component in the construction of a new energy system due to their energy-saving and environmental protection advantages, and they are increasingly becoming the primary choice for transportation. According to statistics from the International Energy Agency, global EV sales reached a record high of 14 million units in 2023 [
1]. However, the uncoordinated charging load of large-scale EVs, when superimposed on the basic load of the power grid, can easily lead to peak electricity consumption, increasing the burden on the power system and causing problems such as a decline in power quality [
2].
Vehicle-to-Grid (V2G) and Grid-to-Vehicle (G2V) technologies have been regarded as effective means to enhance the stability of power distribution networks [
3]. Optimization of EV charging and discharging strategies is a typical stochastic optimization problem, with uncertainties arising from factors such as user travel behaviors, dynamic electricity prices, and battery health status [
4]. To address these uncertainties, ref. [
5] proposed a scenario-based two-stage stochastic linear programming model for scheduling EV charging under varying grid demands. In [
6], a robust optimization model was developed to balance cost efficiency and fast-charging requirements by introducing L2-norm uncertainty to improve robustness against cost fluctuations. To further mitigate the negative impact of EV loads on distribution networks while satisfying user demand, ref. [
7] introduced a spatiotemporal-aware scheduling strategy that considers uncertainties in V2G operations. Ref. [
8] proposed an optimal charging/discharging strategy that incorporates voltage stability constraints under V2G scenarios. Additionally, ref. [
9] constructed a two-stage day-ahead and real-time multi-objective optimization framework to reconstruct travel chains under multi-modal travel scenarios. Reference [
10] proposed a model predictive control (MPC)-based energy management method, applying constraints on battery state of charge (SOC), power, and thermal conditions. Moreover, ref. [
11] explored the modeling of dynamic user preferences in charging parameters, using a stochastic game–theoretic approach to address uncertainties. A generalized Nash equilibrium approach was further adopted in [
12] to optimize EV charging strategies, considering temporal uncertainties. However, these model-based optimization methods heavily rely on accurate system modeling, which is often impractical due to the complexity and uncertainties of real-world environments. Furthermore, for high-dimensional or nonlinear problems, such methods are computationally intensive and prone to convergence to local optima, making it difficult to achieve globally optimal solutions.
As a model-free approach, deep reinforcement learning (DRL) enables agents to learn optimal strategies through interactions with the environment without requiring pre-modeled system knowledge. DRL has been widely applied to sequential decision-making problems. In [
13], a hybrid DRL model was integrated into a battery management system framework to manage EV lithium-ion battery charging and discharging processes. Ref. [
14] established an EV adjustability identification model based on user characteristics and applied DRL for real-time scheduling of charging and swapping loads. A real-time scheduling strategy based on the baseline Monte Carlo policy gradient method was proposed in [
15] to optimize swap station operation. Reference [
16] utilized LSTM networks to predict electricity price trends and applied the predicted prices to the Deep Deterministic Policy Gradient (DDPG) algorithm. In [
17], driver anxiety was mathematically modeled using statistical principles, and the Soft Actor-Critic (SAC) algorithm was employed to learn optimal charging strategies. Although DRL-based methods have demonstrated good performance in EV charging optimization, operational safety constraints such as voltage and current limits are crucial in practice. These constraints are typically enforced through penalty terms in the reward function. However, setting appropriate penalty coefficients often relies on expert knowledge and tedious manual tuning, and improper parameter choices may lead to significant performance degradation. To overcome these limitations, safe DRL methods have been developed. For example, ref. [
18] proposed a constrained policy optimization (CPO) approach for EV charging management, while [
19] introduced a primal-dual RL framework that adaptively adjusts Lagrangian multipliers to manage constraints more effectively.
Furthermore, most current EV charging optimization methods primarily focus on maximizing users’ economic benefits, while giving limited consideration to battery degradation costs. Frequent charging and discharging cycles can significantly shorten battery lifespan, leading to increased hidden costs for users [
20]. Thus, simultaneously optimizing both charging profits and battery health loss has become an emerging research focus. Accurate evaluation of battery degradation costs hinges critically on precise prediction of battery SOH. Accordingly, developing high-accuracy SOH prediction models has become a necessary prerequisite for integrating battery degradation cost into EV charging optimization strategies.
Existing SOH prediction methods can be broadly categorized into model-based and data-driven approaches. Model-based methods rely on physical or electrochemical modeling of battery behaviors, such as equivalent circuit models [
21] and electrochemical models [
22]. Ref. [
23] developed a degradation-aware electrochemical thermal model for SOH estimation, while [
24] combined electrochemical impedance spectroscopy features with an extreme learning machine to predict SOH. On the other hand, data-driven methods leverage historical operational data to learn complex feature-performance relationships without requiring explicit physical modeling. Among them, LSTM networks have been widely used for their outstanding performance in long-sequence forecasting. For instance, ref. [
25] proposed a hybrid approach combining improved convolutional neural networks with LSTM for battery remaining useful life prediction. Ref. [
26] developed a transferable multi-stage LSTM model for cross-battery SOH estimation, and [
27] enhanced bidirectional LSTM models with attention mechanisms to improve accuracy and adaptability under temperature variations. However, existing studies have rarely integrated battery SOH prediction effectively into EV charging optimization. Only a few works attempt to incorporate simplified degradation models. For example, ref. [
28] combined particle swarm optimization (PSO) and MPC to jointly optimize charging strategies while considering battery aging, but the SOH modeling accuracy remains limited. Similarly, ref. [
29] proposed a joint scheduling and charging optimization method for electric buses that simultaneously considers explicit charging costs and implicit battery degradation costs.
To address the limitations of existing DRL methods in modeling battery health status, this paper proposes a physics-informed hybrid neural network (PHNN), which integrates physical degradation mechanisms with a LSTM structure. The PHNN enhances the model’s ability to capture complex degradation processes while maintaining high prediction accuracy, thereby providing more effective guidance for optimizing EV charging and discharging strategies. Compared to existing works, the main contributions of this paper are summarized as follows:
(1) A novel battery health state prediction model based on a PHNN is designed, which combines physical prior knowledge with the LSTM’s capability to capture temporal features, significantly improving the accuracy of SOH predictions.
(2) Considering the battery health state, the EV charging and discharging decision-making problem is formulated as a constrained Markov decision process. A reward function and a cost function that incorporate battery health state are designed, precisely quantifying the cost of battery degradation in V2G operations.
(3) An LSTM-based IPO algorithm is proposed for solving the problem, using a logarithmic barrier function as an extension to the cost function to handle constraints, which effectively reduces computational costs and enhances policy performance.
(4) Based on public datasets, several simulation experiments are designed to validate the algorithm’s effectiveness. The experimental results show that the proposed EV charging and discharging strategy optimization method can significantly mitigate the decline in battery health during the V2G process and maximize the charging and discharging benefits for EV owners, demonstrating strong practical significance.
2. Optimization Model of EV Charging and Discharging Strategies Considering Battery Health Constraints, and Its Constrained Markov Decision Process Formulation
2.1. Mathematical Model of EV Charging and Discharging Strategies Considering Battery Health Constraints
To minimize battery degradation and reduce the stress imposed on the battery, this study adopts a slow charging strategy for EVs. It is assumed that EVs begin charging or discharging immediately upon arrival and connection to the grid, and that the charging/discharging behavior is implemented at a constant power level within each decision interval. The specific control model is as follows:
In the formula, ta and td represent the arrival and departure times of the EV, respectively, with both arrival and departure occurring at the beginning of the time step; SOC0 is the remaining electricity of the EV at the start of charging or discharging; SOCt is the SOC value at time t, and are the energy conversion efficiencies of the EV battery during charging and discharging, respectively; and are the maximum charging and discharging power, respectively; and is the EV charging and discharging power.
This paper aims to minimize the charging cost as the objective function and constructs an optimization model with the constraints of battery energy limits and user travel electricity demand. The specific formulation is as follows:
In the formula, represents the dynamic electricity price at that moment. The product being greater than zero indicates the cost of the EV user purchasing electricity at that time, and, vice versa, represents the revenue from selling electricity. and represent the minimum and maximum capacity of the EV battery, respectively. represents the user’s travel electricity demand target. d is a small constraint tolerance used to limit the deviation between the EV’s electricity level and the charging target.
For EV batteries, there are typically two important parameters that describe their current state: the SOC and the SOH. Among these, SOH measures the ratio between the actual capacity of the battery and its initial capacity, used to represent the degree of battery aging and performance degradation. To consider the cost overhead due to battery degradation in EV charging and discharging, this paper introduces a new parameter: the Initial State of Charge (ISOC), which represents the ratio between the current stored electricity in the battery and its initial capacity, expressed as a percentage. Specifically, the ISOC at time
t is defined as follows:
Once connected to a charging pile, the EV can charge within a unit of time to meet charging needs or discharge during periods of high electricity prices to gain benefits from price fluctuations. Assuming the EV connects to the charging pile at time
ta, and the user plans to depart at time
td, the change in battery charge within a unit of time is as follows:
where
at represents the rate at which the EV charges or discharges within a unit of time.
2.2. Modeling of EV Charging and Discharging Strategy Optimization Based on CMDP
This section further constructs the EV charging and discharging decision optimization problem into a constrained Markov decision process (CMDP) model. As a mathematical framework, CMDP offers an effective means to describe the randomness and uncertainty associated with EV charging and discharging behaviors. This model permits the making of charging and discharging decisions based on electricity prices and battery health states at different time intervals, aiming to optimize the economic benefits for users. To depict the continuous charging and discharging process of the EV, the continuous state transitions are divided into sufficiently small time slots. The subsequent st represents the state of the vehicle within the time slot t, as detailed below.
(1) State Space: In this paper, the states obtained from the environment are used as inputs for the charging and discharging control strategy to generate charging and discharging rates. Specifically, within time period
t, the state
st is defined as follows:
where
represents the electricity pricing from the power company over the past 24 time slots and
denotes the amount of electricity in the battery at time
t.
(2) Action Space: During the vehicle’s charging and discharging process, within the time interval [t, t + 1), the vehicle’s charging and discharging behavior is represented by the action at, where .
(3) Reward Function: Considering both the charging cost and the discharge degradation cost during the EV charging and discharging process, the reward function is defined as follows:
where
represents the revenue from charging and discharging,
denotes the loss of battery capacity caused by the current charging and discharging action in the time period, and
c represents the cost for the user to replace the battery. The second term of the reward mentioned above represents the economic loss caused by the battery degradation per unit of time;
and
are the reward weights.
(4) Constraint Function: To ensure both the safety of the EV battery during the charging/discharging process and the fulfillment of user travel energy requirements, this study formulates the optimization problem as a CMDP. A set of auxiliary constraint functions is defined as:
, where
and
represent the deviation between the final state of charge and the target value, and the safety constraint based on the physical limits of the battery, respectively. The specific forms are given by:
The constraint function penalizes the deviation of the final ISOC from the targe at the departure time td, reflecting the user’s expected residual energy or travel mileage. The constraint incorporates practical physical constraints and battery safety considerations and penalizes situations where the SOC exceeds the allowable range , thereby ensuring safe operation of the battery.
Based on the above constraint functions, we construct a constraint-aware objective function that captures both travel demand and safety requirements:
, where
is the discount factor that penalizes constraint violations at different time steps. By combining this with the EV charging control conditions, the set of feasible policies can be defined as:
In Equation (8),
and
are acceptable thresholds for the two constraint functions. A policy
is considered feasible if it ensures that the final ISOC meets the user’s target while maintaining the SOC within the safety range throughout the charging process. The optimization problem of EV charging and discharging can then be formulated as a CMDP:
where
represents the expected cumulative reward under policy
, and
rt is the instantaneous reward at time step
t. The constraint term
is incorporated to ensure safety and reliability. Finally, the optimal policy that maximizes the cumulative reward while satisfying all constraints is given by:
Through this CMDP-based formulation, the EV’s ISOC target and safe operational range are unified into a decision-making framework, which ensures the satisfaction of user travel needs while maintaining battery operation within a safe and acceptable range. This approach enables safe and reliable decision-making in uncertain real-world environments.
(5) Transition Probability: The transition probability is influenced by the charging and discharging power and the material characteristics of the EV’s battery. To align with real-world scenarios, the actual state update process of the EV’s SOC after accounting for energy losses during charging and discharging is characterized by the product of the charging and discharging power and the energy conversion efficiency in the EV charging and discharging control model.
3. Prediction Model of Battery SOH Degradation Based on PHNN
3.1. Principle of LSTM Temporal Sensitivity Enhancement
LSTM protects and controls the cell state through a “gate” mechanism to selectively pass memory information, including the forget gate, input gate, and output gate. Each gate control device is composed of activation functions and pointwise multiplication functions. Among them, the forget gate determines the timing of low-value information to be discarded, the input gate determines the effective information at the current moment and loads it into the memory cell through sigmoid and tanh activation functions, and the output gate decides the output feature information
based on the current input
and the memory information
. The specific calculation methods for each gate of LSTM are as follows:
In the above formula, represent the weight coefficients of the forget gate, input gate, and output gate, respectively. Since the input gate has both sigmoid and tanh activation functions, it has two weight coefficients; similarly, are the biases for the three gates, respectively. Through the aforementioned three gate control structures, LSTM achieves spanning of multiple time steps of temporal information. Therefore, the LSTM neural network can perform feature extraction on historical data, which helps to mine the future trends of historical time series data and enhances the ability to cope with uncertain factors. This paper, with the help of LSTM’s temporal feature extraction capability, enhances the perception of historical SOH and electricity prices and then reasonably infers future trends from historical SOH and electricity price data.
3.2. Battery SOH Degradation Prediction Based on PHNN
The proposed PHNN enhances the accuracy and robustness of SOH degradation prediction by combining model-based methods with neural networks and integrating physical and chemical prior knowledge. In our approach, the SOH of a lithium-ion battery is characterized by two variables: the non-forced dynamic
Dt before the discharge cycle
t (which represents the inherent trend of the system to change without external interference) and the estimated capacity loss
Lt that occurs during the discharge cycle. At the end of discharge cycle
t, the estimated SOH can be calculated as follows:
According to existing studies, one of the primary chemical mechanisms of capacity degradation is progressive growth of the solid electrolyte interphase (SEI) layer on the surface of the anode particles. This process intensifies with charge-discharge cycling and has been widely adopted for modeling the trend of battery aging. Given that the Arrhenius equation effectively characterizes the relationship between reaction rate and temperature [
30], this study incorporates temperature as a key factor when estimating capacity loss based on the SEI growth mechanism. It is important to note, however, that while SEI growth represents a dominant degradation pathway, it does not account for all mechanisms—such as lithium plating, electrode cracking, and electrolyte decomposition. Therefore, we introduce a neural network-based compensation component into the model to learn from these latent or unobservable degradation processes, thereby enhancing the accuracy and generalization capability of capacity loss estimation. Therefore, the cumulative capacity loss can be estimated using the following formula:
In the formula, represents the cumulative capacity loss, A is a constant, Ea represents the activation energy of the reaction, R is the universal gas constant, T represents the operating temperature of the lithium battery, and z represents the power exponent coefficient.
In single-step prediction, the capacity loss
Lt generated during the
t-th discharge period can be calculated as follows [
30]:
In this equation, z is used to describe the power-law relationship between capacity degradation and cycle number or time. A is a constant related to the characteristics of the electrochemical reaction system. The above degradation model only considers the effects of temperature T and cycle number t on battery capacity.
However, at high discharge rates, the battery capacity fade is more rapid than at standard discharge rates, which may further affect the accuracy of capacity loss estimation [
31]. Therefore, we introduce an additional neural network
composed of fully connected layers to estimate the loss due to the discharge rate effect, where
represents the neural network parameters,
represents the average voltage for the entire cycle, and
represents the average current. Since the network is trained end-to-end, the parameters
can be learned simultaneously with the other parts of the network. Then, Equation (14) can be further expanded as follows:
In the formula, , denotes the capacity degradation factor estimated in the previous cycle, reflecting the influence of historical cumulative degradation on the current prediction, represents the average voltage for the entire cycle, and represents the average current. Based on the above, we have constructed a neural network with a special structure, where Exponential Linear Unit (ELU) nodes are used for exponential calculations, and the remaining nodes represent the three factors proposed, denoting the corresponding coefficients. By leveraging the inherent learning and parameter updating capabilities of neural networks, the model can autonomously learn appropriate parameters based on the characteristics of the current battery. Therefore, guided by prior knowledge, the neural network can calculate Lt based on physical priors according to Equation (15). In addition to this, we use an LSTM network to capture the temporal information of battery health, with its input being an SOH sequence SOHseq, representing the battery capacity values over several past cycles, hence .
5. Case Study
5.1. Basic Parameters of the Algorithm
The experimental software environment consists of Python 3.7 and PyTorch 1.6, while the hardware environment is a computer equipped with an Intel Core i9-13900KF CPU (Intel Corporation, Santa Clara, CA, USA) and an NVIDIA GeForce RTX 3080 Ti GPU (NVIDIA Corporation, Santa Clara, CA, USA). The simulation test uses hourly electricity price data collected by the New England ISO [
32]. Users’ travel habits are referenced from EV travel records in California. The state transition and charging and discharging control of the vehicle in this paper are based on one-hour time slots. The vehicle’s initial SOH is randomly sampled from [0.7, 1], the ISOC is randomly sampled from [0,
SOH], and the user’s desired ISOC at departure (
ISOCd) is randomly sampled from [0.5,
SOH]. The battery capacity
C is set to 24 kWh, and the charging and discharging efficiency
and
are set to 0.98. EV batteries are typically composed of multiple small cells connected in series and parallel. In this paper, we assume the cell type is 18650, the charging and discharging current
It is fixed at 2 A, the temperature
Tt is fixed at 298.15 K (25 °C), and the battery consists of 4300 18650 cells. The input for the PHNN is the predicted SOH of the past eight cycles. The weight coefficients of the reward function are set to 10 and 50, respectively. The hyperparameters of the IPO algorithm are shown in
Table 1.
This study uses a dataset from NASA’s Prognostics Center of Excellence [
33]. In this dataset, lithium-ion batteries undergo cycles of charging, discharging, and impedance measurement at room temperature (25 °C). Specifically, the battery is first charged at a constant current of 1.5 A until the voltage reaches 4.2 V; then, the battery is charged at a constant voltage until the charging current drops to 20 mA; finally, the battery is discharged at a continuous discharge current of 2 A until the battery voltage reaches a calibration value. These experimental conditions provide strong data support for battery performance prediction and health state assessment. In the PHNN network, the following configuration is used: the machine learning module consists of three fully connected hidden layers with the number of neurons increasing from 8 to 128 layer by layer; this is followed by an LSTM neural network with 128 neurons; and finally, a linear layer produces the final output Dt. The model-driven module
consists of three fully connected layers with the number of neurons increasing from 8 to 128 and then decreasing to 1.
5.2. PHNN SOH Degradation Prediction Performance Analysis
To evaluate the prediction performance of the proposed PHNN network model in forecasting the SOH degradation of lithium-ion batteries, this experiment selected the first 50% of the cycle data from Battery B05 as the training set and then conducted testing on the remaining 50% of the cycle data.

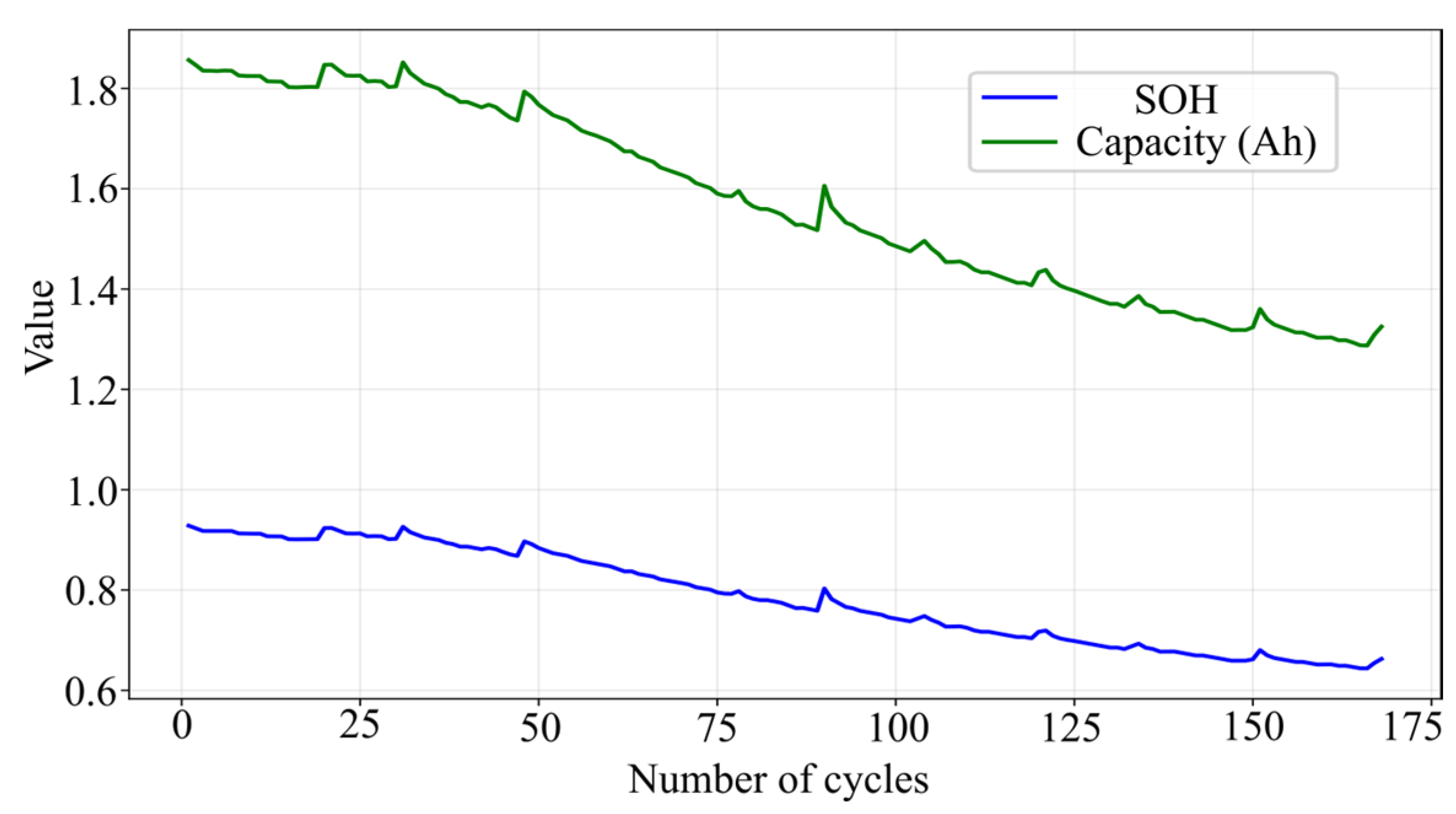

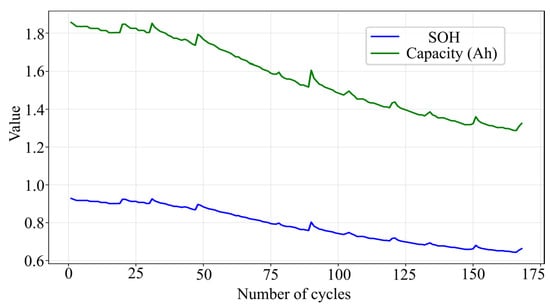

Figure 2 shows the original SOH and capacity of Battery B05 across all cycles. It can be observed that, as the number of cycles increases, both the SOH and the capacity of the battery decrease.
In this experiment, we used the Root Mean Square Error (RMSE) as the loss function to evaluate the training effectiveness of the PHNN neural network model. From the loss curves of the training and test sets, it can be observed that, as the training progresses, the loss of the training set gradually decreases, indicating that the model’s fitting effect on the training data is continuously improving. The test set loss, however, shows some fluctuation. In particular, it is higher in the early stages, but as training deepens, the test set loss gradually stabilizes. This fluctuation may reflect the model’s overfitting to the test set in the early stages, but as training continues, the model’s generalization ability gradually strengthens.

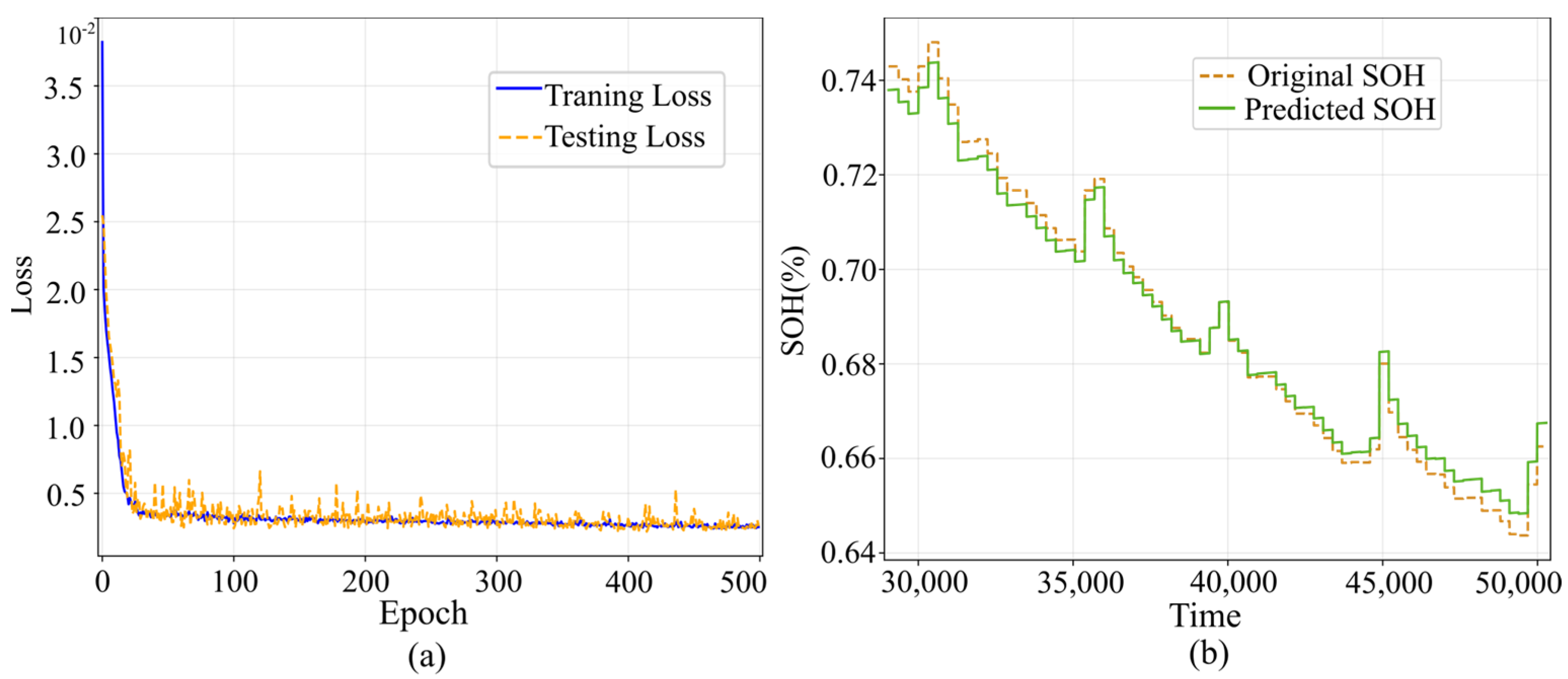

By comparing the loss curves of the training and test sets, it is observed that, in the later stages of training, the test set loss basically trends towards stability and remains close to the training set loss. This indicates that the model has achieved a good level of generalization and exhibits small errors on new data, which is consistent with the ideal training outcome. During the training process, the evolution of loss (as a percentage of total loss) for both the training and test sets, along with the predicted SOH results, are shown in
Figure 3. The SOH curve predicted by the PHNN for 63 cycles remains highly consistent with the original SOH curve in terms of overall trend, with an average absolute error of 3.03%. This fully demonstrates the accuracy of the proposed PHNN in predicting the degradation of lithium-ion batteries.
5.3. Convergence Performance of the IPO Algorithm and Analysis of EV Charging and Discharging Strategies
To validate the effectiveness of the proposed algorithm, this section trains the IPO agent for 1000 episodes and tests the trained agent over 7 test days.

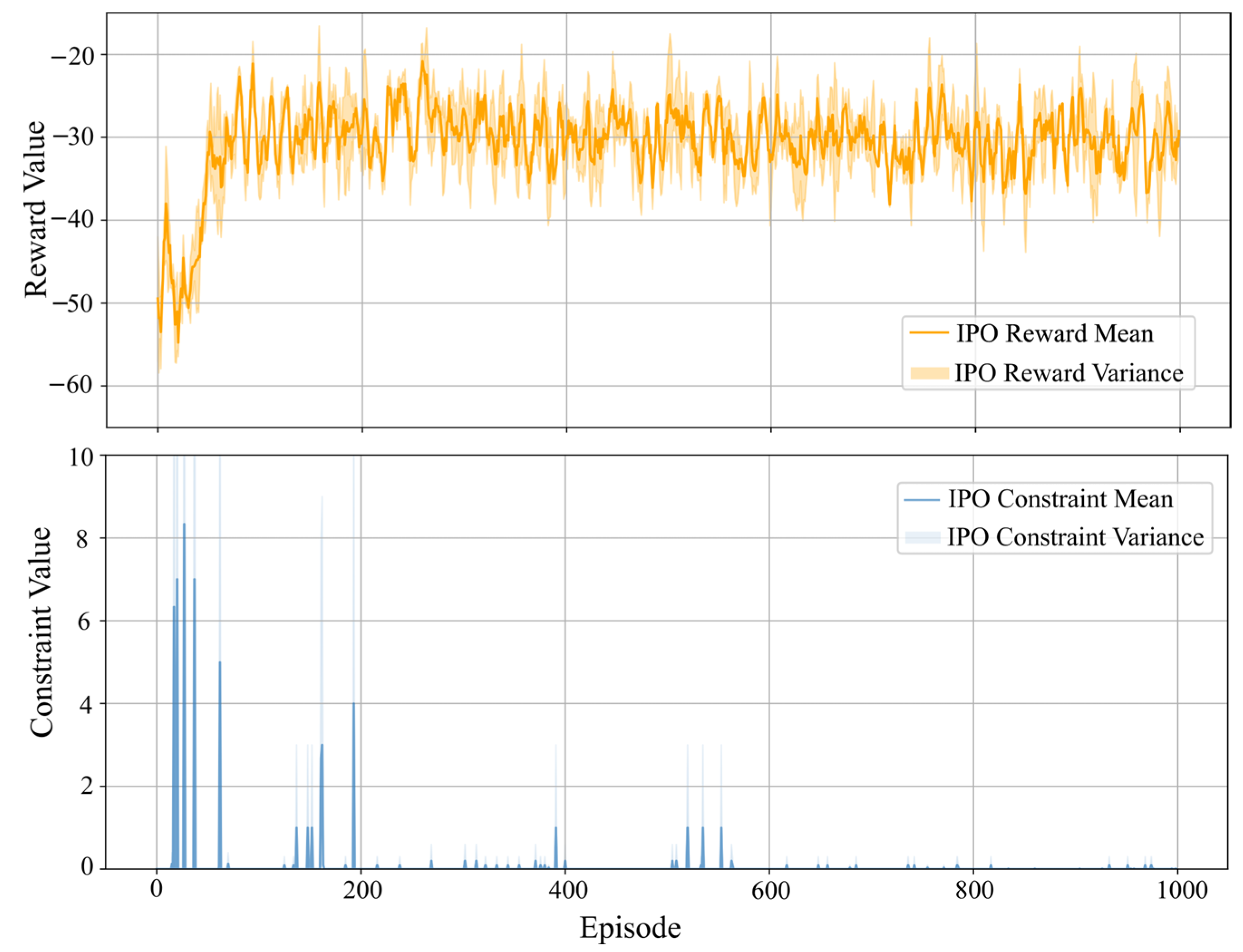

Figure 4 presents the convergence of the average cumulative reward value and constraint value per episode during the training process of the proposed method. Due to the randomness of parameters in the reinforcement learning agent training process, we conducted three experiments with different random seeds. The solid lines in the figure represent the mean of multiple experiments, and the shaded areas indicate the variance. As can be observed from
Figure 4, both the mean and variance of rewards and constraints show a trend of gradual stability with the progression of training. The IPO algorithm may face significant exploration issues in the early stages of training, leading to higher instability in rewards and constraints. As training continues, the rewards gradually increase and stabilize, and the occurrences of constraint violations decrease and finally approach zero. This demonstrates the performance of the proposed safe reinforcement learning algorithm and its advantage in enforcing constraints.
To evaluate the effectiveness of the proposed algorithm in generating EV charging and discharging control strategies, this paper validates the trained EV charging and discharging strategies on a dataset of consecutive 7 test days.

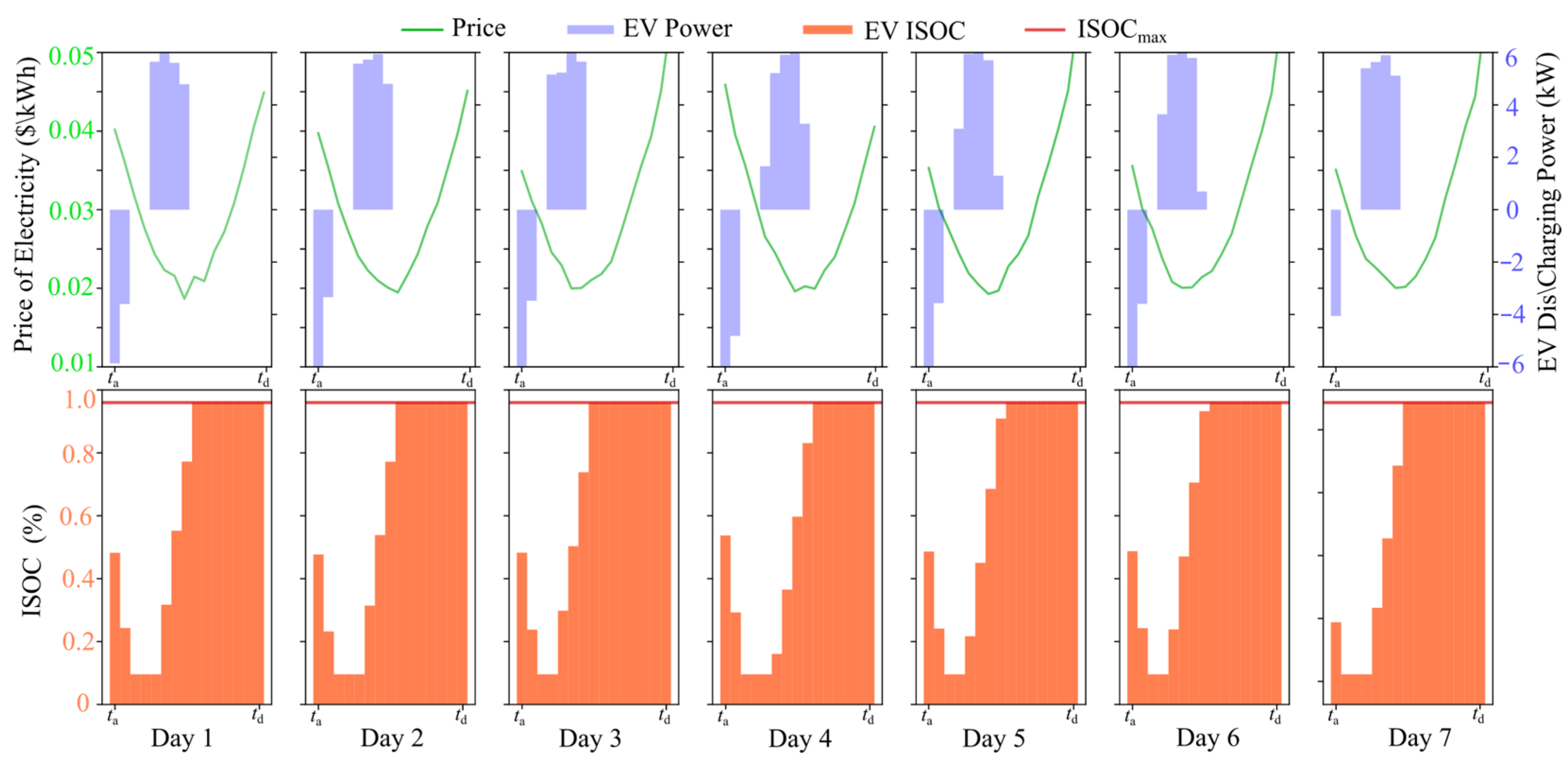

Figure 5 presents the hourly electricity prices, the EV charging and discharging schedules, and the corresponding ISOC values on the test days. As can be observed from the figure, the EV discharges rapidly when the electricity price is high, and when the price drops, the EV quickly purchases electricity for charging. During the EV charging and discharging process, the battery’s state of charge is maintained within the constraint boundaries, and when the EV departs from home, the EV battery’s state of charge reaches the charging target. These results verify the effectiveness of the method in optimizing real-time EV charging and discharging strategies under the constraint of charging demand satisfaction using the IPO algorithm.
To further validate the stability and robustness of the proposed method under different hyperparameter configurations, a sensitivity analysis was conducted on two key parameters in the IPO algorithm: the sliding window length in the LSTM architecture (sliding steps) and the logarithmic barrier function parameter k. The sliding step determines the length of the historical state sequence observed by the agent during each decision-making process, while the parameter k controls the penalty intensity for constraint violations in the policy. We designed three configurations for each parameter and recorded the agent’s average cumulative reward and cumulative constraint violation over the final 200 training episodes. The experimental results are summarized in the table.
As shown in
Table 2, when the sliding step is set to 24, the agent achieves a favorable trade-off between reward performance and constraint satisfaction. Increasing the step size to 96 leads to marginal improvement in constraint adherence but introduces significant computational overhead, with limited gains in reward. This indicates that an appropriately sized observation window enhances policy quality, whereas overly long sequences may result in training inefficiency. On the other hand, setting the logarithmic barrier parameter
k to 20 yields the best balance between reward and constraint satisfaction. Both overly small and excessively large values of
k result in performance degradation. In summary, the proposed IPO algorithm demonstrates strong robustness to these two critical hyperparameters within reasonable ranges, achieving a desirable balance between performance and computational efficiency through appropriate tuning.
5.4. Comparative Advantages of the Proposed Method
To highlight the effectiveness of the proposed IPO algorithm in optimizing charging costs while satisfying energy constraints, a comparative analysis is conducted over a 30-day simulation period between the IPO algorithm and two baseline reinforcement learning methods, CPO [
34] and PPO [
35], in terms of cumulative constraint violation and cumulative charging reward for EVs. In addition, two traditional model-based approaches are introduced for further comparison. (1) First, an offline optimal scheduling method, where all uncertainties are assumed to be known in advance was introduced. The EV charging/discharging problem is formulated as a deterministic optimization model and solved using the Gurobi solver. The resulting optimal solution (OS), serving as a performance benchmark, reflects an ideal scenario. (2) Second, an MPC method [
10], which forecasts EV departure time and future electricity prices at each decision step, and performs rolling horizon optimization to minimize the cost during each time interval, was introduced. The calculation formula for the constraint violation index is
, where
kWh is the maximum constraint tolerance. Finally, the total computational time across all decision steps within a single day (from vehicle arrival to departure) was compared among the five optimization methods.
As shown in
Table 3, the proposed IPO algorithm achieves the highest cumulative reward while maintaining a low constraint violation rate of only 46.19%. Compared to the CPO algorithm, which is also based on safe reinforcement learning, the IPO algorithm improves constraint satisfaction performance by 22.54%. In contrast, the PPO algorithm exhibits a significantly higher constraint violation rate of 1318.34%. These results demonstrate that the proposed method outperforms other DRL algorithms in satisfying the upper and lower bounds of EV battery capacity, as well as the energy demand of users’ travel schedules. The MPC approach and the solver-based global optimum both perform well in terms of constraint compliance and economic efficiency. However, they require solving a predictive optimization problem at every decision step, resulting in high computational costs, particularly in multi-period optimization scenarios. Specifically, the MPC method takes 87.36 s to complete all decision steps in a single day, while the direct use of an optimization solver requires as much as 1360.1 s.
In contrast, DRL-based methods such as IPO, PPO, and CPO rely only on forward inference of trained neural networks during the online phase, allowing for real-time decision-making within milliseconds. Although reinforcement learning methods require substantial time and data investment during the offline training phase, their high efficiency during execution makes them well-suited for practical applications involving time-of-use scheduling and dynamic demand response. In summary, the proposed IPO algorithm achieves a balanced trade-off among constraint satisfaction, economic performance, and computational efficiency, demonstrating strong potential for real-world engineering applications.
Furthermore, to verify the improvement of the proposed LSTM data feature extraction for electricity price trends on EV charging and discharging decisions, a comparison of the effects before and after adopting this technology was conducted. The results show that the cumulative rewards for 30 testing days before and after using this technology were −1038.11 and −963.25, respectively. This demonstrates that LSTM feature extraction effectively assists the agent in perceiving changes in time-varying electricity prices within the state space. By discharging during high-price periods to gain revenue and reducing charging costs and quickly recharging the EV during low-price periods, the technique effectively meets the electricity demand for EV charging and discharging. Therefore, by sensing future trends in time-series data, it can more effectively assist the agent’s sequential decision-making, thereby reducing charging costs and enhancing robustness in the face of uncertainty.
The lifespan of EV batteries is significantly influenced by frequent charging and discharging cycles, and a battery’s SOH is closely related to charging behavior. Excessive charging and discharging accelerates battery aging, leading to early battery replacement and increased overall operational costs. To comprehensively assess the role of the proposed PHNN model in optimizing the trade-off between battery lifespan and economic efficiency, this paper simulates the EV operation process over 30 consecutive working days based on the aforementioned experimental design and compares the overall performance of different algorithms from the perspectives of cumulative reward value, constraint violation rate, and daily decision time.

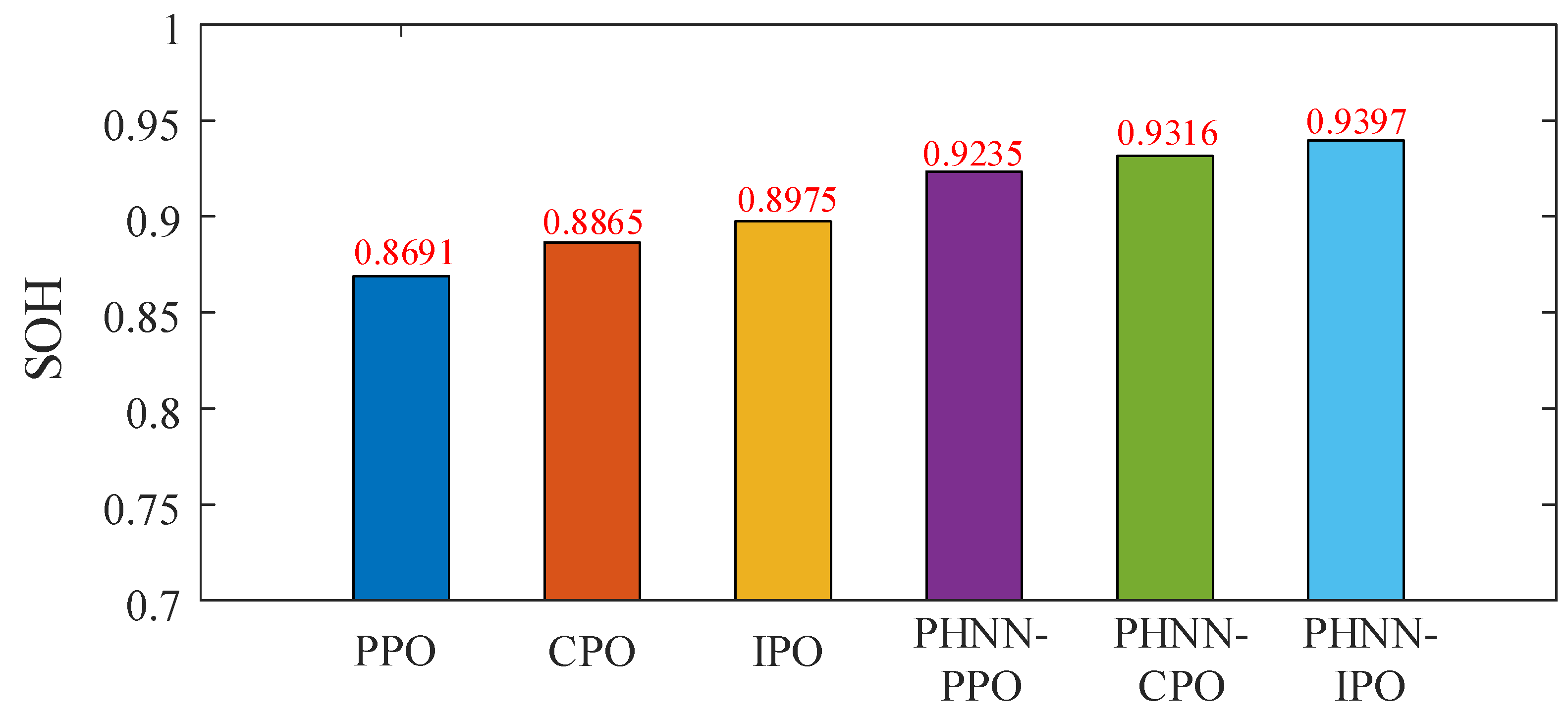

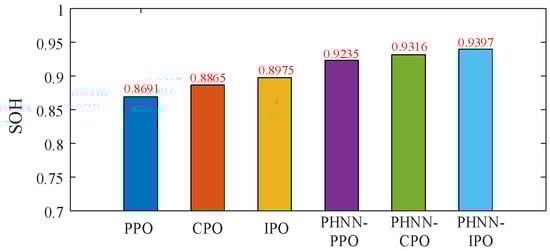

Figure 6 shows the comparison of SOH results. The results indicate that the reinforcement learning method considering the proposed PHNN performs better in terms of maintaining battery SOH, and all methods outperform the other approaches in terms of performance.

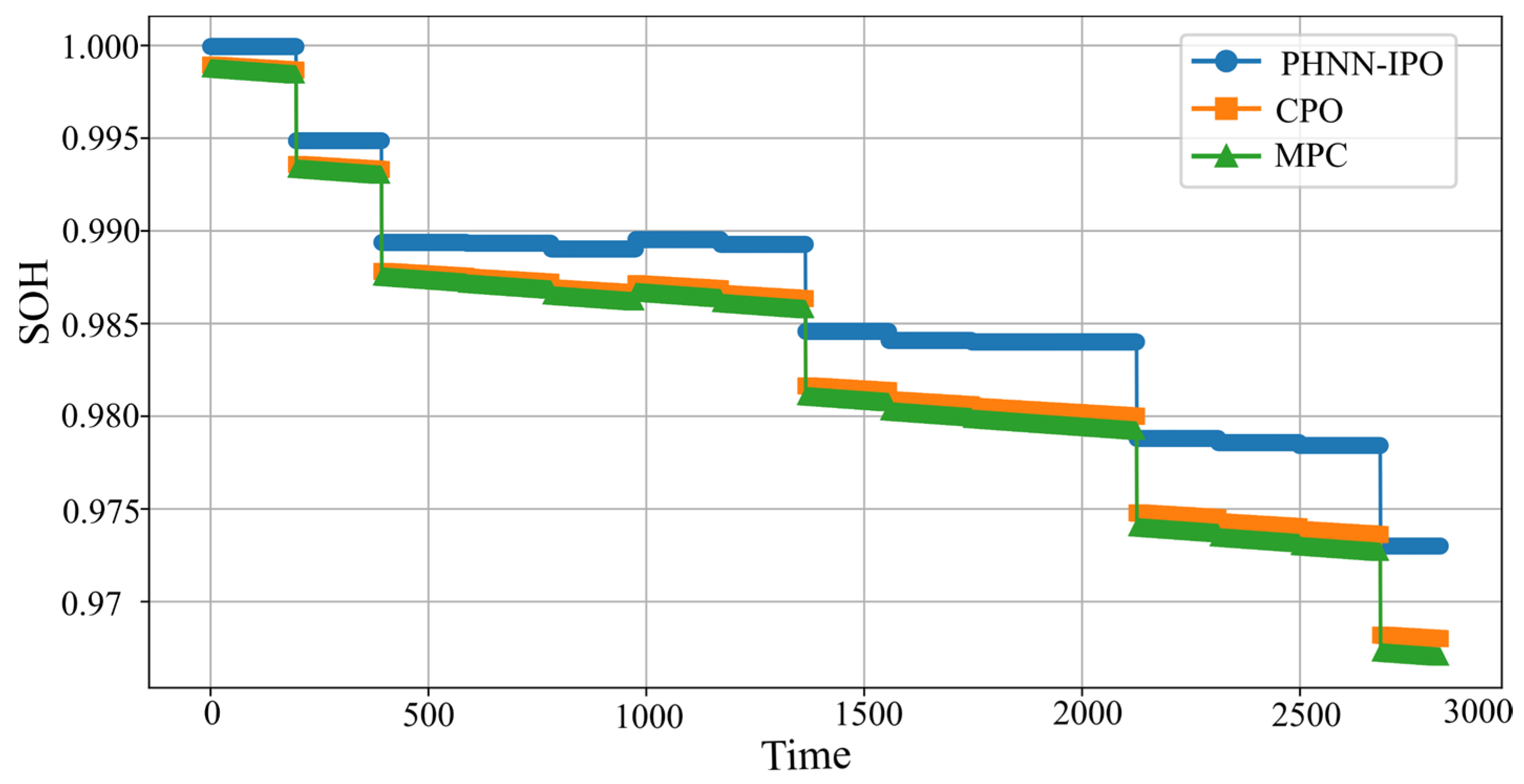

Furthermore, we present dynamic estimation of battery SOH under the PHNN-IPO, CPO, and MPC strategies over 15 consecutive workday charge–discharge cycles, plotting their SOH decline curves on the same axes (
Figure 7). The results show that PHNN-IPO exhibits the slowest degradation, indicating that it can more effectively retard battery aging while balancing user benefits; both CPO and MPC, lacking explicit modeling of battery health, degrade somewhat faster than PHNN-IPO.
