Review

The Symmetry of Viral Sialic Acid Binding Sites–Implications for Antiviral Strategies

1
Interfaculty Institute of Biochemistry, University of Tuebingen, 72076 Tuebingen, Baden-Wuerttemberg, Germany
2
Department of Pediatrics, Vanderbilt University School of Medicine, Nashville, TN 37232, USA
*
Author to whom correspondence should be addressed.
Viruses 2019, 11(10), 947; https://doi.org/10.3390/v11100947
Received: 13 August 2019 / Revised: 2 October 2019 / Accepted: 9 October 2019 / Published: 14 October 2019
(This article belongs to the Special Issue Viral Entry Pathways)

Abstract

Virus infections are initiated by the attachment of the viral particle to protein or carbohydrate receptors on the host cell. Sialic acid-bearing glycan structures are prominently displayed at the cell surface, and, consequently, these structures can function as receptors for a large number of diverse viruses. Structural biology research has helped to establish the molecular bases for many virus–sialic acid interactions. Due to the icosahedral 532 point group symmetry that underlies many viral capsids, the receptor binding sites are frequently arranged in a highly symmetric fashion and linked by five-fold, three-fold, or two-fold rotation axes. For the inhibition of viral attachment, one emerging strategy is based on developing multivalent sialic acid-based inhibitors that can simultaneously engage several of these binding sites, thus binding viral capsids with high avidity. In this review, we will evaluate the structures of non-enveloped virus capsid proteins bound to sialylated glycan receptors and discuss the potential of these structures for the development of potent antiviral attachment inhibitors.
Keywords: sialic acid; non-enveloped viruses; antiviral compounds; multivalency; inhibition sialic acid; non-enveloped viruses; antiviral compounds; multivalency; inhibition

1. Introduction

The cell membranes of eukaryotes are decorated with a large number of chemically and structurally diverse carbohydrates. These so-called glycans form a protective layer at the interface between a cell and its environment. Components of this layer are synthesized and assembled by a large set of enzymes that differ among species, thus helping to provide host-specific glycan structures.
Despite some differences, the carbohydrate building blocks of the glycan layer (monosaccharides) are largely identical in all cases. Commonly found monosaccharides in glycan structures are glucose (Glc), galactose (Gal), their N-acetylated forms N-acetylglucosamine (GlcNAc) and N-acetylgalactosamine (GalNAc), and mannose (Man). These building blocks constitute the bulk of most glycans. However, two particularly important sugar classes are missing here: fucoses and sialic acids. While Glc(-NAc) and Gal(-NAc) are usually components of the scaffold, fucose (Fuc) and sialic acids are often added as head groups to a glycan. While fucose is, for example, an important determinant in histo-blood group antigens (HBGA), sialic acids are major components of the glycan portions of gangliosides and the glycan structures of many membranous proteins in eukaryotes. Sialic acids are based on a nine-carbon acidic α-keto sugar framework (Figure 1). Due to their anionic nature, sialic acids contribute to the negative net charge of the cell surface. Sialic acids are abundant in the animal kingdom and are found in different forms. Their most common form is N-acetylneuraminic acid (Neu5Ac), which also constitutes the chemical basis for other sialic acids. The hydroxylation of the N-acetyl group of Neu5Ac gives rise to N-glycolylneuraminic acid (Neu5Gc), another commonly found sialic acid in animals. While Neu5Gc cannot be synthesized in humans due to a gene defect, humans can acquire this sialic acid through their diet [1]. Additional chemical modifications of Neu5Ac can be introduced at its four hydroxyl groups (O4, O7, O8, and O9), including O-acetylation, O-sulfation, O-methylation, O-lactylation, or O-phosphorylation. In total, over 50 different naturally-occurring sialic acids have been identified [2,3,4]. Sialic acids in glycans occur as the α-anomer and are linked via α-2,3 and α-2,6 glycosidic bonds to scaffold Gal(NAc) or GlcNAc moieties, respectively, or via α-2,8 or α-2,9 glycosidic bonds to other sialic acids. The type and distribution of sialic acids, and their connection to the remaining glycan structure, are highly specific for different tissues and host species. Examples of differences between tissues in the same host can be found in human airways and eyes, where sialic acid is usually linked to other sugars via α-2,6 glycosidic and α-2,3 glycosidic bonds, respectively. In birds, which are important habitats for many viruses, the α-2,3 linkage of sialic acid prevails [5]. However, it should be noted that the type of glycosidic linkage is only one of several determinants of virus and host tropism.
Glycans terminating in sialic acid are prominently expressed at the cell surface. They are, therefore, often easily accessible and serve as the initial contact points for many viruses in different families [6,7]. While some of these glycans function as attachment receptors to simply tether a virus to the target cell membrane, others act as entry receptors and mediate binding of the virus, as well as the delivery of the viral genome into the cytoplasm. In the latter case, the attachment step is often followed by the recruitment of secondary (co-)receptors and endocytosis factors, eventually leading to cell entry of the virus particle or its components and infection of the cell. Among the enveloped viruses that recognize sialic acid-containing receptors are members of the families Coronaviridae, Paramyxoviridae and Orthomyxoviridae [8,9,10,11,12]. In non-enveloped viruses, sialic acid-containing glycans serve as attachment receptors for members of the Parvoviridae, Picornaviridae, Caliciviridae, Polyomaviridae, Reoviridiae, and Adenoviridae [13,14,15,16,17,18,19,20,21,22,23,24,25,26]. Structural biology has provided precise views of how these pathogens interact with sialylated glycans, and although the binding modes differ among the viruses listed above, several common principles have emerged. (i) The viral binding sites for sialylated glycans are typically surface-exposed and feature a small number of contacts. The affinities of the interactions are, therefore, quite low (in the millimolar range) [27,28,29,30]. Firm adhesion of the virus to the cell surface is achieved through the engagement of multiple receptors via identical binding sites, which is known as avidity. (ii) In all cases investigated to date, the sialic acid itself mediates the majority of contacts with the viral capsid, with a smaller number of additional contacts formed to neighboring monosaccharides. (iii) Most viruses are highly specific in the context in which sialic acid is presented; that is, they only recognize sialylated glycans featuring, for example, α-2,3-linked sialic acid but do not engage sialylated glycans carrying α-2,6-linked or α-2,8-linked sialic acid. (iv) Although the database remains small, some viruses can discriminate between the many different modifications of sialic acids, and, as some of these modifications, are species-specific, this phenomenon can contribute to the ability of a virus to only infect species that express a particular sialic acid modification.
The available structural information on virus–receptor interactions is crucial to enable the rational design of therapeutic compounds. Due to the surface-exposed binding mode and the weak individual interactions between sialic acids and their cognate virus proteins, modifying sialic acid to achieve high-affinity binding is challenging. However, viruses possess many identical binding sites that are often linked by symmetry operators, and thus multivalent and symmetric ligands that target several binding sites could result in high-affinity interactions.
The strategy of employing a carbohydrate-based, multivalent, and symmetric inhibitor that matches the symmetry of the binding sites in a multimeric target protein was first applied in the context of the bacterial Shiga-like toxin (SLT). SLT consists of an enzymatic domain A and a pentameric, cell-binding domain B [31]. The crystal structures revealed that the B domain pentamer recognizes the pk trisaccharide portion (αGal1-4βGal1-4βGlc) of its physiologic ganglioside receptor, globotriaosylceramide (Gb3) [32,33]. In order to achieve high affinity binding, Kitov et al. [34] designed the STARFISH compound, a quasi-symmetric, pentavalent molecule with a central glucose motive carrying five linkers that terminate in dimeric pk trisaccharides (Figure 2). X-ray crystallography of the toxin-inhibitor complex revealed a sandwich-like arrangement of two SLT B-pentamers intercepted by one STARFISH molecule. All five B-pentamer binding sites were simultaneously occupied by the inhibitor. In line with this, affinity measurements showed an increase in the inhibition potency from a millimolar affinity for the monovalent receptor (pk trisaccharide) to a subnanomolar affinity for the STARFISH compound. This concept of targeting multiple, symmetric receptor binding sites by multivalent inhibitors is also applicable for many viruses, since viral capsids are often icosahedral and, therefore, highly symmetric structures.

2. Symmetry in Virus Structures and Their Sialic Acid Binding Sites

In this chapter, we will introduce some universal concepts of virus capsid geometry and architecture, focusing in particular on non-enveloped viruses that bind sialic acid-based receptors. We will highlight the local symmetries that relate the sialic acid binding sites in different viral attachment proteins to each other. These local symmetries can serve as a useful framework for the rational design of multivalent virus-targeting inhibitors, similar to the approach used to develop the STARFISH compound. This strategy has been successfully applied to several viruses, as we will show in chapter 3. However, in order to evaluate this approach, we first need to introduce the symmetry elements that guide viral capsid assembly.
Typically, small viral genomes can only encode a low number of structural capsid proteins. These capsid proteins often form multimers (capsomers), which, again, assemble into a stable virus capsid that can house the viral genome and associated components (e.g., nucleoproteins or enzymes). Thus, the assembled virus particles comprise many copies of capsid proteins and display a high (quasi-) symmetry that is often based on an icosahedron [35]. In icosahedral capsids, the particle architecture can be expressed in terms of the triangulation number. An icosahedron is a polyhedron consisting of 20 identical triangular faces that intersect at twelve vertices with five-fold rotational symmetry. Three-fold rotational axes are located in the center of each triangular face. The edges between the faces are intersected by two-fold rotational axes. The combination of these symmetry operations gives rise to the 532 point group of an icosahedron (Figure 3, lower right). In the context of an icosahedral virus particle, the triangulation number (T = h2 + hk + k2) can be interpreted as a measure of capsid size. It is calculated by the numbers of inter-capsomeric steps (iterated in h and k) that one has to traverse via (quasi-) six-fold symmetric capsomers, from one five-fold vertex to another.
The smallest and simplest virus capsids have an architecture corresponding to a triangulation number of T=1. In a T=1 capsid, each of the twelve five-fold symmetric vertices are occupied by a single capsid protein pentamer. Neighboring capsomers are pentamers that are also associated with the five-fold icosahedral vertices. No additional capsomers are present, which gives rise to a total number of 12 × 5 = 60 capsid proteins in the particle. To our knowledge, the only example of a T=1 sialic acid binding capsid is found in the Adeno-associated virus (AAV) of the Parvoviridae family. Sialic acid binding in AAV was reported to occur at the interface between two single capsid protein monomer chains, resulting in a total number of 60 binding sites in the capsid. The symmetry of the local binding site is defined by the shortest distance of a single binding site towards the rotational axis. The AAV capsid proteins that are responsible for sialic acid binding form pentamers. However, the binding sites themselves locate closer to the icosahedral three-fold symmetry axis than the five-fold capsomer/vertex axis. This implies that the 60 sialic acid binding sites of the AAV capsid are arranged in twenty local three-fold rather than twelve local five-fold symmetries [36].
Virus particles comprising more than twelve capsomers must, by definition, have a higher triangulation number than T=1. Picornaviridae family members (such as coxsackieviruses, rhinoviruses, polioviruses, or enteroviruses) are viruses possessing three surface-exposed capsid proteins. The icosahedral five-fold penton positions are occupied by VP1 pentamers, which are bridged by one pseudo-hexon capsomer (VP2-VP3 heterohexamer), giving rise to pseudo-T=3 geometry (Figure 3). In the sialic acid-binding human coxsackievirus, A variant 24 (CVA24v), the binding site is located at the interface of two VP1 protomers, close to the five-fold icosahedral axis. VP2 and VP3 do not bind sialic acid, which results in a total of 60 binding sites, arranged in twelve local five-fold symmetries (Figure 4a) [37]. The distance between an individual sialic acid binding site and the local five-fold rotation axis of the VP1 pentamer amounts to ca. 1.6 nm.
In the members of both Papillomaviridae and Polyomaviridae, single capsid proteins named L1 and VP1, respectively, constitute the outer capsid. Both proteins exclusively form pentamers, which can occupy pentavalent and hexavalent positions in the mature particle, thus deviating from the quasi-equivalence principle proposed by Caspar and Klug in 1962 [35]. Here, a total number of 72 pentameric capsomers are arranged in a T=7d fashion, with a diameter of ca. 50 nm in the mature particles (Figure 3) [38,39,40]. The formation of smaller, non-viable lower-symmetry T=1 virus-like particles (VLPs) has also been described for both papillomaviruses and polyomaviruses [41,42,43]. Many members of the polyomavirus family bind sialic acid-based glycans using their VP1 proteins, so the binding sites on individual pentamers are always linked by local five-fold symmetry (Figure 4a, TSPyV). In all structures of polyomavirus-sialyl-oligosaccharide complexes, the majority of contacts between the protein and receptor can be attributed to sialic acid, with a small number of augmenting contacts to other saccharides providing specificity for a given glycan structure [27,44,45,46,47,48,49,50]. In contrast, papillomaviruses do not bind sialylated receptors, but instead interact with glycosaminoglycans to adhere to cells [51,52,53].
Reoviridae are a large family including, among others, the genera of orthoreoviruses and rotaviruses. Members of the Reoviridae family are double-shelled particles, in which the inner core layer consists of two core proteins arranged in a T=2* order and the outer capsid possesses T=13 geometry [54,55,56]. The diameter of mature virions is about 60–80 nm (Figure 3). In the case of mammalian reoviruses, the icosahedral vertex positions are occupied by the trimeric attachment protein sigma1, which markedly protrudes as a thin fiber from the virion surface. The sigma1 protein is about 50 nm long and has a head-and-tail morphology, with a globular head domain and an elongated tail that has flexible regions and partially inserts into the virion [57]. The location of sialic acid binding is type dependent. Type 1 reoviruses bind sialylated receptors in the protruding head domain while type 3 reoviruses use a binding site in a region near the mid-point of the tail (Figure 4b, ReoV T3D and T1L) [58,59]. Both sites primarily engage sialic acid with a small number of contacts, and in both cases, three-fold rotational symmetry is found between the binding sites within a single sigma1 trimer. Thus, 12 sigma1 trimers give rise to 36 sialic acid binding sites in orthoreoviruses.
Rotaviruses also have protruding domains that recognize carbohydrate receptors, which are also dimers of the virus protein 4 (VP4) [60]. While some of the more pathogenic human viruses bind HBGAs, animal rotaviruses primarily engage sialic acid-based receptors [61,62,63]. Each rotavirus VP4 subunit carries a single sialic acid binding site, which is related to the two-fold rotational symmetry in the dimer (Figure 4a, RRV) [64]. In further contrast to orthoreoviruses, these fibers do not coincide with the five-fold vertices but rather associate at the margins of the five capsomers around the five-fold vertices, resulting in a total number of 60 VP4 dimers and 120 sialic acid binding sites [65].
Adenoviridae members are large viruses with a diameter of about 90 nm and a T=25 icosahedral capsid (Figure 3) [66,67]. They display trimeric fibrous attachment proteins, known as the fiber, at their icosahedral vertices. Similar to the reovirus sigma1, the adenovirus fiber has a head-and-tail morphology and features a globular head domain (the knob) that projects from the virus surface, and a tail (the shaft) that inserts into the virus particle [67]. The sialic acid binding sites of the different structurally characterized adenovirus types are located in the fiber knob domain [26,68]. While these sites differ in location in different adenoviruses, they are all linked by three-fold symmetry and lie in close proximity to each other (Figure 4a, HAdV37 and HAdV52).
Although this review focuses on non-enveloped viruses, it should still be mentioned that some of the concepts described above also apply to enveloped viruses, such as coronaviruses, paramyxoviruses, and orthomyxoviruses. While global symmetry measures for these viruses are elusive (since their attachment proteins are membrane-bound, somewhat mobile, and do not follow easily-appreciated assembly rules), the existing local binding site symmetries within multimeric attachment proteins can still be exploited for rational multivalent inhibitor design. A prominent example is the influenza A virus hemagglutinin, which is a homotrimeric protein bearing three individual sialic acid binding sites [69]. These binding sites are related by local three-fold rotational symmetry, with a distance of 2.5 nm from the three-fold axis (Figure 4a, IAV).

3. Sialic Acid-Based Design of Anti-Viral Compounds

3.1. Monovalency

The sialic acid moieties of glycosylated proteins and/or glycolipids are required for the attachment, entry, and productive infection of many viruses. In the majority of cases, the viral binding sites are surface-exposed and engage terminal sialic acid residues with a range of hydrophilic and hydrophobic contacts. The available structural data for receptor–ligand interactions at an atomic resolution can inform the synthesis of high affinity inhibitors via the chemical modifications of sialic acids. A prominent example of this approach is the inhibition of influenza virus neuraminidases. These enzymes recognize and hydrolyze terminal sialic acids of cell surface glycans and are vital for the release of viral progeny [70,71]. An early non-selective prototype inhibitor of neuraminidases was the sialic acid derivate 2-deoxy-2,3-didehydro-N-acetylneuraminic acid (Neu5Ac2en, DANA) [72,73]. DANA can engage and block the binding sites of neuraminidase of both ortho- and paramyxoviruses, thereby suppressing the activity of these enzymes. In the early 1990s, Mark von Itzstein and colleagues made substantial advances towards selective and highly affine influenza A virus inhibitors. They discovered that the derivatization of the 4-O-hydroxyl group of DANA with a guanidine moiety drastically increases affinity to the influenza A virus neuraminidase, which resulted in the anti-influenza drug Zanamivir [74,75]. Subsequently, the structures of the planar sialic acid transition state during the neuraminidase reaction became available. The analogous compounds of sialic acid’s transition state based on benzoic and shikimic acids, and subsequently the drug Oseltamivir [76,77,78,79], benefit from the increased affinity to neuraminidase compared to the native Neu5Ac structure [80,81]. Unfortunately, the family of compounds related to Zanamivir or Oseltamivir do not act against viruses that do not possess neuraminidase activity but instead engage undistorted sialic acids via a hemagglutinin (e.g., many non-enveloped viruses discussed in chapter 2 of this review). In cases where affinities between sialylated glycans and hemagglutinins have been measured, the interactions were shown to have dissociation constants in the millimolar range [27,28,29,30]. The firm cell attachment of these viruses is usually driven by high avidity, relying on a large number of identical binding sites that can engage receptors.

3.2. Polyvalency

In terms of the inhibition of attachment, monovalent sialic acid analogues are generally poor choices, as they are not able to engage a single binding site in a viral attachment protein with high affinity. Therefore, polyvalent sialic acid-based compounds can sometimes be more effective. In parallel to the development of monovalent sialic acid transition state analogues against the influenza virus neuraminidases, polymeric or nanoparticle based sialic acid conjugates were developed to also prohibit influenza virus infection by extensive binding to the viral hemagglutinin, thereby shielding the virus particle. The influenza virus hemagglutinin can be blocked by multivalent sialosides that vary in chemical composition, size, branching complexity, and ligand density [82,83,84,85,86]. Particularly the effects of the nature of the scaffold (or platform) and spatial sialic acid distribution in polyvalent viral attachment inhibitors are still being investigated [87]. Recently, excellent reviews covering the composition and biophysical properties of multivalent sialosides were published by Bhatia et al. [88] and Lu et al. [89], so we will not discuss this topic further here.

3.3. Oligovalency

Next to the design of monovalent inhibitors or highly complex polyvalent macromolecular structures, a third and rather minimalistic design strategy makes use of the internal symmetry of the addressed targets. As elucidated earlier in this review, many viral attachment proteins employ a local symmetry of their receptor binding sites that represent a convenient framework for the rational design of small, tailored inhibitors. In contrast to monovalent inhibitors, oligovalent compounds can benefit from cooperative binding or avidity. Nevertheless, they are small enough for nephric clearance and display a higher bioavailability than most macromolecular polyvalent structures [90]. The design of oligovalent inhibitors is usually based on available crystal structures, taking the symmetry and topology of the target into account. The accessibility of the individual ligand binding sites and their distances from an eventual symmetry axis should be considered. For binding sites in close proximity to the local symmetry axis, it can be feasible to start from a central molecule, which can be derivatized by ligand terminating linkers, resulting in an inhibitor with a radial structure. For binding sites that are far from the local symmetry axis or in a recessed part of the target protein, it may be viable to directly link ligand molecules to each other instead of using a central scaffold. Direct linking of ligand molecules may eventually result in the design of a circular oligovalent inhibitor. So far, structural information on attachment proteins bound by oligovalent inhibitors is scarce. X-ray crystallography analysis is usually hampered by the high flexibility of spacer groups and scaffolds. These non-binding parts of the inhibitors typically do not assume defined conformations, resulting in weak and uninterpretable electron density. This was the case in the study of the Shiga-like toxin inhibitor STARFISH, described in the introduction of this review, where interpretable electron density was only present for the bound ligand moieties of the compound. Still, the structural characterization of virus-inhibitor interactions in order to design or optimize anti-viral compounds has been the subject of extensive research.
Recently, a research paper by Lu et al. [91] reported on the trivalent design of sialic acid bearing inhibitors against influenza A virus hemagglutinin, showing a greater than 400-fold increase in affinity compared to the monovalent ligand. However, structural data of the interactions between the inhibitor and hemagglutinin were not reported in that study.
One study of a central group-based anti-viral inhibitor, which contains structural data, can be found for adenoviruses. Adenoviridae members carry trimeric fibers terminating in the knob domain, which engages sialic acid-based receptors in some adenoviruses. Human Adenovirus 37 (HAdV37), which causes Epidemic Keratoconjunctivitis (EKC), carries three individual binding sites for sialic acids in its fiber knob, which are located at a distance of 6 Å from the local three-fold symmetric axis (Figure 4a) [68]. The physiologic receptor of HAdV37 is the glycan portion of ganglioside GD1a. This glycan is a branched hexasaccharide with two terminal sialic acid moieties, both of which were shown to simultaneously occupy two of the three available sialic acid binding sites in the same fiber knob [92]. Based on this observation, Spjut et al. (2011) [93] designed and synthesized a symmetric, tridentate sialylated inhibitor, which is capable of occupying all three binding sites of the fiber knob at once. The first generation of these inhibitors was designed around a central tris(2-aminoethyl) amine group. It utilized flexible spacers between the central group and the sialic acid ligand, in order to minimize the chance of steric hindrance of the inhibitor docking. The resulting compounds demonstrated a potency increase of four orders of magnitude compared to monomeric sialic acid [93]. Recently, in the second-generation inhibitors, the binding affinity could be improved even further by using a shorter, triazole-based linker structure, which was based on the results of the first-generation complex structures. The more compact and rigid design resulted in an additional 140-fold increase in potency [29]. The crystal structures of the second-generation inhibitor molecules in a complex with adenovirus fiber knob proteins verify the trivalent binding mode by also displaying the electron density of the linkers (Figure 5a,b, left).
An example of directly-linked ligand moieties was shown in a study of potential polyomavirus inhibitors, in which Baier et al. [94] synthesized so-called divalent sialylated glycooligopeptides. They solved the structures of two glycooligopeptide compounds in a complex with the major capsid protein (VP1) pentamer of the Trichodysplasia spinulosa-associated polyomavirus (TSPyV), which is associated with abnormal skin growth in immunocompromised patients. The VP1 pentamer carries five individual sialic acid binding sites at a distance of 35 Å between neighboring sites [50,94]. The glycooligopeptide-VP1 complex structures displayed a similar ligand binding mode that was reported for sialic acid in an earlier study [50] and showed, for the compounds, that the linker between the ligand and the scaffold occupies the space that is usually targeted by the natural glycan receptor moieties (Figure 5a,b, right). However, the interconnectivity of functional receptors by the scaffold remained undetermined (probably due to their flexibility) and are, therefore, the average of several potential bridging modes on top of the pentamers [94].

4. Conclusions

Many viral lectins or attachment proteins rely on the recognition of sialic acids. Due to the high symmetry of viral particles and the occurrence of local symmetry within commonly multimeric viral proteins, sialic acid binding often occurs in a symmetrical context, too. This symmetry is a convenient framework for the design of tailor-made inhibitory ligands competing with the high avidity of virus–cell interactions. Structural biology techniques, such as X-ray crystallography and single-particle electron cryo-microscopy (cryo-EM), can now tackle the visualization of viral attachment and carbohydrate interactions with unprecedented scope and detail. The resulting structural data can be used for the optimization of anti-viral compounds, which could be developed further into high-affinity drug candidates.
However, challenges in compound design remain. For example, the higher rigidity of a multivalent ligand does not necessarily translate into improved binding. In the case of HAd37, a rigid compound bound 200-fold less well to the fiber knob than a related compound that had higher flexibility [29]. This suggests that the perfect positioning of all sialic acids in the binding site, especially for larger inhibitor molecules, is difficult to achieve, and a certain degree of flexibility might help with the high-affinity binding of the inhibitor.
Another limiting factor for oligovalent inhibitors is the positioning of the binding pockets. In the case of the trivalent adenovirus inhibitor, the binding sites are on the very top of the knob domain, so there is enough space for linkers and a central core (Figure 4a). In contrast, the sialic acid binding sites of the reovirus sigma 1 fibers are located on the side of the protein (Figure 4b), which makes it challenging to design an appropriate oligovalent inhibitor. Additional challenges are the long-term stability, convenient synthesis, and, for later application, reasonable bioavailability of multivalent compounds.

Author Contributions

Conceptualization, N.H.R. and M.S.; writing—original draft preparation, N.H.R., M.S., and T.S.; visualization, N.H.R. and M.S.; supervision, T.S.

Funding

This research was funded by the German Research Foundation (Deutsche Forschungsgemeinschaft, DFG), grant number FOR2327, and the Baden-Württemberg Foundation through the Glycobiology/Glycobiotechnology program.

Acknowledgments

We thank the Swiss Institute of Bioinformatics for the provision of the ExPASy Viralzone and the SCRIPPS institute for the provision of the VIPER data bank—two very helpful resources of virus knowledge. We apologize to our many colleagues whose work could not be discussed and cited here due to space considerations.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Varki, A. N-glycolylneuraminic acid deficiency in humans. Biochimie 2001, 83, 615–622. [Google Scholar] [CrossRef]
  2. Angata, T.; Varki, A. Chemical Diversity in the Sialic Acids and Related α-Keto Acids: An Evolutionary Perspective. Chem. Rev. 2002, 102, 439–470. [Google Scholar] [CrossRef] [PubMed]
  3. Varki, N.M.; Varki, A. Diversity in cell surface sialic acid presentations: Implications for biology and disease. Lab. Investig. 2007, 87, 851–857. [Google Scholar] [CrossRef] [PubMed]
  4. Varki, A.; Schauer, R. Sialic Acids. In Essentials of Glycobiology, 2nd ed.; Varki, A., Cummings, R.D., Esko, J.D., Freeze, H.H., Stanley, P., Bertozzi, C.R., Hart, G.W., Etzler, M.E., Eds.; Cold Spring Harbor Laboratory Press: New York, NY, USA, 2009; Volume 1, pp. 199–217. [Google Scholar]
  5. Kumlin, U.; Olofsson, S.; Dimock, K.; Arnberg, N. Sialic acid tissue distribution and influenza virus tropism. Influ. Other Respir. Viruses 2008, 2, 147–154. [Google Scholar] [CrossRef] [PubMed]
  6. Shanker, S.; Hu, L.; Ramani, S.; Atmar, R.L.; Estes, M.K.; Prasad, B.V.V. Structural features of glycan recognition among viral pathogens. Curr. Opin. Struct. Biol. 2017, 44, 211–218. [Google Scholar] [CrossRef] [PubMed]
  7. Ströh, L.J.; Stehle, T. Glycan Engagement by Viruses: Receptor Switches and Specificity. Annu. Rev. Virol. 2014, 1, 285–306. [Google Scholar] [CrossRef]
  8. Vlasak, R.; Luytjes, W.; Spaan, W.; Palese, P. Human and bovine coronaviruses recognize sialic acid-containing receptors similar to those of influenza C viruses. Proc. Natl. Acad. Sci. USA 1988, 85, 4526–4529. [Google Scholar] [CrossRef]
  9. Schwegmann-Weßels, C.; Herrler, G. Sialic acids as receptor determinants for coronaviruses. Glycoconj. J. 2006, 23, 51–58. [Google Scholar] [CrossRef]
  10. Villar, E.; Barroso, I.M. Role of sialic acid-containing molecules in paramyxovirus entry into the host cell: A minireview. Glycoconj. J. 2006, 23, 5–17. [Google Scholar] [CrossRef]
  11. Weis, W.; Brown, J.H.; Cusack, S.; Paulson, J.C.; Skehel, J.J.; Wiley, D.C. Structure of the influenza virus haemagglutinin complexed with its receptor, sialic acid. Nature 1988, 333, 426–431. [Google Scholar] [CrossRef]
  12. Suzuki, Y.; Ito, T.; Suzuki, T.; Holland, R.E.; Chambers, T.M.; Kiso, M.; Ishida, H.; Kawaoka, Y. Sialic Acid Species as a Determinant of the Host Range of Influenza A Viruses. J. Virol. 2000, 74, 11825–11831. [Google Scholar] [CrossRef] [PubMed]
  13. Walters, R.W.; Yi, S.M.P.; Keshavjee, S.; Brown, K.E.; Welsh, M.J.; Chiorini, J.A.; Zabner, J. Binding of Adeno-associated Virus Type 5 to 2,3-Linked Sialic Acid Is Required for Gene Transfer. J. Biol. Chem. 2001, 276, 20610–20616. [Google Scholar] [CrossRef] [PubMed]
  14. Kaludov, N.; Brown, K.E.; Walters, R.W.; Zabner, J.; Chiorini, J.A. Adeno-Associated Virus Serotype 4 (AAV4) and AAV5 Both Require Sialic Acid Binding for Hemagglutination and Efficient Transduction but Differ in Sialic Acid Linkage Specificity. J. Virol. 2001, 75, 6884–6893. [Google Scholar] [CrossRef] [PubMed]
  15. Alexander, D.A.; Dimock, K. Sialic Acid Functions in Enterovirus 70 Binding and Infection. J. Virol. 2002, 76, 11265–11272. [Google Scholar] [CrossRef] [PubMed]
  16. Mistry, N.; Inoue, H.; Jamshidi, F.; Storm, R.J.; Oberste, M.S.; Arnberg, N. Coxsackievirus A24 Variant Uses Sialic Acid-Containing O-Linked Glycoconjugates as Cellular Receptors on Human Ocular Cells. J. Virol. 2011, 85, 11283–11290. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, Y.; Sheng, J.; Baggen, J.; Meng, G.; Xiao, C.; Thibaut, H.J.; Van Kuppeveld, F.J.M.; Rossmann, M.G. Sialic acid-dependent cell entry of human enterovirus D68. Nat. Commun. 2015, 6, 8865. [Google Scholar] [CrossRef]
  18. Tan, M.; Wei, C.; Huang, P.; Fan, Q.; Quigley, C.; Xia, M.; Fang, H.; Zhang, X.; Zhong, W.; Klassen, J.S.; et al. Tulane virus recognizes sialic acids as cellular receptors. Sci. Rep. 2015, 5, 11784. [Google Scholar] [CrossRef]
  19. Liu, C.K.; Wei, G.; Atwood, W.J. Infection of Glial Cells by the Human Polyomavirus JC Is Mediated by an N-Linked Glycoprotein Containing Terminal α(2-6)-Linked Sialic Acids. J. Virol. 1998, 72, 4643–4649. [Google Scholar]
  20. Tsai, B.; Gilbert, J.M.; Stehle, T.; Lencer, W.; Benjamin, T.L.; Rapoport, T.A. Gangliosides are receptors for murine polyoma virus and SV40. EMBO J. 2003, 22, 4346–4355. [Google Scholar] [CrossRef]
  21. Low, J.A.; Magnuson, B.; Tsai, B.; Imperiale, M.J. Identification of Gangliosides GD1b and GT1b as Receptors for BK Virus. J. Virol. 2006, 80, 1361–1366. [Google Scholar] [CrossRef]
  22. Erickson, K.D.; Garcea, R.L.; Tsai, B. Ganglioside GT1b Is a Putative Host Cell Receptor for the Merkel Cell Polyomavirus. J. Virol. 2009, 83, 10275–10279. [Google Scholar] [CrossRef] [PubMed]
  23. Paul, R.W.; Choi, A.H.; Lee, P.W. The α-anomeric form of sialic acid is the minimal receptor determinant recognized by reovirus. Virology 1989, 172, 382–385. [Google Scholar] [CrossRef]
  24. Ciarlet, M.; Ludert, J.E.; Iturriza-Gómara, M.; Liprandi, F.; Gray, J.J.; Desselberger, U.; Estes, M.K. Initial Interaction of Rotavirus Strains with N-Acetylneuraminic (Sialic) Acid Residues on the Cell Surface Correlates with VP4 Genotype, Not Species of Origin. J. Virol. 2002, 76, 4087–4095. [Google Scholar] [CrossRef] [PubMed]
  25. Arnberg, N.; Edlund, K.; Kidd, A.H.; Wadell, G. Adenovirus Type 37 Uses Sialic Acid as a Cellular Receptor. J. Virol. 2000, 74, 42–48. [Google Scholar] [CrossRef]
  26. Lenman, A.; Liaci, A.M.; Liu, Y.; Årdahl, C.; Rajan, A.; Nilsson, E.; Bradford, W.; Kaeshammer, L.; Jones, M.S.; Frängsmyr, L.; et al. Human Adenovirus 52 Uses Sialic Acid-containing Glycoproteins and the Coxsackie and Adenovirus Receptor for Binding to Target Cells. PLOS Pathog. 2015, 11, e1004657. [Google Scholar] [CrossRef]
  27. Neu, U.; Woellner, K.; Gauglitz, G.; Stehle, T. Structural basis of GM1 ganglioside recognition by simian virus 40. Proc. Natl. Acad. Sci. USA 2008, 105, 5219–5224. [Google Scholar] [CrossRef]
  28. Buch, M.H.C.; Liaci, A.M.; O’Hara, S.D.; Garcea, R.L.; Neu, U.; Stehle, T. Structural and Functional Analysis of Murine Polyomavirus Capsid Proteins Establish the Determinants of Ligand Recognition and Pathogenicity. PLOS Pathog. 2015, 11, e1005104. [Google Scholar] [CrossRef]
  29. Saleeb, M.; Liaci, A.M.; Storm, R.J.; Frängsmyr, L.; Qian, W.; Caraballo, R.; Bauer, J.; Chandra, N.; Stehle, T.; Arnberg, N.; et al. Triazole linker-based trivalent sialic acid inhibitors of adenovirus type 37 infection of human corneal epithelial cells. Org. Biomol. Chem. 2015, 13, 9194–9205. [Google Scholar]
  30. Sauter, N.K.; Bednarski, M.D.; Wurzburg, B.A.; Hanson, J.E.; Whitesides, G.M.; Skehel, J.J.; Wiley, D.C. Hemagglutinins from two influenza virus variants bind to sialic acid derivatives with millimolar dissociation constants: A 500-MHz proton nuclear magnetic resonance study. Biochemistry 1989, 28, 8388–8396. [Google Scholar] [CrossRef]
  31. Merritt, E.A.; Hol, W.G. AB5 toxins. Curr. Opin. Struct. Biol. 1995, 5, 165–171. [Google Scholar] [CrossRef]
  32. Waddell, T.; Head, S.; Petric, M.; Cohen, A.; Lingwood, C. Globotriosyl ceramide is specifically recognized by the escherichia coli verocytotoxin 2. Biochem. Biophys. Res. Commun. 1988, 152, 674–679. [Google Scholar] [CrossRef]
  33. Ling, H.; Boodhoo, A.; Hazes, B.; Cummings, M.D.; Armstrong, G.D.; Brunton, J.L.; Read, R.J. Structure of the Shiga-like Toxin I B-Pentamer Complexed with an Analogue of Its Receptor Gb3. Biochemistry 1998, 37, 1777–1788. [Google Scholar] [CrossRef] [PubMed]
  34. Kitov, P.I.; Sadowska, J.M.; Mulvey, G.; Armstrong, G.D.; Ling, H.; Pannu, N.S.; Read, R.J.; Bundle, D.R. Shiga-like toxins are neutralized by tailored multivalent carbohydrate ligands. Nature 2000, 403, 669–672. [Google Scholar] [CrossRef] [PubMed]
  35. Caspar, D.L.D.; Klug, A. Physical Principles in the Construction of Regular Viruses. Cold Spring Harb. Symp. Quant. Biol. 1962, 27, 1–24. [Google Scholar] [CrossRef]
  36. Huang, L.-Y.; Patel, A.; Ng, R.; Miller, E.B.; Halder, S.; McKenna, R.; Asokan, A.; Agbandje-McKenna, M. Characterization of the Adeno-Associated Virus 1 and 6 Sialic Acid Binding Site. J. Virol. 2016, 90, 5219–5230. [Google Scholar] [CrossRef]
  37. Zocher, G.; Mistry, N.; Frank, M.; Hähnlein-Schick, I.; Ekström, J.-O.; Arnberg, N.; Stehle, T. A Sialic Acid Binding Site in a Human Picornavirus. PLOS Pathog. 2014, 10, 1004401. [Google Scholar] [CrossRef]
  38. Modis, Y.; Trus, B.L.; Harrison, S.C. Atomic model of the papillomavirus capsid. EMBO J. 2002, 21, 4754–4762. [Google Scholar] [CrossRef]
  39. Rayment, I.; Baker, T.S.; Caspar, D.L.D.; Murakami, W.T. Polyoma virus capsid structure at 22.5. A resolution. Nature 1982, 295, 110–115. [Google Scholar] [CrossRef]
  40. Liddington, R.C.; Yan, Y.; Moulai, J.; Sahli, R.; Benjamin, T.L.; Harrison, S.C. Structure of simian virus 40 at 3.8-Å resolution. Nature 1991, 354, 278–284. [Google Scholar] [CrossRef]
  41. Chen, X.S.; Garcea, R.L.; Goldberg, I.; Casini, G.; Harrison, S.C. Structure of Small Virus-like Particles Assembled from the L1 Protein of Human Papillomavirus 16. Mol. Cell 2000, 5, 557–567. [Google Scholar] [CrossRef]
  42. Salunke, D.; Caspar, D.; Garcea, R. Polymorphism in the assembly of polyomavirus capsid protein VP1. Biophys. J. 1989, 56, 887–900. [Google Scholar] [CrossRef]
  43. Nilsson, J.; Miyazaki, N.; Xing, L.; Wu, B.; Hammar, L.; Li, T.C.; Takeda, N.; Miyamura, T.; Cheng, R.H. Structure and Assembly of a T = 1 Virus-Like Particle in BK Polyomavirus. J. Virol. 2005, 79, 5337–5345. [Google Scholar] [CrossRef] [PubMed]
  44. Stehle, T.; Harrison, S.C. High-resolution structure of a polyomavirus VP1-oligosaccharide complex: Implications for assembly and receptor binding. EMBO J. 1997, 16, 5139–5148. [Google Scholar] [CrossRef] [PubMed]
  45. Neu, U.; Maginnis, M.S.; Palma, A.S.; Ströh, L.J.; Nelson, C.D.; Feizi, T.; Atwood, W.J.; Stehle, T. Structure-function analysis of the human JC polyomavirus establishes the LSTc pentasaccharide as a functional receptor motif. Cell Host Microbe 2010, 8, 309–319. [Google Scholar] [CrossRef] [PubMed]
  46. Neu, U.; Hengel, H.; Blaum, B.S.; Schowalter, R.M.; Macejak, D.; Gilbert, M.; Wakarchuk, W.W.; Imamura, A.; Ando, H.; Kiso, M.; et al. Structures of Merkel Cell Polyomavirus VP1 Complexes Define a Sialic Acid Binding Site Required for Infection. PLOS Pathog. 2012, 8, e1002738. [Google Scholar] [CrossRef] [PubMed]
  47. Neu, U.; Allen, S.-A.A.; Blaum, B.S.; Liu, Y.; Frank, M.; Palma, A.S.; Ströh, L.J.; Feizi, T.; Peters, T.; Atwood, W.J.; et al. A Structure-Guided Mutation in the Major Capsid Protein Retargets BK Polyomavirus. PLOS Pathog. 2013, 9, e1003688. [Google Scholar] [CrossRef]
  48. Neu, U.; Khan, Z.M.; Schuch, B.; Palma, A.S.; Liu, Y.; Pawlita, M.; Feizi, T.; Stehle, T. Structures of B-Lymphotropic Polyomavirus VP1 in Complex with Oligosaccharide Ligands. PLOS Pathog. 2013, 9, e1003714. [Google Scholar] [CrossRef]
  49. Khan, Z.M.; Liu, Y.; Neu, U.; Gilbert, M.; Ehlers, B.; Feizi, T.; Stehle, T. Crystallographic and Glycan Microarray Analysis of Human Polyomavirus 9 VP1 Identifies N-Glycolyl Neuraminic Acid as a Receptor Candidate. J. Virol. 2014, 88, 6100–6111. [Google Scholar] [CrossRef]
  50. Ströh, L.J.; Gee, G.V.; Blaum, B.S.; Dugan, A.S.; Feltkamp, M.C.W.; Atwood, W.J.; Stehle, T. Trichodysplasia spinulosa-Associated Polyomavirus Uses a Displaced Binding Site on VP1 to Engage Sialylated Glycolipids. PLOS Pathog. 2015, 11, e1005112. [Google Scholar] [CrossRef]
  51. Joyce, J.G.; Tung, J.-S.; Przysiecki, C.T.; Cook, J.C.; Lehman, E.D.; Sands, J.A.; Jansen, K.U.; Keller, P.M. The L1 Major Capsid Protein of Human Papillomavirus Type 11 Recombinant Virus-like Particles Interacts with Heparin and Cell-surface Glycosaminoglycans on Human Keratinocytes. J. Biol. Chem. 1999, 274, 5810–5822. [Google Scholar] [CrossRef]
  52. Giroglou, T.; Florin, L.; Schäfer, F.; Streeck, R.E.; Sapp, M. Human Papillomavirus Infection Requires Cell Surface Heparan Sulfate. J. Virol. 2001, 75, 1565–1570. [Google Scholar] [CrossRef] [PubMed]
  53. Spoden, G.; Kühling, L.; Cordes, N.; Frenzel, B.; Sapp, M.; Boller, K.; Florin, L.; Schelhaas, M. Human Papillomavirus Types 16, 18, and 31 Share Similar Endocytic Requirements for Entry. J. Virol. 2013, 87, 7765–7773. [Google Scholar] [CrossRef] [PubMed]
  54. Metcalf, P.; Cyrklaff, M.; Adrian, M. The three-dimensional structure of reovirus obtained by cryo-electron microscopy. EMBO J. 1991, 10, 3129–3136. [Google Scholar] [CrossRef] [PubMed]
  55. Reinisch, K.M.; Nibert, M.L.; Harrison, S.C. Structure of the reovirus core at 3.6? Å resolution. Nature 2000, 404, 960–967. [Google Scholar] [CrossRef] [PubMed]
  56. McClain, B.; Settembre, E.; Temple, B.R.; Bellamy, A.R.; Harrison, S.C. X-ray crystal structure of the rotavirus inner capsid particle at 3.8 a resolution. J. Mol. Biol. 2010, 397, 587–599. [Google Scholar] [CrossRef]
  57. Furlong, D.B.; Nibert, M.L.; Fields, B.N. Sigma 1 protein of mammalian reoviruses extends from the surfaces of viral particles. J. Virol. 1988, 62, 246–256. [Google Scholar]
  58. Reiss, K.; Stencel, J.E.; Liu, Y.; Blaum, B.S.; Reiter, D.M.; Feizi, T.; Dermody, T.S.; Stehle, T. The GM2 Glycan Serves as a Functional Coreceptor for Serotype 1 Reovirus. PLOS Pathog. 2012, 8, 1003078. [Google Scholar] [CrossRef]
  59. Reiter, D.M.; Frierson, J.M.; Halvorson, E.E.; Kobayashi, T.; Dermody, T.S.; Stehle, T. Crystal structure of reovirus attachment protein sigma1 in complex with sialylated oligosaccharides. PLoS Pathog. 2011, 7, e1002166. [Google Scholar] [CrossRef]
  60. Shaw, A.; Rothnagel, R.; Chen, D.; Ramig, R.; Chiu, W.; Prasad, B. Three-dimensional visualization of the rotavirus hemagglutinin structure. Cell 1993, 74, 693–701. [Google Scholar] [CrossRef]
  61. Fukudome, K.; Yoshie, O.; Konno, T. Comparison of human, simian, and bovine rotaviruses for requirement of sialic acid in hemagglutination and cell adsorption. Virology 1989, 172, 196–205. [Google Scholar] [CrossRef]
  62. Isa, P.; Arias, C.F.; Lopez, S. Role of sialic acids in rotavirus infection. Glycoconj. J. 2006, 23, 27–37. [Google Scholar] [CrossRef] [PubMed]
  63. Haselhorst, T.; Fleming, F.E.; Dyason, J.C.; Hartnell, R.D.; Yu, X.; Holloway, G.; Santegoets, K.; Kiefel, M.J.; Blanchard, H.; Coulson, B.S.; et al. Sialic acid dependence in rotavirus host cell invasion. Nat. Chem. Biol. 2009, 5, 91–93. [Google Scholar] [CrossRef] [PubMed]
  64. Dormitzer, P.R.; Sun, Z.J.; Wagner, G.; Harrison, S.C. The rhesus rotavirus VP4 sialic acid binding domain has a galectin fold with a novel carbohydrate binding site. EMBO J. 2002, 21, 885–897. [Google Scholar] [CrossRef] [PubMed]
  65. Settembre, E.C.; Chen, J.Z.; Dormitzer, P.R.; Grigorieff, N.; Harrison, S.C. Atomic model of an infectious rotavirus particle. EMBO J. 2011, 30, 408–416. [Google Scholar] [CrossRef] [PubMed]
  66. Burnett, R.M.; Grütter, M.G.; White, J.L. The structure of the adenovirus capsid. J. Mol. Biol. 1985, 185, 105–123. [Google Scholar] [CrossRef]
  67. Stewart, P.L.; Burnett, R.M.; Cyrklaff, M.; Fuller, S.D. Image reconstruction reveals the complex molecular organization of adenovirus. Cell 1991, 67, 145–154. [Google Scholar] [CrossRef]
  68. Burmeister, W.P.; Guilligay, D.; Cusack, S.; Wadell, G.; Arnberg, N. Crystal Structure of Species D Adenovirus Fiber Knobs and Their Sialic Acid Binding Sites. J. Virol. 2004, 78, 7727–7736. [Google Scholar] [CrossRef]
  69. Xu, R.; Ekiert, D.C.; Krause, J.C.; Hai, R.; Crowe, J.E.; Wilson, I.A. Structural basis of preexisting immunity to the 2009 H1N1 pandemic influenza virus. Science 2010, 328, 357–360. [Google Scholar] [CrossRef]
  70. Seto, J.; Rott, R. Functional significance of sialidase during influenza virus multiplication. Virology 1966, 30, 731–737. [Google Scholar] [CrossRef]
  71. Seto, J.T.; Chang, F.S. Functional Significance of Sialidase during Influenza Virus Multiplication: An Electron Microscope Study. J. Virol. 1969, 4, 58–66. [Google Scholar]
  72. Meindl, P.; Bodo, G.; Palese, P.; Schulman, J.; Tuppy, H. Inhibition of neuraminidase activity by derivatives of 2-deoxy-2,3-dehydro-N-acetylneuraminic acid. Virology 1974, 58, 457–463. [Google Scholar] [CrossRef]
  73. Palese, P.; Schulman, J.; Bodo, G.; Meindl, P. Inhibition of influenza and parainfluenza virus replication in tissue culture by 2-deoxy-2,3-dehydro-N-trifluoroacetylneuraminic acid (FANA). Virology 1974, 59, 490–498. [Google Scholar] [CrossRef]
  74. Von Itzstein, M.; Wu, W.Y.; Kok, G.B.; Pegg, M.S.; Dyason, J.C.; Jin, B.; Van Phan, T.; Smythe, M.L.; White, H.F.; Oliver, S.W.; et al. Rational design of potent sialidase-based inhibitors of influenza virus replication. Nature 1993, 363, 418–423. [Google Scholar] [CrossRef] [PubMed]
  75. Woods, J.M.; Bethell, R.C.; A Coates, J.; Healy, N.; A Hiscox, S.; A Pearson, B.; Ryan, D.M.; Ticehurst, J.; Tilling, J.; Walcott, S.M. 4-Guanidino-2,4-dideoxy-2,3-dehydro-N-acetylneuraminic acid is a highly effective inhibitor both of the sialidase (neuraminidase) and of growth of a wide range of influenza A and B viruses in vitro. Antimicrob. Agents Chemother. 1993, 37, 1473–1479. [Google Scholar] [CrossRef]
  76. Singh, S.; Jedrzejas, M.J.; Air, G.M.; Luo, M.; Laver, W.G.; Brouillette, W.J. Structure-Based Inhibitors of Influenza Virus Sialidase. A Benzoic Acid Lead with Novel Interaction. J. Med. Chem. 1995, 38, 3217–3225. [Google Scholar] [CrossRef]
  77. Williams, M.; Bischofberger, N.; Swaminathan, S.; Kim, C.U. Synthesis and influenza neuraminidase inhibitory activity of aromatic analogs of sialic-acid. Bioorganic Med. Chem. Lett. 1995, 5, 2251–2254. [Google Scholar] [CrossRef]
  78. Kim, C.U.; Lew, W.; Williams, M.A.; Liu, H.; Zhang, L.; Swaminathan, S.; Bischofberger, N.; Chen, M.S.; Mendel, D.B.; Tai, C.Y.; et al. Influenza Neuraminidase Inhibitors Possessing a Novel Hydrophobic Interaction in the Enzyme Active Site: Design, Synthesis, and Structural Analysis of Carbocyclic Sialic Acid Analogues with Potent Anti-Influenza Activity. J. Am. Chem. Soc. 1997, 119, 681–690. [Google Scholar] [CrossRef]
  79. Bianco, A.; Brufani, M.; Manna, F.; Melchioni, C. Synthesis of a carbocyclic sialic acid analogue for the inhibition of influenza virus neuraminidase. Carbohydr. Res. 2001, 332, 23–31. [Google Scholar] [CrossRef]
  80. Chong, A.K.J.; Pegg, M.S.; Taylor, N.R.; Itzstein, M. Evidence for a sialosyl cation transition-state complex in the reaction of sialidase from influenza virus. JBIC J. Biol. Inorg. Chem. 1992, 207, 335–343. [Google Scholar] [CrossRef]
  81. Von Itzstein, M.; Dyason, J.C.; Oliver, S.W.; White, H.F.; Wu, W.Y.; Kok, G.B.; Pegg, M.S. A study of the active site of influenza virus sialidase: An approach to the rational design of novel anti-influenza drugs. J. Med. Chem. 1996, 39, 388–391. [Google Scholar] [CrossRef]
  82. Spaltenstein, A.; Whitesides, G.M. Polyacrylamides bearing pendant α-sialoside groups strongly inhibit agglutination of erythrocytes by influenza-virus. J. Am. Chem. Soc. 1991, 113, 686–687. [Google Scholar] [CrossRef]
  83. Mammen, M.; Dahmann, G.; Whitesides, G.M. Effective inhibitors of hemagglutination by influenza virus synthesized from polymers having active ester groups. Insight into mechanism of inhibition. J. Med. Chem. 1995, 38, 4179–4190. [Google Scholar] [CrossRef] [PubMed]
  84. Choi, S.K.; Mammen, M.; Whitesides, G.M. Generation and in situ evaluation of libraries of poly(acrylic acid) presenting sialosides as side chains as polyvalent inhibitors of influenza-mediated hemagglutination. J. Am. Chem. Soc. 1997, 119, 4103–4111. [Google Scholar] [CrossRef]
  85. Reuter, J.D.; Myc, A.; Hayes, M.M.; Gan, Z.; Roy, R.; Qin, D.; Yin, R.; Piehler, L.T.; Esfand, R.; Tomalia, D.A.; et al. Inhibition of Viral Adhesion and Infection by Sialic-Acid-Conjugated Dendritic Polymers. Bioconjugate Chem. 1999, 10, 271–278. [Google Scholar] [CrossRef] [PubMed]
  86. Gambaryan, A.S.; Tuzikov, A.B.; A Chinarev, A.; Juneja, L.R.; Bovin, N.V.; Matrosovich, M.N. Polymeric inhibitor of influenza virus attachment protects mice from experimental influenza infection. Antivir. Res. 2002, 55, 201–205. [Google Scholar] [CrossRef]
  87. Bhatia, S.; Lauster, D.; Bardua, M.; Ludwig, K.; Angioletti-Uberti, S.; Popp, N.; Hoffmann, U.; Paulus, F.; Budt, M.; Stadtmüller, M.; et al. Linear polysialoside outperforms dendritic analogs for inhibition of influenza virus infection in vitro and in vivo. Biomaterials 2017, 138, 22–34. [Google Scholar] [CrossRef]
  88. Bhatia, S.; Camacho, L.C.; Haag, R. Pathogen Inhibition by Multivalent Ligand Architectures. J. Am. Chem. Soc. 2016, 138, 8654–8666. [Google Scholar] [CrossRef]
  89. Lu, W.; Pieters, R.J. Carbohydrate–protein interactions and multivalency: Implications for the inhibition of influenza A virus infections. Expert Opin. Drug Discov. 2019, 14, 387–395. [Google Scholar] [CrossRef]
  90. Haraldsson, B.; Nystrom, J.; Deen, W.M. Properties of the Glomerular Barrier and Mechanisms of Proteinuria. Physiol. Rev. 2008, 88, 451–487. [Google Scholar] [CrossRef]
  91. Lu, W.; Du, W.; Somovilla, V.J.; Yu, G.; Haksar, D.; De Vries, E.; Boons, G.-J.; De Vries, R.P.; De Haan, C.A.M.; Pieters, R.J. Enhanced Inhibition of Influenza A Virus Adhesion by Di- and Trivalent Hemagglutinin Inhibitors. J. Med. Chem. 2019, 62, 6398–6404. [Google Scholar] [CrossRef]
  92. Nilsson, E.C.; Storm, R.J.; Bauer, J.; Johansson, S.M.; Lookene, A.; Ångström, J.; Hedenström, M.; Eriksson, T.L.; Frängsmyr, L.; Rinaldi, S.; et al. The GD1a glycan is a cellular receptor for adenoviruses causing epidemic keratoconjunctivitis. Nat. Med. 2011, 17, 105–109. [Google Scholar] [CrossRef] [PubMed]
  93. Spjut, S.; Qian, W.; Bauer, J.; Storm, R.; Frängsmyr, L.; Stehle, T.; Arnberg, N.; Elofsson, M. A Potent Trivalent Sialic Acid Inhibitor of Adenovirus Type 37 Infection of Human Corneal Cells. Angew. Chem. Int. Ed. 2011, 50, 6519–6521. [Google Scholar] [CrossRef] [PubMed]
  94. Baier, M.; Rustmeier, N.H.; Harr, J.; Cyrus, N.; Reiss, G.J.; Grafmüller, A.; Blaum, B.S.; Stehle, T.; Hartmann, L. Divalent Sialylated Precision Glycooligomers Binding to Polyomaviruses and the Effect of Different Linkers. Macromol. Biosci. 2019, 19, e1800426. [Google Scholar] [CrossRef] [PubMed]

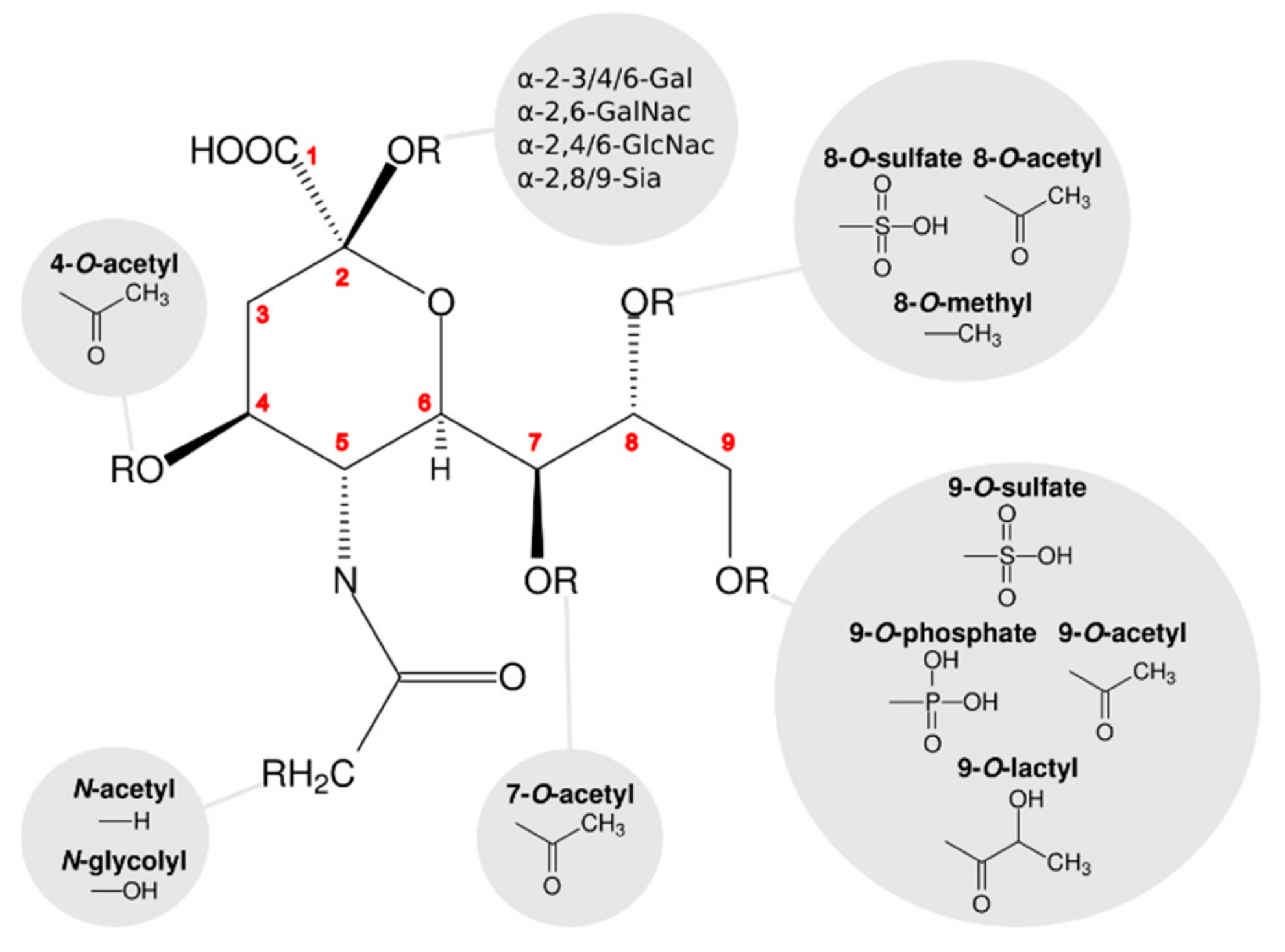

Figure 1. Schematic of sialic acid variants. The N-acetylneuraminic acid (Neu5Ac) scaffold provides the chemical basis for numerous naturally occurring modifications in sialic acids.
Figure 1. Schematic of sialic acid variants. The N-acetylneuraminic acid (Neu5Ac) scaffold provides the chemical basis for numerous naturally occurring modifications in sialic acids.
Viruses 11 00947 g001

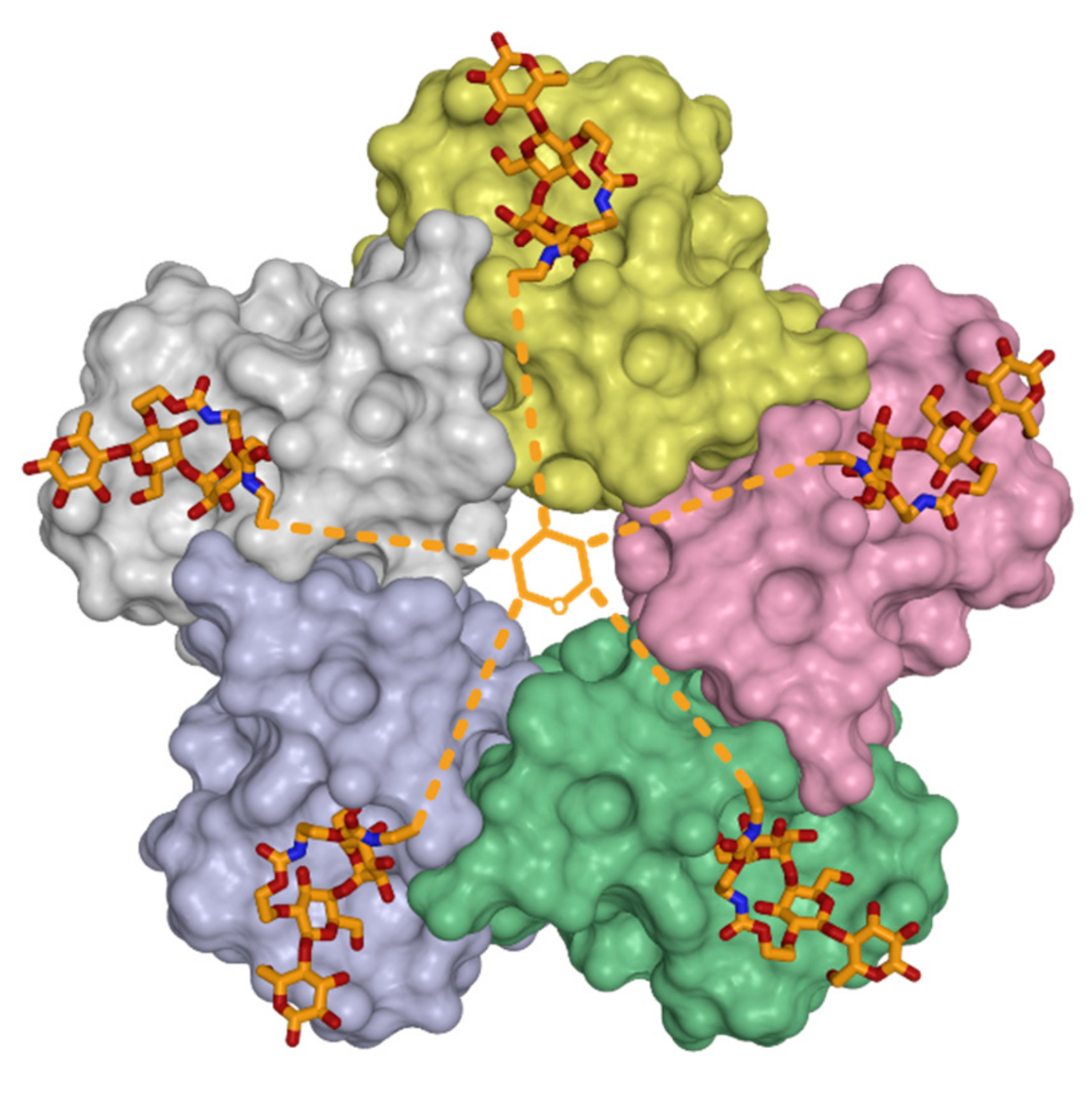

Figure 2. An example of a tailored multivalent inhibitor. The globotriaosylceramide-binding B-subunit of Shiga-like toxin (SLT) forms pentamers and serves as target for the pentavalent inhibitory compound STARFISH, which has been functionalized with the pk trisaccharide. The STARFISH compound exploits the symmetric structure of its target and binds to SLT with a subnanomolar affinity [34]. The SLT pentamer is shown as a protein surface with single protomers colored in grey, yellow, pink, green, and light blue, respectively. The STARFISH compound is shown in stick representation with carbon, nitrogen and oxygen atoms colored in orange, dark blue and red, respectively. Missing parts of the scaffold structure are schematically indicated as orange lines (PDB ID 1qnu). All protein representations in the figures of this review were generated using PyMOL (Schrödinger Inc.).
Figure 2. An example of a tailored multivalent inhibitor. The globotriaosylceramide-binding B-subunit of Shiga-like toxin (SLT) forms pentamers and serves as target for the pentavalent inhibitory compound STARFISH, which has been functionalized with the pk trisaccharide. The STARFISH compound exploits the symmetric structure of its target and binds to SLT with a subnanomolar affinity [34]. The SLT pentamer is shown as a protein surface with single protomers colored in grey, yellow, pink, green, and light blue, respectively. The STARFISH compound is shown in stick representation with carbon, nitrogen and oxygen atoms colored in orange, dark blue and red, respectively. Missing parts of the scaffold structure are schematically indicated as orange lines (PDB ID 1qnu). All protein representations in the figures of this review were generated using PyMOL (Schrödinger Inc.).
Viruses 11 00947 g002
Figure 3. Representation of the architecture and symmetry of a selection of non-enveloped, sialic acid binding viruses. Particle illustrations are sorted by descending virion diameter, disregarding any protruding domains or fibers. The views are positioned along the icosahedral two-fold axes. Five-fold vertices and the associated capsid proteins are highlighted in blue. A schematic view of an icosahedron in the same orientation is shown on the lower right, with two-fold, three-fold and five-fold axes indicated as ellipse, triangle and pentagon, respectively. PDB IDs 6b1t (adenovirus), 2cse (orthoreovirus), 3kz4 (rotavirus), 1sid (polyomavirus), and 4q4w (coxsackievirus).
Figure 3. Representation of the architecture and symmetry of a selection of non-enveloped, sialic acid binding viruses. Particle illustrations are sorted by descending virion diameter, disregarding any protruding domains or fibers. The views are positioned along the icosahedral two-fold axes. Five-fold vertices and the associated capsid proteins are highlighted in blue. A schematic view of an icosahedron in the same orientation is shown on the lower right, with two-fold, three-fold and five-fold axes indicated as ellipse, triangle and pentagon, respectively. PDB IDs 6b1t (adenovirus), 2cse (orthoreovirus), 3kz4 (rotavirus), 1sid (polyomavirus), and 4q4w (coxsackievirus).
Viruses 11 00947 g003

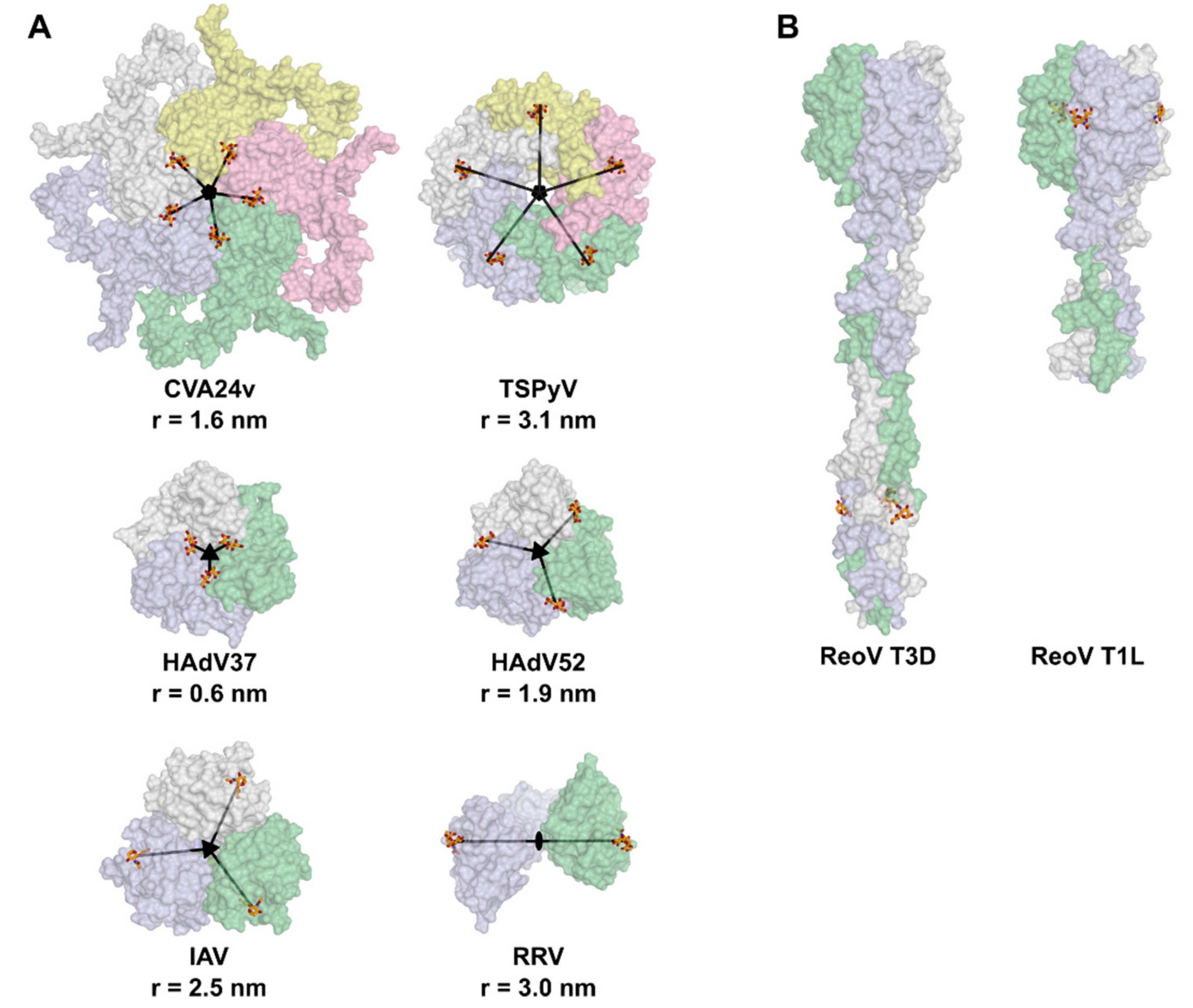

Figure 4. The symmetry relation of sialic acid binding sites in viral attachment factors. (A) Five-fold rotational binding site symmetry occurs in the attachment proteins of coxsackievirus A24 variant (CVA24v) and polyomaviruses, represented by the Trichodysplasia spinulosa-associated polyomavirus (TSPyV) VP1. Three-fold symmetry axes are found within the arrangement of sialic acid binding sites in human adenoviruses 37 (HAdV37) and 52 (HAdV52), as well as in the hemagglutinin of influenza-A virus (IAV). Rhesus rotavirus (RRV) lectins are dimers of a protruding VP4 domain with a two-fold sialic acid site rotational symmetry. The radii between the rotational axes and the binding sites are included. (B) In the human reoviruses (ReoV) of the type 3 (strain Dearing, T3D) and type 1 (strain Lang, T1L) fiber protein sigma1, the sialic acid sites display three-fold symmetry. However, their positions at the sides of the protein render them poorly useable for symmetric ligands, as exceedingly long linkers would be required to connect the sialic acid moieties. Single protomers of the attachment proteins are shown in distinct colors, respectively. PDB IDs 4q4x (coxsackievirus), 4u60 (polyomavirus), 1uxa (adenovirus 37), 6g47 (adenovirus 52), 3ubj (influenza A virus), 1kqr (rotavirus), 3s6x (reovirus T3D), and 4gu3 (reovirus T1L).
Figure 4. The symmetry relation of sialic acid binding sites in viral attachment factors. (A) Five-fold rotational binding site symmetry occurs in the attachment proteins of coxsackievirus A24 variant (CVA24v) and polyomaviruses, represented by the Trichodysplasia spinulosa-associated polyomavirus (TSPyV) VP1. Three-fold symmetry axes are found within the arrangement of sialic acid binding sites in human adenoviruses 37 (HAdV37) and 52 (HAdV52), as well as in the hemagglutinin of influenza-A virus (IAV). Rhesus rotavirus (RRV) lectins are dimers of a protruding VP4 domain with a two-fold sialic acid site rotational symmetry. The radii between the rotational axes and the binding sites are included. (B) In the human reoviruses (ReoV) of the type 3 (strain Dearing, T3D) and type 1 (strain Lang, T1L) fiber protein sigma1, the sialic acid sites display three-fold symmetry. However, their positions at the sides of the protein render them poorly useable for symmetric ligands, as exceedingly long linkers would be required to connect the sialic acid moieties. Single protomers of the attachment proteins are shown in distinct colors, respectively. PDB IDs 4q4x (coxsackievirus), 4u60 (polyomavirus), 1uxa (adenovirus 37), 6g47 (adenovirus 52), 3ubj (influenza A virus), 1kqr (rotavirus), 3s6x (reovirus T3D), and 4gu3 (reovirus T1L).
Viruses 11 00947 g004

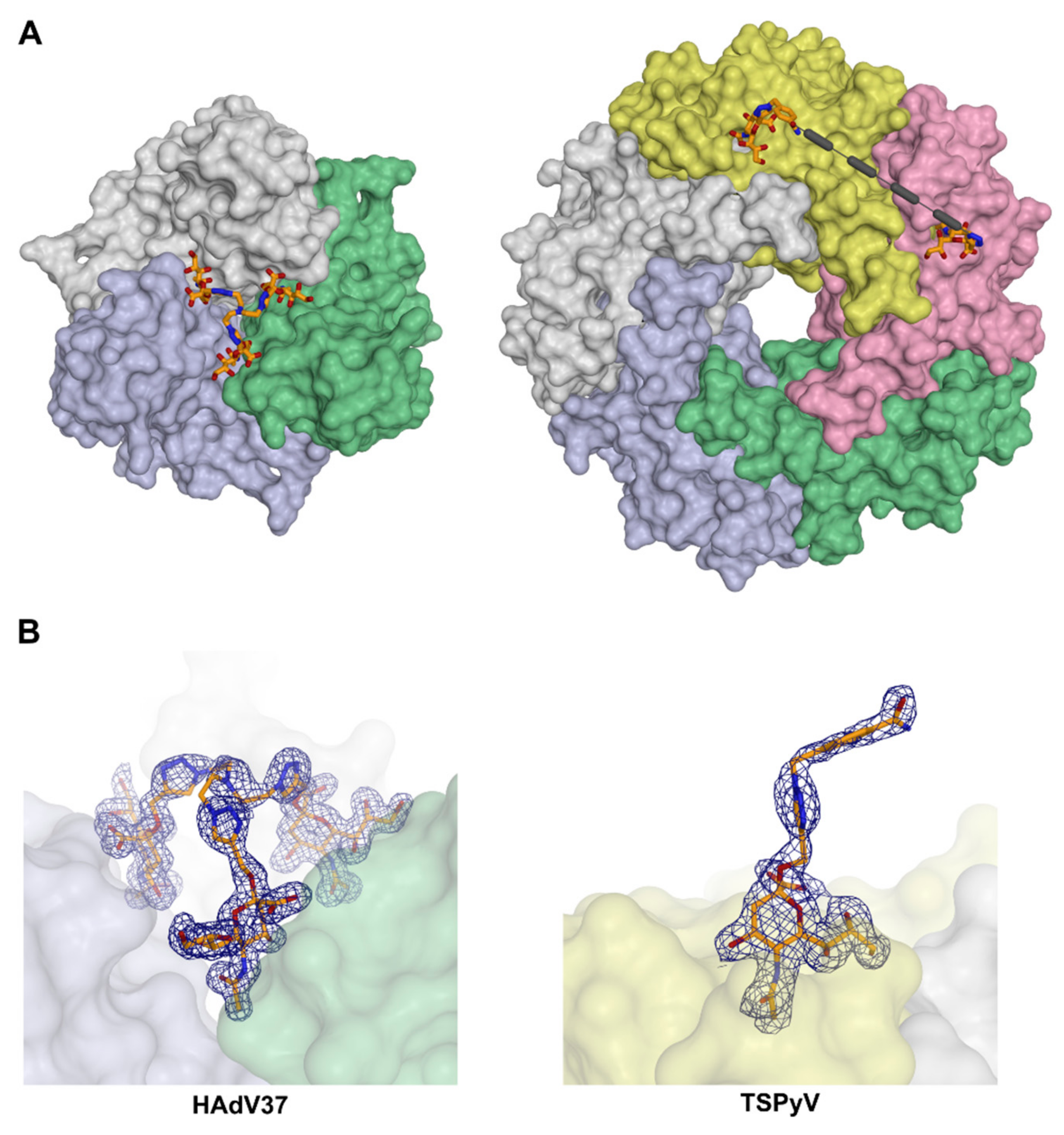

Figure 5. Sialic acid based anti-viral compounds. (A) Structure of the HAd37 fiber knob in a complex with a trivalent scaffold functionalized with sialic acid (left) and the structure of the Trichodysplasia spinulosa-associated Polyomavirus (TSPyV) VP1 pentamer in a complex with a divalent sialic acid-presenting compound (right). For simplification, the compound is only depicted in two of the five binding sites of the TSPyV VP1, although it is present in the other three, as well. Absent parts of the ligand backbone structure are represented with dashed lines. (B) Corresponding electron densities for the ligands shown above. Proteins are depicted as surfaces with distinctly colored single protomers and organic compounds in stick representation, respectively. The electron density 2Fo-Fc maps are represented as blue meshes and displayed at a level of 1 σ (standard deviation of the mean) and a radius of 1.6 Å around the respective ligand. PDB IDs 4xqa (adenovirus 37) and 6hkv (polyomavirus).
