Forests 2019, 10(9), 746; https://doi.org/10.3390/f10090746

Article
Combination of Multi-Temporal Sentinel 2 Images and Aerial Image Based Canopy Height Models for Timber Volume Modelling
1
Department of Biometrics, Forest Research Institute (FVA) of Baden-Württemberg, Wonnhaldestr. 4, D-79100 Freiburg, Germany
2
Norwegian Institute of Bioeconomy Research (NIBIO), Høgskoleveien 8, 1433 Ås, Norway
*
Authors to whom correspondence should be addressed.
Received: 16 July 2019 / Accepted: 28 August 2019 / Published: 30 August 2019

Abstract

:
Multi-temporal Sentinel 2 optical images and 3D photogrammetric point clouds can be combined to enhance the accuracy of timber volume models on large spatial scale. Information on the proportion of broadleaf and conifer trees improves timber volume models obtained from 3D photogrammetric point clouds. However, the broadleaf-conifer information cannot be obtained from photogrammetric point clouds alone. Furthermore, spectral information of aerial images is too inconsistent to be used for automatic broadleaf-conifer classification over larger areas. In this study we combined multi-temporal Sentinel 2 optical satellite images, 3D photogrammetric point clouds from digital aerial stereo photographs, and forest inventory plots representing an area of 35,751 km2 in south-west Germany for (1) modelling the percentage of broadleaf tree volume (BL%) using Sentinel 2 time series and (2) modelling timber volume per hectare using 3D photogrammetric point clouds. Forest inventory plots were surveyed in the same years and regions as stereo photographs were acquired (2013–2017), resulting in 11,554 plots. Sentinel 2 images from 2016 and 2017 were corrected for topographic and atmospheric influences and combined with the same forest inventory plots. Spectral variables from corrected multi-temporal Sentinel 2 images were calculated, and Support Vector Machine (SVM) regressions were fitted for each Sentinel 2 scene estimating the BL% for corresponding inventory plots. Variables from the photogrammetric point clouds were calculated for each inventory plot and a non-linear regression model predicting timber volume per hectare was fitted. Each SVM regression and the timber volume model were evaluated using ten-fold cross-validation (CV). The SVM regression models estimating the BL% per Sentinel 2 scene achieved overall accuracies of 68%–75% and a Root Mean Squared Error (RMSE) of 21.5–26.1. The timber volume model showed a RMSE% of 31.7%, a mean bias of 0.2%, and a pseudo-R2 of 0.64. Application of the SVM regressions on Sentinel 2 scenes covering the state of Baden-Württemberg resulted in predictions of broadleaf tree percentages for the entire state. These predicted values were used as additional predictor in the timber volume model, allowing for predictions of timber volume for the same area. Spatially high-resolution information about growing stock is of great practical relevance for forest management planning, especially when the timber volume of a smaller unit is of interest, for example of a forest stand or a forest district where not enough terrestrial inventory plots are available to make reliable estimations. Here, predictions from remote-sensing based models can be used. Furthermore, information about broadleaf and conifer trees improves timber volume models and reduces model errors and, thereby, prediction uncertainties.
Keywords:
remote sensing; satellite images; time series; digital aerial stereo photographs; 3D point clouds; tree genera classification; forest inventory data; forest management plans

1. Introduction

Information about timber volume and its distribution over forested area is an important prerequisite for forest management planning. For this purpose, forest inventories are usually conducted, where trees are measured in sample plots, and properties, such as timber volume per hectare, are calculated for each sample plot.
Since many years, remote sensing techniques such as airborne light detection and ranging (LiDAR) or aerial stereo photographs have been studied to obtain vegetation height [1,2,3,4,5,6], and to estimate timber volume or other forest properties in regression models [1,5,6,7,8]. These models can be applied to the entire area for which a model is representative and for which the remote sensing data are available, resulting in area wide predictions of, for example, timber volume. This becomes particularly relevant when the timber volume of a smaller unit is of interest, for example of a forest stand or a forest district where not enough inventory plots are available to make reliable estimations [9,10].
The information about broadleaf and conifer trees improves timber volume modelling and reduces model errors and, thereby, prediction uncertainties (e.g., [8,11]). While there are several approaches to classify broadleaf and conifer trees, or even tree species using airborne LiDAR data (e.g., [12,13,14,15,16]), optical data (e.g., [17,18,19,20,21]), or a combination of both [22,23,24,25,26,27], these approaches are impractical for larger areas and reoccurring applications. LiDAR based approaches require either re-occurring surveys in leaf-on and leaf-off season to capture the difference between deciduous trees in summer and winter, or a very high point density to capture geometrical features of trees and their branches, which can be used for classifying broadleaf and conifer trees. However, LiDAR data collection is expensive and takes much time for large areas and at high point densities. Therefore, it is not feasible for large areas and regular, re-occurring surveying. Collection of optical data from aerial photography is less expensive compared to LiDAR data, but over larger areas the collection of this data takes much time as well. During large-area surveys, where it takes weeks or months to collect the data, development states of vegetation change affecting their spectral reflectance. Also, during data collection solar angles and solar radiation intensity changes, causing shadowing and affecting the illumination of the surface and, thereby, altering the spectral reflectance. Furthermore, modern cameras automatically adjust for situations with different illumination intensities to enhance contrasts, making it impossible to correct for the effects of varying illumination.
In contrast, satellite images cover large areas in very short time, do not have shadowing issues due to their perspective and coarser pixel size, and can be corrected for topographic and atmospheric influences. Satellite optical data have been successfully used in studies for classification of tree species [17,20,21,28] with overall accuracies exceeding 80%. Sentinel 2 images are available since 2015 and are collected by two satellites, resulting in a revisiting time of five days. The spectral bands of sentinel 2 images cover wavelengths relevant for vegetation analyses ranging from visible to red-edge, near infrared, and short-wave infrared with a ground resolution of 10 and 20 m (see Table A1 in Appendix A). The novelty of this data at this resolution is its free availability, offering a better alternative for spectral analyses and broadleaf-conifer classification compared to aerial photographs.
Forest management planning usually occurs regularly and on larger areas. To support forest management with remote sensing techniques on a regular basis, the availability of the remote sensing data must be guaranteed. The collection of aerial stereo photographs is less expensive compared to the collection of airborne LiDAR data, and can be used to compute 3D photogrammetric point clouds containing height information of the surfaces. Due to these limitations, many administrative bodies opt for using 3D photogrammetric point clouds to achieve regular and complete coverage of their geographic area.
The objectives of this study were to (1) model the percentage of broadleaf tree volume (BL%) using multi-temporal optical Sentinel 2 satellite images and forest inventory plots on a large and diverse geographic region in south-west Germany, and (2) model timber volume using 3D photogrammetric point clouds and forest inventory plots for the same area. This model can subsequently be applied for the entire area where the remote sensing data are available to produce spatially high-resolution growing stock data which is of great relevance for forest management planning, particularly for the assessment of standing volume of smaller units like stands by small area estimation procedures.

2. Materials and Methods

In the following we describe the data sets and the processing steps in subsections. Figure 1 depicts the data set and the processing steps in a flow chart.

2.1. Study Site and Reference Data

The federal state of Baden-Württemberg in the south-west of Germany with an area of 35,751 km2 (Figure 2a) was used as study site. This comprises diverse topographic conditions with altitudes ranging from 87 m above sea level in the Rhine valley to 1493 m above sea level in the Black Forest mountain range. Therefore, the forest varies greatly in terms of tree species composition and is dominated by Norway spruce (Picea abies L., 34%), beech (Fagus sylvatica L., 21.8%), fir (Abies alba Mill., 8%), oak (Quercus sp. Thunb., 7.1%), pine (Pinus sylvatica L., 5.6%), ash (Fraxinus excelsior L., 4.9%), maple (Acer pseudoplatanus L., 3.7%), and Douglas fir (Pseudotsuga menziesii Mirb., 3.4%).
The forest area in this state comprises 1,371,886 ha. This area divides into state forest (23.6% or 323,765 ha of the total forest area), communal forest (40% or 548,754 ha), and private forest (35.9% or 492,507 ha). In this study, only data from state and communal forest was used, which together encompasses 872,519 ha forest. In this forest area 86,388 forest inventory plots of the forest enterprise inventories were located, which were surveyed between 2012–2107 (Figure 2b). The forest enterprise inventories use a systematic sampling design with a regular grid, aligned with the Gauss-Krüger coordinate system, of 100 m × 200 m for larger forest estates (>200 ha), whereas for smaller ones a grid of 100 m × 100 m is used to ensure sufficient number of plots (Figure 2c). The plots were geolocated by the field crews using a Global Navigation Satellite System (GNSS) device. During the terrestrial survey GNSS consumer-devices were used for locating sample plots, as their accuracy (5 m to 9 m) is considered sufficient for both installing new sample locations as well as for finding the center of existing sample plots in case of repeated measurement. Each circular plot has a radius of 12 m and is divided into three concentric circles with radius 3 m, 6 m, and 12 m. Diameter at breast height (1.3 m above ground) was measured by tape for all trees with diameter larger than 10 cm and smaller than 15 cm in the 3 m circle, trees with diameter larger than 15 cm and smaller than 30 cm were measured in the 6 m circle and only trees larger than 30 cm were measured in the 12 m circle. For each sample tree, azimuth and distance to the plot center, as well as species was recorded, amongst other variables. For height measurements, field crews used Vertex hypsometers (manufactured by HAGLÖF SWEDEN AB, Klockargatan 8, 882 30 Långsele, Sweden) with ultra-sonic measurement of the horizontal distance. Accuracy strongly depends on stand conditions (density, visibility of the tree tops) and is expected to vary between 1 m to 2 m for conifers (taller than 20 m). With deciduous tree species height measurements are less accurate due to crown morphology, namely with broadly spreading crowns, and may vary between 2 m and 4 m. As tree height measurement in the field is rather time-consuming these measurements were restricted to a subset of the trees: trees are assigned to specific species-groups and for each species group one or two well visible sample trees are selected for height measurement. Height imputation for trees without height measurement is based on the height-diameter relationship represented by species-specific uniform height-curves which are calibrated at sample level by means of the measured heights, similar as described in [29].
From all inventory plots, only full plots (452 m2) were used. Plots cut off by intersecting borders such as forest roads or forest borders, were discarded. Also, plots in which forest management activities were conducted since the last inventory were removed. Furthermore, to detect errors in the data related to geolocation of inventory plots or in the 3D point clouds, maximum and mean heights from the inventory data and from the 3D point clouds were compared using linear models. For this purpose, all points from the 3D point cloud falling into the inventory plots were extracted, and maximum and mean heights for each plot were calculated. Linear models were fitted with maximum and mean height from the inventory data as response, and maximum and mean height from 3D point cloud values as predictor variables. 95% prediction intervals were calculated from these models, and all plots outside the 95% prediction intervals were removed. From this set of inventory plots two subsets were selected; for modelling BL% using Sentinel 2 data, all plots from the years 2013–2017 were used resulting in 24,788 plots (Figure 3a); for modelling timber volume using 3D photogrammetric point clouds from aerial stereo images, only those plots were selected, that were located in areas where aerial stereo photographs were collected in the same year as the forest inventory data, resulting in 11,554 plots (Figure 3b).
Forest management plans are updated every ten years by forest experts appraising forest stands in the field. These forest stands were used as an independent data set to evaluate the performance of the BL% modelling. Forest stands, for which only broadleaf or only conifer trees were recorded, were selected, resulting in 13,778 stands with mean size of 1.42 ha.

2.2. Remote Sensing Data

2.2.1. Sentinel 2 Satellite Images

The two Sentinel 2 satellites are equipped with multispectral sensors, which detect a broad electromagnetic spectrum (443 nm to 2202 nm) in 13 bands (Table A1 in Appendix A). Three of these bands (1: coastal aerosol, 9: water vapour, and 10: short-wave infrared (SWIR) cirrus) are used for measuring atmospheric properties, and in this study were only used for atmospheric correction of the images. Sentinel 2 (S2) images acquired between January 2016 and April 2017 were downloaded through the Copernicus Open Access Hub (https://scihub.copernicus.eu/) as top of atmosphere (TOA) reflectance images (named level 1C products). Only S2 scenes with less than 5% cloud cover were downloaded and visually inspected for their suitability. The spectral bands that were used for modelling BL% are available in 10 m and 20 m resolution (Table A1 in Appendix A). Nine S2 tiles were necessary to cover the study area (Figure 3b). For each S2 tile, scenes from multiple dates were downloaded to depict the vegetation over various stages during the vegetation period. For one tile scenes from seven dates were used for development of the method, and for the remaining tiles scenes from four dates were initially downloaded. The program sen2cor (http://step.esa.int/main/third-party-plugins-2/sen2cor/) was used to perform topographic and atmospheric corrections to obtain bottom of the atmosphere (BOA) reflectance images (named level 2A products). The standard settings of sen2cor were applied, and the 90 m Shuttle Radar Topography Mission (SRTM) digital terrain model (DTM) was used for topographic correction. Details for this process can be found in [30]. All 20 m bands were resampled to 10 m resolution and saved as GeoTIFF files.

2.2.2. Aerial Image Based Canopy Height Model

The federal state of Baden-Württemberg in south-west Germany is surveyed in a three years cycle to obtain full coverage with aerial stereo photographs. In this study we used digital aerial stereo images acquired during these regular aerial surveys of the Baden-Württemberg land surveying authority (LGL). The aerial imagery is characterised by a forward overlap of 60%, side overlap of 30%, and a nominal ground resolution of 20 cm. The images were acquired by large size digital aerial matrix cameras (UltraCam Eagle, UltraCam SXp, UltraCam Eagle Prime, Ultracam Falcon (Vexcel Imaging GmbH, Graz, Austria) and DMC II (Leica Geosystems AG, Heerbrugg, Switzerland)) in 20 survey flights in June 2012, July 2013, May and June 2014, May–July 2015, and June–August 2016 (Figure 3b). The images were recorded with four spectral bands (red (R), green (G), blue (B), and near infrared (NIR)), and a focal length between 79.8 mm and 100.5 mm. According to LGL, the orientation accuracy after aerotriangulation was between 0.03 m and 0.05 m in planimetric coordinates (x and y) and between 0.06 m and 0.14 m in height (z) on control points. The data delivery from LGL included the imagery and an Inpho project file that comprised the exterior and interior orientation, ready to be used for subsequent photogrammetric processing. In addition, a high quality DTM with 1 m resolution was also provided by LGL. The DTM was derived from airborne laser scanning (ALS) data collected between 2001 and 2005, with an approximate point density of 0.8 points per square meter. The nominal height accuracy of this ALS-DTM reported by LGL is 0.5 m or better [31].
A high resolution (0.4 m) 3D point cloud was generated from the stereo images in a dense image matching process using the software SURE of nFrames [32]. Image matching was performed based on stereo image pairs and the results of multiple stereo pairs were subsequently fused [33]. The implemented matching algorithm is a modification of the semi-global matching (SGM) algorithm proposed by [34]. The software’s default parameter set for aerial images of the given overlap was used. Following adaptions were made according to the experience of the research team with image matching for forest areas: triangulation will accept a maximum angle of 99 and a minimum of 1 detections per cell. The interpolation for the extraction of a regular gridded point cloud was done with inverse distance weighted. A detailed description of the matching algorithm implemented in SURE can be found in [35].
After point cloud extraction, all points identified as outliers were eliminated from each cloud. These outliers were identified in two steps. The first step considered the maximum tree height at the study site and the ALS-DTM available as reference. All points with elevations of 55 m and more above, and 1 m and more below the DTM, were regarded outliers and excluded from the point cloud. The upper threshold was based on the assumption that trees in this area are usually not taller than 55 m. The lower threshold allowed for some height inaccuracy in the point cloud. Within the second step noise reduction was performed by removing isolated points (n < 40) within a 3D box of 10 m in x and y and 4 m in height.
A standard process was applied to generate a canopy height model (CHM) from each filtered point cloud. First, a raster digital surface model (DSM) with spatial resolution of 1 m (equivalent to the resolution of the ALS-DTM) was derived from each point cloud using the software LAStools [36]. Each DSM pixel value was determined by the elevation of the highest point within the planimetric pixel extent (1 m2). In areas without matching points, the pixel values were calculated via Triangular Irregular Network (TIN) streaming [37]. The CHMs with 1 m resolution were obtained by subtracting the ALS-DTM from the photogrammetric DSMs.

2.3. SVM Regression Modelling of Percentage of Broadleaf Trees (BL%) Using Sentinel 2 Data

In a first step, level 2A S2 data was prepared for the subsequent classification. S2 pixels representing areas covered by snow were identified by the pixel values of bands 4 (red, values larger than 1000) and 12 (SWIR, values smaller than 700) and filled in with the values of the next scene in the time series. Atmospherically and topographically corrected, cloud- and snow-free S2 band values were centered by subtracting the corresponding band means and scaled by dividing the centered bands by their standard deviation using the R function scale from the raster package [38]. Subsequently, a principal component analysis (PCA) was conducted on all (resampled) 10 m bands. To reduce the amount of data to be processed, only every 20th pixel was used for calculating the PCA. PCA was performed in R [38] using the function prcomp from the stats package.
In the second step, SVM Regression models were built for each S2 tile separately using the corresponding forest inventory plots. The variable BL% in the forest inventory data was used as response variable. As predictor variables all those PCA components were used that were needed to explain 90% of the variance. Therefore, the number of predictors for each model may vary. In this study we used a ε-SVM Regression with a RBF (radial basis function) kernel from the R-package “kernlab”. Two parameters were specified for this model: sigma as parameter for the RBF kernel, and the penalty factor C. These were optimized using the “train” function in the R-package “caret”. For ε the default value of 0.1 were used.
On one S2 tile (32UMV) all combinations of 1 to 7 scenes were used for modelling BL% to assess how many observations in the time series resulted in the highest accuracies. The combination resulting in the best model was chosen and transferred to the remaining S2 tiles. If in one S2 tile not all scenes could be used due to cloud coverage, the model was fitted without that scene.

2.4. Validation of SVM Regression Models

Models were evaluated based on RMSE from a tenfold cross validation using the forest inventory plots. Each model fitted for a S2 tile was validated separately with corresponding inventory plots. Since the reference data were circular plots, which overlapped with S2 pixels to varying degrees, weighted means of the pixel values intersecting the plots were calculated. Additionally, model predictions for the entire area were evaluated. For this purpose, model predictions were aggregated for each inventory plot and categorized into three classes (broadleaf trees: >80% broadleaf trees; mixed forest: <80% broadleaf trees and >20% conifers; conifers: <20% broadleaf trees). A confusion matrix was built, and accuracies were calculated.
Furthermore, the independent data set obtained from the forest management plans and consisting of forest stands containing only one tree species each was used to evaluate predictions for the entire area. All pixels with model predictions falling completely inside a polygon were aggregated for each forest stand polygon and categorized into the same three classes as above. This way the class of each forest stand polygon was compared to only one predicted value. A confusion matrix was built, and the predicted classes were then compared to the tree species documented in the forest management plans.

2.5. Mapping Percentage of Broadleaf Trees

Each model of the tenfold cross validation was used to make a prediction on the complete area. The results of these ten predictions were averaged for each pixel and thus give the final predictive value. In overlapping areas between the granules, the model with the better average RMSE value was used.

2.6. Regression Modelling of Timber Volume Using 3D Metrics from Photogrammetric Point Clouds

For each inventory plot, 25 plot-based descriptive metrics were calculated from the extracted CHM and DTM pixels. Those were 18 metrics related to canopy height—5th (p5), 10th (p10), 15th (p15), 20th (p20), 25th (p25), 50th (p50), 75th (p75), 80th (p80), 85th (p85), 90th (p90), 95th (p95), and 99th (p99) percentiles, arithmetic mean (CHMmean), minimum (CHMmin), maximum (CHMmax), standard deviation (CHMsd), variance (CHMvar), coefficient of variation (CHMcv), which are commonly used in other studies (e.g., [39,40]). One variable related to canopy cover and calculated as the percentage of CHM pixels ≥ 6 m (CHMcc). And six variables related to terrain—minimum (DTMmin), mean (DTMmean), and maximum (DTMmax) height above sea level, standard deviation (DTMsd), variance (DTMvar), and coefficient of variation (DTMcv) of the height above sea level. For model fitting, the information about BL% in each plot was obtained from the forest inventory survey.
In total, 26 metrics including BL% were used for timber volume modelling. Some of these metrics were highly correlated and a correlation analysis was conducted to avoid collinearity. Metrics that were correlated (Pearson) by more than 80% to each other were carefully examined and the metric that was most correlated with timber volume was kept.
Non-linear logistic regression models (Table 1 Equation (1)), proposed by [41] were fitted to the data set, and various combinations of the predictor variables selected in the correlation analysis were tested. As noted in [40]: “This logistic regression model should not be confused with the binomial or multinomial logistic regression models that are often used with categorical data”. An advantage of this type of model is that the predictions are non-negative and are constrained by the upper horizontal asymptote βK+2, which is estimated from the sample data. Also, linear models were tested, and nonlinearity in the data was handled by adding some of the predictor metrics additionally as squared terms to the models, and by transforming the response variable.
For each model, root mean square error percent (RMSE%) and bias% (Table 1) of model predictions were estimated for each fold in a 10-fold cross-validation. For each model, RMSE% and bias% values from each fold were averaged. Additionally, standard deviation of bias% from each fold was calculated. Several models with varying combinations of predictive metrics selected in the correlation analysis were tested and the model with lowest RMSE% was chosen as best model.

2.7. Application of Timber Volume Model

After model development we applied the model for the entire forest area for which the auxiliary remote sensing data was available, i.e., the entire federal state of Baden-Württemberg. For the entire area we calculated all predictor variables based on the CHM and DTM for 20 m by 20 m raster cells corresponding to the area of the forest inventory plots. Predicted BL% from the SVM model was resampled to the same resolution as the CHM, and then aggregated to 20 m by 20 m pixels as well. We then applied the regression model with the smallest RMSE% on each raster cell, resulting in timber volume predictions for the entire area.
For 100 forest departments (a forest department consists of several stands and is a spatial administrative level in German forest management) in an area in the south-west of the state we aggregated predicted timber volume. Minimum, mean, and maximum area of these 100 forest departments were 10 ha, 32 ha, and 91 ha, respectively. Only pixels with predicted timber volume were used, that fell completely inside each forest district polygon to avoid edge effects. Mean timber volume and standard errors for each forest department were calculated using simple random sampling (SRS) with available forest inventory plots and model assisted (MA) small area estimation techniques [42]. Equations are displayed in Table 1, Equations (7–10). MA estimators use both models based on auxiliary data and SRS reference data. Estimates are expected to perform better compared to pure SRS estimates, since in MA estimation model predictions are used for all units where no sample plots are available, and available SRS reference data is used to correct for prediction errors to ensure unbiased estimates.

3. Results

3.1. SVM Regression for Percentage of Broadleaf Trees

The BL% models showed accuracies of 68%–75%. The results showed that by increasing the temporal resolution the performance of the models improved (data not shown). Especially with the use of two, three and four scenes the prediction errors decreased drastically, whereas the use of additional scenes beyond four only allowed for minor improvements. The averaged RMSE of the models ranged from 21.5 for tile 32UNV to 26.1 for tile 32UNU. The best model in terms of RMSE was calibrated with three S2 scenes. Comparably good results were achieved by the combination of four scenes. The number and dates of the scenes used in the final models together with their RMSE values are shown in Table 2. As many PCA components were used as predictors as were necessary to explain 90% of the variation in the images. Therefore, the number of predictor variables varied for each model and ranged from three to five. The bands with the highest loadings in the PCA were red-edge, SWIR, NIR and green.
The final map of BL% is presented in Appendix B, Figure A1. The conifer-dominated Black-Forest region stretching from the south-west to the north can be recognized, as well as the broadleaf dominated lowland regions, e.g., in the Rhine valley. Figure 4a shows a close-up of BL% of a small region.
The validation results of the aggregated predictions (broadleaf, conifer and mixed forest) with both the reference inventory data and the independent data from the forest management plans for the entire area are shown in Table 3 and Table 4. The validation based on reference inventory data (Table 3) showed an overall accuracy (OA) of 71.0%. Good results can be achieved for the broadleaf and the conifer class. The producer’s accuracy (PA) reached values of 76.4% (broadleaf) and 73.8% (conifer). The mixed forest reached only a PA of 58.7%. For the user’s accuracy (UA) results are similar. For broadleaf and conifer results of 79.3% and 97.7% were achieved whereas the UA for mixed forest was 45.6%.
For the validation based on forest management plans similar results were achieved for PA (76.5% broadleaf, 75.5% conifer, Table 4). Since there were no data for mixed forests in the forest management plans, the UA could not be compared.

3.2. Regression Model of Timber Volume

The correlation analysis between the predictor variables resulted in five groups. From each group, the predictor variable with the highest correlation with the response variable was chosen, resulting in an initial, uncorrelated set of variables used for modelling. These predictor variables were CHMmean, CHMcv, CHMcc, DTMmean, and DTMsd. The variable BL% was added as a sixth uncorrelated variable. The final model included the variables CHMmean, CHMcv, DTMmean, CHMcc, and BL% (Equation (11)).
y = γ1/(1 + exp(γ2 + γ3 × CHMmean + γ4 × CHMcv + γ5 × DTMmean + γ6 × CHMcc + γ7 × BL%)),
Model coefficients, their standard errors and t-values are shown in Table 5. Standard errors were much smaller than their corresponding parameter estimates, and all parameter estimates had p-values < 0.001.
Figure 5 shows the observed versus predicted timber volume for the model in Equation (11). The model predictions vary but overall fit to the observed values. The model starts to show underprediction of timber volume in high timber volume ranges above 700 m3/ha. This might be caused by trees from a certain age notably decreasing their height increment while stem diameters still increase, resulting in high timber volumes. However, stem diameters cannot easily be observed or modelled with airborne remote sensing data.
Table 6 displays the RMSE%, mean bias %, standard deviation of mean bias% from the cross validation, and pseudo R2 (see Table 1, Equations (3–6)). RMSE%, bias%, standard deviation of bias%, and Pseudo-R2 were 31.7, 0.22, 0.6, and 0.64, respectively. Standard deviation (SD) of bias% is larger than the mean bias% from the cross validation, indicating variation in bias% between the folds of the cross validation. A model fitted without the predictor BL% (model not presented) resulted in lower accuracies with RMSE%, bias%, and Pseudo R2 of 35.8, 0.23, and 0.55, respectively. SD of bias% in this model was slightly better with 0.4. The final map of timber volume predictions is presented in Appendix B, Figure A2. A close-up of this map is presented in Figure 4b.

3.3. Application of Timber Volume Model in Small Area

The non-linear logistic regression model was applied over the entire area (Appendix B, Figure A2), and predictions were aggregated for 100 forest departments in a region in the south-west. SRS and MA estimates of mean timber volume per hectare and their standard errors were calculated for each forest department. Figure 6 shows the scatter plot of timber volume estimates using SRS based on available forest inventory plots, and MA predictions of timber volume based on the model. Obviously, the data follow the general trend along the 1:1 line, with some data points in the higher timber volume ranges being under-predicted by the model, and few being over-predicted. Vertical and horizontal lines show SRS and MA standard errors, respectively. Overall the MA standard errors are smaller than the SRS with a mean of 51.8 and 75.1, respectively, and a relative efficiency (calculated as the ration between the two estimated standard errors) of 2.1.

4. Discussion

In this study we present the development of forest tree type and timber volume maps for the federal state of Baden-Württemberg in south-west Germany. Recently, several studies have focused on the use of large-scale remote sensing data for mapping forest properties [5,43,44,45,46]. Our study was motivated by the effort of the forest administration in Baden-Württemberg to support the field-work of the forest management experts by remote sensing-based information on forest resources for establishing forest management plans. In the following we will discuss the two parts of this study, modelling and prediction of percentage of broadleaf trees and timber volume.
In both models, BL% and timber volume prediction, uncertainties arise due to position inaccuracies of the reference inventory plots. The inventory plots have an unknown error in position accuracy due to inaccuracies of GNSS signals below forest canopy. This can result in a location of a plot several meters away from its assumed position. This leads to a shift between what is observed in the field and in the remote sensing data. More-over, the trees measured during forest inventory might not always be the same trees that can be seen from above, for example, when a large tree crown is overlapping other smaller trees. This will influence any model based on such auxiliary data estimating tree species.
The evaluation of the BL% models using cross validation resulted in good accuracies. The results of the evaluation on forest inventory plots were in line with the results on the independent data set based on forest management plans. The accuracies for the mixed class were relatively low. This was expected, since confusions between classes are most likely at class borders. These results fit into the general picture in this context and are in line with other studies. In a large-scale study in Norway, where three tree species spruce, pine, and broadleaf trees were classified using only a single date S2 scene, classification resulted in kappa of 0.59 for plots dominated by only one species, and in kappa of 0.5 when plots were included that were not dominated by a species group [46]. In another study in central Sweden on a small test area, classification of five tree species spruce, pine, larch, birch, and oak using a time series of S2 scenes resulted in a kappa of 0.84 [20].
The polygons from the forest management plans, which were used as an independent data set for the evaluation of the BL% model, were not selected based on random sampling. Instead, all polygons were used, for which only one tree species was recorded. Therefore, our results based on this data might be biased. However, we observed similar accuracies obtained with the forest inventory plots and cross validation. Therefore, we assume that the effect due to the non-random selection of the independent data is small.
The most important PCA components in the BL% model, and the importance of the original bands in the PCA were analyzed on the scene on which the method was developed. The PCA components 1, 2 and 4 were the most important predictors in the model. For PCA component 1 the original bands green, red edge and SWIR contributed with the highest loadings. For this component, these bands were used from all acquisition dates, but the winter scene contributed most. This indicates that this PCA component depicts the variation in these pixel values over time. PCA components 2 and 4 were dominated by bands NIR and red edge. For component 2, the spring scene was dominant, whereas for component 4 the winter scene was dominant. These results are in line with [47], who also found that the red edge and SWIR bands are of high value for vegetation mapping.
Modelling of BL% was performed for each S2 tile separately for two reasons. The first reason was related to computational capacity and practicality. Tile wise processing is easier to standardize and requires less computational power than needed for a large mosaic. The second reason was related to small difference in pixel values in tiles of different paths that were collected at different dates, which occurred despite of atmospheric correction of the scenes. Another reason for modelling BL% on smaller spatial units is that vegetation states might differ between regions of low and high altitudes (e.g., earlier leaf flush in lower altitudes). Tile wise processing reduces this effect, even though differences in, for example, altitude and therefore phenology of vegetation might still occur in one S2 tile covering 100 by 100 km. A further development of this approach could include analyses based on regions corresponding to growing conditions or climatic zones. Nevertheless, the results achieved with the tile wise approach were satisfying.
The timber volume model achieved an RMSE% of 31.7 from cross validation and a pseudo-R2 of 0.64. This is similar to results of other studies, which used point clouds from stereo image matching and forest inventory data for the purpose of timber volume modelling. For example, RMSE% values of 31.92–37.89 were reported in a test area in Bavaria in Germany [11], 28.8–32.9 in four different study areas in Sweden [5], 31.43 in southeastern Norway [6], 43.5 in central Norway [48], and 36.87 in south-western Canada [49].
The mean model estimates of timber volume per hectare in each of 100 forest departments showed good agreement with the estimates of the terrestrial reference sample (Figure 5), and standard errors of the estimates were reduced by about 50%. For forest management planning, accuracy of timber volume estimation at stand level of about 10% is considered to be sufficient. Mean timber volume of all the 100 forest departments was about 400 m3 per hectare. Our errors still amounted to a bit more than 10%, however, our model assisted errors were 50% smaller than what in this case was possible with terrestrial field data only.
For model fitting we used information on percentage of broadleaf trees from the inventory plots to obtain a model, which is as accurate as possible. However, when applying this model, error estimates of coefficients and, therefore, also of predictions might be too optimistic, since errors in the prediction of BL%, which are used as input variable in the model, are not accounted for. Using predicted BL% values instead of field observations for fitting of the timber volume model could be one approach, however, this would result in an error-in-variables model, which is beyond the scope of this study.

5. Conclusions

The combination of image based canopy height model with LiDAR based terrain model and Sentinel 2 data provided a suitable dataset for timber volume prediction covering large areas. Image based canopy height models were used for the description of tree height, canopy closure and canopy structure. Height above sea level, which was used as approximation for general growing conditions, was derived from the LiDAR based terrain model. Sentinel 2 time series served as input for the difference in volume-height relation between broadleaved and coniferous stands.
Aerial images from varying cameras with comparable flight parameters served as input for the extraction of canopy height models over large area. 3D point clouds derived from image matching were cleaned from outliers and noise before they were integrated into the surface model. A LiDAR based terrain model was used to normalize the surface model and to obtain the canopy height model.
Sentinel 2 time series with 3–4 images were suitable for the prediction of broadleaved percentage for large areas. This was valid for point validation (reference inventory data), as well as for area based validation (forest management plans). Tile based Sentinel 2 processing allowed for an adaption to the availability of cloud free data by tiles and varying time stamps. Within a Sentinel scene, missing pixels due to snow, clouds or cloud shadows, could be replaced with the pixels of the nearest Sentinel 2 scene within the time series. The processing results could be integrated into a single mosaic, covering the whole area.
Wall to wall timber volume predictions with a high spatial resolution of 20 m by 20 m were assigned to defined forest departments by MA method, according to the availability of inventory plots within respective departments, which resulted in 50% smaller standard errors compared to using filed inventory plots alone.

Author Contributions

J.S., P.A., M.R., G.K. and M.K. conceived, designed and performed the experiments; J.S., M.R. and P.A. analysed the data; J.S., M.R., P.A., G.K. and M.K. wrote the paper.

Funding

This research received no external funding.

Acknowledgments

We thank Thomas Breunig at the Regierungspräsidium Freiburg for his time and support; he acted as link between the research development team and the forest rangers in the field.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table A1. Spectral bands for the Sentinel 2 sensors.
Table A1. Spectral bands for the Sentinel 2 sensors.
Sentinel 2 Bands Used in This StudySentinel 2ASentinel 2BSpatial Resolution (m)
Central Wavelength (nm)Bandwidth (nm)Central Wavelength (nm)Bandwidth (nm)
Band 1—Coastal aerosol442.727442.24560
Band 2—Blue492.498492.19810
Band 3—Green559.845559.04610
Band 4—Red664.638664.93910
Band 5—Red edge704.119703.82020
Band 6—Red edge740.518739.11820
Band 7—Red edge782.828779.72820
Band 8—NIR832.8145832.913310
Band 8A—Narrow NIR864.733864.03220
Band 9—Water vapour945.126943.22760
Band 10—SWIR-Cirrus1373.5751376.97660
Band 11—SWIR1613.71431610.414120
Band 12—SWIR2202.42422185.723820

Appendix B

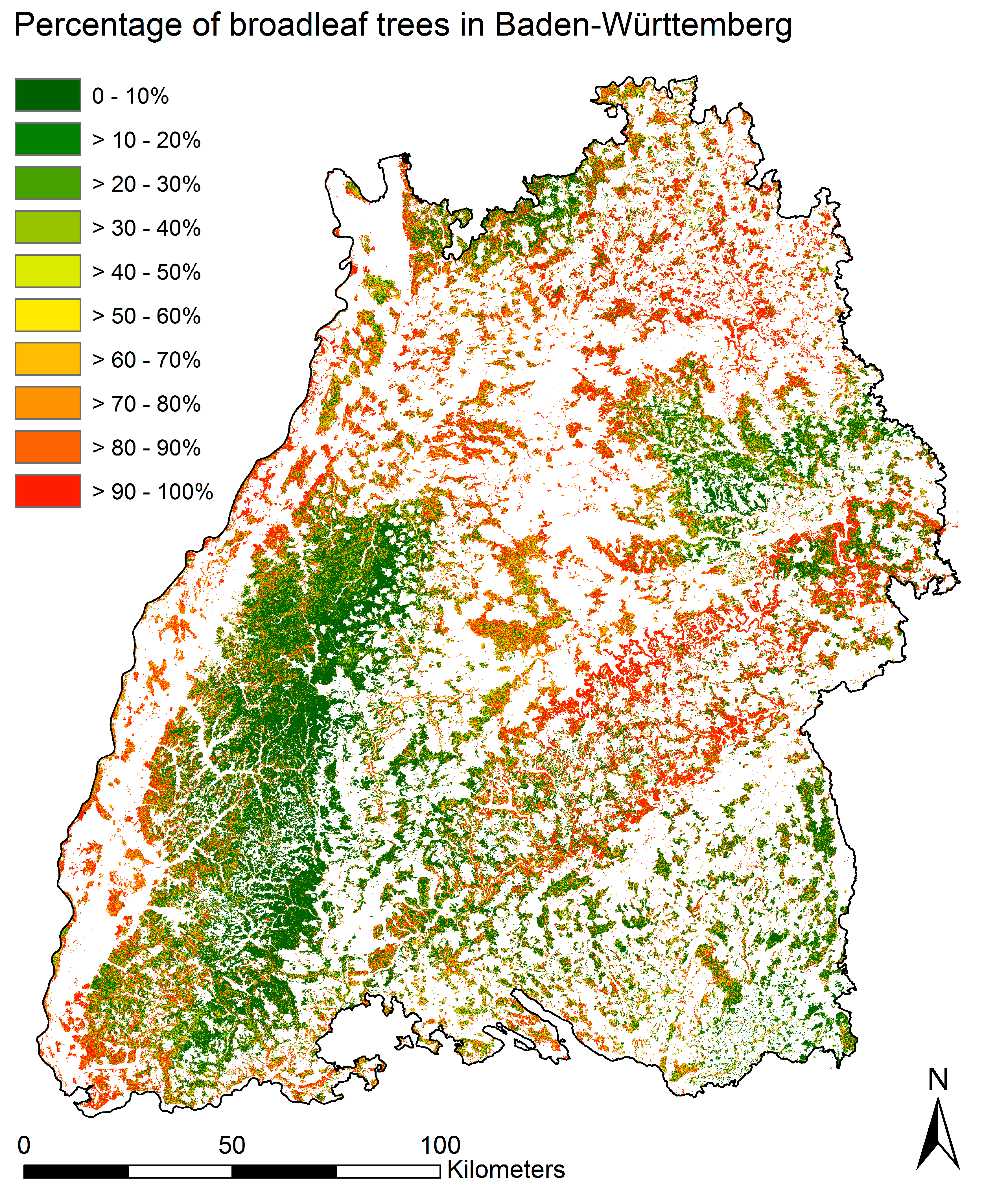

Figure A1. Map of BL% predictions.
Figure A1. Map of BL% predictions.
Forests 10 00746 g0a1

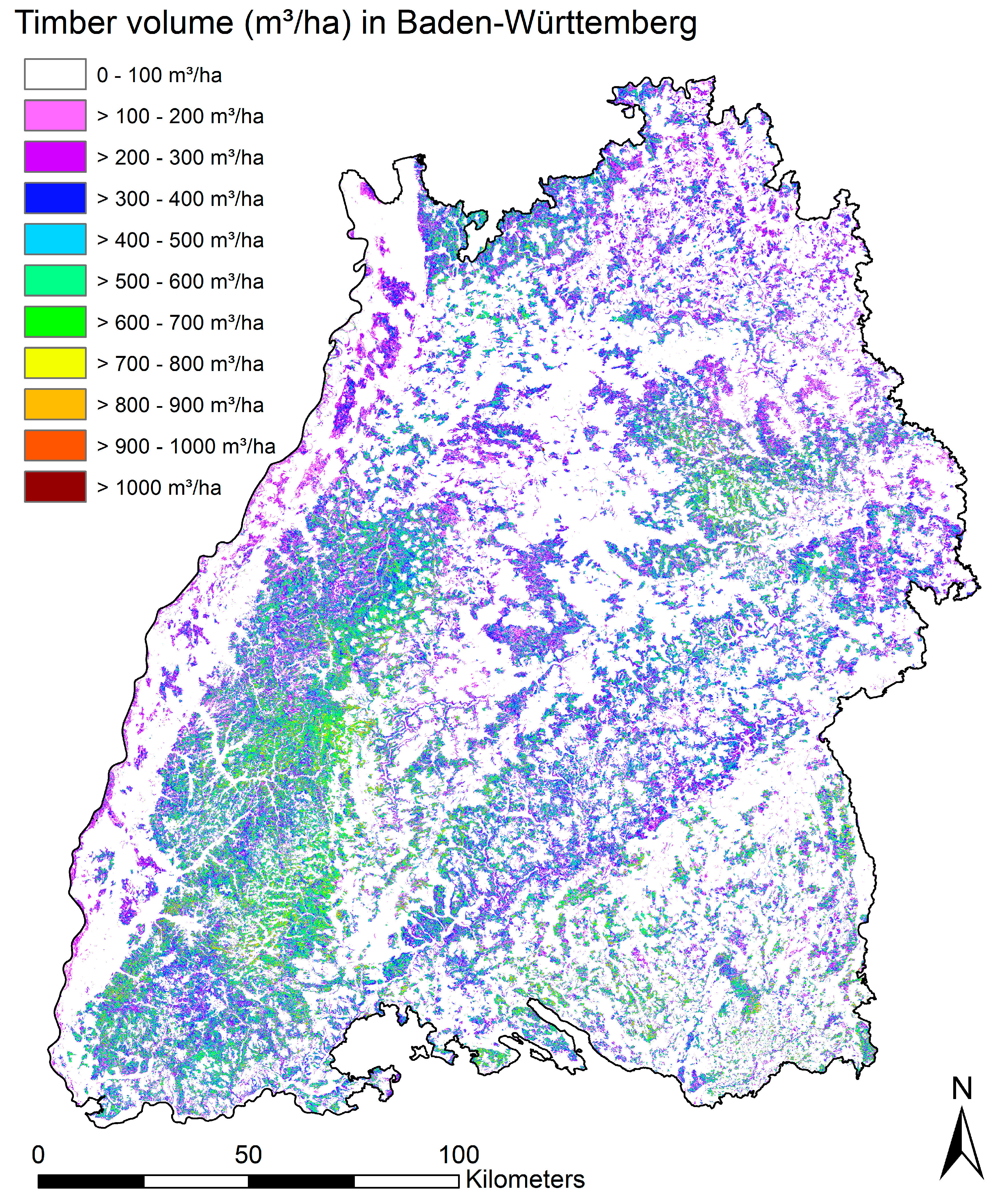

Figure A2. Map of timber volume predictions.
Figure A2. Map of timber volume predictions.
Forests 10 00746 g0a2

References

  1. Næsset, E. Predicting forest stand characteristics with airborne scanning laser using a practical two-stage procedure and field data. Remote Sens. Environ. 2002, 80, 88–99. [Google Scholar] [CrossRef]
  2. Næsset, E.; Bjerknes, K.-O. Estimating tree heights and number of stems in young forest stands using airborne laser scanner data. Remote Sens. Environ. 2001, 78, 328–340. [Google Scholar] [CrossRef]
  3. Nord-Larsen, T.; Riis-Nielsen, T. Developing an airborne laser scanning dominant height model from a countrywide scanning survey and national forest inventory data. Scand. J. For. Res. 2010, 25, 262–272. [Google Scholar] [CrossRef]
  4. Næsset, E. Determination of mean tree height of forest stands using airborne laser scanner data. ISPRS J. Photogramm. Remote Sens. 1997, 52, 49–56. [Google Scholar] [CrossRef]
  5. Bohlin, J.; Bohlin, I.; Jonzén, J.; Nilsson, M. Mapping forest attributes using data from stereophotogrammetry of aerial images and field data from the national forest inventory. Silva Fenn. 2017, 51, 1–18. [Google Scholar] [CrossRef]
  6. Rahlf, J.; Breidenbach, J.; Solberg, S.; Næsset, E.; Astrup, R. Comparison of four types of 3D data for timber volume estimation. Remote Sens. Environ. 2014, 155, 325–333. [Google Scholar] [CrossRef]
  7. Næsset, E. Estimating Timber Volume of Forest Stands Using Airborne Laser Scanner Data. Remote Sens. Environ. 1997, 61, 246–253. [Google Scholar] [CrossRef]
  8. Nord-Larsen, T.; Schumacher, J. Estimation of forest resources from a country wide laser scanning survey and national forest inventory data. Remote Sens. Environ. 2012, 119, 148–157. [Google Scholar] [CrossRef]
  9. Breidenbach, J.; Astrup, R. Small area estimation of forest attributes in the Norwegian National Forest Inventory. Eur. J. For. Res. 2012, 131, 1255–1267. [Google Scholar] [CrossRef]
  10. McRoberts, R.E. A model-based approach to estimating forest area. Remote Sens. Environ. 2006, 103, 56–66. [Google Scholar] [CrossRef]
  11. Straub, C.; Stepper, C.; Seitz, R.; Waser, L.T. Potential of UltraCamX stereo images for estimating timber volume and basal area at the plot level in mixed European forests. Can. J. For. Res. 2013, 43, 731–741. [Google Scholar] [CrossRef]
  12. Liang, X.; Matikainen, L. Deciduous-coniferous tree classification using difference between first and last pulse laser signatures. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2007, XXXVI, 253–257. [Google Scholar]
  13. Ørka, H.; Næsset, E.; Bollandsås, O. Utilizing airborne laser intensity for tree species classification. Int. Arch. 2007, XXXVI, 300–304. [Google Scholar]
  14. Heinzel, J.; Koch, B. Exploring full-waveform LiDAR parameters for tree species classification. Int. J. Appl. Earth Obs. Geoinf. 2011, 13, 152–160. [Google Scholar] [CrossRef]
  15. Ko, C.; Sohn, G.; Remmel, T.K. Tree genera classification with geometric features from high-density airborne LiDAR. Can. J. Remote Sens. 2013, 39, 73–85. [Google Scholar] [CrossRef]
  16. Ko, C.; Sohn, G.; Remmel, T.K.; Miller, J. Hybrid ensemble classification of tree genera using airborne LiDAR data. Remote Sens. 2014, 6, 11225–11243. [Google Scholar] [CrossRef]
  17. Immitzer, M.; Atzberger, C.; Koukal, T. Tree species classification with Random forest using very high spatial resolution 8-band worldView-2 satellite data. Remote Sens. 2012, 4, 2661–2693. [Google Scholar] [CrossRef]
  18. Pant, P.; Heikkinen, V.; Hovi, A.; Korpela, I.; Hauta-Kasari, M.; Tokola, T. Evaluation of simulated bands in airborne optical sensors for tree species identification. Remote Sens. Environ. 2013, 138, 27–37. [Google Scholar] [CrossRef]
  19. Buddenbaum, H.; Schlerf, M.; Hill, J. Classification of coniferous tree species and age classes using hyperspectral data and geostatistical methods. Int. J. Remote Sens. 2005, 26, 5453–5465. [Google Scholar] [CrossRef]
  20. Persson, M.; Lindberg, E.; Reese, H. Tree Species Classification with Multi-Temporal Sentinel-2 Data. Remote Sens. 2018, 10, 1794. [Google Scholar] [CrossRef]
  21. Waser, L.T.; Küchler, M.; Jütte, K.; Stampfer, T. Evaluating the potential of worldview-2 data to classify tree species and different levels of ash mortality. Remote Sens. 2014, 6, 4515–4545. [Google Scholar] [CrossRef]
  22. Schumacher, J.; Nord-Larsen, T. Wall-to-wall tree type classification using airborne lidar data and CIR images. Int. J. Remote Sens. 2014, 35, 3057–3073. [Google Scholar] [CrossRef]
  23. Fassnacht, F.E.; Latifi, H.; Stereńczak, K.; Modzelewska, A.; Lefsky, M.; Waser, L.T.; Straub, C.; Ghosh, A. Review of studies on tree species classification from remotely sensed data. Remote Sens. Environ. 2016, 186, 64–87. [Google Scholar] [CrossRef]
  24. Holmgren, J.; Persson, Å.; Söderman, U. Species identification of individual trees by combining high resolution LiDAR data with multi-spectral images. Int. J. Remote Sens. 2008, 29, 1537–1552. [Google Scholar] [CrossRef]
  25. Voss, M.; Sugumaran, R. Seasonal Effect on Tree Species Classification in an Urban Environment Using Hyperspectral Data, LiDAR, and an Object- Oriented Approach. Sensors 2008, 8, 3020–3036. [Google Scholar] [CrossRef]
  26. Heinzel, N.; Weinacker, H.; Koch, B.J. Full automatic detection of tree species based on delineated single tree\ncrowns—A data fusion approach for airborne laser scanning data and\naerial photographs. In Proceedings of the SilviLaser 2008, 8th International Conference on LiDAR Applications in Forest Assessment and Inventory, Heriot-Watt University, Edinburgh, UK, 17–19 September 2008; pp. 76–85. [Google Scholar]
  27. Dalponte, M.; Bruzzone, L.; Gianelle, D. Tree species classification in the Southern Alps based on the fusion of very high geometrical resolution multispectral/hyperspectral images and LiDAR data. Remote Sens. Environ. 2012, 123, 258–270. [Google Scholar] [CrossRef]
  28. Sheeren, D.; Fauvel, M.; Josipovíc, V.; Lopes, M.; Planque, C.; Willm, J.; Dejoux, J.F. Tree species classification in temperate forests using Formosat-2 satellite image time series. Remote Sens. 2016, 8, 734. [Google Scholar] [CrossRef]
  29. Sloboda, J.; Gaffrey, D.; Matsumura, N. Regionale und lokale Systeme von Höhenkurven gleichartiger Waldbestände. Allg. Forst und Jagdzeitung 1993, 164, 225–228. [Google Scholar]
  30. ESA. Sentinel-2 Msi-Level-2a Prototype Processor Installation and User Manual. Available online: https://step.esa.int/thirdparties/sen2cor/2.2.1/S2PAD-VEGA-SUM-0001-2.2.pdf (accessed on 28 August 2019).
  31. Schleyer, A. Das LaserscanDGM von Baden-Württemberg. In Proceedings of the Photogrammetric Week, the University of Stuttgart, Stuttgart, Germany, 9–13 September 2001; pp. 217–225. [Google Scholar]
  32. nFRAMES GmbH Stuttgart nFRAMES. Available online: https://www.nframes.com/ (accessed on 13 July 2019).
  33. Wenzel, K.; Rothermel, M.; Haala, N.; Fritsch, D. Sure the ifp software for dense image matching. In Proceedings of the Photogrammetric Week; the University of Stuttgart, Stuttgart, Germany, 9–13 September 2013; pp. 59–70. [Google Scholar]
  34. Hirschmuller, C. Stereo processing by semiglobal matching and mutual information. IEEE Trans. Pattern Anal. Mach. Intell. 2008, 30, 328–341. [Google Scholar] [CrossRef]
  35. Rothermel, M.; Wenzel, K.; Fritsch, D.; Haala, N. Sure: Photogrammetric surface reconstruction from imagery. In Proceedings of the Proceedings LC3D Workshop, Berlin, Germany, December 2012. [Google Scholar]
  36. Rapidlasso GmbH|Fast tools to Catch Reality. Available online: https://rapidlasso.com/ (accessed on 28 August 2019).
  37. Fowler, R.J.; Little, J.J. Automatic extraction of irregular network digital terrain models. Comput. Graph. (ACM) 1979, 13, 199–207. [Google Scholar] [CrossRef]
  38. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2016. [Google Scholar]
  39. Stepper, C.; Straub, C.; Immitzer, M.; Pretzsch, H. Using canopy heights from digital aerial photogrammetry to enable spatial transfer of forest attribute models: A case study in central Europe. Scand. J. For. Res. 2017, 32, 748–761. [Google Scholar] [CrossRef]
  40. Kirchhoefer, M.; Schumacher, J.; Adler, P.; Kändler, G. Considerations towards a novel approach for integrating angle-count sampling data in remote sensing based forest inventories. Forests 2017, 8, 239. [Google Scholar] [CrossRef]
  41. McRoberts, R.E.; Næsset, E.; Gobakken, T. Inference for lidar-assisted estimation of forest growing stock volume. Remote Sens. Environ. 2013, 128, 268–275. [Google Scholar] [CrossRef]
  42. Särndal, C.-E.; Swensson, B.; Wretman, J. Model Assisted Survey Sampling, 1st ed.; Springer: New York, NY, USA, 1992; ISBN 978-0-387-40620-6. [Google Scholar]
  43. Immitzer, M.; Stepper, C.; Böck, S.; Straub, C.; Atzberger, C. Use of WorldView-2 stereo imagery and National Forest Inventory data for wall-to-wall mapping of growing stock. For. Ecol. Manag. 2016, 359, 232–246. [Google Scholar] [CrossRef]
  44. Nilsson, M.; Nordkvist, K.; Jonzén, J.; Lindgren, N.; Axensten, P.; Wallerman, J.; Egberth, M.; Larsson, S.; Nilsson, L.; Eriksson, J.; et al. A nationwide forest attribute map of Sweden predicted using airborne laser scanning data and field data from the National Forest Inventory. Remote Sens. Environ. 2017, 194, 447–454. [Google Scholar] [CrossRef]
  45. Magnussen, S.; Nord-Larsen, T.; Riis-Nielsen, T. Lidar supported estimators of wood volume and aboveground biomass from the Danish national forest inventory (2012–2016). Remote Sens. Environ. 2018, 211, 146–153. [Google Scholar] [CrossRef]
  46. Astrup, R.; Rahlf, J.; Bjørkelo, K.; Debella-Gilo, M.; Gjertsen, A.-K.; Breidenbach, J. Forest information at multiple scales: Development, evaluation and application of the Norwegian forest resources map SR16. Scand. J. For. Res. 2019, 34, 484–496. [Google Scholar] [CrossRef]
  47. Immitzer, M.; Vuolo, F.; Atzberger, C. First experience with Sentinel-2 data for crop and tree species classifications in central Europe. Remote Sens. 2016, 8, 166. [Google Scholar] [CrossRef]
  48. Rahlf, J.; Breidenbach, J.; Solberg, S.; Næsset, E.; Astrup, R. Digital aerial photogrammetry can efficiently support large-area forest inventories in Norway. Forestry 2017, 90, 710–718. [Google Scholar] [CrossRef]
  49. White, J.C.; Stepper, C.; Tompalski, P.; Coops, N.C.; Wulder, M.A. Comparing ALS and image-based point cloud metrics and modelled forest inventory attributes in a complex coastal forest environment. Forests 2015, 6, 3704–3732. [Google Scholar] [CrossRef]

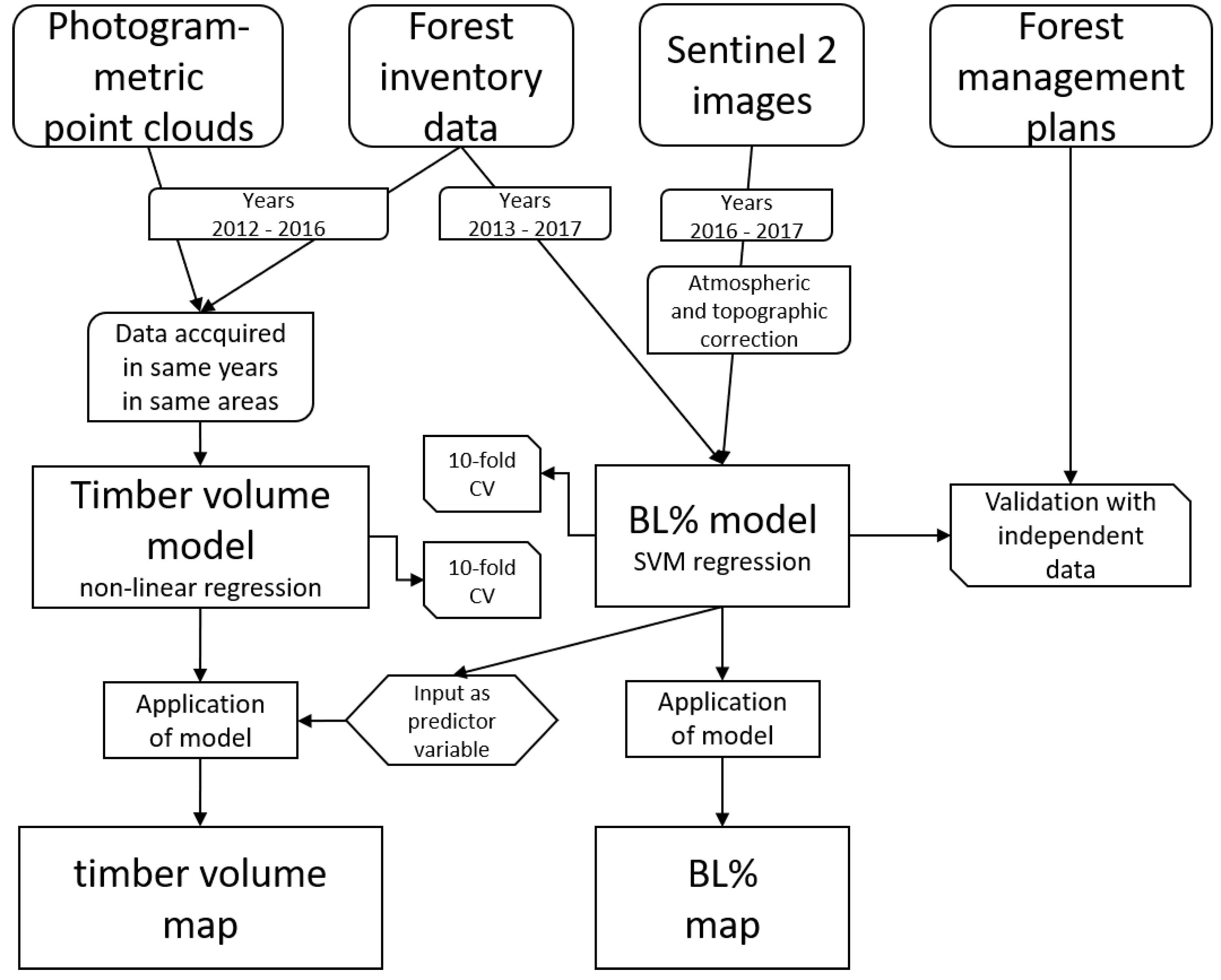

Figure 1. Flow chart depicting the data sets and processing steps. BL%: percentage of broadleaf trees; SVM: support vector machine; CV: cross-validation.
Figure 1. Flow chart depicting the data sets and processing steps. BL%: percentage of broadleaf trees; SVM: support vector machine; CV: cross-validation.
Forests 10 00746 g001

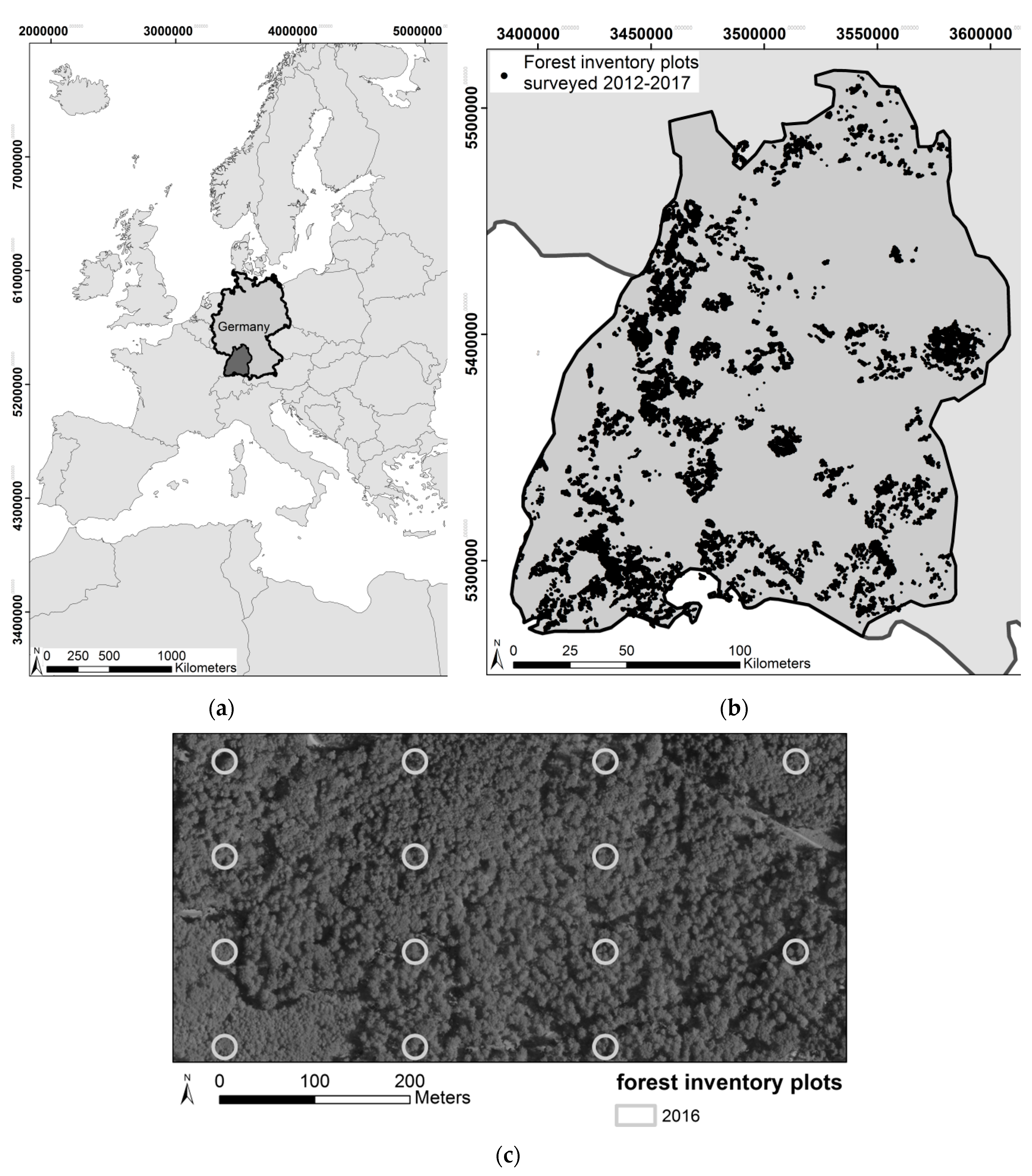

Figure 2. Study area: (a) Location of study area in south-west Germany, federal state of Baden-Württemberg; (b) location of the field plots surveyed between 2012–2017; (c) inventory design (100 m × 200 m grid) of 12 m radius plots; plots that were located on forest roads or were cut off due to borders were omitted.
Figure 2. Study area: (a) Location of study area in south-west Germany, federal state of Baden-Württemberg; (b) location of the field plots surveyed between 2012–2017; (c) inventory design (100 m × 200 m grid) of 12 m radius plots; plots that were located on forest roads or were cut off due to borders were omitted.
Forests 10 00746 g002

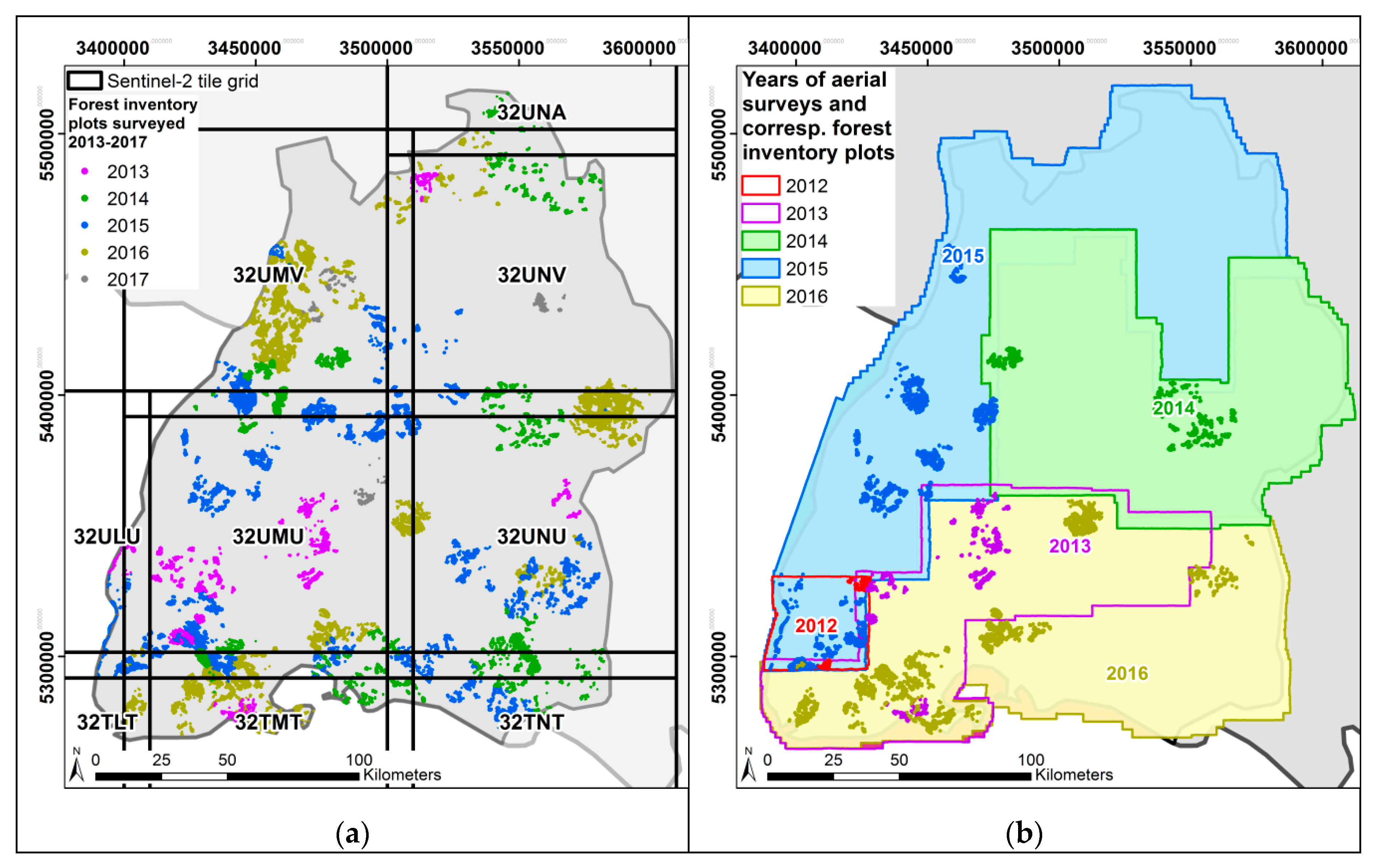

Figure 3. Remote sensing data in study area and corresponding forest inventory data: (a) Coverage of nine Sentinel 2 tiles; forest inventory data from the years 2013–2107 as used for modelling percentage of broadleaf trees are depicted as well (n = 24,788); (b) coverage of the aerial surveys in the years 2012–2106; corresponding forest inventory plots from the same years as aerial surveys and as used for timber volume modelling are depicted as well (n = 11,554).
Figure 3. Remote sensing data in study area and corresponding forest inventory data: (a) Coverage of nine Sentinel 2 tiles; forest inventory data from the years 2013–2107 as used for modelling percentage of broadleaf trees are depicted as well (n = 24,788); (b) coverage of the aerial surveys in the years 2012–2106; corresponding forest inventory plots from the same years as aerial surveys and as used for timber volume modelling are depicted as well (n = 11,554).
Forests 10 00746 g003

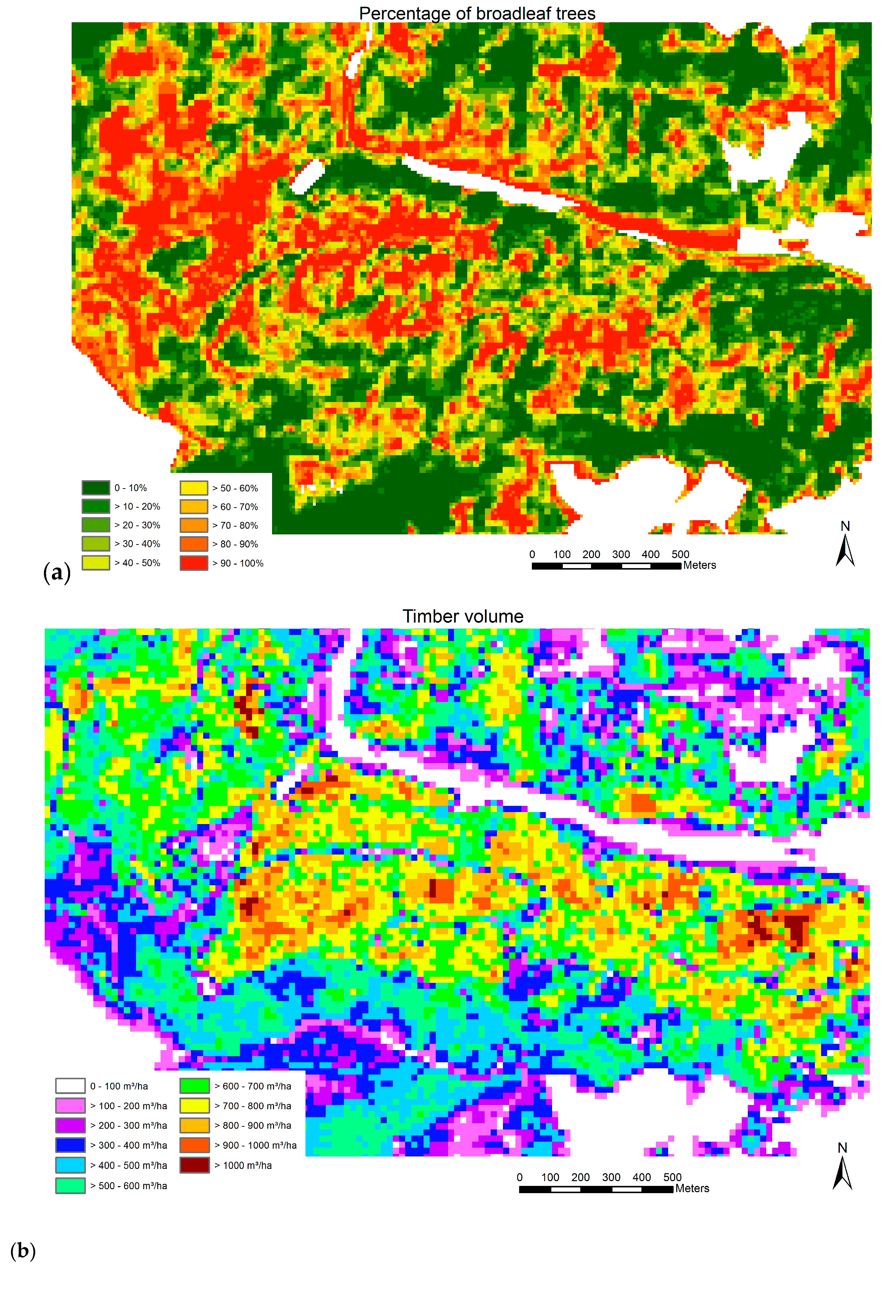

Figure 4. Close-ups of map predictions of (a) BL% and of (b) timber volume for the same region.
Figure 4. Close-ups of map predictions of (a) BL% and of (b) timber volume for the same region.
Forests 10 00746 g004

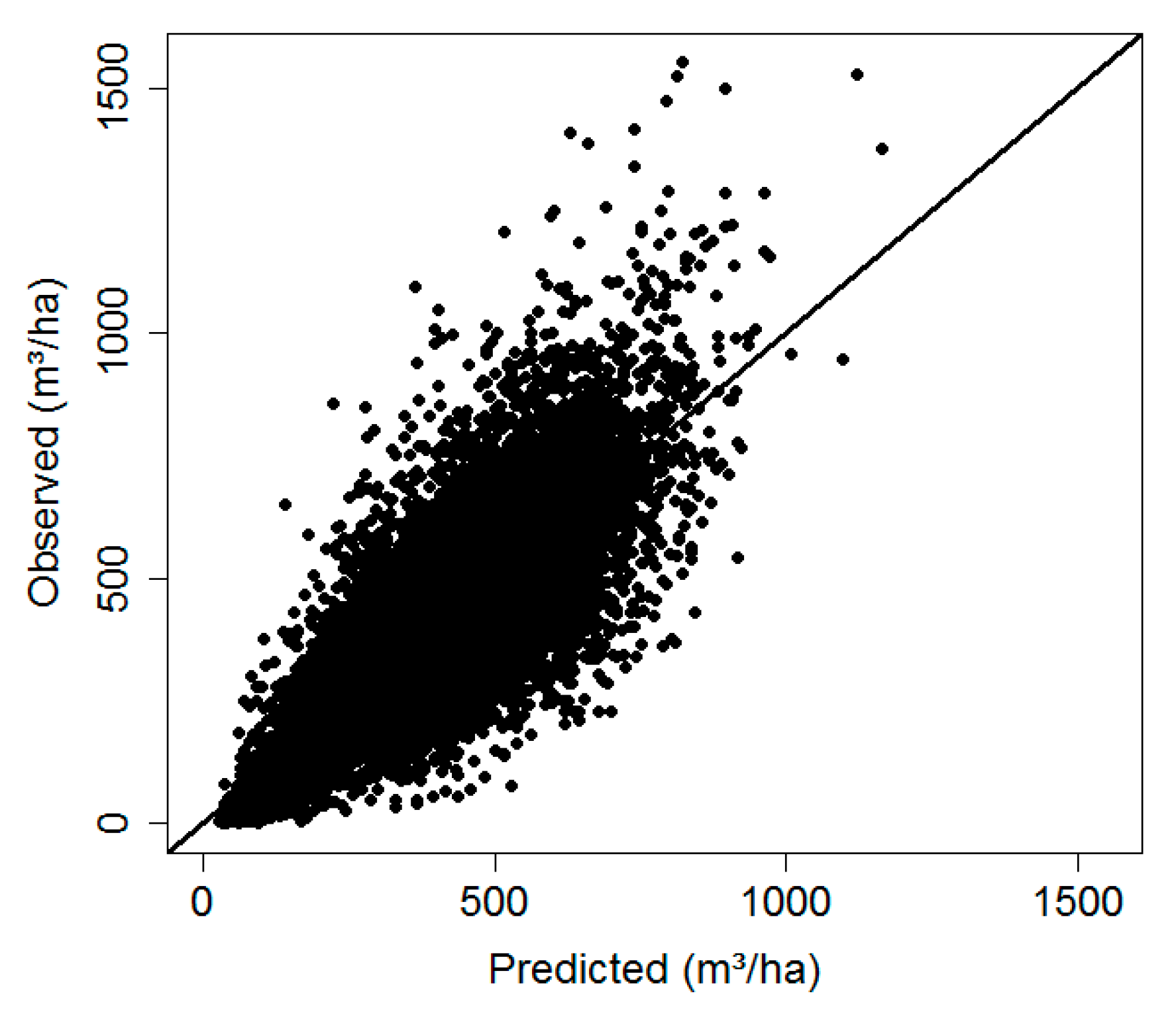

Figure 5. Observed versus predicted timber volume (m3/ha) of the non-linear logistic regression model from Equation (11).
Figure 5. Observed versus predicted timber volume (m3/ha) of the non-linear logistic regression model from Equation (11).
Forests 10 00746 g005

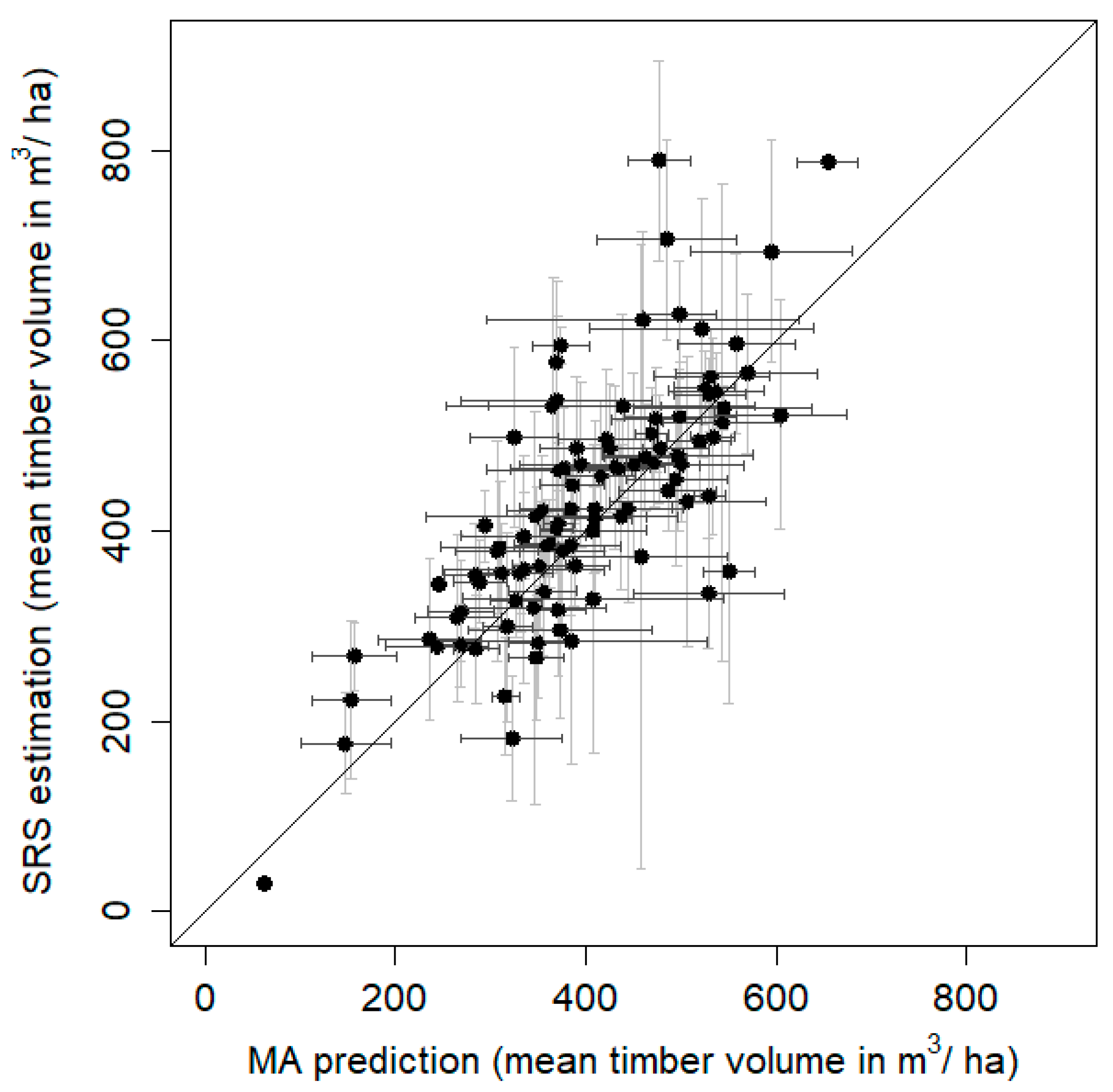

Figure 6. Mean timber volume (m3/ha) of 100 forest departments estimated using simple random sampling (SRS) and forest inventory plots (y-axis), and model assisted (MA) predictions using the non-linear logistic regression model (x-axis). Horizontal lines are MA based standard errors, and vertical lines are SRS standard errors.
Figure 6. Mean timber volume (m3/ha) of 100 forest departments estimated using simple random sampling (SRS) and forest inventory plots (y-axis), and model assisted (MA) predictions using the non-linear logistic regression model (x-axis). Horizontal lines are MA based standard errors, and vertical lines are SRS standard errors.
Forests 10 00746 g006
Table 1. Equations for regression models, Root Mean Square Error (RMSE), RMSE%, bias%, and Pseudo-R2, and simple random sampling (SRS) and model assisted (MA) statistics. In each equation, i indexes sample plots, Xik is the kth predictor, β are model parameters, ŷi and yi represent predicted and observed timber volume for sample plot i, respectively, and n is the number of samples; ӯ represents the mean of observed values, and ε is a residual error term.
Table 1. Equations for regression models, Root Mean Square Error (RMSE), RMSE%, bias%, and Pseudo-R2, and simple random sampling (SRS) and model assisted (MA) statistics. In each equation, i indexes sample plots, Xik is the kth predictor, β are model parameters, ŷi and yi represent predicted and observed timber volume for sample plot i, respectively, and n is the number of samples; ӯ represents the mean of observed values, and ε is a residual error term.
DescriptionEquationIndex
Non-linear logistic regression model y i =   β K + 2 1 + exp ( β K + 1 +   k = 1 K β k X i k ) +   ε i (1)
Linear regression model y i =   β 0 +   β 1 X 1 i + +   β K X K i +   ε i (2)
RMSE (m3/ha) 1 n   i = 1 n ( y i   y ^ i ) 2 (3)
RMSE (%) 100 ×   R M S E 1 n   i = 1 n ( y i ) (4)
Bias (%) 100 ×   i = 1 n ( y ^ i   y i ) i = 1 n ( y i ) (5)
Pseudo-R2 1 i = 1 n ( y ^ i   y i ) 2 i = 1 n ( y i   y ¯ ) 2 (6)
SRS mean μ ^ S R S =   1 n   i = 1 n y i (7)
SRS variance V a r ^ ( μ ^ S R S ) =   i = 1 n ( y i   μ ^ S R S ) 2 n ( n 1 ) (8)
MA mean μ ^ M A =   1 N   i = 1 N y ^ i   1 n   i = 1 n ( y ^ i   y i ) (9)
MA variance V a r ^ ( μ ^ M A ) =   1 n ( n 1 )   i = 1 n ( ( y ^ i   y i )   ϵ ¯   ) 2 (10)
Table 2. Number and dates of multi-temporal Sentinel 2 tiles used in the final model, and number of forest inventory plots located in each tile. Note that in areas where S-2 tiles are overlapping inventory plots are counted multiple times; therefore, the sum of plots in this table is larger than the true number.
Table 2. Number and dates of multi-temporal Sentinel 2 tiles used in the final model, and number of forest inventory plots located in each tile. Note that in areas where S-2 tiles are overlapping inventory plots are counted multiple times; therefore, the sum of plots in this table is larger than the true number.
Sentinel 2 Tilesn ScenesAcquisition Date of Sentinel 2 Tilesn Inventory PlotsRMSE of Best Model
32UNA419 June 2017, 19 July 2017, 24 August 2016, 14 September 201662222.2
32UMV405 May 2016, 10 May 2017, 19 June 2017, 24 August 2016723423.5
32UNV328 March 2017, 27 May 2017, 14 October 2017356021.5
32ULU305 May 2016, 24 June 2016, 24 August 201659224.4
32UMU310 May 2017, 19 June 2017, 23 August 20171051122.6
32UNU327 May 2017, 26 June 2017, 14 October 2017462626.1
32TLT430 April 2017, 05 May 2016, 24 June 2016, 24 August 201692924.1
32TMT324 June 2016, 24 August 2017, 10 May 2017336025.7
32TNT428 March 2017, 17 May 2017, 27 May 2017, 25 August 201778323.9
Table 3. Confusion matrix and accuracies for the whole area generated by validation based on reference inventory data. b = broadleaf, m = mixed forest, c = conifer, UA = user’s accuracy, PA = producer’s accuracy, OA = overall accuracy.
Table 3. Confusion matrix and accuracies for the whole area generated by validation based on reference inventory data. b = broadleaf, m = mixed forest, c = conifer, UA = user’s accuracy, PA = producer’s accuracy, OA = overall accuracy.
Reference
PredictionbmcUA [%]
b7253164924379.3
m22063644214245.6
c29914670897.7
PA [%]76.458.773.8
OA [%] 71.0
Kappa 0.77
Table 4. Confusion matrix and accuracies for the whole area generated by validation based on the forest management plans. b = broadleaf, m = mixed forest, c = conifer.
Table 4. Confusion matrix and accuracies for the whole area generated by validation based on the forest management plans. b = broadleaf, m = mixed forest, c = conifer.
Reference
Predictionbc
b3202233
m9712110
c127250
PA [%]76.575.5
Table 5. Parameter estimates of model from Equation (11) and their standard error and t-value.
Table 5. Parameter estimates of model from Equation (11) and their standard error and t-value.
ParameterEstimateStd. Errort-Value
γ1152885.5217.866
γ23.870.11733.072
γ3−0.087060.002412−36.098
γ4−0.5140.05414−9.494
γ5−0.00035070.00002185−16.053
γ6−0.83520.1038−8.044
γ70.0060640.000195331.052
Table 6. Evaluation of the final non-linear logistic regression model from Equation (11); SD = standard deviation.
Table 6. Evaluation of the final non-linear logistic regression model from Equation (11); SD = standard deviation.
Model from Equation (11)
RMSE%31.7
bias%0.22
SD of bias%0.6
Pseudo R20.64

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
