A Review of Key Signal Processing Techniques for Structural Health Monitoring: Highlighting Non-Parametric Time-Frequency Analysis, Adaptive Decomposition, and Deconvolution

Abstract

This paper reviews key signal processing techniques in structural health monitoring (SHM), focusing on non-parametric time–frequency analysis, adaptive decomposition, and deconvolution methods. It examines the short-time Fourier transform (STFT), wavelet transform (WT), and Wigner–Ville distribution (WVD), highlighting their applications, advantages, and limitations in SHM. The review also explores adaptive techniques like empirical mode decomposition (EMD) and its variants (EEMD, MEEMD), as well as variational mode decomposition (VMD) and its improved versions (SVMD, AVMD), emphasizing their effectiveness in handling nonlinear and non-stationary signals. Additionally, deconvolution methods such as minimum entropy deconvolution (MED) and maximum correlated kurtosis deconvolution (MCKD) are discussed for mechanical fault diagnosis. The paper aims to provide a comprehensive overview of these techniques, offering insights for future research into SHM signal processing.

1. Introduction

When delving into modern and developed societies, one finds that strategically significant and intricately complete civil infrastructures and buildings constitute their core commonality. This commonality manifests broadly in widespread applications across transportation, industrial production, economic activities, and the protection of personnel and materials. Given the importance of these facilities, we cannot overlook their aging and degradation, nor can we afford the inestimable losses and harm that may result from failing to detect issues and take timely action. Furthermore, due to the large number and ubiquity of these structures, the majority of them are inevitably and frequently exposed to continuous environmental vibrations and severe disaster events, such as earthquakes, floods, tornadoes, and corrosion, as well as other uncertain factors like traffic loads, material aging, impacts, and environmental corrosion. Consequently, monitoring and assessing structural performance has become a fundamental requirement for enhancing structural integrity and safety.

Structural health monitoring (SHM) and structural damage detection methods are continuously evolving, with research gaining new life across various scientific fields such as aerospace, civil, and mechanical engineering [1]. To achieve SHM, researchers employ a variety of different sensor devices to collect signal data, including acoustic, pressure, temperature, force, and accelerometer sensors. This has given rise to the processing of multivariate signals.

The core objective of signal processing is to collect, analyze, and process multivariate signals such as vibrations, noise, temperature, and pressure generated during the operation of mechanical systems, extracting key features that reflect the system’s state, thereby enabling early fault detection, precise diagnosis, and effective prevention. In recent years, SHM researchers have dedicated themselves to integrating and fusing various cutting-edge technologies—particularly those from different information technologies and engineering methodologies—to develop economical, accurate, and reliable monitoring methods. Additionally, various data mining techniques, visualization tools, and statistical computations frequently appear in monitoring and processing solutions. Beyond traditional vibration-based monitoring, detections methods related to sound, temperature, and motor current are now emerging, as mentioned by Wonho Jung [2]. Moreover, changes in structural properties, such as stiffness, are significantly observable in variations of multivariate signals, and internal structural components can also be accurately represented through these signals. Therefore, it is crucial that signal processing techniques for monitoring changes in structural vibration responses are robust during the process of damage localization, quantification, and detection.

The diversity of signals requires the adoption of correspondingly diverse processing techniques based on their specific characteristics, and for a particular signal, a so-called powerful signal technique is one that is appropriately adapted. For example, linear signals satisfy the superposition principle and can thus be analyzed using linear processing techniques such as linear filters and Fourier transforms. Nonlinear signals, however, do not satisfy the superposition principle, and they require nonlinear processing techniques such as nonlinear filters and Hilbert–Huang transforms to reveal their complex characteristics. Directly applying a highly powerful linear signal processing model cannot guarantee perfect representation of nonlinear signals. Therefore, in the process of studying nonlinear signal processing models, new and specific technologies are often required.

In mechanical systems and structures, due to the complexity of operating conditions, external environmental interference, and the gradual aging and damage of materials and components, the collected signals are often non-stationary and nonlinear. These non-stationary and nonlinear signals contain rich state information, such as vibrations, stresses, and strains, which can reflect the health status of mechanical systems and structures. Therefore, signal processing techniques in the field of structural health require the integration of time-domain, frequency-domain, and time–frequency-domain characteristics to provide a more comprehensive understanding of the nature of signals and improve the accuracy of diagnosis.

In recent years, researchers have made unremitting efforts to achieve precise processing of signals in the field of structural health monitoring (SHM), particularly for non-stationary and nonlinear signals. The emergence of non-parametric time–frequency analysis techniques, such as short-time Fourier transform (STFT), wavelet transform (WT), and Wigner–Ville distribution (WVD), has found widespread application in SHM. These techniques can simultaneously provide information about signals in both the time and frequency domains, aiding in the development of a more comprehensive understanding of signal characteristics. However, these techniques have their limitations, such as the trade-off between time resolution and frequency resolution in STFT, the sensitivity of WT to the choice of basis functions, and the cross-term and noise sensitivity issues in WVD.

To address these issues, adaptive signal processing techniques have emerged. Empirical mode decomposition (EMD) and its optimized models (e.g., ensemble EMD (EEMD) and multivariate EMD (MEEMD)) decompose signals into a series of intrinsic mode functions (IMFs) through an iterative process, with each IMF representing a natural oscillation mode in the signal. This method excels in processing nonlinear and non-stationary signals but also faces challenges in practical applications, such as endpoint effects and energy non-conservation.

Furthermore, variational mode decomposition (VMD) and its variants (e.g., sparse VMD (SVMD) and adaptive VMD (AVMD)) achieve signal decomposition by minimizing a variational problem, offering higher flexibility and stability. The optimized model, empirical wavelet transform, combines the adaptive decomposition concept of EMD with the compact support framework of wavelet transform theory. By decomposing the signal into multiple frequency bands and constructing wavelet functions compatible with a wavelet filter bank for each band, it achieves adaptive decomposition of the signal. This approach can capture local features of the signal and is particularly suitable for processing nonlinear and non-stationary signals.

The latest technology, deconvolution techniques such as minimum entropy deconvolution (MED) and maximum correlated kurtosis deconvolution (MCKD), enhance signal fault features through filtering processing, improving diagnostic accuracy. These techniques can be regarded as a method of adaptive signal processing. In the deconvolution process, it is often necessary to estimate the point spread function (PSF) or convolution kernel of the signal, a process that typically relies on adaptive algorithms like the expectation–maximization (EM) algorithm or blind deconvolution algorithms. These algorithms can automatically adjust parameters based on observed data and prior knowledge in order to optimize the deconvolution effect. The combination of deconvolution with the aforementioned adaptive and non-parametric time–frequency analyses elevates signal processing techniques to a new level.

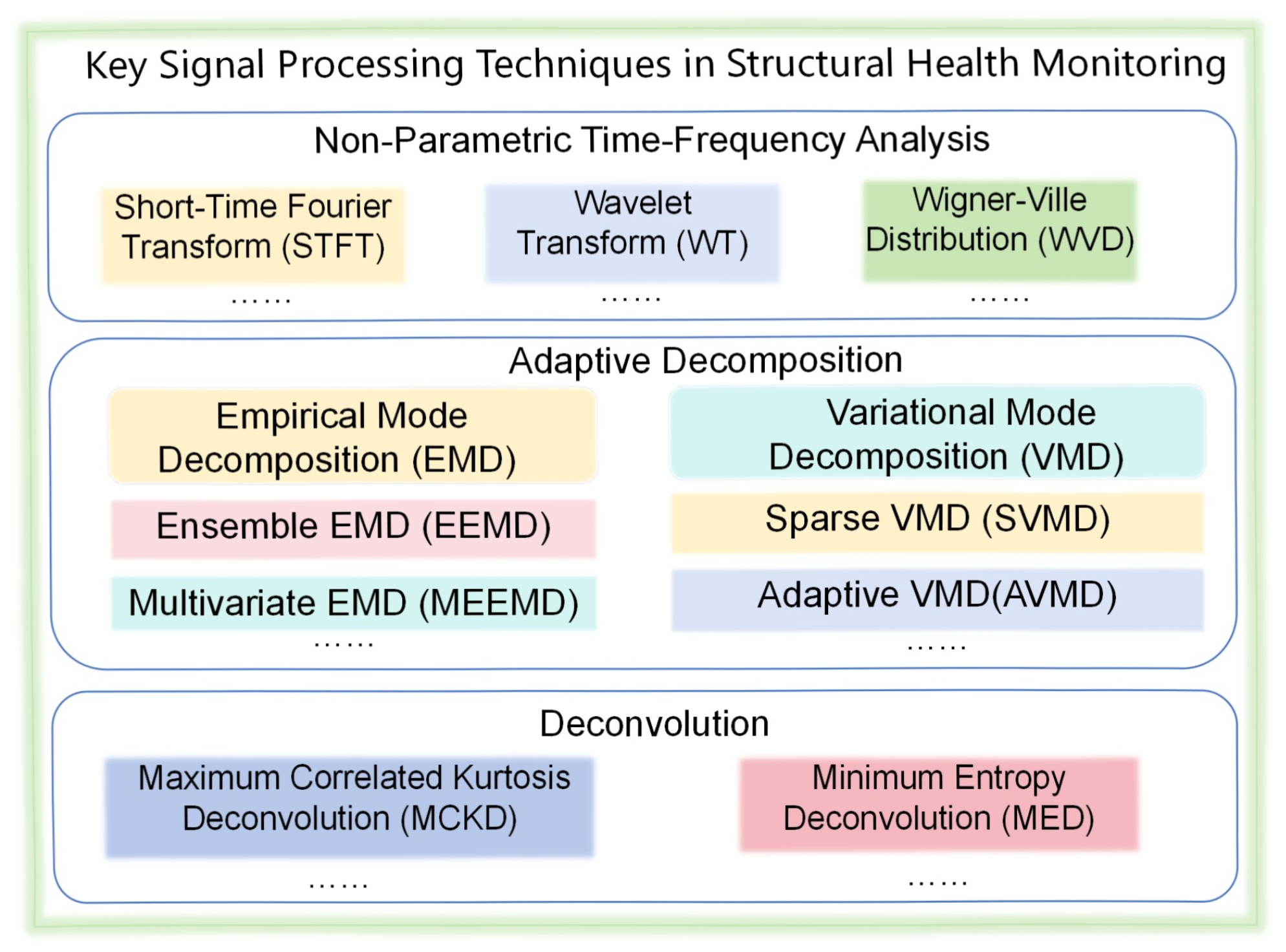

This paper aims to review key signal processing techniques in SHM, particularly non-parametric time–frequency analysis, adaptive decomposition, and deconvolution techniques, as shown in Figure 1. The first section introduces non-parametric time–frequency analysis. It begins by presenting the concept, applications, advantages, and disadvantages of STFT and discussing its widespread use in SHM. It then elaborates on the basic principles of WT, application examples, and its advantages and disadvantages compared to STFT. Furthermore, this paper delves into the application of WVD in time–frequency analysis, including its definition, specific application cases in SHM, and the advantages of high time resolution and instantaneous frequency analysis, while also pointing out the limitations of cross-terms and noise sensitivity. The second section introduces adaptive time–frequency analysis, detailing the principles, applications, and advantages and disadvantages of EMD and its optimized models (e.g., EEMD, MEEMD), emphasizing EMD’s unique advantages for processing nonlinear and non-stationary signals. Additionally, it explores the concepts and applications of VMD and its variants (e.g., SVMD, AVMD) and compares VMD with traditional methods, highlighting it’s flexibility and stability in signal decomposition. The final section discusses deconvolution techniques, examining the applications of deconvolution techniques such as MED and MCKD in machinery fault diagnosis and analyzing their advantages and disadvantages. This paper aims to provide researchers in the SHM field with a comprehensive understanding of signal processing techniques and to serve as a reference for future research.

2. Non-Parameterized Time–Frequency Analysis

This section introduces three representative examples of non-parameterized time–frequency analysis: the short-time Fourier transform, wavelet transform, and Wigner–Ville distribution. Each method will be systematically examined in terms of its definition, practical applications, and strengths and weaknesses to provide a comprehensive understanding of its role in signal processing.

2.1. Short-Time Fourier Transform

This subsection will introduce the definition, applications, as well as the advantages and disadvantages of short-time Fourier transform.

2.1.1. Definition

The short-time Fourier transform (STFT) provides a local time–frequency analysis by sliding a window function over the signal and performing Fourier transforms segment by segment. The definition is as follows:

1.

Continuous-Time Signal: For a continuous signal $x\left(t\right)$, the STFT is defined as

$$X(\tau ,f)={\int }_{-\infty }^{\infty }x\left(t\right)w(t-\tau )e^{-j2\pi ft}dt$$

(1)

where $\tau$ is the time position parameter, indicating the center of the window function; f is the frequency variable; and $w(t-\tau )$ is the window function (such as a rectangular window or Hamming window), used to extract a local segment of the signal around time $\tau$ [3].

2.

Discrete-Time Signal: For a discrete signal $x\left[n\right]$, the discrete form of the STFT is

$$X[m,k]=\sum _{n=-\infty }^{\infty }x\left[n\right]w[n-m]e^{-j{\displaystyle \frac{2\pi kn}{N}}}$$

(2)

where m is the discrete time frame index. k is the discrete frequency index. N is the length of the window function or the number of FFT points. $w[n-m]$ is the discrete window function, which slides with m.

Key Points

• Time–Frequency Analysis: The STFT divides the signal into short segments, and each segment is transformed into the frequency domain via Fourier transform to reveal how frequency components vary over time.
• Role of the Window Function: It restricts the signal to a local time segment, balancing time resolution and frequency resolution (the narrower the window, the higher the time resolution and the lower the frequency resolution).

2.1.2. Application

First, the integration with classical models elevates their performance to a higher level while better aligning with signal characteristics. For instance, a method that first processes the signal using STFT and further integrates it with Google-Net CNN [4] demonstrated in its experimental results that this innovation not only enhances the accuracy of signal processing but also effectively reduces the false alarm rate. Another study significantly improved diagnostic accuracy by combining STFT with CNN [5]. These achievements fully showcase the unique advantages of STFT in enhancing signal processing performance.

Furthermore, significant breakthroughs have been made in optimizing the time–frequency resolution of STFT. The introduction of the ASTFT–CMGW–FVVA method [6], which employs multi-window techniques and linear frequency modulation Gaussian windows, notably improves time–frequency resolution, enabling more refined signal analysis. Meanwhile, the integration of STFT into models has played a pivotal role in bearing health assessment and enhancing the time resolution of PET detectors. An autoencoder modeling approach based on STFT and ensemble strategies [7] effectively extracts deep vibration features of bearings. Another study combined STFT with residual neural networks [8], significantly improving time-of-flight estimation and coincidence time resolution for PET detectors.

STFT also plays a crucial role in sparse representation and synchrosqueezing transforms. By combining these techniques with STFT, researchers have achieved optimized signal processing and applications [9]. This innovation not only expands the application scope of STFT but also introduces new ideas and methods to the field of signal processing. Target localization algorithms represent another important area of STFT application. Researchers have proposed an improved target localization algorithm based on STFT [10], and it significantly enhances the accuracy of target instantaneous frequency estimation and localization by dynamically adjusting the window function and introducing a new distribution estimator.

Beyond the aforementioned applications, STFT also plays a vital role in signal processing decomposition, linear axis misalignment diagnosis, and train wheel anomaly detection. A decomposition method based on STFT [11] was shown to improve the time and frequency resolution of signal processing. Another study, based on servo motor current data and an STFT-based linear axis misalignment diagnosis method [12], had the aim of diagnosing faults without using sensors and external data collection systems but rather by capturing motor current data from the servo motor of the machine. Additionally, a train wheel anomaly detection method using STFT and unsupervised learning algorithms [13] was shown to effectively monitor wheel health. Furthermore, STFT has been applied to analyze multi-time scale variations [14], further expanding its application scope.

Notably, researchers have also conducted innovative studies by combining STFT with fractal theory and the uncertainty principle. They have investigated the fractal uncertainty principle of STFT and Gaussian windows [15] and explored its application in discrete Gaussian Gabor multipliers. This innovation not only provides new perspectives and methods for STFT research but also brings new insights to the study of fractal theory and the uncertainty principle.

Some researchers have introduced ST-QPFT and studied the fundamental properties and uncertainty inequalities of STFT, contributing to the field of short-time quadratic-phase Fourier transforms [16]. Another study proposed the FrFTSG method related to short-time fractional Fourier transforms [11], improving the time and frequency resolution of signal processing.

2.1.3. Strength and Weakness

• High-resolution and efficient computation
• Window effect and time–frequency trade-off

First, STFT provides excellent time–frequency resolution, allowing signals to be represented in detail in both the time and frequency domains. This is particularly crucial for structural health monitoring, as the response signals of structures often exhibit non-stationary characteristics when subjected to external excitations or internal damages. Traditional Fourier transform methods are ineffective in processing such non-stationary signals, whereas STFT can accurately capture the temporal variations in signals, providing a solid basis for structural health assessment.

Second, STFT is computationally efficient. Compared to other time–frequency analysis methods, STFT has relatively low complexity, enabling it to play a significant role in real-time applications. In structural health monitoring systems, real-time performance is a key indicator, as the timely and accurate detection of structural damages is vital for ensuring structural safety. The efficiency of STFT enables it to meet this requirement, providing strong support for real-time structural health monitoring.

However, the short-time Fourier transform also has some limitations in signal processing within the field of structural health monitoring:

One notable drawback is the window effect. The analysis results of STFT are highly dependent on the choice and length of the window function. In structural health monitoring, different window functions and lengths may lead to variations in time–frequency resolution, thereby affecting the accuracy of damage identification. Therefore, careful consideration is needed when selecting the window function and length to ensure consistent and accurate analysis results. Another key limitation is the inherent trade-off between time and frequency resolution. Due to the characteristics of the windowing process in STFT, it cannot achieve optimal resolution in both the time and frequency domains simultaneously. According to the Nyquist sampling theory, larger windows give higher frequency resolution but lower time resolution, and vice versa for shorter windows. In structural health monitoring, certain types of damage may exhibit rapidly changing characteristics, requiring time–frequency analysis methods to capture high-frequency components of signals within short periods. However, the performance of STFT in this aspect may be limited, leading to inaccurate identification of certain rapidly changing damage features.

Furthermore, STFT struggles to accurately capture the time–frequency features of highly non-stationary signals, especially those with abrupt or transient components. In structural health monitoring, certain types of damage may cause abrupt or transient changes in signals, requiring time–frequency analysis methods to sensitively capture these changes. However, STFT may have deficiencies in this regard, leading to inaccurate identification of certain damage features.

To address these limitations, STFT often needs to be combined with complementary methods, such as wavelet transforms or adaptive time–frequency techniques. These methods can compensate for the shortcomings of STFT in terms of time–frequency resolution and the capture of abrupt signals, improving its performance in complex signal analysis scenarios. Despite these challenges, STFT remains a fundamental and widely used time–frequency analysis tool. Owing to its advantages of simplicity, efficiency, and broad applicability, it plays a significant role in signal processing within the field of structural health monitoring.

2.2. Wavelet Transform

This subsection will introduce the definition, applications, as well as the advantages and disadvantages of wavelet transform.

2.2.1. Definition

Wavelet transform is a time–frequency analysis method used to analyze the local characteristics of non-stationary signals. Different from Fourier transform, wavelet transform represents the signal through a set of scalable and shiftable wavelet functions and is thereby able to provide simultaneous high-resolution analysis in time and frequency domains. Wavelet transform can be divided into continuous wavelet transform (CWT) and discrete wavelet transform (DWT). The former is mainly used for signal analysis, while the latter is often used in signal compression and feature extraction.

2.2.2. Application

The number of research papers on wavelet transform-related topics far exceeds that of similar signal processing models. Moreover, a large number of optimized models based on DWT have emerged. One such method is the identification of homologous acoustic emission signals based on synchrosqueezing wavelet transform coherence (SWTC). This method aims to improve the accuracy of identifying homologous acoustic emission signals in structural health monitoring, thereby enhancing the precision of damage localization [17]. Additionally, an unsupervised tunnel damage identification method based on convolutional variational autoencoder (CVAE) and wavelet packet analysis has been proposed, with experimental results validating its efficiency and accuracy [18].

The integration of wavelet analysis with deep learning models has led to a new breakthrough. SWT [19] represents an innovative approach for bearing fault diagnosis, which combines wavelet packet transform with convolutional neural networks and further optimizes network parameters through a simulated annealing algorithm. The Swin residual network (WSRN) based on multi-level discrete wavelet transform has been employed to reconstruct continuously missing data [20]. By replacing the traditional sampling layers with multi-level DWT, this approach significantly enhances the recovery of weak signals and the extraction of multi-scale features, thereby greatly improving the accuracy of data reconstruction.

In the field of structural health monitoring, DWT has proven to be a powerful tool. However, its accuracy heavily relies upon the selected wavelet basis function and the number of vanishing moments, posing significant challenges in practical applications. To address this issue, one method [21] cleverly combines statistical properties with DWT, markedly improving the accuracy of steel beam crack identification.

2.2.3. Strength and Weakness

• Time–frequency localization and flexible multi-scale analysis
• Challenges in selecting wavelet basis and parameters

The application of wavelet transform in the field of structural health monitoring (SHM) presents multiple advantages and disadvantages, with its strengths being particularly prominent: First, wavelets exhibit excellent time–frequency localization characteristics. This property enables wavelet transform to perform high-resolution analysis simultaneously in both the time and frequency domains, providing a unique advantage for processing non-stationary signals. In SHM, structural responses are often influenced by various factors, resulting in non-stationary signals. Wavelet transform can therefore more accurately capture the changing features of these signals, providing strong support for structural condition assessment. Second, wavelets facilitate multi-scale analysis. By adjusting the scale and position of the wavelet function, signals can be decomposed at different scales, thereby extracting hierarchical features. These features can reflect damage conditions and performance changes in the structure at different scales, providing rich information for SHM and damage identification. Furthermore, the flexibility of wavelets is another significant advantage. The diversity of wavelet basis functions allows for the selection of appropriate wavelet bases for transformation based on specific signal types and requirements. In the field of SHM, different structural types and damage forms may require different wavelet bases to better represent signal characteristics, and the flexibility of wavelets satisfies this need.

Notably, the discrete wavelet transform (DWT) possesses high computational efficiency. This characteristic gives wavelet transform significant potential for real-time SHM. Especially in signal compression and feature extraction, DWT can efficiently process large amounts of data, providing rapid and accurate analysis results for the online monitoring of structures and generation of damage warnings.

However, application of wavelet transform to the field of SHM also faces some challenges. First, the selection of wavelet basis functions is crucial. Different wavelet basis functions have significant impacts on analysis results, necessitating professional knowledge and insight to choose the appropriate ones. Regarding signal characteristics, it is necessary to fully take into account features such as the singularity, frequency components, and non-stationarity of the signal. Meanwhile, task requirements also play a decisive role. Different application scenarios, such as denoising, feature extraction, or fault location, impose diverse demands on wavelet bases. Additionally, the inherent properties of wavelet bases, including compact support, symmetry, vanishing moments, and regularity, are important factors that cannot be overlooked during the selection process. Common wavelet bases each have their own characteristics and applicable scopes. The Daubechies wavelet (dbN) exhibits compact support and high-order vanishing moments, enabling it to keenly capture the local singularities of signals. It performs remarkably well in the vibration signal analysis of mechanical faults in components like bearings and gears, and it has a distinct advantage in detecting transient signals (such as impact pulses). The Symlet wavelet (symN) is approximately symmetric, making it suitable for processing non-stationary signals. It plays a significant role in the early fault detection of rotor cracks and gears, and it can effectively preserve the phase information of signals during the signal decomposition process. As a continuous wavelet, the Morlet wavelet is widely applied in time–frequency analysis and is especially suitable for early fault detection, particularly the extraction of weak fault signals. It also offers high resolution for non-stationary signals. The Haar wavelet is characterized by simplicity and high computational efficiency. Although it has a low-order vanishing moment, it is applicable for rapid fault detection and the detection of signal mutation points. However, its resolution ability for complex fault signals is relatively weak. In practical applications, experts in the field of SHM need to make careful selections based on specific circumstances.

Second, the choice of parameters in wavelet transform (such as scale and position) has a substantial influence on the results. However, a rigorous methodology for this process is currently lacking. This may lead to instability and inaccuracy in analysis results, necessitating further research and exploration to refine this method. Finally, the sensitivity of wavelets to noise is also a concern for their application. In SHM, signals are often contaminated with noise due to environmental noise and measurement errors. Wavelet transform may face interference from noise when processing these noisy signals, leading to distorted analysis results. Therefore, complementary denoising techniques need to be integrated to mitigate the impact of noise on analysis results and improve the accuracy and reliability of wavelet transform in SHM.

2.3. Wigner–Ville Distribution

In this chapter, we will explore the definition of Wigner–Ville distribution and its applications in various scenarios, and we will analyze both its strengths and weaknesses.

2.3.1. Definition

The Wigner–Ville distribution (WVD) is a sophisticated time–frequency analysis technique employed to examine the time–frequency properties of non-stationary signals. It offers a means to simultaneously visualize both temporal and spectral information by transforming the signal into the time–frequency domain. The WVD is formally defined as follows:

$${\mathcal{W}}_x(t,f)={\int }_{-\infty }^{\infty }\mathbf{x}\left(t+{\displaystyle \frac{\tau }{2}}\right){\mathbf{x}}^{\ast }\left(t-{\displaystyle \frac{\tau }{2}}\right)e^{-\mathrm{j}2\pi f\tau }\mathrm{d}\tau$$

(3)

where $x\left(t\right)$ is the input signal, * is the complex conjugation, and t and f are the time and frequency variables, respectively.

2.3.2. Application

From traditional signal processing, to the enhancement of deep learning models, and further to integration with other advanced technologies such as dynamic mode decomposition (DMD), variational mode decomposition (VMD), and convolutional neural networks (CNNs), the applications of the WVD in the field of structural health continue to expand. These applications not only improve the accuracy and efficiency of signal processing but also provide more comprehensive and accurate data support for SHM. Ref. [22] employs the smoothed pseudo Wigner–Ville distribution (SPWVD) to enhance deep learning models. The DMD-WVD method [23] combines dynamic mode decomposition with the Wigner–Ville distribution to eliminate cross-terms.

The introduction of the quadratic chirp-scaled Wigner distribution (QSWD) [24] further enhances the advantages of signal detection. In combination with other deep learning models, time–frequency analysis methods for partial discharge signals based on VMD and WVD [25] have emerged, and the WVD has been integrated with CNNs for classification [26], specifically applied to composite material damage classification methods [27]. Additionally, there are methods based on the polynomial Wigner–Ville distribution [28], hybrid Wigner–Ville distributions defined in the octonion domain [29], and other innovative technical approaches that provide new ideas and methods for SHM.

The development of the WVD in the field of structural health is also reflected in the depth of theoretical research. Researchers have not only conducted in-depth studies on the WVD itself but have also combined it with other mathematical and physical theories to explore its application potential in SHM. For example, study of the uncertainty principle of the coupled fractional Wigner–Ville distribution (CFrWVD) [30] helps us to better understand the behavior of the WVD in complex signal analysis; combination of the WVD with theories such as the quaternion linear canonical transform (QOLCT) [31] also provides new perspectives and methods for signal processing. The emergence of the WVD in special mathematical domains, such as the study of the interaction between the two-dimensional hypercomplex WVD and the quadratic-phase Fourier transform [23], is also noteworthy.

2.3.3. Strength and Weakness

• High time–frequency resolution and energy concentration
• Precision in instantaneous frequency analysis
• Mathematical completeness and cross-term interference

The advantages of the Wigner–Ville distribution (WVD) in structural health signal processing are evident.

First, it possesses high time–frequency resolution and energy concentration [32]. The WVD directly reflects the distribution of signal energy in the time–frequency plane through the Fourier transform of the instantaneous correlation function, without the constraints of a window function, thereby breaking through the limitations of time–frequency resolution imposed by the short-time Fourier transform (STFT) and wavelet transform. For single-component linear frequency-modulated signals, such as the impulse response generated by structural damage, the time–frequency energy concentration of the WVD reaches theoretical optimality, enabling clear capture of high-frequency transient components, such as nonlinear vibrations resulting from crack propagation or bolt loosening [33].

Furthermore, it exhibits precision in instantaneous frequency analysis [1]. The quadratic nature of the WVD allows it to directly represent changes in the instantaneous frequency of a signal, such as the time-varying characteristics of structural modal frequencies or frequency modulation phenomena in nonlinear vibrations. Compared to linear time–frequency methods (e.g., STFT), the WVD offers higher accuracy in the analysis of frequency-hopping signals and rapid frequency changes.

Additionally, it is characterized by mathematical completeness and information richness. The WVD satisfies the marginal conditions (the integrals of time and frequency energy equal the total signal energy) and possesses phase shift invariance. The Fourier transform of its autocorrelation function can be directly used for modal parameter identification and damage localization. Moreover, the real-valued nature of the WVD simplifies the physical interpretation of the energy density distribution, making it suitable for energy decay analysis in structural health monitoring. Finally, it demonstrates adaptability as a non-parametric method. The WVD does not require pre-assuming a signal model, making it suitable for extracting unknown damage features under complex operating conditions. For example, in composite material delamination damage monitoring, the WVD can adaptively analyze the time–frequency characteristics of nonlinear acoustic emission signals without relying on a preset damage model [26,33].

Of course, the WVD has limitations and challenges. First, there is the interference of cross-terms [25]. The bilinear nature of the WVD leads to the generation of spurious cross-terms in the time–frequency distribution of multicomponent signals (such as multimode vibrations or environmental noise interference). These cross-terms can obscure real damage features, potentially leading to misjudgment, especially in the presence of multiple coexisting types of damage or highly noisy environments.

Second, there is the issue of non-positivity of energy and ambiguity in physical meaning. Although the WVD is a real-valued distribution, its energy density may exhibit negative values, conflicting with the concept of energy in a physical sense and limiting its application in quantitative energy analysis, such as damage severity assessment.

Finally, there are limitations in computational complexity and real-time performance. The high resolution of the WVD relies on instantaneous correlation calculations over the entire data length, leading to low processing efficiency for long time series signals (such as long-term structural monitoring data) and making it difficult to meet real-time monitoring requirements.

3. Adaptive Time–Frequency Analysis

This section introduces adaptive time–frequency analysis, including three key methodologies and their optimization models: empirical mode decomposition (EMD), variational mode decomposition (VMD), and empirical wavelet transform (EWT). Each method and its associated optimization framework will be systematically analyzed from three perspectives: definition, practical applications, and strengths and weaknesses. This comparative examination aims to clarify their theoretical foundations, implementation challenges, and suitability for diverse signal processing scenarios.

3.1. Empirical Mode Decomposition and Optimization Models

This subsection explores different variants of EMD, including Empirical Mode Decomposition, Ensemble Empirica, and Multivariate Ensemble Empirical Mode Decomposition, highlighting their unique features, applications, and the underlying theoretical foundations.

3.1.1. Empirical Mode Decomposition

Definition

Empirical mode decomposition (EMD), proposed by Huang et al. [34], is an adaptive signal processing method that decomposes a signal into a set of intrinsic mode functions (IMFs), each representing a natural oscillation mode in the signal. The EMD method extracts different frequency components from the signal through an iterative process based on the signal’s local characteristic time scale.

An IMF, which is the basic function obtained during the EMD decomposition process, must satisfy the following two conditions: (1) Relationship between the number of extrema and the number of zero-crossings: They must be equal or differ by at most one. (2) Mean of the local envelope: At any point, the mean of the envelope defined by the local maxima and minima is zero [35]. It is worth noting that IMFs are determined by the signal itself rather than predefined kernel functions, making EMD an adaptive signal processing method.

The formula for the EMD method can be expressed as

$$x\left(t\right)=\sum _{i=1}^N{C}_i\left(t\right)+R\left(t\right)$$

(4)

where

-

$x\left(t\right)$ is the original signal,

-

$C_i\left(t\right)$ is the i-th IMF,

-

$R\left(t\right)$ is the residual term, representing the part of the signal not decomposed into IMFs,

-

N is the number of IMFs.

Application

In recent years, researchers have applied empirical mode decomposition (EMD) in conjunction with various network models.

A multitude of methods have emerged for sequence prediction by integrating EMD with neural networks. Typically, EMD is used to decompose signals into modal functions, which are then analyzed using classical networks. One approach combines EMD with long short-term memory neural networks to estimate the state of health (SOH) and predict the remaining useful life (RUL) of lithium-ion batteries. EMD is utilized to decompose the voltage signals of lithium-ion batteries and extract intrinsic mode functions (IMFs). These IMFs are then processed by an LSTM network to predict the battery’s SOH and RUL [36]. Another method involves a model that combines EMD with gated recurrent unit (GRU) neural networks. EMD is used to decompose time series data and extract IMFs, which are subsequently processed by a GRU network to enhance prediction accuracy and robustness [37]. Additionally, there is a predictive model that combines EMD with least squares support vector regression (LSSVR). EMD is used to decompose time series data and extract IMFs and residuals, which are then individually predicted by LSSVR. The final prediction is obtained by aggregating these individual predictions [38]. Furthermore, a hybrid model that integrates three classical models—EMD, LSTM, and autoregressive incorporated moving average (ARIMA)—is used for wind speed prediction. EMD is used to decompose wind speed data and extract IMFs, LSTM processes the time series data, and ARIMA captures the linear trends in the data. The overall model improves prediction accuracy and stability [39].

Moreover, research on noise reduction methods is also making progress. One noise reduction method combines uniform-phase empirical mode decomposition (MUPEMD) with a genetic algorithm–dynamic zero-phase interval filtering algorithm (GA-DZPIF) to improve the processing efficiency of ship-radiated noise signals and mitigate modal aliasing issues. MUPEMD is used to decompose the signals, while GA-DZPIF is used to filter the single-mode components, with structural similarity (SSIM) being used as an evaluation metric [40]. Additionally, a method based on improved ensemble noise reconstruction empirical mode decomposition (IENEMD) and adaptive threshold denoising (ATD) has been proposed. This method combines IENEMD and ATD to extract weak fault features of rolling bearings. IENEMD is used to decompose the signals, while ATD is used for denoising. The effectiveness and robustness of this method have been verified through simulation experiments and practical cases [41].

Furthermore, Guo Junyu et al. have proposed a hybrid scheme for rolling bearing fault prediction based on empirical mode decomposition (EMD) and kernel principal component analysis (PCA). This hybrid scheme combines complete ensemble empirical mode decomposition with multiscale interpolation (CEEMD-MsI) and PCA to construct a nonlinear health indicator, and it uses a dual-channel transformer network and convolutional block attention module to extract multi-domain features for rolling bearing fault prediction [42].

Strength and Weakness

• No need to preset the number of modes or frequency ranges
• Capable of capturing complex patterns and transient features

Empirical mode decomposition (EMD) is the most classic adaptive time–frequency analysis technique. Compared to the aforementioned non-parametric dependent time–frequency analysis techniques, it can decompose signals based on their inherent characteristics without the need to preset the number of modes or frequency ranges. This method is particularly suitable for processing signals with complex nonlinear and multiscale characteristics. Furthermore, the decomposition process of EMD is driven by data iteration, based on the local maxima and minima of the signal. During this process, the signal is naturally decomposed into a series of intrinsic mode functions (IMFs) without the need for additional prior knowledge or model parameter adjustments.

Compared with traditional Fourier transform and wavelet transform, the mode-mixing phenomenon in EMD is reduced. Each IMF represents a local manifestation of the signal within a specific frequency range. Although they are not completely orthogonal, they ensure a certain degree of frequency–time resolution of the signal. In terms of handling boundary effects, EMD has also undergone certain optimizations. By specially processing the signal boundaries, the influence of boundary effects on the decomposition results is reduced. In contrast, the aforementioned time–frequency analysis methods may encounter issues such as reduced resolution or spectrum leakage at signal boundaries. Additionally, the IMFs obtained after EMD decomposition can be reconstructed through simple addition operations with high reconstruction accuracy. This characteristic gives EMD advantages in applications such as signal denoising, feature extraction, and pattern recognition. It is particularly noteworthy that EMD is especially suitable for processing nonlinear and non-stationary signals and is capable of capturing complex patterns and transient features in the signal. In contrast, Wavelet transform and short-time Fourier transform may require more complex multiscale analysis when processing nonlinear signals.

Finally, regarding the adaptability of EMD, it can process any type of signal, including process control [43,44], modeling [45,46], surface engineering, wind speed prediction [47], system identification [48], bearing diagnosis [49], etc. This excellent adaptability makes its application versatile.

Of course, as the most basic adaptive time–frequency analysis technique, EMD still has much room for improvement. Its disadvantages include endpoint effects and energy non-conservation, which are inherent to the EMD algorithm itself. Since IMFs are not strictly orthogonal, the total energy of the decomposed IMFs may not match the energy of the original signal, leading to energy non-conservation in some cases. For example, in the study by Yaguo Lei [35], simulations and analyses of IMFs revealed distortions at both ends of the IMFs, and the decomposition results also exhibited distortions at both ends. Mode mixing, although less severe than in traditional methods, remains an issue, with single IMFs containing oscillations of different scales, or oscillations of similar scales being distributed across different IMFs. This is caused by the intermittency of the signal. As stated by Huang et al. [34], intermittency can lead to severe mixing of time–frequency distributions, making the physical meaning of individual IMFs ambiguous.

3.1.2. Ensemble Empirical Mode Decomposition

Definition

Ensemble empirical mode decomposition (EEMD) is an improved method of empirical mode decomposition designed to address the mode mixing issue that may arise when EMD processes signals. EEMD adds white noise of a certain amplitude to the signal to be analyzed and performs multiple EMD decompositions, which are then averaged to obtain more stable and accurate intrinsic mode functions. EEMD retains the adaptive characteristics of EMD, enabling decomposition based on the local characteristic time scales of the signal itself.

Application

Researchers have adopted data-driven models such as EEMD-RF, EEMD-ANN, and EEMD-GBM for precise prediction and conducted sensitivity analyses to understand model behavior [50]. Another study employed a method that combined EEMD with SVM [51]. Similarly, the W-EEMD-ARIMA model achieved the same objective [52]. A method using the EEMD-ANN model for prediction has been proposed, aiming to address inherent challenges in prediction, such as difficulties in model construction, low prediction accuracy, and high computational intensity [53].

EEMD exhibits good denoising performance. The effectiveness of the EEMD-based denoising method proposed in [54] was compared with various wavelet transform-based threshold denoising methods, demonstrating the potential of EEMD in signal denoising applications. A study combined the EEMD–independent component analysis (ICA) method to effectively remove artifacts [55]. Furthermore, several innovative models and applications have emerged. For example, an ensemble empirical mode decomposition–temporal convolutional network (EEMD-TCN) machine learning method has been employed in relevant research [56].

Strength and Weakness

• Alleviates the mode mixing issue by adding Gaussian white noise
• Residual noise contamination and energy non-conservation

Ensemble empirical mode decomposition (EEMD), as an enhanced version of classical empirical mode decomposition (EMD), demonstrates unique application value in structural health signal processing while facing several limitations that require urgent resolution. Its core advantage lies in effectively alleviating the mode mixing issue caused by signal intermittency in traditional EMD through multiple additions of Gaussian white noise to the original signal and ensemble averaging. For instance, in the analysis of bridge vibration signals with multiple damage sources, EEMD can separate high-frequency transient components from crack propagation and low-frequency modulated signals from bolt loosening into distinct intrinsic mode functions (IMFs), significantly improving the accuracy of damage feature extraction. This noise-assisted mechanism not only enhances decomposition stability but also preserves EMD’s adaptability, enabling it to process nonlinear, non-stationary signals, such as acoustic emission signals from composite material delamination or dynamic structural responses under seismic excitation, without predefined basis functions. Furthermore, the decomposed IMFs possess clear multi-scale physical meanings: high-frequency components typically correspond to transient features of localized structural damage (e.g., impact components in early-stage gearbox faults), while low-frequency components reflect global structural vibration modes, providing reliable references for the early detection of fatigue cracks in wind turbine blades [57].

However, the engineering application of EEMD still faces multiple challenges. First, its performance heavily depends on manually set noise intensity and decomposition iterations. Improper parameter selection may lead to signal features being obscured by noise or incomplete modal separation. For example, in rail crack monitoring, excessive noise amplitude settings could contaminate high-frequency IMFs related to damage, compromising diagnostic accuracy. Second, the algorithm’s computational complexity increases significantly, with single decomposition time approximately a hundredfold that of EMD, limiting real-time processing capabilities for massive datasets in long-term monitoring scenarios such as bridges and dams. Although boundary distortion in IMFs caused by end effects can be partially mitigated through mirror extension or local mean prediction (e.g., the OFCEEMDAN algorithm), signal anomalies under extreme operating conditions may still interfere with envelope fitting precision. Additionally, residual noise contamination from repeated noise additions and energy non-conservation in IMFs might affect the reliability of quantitative damage assessment, necessitating post-processing optimization through wavelet threshold denoising or energy compensation algorithms.

To address these limitations, current research focuses on improvements from two dimensions: algorithm optimization and engineering implementation. Regarding noise-assisted strategies, complementary ensemble empirical mode decomposition (CEEMD) reduces residual noise while preserving modal separation advantages through symmetric positive–negative noise pair addition, significantly enhancing signal-to-noise ratio. Adaptive parameter adjustment methods dynamically optimize noise amplitude based on signal entropy or energy distribution, reducing manual intervention requirements. The introduction of hardware acceleration technologies provides new pathways for real-time breakthroughs—for instance, GPU-based parallel computing can improve long-sequence signal processing efficiency by 5–8 times, while the development of FPGA-embedded modules meets low-power demands for field monitoring equipment. Multi-sensor fusion strategies further expand EEMD’s application boundaries. Multivariate EEMD achieves cross-scale feature extraction in composite damage diagnosis of wind turbine blades through joint analysis of multi-physical field data (vibration, acoustic emission, and fiber optic sensing), with false alarm rates reduced to below 3%.

3.1.3. Multivariate Ensemble Empirical Mode Decomposition

Definition

Multivariate ensemble empirical mode decomposition (MEEMD) is an improved method of empirical modal decomposition. It evenly distributes the extrema of the signal by adding pairs of positive and negative Gaussian white noise and reduces the number of spurious components through multiple trials. MEEMD not only inherits adaptability and the ability to address mode-mixing issues from ensemble empirical mode decomposition (EEMD), but it also further enhances the accuracy and stability of the decomposition by introducing a median operator.

The specific steps are as follows: (1) Adding Gaussian white noise: Pairs of positive and negative Gaussian white noise are added to the original signal, ensuring that the noise has a mean of zero and equal standard deviations. (2) Empirical modal decomposition: Multiple empirical modal decompositions are performed on the noise-added signal, with each decomposition yielding a series of intrinsic mode functions (IMFs) and a residual. (3) Median operation: A median operation is applied to the IMFs and residuals obtained from each decomposition to produce the final IMFs and residual.

Application

Multivariate ensemble empirical mode decomposition (MEEMD) effectively addresses the complexity and non-stationarity of signals by decomposing composite waves into distinct components, thereby facilitating the examination of their spatiotemporal heterogeneity and separation characteristics [58].

Research has also leveraged this attribute, employing MEEMD to manage the nonlinear and non-stationary nature of normalized difference vegetation index (NDVI) data, integrating MEEMD with the geographically and temporally weighted regression (GTWR) method [59].

Innovatively, MEEMD has been applied to non-destructive testing. By processing data obtained from pulsed thermography with MEEMD, signals of different frequency components can be separated. Due to the differences in thermal responses between defective and non-defective regions, the decomposition by MEEMD better highlights these discrepancies, thereby enabling non-destructive testing and enhancing the accuracy and reliability of detection [60]. A method combining MEEMD and Prony [61], wherein MEEMD decomposes the signal and introduces permutation entropy to detect randomness followed by the reconstruction of the remaining intrinsic mode function (IMF) components, has also made innovative progress.

Furthermore, MEEMD is extensively utilized for prediction [62]. A sequence prediction method based on the MEEMD–long short-term memory (LSTM) network model has been proposed. Another prediction approach employs a model based on MEEMD, LSTM, and multilayer perceptron (MLP) [63]. MEEMD initially decomposes the data, LSTM handles the dynamic changes in time series, and MLP models complex nonlinear relationships. The synergy of these three enhances prediction accuracy and stability under different conditions and data characteristics. A prediction model based on improved MEEMD and a quasi-affine transformation (QUATRE)-optimized bidirectional long short-term memory (BILSTM) network has also been developed. In this model, MEEMD processes photovoltaic output data to extract key features, QUATRE optimizes these features, and BILSTM captures forward and backward dependencies in time series data.

Simultaneously, MEEMD is applied to fault detection. A rotor fault detection method based on MEEMD energy entropy and an artificial neural network (ANN) has been developed. MEEMD decomposes the operational signals of the rotor and calculates energy entropy to construct a feature vector reflecting the energy distribution characteristics of the signal [64]. Another fault diagnosis method for reciprocating machinery based on improved MEEMD-SqueezeNet has also been proposed [65].

Researchers have further optimized MEEMD focusing on the crucial issue of noise in signal processing. To address the noise reduction problem in tunnel blasting vibration signals, a complete method based on MEEMD and least mean squares (LMS) has been developed. Additionally, a method combining MEEMD and singular value decomposition (SVD) is used to remove noise from high slope deformation data. MEEMD is employed for the initial decomposition of high slope deformation data, and SVD further processes the decomposed matrix to effectively eliminate noise, fully preserving the intrinsic details of the deformation data and providing a more accurate basis for subsequent data analysis and processing [66].

Strength and Weakness

• Suppression of modal aliasing and fusion of multi-physical field signals
• Parameter sensitivity, residual noise, and endpoint effect
• Algorithm generalization and poor adaptability to extreme working conditions

On the one hand, MEEMD (multivariate ensemble empirical mode decomposition) possesses multiple advantages. First, it excels in mode mixing suppression and computational efficiency enhancement. By adopting a multivariate signal ensemble decomposition strategy and incorporating a median operator to integrate and average the decomposition results of multiple signal sets, MEEMD effectively reduces spurious components induced by the addition of random noise in EEMD (ensemble empirical mode decomposition).

Second, it enhances multi-physical field signal fusion and robustness. The multivariate signal ensemble nature of MEEMD enables it to process multi-channel sensor data simultaneously (such as vibration, acoustic emission, and fiber optic sensing). Through joint analysis of the time–frequency characteristics of signals from different physical fields, it strengthens its identification capability for complex damage patterns (such as the coexistence of composite delamination and metal fatigue). Experiments demonstrate that when applied to the diagnosis of composite damages in wind turbine blades, MEEMD can reduce the false alarm rate, significantly outperforming the single-channel EEMD method [67]. Furthermore, its adaptive noise bandwidth design dynamically adjusts to different signal characteristics (such as high-frequency transients or low-frequency slow variations), avoiding the masking of signal features by fixed-bandwidth noise. Additionally, computational cost optimization and real-time performance improvement are achieved. By optimizing the ensemble averaging strategy (for example, through stage-wise averaging instead of global averaging), MEEMD shortens the computation time while maintaining decomposition accuracy [68]. This improvement is particularly suitable for long-term health monitoring scenarios, such as dam deformation analysis or aerospace structural fatigue assessment.

The main technical challenges of MEEMD are as follows: First, parameter sensitivity and residual noise persistence. The performance of MEEMD still relies on a manually set noise bandwidth and number of ensemble trials. If the noise bandwidth is too wide, it may introduce high-frequency artifacts; if it is too narrow, then it may result in incomplete mode separation. For instance, in rail crack monitoring, improper noise parameter settings can contaminate damage-related high-frequency IMFs (intrinsic mode functions) with noise, reducing the signal-to-noise ratio [58]. Moreover, multiple overlays of limited-bandwidth noise may lead to the accumulation of low-frequency residual noise, necessitating post-processing with wavelet threshold denoising or energy compensation algorithms.

Second, endpoint effects can distort the decomposition results, and the method shows poor adaptability to extreme conditions, such as high-temperature or high-humidity environments where signals may be severely affected. Although MEEMD partially suppresses endpoint distortions through local mean prediction (such as the OFCEEMDAN algorithm), under extreme conditions of strong impact loads or abrupt signal amplitude changes (such as building responses during earthquakes), envelope fitting errors may still cause IMF boundary frequency shifts, affecting damage localization accuracy. Experiments indicate that modal energy leakage in such cases can reach a significant level, which may have a negative impact on the accuracy of signal decomposition. Third, hardware resource constraints and algorithm generalization limitations. The multi-channel data processing requirements of MEEMD significantly increase memory usage, posing challenges to the hardware resources of embedded devices (such as wireless sensor nodes). For example, when compared to standard FPGA-implemented modules implemented for single signal processing, FPGA-implemented MEEMD modules require an additional 20% of logic units for multi-signal synchronous processing, which limits their promotion in low-power scenarios [68]. Furthermore, the algorithm’s generalization capability for non-stationary signals still needs verification; in particular, the decomposition stability under multi-physical field coupling (such as the combined effect of temperature and strain) has not been fully investigated.

3.2. Variational Mode Decomposition and Optimization Models

Variational mode decomposition (VMD) is a relatively new and powerful signal decomposition method. It formulates the decomposition problem as a variational optimization problem, enabling the extraction of multiple intrinsic mode components from a signal. In this subsection, we will discuss VMD in detail, including variational mode decomposition, successive variational mode decomposition, variational mode extraction, and adaptive variational mode decomposition. We will explore how these methods operate, their advantages in handling different types of signals, and their potential applications across various disciplines.

3.2.1. Variational Mode Decomposition

Definition

Variational mode decomposition (VMD) is a signal processing method proposed by Dragomiretskiy et al. in 2013 [65]. VMD decomposes a signal into several intrinsic mode functions (IMFs), each of which possesses a specific center frequency and bandwidth. The core idea of VMD is to achieve signal decomposition by minimizing the solution to a variational problem, ensuring that each IMF is as concentrated as possible within a certain frequency band [69].

Application

Variational mode decomposition (VMD) has demonstrated remarkable performance in machinery fault diagnosis, particularly in extracting fault features from rotating machinery such as bearings and gearboxes. By decomposing vibration signals, VMD effectively isolates fault characteristic frequencies and, when combined with methods like envelope spectrum analysis, achieves precise fault diagnosis. For instance, a method for estimating spalling size in rolling bearings based on signal processing techniques has been proposed [70]. Another example is a natural gas pipeline leak detection method based on optimized VMD and the ConvFormer model [71].

Furthermore, VMD has been applied to the prediction of structures such as bridges and buildings. For example, by decomposing the vibration response signals of structures, VMD can identify modal changes caused by damage, providing a basis for predictive assessment. To accommodate different prediction scenarios, researchers have also optimized the VMD model in various ways. One study introduced a thermal load time series decomposition and prediction model based on VMD and fast independent component analysis (FastICA) [72]. Another proposed a short-term offshore wind speed prediction method based on a hybrid VMD-PE-FCGRU model [73]. Additionally, a lithium-ion battery health state estimation method based on the MEWOA-VMD and Transformer architecture has been developed [74]. There is also a concrete dam displacement prediction model based on VMD, TSVR, and GRU [75]. In another approach, complex power load time series are decomposed into multiple relatively simple subsequences using VMD, and by integrating the ICSS algorithm, abrupt and irregular changes in the time series are identified and separated. Finally, neural networks in deep learning are used to predict these subsequences, and the final prediction results are obtained through ensemble learning, significantly improving the accuracy and stability of predictions [76].

VMD is also widely applied in signal denoising and feature extraction. Thanks to its inherent proficiency in handling noise, VMD excels in these applications. Moreover, researchers are dedicated to optimizing and upgrading VMD using innovative methods. One such method is a signal preprocessing approach based on VMD technology and sample entropy. This method decomposes milling robot response signals into multiple modal components using VMD and then calculates the sample entropy of each component to assess its complexity and irregularity. By setting appropriate thresholds, modal components containing amplitude and frequency modulation (AM-FM) harmonic components can be identified and eliminated, achieving the goals of denoising and signal optimization [77]. Another method combines VMD, empirical wavelet transform (EWT), and continuous wavelet transform (CWT) to improve the signal-to-noise ratio of acoustic signals and accurately detect pipeline leak locations. By analyzing and processing signals in different frequency domains, noise can be effectively suppressed, and useful information can be extracted, significantly enhancing the accuracy of leak detection [78].

A joint denoising method based on VMD parameter optimization has been proposed for removing noise from the acoustic signals of high-voltage shunt reactors [79]. This method integrates VMD, complete ensemble empirical mode decomposition with adaptive noise (CEEMDAN), and an improved continuous wavelet transform (ICWT) structure. The combination of these three methods allows for more effective noise removal from density logging data, improving data resolution and thin-layer identification accuracy [80]. An optimized VMD algorithm based on tunable diode laser absorption spectroscopy (TDLAS) has been developed for signal denoising [81]. A wavelet threshold function based on a combination of grey wolf optimization (GWO) and VMD has been proposed to address noise interference in ultrasonic echo signals [82]. An adaptive denoising and detrending method based on an improved seagull optimization algorithm (ISOA) and VMD has been developed for processing signals from nuclear circulating water pump impellers [83]. VMD can effectively remove trend components from signals, significantly improving the signal-to-noise ratio of nuclear circulating water pump impeller signals while preserving valuable information. Additionally, a photoacoustic spectroscopy second harmonic signal denoising method that utilizes the sparrow search algorithm (SSA) to optimize VMD combined with wavelet threshold denoising (WTD) technology has been proposed, and it improves the detection accuracy and real-time measurement stability of acetylene sensors [84].To enhance the performance of VMD, researchers have proposed various parameter optimization methods, such as adaptive parameter selection methods based on particle swarm optimization (PSO) and genetic algorithms. These methods automatically adjust VMD parameters, thereby improving decomposition accuracy and efficiency. A fault diagnosis method for electric valves in nuclear power plants based on a random forest model that integrates VMD, MDI, and ISSA has been proposed [85]. Another study introduced an ultrasonic machining vibration signal processing method based on SE, PSO, and VMD that improves signal processing efficiency by optimizing VMD parameters [86].

The pursuit of high anti-interference capability and precision in models is also a direction of model optimization. The complex variational mode decomposition (CVMD) algorithm has been proposed for analyzing complex-valued data [87]. VMD can also be used to decompose projectile signals [88], and by detecting the mathematical model of the skyscreen, the measurement accuracy of projectile muzzle velocity can be improved. Compared to traditional methods, this algorithm has significant advantages in term of anti-interference capability and measurement accuracy.

Strength and Weakness

• Susceptible to the influences of noise and spurious components
• Stability and noise resistance
• Adaptability and parameter controllability
• Effective mitigation of mode mixing

First, VMD demonstrates a robust capacity to mitigate mode mixing. By integrating a regularization term within a variational optimization framework, VMD effectively curtails the occurrence of mode mixing, a pervasive challenge in signal decomposition, particularly when confronting nonlinear and non-stationary signals. Traditional approaches, exemplified by empirical mode decomposition (EMD), are prone to mode mixing due to the perturbations induced by local extrema points. In contrast, variational mode decomposition (VMD) dissects the signal into multiple narrowband mode components through the judicious application of frequency-domain constraints and bandwidth limitations, thereby significantly reducing the likelihood of mode mixing.

Second, VMD distinguishes itself through its adaptability and parameter controllability. It possesses the proficiency to adaptively determine the number of modes and frequency centers, obviating the necessity of relying on envelope calculations predicated at signal extrema points. This attribute endows VMD with heightened flexibility and precision in the processing of complex signals. For instance, within the context of structural health monitoring, VMD has the capability to dynamically adjust decomposition parameters in accordance with the idiosyncrasies of vibration signals, thereby facilitating the extraction of fault features with unparalleled accuracy. Moreover, while the parameters of VMD, such as the penalty factor and bandwidth constraint, necessitate manual calibration, their controllability opens up avenues for extensive optimization in signal processing.

Third, by formulating the signal decomposition as an optimization problem and achieving an optimal solution through iteration, VMD ensures algorithm stability and demonstrates strong noise resistance, effectively reducing noise-induced perturbations in decomposition results. For example, in the domain of bearing fault diagnosis, VMD adeptly isolates fault characteristic frequencies, preserving high decomposition accuracy even in noisy environments.

Conversely, VMD is not without its limitations in structural health signal processing. First, its efficacy is contingent upon the judicious selection of parameters. Despite its adaptive prowess, the performance of VMD is significantly influenced by the choice of parameters, including the penalty factor ($\alpha$) and the number of modes (K). The determination of these parameters often necessitates empirical insight or refinement through optimization algorithms, thereby escalating the complexity and application challenge of the algorithm. For instance, in the analysis of acoustic emission signals emanating from centrifugal pump cavitation, inappropriate parameter configurations may engender inaccurate decomposition results, thereby impeding the extraction of fault features [89].

Second, VMD is encumbered by computational complexity and time costs. While its iterative optimization process ensures decomposition stability, it also imposes substantial computational demands. When confronted with prolonged signals or high-sampling-rate data, the computational onus of VMD escalates markedly, thereby constraining its applicability in real-time monitoring systems.

Finally, VMD is susceptible to the influences of noise and spurious components. Notwithstanding its noise resistance, decomposition results may still be corrupted in high-noise environments. Furthermore, the decomposition process of VMD may introduce spurious components, which not only exacerbate the complexity of signal processing but may also obscure genuine fault features.

3.2.2. Successive Variational Mode Decomposition

Definition

Successive variational mode decomposition (SVMD) is a signal decomposition method proposed by Nazari and Sakhaei [90] that does not require prior knowledge of the number of modes in the signal. Through an iterative optimization process, SVMD decomposes the signal into multiple intrinsic mode functions (IMFs), each representing a specific frequency component of the signal.

Application

Research on the underlying principles of self-adaptive variational mode decomposition (SVMD) has yielded comprehensive findings and in-depth insights [91]. One such method is the self-adjusting SVMD, which adaptively updates the mode number K and penalty parameter $\alpha$ based on the energy ratio and frequency-domain mode orthogonality, thereby addressing the issues of parameter selection and poor adaptability in the original variational mode decomposition (VMD). Ref. [90] introduces a novel signal decomposition approach termed continuous variational mode decomposition (also abbreviated as SVMD in this context) that obviates the need for prior knowledge of the number of signal modes and boasts lower computational complexity and higher robustness. In terms of lateral development, SVMD has been integrated with other network models. One example is a milling chatter detection method based on SVMD and a deep attention information fusion network, which extracts chatter features from multi-channel time-series signal data for detection [92]. It can also be combined with the instantaneous linear mixture model, resulting in the SMVMD method, which adaptively extracts joint or common modes from multi-channel signals. Furthermore, SVMD has been combined with other signal processing techniques. An improved Wigner–Ville distribution method based on SVMD [93] is used for the time–frequency analysis of multicomponent signals, reducing cross-terms and enhancing signal reconstruction accuracy. In [94], a new method called narrowband constraint-enhanced continuous variational mode decomposition (NCESVMD) is proposed which improves signal decomposition by introducing a minimum bandwidth constraint. Given the inherent characteristics of SVMD, parameter optimization is also a crucial aspect of optimizing the model. In [95], an ultra-weak fiber Bragg grating (UWFBG) hydrophone array-enhanced distributed acoustic sensing (DAS) system based on optimized SVMD and matched interference methods is proposed for noise resistance, with SVMD parameters optimized using the RIME algorithm. Ref. [96] demonstrates the combination of spatial dependency recursive sample entropy and improved wavelet thresholding for noise reduction.

In [97], researchers introduce a dual-end traveling wave fault location method based on SVMD and frequency-dependent propagation velocity. This method extracts the intrinsic mode functions of the signal through SVMD and uses the Teager energy operator to determine the arrival time of the traveling wave. Additionally, researchers have designed adaptive SVMD algorithms that dynamically adjust decomposition parameters based on signal characteristics to avoid falling into local optimal solutions.

Strength and Weakness

• Insensitive to initial values and successive extraction
• Prone to getting trapped in local optimal solutions
• Limited parallelism resulting in low real-time efficiency

Unlike the traditional variational mode decomposition method, SVMD (successive variational mode decomposition) extracts signals by successively implementing the variational mode decomposition technique. SVMD decomposes multicomponent signals into a series of band-limited intrinsic mode functions (IMFs) in a successive manner, whereas in the VMD method, modes are extracted concurrently. This successive approach eliminates the need for prior knowledge of the number of modes to be extracted, which is a significant advantage in practical applications where the mode count may be unknown or variable [90].

Moreover, compared to VMD, SVMD reduces the computational burden, especially when dealing with complex signals. In specific applications within the field of structural health signal processing, where certain modes are considered as interference or noise and are not of interest, the concurrent implementation of VMD may lead to a wastage of computational resources. On the other hand, SVMD can extract modes one by one, skipping unnecessary modes, which significantly improves convergence speed and reduces overall computation time [90].

Furthermore, SVMD overcomes the issue of VMD’s sensitivity to initialization parameters. As SVMD is less sensitive to the initial values of the modal center frequencies, it can reduce the likelihood of converging to incorrect or duplicate modes, a problem that has been noted by Dragomiretskiy and Zosso in their work [65]. This robustness enhances the reliability of the decomposition results in structural health monitoring, where accurate mode identification is crucial.

However, SVMD is not without its drawbacks. In some cases, it may get trapped in local optimal solutions, particularly when dealing with signals that have highly similar modal components or when the signal-to-noise ratio is low. This can affect the decomposition effect and lead to inaccurate mode separation. Additionally, the sequential nature of SVMD may limit its parallelization potential, making it less efficient than VMD in applications requiring real-time processing. Despite these limitations, SVMD remains a promising method for structural health signal processing, offering a balance between accuracy, efficiency, and robustness.

3.2.3. Variational Mode Extraction

Definition

Variational Mode Extraction (VME) is a signal processing method based on variational Bayesian inference. In VME, the modal functions of the signal are treated as latent variables, while the observed signal data are used to estimate the distributions of these latent variables. By maximizing the likelihood function, VME can find the modal function parameters that best fit the signal data.

Application

This method converts time lags into phase period differences through a variational mode extraction algorithm, enhancing the accuracy and automation of frequency domain analysis. Its effectiveness has been verified in the actual SHM system of the Shanghai Tower [98].

In terms of innovations, first, deep learning networks have been integrated. For instance, an intelligent fault diagnosis method for rolling bearings based on VME and an improved one-dimensional convolutional neural network (I-1DCNN) has been proposed. By combining VME and I-1DCNN, useful features of bearing vibration signals are extracted from noisy environments, improving the accuracy and computational efficiency of fault diagnosis [99]. Another method [100] involves rolling bearing fault diagnosis based on power spectral density–variational mode extraction (PSD-VME), multiclass relevance vector machines (mRVM), and Dempster–Shafer evidence theory. Features are extracted through PSD-VME and classified using mRVM and DS evidence theory, verifying the method’s high classification accuracy with a small amount of sample data.

Furthermore, innovations have been made by accurately grasping the advantages of VME. In the multi-fault diagnosis of rolling bearings, a variational mode extraction method based on the convergence trend of variational mode decomposition (VMD) has been applied [101]. The initial center frequency is adaptively determined through the VMD convergence trend graph, and kurtosis is used as an evaluation index to optimize the balance factor, enhancing the accuracy and computational efficiency of fault feature extraction.

Additionally, parameter optimization algorithms have been employed. A parameter-adaptive variational mode extraction method based on particle swarm optimization (PSO) has been proposed for bearing fault diagnosis [102]. Researchers have constructed a comprehensive index, L-KCIE, to optimize VME parameters, and they verified its effectiveness and superiority in fault feature extraction.

Strength and Weakness

• Extracts specific frequency components by setting the modal center frequencies.

First, the VME method has a clear objective, enabling it to extract signals targeting specific desired modal center frequencies, thereby successfully obtaining valuable intrinsic modal functions and accurate fault characteristic frequencies. This makes VME more targeted and effective in signal processing. Second, VME offers high flexibility, allowing users to extract specific frequency components in signals by setting the desired modal center frequencies. This flexibility enables VME to adapt to different signal characteristics and analysis requirements. Third, VME demonstrates strong robustness when processing signals containing noise. By setting parameters reasonably, it can effectively extract useful information from signals while suppressing noise interference. Finally, compared to some traditional signal processing methods, VME may have certain advantages in terms of computational efficiency thanks to the optimization of its algorithm design and the simplification of the iteration process.

However, VME also has some disadvantages. First, it cannot adaptively decompose multi-component signals and usually can only extract one component from a desired modal center frequency, which means that multiple processing steps or combining other methods may be required when dealing with complex signals. Second, the performance of VME can be significantly affected by initialization parameters. Improper parameter settings may lead to inaccurate extraction results or convergence to incorrect modes. Third, in some cases, the VME algorithm may fall into a local optimum without finding the global optimum, which can result in deviations between the extracted modes and the true signal characteristics. Finally, the VME method may not be suitable for all types of signal processing tasks. In certain specific scenarios, it may be necessary to combine other signal processing methods or adopt other algorithms to achieve better processing results.

3.2.4. Adaptive Variational Mode Decomposition

Definition

Adaptive variational mode decomposition (AVMD) is a signal decomposition method based on variational mode decomposition, but it possesses higher adaptability and applicability. AVMD adaptively selects the number of mode functions and the weighted average standard deviation through an online hyperparameter estimation method in order to minimize reconstruction error. Based on the selection results, adaptive basis functions and mode functions are computed, and signal separation is achieved.

Application

In the literature, researchers have focused on the fundamental research concerning AVMD. In robotic machining, chatter detection constitutes a complex task owing to the significant yet subtle variations in system stiffness. Consequently, an adaptive variational mode decomposition (AVMD) method grounded in kurtosis and instantaneous frequency has been proposed. This method aims to circumvent the issue of mode mixing inherent to the variational mode decomposition (VMD) process and facilitate the adaptive selection of decomposition parameters. The approach leverages a genetic algorithm to optimize decomposition parameters, significantly reducing optimization time by refining the discrete step size of these parameters. Approximate entropy, energy entropy, and a novel chatter feature based on entropy, termed the entropy drift coefficient, are extracted to differentiate between chatter and stable machining states [103]. Additionally, an adaptive noise reduction method based on automatic variational mode decomposition (AVMD) has been introduced for liquid pipeline leak detection [104]. This method enhances the VMD framework to effectively extract signal modes in environments with low signal-to-noise ratios.

Furthermore, numerous models employ intelligent algorithms and local optimization techniques. A differential evolution-based adaptive variational mode decomposition technique (DAVMD) has been proposed [105]. This technique continuously adjusts the number of decompositions and the penalty factor of VMD through the differential evolution (DE) algorithm, optimizing the decomposition results in terms of energy distribution, frequency characteristics, and other aspects. By optimizing the number of decompositions and the penalty factor, the performance of variational mode decomposition is enhanced. Moreover, an adaptive variational mode decomposition (VMD) denoising scheme based on the whale optimization algorithm (WOA) has been developed for denoising ground-penetrating radar (GPR) data [106]. This scheme optimizes the denoising parameters of VMD using WOA, significantly improving the signal-to-noise ratio (SNR).

Strength and Weakness

• Adapts mode count
• Has strong noise resistance

AVMD possesses unique advantages. First, AVMD has the merit of adaptive determination of the number of modes, making it a model of adaptive signal processing within the realm of signal processing. Traditional variational mode decomposition (VMD) is a fully non-recursive decomposition model, but it requires the predefinition of the number of modes, which limits the method’s adaptability. Deviations in the predefined number of modes can lead to mode loss or mixing, affecting the accuracy of signal decomposition. In contrast, AVMD automatically determines the number of modes by analyzing signal characteristics (such as permutation entropy and kurtosis criteria), thereby avoiding the issues of mode loss or aliasing caused by inaccurate predefined mode numbers in VMD. For example, during the processing of electromechanical oscillation signals in power systems, AVMD can adaptively select the number of modes based on the spectral distribution, significantly improving decomposition accuracy [107].

Second, AVMD exhibits strong noise resistance and performs exceptionally well in noisy environments, effectively separating noise components from signals. For instance, in the analysis of hydropower station signals, AVMD demonstrates greater robustness compared to traditional methods (such as EMD and EWT), accurately extracting effective modes.

Furthermore, AVMD typically possesses efficient computational capabilities. By utilizing optimization algorithms (such as fast iterative operators and energy entropy), it shortens convergence time and enhances computational efficiency. For example, when performing fault diagnosis on wind turbine gearboxes, AVMD combined with the firefly algorithm optimizes the number of modes and penalty factors, significantly reducing computation time.

Previously mentioned methods, including empirical mode decomposition (EMD) and the subsequently discussed empirical wavelet transform (EWT), suffer from error accumulation due to recursive decomposition and sensitivity to noise and sampling frequency, respectively. In contrast, AVMD performs well when dealing with harmonic signals with similar frequencies. Ref. [107] verifies the effectiveness of AVMD through simulated signals and actual hydropower station measurement signals, highlighting its ability to accurately separate each harmonic component, a feat not achieved by EMD or EWT.

However, AVMD also has its disadvantages. Issues unresolved by classic models have been improved but not completely eliminated. First, parameter selection still poses a certain level of complexity. Although AVMD reduces the need for predefined parameters, the choice of its internal parameters (such as the penalty factor and convergence criteria) still significantly impacts the decomposition results. Improper parameter settings can lead to the over- or under-decomposition of modes, affecting signal reconstruction accuracy.

Similarly, the issue of local optimal solutions requires further research. In some complex signal processing scenarios, AVMD may fall into local optimal solutions, resulting in unsatisfactory decomposition effects. Additionally, AVMD may experience mode aliasing when processing modal components with similar frequencies. Finally, although AVMD improves computational efficiency compared to VMD, its computational complexity remains high when processing large-scale data or high-dimensional signals. In real-time structural health monitoring, AVMD may not meet the requirements for real-time processing. Therefore, it may be necessary to reduce the computational complexity of AVMD through GPU acceleration or distributed computing technologies to satisfy real-time processing demands.

3.3. Empirical Wavelet Transform and Optimization Models

Empirical wavelet transform (EWT) combines the concepts of wavelet analysis with data-driven approaches. It provides an effective way to analyze signals with complex time–frequency structures. This section focuses on EWT and its ensemble-based counterparts like ensemble empirical wavelet transform and empirical Fourier decomposition. We will introduce the basic principles of these methods, their implementation details, and how they can be utilized to extract meaningful information from non-stationary signals.

3.3.1. Empirical Wavelet Transform

Definition

The empirical wavelet transform (EWT) is an adaptive signal decomposition method that constructs a wavelet filter bank by analyzing the spectral characteristics of the signal. The core formulas are as follows:

1.

Fourier Transform: Perform Fourier transform on the signal $f\left(t\right)$ to obtain the spectrum $F\left(\omega \right)$:

$$F\left(\omega \right)={\int }_{-\infty }^{\infty }f\left(t\right)e^{-i\omega t}dt$$

(5)

2.

Frequency Band Division: Detect the local maxima of $\left|F\right(\omega \left)\right|$ to determine the frequency band boundaries ${\left\{{\omega }_n\right\}}_{n=0}^{N+1}$, where ${\omega }_0=0$ and ${\omega }_{N+1}=\pi$ (normalized frequency).

3.

Construction of Empirical Wavelet Functions: For each frequency band $[{\omega }_n,{\omega }_{n+1}]$, construct the empirical wavelet function ${\psi }_n\left(\omega \right)$ and scaling function ${\varphi }_1\left(\omega \right)$, satisfying the tight frame condition:

$$|{\varphi }_1{\left(\omega \right)|}^2+\sum _{n=1}^N{\left|{\psi }_n\left(\omega \right)\right|}^2=1,\forall \omega$$

(6)

Scaling Function ${\varphi }_1\left(\omega \right)$ (Low-Pass Filter):

$${\varphi }_1\left(\omega \right)=\left\{\begin{array}{cc}1,\hfill & \left|\omega \right|\le {\omega }_1-{\tau }_1,\hfill \\ cos\left({\displaystyle \frac{\pi }{2}}\beta \left({\displaystyle \frac{\left|\omega \right|-({\omega }_1-{\tau }_1)}{2{\tau }_1}}\right)\right),\hfill & {\omega }_1-{\tau }_1\le \left|\omega \right|<{\omega }_1+{\tau }_1,\hfill \\ 0,\hfill & \mathrm{otherwise}.\hfill \end{array}\right.$$

(7)

Wavelet Function ${\psi }_n\left(\omega \right)$ (Band-Pass Filter):

$${\psi }_n\left(\omega \right)=\left\{\begin{array}{cc}sin\left({\displaystyle \frac{\pi }{2}}\beta \left({\displaystyle \frac{\left|\omega \right|-({\omega }_n-{\tau }_n)}{2{\tau }_n}}\right)\right),\hfill & {\omega }_n-{\tau }_n\le \left|\omega \right|<{\omega }_n+{\tau }_n,\hfill \\ 1,\hfill & {\omega }_n+{\tau }_n\le \left|\omega \right|<{\omega }_{n+1}-{\tau }_{n+1},\hfill \\ cos\left({\displaystyle \frac{\pi }{2}}\beta \left({\displaystyle \frac{\left|\omega \right|-({\omega }_{n+1}-{\tau }_{n+1})}{2{\tau }_{n+1}}}\right)\right),\hfill & {\omega }_{n+1}-{\tau }_{n+1}\le \left|\omega \right|<{\omega }_{n+1}+{\tau }_{n+1},\hfill \\ 0,\hfill & \mathrm{otherwise}.\hfill \end{array}\right.$$

(8)

Here, $\beta \left(x\right)$ is a smoothing function, for example

$$\beta \left(x\right)=x^4(35-84x+70x^2-20x^3),$$

(9)

which satisfies $\beta \left(0\right)=0$, $\beta \left(1\right)=1$, and has zero derivatives at the endpoints. The transition band width ${\tau }_n$ is usually taken as a certain proportion of the adjacent boundary spacing, such as ${\tau }_n=\gamma ({\omega }_n-{\omega }_{n-1})$, (where $\gamma \in (0,0.5)$).

4.

Mode Decomposition: Extract the mode components via inverse Fourier transform:

Residual (Low-Frequency Part):

$$W_f(0,t)={\mathcal{F}}^{-1}\left[F\left(\omega \right){\varphi }_1\left(\omega \right)\right]\left(t\right)$$

(10)

n-th Mode Component:

$$W_f(n,t)={\mathcal{F}}^{-1}\left[F\left(\omega \right){\psi }_n\left(\omega \right)\right]\left(t\right),n\ge 1$$

(11)

5.

Signal Reconstruction: The signal can be reconstructed exactly as follows:

$$f\left(t\right)=W_f(0,t)+\sum _{n=1}^N{W}_f(n,t)$$

(12)

Key Points

• Adaptivity: The frequency band division is based on the local maxima of the signal spectrum, without the need for predefined basis functions.
• Compact Support: The wavelet functions have compact support and smooth transitions in the frequency domain, reducing ringing effects in the time domain.
• Perfect Reconstruction: The filter bank satisfies the condition that the sum of squares is 1, ensuring lossless signal recovery.

By combining signal-driven wavelet design with traditional wavelet theory, EWT achieves effective analysis and processing of non-stationary signals.

Application

First, in combination with neural networks or high-order algorithms, researchers have proposed a novel damage detection method based on empirical wavelet transform (EWT) and artificial neural network (ANN) for detecting and localizing damage in steel truss bridge models [108]. Additionally, there is a time series prediction method based on EWT and echo state network (ESN). This method decomposes the original time series into multivariate subsequences and employs ESN for modeling and prediction. Experimental results demonstrate that this method outperforms other benchmark models on multiple public datasets [109]. Another fault diagnosis method for rolling bearings combines an improved adaptive parameter-free empirical wavelet transform (IAPEWT) with an adaptive sparse coding shrinkage denoising (ASCSD) algorithm. IAPEWT automatically segments the spectrum and determines the boundaries of the filter bank, and when combined with the ASCSD algorithm, it enhances periodic impulse features, improving fault identification accuracy [110].

Furthermore, technologies that enhance the mathematical logic of EWT have also emerged. A new EWT method based on Fourier–Bessel series expansion (FBSE) has been used for the time–frequency representation of non-stationary signals. By improving EWT through FBSE, experimental results indicate that FBSE-EWT performs better than existing EWT and Hilbert–Huang transform (HHT) methods in terms of representing non-stationary signals with closely adjacent frequency components [111]. A new multichannel signal processing method called quaternion empirical wavelet transform (QEWT) has been used for fault diagnosis in rolling bearings. QEWT can synchronously process multiple sets of vibration signals, achieving spectrum segmentation, fusion, and modal decomposition, thereby improving the accuracy and efficiency of fault diagnosis [112]. Similarly, an EWT method based on Fourier–Bessel series expansion (FBSE-EWT) [113] has also been mentioned. Moreover, in the iterative process of various optimization models, an improved empirical wavelet transform (IEWT) has emerged, leading to subsequent optimizations based on it. A hybrid model based on IEWT and a long short-term memory network (LSTM) has been used to predict significant wave height. By decomposing buoy data using IEWT and combining them with LSTM for time series prediction, results show that the model exhibits higher prediction accuracy over longer prediction windows [114]. Additionally, a scheme based on IEWT, energy feature vector (EFV), and Bayesian optimized convolutional neural network (BOCNN) has been used to extract the hydrodynamic features of hydraulic turbines and intelligently identify their flow states. By decomposing signals using IEWT and combining EFV and BOCNN for feature extraction and classification, experimental results indicate that the average recognition accuracy of this scheme reaches 99.15% [115]. Furthermore, an approach combining IEWT and a sensitive component selection method has been used for bearing fault diagnosis. It enhances EWT performance through cyclic envelope spectrum segmentation and correlation-based component optimization, and it extracts fault information using the sensitive intrinsic mode function evaluation index (SIAI) [116]. Finally, an improved extended empirical wavelet transform (IEEWT) method has been used to detect and characterize multivariate oscillations in industrial control systems. Combined with a noise-reduced power spectrum and detrended fluctuation analysis (DFA) techniques, the IEEWT method demonstrates higher accuracy and robustness when processing multivariate signals with high noise levels [117].

In addition, researchers have professionally implemented EWT, leading to the emergence of innovative methods and studies. An improved demodulation analysis method based on cepstrum-assisted empirical wavelet transform (CEWT) has been used for fault diagnosis in planetary gearboxes. As demonstrated through numerical simulation and experimental validation, this method outperforms existing signal decomposition methods in terms of fault diagnosis [118]. Two other methods excel in noise reduction. A new variable spectrum segmentation empirical wavelet transform (VEWT) improves signal decomposition efficiency and noise resistance through selective spectrum segmentation and modal estimation based on multi-window power spectral density. Experimental results show that VEWT outperforms traditional EWT and extended EWT (EEWT) at processing noisy signals [119]. An EWT method enhanced by synchronous extraction transform (SET) has been used for the identification of time-varying systems. Results indicate that this method can effectively and accurately identify the instantaneous frequency of time-varying systems in noisy environments [120]. Furthermore, several emerging models have been proposed and applied to fault diagnosis. A new vibration model and EWT method have been used for compound fault diagnosis and analysis of wind turbine generator gearboxes. By decomposing signals using EWT and combining it with the vibration model for fault diagnosis, multiple faults can be effectively detected and diagnosed [121]. A weak feature enhancement method for mechanical fault diagnosis based on EWT and improved adaptive bistable stochastic resonance (IABSR) has been proposed. By combining EWT and IABSR for signal separation and fault feature enhancement, numerical simulations and case studies have verified the effectiveness and superiority of this method [122].

Strength and Weakness

• Adaptive frequency band partitioning and captures local features
• Sensitive to noise and may have endpoint effect
• May cause modal aliasing or modal loss issues

Its adaptive frequency band partitioning capability effectively captures local features based on the spectral characteristics of the signal, making it particularly suitable for processing nonlinear and non-stationary signals. Furthermore, through high-resolution time–frequency analysis, EWT can simultaneously provide both the temporal and frequency information of the signal, accurately capturing transient features in mechanical fault diagnosis. Additionally, EWT boasts high computational efficiency, enabling rapid processing of large-scale data, as exemplified by its integration with LSTM neural networks for efficient prediction in the processing of electromechanical oscillation signals in power systems, which was mentioned previously.

However, EWT also exhibits certain limitations. First, it is relatively sensitive to noise, which may lead to inaccurate frequency band partitioning in high-noise environments, though numerous studies have been conducted to optimize this limitation [109,110,111,112,113,118,119,120,121,122]. Second, parameter selection is complex, and improper settings can trigger modal aliasing or modal loss. Finally, the endpoint effect problem may cause decomposition distortion at the signal boundaries.

3.3.2. Ensemble Empirical Wavelet Transform

Definition

Ensemble empirical wavelet transform ïijĹEEWTïijĽ combines the advantages of EEMD and EWT, aiming to improve the stability and accuracy of signal decomposition. It performs empirical wavelet transform multiple times and averages the results to reduce noise and uncertainty during the decomposition process.

1.

Signal and Noise Superposition: The signal and noise superposition is given by

$$x^{\prime }\left(t\right)=x\left(t\right)+n_i\left(t\right)$$

(13)

where $x\left(t\right)$ is the original signal, $n_i\left(t\right)$ is the i-th added Gaussian white noise, and $x^{\prime }\left(t\right)$ is the signal after noise superposition.

2.

EMD Decomposition: Perform EMD decomposition on $x^{\prime }\left(t\right)$ to obtain a series of intrinsic mode functions (IMFs):

$$x^{\prime }\left(t\right)=\sum _{j=1}^N{\mathrm{IMF}}_{i,j}\left(t\right)+r_i\left(t\right)$$

(14)

where ${\mathrm{IMF}}_{i,j}\left(t\right)$ is the j-th IMF obtained from the i-th decomposition, and $r_i\left(t\right)$ is the residual term.

3.

Repetition and Averaging: Repeat the above process M times, adding different white noise each time, and average all the obtained IMFs:

$${\mathrm{IMF}}_j\left(t\right)={\displaystyle \frac{1}{M}}\sum _{i=1}^M{\mathrm{IMF}}_{i,j}\left(t\right)$$

(15)

The final ${\mathrm{IMF}}_j\left(t\right)$ obtained is the result of the EEMD decomposition.

Strength and Weakness

• Strong noise resistance and high resolution time frequency analysis
• High computational complexity and endpoint effect

First, regarding adaptive frequency band partitioning and ensemble processing, EEWT dynamically adjusts the decomposition process based on the spectral characteristics of the signal through adaptive frequency band partitioning, thereby effectively capturing local features of the signal. Compared to the traditional EWT, EEWT introduces an ensemble processing mechanism, which significantly enhances the stability and robustness of the decomposition through multiple decompositions and averaging. For instance, during the analysis of bridge vibration signals, EEWT can effectively separate modal components of different frequencies, providing more accurate data support for structural damage identification [123].

Second, EEWT exhibits strong noise resistance. By utilizing the ensemble processing mechanism, EEWT can effectively suppress noise interference and improve the signal-to-noise ratio. In environments with high noise levels, the decomposition results of EEWT are more stable, allowing for the accurate extraction of effective modal components.

Third, EEWT offers high-resolution time–frequency analysis through the dilation and translation of wavelet basis functions. This enables EEWT to simultaneously provide both the temporal and frequency information of the signal, making it particularly suitable for analyzing transient signals and complex vibration patterns. For example, in mechanical fault diagnosis, EEWT can accurately capture the transient features of fault signals, thereby improving the accuracy of fault detection.

Next, the disadvantages of EEWT are discussed:

First, EEWT has a relatively high computational complexity. Although EEWT performs excellently in terms of decomposition accuracy and noise resistance, its computational complexity is relatively high, especially when processing large-scale or high-dimensional signals, leading to a significant increase in computation time. As a result, in real-time structural health monitoring, EEWT may not meet the requirements for real-time processing.

Second, parameter selection remains somewhat complex. The performance of EEWT depends on the choice of parameters, such as the thresholds for frequency band partitioning, the number of ensemble iterations, and the selection of wavelet basis functions. Inappropriate parameter settings may lead to modal aliasing or modal loss, affecting the decomposition results.

Like many signal decomposition methods, EEWT has an endpoint effect, distorting decomposition results at signal boundaries, which can cause error accumulation in real-time structural health monitoring, reducing the monitoring system’s reliability.

3.3.3. Empirical Fourier Decomposition

Definition

Empirical Fourier decomposition (EFD) is a signal processing technique that analyzes the local frequency spectrum of a signal, identifies the main frequency components and their variation characteristics in the signal, and then decomposes the signal into several components based on this. It aims to decompose complex signals into a series of components with clear physical meaning, which are usually expressed in the form of amplitude modulation–frequency modulation (AM-FM).

Application

Many researchers have employed spectral analysis methods to optimize and implement empirical Fourier decomposition (EFD). A spectral envelope-based adaptive empirical Fourier decomposition (SEAEFD) method has been proposed and applied to fault diagnosis in rolling bearings. The core of this method lies in optimizing the EFD process through spectral envelope analysis, thereby enhancing the orthogonality, correlation coefficient, and overall decomposition accuracy. By adaptively adjusting the spectral envelope analysis strategy, SEAEFD can maintain high decomposition accuracy in highly noisy environments and effectively extract the fault features of rolling bearings [124]. Another automatic modal identification method based on free vibration response and enhanced empirical Fourier decomposition (EFD) technology has also been developed. By combining improved spectral segmentation techniques with zero-phase shift filters, this method can more accurately decompose non-stationary signals and closely spaced modal signals. Through the automatic adjustment of the number of spectral segmentations, it can adapt to different signal characteristics, thereby improving the accuracy and robustness of modal identification [125]. Furthermore, a power spectrum envelope adaptive empirical Fourier decomposition (PSEEFD) method has been proposed for processing signals with low signal-to-noise ratios. The PSEEFD method adaptively adjusts the EFD decomposition strategy based on signal characteristics, thereby automatically selecting appropriate decomposition parameters in order to achieve more accurate signal decomposition under low signal-to-noise ratio conditions. Experimental results have verified the effectiveness of this method in processing vibration signals from ship stabilizing platforms [126].

The integration of EFD with algorithms, neural networks, and other classic signal processing techniques is also one of its important applications. First, improved spectral segmentation techniques and the construction of zero-phase shift filters have been utilized to optimize EFD. The improved spectral segmentation techniques can more accurately identify abrupt changes in signals, thereby enhancing decomposition accuracy. The construction of zero-phase shift filters ensures that the decomposed components maintain the correct phase relationships, thus improving the reliability of the decomposition results. Numerical and experimental methods have verified the effectiveness of EFD in processing non-stationary signals and closely spaced modal signals, and comparisons have been made with other decomposition methods [127]. Additionally, a wind speed prediction model that combines empirical Fourier decomposition, a long short-term memory network (LSTM), and grey wolf optimizer (GWO) has been proposed. The literature provides a detailed description of the working principle and implementation steps of this model, and experimental results have verified its effectiveness in wind speed prediction [128]. Finally, due to its superiority, empirical Fourier decomposition has been applied to bridge health monitoring [129].

Strength and Weakness

• Components with clear physical meanings
• Excellent modal separation for multi-modal vibration identification
• Sensitive to noise and possible modal aliasing

Empirical Fourier decomposition (EFD), as a signal processing technique, demonstrates remarkable advantages in fields such as structural health monitoring. First, the components obtained through EFD decomposition typically possess clear physical meanings, reflecting the natural modes of vibration systems and the modulation characteristics of signals. This attribute renders EFD a powerful tool for understanding the essence of signals and accurately identifying structural damages or anomalous states. Second, EFD exhibits strong adaptability, being capable of processing nonlinear and non-stationary signals, which is particularly crucial in the analysis of vibration signals in practical engineering. By conducting local spectrum analysis, EFD can better capture the instantaneous features of signals, providing accurate information for the analysis of structural dynamic behavior. Furthermore, EFD possesses excellent modal separation capability, effectively separating different modal components in signals, which is greatly beneficial for identifying the multi-modal vibration characteristics of structures.

However, EFD also has some disadvantages that cannot be ignored. Its computational complexity is relatively high, necessitating detailed analysis of the local spectrum of signals and involving complex processes of modal identification and component extraction. This may lead to prolonged computation times, especially when dealing with large-scale data or conducting real-time monitoring, where computational efficiency may become a bottleneck. Additionally, EFD is relatively sensitive to noise, with environmental or measurement noise potentially interfering with local spectrum analysis and affecting the accuracy of decomposition results. Meanwhile, the performance of EFD depends on the selection of parameters, such as the window size for local spectrum analysis, and improper parameter selection may result in unsatisfactory decomposition results, increasing the difficulty of use. Finally, in some cases, EFD may exhibit modal aliasing, where components of different modes fail to be completely separated, further reducing the accuracy of decomposition results and adversely affecting subsequent analysis and diagnosis.

4. Deconvolution

In the realm of signal processing and related scientific research, deconvolution techniques play a pivotal role. They are employed to reverse the effects of convolution, aiding in tasks such as noise reduction, signal restoration, and feature extraction. This section delves into several key deconvolution-based approaches. It begins with minimum entropy deconvolution, exploring its definition, application scenarios, as well as its strengths and weaknesses. Subsequently, maximum correlated kurtosis deconvolution is examined in a similar vein. The section then moves on to feature model decomposition, covering its definition, methods, and performance aspects. Finally, other relevant models and applications are briefly introduced, aiming to provide a comprehensive overview of the deconvolution-related techniques for readers.

4.1. Minimum Entropy Deconvolution

Minimum entropy deconvolution (MED) has carved out a significant niche in the deconvolution landscape. Rooted in information theory concepts, MED seeks to find a deconvolution filter that minimizes the entropy of the output signal. This approach has proven invaluable in scenarios where extracting hidden or obscured features in signals is crucial. In the following subsections, we will delve into the definition of MED, explore its wide-ranging applications, and critically assess its strengths and weaknesses.

4.1.1. Definition

Minimum entropy deconvolution (MED) is a blind deconvolution method based on signal sparsity. The basic idea is that when mechanical failure occurs, the resulting shock vibration signal usually has sparsity, that is, the energy is mainly concentrated in a few shock pulses. Therefore, MED estimates the deconvolution filter by maximizing the negative entropy of the signal, thereby enhancing the sparsity of the output signal and better highlighting the impact features. Endo et al. [130] first applied MED to the field of fault detection successfully. The core formulas are as follows:

1.

Signal Model

Assume that the observed signal $y\left[n\right]$ is the result of the original impulsive signal $x\left[n\right]$ convolved with the system response $h\left[n\right]$ and superimposed with noise $e\left[n\right]$:

$$y\left[n\right]=x\left[n\right]\ast h\left[n\right]+e\left[n\right],$$

(16)

where * denotes the convolution operation.

2.

Deconvolution Objective

Design a deconvolution filter $w\left[n\right]$ such that the output signal $s\left[n\right]$ approximates the original signal $x\left[n\right]$ while minimizing the entropy:

$$s\left[n\right]=w\left[n\right]\ast y\left[n\right].$$

(17)

3.

Definition of Entropy

In MED, “entropy” typically refers to a measure of signal sparsity, commonly in the following two forms:

(a)

Kurtosis Maximization Kurtosis measures the impulsiveness of the signal and is defined as

$$\mathrm{Kurtosis}\left(s\right)={\displaystyle \frac{E\left[s^4\right]}{{\left(E\left[s^2\right]\right)}^2}}-3,$$

(18)

where $E[·]$ denotes the expectation. MED enhances impulsive components by maximizing kurtosis.

$$w_{\mathrm{opt}}=arg\underset{w}{max}{\displaystyle \frac{E\left[s^4\right]}{{\left(E\left[s^2\right]\right)}^2}}.$$

(19)

(b)

Shannon Entropy Minimization Normalize the signal energy to a probability distribution $p_n={\displaystyle \frac{{\left|s\left[n\right]\right|}^2}{{\parallel s\parallel }^2}}$ and minimize its Shannon entropy:

$$H\left(s\right)=-\sum _n{p}_{n}log{p}_n,$$

(20)

where the optimization problem is

$$w_{\mathrm{opt}}=arg\underset{w}{min}H\left(s\right).$$

(21)

4.

Optimization

Update the filter coefficients w using gradient descent or iterative methods. For example, with kurtosis maximization, the objective function is

$$J\left(w\right)={\displaystyle \frac{\frac{1}{N}{\sum }_{n=1}^{N}s{\left[n\right]}^4}{{\left(\frac{1}{N}{\sum }_{n=1}^{N}s{\left[n\right]}^2\right)}^2}},$$

(22)

where the derivative is computed, and w is iteratively updated until convergence.

5.

Summary of Formulas

The core formula of MED can be summarized as

$$w_{\mathrm{opt}}=arg\underset{w}{max}{\displaystyle \frac{E\left[s^4\right]}{{\left(E\left[s^2\right]\right)}^2}},$$

(23)

where $s=w\ast y$.

Key Points

• Adaptivity: No prior system model is required; the method is entirely data-driven.
• Sparse Enhancement: Impulsive components are highlighted by minimizing entropy (or maximizing kurtosis).

4.1.2. Application

A new target vector has been introduced to accommodate the random impulse characteristics of planetary bearing vibrations. By adopting the multipoint optimal minimum entropy deconvolution adjustment (MOMEDA) method, the influence of roller slippage on the vibration signal is considered, enabling the detection of outer race, inner race, and roller faults in planetary bearings [131].

To further enhance the accuracy of fault feature extraction, minimum entropy deconvolution (MED) can be utilized to improve resistance to noise. A model known as the MOMEDA method incorporates MED to enhance acoustic features in rolling bearing fault diagnosis. This method effectively extracts and enhances bearing fault features under complex background noise and unknown transmission paths [132]. Some researchers have also introduced an enhanced minimum entropy deconvolution method: minimum entropy deconvolution with adaptive filter parameters (EMED-AFP). By integrating nonlinear transformations and a sample entropy minimization strategy, this method adaptively determines optimal filter parameters and effectively extracts fault features [133]. In terms of parameter optimization, the whale optimization algorithm (WOA) has been used to optimize variational mode decomposition (VMD) parameters, combined with MOMEDA to enhance fault-related impulse signals [134]. The combination of other technologies has elevated the application of MED to new heights. Minimum entropy morphological deconvolution (MEMD) has been proposed for bearing fault diagnosis, integrating morphological filtering into minimum entropy deconvolution (MED) and determining optimal filtering results through the diagonal slice spectrum (DSS) of higher-order spectra [135]. By combining continuous vibration separation (CVS) with minimum entropy deconvolution (MED), the technical challenge of sun gear fault diagnosis in planetary gearboxes has been overcome, with the model particularly excelling at signal modulation effects and weak signal detection [136].

Furthermore, coarse-to-fine minimum entropy deconvolution (CFMED) has been introduced for rotating machinery fault detection. Through pre-iteration and discarding strategies, this method effectively extracts repetitive impulse signals related to faults and is robust to filter sizes [137]. A method to improve the accuracy of rotating machinery fault diagnosis, by combining kernel local outlier factor (KLOF) and phase editing (PE) with minimum entropy deconvolution (MED), has been shown to effectively extract repetitive impulse signals caused by faults [138]. An improved minimum entropy deconvolution method has been proposed to enhance the performance of rolling bearing fault diagnosis. Utilizing the standard particle swarm optimization algorithm and generalized spherical coordinate transformation, this method effectively detects and enhances periodic impulses in rolling bearing fault signals [139]. Additionally, combining minimum entropy deconvolution (MED) with the spectral centroid indicator (SCI) has been shown to help with the identification of bearing states with insufficient lubrication at different rotational speeds [140]. Combining time-delayed feedback stochastic resonance with minimum entropy deconvolution enhances the detection of weak fault features in rolling bearings. Through simulation and experimental validation, this method has been shown to outperform traditional minimum entropy deconvolution and the fast kurtosis Gram method at weak fault detection [141].

4.1.3. Strength and Weakness

• Enhances signal sparsity
• Sensitive to random pulses
• Sensitive to parameters

In the field of structural health signal processing, minimum entropy deconvolution (MED) stands out as a unique signal processing method, demonstrating distinct advantages and disadvantages.

Its advantages are mainly manifested in the following aspects: First, MED can effectively enhance the sparsity of signals, which is extremely beneficial for extracting fault features in structural health monitoring. This makes the impact components or fault pulses in the signal more prominent, facilitating the identification of structural damage or anomalies. Second, MED exhibits high sensitivity to random pulses in the signal, a characteristic that makes it excel at detecting non-periodic or random faults, aiding in the capture of sudden damage or transient events. By adjusting the filter to make the output signal sparse, MED effectively separates noise and recovers the original impulsive features. Furthermore, MED does not rely on the periodic characteristics of faults, thus offering greater flexibility in processing complex or irregular signals and being suitable for the processing of non-periodic fault signals. Finally, as a method based on signal processing theory, MED is not entirely data driven and can still effectively operate in the absence of large amounts of training data, demonstrating high practicality.

However, MED also has some notable disadvantages. First, it performs poorly in processing periodic fault pulses, tending to enhance the sparsity of random pulses instead. This may render it ineffective in extracting fault features for periodic faults, such as periodic impacts in bearing faults. Second, the performance of MED is relatively sensitive to parameter selection. Improper parameter settings can lead to unsatisfactory signal decomposition results or even introduce spurious components, requiring users to possess a certain level of experience and skill. Additionally, the computational process of MED involves iterative optimization, resulting in relatively high computational complexity, which may pose a challenge for real-time monitoring or large-scale data processing. Moreover, although MED can enhance the impact components in the signal, its robustness to noise is limited. In environments with strong noise, noise may be mistaken for fault pulses, potentially reducing the accuracy of diagnosis. Finally, the results of MED may be influenced by the initial conditions of the signal. Improper selection of initial conditions may lead to unstable or unreliable decomposition results.

4.2. Maximum Correlated Kurtosis Deconvolution

Maximum correlated kurtosis deconvolution (MCKD) takes advantage of the statistical property of kurtosis to enhance the detectability of periodic transients in signals. By maximizing the correlated kurtosis, MCKD is particularly effective in fault diagnosis in rotating machinery and other applications where identifying repetitive impulsive events is key. Here, we will define MCKD precisely, examine its practical applications across different industries, and analyze its performance pros and cons.

4.2.1. Definition

MED has the limitation of only deconvolving a single pulse or partial pulse, so McDonald et al. Maximum correlated kurtosis deconvolution (MCKD) is proposed, which considers the periodicity of the fault and aims to extract periodic pulse faults from machine vibration signals. It uses the correlation kurtosis as the objective function of deconvolution, and it maximizes the correlation kurtosis value by finding the optimal filter parameters. By deconvolving the continuous pulse buried in noise, the correlation kurtosis value of the original signal is enhanced, making it suitable for extracting weak fault signals from continuous transient shocks.

4.2.2. Application

In recent years, researchers have pursued the development of efficient and robust methods for signal acquisition and processing in conjunction with maximum correlated kurtosis deconvolution (MCKD) technology, aiming to enhance the signal-to-noise ratio and the accuracy of feature extraction. A study presented an improved maximum correlated kurtosis deconvolution adjustment (IMCKDA) method for fault detection in wind turbine gears [142]. By introducing the concept of convolution adjustment and utilizing the correlated Gini index (CG) to guide the selection of filter length, the method improved both the signal-to-noise ratio and robustness.

The combination of customized balanced multi-wavelets with adaptive maximum correlated kurtosis deconvolution (MCKD) has been demonstrated to be effective and feasible for the diagnosis of compound faults in rotating machinery [143]. Another approach, namely improved maximum correlated kurtosis deconvolution (IMCKD), enhances robustness and efficiency in rolling bearing fault diagnosis by automatically estimating the iteration period and selecting the filtered signal with the maximum kurtosis [144]. Furthermore, a maximum correlated kurtosis deconvolution based on deep networks (MCKD-DeNet) method has been proposed for bearing fault diagnosis, integrating deep learning to optimize the deconvolution filter coefficients. This method improves the accuracy and efficiency of fault feature extraction [145].

4.2.3. Strength and Weakness

• Good at extracting periodic fault pulses in rotating machinery
• Improves fault diagnosis accuracy for early -stage faults
• Preserves and enhances fault-related periodic components
• Sensitive to high noise levels and poor signal quality
• Heavily depends on accurate fault cycle estimation

Maximum correlated kurtosis deconvolution (MCKD) and minimum entropy deconvolution (MED) stand out as two prominent signal processing techniques in mechanical fault diagnosis, especially for rotating machinery like rolling bearings and gears. Although both aim to enhance fault characteristics in signals, they diverge in their optimization goals and application efficacy. This analysis delves into the merits and demerits of MCKD in the realm of structural health signal processing.

MCKD boasts several advantages. First, it excels at extracting periodic fault pulses, making it highly effective for identifying faults with repetitive patterns, which are typical in rotating machinery. By maximizing the correlation kurtosis of the output signal, MCKD amplifies weak periodic fault features often obscured by noise or other signal components. Second, its ability to highlight these periodic fault characteristics enhances fault diagnosis accuracy, particularly for subtle or early-stage faults, proving invaluable for predictive maintenance and early fault detection in industrial settings. Finally, unlike MED, which targets random pulse extraction and signal sparsity, MCKD’s tailored approach to periodic signals ensures that fault-related periodic components are preserved and enhanced, facilitating better signal interpretability [146].

However, MCKD also presents certain disadvantages. It heavily relies upon accurate fault cycle estimation, which can be challenging to obtain in industrial applications due to varying operating conditions, noise, and complex signal interactions. This dependency limits MCKD’s effectiveness when fault cycles are unknown or hard to estimate. Additionally, while adept at handling periodic faults, MCKD is less effective for non-periodic or random faults where MED might be more suitable. Furthermore, MCKD’s iterative optimization process to maximize correlation kurtosis can be computationally intensive, hindering its use in time-sensitive or resource-constrained environments. Finally, its performance can suffer in the presence of high noise levels or poor signal quality, necessitating preprocessing steps like noise reduction for optimal results.

In comparison to MED, MCKD is more effective for periodic faults, while MED is better suited for random fault pulses. MED’s versatility stems from its lesser reliance on fault cycle information, whereas MCKD’s performance is closely tied to accurate fault cycle estimation. The two methods also differ in their optimization objectives: MED minimizes signal entropy for sparsity, while MCKD maximizes correlation kurtosis to emphasize periodic features.

In conclusion, MCKD offers significant benefits for structural health signal processing, particularly in diagnosing periodic faults in rotating machinery. Its ability to amplify weak periodic fault features makes it a potent tool for early fault detection and predictive maintenance. Nevertheless, its reliance on accurate fault cycle estimation, its computational complexity, and its limited applicability to non-periodic faults are notable drawbacks. When choosing between MCKD and MED, practitioners should consider the fault’s nature and the availability of fault cycle information in order to determine the most suitable method. Ultimately, while MCKD is a valuable technique for periodic fault diagnosis, its effectiveness hinges on the specific application context and input signal quality. Future research could aim to reduce MCKD’s dependency on fault cycle estimation and enhance its robustness to noise, broadening its industrial applicability.

4.3. Feature Model Decomposition

Feature model decomposition offers a distinct perspective on deconvolution by focusing on breaking down complex models into more interpretable and useful components. It provides a framework for extracting relevant features from data, which can then be leveraged for tasks such as classification, prediction, and anomaly detection. In this segment, we will start by defining feature model decomposition, detail the methods employed in the process, and evaluate its overall performance in terms of strengths and weaknesses.

4.3.1. Definition

Feature mode decomposition (FMD) is a relatively new signal decomposition method that aims to decompose different modes through the design of adaptive finite impulse response (FIR) filters. FMD utilizes the superiority of correlation kurtosis, taking into account the impulsivity and periodicity of signals, and is suitable for feature extraction in mechanical fault diagnosis and other fields.

4.3.2. Method

The specific workflow of FMD includes the following steps: (1) Initialize the filter bank: First, initialize a set of evenly distributed FIR filters that cover the entire frequency band to decompose the original signal. (2) Iterative updating of filters: Using correlated kurtosis (CK) as the objective function, iteratively update the filter bank. Estimate the fault cycle during each filtering process. (3) Screening mode: After comparing the correlation coefficients (CCs) between every two modes, discard the mode with a lower CK. (4) Termination conditions: When the termination conditions are met, the decomposition process is ended.

4.3.3. Strength and Weakness

• Uses adaptive FIR filters
• Can resist interference and noise
• Highly dependent on signal characteristics

The decomposition goal of FMD is to capture the characteristics of mechanical faults, taking into comprehensive consideration the impulsivity and periodicity of signals, while exhibiting robust resistance to other interference and noise. This method employs adaptive finite impulse response (FIR) filters for signal decomposition, unconstrained by filter shape, bandwidth, or center frequency, thereby achieving a more thorough decomposition effect.

Notably, FMD can accurately decompose mechanical fault information without prior knowledge of the fault period, especially for compound faults that dominate in different frequency bands. However, the introduction of adaptive FIR filters also means that the performance of FMD is influenced to some extent by the initial parameter selection of the filter bank. Improper initial parameter settings may lead to suboptimal signal decomposition results or even the inability to effectively extract fault features. Furthermore, the performance of FMD is highly dependent on the characteristics of the signal itself.

4.4. Other Models and Applications

Beyond the specific deconvolution methods explored above, there exists a rich tapestry of other models and applications within the realm of deconvolution. These include emerging techniques, hybrid approaches that combine multiple deconvolutional concepts, or applications in niche areas that have not been as widely explored. This section aims to provide a glimpse into these diverse aspects, highlighting their potential contributions to the broader field of deconvolution.

• Wiener Deconvolution
• Blind Deconvolution

Wiener deconvolution is a deconvolution method based on the criterion of minimum mean square error. It utilizes the statistical properties of signals (such as power spectrum) to design an optimal filter for recovering the convolved signal. Wiener deconvolution performs well at processing signals containing noise.

Blind deconvolution estimates the point spread function (PSF) and the original signal through iterative algorithms when the PSF is unknown. For instance, a blind deconvolution method based on generalized Gaussian cyclostationarity (CYCBD $\beta$) can be used to extract bearing fault features under non-Gaussian conditions. CYCBD $\beta$ exhibits higher robustness in the presence of strong non-Gaussian noise and can extract fault features without knowing the fault frequency [147]. When combined with spectral kurtosis, it can be applied to gear fault diagnosis. Under both constant and actual operating speeds, this method outperforms existing blind deconvolution methods, effectively enhancing fault features and improving detection accuracy [148].

To enhance adaptive performance, a method based on maximum autocorrelation kurtosis deconvolution (MACKD) has been developed for detecting abnormal noise in vehicle axles. This method identifies abnormal noise by quantifying periodic impulse components in the signal. Experiments have shown that it outperforms the MCKD and MED methods in feature extraction [149]. Similarly, an improved adaptive multipoint optimal minimum entropy deconvolution adjustment (MOMEDA) fault diagnosis method has been proposed, which improves the effectiveness of signal processing through a grid search optimization algorithm. Combining EEMD and MOMEDA techniques, it can effectively extract feature signals of complex faults in environments with high noise [150].

There is also the periodic component pursuit kurtosis deconvolution (PCPKD) method for the compound fault diagnosis of rolling bearings. It excels at signal period enhancement and multi-frequency component separation, effectively extracting intrinsic periodic components [151].

In addition, optimizations in kurtosis have significantly impacted the performance of model-based methods. The combination of the maximum L-kurtosis deconvolution (MLKD) algorithm and the frequency domain filtering (FDF) algorithm has significant advantages in suppressing outliers and noise, effectively extracting fault features for bearing fault diagnosis [152]. Furthermore, maximum average kurtosis deconvolution (MAKD) is utilized to enhance impact fault features in rotating machinery. MAKD exhibits strong robustness to typical types of interference and is not affected by speed variations or estimation deviations of fault characteristic frequencies [153].

The primary objectives of these deconvolution techniques are to extract useful information from measured signals, recover convolved signals, and estimate unknown system parameters. Each technique is based on different mathematical principles and implementation methods, such as the criterion of minimum mean square error, iterative algorithms, spectral kurtosis, and periodic component pursuit. Although all can be applied in the field of signal processing and structural health monitoring, each technique has its specific application scenarios and advantages. For example, Wiener deconvolution is suitable for processing signals containing noise; blind deconvolution is very useful when the PSF is unknown; and MACKD is particularly suitable for detecting impact faults.

In practical applications, these techniques can complement each other and be used in combination to improve the effectiveness of signal processing and the accuracy of fault diagnosis. For instance, blind deconvolution can be used first to estimate the system’s response function and the original excitation signal, and then other techniques can be employed for fault feature extraction and diagnosis.

5. Comprehensive Discussion

The application of non-parametric dependent signal processing, adaptive signal processing, and deconvolution techniques in the mechanical field exhibits unique characteristics and entails significant advantages as well as inherent limitations. Non-parametric signal processing methods, including short-time Fourier transform (STFT) and Wigner–Ville distribution (WVD), have found widespread usage in mechanical fault diagnosis due to their simplicity and intuitive properties. These techniques do not necessitate prior knowledge of the signal’s statistical properties, enabling direct analysis in the time–frequency domain and effective extraction of fault characteristics. However, in complex and variable mechanical signal environments, non-parametric methods may face limitations in analysis accuracy due to insufficient prior knowledge, making it challenging to accurately capture subtle, dynamic changes within the signal.

Adaptive signal processing technology achieves a high degree of adaptability to changes in signal environments by incorporating optimal criteria, such as adaptive filtering and adaptive noise cancellation techniques. These technologies can track signal characteristics in real-time, effectively addressing non-stationarity and uncertainty factors in mechanical systems. Nonetheless, when dealing with highly nonlinear mechanical signals, adaptive signal processing may encounter issues related to slow convergence speeds, particularly when signal characteristics undergo rapid changes. The algorithm may struggle to adapt promptly to the new signal environment, potentially impacting the accuracy and real-time performance of diagnosis.

As a signal recovery technique, deconvolution technology has demonstrated notable advantages in fields like mechanical image processing and vibration signal analysis. By performing deconvolution operations, the blurring effects and convolution components within the signal can be effectively removed, restoring the characteristic information of the original signal. This is particularly crucial for extracting weak fault characteristics in mechanical systems. However, in practical applications, deconvolution techniques may be significantly impacted by noise and interference. Mechanical signals are frequently contaminated with substantial background noise and interference components, which can be amplified or introduce new error sources during the deconvolution process, thereby reducing the accuracy and reliability of signal recovery.

Given these considerations, in practical applications, it is imperative to meticulously select appropriate signal processing methods based on specific requirements or adopt a strategy that integrates multiple methods for processing. Taking mechanical fault diagnosis as an illustrative example, non-parametric dependent signal processing methods can be initially employed to conduct a preliminary time–frequency domain analysis of the signal, thereby extracting potential fault characteristics. Subsequently, adaptive signal processing technology can be utilized to further filter noise interference and enhance signal quality. Finally, deconvolution technology can be applied to recover clearer and more precise fault feature information. This strategy of integrating multiple signal processing techniques can fully exploit their respective technical advantages, significantly improving the accuracy and efficiency of mechanical fault diagnosis.

Table 1. Applicable scenarios and optimization methods for various signal decomposition techniques.

Method	Applicable Scenarios	Optimization Methods
STFT	Preliminary analysis and signal feature extraction	Multi-window techniques, linear frequency modulation, Gaussian windows
WT	Local signal feature analysis	Optimization of wavelet basis function selection
WVD	Single-component linear frequency-modulated signals	Cross-term suppression methods (e.g., DMD-WVD)
EMD	Complex signal analysis	Noise-assisted methods (e.g., EEMD), parameter optimization
EEMD	Complex signal analysis	Parameter optimization (e.g., adaptive noise bandwidth), hardware acceleration
MEEMD	Multi-physical field signal fusion	Parameter optimization, multi-signal synchronous processing
VMD	Complex signal analysis	Parameter optimization (e.g., particle swarm optimization), multi-variable signal processing
SVMD	Complex signal analysis	Parameter self-adaptive update, minimum bandwidth constraint
AVMD	Complex signal analysis	Parameter self-adaptive update, optimization algorithms (e.g., differential evolution)
EWT	Complex signal analysis	Optimization of filter design, multi-variable signal processing
EEWT	Complex signal analysis	Parameter optimization, multi-signal synchronous processing
EFD	Complex signal analysis	Optimization of spectral segmentation, noise suppression
MED	Random pulse signals	Noise suppression methods (e.g., wavelet threshold), parameter optimization
MCKD	Periodic fault signals	Fault cycle estimation optimization, noise suppression
FMD	Complex signal analysis	Parameter optimization, multi-variable signal processing

summarizes the application scenarios and optimization methods of the key signal decomposition techniques highlighted in this review.

Table 2. Comparison of signal processing techniques for structural health monitoring (SHM).

Method Abbr.	References	Key Feature	Advantage	Difficulty
STFT	[3,4,5,6,7,8,9,10,11,12,13,14,15,16]	TF Resolution	Good for Stationary	Window Sel.
WT	[17,18,19,20,21]	TF Localization	High Resolution	Basis Sel.
WVD	[1,22,23,24,25,26,27,28,29,30,32,33]	TF Analysis	High Resolution	Cross-term Issue
EMD	[34,36,37,38,39,40,41,42]	Adaptive Decomp.	Self-adaptability	Mode Mixing
EEMD	[44,45,46,47,48,49]	Noise Addition	Suppress Mixing	Noise Difficulty
VMD	[69,70,71,73,74,75,76,77,78,79,80,81,82,83,85,86,87,88,89]	Bandwidth Opt.	Flexibility	Parameter Sel.
MED	[131,132,133,134,135,136,137,138,139,140,141]	Signal Sparsity	Enhance Impact	Computational

Comparison of the signal processing techniques for structural health monitoring (SHM)

6. Conclusions

Most algorithms are proposed for processing non-stationary signals in structural health monitoring, and significant progress has been observed in models’ adaptability to non-stationary signals during the iterative process. However, some unresolved issues remain in current research. Below, the prospects for signal processing technology in the field of structural health are discussed. (1) As mentioned in Section 2, real-time data processing, such as dealing with rapidly changing damage characteristics, often requires sacrificing computational efficiency. However, improving computational efficiency often leads to increased computational complexity. For instance, STFT, when processing highly non-stationary signals, exhibits inadequate capture of time–frequency signal features. Although WT offers higher computational efficiency, it has low computational complexity, while WVD’s high resolution relies on instantaneous calculations, resulting in low computational efficiency. Therefore, effectively balancing computational complexity, efficiency, and resolution is crucial for models to process real-time signals and achieve practical application. Further research in this area is recommended. (2) As stated in Section 3, adaptive time–frequency analysis effectively addresses the issue of basis function selection in non-parametric processing techniques. However, these models still face parameter selection issues. For example, the performance of MEEMD is sensitive to parameters like noise bandwidth, and VMD’s performance is significantly affected by parameters such as the penalty factor and the number of modes. Some researchers have manually tuned these parameters using intelligent algorithms, but critical breakthroughs are still lacking, with efforts remaining at the stage of algorithmic iteration and approximation. Therefore, it incorporating clear physical meanings of signal processing into the development of parameter optimization algorithms, rather than relying on simple numerical comparisons, is suggested. (3) Researchers have made significant efforts at denoising, but there is limited research on periodic impulse signals, which are often treated as noise and removed. (4) Most current research on fault diagnosis in signal processing can identify fault locations, such as planetary gears, sun gears, or ring gears, but some can only identify fault states from normal states. However, determining fault types such as tooth root cracks and tooth surface pitting remains challenging. Therefore, it is recommended to focus more on more precise fault diagnosis, including establishing accurate dynamic models for different fault types, designing more targeted representative features, and developing more powerful classifiers. (5) Most of the studies reviewed above focus on detecting one type of fault in certain components (such as gears and bearings) or on a single signal type (such as vibration or acoustic signals). Therefore, it is important to focus on the operation of the entire machine and the processing of multi-sensor data. (6) As observed in the “Applications” section of this review, the combination of multiple signal processing models is becoming a trend. Existing technologies include the integration of wavelet transforms and adaptive time–frequency analysis models. Furthermore, the emergence of autoregressive deconvolution highlights the significance of model combination, bringing clarity to physical meanings. (7) Additionally, clarity in physical meaning is an important advancement in signal processing for structural health. Transitioning from data-driven approaches to optimization based on physical meanings not only improves computational accuracy but also provides a more scientific approach for handling large-scale data.

7. Comparison

Compared to the black-box models of machine learning that rely on data-driven feature extraction, the above traditional methods have significant advantages in terms of interpretability and scenarios with small sample sizes. The time–frequency diagrams, intrinsic mode function (IMF) components, and deconvolution results can be directly associated with the physical characteristics of the structure (such as resonance frequencies and damage impacts), and real-time processing of a single signal can be achieved without the need for training data. However, their performance is limited by manual parameter tuning (such as the window length of the short-time Fourier transform (STFT) and the number of modes in variational mode decomposition (VMD)), and their adaptability to complex working conditions like multi-source coupled vibrations is weaker than that of the end-to-end modeling of deep learning. Future directions may require the integration of the advantages of both. For example, wavelet transform (WT) or empirical mode decomposition (EMD) can be used for preprocessing to enhance the physical significance of features, and then a lightweight network (such as a 1D-convolutional neural network (1D-CNN)) can be applied to mine deep patterns. Alternatively, explainable artificial intelligence (XAI) tools can be utilized to establish explicit associations between traditional features and network decisions, so as to meet the stringent requirements for transparency in engineering scenarios while ensuring diagnostic accuracy.
