Personalized Federated MultiTask Learning over Wireless Fading Channels
Abstract
:1. Introduction
 We propose the FedGradNorm algorithm. The proposed algorithm takes advantage of the GradNorm [19] dynamic weighting strategy in a PFL setup for achieving a more effective and fair learning performance when the clients have a diverse set of tasks to perform.
 We propose HOTAFedGradNorm. The proposed algorithm takes into account the characteristics of the communication channel by defining a hierarchical structure for the PFL setting.
 We provide the convergence analysis for adaptive weighting strategy for MTL in PFL setting. Existing works either do not provide convergence analysis or do it in special cases. We demonstrate that FedGradNorm has an exponential convergence rate.
 We conduct several experiments on our framework using MultiTask Facial Landmark (MTFL) dataset [28], and RadComDynamic dataset on the wireless communication domain [29]. We investigate the changes in task loss during training to compare the learning speed and fairness of FedGradNorm with a similar PFL setting which uses equal weighting technique, namely FedRep. Experimental results exhibit a better and faster learning performance for FedGradNorm than FedRep. In addition, we demonstrate that HOTAFedGradNorm results in faster training over the wireless fading channel compared to algorithms with naive static equal weighting strategies since dynamic weight selection process takes the channel conditions into account.
2. System Model and Problem Formulation

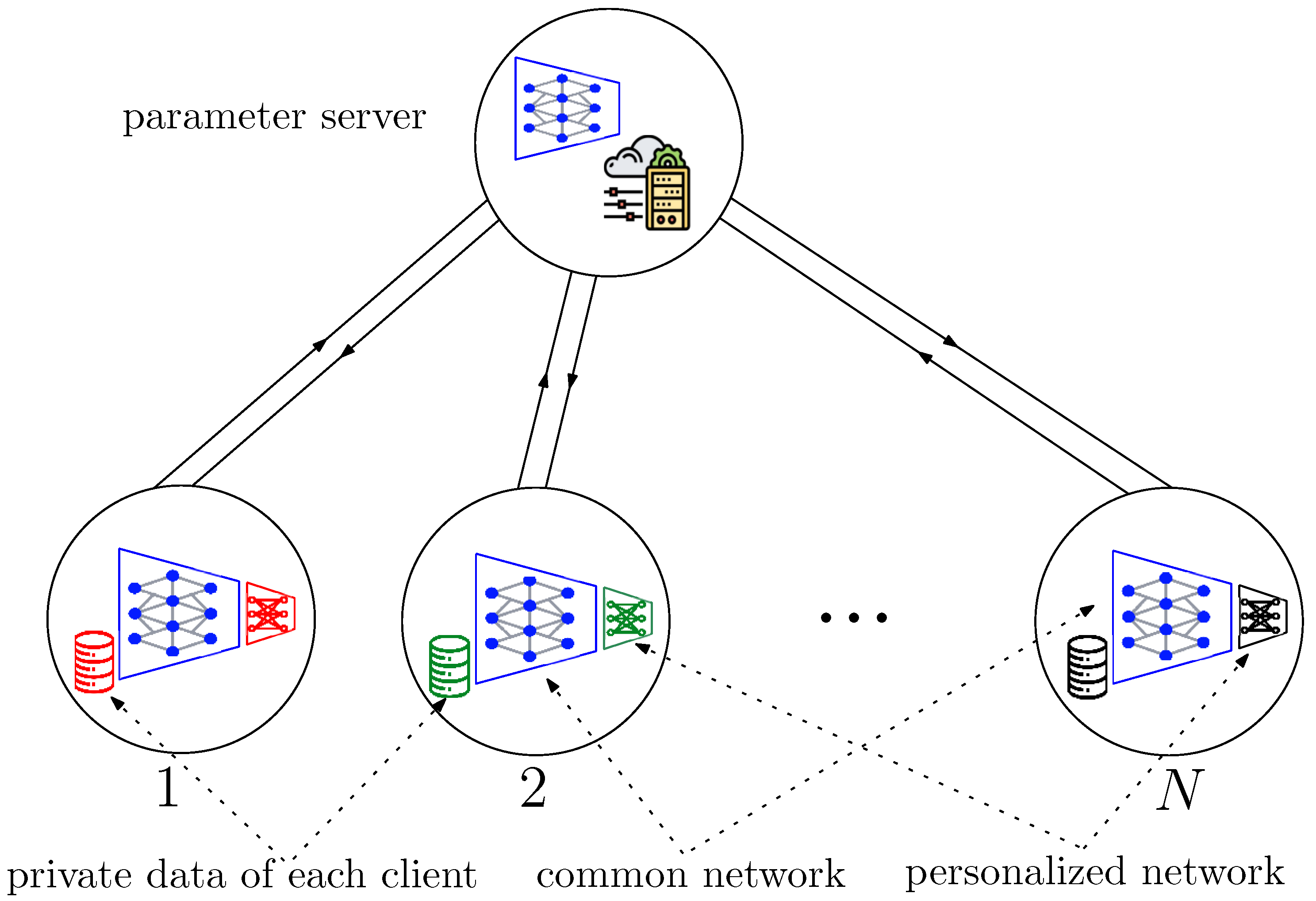

2.1. Federated Learning (FL)
2.2. Personalized Federated MultiTask Learning (PFMTL)
2.3. PFMTL as Bilevel Optimization Problem
Algorithm 1 Iterative differentiation (ITD) algorithm.
Input: K, D, step sizes $\alpha $, $\beta $, initialization ${x}_{u}(0)$, ${x}_{l}(0)$. fork = 0, 1, 2, …, K do Set ${x}_{l}^{0}(k)$ = ${x}_{l}^{D}(k1)$ if $k>0$ otherwise ${x}_{l}(0)$. for t = 1, …, D do Update ${x}_{l}^{t}(k)={x}_{l}^{t1}(k)\alpha {\nabla}_{{x}_{l}}g({x}_{u}(k),{x}_{l}^{t1}(k))$ Compute ${\widehat{\nabla}}_{{x}_{u}}F({x}_{u}(k),{x}_{l}^{D}(k))=\frac{\partial F({x}_{u}(k),{x}_{l}^{D}(k))}{\partial {x}_{u}}$ Update ${x}_{u}(k+1)={x}_{u}(k)\beta {\widehat{\nabla}}_{{x}_{u}}F({x}_{u}(k),{x}_{l}^{D}(k))$

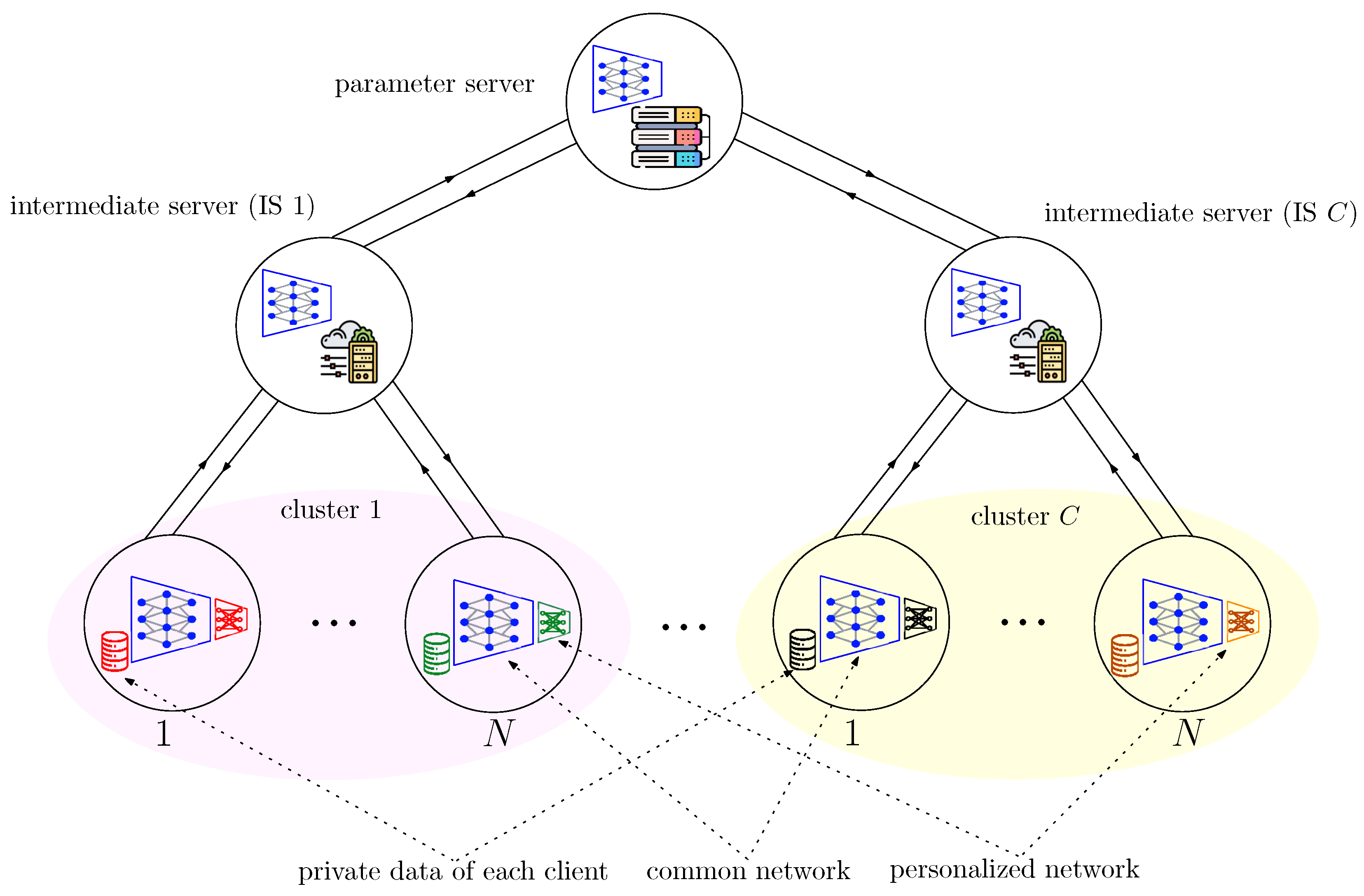

2.4. Hierarchical Federated Learning (HFL) for Wireless Fading Channels
3. Algorithm Description
3.1. Definitions and Preliminaries
 $\tilde{\omega}$: A subset of the global shared network parameters $\tilde{\omega}\subset \omega $. FedGradNorm is applied on ${\tilde{\omega}}_{k}^{(i)}$⊂${\omega}_{k}^{(i)}$, which is a subset of the global shared network parameters at client i at iteration k. ${\tilde{\omega}}_{k}^{(i)}$ is generally chosen as the last layer of the global shared network at client i at iteration k.
 ${G}_{{\tilde{\omega}}_{k}^{(i)}}^{(i)}(k)=\parallel {\nabla}_{{\tilde{\omega}}_{k}^{(i)}}{p}_{k}^{(i)}{F}_{k}^{(i)}\parallel ={p}_{k}^{(i)}\parallel {\nabla}_{{\tilde{\omega}}_{k}^{(i)}}{F}_{k}^{(i)}\parallel $: The ${\ell}_{2}$ norm of the gradient of the weighted task loss at client i at iteration k with respect to the chosen weights ${\tilde{\omega}}_{k}^{(i)}$.
 ${\overline{G}}_{\tilde{\omega}}(k)$ = ${\mathbb{E}}_{j\sim \mathrm{task}}[{G}_{{\tilde{\omega}}_{k}^{(j)}}^{(j)}(k)]$: The average gradient norm across all clients (tasks) at iteration k.
 ${\tilde{F}}_{k}^{(i)}$ = $\frac{{F}_{k}^{(i)}}{{F}_{0}^{(i)}}$: Inverse training rate of task i (at client i) at iteration k, where ${F}_{k}^{(i)}$ is the loss for client i at iteration k, and ${F}_{0}^{(i)}$ is the initial loss for client i.
 ${r}_{k}^{(i)}$ =$\frac{{\tilde{F}}_{k}^{(i)}}{{\mathbb{E}}_{j\sim \mathrm{task}}[{\tilde{F}}_{k}^{(j)}]}$: Relative inverse training rate of task i at iteration k.
 ${g}_{k}^{(i)}=\frac{1}{{\tau}_{\omega}}{\sum}_{j=1}^{{\tau}_{\omega}}{g}_{k,j}^{(i)}$ is the average of gradient updates at client i at iteration k, where ${g}_{k,j}^{(i)}$ is the jth local update of the global shared representation at client i at iteration k. Note that $\parallel {\nabla}_{{\tilde{\omega}}_{k}^{(i)}}{F}_{k}^{(i)}\parallel $ is a subset of ${g}_{k}^{(i)}$ since $\tilde{\omega}\subset \omega $.
 ${h}_{k,j}^{(i)}$ is the clientspecific head parameters ${h}^{(i)}$ after the jth local update on the clientspecific network of client i at iteration k, $j=1,\dots ,{\tau}_{h}$.
 ${\omega}_{k,j}^{(i)}$ is the global shared network parameters of client i after the jth local update at iteration k, $j=1,\dots ,{\tau}_{\omega}$. Additionally, ${\omega}_{k}^{(i)}$ denotes ${\omega}_{k,{\tau}_{\omega}}^{(i)}$ for brevity.
3.2. FedGradNorm Description
Algorithm 2 Training with FedGradNorm
Initialize ${\omega}_{0}$, ${\{{p}_{0}^{(i)}\}}_{i=1}^{N}$, ${\{{h}_{0}^{(i)}\}}_{i=1}^{N}$ fork=1 toKdo The parameter server sends the current global shared network parameters ${\omega}_{k}$ to the clients. for Each client $i\in \left[N\right]$ do Initialize global shared network parameters for local updates by ${\omega}_{k,0}^{(i)}\leftarrow {\omega}_{k}$ for $j=1,\dots ,{\tau}_{h}$ do ${h}_{k,j}^{(i)}$ = $\mathrm{Update}({F}^{(i)}({h}_{k,j1}^{(i)},{\omega}_{k,0}^{(i)}),{h}_{k,j1}^{(i)})$ ${F}_{k}^{(i)}=0$ for $j=1,\dots ,{\tau}_{\omega}$ do ${\omega}_{k,j}^{(i)}\leftarrow {\omega}_{k,j1}^{(i)}\beta {g}_{k,j}^{(i)}$ ${F}_{k}^{(i)}$ += ${F}^{(i)}({h}_{k,{\tau}_{h}}^{(i)},{\omega}_{k,j}^{(i)})$ ${F}_{k}^{(i)}$$\leftarrow \frac{1}{{\tau}_{\omega}}{F}_{k}^{(i)}$ Client i sends ${g}_{k}^{(i)}=\frac{1}{{\tau}_{\omega}}{\sum}_{j=1}^{{\tau}_{\omega}}{g}_{k,j}^{(i)}$, and ${\tilde{F}}_{k}^{(i)}=\frac{{F}_{k}^{(i)}}{{F}_{0}^{(i)}}$ to the parameter server After collecting ${g}_{k}^{(i)}$, and ${\tilde{F}}_{k}^{(i)}$ for active clients $i\in \left[N\right]$, the parameter server performs the following operations in the order: • Constructs ${F}_{\mathrm{grad}}(k;{\{{p}_{k}^{(i)}\}}_{i=1}^{N})$ using ${\{{g}_{k}^{(i)}\}}_{i=1}^{N}$ and ${\{{\tilde{F}}_{k}^{(i)}\}}_{i=1}^{N}$ as given in Equation (12). • Updates ${p}_{k}^{(i)}\leftarrow {p}_{k1}^{(i)}\alpha {\nabla}_{{p}^{(i)}}{F}_{\mathrm{grad}}$, $\forall i\in \left[N\right]$. • Aggregates the gradient for the global shared network by ${g}_{k}=\frac{1}{N}{\sum}_{i=1}^{N}{p}_{k}^{(i)}{g}_{k}^{(i)}$. • Updates the global shared network parameters with the aggregated gradient by ${\omega}_{k+1}={\omega}_{k}\beta {g}_{k}$. • Broadcasts ${\omega}_{k+1}$ to clients for the next global iteration.
3.3. Hierarchical OvertheAir (HOTA) FedGradNorm
Algorithm 3 HOTAFedGradNorm

Algorithm 4 FGN_Server$\left(\right)$

4. Convergence Analysis
 $g(x,p)$ is μstrongly convex with respect to $p\in {\mathbb{R}}^{N}$
 ${F}^{(i)}(x,p(x))$ is μstrongly convex with respect to $x\in {\mathcal{H}}^{N}\times \mathcal{W},\forall i\in \left[N\right]$, where $x=\left(\right)open="("\; close=")">{\{{h}^{(i)}\}}_{i=1}^{N},\omega $, and ${p}^{*}(x)=\underset{p\in {\mathbb{R}}^{N}}{arg\phantom{\rule{0.166667em}{0ex}}min\phantom{\rule{0.166667em}{0ex}}}g(x)$.
5. Experiments
5.1. Dataset Specifications
 MultiTask Facial Landmark (MTFL) [28]: This dataset contains 10,000 training and 3000 test images, which are human face images annotated by (1) five facial landmarks, (2) gender, (3) smiling, (4) wearing glasses, and (5) head pose. The first task (five facial landmarks) is a regression task, and other tasks are classification tasks.
 RadComDynamic [29]: This dataset is a multiclass wireless signal dataset which contains 125,000 samples. Samples are radar and communication signals from GNU Radio Companion derived for different SNR values. The dataset contains six modulation types and eight signal types. Dynamic parameters for samples are listed in Table 1. We perform 3 different tasks over RadComDynamic dataset, (1) modulation classification, (2) signal type classification, and (3) anomaly detection.
 –
 Task 1. Modulation classification: The modulation classes are amdsb, amssb, ask, bpsk, fmcw, and pulsed continous wave (PCW).
 –
 Task 2. Signal type classification: The signal classes are AM radio, shortrange, RadarAltimeter, AirGroundMTI, Airbornedetection, Airbornerange, Groundmapping.
 –
 Task 3. Anomaly behavior: Signal to noise ratio (SNR) can be considered as a proxy for geolocation information. We define anomaly behavior as having SNR lower than −4 dB.
5.2. Hyperparameters and Model Specifications

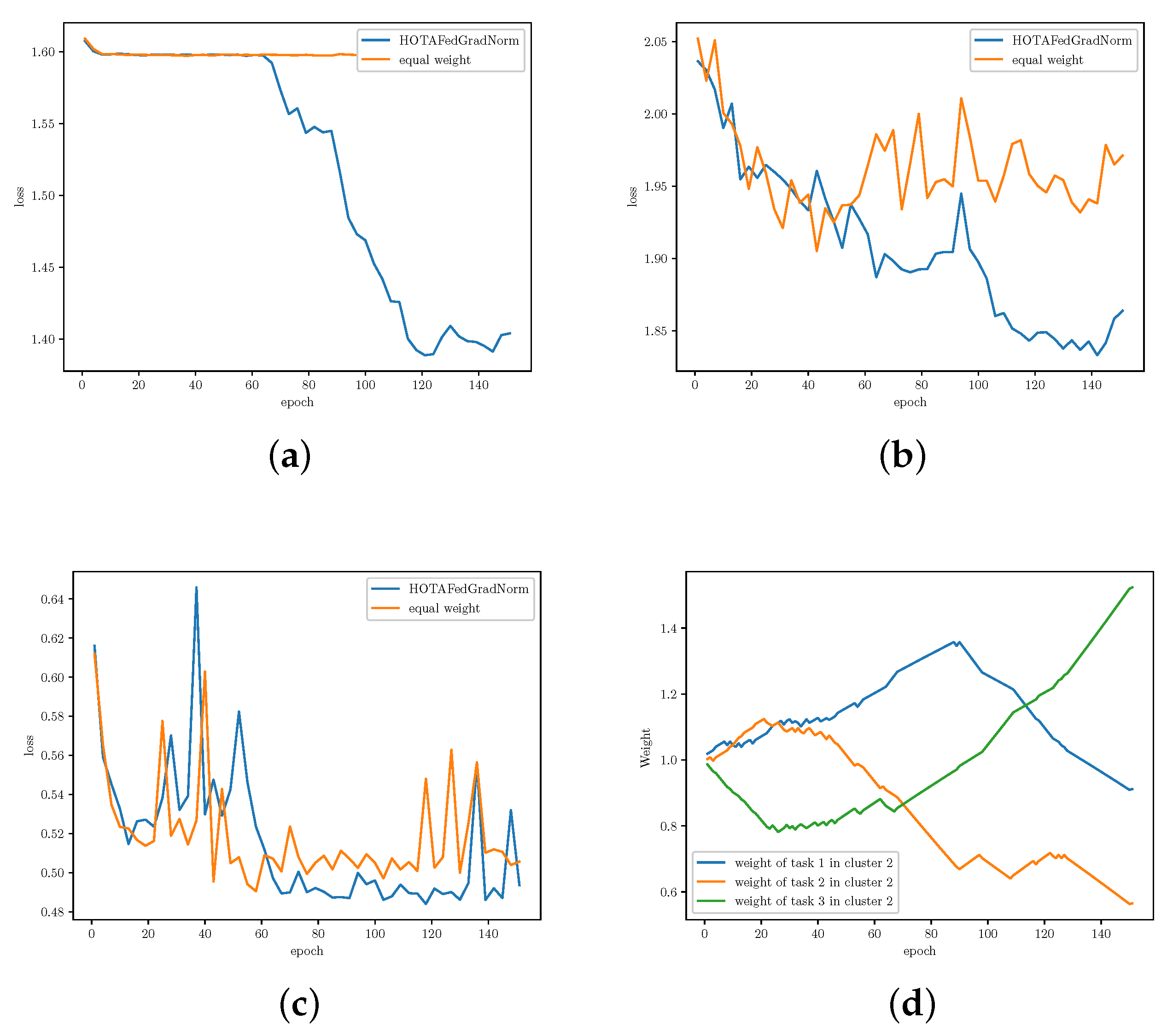

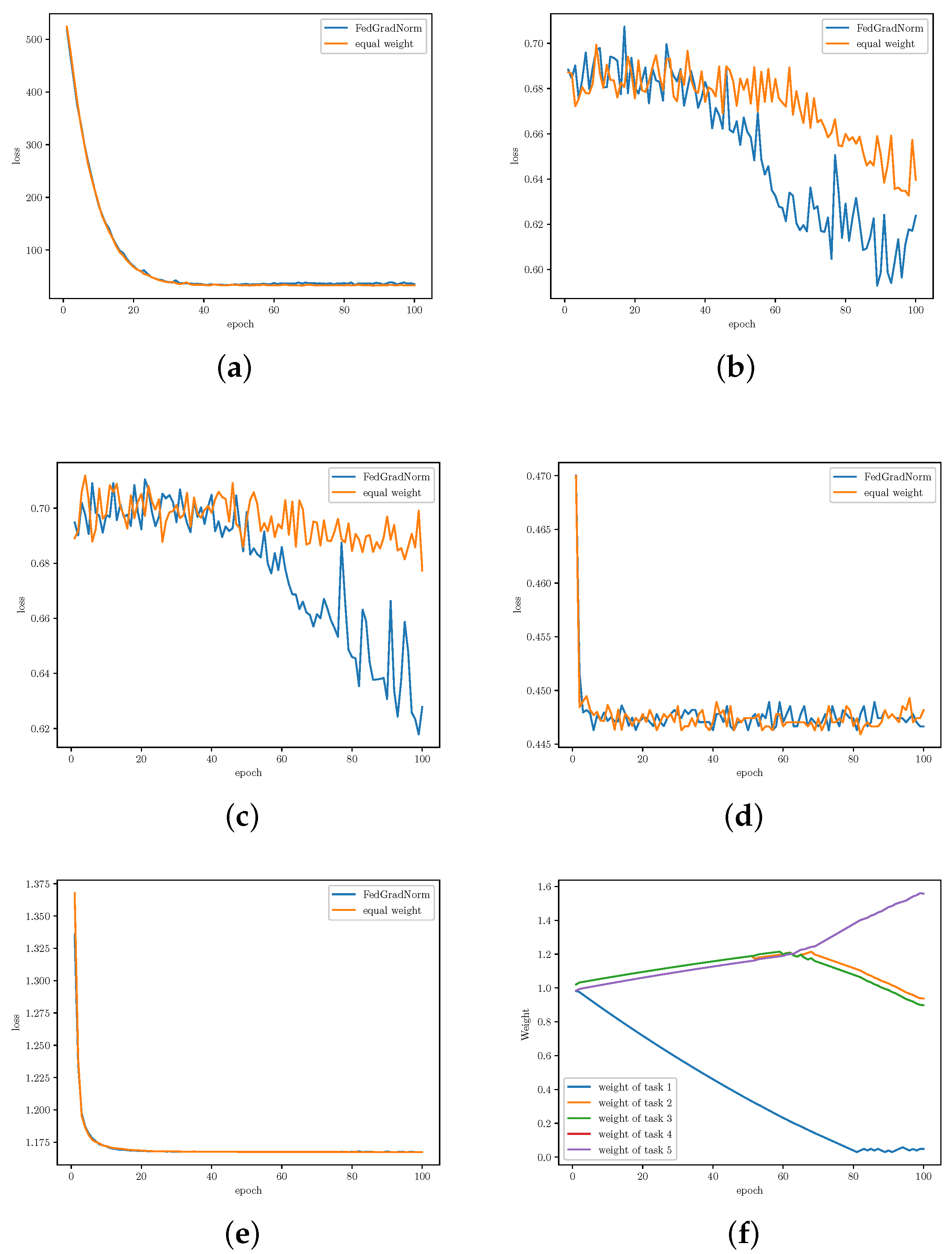

5.3. Results and Analysis
6. Conclusions and Discussion
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Appendix A
References
 Caruana, R. Multitask learning. Mach. Learn. 1997, 28, 41–75. [Google Scholar] [CrossRef]
 Zhang, Y.; Yang, Q. A survey on multitask learning. arXiv 2017, arXiv:1707.08114. [Google Scholar] [CrossRef]
 McMahan, B.; Moore, E.; Ramage, D.; Hampson, S.; Aguera y Arcas, B. Communicationefficient learning of deep networks from decentralized data. In Proceedings of the AISTATS, Fort Lauderdale, FL, USA, 20–22 April 2017. [Google Scholar]
 Li, T.; Sahu, A.K.; Zaheer, M.; Sanjabi, M.; Talwalkar, A.; Smith, V. Federated optimization in heterogeneous networks. In Proceedings of the MLSys, Austin, TX, USA, 2–4 March 2020. [Google Scholar]
 Karimireddy, S.P.; Kale, S.; Mohri, M.; Reddi, S.; Stich, S.; Suresh, A.T. SCAFFOLD: Stochastic controlled averaging for federated learning. In Proceedings of the ICML, Virtual, 13–18 July 2020. [Google Scholar]
 Fifty, C.; Amid, E.; Zhao, Z.; Yu, T.; Anil, R.; Finn, C. Measuring and harnessing transference in multitask learning. arXiv 2020, arXiv:2010.15413. [Google Scholar]
 Collins, L.; Hassani, H.; Mokhtari, A.; Shakkottai, S. Exploiting shared representations for personalized federated learning. In Proceedings of the ICML, Virtual, 18–24 July 2021. [Google Scholar]
 Arivazhagan, M.G.; Aggarwal, V.; Singh, A.K.; Choudhary, S. Federated learning with personalization layers. arXiv 2019, arXiv:1912.00818. [Google Scholar]
 Deng, Y.; Kamani, M.; Mahdavi, M. Adaptive personalized federated learning. arXiv 2020, arXiv:2003.13461. [Google Scholar]
 Fallah, A.; Mokhtari, A.; Ozdaglar, A. Personalized federated learning with theoretical guarantees: A modelagnostic metalearning approach. In Proceedings of the NeurIPS, Virtual, 6–12 December 2020. [Google Scholar]
 Lan, G.; Zhou, Y. An optimal randomized incremental gradient method. Math. Program. 2018, 171, 167–215. [Google Scholar] [CrossRef][Green Version]
 Smith, V.; Chiang, C.K.; Sanjabi, M.; Talwalkar, A.S. Federated multitask learning. In Proceedings of the NeurIPS, Long Beach, CA, USA, 4–9 December 2017. [Google Scholar]
 Hanzely, F.; Richtárik, P. Federated learning of a mixture of global and local models. arXiv 2020, arXiv:2002.05516. [Google Scholar]
 Liang, P.P.; Liu, T.; Ziyin, L.; Allen, N.B.; Auerbach, R.P.; Brent, D.; Salakhutdinov, R.; Morency, L.P. Think locally, act globally: Federated learning with local and global representations. arXiv 2020, arXiv:2001.01523. [Google Scholar]
 Agarwal, A.; Langford, J.; Wei, C.Y. Federated residual learning. arXiv 2020, arXiv:2003.12880. [Google Scholar]
 Hanzely, F.; Zhao, B.; Kolar, M. Personalized federated learning: A unified framework and universal optimization techniques. arXiv 2021, arXiv:2102.09743. [Google Scholar]
 Kendall, A.; Gal, Y.; Cipolla, R. Multitask learning using uncertainty to weigh losses for scene geometry and semantics. In Proceedings of the CVPR, Salt Lake City, UT, USA, 18–22 June 2018. [Google Scholar]
 Qian, W.; Chen, B.; Zhang, Y.; Wen, G.; Gechter, F. Multitask variational information bottleneck. arXiv 2020, arXiv:2007.00339. [Google Scholar]
 Chen, Z.; Badrinarayanan, V.; Lee, C.; Rabinovich, A. GradNorm: Gradient normalization for adaptive loss balancing in deep multitask networks. In Proceedings of the ICML, Stockholm, Sweden, 10–15 July 2018. [Google Scholar]
 Mortaheb, M.; Vahapoglu, C.; Ulukus, S. FedGradNorm: Personalized federated gradientnormalized multitask learning. In Proceedings of the IEEE SPAWC, Oulu, Finland, 4–6 July 2022. [Google Scholar]
 Amiri, M.M.; Gündüz, D. Machine learning at the wireless edge: Distributed stochastic gradient descent overtheair. In Proceedings of the IEEE ISIT, Paris, France, 7–12 July 2019. [Google Scholar]
 Amiri, M.M.; Gündüz, D. Overtheair machine learning at the wireless edge. In Proceedings of the IEEE SPAWC, Cannes, France, 2–5 July 2019. [Google Scholar]
 Vahapoglu, C.; Mortaheb, M.; Ulukus, S. Hierarchical overtheair FedGradNorm. In Proceedings of the IEEE Asilomar, Pacific Grove, CA, USA, 1–4 November 2022. [Google Scholar]
 Abad, M.S.H.; Ozfatura, E.; Gündüz, D.; Erçetin, Ö. Hierarchical federated learning across heterogeneous cellular networks. In Proceedings of the IEEE ICASSP, Virtual, 4–8 May 2020. [Google Scholar]
 Liu, L.; Zhang, J.; Song, S.H.; Letaief, K.B. Clientedgecloud hierarchical federated learning. In Proceedings of the IEEE ICC, Virtual, 7–11 June 2020. [Google Scholar]
 Luo, S.; Chen, X.; Wu, Q.; Zhou, Z.; Yu, S. HFEL: Joint edge association and resource allocation for costefficient hierarchical federated edge learning. IEEE Trans. Wirel. Commun. 2020, 19, 6535–6548. [Google Scholar] [CrossRef]
 Wang, J.; Wang, S.; Chen, R.R.; Ji, M. Demystifying why local aggregation helps: Convergence analysis of hierarchical SGD. arXiv 2020, arXiv:2010.12998. [Google Scholar] [CrossRef]
 Zhang, Z.; Luo, P.; Loy, C.; Tang, X. Facial landmark detection by deep multitask learning. In Proceedings of the ECCV, Zurich, Switzerland, 6–12 September 2014. [Google Scholar]
 Jagannath, A.; Jagannath, J. Multitask learning approach for automatic modulation and wireless signal classification. In Proceedings of the IEEE ICC, Virtual, 7–11 December 2021. [Google Scholar]
 Bonawitz, K.; Eichner, H.; Grieskamp, W.; Huba, D.; Ingerman, A.; Ivanov, V.; Kiddon, C.; Konecný, J.; Mazzocchi, S.; McMahan, H.; et al. Towards federated learning at scale: System design. In Proceedings of the MLSys, Stanford, CA, USA, 31 March–2 April 2019. [Google Scholar]
 Sinha, A.; Malo, P.; Deb, K. A review on bilevel optimization: From classical to evolutionary approaches and applications. IEEE Trans. Evol. Comput. 2017, 22, 276–295. [Google Scholar] [CrossRef]
 Hansen, P.; Jaumard, B.; Savard, G. New branchandbound rules for linear bilevel programming. SIAM J. Sci. Comput. 1992, 13, 1194–1217. [Google Scholar] [CrossRef]
 Shi, C.; Lu, J.; Zhang, G. An extended kuhntucker approach for linear bilevel programming. Appl. Math. Comput. 2005, 162, 51–63. [Google Scholar] [CrossRef]
 Bennett, K.P.; Moore, G.M. Bilevel programming algorithms for machine learning model selection. In Proceedings of the Rensselaer Polytechnic Institute, 9 March 2010. [Google Scholar]
 Domke, J. Generic methods for optimizationbased modeling. In Proceedings of the AISTATS, La Palma, Canary Islands, 21–23 April 2012. [Google Scholar]
 Ghadimi, S.; Wang, M. Approximation methods for bilevel programming. arXiv 2018, arXiv:1802.02246. [Google Scholar]
 Grazzi, R.; Franceschi, L.; Pontil, M.; Salzo, S. On the iteration complexity of hypergradient computation. In Proceedings of the ICML, Virtual, 13–18 July 2020. [Google Scholar]
 Shaban, A.; Cheng, C.A.; Hatch, N.; Boots, B. Truncated backpropagation for bilevel optimization. In Proceedings of the AISTATS, Naha, Okinawa, Japan, 16–18 April 2019. [Google Scholar]
 Maclaurin, D.; Duvenaud, D.; Adams, R. Gradientbased hyperparameter optimization through reversible learning. In Proceedings of the ICML, Lille, France, 6–11 July 2015. [Google Scholar]
 Ji, K.; Yang, J.; Liang, Y. Bilevel optimization: Convergence analysis and enhanced design. In Proceedings of the ICML, Virtual, 18–24 July 2021. [Google Scholar]
 Hsieh, K.; Harlap, A.; Vijaykumar, N.; Konomis, D.; Ganger, G.R.; Gibbons, P.B.; Mutlu, O. Gaia: Geodistributed machine learning approaching LAN speeds. In Proceedings of the NSDI, Boston, MA, USA, 27–29 March 2017; pp. 629–647. [Google Scholar]
 Yang, Z.; Chen, M.; Wong, K.; Poor, H.V.; Cui, S. Federated learning for 6G: Applications, challenges, and opportunities. Engineering 2022, 8, 33–41. [Google Scholar] [CrossRef]
Dynamic Parameters  Value

Carrier frequency offset std. dev/sample  0.05 Hz
Maximum carrier frequency offset  250 Hz
Sample rate offset std. dev/sample  0.05 Hz
Maximum sample rate offset  60 Hz
Num. of sinusoids in freq. selective fading  5
Maximum doppler frequency  2 Hz
Rician Kfactor  3
Fractional sample delays comprising PDP  [0.2, 0.3, 0.1]
Number of multipath taps  5
List of magnitudes corresponding to each delay in PDP  [1, 0.5, 0.5]
Hyperparameter  Value

Optimizer  Adam
FedGradNorm
$\gamma $  0.9
Learning rate ($\beta $)  0.0002
Learning rate ($\alpha $)  0.004
HOTAFedGradNorm
Number of clusters C  10
Number of clients in each cluster N  3
${\sigma}_{l}^{2}$ for $\forall l\in C$  1
${H}^{th}$  $3.2\times {10}^{2}$
$\gamma $  0.6
Learning rate ($\beta $)  0.0003
Learning rate ($\alpha $)  0.008
Network 1  Network 2

Conv2d(1, 16, 5)  FC(256, 512)
MaxPool2d(2, 2)  FC(512, 1024)
Conv2d(16, 48, 3)  FC(1024, 2048)
MaxPool2d(2, 2)  FC(2048, 512)
Conv2d(48, 64, 3)  FC(512, 256)
MaxPool2d(2, 2)
Conv2d(64, 64, 2)
Tasks  Face Landmark  Gender  Smile  Glass  Pose

FedRep loss  33.28  0.66  0.60  0.44  1.1
FedGradNorm loss  33.25  0.56  0.57  0.43  1.1
