# Using Graph Partitioning for Scalable Distributed Quantum Molecular Dynamics

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Evaluating Matrix Polynomials on Partitions

- ${\bigcup}_{i}{U}_{i}=V\left(G\right),\phantom{\rule{0.277778em}{0ex}}{U}_{i}\cap {U}_{j}=\varnothing $ for all $i\ne j$;
- neighbors of vertices in ${U}_{i}$ that are themselves not in ${U}_{i}$ are contained in ${W}_{i}$.

**Lemma**

**1.**

- Divide $V\left(G\right)$ into q disjoint sets $\{{U}_{1},\dots ,{U}_{q}\}$ and define a CH-partition $\mathsf{\Pi}=\{{\mathsf{\Pi}}_{1},\dots ,{\mathsf{\Pi}}_{q}\}$, where ${\mathsf{\Pi}}_{i}$ has core ${U}_{i}$ and halo $N({U}_{i},H)\backslash {U}_{i}$;
- Construct submatrices ${A}_{{U}_{i}}$ for all $i=1,\dots ,q$;
- Compute $P\left({A}_{{U}_{i}}\right)$ for all i independently using dense matrix algebra;
- Given a vertex i, let k be the index such that the set ${U}_{k}$ contains i. Let j be the row in ${A}_{{U}_{k}}$ that corresponds to the i-th row in A. Then, define $P\left(A\right)$ as a matrix whose i-th row equals the j-th row of $P\left({A}_{{U}_{k}}\right)$.

## 3. Algorithms for Graph Partitioning Considered in Our Study

#### 3.1. Edge Cut Graph Partitioning

#### 3.1.1. METIS

- Starting from the original graph $G={G}_{n}$ (where $n=\left|V\right|$), METIS generates a sequence of graphs ${G}_{n},{G}_{n-1},\dots ,{G}_{{n}^{\prime}}$ for some ${n}^{\prime}<n$ to coarsen the input graph. The coarsening ends with a suitably small graph ${G}_{{n}^{\prime}}$ (typically with ${n}^{\prime}<100$ vertices).
- An algorithm of choice is used to partition ${G}_{{n}^{\prime}}$.
- Using the sequence ${G}_{{n}^{\prime}},\dots ,{G}_{n}$, the partitions are expanded back from ${G}_{{n}^{\prime}}$ to the full graph ${G}_{n}$.

#### 3.1.2. KaHIP

#### 3.1.3. Hypergraph Partitioning

#### 3.2. Refinement with Simulated Annealing

- Select a random block ${P}^{\prime}$, select one of its halo nodes v at random and move v into block P.
- Select a random block ${P}^{\prime}$, select one of its nodes v at random and move v into P.
- Select the block ${P}^{\prime}$ with most halo nodes and (a) move a random node v into P, (b) make a random halo node of P a core node, or (c) move any node of P to another block.
- Like (3.) using the block ${P}^{\prime}$ with the largest sum of core and halo nodes.

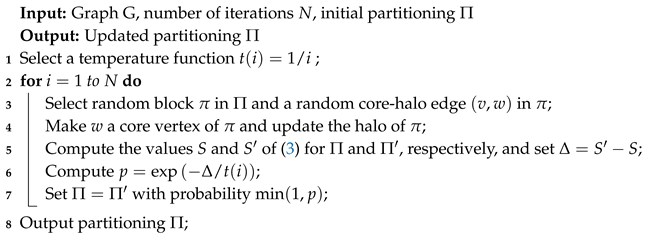

Algorithm 1: Simulated Annealing. |

## 4. Experiments

#### 4.1. Parameter Choices for METIS and hMETIS

#### 4.2. A Collection of Test Graphs Derived from Molecular Systems

#### 4.3. Comparison of the Partitioning Algorithms

- METIS with parameters of Section 4.1;
- METIS with subsequent simulated annealing (SA);
- hMETIS;
- hMETIS with subsequent SA;
- KaHIP;
- KaHIP with subsequent SA.

#### 4.4. Parallelized Implementation of G-SP2

#### 4.5. Single-Node SM-SP2 versus Parallelized Implementation of G-SP2

#### 4.6. Relationship between Molecular System and Partitions

## 5. Discussion

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A. Proofs for Section 2

**Lemma**

**A1.**

**Proof.**

**Lemma**

**A2.**

**Proof.**

**Lemma**

**A3.**

**Lemma**

**A4.**

## Appendix B. Further Details on Experimental Results

**Table A1.**Various test systems (first column) evaluated by different partition schemes (second column; number of vertices n, edges m, and blocks p are given). Results measured with the sum of cubes (3) criterion (sum), the sum of size and halo for the smallest CH-partition (min) as well as the biggest CH-partition (max), and the overall runtime (in seconds) are given in columns 3–6.

Test System | Method | Sum | Min | Max | Time [s] |
---|---|---|---|---|---|

polyethylene dense crystal | METIS | 57,982,058,496 | 1536 | 1536 | 0.267175 |

n = 18,432 | METIS + SA | 51,856,752,364 | 976 | 1536 | 0.347209 |

m = 4,112,189 | HMETIS | 7,126,357,377,024 | 3840 | 9984 | 141.426 |

p = 16 | HMETIS + SA | 1,362,943,612,944 | 2520 | 5814 | 141.79 |

KaHIP | 32,614,907,904 | 768 | 1536 | 0.7 | |

KaHIP + SA | 32,614,907,904 | 768 | 1536 | 0.73 | |

polyethylene sparse crystal | METIS | 24,461,180,928 | 1152 | 1152 | 0.024942 |

n = 18,432 | METIS + SA | 24,461,180,928 | 1152 | 1152 | 0.030508 |

m = 812,343 | HMETIS | 195,689,447,424 | 2304 | 2304 | 55.9726 |

p = 16 | HMETIS + SA | 170,056,587,295 | 2013 | 2299 | 55.9943 |

KaHIP | 24,461,180,928 | 1152 | 1152 | 0.07 | |

KaHIP + SA | 24,461,180,928 | 1152 | 1152 | 0.08 | |

phenyl dendrimer | METIS | 336,049,081 | 150 | 409 | 0.13482 |

n = 730 | METIS + SA | 146,550,740 | 0 | 382 | 0.14877 |

m = 31,147 | HMETIS | 177,436,462 | 135 | 358 | 1.578 |

p = 16 | HMETIS + SA | 118,409,940 | 0 | 358 | 1.59436 |

KaHIP | 231,550,645 | 55 | 381 | 1.72 | |

KaHIP + SA | 116,248,715 | 0 | 324 | 1.74 | |

polyethylene dense crystal | METIS | 57,982,058,496 | 1536 | 1536 | 0.267175 |

n = 18,432 | METIS + SA | 51,856,752,364 | 976 | 1536 | 0.347209 |

m = 4,112,189 | HMETIS | 7,126,357,377,024 | 3840 | 9984 | 141.426 |

p = 16 | HMETIS + SA | 1,362,943,612,944 | 2520 | 5814 | 141.79 |

KaHIP | 32,614,907,904 | 768 | 1536 | 0.7 | |

KaHIP + SA | 32,614,907,904 | 768 | 1536 | 0.73 | |

peptide 1aft | METIS | 603,251 | 24 | 41 | 0.004755 |

n = 384 | METIS + SA | 572,281 | 24 | 41 | 0.005007 |

m = 1833 | HMETIS | 562,601 | 24 | 40 | 0.820561 |

p = 16 | HMETIS + SA | 538,345 | 24 | 42 | 0.820771 |

KaHIP | 575,978 | 11 | 44 | 0.08 | |

KaHIP + SA | 575,978 | 11 | 44 | 0.08 | |

polyethylene chain 1024 | METIS | 8,961,763,376 | 800 | 848 | 0.01513 |

n = 12,288 | METIS + SA | 8,961,763,376 | 800 | 848 | 0.017951 |

m = 290,816 | HMETIS | 8,951,619,584 | 824 | 824 | 27.3297 |

p = 16 | HMETIS + SA | 8,951,619,584 | 824 | 824 | 27.3332 |

KaHIP | 9,037,266,968 | 782 | 875 | 0.73 | |

KaHIP + SA | 9,000,224,048 | 782 | 872 | 0.74 | |

polyalanine 289 | METIS | 2,816,765,783,803 | 4591 | 6102 | 0.366308 |

n = 41,185 | METIS + SA | 2,816,141,689,603 | 4591 | 6093 | 0.399265 |

m = 1,827,256 | HMETIS | 3,694,884,690,563 | 5733 | 6828 | 710.084 |

p = 16 | HMETIS + SA | 3,681,874,557,307 | 5733 | 6830 | 710.128 |

KaHIP | 4,347,865,055,912 | 52 | 8955 | 43.9 | |

KaHIP + SA | 4,309,969,305,955 | 52 | 8907 | 43.94 | |

peptide trp cage | METIS | 35,742,302,607 | 1228 | 1414 | 0.025795 |

n = 16,863 | METIS + SA | 35,740,265,780 | 1228 | 1414 | 0.029837 |

m = 176,300 | HMETIS | 35,428,817,730 | 1214 | 1472 | 31.0506 |

p = 16 | HMETIS + SA | 35,237,003,004 | 1214 | 1472 | 31.0545 |

KaHIP | 43,551,196,287 | 515 | 1898 | 2.81 | |

KaHIP + SA | 43,388,946,192 | 536 | 1896 | 2.81 | |

urea crystal | METIS | 4,126,744,977 | 608 | 708 | 0.047032 |

n = 3584 | METIS + SA | 4,126,744,977 | 608 | 708 | 0.057645 |

m = 109,067 | HMETIS | 5,913,680,136 | 643 | 811 | 15.2321 |

p = 16 | HMETIS + SA | 5,194,749,106 | 604 | 785 | 15.2443 |

KaHIP | 3,907,671,473 | 622 | 630 | 1.05 | |

KaHIP + SA | 3,907,671,473 | 622 | 630 | 1.05 |

## References

- Elstner, M.; Porezag, D.; Jungnickel, G.; Elsner, J.; Haugk, M.; Frauenheim, T.; Suhai, S.; Seifert, G. Self-consistent-charge density-functional tight-binding method for simulations of complex materials properties. Phys. Rev. B
**1998**, 58, 7260–7268. [Google Scholar] [CrossRef] - Finnis, M.W.; Paxton, A.T.; Methfessel, M.; van Schilfgarde, M. Crystal structures of zirconia from first principles and self-consistent tight binding. Phys. Rev. Lett.
**1998**, 81, 5149. [Google Scholar] [CrossRef] - Frauenheim, T.; Seifert, G.; Elsterner, M.; Hajnal, Z.; Jungnickel, G.; Poresag, D.; Suhai, S.; Scholz, R. A self-consistent charge density-functional based tight-binding method for predictive materials simulations in physics, chemistry and biology. Phys. Stat. Sol.
**2000**, 217, 41–62. [Google Scholar] [CrossRef] - Niklasson, A.M. Expansion algorithm for the density matrix. Phys. Rev. B
**2002**, 66, 155115–155121. [Google Scholar] [CrossRef] - Mniszewski, S.M.; Cawkwell, M.J.; Wall, M.; Moyd-Yusof, J.; Bock, N.; Germann, T.; Niklasson, A.M. Efficient parallel linear scaling construction of the density matrix for Born-Oppenheimer molecular dynamics. J. Chem. Theory Comput.
**2015**, 11, 4644–4654. [Google Scholar] [CrossRef] [PubMed] - Bock, N.; Challacombe, M. An Optimized Sparse Approximate Matrix Multiply for Matrices with Decay. SIAM J. Sci. Comput.
**2013**, 35, C72–C98. [Google Scholar] [CrossRef][Green Version] - Borstnik, U.; VandeVondele, J.; Weber, V.; Hutter, J. Sparse matrix multiplication: The distributed block-compressed sparse row library. Parallel Comput.
**2014**, 40, 47–58. [Google Scholar] [CrossRef][Green Version] - VandeVondele, J.; Borštnik, U.; Hutter, J. Linear Scaling Self-Consistent Field Calculations with Millions of Atoms in the Condensed Phase. J. Chem. Theory Comput.
**2012**, 8, 3565–3573. [Google Scholar] [CrossRef] [PubMed][Green Version] - Niklasson, A.M.; Mniszewski, S.M.; Negre, C.F.; Cawkwell, M.J.; Swart, P.J.; Mohd-Yusof, J.; Germann, T.C.; Wall, M.E.; Bock, N.; Rubensson, E.H.; et al. Graph-based linear scaling electronic structure theory. J. Chem. Phys.
**2016**, 144, 234101. [Google Scholar] [CrossRef] [PubMed][Green Version] - Pınar, A.; Hendrickson, B. Partitioning for Complex Objectives. In Proceedings of the 15th International Parallel and Distributed Processing Symposium (CDROM), San Francisco, CA, USA, 23–27 April 2001; IEEE Computer Society: Washington, DC, USA, 2001; pp. 1–6. [Google Scholar]
- Von Looz, M.; Wolter, M.; Jacob, C.R.; Meyerhenke, H. Better partitions of protein graphs for subsystem quantum chemistry. arXiv
**2016**, arXiv:1606.03427, 1–20. [Google Scholar] - Djidjev, H.N.; Hahn, G.; Mniszewski, S.M.; Negre, C.F.; Niklasson, A.M.; Sardeshmukh, V. Graph Partitioning Methods for Fast Parallel Quantum Molecular Dynamics (full text with appendix). In Proceedings of the SIAM Workshop on Combinatorial Scientific Computing (CSC16), Albuquerque, NM, USA, 10–12 October 2016; pp. 1–17. [Google Scholar]
- Bader, D.A.; Meyerhenke, H.; Sanders, P.; Wagner, D. (Eds.) Graph Partitioning and Graph Clustering—10th DIMACS Implementation Challenge Workshop. Contemp. Math.
**2013**, 588. [Google Scholar] [CrossRef] - Karypis, G.; Kumar, V. A Fast and High Quality Multilevel Scheme for Partitioning Irregular Graphs. SIAM J. Sci. Comput.
**1999**, 20, 359–392. [Google Scholar] [CrossRef] - Fiduccia, C.; Mattheyses, R. A linear time heuristic for improving network partitions. In Proceedings of the 19th IEEE Design Automation Conference, Las Vegas, NV, USA, 14–16 June 1982; pp. 175–181. [Google Scholar]
- Sanders, P.; Schulz, C. Think Locally, Act Globally: Highly Balanced Graph Partitioning. In Proceedings of the International Symposium on Experimental Algorithms (SEA), Rome, Italy, 5–7 June 2013; Springer: Berlin/Heidelberg, Germany, 2013; Volume 7933, pp. 164–175. [Google Scholar]
- Sanders, P.; Schulz, C. Engineering multilevel graph partitioning algorithms. LNCS
**2011**, 6942, 469–480. [Google Scholar] [CrossRef] - Ford, L., Jr.; Fulkerson, D. Maximal flow through a network. Canad. J. Math.
**1956**, 8, 399–404. [Google Scholar] [CrossRef] - Karypis, G.; Kumar, V. Multilevel k-way Hypergraph Partitioning. VLSI Des.
**2000**, 11, 285–300. [Google Scholar] [CrossRef] - Kirkpatrick, S.; Gelatt, C., Jr.; Vecchi, M. Optimization by Simulated Annealing. Science
**1983**, 200, 671–680. [Google Scholar] [CrossRef] [PubMed] - Karypis, G.; Kumar, V. A Hypergraph Partitioning Package. Available online: http://glaros.dtc.umn.edu/gkhome/fetch/sw/hmetis/manual.pdf (accessed on 7 September 2019).
- Bunn, C. The crystal structure of long-chain normal paraffin hydrocarbons. The “shape” of the CH2 group. Trans. Faraday Soc.
**1939**, 35, 482–491. [Google Scholar] [CrossRef] - Schlag, S.; Henne, V.; Heuer, T.; Meyerhenke, H.; Sanders, P.; Schulz, C. k-way Hypergraph Partitioning via n-Level Recursive Bisection. arXiv
**2015**, arXiv:1511.03137, 1–21. [Google Scholar]

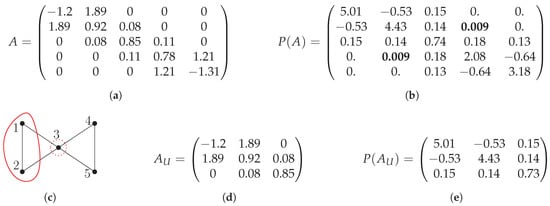

**Figure 1.**Example of using CH-partitioning for distributed evaluation of matrix polynomial $P\left(A\right)={A}^{2}$, with a thresholding operator that removes all edges/matrix entries with values below $0.01$. (

**a**) Input symmetric matrix A. (

**b**) $P\left(A\right)={A}^{2}$. (

**c**) After the thresholding operator removes elements $(2,4)$ and $(4,2)$ (in bold) from $P\left(A\right)$, the sparsity graph $\mathcal{P}\left(G\right)$ of the resulting matrix is shown. We are considering a block of a CH-partitioning with core set $U=\{1,2\}$ (encircled with a solid line) and halo the set $H=\left\{3\right\}$ (encircled with a dashed line). (

**d**) Submatrix ${A}_{U}$ consisting of the first three (by $U\cup H=\{1,2,3\}$) rows and columns of A. (

**e**) Matrix $P\left({A}_{U}\right)={A}_{U}^{2}$. According to Lemma 1, the elements of the first two (by $U=\{1,2\}$) columns/rows of $P\left({A}_{U}\right)$ are equal to the corresponding nonzero elements of the first two columns/rows of thresholded $P\left(A\right)$.

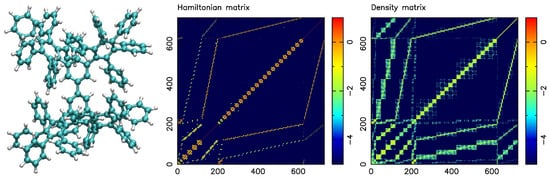

**Figure 2.**Molecular representation of phenyl dendrimer (

**left**) using cyan and white spheres for carbon and hydrogen atoms, respectively. Hamiltonian matrix as 2D representation (

**middle**) and thresholded density matrix (

**right**). All plots show log${}_{10}$ of the absolute values of all matrix elements. The SM-SP2 algorithm was used to compute the density matrix. Figure taken from [12]. Copyright ©2016 Society for Industrial and Applied Mathematics. Reprinted with permission. All rights reserved.

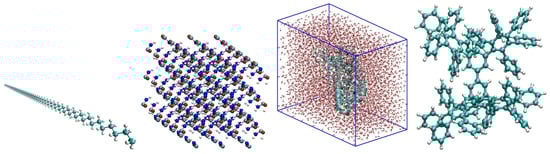

**Figure 3.**Molecular systems of this study: polyethyene linear chain (

**first plot**), urea crystal (

**second plot**), 189 residue polyalanine solvated in a water box (

**third plot**), and phenyl dendrimer molecule (

**fourth plot**). Cyan, blue, red, and white spheres represent carbon, nitrogen, oxygen, and hydrogen atoms, respectively. Figure taken from [12]. Copyright ©2016 Society for Industrial and Applied Mathematics. Reprinted with permission. All rights reserved.

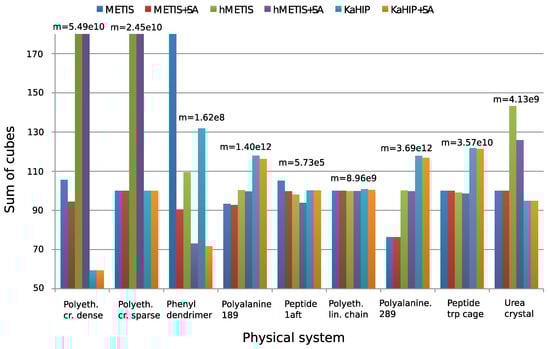

**Figure 4.**Sum of cubes performance measure to evaluate partitions. Values are normalized to have a median of 100. To make the chart more informative, very large values are truncated, though all exact values can be found in ([12], Table 2). Figure taken from [12]. Copyright ©2016 Society for Industrial and Applied Mathematics. Reprinted with permission. All rights reserved.

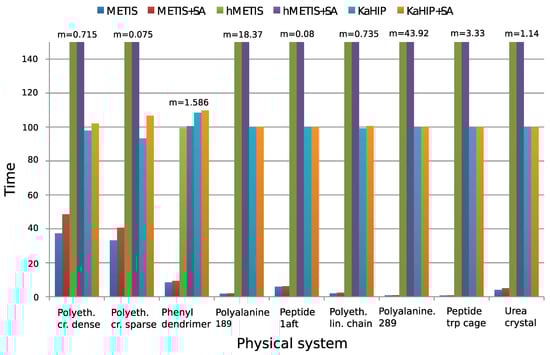

**Figure 5.**Computing time for partitioning. Test systems of Table 1. We use the formatting of Figure 4 to handle the big discrepancy between values for different graphs. Figure taken from [12]. Copyright ©2016 Society for Industrial and Applied Mathematics. Reprinted with permission. All rights reserved.

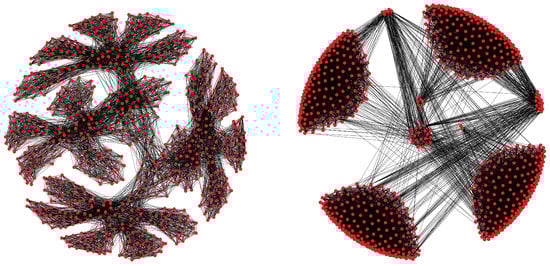

**Figure 6.**(

**Left**): Original graph extracted from the density matrix for the phenyl dendrimer molecular structure. Note the fractal-like structure of the graph. (

**Right**): Rearranged graph by the partitions resulting from the METIS + SA algorithms. Only edges with weights larger than 0.01 were kept to ease visualization.

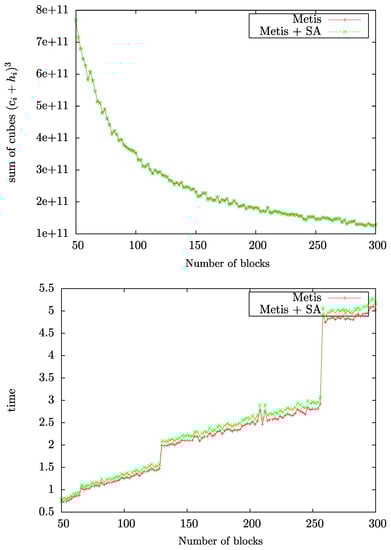

**Figure 7.**Sum of cubes measure (

**top**) and runtime to find the partitions (

**bottom**) as a function of the number of blocks. Figure taken from [12]. Copyright ©2016 Society for Industrial and Applied Mathematics. Reprinted with permission. All rights reserved.

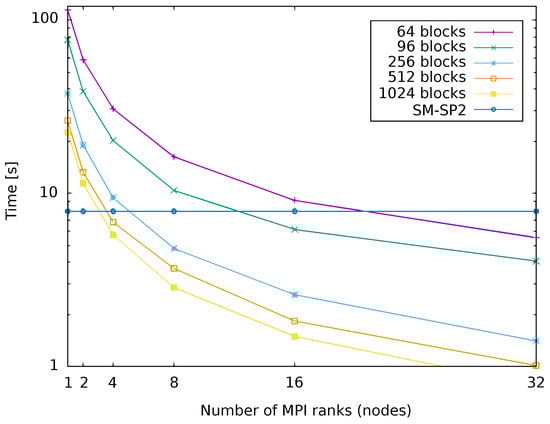

**Figure 8.**Runtime of parallelized G-SP2 as a function of the number of nodes. Different numbers of blocks. G-SP2 applied to the polyalanine 259 molecule. Figure taken from [12]. Copyright ©2016 Society for Industrial and Applied Mathematics. Reprinted with permission. All rights reserved.

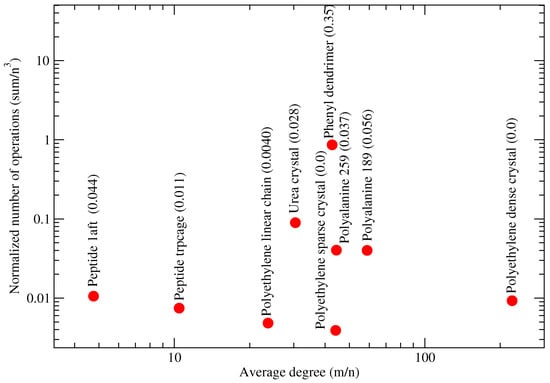

**Figure 9.**Sum of cubes criterion (3) normalized by the complexity ${n}^{3}$ of the dense matrix-matrix multiplication for G-SP2 with METIS. Number of vertices n, number of edges m, and average degree $m/n$. Test systems of Table 1. Brackets show fractions of $(max-min)/n$ (MMPN). Figure taken from [12]. Copyright ©2016 Society for Industrial and Applied Mathematics. Reprinted with permission. All rights reserved.

**Table 1.**Physical systems of our study: Number of vertices n in the graph and number of edges m. Table taken from [12]. Copyright ©2016 Society for Industrial and Applied Mathematics. Reprinted with permission. All rights reserved.

Name | n | m | $\mathit{m}/\mathit{n}$ | Description |
---|---|---|---|---|

polyethylene dense crystal | 18,432 | 4,112,189 | 223.1 | crystal molecule in water solvent (low threshold) |

polyethylene sparse crystal | 18,432 | 812,343 | 44.1 | crystal molecule in water solvent (high threshold) |

phenyl dendrimer | 730 | 31,147 | 42.7 | polyphenylene branched molecule |

polyalanine 189 | 31,941 | 1,879,751 | 58.9 | polyalanine protein solvated in water |

peptide 1aft | 385 | 1833 | 4.76 | ribonucleoside-diphosphate reductase protein |

polyethylene chain 1024 | 12,288 | 290,816 | 23.7 | chain of polymer molecule, almost 1-dimensional |

polyalanine 289 | 41,185 | 1,827,256 | 44.4 | large protein in water solvent |

peptide trp cage | 16,863 | 176,300 | 10.5 | smallest protein with ability to fold (in water) |

urea crystal | 3584 | 109,067 | 30.4 | organic compound in living organisms |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
