Enhanced Photoluminescent Properties and Crystalline Morphology of LiBaPO4:Tm3+ Phosphor through Microwave Sintering Method

1
Institute of Microelectronics, Department of Electrical Engineering, Advanced Optoelectronic Technology Center, National Cheng Kung University, Tainan 701, Taiwan
2
Medical Devices and Opto-Electronics Equipment Department, Metal Industries Research and Development Center, Kaohsiung County 811, Taiwan
3
Graduate Institute of Materials Engineering, National Pingtung University of Science and Technology, Pingtung County 912, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Dinesh Agrawal
Materials 2016, 9(5), 356; https://doi.org/10.3390/ma9050356
Received: 4 March 2016 / Revised: 22 April 2016 / Accepted: 4 May 2016 / Published: 12 May 2016
(This article belongs to the Special Issue Microwave Materials Processing)

Abstract

An investigation of the photoluminescent properties and crystalline morphology of blue emitting LiBa1−xPO4:xTm3+ phosphors with various concentrations (x = 0.005–0.030) of Tm3+ ions were synthesized by microwave sintering. For comparison, the LiBa1−xPO4:xTm3+ powders sintered at the same sintering condition but in a conventional furnace were also investigated. LiBaPO4 without second phase was formed no matter which furnace was used. More uniform grain size distributions are obtained by microwave sintering. When the concentration of Tm3+ ion was x = 0.015, the luminescence intensity reached a maximum value, and then decreased with the increases of the Tm3+ concentration due to concentration quenching effect. The microwave sintering significantly enhanced the emission intensity of LiBa1−xPO4:xTm3+ phosphors. Additionally, the d-d interaction is the key mechanism of concentration quenching for LiBaPO4:Tm3+. The chromaticity (x, y) for all LiBa1−xPO4:xTm3+ phosphors are located at (0.16, 0.05), which will be classified as a blue region.
Keywords: phosphors; LiBaPO4; microwave; luminescence phosphors; LiBaPO4; microwave; luminescence

1. Introduction

Several advantages of white light-emitting diodes (WLEDs) such as high luminous efficiency, energy-saving, maintenance as well as environmental protection, lead the WLEDs to be called the next-generation solid-state light and to replace traditional incandescent and fluorescent lamps. The combination of blue LED with yellow luminescence from Y3Al5O12:Ce3+ is the present strategy to make white light (YAG:Ce3+) phosphor materials [1]. Another method to make white light is to combine ultraviolet LED and different colors of phosphors obtained from excitation by ultraviolet LED. Therefore, many red, green and blue phosphors that can be excited by UV light should be developed [2]. Also, phosphors with high luminescent efficiency, stability and low cost are in demand for application in WLEDs.
Phosphates with a general formula like ABPO4, where A is a mono-valent cation and B is a divalent cation, are interesting because of their optical, ferroelectric properties, excellent thermal and hydrolytic stability [2,3,4,5,6,7]. Therefore, many studies have concentrated on ABPO4 phosphate by solid-state reaction for WLEDs [2,3,4,5,6,7]. Among them, Tm3+-doped materials have been widely adopted as blue emitting phosphors because of their intense 1D23F4 emission. The investigation from Li et al. has shown that Tm3+-doped NaCaPO4 phosphor exhibits relatively strong absorption in near-UV region of 356 nm and intense blue emission of 451 nm with excellent color purity [7].
Regarding the sintering process, it has been reported that, when the phosphors were sintered using the microwave energy as the heating sources, the energy can be absorbed immediately and uniformly compared to results from a conventional solid state sintering process [8]. This technique has been applied recently to prepare various oxide phosphors, such as YInGe2O7:Eu3+ [9], BaY2ZnO5:Eu3+ [10], and Sr2SiO4:Eu3+ [11] and LiBaPO4:Dy3+ [12].
However, to our knowledge, Tm3+ ions doped LiBaPO4 phosphors prepared by microwave-assisted sintering or conventional sintering have not yet been reported. In addition, the luminescent characteristics of Tm3+ ions doped LiBaPO4 and the mechanism of energy transfer of Tm3+-doped LiBaPO4 phosphor has been little-reported until now. Therefore, in this paper, the luminescent characteristics, microstructure properties and mechanism of energy transfer of LiBaPO4:Tm3+ phosphors prepared using different sintering processes are investigated.

2. Results and Discussion

2.1. Structure

Figure 1 shows the X-ray diffraction patterns of LiBa0.985PO4:0.015Tm3+ sintered at 1200 °C for 3 h in different furnace, respectively. According to the Joint Committee on Powder Diffraction Standards (JCPDS #14-0270), the LiBaPO4 has a hexagonal crystal structure with a space group P63 [12], and all patterns of LiBa0.985PO4:0.015Tm3+ phosphors with different sintering furnace can be indexed and match the reference [13] and no other second phase or starting material is observed. The XRD result implied that the full-width at half-maximum (FWHM) of LiBa0.985PO4:0.015Tm3+ phosphors prepared using microwave sintering is smaller than that prepared using the conventional one, indicating that the crystallinity of LiBa0.985PO4:0.015Tm3+ was improved by microwave sintering. It is known that a long sintering time causes grain growth, resulting in good crystallinity. However, at the same sintering condition (1200 °C, 3 h) with a different sintering method, the heat through conventional method is indirect, but in a microwave furnace, the material is rapidly heated both internally and externally. The heat generated within the material, and the susceptors provided the heat to the specimen externally by thermal conduction [9]. High sintering efficiency could be obtained through microwave sintering, resulting in good crystallinity.
Figure 2a,b shows typical SEM micrographs for LiBa0.985PO4:0.015Tm3+ sintered in microwave furnace and in conventional furnace at 1200 °C for 3 h, respectively. The microstructures of the LiBa0.985PO4:0.015Tm3+ powders changed significantly through different sintering processes. The shapes of the particles are not very different from one another, but the grain size distribution from microwave sintered powder is uniform. The grain distribution of conventionally sintered powder reveals the agglomeration of particles. Additionally, the particle sizes of LiBa0.985PO4:0.015Tm3+ phosphors are in the range of 9–11 μm.

2.2. Photoluminescence Properties

Figure 3a,b shows the emission spectra of LiBa0.985PO4:0.015Tm3+ phosphors with different concentrations of Tm3+ ions using different sintering process, respectively. LiBa0.985PO4:0.015Tm3+ phosphors can be effectively excited by NUV LED because all the LiBa0.985PO4:0.015Tm3+ phosphors are excited by a xenon lamp at a wavelength of 359 nm. The inset of Figure 3a shows the tendency of the blue emission intensity (454 nm) for LiBa1−xPO4:xTm3+ at 0.005 < x ≤ 0.030 sintered in a microwave furnace. The inset of Figure 3b shows the tendency of the blue emission intensity (454 nm) for LiBa1−xPO4:xTm3+ at 0.010 < x ≤ 0.030 sintered in conventional furnace. Both of the emission spectra of the LiBa1−xPO4:xTm3+ phosphors display four emission bands at 454, 476, 513, and 660 nm, respectively corresponding to the 1D23F4, 1G43H6, 1D23H5 and 1G43F4 transitions of Tm3+ ions.
Figure 4 shows the emission spectra of LiBa0.985PO4:0.015Tm3+ phosphors with different sintering processes. It is shown that LiBa0.985PO4:0.015Tm3+ phosphor prepared by microwave sintering has much higher luminescent intensity than that of a conventionally sintered one. Referring to Figure 1, the crystallinity of LiBa0.985PO4:0.015Tm3+ phosphors prepared by microwave sintering is better than that using conventionally sintering so that higher luminous intensity is expected. As the concentration of Tm3+ ion increased, the probability of the energy transfer among Tm3+ ions also increased. The luminescence intensity reached a maximum when the concentration of Tm3+ ion was at 0.015, and then decreased with the increases of the Tm3+ concentration due to the concentration quenching effect.
Blasse proposed the critical transfer distance (Rc) to realize the mechanism of energy transfer in phosphors whereby Rc is about equal to twice the radius of a sphere with the volume as shown in Equation (1) [14,15,16].
R c = 2 [ 3 V 4 π x c N ] 1 / 3
In which xc is the critical concentration, N is the number of cations in the unit cell and V is the volume of the unit cell. The unit cell volume V of LiBaPO4 is 0.391577 nm3 and the critical concentration xc is 0.015, resulting from the maximum intensity of LiBa1−xPO4:xTm3+ at x = 0.015. The number of host cations in the unit cell of LiBaPO4 is 4. Based on the above values, the critical distance of energy transfer Rc is calculated as 2.3186 nm. Exchange interaction, radiation reabsorption, or multipole-multipole interaction and so-called non-radiative energy transfer between different Tm3+ ions may have happened. When the typical critical distance is approximately 5 Å, the exchange interaction is generally responsible for the energy transfer of forbidden transitions [16]. When the sensitizer and activator coexist in phosphor system, the mechanism of radiation reabsorption occurs due to broad overlap between excitation and emission spectra. In this study, there is no overlap between excitation and emission spectra of LiBa1−xPO4:xTm3+ phosphor. Besides, the critical distance Rc (2.3186 nm) of LiBa1−xPO4:xTm3+ phosphor is larger than 5 Å. Therefore, the energy transfer mechanism between Tm3+ ions in LiBaPO4 phosphor could be suggested by multipole-multipole interaction from Dexter's theory [16]. If the energy transfer takes place between the same sorts of Tm3+ ions, the multipole-multipole interaction effect can be determined from of the difference of the emission intensity according to the emitting level with multipolar interaction. The emission intensity (I) per Tm3+ ion can be calculated by the Equation (2) [14,15,16]:
I / x = K [ 1 + β ( x ) Q / 3 ] 1
where x is the activator concentration; Q = 6, 8 or 10 for dipole–dipole (d-d), dipole-quadrupole (d-q) or quadrupole-quadrupole (q-q) interaction, respectively; and K and β are constants for a given host crystal with the same excitation condition. The doped Tm3+ concentration, which is not less than the critical concentration (i.e., x = 0.02, 0.025, 0.03), is used to determine the dependence of the emission intensity of LiBaPO4:Tm3+ phosphor excited at 359 nm. As shown in Figure 5, the dependence of log (I/x) on log (x) in microwave sintering is linear and the slope is −2.231. The value of Q can be calculated as 6.693. In addition, the dependence of log (I/x) on log (x) in conventional sintering is linear and the slope is −2.186. The value of Q can be calculated as 6.558. Both are approximately equal to 6 based on Equation (2). Therefore, the d-d interaction is the major mechanism for concentration quenching of the LiBaPO4:Tm3+ phosphor no matter what sintering method was used.
It is known that color coordinates could be established by Commission International de l’Eclairage (CIE) 1931 according to a two-dimensional graphical representation of any color perceptible by the human eye. The CIE coordinates could be obtained through commercial software by converting the data of photoluminescence emission spectrum. Figure 6 shows all LiBa0.985PO4:0.015Tm3+ phosphors having the same chromaticity (x, y) coordinates located in the blue region (0.16, 0.05). Therefore, if we choose appropriate green and red phosphors mixed with the LiBaPO4:Tm3+ onto the ultraviolet LED chip, the goal to form WLEDs could be achieved.

3. Experimental Procedure

3.1. Sample Preparation

The LiBa1−xPO4:xTm3+ phosphors used Li2CO3 (99.94%), BaCO3 (99.9%), NH4H2PO4 (98%), and Tm2O3 (99.9%) powders as starting materials and different concentrations of Tm3+ ions (x = 0.005–0.03) were chosen as a variable parameter. The starting materials were mixed using alcohol as a solvent and then ball-milled for 1 h with zirconia balls. After drying, the mixed powders were sintered in a microwave furnace and conventional furnace to form LiBa1−xPO4:xTm3+ phosphors. As in the case of microwave sintering, a microwave furnace (Therm Wave Mod. III) with a continuously variable power of 2.45 GHz microwaves up to 1.3 kW was used. Silicon carbide (SiC), having a very strong heating response to 2.45 GHz microwaves, was used as a susceptor to provide indirect heating of the powders. For comparison, the sample was also sintered at 1200 °C for 3 h in conventional furnace under an air atmosphere with the heating rate controlled at 10 °C/min. The average heating rate of microwave furnace was greater than 100 °C/min. After sintering, the phosphor samples were cooled to room temperature and then characterized.

3.2. Characterization

The crystalline phases of the phosphors were identified by X-ray diffraction (XRD, model D8 Advance, Bruker Axs Gmbh, Karlsruhe, Germany) with CuKα radiation of λ = 1.54 Å using a Ni filter, and a secondary graphite monochromator. A scanning range of 2θ = 10°~60° was used with a step of 0.03° and 0.4 s as a per-step count time. The particle morphology of phosphors was identified by scanning electron microscopy (SEM; model S-3000N, Hitachi, Ltd., Tokyo, Japan). Additionally, the excitation, emission spectra and the color coordinates and the Commission International de l’Eclairage (CIE) information were obtained using a photoluminescence spectrophotometer (PL, model FP-6000, JASCO Corporation, Tokyo, Japan) with a 150 W xenon lamp as the light source.

4. Conclusions

In this paper, LiBa0.985PO4:0.015Tm3+ phosphors with various sintering process were successively synthesized at 1200 °C for 3 h. XRD results indicate that pure LiBa0.985PO4:0.015Tm3+ phosphor phase was formed. The major emission peak centered at 454 nm corresponds to the 1D23F4 transition and the maximum photoluminescence intensity appeared at the Tm3+ concentration of 0.015. Under the microwave sintering, good crystallinity and uniform grain size distributions are obtained because microwave energy provides the material rapidly heated both internally and externally. The d-d interaction plays a major role in the mechanism of concentration quenching of LiBaPO4:Tm3+ phosphor based on the theoretical calculation no matter what sintering method was used. Additionally, WLEDs could be achieved by mixing appropriate green and red phosphors with the LiBaPO4:Tm3+ onto the ultraviolet LED chip.

Acknowledgments

This study was funded by the Ministry of Science and Technology, under contracts NSC 101-2628-E-020-002-MY3 and Metal Industries Research and Development Center, Taiwan. The authors would also like to thank the National Nano-Device Laboratories, and the Precision Instrument Center of National Pingtung University of Science and Technology for supplying experimental equipment.

Author Contributions

Hsuan-Lin Lai conducted the experiment and completed the manuscript writing; Min-Hang Weng supported the electrical and optical measurements and provided suggestions for the manuscript; Ru-Yuan Yang supplied the laboratory and revised the manuscript; Shoou-Jinn Chang supervised this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sheu, J.K.; Chang, S.J.; Kuo, C.H.; Su, Y.K.; Wu, L.W.; Lin, Y.C.; Lai, W.C.; Tsai, J.M.; Chi, G.C.; Wu, R.K. White-light emission from near UV InGaN-GaN LED chip precoated with blue/green/red phosphors. IEEE Photonics Technol. Lett. 2003, 15, 18–20. [Google Scholar] [CrossRef]
  2. Su, Y.K.; Peng, Y.M.; Yang, R.Y.; Chen, J.L. Effects of NaCl flux on microstructure and luminescent characteristics of KSrPO4:Eu2+ phosphors. Opt. Mater. 2012, 34, 1598–1602. [Google Scholar] [CrossRef]
  3. Peng, Y.M.; Su, Y.K.; Yang, R.Y. The charge transfer transition phenomenon and microstructure of Eu3+-doped NaCaPO4 phosphors sintered with NH4Cl flux via solid-state reaction. Mater. Res. Bull. 2013, 48, 1946–1951. [Google Scholar] [CrossRef]
  4. Yang, R.Y.; Peng, Y.M.; Su, Y.K. Novel red-emitting microwave-assisted-sintered LiSrPO4:Eu3+ phosphors for application in near-UV white light-emitting diodes. J. Electron. Mater. 2013, 42, 2910–2914. [Google Scholar] [CrossRef]
  5. Yang, R.Y.; Peng, Y.M.; Lai, H.L.; Chu, C.J.; Chiou, B.; Su, Y.K. Effect of the different concentrations of Eu3+ ions on the microstructure and photoluminescent properties of Zn2SiO4:xEu3+ phosphors and synthesized with TEOS solution as silicate source. Opt. Mater. 2013, 35, 1719–1723. [Google Scholar] [CrossRef]
  6. Peng, Y.M.; Su, Y.K.; Yang, R.Y. Improving thermal stability of KSrPO4:Tb3+ phosphors prepared by microwave assisted sintering. Opt. Mater. 2013, 35, 2102–2106. [Google Scholar] [CrossRef]
  7. Li, Y.Z.; Wang, Y.H.; Wang, Z.F.; Zhang, Z.Y. UV–VUV-excited photoluminescence of Tm3+ substituted β-rhenanite as a blue-emitting phosphor. J. Lumin. 2010, 130, 1225–1229. [Google Scholar] [CrossRef]
  8. Weng, M.H.; Yang, R.Y.; Peng, Y.M.; Chen, J.L. Yellowish green-emitting KSrPO4:Tb3+ phosphors with various doping concentrations prepared by using microwave assisted sintering. Ceram. Int. 2012, 38, 1319–1323. [Google Scholar] [CrossRef]
  9. Yang, R.Y.; Chen, H.Y.; Hsiung, C.M.; Chang, S.J. Crystalline morphology and photoluminescent properties of YInGe2O7:Eu3+ phosphors prepared from microwave and conventional sintering. Ceram. Int. 2011, 37, 749–752. [Google Scholar] [CrossRef]
  10. Chen, H.Y.; Yang, R.Y.; Chang, S.J. Improving crystalline morphology and photoluminescent properties of BaY2ZnO5:Eu3+ phosphors prepared using microwave assisted sintering. Mater. Lett. 2010, 64, 2548–2550. [Google Scholar] [CrossRef]
  11. Chen, H.Y.; Yang, R.Y.; Chang, S.J.; Yang, Y.K. Microstructure and photoluminescent properties of Sr2SiO4:Eu3+ phosphors with various NH4Cl flux concentrations. Mater. Res. Bull. 2012, 47, 1412–1416. [Google Scholar] [CrossRef]
  12. Yang, R.Y.; Lai, H.L. Microstructure, and luminescence properties of LiBaPO4:Dy3+ phosphors with various Dy3+ concentrations prepared by microwave assisted sintering. J. Lumin. 2014, 145, 49–54. [Google Scholar] [CrossRef]
  13. Sun, J.; Zhang, X.; Xia, Z.; Du, H. Luminescent properties of LiBaPO4:RE (RE = Eu2+, Tb3+, Sm3+) phosphors for white light-emitting diodes. J. Appl. Phys. 2012, 111, 013101. [Google Scholar] [CrossRef]
  14. Van Uitert, L.G. Characterization of energy transfer interactions between rare earth ions. J. Electronchem. Soc. 1967, 114, 1048–1053. [Google Scholar] [CrossRef]
  15. Ozawa, L.; Jaffe, P.M. The mechanism of the emission color shift with activator concentration in +3 activated phosphors. J. Electronchem. Soc. 1971, 118, 1678–1679. [Google Scholar] [CrossRef]
  16. Dexter, D.L. A theory of sensitized luminescence in solids. J. Chem. Phys. 1953, 21, 836–850. [Google Scholar] [CrossRef]

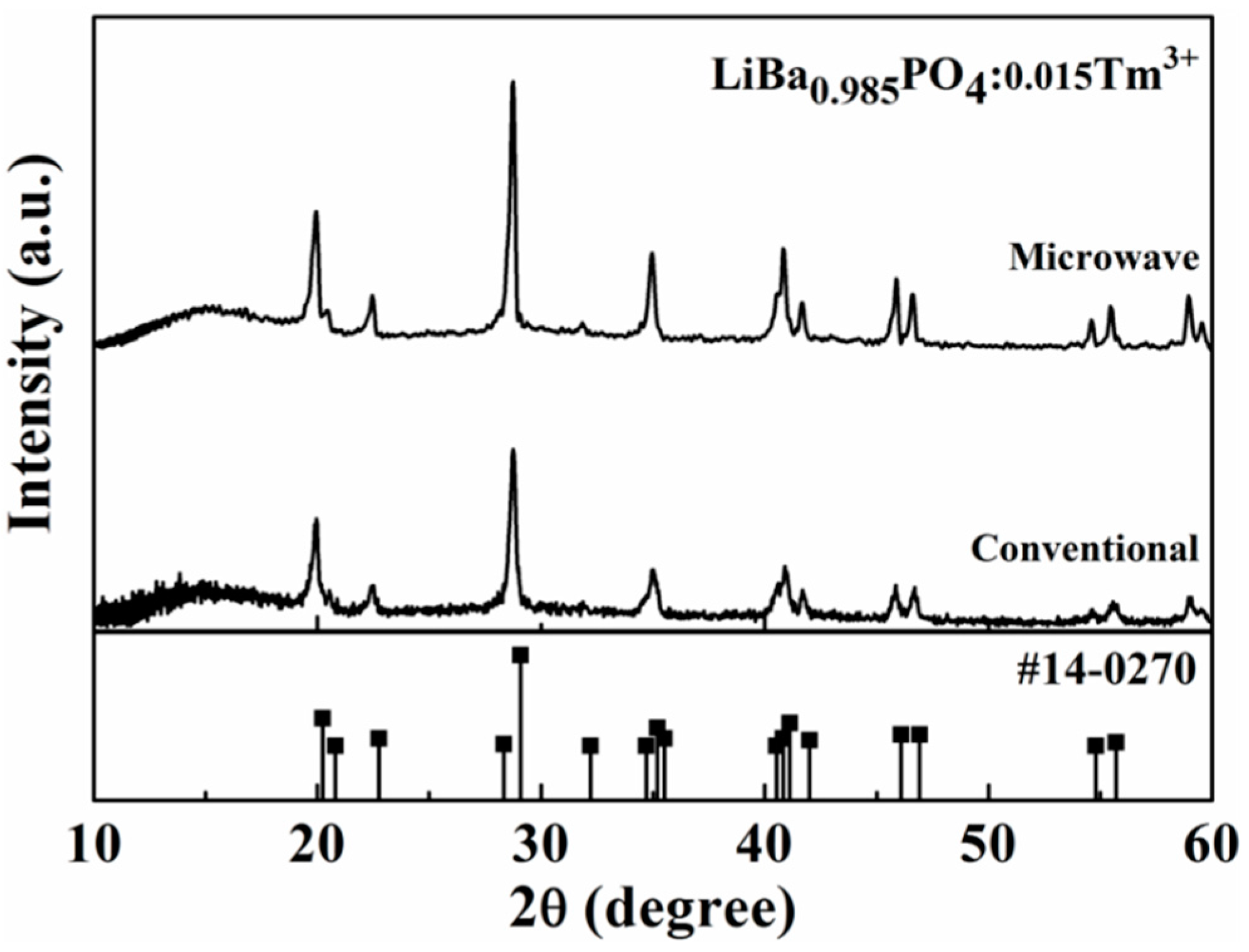

Figure 1. X-ray diffraction patterns X-ray diffraction patterns of LiBa0.985PO4:0.015Tm3+ compared by sintered at 1200 °C for 3 h in different furnace.
Figure 1. X-ray diffraction patterns X-ray diffraction patterns of LiBa0.985PO4:0.015Tm3+ compared by sintered at 1200 °C for 3 h in different furnace.
Materials 09 00356 g001

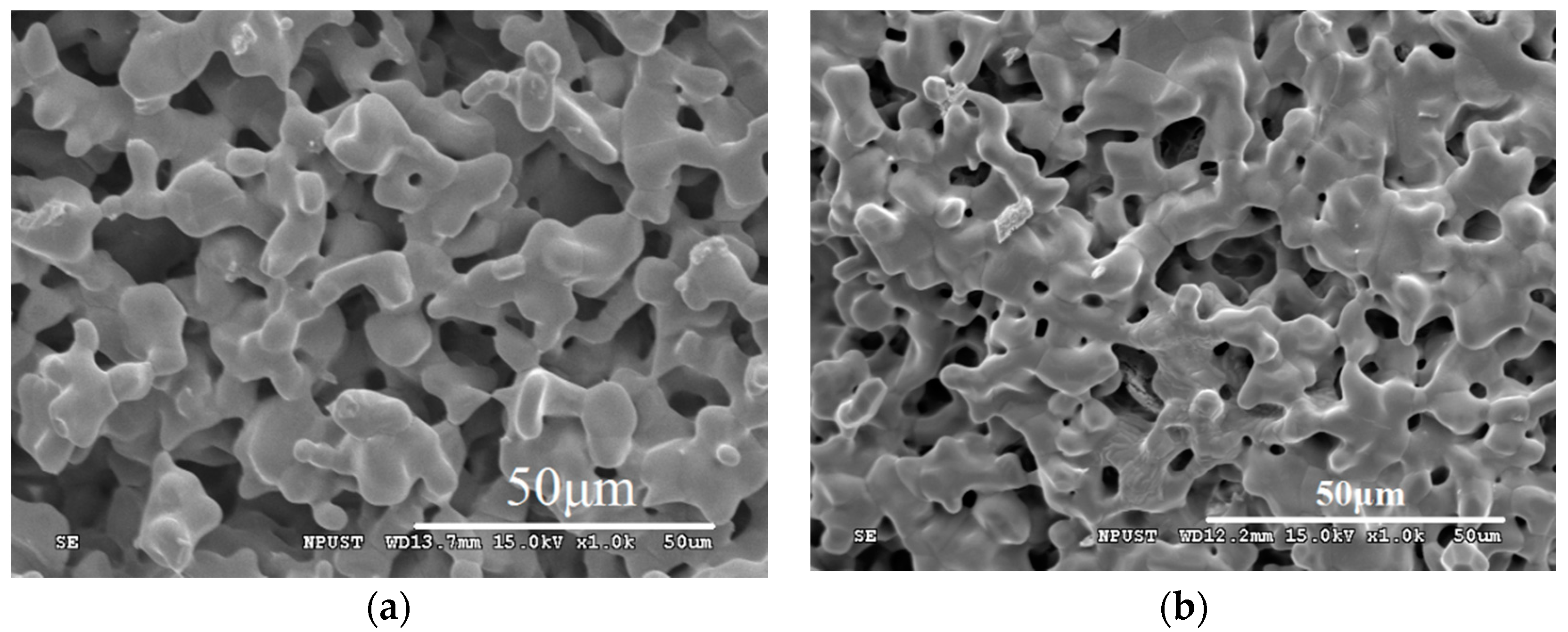

Figure 2. (a) SEM image of LiBa0.985PO4:0.015Tm3+ phosphor sintered at 1200 °C for 3 h in microwave furnace; (b) SEM image of LiBa0.985PO4:0.015Tm3+ phosphor sintered at 1200 °C for 3 h in conventional furnace.
Figure 2. (a) SEM image of LiBa0.985PO4:0.015Tm3+ phosphor sintered at 1200 °C for 3 h in microwave furnace; (b) SEM image of LiBa0.985PO4:0.015Tm3+ phosphor sintered at 1200 °C for 3 h in conventional furnace.
Materials 09 00356 g002

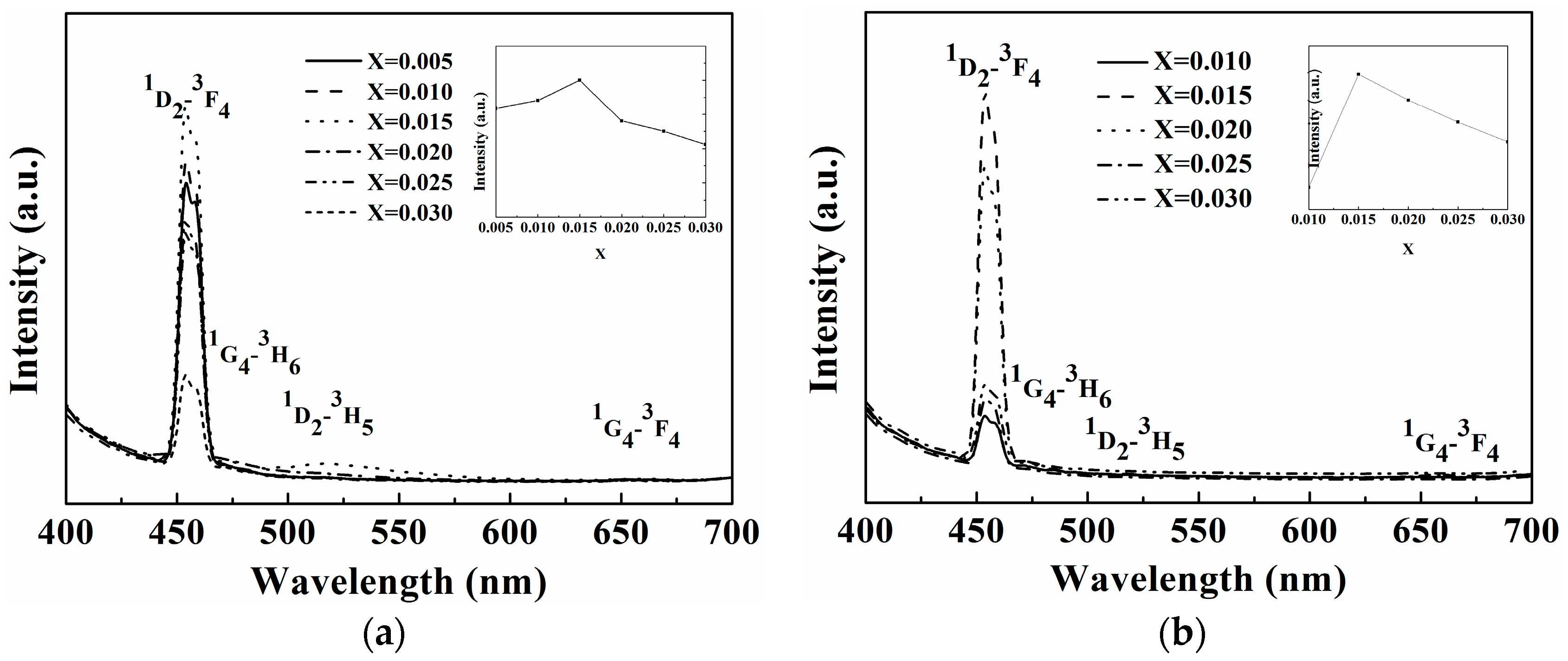

Figure 3. (a) Emission spectra of LiBa1−xPO4:xTm3+ phosphors with different concentrations of Tm3+ ions sintered at 1200 °C for 3 h in microwave furnace (λex = 359 nm). The inset on the top right is the tendency of the blue emission intensity (454 nm) for LiBa1−xPO4:xTm3+ at 0.005 < x ≤ 0.030; (b) Emission spectra of LiBa1−xPO4:xTm3+ phosphors with different concentrations of Tm3+ ions sintered at 1200 °C for 3 h in convemtional furnace (λex = 359 nm). The inset on the top right is the tendency of the blue emission intensity (454 nm) for LiBa1−xPO4:xTm3+ at 0.010 < x ≤ 0.030.
Figure 3. (a) Emission spectra of LiBa1−xPO4:xTm3+ phosphors with different concentrations of Tm3+ ions sintered at 1200 °C for 3 h in microwave furnace (λex = 359 nm). The inset on the top right is the tendency of the blue emission intensity (454 nm) for LiBa1−xPO4:xTm3+ at 0.005 < x ≤ 0.030; (b) Emission spectra of LiBa1−xPO4:xTm3+ phosphors with different concentrations of Tm3+ ions sintered at 1200 °C for 3 h in convemtional furnace (λex = 359 nm). The inset on the top right is the tendency of the blue emission intensity (454 nm) for LiBa1−xPO4:xTm3+ at 0.010 < x ≤ 0.030.
Materials 09 00356 g003

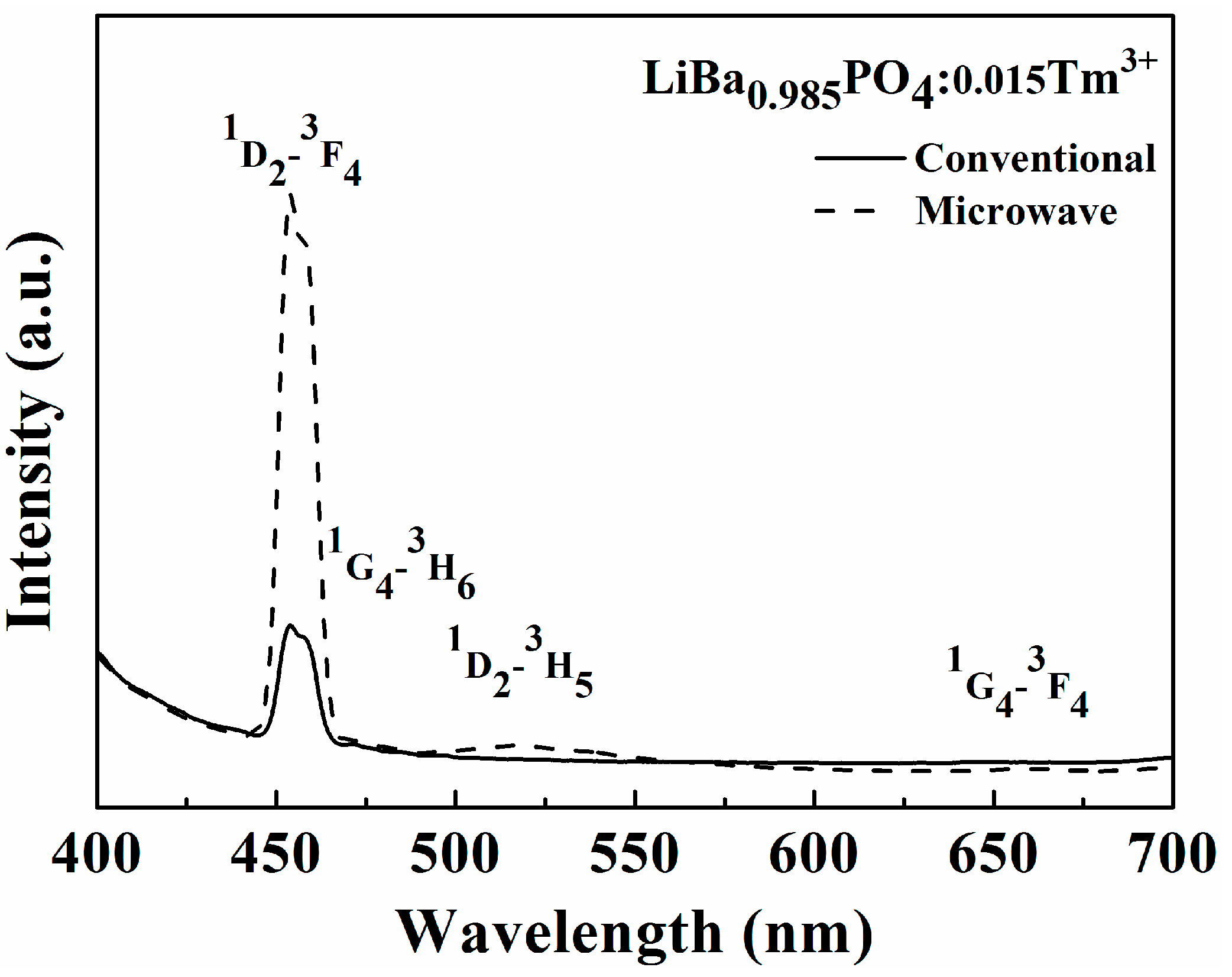

Figure 4. The emission spectra of LiBa0.985PO4:0.015Tm3+ phosphors with different sintering process.
Figure 4. The emission spectra of LiBa0.985PO4:0.015Tm3+ phosphors with different sintering process.
Materials 09 00356 g004

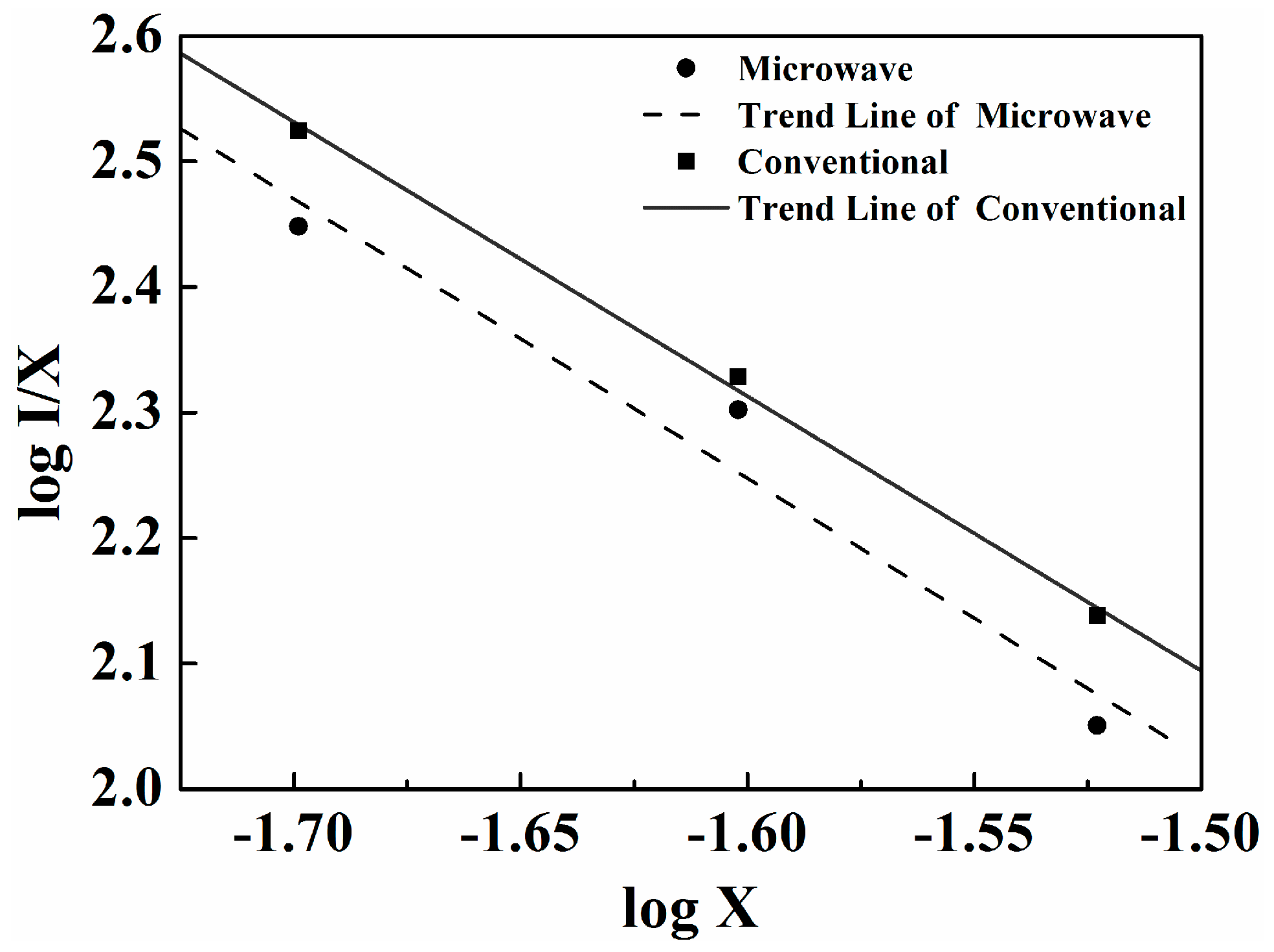

Figure 5. The curve of log (I/x) vs. log (x) in LiBa1−xPO4:xTm3+ phosphors with doped Tm3+ concentration at x = 0.02, 0.025, 0.03 using different sintering process.
Figure 5. The curve of log (I/x) vs. log (x) in LiBa1−xPO4:xTm3+ phosphors with doped Tm3+ concentration at x = 0.02, 0.025, 0.03 using different sintering process.
Materials 09 00356 g005

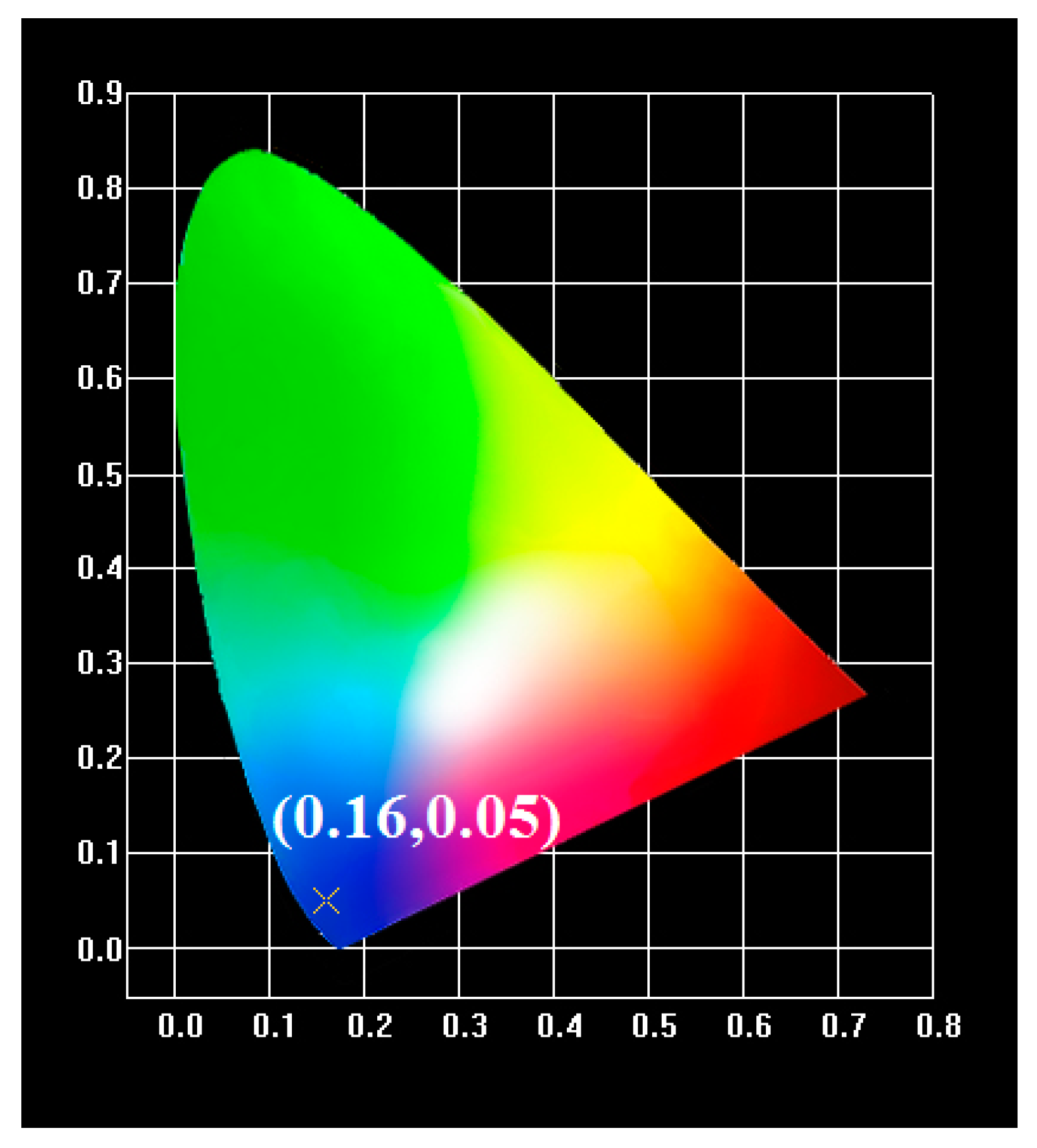

Figure 6. The CIE1931 chromaticity diagram of LiBa0.985PO4:0.015Tm3+ phosphors using different sintering process.
Figure 6. The CIE1931 chromaticity diagram of LiBa0.985PO4:0.015Tm3+ phosphors using different sintering process.
Materials 09 00356 g006
