Article

Charged Triazole Cross-Linkers for Hyaluronan-Based Hybrid Hydrogels

1
Institut für Organische Chemie, Universität Stuttgart, Pfaffenwaldring 55, Stuttgart D-70569, Germany
2
Department of Cellular Biophysics & CSF Biomaterials, Max-Planck Institute for Medical Research, Heidelberg D-69120, Germany
3
Department of Biophysical Chemistry, University of Heidelberg, Im Neuenheimerfeld 253, Heidelberg D-69120, Germany
4
Institut für Grenzflächenverfahrenstechnik und Plasmatechnologie IGVP, Universität Stuttgart, Nobelstr. 12, Stuttgart D-70569, Germany
5
Fraunhofer-Institut für Grenzflächen- und Bioverfahrenstechnik IGB, Nobelstr. 12, Stuttgart D-70569, Germany
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Materials 2016, 9(10), 810; https://doi.org/10.3390/ma9100810
Received: 28 July 2016 / Revised: 13 September 2016 / Accepted: 23 September 2016 / Published: 30 September 2016
(This article belongs to the Special Issue Smart Hydrogels for (Bio)printing Applications)

Abstract

:
Polyelectrolyte hydrogels play an important role in tissue engineering and can be produced from natural polymers, such as the glycosaminoglycan hyaluronan. In order to control charge density and mechanical properties of hyaluronan-based hydrogels, we developed cross-linkers with a neutral or positively charged triazole core with different lengths of spacer arms and two terminal maleimide groups. These cross-linkers react with thiolated hyaluronan in a fast, stoichiometric thio-Michael addition. Introducing a positive charge on the core of the cross-linker enabled us to compare hydrogels with the same interconnectivity, but a different charge density. Positively charged cross-linkers form stiffer hydrogels relatively independent of the size of the cross-linker, whereas neutral cross-linkers only form stable hydrogels at small spacer lengths. These novel cross-linkers provide a platform to tune the hydrogel network charge and thus the mechanical properties of the network. In addition, they might offer a wide range of applications especially in bioprinting for precise design of hydrogels.

1. Introduction

Hyaluronan is a naturally occurring linear polysaccharide containing an alternating sequence of glucuronic acid and N-acetylglucosamine units. It is a crucial constituent of the extracellular matrix and contributes to the unique properties of connective tissue and cartilage. Therefore, hyaluronan and synthetically modified hyaluronan derivatives are of high interest for polymer chemistry, materials science, and regenerative medicine [1,2,3]. In particular, hydrogels from unmodified hyaluronan or thiolated hyaluronan (HA-SH) have been extensively studied [4,5,6]. The cross-linking of HA-SH with poly(ethylene glycol) diacrylate [7,8] or poly(ethylene glycol) vinylsulfone [9] is a well known strategy for tailoring the properties of hydrogels.
It is known that the charge density on the polymer and the ionic strength in aqueous media influence the hydrogel properties such as the swelling ratio and the elastic modulus [10,11,12]. For hydrogels and nanoparticles, the negative charge of polyanions such as hyaluronan can be utilized by (a) ionic cross-linking with polycations such as polyallylamine hydrochloride or modified chitosan [13,14,15]; (b) ionic cross-linking with a low molecular weight cation [16]; (c) covalent cross-linking with a polycation or a cationic dendrimer [17]; or (d) photochemical cross-linking of methacrylate-functionalized HA with an unsaturated polycation [18]. These materials provide various applications such as gene transfection [17], biosensors for enzymatic reactions [16], and films for uni-directional drug delivery and controlled release [13]. While several cross-linking methodologies have been developed [19], short, low-molecular-weight cross-linkers consisting of a rigid heterocycle and flexible tethers carrying reactive groups have rarely been employed for this purpose. This approach should lead to a toolbox for the creation of sets of hydrogels with a wide range of rheological properties by simply adjusting the length of the tethers and the charge density on the heterocyclic core.
We recently developed desmosine-inspired cross-linkers 1 and Me-(1)+ I with a 3,5-diacyl-pyridine or pyridinium core tethered to two terminal acrylamide units (Figure 1). These pyridine derivatives were used as cross-linkers for thiolated hyaluronan via thio-Michael addition to provide hyaluronan-based hydrogels [20,21]. Alternatively, they were also successfully applied to a synthetic piperazinyl-modified poly(ethylene glycol) derivative via aza-Michael addition to give the corresponding hydrogels [22]. Expanding this concept of short, low-molecular-weight cross-linkers consisting of a rigid heterocycle with flexible tethers carrying reactive groups, we developed a novel class of cross-linkers bearing triazole cores (Figure 1). These neutral triazole cross-linkers 2 and their corresponding triazolium salts Me-(2)+ I allow for higher synthetic flexibility and the independent modification of both tethers.
1,2,3-Triazoles are available via Cu(I)-catalyzed azide-alkyne cycloaddition (CuAAC) or the corresponding copper-free reactions and have been recognized as highly versatile building blocks for a variety of functional materials [23,24]. They have also been used to generate hyaluronan-based hydrogels [25,26,27]. First, hyaluronan was chemically modified to bear azide and alkyne groups and subsequently cross-linked via the click-reaction. Thus, the triazole is formed during the final gelation step.
We wanted to utilize the stability of HA-hydrogels cross-linked via triazoles and take it one step further. Therefore, we designed low-molecular-weight cross-linkers already containing a triazole core as well as two Michael acceptor groups, maleimides. This approach enables us to alkylate the triazole ring prior to cross-linking; a positive charge can thereby be introduced into the hydrogel structure. The final charged or neutral cross-linkers react with thiolated hyaluronan via the thio-Michael addition. Finally, this approach allows us to compare structurally similar neutral triazole-based cross-linkers 2 and positively charged triazolium cross-linkers Me-(2)+ I with regard to their ability to form hydrogels with thiolated hyaluronan and their influence on the hydrogel properties.

2. Results and Discussion

2.1. Synthesis of Cross-Linkers 2 and Me-(2)+ I

The synthesis of novel triazole cross-linkers 2 and Me-(2)+ I commenced with the preparation of the azide and alkyne precursors 7 and 8 (Scheme 1 and see Supplementary Materials Scheme S1).
Following the method by Kress [28], 1,ω-diols 3 were treated with HBr in toluene under Dean Stark conditions to provide the bromoalcohols 4 in good yields, except for 4-bromobutanol 4a due to the formation of THF as a by-product. Subsequent nucleophilic substitution with potassium phthalimide gave the hydroxy phthalimides 5 with a 49%–90% yield [29]. The tosylation of the hydroxy phthalimides 5 and displacement with NaN3 following procedures from Yi [30] and Tran [31] provided the N-phthalimido-protected azides 7 in 62%–80% over two steps. The synthesis of the alkyne precursors 8 could also be achieved from the N-phthalimido alcohols 5 following a procedure from Tran [31] by treatment with NaH and propargylbromide in moderate yields of 16%–28%.
As an alternative strategy towards the azides 7 and alkynes 8, we investigated a two-step route starting from the dibromides 10. First, they were converted to the N-phthalimido bromides 9 according to Kong [32], followed by either SN2 reaction [33] to the azides 7 with an 83%–95% yield or by Williamson etherification [31] with propargylic alcohol to the alkynes 8 with a 43%–64% yield.
Comparison of the overall yields for the triazole precursors 7 and 8 by the two strategies shows that the synthesis from the dibromides 10 is preferable, as it comprises less reaction and purification steps, and the yields are usually higher.
The CuAAC of azides 7 and alkynes 8 was performed according to Sharpless conditions [34] with CuSO4 and sodium ascorbate in a tert-butanol/water mixture to provide the N‑phthalimido-terminated triazoles 11 with a 79%–85% yield (Scheme 2). Subsequent hydrazinolysis [35] proceeded uneventfully, and the resulting diaminotriazoles 12 were converted to the bismaleimidotriazoles 2 by treatment with maleic anhydride and NEt3, followed by reaction with Ac2O and NaOAc according to the procedure by Liu [36] with a 17%–29% yield over three steps. The yield for the maleimide cross-linkers was quite low due to the formation of several by-products during the last two steps, such as the addition of AcOH to the maleimides. This already shows the high reactivity of maleimides in Michael addition reactions. Finally, N-methylation with methyl iodide [37] provided the corresponding triazolium salts Me-(2)+ I in high yields.
The ability of the novel cross-linkers 2b and Me-(2b)+ I to undergo thio-Michael addition reactions at the maleimide units was shown in vitro with methyl thioglycolate in ethanol and phosphate buffer solution (PBS) (pH 3.0) at room temperature (Scheme 3). In order to obtain a complete conversion, 1.0 equiv of cross-linkers 2b or Me-(2b)+ I and 2.5 equiv of methyl thioglycolate were used. After a 20-h reaction time, the Michael addition products 13a and 13b could be isolated with high yields of 88% and 85%. Monitoring the reaction by NMR revealed a rapid conversion of the starting material within 10 min (Figures S1 and S2).

2.2. Formation of Hydrogels with Thiolated Hyaluronan

In the next step, we tested the ability of our novel cross-linkers to form hydrogels with thiolated hyaluronan. Therefore, we employed well-characterized, research-grade hyaluronan with an average molecular weight of 125 kDa (contour length (L) ≈ 301 nm) and synthetically modified the carboxylic groups with a short thiol linker leading to a statistical thiolation degree of 40% (HA125-SH40).
Generally, the rate of thio-Michael addition reactions can be adjusted by the choice of reactive groups and catalytic additives [38]. To enhance the reaction rate compared to our previously described cross-linkers 1 and Me-(1)+ I bearing acrylamides, we introduced maleimides as reactive groups in 2 and Me-(2)+ I. Maleimides are expected to lead to the highest reaction kinetics in thio-Michael additions [38].
Therefore, all cross-linking reactions were carried out with relatively short hyaluronan chains, to favor intermolecular cross-links, at a relatively low pH of 3.0. At these conditions, all of the hydrogels were formed in less than five minutes, leading to gelation times ideally suited where fast polymerization is desired. The rheological properties of the obtained hydrogels were further characterized in bulk hydrogels with an 8-mm diameter. Generally, form-stable hydrogels are obtained with 2a–c and Me-(2a–d)+ I respectively (exemplary gels with 2b and Me-(2b)+ I are shown in Figure 2). However, bismaleimido-triazoles 2 and Me-(2)+ I and HA125-SH40 almost instantaneously cross-link into very inhomogeneous gels and were thus not analyzed further. Due to the harsh reaction conditions, stability of HA125 and HA125-SH40 under these conditions was confirmed by agarose gel electrophoresis (Figure S3), and the results showed that the length of both HA125 and HA125-SH40 does not change.
The E-moduli of the hydrogels of HA125-SH40 cross-linked with 2a–c, Me-(2a–d)+ I were both dependent on the spacer lengths n and the charge of the cross-linker core (Table 1). For neutral triazole cross-linkers 2a,b with short C4 or C6 spacers, similar E-moduli were obtained. Upon increasing the spacer length, the E-modulus decreased by one order of magnitude for triazole 2c with C8 spacer. Triazole 2d with C10 spacer did not even lead to stable gel formation. In contrast, the E-moduli of hyaluronan-hydrogels carrying the charged cross-linkers Me‑(2a–d)+ I were not influenced significantly by the length of the spacer. In particular triazolium cross-linker Me‑(2d)+ I with a C10 spacer showed similar E-moduli, as compared with the homologues with shorter chain lengths.
Based on the defined thio-Michael reaction, all gels had a very similar number of cross-links, as seen by the similar amount of reacted thiols in each hydrogel (Table 1). Considering the similar degree of cross-linking, additional charge interactions most likely enhance the E-modulus of gels with charged cross-linkers (Figure S4). These additional electrostatic interactions seem to exceed the effect of spacer-length in HA125-SH40-Me-(2a–d)+ I gels.
Next, swelling ratios of the hydrogels (wet weight/dry weight) were measured in PBS and water (Table 2). Generally, the swelling ratio is two times larger in water as compared to PBS irrespective of spacer lengths or charge of the cross-linker. This is in agreement with results from various polyelectrolyte gels where the swelling behavior was explained by interactions of the charged moieties in the cross-linked polymer chains and dissolved ions [39,40,41]. For hydrogels with neutral triazole cross-linkers 2a–c, the swelling ratio reveals no clear trend (Table 2). On the contrary, for the hydrogels carrying triazolium units, the swelling ratio in water decreased with the increasing chain length, i.e., from 68 for Me-(2a)+ I with C4 spacer to 19 for Me-(2d)+ I with C10 spacer. This indicates a strong ionic interaction between hyaluronan hydrogels cross-linked with positively charged cross-linkers, also represented by the calculation of mesh sizes (ξ) from the swelling ratios by
1 M c   =   2 M n   ( ν V 1 ) [ ln ( 1   ν 2 , s ) +   ν 2 , s +   χ ν 2 , s 2 ] ν 2 , r × [ ( ν 2 , s ν 2 , r ) 1 3 1 2 × ( ν 2 , s ν 2 , r ) ]
ξ   = ν 2 , s 1 3   2   C n   M c M r      l
Mc = molecular weight between two adjacent crosslinks;
Mn = number-average degree of polymerization = 125,000 (average molecular weight of HA);
ν = specific volume of bulk HA = 0.764 cm3/g;
V1 = molar volume of solvent (assumed to be the same as water) = 18 cm3/mol;
ν2,s = equilibrium swollen polymer volume fraction;
ν2,r = unswollen polymer volume fraction;
χ = Flory-Huggins interaction parameter for HA in water = 0.439;
Cn = characteristic ratio of HA = 27;
Mr = molecular weight of the HA repeat (disaccharide) unit = 415 g/mol;
l = length of a virtual bond (defined from glycosidic oxygen to glycosidic oxygen, spanning a monosaccharide) = 0.52 nm.

3. Materials and Methods

3.1. Synthesis of Maleimide Cross-Linkers 2 and Me-(2)+ I

The synthesis and characterization of all reported compounds can be found in the Supplementary Materials.

3.2. Thiolation of HA and Ellman’s Assay

Thiolation of sodium hyaluronate with an average moleculare weight of 125 kDa (HA125, Lifecore Biomedical) was carried out with 3,3’-Dithiobis(propanoic dihydrazide) at the carboxyl group [42]. 3,3’-Dithiobis(propanoic dihydrazide) was synthesized according to the procedure described in [43]. Reaction time for thiolation was chosen to yield an intermediate thiolation degree of around 40% of carboxyl groups (HA125-SH40), analyzed by Ellman’s assay [44].

3.3. HA-Hydrogel Formation

All solutions used for hydrogel formation were degassed for 15 min in an ultrasonic bath to avoid disulfide bond formation. The HA125-SH40 was dissolved in PBS, pH = 7.4, resulting in a 4% (w/v) HA125-SH40 solution at a final pH of 3.0. All cross-linkers were dissolved in 70% EtOH in different concentrations to obtain a 1:0.8 ratio of thiol vs. maleimide in the resulting hydrogel. A mixture of 70% HA125-SH40 and 30% cross-linker solutions was prepared, to obtain a final HA125-SH40 concentration of 2.8% (w/v) in the hydrogel. Immediately after mixing, gelation solutions were poured into small cylindrical Teflon molds (r = 3 mm, h = 3 mm). Molds were sealed with glass slides, and gelation was allowed to proceed for 24 h at room temperature. Gels were swollen in PBS for 48 h at room temperature to reach equilibrium.

3.4. Mechanical Testing

Mechanical properties of the swollen gels were measured with the NanoBionix Universal Testing System (MTS Systems Corp., Oak Ridge, TN, USA) in uniaxial compression mode with parallel plate geometry. Thereby, an increasing strain from 0% to 10% was applied to the gels, and the resulting forces were measured. The data was analyzed in the linear-viscoelastic region between 0% and 5% compression by a linear fit of the stress-strain curves. All values represent the mean value of three independent experiments, and the errors show standard deviation.
Swelling ratios were determined by dividing the swollen weight by the dry weight of the hydrogels: Swollen weights were measured after swelling the hydrogels in PBS and double-distilled water (ddH2O) for 48 h at room temperature. Subsequently, hydrogels were freeze-dried for three days in a lyophilizer (JUMO IMAGO 500, Pietkowski-Forschungsgeräte, Munich, Germany) to determine the dry weight. Mesh sizes were subsequently estimated using the method established by Peppas and Merrill [45]. All measurements were done in triplicate and are shown as mean with standard deviation as errors.

4. Conclusions

In conclusion, we have herein demonstrated that neutral and charged short, low-molecular weight cross-linkers 2 and Me-(2)+ I can be obtained in a convergent fashion via CuAAC from the azides 7 and alkynes 8. This approach provides rapid access to cross-linkers of various chain lengths. It should be noted that the CuAAC is particularly useful for asymmetrical cross-linkers, which are not so easily accessible via the double functionalization of symmetrical heterocyclic precursors. Furthermore, synthesis of triazole cross-linkers independent of the polymerization reaction enables us to introduce an additional charge. Utilizing the stoichiometric thio-Michael addition, a direct comparison of the neutral compounds 2a–c and the charged Me-(2a–d)+ I in the cross-linking of thiolated hyaluronan was possible. This provided soft, viscoelastic hydrogels with E-moduli up to 25 kPa. In particular for cross-linkers with longer spacers (C8 and C10), the charge state of the central heterocyclic unit had a stabilizing impact on the E-moduli. With triazole 2d, no stable gels were formed; however, upon introduction of a positive charge in Me-(2d)+ I, hydrogels with an E-modulus of 17 ± 9 kPa were obtained. These hydrogels may be suitable for 3D or bioprinting applications for the precise controlling of topography to “recapitulate” the structural properties of the target tissue.

Supplementary Materials

The following are available online at www.mdpi.com/1996-1944/9/10/810/s1: synthesis and characterization of all reported compounds; additional experiments regarding hydrogel characterization.

Acknowledgments

Generous financial support by the Baden–Württemberg Stiftung (grant # BioMatS-011) and the Max Planck Society is gratefully acknowledged. Nicole Schädel would like to thank the Fonds der Chemischen Industrie for a Ph.D. fellowship. We would like to thank Angelika Baro for critical proofreading and suggestions during the preparation of this manuscript.

Author Contributions

Maike Martini conceived and designed the chemical synthesis; Heike Boehm, Patricia S. Hegger and Burcu B. Minsky conceived and designed the hydrogel experiments; Maike Martini, Nicole Schädel, Sebastian Scholl and Manuel Kirchhof performed the chemical synthesis; Patricia S. Hegger and Burcu B. Minsky performed the hydrogel experiments; Alexander Southan and Günter E. M. Tovar contributed analysis tools and their expertise; Heike Boehm, Sabine Laschat, Patricia S. Hegger and Nicole Schädel wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest. The funding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

The following abbreviations are used in this manuscript:
HAhyaluronan, hyaluronic acid
HA-SHthiolated hyaluronan
HA125-SH40hyaluronan with an average molecular weight of 125 kDa and a thiolation degree of 40%
CuAACCu(I)-catalyzed azide-alkyne cycloaddition
NPhthN-phthalimido
rtroom temperature
Memethyl
Etethyl
Acacetyl
equivequivalents
PBSphosphate buffered saline
DMFN,N-dimethylformamide
Tstosyl (protecting group)
TBAItetrabutylammonium iodide
ddH2Odouble-distilled water

References

  1. Marcellin, E.; Steen, J.A.; Nielsen, L.K. Insight into hyaluronic acid molecular weight control. Appl. Microbiol. Biotechnol. 2014, 98, 6947–6956. [Google Scholar] [CrossRef] [PubMed]
  2. Papakonstantinou, E.; Roth, M.; Karakiulakis, G. Hyaluronic acid—A key molecule in skin aging. Dermato Endrocrinol. 2012, 4, 253–258. [Google Scholar] [CrossRef] [PubMed]
  3. Yadav, A.K.; Mishra, P.; Agrawal, G.P. An insight on hyaluronic acid in drug targeting and drug delivery. J. Drug Target. 2008, 16, 91–107. [Google Scholar] [CrossRef] [PubMed]
  4. Seliktar, D. Designing Cell-Compatible Hydrogels for Biomedical Applications. Science 2012, 336, 1124–1128. [Google Scholar] [CrossRef] [PubMed]
  5. Burdick, J.A.; Prestwich, G.D. Hyaluronic Acid Hydrogels for Biomedical Applications. Adv. Mater. 2011, 23, H41–H56. [Google Scholar] [CrossRef] [PubMed]
  6. Collins, M.N.; Birkinshaw, C. Hyaluronic acid based scaffolds for tissue engineering—A review. Carbohydr. Polym. 2013, 92, 1262–1279. [Google Scholar] [CrossRef] [PubMed]
  7. Shu, X.Z.; Ahmad, S.; Liu, Y.; Prestwich, G.D. Synthesis and evaluation of injectable, in situ crosslinkable synthetic extracellular matrices for tissue engineering. J. Biomater. Res. A 2006, 79, 902–912. [Google Scholar] [CrossRef] [PubMed]
  8. Shu, X.Z.; Liu, Y.; Palumbo, F.S.; Luo, Y.; Prestwich, G.D. In situ crosslinkable hyaluronan hydrogels for tissue engineering. Biomaterials 2004, 25, 1339–1348. [Google Scholar]
  9. Jin, R.; Moreira Teixeira, L.S.; Krouwels, A.; Dijkstra, P.J.; van Blitterswijk, C.A.; Karperien, M.; Feijen, J. Synthesis and characterization of hyaluronic acid-poly(ethylene glycol) hydrogels via Michael addition: An injectable biomaterial for cartilage repair. Acta Biomater. 2010, 6, 1968–1977. [Google Scholar] [CrossRef] [PubMed]
  10. Shah, C.B.; Barnett, S.M. Swelling Behavior of Hyaluronic Acid Gels. J. Appl. Polym. Sci. 1992, 45, 293–298. [Google Scholar] [CrossRef]
  11. Dadsetan, M.; Pumberger, M.; Casper, M.E.; Shogren, K.; Giuliani, M.; Ruesink, T.; Hefferan, T.E.; Currier, B.L.; Yaszemski, M.J. The effects of fixed electrical charge on chondrocyte behavior. Acta Biomater. 2011, 7, 2080–2090. [Google Scholar] [CrossRef] [PubMed]
  12. La Gatta, A.; Schiraldi, C.; Esposito, A.; D’Agostino, A.; De Rosa, A. Novel poly(HEMA-co-METAC)/alginate semi-interpenetrating hydrogels for biomedical applications: Synthesis and characterization. J. Biomed. Mater. Res. A 2009, 90, 292–302. [Google Scholar] [CrossRef] [PubMed]
  13. Chen, D.; Chen, J.; Wu, M.; Tian, H.; Chen, X.; Sun, J. Robust and Flexible Free-Standing Films for Unidirectional Drug Delivery. Langmuir 2013, 29, 8328–8334. [Google Scholar] [CrossRef] [PubMed]
  14. Miller, M.D.; Bruening, M.L. Correlation of the Swelling and Permeability of Polyelectrolyte Multilayer Films. Chem. Mater. 2005, 17, 5375–5381. [Google Scholar] [CrossRef]
  15. Hardy, J.G.; Li, H.; Chow, J.K.; Geissler, S.A.; McElroy, A.B.; Nguy, L.; Hernandez, D.S.; Schmidt, C.E. Conducting polymer-based multilayer films for instructive biomaterial coatings. Future Sci. OA 2015, 1. [Google Scholar] [CrossRef][Green Version]
  16. Xie, H.; Zeng, F.; Wu, S. Ratiometric Fluorescent Biosensor for Hyaluronidase with Hyaluronan as Both Nanoparticle Scaffold and Substrate for Enzymatic Reaction. Biomacromolecules 2014, 15, 3383–3389. [Google Scholar] [CrossRef] [PubMed]
  17. Srivastava, A.; Cunningham, C.; Pandit, A.; Wall, J.G. Improved Gene Transfection Efficacy and Cytocompatibility of Multifunctional Polyamidoamine-Cross-Linked Hyaluronan Particles. Macromol. Biosci. 2015, 15, 682–690. [Google Scholar] [CrossRef] [PubMed]
  18. Wu, D.-Q.; Wu, J.; Chu, C.-C. A novel family of biodegradable hybrid hydrogels from arginine-based poly(ester amide) and hyaluronic acid precursors. Soft Matter 2013, 9, 3965–3975. [Google Scholar] [CrossRef]
  19. Mavila, S.; Eivgi, O.; Berkovich, I.; Lemcoff, N.G. Intramolecular Cross-Linking Methodologies for the Synthesis of Polymer Nanoparticles. Chem. Rev. 2016, 116, 878–961. [Google Scholar] [CrossRef] [PubMed]
  20. Hagel, V.; Mateescu, M.; Southan, A.; Wegner, S.V.; Nuss, I.; Haraszti, T.; Kleinhans, C.; Schuh, C.; Spatz, J.P.; Kluger, P.J.; et al. Desmosine-Inspired Cross-Linkers for Hyaluronan Hydrogels. Sci. Rep. 2013, 3. [Google Scholar] [CrossRef] [PubMed]
  21. Mateescu, M.; Nuss, I.; Southan, A.; Messenger, H.; Wegner, S.V.; Kupka, J.; Bach, M.; Tovar, G.E.M.; Boehm, H.; Laschat, S. Synthesis of Pyridine Acrylates and Acrylamides and Their Corresponding Pyridinium Ions as Versatile Cross-Linkers for Tunable Hydrogels. Synthesis 2014, 46, 1243–1253. [Google Scholar]
  22. Southan, A.; Mateescu, M.; Hagel, V.; Bach, M.; Schuh, C.; Kleinhans, C.; Kluger, P.J.; Tussetschläger, S.; Nuss, I.; Haraszti, T.; et al. Toward Controlling the Formation, Degradation Behavior, and Properties of Hydrogels Synthesized by Aza-Michael Reactions. Macromol. Chem. Phys. 2013, 214, 1865–1873. [Google Scholar] [CrossRef]
  23. Juríček, M.; Kouwer, P.H.J.; Rowan, A.E. Triazole: A unique building block for the construction of functional materials. Chem. Commun. 2011, 47, 8740–8749. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Obadia, M.M.; Drockenmuller, E. Poly(1,2,3-triazolium)s: A new class of functional polymer electrolytes. Chem. Commun. 2016, 52, 2433–2450. [Google Scholar] [CrossRef] [PubMed]
  25. Crescenzi, V.; Cornelio, L.; Di Meo, C.; Nardecchia, S.; Lamanna, R. Novel Hydrogels via Click Chemistry: Synthesis and Potential Biomedical Applications. Biomacromolecules 2007, 8, 1844–1850. [Google Scholar] [CrossRef] [PubMed]
  26. Testa, G.; Di Meo, C.; Nardecchia, S.; Capitani, D.; Mannina, L.; Lamanna, R.; Barbetta, A.; Dentini, M. Influence of dialkyne structure on the properties of new click-gels based on hyaluronic acid. Int. J. Pharm. 2009, 378, 86–92. [Google Scholar] [CrossRef] [PubMed]
  27. Takahashi, A.; Suzuki, Y.; Suhara, T.; Omichi, K.; Shimizu, A.; Hasegawa, K.; Kokudo, N.; Ohta, S.; Ito, T. In Situ Cross-Linkable Hydrogel of Hyaluronan Produced via Copper-Free Click Chemistry. Biomacromolecules 2013, 14, 3581–3588. [Google Scholar] [CrossRef] [PubMed]
  28. Kress, K.C.; Kaller, M.; Axenov, K.V.; Tussetschläger, S.; Laschat, S. Synthesis and mesomorphic properties of calamitic malonates and cyanoacetates tethered to 4-cyanobiphenyls. Beilstein J. Org. Chem. 2012, 8, 371–378. [Google Scholar] [CrossRef] [PubMed]
  29. Marsden, D.M.; Nicholson, R.L.; Ladlow, M.; Spring, D.R. 3D small-molecule microarrays. Chem. Commun. 2009, 7107–7109. [Google Scholar] [CrossRef] [PubMed]
  30. Yi, L.; Shi, J.; Gao, S.; Li, S.; Niu, C.; Xi, Z. Sulfonium alkylation followed by ‘click’ chemistry for facile surface modification of proteins and tobacco mosaic virus. Tetrahedron Lett. 2009, 50, 759–762. [Google Scholar] [CrossRef]
  31. Tran, F.; Odell, A.V.; Ward, G.E.; Westwood, N.J. A Modular Approach to Triazole-Containing Chemical Inducers of Dimerisation for Yeast Three-Hybrid Screening. Molecules 2013, 18, 11639–11657. [Google Scholar] [CrossRef] [PubMed]
  32. Kong, X.; He, Z.; Zhang, Y.; Mu, L.; Liang, C.; Chen, B.; Jing, X.; Cammidge, A.N. A Mesogenic Triphenylene-Perylene-Triphenylene Triad. Org. Lett. 2011, 13, 764–767. [Google Scholar] [CrossRef] [PubMed]
  33. Lakanen, J.R.; Coward, J.K.; Pegg, A.E. α-Methyl Polyamines: Metabolically Stable Spermidine and Spermine Mimics Capable of Supporting Growth in Cells Depleted of Polyamines. J. Med. Chem. 1992, 35, 724–734. [Google Scholar] [CrossRef] [PubMed]
  34. Himo, F.; Lovell, T.; Hilgraf, R.; Rostovtsev, V.V.; Noodleman, L.; Sharpless, K.B.; Fokin, V.V. Copper(I)-Catalyzed Synthesis of Azoles. DFT Study Predicts Unprecedented Reactivity and Intermediates. J. Am. Chem. Soc. 2005, 127, 210–216. [Google Scholar] [CrossRef] [PubMed]
  35. Casnati, A.; Della Ca’, N.; Fontanella, M.; Sansone, F.; Ugozzoli, F.; Ungaro, R.; Liger, K.; Dozol, J.-F. Calixarene-Based Picolinamide Extractants for Selective An/Ln Separation from Radioactive Waste. Eur. J. Org. Chem. 2005, 2338–2348. [Google Scholar] [CrossRef]
  36. Liu, F.; Ni, A.S.Y.; Lim, Y.; Mohanram, H.; Bhattacharjya, S.; Xing, B. Lipopolysaccharide Neutralizing Peptide-Porphyrin Conjugates for Effective Photoinactivation and Intracellular Imaging of Gram-Negative Bacteria Strains. Bioconj. Chem. 2012, 23, 1639–1647. [Google Scholar] [CrossRef] [PubMed]
  37. Klein, J.E.M.N.; Holzwarth, M.S.; Hohloch, S.; Sarkar, B.; Plietker, B. Redox-Active Triazolium-Derived Ligands in Nucleophilic Fe-Catalysis—Reactivity Profile and Development of a Regioselective O-Allylation. Eur. J. Org. Chem. 2013, 6310–6316. [Google Scholar] [CrossRef]
  38. Nair, D.P.; Podgórski, M.; Chatani, S.; Gong, T.; Xi, W.; Fenoli, C.R.; Bowman, C.N. The Thiol-Michael Addition Click Reaction: A Powerful and Widely Used Tool in Materials Chemistry. Chem. Mater. 2014, 26, 724–744. [Google Scholar] [CrossRef]
  39. Drozdov, A.D.; deClaville Christiansen, J. Modeling the effects of pH and ionic strength on swelling of anionic polyelectrolyte gels. Model. Simul. Mater. Sci. Eng. 2015, 23, 055005:01–055005:38. [Google Scholar] [CrossRef]
  40. Košovan, P.; Richter, T.; Holm, C. Modeling of Polyelectrolyte Gels in Equilibrium with Salt Solutions. Macromolecules 2015, 48, 7698–7708. [Google Scholar] [CrossRef]
  41. Biesalski, M.; Rühe, J. Tailoring the Charge Density of Surface-Attached Polyelectrolyte Brushes. Macromolecules 2004, 37, 2196–2202. [Google Scholar] [CrossRef]
  42. Shu, X.Z.; Liu, Y.; Luo, Y.; Roberts, M.C.; Prestwich, G.D. Disulfide Cross-Linked Hyaluronan Hydrogels. Biomacromolecules 2002, 3, 1304–1311. [Google Scholar] [CrossRef] [PubMed]
  43. Vercruysse, K.P.; Marecak, D.M.; Marecek, J.F.; Prestwich, G.D. Synthesis and in vitro Degradation of New Polyvalent Hydrazide Cross-Linked Hydrogels of Hyaluronic Acid. Bioconj. Chem. 1997, 8, 686–694. [Google Scholar] [CrossRef] [PubMed]
  44. Ellmann, G.L. Tissue Sulfhydryl Groups. Arch. Biochem. Biophys. 1959, 82, 70–77. [Google Scholar] [CrossRef]
  45. Peppas, N.A.; Bures, P.; Leobandung, W.; Ichikawa, H. Hydrogels in pharmaceutical formulations. Eur. J. Pharm. Biopharm. 2000, 50, 27–46. [Google Scholar] [CrossRef]

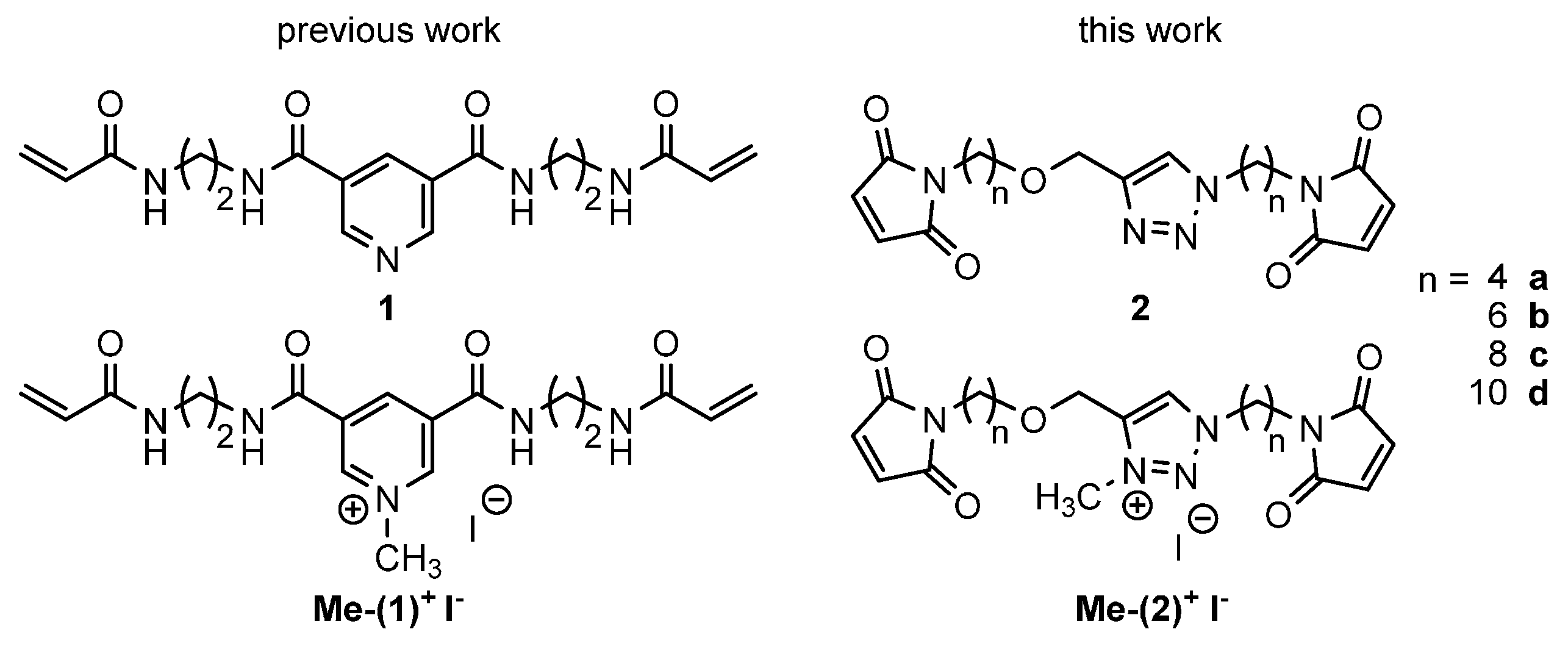

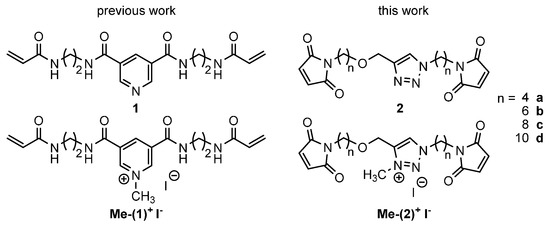

Figure 1. Low-molecular-weight cross-linkers with pyridine or triazole cores.
Figure 1. Low-molecular-weight cross-linkers with pyridine or triazole cores.
Materials 09 00810 g001

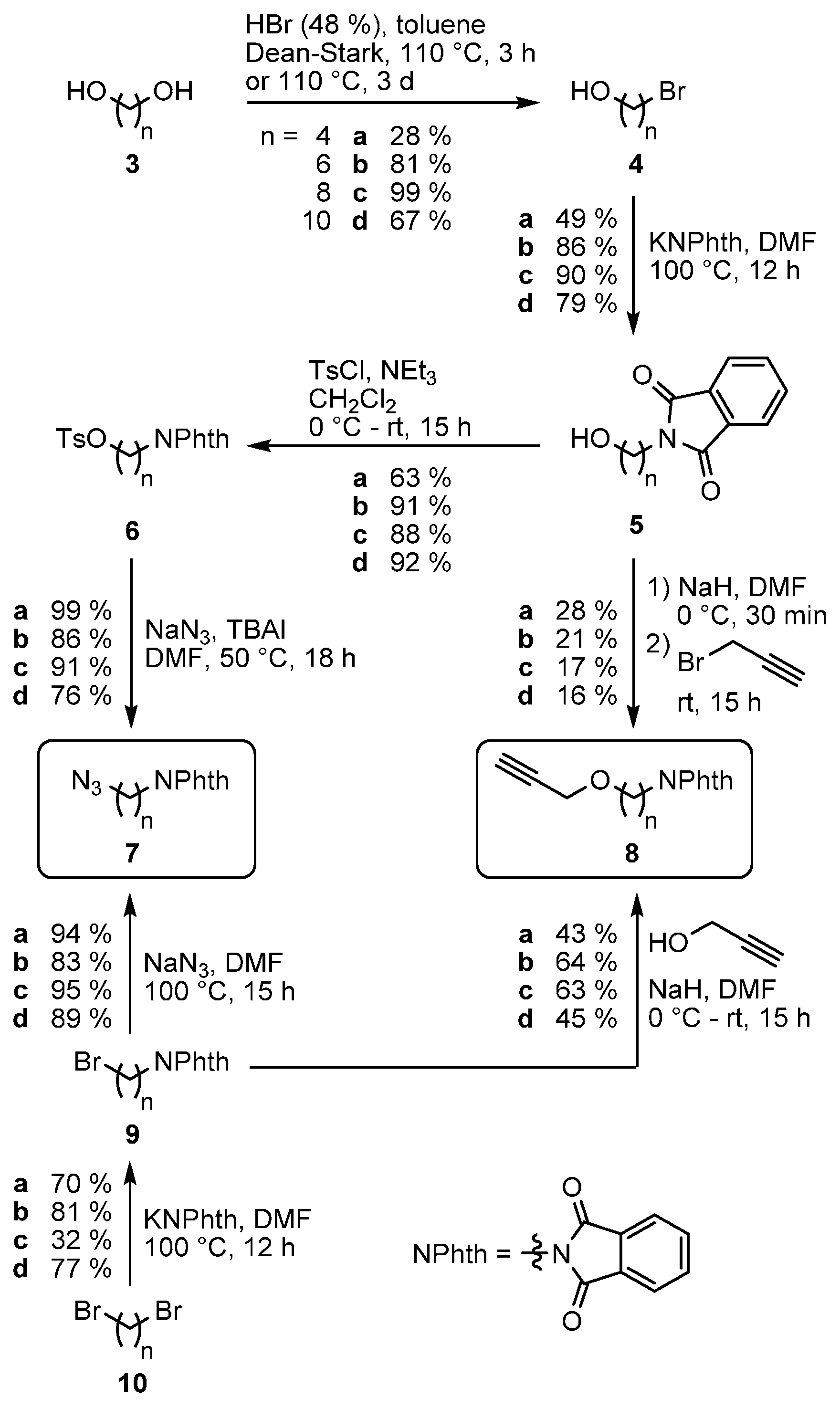

Scheme 1. Synthesis of triazole precursors 7 and 8 by different synthetic strategies.
Scheme 1. Synthesis of triazole precursors 7 and 8 by different synthetic strategies.
Materials 09 00810 sch001

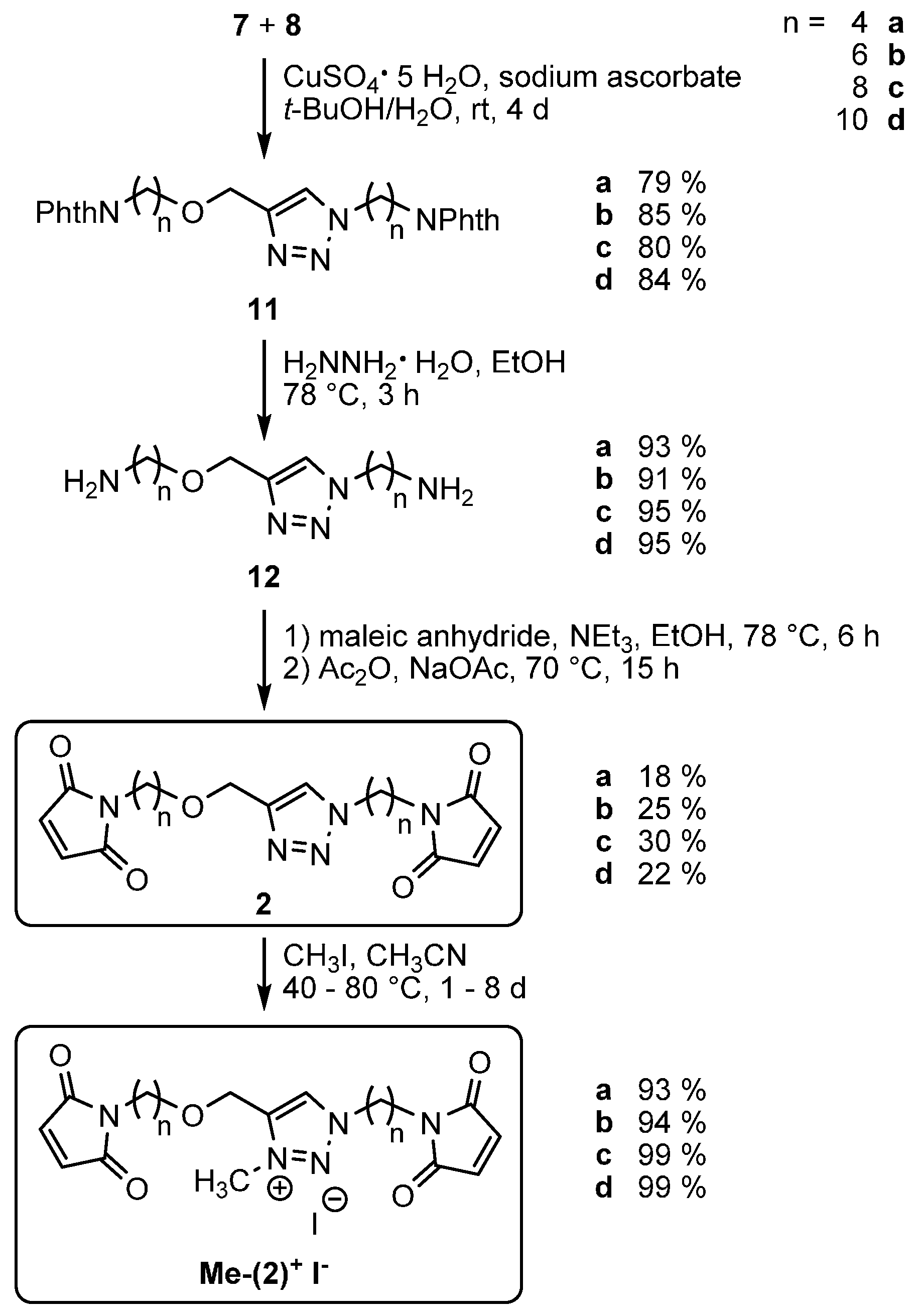

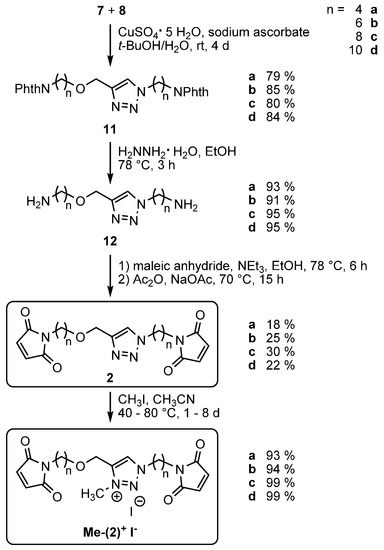

Scheme 2. Synthesis of the triazole cross-linkers 2 and Me-(2)+ I.
Scheme 2. Synthesis of the triazole cross-linkers 2 and Me-(2)+ I.
Materials 09 00810 sch002

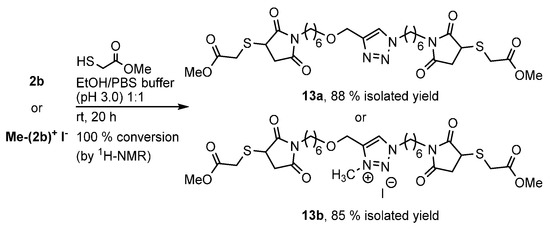

Scheme 3. Proof-of-concept thio-Michael addition reaction of 2b and Me-(2b)+ I with methyl thiogylcolate.
Scheme 3. Proof-of-concept thio-Michael addition reaction of 2b and Me-(2b)+ I with methyl thiogylcolate.
Materials 09 00810 sch003

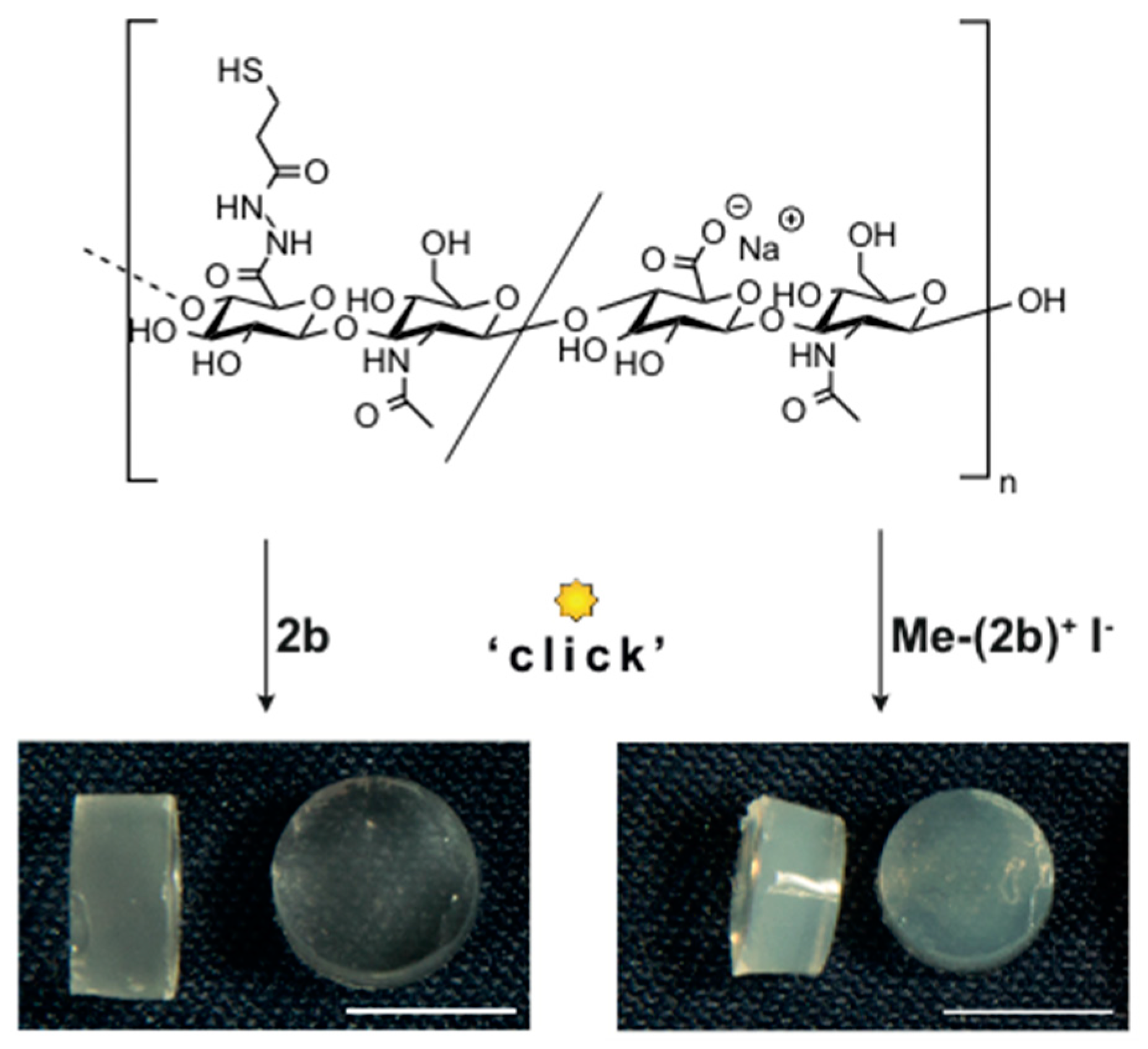

Figure 2. Form-stable, semi-opaque hydrogels can be obtained with, e.g., bismaleimidotriazole cross-linker 2b and Me-(2b)+ I and statistically thiolated hyaluronan. Here, we employ hyaluronan with an average weight of 125 kDa (HA125-SH40), corresponding to an average number of 330 disaccharide monomers. Scale bars represent 0.5 cm.
Figure 2. Form-stable, semi-opaque hydrogels can be obtained with, e.g., bismaleimidotriazole cross-linker 2b and Me-(2b)+ I and statistically thiolated hyaluronan. Here, we employ hyaluronan with an average weight of 125 kDa (HA125-SH40), corresponding to an average number of 330 disaccharide monomers. Scale bars represent 0.5 cm.
Materials 09 00810 g002
Table 1. Mechanical measurements of HA125-SH40-2a–c and HA125-SH40-Me-(2a–d)+ I hydrogels. The ratio of reacted thiols was determined by an adapted Ellman’s assay. All values represent mean and standard deviation of three different experiments. 1
Table 1. Mechanical measurements of HA125-SH40-2a–c and HA125-SH40-Me-(2a–d)+ I hydrogels. The ratio of reacted thiols was determined by an adapted Ellman’s assay. All values represent mean and standard deviation of three different experiments. 1
HydrogelSpacer Length nE-Modulus (kPa)Reacted Thiols (%)
HA125-SH40-2a414.60 ± 3.6085 ± 3
HA125-SH40-2b614.53 ± 7.0784 ± 2
HA125-SH40-2c81.16 ± 0.8583 ± 4
HA125-SH40-Me-(2a)+ I425.32 ± 10.0687 ± 4
HA125-SH40-Me-(2b)+ I612.15 ± 3.4185 ± 3
HA125-SH40-Me-(2c)+ I817.41 ± 8.6084 ± 3
HA125-SH40-Me-(2d)+ I1016.99 ± 8.9985 ± 4
1 The cross-linking of HA125-SH40 and neutral triazole 2d with spacer length n = 10 did not provide stable gels.
Table 2. Swelling ratios (wet weight/dry weight) and mesh sizes (in phosphate buffer solution (PBS)) of HA125-SH40-2a–c and HA125-SH40-Me-(2a–d)+ I hydrogels. All values represent mean and standard deviation of three different experiments. ddH2O: double-distilled water.
Table 2. Swelling ratios (wet weight/dry weight) and mesh sizes (in phosphate buffer solution (PBS)) of HA125-SH40-2a–c and HA125-SH40-Me-(2a–d)+ I hydrogels. All values represent mean and standard deviation of three different experiments. ddH2O: double-distilled water.
HydrogelSpacer Length nSwelling Ratio (PBS)Swelling Ratio (ddH2O)Mesh Size (PBS) (nm)
HA125-SH40-2a479.63 ± 1.16162.37 ± 45.1651.82 ± 26.31
HA125-SH40-2b630.22 ± 17.8368.89 ± 44.3661.52 ± 10.02
HA125-SH40-2c8100.58 ± 49.91208.85 ± 134.5755.81 ± 27.77
HA125-SH40-Me-(2a)+ I467.70 ± 5.79139.79 ± 28.1583.93 ± 9.64
HA125-SH40-Me-(2b)+ I649.47 ± 8.6398.05 ± 9.90157.84 ± 44.00
HA125-SH40-Me-(2c)+ I833.75 ± 5.7559.30 ± 13.1455.94 ± 8.59
HA125-SH40-Me-(2d)+ I1018.79 ± 4.1431.22 ± 9.1327.16 ± 6.77
