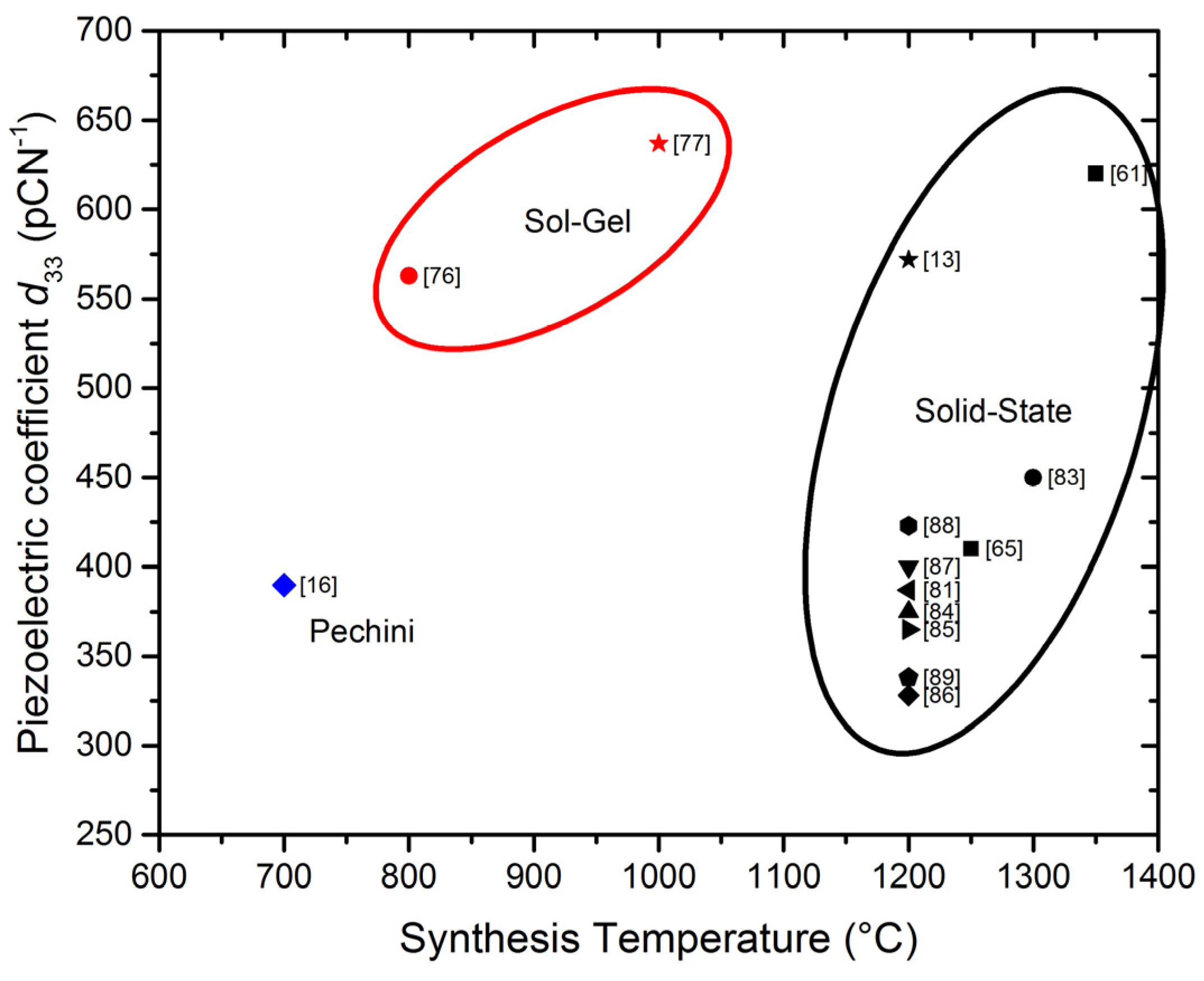

Next Article in Special Issue
Revisiting the Characterization of the Losses in Piezoelectric Materials from Impedance Spectroscopy at Resonance
Previous Article in Journal
Influence of Blended Cements with Calcareous Fly Ash on Chloride Ion Migration and Carbonation Resistance of Concrete for Durable Structures
Previous Article in Special Issue
Ferroelectrics under the Synchrotron Light: A Review


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

Towards Lead-Free Piezoceramics: Facing a Synthesis Challenge

1
Instituto de Investigaciones en Materiales, Universidad Nacional Autónoma de México, Ciudad Universitaria, Circuito Exterior S/N, A.P, México D.F. 70-360, Mexico
2
Departamento de Química Inorgánica, Facultad de Ciencias Químicas, Universidad Complutense, Madrid 28040, Spain
3
Instituto de Ciencia de Materiales de Madrid (ICMM), CSIC, Sor Juana Inés de la Cruz, 3. Cantoblanco, Madrid 28049, Spain
*
Author to whom correspondence should be addressed.
Materials 2016, 9(1), 21; https://doi.org/10.3390/ma9010021
Submission received: 30 October 2015 / Revised: 27 November 2015 / Accepted: 17 December 2015 / Published: 2 January 2016
(This article belongs to the Special Issue Piezoelectric Materials)

Abstract

:
The search for electroceramic materials with enhanced ferro-pyro-piezoelectric properties and revealing the perovskite type structure has been the objective of a significant number of manuscripts reported in the literature. This has been usually carried out by proposing the synthesis and processing of new compounds and solid solution series. In this work, several methods to obtain ferro-pyro-piezoelectric families of materials featuring the well-known ABO3 perovskite structure (or related) such as BaTiO3, Ba1–xCaxTi1–yZryO3, (Bi0.5Na0.5)TiO3, (K0.5Na0.5)NbO3 and their solid solutions with different cations either in the A or B positions, are presented. For this kind of materials, the challenge for obtaining a single phase compound with a specific grain size and morphology and, most importantly, with the adequate stoichiometry, will also be discussed. The results reviewed herein will be discussed in terms of the tendency of working with softer conditions, i.e., lower temperature and shorter reaction times, also referred to as soft-chemistry.

Graphical Abstract

1. Introduction

Ferroelectrics with perovskite type structure (Figure 1) are important materials used to produce piezoelectric ceramics for applications in sensors, actuators, motors, resonators, etc. [1,2,3]. The most widely used piezoelectric ceramics for those applications are those based on the lead titanate zirconate xPbTiO3-(1−x)PbZrO3 solid solution, also known as PZT, because of the advantages derived from their good properties and the wide possibilities for modifying their structure and properties by numerous dopants [4,5]. During the last two decades [6], and due to the increasing importance of environmental protection, due to the high toxicity of lead and lead oxide, a great number of countries in all continents have legislated to replace this material, which sparked intense research on lead-free piezoelectric ceramics. Some objectives of industrial transference of these materials have already been achieved, whereas some basic problems remain unsolved [7]. In analogy to the characteristics of the PZT phase diagram, which presents a Morphotropic Phase Boundary (MPB), between tetragonal and rhombohedral phases, where the electromechanical properties exhibit an improvement, a lot of studies have been made in order to find MPB in different ceramic systems [8,9,10,11,12,13].

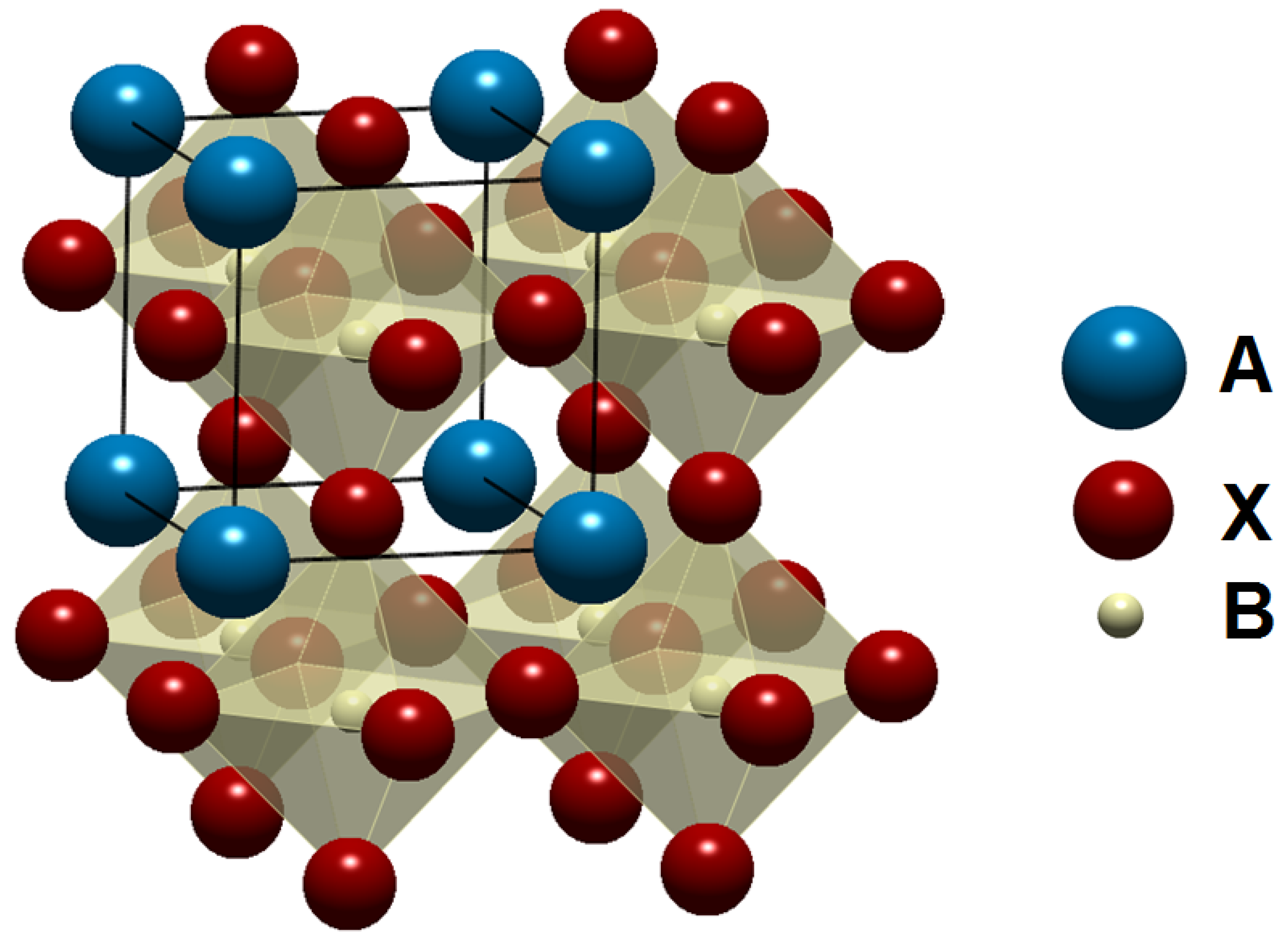

Figure 1. Cubic prototype perovskite structure. Usual cations in lead-free piezoceramics: A = Ba2+, Ca2+, Bi3+, Na+K+; B = Ti4+, Zr4+, Nb5+; X = O2−.
Figure 1. Cubic prototype perovskite structure. Usual cations in lead-free piezoceramics: A = Ba2+, Ca2+, Bi3+, Na+K+; B = Ti4+, Zr4+, Nb5+; X = O2−.
Materials 09 00021 g001
Worth noting, from a chemical point of view, the synthesis and processing of these materials is not simple and some challenges are yet to be faced. Stoichiometric control, search for MPB, softer synthesis conditions, adequate grain size, adequate ferroelectric domain size and distribution, sintering conditions, and scalability and cost for industrial transfer are among the main challenges.
First of all, stoichiometric control is difficult to achieve when volatile species, such as Bismuth or alkaline metal oxides, are involved. To solve this problem, softer conditions of synthesis are needed and in this connection wet chemistry methods, such as sol-gel [14], Pechini [15,16], hydrothermal [17,18], etc. are useful. Worth mentioning, microwave assisted methods are nowadays gaining interest because they offer many advantages and are amenable to industrial transfer [19,20,21]. Obviously, the complexity of many of the most interesting compositions makes it quite difficult to obtain single phase, homogeneous materials and careful examination of the corresponding phase diagrams is necessary to design the synthesis routes.
Moreover, as stated above, MPB are crucial for obtaining piezoelectric properties and searching for similar MPB, as PZT is a key issue in finding suitable new compositions. Structural and microstructural characterization near the MPB composition is a delicate task due to the coexistence of crystal symmetries [9].
Regarding the enhancement of the electromechanical properties, a lot of work has been done looking for nanomaterials [22]. Nevertheless, nano-sized grained ceramics do not present the optimal piezoelectric properties. This is due to the difficulty in the application of a DC electric field to align the spontaneous polarization, the so-called poling process. Poling is needed to induce piezoelectricity in the ceramics. However, properly sintered nano-sized powder results on fine-grain and dense ceramics. Due to their homogeneous microstructure [23], they have good piezoelectric performance. In this regard, microwave sintering can be achieved at lower temperatures in shorter times, which promotes fine-grain.
The performance of ceramics, from an application point of view, is evaluated through different parameters. In this work, we will consider the following parameters: dij(piezoelectric charge constant), which indicates the ratio of the output strain (j-axis) under an electric field input (i-axis); and kij (electromechanical coupling factor), which shows the efficiency of the material in the conversion of electrical energy into mechanical energy. The factor kp expresses coupling for the planar resonance of a thin disk of ceramic, thickness poled. Dielectric permittivity, ɛTij, and dielectric dissipation factor (or loss tangent, tan δ) are also parameters of interest, currently measured at 1 kHz. One of the main properties of ferroelectrics is the temperature dependence of the permittivity that increases up to a maximum value (lambda curve) at the phase transition to the high temperature paraelectric, non-polar, phase. The Curie temperature (TC) is calculated from the inverse of the permittivity (1/ɛTij) vs. temperature curve. TC is the intersection with the T-axis of the linear fit of (1/ɛTij) above the transition. The piezoelectric performance vanishes at the transition temperature, which limits the range of applications of the material.
There are lead-free ferroelectrics with higher spontaneous polarization than lead-titanate (>100 μC/cm2). We can mention BiFeO3 [24] among others [25], which are very promising for use as piezoelectrics. A number of problems remain to be solved for industrial applications (e.g., the control of the electrical resistivity or special conditions of stability).
Other interesting materials are the bismuth layered structured ferroelectrics (BSLF), highly competitive with PZT at high temperature (>200 °C), but with poor performance at room temperature [26].
Among the lead free piezoelectric materials studied in the last years, four groups will be analyzed here: BaTiO3 (BT), Ba1−xCaxTi1−yZryO3 (BCZT), (Bi0.5Na0.5)TiO3 (BNT) and (K0.5Na0.5)NbO3 (KNN), because their properties are already competitive with those of PZT for similar applications. A number of recent reviews in the literature [27,28,29] and a book [30] focused on their properties can be recommended to the reader.

2. BaTiO3 (BT)

Barium titanate, the first ferro-piezoelectric oxide with perovskite structure, has been continuously studied and used since the 1940s when discovered [31] within the context of Second World War; actually, it was the first ferroelectric material without hydrogen bonding [32]. It is an archetypical electroceramic widely used in the capacitors industry for its exceptional properties: very high dielectric constant, high quality factors and low temperature coefficient of the dielectric constant. Worth noting, several structural phase transitions (Figure 2) occur when changing the temperature: cubic (above 120–135 °C), tetragonal (between 120 °C and 125 °C), orthorhombic (between 5 °C and −90 °C) and rhombohedral (below −90 °C). Because of the high symmetry, the cubic phase of barium titanate exhibits paraelectricity and an isotropic dielectricity albeit with a high dielectric constant. Below the Curie temperature (120–135 °C), the crystal structure transforms to the distorted tetragonal which causes a spontaneous polarization and a ferroelectric and piezoelectric behavior [33,34]. However, the low Curie temperature reduces the range of applications. Regarding its piezoelectric properties, it has a high electromechanical coupling factor, k33 ≈ 0.50, and piezoelectric strain constant, d33 ≈ 190 pC/N and, among other applications, it has been used in sonars. Nevertheless, the performances as piezoelectric material are well below those of PZT, and this has been the main obstacle for wider applications as actuators and sensors. Nowadays, because BT is the simplest lead-free piezoelectric ceramic, many data are available and some new piezoelectric materials present a similar crystal structure, much work is being carried out. New methods of synthesis are tested in order to improve BT piezoelectric performance. Much of this effort is made looking for nanocrystalline BT powders which will be further sintered and the results so far obtained indicate that BT (or related) ceramics possess high potential for being used as lead-free piezoelectric materials [7].
The most commonly used method for BT synthesis is the conventional ceramic route (Figure 3) using BaCO3 and TiO2 as raw materials which are heated at 600–800 °C for 1–2 h and sintered at 900–1350 °C for 2–4 h in air [8]. This method is simple and easy: the reactants must be carefully mixed and high temperature must be applied in order to obtain a homogenous powder.
These high temperature conditions provoke grain growth; the resulting microstructure has a wide grain-size distribution, some degree of porosity is always present, and secondary phases, such as Ba2TiO4 and others, may be formed. Thus, although widely used, the ceramic route has many drawbacks and BT ceramics are not competitive for piezoelectric applications. However, recently, as an example of careful work, high piezoelectric properties and adequate domain configuration in BaTiO3 ceramics obtained through the solid-state reaction route have been reported by Shao, et al. [35]. These authors report a significant improvement of the piezoelectric properties of BT obtained by the solid state method (1130 °C for 4 h.), as a function of the sintering temperature and grain size, the best results (d33 = 419 pC/N; kp = 0.453 and tanδ = 1.36% at room temperature) being obtained at a sintering temperature of 1210 °C with average domain width in the poled BT of about 240 nm and a decrease of the grain size down to 2μm.

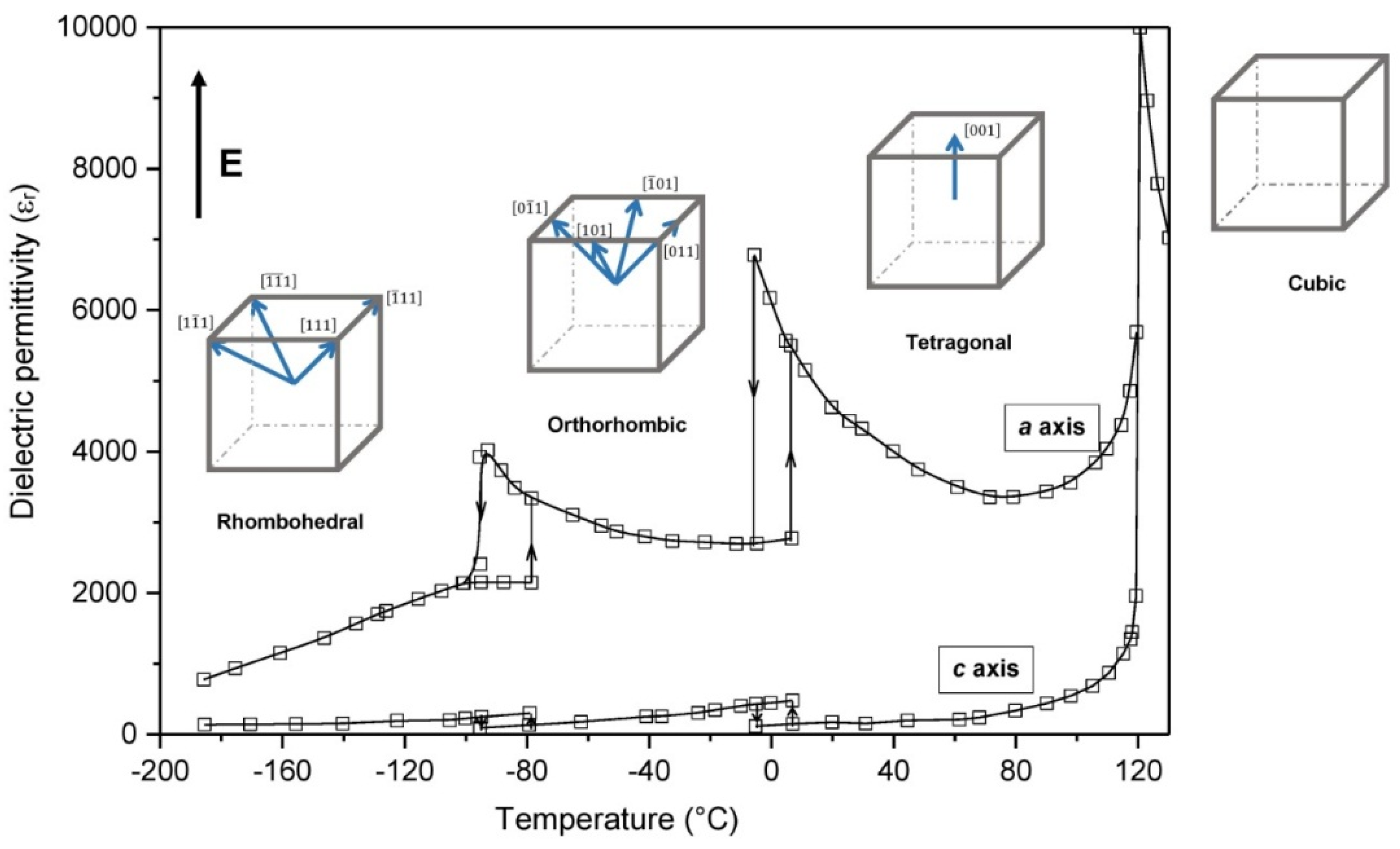

Figure 2. Phase transition temperatures at the dielectric permittivity curves of BaTiO3 and equivalent polar directions under an applied electric field (E) for the polymorphic phases related to the cubic prototype perovskite structure.
Figure 2. Phase transition temperatures at the dielectric permittivity curves of BaTiO3 and equivalent polar directions under an applied electric field (E) for the polymorphic phases related to the cubic prototype perovskite structure.
Materials 09 00021 g002
Owing to the above mentioned drawbacks of the ceramic method, a great effort is being devoted to the development of new methods [36,37]. Noteworthy, alternative, lower temperature synthetic methods such as coprecipitation (Figure 3), sol-gel, Pechini (Figure 4), hydrothermal, microwave-assisted (Figure 5), etc., are being explored aiming at the preparation of high purity nano-powders with controlled stoichiometry and better sinterability and, consequently, better and reproducible quality. Once the BT submicron or nano-powders are obtained, sintering conditions are an important issue which strongly affects the properties as they correlate with the final grain and ferroelectric domain sizes [38,39]. Starting with the sol-gel processes, wet synthesis routes, using different precursors such as acetate, stearate [40], nitrates [41] and oxide [42] for barium and titanium (IV) alkoxides (i.e., Ti-isopropoxide) as the source for titanium are employed; organic alcohols are the reaction media [43]. It is recognized that the sol-gel method is complex and involves several steps—hydrolysis, condensation, drying and calcination—and the final properties will be affected by changes made during the entire process (i.e., concentrations, pH, temperature, time, etc.). A common challenge for this kind of sol-gel methodology is the agglomeration of nanoparticles, and some authors claim that, by using surfactants such as oleic acid, this problem can be overcome and tetragonal BT can be obtained with room temperature permittivity higher than 3000 and 98.5% density [44]. Precipitation methods from aqueous solutions of inorganic compounds such as precursors Ba(OH)2 and TiCl4 can also be used and, interestingly, the concentration of Ba2+ ions has a strong influence on the particles homogeneity and crystallite size [45,46].
Some authors report on the kinetics and mechanism of this direct reaction [47]. In this connection, an ambient condition sol process (ACS), which produces nanocrystalline cubic phase has been reported [48]. With a different approach but the same goal, an electrochemical route has been explored, using Ti metal plate in KOH and Ba(OH)2 aqueous electrolyte with absolute ethanol, nanoparticles of the cubic phase being obtained [49]. The permittivity and the dielectric loss values, measured as a function of the sintering temperature change, for BaTiO3 synthesized from various salts (NO3, Cl and acetates), has been reported, with the highest permittivity value being found for samples prepared from Cl salts, with the smallest particle size and a 1250 °C sintering temperature. Although, the role of the anions is not well understood. Since the search for lead-free ceramics is driven by environmental concerns, a comment on the various levels of toxicity of the precursors in these methods must be added here and, consequently, all mentioned routes cannot be considered in the same manner.

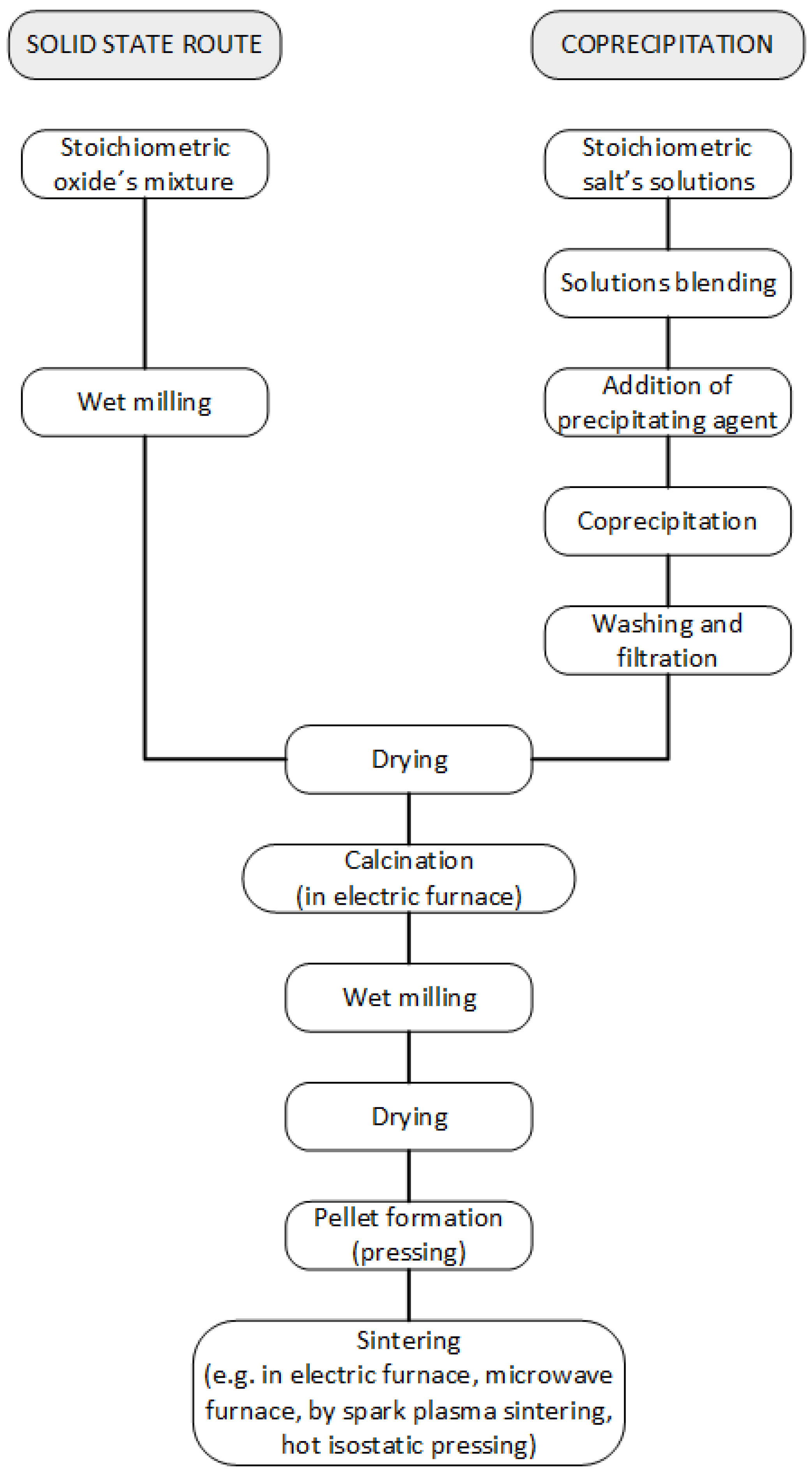

Figure 3. Flux diagram of the conventional route for processing piezoelectric ceramics and alternative coprecipitation route.
Figure 3. Flux diagram of the conventional route for processing piezoelectric ceramics and alternative coprecipitation route.
Materials 09 00021 g003
Another wet method with considerable success is the hydrothermal synthesis (Figure 5) due to its ability to provide highly pure and crystalline powders. Actually, hydrothermally made BT is already of commercial use and some companies such as Sakai Chemical Industry Co., Ltd. (Osaka, Japan) and Toda Industry (Ho Chi Minh, Vietnam) provide high quality powders of 0.1 μm grain size. Hydrothermal synthesis is carried out in closed vessels (usually made in stainless steel and lined with Teflon) at temperatures between 80 °C and 240 °C and with autogenous pressure [17]. Therefore, the method is a low temperature, low energy one, and it is “environmentally benign” since the synthesis is accomplished in a closed system from which different chemicals can be recovered and recycled. Nonetheless, working in sealed conditions provides a CO2-free environment, which avoids BaCO3 formation, a common impurity. For the synthesis of BT, barium hydroxide or soluble barium salts are used as the source of barium and anatase, or amorphous TiO2 hydrated gels are used as the source of titanium in the presence of concentrated hydroxide ion; mixed precursors such as Ba-Ti acetate can also be used. These procedures usually result in submicron cubic BT—the paraelectric form—at room temperature which need to be heated afterwards at higher temperatures of 800–1100 °C to obtain the ferroelectric tetragonal form. Hydrothermal synthesis, when performed at low temperatures (95 °C) using BaCl2 and anatase in basic NaOH solution, always yields the cubic form while working at higher temperatures (240 °C) with BaCl2 and hydrous titanium oxide (prepared by hydrolyzing titanium isopropoxide with hydrochloric acid) resulting in the tetragonal form. In this regard, some authors conclude that the powder obtained from BaCl2 and TiCl4, with 80 nm particle size and 40% tetragonal content, has the highest dielectric permittivity (6200) and the lowest dielectric loss [49]. Interestingly enough, it seems that hydrothermally made powders of BaTiO3 may contain large amounts of protons in the oxygen sublattice and these defects are compensated by vacancies on metal sites; by annealing the powder at T < 600 °C water is released and the point defects disappear [18].

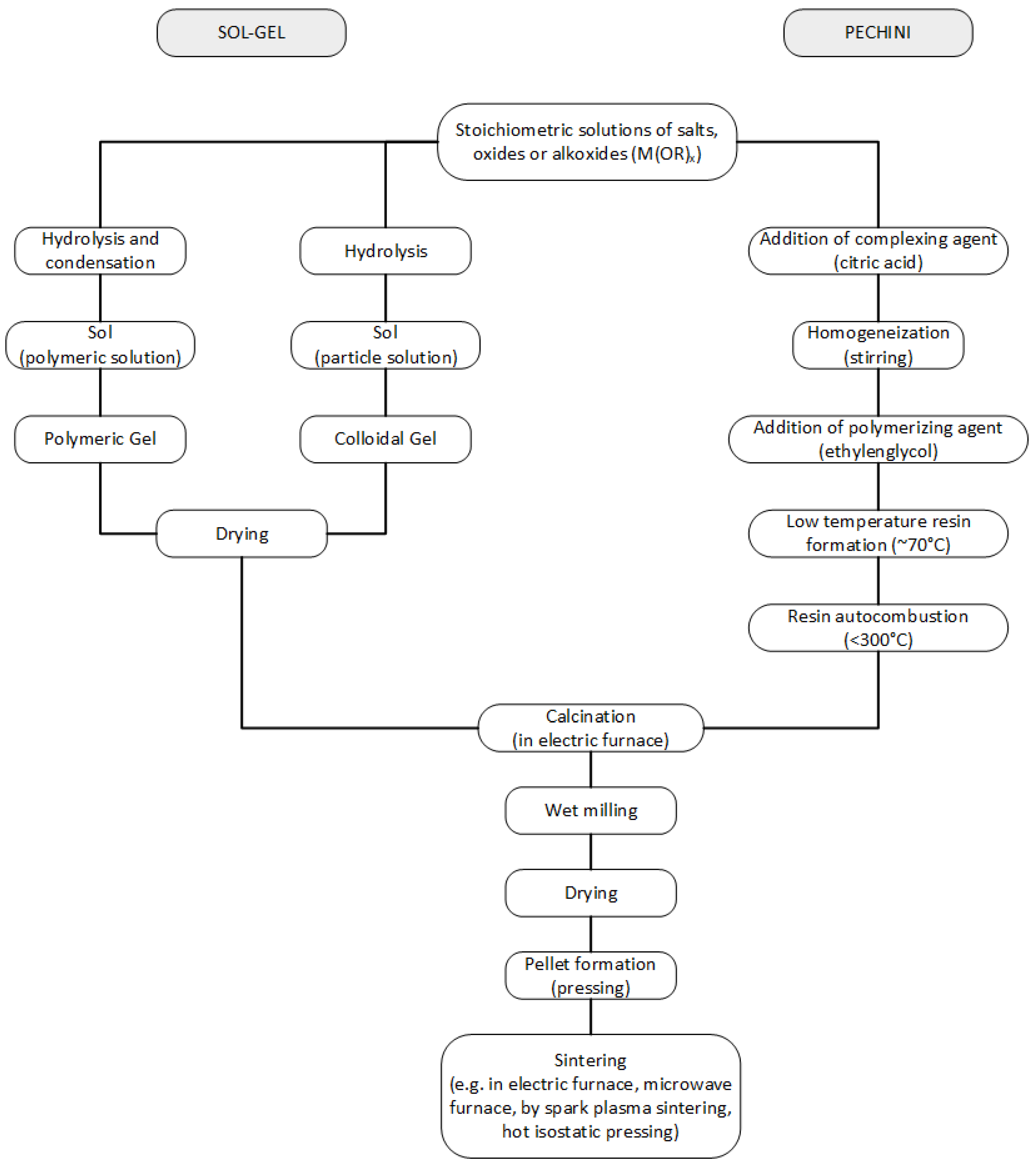

Figure 4. Flux diagram for sol-gel and Pechini synthesis methods.
Figure 4. Flux diagram for sol-gel and Pechini synthesis methods.
Materials 09 00021 g004

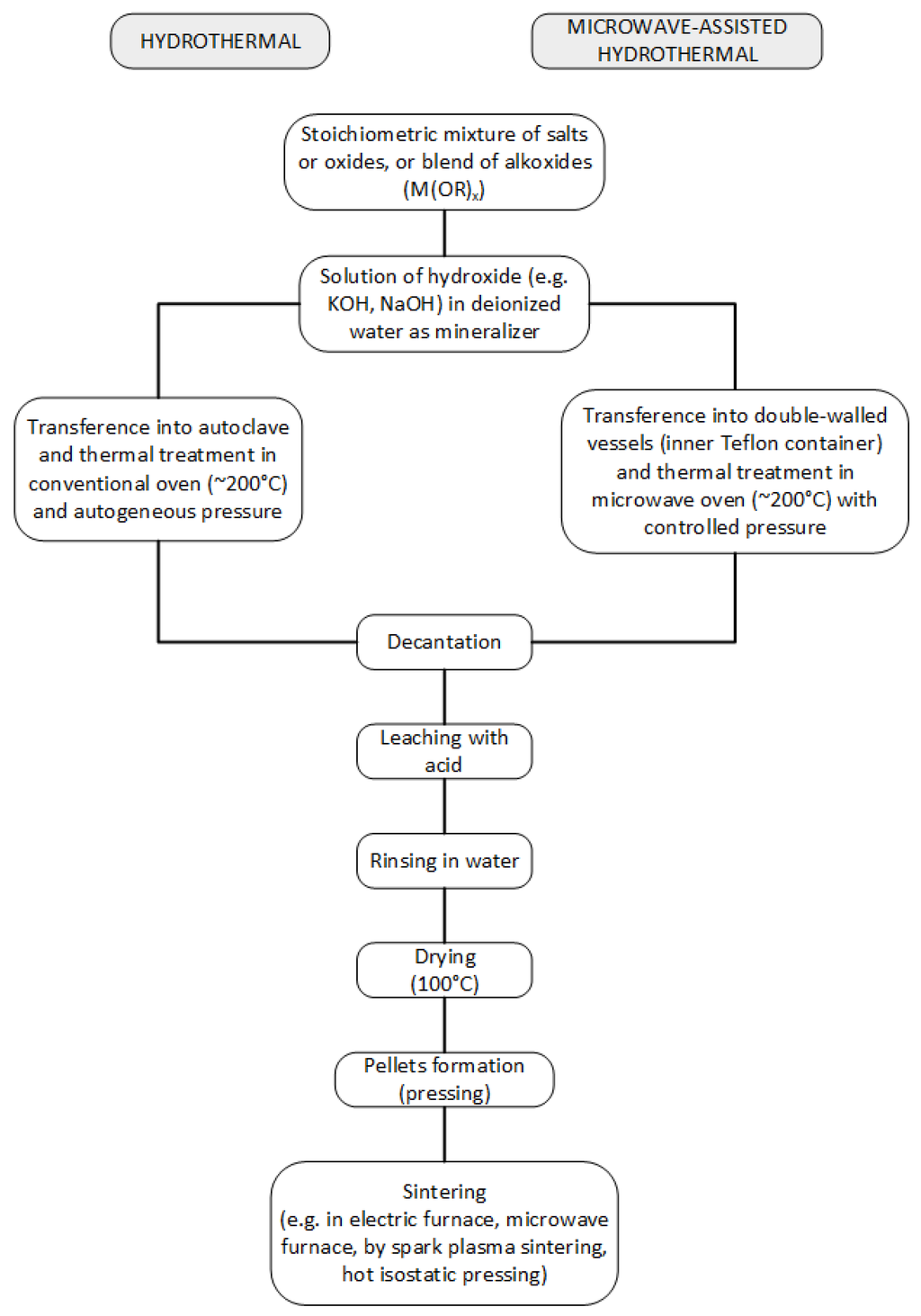

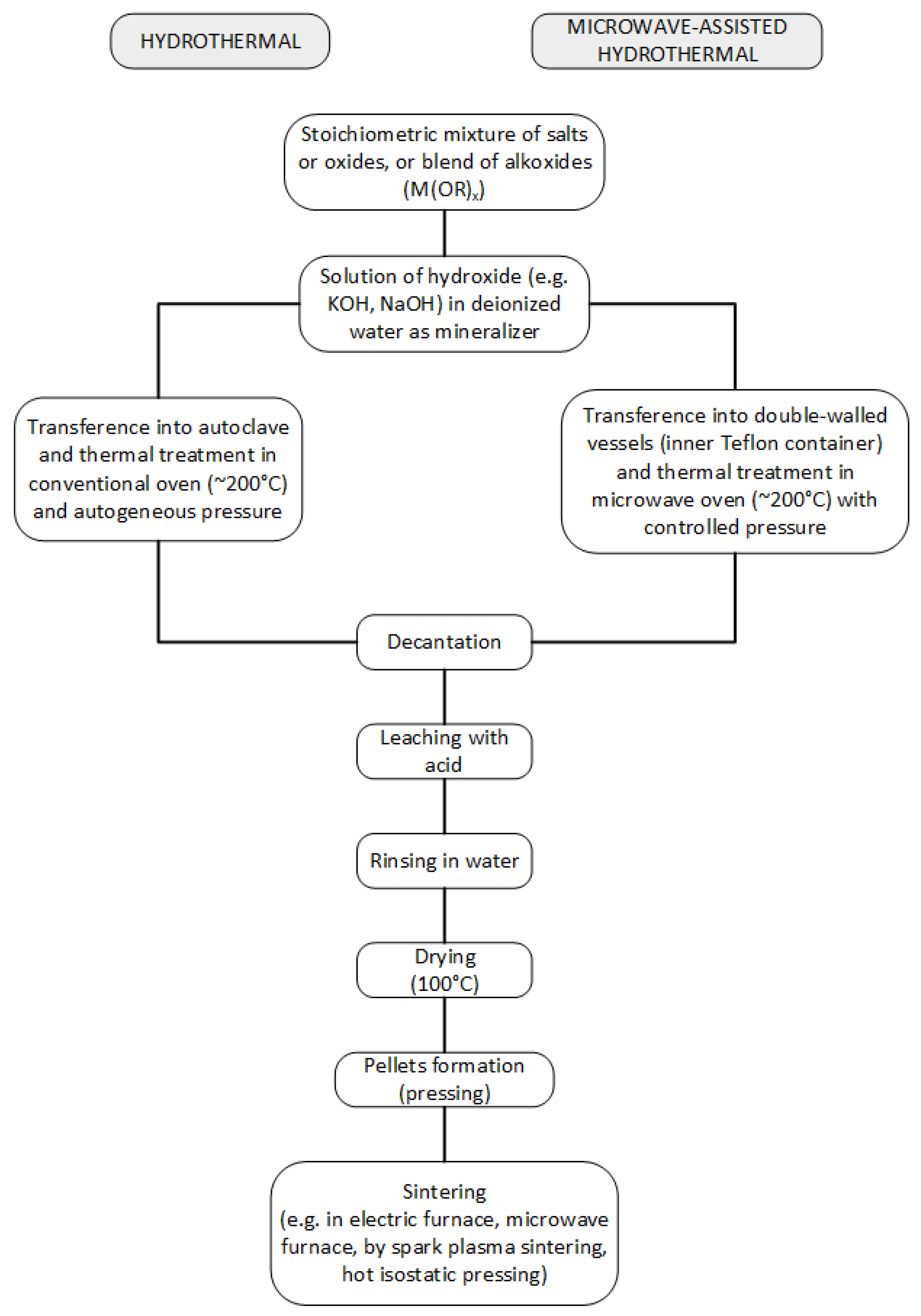

Figure 5. Flux diagram for hydrothermal and microwave assisted hydrothermal synthesis methods.
Figure 5. Flux diagram for hydrothermal and microwave assisted hydrothermal synthesis methods.
Materials 09 00021 g005
A variation of this method, the so-called microwave-assisted hydrothermal synthesis is becoming increasingly used since it has several advantages such as significantly lowering reaction times (minutes or hours rather than days), uniform nucleation of the powders in suspension, energy and cost efficiency among others [50]. Worth mentioning is the pioneering work that uses this methodology for a plethora of inorganic compounds, among them the barium titanate [19]: the microwave assisted hydrothermal synthesis (MW-HS) of BT was done at 138 °C with reaction time as low as 15 min, using barium nitrate, titanium chloride and KOH as starting chemicals [21,51]. Several works using laboratory-made microwave heating autoclaves (or domestic ovens) working at the usual frequency of 2.45 GHz were reported [52,53]. Nowadays, microwave furnaces with pressure, temperature and power control can be used. As starting materials Ba(OH)2 Ba(NO3)2, BaCl2, etc. can be used as source for barium and TiOCl2, TiCl4, etc., for titanium; different equimolar or slightly higher concentrated Ba2+ solutions are employed. The most common mineralizer used is KOH in different concentrations. Depending of the conditions, particles ranging from 0.1–0.5 and submicron-sized equi-axed BaTiO3 particles with monosized distribution are obtained [54,55,56,57]. Worth mentioning, microwaves can also be employed for sintering the ceramic powders previously obtained and pelletized.
The sintering process plays an important role in the BaTiO3 properties and many works have reported the influence of the conventional sintering process and the microwave sintering on the materials properties. As it is well-known, microwaves interact readily with polar species producing heat and this is the case of dielectric materials such as BT which will absorb the radiation in a very efficient way. As many authors point out, it is difficult to prepare BaTiO3 dense ceramics via the conventional sintering process even if nano-powders are used [57]. The nano-sized particles have the tendency to form agglomerates that cause defects on the microstructure. In samples prepared by the Pechini route, a two-step sintering method, first at 1300 °C, then cooled down and held at 1100 °C for 0–20 h, results in much greater dielectric permittivity than that of the normal sintering method [57]. The reported piezoelectric properties changed with the synthesis method from 190 pC/N, obtained by the conventional solid state route to 350 pC/N in samples synthesized by hydrothermal method and afterwards microwave sintering at 1300 °C [58]. The authors attributed the high d33 value to the sintering density (98.3%), the appropriate grain size: 3.1–3.4 μm and the high dielectric constant over 4000. Worth noting, the same authors correlate the excellent piezoelectric performance of the microwave sintered BT with the microstructure (grain boundaries and domains size) as observed by different microscopic techniques: the size of the ferroelectric domains is less than 50 nm and the fraction of random boundaries is approximately 10% higher than that of conventionally sintered samples. This work has been followed by more recent papers using microwaves both for the synthesis and the sinterization (at 1150 °C/30 min.) with similar piezoelectric properties [59,60].
To conclude this part we can state that barium titanate BT, which piezoelectric properties are not competitive with in comparison to PZT, is now coming under focus since it is a lead-free ferro-piezoelectric, the properties of which are being improved by using alternative methods of synthesis, many of which need lower temperatures and yield nanomaterials. The adequate sintering of these nanomaterials results in improved piezoelectric properties. Worth noting is the use of microwave-assisted methods (both for synthesis and sintering), and, last but not least, all the work performed in barium titanate, could in principle, be extended to BT-derived materials, such as the solid solutions between Bi0.5Na0.5TiO3 and BaTiO3 and others.

3. BaTiO3-BaZrO3-CaTiO3 (BCZT)

To enhance the piezoelectric and dielectric properties, many BaTiO3-based solid solutions with different A-site and B-site dopants (where, typically, A = Ca, Sr, La; B = Nb, Ta, Zr) are used. Especially Ca2+ and Zr4+ doping, hereinafter called Ba1−xCaxTi1−yZryO3 , have been the focus of numerous publications after a high piezoelectric coefficient (d33 = 620 pC/N) was reported for Ba0.85Ca0.15Ti0.90Zr0.10O3, i.e., within the pseudo-binary solid solution system (1−w)Ba(Ti0.80Zr0.20)O3-w(Ba0.70 Ca0.30)TiO3 for w = 0.50 [61] (Figure 6). This composition stays at the vicinity of a tricritical point of this system, in the frontier of the high temperature cubic non-ferroelectric phase, with the two ferroelectric ones, rhombohedral and tetragonal phases. It has been shown that cubic phase coexists with the two ferroelectric ones, greatly enhancing the polarizability of the ceramic. The low TC ≈ 93 °C, high synthesis (1300 °C for 2 h) and sintering (1450 °C for 3 h) conditions, not suitable for industrial production, and the subsequently large grain structures are among the drawbacks that exist in this composition. Microstructures with average grain size > 10 µm obtained to date are not optimized for the present trend of device miniaturization. This feature is therefore important in order to increase the frequency range of the ultrasonic transduction. Therefore, strategies to reduce the synthesis and sintering temperatures are needed for processing routes towards sub-10 µm grain size ceramics. Most of the work has been carried out following the solid state synthesis route, and the role of dopants and substitutions [14,15,61,62,63], the processing related ceramic microstructure [64,65,66,67], resulting in strong changes in the piezoelectric coefficient for the same composition (Figure 6), and the poling process [68] have been the current topics of this research line.

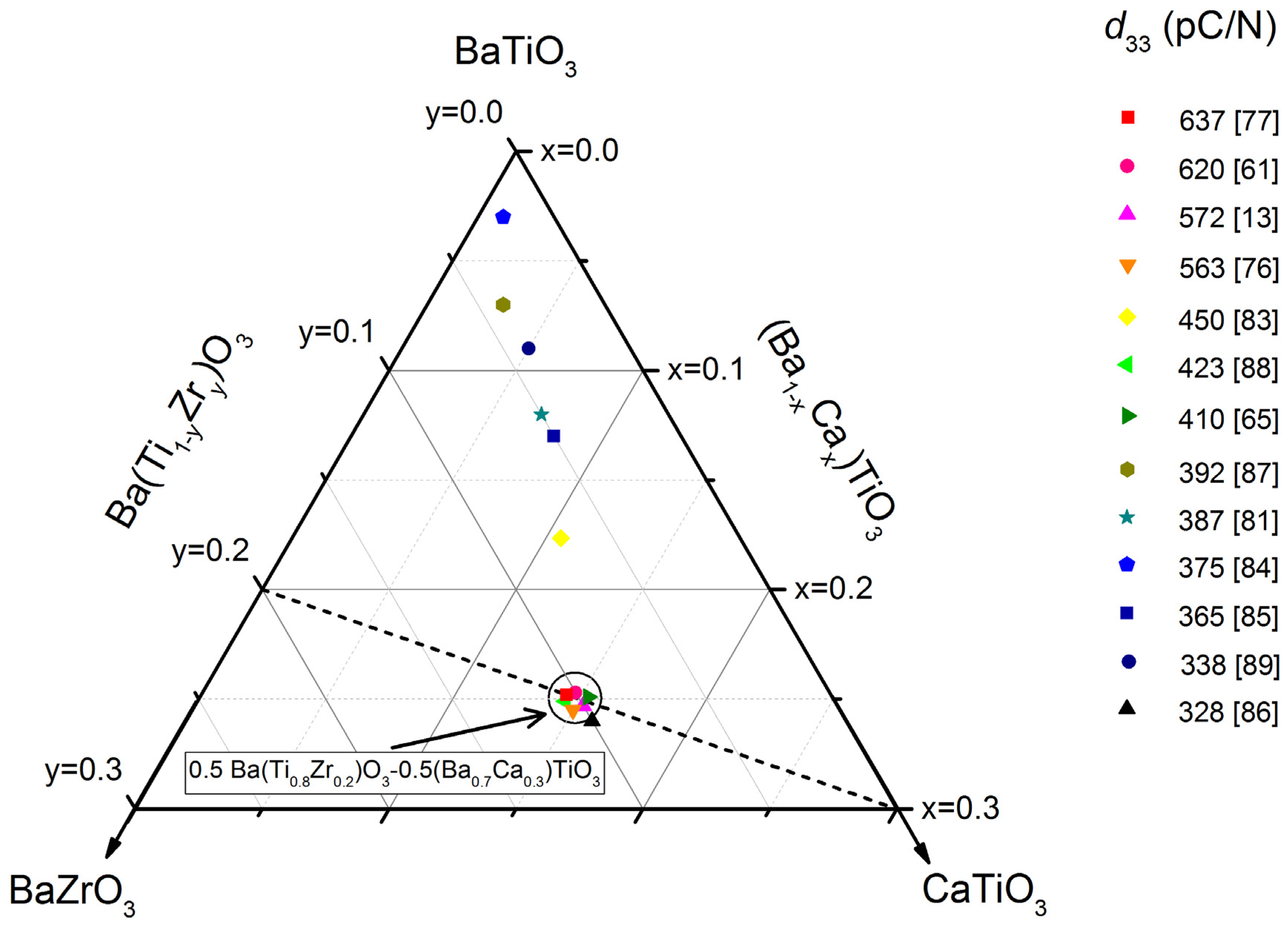

Figure 6. Ternary diagram for the system BaTiO3-BaZrO3-CaTiO3. Piezoelectric d33 coefficient values for studied compositions are shown. The corresponding references are also shown in brackets.
Figure 6. Ternary diagram for the system BaTiO3-BaZrO3-CaTiO3. Piezoelectric d33 coefficient values for studied compositions are shown. The corresponding references are also shown in brackets.
Materials 09 00021 g006
As for the BaTiO3-CaTiO3 binary system, the addition of Ca2+ into the site A of BaTiO3 increases the stability temperature range of the tetragonal phase [69] by shifting to lower values the ferroelectric(FE)-rhombohedral (R) to the FE-orthorhombic (O) (T1) and the FE-orthorhombic (O) to the FE-tetragonal (T) (T2) FE-FE phase transition temperatures. Following the same strategy, it was recently shown that an amount of 0.06 < x < 0.10, enhances the dielectric and piezoelectric properties of the Ba(Ti0.94Sn0.03Zr0.03)O3 lead-free ceramics [70] without the drawback of reducing the Curie temperature (TC) of the FE-tetragonal (T) to paraelectric (PE)-cubic transition.
As for the BaTiO3-BaZrO3 binary system, the substitution of Zr4+ into the B site produces an undesired reduction of Tc, while T1 and T2 increase at different rates. For y = 0.15, three ferroelectric phases (R, O and T) coexist near room temperature. It was expected at the pinched point a great polarizability, similar to the one at the morphotropic phase boundary of the PZT; however, no ferroelectric and piezoelectric improvement was achieved. This was probably due to the degradation of ferroelectricity. Furthermore, the ceramic shows broad dielectric peaks with frequency dispersion, i.e., ferroelectric relaxor behavior with increasing Zr4+ concentration (y > 0.25) [71,72].
Some works have been focused on increasing TC (up to 114 °C) at the expense of the piezoelectric performance (less than 450 pC/N) by changing the composition to (1−w)Ba(Zr0.15Ti0.85)O3-w(Ba0.7Ca0.3)TiO3 with w = 0.53 (i.e., Ba0.84Ca0.16Ti0.93Zr0.07O3), and still sintering at 1450 °C for 3 h [73]. In order to reduce processing temperatures and times, using conventional ceramic technology, one option is to add CeO2 [74] or MnO [75]. Also, LiF, Ga2O3 and Y2O3 have been added to BCZT ceramics with sintering temperatures ranging from 1350–1500 °C and d33 over 360–440 pC/N were obtained.
Microstructural effects in the properties were also examined in Ba0.85Ca0.15Zr0.1Ti0.9O3 ceramics processed by wet chemistry [76]. The average grain size associated with this samples was 30 μm accompanied by higher domain density mostly with 90° twinning d33 as high as 563 pC/N were obtained. However, in order to avoid the mechanical instability associated with high grain size, in a recent work [65] it was possible to obtain Ba1xCaxTi0.9Zr0.1O3 (x = 0.10, 0.15) ceramics by solid-state synthesis using a reduced treatment at 1250 °C (2 h) and different sintering temperatures (1300, 1350, 1400 °C for 2 h) to minimize the grain size (<10 μm) while keeping good piezoelectric properties (d33 = 410 pC/N).
A recent work [63] compares the properties of BCZT obtained by solid state reaction and by hydrothermal synthesis route followed by microwave sintering. The compounds synthesized by the solid state method showed high permittivity, while those prepared by the hydrothermal route exhibited an improvement in their ferroelectric and piezoelectric properties. The hydrothermal samples showed a relatively smaller and homogeneous grain size (∼100 nm) than the solid-state samples (∼800 nm). Also, a sol-gel method was proposed [14], but no properties were reported in this work. However, the best d33 have been recently obtained in ceramics processed by sol-gel synthesis [77].
As an alternative to conventional solid state synthesis and in order to reduce the processing temperatures, the Pechini method has been recently used to obtain BCTZ ceramic materials [15]. This technique is based on having individual cations complexed with poly-functional organic acids (citric acid is preferred) and a polyhydroxyl alcohol (commonly ethylenglycol). The effectiveness of this method is maintaining ions mixed at atomic level when they form a polymer resin after heating around 80–110 °C. This resin can be calcined at low temperature (500–800 °C) to produce very fine powders with narrow crystal size distribution. Dense ceramics (95%–98% theoretical density) were obtained [16] using low sintering conditions (1200 °C, 1250 °C, 1275 °C for 5 h) with TC = 118 °C. The best piezoelectric properties were obtained for the ceramic sintered at 1275 °C (d33 = 390 pC/N, d31 = 143 pC/N, kp = 50%).
The sintering parameters are important factors which determine the grain size and then the compound properties: temperature, dwell time [78], soaking time [79], and process [80]. Several authors proposed an optimal sintering temperature at 1400–1450 °C for obtain better piezoelectric properties, W. Li reports a BCZT with d33 = 387 pC/N [81]. Wu, et al. obtained a d33 = 442 pC/N and kp = 48.9% in a BCZT ceramic sintered at 1440 °C, with improved electrical properties in the MPB composition, with the coexistence of rhombohedral and tetragonal phases [82]. Some authors [73] compared three sintering methods: spark plasma, two-step and normal sintering to obtain dense ceramics with different grain sizes. With grain size up to more than 10 µm, samples exhibit excellent piezoelectric properties: d33 > 470 pC/N and kp > 0.48, whereas in samples with grain size of 0.4 µm, the piezoelectric properties are rather poor: d33 ~ 72pC/N, kp ~ 0.13. Alternatively, a microwave sintering on the samples prepared by the two different methods mentioned above [63] was proposed, the combination of hydrothermal synthesis and microwave sintering gave samples with better dielectric relaxation, ferroelectric properties and d33, while the permittivity is lower.
The sintering process and temperature determine the grain size and then the material properties. Poling conditions (electric field and the temperature) must be taken into account. An enhanced piezoelectric behavior of d33 = 637 pC/N, kp = 0.56 is obtained for the Ba0.85Ca0.15Ti0.90Zr0.10O3 ceramics synthesized by sol-gel when poled at 40 °C with 40 kV/cm field [77]. Table 1 summarizes the mentioned and some other relevant works [83,84,85,86,87,88,89] published on this solid solution series. The synthesis route and sintering temperatures as well the properties TC, εT33, d33 and kp and the grain sizes are shown.
Table 1. Some results of the publications in the system BaTiO3-BaZrO3-CaTiO3.
Table 1. Some results of the publications in the system BaTiO3-BaZrO3-CaTiO3.
Composition (%)Synthesis MethodSynthesis (T (t)) (°C (h))Sintering (T (t)) (°C (h))Grain Size (μm)εT33/tan δ (%) (at RT)TC (°C)d33/kp (pCN−1/%)Reference
Ba(Ti0.8Zr0.2)O3-x(Ba0.7Ca0.3)TiO3x = 0.00−1.00Solid State1350 (–)1450–1500 (–)2500–3060/–20–80200–620/–[61]
Ba(Zr0.15Ti0.85)O3-x(Ba0.8Ca0.2)TiO3x = 0.00−1.00Solid State1300 (2)1450 (3)10–301000–2250/–70–120450–600/–[83]
(Ba1−xCax)(Ti0.98Zr0.02)O3x = 0.00−0.04Solid State1200 (4)1450 (4)1100–2200/–110–120270–375/44–32[84]
(Ba1−xCax)(Ti0.95Zr0.05)O3x = 0.02−0.20Solid State1200 (4)1450 (4)1800–2900/–100–110200–365/32–48[85]
(Ba1−xCax)(Ti0.90Zr0.10)O3x = 0.12−0.18Solid State1200 (4)1450 (4)5–153000–4800/–60–70240–328/30–38[86]
(Ba0.93Ca0.07)(Ti0.95Zr0.05)O3Solid State1200 (4)1300–1500 (4)101000–2300/–105–115142–387/26–44[81]
(Ba1−xCax)(Ti0.04Zr0.96)O3x = 0.00−0.09Solid State1200 (4)1300, 1400 (4)24–391700–2000/2123–126158–392/–[87]
(Ba0.85Ca0.15)(Ti1xZrx)O3x =0.00−0.20Solid State1200 (3)1500 (2)10–302000–3000/1.570–13050–423/20–49[88]
(Ba1xCax)(Zr0.1Ti0.9)O30.00 ≤ x ≤ 0.20Solid State1200 (6)1400–1420 (4)1000–3000/–80–90160–550/30–58[13]
(Ba0.85Ca0.15)(ZryTi1y)O30.00 ≤ y ≤ 0.15Solid State1200 (6)1400–1420 (4)1000–4000/–60–120140–580/35–58[13]
(Ba0.95Ca0.05)(ZryTi1y)O30.00 ≤ y ≤ 0.15Solid State1200 (6)1350 (2)9–141200–2000/1–360–125175–340/16–35[89]
Ba1xCaxTi0.9Zr0.1O3x = 0.10, 0.15Solid State1250 (2)1300–1400 (2)0.5–102800–3400/1.275–80175–410/22–50[65]
(Ba0.95Ca0.05)(Ti0.85Zr0.15)O3Pechini700 (4)1100–1300 (2)[15]
Ba0.9Ca0.1Ti0.9Zr0.1O3Pechini700 (1)1200–1275 (5)0.4–15.02200–2500/1.211545, 240, 390/5, 49, 50[16]
Ba0.85Ca0.15Ti0.9Zr0.1O3Sol-gel800 (5)1200–1500 (10)0.5–32.0800–2900/1–585–90221–563/–[76]
(1−w)Ba(Ti0.80Zr0.20)O3w(Ba0.70 Ca0.30) TiO30.48≤ w ≤ 0.52Sol-gel600–1000 (4)1200–1500 (2)14–20400–637[77]

4. (Bi0.5Na0.5)TiO3-BaTiO3 (BNT-BT)

Bi0.5Na0.5TiO3 (BNT) has been known as ferroelectric since 1961 [90], and BNT-based ceramics [91,92] are among the most promising lead-free piezoelectric materials to compete in actuator applications with PZT [93] BNT shows ferroelectric properties with a relatively large remnant polarization, Pr = 38 mC/cm2, a relatively large coercive field, EC = 73 kV/cm and Curie temperature of 320 °C [90]. Classically, it was considered that BNT crystallizes with a perovskite-like structure with a sequence of phase transitions on-cooling from cubic (C) to high-temperature tetragonal (T) (actually an ergodic relaxor) to room-temperature ferroelectric rhombohedral (R) structures. The high- temperature T and R phases appear to coexist over a rather broad (≈250 °C) temperature range [94]. Nevertheless, at sintering temperatures [95], the Bi and Na are volatiles with the consequent variation in the stoichiometry besides the poling difficulty due to its large coercive field and relatively large conductivity, thus preventing its use as a piezoceramic.
Therefore, a big effort was made in studying solid-solution systems to overcome these difficulties in the use of BNT ceramics. Piezoelectric properties of modified BNT based materials were expected to be enhanced when solid solutions have a morphotropic phase boundary (MPB) [4]. Typically [91] for the solid solution with BaTiO3 ((1−x)BNT-xBT or BNBT100x) at room temperature, the MPB separates rhombohedral and tetragonal ferroelectric phases. However, the MPB differs strongly with respect to that of PZT. It presents a wide range of compositions 0.05 < x < 0.11 that at room temperature are cubic in the absence of an electric field [96] and undergo a phase transition to ferroelectric phases under the action of the electric field [97]. Similar effects were observed in other BNT based solid solutions [93].
Several BNT-based binary and ternary systems with MPB compositions with different cations has been proposed (BNT-ATiO3 (A = Ca, Sr, Ba and Pb), BNT-KNbO3, BNT-Bi0.5Li0.5TiO3, BNT-Bi0.5K0.5TiO3(BNT-BKT), BNT-K0.5Na0.5NbO3(BNT-KNN), BNT-BKT-KNN, BNT-BT-KNN, BNT-BKT-BiFeO3, BNT-BKT-BaTiO3-SrTiO3, etc.) [98,99].
Among these systems, the solid solution BNT-BT has been widely studied [91,92,93,99]. Particularly, when poled, the ceramics with compositions close to BNBT6 were considered at the Morphotropic Phase Boundary (MPB), between rhombohedral and tetragonal ferroelectric phases at room temperature. Typically, these BNBT6 ceramics show an electromechanical coupling factor for thickness resonance of thin disks of kp = 52% and a d33 = 125 pC/N. These are not very high values in comparison with other lead-free ceramics of compositions already reviewed here, but they will be used similarly to compare the ceramic performance obtained from different synthesis methods. Worth noticing, the transition from the unpoled cubic phase to the ferroelectric phases at the MPB gives these BNBT ceramics at the MPB unique properties as actuators [90].
BNT based compositions can be prepared by various methods. The conventional solid state reaction implies high temperatures and, as it was mentioned before, the volatility of the cations is hard to avoid and detrimental to properties [100]. Besides the difficulty in maintaining chemical homogeneity, the particles obtained are poorly uniform with broad size distributions. Some recent works proposed the synthesis of BTN based powders by various wet chemical routes (Figure 7), such as the hydrothermal method [98,101,102,103], Sol-gel [104,105,106,107] and emulsion [108] among others. Some of the mentioned works on sol-gel routes use the so-called “citrate method”, which is very similar to the Pechini (Figure 4) but without using ethylenglycol as a polymerizing agent. The reason is that the citric acid, besides being a chelating agent, also plays a polymerizing role.
A summary of the abovementioned and some other relevant works [106,107,108,109,110,111,112,113,114,115,116] published on BNT based ceramics is shown in Table 2, as well as some of their properties. References [106] and [115] use the so-called combustion methods, combined with sol-gel [106] or using urea as an ignition promoter [115]. These are fast chemistry routes in which, currently, synthesis takes place within minutes. From this table the influence of the synthesis method on the properties of the studied compounds can be seen, being the highest d33 values those obtained in compounds synthesized by wet chemistry methods at lower temperatures and also those near the MPB. The effect of the additives as La, Nd, Ce, Nb, Co, Mn also have influence on their properties, those obtaining the highest d33 were with Mn, Nd, and the solids solutions (Bi0.47Na0.47Ba0.06TiO3)0.99(Ba0.77Ca0.23TiO3)0.01 and (Bi0.5Na0.5TiO3)0.95-[(Ba(Zr0.2Ti0.8)O3) (Ba0.7Ca0.3TiO3)]0.05.
Even if there are still a number of open questions about this composition due to structural complexity and relaxor properties arising from a large coexistence of polymorphs [94], BNBT near MPB is considered a good candidate for lead-free piezoelectric ceramics due to the properties reported in the early 90s [91] and recent understanding of the peculiarities of the MPBs [93].

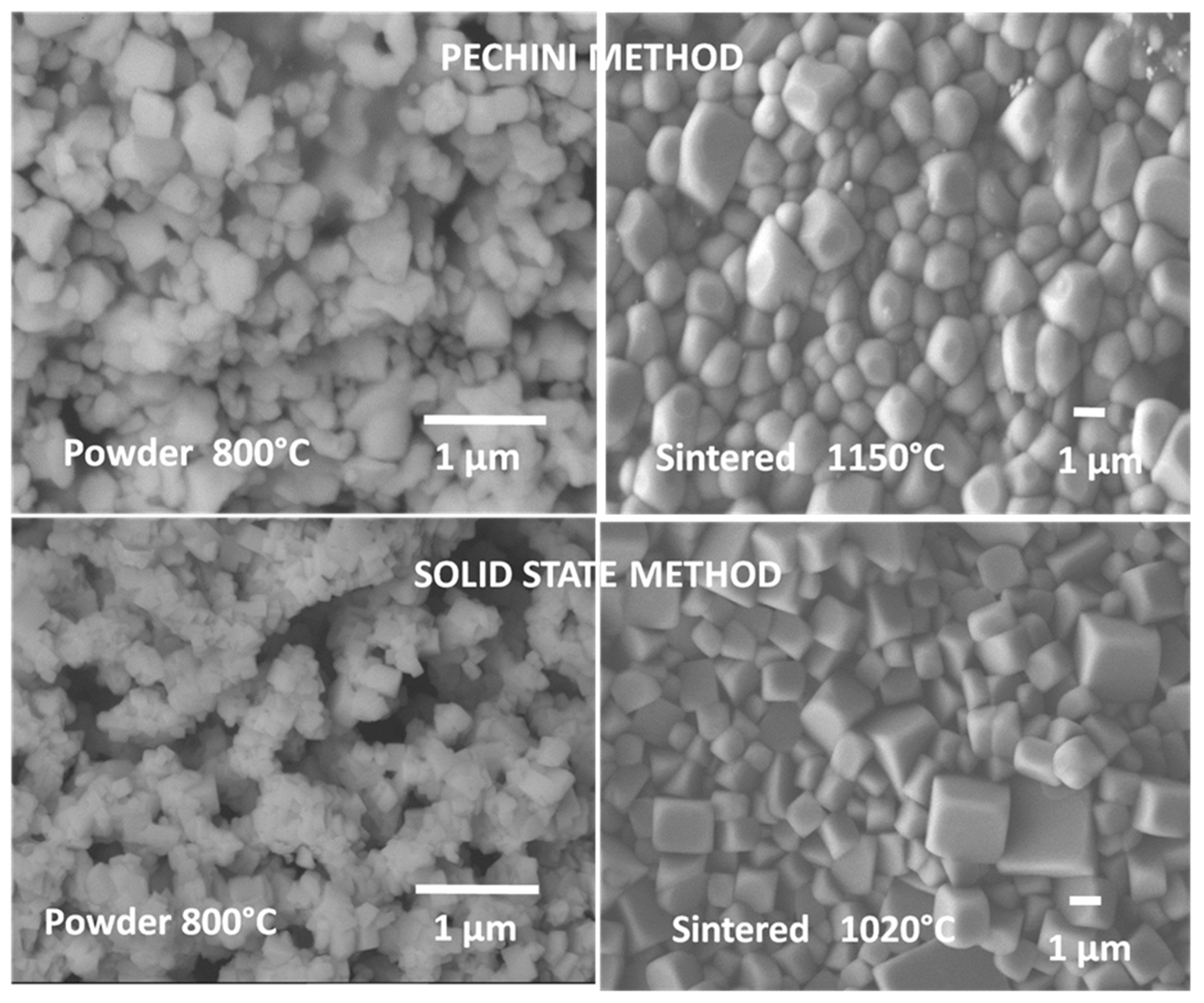

Figure 7. SEM micrographs of synthesized powder (by solid state route and Pechini method) and sintered ceramics of (1-x)Bi0.5Na0.5TiO3-xBa0.9Ca0.1TiO3 (x = 0.06) composition. Note the influence of the powder particle morphology on the ceramics’ microstructure.
Figure 7. SEM micrographs of synthesized powder (by solid state route and Pechini method) and sintered ceramics of (1-x)Bi0.5Na0.5TiO3-xBa0.9Ca0.1TiO3 (x = 0.06) composition. Note the influence of the powder particle morphology on the ceramics’ microstructure.
Materials 09 00021 g007
Table 2. Some results of the publications on compositions based on (Bi0.5Na0.5)TiO3-BaTiO3.
Table 2. Some results of the publications on compositions based on (Bi0.5Na0.5)TiO3-BaTiO3.
Composition (%)Synthesis MethodSynthesis (T (t)) (°C (h))Sintering (T (t)) (°C (h))Grain Size (μm)εT33/tanδ (%) (at RT)TC (°C)d33/kp (pCN−1/%)Reference
Bi0.5Na0.5TiO3Solid State800 (5)1100 (5)4.1425/3.294.8/–[100]
Bi0.5Na0.5TiO3Hydrothermal700 (4)1010 (2)8.6324/2.1477.3/15.9[109]
Bi0.5Na0.5TiO3Hydrothermal200 (12)2[102]
Bi0.5Na0.5TiO3Hydrothermal200 (72)0.04–0.15[101]
Bi0.5Na0.5TiO3Microwave-assisted hydrothermal180 (8)0.04–0.15[101]
Bi0.5Na0.5TiO3Hydrothermal150–200 (5–20)0.05–0.2[103]
Bi0.5Na0.5TiO3Sol-gel600–850 (2)1000–1200 (2)<0.2[104]
(Bi0.5Na0.5)0.95Ba0.05TiO3Citrate method700 (4)1050 (–)1[105]
(Bi0.5Na0.5)0.05Ba0.95TiO3Solid State850 (4)1200 (2)2211/17.512678/–[110]
(Bi0.5Na0.5)0.93Ba0.07TiO3Solid State850 (4)1150–1250 (2–4)1–2–/–246148/15[111]
(Bi0.5Na0.5)0.93Ba0.07TiO3Citrate method600 (1)1150 (2)–/–176/21.2[112]
(Bi0.5Na0.5)0.94Ba0.06TiO3Solid State800 (1)1200 (2)580/1.3288125/19[91]
(Bi0.5Na0.5)0.94Ba0.06TiO3Solid State1000 (2)1160–1200 (2)776/2.5117/28[12]
(Bi0.5Na0.5)0.94Ba0.06TiO3Combustion500 (few mins)1100 (2)698/–125/27.2[106]
(Bi0.5Na0.5)0.94Ba0.06TiO3Emulsion700 (3)1200 (3)1–2.5–/–174/28[108]
(Bi0.5Na0.5)0.94Ba0.06TiO3Mechanosynthesis800–900 (2)1160–1180 (1)–/1.7122/29[92]
(Bi0.5Na0.5)0.94Ba0.06TiO3Citrate method600(1)1150 (2)600/5180/28[113]
(Bi0.5Na0.5)0.94Ba0.06TiO3 + 3 mol % Bi2O3Solid State800( 2)1150–1200 (2)–/2.65165/24[114]
(Bi0.5Na0.5)0.94Ba0.06TiO3 + 0.25 at % EuCombustion600 (few mins)1150 (4)1658/–149/5.5[115]
(Bi0.5Na0.5)0.94Ba0.06TiO3 + LaSolid State1000 (2)1160–1200 (2)1576/4.5125/24[12]
(Bi0.5Na0.5)0.94Ba0.06TiO3 + CoSolid State1000 (2)1160–1200 (2)1200/2.3139/27[12]
(Bi0.5Na0.5)0.94Ba0.06TiO3 + 0.8 wt % Nd2O3Solid State800 (–)1150 (2)21947/5.7175/31[116]
(Bi0.5Na0.5)0.91(Ba0.07Ca0.03)0.09TiO3Solid State850 (3)1170 (2)–/–125/33[98]
(Bi0.47Na0.47Ba0.06TiO3)0.99-(Ba0.77Ca0.23TiO3)0.01Solid State850 (2)1100–1200 (2)–/–178/27[117]

5. (K0.5Na0.5)NbO3 (KNN)

Among lead-free ceramics, potassium-sodium niobate, with general formula (KxNa1−x)NbO3, is considered an interesting material (for x values close to 0.5) because of its high Curie temperature and good piezo and ferroelectric properties. Actually, piezoelectric materials based on KNN were the first to be widely studied in the search for lead-free piezoceramics due to environmental considerations [6,118,119,120], and this solid solution system is still considered as the best global alternative to PZT for practical applications [7,121]. Prior to further considerations, the interested reader is also referred to a recently published comprehensive and excellent review (including 640 references) [29].
KNN is a solid solution between two relevant materials featuring the perovskite structure: KNbO3 (ferroelectric) and NaNbO3 (antiferroelectric); both showing orthorhombic symmetry at room temperature; their respective Curie temperatures (associated to tetragonal-cubic phase transitions) are as high as 435 °C and 355 °C, respectively. In fact, these ferroelectric perovskites were discovered in the 1950s and 1960s, single crystals were grown and their properties thoroughly investigated, but research on alkali niobates in ceramic form was not considered until a few years later [122,123,124], when the difficulty of sintering these compositions and the need to use expensive or complex procedures to prevent the occurrence of exaggerated grain growth in the production of mechanically stable ceramics were revealed.
As regarding structure, KNN shows a perovskite structure, orthorhombic at room temperature, with a space group Amm2, different from those of the end members of the solid solution: KNbO3 changes from rhombohedral to orthorhombic symmetry at −10 °C and from this to tetragonal at 225 °C; NaNbO3 shows orthorhombic symmetry (space group Pbcm). KNN presents three phase boundaries corresponding to approximate values of x = 0.17, 0.35 and 0.5, [125], but most of the studies are concentrated around the x = 0.5 value since this composition, close to a morphotropic phase boundary (MPB) separating two orthorhombic phases, exhibits a moderate dielectric constant and an optimum piezoelectric response. The phase diagram is quite complicated in comparison with the well-known PZT one [1].
KNN presents three phase boundaries corresponding to approximate values of x = 0.17, 0.35 and 0.5, but most of the studies are concentrated around the x = 0.5 value since this composition, close to a morphotropic phase boundary (MPB) separating two orthorhombic phases, exhibits a moderate dielectric constant and an optimum piezoelectric response [121].
However, pure KNN ceramics present some drawbacks such as a poor densification and off-stoichiometry induced by volatilization during sintering. Actually, soft-chemistry routes succeeded in preparing phase-pure KNN. Fine powders were synthesized via a solid-state route from a homogeneous solid mixture. A colloidal dispersion comprising a mixed ethanol solution of potassium and sodium acetates and Nb2O5 fine particles was attrition milled and dried carefully to avoid water absorption. Ceramics were finally obtained by two-step calcination in air at 450 °C and 625°C, each for 3 h [126]. Also, pure KNN ceramics with improved piezoelectric properties (d33 = 80–120 pC/N) were obtained by using sintering aids to reduce sintering temperatures to 1000 °C for 2 h [127].
Nevertheless, in recent years, a lot of research has been carried out in order to solve pure KNN processing problems and to improve the piezoelectric properties using two different strategies: changes in composition and/or changing the processing. Changes in composition while maintaining the versatile perovskite structure may be done either in the A site (i.e., by partially replacing sodium or potassium by lithium) or in the B site (partially replacing niobium by other elements such as tantalum, tungsten, antimony or others (Table 3). As a consequence of it, complicated KNN solid solutions are being prepared with compositions such as (K0.44Na0.52Li0.04)(Nb0.86Ta0.10Sb0.04)O3, prepared for the first time back in 2004 [118]. A peak piezoelectric constant d33 of 416 pC/N and a high converse piezoelectric coefficient (d33* = Smax/Emax ~ 750 pm/V) were obtained when preparing this compound in the textured polycrystalline form by using reactive templated grain growth (RTGG) methods. This was a major breakthrough and provoked enthusiasm for developing high-performance lead-free KNN-based piezoceramics. Although this special processing seemed to be crucial for these performances, meanwhile, aenhanced piezoelectricity (d33 = 200–235 pC/N) in KNN ceramics was also observed by doping LiNbO3 or LiTaO3 using conventional solid-state methods [128]. Thus, following different viewpoints, the research on KNN-based materials has been greatly accelerated. By substituting around 6% lithium into KNN, a MPB between orthorhombic and tetragonal phases has been found and high densities and piezoelectric properties (314 pC/N) can be obtained by conventional air sintering. Some authors make co-doping with Ta or Sb in the Nb position; sintering is conducted at 1060 °C [104,119,129]. The effects of stoichiometry and milling processes in the solid state synthesis and in the piezoelectric properties of these Li-Ta-Sb modified KNN materials (nano-sized) has been studied: the sintered ceramics are not hygroscopic and resistant to ambient conditions [130]. Interestingly enough, this kind of KNN material (modified or not) has been prepared by the “spray-drying” method, as an alternative to the ceramic method, yielding nano-sized powders which can be sintered to prepare ceramics of high density (96%) with improved properties [131,132]. With the same strategy, trying to avoid potassium or sodium losses by sublimation, these ceramics have been prepared by “fast chemistry” methods, such as spark-plasma synthesis (SPS) and microwave-assisted methods [133,134]. Nevertheless, regarding the control of grain growth, it is worth noting that self-orientation and agglomeration of nanoparticles can usually be observed besides microstructures consisting of domains and domain walls (Figure 8) [135], all these issues affecting the piezoelectric properties [136].
Table 3 summarizes the mentioned and some other relevant works [136,137,138,139,140,141,142,143,144,145,146,147,148,149,150,151,152,153,154] published on this solid solution series. Addition of nanoparticles (ZnO, CuO and SnO2) as sintering aids in Li-doped KNN materials have also been investigated but the piezoelectric coefficient d33 is decreased [137]. The effects of low-Li and high-Sb contents in the crystal structure of modified KNN based piezoceramics has been studied showing that the structure changes from tetragonal to pseudo-cubic. The ferroelectric Curie temperature shifts to lower temperature while the tetragonal to orthorhombic phase transition does not change [150]. On the contrary, rather than antimony, a “constructed quinquevalent cation” (W2/3Bi1/3) has been shown to be very effective in improving the electrical properties of KNN-based ceramics [148]. The addition of small amounts of WO3 changes the symmetry to monoclinic, induces an increase in the dielectric constant and a shift in the Curie temperature towards higher values as well [147]. In a similar approach, the effects of Mo6+ substitutions have been explored: up to 6% can be introduced in the Nb site without secondary phase’s segregation [152]. Other authors have investigated the effects of doping with silver in the dielectric properties of KNN-based ceramics prepared by templated grain growth [139].
Thus, plenty of work—in many directions—has been done on KNN since the first seminal paper [118] but the best results are quite recent and the replacement of PZT seems closer than ever. In this connection, “Giant Piezoelectricity” in an alkali niobate-based lead-free piezoceramic has been reported [153]. This KNN-based material shows the largest d33 of =490 pC/N ever reported so far using the conventional solid-state methodology. In addition, this material system also exhibits excellent integrated performance with d33 = 390−490 pC/N and TC = 217–304 °C by optimizing the compositions. The authors ascribe these features to the construction of a new rhombohedral-tetragonal phase boundary. In the same direction of construction of new phase boundaries but with different compositions, the same research group has very recently reported excellent piezoelectric properties for materials of composition intermediate between two solid solutions: (1–x)(K0.4Na0.6)(Nb0.96Sb0.04)O3-xBi0.5K0.5Zr1ySnyO3 [154].
Table 3. Some results of the publications on compositions based on (K0.5Na0.5)NbO3.
Table 3. Some results of the publications on compositions based on (K0.5Na0.5)NbO3.
CompositionSynthesis MethodSynthesis (T (t)) (°C (h))Sintering (T (t)) (°C (h))Grain Size/μmεT33/tan δ (%) (at RT)TC/°Cd33/kp pC/N/%Reference
(K0.5Na0.5)NbO3Sol-gel650 (4)1115 (2)10450/640580/–[138]
(K0.5Na0.5)NbO3Solid state825 (4)1115 (2)7925/0.1395–/–[139]
(K0.5Na0.5)NbO3Spray drying800 (1)1080 (2)10380/2410–/36[132]
(K0.5Na0.5)NbO3Solid state400/0.3395140/39[6]
(K0.5Na0.5)NbO3Solid state850 (2)1160 (2)496/1.5420127/46[120]
(K0.5Na0.5)NbO3Solid state850 (10)1110 (-)450/–42095/28[128]
(K0.5Na0.5)NbO3Sol-gel500 (5)925 (2)2200/4.8405112/20[140]
(K0.5Na0.5)NbO3Combustion450 (6)1120 (2)1.45490/2.842084/–[141]
(K0.5Na0.5)NbO3Sol-gel650 (2)1110 (3)5712/6.740590/32[142]
(K0.5Na0.5)NbO3Mechanochemical asisted550 (2)1100 (2)0.3680/3.542095/–[143]
(K0.5Na0.5)NbO3Microwave-assisted550 (2)1115 (2)3.8427/3.539885/–[144]
(K0.5Na0.5)NbO3Hydrothermal230 (24)1000 (2)2–/–78/–[145]
(K0.5Na0.5)0.9Li0.1NbO3Sol-gel500 (5)975 (2)2400/2.8485170/40[140]
(K0.5Na0.5)Nb0.7Ta0.3O3Hydrothermal230 (24)1000 (2)2–/–210/–[145]
(K0.5Na0.5)NbO3-1%GeO2Solid state650 (2)1000 (2)5397/2120/40[127]
(K0.5Na0.5)0.99Ca0.05NbO3Sol-gel650 (4)1115 (2)10495/1239895/–[138]
(K0.5Na0.5)0.99Sr0.05NbO3Sol-gel650 (4)1115 (2)10500/439795/–[138]
(K0.5Na0.5)0.94Li0.06NbO3Solid state850 (4)1060–1100 (2)–/–215/–[146]
(K0.17Na0.83)NbO3 5%WO3Solid state825 (4)1160 (4)51250/0.142545/–[147]
(K0.5Na0.5)0.94Li0.06NbO3Solid state850 (4)1000 (2)4560/0.8410215/–[137]
(K0.48Na0.535)0.942Li0.058NbO3Solid state750 (4)1060 (2)650/–490314/41[151]
(K0.5Na0.5)0.935Li0.065NbO3Solid state800 (4)1160 (1)680/0.18440250/44[119]
(K0.5Na0.5)NbO3-LiSbO3Solid state850 (2)1200 (2)1380/2368265/50[120]
0.95(K0.5Na0.5)NbO3-0.05LiTaO3Solid state850 (10)1110 (–)570/4425200/36[128]
(K0.5Na0.5)0.948(LiSb)0.052Nb948O3Solid state880 (4)1080 (3)1100/1.9385286/51[129]
(K0.5Na0.5)0.94Li0.06(W0.67Bi0.33)0.008Nb0.992O3Solid State850 (4)1100 (3)7950/2.5282/45[148]
0.92KNN-0.06BZ-0.02BLTMolten salt & RTGG800 (5)1150 (2)10/–251271/–[149]
(Na0.5K0.5)0.975Li0.025Nb0.76 Sb0.06Ta0.18O3Solid state890 (4.5)1115 (3)2.51000/2.5200352/47[150]
(Na0.44K0.515Li0.045)Nb0.915 Sb0.045Ta0.05O3Solid state700 (6)1100 (3)401024/6.8320390/49[136]
(Na0.52K0.44Li0.04)Nb0.86 Sb0.04Ta0.1O3Solid state700 (2)1125 (16)1.2–/–255/–[130]
0.96(K0.4Na0.6)(Nb0.96Sb0.04)O3-0.04Bi0.5K0.5Zr0.9Sn0.1O3Solid state850 (6)1095 (3)42000/–250460/47[154]
0.96(K0.48Na0.52)(Nb0.97Sb0.03)O3-0.04Bi0.5(Na0.82K0.18)0.5ZrO3Solid state850 (6)1130 (3h)2200/–227490/48[153]
RTGG = Reactive Templated Grain Growth.

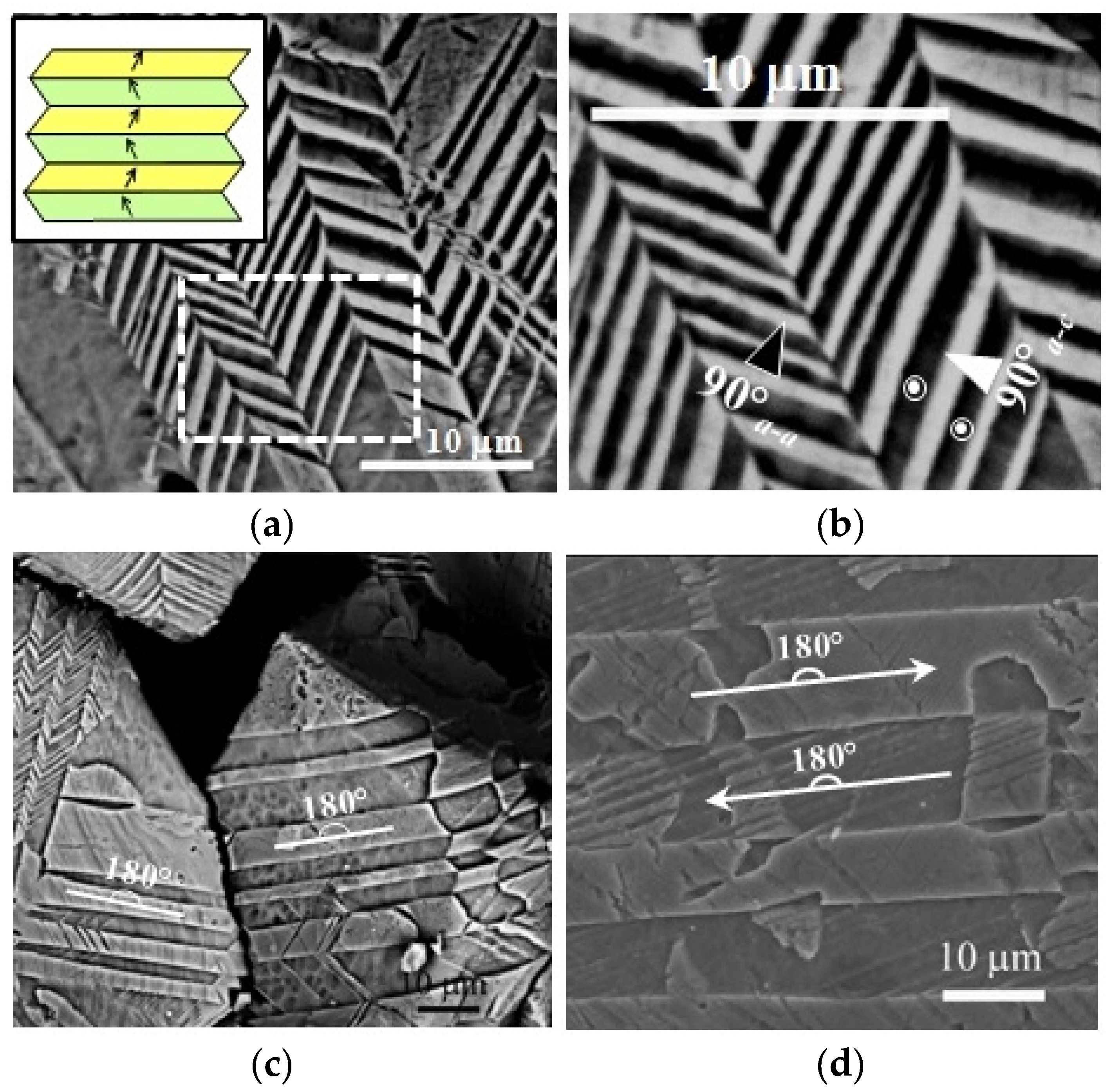

Figure 8. KNN samples prepared by microwave-assisted hydrothermal synthesis. Representative microstructure showing (a) lamellar 90° a-a; and (b) dagger-shaped 90° a-c domains. The inset shows a scheme of the 90° wall twin structure; (c) and (d) representative microstructure containing 180° domains [135].
Figure 8. KNN samples prepared by microwave-assisted hydrothermal synthesis. Representative microstructure showing (a) lamellar 90° a-a; and (b) dagger-shaped 90° a-c domains. The inset shows a scheme of the 90° wall twin structure; (c) and (d) representative microstructure containing 180° domains [135].
Materials 09 00021 g008

6. Conclusions

As it was shown for all the lead-free compositions for piezoelectric ceramics considered here, the synthesis route determines the homogeneity, morphology and grain size of the powders. Conventional solid state routes were compared with wet chemistry synthesis methods. As a general statement, we can say that these alternative routes, by using softer conditions, help in keeping adequate stoichiometry, avoiding the volatilization associated with many of the cations involved in these compositions (bismuth, alkaline metals, etc.). Many of these routes also employ non-hazardous raw materials as reactants (salts, oxides, etc.). Nevertheless, care must be taken when considering other reactants involved in the proposed routes for environmental principles.
In addition to these advantages, the use of lower synthesis temperatures is not of detriment to the final properties. Besides all these considerations, the small and homogeneous grain size promoted by solution methods enhances the sintering and densification of the bulk material, which favors the ceramic performance. Figure 9, Figure 10 and Figure 11 show the d33 coefficient vs. the synthesis temperature.

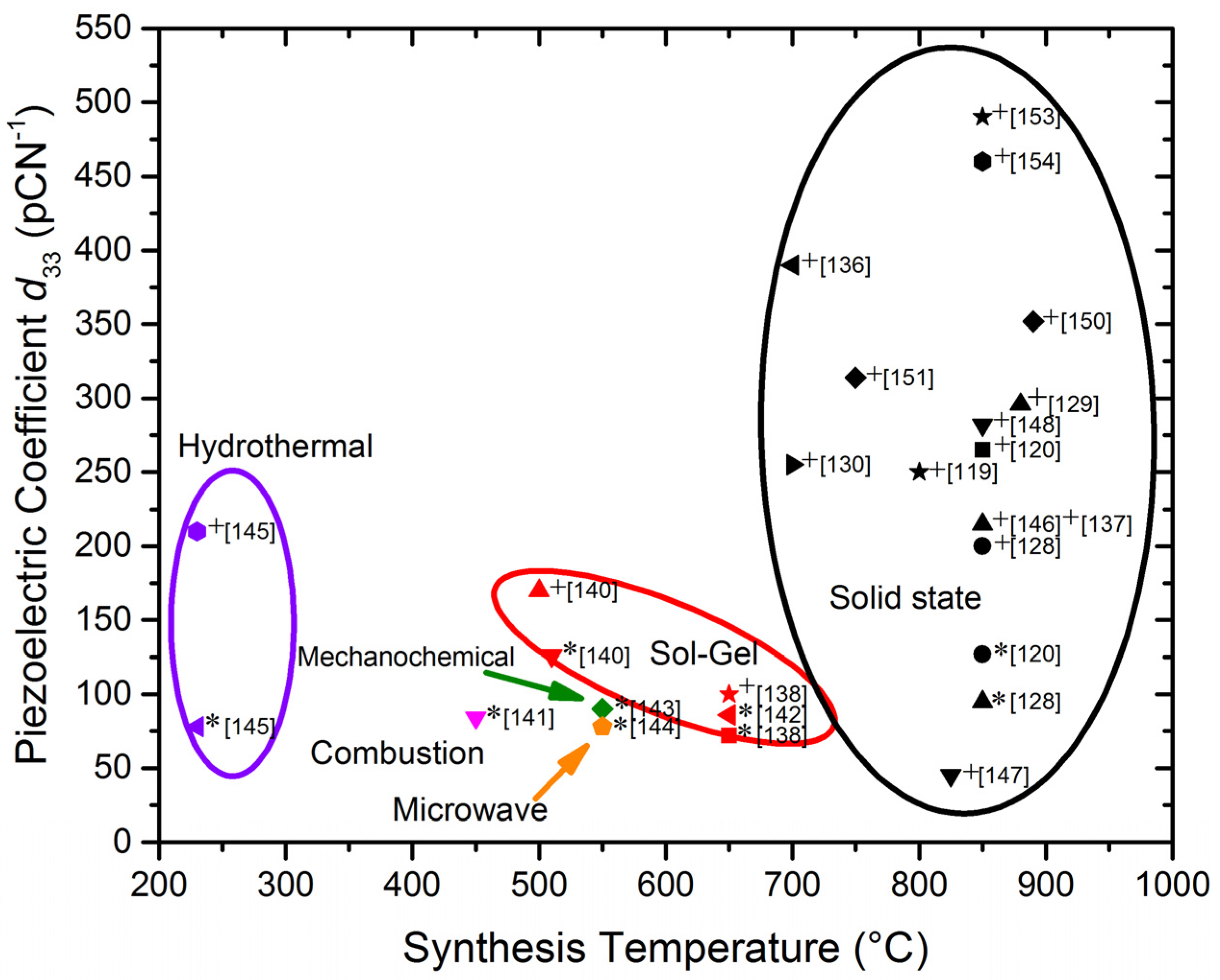

Figure 9 shows the d33 coefficient for BCTZ ceramics, extracted from references in Table 1. It is noticeable the wide range of d33 values for ceramics obtained by solid state synthesis, but always using synthesis temperatures from 1200 °C. The variation of the d33 values is explained by the composition studied as shown in the ternary diagram of Figure 6. Alternative routes were tested for the ceramics with better performance. For sol–gel methods, the d33 values obtained using synthesis temperatures below 1000 °C are among the highest.

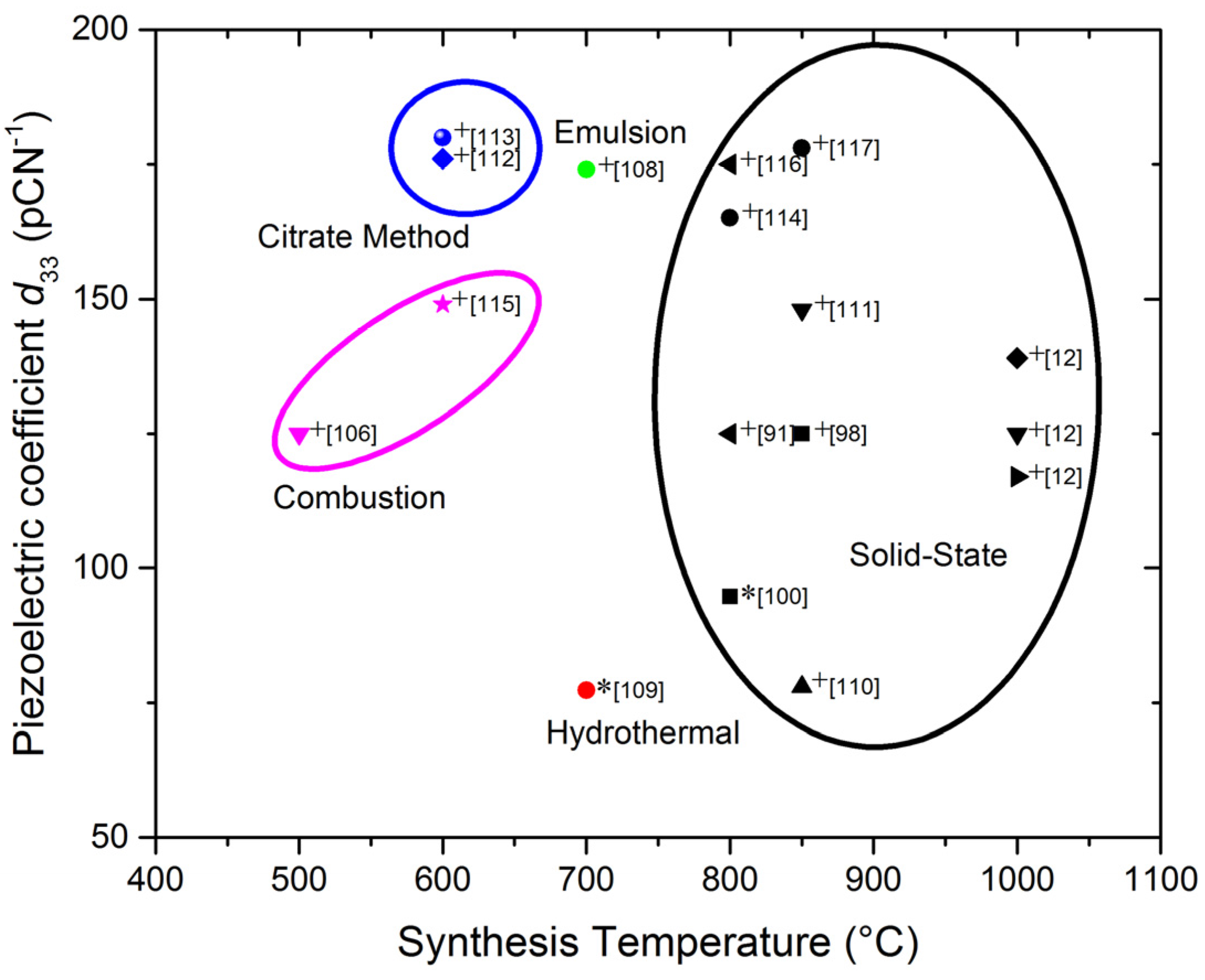

Figure 10 shows the same analysis for BNT-BT based compositions, extracted from data in Table 2. Synthesis temperatures for all methods are lower than in BCTZ. Again, solid state synthesis requires higher temperatures, above 800 °C, with the risk of bismuth loss. Alternative methods allow obtaining a similar range of d33 values with synthesis temperatures below 700 °C.
Figure 9. Piezoelectric coefficient d33 vs. synthesis temperature for the different methods of BCTZ ceramics preparation, extracted from references in Table 1.
Figure 9. Piezoelectric coefficient d33 vs. synthesis temperature for the different methods of BCTZ ceramics preparation, extracted from references in Table 1.
Materials 09 00021 g009
Figure 10. Piezoelectric coefficient d33 vs. synthesis temperature for the different methods of BNT-BT ceramics preparation, extracted from references in Table 2. (* Pure BNT. + BNT-based solid solution).
Figure 10. Piezoelectric coefficient d33 vs. synthesis temperature for the different methods of BNT-BT ceramics preparation, extracted from references in Table 2. (* Pure BNT. + BNT-based solid solution).
Materials 09 00021 g010
The same analysis carried out in the KNN based ceramics is shown in Figure 11. To understand that the best d33 values were achieved for solid state synthesis, the strong effect of cation substitutions (see Table 3) on the properties of this solid solution must be considered. Recent work [153] obtained great piezoelectricity by compositional design. This makes it difficult to directly compare properties of different compositions. Focusing on the unmodified compositions, marked with an asterisk in Figure 11, we can arrive at the same conclusion as for previous solid solutions (Figure 9 and Figure 10).
For a given composition, an analysis of the best route according to the available reactants for each element must be carried out, since there is not a single recipe or universal procedure. Softer conditions also imply a more efficient use of energy with beneficial impact on the industrial transference.
Besides all these considerations, the small and homogeneous grain size promoted by solution methods enhances the sintering and densification of the bulk material, which favors the ceramic performance. For optimized sintering parameters, generally speaking, the adequate poling conditions—temperature, time and electric field—determine the properties of piezoelectric ceramics. Also, when considering lead-free ceramics, care must be taken regarding the crystallographic phase transitions among polymorphs induced by compositional changes, temperature and electric field, especially near MPBs.
Figure 11. Piezoelectric coefficient d33 vs. synthesis temperature for the different methods of KNN ceramics preparation, extracted from references in Table 3. (* Pure KNN. + KNN-based solid solution).
Figure 11. Piezoelectric coefficient d33 vs. synthesis temperature for the different methods of KNN ceramics preparation, extracted from references in Table 3. (* Pure KNN. + KNN-based solid solution).
Materials 09 00021 g011

Acknowledgments

This research was carried out during the sabbatical year of María Elena Villafuerte-Castrejón at ICMM-CSIC (Madrid, Spain) with the support of PASPA-DGAPA, UNAM and CONACyT-México. MEVC also kindly acknowledge to DGAPA for the financial support of PAPIIT-UNAM under project IN116610-3. Lorena Pardo acknowledges the Spanish CSIC project #201060E069. Emilio Morán thanks Ministerio de Economía y Competitividad and Comunidad de Madrid for funding the projects MAT2013-46452-C4-4-R and S2013/MIT-2753, respectively. Armando Reyes-Montero, Rodrigo Vivar-Ocampo, Jesús-Alejandro Peña-Jiménez (PhD Scholarship) and Salvador-Oliver Rea-López (MS. Scholarship) thank to CONACyT-México.

Author Contributions

María Elena Villafuerte-Castrejón conceived and designed the experiments and wrote the introduction and conclusions of the paper; Emilio Morán wrote the BaTiO3 section of the paper and revised the synthesis issues; Armando Reyes-Montero and Salvador-Oliver Rea-López performed the research work, elaborate the figures and compiled the literature data on the BCZT section; Rodrigo Vivar-Ocampo performed the research work, elaborate the figures and compiled the literature data on the BNT-BT section; Jesús-Alejandro Peña-Jiménez performed the research work, elaborate the figures and compiled the literature data on the KNN section; María Elena Villafuerte-Castrejón and Lorena Pardo elaborated the flux diagrams and coordinated the writing of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jaffe, B.; Cook, W.R.; Jaffe, H. Piezoelectric Ceramics; Academic Press: London, UK, 1971. [Google Scholar]
  2. Haertling, G.H. Ferroelectric ceramics: History and technology. J. Am. Ceram. Soc. 1999, 82, 797–818. [Google Scholar] [CrossRef]
  3. Bellaiche, L. Piezoelectricity of ferroelectric perovskites from first principles. Curr. Opin. Solid State Mater. Sci. 2002, 6, 19–25. [Google Scholar] [CrossRef]
  4. Noheda, B.; Cox, D.E.; Shirane, G.; Gonzalo, J.A.; Cross, L.E.; Park, S.-E. A monoclinic ferroelectric phase in the Pb(Zr1–xTix)O3 solid solution. Appl. Phys. Lett. 1999, 74, 2059–2061. [Google Scholar] [CrossRef]
  5. Heywang, W.; Lubitz, K.; Wersing, W. Piezoelectricity: Evolution and Future of a Technology; Springer: Berlin, Germany, 2008. [Google Scholar]
  6. Ringgaard, E.; Wurlitzer, T. Lead-free piezoceramics based on alkali niobates. J. Eur. Ceram. Soc. 2005, 25, 2701–2706. [Google Scholar] [CrossRef]
  7. Rödel, J.; Webber, K.G.; Dittmer, R.; Jo, W.; Kimura, M.; Damjanovic, D. Transferring lead-free piezoelectric ceramics into application. J. Eur. Ceram. Soc. 2015, 35, 1659–1681. [Google Scholar] [CrossRef]
  8. Takenaka, T.; Nagata, H.; Hiruma, Y. Current developments and prospective of lead-free piezoelectric ceramics. Jpn. J. Appl. Phys. 2008, 47, 3787–3801. [Google Scholar] [CrossRef]
  9. Zhang, S.; Xia, R.; Shrout, T.R. Lead-free piezoelectric ceramics vs. PZT? J. Electroceram. 2007, 19, 111–124. [Google Scholar] [CrossRef]
  10. Yao, Z.; Liu, H.; Chen, L.; Cao, M. Morphotropic phase boundary and piezoelectric properties of (Bi1/2Na1/2)1–x(Bi1/2K1/2)xTiO3-0.03(Na0.5K0.5)NbO3 ferroelectric ceramics. Mater. Lett. 2009, 63, 547–550. [Google Scholar] [CrossRef]
  11. Zhang, S.T.; Kounga, A.B.; Aulbach, E.; Granzow, T.; Jo, W.; Kleebe, H.J. Lead-free piezoceramics with giant strain in the system Bi0.5Na0.5TiO3-BaTiO3-K0.5Na0.5NbO3. I. structure and room temperature properties. J. Appl. Phys. 2008, 103, 034107. [Google Scholar] [CrossRef]
  12. Li, H.D.; Feng, C.D.; Yao, W.L. Some effects of different additives on dielectric and piezoelectric properties of (Bi1/2Na1/2)TiO3–BaTiO3 morphotropic-phase-boundary composition. Mater. Lett. 2004, 58, 1194–1198. [Google Scholar] [CrossRef]
  13. Tian, Y.; Wei, L.; Chao, X.; Liu, Z.; Yang, Z. Phase transition behavior and large piezoelectricity near the morphotropic phase boundary of lead-free (Ba0.85Ca0.15)(Zr0.1Ti0.9)O3 ceramics. J. Am. Ceram. Soc. 2013, 96, 496–502. [Google Scholar]
  14. Wang, S.; Zhou, X.H.; Zhang, S.R.; Li, B.; Chen, Z. Preparation of nonreducible BCTZ ceramics by doping complex oxide dopants. J. Inorg. Mater. 2005, 20, 119–125. [Google Scholar]
  15. Hsieh, T.H.; Yen, S.C.; Ray, D.T. A study on the synthesis of (Ba,Ca)(Ti,Zr)O3 nano powders using Pechini polymeric precursor method. Ceram. Int. 2012, 38, 755–759. [Google Scholar] [CrossRef]
  16. Reyes-Montero, A.; Pardo, L.; López-Juárez, R.; González, A.M.; Cruz, M.P.; Villafuerte-Castrejón, M.E. Lead-free Ba0.9Ca0.1Ti0.9Zr0.1O3 piezoelectric ceramics processed below 1300 °C. J. Alloys Compd. 2014, 584, 28–33. [Google Scholar] [CrossRef]
  17. Dutta, P.K.; Asiaie, R.; Akbar, S.A.; Zhy, W. Hydrothermal synthesis and dielectric properties of tetragonal BaTiO3. Chem. Mater. 1994, 6, 1542–1548. [Google Scholar] [CrossRef]
  18. Hennings, D.F.K.; Metzmacher, C.; Schreinemacher, B.S. Defect chemistry and microstructure of hydrothermal barium titanate. J. Am. Ceram. Soc. 2001, 84, 179–182. [Google Scholar] [CrossRef]
  19. Komarneni, S.; Li, Q.; Stefansson, K.M.; Roy, R. Microwave-hydrothermal processing for synthesis of electroceramic powders. J. Mater. Res. 1993, 8, 3176–3183. [Google Scholar] [CrossRef]
  20. Fang, C.Y.; Wang, C.; Polotai, A.V.; Agrawal, D.K.; Lanagan, M.T. Microwave synthesis of nano-sized barium titanate. Mater. Lett. 2008, 62, 2551–2553. [Google Scholar] [CrossRef]
  21. Newalkar, B.L.; Komarneni, S.; Katsuki, H. Microwave-hydrothermal synthesis and characterization of barium titanate powders. Mater. Res. Bull. 2001, 36, 2347–2355. [Google Scholar] [CrossRef]
  22. Rørvik, P.M.; Grande, T.; Einarsrud, M.A. One-dimensional nanostructures of ferroelectric perovskites. Adv. Mater. 2011, 23, 4007–4034. [Google Scholar] [CrossRef] [PubMed]
  23. Pardo, L.; García, A.; Brebøl, K.; Mercadelli, E.; Galassi, C. Piezoelectric properties of lead-free submicron-structured (Bi0.5Na0.5)0.94Ba0.06TiO3 ceramics from nanopowders. Smart Mater. Struct. 2010, 19, 11507. [Google Scholar] [CrossRef]
  24. Rojac, T.; Bencan, A.; Malic, B.; Tutuncu, G.; Jones, J.L.; Daniels, J.E.; Damjanovic, D. BiFeO3 ceramics: Processing, electrical, and electromechanical properties. J. Am. Ceram. Soc. 2014, 97, 1993–2011. [Google Scholar] [CrossRef]
  25. Yu, R.; Hojo, H.; Oka, K.; Watanuki, T.; Machida, A.; Shimizu, K.; Nakano, K.; Azuma, M. New PbTiO3-type giant tetragonal compound Bi2ZnVO6 and its stability under pressure. Chem. Mater. 2015, 27, 2012–2017. [Google Scholar] [CrossRef]
  26. Moure, A.; Castro, A.; Pardo, L. Aurivillius-type ceramics, a class of high temperature piezoelectric materials: Drawbacks, advantages and trends. Prog. Solid State Chem. 2009, 37, 15–39. [Google Scholar] [CrossRef]
  27. Leonstev, S.O.; Eitel, R.E. Progress in engineering high strain lead-free piezoelectric ceramics. Sci. Technol. Adv. Mater. 2010, 11, 044302. [Google Scholar] [CrossRef]
  28. Taghaddos, E.; Mehdi, H.; Safari, A. Lead-free piezoelectric materials and ultrasonic transducers for medical imaging. J. Adv. Dielect. 2015, 5, 1530002. [Google Scholar] [CrossRef]
  29. Wu, J.; Xiao, D.; Zhu, J. Potassium–sodium niobate lead-free piezoelectric materials: Past, present, and future of phase boundaries. Chem. Rev. 2015, 115, 2559–2595. [Google Scholar] [CrossRef] [PubMed]
  30. Priya, S.; Nahm, S. Lead-Free Piezoelectrics; Springer: New York, NY, USA, 2011. [Google Scholar]
  31. Thurnauer, H.; Deaderick, J. Insulating Materials. American Lava Co. Patent 2,429,588, 2 October 1941. [Google Scholar]
  32. Von Hippel, A. Ferroelectricity, domain structure, and phase transitions of barium titanate. Rev. Mod. Phys. 1950, 22, 221. [Google Scholar] [CrossRef]
  33. Smith, M.B.; Page, K.; Siegrist, T.; Redmond, P.L.; Walter, E.C.; Seshadri, R.; Brus, L.E.; Steigerwald, M.L. Crystal structure and the paraelectric-to-ferroelectric phase transition of nanoscale BaTiO3. J. Am. Chem. Soc. 2008, 130, 6955–6963. [Google Scholar] [CrossRef] [PubMed]
  34. Bechmann, R. Elastic, piezoelectric, and dielectric constants of polarized barium titanate ceramics and some applications of the piezoelectric equations. J. Acoust. Soc. Am. 1956, 28, 347–350. [Google Scholar] [CrossRef]
  35. Shao, S.; Zhang, J.; Zhang, Z.; Zheng, P.; Zhao, M.; Li, J.; Wang, C. High piezoelectric properties and domain configuration in BaTiO3 ceramics obtained through the solid-state reaction route. J. Phys. D Appl. Phys. 2008, 41, 125408. [Google Scholar] [CrossRef]
  36. Phule, P.P.; Risbud, S.H. Low-temperature synthesis and processing of electronic materials in the BaO-TiO2 system. J. Mater. Sci. 1990, 25, 1169–1183. [Google Scholar]
  37. Kaur, K. Synthesis of various barium titanates. Int. J. IT Eng. Appl. Sci. Res. 2015, 4, 61–66. [Google Scholar]
  38. Buessem, W.R.; Cross, L.E.; Goswami, A.K. Phenomenological theory of high permittivity in fine-grained barium titanate. J. Am. Ceram. Soc. 1966, 49, 33–36. [Google Scholar] [CrossRef]
  39. Park, S.E.; Wada, S.; Cross, L.E.; Shrout, T.R. Crystallographically engineered BaTiO3 single crystals for high-performance piezoelectrics. J. Appl. Phys. 1999, 86, 2746. [Google Scholar] [CrossRef]
  40. Wang, L.; Liu, L.; Xue, D.; Kang, H.; Liu, C. Wet routs of high purity BaTiO3 nanopowders. J. Alloys Compd. 2007, 440, 78–83. [Google Scholar] [CrossRef]
  41. Lu, W.; Quilitz, M.; Schmidt, H. Nanoscaled BaTiO3 powders with a large surface area synthesized by precipitation from aqueous solutions: Preparation, characterization and sintering. J. Eur. Ceram. Soc. 2007, 24, 3149–3159. [Google Scholar] [CrossRef]
  42. Moreno, J.; Dominguez, J.M.; Montoya, A.; Vicente, L.; Viveros, T. Synthesis and characterization of MTiO3(M = Mg, Ca, Sr, Ba) sol-gel. J. Mater. Chem. 1995, 5, 509–512. [Google Scholar] [CrossRef]
  43. Pfaff, G. Sol–gel synthesis of barium titanate powders of various compositions. J. Mater. Chem. 1992, 2, 591–594. [Google Scholar] [CrossRef]
  44. Yu, P.; Cui, B.; Shi, Q. Preparation and characterization of BaTiO3 powders and ceramics by sol–gel process using oleic acid as surfactant. Mater. Sci. Eng. A 2008, 473, 34–41. [Google Scholar] [CrossRef]
  45. Viviani, M.; Buscaglia, M.T.; Testino, A.; Buscaglia, V.; Bowen, P.; Nanni, P. The influence of concentration on the formation of BaTiO3 by direct reaction of TiCl4 with Ba(OH)2 in aqueous solution. J. Eur. Ceram. Soc. 2003, 23, 1383–1390. [Google Scholar] [CrossRef]
  46. Testino, A.; Buscaglia, M.T.; Buscaglia, V.; Viviani, M.; Bottino, C.; Nanni, P. Kinetics and mechanism of aqueous chemical synthesis of BaTiO3 particles. Chem. Mater. 2004, 16, 1536–1543. [Google Scholar] [CrossRef]
  47. Wang, X.; Lee, B.I.; Hu, M.; Payzant, E.A.; Blom, D.A. Nanocrystalline BaTiO3 powder via a sol process ambient conditions. J. Eur. Ceram. Soc. 2006, 26, 2319–2326. [Google Scholar] [CrossRef]
  48. Tao, J.; Ma, J.; Wang, Y.; Zhu, X.; Liu, J.; Jiang, X. Synthesis of barium titanate nanoparticles via a novel electrochemical route. Mater. Res. Bull. 2008, 43, 639–644. [Google Scholar] [CrossRef]
  49. Xu, H.; Gao, L. Hydrothermal synthesis of high-purity BaTiO3 powders: Control of powder phase and size, sintering density, and dielectric properties. Mater. Lett. 2004, 58, 1582–1586. [Google Scholar] [CrossRef]
  50. Prado-Gonjal, J.; Schmidt, R.; Morán, E. Microwave-assisted routes for the synthesis of complex functional oxides. Inorganics 2015, 3, 101–117. [Google Scholar] [CrossRef]
  51. Liu, S.F.; Abothu, I.R.; Komarneni, S. Barium titanate ceramics prepared from conventional and microwave hydrothermal powders. Mater. Lett. 1999, 38, 344–350. [Google Scholar] [CrossRef]
  52. Komarneni, S.; Katsuki, H. Microwave-hydrothermal synthesis of barium titanate under stirring condition. Ceram. Int. 2010, 36, 1165–1169. [Google Scholar] [CrossRef]
  53. Sun, W.; Li, J. Microwave-hydrothermal synthesis of tetragonal barium titanate. Mater. Lett. 2006, 60, 1599–1602. [Google Scholar] [CrossRef]
  54. Simões, A.Z.; Moura, F.; Onofre, T.B.; Ramirez, M.A.; Varela, J.A.; Longo, E. Microwave-hydrothermal synthesis of barium strontium titanate nanoparticles. J. Alloys Compd. 2010, 508, 620–624. [Google Scholar] [CrossRef]
  55. Khollam, Y.B.; Deshpande, A.S.; Patil, A.J.; Potdar, H.S.; Deshpande, S.B.; Date, S. Microwave-hydrothermal synthesis of equi-axed and submicron-sized BaTiO3 powders. Mater. Chem. Phys. 2001, 71, 304–308. [Google Scholar] [CrossRef]
  56. Sun, W.; Liu, W.; Li, J. Effects of chloride ions on hydrothermal synthesis of tetragonal BaTiO3 by microwave heating and conventional heating. Powder Technol. 2006, 166, 55–59. [Google Scholar] [CrossRef]
  57. Kim, H.T.; Han, Y.H. Sintering of nanocrystalline BaTiO3. Ceram. Int. 2004, 30, 1719–1723. [Google Scholar] [CrossRef]
  58. Sadhana, K.; Krishnaveni, T.; Praveena, K.; Bharadwaj, S.; Murthy, S.R. Microwave sintering of nanobarium titanate. Scr. Mater. 2008, 59, 495–498. [Google Scholar] [CrossRef]
  59. Takahashi, H.; Numamoto, Y.; Tani, J.; Matsuta, K.; Qiu, J.; Tsurekawa, S. Lead-free barium titanate ceramics with large piezoelectric constant fabricated by microwave sintering. Jpn. J. Appl. Phys. Part 2 2006, 45, 43–46. [Google Scholar] [CrossRef]
  60. Takahashi, H.; Numamoto, Y.; Tani, J.; Tsurekawa, S. Piezoelectric properties of BaTiO3 ceramics with high performance fabricated by microwave sintering. Jpn. J. Appl. Phys. Part 1 2006, 45, 7405–7408. [Google Scholar] [CrossRef]
  61. Liu, W.; Ren, X. Large piezoelectric effect in Pb-Free ceramics. Phys. Rev. Lett. 2009, 103, 257602. [Google Scholar] [CrossRef] [PubMed]
  62. Wang, W.; Wang, L.D.; Li, W.L.; Xu, D.; Hou, Y.F.; Cao, W.P.; Feng, Y.; Fei, W.D. Piezoelectric properties of BaTiO3–CaTiO3–BaZrO3 ceramics with compositions near the morphotropic phase boundary. Ceram. Int. 2014, 40, 14907–14912. [Google Scholar] [CrossRef]
  63. Sun, Z.; Pu, Y.; Dong, Z.; Hu, Y.; Wang, P.; Liu, X.; Wang, Z. Impact of fast microwave sintering on the grain growth, dielectric relaxation and piezoelectric properties on Ba0.18Ca0.02Ti0.09Zr0.10O3 lead-free ceramics prepared by different methods. Mater. Sci. Eng. B 2014, 185, 114–122. [Google Scholar] [CrossRef]
  64. Zhang, Y.; Glaum, J.; Groh, C.; Ehmke, M.C.; Blendell, J.E.; Bowman, K.J.; Hoffman, M.J. Correlation between piezoelectric properties and phase coexistence in (Ba,Ca)(Ti,Zr)O3 ceramics. J. Am. Ceram. Soc. 2014, 97, 2885–2891. [Google Scholar] [CrossRef]
  65. Reyes-Montero, A.; Pardo, L.; López-Juárez, R.; González, A.M.; Rea-López, S.O.; Cruz, M.P.; Villafuerte-Castrejón, M.E. Sub-10 μm grain size, Ba1−xCaxTi0.9Zr0.1O3 (x = 0.10 and x = 0.15) piezoceramics processed using a reduced thermal treatment. Smart Mater. Struct. 2015, 24, 065033. [Google Scholar] [CrossRef]
  66. Benabdallah, F.; Elissalde, C.; Seu, U.C.C.; Michau, D.; Poulon-Quintin, A.; Gayot, M.; Garreta, P.; Khemakhem, H.; Maglione, M. Structure–microstructure–property relationships in lead-free BCTZ piezoceramics processed by conventional sintering and spark plasma sintering. J. Eur. Ceram. Soc. 2015, 35, 4153–4161. [Google Scholar] [CrossRef]
  67. Bai, Y.; Matousek, A.; Tofel, P.; Bijalwan, V.; Nan, B.; Hughes, H.; Button, T.W. (Ba,Ca)(Zr,Ti)O3 lead-free piezoelectric ceramics—The critical role of processing on properties. J. Eur. Ceram. Soc. 2015, 35, 3445–3456. [Google Scholar] [CrossRef]
  68. Li, B.; Ehmke, M.C.; Blendell, J.E.; Bowman, K.J. Optimizing electrical poling for tetragonal, lead-free BZT–BCT piezoceramic alloys. J. Eur. Ceram. Soc. 2013, 33, 3037–3044. [Google Scholar] [CrossRef]
  69. Mitsui, T.; Westphal, W.B. Dielectric and X-ray Studies of CaxBa1−xTiO3 and CaxSr1−xTiO3. Phys. Rev. 1961, 124, 1354–1359. [Google Scholar] [CrossRef]
  70. Wang, H.; Wu, J. Phase transition, microstructure, and electrical properties of Ca, Zr, and Sn-modified BaTiO3 lead-free ceramics. J. Alloys Compd. 2014, 615, 969–974. [Google Scholar] [CrossRef]
  71. Yu, Z.; Ang, C.; Guo, R.; Bhalla, A.S. Piezoelectric and strain properties of Ba(Ti1−xZrx)O3 ceramics. J. Appl. Phys. 2002, 92, 1489–1493. [Google Scholar] [CrossRef]
  72. Maiti, T.; Guo, R.; Bhalla, A.S. Structure-property phase diagram of BaZrxTi1−xO3 system. J. Am. Ceram. Soc. 2008, 91, 1769–1780. [Google Scholar] [CrossRef]
  73. Hao, J.; Bai, W.; Li, W.; Zhai, J. Correlation between the microstructure and electrical properties in high-performance (Ba0.85Ca0.15)(Zr0.1Ti0.9)O3 lead-free piezoelectric ceramics. J. Am. Ceram. Soc. 2012, 95, 1998–2006. [Google Scholar] [CrossRef]
  74. Cui, Y.; Liu, X.; Jiang, M.; Zhao, X.; Shan, X.; Li, W.; Yuan, C.; Zhou, C. Lead-free (Ba0.85Ca0.15)(Ti0.9Zr0.1)O3-CeO2 ceramics with high piezoelectric coefficient obtained by low-temperature sintering. Ceram. Int. 2012, 38, 4761–4764. [Google Scholar] [CrossRef]
  75. Jiang, M.; Lin, Q.; Lin, D.; Zheng, Q.; Fan, X.; Wu, X.; Sun, H.; Wan, Y.; Wu, L. Effects of MnO2 and sintering temperature on microstructure, ferroelectric, and piezoelectric properties of Ba0.85Ca0.15Ti0.90Zr0.10O3 lead-free ceramics. J. Mater. Sci. 2013, 48, 1035–1041. [Google Scholar] [CrossRef]
  76. Bharathi, P.; Varma, K.B.R. Grain and the concomitant ferroelectric domain size dependent physical properties of Ba0.85Ca0.15Zr0.1Ti0.9O3 ceramics fabricated using powders derived from oxalate precursor route. J. Appl. Phys. 2014, 116, 164107. [Google Scholar] [CrossRef]
  77. Praveen, J.P.; Karthik, T.; James, A.R.; Chandrakala, E.; Asthana, S.; Das, D. Effect of poling process on piezoelectric properties of sol-gel derived BZT–BCT ceramics. J. Eur. Ceram. Soc. 2015, 35, 1785–1798. [Google Scholar] [CrossRef]
  78. Wu, J.; Xiao, D.; Wu, W.; Zhu, J.; Wang, J. Effect of dwell time during sintering on piezoelectric properties of (Ba0.85Ca0.15)(Ti0.90Zr0.10)O3 lead-free ceramics. J. Alloys Compd. 2011, 509, L359–L361. [Google Scholar] [CrossRef]
  79. Sun, Z.; Pu, Y.; Dong, Z.; Hu, Y.; Liu, X.; Wang, P. The effects of soaking time on the grain growth, dielectric and ferroelectric properties of BaTi0.95Zr0.05O3 ceramics prepared by microwave sintering. Vacuum 2014, 101, 228–232. [Google Scholar] [CrossRef]
  80. Mishra, P.; Sonia; Kumar, P. Enhanced dielectric and piezoelectric properties of BZT–BCT system near MPB. Ceram. Int. 2014, 40, 14149–14157. [Google Scholar] [CrossRef]
  81. Li, W.; Xu, Z.; Chu, R.; Fu, P.; Zang, G. High piezoelectric d33 coefficient of lead-free (Ba0.93Ca0.07)(Ti0.95Zr0.05)O3 ceramics sintered at optimal temperature. Mater. Sci. Eng. B 2011, 176, 65–67. [Google Scholar] [CrossRef]
  82. Wu, J.; Xiao, D.; Wu, B.; Wu, W.; Zhu, J.; Yang, Z.; Wang, J. Sintering temperature-induced electrical properties of (Ba0.90Ca0.10)(Ti0.85Zr0.15)O3 lead-free ceramics. Mater. Res. Bull. 2012, 47, 1281–1284. [Google Scholar] [CrossRef]
  83. Bao, H.; Zhou, C.; Xue, D.; Gao, J.; Ren, X. A modified lead-free piezoelectric BZT–xBCT system with higher TC. J. Phys. D Appl. Phys. 2010, 43, 465401. [Google Scholar] [CrossRef]
  84. Li, W.; Xu, Z.; Chu, R.; Fu, P.; Zang, G. High piezoelectric d33 coefficient in (Ba1−xCax)(Ti0.98Zr0.02)O3 lead-free ceramics with relative high Curie temperature. Mater. Lett. 2010, 64, 2325–2327. [Google Scholar] [CrossRef]
  85. Li, W.; Xu, Z.; Chu, R.; Fu, P.; Zang, G. Piezoelectric and dielectric properties of (Ba1−xCax)(Ti0.95Zr0.05)O3 lead-free ceramics. J. Am. Ceram. Soc. 2010, 93, 2942–2944. [Google Scholar] [CrossRef]
  86. Li, W.; Xu, Z.; Chu, R.; Fu, P.; Zang, G. Polymorphic phase transition and piezoelectric properties of (Ba1−xCax)(Ti0.9Zr0.1)O3 lead-free ceramics. Phys. B 2010, 405, 4513–4516. [Google Scholar] [CrossRef]
  87. Pisitpipathsin, N.; Kantha, P.; Pengpat, K.; Rujijanagul, G. Influence of Ca substitution on microstructure and electrical properties of Ba(Zr,Ti)O3 ceramics. Ceram. Int. 2013, 39, S35–S39. [Google Scholar] [CrossRef]
  88. Wu, J.; Xiao, D.; Wu, W.; Chen, Q.; Zhu, J.; Yang, Z.; Wang, J. Composition and poling condition-induced electrical behavior of (Ba0.85Ca0.15)(Ti1−xZrx)O3 lead-free piezoelectric ceramics. J. Eur. Ceram. Soc. 2012, 32, 891–898. [Google Scholar] [CrossRef]
  89. Zhang, S.W.; Zhang, H.; Zhang, B.P.; Yang, S. Phase-transition behavior and piezoelectric properties of lead-free (Ba0.95Ca0.05)(Ti1−xZrx)O3 ceramics. J. Alloys Compd. 2010, 506, 131–135. [Google Scholar] [CrossRef]
  90. Smolensky, G.A.; Isupov, V.A.; Agranovskaya, A.I.; Krainik, N.N. New ferroelectrics of complex composition. Sov. Phys. Solid State 1961, 2, 2651–2654. [Google Scholar]
  91. Takenaka, T.; Maruyama, K.I.; Sakata, K. (Bi1/2Na1/2)TiO3-BaTiO3 system for lead-free piezoelectric ceramics. Jap. J. Appl. Phys. 1991, 30, 2236–2239. [Google Scholar] [CrossRef]
  92. Chu, B.J.; Chen, D.R.; Li, G.R.; Yin, Q.R. Electrical properties of Na1/2Bi1/2TiO3–BaTiO3 ceramics. J. Eur. Ceram. Soc. 2002, 22, 2115–2121. [Google Scholar] [CrossRef]
  93. Jo, W.; Dittmer, R.; Acosta, M.; Zang, J.; Groh, C.; Sapper, E.; Wang, K.; Rödel, J. Giant electric-field-induced strains in lead-free ceramics for actuator applications—Status and perspective. J. Electroceram. 2012, 29, 71–93. [Google Scholar] [CrossRef]
  94. Vakhrushev, S.B.; Isupov, V.A.; Kvyatkovsky, B.E.; Okuneva, N.M.; Pronin, I.P.; Smolensky, G.A.; Syrnikov, P.P. Phase transitions and soft modes in sodium bismuth titanate. Ferroelectrics 1985, 63, 153–160. [Google Scholar] [CrossRef]
  95. Hiruma, Y.; Nagata, H.; Takenaka, T. Thermal depoling process and piezoelectric properties of bismuth sodium titanate ceramics. J. Appl. Phys. 2009, 105, 084112. [Google Scholar] [CrossRef]
  96. Eerd, B.W.; Damjanovic, D.; Klein, N.; Setter, N.; Trodahl, J. Structural complexity of (Na0.5Bi0.5)TiO3-BaTiO3 as revealed by Raman spectroscopy. Phys. Rev. B. 2010, 82, 104112. [Google Scholar] [CrossRef]
  97. Pardo, L.; Mercadelli, E.; García, Á.; Brebøl, K.; Galassi, C. Field-induced phase transition and relaxor character in submicron structured lead-free (Bi0.5Na0.5)0.94Ba0.06TiO3 piezoceramics at the morphotropic phase boundary. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2011, 58, 1893–1904. [Google Scholar] [CrossRef] [PubMed]
  98. Yang, J.; Liu, P.; Bian, X.; Jing, H.; Wang, Y.; Zhang, Y.; Wu, Y.; Song, W. Dielectric, ferroelectric and piezoelectric properties of Bi0.5Na0.5TiO3-(Ba0.7Ca0.3)TiO3 ceramics at morphotropic phase boundary composition. Mater. Sci. Eng. B 2011, 176, 260–265. [Google Scholar] [CrossRef]
  99. Takenaka, T.; Nagata, H.; Hiruma, Y. Phase transition temperatures and piezoelectric properties of (Bi1/2Na1/2)TiO3-and (Bi1/2K1/2)TiO3-based bismuth perovskite lead-free ferroelectric ceramics. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2009, 56, 1595–1612. [Google Scholar] [CrossRef] [PubMed]
  100. Naderer, M.; Kainz, T.; Schütz, D.; Reichmann, K. The influence of Ti-nonstoichiometry in Bi0.5Na0.5TiO3. J. Eur. Ceram. Soc. 2014, 34, 663–667. [Google Scholar] [CrossRef]
  101. Lencka, M.M.; Oledzka, M.; Riman, R.E. Hydrothermal synthesis of sodium and potassium bismuth titanates. Chem. Mater. 2000, 12, 1323–1330. [Google Scholar] [CrossRef]
  102. Liu, Y.; Lu, Y.; Dai, S. Hydrothermal synthesis of monosized Bi0.5Na0.5TiO3 spherical particles under low alkaline solution concentration. J. Alloys Compd. 2009, 484, 801–805. [Google Scholar] [CrossRef]
  103. Pookmanee, P.; Phanichphant, S. Low temperature hydrothermal synthesis of bismuth sodium titanate nanopowders. Int. J. Nanosci. 2005, 4, 637–641. [Google Scholar] [CrossRef]
  104. Zhao, M.L.; Wang, C.L.; Zhong, W.L.; Wang, J.F.; Li, Z.F. Grain-size effect on the dielectric properties of Bi0.5Na0.5TiO3. Chin. Phys. Lett. 2003, 20, 290–292. [Google Scholar]
  105. West, D.L.; Payne, D.A. Preparation of 0.95Bi1/2Na1/2TiO3·0.05BaTiO3 ceramics by an aqueous citrate-gel route. J. Am. Ceram. Soc. 2003, 86, 192–194. [Google Scholar] [CrossRef]
  106. Mercadelli, E.; Galassi, C.; Costa, A.L.; Albonetti, S.; Sanson, A. Sol-gel combustion synthesis of BNBT powders. J. Sol Gel Sci. Technol. 2008, 46, 39–45. [Google Scholar] [CrossRef]
  107. Alonso-Sanjosé, D.; Jiménez, R.; Bretos, I.; Calzada, M.L. Lead-free ferroelectric (Na1/2Bi1/2)TiO3-BaTiO3 thin films in the morphotropic phase boundary composition: Solution processing and properties. J. Am. Ceram. Soc. 2009, 92, 2218–2225. [Google Scholar] [CrossRef]
  108. Kim, B.H.; Han, S.J.; Kim, J.H.; Lee, J.H.; Ahn, B.K.; Xu, Q. Electrical properties of (1−x)(Bi0.5Na0.5)TiO3-xBaTiO3 synthesized by emulsion method. Ceram. Int. 2007, 33, 447–452. [Google Scholar] [CrossRef]
  109. Kanie, K.; Numamoto, Y.; Tsukamoto, S.; Sasaki, T.; Nakaya, M.; Tani, J.; Takahashi, H.; Muramatsu, A. Size-controlled hydrothermal synthesis of bismuth sodium and bismuth potassium titanates fine particles and application to lead-free piezoelectric ceramics. Mater. Trans. JIM 2011, 52, 1396–1401. [Google Scholar] [CrossRef]
  110. Huang, Y.; Gao, L.; Hu, Y.; Du, H. Compositional effects on the properties of (1–x)BaTiO3-xBi0.5Na0.5TiO3 ceramics. J. Mater. Sci. Mater. Electron. 2007, 18, 605–609. [Google Scholar] [CrossRef]
  111. Gao, L.; Huang, Y.; Liu, L.; Liu, T.; Liu, C.; Zhou, F.; Wan, X. Crystal structure and properties of BaTiO3-(Bi0.5Na0.5)TiO3 ceramic system. J. Mater. Sci. 2008, 43, 6267–6271. [Google Scholar] [CrossRef]
  112. Chen, M.; Xu, Q.; Kim, B.H.; Ahn, B.K.; Ko, J.H.; Kang, W.J.; Nam, O.J. Structure and electrical properties of (Na0.5Bi0.5)1−xBaxTiO3 piezoelectric ceramics. J. Eur. Ceram. Soc. 2008, 28, 843–849. [Google Scholar] [CrossRef]
  113. Xu, Q.; Chen, X.L.; Chen, W.; Kim, B.H.; Xu, S.L.; Chen, M. Structure and electrical properties of (Na0.5Bi0.5)1−xBaxTiO3 ceramics made by a citrate method. J. Electroceram. 2008, 21, 617–620. [Google Scholar] [CrossRef]
  114. Hu, J.Q.; Chen, Z.W. Piezoelectric and dielectric properties of Bi2O3-Doped (Bi0.5Na0.5)0.94Ba0.06TiO3 lead-free piezoelectric ceramics. Key Eng. Mater. 2008, 368–372, 1915–1918. [Google Scholar] [CrossRef]
  115. Ma, X.; Yin, J.; Zhou, Q.; Xue, L.; Yan, Y. Effect of Eu doping on structure and electrical properties of lead-free (Bi0.5Na0.5)0.94Ba0.06 TiO3 ceramics. Ceram. Int. 2014, 40, 7007–7013. [Google Scholar] [CrossRef]
  116. Fu, P.; Xu, Z.; Chu, R.; Li, W.; Zang, G.; Hao, J. Piezoelectric, ferroelectric and dielectric properties of Nd2O3-doped (Bi0.5Na0.5)0.94Ba0.06 TiO3 lead-free ceramics. Mater. Sci. Eng. B 2010, 167, 161–166. [Google Scholar] [CrossRef]
  117. Luo, L.; Ni, F.; Zhang, H.; Chen, H. The enhanced piezoelectric performance of Bi1/2Na1/2TiO3–BaTiO3 ceramics by Ba0.77Ca0.23TiO3 substitution. J. Alloys Compd. 2012, 536, 113–118. [Google Scholar] [CrossRef]
  118. Saito, Y.; Takao, H.; Tani, T.; Nonoyama, T.; Takatori, K.; Homma, T.; Nagaya, T.; Nakamura, M. Lead-free piezoceramics. Nature 2004, 432, 84–87. [Google Scholar] [CrossRef] [PubMed]
  119. Hollenstein, E.; Davis, M.; Damjanovic, D.; Setter, N. Piezoelectric properties of Li- and Ta-modified (K0.5Na0.5)NbO3 ceramics. Appl. Phys. Lett. 2005, 87, 182905. [Google Scholar] [CrossRef]
  120. Zhang, S.; Xia, R.; Shrout, T.R.; Zang, G.; Wang, J. Characterization of lead free (K0.5Na0.5)NbO3-LiSbO3 piezoceramic. Solid State Commun. 2007, 141, 675–679. [Google Scholar] [CrossRef]
  121. Li, J.F.; Wang, K.; Zhu, F.Y.; Cheng, L.Q.; Yao, F.Z. (K, Na)NbO3-based lead-free piezoceramics: Fundamental aspects, processing technologies, and remaining challenges. J. Am. Ceram. Soc. 2013, 96, 3677–3696. [Google Scholar] [CrossRef]
  122. Jaeger, R.E.; Egerton, L. Hot pressing of potassium-sodium niobates. J. Am. Ceram. Soc. 1962, 45, 209–213. [Google Scholar] [CrossRef]
  123. Egerton, L.; Bieling, C.A. Isostatically hot-pressed sodium-potassium niobate transducer material for ultrasonic devices. Am. Ceram. Soc. Bull. 1968, 47, 1151–1156. [Google Scholar]
  124. Kosec, M.; Kolar, D. On activated sintering and electrical properties of NaKNbO3. Mater. Res. Bull. 1975, 10, 335–339. [Google Scholar] [CrossRef]
  125. Tennery, V.J.; Hang, K. Thermal and X-ray diffraction studies of the NaNbO3–KNbO3 system. J. Appl. Phys. 1968, 39, 4749. [Google Scholar] [CrossRef]
  126. Senna, M.; Pavlic, J.; Rojac, T.; Malic, B.; Kosec, M. Preparation of phase-pure K0.5Na0.5NbO3 fine powders by a solid-state reaction at 625 °C from a precursor comprising Nb2O5 and K, Na acetates. J. Am. Ceram. Soc. 2014, 97, 413–419. [Google Scholar] [CrossRef]
  127. Bernard, J.; Bencan, A.; Rojac, T.; Holc, J.; Malic, B.; Kosec, M. Low-temperature sintering of K0.5Na0.5NbO3 ceramics. J. Am. Ceram. Soc. 2008, 91, 2409–2411. [Google Scholar] [CrossRef]
  128. Guo, Y.; Kakimoto, K.I.; Ohsato, H. (Na0.5K0.5)NbO3–LiTaO3 lead-free piezoelectric ceramic. Mater. Lett. 2005, 59, 241–244. [Google Scholar] [CrossRef]
  129. Zang, G.Z.; Wang, J.F.; Chen, H.C.; Su, W.B.; Wang, C.M.; Qi, P.; Ming, B.Q.; Du, J.; Zheng, L.M.; Zhang, S.; et al. Perovskite (Na0.5K0.5)1−x(LiSb)xNb1−xO3 lead-free piezoceramics. Appl. Phys. Lett. 2006, 88, 212908. [Google Scholar] [CrossRef]
  130. Rubio-Marcos, F.; Romero, J.J.; Martín-González, M.S.; Fernández, J.F. Effect of stoichiometry and milling processes in the synthesis and the piezoelectric properties of modified KNN nanoparticles by solid state reaction. J. Eur. Ceram. Soc. 2010, 30, 2763–2771. [Google Scholar] [CrossRef] [Green Version]
  131. López, R.; González, F.; Villafuerte-Castrejón, M.E. Structural and electrical characterization of (K0.48Na0.52)0.96Li0.04Nb0.85Ta0.15O3 synthesized by spray drying. J. Eur. Ceram. Soc. 2010, 30, 1549–1553. [Google Scholar] [CrossRef]
  132. López, R.; González, F.; Cruz, M.P.; Villafuerte-Castrejón, M.E. Piezoelectric and ferroelectric properties of K0.5Na0.5NbO3 ceramics synthesized by spray drying method. Mater. Res. Bull. 2011, 46, 70–74. [Google Scholar] [CrossRef]
  133. López-Juárez, R.; González-García, F.; Zárate-Medina, J.; Escalona-González, R.; de la Torre, S.D.; Villafuerte-Castrejón, M.E. Piezoelectric properties of Li–Ta co-doped potassium–sodium niobate ceramics prepared by spark plasma and conventional sintering. J. Alloys Compd. 2011, 509, 3837–3842. [Google Scholar] [CrossRef]
  134. López-Juárez, R.; Castañeda-Guzmán, R.; Villafuerte-Castrejón, M.E. Fast synthesis of NaNbO3 and K0.5Na0.5NbO3 by microwave hydrothermal method. Ceram. Int. 2014, 40, 14757–14764. [Google Scholar] [CrossRef]
  135. López-Juárez, R.; Novelo-Peralta, O.; González-García, F.; Rubio-Marcos, F.; Villafuerte-Castrejón, M.E. Ferroelectric domain structure of lead-free potassium-sodium niobate ceramics. J. Eur. Ceram. Soc. 2011, 31, 1861–1864. [Google Scholar] [CrossRef]
  136. Zhengfa, L.; Yongxiang, L.; Jiwei, Z. Grain growth and piezoelectric property of KNN-based lead-free ceramics. Curr. Appl. Phys. 2011, 11, S2–S13. [Google Scholar] [CrossRef]
  137. Saeri, M.R.; Barzegar, A.; Moghadam, H.A. Investigation of nano particle additives on lithium doped KNN lead free piezoelectric ceramics. Ceram. Int. 2011, 37, 3083–3087. [Google Scholar] [CrossRef]
  138. Malic, B.; Bernard, J.; Holc, J.; Jenko, D.; Kosec, M. Alkaline-earth doping in (K,Na)NbO3 based piezoceramics. J. Eur. Ceram. Soc. 2005, 25, 2707–2711. [Google Scholar] [CrossRef]
  139. Rani, J.; Patel, P.K.; Adhlakha, N.; Singh, H.; Yadav, K.L.; Prakash, S. Mo6+ modified (K0.5Na0.5)NbO3 lead free ceramics: Structural, electrical and optical properties. J. Mater. Sci. Technol. 2014, 30, 459–465. [Google Scholar] [CrossRef]
  140. Hou, Y.; Wang, C.; Zhao, J.; Ge, H.; Zhu, M.; Yan, H. The fine-grained KNN–LN ceramics densified from nanoparticles obtained by an economical sol-gel route. Mater. Chem. Phys. 2012, 134, 518–522. [Google Scholar] [CrossRef]
  141. Palei, P.; Pattanaik, M.; Kumar, P. Effect of oxygen sintering on the structural and electrical properties of KNN ceramics. Ceram. Int. 2012, 38, 851–854. [Google Scholar] [CrossRef]
  142. Hao, J.; Xu, Z.; Chu, R.; Zhang, Y.; Chen, Q.; Fu, P.; Li, W.; Li, G.; Yin, Q. Characterization of (K0.5Na0.5)NbO3 powders and ceramics prepared by a novel hybrid method of sol-gel and ultrasonic atomization. Mater. Des. 2010, 31, 3146–3150. [Google Scholar] [CrossRef]
  143. Singh, R.; Patro, P.K.; Kulkarni, A.R.; Harendranath, C.S. Synthesis of nano-crystalline potassium sodium niobate ceramic using mechanochemical activation. Ceram. Int. 2014, 40, 10641–10647. [Google Scholar] [CrossRef]
  144. Feizpour, M.; Bafrooei, H.B.; Hayati, R.; Ebadzadeh, T. Microwave-assisted synthesis and sintering of potassium sodium niobate lead-free piezoelectric ceramics. Ceram. Int. 2014, 40, 871–877. [Google Scholar] [CrossRef]
  145. Zhou, Y.; Guo, M.; Zhang, C.; Zhang, M. Hydrothermal synthesis and piezoelectric property of Ta-doping K0.5Na0.5NbO3 lead-free piezoelectric ceramic. Ceram. Int. 2009, 35, 3253–3258. [Google Scholar] [CrossRef]
  146. Wang, K.; Li, J.F. Analysis of crystallographic evolution in (Na,K)NbO3-based lead-free piezoceramics by X-ray diffraction. Appl. Phys. Lett. 2007, 91, 262902. [Google Scholar] [CrossRef]
  147. Rani, J.; Yadav, K.L.; Prakash, S. Enhanced dielectric, ferroelectric and optical properties of lead free (K0.17Na0.83)NbO3 ceramic with WO3 addition. Mater. Sci. Eng. B 2013, 178, 1469–1475. [Google Scholar] [CrossRef]
  148. Du, J.; Zang, G.Z.; Yi, X.J.; Zhang, D.F.; Huang, Z.F. Effects of W2/3Bi1/3 substitute on piezoelectric properties of KNN-based ceramics. Mater. Lett. 2012, 70, 23–25. [Google Scholar] [CrossRef]
  149. Li, L.; Bai, W.; Zhang, Y.; Shen, B.; Zhai, J. The preparation and piezoelectric property of textured KNN-based ceramics with plate-like NaNbO3 powders as template. J. Alloys Compd. 2015, 622, 137–142. [Google Scholar] [CrossRef]
  150. Du, J.; Wang, J.; Zang, G.; Yi, X. Phase transition behavior and piezoelectric properties of low-Li and high-Sb modified KNN based piezoceramics. Phys. B 2011, 406, 4077–4079. [Google Scholar] [CrossRef]
  151. Zhao, P.; Zhang, B.P.; Li, J.F. High piezoelectric d33 coefficient in Li-modified lead-free (Na,K)NbO3 ceramics sintered at optimal temperature. Appl. Phys. Lett. 2007, 20, 242904. [Google Scholar] [CrossRef]
  152. Park, S.U.; Koh, J.H. Dielectric properties of Ag-doped 0.94(K0.5Na0.5)NbO3–0.06LiNbO3 ceramics prepared by templated grain growth. Mater. Res. Bull. 2014, 58, 69–73. [Google Scholar] [CrossRef]
  153. Wang, X.; Wu, J.; Xiao, D.; Zhu, J.; Cheng, X.; Zheng, T.; Zhang, B.; Lou, X.; Wang, X. Giant piezoelectricity in potassium–sodium niobate lead-free ceramics. J. Am. Chem. Soc. 2014, 136, 2905–2910. [Google Scholar] [CrossRef] [PubMed]
  154. Zheng, T.; Wu, J.; Xiao, D.; Zhu, J.; Wang, X.; Xin, L.; Lou, X. Strong piezoelectricity in (1−x)(K0.4Na0.6)(Nb0.96Sb0.04)O3–xBi0.5K0.5Zr1–ySnyO3 lead-free binary system: Identification and role of multiphase coexistence. ACS Appl. Mater. Interfaces 2015, 7, 5927–5937. [Google Scholar] [CrossRef] [PubMed]

Share and Cite

MDPI and ACS Style

Villafuerte-Castrejón, M.E.; Morán, E.; Reyes-Montero, A.; Vivar-Ocampo, R.; Peña-Jiménez, J.-A.; Rea-López, S.-O.; Pardo, L. Towards Lead-Free Piezoceramics: Facing a Synthesis Challenge. Materials 2016, 9, 21. https://doi.org/10.3390/ma9010021

AMA Style

Villafuerte-Castrejón ME, Morán E, Reyes-Montero A, Vivar-Ocampo R, Peña-Jiménez J-A, Rea-López S-O, Pardo L. Towards Lead-Free Piezoceramics: Facing a Synthesis Challenge. Materials. 2016; 9(1):21. https://doi.org/10.3390/ma9010021

Chicago/Turabian Style

Villafuerte-Castrejón, María Elena, Emilio Morán, Armando Reyes-Montero, Rodrigo Vivar-Ocampo, Jesús-Alejandro Peña-Jiménez, Salvador-Oliver Rea-López, and Lorena Pardo. 2016. "Towards Lead-Free Piezoceramics: Facing a Synthesis Challenge" Materials 9, no. 1: 21. https://doi.org/10.3390/ma9010021

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
