Abstract

: The influence of the Ar/O2 gas ratio during radio frequency (RF) sputtering of the RuO2 sensing electrode on the pH sensing performance is investigated. The developed pH sensor consists in an RF sputtered ruthenium oxide thin-film sensing electrode, in conjunction with an electroplated Ag/AgCl reference electrode. The performance and characterization of the developed pH sensors in terms of sensitivity, response time, stability, reversibility, and hysteresis are investigated. Experimental results show that the pH sensor exhibits super-Nernstian slopes in the range of 64.33–73.83 mV/pH for Ar/O2 gas ratio between 10/0–7/3. In particular, the best pH sensing performance, in terms of sensitivity, response time, reversibility and hysteresis, is achieved when the Ar/O2 gas ratio is 8/2, at which a high sensitivity, a low hysteresis and a short response time are attained simultaneously.
Keywords:
thin film; sputtering; metal oxide; pH sensing; electrochemical properties

1. Introduction

Many chemical and biological processes critically rely on accurate pH measurements. Applications, such as water quality monitoring, blood monitoring, chemical and biological analyses, environmental monitoring and various clinical tests, utilize pH sensors [1,2,3,4]. In particular, monitoring the pH level in biomedical applications can be crucial for successful clinical outcomes. Laboratories, as well as industry, utilize pH as a vital analytical tool to monitor water quality, especially in rivers, lakes and oceans, as well as for the neutralization of treated industrial waste water.

The most widely used technique for pH measurement is based on the use of conventional glass pH electrodes [5,6]. While glass electrodes display several advantages, such as high sensitivity, long-term stability, high ion selectivity and wide operating range, they have key disadvantages including mechanical fragility, need for wet storage, large size, limited shape and high cost, which make them impractical for some applications, such as Lab-on-chips and pH sensor capsules.

Recently, various metal oxides, such as RuO2, IrO2, PtO2, RhO2, TiO2, SnO2, Ta2O5 and PdO, have been investigated for use in pH sensing electrodes. Their benefits include insolubility, stability, mechanical strength, electro-catalyst and manufacturing technology [7,8,9,10,11,12,13,14,15,16,17,18,19,20]. Compared with other metal oxides, ruthenium oxide exhibits unique properties, including thermal stability, excellent corrosion resistance, low hysteresis, high sensitivity, and low resistivity. Using screen-printing technology, pH sensors employing thick-film ruthenium oxide pH sensing electrodes have been developed in combination with standard electrolyte-filled Ag/AgCl reference electrodes [21,22,23,24,25]. However, while screen printing is a cost-effective deposition technique for thick film development, it is inaccurate (hence impractical) for the development of sub-micron thin-films. Recently, pH sensor structures based on the use of sub-micron RuO2 thin films have been reported [26,27,28,29].

In this paper, we thoroughly investigate the effect of the Ar/O2 gas ratio on the pH sensing performance of the RuO2 thin-film sensing electrode prepared by reactive radio frequency (RF) sputtering in conjunction with an electroplated Ag/AgCl reference electrode. Compared to other deposition techniques, RF sputtering offers unique features, such as (i) it maintains the stoichiometry of the target, by adding O2 gas to the Ar process gas; (ii) it enables the thickness of the film to be controlled at nano scale, through controlled deposition rates; and (iii) it produces better surface morphology due to molecule-by-molecule sputtering. These unique features result in a super-Nernstian response. A 300 nm thick RuO2 thin film is developed with an Ar/O2 gas ratio varying from 10/0 to 7/3, and tested using standard pH buffer solutions of pH 4, pH 7 and pH 10, which typically validate the acidity and alkaline behaviors for commercial pH sensors calibration. Experimental results demonstrate a pH sensor of excellent features, including high sensitivity, fast response time, good stability, reversibility and repeatability. The most stable pH sensing performance is achieved for an Ar/O2 gas ratio of 8/2. The optimized pH sensor demonstrates several advantages such as miniaturization, ease of packaging, low cost through the use of micro fabrication processes, ruggedness and disposability.

2. Sensor Fabrication and Measurements

2.1. Sensor Fabrication

The generic structure of the developed pH sensor is shown in Figure 1. The sensor is made-up of an alumina substrate on which two platinum contacts are first deposited. A sub-micron RuO2 thin film is radio frequency (RF) sputtered on top of one of the platinum contacts to form the sensing electrode.

Several pH sensors were developed using off-the-shelf ceramic patterned electrode cells of dimensions 15 mm × 61 mm × 0.67 mm, developed by Pine Research Instrumentation (http://www.pineinst.com), comprising a patterned platinum sensing contact and an electroplated Ag/AgCl reference electrode of sensing diameters 2 mm and 1 mm, respectively, as shown in Figure 1. RuO2 thin films were deposited onto the platinum sensing electrode area of the electrode cell utilizing an RF magnetron sputtering system (using shadow masking). A 99.95% pure, 4-inch diameter RuO2 sputtering target was used to sputter 300 nm RuO2 thin-films in Ar/O2 gas ratio varying from 10/0 to 7/3. After pumping down the sputtering chamber to a base presure of 1 × 10−6 Torr, Ar and O2 gases were introduced into the chamber through mass flow controllers. The deposition process was carried out in pure Ar and Ar/O2 gas mixture of ratios ranging from 9/1 to 7/3 at 1 mTorr process pressure and 100 W RF sputtering power. The substrate temperature was kept low, i.e., the substrate was not heated during the film deposition.

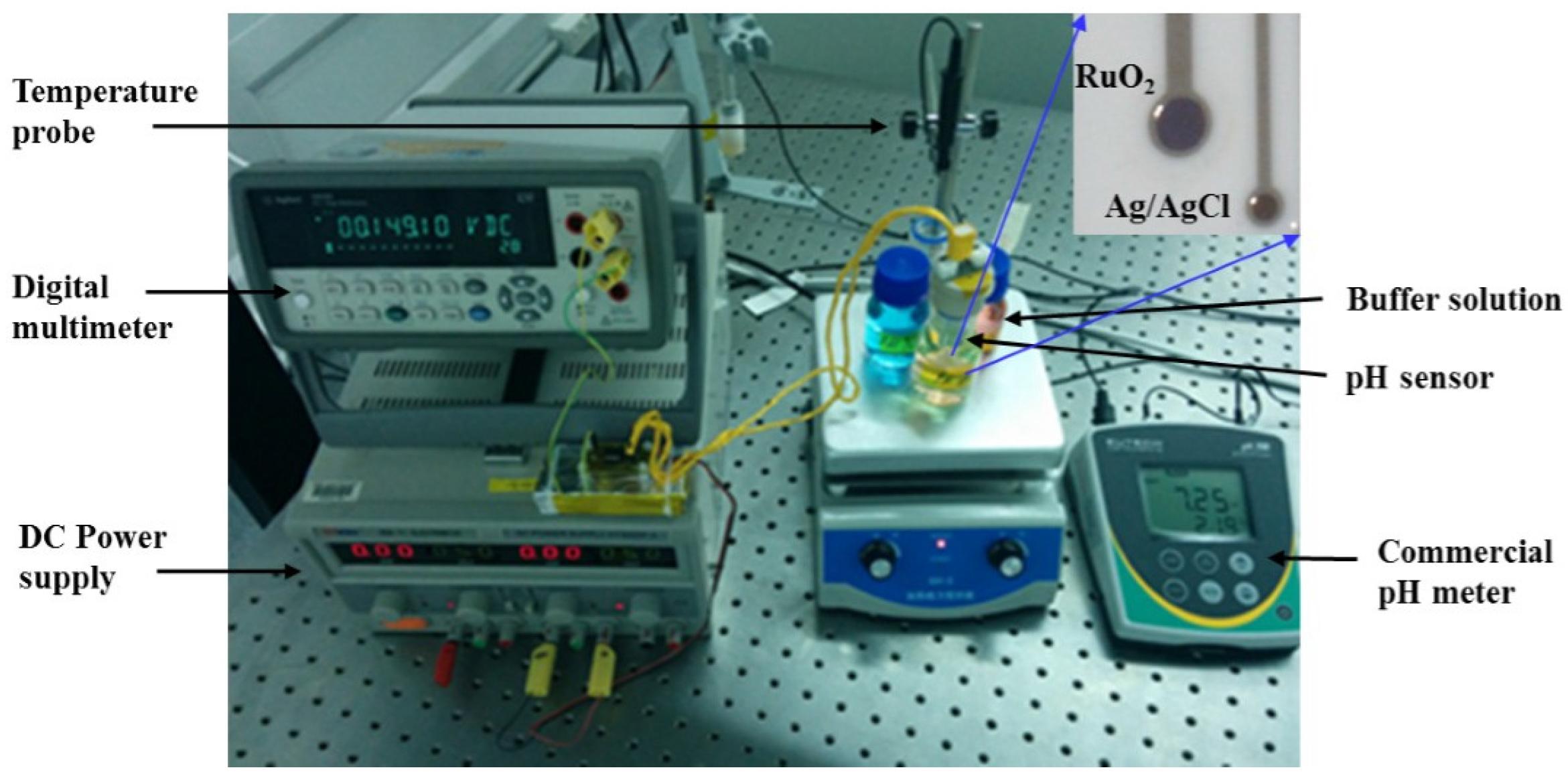

Figure 1. Microphotograph of the pH measurement setup.
Figure 1. Microphotograph of the pH measurement setup.
Materials 08 03352 g001 1024

2.2. pH Measurement

The potential difference between the electrodes of the pH sensor in real-time was recorded using high performance digital multimeter (Agilent 34410A, http://www.agilent.com). A unity-gain buffer amplifier was developed and used for impedance matching and signal loss minimization. The electrochemical behavior of the sensor was investigated through potentiometric measurements. The potential difference between the RuO2 sensing electrode and the Ag/AgCl reference electrode was recorded with 20 s intervals for test solutions of pH 4, pH 7 and pH 10 (Rowe Scientific, Australia) at 22 °C (temperature of our cleanroom). The proof-of-concept experiments were designed to demonstrate the effects of the Ar/O2 gas ratio on the performance of the pH sensor. The calibration of commercial pH sensors is typically validated using standard pH values of pH 4, pH 7 and pH 10. Therefore, in this preliminary study, the same buffer solutions were chosen to investigate the performance of the developed pH sensor. A magnetic stirrer was used to continuously stir the test solutions for quicker equilibrium of ion concentrations around the sensing electrodes. As a comparator, test solutions were also measured by an Oakton pH meter (pH 700 benchtop meter), and the sensor was cleaned after each pH measurement using deionized (DI) water rinse followed by N2 drying.

3. Results and Discussion

3.1. pH Sensing Mechanism

Fog and Buck have proposed five possible interpretations for the pH response mechanism of metal oxides including RuO2, with the most accepted interpretation being oxygen intercalation, which is represented by the following equilibrium reaction [14,30]:

MOx + 2δH+ + 2δe ↔ MOx + δH2O
where δ is the oxygen intercalation, MOx is a metal oxide with higher oxidation state and MOx is a metal oxide with lower oxidation state. Note that in Equation (1), oxygen intercalation was assumed with a proton activity in the liquid phase and an oxygen activity in the solid phase.

Pourbaix diagrams have also been widely adopted for explaining the mechanism governing the redox equilibrium between two insoluble ruthenium oxides, which is represented by the following reaction [31]:

RuO2 + 2H2O + H+ + e ↔ H2O + Ru(OH)3

Up until now, RuO2, as an electronically conductive oxide of rutile structure, has been commonly used in electrocatalysis applications [16,17,18]. It is well-known that the high catalytic activity of RuO2 is due to several factors, including high surface area, orientation of RuO2 molecules, and/or the RuO2 nanocrystal structure [19]. Moreover, the effect of surface morphology of ruthenium oxide hydrates has been investigated by measuring the point of zero charge and examining, through cyclic voltammetry, the diffusion of tritium protons in pores, cracks and along grain boundaries [32]. Trasatti [33] has suggested the following general equilibrium for the proton exchange for RuO2:

RuOx (OH)y + δH+ + δe ↔ RuOx (OH)y + δ

The Nernst’s mathematical equation predicting the potential between the sensing and reference electrodes versus the pH value is given by [26,27,28]:

E = E 0 2.303 R T F pH  =   E 0 0.05916  pH
where E0 is the reference electrode potential, R is the gas constant, T is absolute temperature and F is Faraday’s constant. The entire term 2.303   R T F is called the Nernst slope. The Nernst slope is 59.16 mV/pH at 25 °C.

3.2. Reactive Sputtering Model

The growth of the metal-oxide films by sputtering in a reactive environment may be described as follows: When the sputtering target is a metal oxide the oxygen partial pressure is originated from the internal (target) and external sources (gas flow). At steady-state conditions, the flux of oxygen atoms, f, is equal to the flux of metal atoms, because of the target homogeneity. In this case, the target supplies molecules into the sputtering chamber with a rate equals to fAt, where At is the target surface. On the other hand, the external source of oxygen increases the oxygen partial pressure in the chamber by a gain factor or Naq0/V0, where Na is Avogadro’s number, V0 is one mole volume under normal conditions, q0 is the oxygen flow. The oxygen concentration inside the chamber decreases because of the oxygen deposition onto both walls of the chamber and the substrate (receiving surface). Using the molecular kinetic theory, the flux of oxygen due to a partial pressure P is expressed as:

F = 2 P / ( 2 π m k T ) 1 2
where m is the mass of the oxygen molecule, k is Boltzmann’s constant and T is the absolute temperature.

Note that, as the oxygen gas passes through the system it is removed from the reactive chamber by the system pump at a rate equals to PSNa/P0V0 where P0 is the atmosphere pressure and S is the pumping speed. Kissine et al. [34] have particularly developed a model for tin oxide (SnO2) prepared by varying Ar/O2 gas ratio during RF sputtering, showing that, at steady-state condition, the balance of oxygen partial pressure in the vacuum chamber will be governed by the following equation [34]:

q = Ψ ( σ + α + ηβ )
where α and β are the parts of the receiving surface covered by Sn and SnO phases respectively, η is a coefficient which shows the relative adsorption of oxygen atoms onto the SnO phase compared to their adsorption onto the Sn phase, q = 1+q0Na /V0fAt is the normalized oxygen flow with respect to the flow from the target, σ = SNa/(2P0/(2πmkT)1/2)V0As is the pumping efficiency, Ψ = FAs/fAt, As is the surface of the film deposited on the substrate.

Kissine et al. [34] have also made two assumptions, that (i) the surface occupied by the Sn phase (α) increases when Sn is deposited onto the SnO and SnO2 phases, however, it decreases because of the oxidation process; and (ii), the surface occupied by the SnO2 phase increases when SnO is oxidized, but, it decreases because of the deposition of Sn. Thus, at equilibrium:

Ψ α   =   β   and   ηΨβ   =   γ
where γ is the part of the receiving surface covered by the SnO2 phase.

Furthermore, Kissine et al. [34] have simulated the SnOx film content versus the oxygen flow and concluded that the O:Sn ratio is equal to about 1:1 when the oxygen flow from an external source is rather small, i.e., the q value is below 1/10, resulting in an amorphous structure. When the oxygen flow (i.e., q) is increased, the SnO2 phase dominates. Note that, however, the crystal perfection and the presence of oxygen vacancies depend on the q value. Due to the similarity of Sn and Ru atoms, the above analysis can be used to accurately calculate the stoichiometry of RuO2 film prepared under RF sputtering in Ar/O2 gas mixture.

3.3. pH Sensor Performance

3.3.1. Sensitivity

The sensitivity of pH sensor was validated by immersing the sensor in pH buffer solution of pH 4, pH 7 and pH 10 at 22 °C. Each sensor was tested three times in the same buffer solution in order to investigate the Nernstian response. Figure 2 shows the average of three tests of the potential versus pH values for different oxygen percentages over RuO2 sputtering film. The sensor showed super-Nernstian slopes in all cases, starting from 64.33, 72.50, 69.83, and 73.92 mV/pH for Ar/O2 gas ratio of 10/0, 9/1, 8/2, 7/3, respectively. The super-Nernstian response of the sensor could be attributed to the use of an RuO2 thin-film prepared by RF magnetron sputtering [29,35]. The results shown in Figure 2 demonstrate linear regressions with high correlation coefficient r2 values between 0.9983 and 0.9964. The pH sensor resolution for different Ar/O2 gas ratio was reported as inverse of the sensitivity in the unit of pH/mV.

The increase in sensor potential with decreasing the argon/oxygen ratio could be attributed to a decrease in free carrier density as well as carrier mobility in the RuO2 thin film [36]. Cui et al. have particularly confirmed that the value for carrier mobility and carrier concentration is very sensitive to the structure of the Indium tin oxide (ITO) films prepared with various Ar/O2 gas ratio [37]. Decreasing the Ar/O2 ratio or increasing the percentage of oxygen enhances the pore formation in the RuO2 thin film thus reducing the carrier density. Furthermore, the enhanced pore formation (or defects) with decreasing the Ar/O2 ratio increases the scattering of the charge carrier, thus decreasing the carrier mobility [37]. Furthermore, the RuO2 thin-film porosity increases with decreasing the argon/oxygen ratio, thus providing larger sensing surface volume. Figure 3 shows scanning electron microscope (SEM) images of the RuO2 thin-films, for different Ar/O2 gas ratios. Table 1 shows the pH sensitivity, resolution and linearity of the RuO2 sensing film sputtered using different Ar/O2 gas ratios.

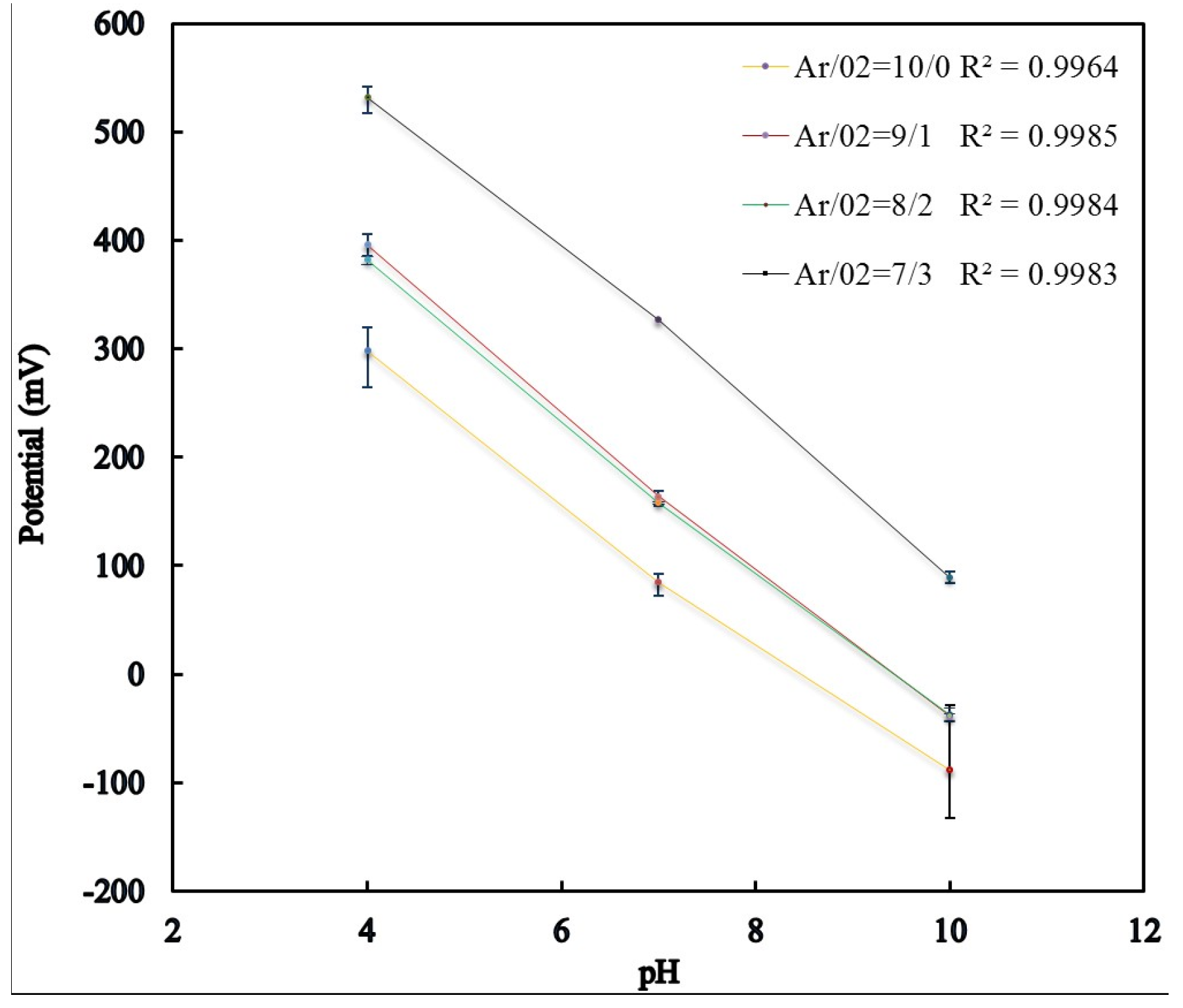

Figure 2. Measured sensor potential versus pH for different Ar/O2 gas ratios.
Figure 2. Measured sensor potential versus pH for different Ar/O2 gas ratios.
Materials 08 03352 g002 1024

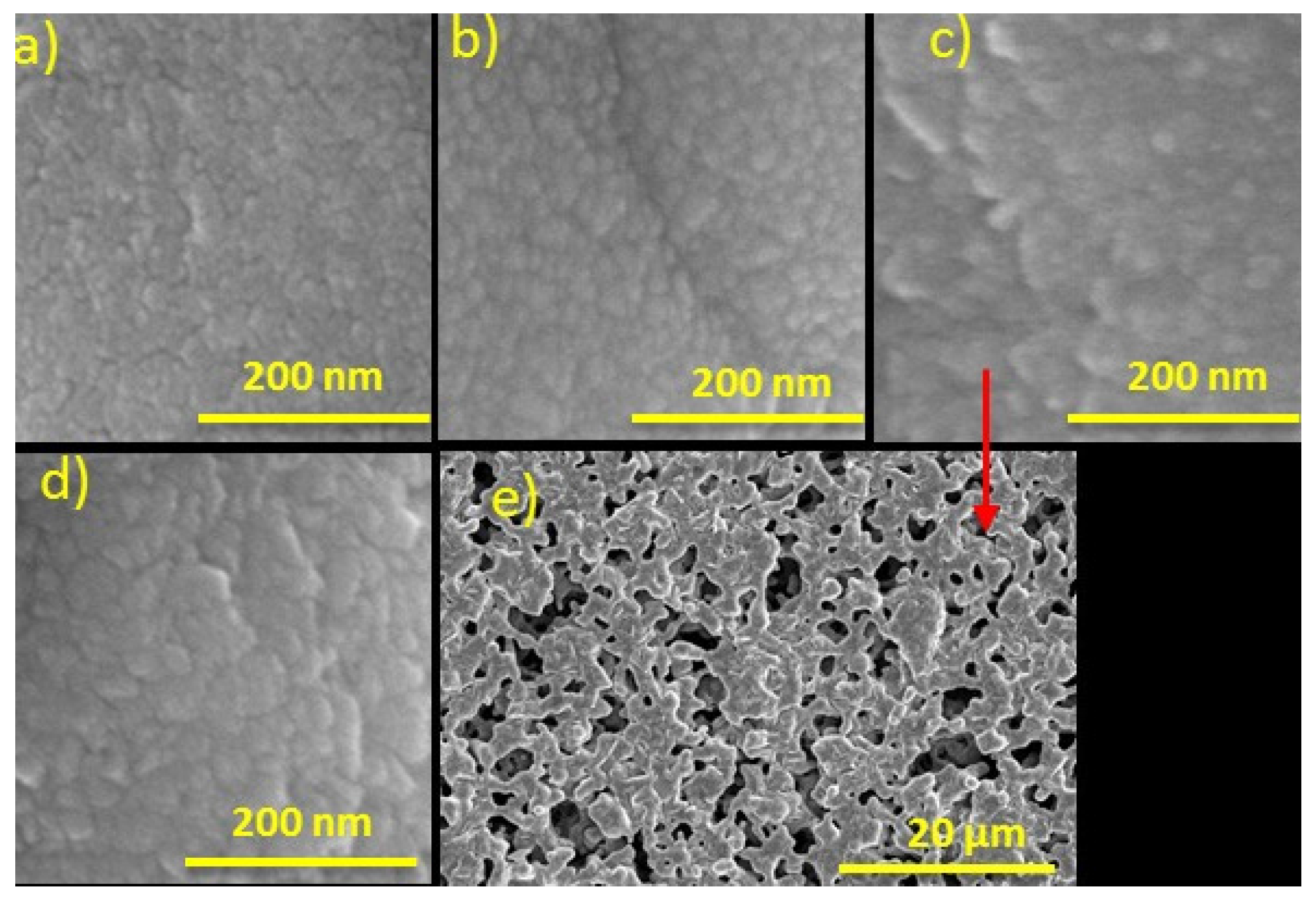

Figure 3. SEM images of the RuO2 thin-films for Ar/O2 ratios of (a) 10/0; (b) 9/1; (c) 8/2; (d) 7/3; (e) different magnification for Ar/O2 = 8/2.
Figure 3. SEM images of the RuO2 thin-films for Ar/O2 ratios of (a) 10/0; (b) 9/1; (c) 8/2; (d) 7/3; (e) different magnification for Ar/O2 = 8/2.
Materials 08 03352 g003 1024
Table 1. pH sensitivity and linearity of RuO2 sensing film prepared with different Ar/O2 gas ratio.
Table 1. pH sensitivity and linearity of RuO2 sensing film prepared with different Ar/O2 gas ratio.
Ar/O2 gas ratio (sccm)Sensitivity (mV/pH)Resolution (pH/mV)Linearity
10/064.330.015r2 = 0.9964
9/172.500.013r2 = 0.9985
8/269.830.014r2 = 0.9984
7/373.830.013r2 = 0.9983

3.3.2. Response Time

The response time of a potentiometric pH sensor is defined as the transit time required for its potential to reach 90% of an equilibrium value after immersing the sensor in a test solution [5,14]. To measure the response time, the potentials between the electrodes of the developed pH sensors were recorded for 10 min with 20 s intervals for buffer solutions of pH 4, pH 7 and pH 10 at 22 °C for different sensors employing RuO2 electrodes developed with various Ar/O2 gas ratios in the range 10/0 to 7/3. The response time for each sensor was calculated from the average of three test runs. For an Ar/O2 gas ratio of 10/0, the measured response times for pH 4, pH 7 and pH 10 were 3 s, 3 s and 160 s, respectively. For an Ar/O2 gas ratio of 9/1, the measured response times for pH 4, pH 7 and pH 10 were 3 s, 3 s and 60 s, respectively. However, when the Ar/O2 gas ratio varied from 8/2 to 7/3, the developed sensor displayed a much faster response time of 3 s for all the tested pH values of pH 4, pH 7 and pH 10. Note that, for the Ar/O2 ratios 8/2 and 7/3, the measured potential value reached 90% of the equilibrium potential value before the first 3 s of the 20 s interval. For the Ar/O2 ratios 10/0 and 9/1, the response time was not 3 s for all tested pH values. Table 2 shows the response time versus the Ar/O2 ratios for different pH values. Moreover, no change in the response time was displayed when the Ar/O2 gas ratio of the RuO2 film was further reduced below 7/3. These experiments demonstrated the importance of optimizing the Ar/O2 gas ratio for minimizing the response time of the pH sensor. Table 2 shows the response time versus the Ar/O2 ratios for different pH values.

Table 2. Response time versus the Ar/O2 ratios for different pH values.
Table 2. Response time versus the Ar/O2 ratios for different pH values.
Ar/O2 gas ratio (sccm)Response time (s)
pH 4pH 7pH 10
10/033160
9/13360
8/2333
7/3333

Furthermore, the pH sensor exhibited a fast response time for acidic solutions, however, for an alkaline solution (pH 10) the response time of the pH sensor was dependent on the porous properties of the RuO2 sensing film, hence, on the Ar/O2 gas ratio. For an Ar/O2 gas ratio of 8/2, the average pore size is relatively large, compared to 10/0 Ar/O2 gas ratio, making it easier to trap the large-size OH ions and this decreases the time needed to equilibrate the liquid in the pores of RuO2 sensing film. For an Ar/O2 gas ratio of 7/3, the response time was similar, however, the hysteresis was higher [38].

3.3.3. Stability

For stability testing, the pH sensor was immersed for 10 min three times in three different test solutions. For each 10 min interval the pH was periodically measured at a sampling time of 20 s. After each 10 min test, the sensor was cleaned with DI water followed by N2 drying. Figure 4 shows the measured potential (the average value from the three tests) versus time for different pH values. The sensor showed stable output potential for all pH values. The experimental results shown in Figure 4 demonstrate a stable pH sensor’s response for an Ar/O2 gas ratio of 8/2.

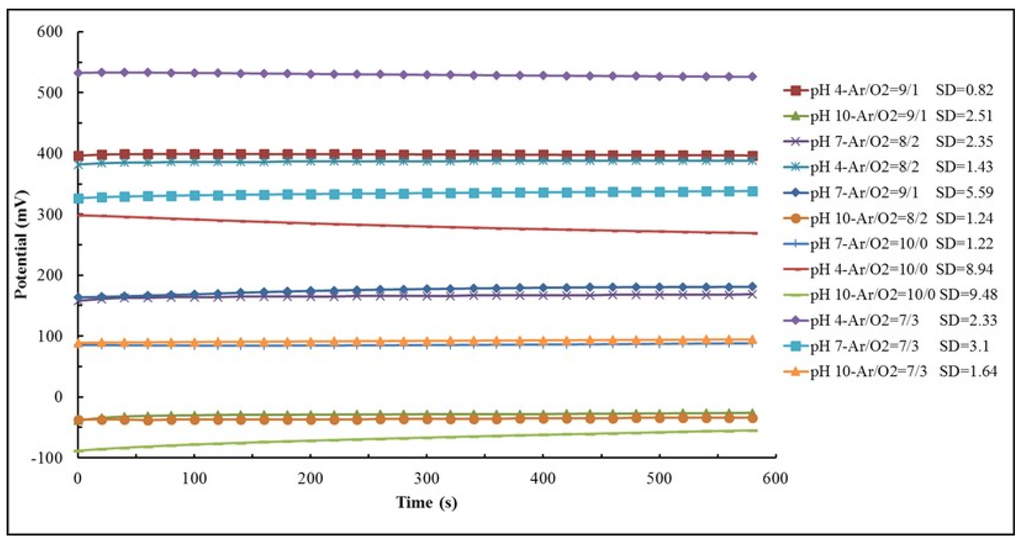

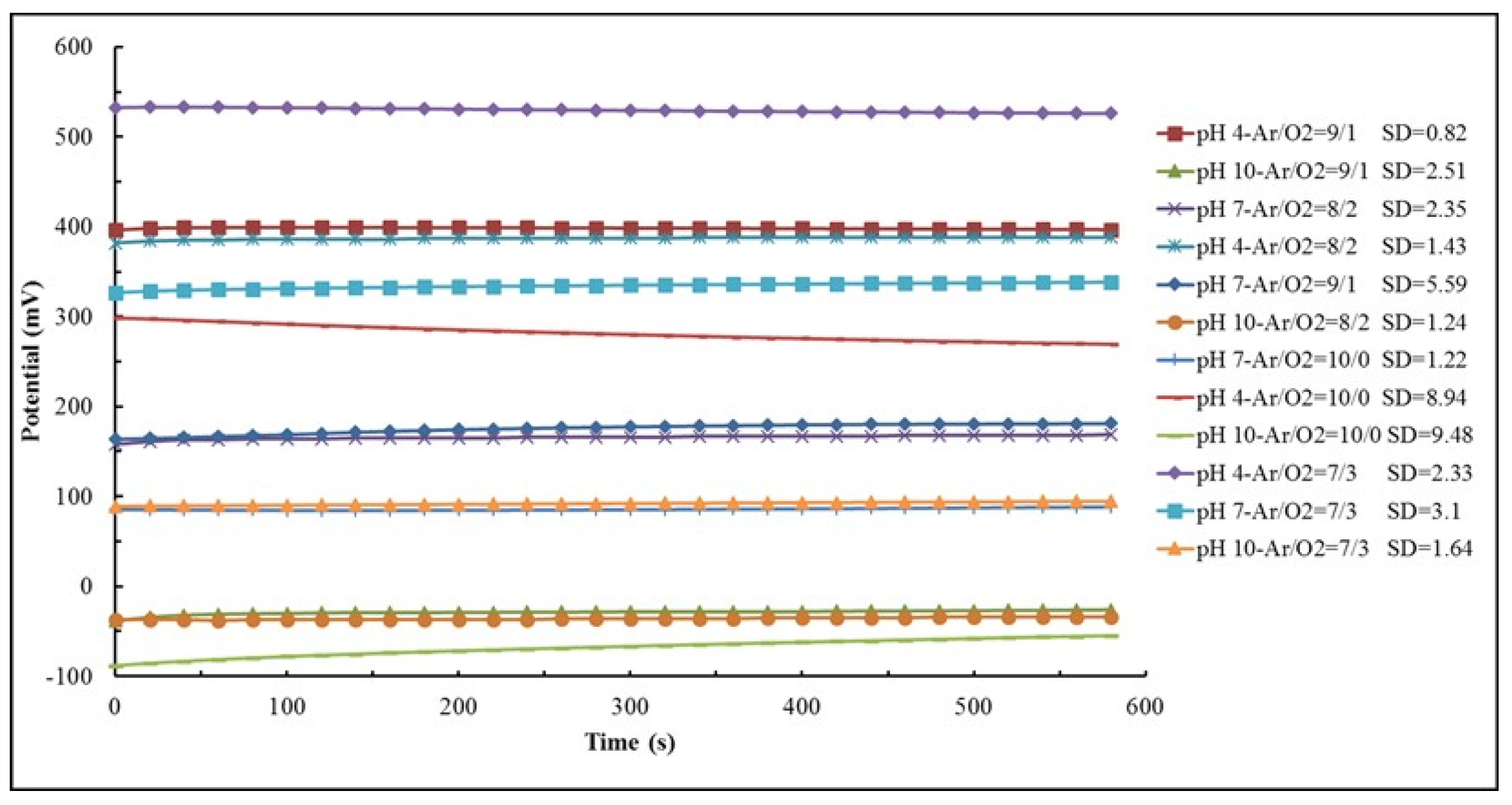

Figure 4. Measured potentials versus time in pH 4, pH 7 and pH 10 for different Ar/O2 gas ratios (sccm) along with the standard deviation values.
Figure 4. Measured potentials versus time in pH 4, pH 7 and pH 10 for different Ar/O2 gas ratios (sccm) along with the standard deviation values.
Materials 08 03352 g004 1024

3.3.4. Reversibility and Hysteresis

To investigate the reversibility of the pH sensor the pH was sequentially switched between pH 4, pH 7 and pH 10 in forward and backward orders at 300 s intervals without cleaning or drying the pH sensor, and the measured potential versus time was monitored. The switching cycle was repeated three times. Figure 5 shows the average recorded potentials (averaged over three tests) for different Ar/O2 gas ratio in the pH 4, pH 7 and pH 10 loops. The experimental results demonstrate an excellent reversibility and stable pH sensor’s response for an Ar/O2 gas ratio of 8/2.

Typically, when the electrochemical potential of a pH solution is measured several times, different potentials are generated between the electrodes. This phenomenon is called hysteresis and is elaborated elsewhere [27,38]. Figure 6 shows the hysteresis voltage for different Ar/O2 gas ratios, for pH 4, pH 7 and pH 10 loops. It is noteworthy to mention that the acid loop hysteresis was smaller for the Ar/O2 gas ratio 8/2 compared to that for the Ar/O2 gas ratio 10/0. The increase in oxygen percentage increases the porosity of the RuO2 film as well as the overall sensing volume, thus resulting in faster ion diffusion through the sensing film. Tsai et al. have thoroughly investigated the effect of sensing area on the hysteresis for both acidic and alkaline loops [39].

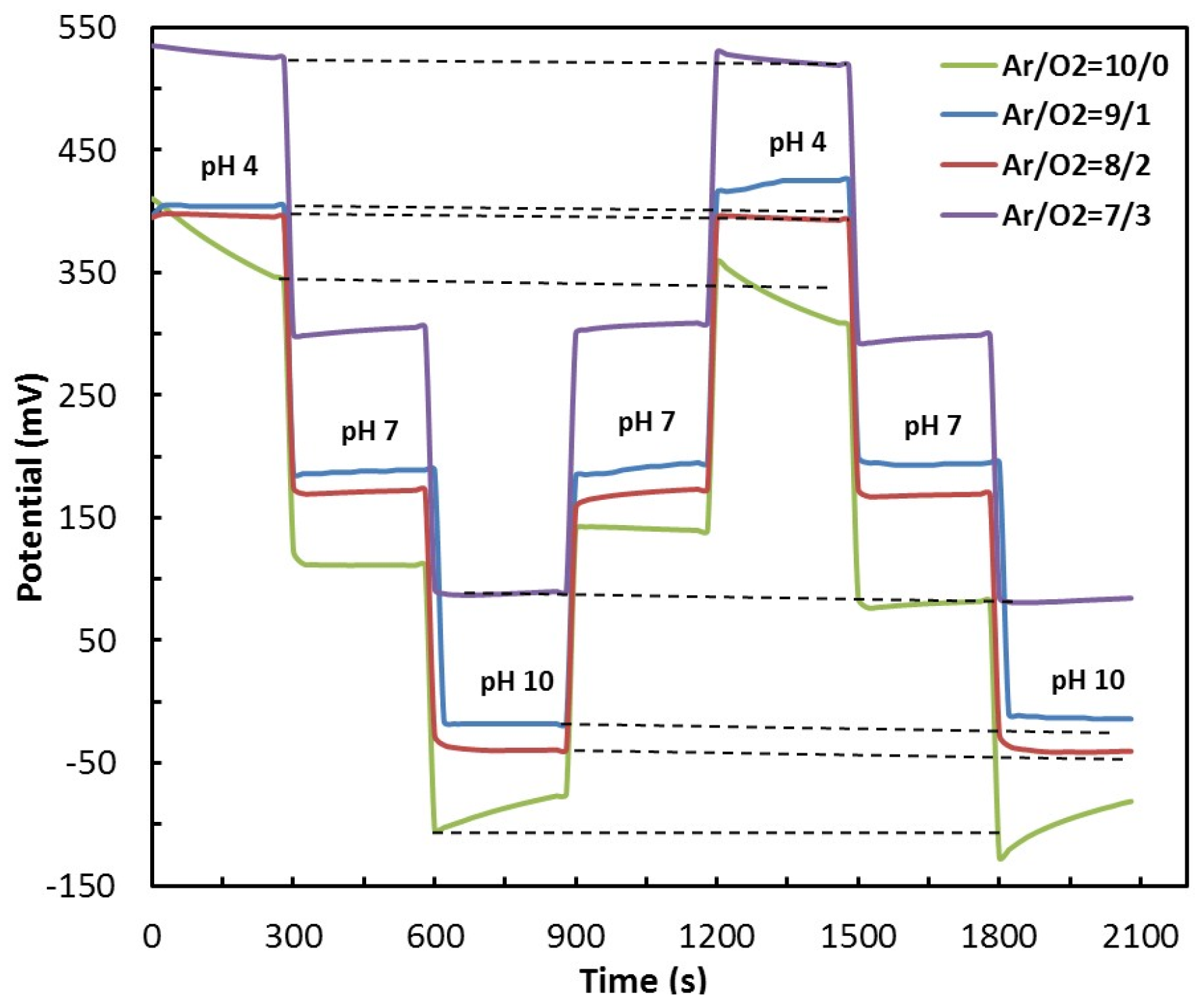

Figure 5. Measured average potential versus time when the pH of the solution is sequentially switched between pH 4, pH 7 and pH 10.
Figure 5. Measured average potential versus time when the pH of the solution is sequentially switched between pH 4, pH 7 and pH 10.
Materials 08 03352 g005 1024

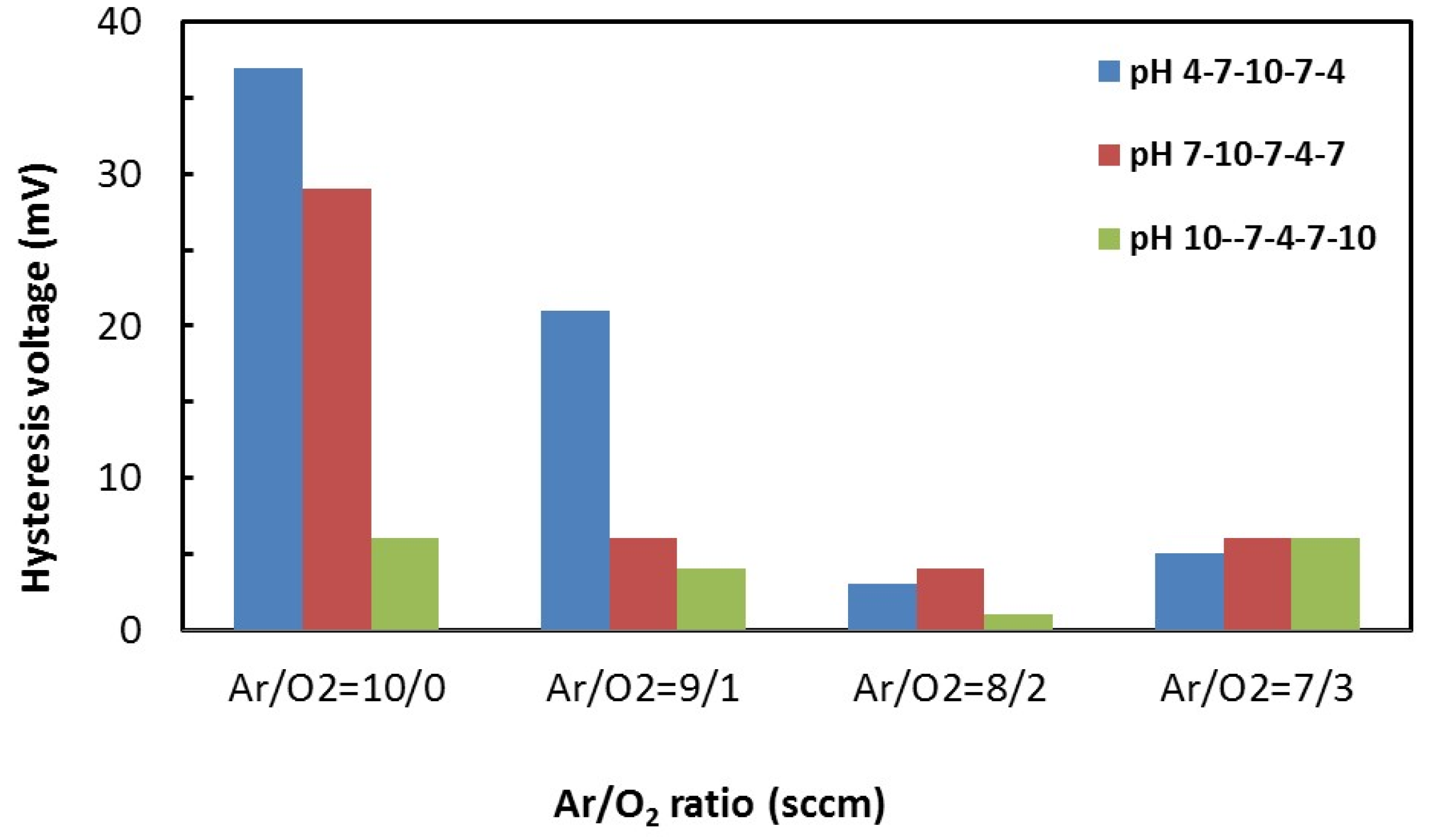

Figure 6. Hysteresis versus Ar/O2 gas ratios (sccm) for different pH loops.
Figure 6. Hysteresis versus Ar/O2 gas ratios (sccm) for different pH loops.
Materials 08 03352 g006 1024

According to Liao et al. [36], the potential different between the pH sensitive film and the electrolyte depends on the pH at the point with zero charge ( pH pzc ). This phenomenon is governed by the site-binding model described by the following equation [39]:

2.303   ( pH pzc pH ) =   q ϕ 0   /   K T + sin h 1   ( q   ϕ 0   / K T β )
where pH pzc =   log 10 ( K a × K b ) 1 2 =   1 2 (   p K a +   p K b )   is the pH value at the point of zero charge, ϕ0 is the surface potential of the electrolyte/insulator interface with respect to the electrolyte bulk, Ka and Kb are equilibrium constants, pKa= −log (Ka), pKb= −log (Kb), K is the Boltzmann’s constant, T is the temperature of the system in Kelvin, β is a dimensionless pH sensitivity parameter, given by [39]:
β = 2   q 2   N s   ( k b / k a ) 1 2 / K T C DL
where Ns is the surface site density, and C DL is the double-layer capacitance and Ka, Kb are dissociation constants for potential determining ion and counter-ion surface reactions.

It is evident that the pH sensor structure prepared with an Ar/O2 gas ratio of 8/2 results in minimum hysteresis (<4 mV) for all the tested pH range (4–10).

4. Conclusions

In this paper, the effect of Ar/O2 gas ratio on the performance of RF sputtered RuO2 thin-film pH sensors has been experimentally investigated. Several 300 nm thin film RuO2 sensing electrodes, prepared by varying Ar/O2 gas ratio from 10/0 to 7/3 during RF sputtering, have been developed and their sensitivity, response time, stability, reversibility and hysteresis properties for pH sensing have been investigated. Experimental investigations have shown that an Ar/O2 gas ratio of 8/2 results in a RuO2 thin-film of excellent pH sensing properties, namely high sensitivity, low hysteresis and faster response, using a conventional RuO2 sputtering target. The optimized pH sensor structure has demonstrated a super-Nernstian response of 69.83 mV/pH, good stability and reversibility. The developed pH sensor can further be miniaturized as a lab-on-a-chip device and has application in biological analyses, water quality monitoring, chemical and environmental monitoring and in vivo clinical tests.

Acknowledgments

This research was supported by Edith Cowan University, Australia, and the Department of Education and Training, Australian Government.

Author Contributions

Ali Sardarinejad and Devendra Kumar Maurya designed the experiment procedures, performed the experiments, wrote the manuscript and performed literature search. Kamal Alameh reviewed the manuscript and participated in scientific discussions. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fierro, S.; Seishima, R.; Nagano, O.; Saya, H.; Einaga, Y. In vivo pH monitoring using boron doped diamond microelectrode and silver needles: Application to stomach disorder diagnosis. Sci. Rep. 2013, 3, 3257. [Google Scholar] [CrossRef] [PubMed]
  2. Kohlmann, F.J. What Is pH, and How Is it Measured? A Technical Handbook for Industry; HACH Company: Loveland, CO, USA, 2003. [Google Scholar]
  3. Korostynska, O.; Arshak, K.; Gill, E.; Arshak, A. Review on state-of-the-art in polymer based pH sensors. Sensors 2007, 7, 3027–3042. [Google Scholar] [CrossRef]
  4. Webster, J.G. The Measurement Instrumentation and Sensors Handbook; CRC Press: Boca Raton, FL, USA, 1999; Volume 71. [Google Scholar]
  5. Pucacco, L.R.; Carter, N.W. A glass-membrane pH microelectrode. Anal. Biochem. 1976, 73, 501–512. [Google Scholar] [CrossRef]
  6. Okada, Y.; Inouye, A. pH-sensitive glass microelectrodes and intracellular pH measurements. Biophys. Struct. Mechan. 1976, 2, 21–30. [Google Scholar] [CrossRef]
  7. Kim, T.Y.; Yang, S. Fabrication method and characterization of electrodeposited and heat-treated iridium oxide films for pH sensing. Sens. Actuators B Chem. 2014, 196, 31–38. [Google Scholar] [CrossRef]
  8. Nguyen, C.M.; Huang, W.; Rao, S.; Cao, H.; Tata, U.; Chiao, M.; Chiao, J. Sol-Gel iridium oxide-based pH sensor array on flexible polyimide substrate. IEEE Sens. J. 2013, 13, 3857–3864. [Google Scholar] [CrossRef]
  9. Nguyen, C.M.; Rao, S.; Seo, Y.; Schadt, K.; Hao, Y.; Chiao, J.-C. Micro pH sensors based on iridium oxide nanotubes. IEEE Trans. Nanotechnol. 2014, 13, 945–953. [Google Scholar] [CrossRef]
  10. Prats-Alfonso, E.; Abad, L.; Casañ-Pastor, N.; Gonzalo-Ruiz, J.; Baldrich, E. Iridium oxide pH sensor for biomedical applications. Case urea–urease in real urine samples. Biosens. Bioelectron. 2013, 39, 163–169. [Google Scholar] [CrossRef] [PubMed]
  11. Pan, C.; Chou, J.; Sun, T.; Hsiung, S. Development of the tin oxide pH electrode by the sputtering method. Sens. Actuators B 2005, 108, 863–869. [Google Scholar] [CrossRef]
  12. Chou, J.; Liu, S.; Chen, S. Sensing characteristics of ruthenium films fabricated by radio frequency sputtering. Jpn. J. Appl. Phys. 2005, 44, 1403. [Google Scholar] [CrossRef]
  13. Liao, Y.; Chou, J. Preparation and characteristics of ruthenium dioxide for pH array sensors with real-time measurement system. Sens. Actuator B Chem. 2008, 128, 603–612. [Google Scholar] [CrossRef]
  14. Fog, A.; Buck, R.P. Electronic semiconducting oxides as pH sensors. Sens. Actuators 1984, 5, 137–146. [Google Scholar] [CrossRef]
  15. Chou, J.C.; Liu, C.H.; Chen, C.C. Electrochromic property of sol-gel derived TiO2 thin film for pH sensor. In Proceedings of the 5th Kuala Lumpur International Conference on Biomedical Engineering 2011, Kuala Lumpur, Malaysia, 20–23 June 2011; pp. 69–72.
  16. Buc, D.; Mikula, M.; Music, D.; Helmersson, U.; Jin, P.; Nakao, S.; Li, K.Y.; Shum, P.W.; Zhou, Z.; Caplovicova, M. Ruthenium oxide films prepared by reactive unbalanced magnetron sputtering. J. Electr. Eng. 2004, 55, 39–42. [Google Scholar]
  17. Bahari, N.; Zain, A.M.; Abdullah, A.Z.; Sheng, D.B.C.; Othman, M. Study on pH sensing properties of RF magnetron sputtered tantalum pentoxide (Ta2O5) thin film. In Proceedings of the 2010 IEEE International Conference on Semiconductor Electronics (ICSE), Melaka, Malaysia, 28–30 June 2010; pp. 76–78.
  18. Chen, M.; Jin, Y.; Qu, X.; Jin, Q.; Zhao, J. Electrochemical impedance spectroscopy study of Ta2O5 based EIOS pH sensors in acid environment. Sens. Actuators B Chem. 2000, 71, 73–76. [Google Scholar] [CrossRef]
  19. Gill, E.; Arshak, K.; Arshak, A.; Korostynska, O. Mixed metal oxide films as pH sensing materials. Microsyst. Technol. 2008, 14, 499–507. [Google Scholar] [CrossRef]
  20. Das, A.; Ko, D.H.; Chena, C.; Chang, L.; Lai, C.; Chu, F.; Chow, L.; Lin, R. Highly sensitive palladium oxide thin film extended gate FETs as pH sensor. Sens. Actuators B Chem. 2014, 205, 199–205. [Google Scholar] [CrossRef]
  21. Zhuiykov, S.; O’Brien, D.; Best, M. Water quality assessment by an integrated multi-sensor based on semiconductor RuO2 nanostructures. Meas. Sci. Technol. 2009, 20, 095201. [Google Scholar] [CrossRef]
  22. Atkinson, J.K.; Glanc, M.; Boltryk, P.; Sophocleous, M.; Garcia-Breijo, E. An investigation into the effect of fabrication parameter variation on the characteristics of screen-printed thick-film silver/silver chloride reference electrodes. Microelectron. Int. 2011, 28, 49–52. [Google Scholar] [CrossRef]
  23. Glanc-Gostkiewicz, M.; Sophocleous, M.; Atkinson, J.K.; Garcia-Breijo, E. Performance of miniaturized thick-film solid state pH sensors. Sens. Actuators A Phys. 2013, 202, 2–7. [Google Scholar] [CrossRef]
  24. Zhuiykov, S. Solid-state sensors monitoring parameters of water quality for the next generation of wireless sensor networks. Sens. Actuators B Chem. 2012, 161, 1–20. [Google Scholar] [CrossRef]
  25. Zhuiykov, S.; Kats, E. In-situ FTIR investigation of adsorption properties of sub-micron Cu2O-doped RuO2 sensing electrode of planar electrochemical pH sensor. Ionics 2012, 18, 797–802. [Google Scholar] [CrossRef]
  26. Maurya, D.K.; Sardarinejad, A.; Alameh, K. High-sensitivity pH sensor employing a sub-micron ruthenium oxide thin-film in conjunction with a thick reference electrode. Sens. Actuator A Phys. 2013, 203, 300–303. [Google Scholar] [CrossRef]
  27. Sardarinejad, A.; Maurya, D.K.; Alameh, K. The effects of sensing electrode thickness on ruthenium oxide thin-film pH sensor. Sens. Actuator A Phys. 2014, 214, 15–19. [Google Scholar] [CrossRef]
  28. Maurya, D.K.; Sardarinejad, A.; Alameh, K. Recent developments in R.F. magnetron sputtered thin films for pH sensing applications—An overview. Coatings 2014, 4, 756–771. [Google Scholar] [CrossRef]
  29. Maurya, D.K.; Sardarinejad, A.; Alameh, K. Ruthenium oxide ion selective thin-film electrodes for engine oil acidity monitoring. Meas. Sci. Technol. 2015, 26, 065102. [Google Scholar] [CrossRef]
  30. McMurray, H.N.; Douglas, P.; Abbott, D. Novel thick-film pH sensors based on ruthenium dioxide-glass composites. Sens. Actuators B chem. 1995, 28, 9–15. [Google Scholar] [CrossRef]
  31. Pourbaix, M. Atlas of Electrochemical Equilibria in Aqueous Solutions; Pergamon Press: Oxford, UK, 1966. [Google Scholar]
  32. Mihell, J.A.; Atkinson, J.K. Planar thick-film pH electrodes based on ruthenium dioxide hydrate. Sens. Actuators B Chem. 1998, 48, 505–511. [Google Scholar] [CrossRef]
  33. Trasatti, S. Physical electrochemistry of ceramic oxides. Electrochim. Acta 1991, 36, 225–241. [Google Scholar] [CrossRef]
  34. Kissine, V.V.; Voroshilov, S.A.; Sysoev, V.V. Oxygen flow effect on gas sensitivity properties of tin oxide film prepared by r.f. sputtering. Sens. Actuators B Chem. 1999, 55, 55–59. [Google Scholar] [CrossRef]
  35. Amemiya, S.; Bühlmann, P.; Odashima, K. A generalized model for apparently “non-nernstian” equilibrium responses of ionophore-based ion-selective electrodes. 1. Independent complexation of the ionophore with primary and secondary ions. Anal. Chem. 2003, 75, 3329–3339. [Google Scholar] [CrossRef] [PubMed]
  36. Liao, Y.; Chou, J. Potentiometric multisensor based on ruthenium dioxide thin film with Bluetooth wireless and web-based remote measurement system. IEEE Sens. J. 2009, 9, 1887–1894. [Google Scholar] [CrossRef]
  37. Cui, H.N.; Teixeira, V.; Meng, L.J.; Martins, R.; Fortunato, E. Influence of oxygen/argon pressure ratio on the morphology, Optical and electrical properties of ITO thin films deposited at room temperature. Vacuum 2008, 82, 1507–1511. [Google Scholar] [CrossRef]
  38. Huang, W.D.; Cao, H.; Deb, S.; Chiao, M.; Chiao, J.C. A flexible pH sensor based on the iridium oxide sensing film. Sens. Actuators A Phys. 2011, 169, 1–11. [Google Scholar] [CrossRef]
  39. Tsai, C.N.; Chou, J.C.; Sun, T.P.; Hsiung, S.K. Study on the sensing characteristics and hysteresis effect of the tin oxide pH electrode. Sens. Actuators B Chem. 2005, 108, 877–882. [Google Scholar] [CrossRef]
