Open AccessArticle
Materials 2015, 8(7), 3806-3814;

Plasma-Induced Wafer-Scale Self-Assembly of Silver Nanoparticles and Application to Biochemical Sensing

Science and Technology on Electronic Test & Measurement Laboratory, North University of China, Taiyuan 030051, Shanxi, China
Key Laboratory of Instrumentation Science & Dynamic Measurement (North University of China), Ministry of Education, Taiyuan 030051, Shanxi, China
Author to whom correspondence should be addressed.
Academic Editors: Elisabetta Comini and Dario Zappa
Received: 9 May 2015 / Revised: 9 June 2015 / Accepted: 16 June 2015 / Published: 24 June 2015
(This article belongs to the Special Issue Nanostructured Materials for Chemical Sensing Applications)
Full-Text   |   PDF [2012 KB, uploaded 24 June 2015]   |


In this work, the wafer-scale silver nanoparticles fabricated by a self-assembly method was demonstrated based on a magnetron sputtering and plasma treatment process. Silver nanoparticles of different sizes and shapes were prepared, and the effects of the plasma treatment time, plasma gas composition, and power were systematically investigated to develop a method for low-cost and large-scale fabrication of silver nanoparticles. Furthermore, the surface-enhanced Raman scattering experiments: crystal violet, as the probe, was absorbed on the silver nanoparticles film of different size and density, and get the phenomena of surface-enhanced Raman scattering and surface-enhanced fluorescence. The results show that the proposed technique provides a rapid method for the fabrication of silver nanomaterial; the method is adaptable to large-scale production and is compatible with the fabrication of other materials and biosensors. View Full-Text
Keywords: wafer-scale; plasma-induce; nanoparticles; self-assembly; biochemical sensing wafer-scale; plasma-induce; nanoparticles; self-assembly; biochemical sensing

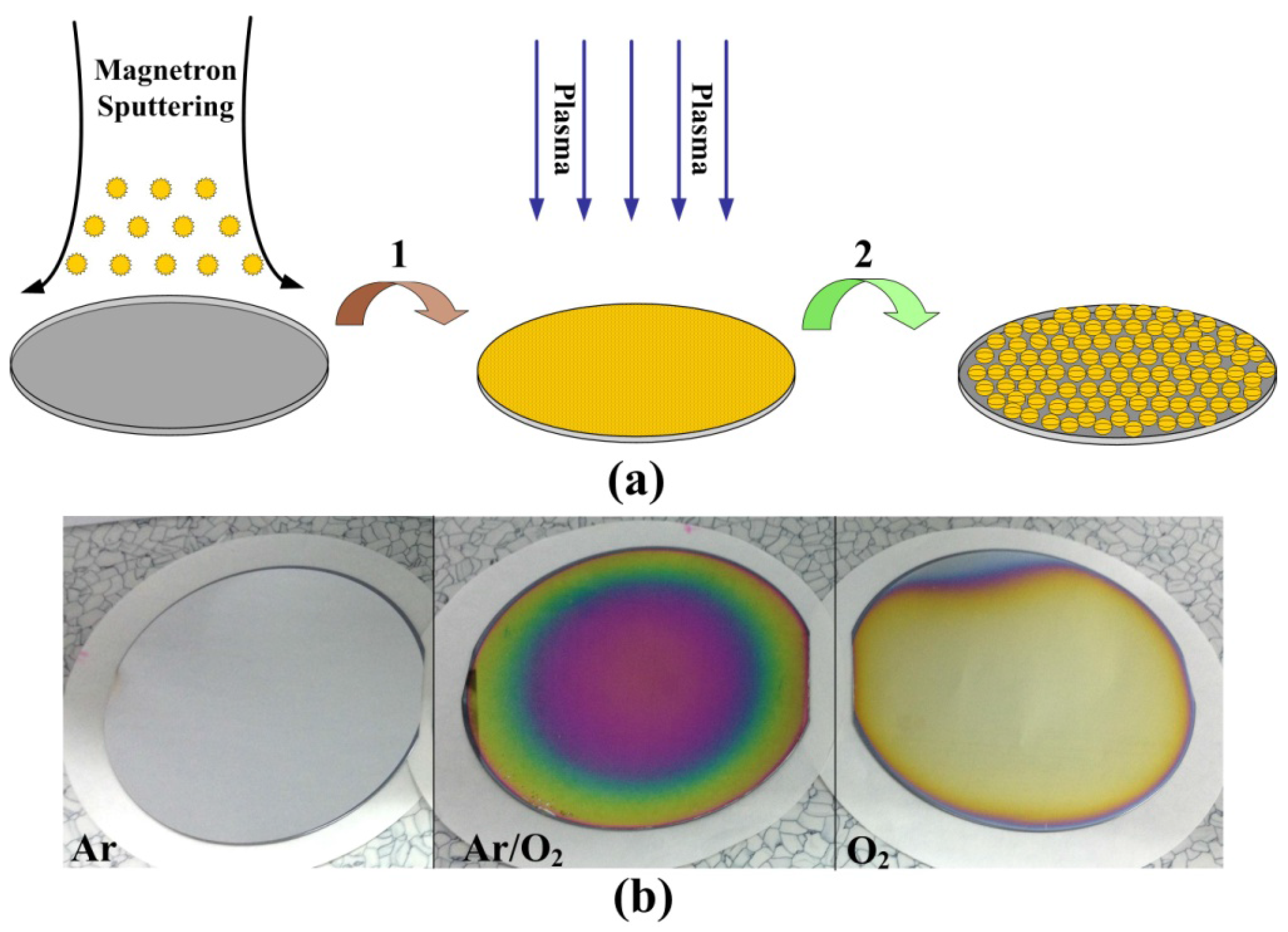

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Shi, Y.; Guo, H.; Yang, J.; Zhao, M.; Liu, J.; Xue, C.; Tang, J. Plasma-Induced Wafer-Scale Self-Assembly of Silver Nanoparticles and Application to Biochemical Sensing. Materials 2015, 8, 3806-3814.
