Open AccessReview

Optical Properties and Plasmonic Performance of Titanium Nitride

1
Department of Physics, Aristotle University of Thessaloniki, Thessaloniki GR-54124, Greece
2
School of Science and Technology, Nottingham Trent University, Nottingham NG11 8NS, UK
3
Department of Materials Science and Engineering, University of Ioannina, Ioannina GR-45110, Greece
*
Author to whom correspondence should be addressed.
Academic Editor: Gururaj Naik
Materials 2015, 8(6), 3128-3154; https://doi.org/10.3390/ma8063128
Received: 24 April 2015 / Revised: 19 May 2015 / Accepted: 25 May 2015 / Published: 29 May 2015
(This article belongs to the Special Issue Plasmonic Materials)

Abstract

Titanium nitride (TiN) is one of the most well-established engineering materials nowadays. TiN can overcome most of the drawbacks of palsmonic metals due to its high electron conductivity and mobility, high melting point and due to the compatibility of its growth with Complementary Metal Oxide Semiconductor (CMOS) technology. In this work, we review the dielectric function spectra of TiN and we evaluate the plasmonic performance of TiN by calculating (i) the Surface Plasmon Polariton (SPP) dispersion relations and (ii) the Localized Surface Plasmon Resonance (LSPR) band of TiN nanoparticles, and we demonstrate a significant plasmonic performance of TiN.
Keywords: titanium nitride; optical properties; ellipsometry; plasmonics; polaritonics titanium nitride; optical properties; ellipsometry; plasmonics; polaritonics

1. Introduction

Titanium nitride (TiN) is one of the most well-established engineering materials nowadays. It has been considered since the early 1970s as a superhard material for protective coatings [1,2,3,4] and, as such, has been industrially implemented. Its electronic properties were also extensively studied, as they are critical for alternative applications such as diffusion barriers in microelectronic devices [5,6,7,8,9], decorative coatings with bright golden color [10,11,12,13], ohmic contacts on III-nitride semiconductors [14,15,16,17,18,19,20,21] and Schottky contacts on Si [22,23]. Great emphasis has been given to the control of the microstructure of TiN films [24,25,26,27,28,29], which are critical for its mechanical and electronic performance. In addition to its electronic properties, TiN is appealing for electronic devices due to its compatibility with CMOS technology, because of its high electron mobility and refractory character [30,31].
An emerging field of applications for TiN is plasmonics, the science and technology of interactions of metallic nanostructures with light. In particular, the Surface Plasmon Polariton (SPP) modes on planar interfaces and the Localized Surface Plasmon Resonance (LSPR) in metallic nanoparticles are two unique phenomena that manifest exclusively at the nanoscale [32,33,34,35,36,37,38,39,40]. Plasmonics promise radical breakthroughs in electronic devices [41,42,43,44], biosensing [45,46,47,48,49], catalysis and photochemistry [50,51,52,53], solar energy harvesting [54,55,56,57,58,59,60,61], photo-detection [62,63,64], and optical storage of information [65,66,67,68,69,70], and open new pathways for the implementation of TiN in new sectors.
The most popular plasmonic metals are gold and silver. However, their melting point is low, especially when in nanoparticle form [71,72,73], making them unstable for photothermal and hot electron devices; their conduction electron mobility is very low, and, consequently, they exhibit high conduction electron losses [74,75]. TiN can overcome all these obstacles due to its high electron conductivity and mobility [14,19,30,31], high melting point and low work function, and due to the compatibility of its growth with CMOS technology, which enables its easy integration and upscaling in realistic, mainstream electronic devices.
In this work, we review the fundamental properties of TiN and its dielectric function spectra extracted from an extended literature survey of reported ellipsometry and reflectivity spectra. As a result, we critically compare the reported electronic properties (such as resistivity/mean free path, and conduction electron density—via the unscreened plasma energy). We evaluate the plasmonic performance of TiN by calculating (i) the SPP dispersion relations at planar TiN/dielectric interfaces; and (ii) the LSPR band of TiN nanoparticles based on the dielectric functions of bulk TiN. Finally, we demonstrate that the plasmonic response of nanoparticles of TiN is equivalent, if not superior, to that of nanoparticles of noble metals.

2. Results and Discussion

2.1. Fundamental Features and Methods of Growth

TiN belongs to the transition metals of the group IVb of the periodic table of elements. As such, it has four valence electrons and their configuration is 3d24s2. Ti forms bonds with N atoms (valence electronic configuration 2s22p3). While various nitride phases such as the Ti2N [76,77] and Ti3N4 [78,79] were reported, the most stable and durable nitrides of these metals are those in the cubic rocksalt B1-TiN structure, also called δ-TiN. The B1-TiN is characterized by gold-like yellow color [10,11,12,13], high hardness [1,2,3,4], electrical conductivity [15,19], and refractory character. Its electronic conductivity is due to the partially filled valence Ti-3d orbitals that are not completely hybridized with the N-2p electrons [80,81,82].
A wide variety of fabrication techniques have been used for the growth of B1-TiN films, such as Magnetron Sputtering (MS) [83,84,85,86,87,88,89,90], Cathodic Vacuum Arc (CVA) [91,92,93], Chemical Vapor Deposition (CVD) [94,95], Atomic Layer Deposition (ALD) [96,97], Pulsed Laser Deposition [15,16,98,99], Ion Beam Assisted Deposition (IBAD) [100] and High Power Impulse Magnetron Sputtering (HIPIMS) [101]. The numerous works on the growth of B1-TiN led to an unprecedented understanding and control of its microstructural features, such as the grain size, orientation, columnar or globular type of growth, etc. [102,103,104,105,106,107].

2.2. Optical Properties of TiN Films

The optical properties of B1-TiN, which are relevant to plasmonic applications, have been also a subject of intense experimental research using mostly spectroscopic ellipsometry (SE) in all of its varieties, and spectral reflectivity measurements usually at normal incidence [14,15,16,18,19,82,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129,130,131,132,133]. SE measures the ellispometric angles Ψ-Δ, which are associated with the ratio ρf of the Fresnel reflection coefficients for s- and p-polarization [134]:
ρ f = t a n ψ e i Δ
Then, the real and imaginary parts of the dielectric function ε ˜ = ε 1 + i ε 2 can be analytically calculated from ρf and the angle of incidence ϕ(usually in the range 55°–75°) [134]:
ε ˜ = s i n 2 ϕ [ 1 + t a n 2 φ ( 1 ρ f 1 + ρ f ) 2 ]
On the other hand, the real and imaginary parts of the complex refractive index n ˜ = n + i k can be extracted from the spectral reflectivity measurements at normal incidence R via the relations [135]:
n = 1 R 1 + R 2 c o s θ R , k = 2 s i n θ R 1 + R 2 c o s θ R
where θ is the phase change due to reflectivity, which is determined by Kramers-Kronig integration [135]:
θ ( ω 0 ) = 1 π 0 l n | ω + ω 0 ω ω 0 | d l n R ( ω ) d ω d ω
Alternatively, the n, k can be also determined by fitting the spectral reflectivity curves using specific dispersion relation models, as we will discuss below. The complex dielectric function and the complex refractive index are equivalent and interchangeable, as they are analytically correlated:
ε 1 = n 2 k 2 ,   ε 2 = 2 n k
In the case of a thin film grown on a bulk substrate, the measured spectra by SE or spectral reflectivity accounts the effect of the substrate and film’s thickness, in addition to the film’s optical properties. Opaque TiN films should be thicker than 100 nm in order to measure directly their complex dielectric function, without any contribution from the substrate; else, a three-phase model (air/homogeneous film/semi-infinite substrate) [136] is required to determine the complex dielectric function.
In this work, we retrieved and critically review the optical data of TiN from [108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128]. Table 1 lists the samples grown and the spectra measured by numerous groups worldwide regarding the optical properties of TiN. It includes information relevant to the growth conditions, morphology, and optical measurement conditions, as well as the corresponding references [108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128]. In order to have a unified picture and compare all the available data in the literature, when the n, k values are reported in the original references, we calculated the ε1, ε2 values using Equation (5). The ε1, ε2 from [108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123] are presented in Figure 1. There is a substantial variation and scattering of the reported experimental spectra due to the sensitivity of TiN’s optical performance to various factors, such as stoichiometry ([N]/[Ti] ratio), impurities (residual oxygen in sputter growth or chlorine in CVD growth, post growth oxidation), grain size (which affects the mean free path of the conduction electrons, as we will discuss in more detail below) and density/porosity (which affect the conduction electron density [120]).
The ε1 spectra have attracted particular attention, and are considered to be characteristic of the TiN’s chemical and structural quality [117]. The first spectral region (up to 3 eV) is characterized by negative values of ε1 due to the interaction of light with the conduction electrons of TiN, i.e., due to intraband absorption. In particular, and of major importance, is the screened plasma energy Eps = ħωps, which is the spectral energy at which TiN’s ε1 = 0. Eps may be affected by both the intraband and interband characteristics and ranges from 2 to 2.95 eV. Eps was reported to be an indicator of the stoichiometry of TiNx, and gets the value 2.65 eV for x = 1 [117]; despite of the efficiency of this phenomenological observation, Eps does not have any other solid physical meaning but it is critical for the plasmonic behavior of TiN-based SPP devices, as we will show below.

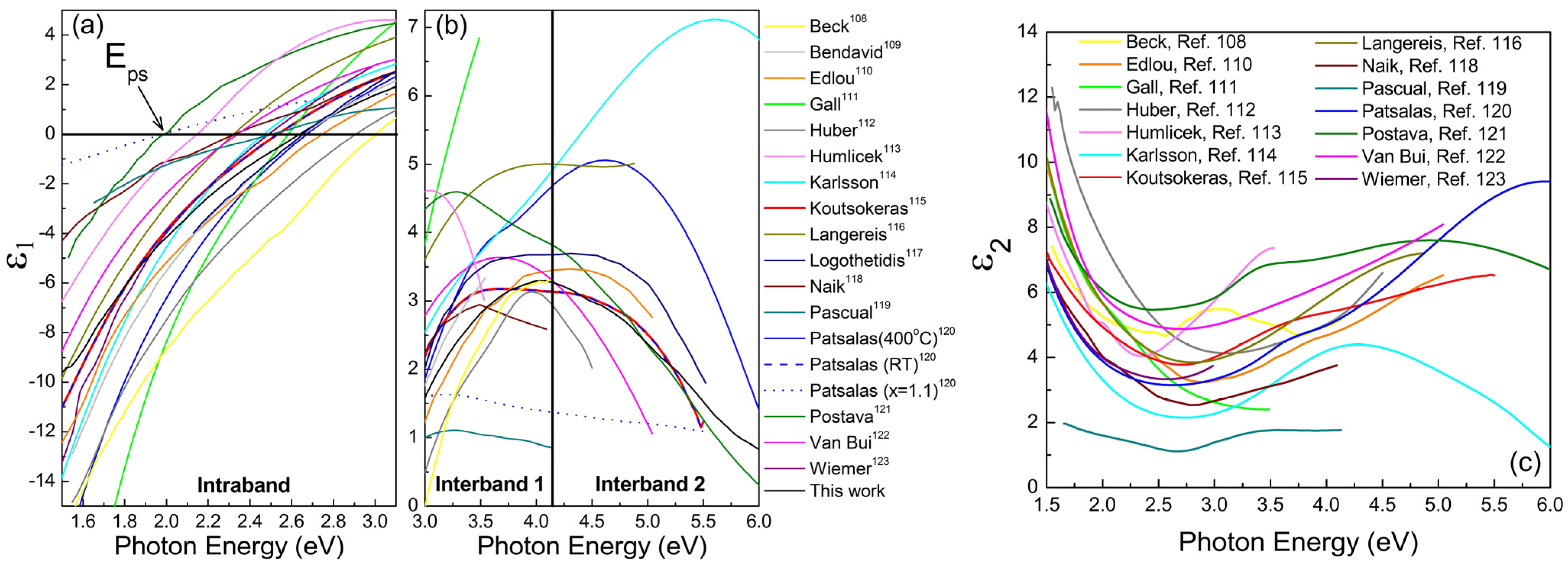

Figure 1. (a), (b) ε1, and (c) ε2 spectra of TiN reported by several groups worldwide.
Figure 1. (a), (b) ε1, and (c) ε2 spectra of TiN reported by several groups worldwide.
Materials 08 03128 g001
Table 1. The titanium nitride (TiN) spectra reviewed in this work.
Table 1. The titanium nitride (TiN) spectra reviewed in this work.
NoGrowth TechniqueSubstrateThickness (nm)MorphologyMeasurement Technique #Instrument *Analysis ModelReferenceComments
1N/AStainless SteelOpaqueN/ASERPE by SOPRAN/A[108]Stoichiometry determined by Auger Electron Spectroscopy (AES)
2FCVASi(100)150N/ASERAED[109]Stoichiometry x = 0.97 determined by Rutherford Backscattering (RBS)
3Magnetron SputteringFused SilicaOpaqueN/AVASEN/AD+1L[110]Stoichiometry determined by RBS
4UHV SputteringMgO(100)200EpitaxialORSPerkin ElmerD+2L[111](100) Oriented identified by X-Ray Diffrcation (XRD); composition determined by RBS and X-Ray Photoelectron Spectroscopy (XPS); ORS measure-ments acquired using an integrating sphere; ORS normalization was performed via a Si(100) wafer
5Me-PIIISi(100)100–500PolycrystallineSERAED+iL[112]Stoichiometry x = 0.95 determined by Elastic Recoil Detection Analysis (ERDA); crystal structure identified by XRD
6IBADSi(100)50–100PolycrystallineVASERAED+1L[113]Stoichiometry determined by XPS and RBS; crystal structure identified by XRD; existent O impurities
7CVDPolished Mo~1000PolycrystallineORSPerkin ElmerD+1L[114]Used TiCl4, H2, and N2 precursors; stoichiometry close to 1 determined by Electron Probe Microanalysis (EPMA) and by the cubic lattice size (0.424 nm) determined by XRD; no Cl impurities; C impurities <0.2% wt; Normalization of the spectra was performed via an evaporated Al mirror; Reflectivity spectra combined with Kramers-Kronig analysis to extract ε1, ε2
8DIBSSi(100)>300Globular polycrystallineVASERPE by SOPRAD+2L[115]Stoichiometry x = 1 determined by AES and XPS; crystal structure identified by XRD
9ALDH-terminated Si>100Polycrystallinein situ SERCE by J.A. WoolamD+2L[116]Used TiCl4, H2, and N2 precursors; x < 1
10Magnetron SputteringTi/Si(100)70Columnar Polycrystallinein situ SEPME by JY-HoribaN/A[117]Microstructure identified by Transmission Electron Microscopy; no information on stoichiometry
11Magnetron Sputteringc-Sapphire30EpitaxialVASERCE by J.A. WoolamD+1L[118]The TiN[111]/Al2O3[0006] epitaxy was confirmed by XRD
12PECVDGlassOpaqueN/ASERAEN/A[119]Used TiCl4, H2, and N2 precursors; no information on composition and structure
13Magnetron SputteringSi(100)>100Polycrystallinein situ SEPME by JY-HoribaD+2L[120]Growth at 400 °C, Vb=-100 V; Stoichiometry close to 1 confirmed by XPS; crystal structure and (100) texture identified by XRD
14Magnetron SputteringSi(100)>100Polycrystallinein situ SEPME by JY-HoribaD+2L[120]Growth at RT and Bias voltage of -120 V; Stoichiometry x = 1 determined by XPS; crystal structure and (100) texture identified by XRD
15Magnetron SputteringSi(100)>100Columnar Polycrystallinein situ SEPME by JY-HoribaD+2L[120]Growth at RT and Vb = −20 V; Stoichiometry x = 1.12 determined by XPS; crystal structure and (111) texture identified by XRD
16SputteringThick thermal SiO2107.1N/AORSShimadzuD+2L[121]Spectral normalization was performed via a Si wafer
17ALD100 nm thermal SiO210N/Ain situ SERCE by J.A. WoolamD+2L[122]Used TiCl4 and NH3 precursors; Overstoichiometry determined by XPS; Existent Cl-impurities
18Magnetron SputteringSi(100)400PolycrystallineSEPME by JY-HoribaD[123]Stoichiometry 1.03 > x > 1 determined by ERDA; crystal structure identified by XRD
19PLDSi(100)>100PolycrystallineVASEPME by JY-HoribaD+2LThis workGrowth at Room Temperature; Stoichiometry x = 1 determined by in situ XPS; crystal structure and (111) texture identified by XRD
20Magnetron SputteringGlassN/AN/ASENull Ellips.N/A[124]Measurement acquired at 70° angle of incidence and in p-polarization
21N/AN/AN/AN/AORSN/AN/A[125]Reflectivity confirmed by ab initio calculations for stoichiometric TiN
22Plasma-assisted EvaporationSi or Glass85Polycrystallinein situ SEN/AN/A[126]Reduced reflectivity values due to short thickness (films not completely opaque)
23Magnetron SputteringCk35 Carbon steelN/AColumnar PolycrystallineSERAEN/A[127]Stoichiometry determined by EPMA; crystal structure identified by XRD
24Magnetron SputteringStainless steel>2000PolycrystallineORSBeckmanD[128]Stoichiometry determined by EPMA; crystal structure identified by XRD
# SE = Spectroscopic Ellipsometry, VASE = Variable-Angle Spectroscopic Ellipsometry, ORS = Normal-Incidence Optical Reflectivity Spectroscopy unless otherwise specified; * RAE = Rotating Analyzer Ellipsometer, RCE = Rotating Compensator Ellipsometer, RPE = Rotating Polarizer Ellipsometer, PME = Phase-Modulated Ellipsometer.
Beyond 3 eV, we observe positive values of ε1, which are associated with the interband absorption; these bands are also observed in the ε2 spectra. The interband absorption, which has the form of two distinct peaks, would be solidly identified, if we considered the electron density of states (EDOS) of TiN. Figure 2 presents EDOS calculations for TiN from [82], which are based on the linear augmented plane wave (LAPW) method within the density functional theory using the Wien2k software [137] and using the Generalized Gradient Approximation (GGA) in the form given by Perdew-Burke-Ernzerhof (PBE96) [138].
The observed wide interband absorption originates from the states located 2.5–5.5 eV below the Fermi level, which are predominantly due to N-p electrons. A N-p→Ti-d(t2g) transition is in accordance with the selection rules for photonic excitation (Δl = 0, ±1) and the spectral separation between the N-p states and the Fermi level that intercept the t2g conduction band of the metals. The cut off energy (the maximum energy below the Fermi level, where the partial EDOS of the N-p states gets non-zero values) is around 2.5 eV and defines the threshold at which the dielectric losses contribute to the optical repsonse of TiN. These dielectric losses have a severe impact on the optical reflectivity spectra of TiN at normal incidence, as shown in Figure 3.
At around 3.5 eV below the Fermi level, there is the local minimum E1 in the N-p band; this is in excellent agreement with most of the experimental obsrevations presented in Figure 1b,c. The global maximum of ε2, which is defined as the spectral separation between the EDOS maximum of the N-p and the Fermi level defines the second absorption band E2, which is manifested over 5 eV.

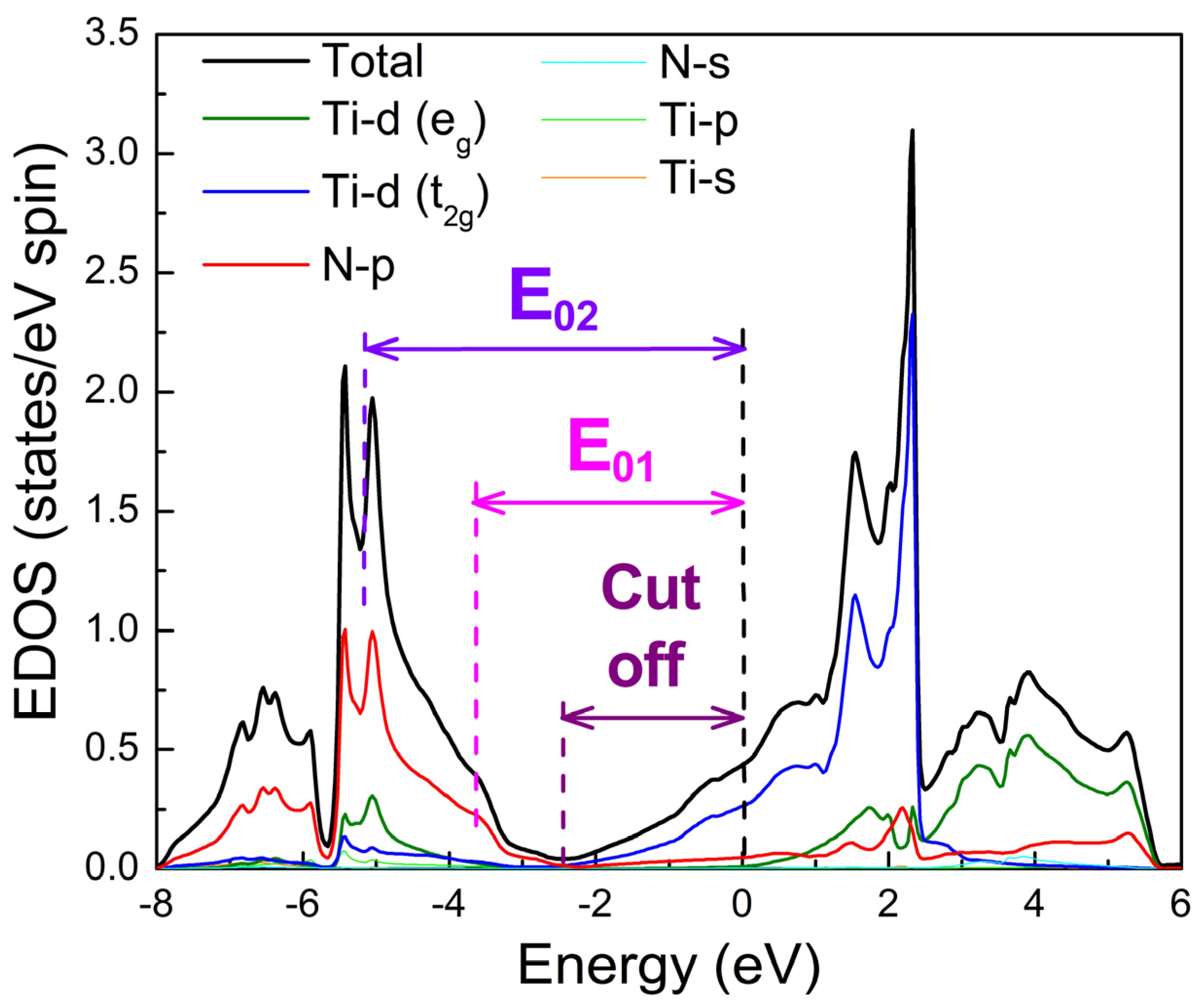

Figure 2. Electron density of states for TiN. Zero energy stands for the Fermi level and is denoted by a vertical, dashed, black line. The vertical dashed purple, magenta, and blue lines denote the cut off energy, and the energy positions of the two interband transitions E01, E02, respectively.
Figure 2. Electron density of states for TiN. Zero energy stands for the Fermi level and is denoted by a vertical, dashed, black line. The vertical dashed purple, magenta, and blue lines denote the cut off energy, and the energy positions of the two interband transitions E01, E02, respectively.
Materials 08 03128 g002
Figure 3. Optical reflectivity spectra of TiN at normal incidence reported by several groups. The absolute values vary due to TiN film’s thickness or normalization standards; however, they all share the same qualitative features. In particular, above 2.5 eV all spectra exhibit reduced reflectivity values due to dielectric losses.
Figure 3. Optical reflectivity spectra of TiN at normal incidence reported by several groups. The absolute values vary due to TiN film’s thickness or normalization standards; however, they all share the same qualitative features. In particular, above 2.5 eV all spectra exhibit reduced reflectivity values due to dielectric losses.
Materials 08 03128 g003
The dielectric function of TiN films can be analyzed, via appropriate modeling in order to take into account contributions of intraband and interband transitions as described by a Drude term and several Lorentz oscillators, respectively [120,139]:
ε ˜ ( ω ) = ε ω pu 2 ω 2 i Γ D ω + j = 1 m f j ω oj 2 ω oj 2 ω 2 + i γ j ω
In Equation (2) ε is a background constant, larger than unity, which is due to higher-energy contributions (beyond the experimental spectral range) referring to transitions that are not taken into account by the Lorentz term(s). Each of the Lorentz oscillators is located at an energy position Eoj = ħwoj, with strength fj and damping (broadening) factor γj.
The Drude term is characterized by the unscreened plasma energy E pu = ω pu and the damping factor ΓD Epu depends on the concentration of the conduction electrons in the film and is defined by the relation [120,139]:
E pu = ω pu ,   ω pu = N e 2 ε o m *
where N is the conduction electron density, e is the electron charge, εo is the permittivity of free space and m* is the electron effective mass, in SI units. Since Epu is directly correlated with the conduction electron density, it can be used to quantify the metallic character of the TiN. ΓD is due to the scattering of electrons and according to the free-electron theory it is related to the electron relaxation time through the relation [120,139]:
τ D = Γ D ( e V )
The ωpu and τD are also closely related with the electrical resistivity (ρ). The relaxation time of conduction electrons is associated with the film resistivity through the relation [120,140]:
τ D = m * ρ  N e 2  or ρ = ( 4 π ) Γ D ω pu 2
Changes of ωpu may be attributed, according to Equation (7), either to changes in free electron density or to the electron effective mass [19]. In any case, the increase of ωpu is strongly correlated with the enhancement of TiN metallic character expressed in terms of electrical resistivity.
Based on the above, the relaxation time can be used to calculate the mean free path (MFP) of the conduction electrons in TiN. The MFP for nanocrystalline TiN or for TiN nanostructures and nanoparticles is mostly due to scattering of electrons at the particle surfaces. MFP can be expressed, in terms of the relaxation time and the velocity ( v F) at the Fermi surface [141]:
1 τ D = 1 τ bulk + v F MFP Γ D = Γ bulk + v F MFP MFP = v F Γ D Γ bulk
where τbulk is the electron relaxation time of the bulk TiN. The velocity at the Fermi surface is calculated according to the free electron model through the relation [120,140]:
v F = ( m * ) ( 3 π 2 N ) 1 / 3 = ( 0.75 π ( m * e ) 2 ) 1 / 3 ω pu 2 / 3
The velocity of thermal movement of electrons (vT = (kBT/2m*)1/2 = 4.77 × 106 cm/s) is smaller by two orders of magnitude than vF and thus it can be reasonably neglected in the calculation of MFP:
MFP = ( 0.75 π ( m * e ) 2 ) 1 / 3 2 ω pu 2 / 3 Γ D Γ bulk
The Γbulk for TiN was determined to be 0.13 eV by ab initio calculations [82]; note that in [120], the MFP was determined using the crude assumption Γbulk = 0 eV, because at that time there were no relevant data available for Γbulk, therefore, the reported values in Table 2 are more realistic approximations of the real conduction electron MFP for TiN.
In this work we fitted most of the spectra presented in Figure 1 by Equation (6) using the Drude term and two Lorentz oscillators (m = 2), which simulate the contributions of the two interband transitions, E01, E02 defined in Figure 2, in order to provide a quantitative comparison; we call this model D2L. Spectra of non identified thickness or reference optical data of the substrate are excluded from the comparison.
Representative experimental dielectric function spectra along with the corresponding D2L fit results and the convolution to the individual contributions of the Drude term and the two Lorentz oscillators for two TiN films exhibiting high (blue symbols and lines) and low (red symbols and lines) Eps values are presented in Figure 4. The results of the fits, as well as the values of resistivity and MFP [according to Equations (9) and (12)], are presented in Table 2. Note that the presented resistivity values are consistent with the reported resistivity acquired by electrical measurements [120,142,143,144,145].

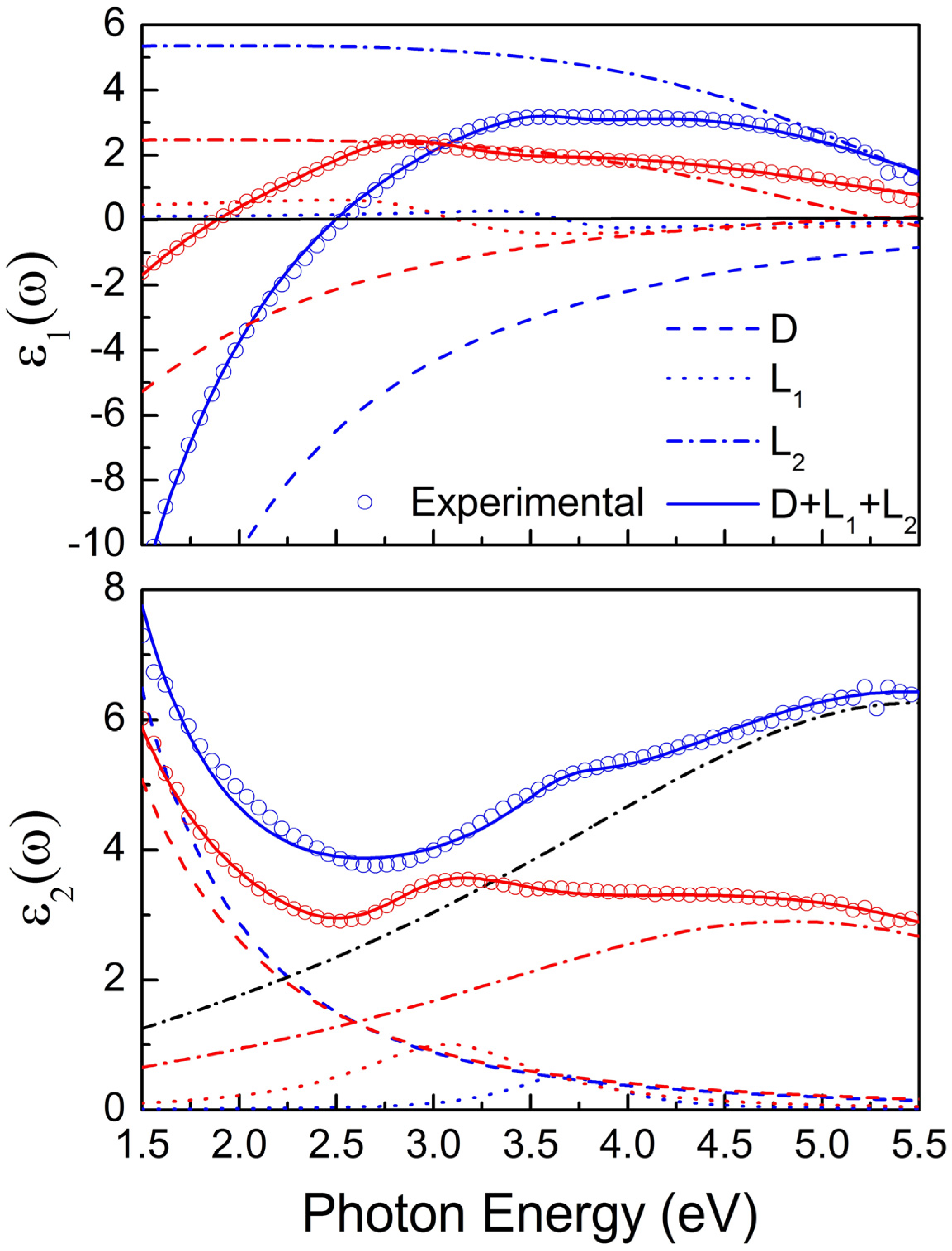

Figure 4. The experimental (open circles) and the fitted (solid lines) real (ε1) and the imaginary (ε2) parts of the dielectric function of two representative TiN films, 100 nm thick, deposited at RT and Vb = −40 V (red points and lines), (b) Vb = −120 V (blue points and lines). The individual contributions of the Drude (D) term (dashed lines) and the two Lorentz oscillators (L1, L2, dotted, and dashed-dotted lines) are also shown. The experimental data are taken from [120].
Figure 4. The experimental (open circles) and the fitted (solid lines) real (ε1) and the imaginary (ε2) parts of the dielectric function of two representative TiN films, 100 nm thick, deposited at RT and Vb = −40 V (red points and lines), (b) Vb = −120 V (blue points and lines). The individual contributions of the Drude (D) term (dashed lines) and the two Lorentz oscillators (L1, L2, dotted, and dashed-dotted lines) are also shown. The experimental data are taken from [120].
Materials 08 03128 g004
Table 2. The results of the Drude-Lorentz fits on the complex dielectric function spectra of TiN reported by various groups.
Table 2. The results of the Drude-Lorentz fits on the complex dielectric function spectra of TiN reported by various groups.
ReferenceIntrabandInterband 1Interband 2CompositeProperties
Epu (eV)Γd (eV)f1E01 (eV)γ1 (eV)f2E02 (eV)γ2 (eV)Eps (eV)εMFP (nm)ρ(μΩ cm)
Edlou et al. [110]7.2480.6390.2322.0660.5444.0395.6453.6212.752.35219.994
Gall et al. [111]9.7660.3490.3952.1950.8165.2788.2284.0412.598.78456.528
Huber et al. [112]8.0800.8603.5365.1393.043N/AN/AN/A2.902.99814.9102
Humlicek et al. [113]6.4210.8593.1183.7651.547N/AN/AN/A2.153.83912.8161
Koutsokeras et al. [115]7.0510.6290.3833.7131.3334.3495.8784.2822.552.12920.098
Langereis et al. [116]7.2100.8062.6854.4802.6441.2745.3550.8792.323.87115.0120
Naik et al. [118]5.7070.1650.1952.2640.7222.3124.8943.8751.992.667247.339
Patsalas et al. [12] 400 °C, Vb = −100 V7.7500.3500.1003.6820.7125.6206.2603.8752.671.85048.245
Patsalas et al. [120] RT, Vb = −120 V6.9260.5890.1833.6900.9434.8775.9674.8822.651.87221.595
Patsalas et al. [120] RT, Vb = −40 V, x = 1.14.4931.3790.5503.7612.0751.6396.6745.5531.981.1985.9527
Postava et al. [121]6.3570.7380.1463.4780.7607.0085.7895.9331.991.95715.3141
Wiemer et al. [123]7.0670.4384.2185.0843.349N/AN/AN/A2.483.23632.468
TiN by PLD, this work6.9440.7263.9625.5214.1171.0417.8232.1992.641.19816.5116
Comparing the values of the various parameters as a result of the D2L models, we can conclude the following results:
(1)
The maximum MFP acquired for the reported TiN films is less than 50 nm; this value, compared with equivalent values for noble metals, can provide a measure of the size limitations for single-crystalline TiN nanoparticles, which might exhibit LSPR,
(2)
Eps, which is associated with the SPP performance of TiN as we will show below, is associated only with Epu (see also Figure 5) and there is no explicit relation of Eps with any other D2L parameter. The meaning of this observation is that, despite that the screening of the plasma energy in TiN is due to the existence of the interband transitions, similar to Au, the numerical variations of these interband transitions are not strong enough to affect Eps.
(3)
Epu, which is associated with the conduction electron density, is above 6.9 eV for stoichiometric and highly conductive TiN; the same films exhibit Eps close to 2.65 eV as observed by Logothetidis et al. [117].

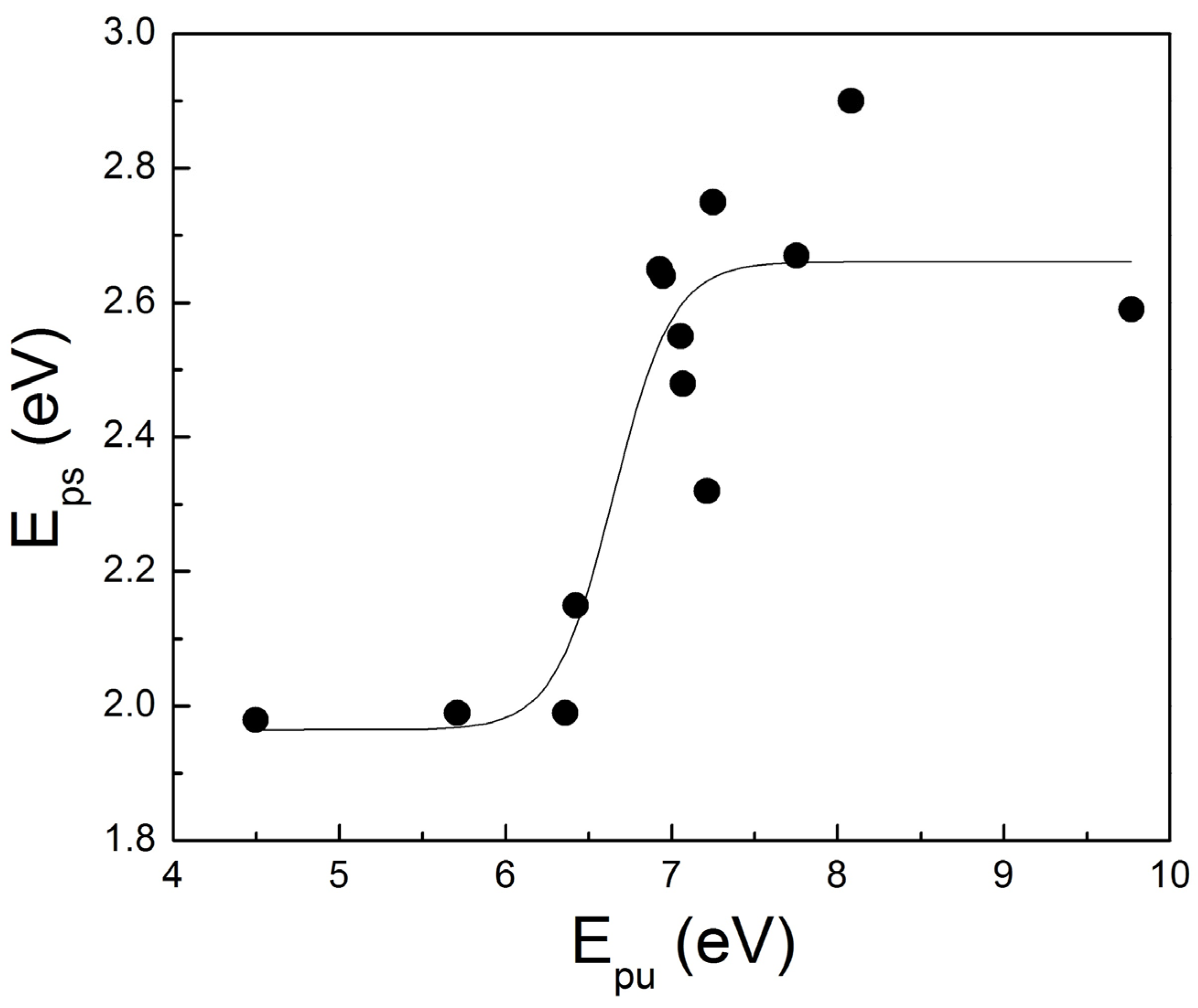

Figure 5. The correlation of screened (Eps) and unscreened (Epu) plasma energy for continuous TiN films resulted by the D2L analysis of the various TiN samples reported in Table 2 (the line is a guide to the eye).
Figure 5. The correlation of screened (Eps) and unscreened (Epu) plasma energy for continuous TiN films resulted by the D2L analysis of the various TiN samples reported in Table 2 (the line is a guide to the eye).
Materials 08 03128 g005

2.3. Potential of TiN for SPP Applications

After the extensive review of the optical properties of TiN thin films, we proceed with the evaluation of the potential of TiN surfaces for applications involving SPP. SPP are electromagnetic excitations propagating across a planar conductor/dielectric interface, as a direct consequence of the coupling between the electromagnetic field of light and the resonant plasma oscillation of the conduction electrons of the conductor. Therefore, the optical and electrical properties of the conductor will have severe effects on the SPP behavior at a conductor-dielectric interface. As we have reported in the previous paragraphs, TiN exhibits a unique tunability of its conductivity offering great tailoring potential for SPP devices.
In order to evaluate the SPP at interfaces involving TiN as a conductor, we initially consider the TiN/AlN interface. We base this choice upon the structural and chemical compatibility of the conducting fcc B1-TiN(111) and the dielectric hcp w-AlN(0001) (note that the fundamental gap of AlN is 6.2 eV [146]) surfaces that result in stable and sharp TiN/AlN interfaces [147,148,149,150,151,152,153]. The most characteristic description of the SPP across the interface is via the dispersion relation that correlates the frequency of light ω with the wave vector kx in the direction of propagation of SPP. The general equation that defines the aforementioned relation is the following [32]:
k x = ω c ε ˜ TiN ε ˜ D ε ˜ TiN + ε ˜ D
where ε ˜ T i N and ε ˜ D are the complex dielectric functions of TiN and the dielectric (AlN in our case), respectively, and c is the speed of light in vacuum. Given that the dielectric functions are inherently complex, Equation (13) should be modified to:
k x = ω c R e ( ε ˜ TiN ε ˜ D ε ˜ TiN + ε ˜ D )
when optical attenuation in the conductor exists. A more convenient way of writing the dispersion relation in order to be more easily compared to the experiments is:
k x c = ω R e ( ε ˜ TiN ε ˜ D ε ˜ TiN + ε ˜ D )
Figure 6 presents the calculated (via Equation (15)) SPP dispersion relations at the TiN/AlN interfaces using the dielectric function spectra reported by various groups (Table 1) and exhibiting a wide range of Eps values. The first significant observation is that in all cases the dispersion relation is characteristic of a lossy metal and getting finite extreme values of kx [32] due to conduction electron (due to finite ΓD values in Table 2) and dielectric (due to the existence of interband transitions) losses. This has the consequence of the existence of quasi-bound modes at which the slope of the dispersion relation is inversed. Secondly, the characteristic surface Plasmon Esp is scaled to the screened plasma energy Eps of TiN (i.e., the energy where the actual ε1 gets zero value) and not to the unscreened plasma energy Epu, which is the exclusive characteristic of the conduction electrons. This observation points out the significance of Eps not only as a diagnostic tool [117] but also as a critical parameter for the design of plasmonic devices. In addition, Figure 7 demonstrates the SPP dispersion relations at TiN/Dielectric interfaces for various popular dielectrics and for a highly conductive, low-loss TiN film. Air can hardly sustain a SPP mode, while the SPP is stronger and gets bigger extreme kx values with increasing the dielectric constant of the dielectric material; of special importance is the exceptional SPP performance across the TiN/AlN and TiN/GaN interfaces which are exceptionally stable and sharp [18,147,148,149,150,151,152,153]. Note, however, that SPP-based devices using the TiN/GaN interface are limited to a photon energy range below 3.45 eV, which is the direct fundamental gap of GaN.

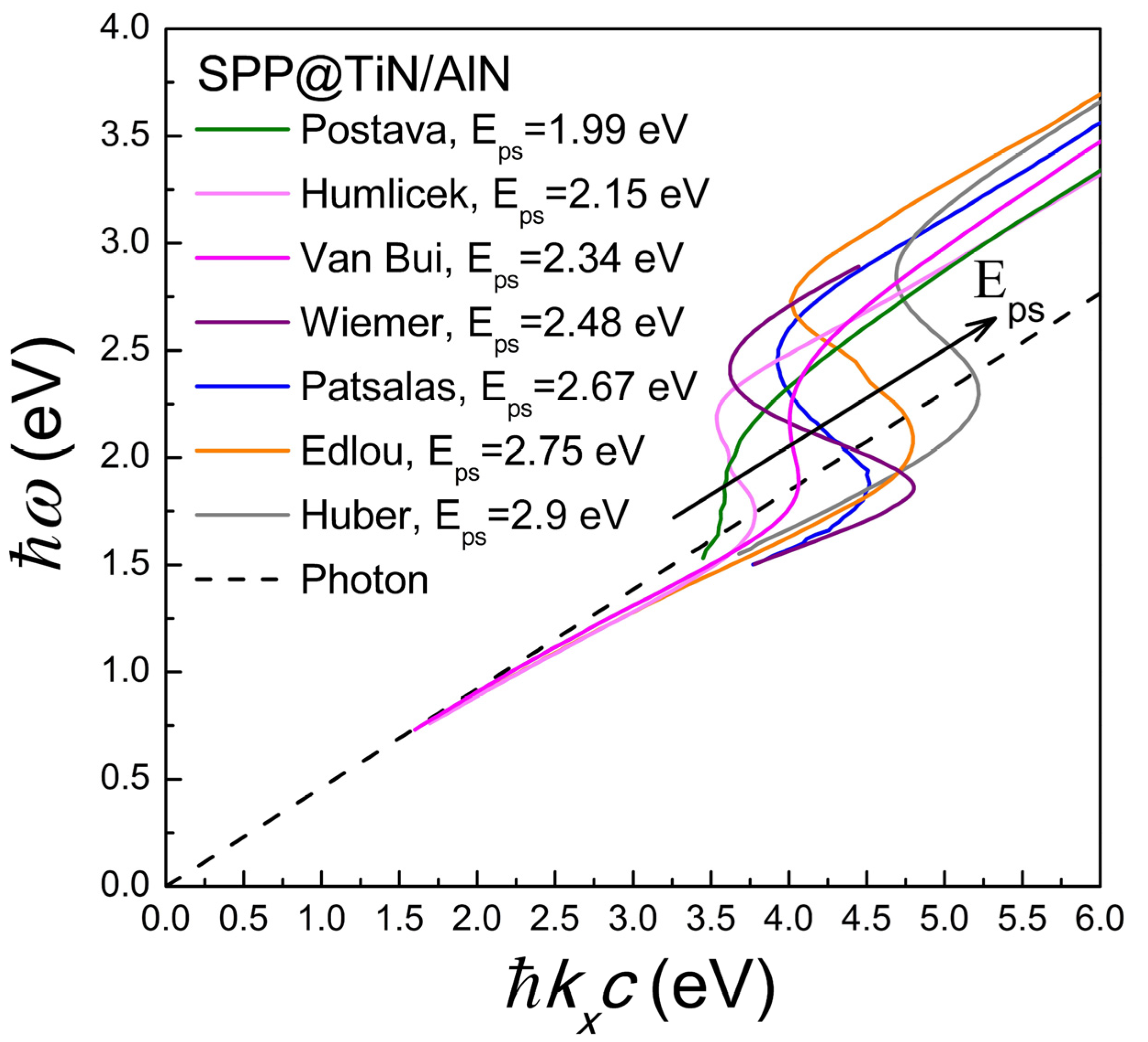

Figure 6. SPP dispersion relations at TiN/AlN interfaces for various qualities of TiN reported by different groups (according to Table 1). The dashed line is the dispersion relation of light in the dielectric.
Figure 6. SPP dispersion relations at TiN/AlN interfaces for various qualities of TiN reported by different groups (according to Table 1). The dashed line is the dispersion relation of light in the dielectric.
Materials 08 03128 g006

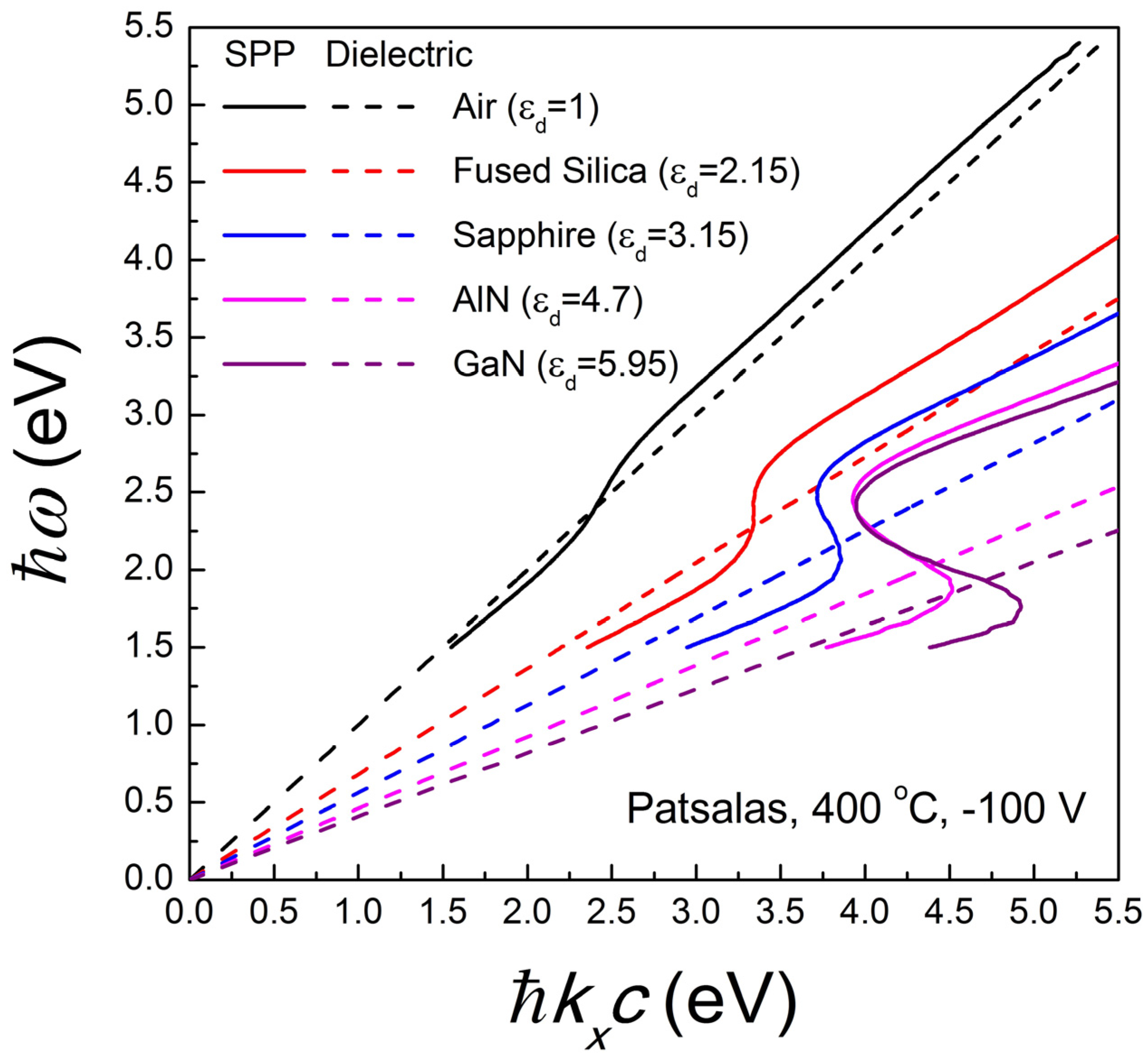

Figure 7. SPP dispersion relations at TiN/Dielectric interfaces for various popular dielectrics and for a highly conductive, low-loss TiN film. The dashed lines are the dispersion relations of light in the various dielectrics.
Figure 7. SPP dispersion relations at TiN/Dielectric interfaces for various popular dielectrics and for a highly conductive, low-loss TiN film. The dashed lines are the dispersion relations of light in the various dielectrics.
Materials 08 03128 g007

2.3. Potential of TiN for LSPR Applications

Another field of potential applications of TiN in plasmonics is that of localized surface Plasmon resonance (LSPR) of TiN nanoparticles. The production of TiN nanoparticles was reported [141]. The use of TiN nanoparticles might be beneficial for applications such as solar harvesting and biosensing via Surface-Enhanced Raman Scattering. The optical response of TiN nanoparticle assemblies can be reasonably described by the Maxwell-Garnett Effective Medium Approximation (MG-EMA), which describes the effective optical response of a composite material consisting of a host (matrix) phase and isolated inclusions of the secondary phase [154]:
ε ˜ ε m ε ˜ + 2 ε m = f i ε i ε m ε i + 2 ε m
where fi is the volume filling ratio of the inclusions, εi is the reference dielectric function of the TiN inclusions and εm is the reference dielectric function of the host (matrix).
Given that the MFP of conduction electrons of TiN films is less than 250 nm (according to the data presented in Table 2), we used directly the reported dielectric functions of TiN in MG-EMA; we also considered εm = 1 assuming air as the host medium. The ε2 spectra of TiN nanoparticle assemblies in air with filling ratio fTiN = 10% vol calculated by MG-EMA are presented in Figure 8. In particular, Figure 8a,b present results determined using dielectric functions retrieved from literature and covering a wide range of Eps and Epu, or retrieved from [120], where a variety of stoichiometric TiN films of varying MFP (and consequently grain size) are reported, respectively. In all cases, strong LSPR bands are observed. The narrower and stronger band is located just above 500 nm and resembles the far field LSPR behavior of gold, as it is clearer presented in Figure 9; in particular, Figure 9 shows the spectra of (a) the real ε1 and imaginary ε2 parts of the dielectric function, (b) the refractive index n and the extinction coefficient k, which are associated with ε1 and ε2 via the relations ε1 = n2k2 and ε2 = 2 nk; and (c) the absorption coefficient α = 4 πk/λ, of nanoparticle assemblies of TiN (from [120]) and 40 nm Gold. Gold exhibits higher quality factor of LSPR [λ/Δλ (FWHM)] but higher dielectric losses at short wavelengths than TiN.
The spectral variation of the LSPR band of TiN nanoparticles extends to an exceptional range, which covers almost the whole visible range in expense, however, of the strength of the LSPR bands. This observation confirms and supports the great potential and perspectives of TiN plasmonic nanostructures reported recently [155]. The variation of the maximum value of ε2 at the LSPR wavelength vs. the LSPR wavelength exhibits a distinct maximum above 500 nm (Figure 10, red symbols), in contrast to the monotonous increase of max-ε2 with the LSPR wavelength observed for Ag nanoparticles [156]. Finally, the importance of Eps is also demonstrated for the case of LSPR, as well. Indeed, the spectral location of LSPR of TiN nanoparticles is straightly scaled with Eps as it is demonstrated in Figure 10 (blue symbols).
Figure 8. ε2 spectra of TiN nanoparticles in air calculated by MG-EMA using TiN dielectric functions retrieved from (a) the literature, and (b) [120], where a variety of stoichiometric TiN films of varying MFP are reported.
Figure 8. ε2 spectra of TiN nanoparticles in air calculated by MG-EMA using TiN dielectric functions retrieved from (a) the literature, and (b) [120], where a variety of stoichiometric TiN films of varying MFP are reported.
Materials 08 03128 g008

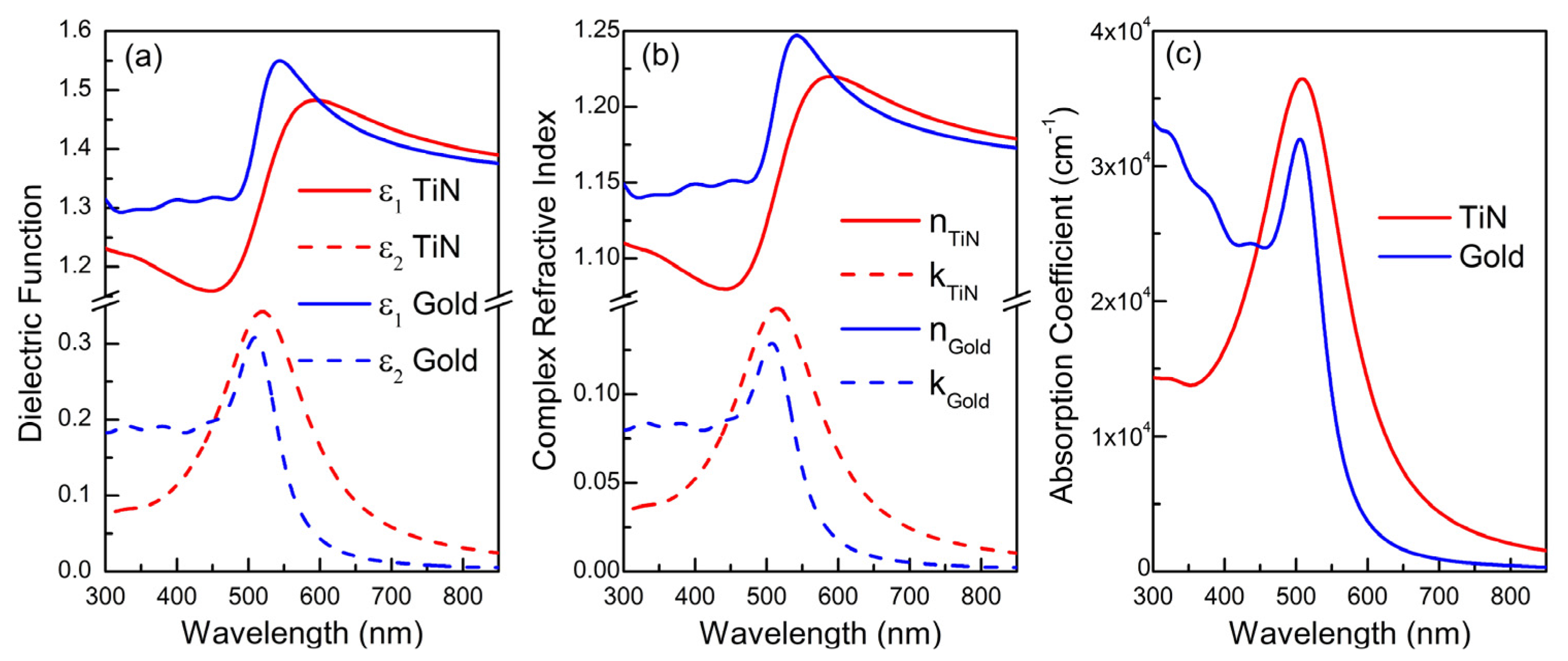

Figure 9. Comparison of the spectra of (a) the real ε1 and imaginary ε2 parts of the dielectric function; (b) the refractive index n and the extinction coefficient k; and (c) the absorption coefficient of nanoparticle assemblies of TiN (from [120]) and 40 nm Gold.
Figure 9. Comparison of the spectra of (a) the real ε1 and imaginary ε2 parts of the dielectric function; (b) the refractive index n and the extinction coefficient k; and (c) the absorption coefficient of nanoparticle assemblies of TiN (from [120]) and 40 nm Gold.
Materials 08 03128 g009

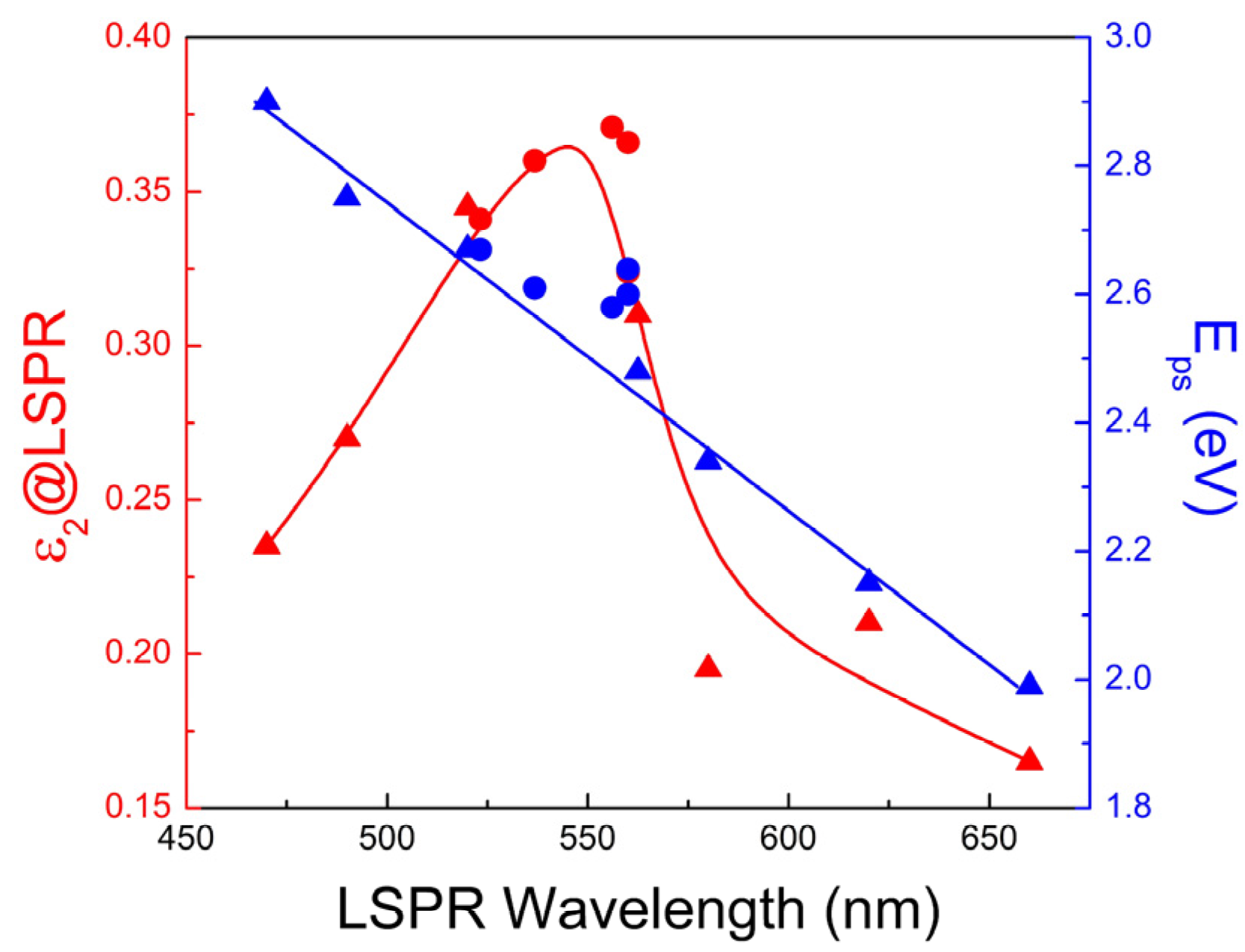

Figure 10. ε2 value at LSPR wavelength (red symbols) and the Eps parameter (blue symbols) vs. the LSPR wavelength. All reported values are deduced by the ε2 spectra of TiN nanoparticles in air calculated by MG-EMA using TiN dielectric functions retrieved from the literature (triangles), and [120] (disks) and presented in Figure 8. The lines are guides to the eye.
Figure 10. ε2 value at LSPR wavelength (red symbols) and the Eps parameter (blue symbols) vs. the LSPR wavelength. All reported values are deduced by the ε2 spectra of TiN nanoparticles in air calculated by MG-EMA using TiN dielectric functions retrieved from the literature (triangles), and [120] (disks) and presented in Figure 8. The lines are guides to the eye.
Materials 08 03128 g010

3. Conclusions

In this work, we reviewed the optical properties of TiN films grown by various techniques and on various substrates as reported by several research groups worldwide. The electronic conductivity of TiN is due to the semi filled d-band of Ti. Its optical properties are affected by the co-existence of Ti-d conduction (free) electrons and the N-p to Ti-d interband transitions. Consequently, the dielectric function spectra of TiN can be fitted by a combined model which consists of a Drude term that describes the conduction electrons, and two Lorentz oscillators that describe the interband transitions. The phenomenological parameter Eps, which has no explicit physical meaning, is associated mostly with the unscreened plasma energy Epu of the conduction electrons of TiN and determines the SPP and LSPR characteristics of TiN plasmonic devices. In particular, the SPP performance of TiN/AlN and TiN/GaN planar interfaces is remarkable. In addition, varying the composition and microstructural characteristics of TiN results in variations of Eps, which in its turn can be used to tailor the spectral position of LSPR emerging from assemblies of TiN nanoparticles. However, the spectral variation of TiN’s LSPR comes at expense of the LSPR strength. The strongest LSPR observed for TiN nanoparticles is located above 500 nm and resembles that of gold

Author Contributions

Panos Patsalas decided the scope and contents of the paper, had the overview of the work and wrote the paper; Nikolaos Kalfagiannis and Spyros Kassavetis gathered and evaluated the optical spectra from the literature; Nikolaos Kalfagiannis performed the modeling and did the quantitative analysis of the optical spectra.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Perry, A.J. A contribution to the study of Poisson’s ratios and elastic constants of TiN, ZrN and HfN. Thin Solid Films 1990, 193–194, 463–471. [Google Scholar] [CrossRef]
  2. Kuzel, R., Jr.; Cerny, R.; Valvoda, V.; Blomberg, M.; Merisalo, M. Complex XRD microstructural studies of hard coatings applied to PVD-deposited TiN films. Thin Solid Films 1994, 247, 64–78. [Google Scholar] [CrossRef]
  3. Sproul, W.D.; Rudnik, P.J.; Gogol, C.A. The effect of target power on the nitrogen partial pressure level and hardness of reactively sputtered titanium nitride coatings. Thin Solid Films 1989, 171, 171–181. [Google Scholar] [CrossRef]
  4. Gammer, K.; Stoiber, M.; Wagner, J.; Hutter, H.; Kullmer, R.; Mitterer, C. Investigations on the effects of plasma-assisted pre-treatment for plasma-assisted chemical vapour deposition TiN coatings on tool steel. Thin Solid Films 2004, 461, 277–281. [Google Scholar] [CrossRef]
  5. Östling, M.; Nygren, S.; Petersson, C.S.; Norström, H.; Buchta, R.; Blom, H.-O.; Berg, S. A comparative study of the diffusion barrier properties of TiN and ZrN. Thin Solid Films 1986, 145, 81–88. [Google Scholar] [CrossRef]
  6. Kaloyeros, A.E.; Eisenbraun, E. Ultrathin diffusion barriers/liners for gigascale copper metallization. Annu. Rev. Mater. Sci. 2000, 30, 363–385. [Google Scholar] [CrossRef]
  7. Chen, G.S.; Huang, S.C.; Chen, S.T.; Yang, T.J.; Lee, P.Y.; Jou, J.H.; Lin, T.C. An optimal quasisuperlattice design to further improve thermal stability of tantalum nitride diffusion barriers. Appl. Phys. Lett. 2000, 76, 2895–2897. [Google Scholar] [CrossRef]
  8. Zeng, Y.; Russell, S.W.; McKerrow, A.J.; Chen, L.; Alford, T.L. Effectiveness of Ti, TiN, Ta, TaN, and W2N as barriers for the integration of low-k dielectric hydrogen silsesquioxane. J. Vac. Sci. Technol. B 2000, 18, 221–230. [Google Scholar] [CrossRef]
  9. Aouadi, S.M.; Shreeman, P.K.; Williams, M. Real-time spectroscopic ellipsometry study of ultrathin diffusion barriers for integrated circuits. J. Appl. Phys. 2004, 96, 3949–3955. [Google Scholar] [CrossRef]
  10. Randhawa, H. Hard coatings for decorative applications. Surf. Coat. Technol. 1988, 36, 829–836. [Google Scholar] [CrossRef]
  11. Budke, E.; Krempel-Hesse, J.; Maidhof, H.; Schüssler, H. Decorative hard coatings with improved corrosion resistance. Surf. Coat. Technol. 1999, 112, 108–113. [Google Scholar] [CrossRef]
  12. Niyomsoan, S.; Grant, W.; Olson, D.L.; Mishra, B. Variation of color in titanium and zirconium nitride decorative thin films. Thin Solid Films 2002, 415, 187–194. [Google Scholar] [CrossRef]
  13. Petrov, I.; Barna, P.B.; Hultman, L.; Greene, J.E. Microstructural evolution during film growth. J. Vac. Sci. Technol. A 2003, 21, S117–S128. [Google Scholar] [CrossRef]
  14. Patsalas, P.; Logothetidis, S. Interface properties and structural evolution of TiN/Si and TiN/GaN heterostructures. J. Appl. Phys. 2003, 93, 989–998. [Google Scholar] [CrossRef]
  15. Matenoglou, G.M.; Koutsokeras, L.E.; Patsalas, P. Plasma energy and work function of conducting transition metal nitrides for electronic applications. Appl. Phys. Lett. 2009, 94, 152108. [Google Scholar] [CrossRef]
  16. Koutsokeras, L.E.; Matenoglou, G.M.; Patsalas, P. Structure, electronic properties and electron energy loss spectra of transition metal nitride films. Thin Solid Films 2013, 528, 49–52. [Google Scholar] [CrossRef]
  17. Ruterana, P.; Nouet, G.; Kehagias, Th.; Komninou, Ph.; Karakostas, Th.; di Fort-Poisson, M.A.; Huet, F.; Morkoc, H. Microstructure of Ti/Al and TiN Ohmic contacts to gallium nitride. Phys. Stat. Sol. A 1999, 176, 767–771. [Google Scholar] [CrossRef]
  18. Gautier, S.; Komninou, Ph.; Patsalas, P.; Kehagias, Th.; Logothetidis, S.; Dimitriadis, C.A.; Nouet, G. Optical and electrical properties of TiN/n-GaN contacts in correlation with their structural properties. Semiconduct. Sci. Technol. 2003, 18, 594–601. [Google Scholar] [CrossRef]
  19. Patsalas, P.; Charitidis, C.; Logothetidis, S.; Dimitriadis, C.A.; Valassiades, O. Combined electrical and mechanical properties of titanium nitride thin films as metallization materials. J. Appl. Phys. 1999, 86, 5296–5298. [Google Scholar] [CrossRef]
  20. Malmros, A.; Andersson, K.; Rorsman, N. Combined TiN- and TaN temperature compensated thin film resistors. Thin Solid Films 2012, 520, 2162–2165. [Google Scholar] [CrossRef]
  21. Ernsberger, C.; Perry, A.J.; Lehman, L.P.; Miller, A.E.; Pelton, A.R.; Dabrowski, B.W. Low temperature tempering-induced changes in bulk resistivity, temperature coefficient of resistivity and stress in physically vapor-deposited TiN. Surf. Coat. Technol. 1988, 36, 605–616. [Google Scholar] [CrossRef]
  22. Hultman, L.; Ljungcrantz, H.; Hallin, C.; Janzén, E.; Sundgren, J.-E.; Pécz, B.; Wallenberg, L.R. Growth and electronic properties of epitaxial TiN thin films on 3C-SiC(001) and 6H-SiC(0001) substrates by reactive magnetron sputtering. J. Mater. Res. 1996, 11, 2458–2462. [Google Scholar] [CrossRef]
  23. Dimitriadis, C.A.; Lee, J.I.; Patsalas, P.; Logothetidis, S.; Tassis, D.H.; Brini, J.; Kamarinos, G. Characteristics of TiNx/n-Si Schottky diodes deposited by reactive magnetron sputtering. J. Appl. Phys. 1999, 85, 4238–4242. [Google Scholar]
  24. Petrov, I.; Hultman, L.; Helmersson, U.; Sundgren, J.-E.; Greene, J.E. Microstructure modification of TiN by ion bombardment during reactive sputter deposition. Thin Solid Films 1989, 169, 299–314. [Google Scholar] [CrossRef]
  25. Wagner, J.; Mitterer, C.; Penoy, M.; Michotte, C.; Wallgram, W.; Kathrein, M. The effect of deposition temperature on microstructure and properties of thermal CVD TiN coatings. Int. J. Refract. Met. Hard Mater. 2008, 26, 120–126. [Google Scholar] [CrossRef]
  26. Perry, A.J.; Strandberg, C.; Sproul, W.D.; Hofmann, S.; Ernsberger, C.; Nickerson, J.; Chollet, L. The chemical analysis of TiN films: A round robin experiment. Thin Solid Films 1987, 153, 169–183. [Google Scholar] [CrossRef]
  27. Musil, J.; Poulek, V.; Valvoda, V.; Kužel, R., Jr.; Jehn, H.A.; Baumgärtner, M.E. Relation of deposition conditions of Ti-N films prepared by d.c. magnetron sputtering to their microstructure and macrostress. Surf. Coat. Technol. 1993, 60, 484–488. [Google Scholar] [CrossRef]
  28. Abadias, G.; Tse, Y.Y. Diffraction stress analysis in fiber-textured TiN thin films grown by ion-beam sputtering: Application to (001) and mixed (001)+(111) texture. J. Appl. Phys. 2004, 95, 2414–2428. [Google Scholar] [CrossRef]
  29. Gbordzoe, S.; Kotoka, R.; Craven, E.; Kumar, D.; Wu, F.; Narayan, J. Effect of substrate temperature on the microstructural properties of titanium nitride nanowires grown by pulsed laser deposition. J. Appl. Phys. 2014, 116, 064310. [Google Scholar] [CrossRef]
  30. Evangelou, E.K.; Konofaos, N.; Aslanoglou, X.A.; Dimitriadis, C.A.; Patsalas, P.; Logothetidis, S.; Kokkoris, M.; Kossionides, E.; Vlastou, R.; Groetschel, R. Characterization of magnetron sputtering deposited thin films of TiN for use as a metal electrode on TiN/SiO2/Si metal-oxide-semiconductor device. J. Appl. Phys. 2000, 88, 7192–7196. [Google Scholar] [CrossRef]
  31. Majhi, P.; Wen, H.-C.; Choi, K.; Alshareef, H.; Huffman, C.; Lee, B.H. A Systematic Study of the Influence of Nitrogen in Tuning the Effective Work Function of Nitrided Metal Gates. In In Proceeding of the IEEE VLSI-TSA Int. Symp. on VLSI Technology, Hsinchu, Taiwan, 25–27 April 2005; pp. 105–106.
  32. Maier, S.A. Plasmonics: Fundamentals and Applications; Springer Science and Business Media LLC: New York, NY, USA, 2007; pp. 65–87. [Google Scholar]
  33. Enoch, S.; Bonod, N. Plasmonics: From Basics to Advanced Topics; Springer Science and Business Media LLC: New York, NY, USA, 2007; pp. 105–148, 151–176. [Google Scholar]
  34. Berini, P.; de Leon, I. Surface plasmon-polariton amplifiers and lasers. Nat. Phot. 2012, 6, 16–24. [Google Scholar] [CrossRef]
  35. Lal, S.; Link, S.; Halas, N.J. Nano-optics from sensing to waveguiding. Nat. Phot. 2007, 1, 641–648. [Google Scholar] [CrossRef]
  36. Barnes, W.L.; Dereux, A.; Ebbesen, T.W. Surface plasmon subwavelength optics. Nature 2003, 424, 824–830. [Google Scholar] [CrossRef] [PubMed]
  37. Polman, A. Applied physics: Plasmonics applied. Science 2008, 322, 868–869. [Google Scholar] [CrossRef] [PubMed]
  38. Ozbay, E. Plasmonics: Merging photonics and electronics at nanoscale dimensions. Science 2006, 311, 189–193. [Google Scholar] [CrossRef] [PubMed]
  39. Brongersma, M.L.; Shalaev, V.M. The Case for Plasmonics. Science 2010, 328, 440–441. [Google Scholar] [CrossRef] [PubMed]
  40. Van Duyne, R.P. Molecular Plasmonics. Science 2004, 306, 985–986. [Google Scholar] [CrossRef] [PubMed]
  41. Dionne, J.A.; Diest, K.; Sweatlock, L.A.; Atwater, H.A. PlasMOStor: A Metal−Oxide−Si Field Effect Plasmonic Modulator. Nano Lett. 2009, 9, 897–902. [Google Scholar] [CrossRef] [PubMed]
  42. Lin, J.; Li, H.; Zhang, H.; Chen, W. Plasmonic enhancement of photocurrent in MoS2 field-effect-transistor. Appl. Phys. Lett. 2013, 102, 203109. [Google Scholar] [CrossRef]
  43. Wang, L.; Hu, W.; Wang, J.; Wang, X.; Wang, S.; Chen, X.; Lu, W. Plasmon resonant excitation in grating-gated AlN barrier transistors at terahertz frequency. Appl. Phys. Lett. 2012, 100, 123501. [Google Scholar] [CrossRef]
  44. Sheldon, M.T.; De Groep, J.V.; Brown, A.M.; Polman, A.; Atwater, H.A. Plasmoelectric potentials in metal nanostructures. Science 2014, 346, 828–831. [Google Scholar] [CrossRef] [PubMed]
  45. Anker, J.N.; Hall, W.P.; Lyandres, O.; Shah, N.C.; Zhao, J.; Van Duyne, R.P. Biosensing with plasmonic Nanosensors. Nat. Mater. 2008, 7, 442–453. [Google Scholar] [CrossRef] [PubMed]
  46. Zhang, B.; Kumar, R.B.; Dai, H.; Feldman, B.J. A plasmonic chip for biomarker discovery and diagnosis of type 1 diabetes. Nat. Med. 2014, 20, 948–953. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, R.; Zhang, Y.; Dong, Z.C.; Jiang, S.; Zhang, C.; Chen, L.G.; Zhang, L.; Liao, Y.; Aizpurua, J.; Luo, Y.; et al. Chemical mapping of a single molecule by plasmon-enhanced Raman scattering. Nature 2013, 498, 82–86. [Google Scholar] [CrossRef] [PubMed]
  48. Kravets, V.G.; Schedin, F.; Jalil, R.; Britnell, L.; Gorbachev, R.V.; Ansell, D.; Thackray, B.; Novoselov, K.S.; Geim, A.K.; Kabashin, A.V.; et al. Singular phase nano-optics in plasmonic metamaterials for label-free single-molecule detection. Nat. Mater. 2013, 12, 304–309. [Google Scholar] [CrossRef] [PubMed]
  49. De Angelis, F.; Das, G.; Candeloro, P.; Patrini, M.; Galli, M.; Bek, A. Nanoscale chemical mapping using three-dimensional adiabatic compression of surface plasmon polaritons. Nat. Nanotech. 2010, 5, 67–72. [Google Scholar] [CrossRef] [PubMed]
  50. Mubeen, S.; Lee, J.; Singh, N.; Krämer, S.; Stucky, G.D.; Moskovits, M. An autonomous photosynthetic device in which all charge carriers derive from surface plasmons. Nat. Nanotech. 2013, 8, 247–251. [Google Scholar] [CrossRef] [PubMed]
  51. Qian, K.; Sweeny, B.C.; Johnston-Peck, A.C.; Niu, W.; Graham, J.O.; Duchene, J.S.; Qiu, J.; Wang, Y.-C.; Engelhard, M.H.; Su, D.; et al. Surface plasmon-driven water reduction: Gold nanoparticle size matters. J. Am. Chem. Soc. 2014, 136, 9842–9845. [Google Scholar] [CrossRef] [PubMed]
  52. Wang, Z.; Yang, C.; Lin, T.; Yin, H.; Chen, P.; Wan, D.; Xu, F.; Huang, F.; Lin, J.; Xie, X.; Jiang, M. H-doped black titania with very high solar absorption and excellent photocatalysis enhanced by localized surface plasmon resonance. Adv. Funct. Mater. 2013, 23, 5444–5450. [Google Scholar] [CrossRef]
  53. Larsson, E.M.; Langhammer, C.; Zoric, I.; Kasemo, B. Nanoplasmonic Probes of Catalytic Reactions. Science 2009, 326, 1091–1094. [Google Scholar] [CrossRef] [PubMed]
  54. Atwater, H.A.; Polman, A. Plasmonics for Improved Photovoltaic Devices. Nat. Mater. 2010, 9, 205–213. [Google Scholar] [CrossRef] [PubMed]
  55. Aubry, A.; Lei, D.Y.; Fernandez-Dominguez, A.I.; Sonnefraud, Y.; Maier, S.A.; Pendry, J.B. Plasmonic Light-Harvesting Devices over the Whole Visible Spectrum. Nano Lett. 2010, 10, 2574–2579. [Google Scholar] [CrossRef] [PubMed]
  56. Pelayo García De Arquer, F.; Mihi, A.; Konstantatos, G. Molecular interfaces for plasmonic hot electron photovoltaics. Nanoscale 2015, 7, 2281–2288. [Google Scholar] [CrossRef] [PubMed]
  57. Gan, Q.; Bartoli, F.J.; Kafafi, Z.H. Plasmonic-enhanced organic photovoltaics: Breaking the 10% efficiency barrier. Adv. Mater. 2013, 25, 2385–2396. [Google Scholar] [CrossRef] [PubMed]
  58. Stratakis, E.; Kymakis, E. Nanoparticle-based plasmonic organic photovoltaic devices. Mater. Today 2013, 16, 133–146. [Google Scholar] [CrossRef]
  59. Kalfagiannis, N.; Karagiannidis, P.G.; Pitsalidis, C.; Panagiotopoulos, N.T.; Gravalidis, C.; Kassavetis, S.; Patsalas, P.; Logothetidis, S. Plasmonic silver nanoparticles for improved organic solar cells. Sol. Energy Mater. Sol. Cells 2012, 104, 165–174. [Google Scholar] [CrossRef]
  60. Deceglie, M.G.; Ferry, V.E.; Alivisatos, A.P.; Atwater, H.A. Design of nanostructured solar cells using coupled optical and electrical modeling. Nano Lett. 2012, 12, 2894–2900. [Google Scholar] [CrossRef] [PubMed]
  61. Pala, R.A.; Liu, J.S.Q.; Barnard, E.S.; Askarov, D.; Garnett, E.C.; Fan, S.; Brongersma, M.L. Optimization of non-periodic plasmonic light-trapping layers for thin-film solar cells. Nat. Commun. 2013, 4, 2095. [Google Scholar] [CrossRef] [PubMed]
  62. Sobhani, A.; Knight, M.W.; Wang, Y.; Zheng, B.; King, N.S.; Brown, L.V.; Fang, Z.; Nordlander, P.; Halas, N.J. Narrowband photodetection in the near-infrared with a plasmon-induced hot electron device. Nat. Commun. 2013, 4, 1643. [Google Scholar] [CrossRef] [PubMed]
  63. Konstantatos, G.; Sargent, E.H. Nanostructured materials for photon detection. Nat. Nanotech. 2010, 5, 391–400. [Google Scholar] [CrossRef] [PubMed]
  64. Chalabi, H.; Schoen, D.; Brongersma, M.L. Hot-electron photodetection with a plasmonic nanostripe antenna. Nano Lett. 2014, 14, 1374–1380. [Google Scholar] [CrossRef] [PubMed]
  65. Montelongo, Y.; Tenorio-Pearl, J.O.; Williams, C.; Zhang, S.; Milne, W.I.; Wilkinson, T.D. Plasmonic nanoparticle scattering for color holograms. Proc. Natl. Acad. Sci. USA 2014, 111, 12679–12683. [Google Scholar] [CrossRef] [PubMed]
  66. Olson, J.; Manjavacas, A.; Liu, L.; Chang, W.-S.; Foerster, B.; King, N.S.; Knight, M.W.; Nordlander, P.; Halas, N.J.; Link, S. Vivid, full-color aluminum plasmonic pixels. Proc. Natl. Acad. Sci. USA 2014, 111, 14348–14353. [Google Scholar] [CrossRef] [PubMed]
  67. Siozios, A.; Koutsogeorgis, D.C.; Lidorikis, E.; Dimitrakopoulos, G.P.; Kehagias, T.; Zoubos, H.; Komninou, P.; Cranton, W.M.; Kosmidis, C.; Patsalas, P. Optical Encoding by Plasmon-Based Patterning: Hard and Inorganic Materials Become Photosensitive. Nano Lett. 2012, 12, 259–263. [Google Scholar] [CrossRef] [PubMed]
  68. Zijlstra, P.; Chon, J.W.M.; Gu, M. Five-Dimensional Optical Recording Mediated by Surface Plasmons in Gold Nanorods. Nature 2009, 459, 410–413. [Google Scholar] [CrossRef] [PubMed]
  69. Wan, D.; Chen, H.-L.; Tseng, S.-C.; Wang, L.A.; Chen, Y.-P. One-Shot Deep-UV–Pulsed laser-induced photomodification of hollow metal nanoparticles for high density data storage on flexible substrates. ACS Nano 2010, 4, 165–173. [Google Scholar] [CrossRef] [PubMed]
  70. Sanchez-Valencia, J.R.; Toudert, J.; Borras, A.; Barranco, A.; Lahoz, R.; de la Fuente, G.F.; Frutos, F.; Gonzalez-Elipe, A.R. Selective Dichroic Patterning by Nanosecond Laser Treatment of Ag Nanostripes. Adv. Mater. 2011, 23, 848–853. [Google Scholar] [CrossRef] [PubMed]
  71. Asoro, M.A.; Damiano, J.; Ferreira, P.J. Size Effects on the Melting Temperature of Silver Nanoparticles: In-situ TEM Observations. Microsc. Microanal. 2009, 15, 706–707. [Google Scholar] [CrossRef]
  72. Chernyshev, A.P. Effect of Nanoparticle Size on the Onset Temperature of Surface Melting. Mater. Lett. 2009, 63, 1525–1527. [Google Scholar] [CrossRef]
  73. Alarifi, H.A.; Atiş, M.; Özdoğan, C.; Hu, A.; Yavuz, M.; Zhou, Y. Determination of Complete Melting and Surface Premelting Points of Silver Nanoparticles by Molecular Dynamics Simulation. J. Phys. Chem. C 2013, 117, 12289–12298. [Google Scholar] [CrossRef]
  74. Matula, R.A. Electrical resistivity of copper, gold palladium and silver. J. Phys. Chem. Ref. Data 1979, 8, 1147–1298. [Google Scholar] [CrossRef]
  75. Boltasseva, A.; Atwater, H.A. Low-Loss Plasmonic Metamaterials. Science 2011, 331, 290–291. [Google Scholar] [CrossRef] [PubMed]
  76. Poulek, V.; Musil, J.; Valvoda, V.; Cerny, R. Microhardness of Ti-N films containing the ε-Ti2N phase. J. Phys. D 1988, 21, 1657–1658. [Google Scholar] [CrossRef]
  77. Rauschenbach, B. Formation of compounds by high-flux nitrogen ion implantation in titanium. J. Mater. Sci. 1986, 21, 395–404. [Google Scholar] [CrossRef]
  78. Xu, M.; Wang, S.; Yin, G.; Li, J.; Zheng, Y.; Chen, L.; Jia, Y. Optical properties of cubic Ti3N4, Zr3N4, and Hf3N4. Appl. Phys. Lett. 2006, 89, 151908. [Google Scholar] [CrossRef]
  79. Kroll, P. Hafnium nitride with thorium phosphide structure: Physical properties and an assessment of the Hf-N, Zr-N, and Ti-N phase diagrams at high pressures and temperatures. Phys. Rev. Lett. 2003, 90, 12550. [Google Scholar] [CrossRef]
  80. Stampfl, C.; Mannstadt, W.; Asahi, R.; Freeman, A.J. Electronic structure and physical properties of early transition metal mononitrides: Density-functional theory LDA, GGA, and screened-exchange LDA FLAPW calculations. Phys. Rev. B 2001, 63, 155106. [Google Scholar] [CrossRef]
  81. Brik, M.G.; Ma, C.-G. First-principles studies of the electronic and elastic properties of metal nitrides XN (X = Sc, Ti, V, Cr, Zr, Nb). Comp. Mater. Sci. 2012, 51, 380–388. [Google Scholar] [CrossRef]
  82. Matenoglou, G.M.; Lekka, C.E.; Koutsokeras, L.E.; Karras, G.; Kosmidis, C.; Evangelakis, G.A.; Patsalas, P. Structure and electronic properties of conducting, ternary TixTa1-xN films. J. Appl. Phys. 2009, 105, 103714. [Google Scholar] [CrossRef]
  83. Hultman, L.; Barnett, S.A.; Sundgren, J.-E.; Greene, J.E. Growth of epitaxial TiN films deposited on MgO(100) by reactive magnetron sputtering: The role of low-energy ion irradiation during deposition. J. Cryst. Growth 1988, 92, 639–656. [Google Scholar] [CrossRef]
  84. Musil, J.; Kadlec, S.; Valvoda, V.; Kužel, R., Jr.; Černý, R. Ion-assisted sputtering of TiN films. Surf. Coat. Technol. 1990, 43–44, 259–269. [Google Scholar] [CrossRef]
  85. Sproul, W.D.; Rudnik, P.J.; Graham, M.E.; Rohde, S.L. High rate reactive sputtering in an opposed cathode closed-field unbalanced magnetron sputtering system. Surf. Coat. Technol. 1990, 43–44, 270–278. [Google Scholar] [CrossRef]
  86. Patsalas, P.; Charitidis, C.; Logothetidis, S. The effect of substrate temperature and biasing on the mechanical properties and structure of sputtered titanium nitride thin films. Surf. Coat. Technol. 2000, 125, 335–340. [Google Scholar] [CrossRef]
  87. Martin, N.; Sanjinés, R.; Takadoum, J.; Lévy, F. Enhanced sputtering of titanium oxide, nitride and oxynitride thin films by the reactive gas pulsing technique. Surf. Coat. Technol. 2001, 142–144, 615–620. [Google Scholar] [CrossRef]
  88. Mayrhofer, P.H.; Kunc, F.; Musil, J.; Mitterer, C. A comparative study on reactive and non-reactive unbalanced magnetron sputter deposition of TiN coatings. Thin Solid Films 2002, 415, 151–159. [Google Scholar] [CrossRef]
  89. Abadias, G.; Guerin, P. In situ stress evolution during magnetron sputtering of transition metal nitride thin films. Appl. Phys. Lett. 2008, 93, 111908. [Google Scholar] [CrossRef]
  90. Mahieu, S.; Depla, D. Reactive sputter deposition of TiN layers: Modelling the growth by characterization of particle fluxes towards the substrate. J. Phys. D 2009, 42, 053002. [Google Scholar] [CrossRef]
  91. Bendavid, A.; Martin, P.J.; Wang, X.; Wittling, M.; Kinder, T.J. Deposition and modification of titanium nitride by ion assisted arc deposition. J. Vac. Sci. Technol. A 1995, 13, 1658–1664. [Google Scholar] [CrossRef]
  92. Tay, B.K.; Shi, X.; Yang, H.S.; Tan, H.S.; Chua, D.; Teo, S.Y. Effect of deposition conditions on the properties of TiN thin films prepared by filtered cathodic vacuum-arc technique. Surf. Coat. Technol. 1999, 111, 229–233. [Google Scholar] [CrossRef]
  93. Cheng, Y.H.; Tay, B.K.; Lau, S.P.; Kupfer, H.; Richter, F. Substrate bias dependence of Raman spectra for TiN films deposited by filtered cathodic vacuum arc. J. Appl. Phys. 2002, 92, 1845–1849. [Google Scholar] [CrossRef]
  94. Vepřek, S. Surface processes and rate-determining steps in plasma-induced chemical vapour deposition: Titanium nitride, boron carbide and silicon. Surf. Coat. Technol. 1990, 43–44, 154–166. [Google Scholar] [CrossRef]
  95. Hamamura, H.; Komiyama, H.; Shimogaki, Y. TiN films prepared by flow modulation chemical vapor deposition using TiCl4 and NH3. Jap. J. Appl. Phys. 2001, 40, 1517–1521. [Google Scholar] [CrossRef]
  96. Ritala, M.; Leskelä, M.; Rauhala, E.; Jokinen, J. Atomic layer epitaxy growth of TiN thin films from TiI4 and NH3. J. Electrochem. Soc. 1998, 145, 2914–2920. [Google Scholar] [CrossRef]
  97. Hiltunen, L.; Leskelä, M.; Mäkelä, M.; Niinistö, L.; Nykänen, E.; Soininen, P. Nitrides of titanium, niobium, tantalum and molybdenum grown as thin films by the atomic layer epitaxy method. Thin Solid Films 1988, 166, 149–154. [Google Scholar] [CrossRef]
  98. Chowdhury, R.; Vispute, R.D.; Jagannadham, K.; Narayan, J. Characteristics of titanium nitride films grown by pulsed laser deposition. J. Mater. Res. 1996, 11, 1458–1469. [Google Scholar] [CrossRef]
  99. Wang, H.; Tiwari, A.; Kvit, A.; Zhang, X.; Narayan, J. Epitaxial growth of TaN thin films on Si(100) and Si(111) using a TiN buffer layer. Appl. Phys. Lett. 2002, 80, 2323–2325. [Google Scholar] [CrossRef]
  100. Ensinger, W.; Rauschenbach, B. Microstructural investigations on titanium nitride films formed by medium energy ion beam assisted deposition. Nucl. Inst. Meth. Phys. Res. B 1993, 80–81, 1409–1414. [Google Scholar] [CrossRef]
  101. Paulitsch, J.; Schenkel, M.; Zufraß, T.; Mayrhofer, P.H.; Münz, W.-D. Structure and properties of high power impulse magnetron sputtering and DC magnetron sputtering CrN and TiN films deposited in an industrial scale unit. Thin Solid Films 2010, 518, 5558–5564. [Google Scholar] [CrossRef]
  102. Håkansson, G.; Hultman, L.; Sundgren, J.-E.; Greene, J.E.; Münz, W.-D. Microstructures of TiN films grown by various physical vapour deposition techniques. Surf. Coat. Technol. 1991, 48, 51–67. [Google Scholar] [CrossRef]
  103. Karr, B.W.; Petrov, I.; Cahill, D.G.; Greene, J.E. Morphology of epitaxial TiN(001) grown by magnetron sputtering. Appl. Phys. Lett. 1997, 70, 1703–1705. [Google Scholar] [CrossRef]
  104. Li, T.Q.; Noda, S.; Komiyama, H.; Yamamoto, T.; Ikuhara, Y. Initial growth stage of nanoscaled TiN films: Formation of continuous amorphous layers and thickness-dependent crystal nucleation. J. Vac. Sci. Technol. A 2003, 21, 1717–1723. [Google Scholar] [CrossRef]
  105. Gall, D.; Kodambaka, S.; Wall, M.A.; Petrov, I.; Greene, J.E. Pathways of atomistic processes on TiN(001) and (111) surfaces during film growth: An ab initio study. J. Appl. Phys. 2003, 93, 9086–9094. [Google Scholar] [CrossRef]
  106. Patsalas, P.; Gravalidis, C.; Logothetidis, S. Surface kinetics and subplantation phenomena affecting the texture, morphology, stress, and growth evolution of titanium nitride films. J. Appl. Phys. 2004, 96, 6234–6246. [Google Scholar] [CrossRef]
  107. Abadias, G.; Tse, Y.Y.; Guérin, Ph.; Pelosin, V. Interdependence between stress, preferred orientation, and surface morphology of nanocrystalline TiN thin films deposited by dual ion beam sputtering. J. Appl. Phys. 2006, 99, 113519. [Google Scholar] [CrossRef]
  108. Beck, U.; Reiners, G.; Urban, I.; Witt, K. Evaluation of optical properties of decorative coatings by spectroscopic ellipsometry. Thin Solid Films 1992, 220, 234–240. [Google Scholar] [CrossRef]
  109. Bendavid, A.; Martin, P.J.; Netterfield, R.P.; Kinder, T.J. Characterization of the Optical Properties and Composition of TiN Thin Films by Spectroscopic Ellipsometry and X-ray Photoelectron Spectroscopy. Surf. Interf. Anal. 1996, 24, 627–633. [Google Scholar] [CrossRef]
  110. Edlou, S.M.; Simons, J.C.; Al-Jumaily, G.A.; Raouf, N.A. Optical and electrical properties of reactively sputtered, TiN, ZrN, and HfN thin films. Proc. SPIE 1994, 2262, 96–106. [Google Scholar]
  111. Gall1, D.; Petrov, I.; Greene, J.E. Epitaxial Sc1−xTixN(001): Optical and electronic transport properties. J. Appl. Phys. 2001, 89, 401–409. [Google Scholar] [CrossRef]
  112. Huber, P.; Manova, D.; Mändl, S.; Rauschenbach, B. Optical characterization of TiN produced by metal-plasma immersion ion implantation. Surf. Coat. Technol. 2001, 142–144, 418–423. [Google Scholar] [CrossRef]
  113. Humlicek, J.; Nebojsa, A.; Hora, J.; Strasky, M.; Spousta, J.; Sikola, T. Ellipsometry and transport studies of thin-film metal nitrides. Thin Solid Films 1998, 332, 25–29. [Google Scholar] [CrossRef]
  114. Karlsson, B.; Shimshock, R.P.; Seraphin, B.O.; Haygarth, J.C. Optical properties of CVD-coated TiN, ZrN and HfN. Sol. Ener. Mater. 1983, 7, 401–411. [Google Scholar] [CrossRef]
  115. Koutsokeras, L.E.; Abadias, G.; Lekka, Ch.E.; Matenoglou, G.M.; Anagnostopoulos, D.F.; Evangelakis, G.A.; Patsalas, P. Conducting transition metal nitride thin films with tailored cell sizes: The case of δ-TixTa1-xN. Appl. Phys. Lett. 2008, 93, 011904. [Google Scholar] [CrossRef]
  116. Langereis, E.; Heil, S.B.S.; Knoops, H.C.M.; Keuning, W.; van de Sanden, M.C.M.; Kessels, W.M.M. In situ spectroscopic ellipsometry as a versatile tool for studying atomic layer deposition. J. Phys. D 2009, 42, 073001. [Google Scholar] [CrossRef]
  117. Logothetidis, S.; Alexandrou, I.; Papadopoulos, A. In-situ spectroscopic ellipsometry to monitor the process of TiN thin films deposited by reactive sputtering. J. Appl. Phys. 1995, 77, 1043–1047. [Google Scholar] [CrossRef]
  118. Naik, G.V.; Schroeder, J.L.; Ni, X.; Kildishev, A.V.; Sands, T.D.; Boltasseva, A. Titanium nitride as a plasmonic material for visible and near-infrared wavelengths. Opt. Mater. Expr. 2012, 2, 478–489. [Google Scholar] [CrossRef]
  119. Pascual, E.; Polo, M.C.; Esteve, J.; Bertran, E. Surface reflectivity of TiN thin films measured by spectral ellipsometry. Surf. Sci. 1991, 251–252, 200–203. [Google Scholar] [CrossRef]
  120. Patsalas, P.; Logothetidis, S. Optical, electronic, and transport properties of nanocrystalline titanium nitride thin films. J. Appl. Phys. 2001, 90, 4725–4734. [Google Scholar] [CrossRef]
  121. Postava, K.; Aoyama, M.; Yamaguchi, T. Optical characterization of TiN/SiO2(1000 nm)/Si system by spectroscopic ellipsometry and reflectometry. Appl. Surf. Sci. 2001, 175–176, 270–275. [Google Scholar] [CrossRef]
  122. Van Bui, H.; Kovalgin, A.Y.; Wolters, R.A.M. On the difference between optically and electrically determined resistivity of ultra-thin titanium nitride films. Appl. Surf. Sci. 2013, 269, 45–49. [Google Scholar] [CrossRef]
  123. Wiemer, C.; Lévy, F.; Bussy, F. Determination of chemical composition and its relationship with optical properties of Ti-N and Ti-V-N sputtered thin films. Surf. Coat. Technol. 1994, 68–69, 181–187. [Google Scholar] [CrossRef]
  124. Braic, V.; Braic, M.; Pavelescu, G.; Melinte, D.; Necsoiu, D. The influence of deposition parameters on optical properties of titanium nitride thin films. Proc. SPIE 1995, 2461, 597–599. [Google Scholar]
  125. Delin, A.; Eriksson, O.; Ahuja, R.; Johansson, B.; Brooks, M.S.S.; Gasche, T.; Auluck, S.; Wills, J.M. Optical properties of the group-IVB refractory metal compounds. Phys. Rev. B 1996, 54, 1673–1681. [Google Scholar] [CrossRef]
  126. McKenzie, D.R.; McFall, W.D.; Nguyen, H.H.; Yin, Y. Production of dense and oriented structures including titanium nitride by energetic condensation from plasmas. Surf. Sci. 1996, 357–358, 954–960. [Google Scholar] [CrossRef]
  127. Mitterer, C.; Mayrhofer, P.H.; Waldhauser, W.; Kelesoglu, E.; Losbichler, P. The influence of the ion bombardment on the optical properties of TiNx and ZrNx coatings. Surf. Coat. Technol. 1998, 108–109, 230–235. [Google Scholar] [CrossRef]
  128. Perry, A.J.; Georgson, M.; Sproul, W.D. Variations in the reflectance of TiN, ZrN and HfN. Thin Solid Films 1988, 157, 255–265. [Google Scholar] [CrossRef]
  129. Naik, G.V.; Saha, B.; Liu, J.; Saber, S.M.; Stach, E.A.; Irudayaraj, J.M.K.; Sands, T.D.; Shalaev, V.M.; Boltasseva, A. Epitaxial superlattices with titanium nitride as a plasmonic component for optical hyperbolic metamaterials. Proc. Natl. Acad. Sci. USA 2014, 111, 7546–7551. [Google Scholar] [CrossRef] [PubMed]
  130. Steinmüller-Nethl, D.; Kovacs, R.; Gornik, E.; Rödhammer, P. Excitation of surface plasmons on titanium nitride films: Determination of the dielectric function. Thin Solid Films 1994, 237, 277–281. [Google Scholar] [CrossRef]
  131. Naik, G.V.; Boltasseva, A.; Guan, J.; Shalaev, V.M.; Kildishev, A.V.; Li, W.; Guler, U.; Kinsey, N. Refractory Plasmonics with Titanium Nitride: Broadband Metamaterial Absorber. Adv. Mater. 2014, 26, 7959–7965. [Google Scholar]
  132. Naik, G.V.; Kim, J.; Boltasseva, A. Oxides and nitrides as alternative plasmonic materials in the optical range. Opt. Mater. Expr. 2011, 1, 1090–1099. [Google Scholar] [CrossRef]
  133. Koutsokeras, L.E.; Hastas, N.; Kassavetis, S.; Valassiades, O.; Charitidis, C.; Logothetidis, S.; Patsalas, P. Electronic properties of binary and ternary, hard and refractory transition metal nitrides. Surf. Coat. Technol. 2010, 204, 2038–2041. [Google Scholar] [CrossRef]
  134. Tompkins, H.; Haber, E.A. Handbook of Ellipsometry; William Andrew Publishing: New York, NY, USA, 2005. [Google Scholar]
  135. Roessler, D.M. Kramers-Kronig analysis of reflection data. Br. J. Appl. Phys. 1965, 16, 1119–1123. [Google Scholar] [CrossRef]
  136. Heavens, O.S. Optical Properties of Thin Solid Films, 2nd ed.; Dover Publications: New York, NY, USA, 1991; pp. 96–155. [Google Scholar]
  137. Blaha, P.; Schwarz, K.; Madsen, G.K.H.; Kuasnicka, D.; Luitz, J. WIEN2k, Augmented Plane Wave Local Orbitals Program for Calculating Crystal Properties; Vienna University of Technology: Vienna, Austria, 2001. [Google Scholar]
  138. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed]
  139. Wooten, F. Optical Properties of Solids; Academic Press: New York, NY, USA, 1972. [Google Scholar]
  140. Ashcroft, N.W.; Mermin, N.D. Solid State Physics; Saunders College Publishing: Orlando, FL, USA, 1976. [Google Scholar]
  141. Reinholdt, A.; Pecenka, R.; Pinchuk, A.; Runte, S.; Stepanov, A.L.; Weirich, T.E.; Kreibig, U. Structural, compositional, optical and colorimetric characterization of TiN-nanoparticles. Europ. Phys. J. D 2004, 31, 69–76. [Google Scholar] [CrossRef]
  142. Shin, C.-S.; Rudenja, S.; Gall, D.; Hellgren, N.; Lee, T.-Y.; Petrov, I.; Greene, J.E. Growth, surface morphology, and electrical resistivity of fully strained substoichiometric epitaxial TiNx (0.67 ≤ x <1.0) layers on MgO(001). J. Appl. Phys. 2004, 95, 356–362. [Google Scholar]
  143. Holleck, H. Material selection for hard coatings. J. Vac. Sci. Technol. A 1986, 4, 2661–2669. [Google Scholar] [CrossRef]
  144. Williams, W.S. Transition metal carbides, nitrides, and borides for electronic applications. JOM 1997, 49, 38–42. [Google Scholar] [CrossRef]
  145. Ningthoujam, R.S.; Gajbhiye, N.S. Synthesis, electron transport properties of transition metal nitrides and applications. Prog. Mater. Sci. 2015, 70, 50–154. [Google Scholar] [CrossRef]
  146. Li, J.; Nam, K.B.; Nakarmi, M.L.; Lin, J.Y.; Jiang, H.X.; Carrier, P.; Wei, S.-H. Band Structure and Fundamental Optical Transitions in Wurtzite AlN. Appl. Phys. Lett. 2003, 83, 5163–5165. [Google Scholar] [CrossRef]
  147. Setoyama, M.; Nakayama, A.; Tanaka, M.; Kitagawa, N.; Nomura, T. Formation of cubic-AlN in TiN/AlN superlattice. Surf. Coat. Technol. 1996, 86–87, 225–230. [Google Scholar]
  148. Wang, Y.Y.; Wong, M.S.; Chia, W.J.; Rechner, J.; Sproul, W.D. Synthesis and characterization of highly textured polycrystalline AlN/TiN superlattice coatings. J. Vac. Sci. Technol. A 1998, 16, 3341–3347. [Google Scholar] [CrossRef]
  149. Wong, M.-S.; Hsiao, G.-Y.; Yang, S.-Y. Preparation and characterization of AlN/ZrN and AlN/TiN nanolaminate coatings. Surf. Coat. Technol. 2000, 133–134, 160–165. [Google Scholar] [CrossRef]
  150. Kim, D.-G.; Seong, T.-Y.; Baik, Y.-J. Effects of annealing on the microstructures and mechanical properties of TiN/AlN nano-multilayer films prepared by ion-beam assisted deposition. Surf. Coat. Technol. 2002, 153, 79–83. [Google Scholar] [CrossRef]
  151. Pankov, V.; Evstigneev, M.; Prince, R.H. Room-temperature fabrication of hard AlN/TiN superlattice coatings by pulsed laser deposition. J. Vac. Sci. Technol. A 2002, 20, 430–436. [Google Scholar] [CrossRef]
  152. Karimi, A.; Allidi, G.; Sanjines, R. Relative orientation of the constituents on the degree of crystallographic coherence in AlN/TiN superlattices. Surf. Coat. Technol. 2006, 201, 4062–4067. [Google Scholar] [CrossRef]
  153. Mei, F.H.; Shao, N.; Dai, J.W.; Li, G.Y. Coherent growth and superhardness effect of AlN/TiN nanomultilayers. Mater. Lett. 2004, 58, 3477–3480. [Google Scholar] [CrossRef]
  154. Maxwell-Garnett, J.C. Colours in Metal Glasses and in Metallic Films. Phil. Trans. R. Soc. Lond. A 1904, 203, 385–420. [Google Scholar] [CrossRef]
  155. Cortie, M.B.; Giddings, J.; Dowd, A. Optical properties and Plasmon resonances of titanium nitride nanostructures. Nanotechnology 2010, 21, 115201. [Google Scholar] [CrossRef] [PubMed]
  156. Panagiotopoulos, N.T.; Kalfagiannis, N.; Vasilopoulos, K.C.; Pliatsikas, N.; Kassavetis, S.; Vourlias, G.; Karakassides, M.A.; Patsalas, P. Self-assembled plasmonic templates produced by microwave annealing: Applications to surface-enhanced Raman scattering. Nanotechnology 2015, 26, 205603. [Google Scholar] [CrossRef] [PubMed]
Back to TopTop
