Biocompatibility and Surface Properties of TiO2 Thin Films Deposited by DC Magnetron Sputtering
Abstract
:1. Introduction
2. Results and Discussion
2.1. Physical Properties of the TiO2 Films
Heat Treatment (°C) | Crystalline Size (nm) | |
---|---|---|
Anatase TiO2 | Rutile TiO2 | |
500 | 15.9 | – |
800 | 20.8 | 37.5 |
1100 | – | 32.7 |

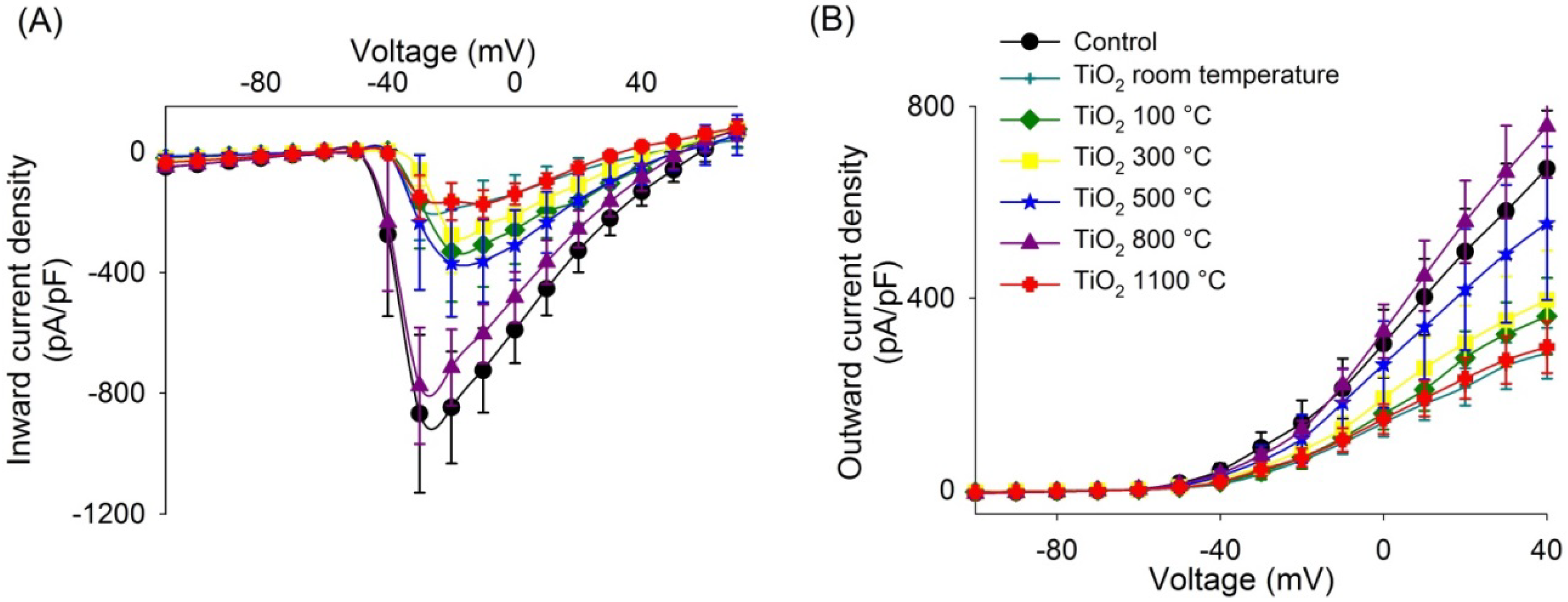

2.2. Biocompatibility Test
Current Density | Control (n = 6) | TiO2 Room Temperature (n = 7) | TiO2 100 °C (n = 5) | TiO2 300 °C (n = 6) | TiO2 500 °C (n = 5) | TiO2 800 °C (n = 5) | TiO2 1100 °C (n = 9) |
---|---|---|---|---|---|---|---|
pA/pF inward current | −813 ± 195 | −218 ± 98 * p = 0.016 | −462 ± 208 p = 0.250 | −276 ± 126* p = 0.043 | −375 ± 178 p = 0.138 | −715 ± 126 p = 0.695 | −164 ± 62 * p = 0.003 |
pA/pF outward current | 670 ± 121 | 285 ± 53 * p = 0.011 | 362 ± 79 p = 0.073 | 396 ± 103 p = 0.115 | 555 ± 103 p = 0.576 | 758 ± 107 p = 0.606 | 298 ± 54 * p = 0.012 |

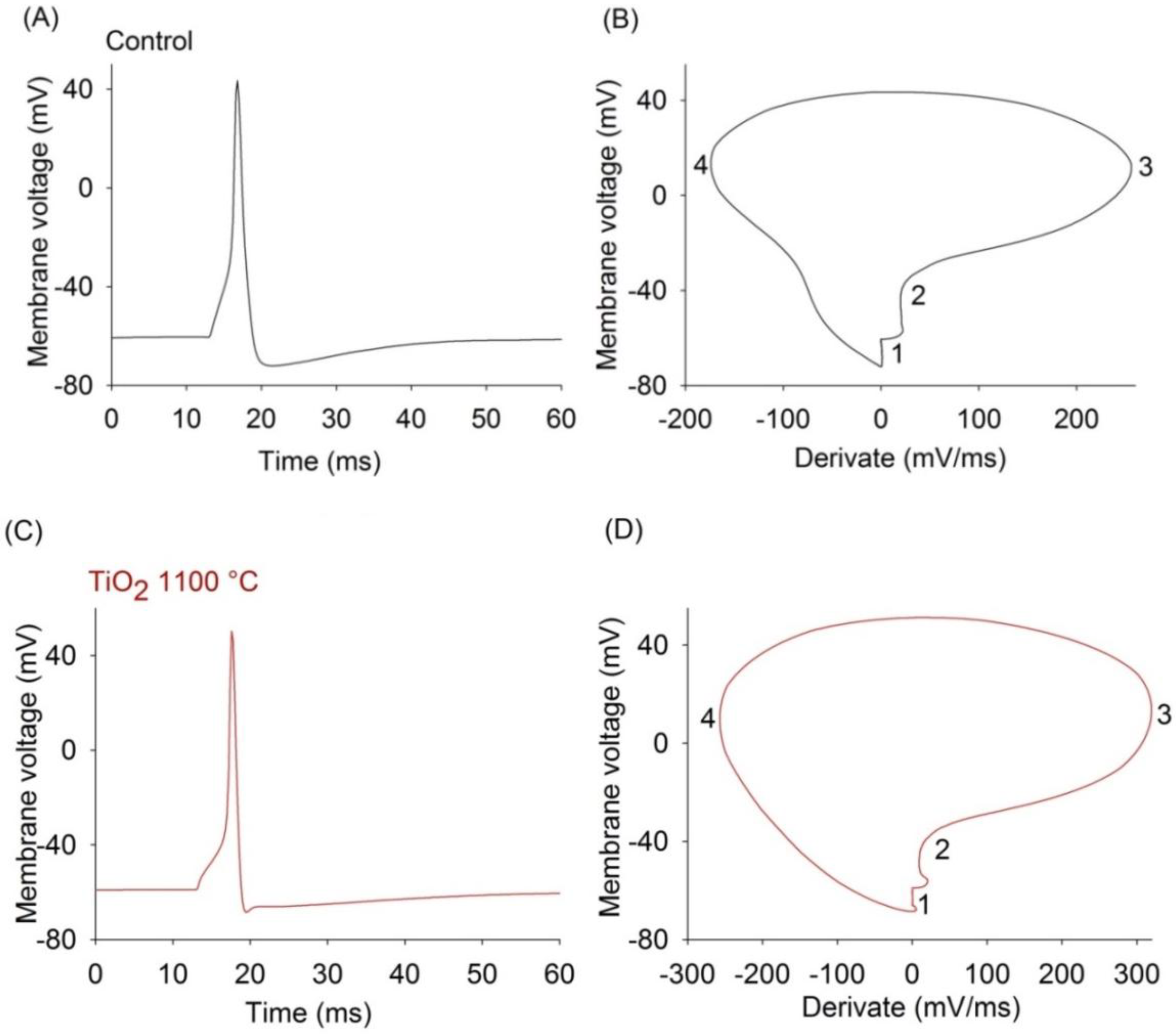

Action Potential Parameters | Control (n = 7) | TiO2 Room Temperature (n = 5) | TiO2 100 °C (n = 5) | TiO2 300 °C (n = 6) | TiO2 500 °C (n = 6) | TiO2 800 °C (n = 6) | TiO2 1100 °C (n = 5) |
---|---|---|---|---|---|---|---|
Resting membrane potential | −60 ± 0.5 | −62 ± 2 | −62 ± 1 | −60 ± 0.4 | −61 ± 2 | −60 ± 0.2 | −60 ± 1 |
Amplitude of the action potential (mV) | 109 ± 7 | 106 ± 8 | 113 ± 8 | 109 ± 5 | 104 ± 3 | 108 ± 9 | 95 ± 10 |
Duration 50% (ms) | 1.2 ± 0.3 | 1.3 ± 0.3 | 0.81 ± 0.1 | 1.2 ± 0.2 | 2.3 ± 0.6 | 0.84 ± 0.1 | 1.1 ± 0.3 |
Maximum depolarization rate (mV/ms) | 318 ± 42 | 236 ± 53 | 334 ± 59 | 253 ± 50 | 181 ± 39 * | 311 ± 62 | 209 ± 66 |
Maximum repolarization rate (mV/ms) | −118 ± 23 | −94 ± 17 | −170 ± 17 | −145 ± 21 | −91 ± 37 | −164 ± 23 | −155 ± 40 |
Threshold (mV) | −36 ± 2 | −34 ± 4 | −24 ± 4 * | −30 ± 4 | −23 ± 4 * | −34 ± 2 | −32 ± 4 |
Amplitude of the AHP (mV) | −10 ± 2 | −6 ± 2 | −8.5 ± 1 | −9 ± 1 | −9 ± 2 | −9 ± 0.4 | −10 ±0.5 |
3. Experimental Section

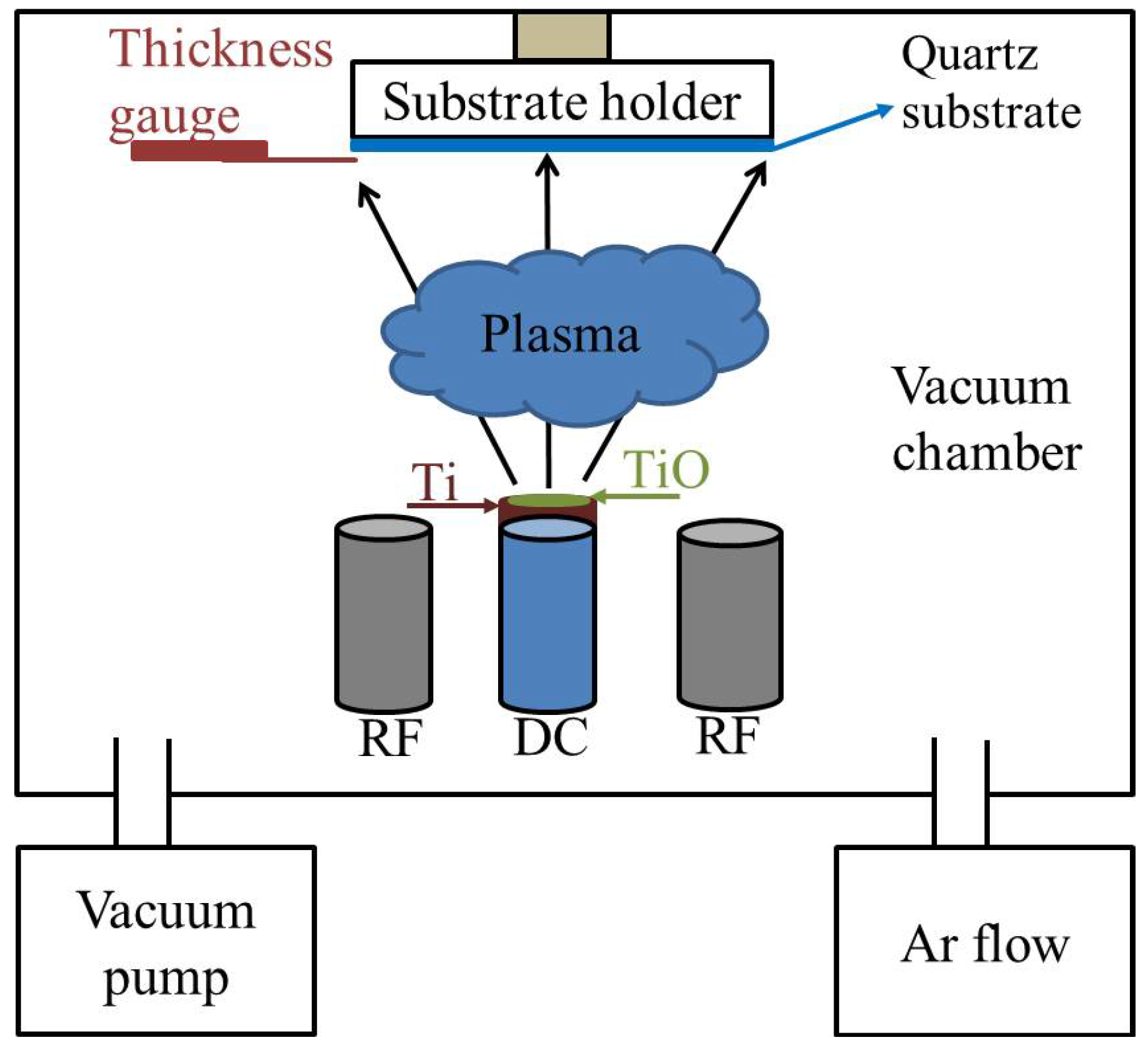

3.1. TiO2 Films Deposition
3.2. Cell Culture
3.3. Electrophysiological Recording and Data Analysis
Solution | NaCl | KCl | CaCl2 | MgCl2 | HEPES | EGTA * |
---|---|---|---|---|---|---|
External | 140 | 5.4 | 1.8 | 1.2 | 10 | – |
Internal | 10 | 135 | 0.134 | 5 | 5 | 10 |
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Juárez-Aguirre, R.; Domínguez-Nicolás, S.M.; Manjarrez, E.; Tapia, J.A.; Figueras, E.; Vázquez-Leal, H.; Aguilera-Cortés, L.A.; Herrera-May, A.L. Digital signal processing by virtual instrumentation of a MEMS magnetic field sensor for biomedical applications. Sensors 2013, 13, 15068–15084. [Google Scholar] [CrossRef] [PubMed]
- López-Huerta, F.; Woo-Garcia, R.M.; Lara-Castro, M.; Estrada-López, J.J.; Herrera-May, A.L. An integrated ISFET pH microsensor on a CMOS standard process. J. Sens. Technol. 2013, 3, 57–62. [Google Scholar]
- Heredia, A.; Ambrosio, R.; Moreno, M.; Zuñiga, C.; Jiménez, A.; Monfil, K.; de la Hidalga, J. Thin film membrane based on a-SiGe: B and MEMS technology for application in cochlear implants. J. Non Cryst. Solids 2012, 358, 2331–2335. [Google Scholar]
- Kim, J.W.; Takao, H.; Sawada, K.; Ishida, M. Integrated inductors for RF transmitters in CMOS/MEMS smart microsensor systems. Sensors 2007, 7, 1387–1398. [Google Scholar] [CrossRef]
- Chang, C.I.; Tsai, M.H.; Liu, Y.C.; Sun, C.M.; Fang, W. Pick-and-place process for sensitivity improvement of the capacitive type CMOS MEMS 2-axis tilt sensor. J. Micromech. Microeng. 2013, 23. [Google Scholar] [CrossRef]
- Frewin, C.L.; Oliveros, A.; Weeber, E.; Saddow, S.E. AFM and cell staining to assess the in vitro biocompatibility of opaque surfaces. In Atomic Force Microscopy Investigations into Biology From Cell to Protein; Frewin, C.L., Ed.; Intech: Rijeka, Croatia, 2012; Volume 1, pp. 297–324. [Google Scholar]
- Williams, D.F. On the mechanisms of biocompatibility. Biomaterials 2008, 29, 2941–2953. [Google Scholar] [CrossRef] [PubMed]
- Biological Evaluation of Medical Devices—Part 2: Animal Welfare Requirements; ISO 10993–2:2006; International Organization for Standardization: Geneva, Switzerland, 2010.
- Soto, E.; Limón, A.; Ortega, A.; Vega, R. Características morfológicas y electrofisiológicas de las neuronas del ganglio vestibular en cultivo. Gac. Med. Mex. 2002, 138, 1–13. (In Spanish) [Google Scholar]
- Diaz, G.; Melis, M.; Musinu, A.; Piludu, M.; Piras, M.; Falchi, A.M. Localization of MTT formazan in lipid droplets. An alternative hypothesis about the nature of formazan granules and aggregates. Eur. J. Chem. 2007, 51, 213–218. [Google Scholar]
- Stadler, A. Transparent conducting oxides-an up-to date overview. Materials 2012, 5, 661–683. [Google Scholar] [CrossRef]
- Zaleska, A. Doped-TiO2: A review. Recent Pat. Eng. 2008, 2, 157–164. [Google Scholar]
- Casaletto, M.P.; Ingo, G.M.; Kacilius, S.; Mattongo, G.; Pandolfi, L.; Scavia, G. Surface studies of in vitro biocompatibility of titanium oxide coatings. Appl. Surf. Sci. 2001, 172, 167–177. [Google Scholar] [CrossRef]
- Niinomi, M. Biologically and mechanically biocompatible titanium alloys. Mater. Trans. 2008, 49, 2170–2178. [Google Scholar] [CrossRef]
- Elias, C.N.; Lima, J.H.C.; Valiev, R.; Meyers, M.A. Biomedical applications of titanium and its alloys. J. Miner. Met. Mater. Soc. 2008, 60, 46–49. [Google Scholar]
- Okazaki, Y. On the effects of hot forging and hot rolling on the microstructural development and mechanical response of a biocompatible Ti alloy. Materials 2012, 5, 1439–11461. [Google Scholar] [CrossRef]
- Li, L.H.; Kim, H.W.; Lee, S.H.; Kong, Y.M.; Kim, H.E. Biocompatibility of titanium implants modified by microarc oxidation and hydroxyapatite coating. J. Biomed. Mater. Res. 2005, 73A, 48–54. [Google Scholar] [CrossRef]
- Izman, S.; Abdul-Kadir, M.R.; Anwar, M.; Nazim, E.M.; Rosliza, R.; Shah, A.; Hassan, M.A. Surface modification techniques for biomedical grade of titanium alloys: Oxidation, carburization and ion implant processes. In Titanium Alloys-Towards Achieving Enhanced Properties for Diversified Applications; Nurul, A.A.K.M., Ed.; Intech: Rijeka, Croatia, 2012; Volume 1, pp. 201–228. [Google Scholar]
- Kim, H.; Choi, S.H.; Ryu, J.J.; Koh, S.Y.; Park, J.H.; Lee, I.S. The biocompatibility of SLA-treated titanium implants. Biomed. Mater. 2008, 3. [Google Scholar] [CrossRef]
- Cai, Q.; Paulose, M.; Varghese, O.K.; Grimes, C.A. The effect of electrolyte composition on the fabrication of self-organized titanium oxide nanotube arrays by anodic oxidation. J. Mater. Res. 2005, 20, 230–235. [Google Scholar] [CrossRef]
- Kim, M.J.; Lim, H.J.; Lee, B.G.; Kim, J.H.; Choi, J.; Kang, J.G. Establishment of validation methods to test the biocompatibility of titanium dioxide. Bull. Korean Chem. Soc. 2013, 34, 1857–1863. [Google Scholar] [CrossRef]
- Kumari, T.V.; Usha, V.; Anil, K.; Bindu, M. Cell surface interactions in the study of biocompatibility. Trends Biomater. Artif. Organs 2002, 15, 37–41. [Google Scholar]
- Sangeetha, S.; Kathyayini, S.R.; Dhivya, P.; Sridharan, M. Biocompatibility studies on TiO2 coated Ti surface. In Proceedings of the International Conference on Advanced Nanomaterials and Emerging Engineering Technologies, Chennai, India, 24–26 July 2013.
- Yin, Z.F.; Wu, L.; Yang, H.G.; Su, Y.H. Recent progress in biomedical applications of titanium dioxide. Phys. Chem. Chem. Phys. 2013, 15, 4844–4858. [Google Scholar] [CrossRef] [PubMed]
- Thurn, K.T.; Paunesku, T.; Wu, A.; Brown, E.M.B.; Lai, B.; Vogt, S.; Maser, J.; Aslam, M.; Dravid, V.; Bergan, R.; et al. Labeling TiO2 nanoparticles with dyes for optical fluorescence microscopy and determination of TiO2-DNA nanoconjugate stability. Small 2009, 5, 1318–1325. [Google Scholar]
- Arbiol, A.; Cerdà, J.; Dezanneau, G.; Cirera, A.; Peiró, F.; Cornet, A.; Morante, J.R. Effects of Nb doping on the TiO2 anatase-to-rutile phase transistion. J. Appl. Phys. 2002, 92, 853–861. [Google Scholar] [CrossRef]
- Senain, I.; Nayan, N.; Saim, H. Structural and Electrical Properties of TiO2 Thin Film Derived from Sol-gel Method using Titanium (IV) Butoxide. Int. J. Integr. Eng. 2010, 4, 29–35. [Google Scholar]
- Habijan, T.; de Miranda, R.L.; Zamponi, C.; Quandt, E.; Greulich, C.; Schildhauer, T.A.; Köller, M. The biocompatibility and mechanical properties of cylindrical NiTi films produced by magnetron sputtering. Mater. Sci. Eng. C 2012, 32, 2523–2528. [Google Scholar]
- Tsyganov, I.A.; Maitz, M.F.; Richter, E.; Reuther, H.; Mashina, A.I.; Rustichelli, F. Hemocompatibility of titanium-based coatings prepared by metal plasma immersion ion implantation and deposition. Nucl. Instrum. Methods Phys. Res. B 2007, 257, 122–127. [Google Scholar]
- Mändl, S. Increased biocompatibility and bioactivity after energetic PVD surface treatments. Materials 2009, 2, 1341–1387. [Google Scholar] [CrossRef]
- Rickert, D.; Lendlein, A.; Peters, I.; Moses, M.A.; Franke, R.P. Biocompatilility testing of novel multifunctional polymeric biomaterials for tissue engineering applications in head and neck surgery: An overview. Eur. Arch. Otorhinolaryngol. 2006, 263, 215–222. [Google Scholar] [PubMed]
- Malich, G.; Markovic, B.; Winder, C. The sensitivity and specificity of the MTS tetrazolium assay for detecting the in vitro cytotoxicity of 20 chemicals using human cell lines. Toxicology 1997, 124, 179–192. [Google Scholar] [CrossRef] [PubMed]
- Onuki, Y.; Bhardwaj, U.; Papadimitrakopoulos, F.; Burgess, D.J. A review of the biocompatibility of implantable devices: Current challenges to overcome foreign body response. J. Diabetes Sci. Technol. 2008, 2, 1003–1015. [Google Scholar] [CrossRef] [PubMed]
- López-Huerta, F.; Herrera-May, A.L.; Estrada-López, J.J.; Zuñiga-Islas, C.; Cervantes-Sanchez, B.; Soto, E.; Soto-Cruz, B.S. Alternative post-processing on a CMOS chip to fabricate a planar microelectrode array. Sensors 2011, 11, 10940–10957. [Google Scholar] [CrossRef] [PubMed]
- Wassum, K.M.; Tolosa, V.M.; Wang, J.; Walker, E.; Monbouquette, H.G.; Maidment, N.T. Silicon wafer-based platinum microelectrode array biosensor for near real-time measurement of glutamate in vivo. Sensors 2008, 8, 5023–5036. [Google Scholar] [CrossRef] [PubMed]
- Seker, E.; Berdichevsky, Y.; Begley, R.M.; Reed, M.L.; Staley, K.J.; Yarmush, M.L. The fabrication of low-impedance nanoporous gold multiple-electrode arrays for neural electrophysiology studies. Nanotechnology 2010, 21, 1–7. [Google Scholar]
- Kirkpatrick, C.J.; Peters, K.; Hermanns, M.I.; Bittinger, F.; Krump, K.V.; Fuchs, S.; Unger, R.E. In vitro methodologies to evaluate biocompatibility: Status quo and perspective. ITBM RBM 2005, 26, 192–199. [Google Scholar]
- Standard X-Ray Diffraction Powder Patterns; Monograph 25; U.S. Department of Commerce, National Bureau of Standards: Washington, DC, USA, 1969.
- Legrand, C.; Deville, J. Sur les parametres cristallins du rutile et de l’ anatase. C. R. Hebd Seances Acad. Sci. 1953, 236, 944–946. (In French) [Google Scholar]
- McKeehan, M.; Warren, B.E. X-ray study of cold work in thoriated tungsten. J. Appl. Phys. 1953, 24, 52–56. [Google Scholar] [CrossRef]
- Especificaciones Técnicas Para la Producción, Cuidado y uso de Animales de Laboratorio; Norma Oficial Mexicana, NOM -062-ZOO-1999; Diario Oficial de la Federación: Ciudad de Mexico, Mexico, 1999. (In Spanish)
- Hamill, O.P.; Marty, A.; Neher, E.; Sakmann, B.; Sigworth, F.J. Improved patch clamp technique for high resolution current recording from cell and cell free membrane patches. Pflügers Arch. 1981, 391, 85–100. [Google Scholar]
- Axon™ pCLAMP® Electrophysiology Data Acquisition & Analysis Software. Molecular Devices Corporation: Sunnyvale, California, 2010.
- Bean, B.P. The action potential in mammalian central neurons. Nat. Rev. Neurosci. 2007, 8, 451–461. [Google Scholar]
© 2014 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
Share and Cite
López-Huerta, F.; Cervantes, B.; González, O.; Hernández-Torres, J.; García-González, L.; Vega, R.; Herrera-May, A.L.; Soto, E. Biocompatibility and Surface Properties of TiO2 Thin Films Deposited by DC Magnetron Sputtering. Materials 2014, 7, 4105-4117. https://doi.org/10.3390/ma7064105
López-Huerta F, Cervantes B, González O, Hernández-Torres J, García-González L, Vega R, Herrera-May AL, Soto E. Biocompatibility and Surface Properties of TiO2 Thin Films Deposited by DC Magnetron Sputtering. Materials. 2014; 7(6):4105-4117. https://doi.org/10.3390/ma7064105
Chicago/Turabian StyleLópez-Huerta, Francisco, Blanca Cervantes, Octavio González, Julián Hernández-Torres, Leandro García-González, Rosario Vega, Agustín L. Herrera-May, and Enrique Soto. 2014. "Biocompatibility and Surface Properties of TiO2 Thin Films Deposited by DC Magnetron Sputtering" Materials 7, no. 6: 4105-4117. https://doi.org/10.3390/ma7064105
