Next Article in Journal
Biocompatibility and Surface Properties of TiO2 Thin Films Deposited by DC Magnetron Sputtering
Previous Article in Journal
Synthetic Strategies in the Preparation of Polymer/Inorganic Hybrid Nanoparticles
Open AccessArticle

An Optimal Cure Process to Minimize Residual Void and Optical Birefringence for a LED Silicone Encapsulant

1
Molds & Dies Technology R&DB Group, Korea Institute of Industrial Technology, 7-47, Songdo-dong, Yeonsu-gu, Inchoen 406-840, Korea
2
Department of Mechanical Engineering, Korea University, Anam-dong, Seongbuk-gu, Seoul 136-713, Korea
3
Department of Automotive Engineering, Kookmin University, 77, Jeongneung-ro, Seongbuk-gu, Seoul 136-702, Korea
*
Author to whom correspondence should be addressed.
Materials 2014, 7(6), 4088-4104; https://doi.org/10.3390/ma7064088
Received: 21 March 2014 / Revised: 8 May 2014 / Accepted: 19 May 2014 / Published: 27 May 2014
Silicone resin has recently attracted great attention as a high-power Light Emitting Diode (LED) encapsulant material due to its good thermal stability and optical properties. In general, the abrupt curing reaction of the silicone resin for the LED encapsulant during the curing process induces reduction in the mechanical and optical properties of the LED product due to the generation of residual void and moisture, birefringence, and residual stress in the final formation. In order to prevent such an abrupt curing reaction, the reduction of residual void and birefringence of the silicone resin was observed through experimentation by introducing the multi-step cure processes, while the residual stress was calculated by conducting finite element analysis that coupled the heat of cure reaction and cure shrinkage. The results of experiment and analysis showed that it was during the three-step curing process that the residual void, birefringence, and residual stress reduced the most in similar tendency. Through such experimentation and finite element analysis, the study was able to confirm that the optimization of the LED encapsulant packaging process was possible. View Full-Text
Keywords: LED; silicone resin; encapsulant; multi-step cure process; voids; birefringence; residual stress; cure kinetics LED; silicone resin; encapsulant; multi-step cure process; voids; birefringence; residual stress; cure kinetics
Show Figures

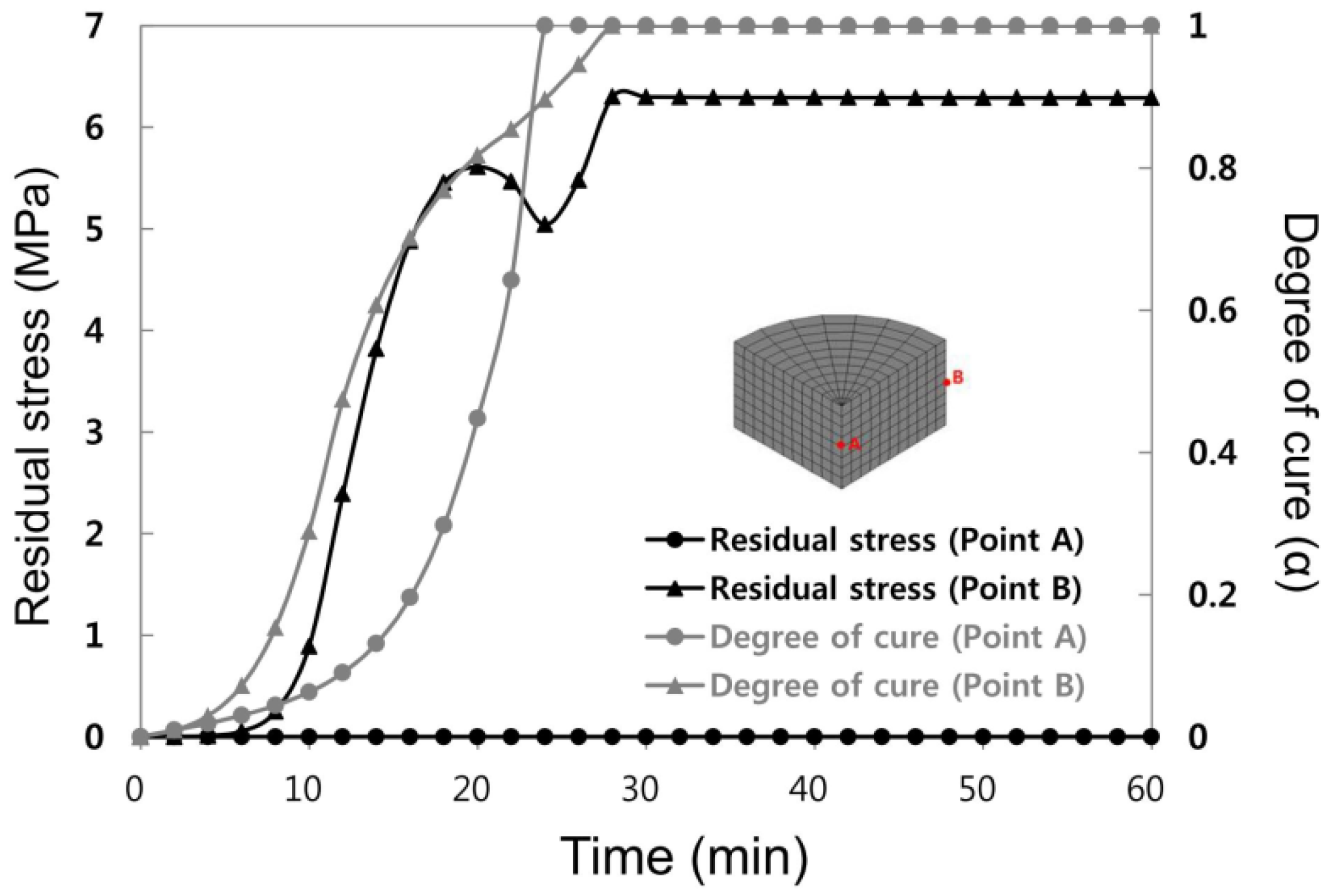

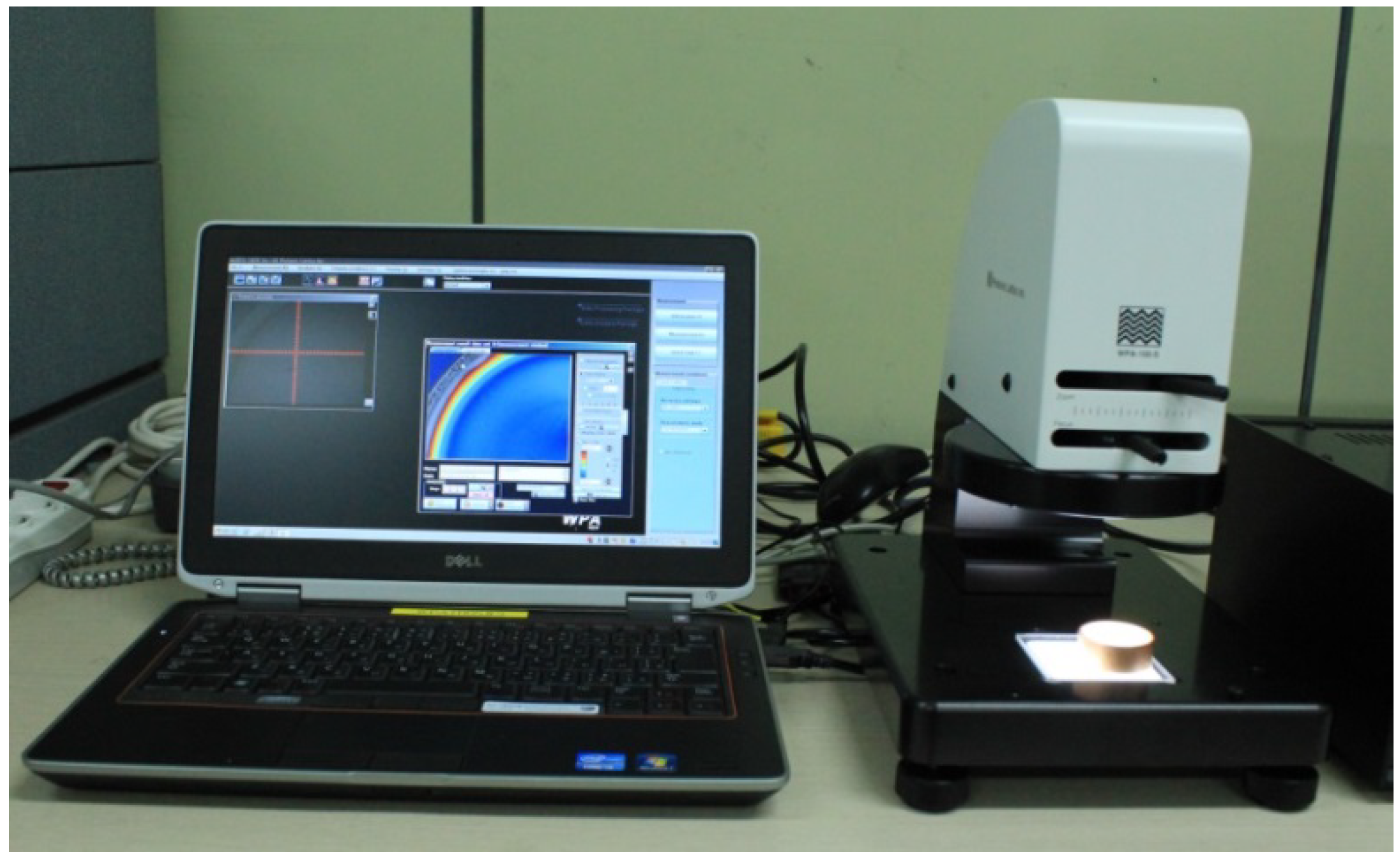

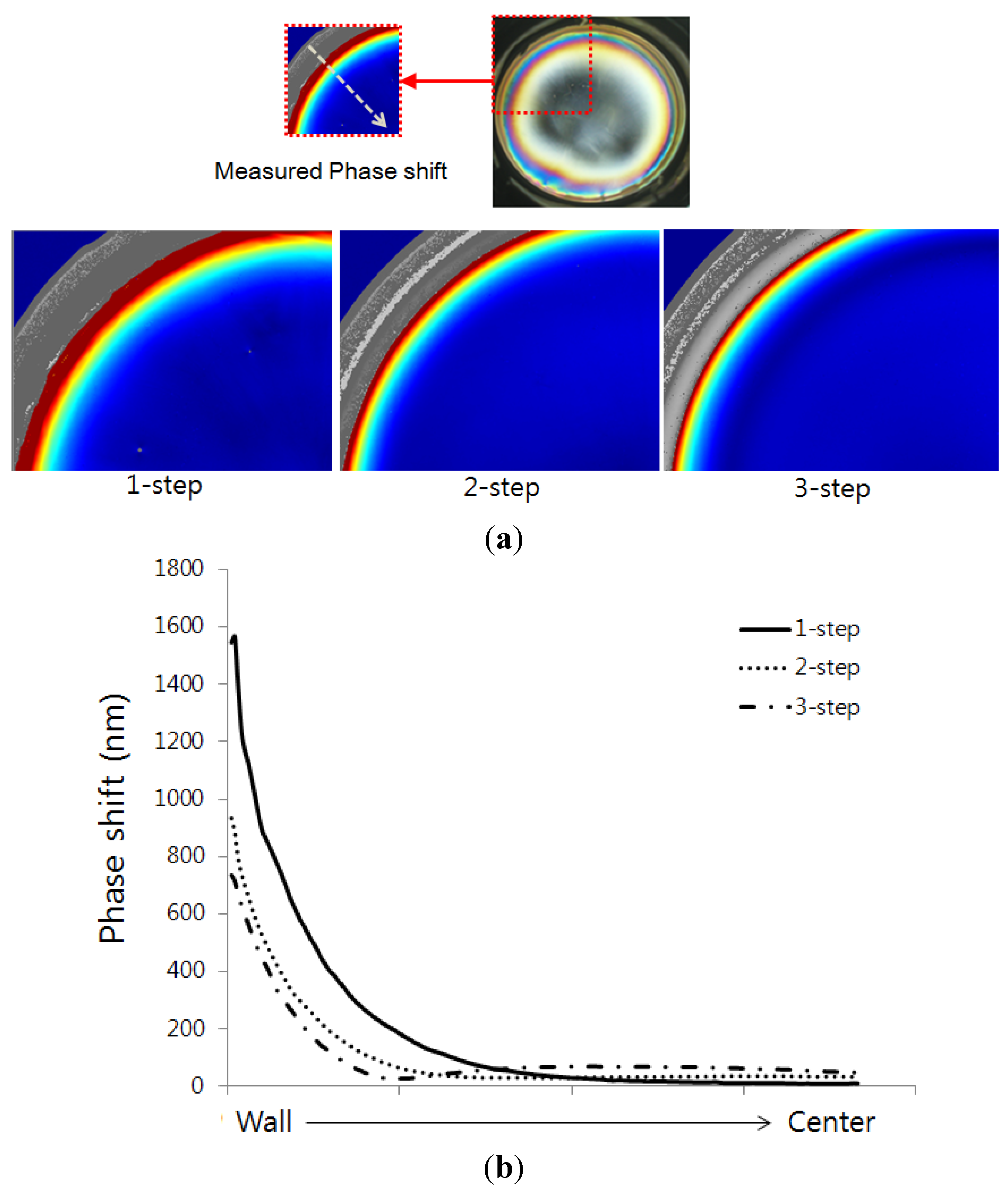

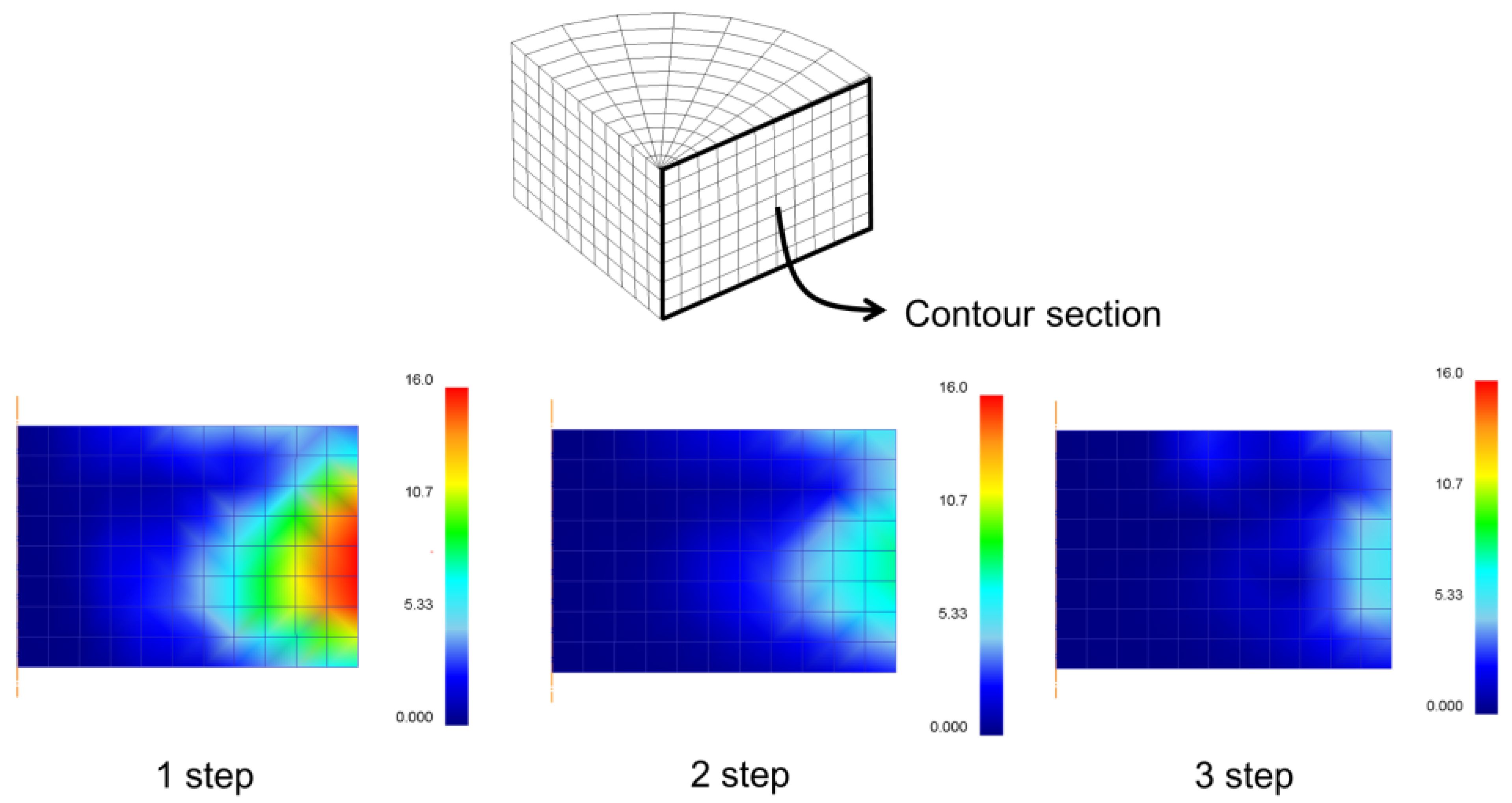

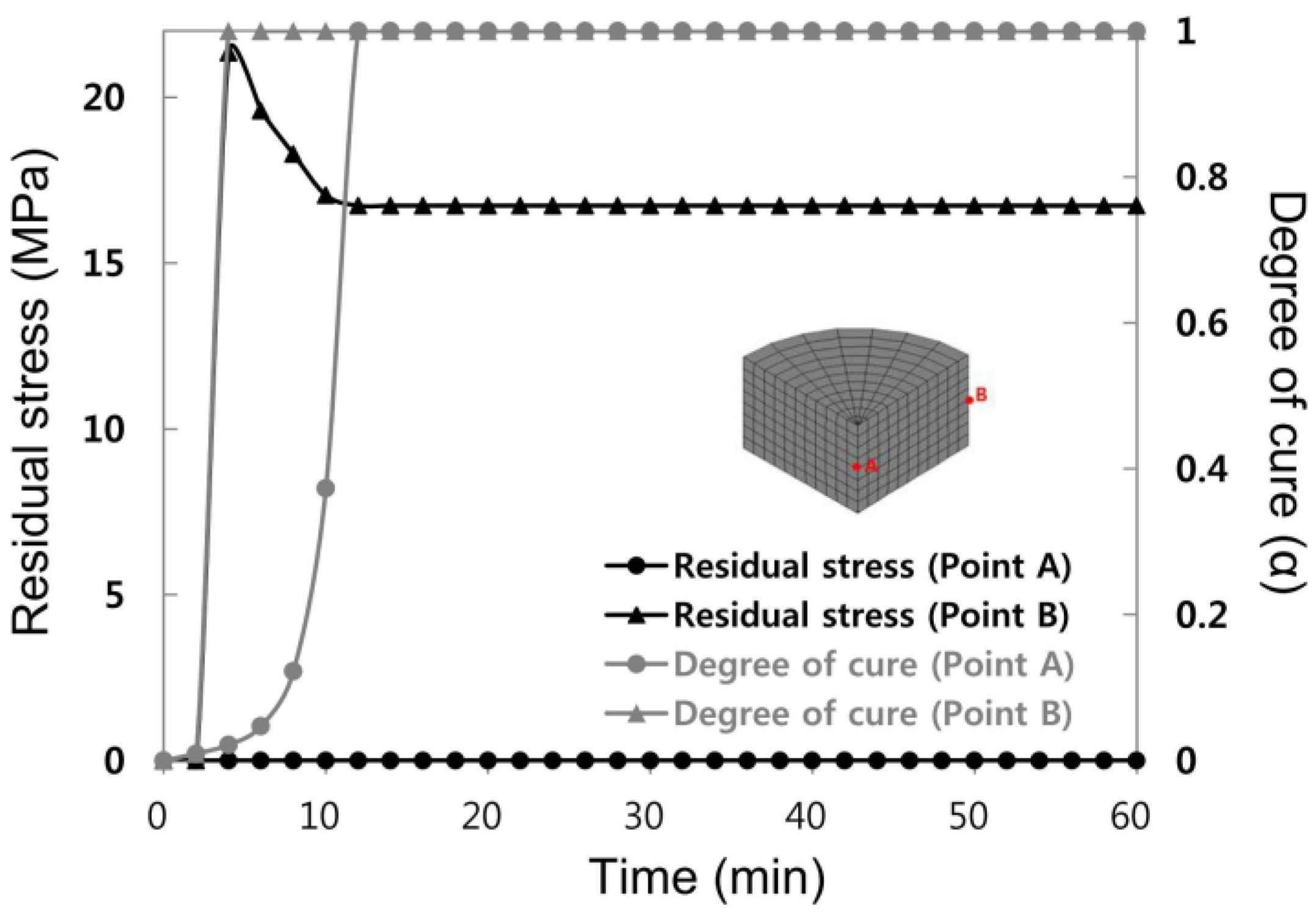

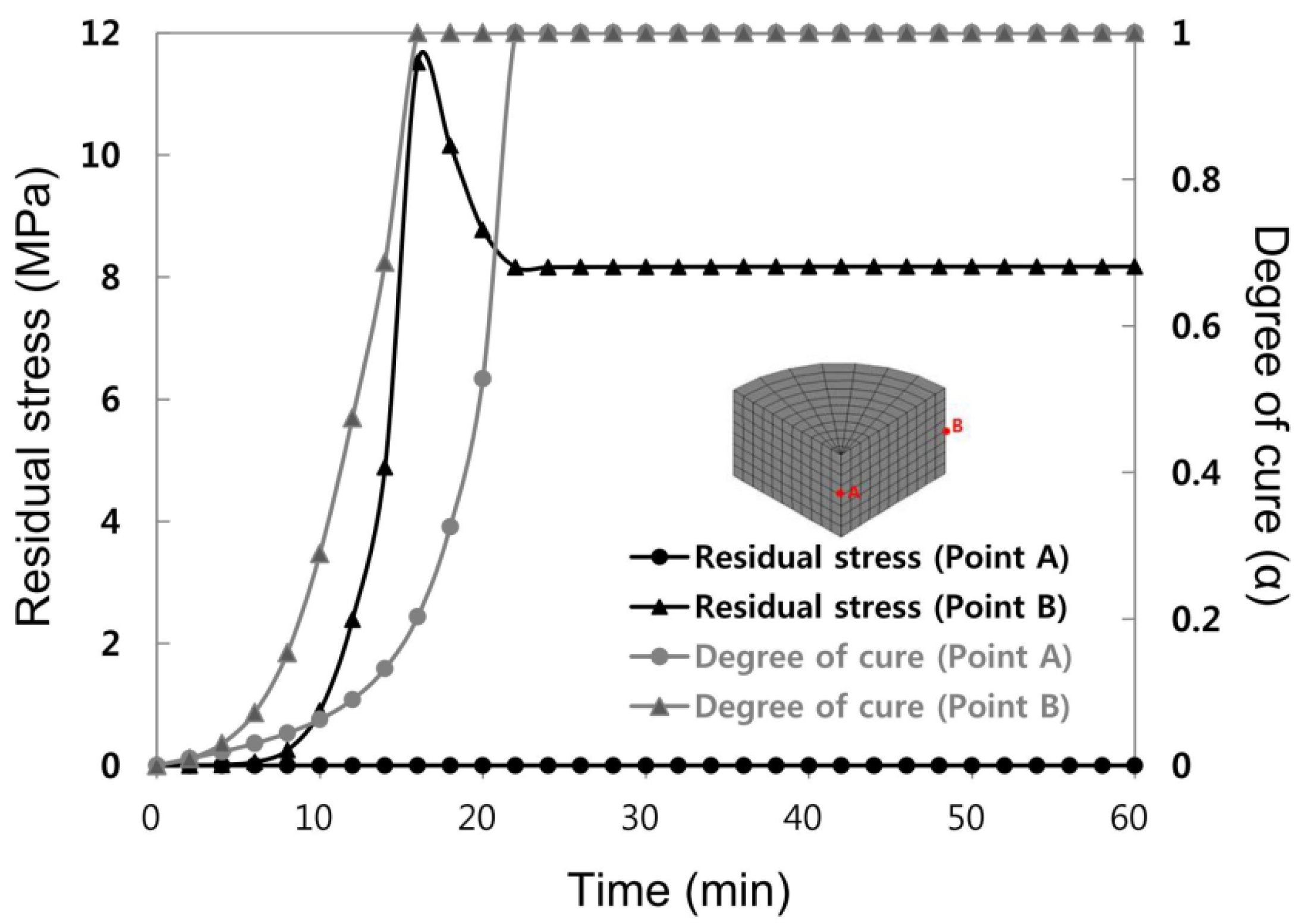

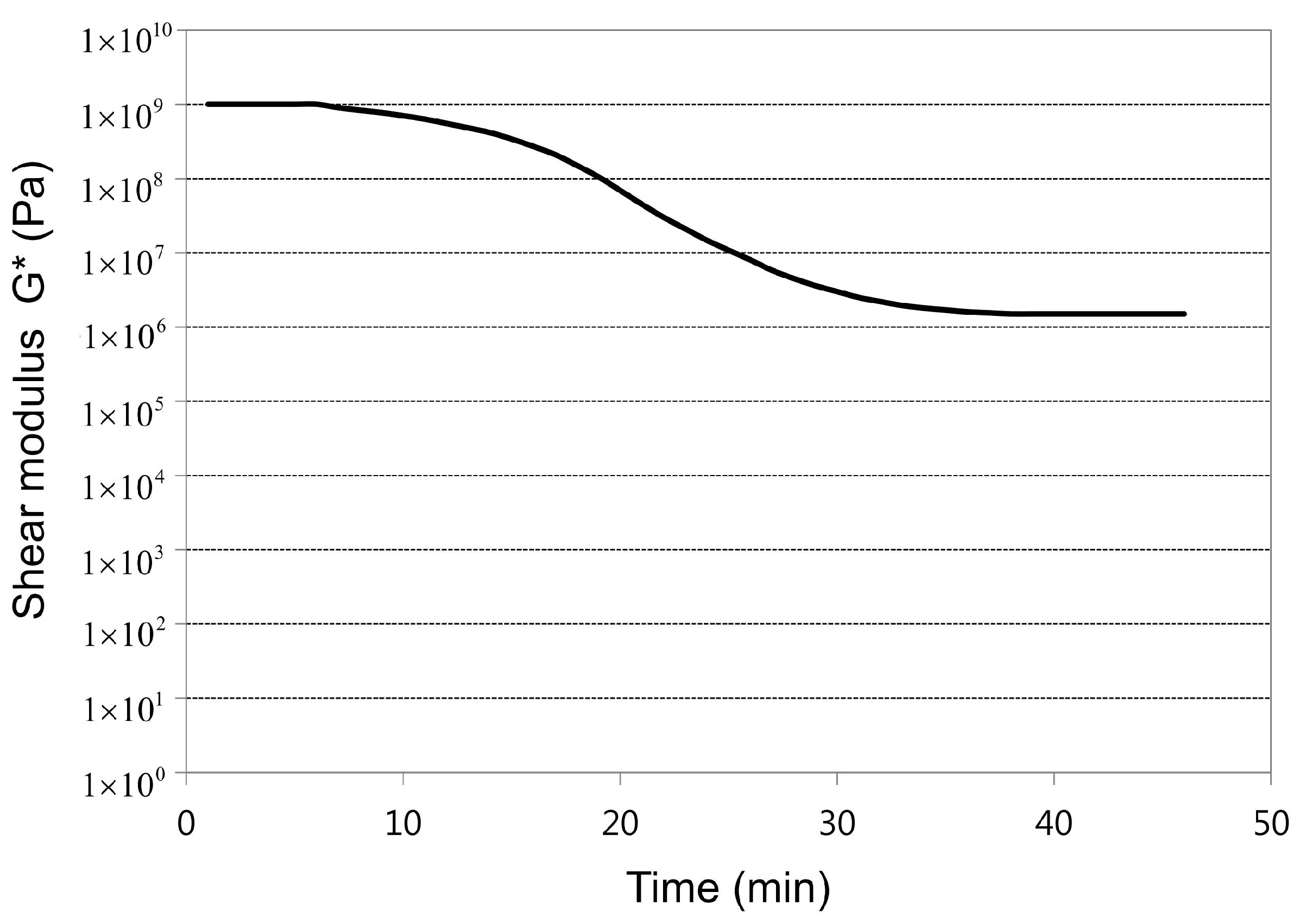

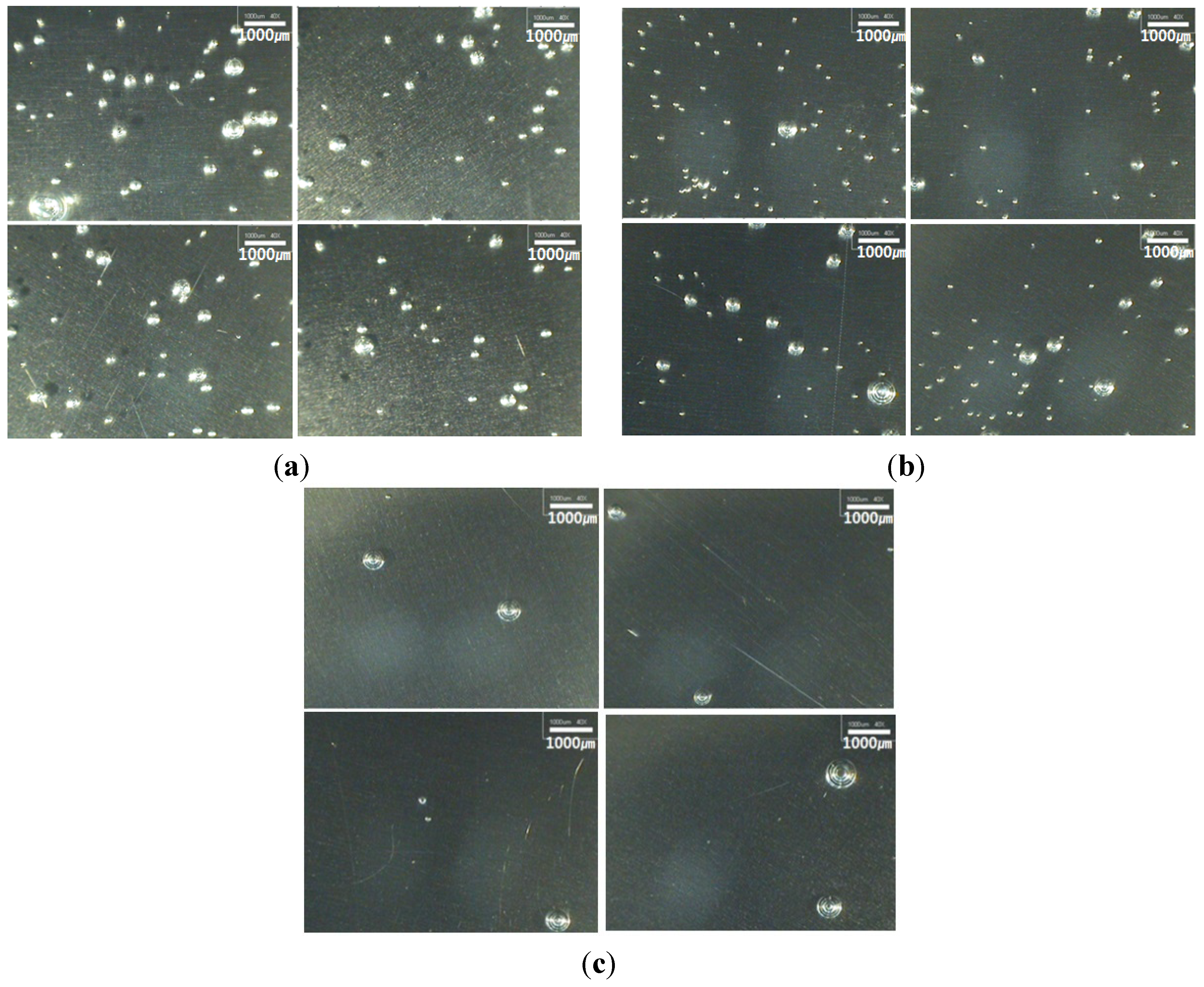

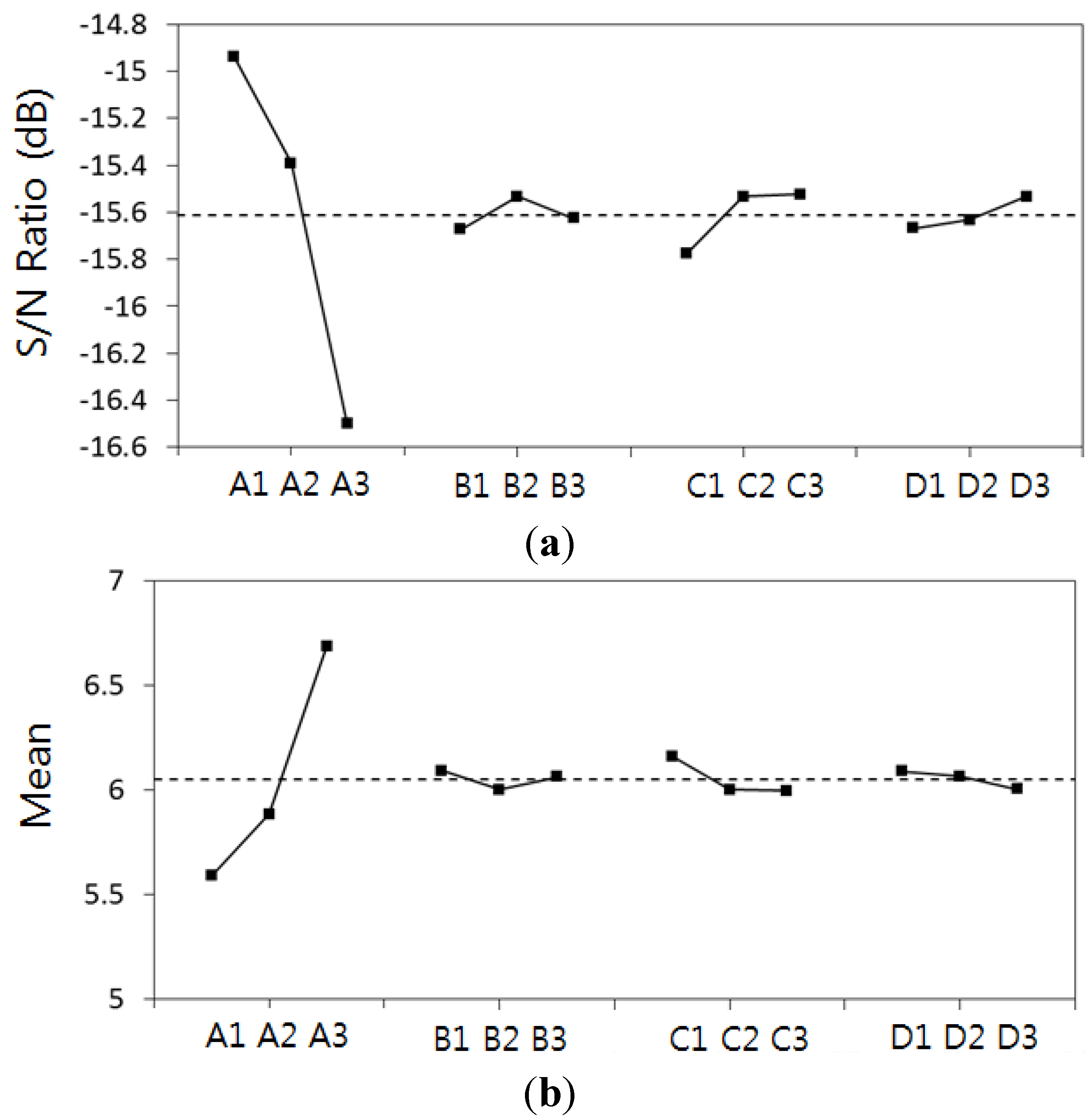

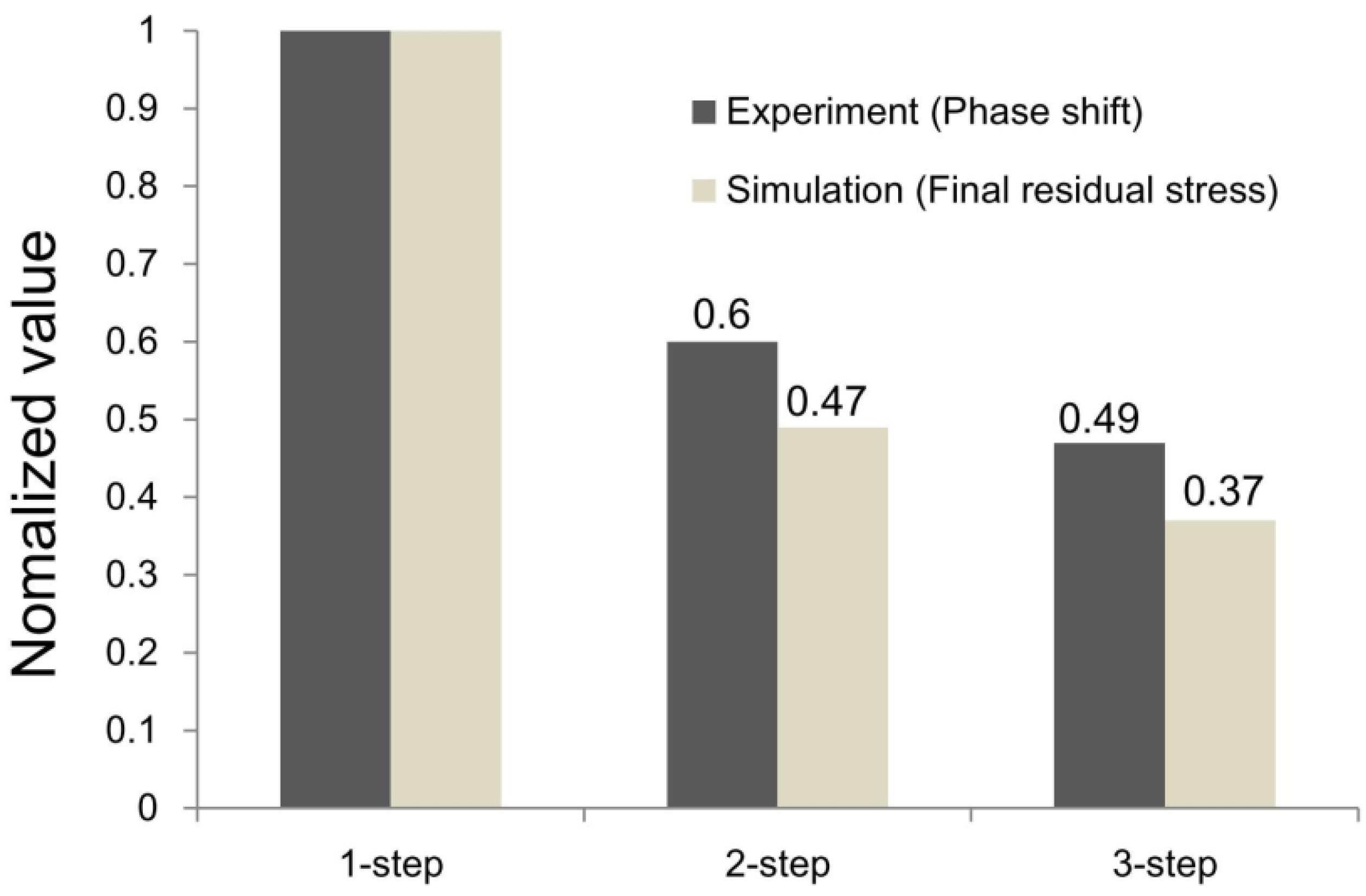

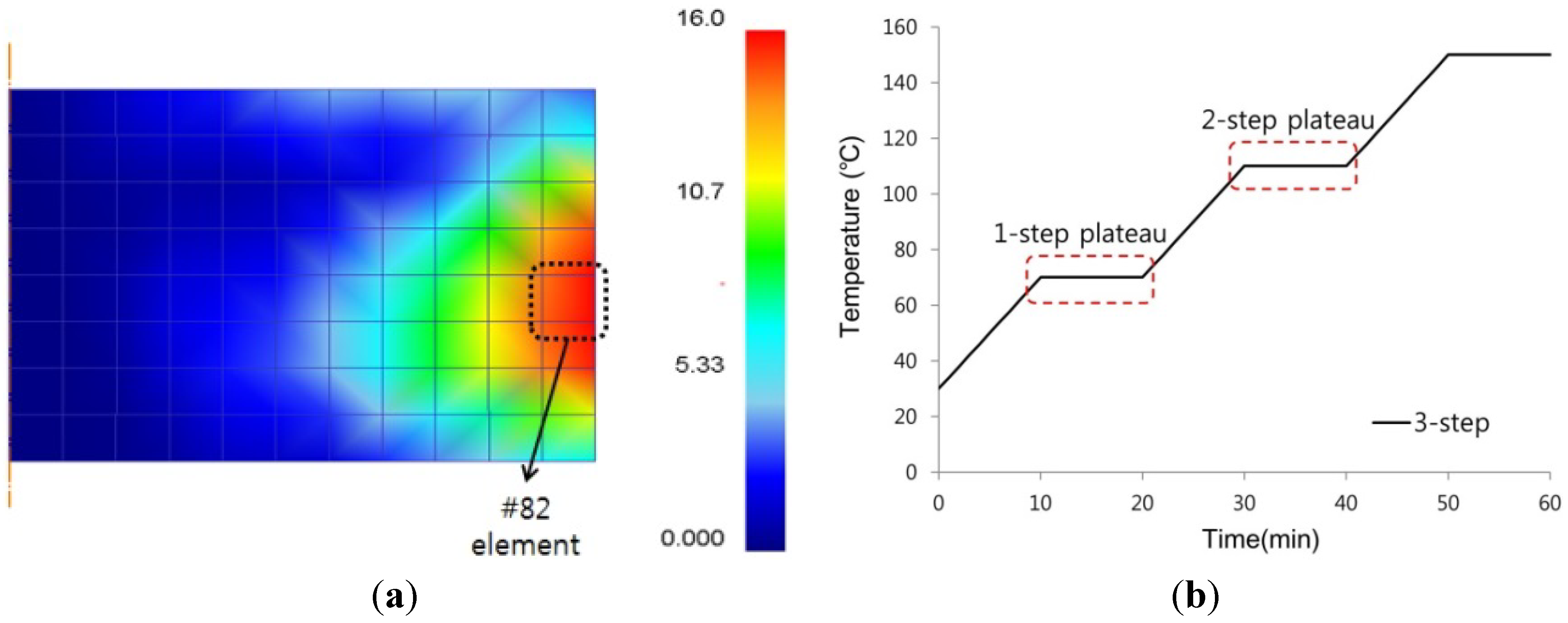

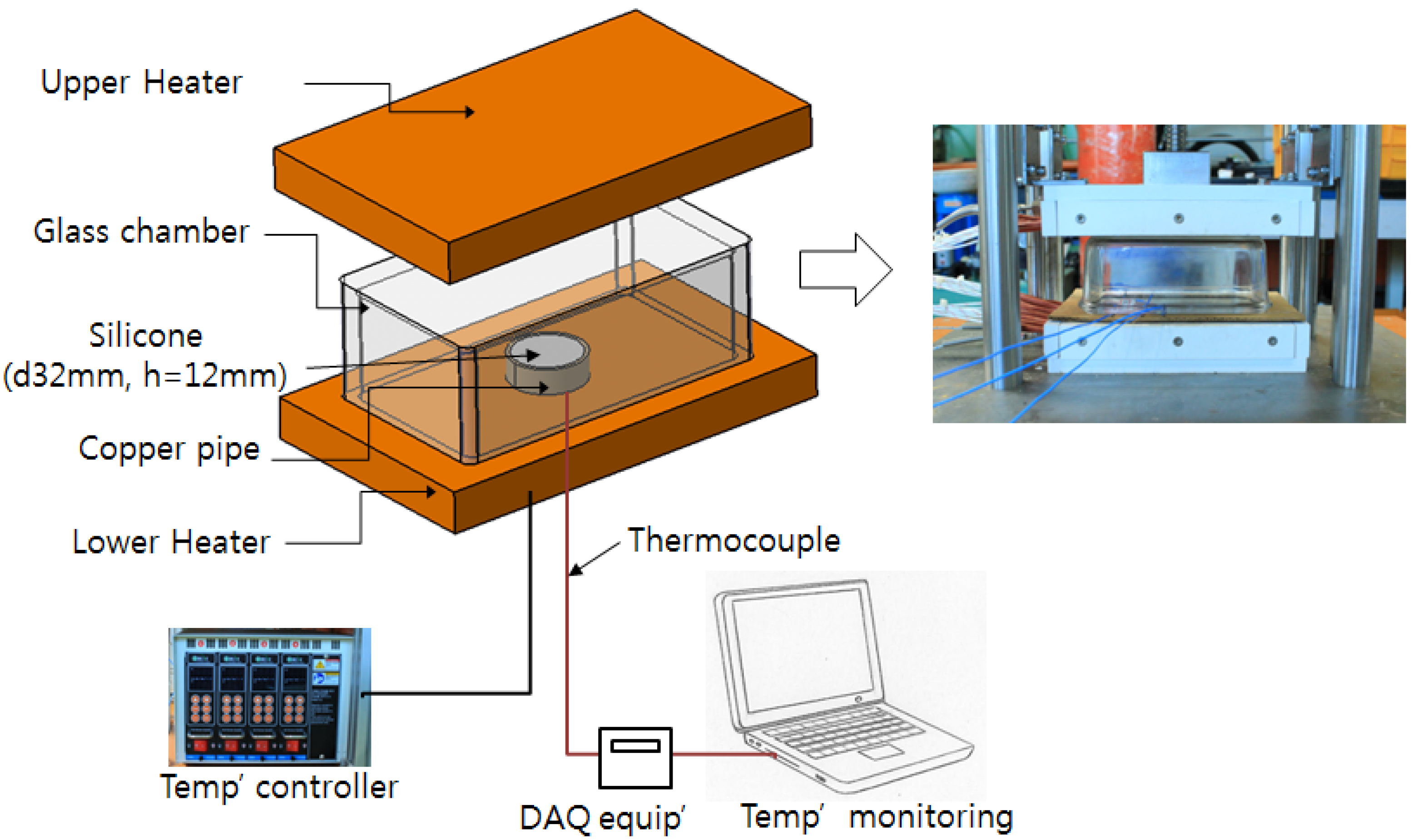

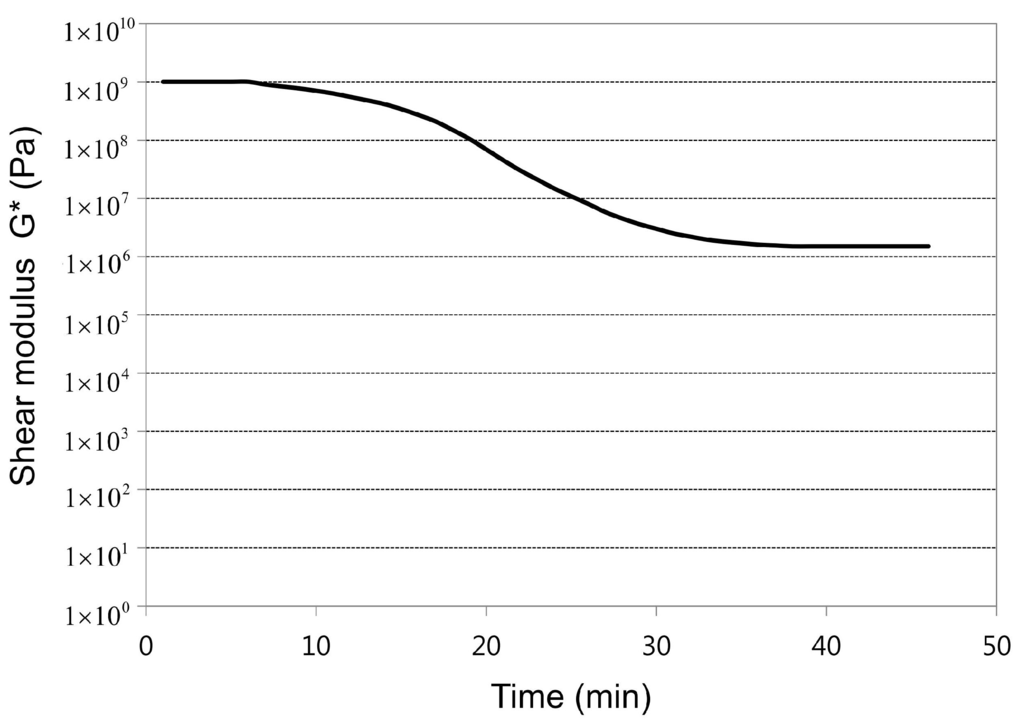

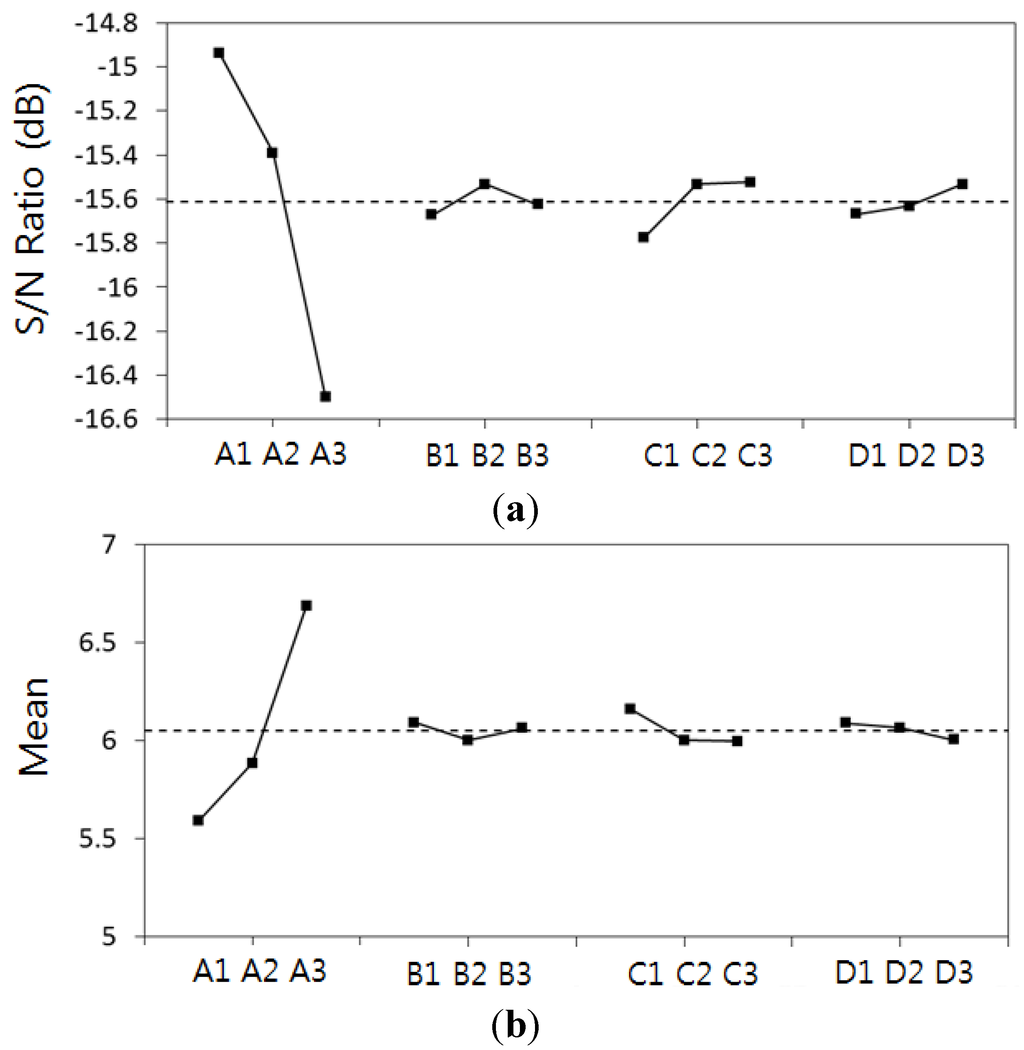

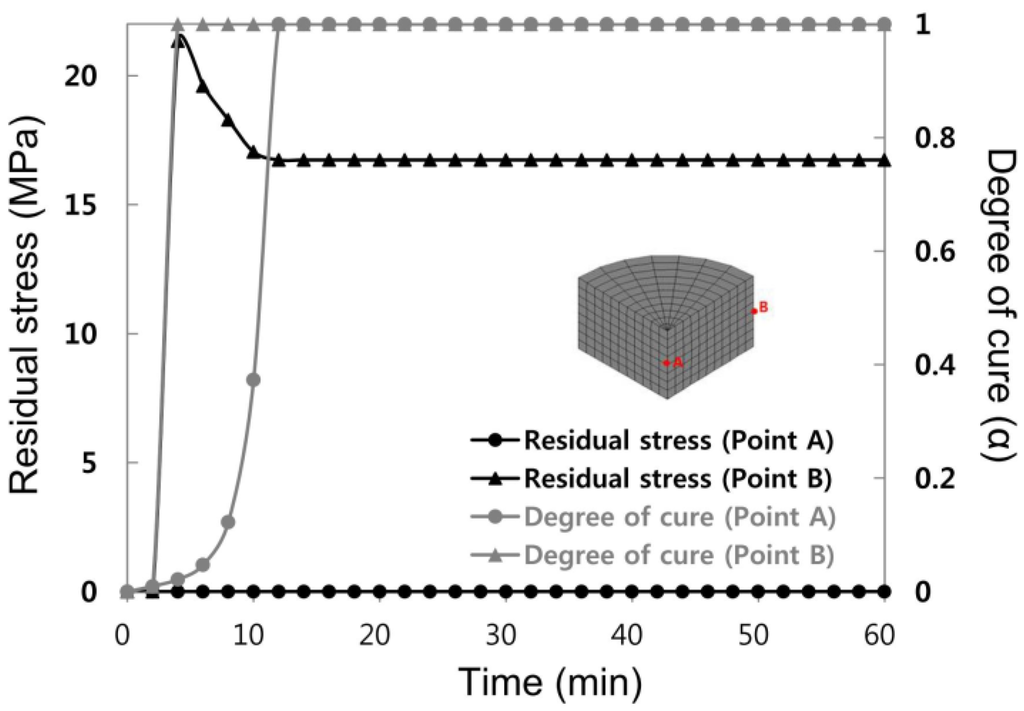

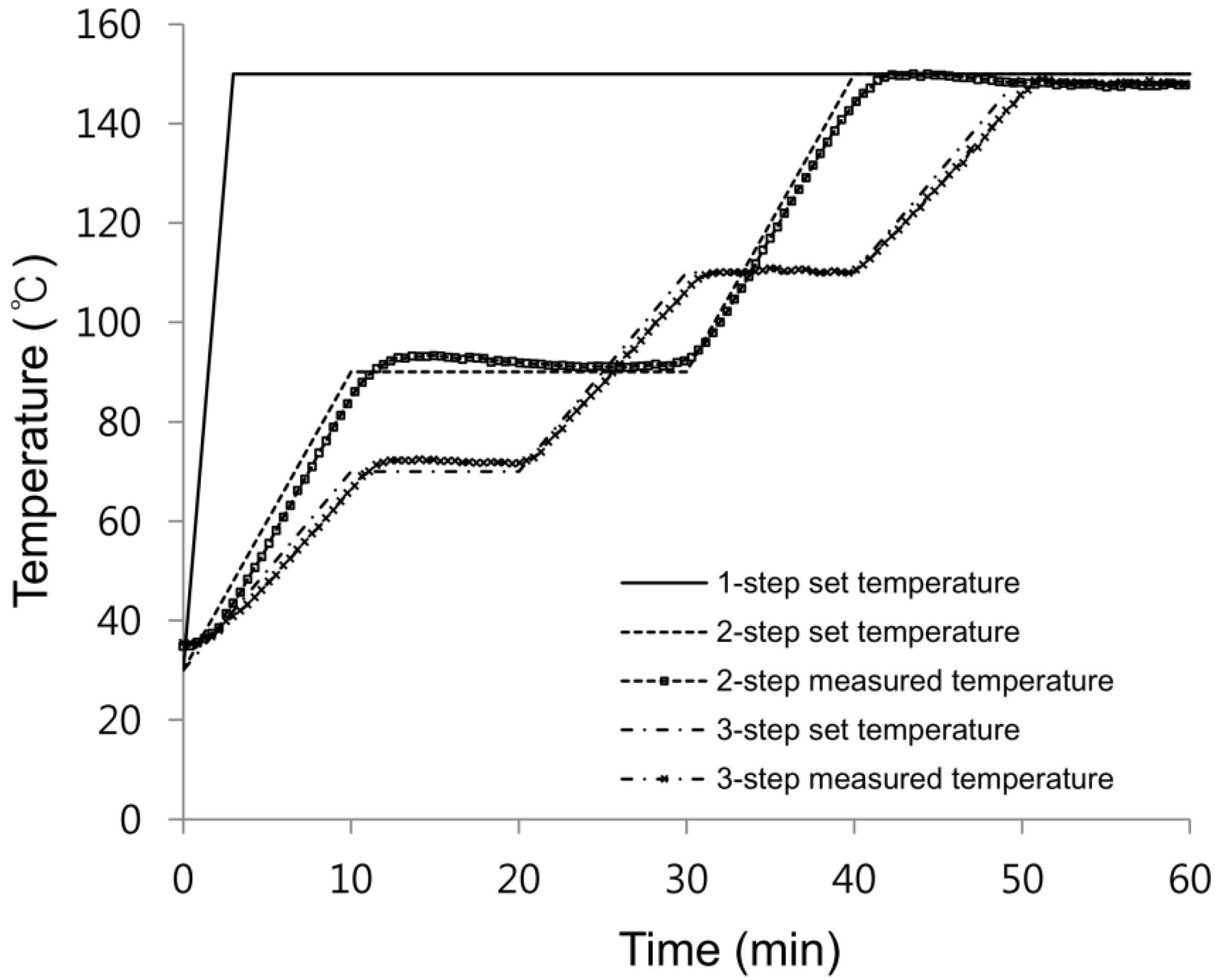

Figure 1

MDPI and ACS Style

Song, M.-J.; Kim, K.-H.; Yoon, G.-S.; Park, H.-P.; Kim, H.-K. An Optimal Cure Process to Minimize Residual Void and Optical Birefringence for a LED Silicone Encapsulant. Materials 2014, 7, 4088-4104.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
