Article

Enhanced Diffraction and Spectroscopic Insight into Layer-Structured Bi6Fe2Ti3O18 Ceramics

by
Zbigniew Pędzich
1,*,
Agata Lisińska-Czekaj
2,
Dionizy Czekaj
2,
Agnieszka Wojteczko
1 and
Barbara Garbarz-Glos
3
1
Faculty of Materials Science and Ceramics, Department of Ceramics and Refractories, AGH University of Krakow, 30-059 Krakow, Poland
2
Faculty of Mechanical Engineering and Ship Technology, Gdansk University of Technology, 11/12, Narutowicza St., 80-233 Gdansk, Poland
3
Department of Social Research, Forensic Methods and Physics, University of the National Education Comission, 2, Podchorążych St., 30-084 Kraków, Poland
*
Author to whom correspondence should be addressed.
Materials 2025, 18(15), 3690; https://doi.org/10.3390/ma18153690
Submission received: 13 June 2025 / Revised: 30 July 2025 / Accepted: 1 August 2025 / Published: 6 August 2025

Abstract

Bi6Fe2Ti3O18 (BFTO) ceramics were synthesized via a solid-state reaction route using stoichiometric amounts of Bi2O3, TiO2, and Fe2O3 powders. A thermal analysis of the powder mixture was conducted to optimize the heat treatment parameters. Energy-dispersive X-ray spectroscopy (EDS) confirmed the conservation of the chemical composition following calcination. Final densification was achieved through hot pressing. The crystal structure of the sintered samples, examined via X-ray diffraction at room temperature, revealed a tetragonal symmetry for BFTO ceramics sintered at 850 °C. Electron backscatter diffraction (EBSD) provided detailed insight into the crystallographic orientation and microstructure. Broadband dielectric spectroscopy (BBDS) was employed to investigate the dielectric response of BFTO ceramics over a frequency range of 10 mHz to 10 MHz and a temperature range of −30 °C to +200 °C. The temperature dependence of the relative permittivity (εr) and dielectric loss tangent (tan δ) were measured within a frequency range of 100 kHz to 900 kHz and a temperature range of 25 °C to 570 °C. The impedance data obtained from the BBDS measurements were validated using the Kramers–Kronig test and modeled using the Kohlrausch–Williams–Watts (KWW) function. The stretching parameter (β) ranged from ~0.72 to 0.82 in the impedance formalism within the temperature range from 200 °C to 20 °C.

1. Introduction

Bismuth titanate (Bi4Ti3O12), a bismuth-layered structured ferroelectric material first discovered by B. Aurivillius [1,2,3], has been extensively used in electronics, particularly in capacitors, transducers, non-volatile memory devices, and high-temperature piezoelectric sensors. Enhancing its properties through modification with bismuth ferrite (BiFeO3) offers promising new functionalities. By combining these two compounds—each with distinct physical properties—novel materials with an enhanced multifunctionality can be developed. As reported in previous (now classical) studies [4,5], materials in the Bi4Ti3O12–BiFeO3 system exhibit ferroelectric, semiconducting, and ferromagnetic behaviors, making them attractive candidates for next-generation information processing and storage technologies. These Bi-containing Aurivillius-type oxides typically adopt a layered perovskite-related structure and conform to the following general formula: Bim+1Fem−3Ti3O3m+3. Their unique structure, composed of alternating bismuth oxide and perovskite-like layers, has garnered increasing interest in recent years.
Aurivillius [1,2,3] identified this family of oxides, characterized by alternating layers of (Bi2O2)2+ and (Am−1BmO3m−1)2− stacked along the pseudotetragonal c-axis. The A-site can accommodate mono-, di-, or trivalent ions, or their mixtures, while the B-site includes Ti4+, Nb5+, Mo6+, W6+, and Fe3+. In the perovskite blocks, B-site ions are surrounded by oxygen octahedra that form linear O–B–O chains, with A-site ions fitting into the framework created by the BO6 octahedra. These perovskite slabs consist of m octahedral layers, where m can be an integer or a fractional value. Adjacent layers are offset by a0/√2 in the [110] direction (where a0 is the lattice constant of the ideal perovskite cell). The unit cell of the compound with the Aurivillius structure and m = 5 perovskite-like layers per slab is shown in Figure 1a.
Structural symmetry imposes constraints on polarization behavior depending on m [6,7]. When m is even, polarization is confined to the ab plane; however, with an odd number of layers, a component of polarization can develop along the c-axis, nearly perpendicular to the layering. This has significant implications for device applications, as fewer allowed directions for spontaneous polarization often result in lower remanent polarization in many film orientations. Nevertheless, Aurivillius-type bismuth-based titanium oxide (Bi4Ti3O12) remains of great interest for integrated circuit memory and high-temperature piezoelectric sensor applications, exhibiting excellent electrical and electro-optic properties [8]. The compositional and structural tunability of bismuth oxide-layered perovskites—through ionic substitution and octahedral distortions—allows for fine control over their electrical behavior [9]. The ferroelectricity in these structures is closely linked to distortions in the coordination polyhedra of one or more cations.
This study focuses on the promising Aurivillius-phase material Bi6Fe2Ti3O18 (BFTO), chosen for its high dielectric transition temperature (Curie temperature T = 805 °C) and its second-order magnetoelectric effect [10,11,12]. The aim was to synthesize BFTO ceramics via the mixed oxide method and conduct a detailed structural and spectroscopic characterization. The compound fits the general formula Bim+1Fem−3Ti3O3m+3 with m = 5, corresponding to five perovskite-like layers per slab. The main investigative tools employed were electron backscatter diffraction (EBSD) and broadband dielectric spectroscopy (BBDS) [13].
Due to their high structural flexibility and the ability to exhibit both electric dipole and magnetic ordering at room temperature, Aurivillius-phase materials are compelling candidates for single-phase, room-temperature multiferroics. Recent reviews (e.g., [14]) have explored the characteristics of these layered structures and advances in their synthesis, yet BFTO has received comparatively little attention. To our knowledge, no EBSD investigations of BFTO have been reported.
EBSD enables a detailed analysis of crystalline orientation and structure. A stationary electron beam interacts with a tilted crystal sample, producing a diffraction pattern characteristic of the local crystal structure [15]. These patterns can reveal phase distributions, grain boundaries, and crystal quality. Proper sample preparation—particularly a deformation-free surface—is essential for obtaining high-quality EBSD patterns. By scanning the beam over a grid across a polycrystalline sample, orientation maps can be constructed, providing insight into the grain morphology and texture. This enables a comprehensive, quantitative description of the material’s microstructure.
In addition to EBSD, this study utilized a frequency-domain representation of the Kohlrausch–Williams–Watts (KWW) function [16,17,18] to analyze electrical relaxation. Immittance spectra were evaluated using complex impedance [19,20] providing a detailed view of the dielectric response.

2. Materials and Methods

Ceramic samples of Bi6Fe2Ti3O18 were synthesized via the conventional solid-state reaction method. Stoichiometric amounts of high-purity (99.9%, Aldrich Chemicals Co., Milwaukee, WI, USA) reagent-grade oxides—Bi2O3, Fe2O3, and TiO2—were accurately weighed and thoroughly mixed using an agate mortar and pestle to ensure homogeneous blending. The solid-state reaction proceeded according to the following reaction: 3Bi2O3 + Fe2O3 + 3TiO2→2Bi6Fe2Ti3O18.
A thermal analysis of the powder mixture was conducted to optimize the heat treatment parameters. It was found from the experimental data that layer-structured Aurivillius phases in the BFTO system appear at 600 °C [21] and they form within the temperature range of 650–700 °C [13].
According to the suggested scheme for the formation of Aurivillius phases in the Bi2O3–TiO2–Fe2O3 system, the formation of the Bim+1Fem−3Ti3O3m+3 compound is considered a multistage process [21,22]. In the early stages, compounds with smaller numbers of perovskite-like layers in the structure and BiFeO3 are formed. At the next stage, perovskite-like BiFeO3 is incorporated into a perovskite-like layer of the Aurivillius phases to increase the thickness of this layer until an Aurivillius phase of a given composition is formed.
The powder mixture was compacted into pellets at a uniaxial pressure of 300 MPa using a stainless-steel die (10 mm in diameter), yielding disc-shaped green bodies of approximately 10 mm in diameter and 1 mm thick. These compacts were placed in an alumina crucible and calcined in air at 750 °C for 10 h to promote the formation of the desired phase. Final densification was achieved via hot pressing at 850 °C for 3 h under a pressure of 20 MPa.
The crystalline structure of the sintered ceramics was analyzed at room temperature using X-ray diffraction (XRD) with a PANalytical X’Pert Pro diffractometer (PANalytical B.V., Almelo, The Netherlands) operating in θ–2θ geometry and employing Cu Kα radiation. Data were collected over a 2θ range of 8.0042–89.9962° with a continuous scan and a step size of Δ2θ = 0.008°. The diffraction patterns were evaluated using the X’Pert HighScore Plus (PANalytical B.V., Almelo, The Netherlands) [23] and Match! (Crystal Impact) software packages (Version 3.6.2.121) [24]. The structural identification was supported by the latest entries from the COD/AMCSD [25], ICSD [26], and ICDD [27] crystallographic databases.
The analysis method used in the present study for calculating the mean size and strain within the Bi6Fe2Ti3O18 oxide ceramics from the diffraction pattern is attributed to G.K. Williamson and W.H. Hall [28]. The Williamson–Hall method makes several assumptions. It simplifies the analysis by assuming that the size-broadening and strain-broadening contributions to the diffraction pattern can be combined not by convolution, but by a simple sum or sum of squares. While the effects of convolution are not always intuitively obvious, and some functions convolute in straightforward ways (e.g., two Gaussian or two Lorentzian functions), other functions may convolute more complexly. Despite these complexities, the Williamson–Hall method can be useful if applied relatively.
Microstructural and compositional analyses were carried out using a Thermo Scientific Apreo 2S field emission scanning electron microscope (SEM) (Waltham, MA, USA) equipped with an EDAX Octane Elect energy-dispersive X-ray spectroscopy detector (EDS, EDAX, Ametek, Berwyn, PA, USA) on a carbon-coated surface. The sample was mechanically polished (finished with colloidal silica) to achieve a scratch- and deformation-free surface suitable for EBSD measurements.
Electron backscatter diffraction (EBSD) was employed to examine the microstructural and crystallographic orientation of the samples. In EBSD, a stationary electron beam interacts with a tilted crystalline surface, generating Kikuchi patterns that are characteristic of the local crystal structure and orientation. These patterns are used to determine grain orientation, differentiate between phases, assess grain boundaries, and evaluate local crystalline quality. EBSD measurements were performed using an Apreo 2S (Thermo Scientific) scanning electron microscope (SEM) equipped with an EDAX Velocity EBSD camera. Data were collected at an accelerating voltage of 15 kV and a step size of 0.03 μm using the APEX EBSD software (Version 3.0601). The acquired EBSD data were processed using the EDAX OIM Analysis™ software (8.6.104x64), providing an advanced interpretation and visualization.
For dielectric measurements, the sintered BFTO ceramic discs were polished on both sides and coated with silver paste to form parallel-plate metal–insulator–metal (MIM) capacitor structures. Impedance spectroscopy (IS) measurements [20,29] were carried out over a frequency range from 100 mHz to 10 MHz and a temperature range from −120 °C to +200 °C. The measurements were conducted using the Alpha-A High-Performance Frequency Analyzer (Novocontrol Technologies GmbH & Co. KG, Montabaur, Germany) coupled with a Quatro Cryosystem for precise temperature control. Prior to the measurements, the system was cooled using liquid nitrogen. An AC perturbation voltage of 10 mV was applied, and impedance spectra were recorded during the heating cycle. To ensure thermal equilibrium, the data were acquired 15 min after each target temperature was reached. The temperature increment between measurements was ΔT = 5 °C. The WinDETA v3.9 software (Novocontrol) was used for data acquisition, visualization, and processing. To verify the reliability of the impedance data, the Kramers–Kronig test was applied using the B. Boukamp software (K-K Test V 1.01) [30]. This served as a consistency check between the real and imaginary components of the spectra.
Modeling of the experimental impedance data was conducted using both mathematical functions [18] and equivalent-circuit models. A key objective was to achieve a close agreement between the measured and modeled data with a minimal number of fitting parameters, acknowledging that some parameters may lack direct physicochemical meaning. The analysis was performed in the complex impedance formalisms. Nyquist plots (complex impedance diagrams) were fitted using the circular fitting method, while the imaginary components of impedance were modeled using the modified Kohlrausch–Williams–Watts (KWW) function [16,17]. Furthermore, the impedance behavior was interpreted using electrical equivalent circuits.

3. Results and Discussion

3.1. X-Ray Phase and Structural Analysis

The crystal structure of the powdered ceramics with a Bi6Fe2Ti3O18 composition were studied by the X-ray diffraction method at room temperature. A line profile analysis (LPA) was used to determine the microstructural parameters [31]. For this purpose, the X-ray diffraction pattern, shown in Figure 1b, was analyzed with the assumption of the pseudo-Voigt profile function. The following parameters of fitting were achieved: Rexpected = 4.44%; Rprofile= 3.25%, Rweighted profile = 4.20%, and GOF = 0.947. The quality of the fitting procedure, as evidenced by R-parameters, was acceptably good, especially considering the complex system studied.
To retrieve microstructural parameters such as the average crystallite size and the microstrain, the simplified Williamson–Hall analysis was used [28]. The Williamson–Hall method demonstrates that the approximate formulas for the size broadening and strain broadening of the diffraction peak profile vary differently with respect to the Bragg angle, θ. The formula for size broadening varies as (cosθ)−1, whereas the formula for strain broadening varies as ~tanθ [32]. By plotting the product of the total broadening (of the diffraction line) and the cosine of the Bragg angle θ as a function of sinθ, the average strain component is obtained from the slope of the straight line (calculated by linear regression) and the average crystallite size component is obtained from the intersection of the straight line with the ordinate axis [31]. The relevant Williamson–Hall plot is given in Figure 1c. According to the performed LPA, it was found that the average crystallite size was 150 Å and the average crystallite (rms) strain was 0.1%.
The qualitative phase analysis of the X-ray diffraction pattern of Bi6Fe2Ti3O18 ceramics was performed with the Match! (Crystal Impact) software [24]. The analysis showed that, apart from the expected Bi6Fe2Ti3O18 phase, there are diffraction peaks that could be assigned to bismuth-based layer-structured Aurivillius phases with the number of layers in the slab other than m = 5. The results are shown in Table 1.
One can see from the Table 1 that the Aurivillius phases retrieved from the X-ray data bases exhibited an orthorhombic structure with the following space group numbers: 35 and 42. At the same time, it should be noted that the orthorhombic distortion of the tetragonal unit cell (i.e., the ratio of the base edge lengths of the cuboidal unit cell) characteristic for the Aurivillius phases included in Table 1 was close to 1. The figure of merit (FoM) is also shown in Table 1.
It is worth noting that the parent structure for a compound exhibiting m = 5 perovskite-like layers described by Aurivillius [33] was found to adopt the tetragonal structure (I4/mmm, Space Group No. 139). Due to the fact that Aurivillius phases exhibit small amounts of orthorhombic distortion, this structure was adopted to search for the unit cell of the Bi6Fe2Ti3O18 compound and its further refinement. The results are shown in Figure 1d. The following lattice parameters were obtained: a0 = b0 = 3.8625Å, c0 = 49.585Å. The refined average crystallite size was 156Å and the average crystallite (rms) strain was 0.41%. The parameters of the Rietveld refinement were as follows: Rexpected = 4.47%; Rprofile= 9.45%, Rweighted profile = 12.02%, and GOF = 8.49.

3.2. EBSD Studies of Ceramics

Electron backscatter diffraction (EBSD), the primary tool for lattice orientation determinations, was utilized in the present study to understand the complex microstructures in the Aurivillius-type layer-structured bismuth titanium oxides. The data obtained by EBSD mapping were analyzed using the EDAX OIM Analysis™ software, and the results are shown in Figure 2, Figure 3, Figure 4 and Figure 5.
All the EBSD data analyses were performed using the EDAX OIM Analysis™.
Figure 2a presents an inverse pole figure map obtained using electron backscatter diffraction (EBSD), which reveals the crystallographic orientation in the Aurivillius-type layer-structured bismuth titanium oxides. The orientation of the grains is represented by a color-coded legend (as shown in Figure 2c), which corresponds to specific crystallographic directions according to the standard inverse pole figure key. The black regions visible in the map correspond to non-indexed areas, indicating voids within the microstructure (e.g., pores) or regions with insufficient diffraction data due to the surface quality or geometrical factors.
Figure 2b shows the orientation distribution with respect to the sample normal direction [001]. The presented distribution did not exhibit significant clustering, suggesting the absence of a strong preferred crystallographic orientation along this direction.
Further insight into the material texture is provided by the pole figures shown in Figure 3, which correspond to the {001} and {100} crystallographic planes. The color intensity represents the multiple of uniform distribution (m.u.d.), a quantitative measure indicating how much the observed orientation distribution deviates from a random texture. While there was some variation in intensity, the multiple of uniform distribution value was ~2.67, indicating the presence of a weak texture.
Image quality (IQ) maps are a grayscale representation, where the pixel intensities correspond to the quality of the Kikuchi diffraction patterns. Bright regions indicate high-quality patterns, usually obtained from well-crystallized and correctly prepared (well-polished and strain-free) surfaces, while darker regions suggest a poor diffraction quality caused by strain occurrence, crystallographic disorder, or porosity. Figure 4a presents an IQ map for the Bi6Fe2Ti3O18 ceramics. The grain boundaries are clearly visible and the black regions, in this case, correspond to pores. The microstructure shows relatively fine grains of a polycrystalline ceramic material, some with an elongated shape. This correlates with the grain size distribution plot (Figure 4b), where the grain diameter is shown in relation to the number of grains. The peaks around 0.3 to 0.4 µm indicate that most of the grains fell within this range. For sizes above 0.6 µm, the number of grains significantly decreased.
In order to complement the microstructural observations, an SEM (scanning electron microscope) image of a bigger area was introduced, as shown in Figure 5a. The observations were made using the secondary electron (SE) mode in high-vacuum mode. The presented image reveals a relatively high porosity of the Bi6Fe2Ti3O18 material. Energy-dispersive X-ray spectroscopy (EDS) measurements collected from the whole presented surface (Figure 5b) confirmed the chemical composition stability. The presence of the silicon in the spectrum can be explained by residues of silica in the pores after the polishing process. The carbon presence is explained by the sample’s surface coating.

3.3. Impedance Spectroscopy Measurements of Ceramics

Impedance spectroscopy (IS) is a specific technique that can be considered a subset of broadband dielectric spectroscopy (BBDS). While broadband dielectric spectroscopy covers a wide frequency range from 10−6 to 1012 Hz and includes various methods for studying the dielectric properties of materials [34], impedance spectroscopy specifically focuses on measuring the impedance of a material as a function of the frequency [20,29].
A reliable analysis of impedance spectroscopy data requires verification of the data quality and consistency. One widely accepted method for such validation is based on the Kramers–Kronig (K–K) relations, which establish a mathematical link between the real and imaginary parts of a frequency-dependent complex function. In the context of impedance, this means that the real part of the impedance spectrum, ZRe(ω), can be calculated from the imaginary part ZIm(ω), and vice versa. This property enables internal consistency checks of the measured data.
The K-K relations can be expressed in the integral form as follows [30,35]:
Z Re ( ω ) = R + 2 π 0 x Z Im ( x ) ω Z Im ( ω ) x 2 ω 2 d x
Z Im ( ω ) = 2 ω π 0 Z Re ( x ) Z Re ( ω ) x 2 ω 2 d x
where R = ZRe(ω→∞); ZRe,i + jZIm,i represent the measured impedance at frequency ωi. These relations are used to confirm that the measured impedance spectrum obeys the principles of causality and linearity.
The calculations necessary for performing the K-K test were accomplished with a computer program according to the methodology described in scientific publications [30,35]. In the present study, the impedance data were found to be consistent with the K–K framework, validating the reliability of the measurements prior to further dielectric analysis.
In an ideal case, the results of impedance spectroscopy measurements over a wide range of frequencies can be presented by semicircles in a complex Z″-Z′ plane (Nyquist plot). Each semicircle represents the contribution of a particular process (electrodes and contacts, grain boundaries, and grain interior) to the total impedance of the sample.
Nyquist plots for the Bi6Fe2Ti3O18 ceramics within the temperature range from −30 °C to +200 °C are shown in Figure 6.
One can see from Figure 6 that the measured values of the two components of complex impedance—resistance (real part, Z’) and reactance (imaginary part, Z″)—presented in the form of Nyquist plots rarely take the shape of perfect semicircles (while the isotropic scale is preserved on both axes). They are often described as depressed or deformed semicircles, with their center lying below the x-axis (Figure 6a,b). At low temperatures, the deviation from the semicircular shape is substantial (Figure 6c).
To highlight the characteristic depression of impedance semicircles, the experimental Nyquist plots were analyzed using circular arc fitting, analogous to the Cole–Cole approach for non-ideal dielectric relaxation. Figure 6d–f present fitted impedance spectra at selected temperatures. The key fitting parameters are summarized in each figure.
As the temperature decreased, the intercept of the arc on the real axis increased, indicating an increase in bulk resistance from ZRe = 1.44 × 107 Ω at 135 °C to ZRe = 8.46 × 107 Ω at 95 °C, and further to ZRe = 6.41 × 108 Ω at 55 °C. Concurrently, the depression angle β (indicative of the arc’s deviation from a perfect semicircle) and the characteristic frequency (ωmax) decreased:
  • At 135 °C: β = 13.85°, ωmax = 481 rad/s;
  • At 95 °C: β = 12.98°, ωmax = 83 rad/s;
  • At 55 °C: β = 12.49°, ωmax = 11 rad/s.
These depressed arcs are indicative of non-Debye relaxation behavior, as also suggested by the stretching exponent β extracted from the KWW fits. The centers of the fitted arcs lie below the real axis, with coordinates (in Ω) as follows:
  • (7.18 × 106, 1.78 × 106) at 135 °C;
  • (4.22 × 107, 9.76 × 106) at 95 °C;
  • (3.20 × 108, 7.11 × 107) at 55 °C.
This analysis reinforces the evidence for distributed relaxation mechanisms and heterogeneity in the BFTO ceramics.
This phenomenon, called non-Debye relaxation, is attributed to the distribution of Debye relaxations with different time constants.
The Debye response is given by the following:
Z * ω = Z + Z S Z 1 1 + j ω τ ,
where Zs and Z stand for the static and high-frequency-limiting values of the impedance, respectively. Equation (3) can be generalized to obtain the Cole–Cole equation [36]:
Z * ω = Z + Z S Z 1 1 + j ω τ α ; 0 < α 1 ,
which is identical to the Debye case when α = 1, and is broader the lower the exponent α is. The Cole–Cole equation mathematically expresses the distribution of relaxations with different time constants.
Spectroscopic plots of the imaginary part of complex impedance (Z″) are depicted in Figure 7. This representation is characterized by a peak, signifying the presence of dielectric relaxation in the sample. The observed peak provides insights into the dynamics and behavior of the relaxation mechanism, allowing for a more detailed analysis of the dielectric response within the material.
Figure 7 presents the imaginary part of impedance (−Z″) as a function of the angular frequency (ω) across several temperatures. The curves exhibit peaks that are noticeably broader and asymmetric compared to those predicted by the ideal Debye model, which assumes a single relaxation time. As the temperature increases, the peak frequency shifts toward higher values, reflecting thermally activated relaxation processes.
To quantify this deviation from ideality, the experimental data were fitted using a single-time-constant Debye model. The fitting results are shown for selected temperatures in Figure 7d–f. At each temperature, the experimental peaks are clearly broader and exhibit flatter tops than the corresponding Debye curves, confirming the presence of a distribution of relaxation times.
This non-Debye behavior is characteristic of complex dielectric systems, such as BFTO ceramics, where structural or compositional heterogeneities lead to a broad range of relaxation dynamics. These findings are consistent with the stretched-exponential behavior (via KWW fits, Figure 8) and with the depressed semicircular arcs in the complex impedance plane (Figure 6), both indicative of Cole–Cole-type relaxation.
A number of empirical relaxation functions have been used to describe the imaginary part of the general response function Z″(ω). A commonality of the functions mentioned above is that they are characterized by power laws far away from intermediate frequencies around the peak frequency ωp. When viewed versus a logarithmic frequency scale such as abscissa (like in Figure 7), the slope at the high- and low-frequency limits of the Debye plot is 1 and −1 at a low ω and a high ω, respectively. For the Cole–Cole equation, the slopes are α and -α at a low and high angular frequency, respectively.
To model the behavior of the imaginary component of the impedance, the alternative equation for the susceptibility functions was used [18]. A three-parameter formula for relaxation in the frequency domain given by the equation
Z Z max = 1 1 b + b 1 + b b ω max / ω + ω / ω max b ; 0 < b 1   ,
was applied to the analysis of the normalized amplitude (scaled) imaginary part of the impedance Z″/Z″max(ω). In Equation (5), Z″ represents the current value of the imaginary part of the complex impedance, Z″max and ωmax define the height and position of the peak, and “b” is an internally independent shape parameter for high frequencies.
The KWW equation describing the relaxation function ϕ(t) [16,17] is expressed as follows:
ϕ t = f exp t τ β ; 0 < β 1   ,
where β is the stretching parameter, τ is the relaxation time, and f is a measure of the fraction of the experimental quantity being investigated (the amplitude parameter) that is relaxed via α-relaxation.
The relationships providing a bridge between the parameters used in the analysis of the frequency domain representation (Equation (5)) and the parameters characterizing the time-domain relaxation function (Equation (6)) are given by the following:
b β , Z max f 2 β , ω max 1 τ 1 1 β Γ 1 β ,
where Γ is the gamma function [37]. These relationships facilitate the translation of the findings between the time and frequency domains, aiding in understanding the relaxation behavior within the material [38].
The outcomes of modeling the normalized (in amplitude) imaginary part of impedance (Z″/Z″max) with a normalized frequency (ω/ωmax) for Bi6Fe2Ti3O18 ceramics at different temperatures, carried out according to the function exhibiting the skewed shape given by Equation (5) (modified KWW formula), are depicted in Figure 8.
A visual examination of Figure 8 reveals that the experimental data align well with the model. The quality factor R2 was 0.991–0.999.
The identification of non-Debye-type relaxation phenomena was possible, as evidenced by the analysis of the stretching parameter β of the KWW function, within temperatures from 20 °C to 200 °C. Despite the BBDS measurements being performed for temperatures lower than 20 °C, it was found that the relaxation peak on the spectroscopic dependence of the imaginary part of impedance shifted to the lower frequency and “disappeared” from the measuring frequency window. It was found that the β parameter of the KWW function ranged from ~0.72 to 0.82 within the temperature range from 200 °C to 20 °C (in the impedance formalism). A lower β value indicates a more stretched relaxation function.

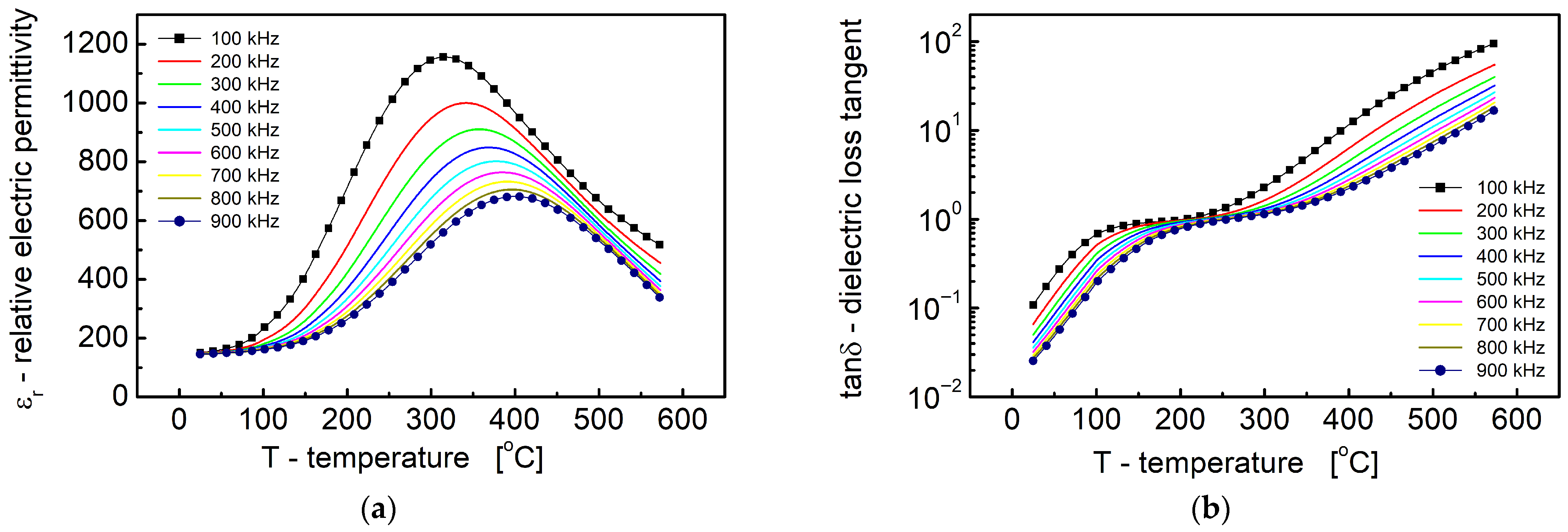

The temperature dependence of the relative permittivity (εr) and the dielectric loss tangent (tan δ) for Bi6Fe2Ti3O18 ceramics is presented in Figure 9a and Figure 9b, respectively. The experimental data were obtained over a measurement field frequency range of 100 kHz to 900 kHz. As shown in Figure 9a, the relative permittivity exhibited a distinct maximum within the temperature range of 600 K to 700 K. This peak shifted toward higher temperatures and decreased in magnitude with an increasing frequency, indicating a frequency-dispersive dielectric response. In contrast, the dielectric loss tangent (Figure 9b) initially increased slowly with temperature, reaching a value of approximately 1 between 450 K and 550 K, followed by a rapid increase at higher temperatures, exceeding a value of 5 for T > 700 K.
The experimental data were obtained over a measurement field frequency range of 100 kHz to 900 kHz. As shown in Figure 9a, the relative permittivity exhibited a distinct maximum within the temperature range of 300 °C to 400 °C. This peak shifted toward higher temperatures and decreased in magnitude with an increasing frequency, indicating a frequency-dispersive dielectric response. In contrast, the dielectric loss tangent (Figure 9b) initially increased slowly with temperature, reaching a value of approximately 1 between 100 °C and 300 °C, followed by a rapid increase at higher temperatures, exceeding a value of 5 for T > 450 °C.
This behavior is characteristic of relaxor ferroelectric materials, where diffuse phase transitions and the strong frequency dispersion of the dielectric peak are commonly observed. The shift of the εr maximum to higher temperatures with an increasing frequency suggests the presence of thermally activated dielectric relaxation processes, likely driven by local structural distortions and compositional inhomogeneities inherent to the layered Aurivillius structure of Bi6Fe2Ti3O18 [10,11].
These findings correlate well with the microstructural features revealed by the EBSD and BBDS analyses. In particular, EBSD mapping (Figure 2, Figure 3, Figure 4 and Figure 5) demonstrated significant orientation-dependent contrast and the presence of ferroelastic domains, which are known to contribute to local polarization fluctuations and dielectric dispersion. The BBDS results further confirmed the existence of domain wall activity and polar anisotropy at the sub-micron scale [20,29]. Such domain-related phenomena can give rise to a broadened dielectric response and relaxor-like behavior, as observed in the temperature-dependent permittivity measurements.
Additionally, the pronounced increase in dielectric loss (tan δ) above 700 K (Figure 7b) may be attributed to an increased electrical conductivity at elevated temperatures [13]. This is likely related to thermally activated charge carriers, such as oxygen vacancies or hopping between Fe3+/Fe2+ centers, as suggested by the defect chemistry typical of Bi-based Aurivillius oxides.

4. Conclusions

Bi6Fe2Ti3O18 (BFTO) ceramics were synthesized by the mixed oxide method using stoichiometric Bi2O3, TiO2, and Fe2O3 powders. A thermal analysis guided the optimization of the heat treatment parameters, and uniaxial hot pressing at 850 °C was employed for final densification and sintering. X-ray diffraction confirmed a tetragonal structure (space group I4/mmm, No. 139) for BFTO with lattice parameters of a0 = b0 = 3.8625Å, c0 = 49.585Å. The average crystallite size and rms strain was 156Å and 0.41%, respectively.
Electron backscatter diffraction revealed a random grain orientation without significant texturing, as confirmed by a pole figure analysis of the {001} and {100} planes. SEM imaging indicated a fine-grained microstructure with some porosity, which was corroborated by image quality maps. The EDS analysis verified the expected chemical composition; the carbon and silicon that were detected originated from sample preparation.
Broadband dielectric spectroscopy characterized the dielectric response over frequencies from 10 mHz to 10 MHz and temperatures from −30 °C to +200 °C. The normalized imaginary impedance (Z′/Z″max) spectra were modeled using the Kohlrausch–Williams–Watts (KWW) function, achieving the fitting quality (R2 = 0.991–0.999). Non-Debye relaxation was identified through the stretching parameter β, which ranged from approximately 0.72 to 0.82 between 200 °C and 20 °C, indicating a broad distribution of relaxation times. Below 20 °C, the relaxation peak shifted outside the measuring window.
The dielectric measurements revealed frequency-dependent maxima in the relative permittivity and a sharp increase in dielectric loss at elevated temperatures, consistent with relaxor-like ferroelectric behavior. These features align well with the structural and domain-related observations from EBSD and BBDS, which confirmed the presence of ferroelastic domains and local anisotropy.
Due to current limitations in experimental resources, techniques such as XPS and Raman spectroscopy were not included in the present study. However, we recognize their importance for investigating the electronic structure and local bonding in Aurivillius-type ceramics. Future work will focus on detailed spectroscopic studies of Bi6Fe2Ti3O18 and related Bi4Ti3O12–BiFeO3 compounds, with a comprehensive analysis to be presented in a separate publication.

Author Contributions

Conceptualization, Z.P., D.C. and A.L.-C.; methodology, D.C., A.L.-C., A.W. and B.G.-G.; software, D.C. and A.W.; validation, Z.P. and A.L.-C.; formal analysis, A.L.-C., D.C. and A.W.; investigation, D.C., A.L.-C., A.W. and B.G.-G.; resources, Z.P., A.W., A.L.-C. and D.C.; data curation, A.W. and A.L.-C.; writing—original draft preparation, D.C., A.L.-C. and A.W.; writing—review and editing A.L.-C. and A.W.; visualization, Z.P., A.W. and A.L.-C.; supervision, D.C. and Z.P.; project administration, Z.P. and A.L.-C.; funding acquisition, Z.P. and A.L.-C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Polish National Science Centre (NCN), grant number N N507 446934.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

The SEM: EDS and EBSD investigations were performed at the Faculty of Materials Science and Ceramics in the Laboratory of Scanning Electron Microscopy and Microanalysis. The purchase of the SEM equipment was supported by the project “Excellence Initiative—Research University” for the AGH University of Krakow, grant ID 1449.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Aurivillius, B. Mixed bismuth oxides with layer lattices. The structure type of CaNb2Bi2O9. Arkh. Khemi 1949, 1, 463–480. [Google Scholar]
  2. Aurivillius, B. Mixed bismuth oxides with layer lattices. Structure of Bi4Ti3O12. Arkh. Khemi 1949, 1, 499–512. [Google Scholar]
  3. Aurivillius, B. Mixed oxides with layer lattices. Structure of BaBi4Ti4O15. Arkh. Khemi 1950, 2, 519–527. [Google Scholar]
  4. Krzhizhanovskaya, M.; Filatov, S.; Gusarov, V.; Paufler, P.; Bubnova, R.; Morozov, R.M.; Meyer, D. Aurivillius phases in Bi4Ti3O12/BiFeO3 system: Thermal behaviour and crystal structure. Anorg. Allg. Chem. 2005, 631, 1603–1608. [Google Scholar] [CrossRef]
  5. Lomanova, N.A.; Morozov, M.I.; Ugolkov, V.L.; Gusarov, V.V. Properties of Aurivillius phases in the Bi4Ti3O12-BiFeO3 system. Inorg. Mater. 2006, 42, 189–195. [Google Scholar] [CrossRef]
  6. Waser, R. (Ed.) Nanoelectronics and Informatiom Technology; Wiley-VCH: Weinheim, Germany, 2005. [Google Scholar]
  7. Newnham, R.E.; Wolfe, R.W.; Dorian, J.F. Structural Basis of Ferroelectricity in the Bismuth Titanate Family. Mater. Res. Bull. 1971, 6, 1029–1040. [Google Scholar] [CrossRef]
  8. Paz de Araujo, C.; Scott, J.F.; Taylor, G.W. (Eds.) Ferroelectric Thin Films: Synthesis and Basic Properties; Gordon and Breach Publishers: Amsterdam, The Netherlands, 1996. [Google Scholar]
  9. Jaffe, B.; Cook, W.R.; Jaffe, H. Piezoelectric Ceramics; Academic Press: London, UK, 1971. [Google Scholar]
  10. Bućko, M.; Polnar, J.; Przewożnik, J.; Żukrowski, J.; Kapusta, C. Magnetic properties of the Bi6Fe2Ti3O18 Aurivillius phase prepared by hydrothermal method. Adv. Sci. Technol. 2010, 67, 170–175. [Google Scholar]
  11. Jartych, E.; Mazurek, M.; Lisińska-Czekaj, A.; Czekaj, D. Hyperfine interactions in some Aurivillius Bim+1Ti3Fem−3O3m+3 compounds. J. Magn. Magn. Mater. 2010, 322, 51–55. [Google Scholar] [CrossRef]
  12. Garcia-Guaderrama, M.; Fuentes-Montero, L.; Rodriguez, A.; Fuentes, L. Structural characterization of Bi6Ti3Fe2O18 obtained by molten salt synthesis. Integr. Ferroelectr. 2006, 83, 41–47. [Google Scholar] [CrossRef]
  13. Lisińska-Czekaj, A.; Czekaj, D.; Garbarz-Glos, B.; Bąk, W. Immittance Studies of Bi6Fe2Ti3O18 Ceramics. Materials 2020, 13, 5286. [Google Scholar] [CrossRef]
  14. Sun, S.; Yin, X. Progress and Perspectives on Aurivillius-Type Layered Ferroelectric Oxides in Binary Bi4Ti3O12-BiFeO3 System for Multifunctional Applications. Crystals 2021, 11, 23. [Google Scholar] [CrossRef]
  15. Maitland, T.; Sitzman, S. Backscattering Detector and EBSD in Nanomaterial Characterization; Springer: New York, NY, USA, 2007. [Google Scholar] [CrossRef]
  16. Kohlrausch, R. Theorie des elektrischen Ruckstandes in der Leidener Flasche. Ann. Phys. 1854, 167, 179–214. [Google Scholar] [CrossRef]
  17. Williams, G.; Watts, D.C. Non-symmetrical dielectric relaxation behaviour arising from a simple empirical decay function. Trans. Faraday Soc. 1970, 66, 80–85. [Google Scholar] [CrossRef]
  18. Bergman, R. General susceptibility functions for relaxations in disordered systems. J. Appl. Phys. 2000, 88, 1356. [Google Scholar] [CrossRef]
  19. Sinclair, D.C.; West, A.R. Impedance and modulus spectroscopy of semiconducting BaTiO3 showing positive temperature coefficient of resistance. J. Appl. Phys. 1989, 66, 3850. [Google Scholar] [CrossRef]
  20. Lasia, A. Electrochemical Impedance Spectroscopy and its Applications. In Modern Aspects of Electrochemistry; Conway, B.E., Bockris, J., White, R.E., Eds.; Springer: Boston, MA, USA, 2002; Volume 32. [Google Scholar] [CrossRef]
  21. Morozov, M.I.; Gusarov, V.V. Synthesis of Am−1Bi2MmO3m+3 Compounds in the Bi4Ti3O12–BiFeO3 System. Inorg. Mater. 2002, 38, 723–729. [Google Scholar] [CrossRef]
  22. Lomanova, N.A.; Gusarov, V.V. Phase states in the Bi4Ti3O12-BiFeO3 section in the Bi2O3-TiO2-Fe2O3 system. Russ. J. Inorg. Chem. 2011, 56, 616–620. [Google Scholar] [CrossRef]
  23. Degen, T.; Sadki, M.; Bron, E.; König, U.; Nénert, G. The HighScore suite. Powder Diffr. 2014, 29, S2, S13–S18. [Google Scholar] [CrossRef]
  24. MATCH! Version 3.6.2.121; CRYSTAL IMPACT: Bonn, Germany, 2018. Available online: http://www.crystalimpact.com/match (accessed on 2 June 2025).
  25. COD/AMCSD Database. Available online: http://www.crystalimpact.com/match/download.htm#refdb (accessed on 2 June 2025).
  26. ISCDDatabase FIZKarlsruhe. Available online: https://www.fiz-karlsruhe.de/en/produkte-und-dienstleistungen/inorganic-crystal-structure-database-icsd (accessed on 14 May 2024).
  27. International Centre for Diffraction Data, 12 Campus Boulevard, Newton Square, PA 19073-3273 U.S.A. Available online: http://www.icdd.com (accessed on 2 June 2025).
  28. Williamson, G.K.; Hall, W.H. X-ray line broadening from filed aluminium and wolfram. Acta Metall. 1953, 1, 22–31. [Google Scholar] [CrossRef]
  29. Barsoukov, E.; Macdonald, J.R. (Eds.) Impedance Spectroscopy, Theory, Experiment, and Applications, 3rd ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2018. [Google Scholar]
  30. Boukamp, B.A. A linear Kronig-Kramers transform test for immitance data validation. J. Electrochem. Soc. 1995, 142, 1885–1894. [Google Scholar] [CrossRef]
  31. Borbely, A. The modified Williamson-Hall plot and dislocation density evaluation from diffraction peaks. Scr. Mater. 2022, 217, 114768. [Google Scholar] [CrossRef]
  32. Guan, D.; Zhong, J.; Xu, H.; Huang, Y.-C.; Hu, Z.; Chen, B.; Zhang, Y.; Ni, M.; Xu, X.; Zhou, W.; et al. A universal chemical-induced tensile strain tuning strategy to boost oxygen-evolving electrocatalysis on perovskite oxides. Appl. Phys. Rev. 2022, 9, 011422. [Google Scholar] [CrossRef]
  33. Aurivillius, B.; Fang, P.H. Ferroelectricity in the compound Ba2Bi4Ti5O18. Phys. Rev. Sect. A 1962, 126, 893–896. [Google Scholar] [CrossRef]
  34. Woodward, W.H.H. (Ed.) Broadband Dielectric Spectroscopy—A Practical Guide. In Broadband Dielectric Spectroscopy: A Modern Analytical Technique; ACS Symposium Series; American Chemical Society: Washington, DC, USA, 2021; Volume 1375. [Google Scholar] [CrossRef]
  35. Boukamp, B.A. Electrochemical impedance spectroscopy in solid state ionics: Recent advances. Solid State Ion. 2004, 169, 65–73. [Google Scholar] [CrossRef]
  36. Cole, K.S.; Cole, R.H. Dispersion and Absorption in Dielectrics I. Alternating Current Characteristics. J. Chem. Phys. 1941, 9, 341. [Google Scholar] [CrossRef]
  37. Abramowitz, M.; Stegun, I.A. (Eds.) Handbook of Mathematical Functions with Formulas, Graphs, and Mathematical Tables; Dover: New York, NY, USA, 1972; Chapter 6. [Google Scholar]
  38. Czekaj, D.; Lisińska-Czekaj, A. Enhanced Spectroscopic Insight into Acceptor-Modified Barium Strontium Titanate Thin Films Deposited via the Sol–Gel Method. Materials 2024, 17, 2491. [Google Scholar] [CrossRef]

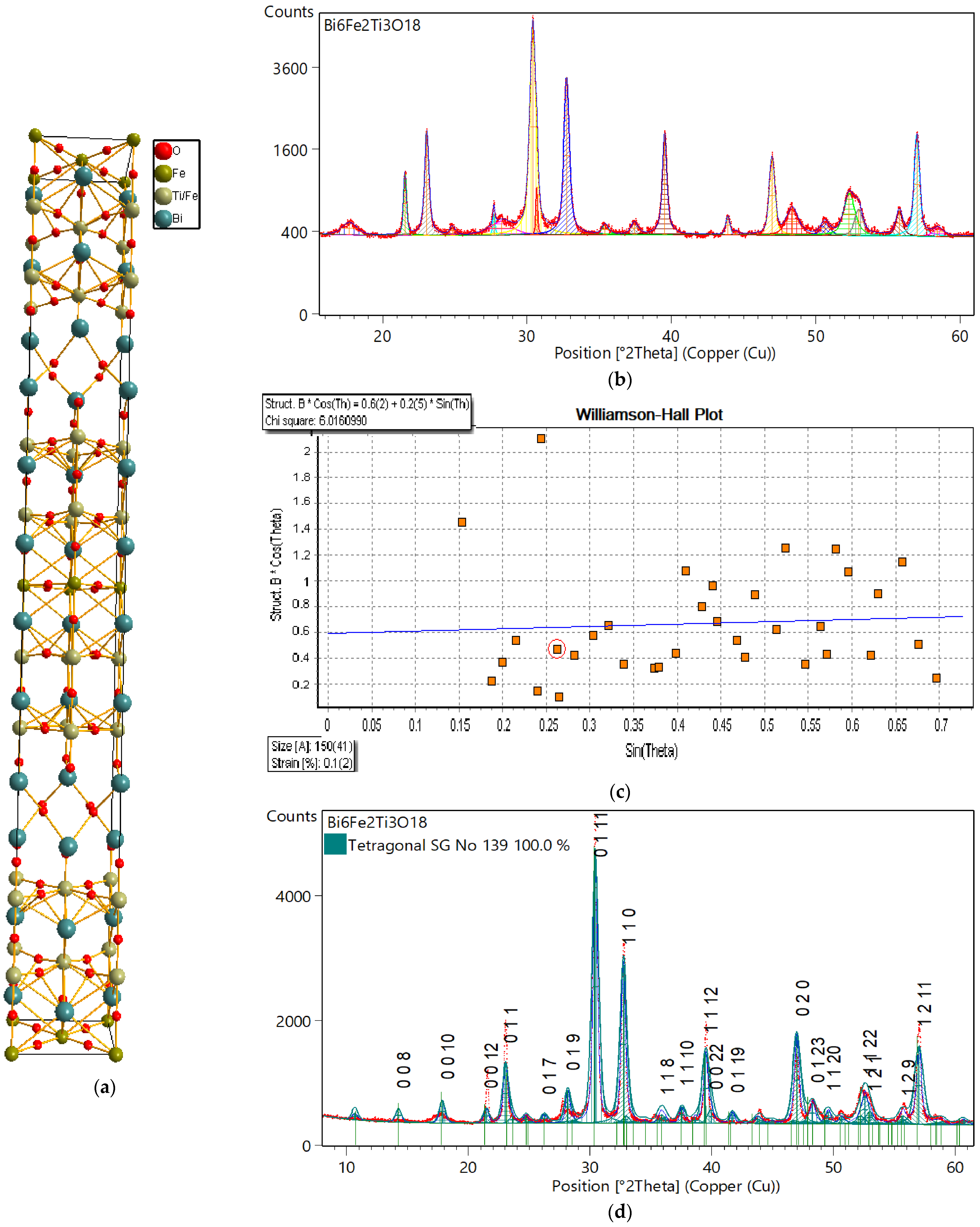

Figure 1. Ball-and-stick presentation of the unit cell of the compound with the Aurivillius structure—(a). Results of the line profile analysis of the X-ray diffraction pattern of Bi6Fe2Ti3O18 ceramics—(b). Williamson–Hall plot—(c). Refined structural analysis. The minimum intensity of the diffraction line, which was labeled with Miller indices, was 3%—(d).
Figure 1. Ball-and-stick presentation of the unit cell of the compound with the Aurivillius structure—(a). Results of the line profile analysis of the X-ray diffraction pattern of Bi6Fe2Ti3O18 ceramics—(b). Williamson–Hall plot—(c). Refined structural analysis. The minimum intensity of the diffraction line, which was labeled with Miller indices, was 3%—(d).
Materials 18 03690 g001

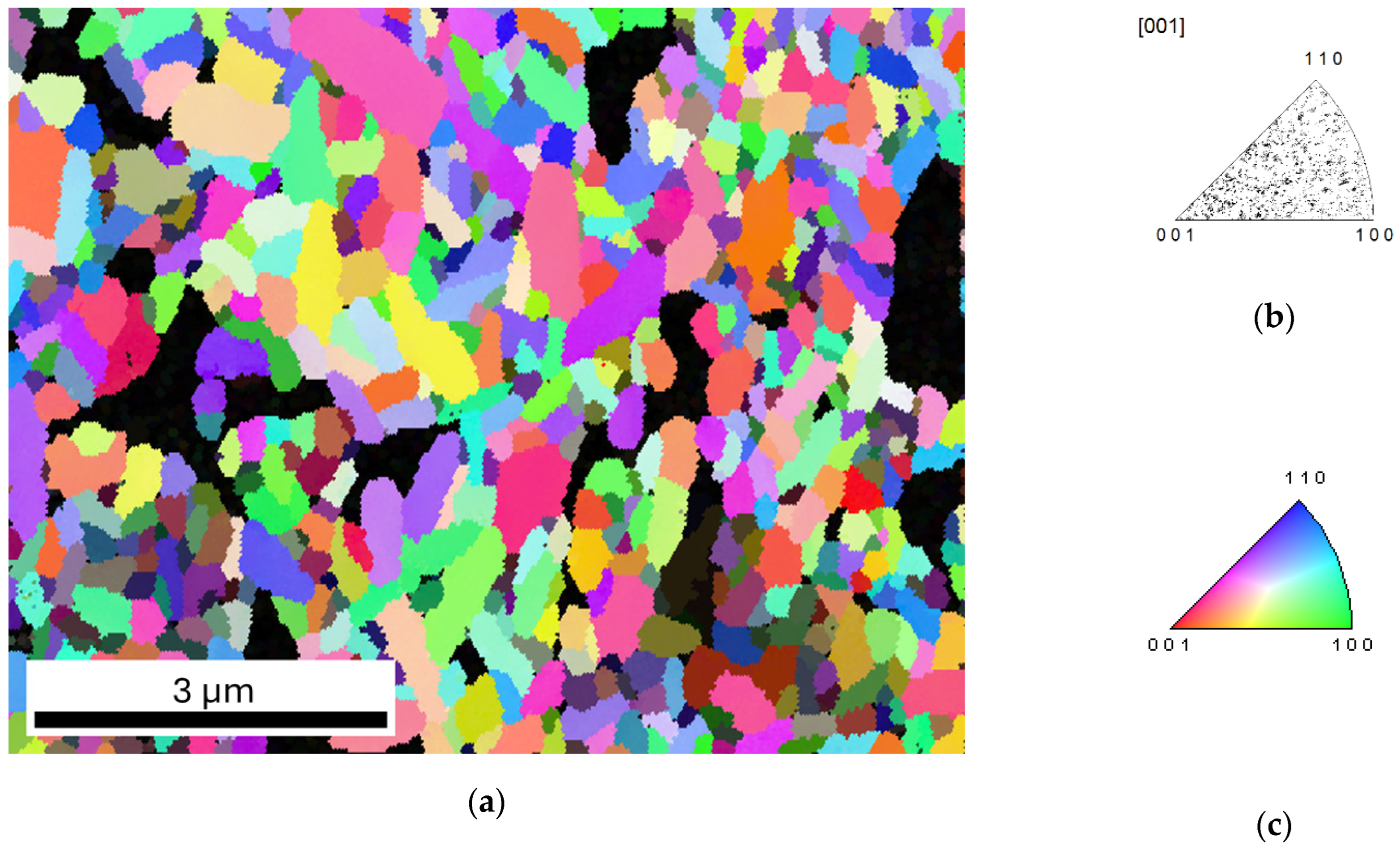

Figure 2. Inverse pole figure for Bi6Fe2Ti3O18 ceramics: (a) crystallographic orientation map; (b) inverse pole figure (IPF) showing the crystallographic orientation distribution of grains relative to the sample normal direction [001]; and (c) color-coded legend for IPF map.
Figure 2. Inverse pole figure for Bi6Fe2Ti3O18 ceramics: (a) crystallographic orientation map; (b) inverse pole figure (IPF) showing the crystallographic orientation distribution of grains relative to the sample normal direction [001]; and (c) color-coded legend for IPF map.
Materials 18 03690 g002

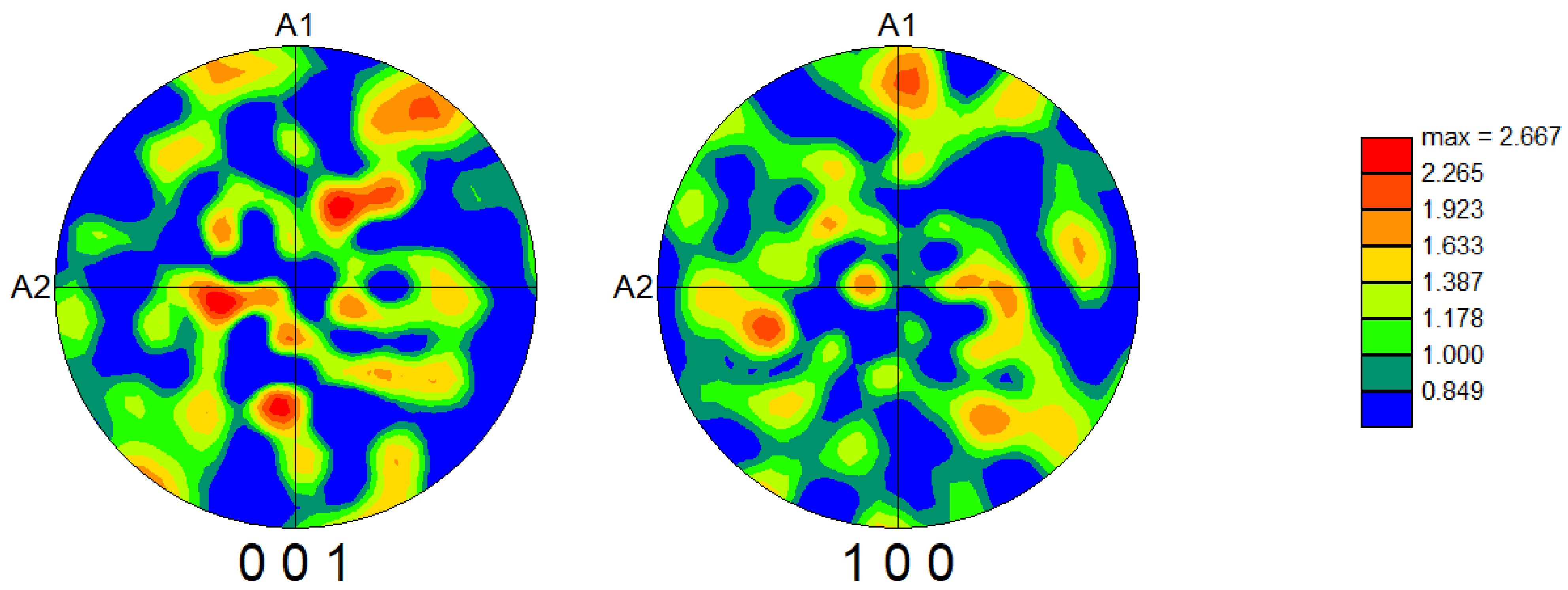

Figure 3. PF (pole figure) for Bi6Fe2Ti3O18 ceramics for the {001} and {100} planes obtained from EBSD.
Figure 3. PF (pole figure) for Bi6Fe2Ti3O18 ceramics for the {001} and {100} planes obtained from EBSD.
Materials 18 03690 g003

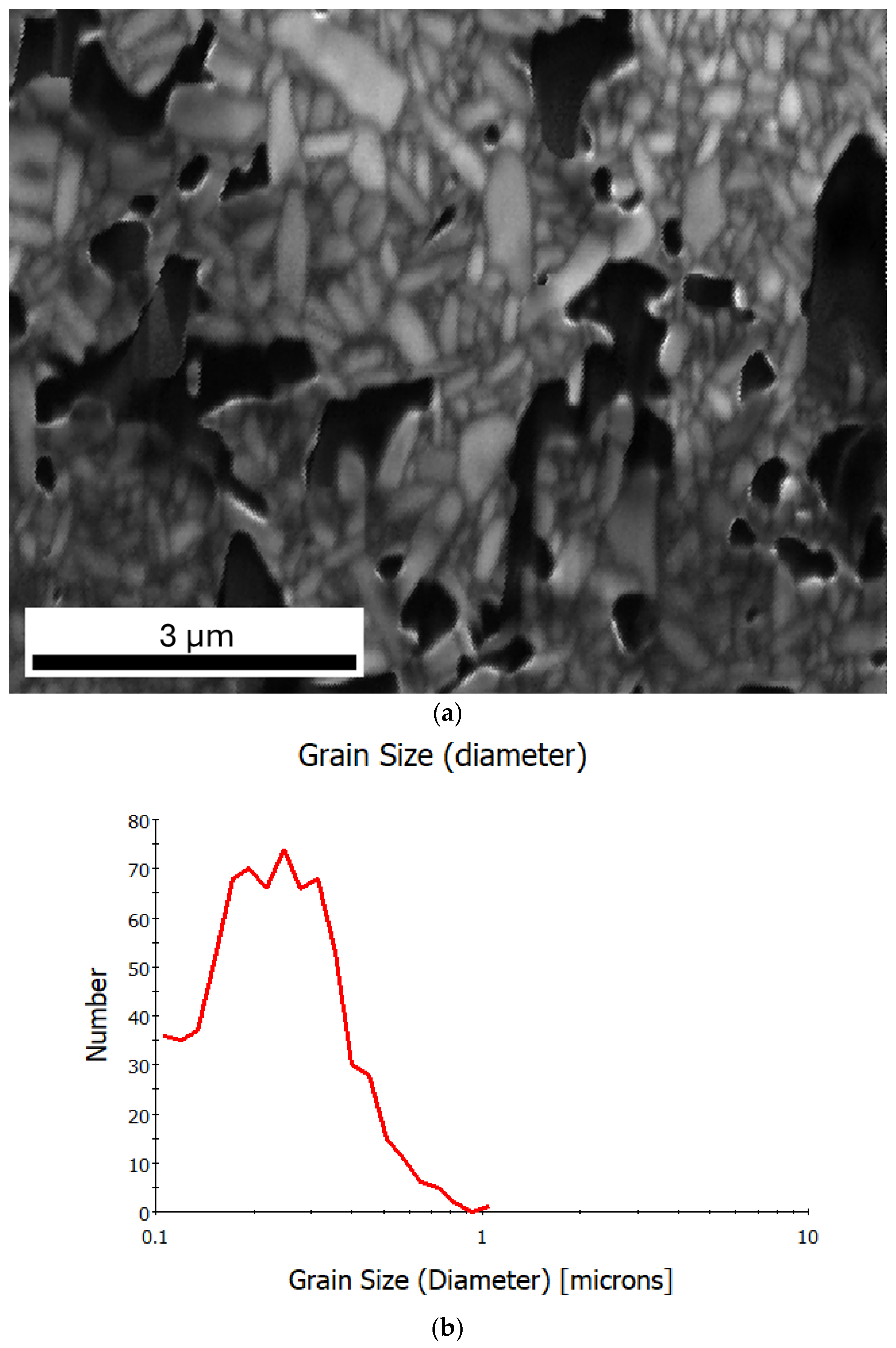

Figure 4. (a) IQ map (image quality) for Bi6Fe2Ti3O18 ceramics; (b) grain size distribution plot.
Figure 4. (a) IQ map (image quality) for Bi6Fe2Ti3O18 ceramics; (b) grain size distribution plot.
Materials 18 03690 g004

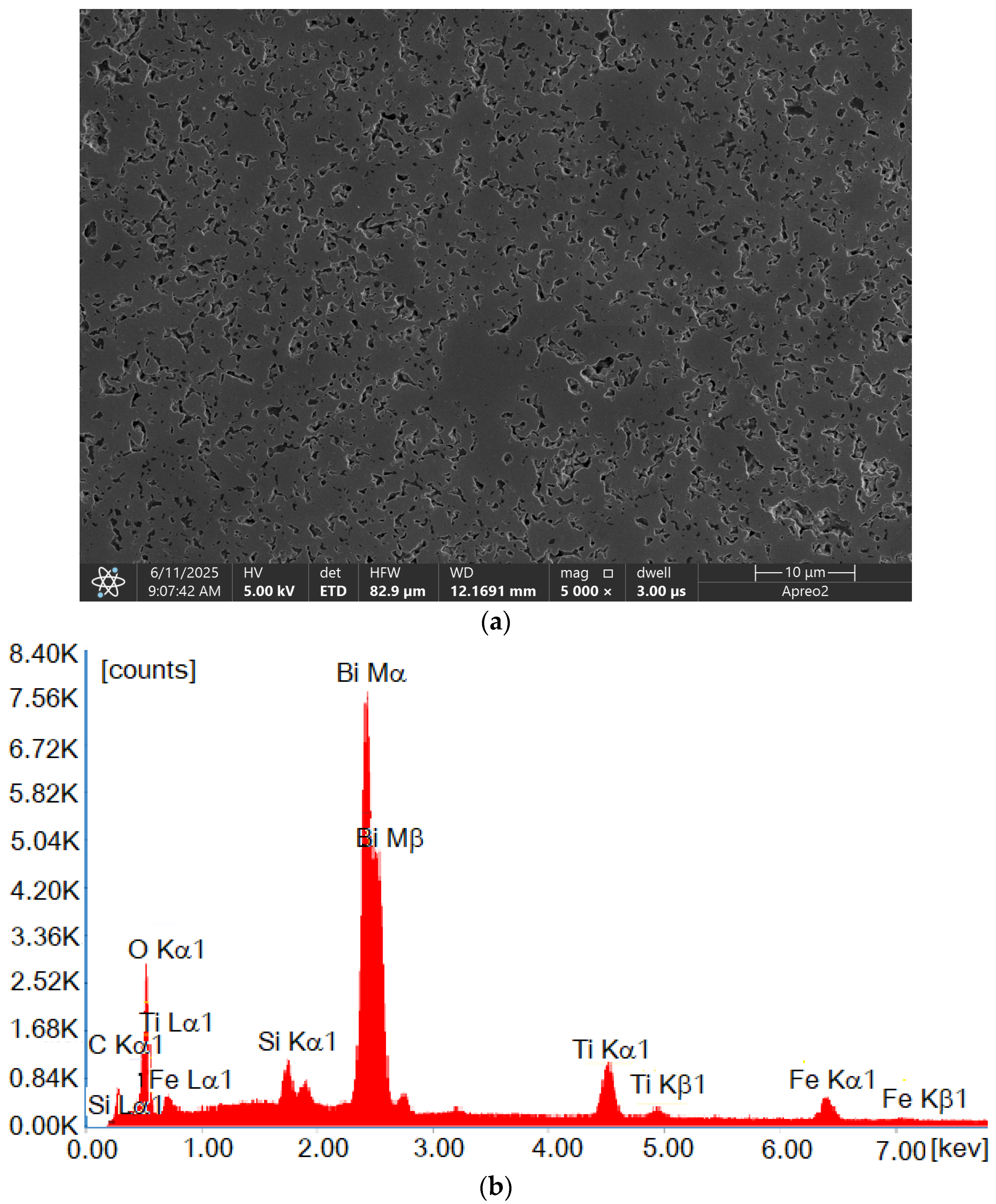

Figure 5. Microstructure and chemical composition of Bi6Fe2Ti3O18 ceramics obtained by using (a) a scanning electron microscope (secondary electron mode) and (b) an energy-dispersive X-ray spectrum (EDS).
Figure 5. Microstructure and chemical composition of Bi6Fe2Ti3O18 ceramics obtained by using (a) a scanning electron microscope (secondary electron mode) and (b) an energy-dispersive X-ray spectrum (EDS).
Materials 18 03690 g005

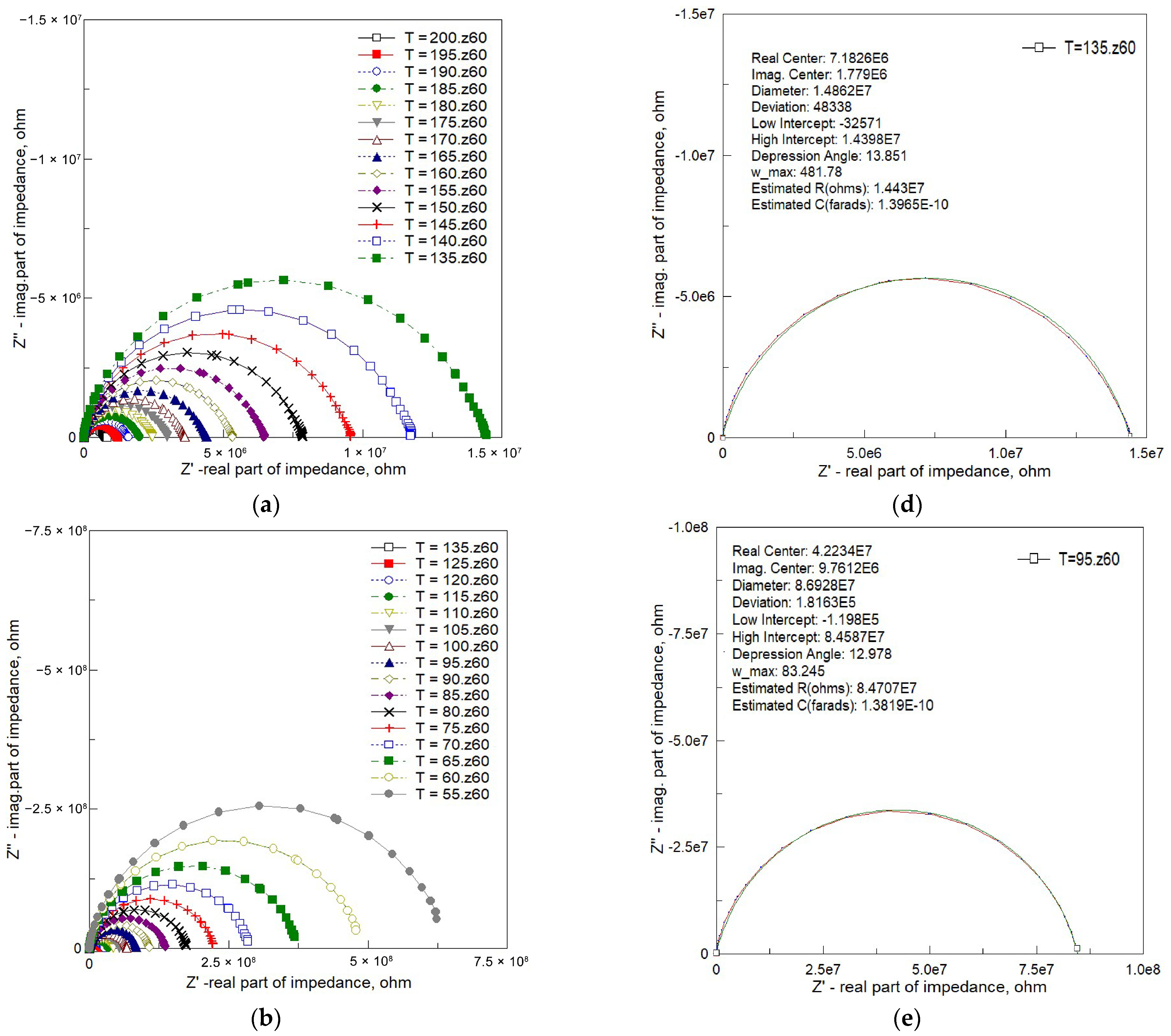

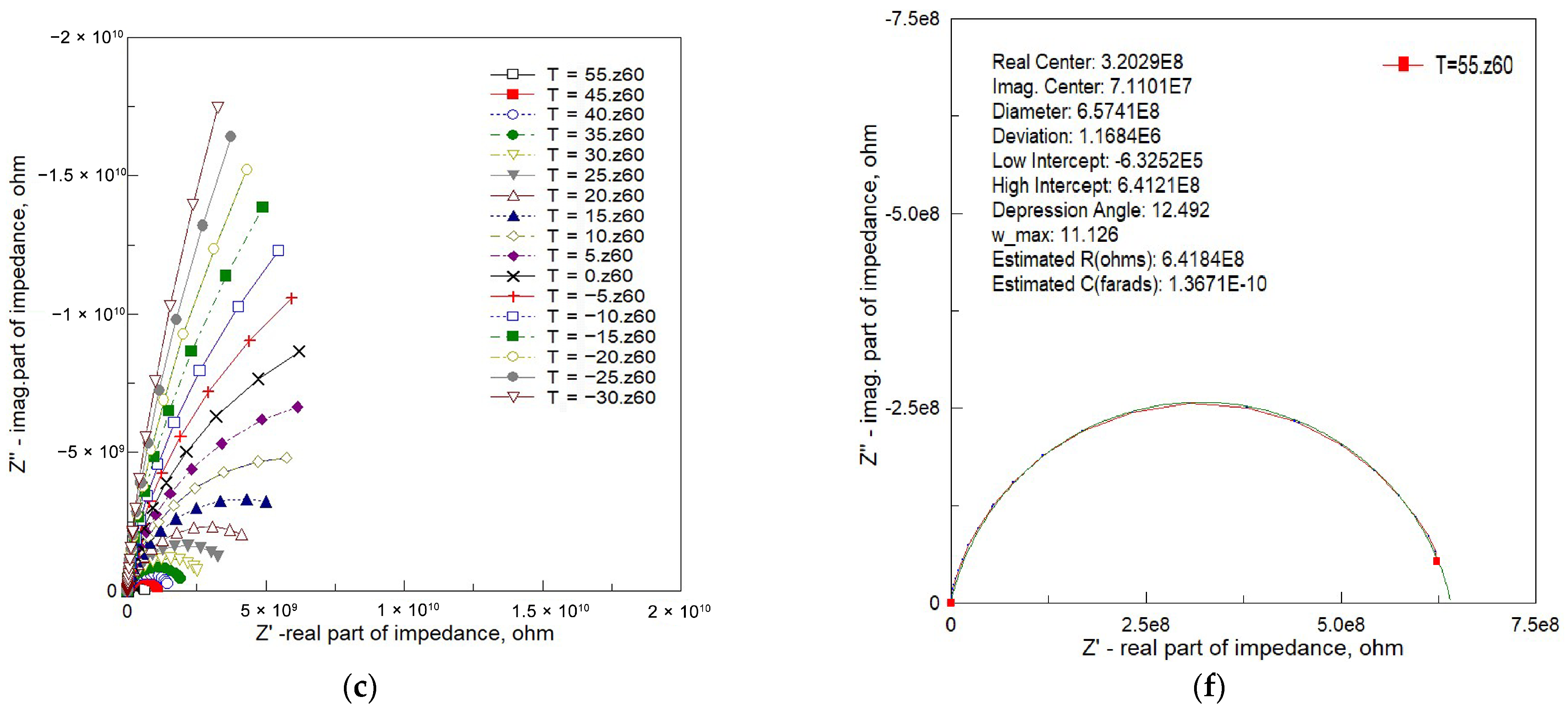

Figure 6. Nyquist plots of the complex impedance response for Bi6Fe2Ti3O18 ceramics. (a) Temperature range: 135 °C to 200 °C; (b) temperature range: 55 °C to 135 °C; (c) temperature range: −30 °C to 55 °C (linear isotropic scale); (d) circular arc fitting at 135 °C; (e) circular arc fitting at 95 °C; and (f) circular arc fitting at 55 °C. (Dots—experimental data; red line—line connecting experimental points; green solid lines—fitting results using “fit circle” approach.)
Figure 6. Nyquist plots of the complex impedance response for Bi6Fe2Ti3O18 ceramics. (a) Temperature range: 135 °C to 200 °C; (b) temperature range: 55 °C to 135 °C; (c) temperature range: −30 °C to 55 °C (linear isotropic scale); (d) circular arc fitting at 135 °C; (e) circular arc fitting at 95 °C; and (f) circular arc fitting at 55 °C. (Dots—experimental data; red line—line connecting experimental points; green solid lines—fitting results using “fit circle” approach.)
Materials 18 03690 g006aMaterials 18 03690 g006b

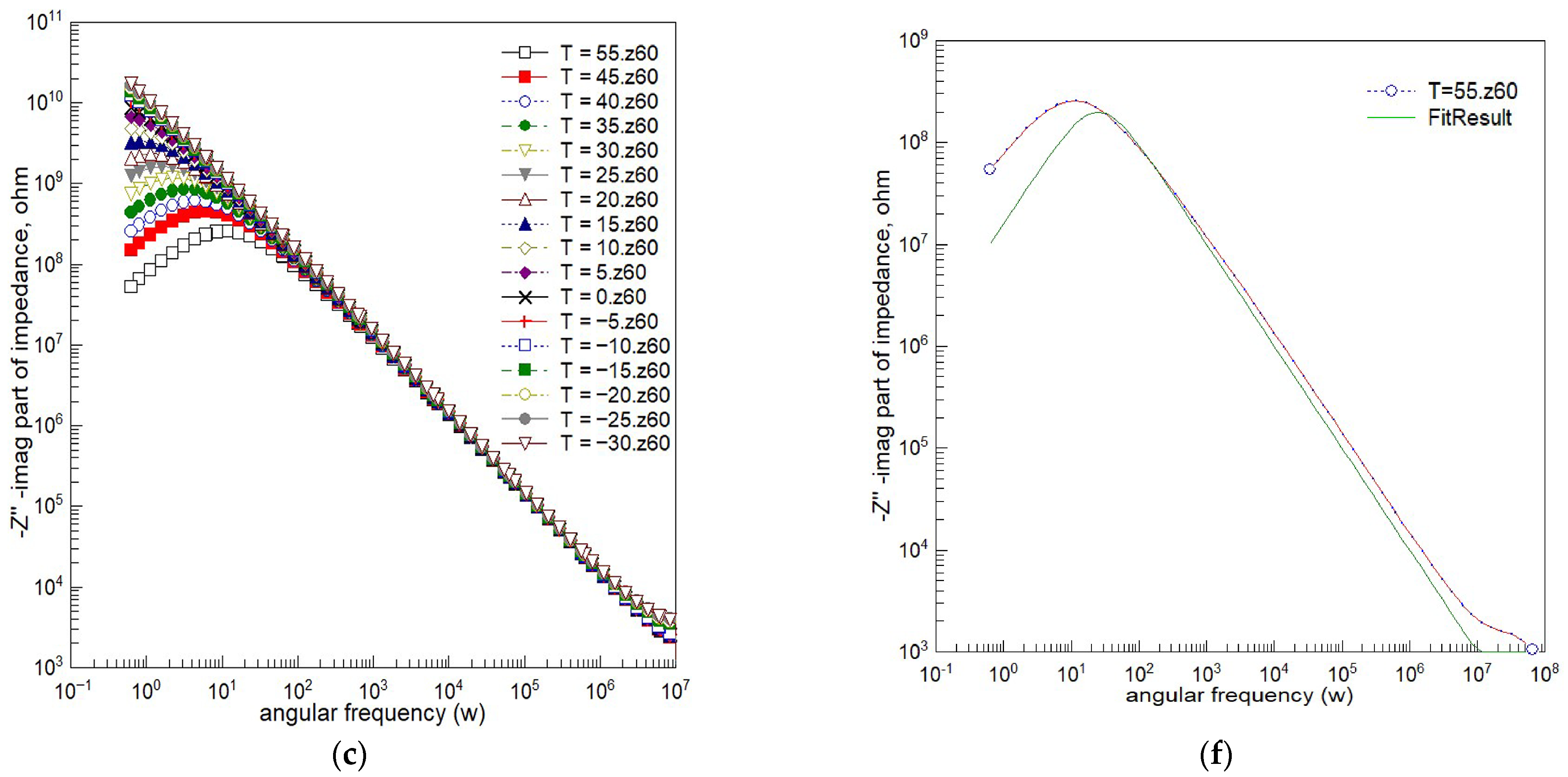

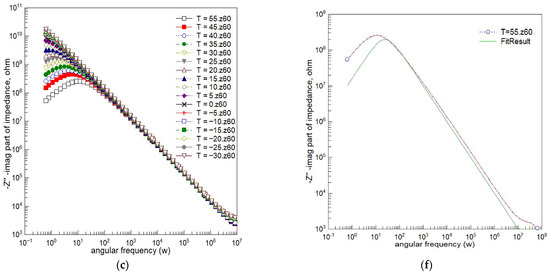

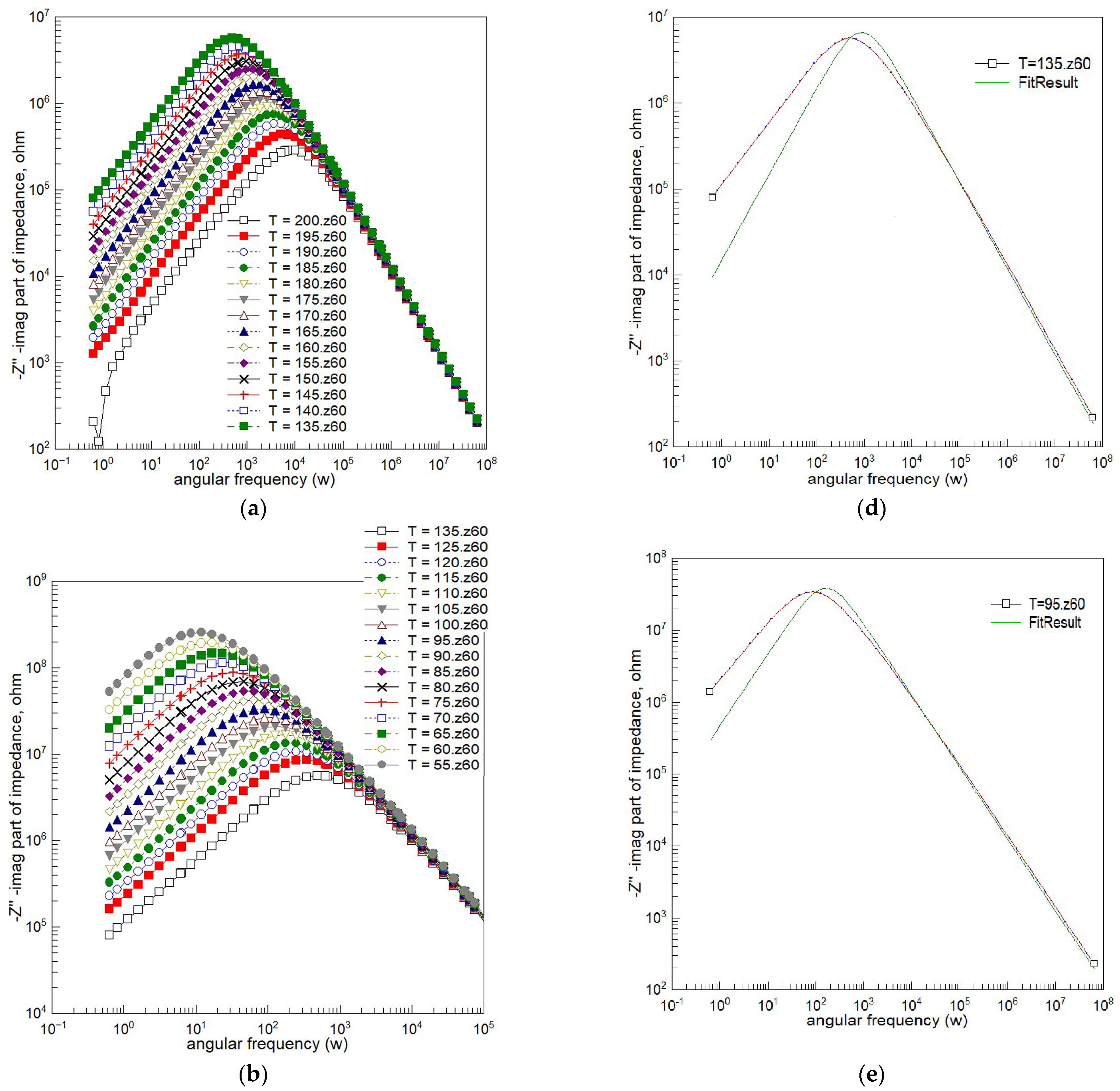

Figure 7. Spectroscopic plots of the imaginary component of complex impedance for Bi6Fe2Ti3O18 ceramics. (a) Temperature range: 135 °C to 200 °C; (b) temperature range: 55 °C to 135 °C; (c) temperature range: −30 °C to 55 °C; (d) Debye fitting at 135 °C; (e) Debye fitting at 95 °C; and (f) Debye fitting at 55 °C. (Dots—experimental data; red line—line connecting experimental points; green solid lines—fitting results based on Debye model.)
Figure 7. Spectroscopic plots of the imaginary component of complex impedance for Bi6Fe2Ti3O18 ceramics. (a) Temperature range: 135 °C to 200 °C; (b) temperature range: 55 °C to 135 °C; (c) temperature range: −30 °C to 55 °C; (d) Debye fitting at 135 °C; (e) Debye fitting at 95 °C; and (f) Debye fitting at 55 °C. (Dots—experimental data; red line—line connecting experimental points; green solid lines—fitting results based on Debye model.)
Materials 18 03690 g007aMaterials 18 03690 g007b

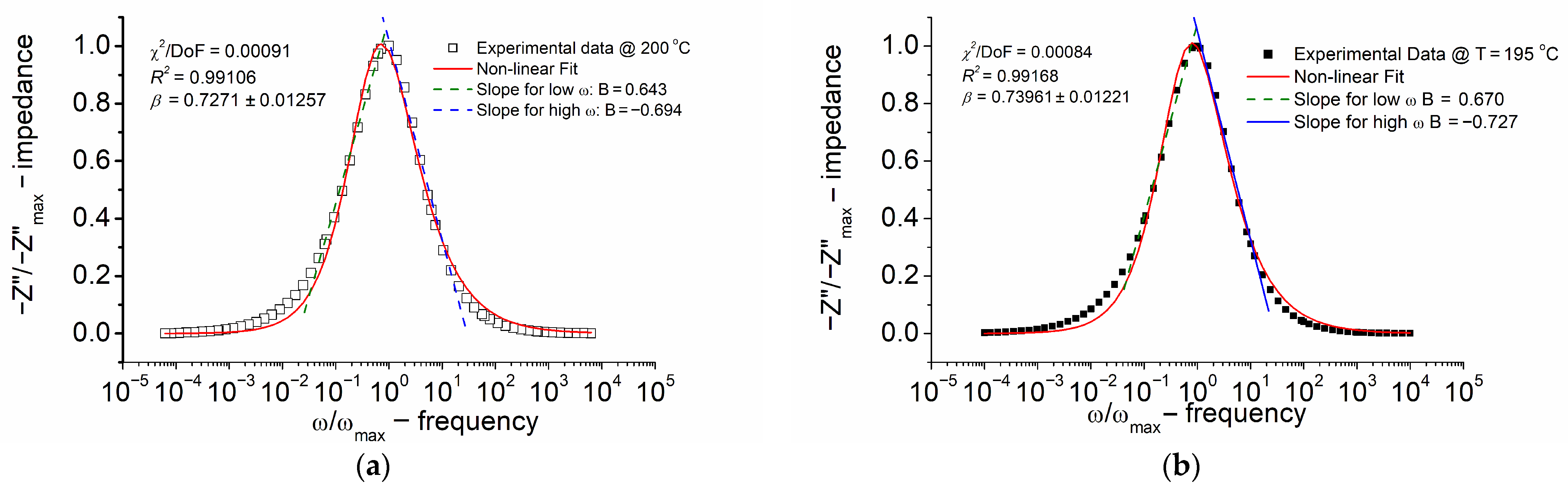

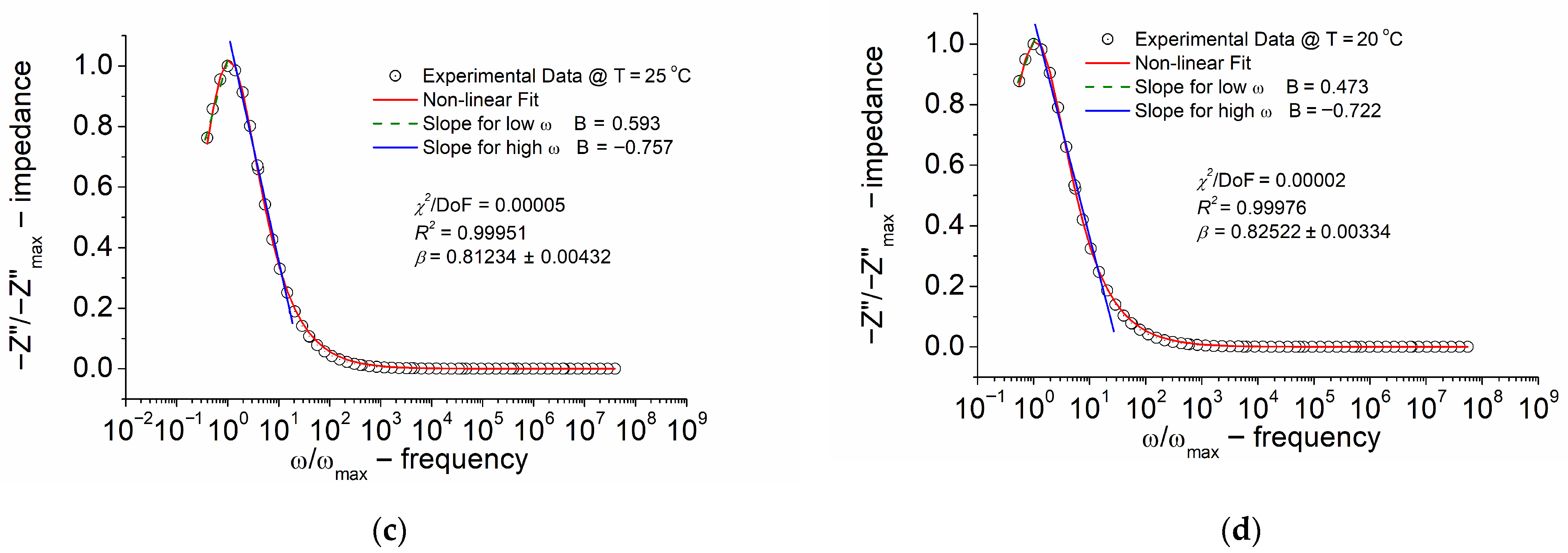

Figure 8. Normalized imaginary part of impedance (Z″/Z″max) versus normalized frequency (ω/ωmax). (a) Temperature T = 200 °C; (b) temperature T = 195 °C; (c) temperature T = 25 °C; and (d) temperature T = 20 °C. Values of quality parameters (χ2 and R2) and the stretching parameter β from the KWW equation are given in the legend.
Figure 8. Normalized imaginary part of impedance (Z″/Z″max) versus normalized frequency (ω/ωmax). (a) Temperature T = 200 °C; (b) temperature T = 195 °C; (c) temperature T = 25 °C; and (d) temperature T = 20 °C. Values of quality parameters (χ2 and R2) and the stretching parameter β from the KWW equation are given in the legend.
Materials 18 03690 g008aMaterials 18 03690 g008b
Figure 9. Dependence of relative dielectric permittivity (a) and dielectric loss tangent (b) on temperature.
Figure 9. Dependence of relative dielectric permittivity (a) and dielectric loss tangent (b) on temperature.
Materials 18 03690 g009
Table 1. Results of the qualitative X-ray diffraction phase analysis.
Table 1. Results of the qualitative X-ray diffraction phase analysis.
Chemical FormulaPDF Entry No.Crystal Symmetry/Space GroupFoM
Bi11Ti6Fe3O3300-054-0240Orthorhombic/Bm2m, 35/a/c ≈ 1.00420.8490
Bi5Ti3FeO15ICSD-74037Orthorhombic/Fmm2, 42/a/c ≈ 1.00680.8204
Bi7Ti3Fe3O2100-054-1044Orthorhombic/Fm2m, 42/a/c ≈ 1.00440.8110
Bi9Ti6FeO2700-042-0052Orthorhombic/Cmm2, 35/b/a ≈ 1.0150.7699
Bi6Ti3Fe2O1800-021-0101Orthorhombic 1/-/b/a ≈ 1.00180.7468
1 The space group number was not provided on the PDF card.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Pędzich, Z.; Lisińska-Czekaj, A.; Czekaj, D.; Wojteczko, A.; Garbarz-Glos, B. Enhanced Diffraction and Spectroscopic Insight into Layer-Structured Bi6Fe2Ti3O18 Ceramics. Materials 2025, 18, 3690. https://doi.org/10.3390/ma18153690

AMA Style

Pędzich Z, Lisińska-Czekaj A, Czekaj D, Wojteczko A, Garbarz-Glos B. Enhanced Diffraction and Spectroscopic Insight into Layer-Structured Bi6Fe2Ti3O18 Ceramics. Materials. 2025; 18(15):3690. https://doi.org/10.3390/ma18153690

Chicago/Turabian Style

Pędzich, Zbigniew, Agata Lisińska-Czekaj, Dionizy Czekaj, Agnieszka Wojteczko, and Barbara Garbarz-Glos. 2025. "Enhanced Diffraction and Spectroscopic Insight into Layer-Structured Bi6Fe2Ti3O18 Ceramics" Materials 18, no. 15: 3690. https://doi.org/10.3390/ma18153690

APA Style

Pędzich, Z., Lisińska-Czekaj, A., Czekaj, D., Wojteczko, A., & Garbarz-Glos, B. (2025). Enhanced Diffraction and Spectroscopic Insight into Layer-Structured Bi6Fe2Ti3O18 Ceramics. Materials, 18(15), 3690. https://doi.org/10.3390/ma18153690

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
