Article

Carding Behavior and Bearing Capacity of a Newly Developed Cylinder Card-Clothing Compatible with Cotton and Terylene Fibers by Nb Alloying of AISI 1090 Steel

by
Weihua Gu
1,2,
Fuguo Li
2,3,*,
Youchang Cao
4,
Qinchao Gao
1 and
Chengzhi Zhuo
1,3
1
Geron Card Clothing Co., Ltd., Nantong 226009, China
2
School of Materials Science and Engineering, Northwestern Polytechnical University, Xi’an 710072, China
3
Joint R&D Center for Metallic Materials, Metallic Wire and Metallic Card Clothing, Xi’an 710002, China
4
Texhong International Group Limited, Hong Kong, China
*
Author to whom correspondence should be addressed.
Materials 2024, 17(7), 1511; https://doi.org/10.3390/ma17071511
Submission received: 6 December 2023 / Revised: 12 March 2024 / Accepted: 19 March 2024 / Published: 27 March 2024
(This article belongs to the Section Materials Simulation and Design)
Browse Figures
Versions Notes

Abstract

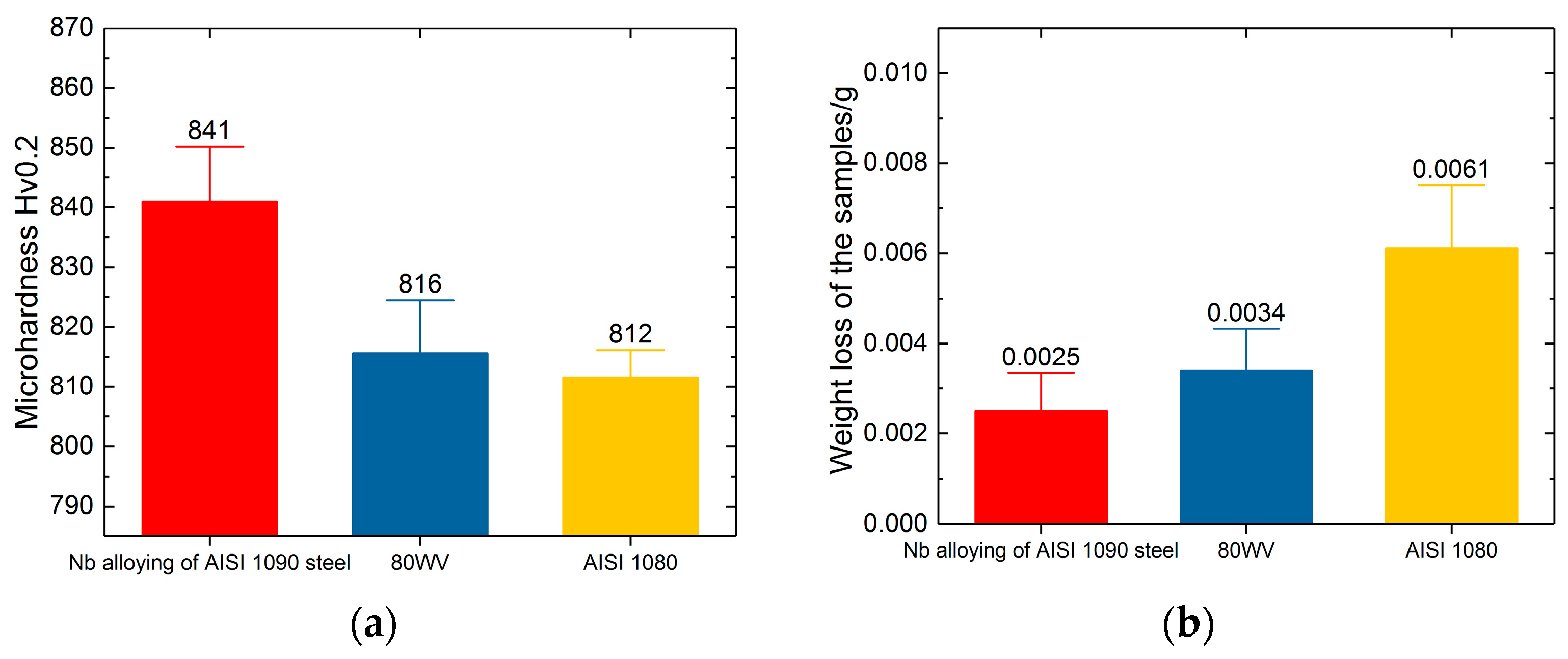

Changing the metallic card clothing on a carding machine is costly when the spinning mills want to card different fibers from cotton to terylene or vice versa. This article proposes a newly developed cylinder card clothing compatible with cotton and terylene fibers by Nb alloying of AISI 1090 steel so that the spinning mills can change the type of fiber without changing the card clothing. Based on an idea developed from classical carding balance theory to study the adaptability of the cylinder card clothing for cotton and terylene fibers, the wall shear stress was used as the basis for compatibility analysis of carding behavior and bearing capacity with cotton and terylene fibers and as the focus of this study. Nb alloying of AISI 1090 steel showed good wear resistance in carding areas after heat treatment with high hardness above 840 Hv0.2 and extremely fine grain grade of 13.5 class, which increased about 25% compared to conventional 80 WV. The testing results in the spinning mills, including one cotton and two terylene fibers, showed good performance with this newly developed card clothing. In conclusion, the card clothing made of Nb alloying of AISI 1090 steel can handle different fibers with acceptable carding performance.
Keywords: carding; metallic card clothing (MCC); computational fluid dynamics (CFD); Nb alloying of AISI 1090 steel; wear resistance carding; metallic card clothing (MCC); computational fluid dynamics (CFD); Nb alloying of AISI 1090 steel; wear resistance
