XGB Modeling Reveals Improvement of Compressive Strength of Cement-Based Composites with Addition of HPMC and Chitosan

by
Duygu Ege
1,* and
Ali Reza Kamali
2
1
Institute of Biomedical Engineering, Boğaziçi University, Rasathane Cd, Kandilli Campus, Kandilli Mah., Istanbul 34684, Turkey
2
Energy and Environmental Materials Research Centre (E2MC), School of Metallurgy, Northeastern University, Shenyang 110819, China
*
Author to whom correspondence should be addressed.
Materials 2024, 17(2), 374; https://doi.org/10.3390/ma17020374
Submission received: 29 November 2023 / Revised: 27 December 2023 / Accepted: 5 January 2024 / Published: 11 January 2024
(This article belongs to the Section Biomaterials)
Browse Figures
Versions Notes

Abstract

:
This study investigates the improvement in the compressive strength of cellulose/cement-based composites. Methyl cellulose (MC), carboxymethyl cellulose (CMC), and hydroxypropyl cellulose (HPMC) are separately used as the cellulose phase with different wt%. Graphene oxide (GO) and zoledronic acid (ZOL) are used as additives for bone regeneration for various formulations. Utilizing Extreme Gradient Boosting (XGB) modeling, this research demonstrates the roles of the choice of the cellulose phase, wt% of cement phase, % gelatin, % citric acid, degradation time, and concentration of GO and ZOL in influencing compressive strength. The XGB regression model, with an R2 value of 0.99 (~1), shows the predictive power of the model. Feature importance analysis demonstrates the significance of cellulose choice and the addition of chitosan in enhancing compressive strength. The correlation heatmap reveals positive associations, emphasizing the positive influence of HPMC and CMC compared with MC and the substantial impact of chitosan and citric acid on compressive strength. The model’s predictive accuracy is validated through predicted compressive strength values with experimental observations, providing insights for optimizing cellulose-reinforced cements and enabling tailored material design for enhanced mechanical performance.

1. Introduction

In recent decades, there has been a notable focus on bioresorbable cements, for the restoration and substitution of compromised bone tissues. Bioresorbable cements have gained significant attention owing to their ability to occupy bone voids, eliminating the necessity for metallic implants [1]. A key advantage lies in the natural degradation of these implants at the implantation site, eliminating the need for subsequent surgeries to extract the implants post-healing, which distinguishes them favorably from non-degradable alternatives [2,3].
Calcium phosphate cements (CPC) are the focus of extensive research due to their outstanding physical, mechanical, and biological properties [4,5,6]. Because of their biocompatibility, bioactivity, biodegradability, and osteoconductivity, there is significant interest in advancing their development. CPCs can be injected and, subsequently, solidify in vivo, conforming to the shape of the defect site. Among the most commonly utilized bioceramics for CPC production are dicalcium phosphate dihydrate (DCPD, CaHPO4.2H2O), calcium sulfate dihydrate (CSD; CaSO4·2H2O), and tetra-calcium phosphate (TTCP, Ca4(PO4)2O) [5,6,7]. Upon injection of a mixture of TTCP and DCPD into the defect site, it undergoes transformation into hydroxyapatite (HA) [5,6,8].
To modify the rheological characteristics, such as injectability, setting temperature, and mechanical properties, CPC may be incorporated into a polymeric matrix. The inclusion of a polymeric matrix can also facilitate the penetration of body fluids into bone substitutes, thereby supporting three-dimensional cell migration, cell growth, and ultimately ossification [5,9]. In this context, the selection of an appropriate polymer is crucial for optimizing these functions [10,11,12,13,14,15]. Cellulose stands out as a promising polymer for this purpose; however, its lack of water solubility, attributed to intra-molecular hydrogen bonding, limits its applicability in biomedical contexts [16,17,18]. Consequently, hydrophilic and water-soluble derivatives of cellulose have been developed [19]. Methylcellulose (MC), carboxymethyl cellulose (CMC), and hydroxypropyl cellulose (HPMC) are cellulose ether derivatives and have undergone extensive research for biomedical applications [10,11]. Gelatin is also added to the CPC composites due to its arginine, glycine, and aspartic amino acid sequence (RGD) groups, which improve cell–biomaterial interactions and also enhance mechanical properties. Nanocomposites, particularly those involving functionalized cellulose/gelatin-reinforced cements, have attracted significant interest in the biomaterials and tissue engineering field due to their potential for enhanced mechanical properties and biocompatibility [12,13]. Citric acid is also incorporated into the CPC/polymeric composites to improve their mechanical performance [1]. Citric acid (CA) stands out as a promising candidate because of its carboxylic groups, which establish a network with CMC chains and amide bonds with gelatin. Furthermore, citrate ions are also present in the bone mineral; therefore, they are non-toxic and, additionally, relatively inexpensive [7,14].
Nanocomposites incorporating graphene have garnered significant attention in the field of biomedical applications owing to their exceptional physical, electrical, and chemical attributes, as well as their extensive surface area and high chemical purity. Consequently, integrating graphene and its derivatives with calcium phosphate cements (CPC) represents a promising approach to enhance various aspects of CPC performance, including mechanical properties, stability, workability, and osteoconductivity, as well as cell adhesion, proliferation, and differentiation [15,16].
Research indicates that introducing bisphosphonates (BPs) to injectable bone substitutes (IBS) can modify the physicochemical characteristics of the IBS, including hardening time, morphology, porosity, and mechanical properties, all within acceptable ranges [17]. Specifically, the addition of BPs has been observed to slightly reduce the mechanical properties of the IBS samples with added BPs [18,19,20]. Boanini et al. [21] conducted a comparison of the in vitro effects of zoledronic acid (ZOL) and alendronate using hydroxyapatite (HA) nanocrystals. ZOL exhibited a higher affinity for the HA structure compared to alendronate, although both showed a similar level of osteoclast apoptosis. The strong affinity of ZOL for HA was attributed to their favorable structural compatibility. Additionally, in vivo studies on BP-loaded calcium phosphate cement (CPC)-based scaffolds have substantiated the enhancement of bone formation through BP incorporation [20,21].
The foundation of this investigation lies in studying the data of methyl cellulose (MC)/cement, carboxymethyl cellulose (CMC)/cement, and hydroxypropyl cellulose (HPMC)/cement-based composites, wherein the focus is given to the concentrations of MC, CMC, HPMC, GO, citric acid, cement, ZOL, cellulose, and chitosan, as well as degradation time. The significance of each component’s contribution to the resulting mechanical properties is assessed through a comprehensive computational modeling approach. Using an advanced machine learning algorithm, specifically the Extreme Gradient Boosting (XGB) regression model, enables a deeper understanding of the complex relationships within these nanocomposites, offering predictive insights into their compressive strength [22,23]. The integration of computational modeling in this study is crucial not only for predictive purposes but also for unraveling the underlying mechanisms governing the mechanical behavior of cellulose-reinforced cements. Through an array of analyses, including correlation heatmaps, feature importance assessments, and Shapley Additive Explanation (SHAP) techniques, this study aims to elucidate the hierarchical impact of each parameter on compressive strength [24]. Such insights are invaluable for the optimization of biomaterials, laying the groundwork for the development of mechanically robust and functionally tailored nanocomposites for tissue engineering applications.

2. Materials and Methods

2.1. Data Collection

In this study, data are collected from six previous papers, and 68 datasets are collected [7,25]. Following this, the mechanical properties of the composites were covered for different formulations. The eight independent variables in this study include choice of cellulose phase as either MC, CMC, or HPMC; % of cellulose; wt% of cement; wt% of citric acid; wt% of gelatin; wt% of GO; ZOL concentration; and degradation time (in days). The dependent variable is compressive strength. Table 1 below shows the composition of the biomaterials. Detailed parameters are provided in Table 1 in Supplementary Table S1.

2.2. Computational Modeling

The implementation of machine learning algorithms in this study was conducted using Python 3.9, leveraging key libraries such as Pandas, Numpy, Scipy, Matplotlib, Seaborn, and Scikit-learn. Specifically, the analysis involved the application of an XGB regression model [27]. The Python codebase for this study is accessible at https://github.com/duyguege/machine-learning.git (accessed on 15 October 2023).

2.2.1. XGB Regressor

The XGB regressor, developed by Guestrin and Chen in 2016, stands as an ensemble gradient-boosting algorithm [28,29]. This model enhances predictive capabilities by sequentially incorporating trees, creating a robust learner from weaker ones [29]. Predictions are then derived by aggregating scores from individual leaf nodes [30]. Renowned for its efficiency and accuracy, XGB is a prevalent choice in regression tasks. To mitigate over-fitting to outliers, the model applies a second-order Taylor expansion to the loss function and normalizes the objective function [28,29,30,31].

2.2.2. Training, Hyper-Tuning, and Validation Processes

The dataset underwent division into training (80%) and test (20%) sets, with the former used for model development and the latter for evaluation. The Scikit-learn library in Python facilitated the application of models. Optimal parameters for the XGB model were determined through hyperparameter tuning, considering factors such as the subsample ratio of columns, number of estimators, maximum depth, and learning rate (shrinkage factor). To ensure a balance between underfitting and overfitting, optimal parameters were selected for both training and test sets [32]. Performance evaluation involved 10-fold cross-validation, with the model ultimately used for predicting stiffness values [33,34].

2.2.3. Correlation Heatmap

A correlation heatmap, generated using the Seaborn module in Python, served to evaluate the relationships among independent factors (choice of CMC, HPMC, or MC; degradation time; % of cement; wt% of GO; % citric acid; % chitosan; and ZOL concentration) and the dependent variable, compressive strength. A higher correlation coefficient (r) indicated multicollinearity among the independent variables [22]. MC is coded as 0, CMC is coded as 1, and HPMC is coded as 2 in the dataset to analyze their correlation. A value above 0.8 indicates a very strong correlation and a value between 0.6 and 0.8 indicates a strong correlation. A value between 0.4 and 0.6 shows that there is a moderate correlation. A value between 0.2 and 0.4 demonstrates a weak correlation. If the value is below 0.2, there is only a very weak correlation. Finally, a negative value indicates a negative correlation, and the relevant strength of values is also true for negative correlation values.

2.2.4. Feature Importance

Feature importance was assessed by calculating the significance of features through an integrated function in the Scikit-learn implementation of the XGB model. Features were ranked based on their importance [23,35].

2.2.5. Model Performance Assessment

The success of the models was gauged based on higher coefficients of determination (R-squared or R2) with lower root mean square error (RMSE) and mean absolute error (MAE) indicative of superior performance. Model assessment encompassed the evaluation of R2, RMSE, and MAE [22,23,24].

2.2.6. Shapley Additive Explanation

The Shapley Additive Explanation (SHAP) technique, introduced by Lundberg and Lee in 2017, was employed for unraveling complex relationships in machine learning models [36]. Utilizing SHAP as a Python model interpretation tool, this study delved into the marginal relationship between predicted compressive strength values and each feature. SHAP values elucidated the contribution of each feature to compressive strength prediction, with negative and positive values signifying negative and positive contributions, respectively. The SHAP summary plot depicted the impact of each parameter on compressive strength, with the primary y-axis displaying SHAP values and the secondary y-axis featuring a color bar indicating high feature values.

3. Results and Discussion

In this study, we use XGB boosting to study the effect of processing parameters on the compressive strength of cellulose/cement-based composites. The mechanical properties of these biocomposites are influenced by many factors and the choice of the components is critical. This study explores how material choice intricately shapes the mechanical characteristics of cellulose/cement composites. The investigated factors are ZOL concentration; wt% of GO, wt% of cement, wt% of citric acid, wt% of chitosan, and choice of cellulose.
Figure 1a shows the correlation heatmap for the dependent variable (compressive strength), ZOL concentration, wt% of GO, wt% of cement, wt% of citric acid, wt% of chitosan, and choice of cellulose (MC_CMC_HPMC) as the cellulose phase; Figure 1b shows the correlation coefficient ® of the parameters and the dependent variable.
In the model, MC, CMC, and HPMC are coded as 0.1 and 2, respectively. The correlation coefficient ranged from −1 to 1. Meghanathan et al. [37] indicate that a value from 0.8 to 1 for the correlation coefficient reveals a very strong correlation and a value from 0.6 to 0.8 indicates a strong correlation. A value between 0.4 and 0.6 shows that there is a moderate correlation. A value between 0.2 and 0.4 demonstrates a weak correlation. If the value is below 0.2, there is only a very weak correlation. As there is a strong positive correlation (correlation coefficient = 0.79) for the choice of cellulose (MC_CMC_HPMC) parameters with compressive strength, this indicates that CMC leads to higher compressive strength than MC, and HPMC leads to higher compressive strength than CMC. Citric acid and chitosan concentration also have a strong positive correlation with compressive strength. Zhang et al. [38] incorporated chitosan in β-tricalcium phosphate and observed significant improvement in mechanical properties. This was explained to be due to the complexation of the calcium ions of the calcium phosphate phase with the functional groups of chitosan. Citric acid improves mechanical properties by interacting with hydroxyl groups of the carboxymethyl or hydroxypropyl methyl cellulose phases, which forms an ester crosslink [10]. Citric acid also has a “salting-out” effect, which increases the packing of the cements and reduces porosity [39]. The % of cement has a comparatively weaker positive correlation with compressive strength. For degradation time (days), there is a positive correlation of 0.28. This means that, generally, degradation increases compressive strength; however, as this value is low, this means that there is only a weak correlation. The correlation coefficients for ZOL and GO are quite low and negative, and this shows that they have a weak correlation with the compressive strength of the composites. This means that their effect on compressive strength is much less effective. The literature indicates that GO increases compressive strength significantly when added in a polymeric phase due to hydrogen bonding; however, this effect is found to be much less pronounced in cements [25,40,41]. An increase in the concentration of cellulose and gelatin is also observed to have a negative correlation. Figure 2 shows (a) RMSE, R2, and MAE for training and testing compressive strength data, (b) predicted and observed (test) compressive strength values, (c) SHAP values for each feature, and (d) SHAP values for independent variables for the prediction of compressive strength.
Figure 2 shows that R2 for the XGB model is 0.99 (~1). This is an excellent fit of the test values to the model trained by the training dataset [42]. R2 for testing and training are also very similar, which shows that the model works similarly for training and testing data. However, RMSE and MAE values are higher for testing data than for training data. This shows that there is a degree of overfitting of the model for the dataset. Despite this, the RMSE and MAE values are quite low even for test data (MAE = 0.4, RMSE = 0.7); therefore, the model can still provide satisfactory knowledge for analyzing the importance of each factor and the mechanical behavior of the composites [42]. Figure 2c shows that SHAP values are positive for all the features. This shows that the model gives predictions with higher values than experimental data. The highest SHAP value is observed for the choice of cellulose. According to Figure 2d, higher values of the dataset for % cement phase, wt% citric acid, wt% of cellulose, and degradation time increase the SHAP value. This shows that higher values of % of cement, wt% citric acid, wt% of cellulose, and degradation time improve the compressive strength prediction. For other data values (GO, ZOL, chitosan, gelatin), the effect is not as distinct. Figure 3 shows the feature importance implemented from the XGB model.
According to Figure 3, the most important factor affecting compressive strength is the addition of chitosan. Chitosan’s positive amine groups may interact via ionic bonds with negatively charged carboxyl groups of cellulose. It may also form complexes with the cement phase, improving the mechanical strength [43]. The choice of type of cellulose is also found to be effective. HPMC leads to higher compressive strength than CMC, and CMC is observed to lead to higher compressive strength than MC. This could be due to the presence of the hydroxypropyl group, which improves the solubility of the cellulose phase, which leads to a more homogeneous blending of cellulose with the cement and gelatin phase [7,14,44]. The wt% of cellulose, citric acid, and cement are observed to have much less importance on compressive strength. As citric acid can form amide bonds with gelatin and also crosslinks with HPMC, CMC, and MC, it increases the compressive strength of the composites; however, this effect is quite insignificant in comparison to chitosan and cellulose components. GO, ZOL, gelatin concentrations, and degradation time are observed to have a much less significant effect on compressive strength than the other factors. Figure 4 shows predicted compressive strength for various % of the cement phase.
According to Figure 4, with the increase of compressive strength, compressive strength increases. More distinctly, HPMC leads to higher compressive strength following CMC and MC. The higher compressive strength is because of the presence of ionic interactions between negatively charged carboxyl and hydroxyl groups of HPMC and positive amine groups of the gelatin phase. Moreover, the cement phase and CMC may also interact via ionic interactions [7,25,45]. On the other hand, MC has hydrophobic interactions and hydrogen bonding occurs between MC chains [1]. This shows that the presence of ionic interactions leads to a composite with higher strength than MC. Figure 5 shows the predicted compressive strength for various wt% of GO.
GO’s hydroxyl, carboxyl, and epoxy groups carboxylate ions of CMC to form hydrogen bonding. This interaction increases the strength of the biomaterial [45]. According to Figure 5, GO increases compressive strength up to 1 wt% loading in CMC. This dosage goes down to 0.5 wt% for MC. This is possibly because of the easier mixing of GO in CMC than MC due to CMC’s carboxyl groups. Above these concentrations, compressive strength decreases, and this is because of the agglomeration of GO at higher loadings. This trend is frequently observed in research papers [25,46,47]. Moreover, the increase here is not very significant compared to the effect of the choice of cellulose type. This is also previously shown in Figure 3, as GO was shown to have little effect on compressive strength. In Figure S1, the predicted values and experimental values are provided for GO and MC-added 50 wt% cement biocomposites. According to this figure, the values are quite similar for most of the predictions and experimental groups for studied compositions. The difference was relatively more pronounced for the addition of 0.5 and 1.5 wt% of GO. The difference was 5 and 6% off for 0.5 and 1.5 wt% of GO-added samples; however, even this difference was considerably small. Figure 6 shows predicted and experimental values of the compressive strength for various concentrations of ZOL and degradation time.
According to Figure 6a, ZOL minimally increases compressive strength with a concentration of 1 µM; however, with an increase of concentration to 5 µM, an abrupt increase in compressive strength was observed. As seen in Figure 6b, degradation initially reduces compressive strength; however, with further degradation time, compressive strength increases. This is because the cement phase hardens over time, significantly increasing the compressive strength on day 7 [1]. When experimental values and predictions are compared, it is observed that values are quite similar except for day 3. A higher prediction is observed compared to the experimental value. This increase may also be explained by the positive SHAP values, which indicate that predictions are higher than experimental values.
Overall, according to this study, many parameters are demonstrated to be effective on compressive strength. The most effective parameters are the addition of chitosan and the choice of cellulose phase. The RMSE and MAE values for the test set are greater than those for the training set, indicating the presence of overfitting. However, the difference is not substantial. Therefore, the obtained results appear to be meaningful. Nonetheless, conducting additional machine learning studies in the future with larger datasets would be valuable to further analyze relationships between parameters.
For example, for the compressive modulus and % strain at break, there is not enough data for the prepared composites. Once there is enough data in the literature, the effect of the studied parameter may also be applied to analyze their effect on compressive modulus and % strain at break. Additionally, as can be observed in Table 1, the initial concentration of gelatin and cellulose is not the same. This may affect the outcome of the model. In the future, it would be more effective if initial concentrations are kept the same for gelatin, citric acid, and cellulose to be able to compare the effect of the type of cellulose on mechanical strength. Despite this, the data obtained from the XGB modeling is fruitful and open doors for future studies to further optimize the mechanical properties of the cellulose/cement-based composites. Since the dataset on stiffness and % strain were more constrained so far, we could only study compressive strength. In the future, it would also be beneficial to study the effect of each parameter on the stiffness and % strain of the prepared composites.

4. Conclusions

The XGB regression model exhibited strong predictive capabilities with an R2 value of 0.99, underscoring the pivotal roles of many factors influencing the mechanical properties of the cements. Feature importance analysis emphasized the significant contributions of cellulose choice and chitosan to the observed improvements in compressive strength. The predictive accuracy of the model was validated through the congruence of predicted compressive strength values with experimental observations, providing actionable insights for the optimization of cellulose-reinforced cements. These findings offer a valuable foundation for tailored material design, allowing for the enhancement of mechanical performance in cellulose-reinforced biocomposites.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma17020374/s1, Figure S1: Compressive strength of predicted and experimental MC loaded samples versus wt% of GO; Table S1: Compressive strength of the samples in relation to the composition of the ceramic-based composites.

Author Contributions

Conceptualization, D.E.; methodology, D.E.; software, D.E.; validation, D.E.; formal analysis, D.E. and A.R.K.; investigation, D.E.; data curation, D.E.; writing—original draft preparation, D.E.; writing—review and editing, D.E. and A.R.K.; visualization, D.E. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The original contributions presented in the study are included in the article and supplementary material, further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Demir Oğuz, Ö.; Ege, D. Rheological and mechanical properties of thermoresponsive methylcellulose/calcium phosphate-based injectable bone substitutes. Materials 2018, 11, 604. [Google Scholar] [CrossRef]
  2. Piao, Y.; Chen, B. Synthesis and mechanical properties of double cross-linked gelatin-graphene oxide hydrogels. Int. J. Biol. Macromol. 2017, 101, 791–798. [Google Scholar] [CrossRef] [PubMed]
  3. Ege, D.; Cameron, R.; Best, S. The degradation behavior of nanoscale HA/PLGA and α-TCP/PLGA composites. Bioinspired Biomim. Nanobiomater. 2014, 3, 85–93. [Google Scholar] [CrossRef]
  4. Ginebra, M.P.; Espanol, M.; Montufar, E.B.; Perez, R.A.; Mestres, G. New processing approaches in calcium phosphate cements and their applications in regenerative medicine. Acta Biomater. 2010, 6, 2863–2873. [Google Scholar] [CrossRef] [PubMed]
  5. O’Neill, R.; McCarthy, H.O.; Montufar, E.B.; Ginebra, M.-P.; Wilson, D.I.; Lennon, A.; Dunne, N. Critical review: Injectability of calcium phosphate pastes and cements. Acta Biomater. 2017, 50, 1–19. [Google Scholar] [CrossRef] [PubMed]
  6. Lewis, G. Injectable bone cements for use in vertebroplasty and kyphoplasty: State-of-the-art review. J. Biomed. Mater. Res. Part B Appl. Biomater. 2006, 76B, 456–468. [Google Scholar] [CrossRef] [PubMed]
  7. Güben, E.; Arıcı, Ş.; Bayır, D.; Bozdağ, E.; Ege, D. Preparation of Calcium Phosphate /Carboxymethyl Cellulose-based Bone Cements. Bioinspired Biomim. Nanobiomater. 2020, 9, 155–163. [Google Scholar] [CrossRef]
  8. Barrère, F.; Blitterswijk, C.A. Van Bone regeneration: Molecular and cellular interactions with calcium phosphate ceramics. Int. J. Nanomed. 2006, 1, 317–332. [Google Scholar]
  9. Vishnu Priya, M.; Sivshanmugam, A.; Boccaccini, A.R.; Goudouri, O.M.; Sun, W.; Hwang, N.; Deepthi, S.; Nair, S.V.; Jayakumar, R. Injectable osteogenic and angiogenic nanocomposite hydrogels for irregular bone defects. Biomed. Mater. 2016, 11, 035017. [Google Scholar] [CrossRef]
  10. Thai, V.V.; Lee, B.T. Fabrication of calcium phosphate-calcium sulfate injectable bone substitute using hydroxy-propyl-methyl-cellulose and citric acid. J. Mater. Sci. Mater. Med. 2010, 21, 1867–1874. [Google Scholar] [CrossRef]
  11. Kumar, A.P.; Mohaideen, K.K.; Alariqi, S.A.S.; Singh, R.P. Preparation and characterization of bioceramic nanocomposites based on hydroxyapatite (HA) and carboxymethyl cellulose (CMC). Macromol. Res. 2010, 18, 1160–1167. [Google Scholar] [CrossRef]
  12. Agis, H.; Beirer, B.; Watzek, G.; Gruber, R. Effects of carboxymethylcellulose and hydroxypropylmethylcellulose on the differentiation and activity of osteoclasts and osteoblasts. J. Biomed. Mater. Res. Part A 2010, 95A, 504–509. [Google Scholar] [CrossRef] [PubMed]
  13. An, J.; Wolke, J.G.C.; Jansen, J.A.; Leeuwenburgh, S.C.G. Influence of polymeric additives on the cohesion and mechanical properties of calcium phosphate cements. J. Mater. Sci. Mater. Med. 2016, 27, 58. [Google Scholar] [CrossRef] [PubMed]
  14. Saputra, A.H.; Hapsari, M.; Pitaloka, A.B.; Wulan, P.P.D.K. Synthesis and characterization of hydrogel from cellulose derivatives of water hyacinth (Eichhornia crassipes) through chemical cross-linking method by using citric acid. J. Eng. Sci. Technol. 2015, 10, 75–86. [Google Scholar] [CrossRef]
  15. Baudín, C.; Benet, T.; Pena, P. Effect of graphene on setting and mechanical behaviour of tricalcium phosphate bioactive cements. J. Mech. Behav. Biomed. Mater. 2019, 89, 33–47. [Google Scholar] [CrossRef] [PubMed]
  16. Wu, C.; Xia, L.; Han, P.; Xu, M.; Fang, B.; Wang, J.; Chang, J.; Xiao, Y. Graphene-oxide-modified β-tricalcium phosphate bioceramics stimulate in vitro and in vivo osteogenesis. Carbon 2015, 93, 116–129. [Google Scholar] [CrossRef]
  17. Utech, S.; Boccaccini, A.R. A review of hydrogel-based composites for biomedical applications: Enhancement of hydrogel properties by addition of rigid inorganic fillers. J. Mater. Sci. 2016, 51, 271–310. [Google Scholar] [CrossRef]
  18. Perale, G.; Rossi, F.; Santoro, M.; Peviani, M.; Papa, S.; Llupi, D.; Torriani, P.; Micotti, E.; Previdi, S.; Cervo, L.; et al. Multiple drug delivery hydrogel system for spinal cord injury repair strategies. J. Control. Release 2012, 159, 271–280. [Google Scholar] [CrossRef]
  19. Liu, Z.; Yao, P. Injectable thermo-responsive hydrogel composed of xanthan gum and methylcellulose double networks with shear-thinning property. Carbohydr. Polym. 2015, 132, 490–498. [Google Scholar] [CrossRef]
  20. Demir-Oğuz, Ö.; Ege, D. Effect of zoledronic acid and graphene oxide on the physical and in vitro properties of injectable bone substitutes. Mater. Sci. Eng. C 2021, 120, 24–28. [Google Scholar] [CrossRef]
  21. Boanini, E.; Torricelli, P.; Gazzano, M.; Fini, M.; Bigi, A. The effect of zoledronatehydroxyapatite nanocomposites on osteoclasts and osteoblast-like cells in vitro. Biomaterials 2012, 33, 722–730. [Google Scholar] [CrossRef]
  22. De-Prado-Gil, J.; Palencia, C.; Silva-Monteiro, N.; Martínez-García, R. To predict the compressive strength of self compacting concrete with recycled aggregates utilizing ensemble machine learning models. Case Stud. Constr. Mater. 2022, 16, e01046. [Google Scholar] [CrossRef]
  23. Cai, R.; Wang, K.; Wen, W.; Peng, Y.; Baniassadi, M.; Ahzi, S. Application of machine learning methods on dynamic strength analysis for additive manufactured polypropylene-based composites. Polym. Test. 2022, 110, 107580. [Google Scholar] [CrossRef]
  24. Shen, Y.; Sun, J.; Liang, S. Interpretable Machine Learning Models for Punching Shear Strength Estimation of FRP Reinforced Concrete Slabs. Crystals 2022, 12, 259. [Google Scholar] [CrossRef]
  25. Arıcı, Ş.; Kaçmaz, E.G.; Kamali, A.R.; Ege, D. Influence of graphene oxide and carbon nanotubes on physicochemical properties of bone cements. Mater. Chem. Phys. 2023, 293, 126961. [Google Scholar] [CrossRef]
  26. Demir Oǧuz, Ö.; Ege, D. Preparation of graphene oxide-reinforced calcium phosphate/calcium sulfate/methylcellulose-based injectable bone substitutes. MRS Commun. 2019, 9, 1174–1180. [Google Scholar] [CrossRef]
  27. Rickert, C.A.; Hayta, E.N.; Selle, D.M.; Kouroudis, I.; Harth, M.; Gagliardi, A.; Lieleg, O. Machine Learning Approach to Analyze the Surface Properties of Biological Materials. ACS Biomater. Sci. Eng. 2021, 7, 4614–4625. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, T.; Guestrin, C. XGBoost. In Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, San Francisco, CA, USA, 13–17 August 2016; ACM: New York, NY, USA, 2016; pp. 785–794. [Google Scholar]
  29. de-Prado-Gil, J.; Palencia, C.; Jagadesh, P.; Martínez-García, R. A Comparison of Machine Learning Tools That Model the Splitting Tensile Strength of Self-Compacting Recycled Aggregate Concrete. Materials 2022, 15, 4164. [Google Scholar] [CrossRef]
  30. Liang, M.; Chang, Z.; Wan, Z.; Gan, Y.; Schlangen, E.; Šavija, B. Interpretable Ensemble-Machine-Learning models for predicting creep behavior of concrete. Cem. Concr. Compos. 2022, 125, 104295. [Google Scholar] [CrossRef]
  31. Guo, L.; Li, Z.; Tian, Q.; Guo, L.; Wang, Q. Prediction of CSG splitting tensile strength based on XGBoost-RF model. Mater. Today Commun. 2023, 34, 105350. [Google Scholar] [CrossRef]
  32. Sri Chandrahas, N.; Choudhary, B.S.; Vishnu Teja, M.; Venkataramayya, M.S.; Krishna Prasad, N.S.R. XG Boost Algorithm to Simultaneous Prediction of Rock Fragmentation and Induced Ground Vibration Using Unique Blast Data. Appl. Sci. 2022, 12, 5269. [Google Scholar] [CrossRef]
  33. Han, T.; Stone-Weiss, N.; Huang, J.; Goel, A.; Kumar, A. Machine learning as a tool to design glasses with controlled dissolution for healthcare applications. Acta Biomater. 2020, 107, 286–298. [Google Scholar] [CrossRef]
  34. Khokhar, S.A.; Ahmed, T.; Khushnood, R.A.; Ali, S.M.; Shahnawaz, A. Predictive Mimicker of Fracture Behavior in Fiber Reinforced Concrete Using Machine Learning. Materials 2021, 14, 7669. [Google Scholar] [CrossRef] [PubMed]
  35. Conev, A.; Litsa, E.E.; Perez, M.R.; Diba, M.; Mikos, A.G.; Kavraki, L.E. Machine Learning-Guided Three-Dimensional Printing of Tissue Engineering Scaffolds. Tissue Eng. Part A 2020, 26, 1359–1368. [Google Scholar] [CrossRef] [PubMed]
  36. Lundberg, S.M.; Lee, S.I. A unified approach to interpreting model predictions. Adv. Neural Inf. Process. Syst. 2017, 30, 4766–4775. [Google Scholar]
  37. Meghanathan, N. Assortativity Analysis of Real-World Network Graphs based on Centrality Metrics. Comput. Inf. Sci. 2016, 9, 7. [Google Scholar] [CrossRef]
  38. Zhang, Y.; Zhang, M. Synthesis and characterization of macroporous chitosan/calcium phosphate composite scaffolds for tissue engineering. J. Biomed. Mater. Res. 2001, 55, 304–312. [Google Scholar] [CrossRef]
  39. Nokhodchi, A.; Ford, J.L.; Rubinstein, M.H. Studies on the Interaction between Water and (Hydroxypropyl)Methylcellulose. J. Pharm. Sci. 1997, 86, 608–615. [Google Scholar] [CrossRef]
  40. Rodríguez-Lozano, F.J.; García-Bernal, D.; Aznar-Cervantes, S.; Ros-Roca, M.A.; Algueró, M.C.; Atucha, N.M.; Lozano-García, A.A.; Moraleda, J.M.; Cenis, J.L. Effects of composite films of silk fibroin and graphene oxide on the proliferation, cell viability and mesenchymal phenotype of periodontal ligament stem cells. J. Mater. Sci. Mater. Med. 2014, 25, 2731–2741. [Google Scholar] [CrossRef]
  41. Wang, C.; Li, Y.; Ding, G.; Xie, X.; Jiang, M. Preparation and characterization of graphene oxide/poly(vinyl alcohol) composite nanofibers via electrospinning. J. Appl. Polym. Sci. 2013, 127, 3026–3032. [Google Scholar] [CrossRef]
  42. Ege, D.; Sertturk, S.; Acarkan, B.; Ademoglu, A. Machine learning models to predict the relationship between printing parameters and tensile strength of 3D Poly (lactic acid) scaffolds for tissue engineering applications. Biomed. Phys. Eng. Express 2023, 9, 065014. [Google Scholar] [CrossRef] [PubMed]
  43. Kou, S.; Peters, L.; Mucalo, M. Chitosan: A review of molecular structure, bioactivities and interactions with the human body and micro-organisms. Carbohydr. Polym. 2022, 282, 119132. [Google Scholar] [CrossRef]
  44. Martin-Pastor, M.; Stoyanov, E. New insights into the use of hydroxypropyl cellulose for drug solubility enhancement: An analytical study of sub-molecular interactions with fenofibrate in solid state and aqueous solutions. J. Polym. Sci. 2021, 59, 1855–1865. [Google Scholar] [CrossRef]
  45. Layek, R.K.; Kundu, A.; Nandi, A.K. High-performance nanocomposites of sodium carboxymethylcellulose and graphene oxide. Macromol. Mater. Eng. 2013, 298, 1166–1175. [Google Scholar] [CrossRef]
  46. Pan, Z.; He, L.; Qiu, L.; Korayem, A.H.; Li, G.; Zhu, J.W.; Collins, F.; Li, D.; Duan, W.H.; Wang, M.C. Mechanical properties and microstructure of a graphene oxide-cement composite. Cem. Concr. Compos. 2015, 58, 140–147. [Google Scholar] [CrossRef]
  47. Depan, D.; Pesacreta, T.C.; Misra, R.D.K. The synergistic effect of a hybrid graphene oxide–chitosan system and biomimetic mineralization on osteoblast functions. Biomater. Sci. 2014, 2, 264. [Google Scholar] [CrossRef]
Materials 17 00374 g001

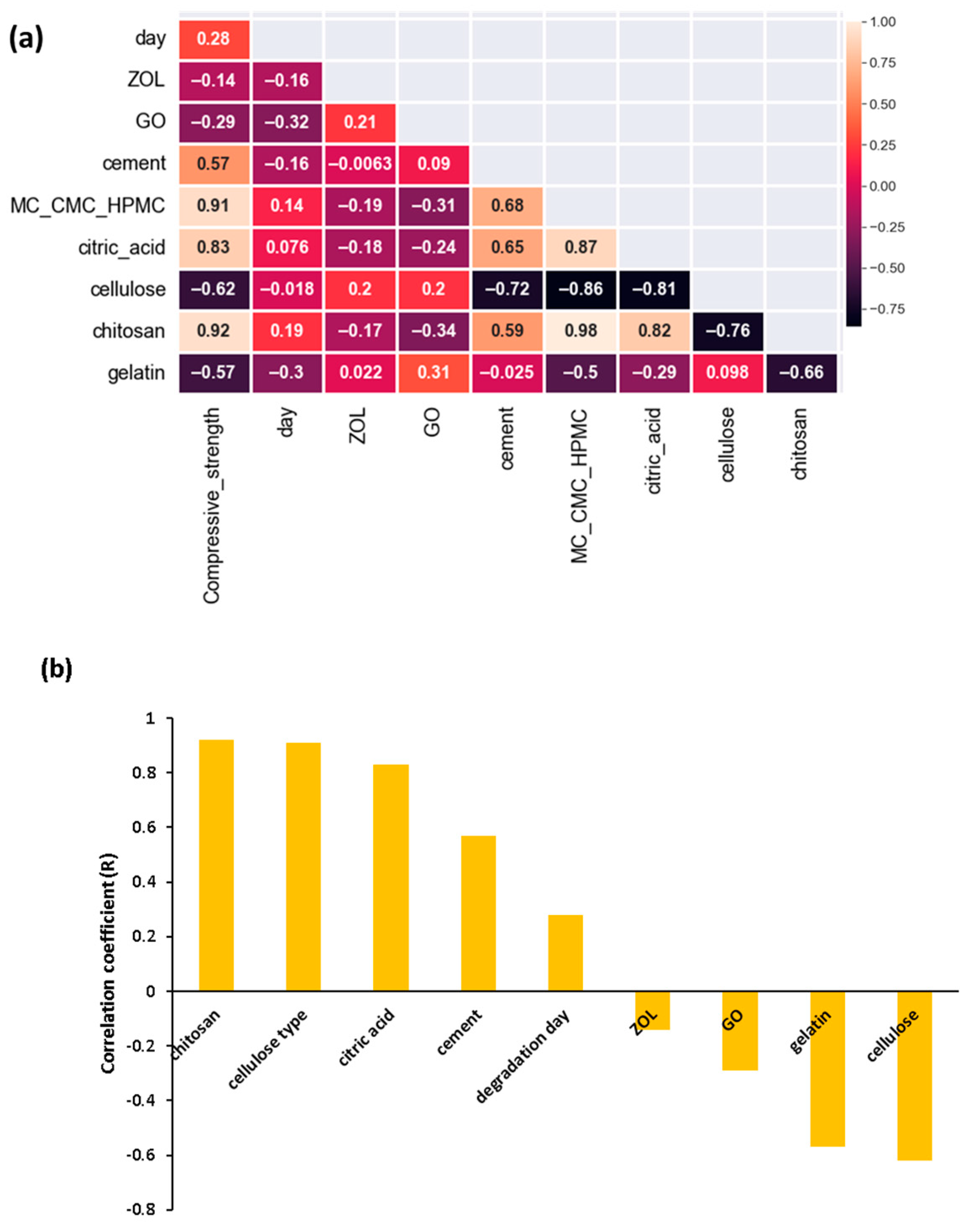

Figure 1. Relationship between parameters. (a) Correlation heatmap for compressive strength, independent parameters degradation time (day), ZOL and GO concentration, % of cement phase (cement), and whether the choice of polymer is MC, CMC, or HPMC. (b) Correlation coefficient (R) of the components and dependent variable, compressive strength.
Figure 1. Relationship between parameters. (a) Correlation heatmap for compressive strength, independent parameters degradation time (day), ZOL and GO concentration, % of cement phase (cement), and whether the choice of polymer is MC, CMC, or HPMC. (b) Correlation coefficient (R) of the components and dependent variable, compressive strength.
Materials 17 00374 g001
Materials 17 00374 g002

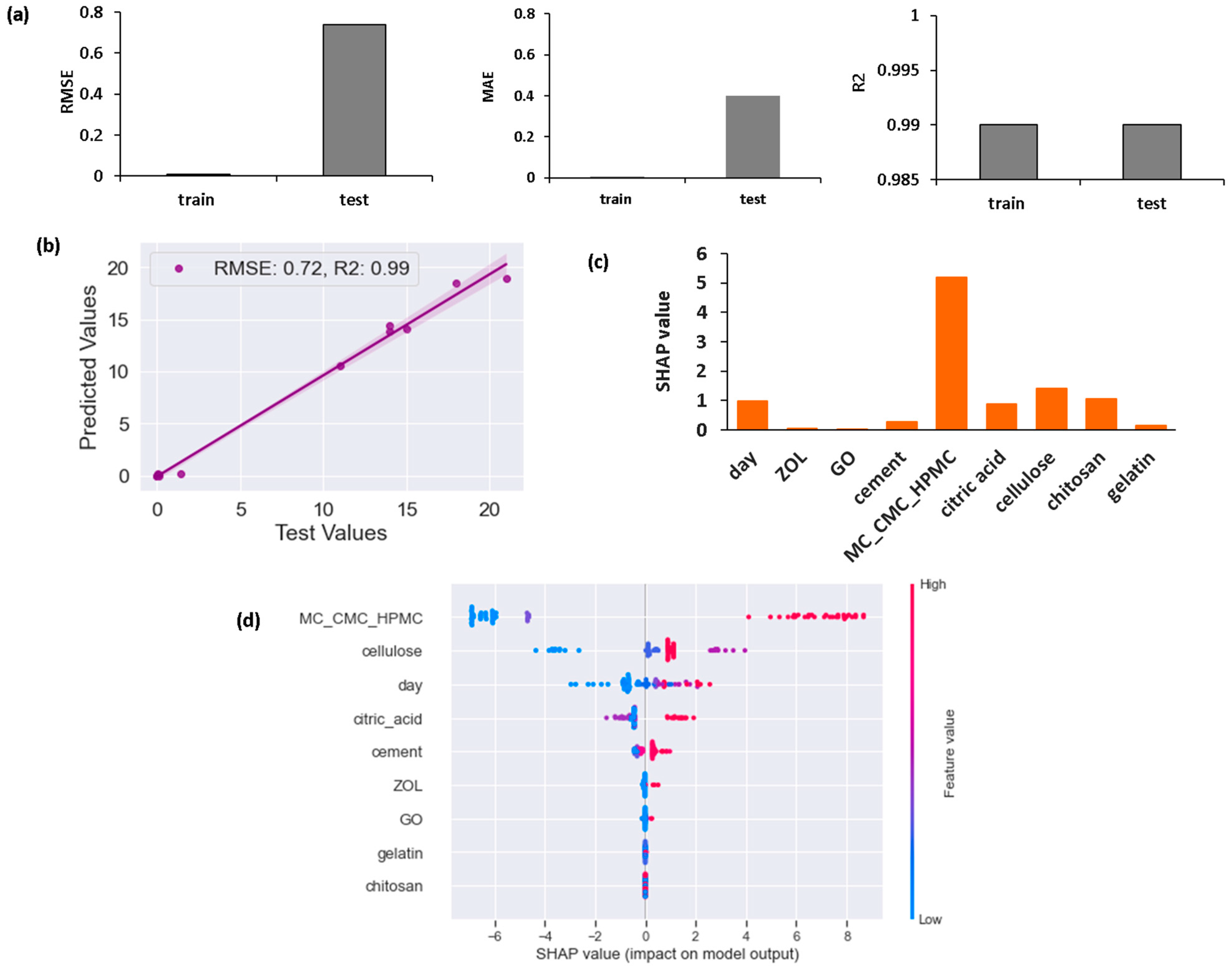

Figure 2. XGB model for compressive strength and (a) RMSE, R2, and MAE of training and testing for compressive strength; (b) predicted and observed compressive strength; (c) SHAP values for each feature; (d) SHAP values for independent variables on prediction of compressive strength.
Figure 2. XGB model for compressive strength and (a) RMSE, R2, and MAE of training and testing for compressive strength; (b) predicted and observed compressive strength; (c) SHAP values for each feature; (d) SHAP values for independent variables on prediction of compressive strength.
Materials 17 00374 g002
Materials 17 00374 g003

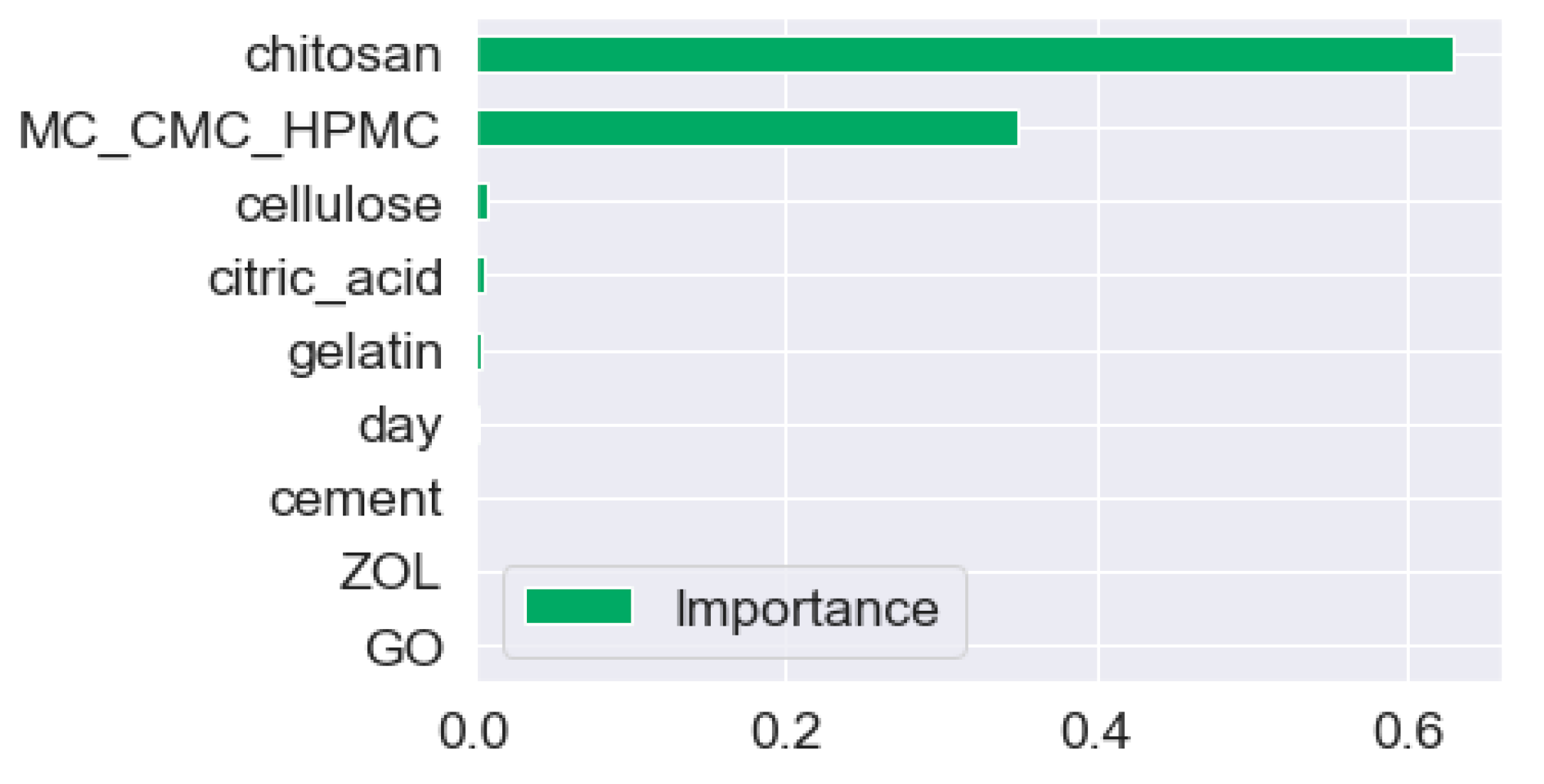

Figure 3. Feature importance implemented from XGB model.
Figure 3. Feature importance implemented from XGB model.
Materials 17 00374 g003
Materials 17 00374 g004

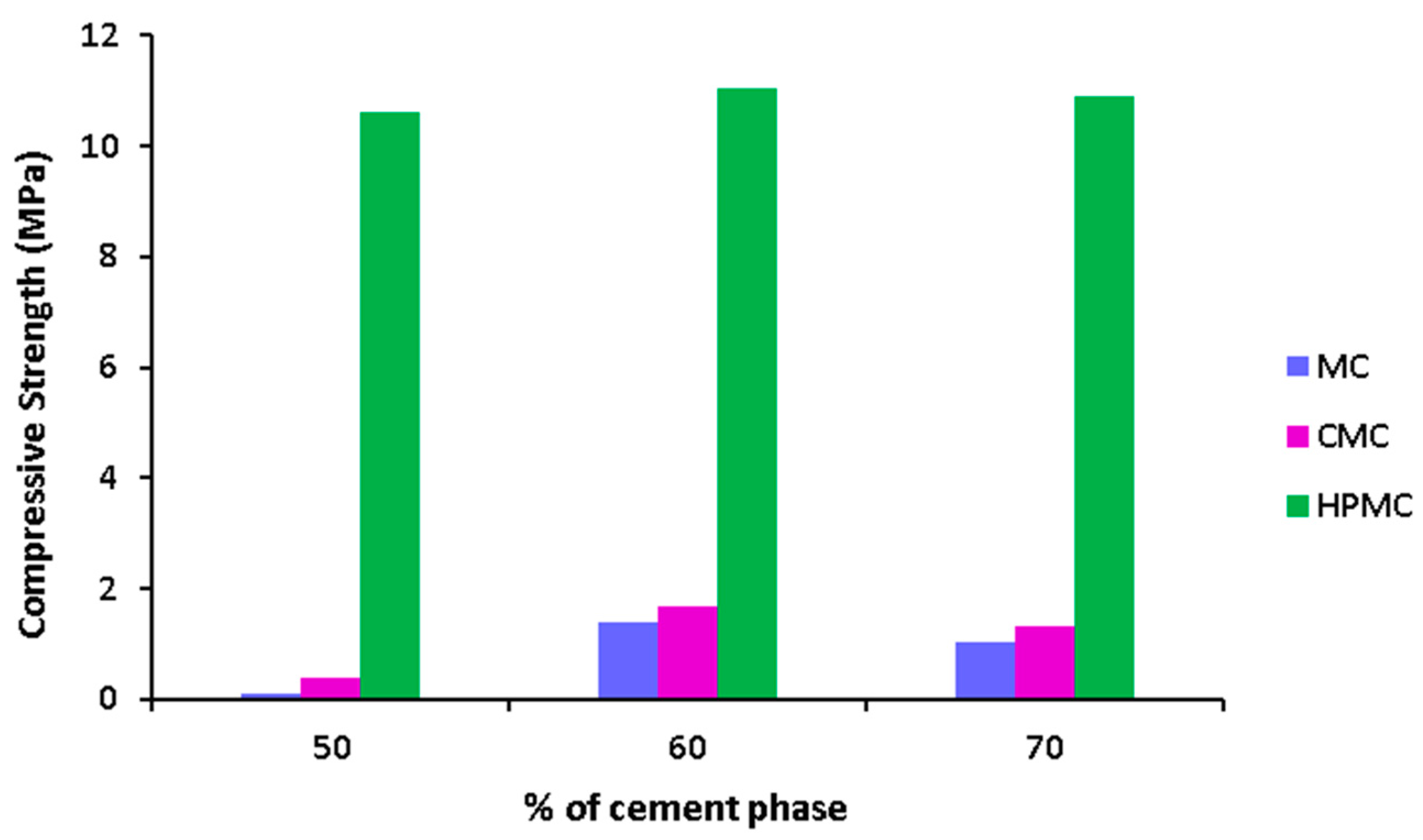

Figure 4. Predicted compressive strength versus % of cement phase for (4% cellulose and 0% chitosan).
Figure 4. Predicted compressive strength versus % of cement phase for (4% cellulose and 0% chitosan).
Materials 17 00374 g004
Materials 17 00374 g005

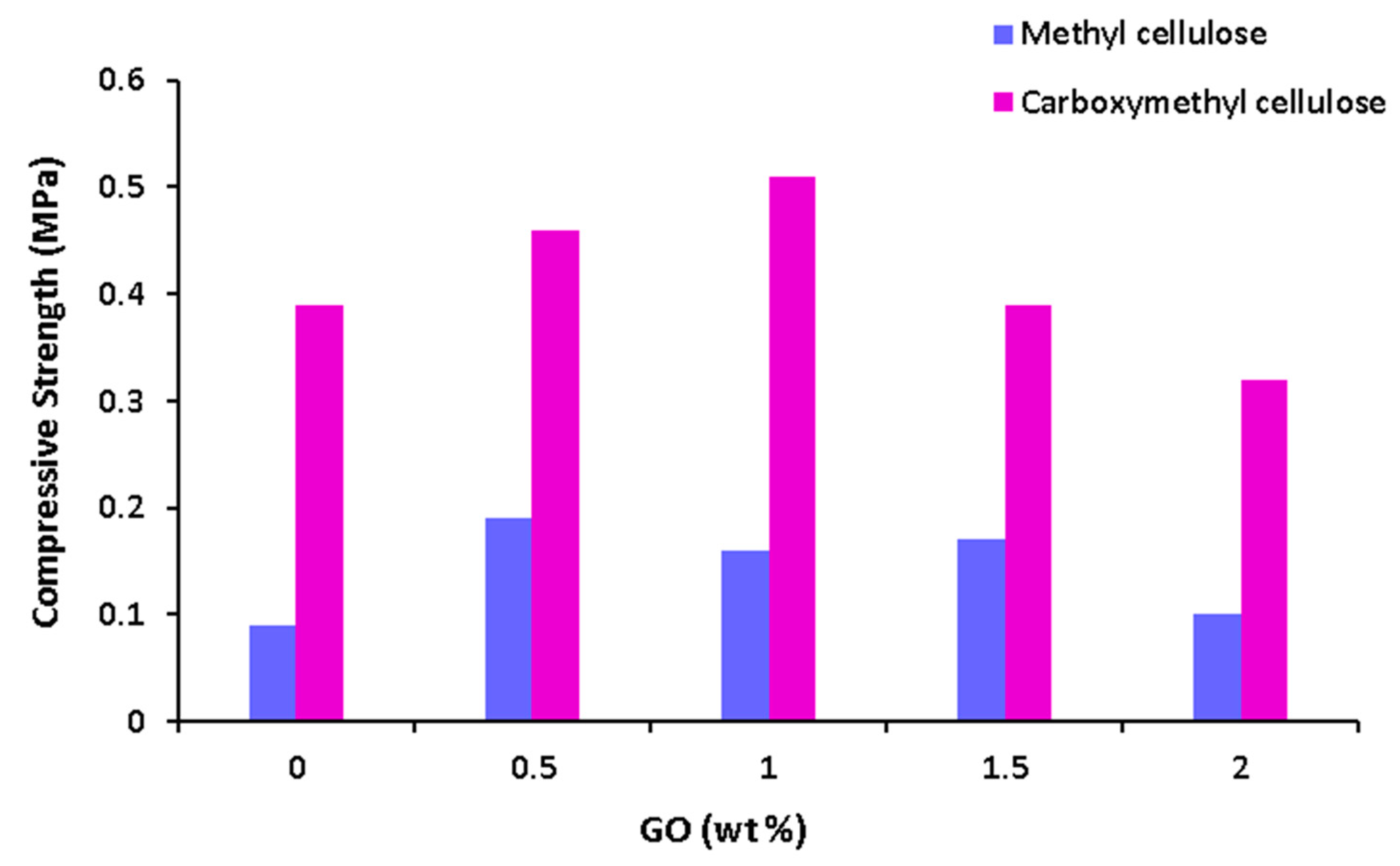

Figure 5. Predicted compressive strength versus wt% of GO (cement phase = 50%, % cellulose = 4, % chitosan = 0).
Figure 5. Predicted compressive strength versus wt% of GO (cement phase = 50%, % cellulose = 4, % chitosan = 0).
Materials 17 00374 g005
Materials 17 00374 g006

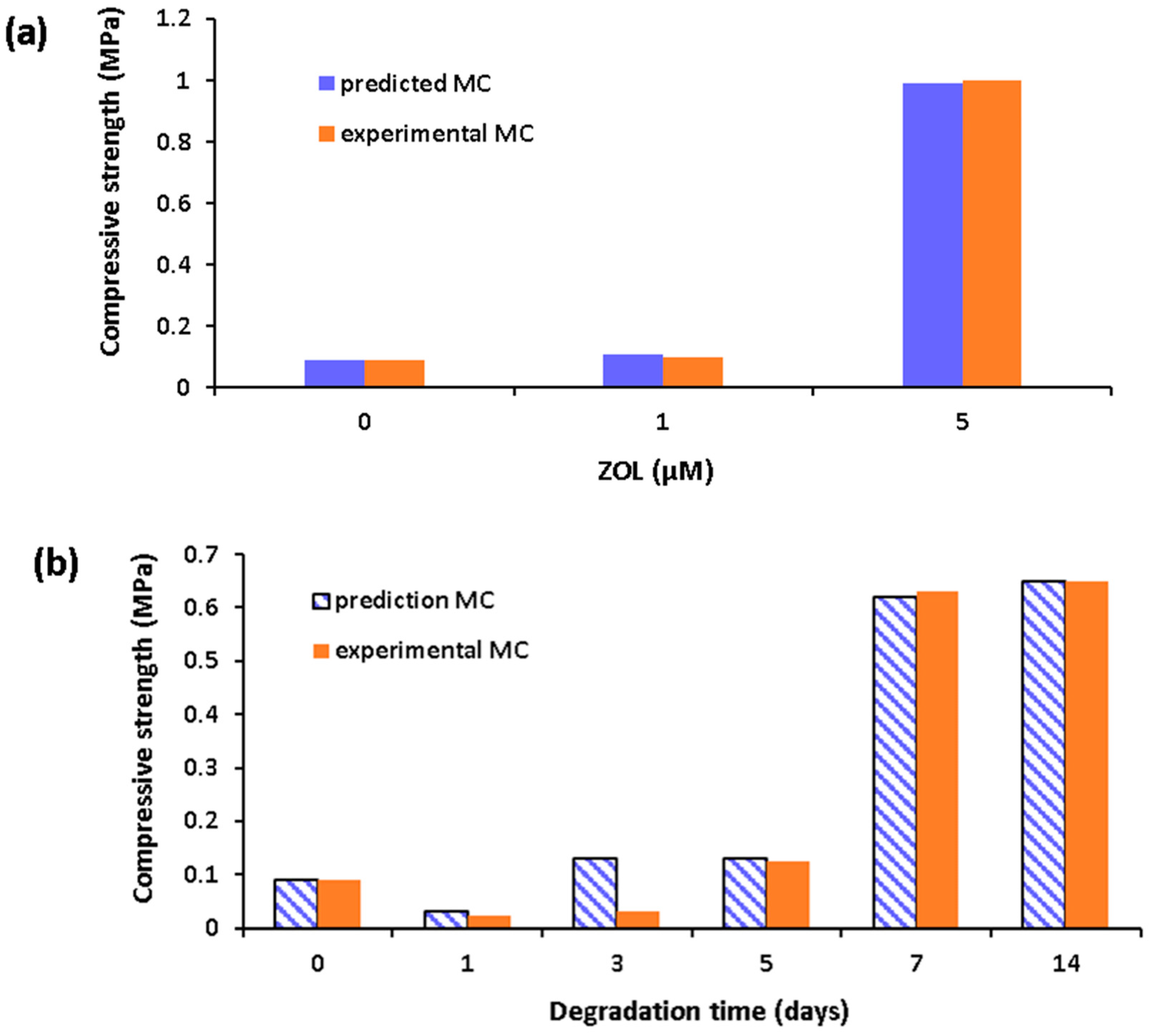

Figure 6. Predicted and experimental compressive strength values versus (a) concentration of ZOL and (b) degradation time (days) (cement phase = 50%, % cellulose = 4, % chitosan = 0).
Figure 6. Predicted and experimental compressive strength values versus (a) concentration of ZOL and (b) degradation time (days) (cement phase = 50%, % cellulose = 4, % chitosan = 0).
Materials 17 00374 g006
Table 1. Wt% of each component in the prepared composites.
Table 1. Wt% of each component in the prepared composites.
Choice of Cellulosewt% of Gelatin in Polymeric Phase (wt%)wt% of Citric acid in Polymeric Phase (wt%)wt% of Cellulose in Polymeric Phase (wt%)Bioceramic Phase in (Liquid Phase +
Bioceramic Phase) (%)		Bioceramic Phase
CSD/(TTCP+ DCPD)		(Ref.)
MC (in polymer)2.5380, 20, 30, 5025/75[1,20,26]
CMC (in polymer)1020262.5, 65, 67.5, 7020/80[7,25]
HPMC020–400–464.320/80[10]
