Article

Effect of Extrusion Process on Microstructure, Corrosion Properties, and Mechanical Properties of Micro-Alloyed Mg–Zn–Ca–Zr Alloy

by
Zemin Yu
1,
Wenxin Hu
1,*,
Zhiqiang Chen
1,
Lei Shi
1,
Lei Yang
2,3,*,
Jianfeng Jin
2,3 and
Erlin Zhang
2,3
1
State Key Laboratory of Baiyunobo Rare Earth Resource Researches and Comprehensive Utilization, Baotou Research Institute of Rare Earths, Baotou 014030, China
2
Key Laboratory for Anisotropy and Texture of Materials, Education Ministry of China, School of Materials Science and Engineering, Northeastern University, Shenyang 110819, China
3
Research Center for Metallic Wires, Northeastern University, Shenyang 110819, China
*
Authors to whom correspondence should be addressed.
Materials 2024, 17(17), 4263; https://doi.org/10.3390/ma17174263
Submission received: 3 July 2024 / Revised: 22 July 2024 / Accepted: 24 July 2024 / Published: 28 August 2024
(This article belongs to the Special Issue Biomedical Alloys: Corrosion Protection and New Coatings)
Browse Figures
Versions Notes

Abstract

:
The effect of the extrusion process on the microstructure, corrosion, and mechanical properties of Mg–Zn–Ca–Zr alloy has been investigated. Zn and Ca were both in a solid solution and only the Zr-rich phase was observed in the homogenized and extruded alloys. The Zr-rich phase was obviously refined after extrusion. The corrosion rate of the homogenized alloy decreased by about 25% after extrusion. This is because the refined Zr-rich phase was easier to cover with the deposited corrosion products, which reduced the cathodic reaction activity of the Zr-rich phase. The corrosion rate is similar for the alloys extruded at 320 °C and 350 °C since the size and distribution of the Zr-rich phase were not different in the two conditions. The alloy extruded at 320 °C has a smaller grain size and better comprehensive mechanical properties.

1. Introduction

The excellent biomechanical properties, degradability, and good biocompatibility of magnesium alloy have made it a widely studied material with promising potential for medical applications [1,2,3,4,5]. However, its application is limited due to low mechanical properties and poor corrosion resistance in liquid environments [6,7,8,9].
Alloying is an effective way for enhancing the corrosion resistance and mechanical properties of magnesium alloys [10]. Among various alloy systems, Mg–Zn–Ca alloy shows great potential as an implantable medical material [11,12]. Bakhsheshi Rad et al. [13,14] proposed that in a Mg–xCa alloy system, when the Ca content exceeds 0.5 wt.%, an increase in Ca content leads to a higher content of Mg2Ca phase, which acts as an anode phase and increases the corrosion rate of magnesium alloy. In Mg–xZn and Mg–0.8Ca–xZn alloy systems, increasing Zn content also results in a higher corrosion rate due to its influence on the type and distribution of second phases within the alloy caused by the Zn/Ca ratio. Zheng et al. [15] proposed that the content of Ca should be controlled in the range of 0.6~1.0 wt.%, otherwise a ternary Ca2Mg6Zn3 phase and binary Mg2Ca phase may be formed in the Mg–Zn–Ca alloy, which will form micro-galvanic couples with the magnesium matrix, resulting in an increased corrosion rate in the alloy. In extruded Mg–xCa alloys, yield strength increases with increasing Ca content while elongation gradually decreases [16]. In extrusion and rolling-processed Mg–xZn–Ca alloys, both yield strength and elongation increase with rising Zn content [11,17]. In addition, the addition of zirconium element not only can refine the grain size of magnesium alloy [18,19] but also can remove iron impurities in magnesium alloy to improve corrosion resistance [20] since iron impurities can significantly reduce the corrosion resistance of magnesium alloy [21,22,23,24]. However, a higher Zr content may lead to the formation of Zr particles in the magnesium alloy, which is unfavorable for the corrosion resistance of the magnesium alloy [18,25,26]; it is necessary to control Zr content reasonably. Thus, we have fabricated a micro-alloyed Mg–Zn–Ca–Zr alloy for medical applications.
Extrusion has always been considered an effective method for preparing high-strength magnesium alloys [27,28]. Additionally, extrusion also influences the corrosion resistance of magnesium alloys [29]. Some literature reported that extrusion could improve corrosion resistance [30,31,32,33,34,35,36,37], while others reported the opposite [38,39]. For example, Marodkar et al. [36] reported that due to the absence of porosity, refined microstructure, and some amount of dissolved β-Mg17Al12 in the matrix region, an extruded AZ91 alloy exhibited superior corrosion resistance compared to gravity-die-casting and squeeze-casting AZ91 alloy. Song et al. [38] investigated the effect of microstructure changes on the corrosion behavior of equal-channel-angular-pressed (ECAPed) pure magnesium. It is found that ECAPed pure magnesium is more corrosive than cast pure magnesium, which is due to more rapid passive films that present no improved protection and the mass of energetic crystalline defects that drastically activate the corrosion reaction. In the extrusion process, the extrusion temperature generally plays an important role in affecting both corrosion and mechanical properties. Li et al. [40] reported that both the mechanical properties and the corrosion properties of Mg–2Nd–0.2Zn alloy decreased with increasing extrusion temperature. Zhang et al. [41] obtained similar results when investigating the impact of extrusion temperature on the mechanical properties and corrosion rate of Mg–3Nd–0.2Zn–0.4Zr alloy. Many scholars believe that higher extrusion temperatures result in a decrease in corrosion rate [42,43,44]. However, Mohammadi et al. [45] discovered that in Mg–5Zn–1Y–xCa alloys, the correlation between extrusion temperature and corrosion rate is not always consistent across different calcium content levels. Therefore, it is crucial to study the influence of the extrusion process on the corrosion and mechanical properties of Mg alloys.
This work investigates the impact of the extrusion process on the microstructure, corrosion behavior, and mechanical properties of Mg–0.5Zn–0.3Ca–0.03Zr alloy, with the aim of developing a Mg–Zn–Ca–Zr alloy with superior comprehensive mechanical and corrosion properties for medical applications.

2. Experimental Procedures

2.1. Preparation and Characterization of Materials

The raw materials for preparing the alloy were commercial pure magnesium (99.95 wt.%), high-purity zinc (99.99 wt.%), Mg-30 wt.% Ca master alloy, and Mg-30 wt.% Zr master alloy. The alloy was melted in a low-carbon steel crucible at 700 °C in an electric resistance furnace. After melting, the melt was stirred for 2 min and then held for 10 min. Finally, the melt was poured into a steel mold coated with boron nitride and preheated to 200 °C. The composition was determined by optical emission spectroscopy (Spectroscopy Laboratory M9, SPECTRO, Kleve, Germany) and inductively coupled plasma atomic emission spectrometry (Perkin-Elmer Optima 8300, Waltham, MA, USA). The results are shown in Table 1.
The as-cast alloy was heat-treated at 350 °C for 12 h plus at 450 °C for 10 h and then quenched in cold water. The alloy subjected to homogenization heat treatment was named HT-ZXK. The alloy obtained by homogenization heat treatment was extruded at 320 °C and 350 °C to obtain extruded rods with a diameter of φ15mm, which were named 320-E and 350-E, respectively. The extrusion ratio was 30 and the extrusion rate was 0.5 mm/s.
The optical microstructure was observed using a metallographic microscope (OLYMPUS GX71, Shinjuku, Japan), and the average grain size of the sample was statistically analyzed using the intercept method in Image-pro Plus (6.0) software. The metallographic samples were ground to 2000 mesh and polished using 0.5 µm diamond polishing paste. The microstructure of the alloy was further characterized using a Zeiss Ultra 55 (Oberkochen, Germany) scanning electron microscope (SEM) equipped with energy-dispersive X-ray spectroscopy (EDS).

2.2. Phase Diagram Calculation

The relevant phase diagrams of the alloying system were calculated using the thermodynamic software Pandat (2021) and the PanMg2021 database.

2.3. Corrosion Tests

Corrosion tests were conducted in a thermostatic water bath (37 ± 0.5 °C) using SBF solution [2]. The sample size for ZXK alloy was always 10 mm × 10 mm × 10 mm, and for extruded alloy, it was φ15 × 4 mm. Each side of the sample was mechanically polished with 2000 grit emery paper, and the initial mass was measured. After 21 days of immersion, corrosion products were removed by immersing specimens in 180 g/L chromic acid for 20 min at room temperature. The weight of the specimens was measured, and the macro corrosion morphology was recorded. At least three specimens were measured for each type of the studied alloys. The corrosion rate (mm/year) was calculated using the following equation:
CR wl = 8 . 76   ×   10 4   ×   Δ g A   ×   t   ×   ρ
In Equation (1), Δg is loss of weight (g); A is area of the surface (cm2); t is time of immersion (h); and ρ is material density (g·cm–3). Three specimens for each material were measured.
A Versa STAT V3-400 potentiostat (Ametek, Berwyn, PA, USA) was used for electrochemical tests. A classical three-electrode cell was used, with a Mg alloy specimen as the working electrode, a saturated calomel electrode (SCE) as the reference, and a platinum plate as the counter electrode. The SBF solution was used as a corrosion electrolyte. The scan rate for the polarization test was 1 mV/s. Cathodic and anodic polarization tests were carried out separately. The cathodic polarization tests were carried out after immersion at an open circuit for 10 s, 10 min, 3 h, 20 h, 3 days, 7 days, 10 days, and 14 days. The anodic polarization tests were carried out after immersion at an open circuit for 14 days. In situ optical images of the surface morphology of specimens were taken with a camera controlled by a computer after the polarization test.

2.4. Microscopic Corrosion Morphology Observation

To explore the corrosion mechanism of the studied alloys, the samples before and after removal of the corrosion products following immersion were characterized under a SEM (Zeiss Ultra 55) with EDS. After polishing the samples using the above-mentioned method, they were characterized after immersion in SBF solution for 10 s, 30 min, and 6 h, respectively. At room temperature, the samples were immersed in a chromic acid solution (180 g/L) for about 1–2 min to remove corrosion products, and then continued to be observed under a scanning electron microscope.

2.5. Mechanical Properties

The mechanical properties of the as-extruded bars were measured at a tensile speed of 1 mm/min on a universal Material Testing Machine (Shimazu AG-X Plus, Kyoto, Japan) at room temperature. The dog bone specimens with a gauge length of 30 mm, a width of 3mm, and a thickness 2.5 mm were used. At least three repeated tests for each condition were carried out.

3. Result

3.1. Microstructure

Figure 1 shows the optical microstructure of the alloy under three conditions. At both extrusion temperatures, most of the grains of the alloy are recrystallized, and the recrystallization is more complete at 350 °C. A small amount of fibrous structure is included in both extruded alloys (Figure 1e,h). The average grain sizes of the HT-ZXK alloy, 320-E alloy, and 350-E alloy are 157.4 ± 21.2 μm, 3.7 ± 0.4 μm, and 4.7 ± 0.8 μm, respectively (Figure 1c,f,i), indicating that the grain sizes of homogenized alloys decrease sharply after extrusion. As the extrusion temperature increases, the grain size increases slightly.
The SEM images in Figure 2 and the EDS results in Table 2 show that the second phase in the HT-ZXK alloy is mainly a Zr-rich phase containing a small amount of Fe, Al, and Si impurities, with a size of 3~5 μm and a granular shape. Under the condition of extrusion at 320 °C, the Zr-rich phase is significantly refined, less than 1 μm in size, irregular in shape, and randomly distributed in the alloy. The SEM image of the 350-E alloy is similar to that of the 320-E alloy.

3.2. Corrosion Properties

Figure 3 shows the result of the mass loss of the investigated alloy immersed in SBF solution for 21 days. The results show that the average corrosion rates of the HT-ZXK alloy, 320-E alloy, and 350-E alloy are 0.15 mm/year, 0.12 mm/year, and 0.11 mm/year, respectively. The corrosion rate of the alloy is reduced by more than 25% after extrusion.
Figure 4 shows the macroscopic corrosion morphology of the alloys after the mass loss test and removal of the corrosion products. Corrosion of the HT-ZXK alloy is the most severe, and the surface of the alloy has a wide range of local corrosion, as shown by the arrows. There is no obvious local corrosion in the extrusion alloys.
In order to study variation of the cathodic activity of the alloys, the cathodic polarization curve was measured after immersion in SBF solution for different times, as shown in Figure 5. As the corrosion time increased, the cathodic activity of the homogenized alloy fluctuated slightly, and the cathodic activity of the extruded alloy was relatively stable.
In order to better compare the electrochemical behavior of the alloys, the relevant parameters derived from the polarization curves were compared, as shown in Figure 6. During the 14-day immersion process, the corrosion current density of the three alloys showed a decreasing trend with extension of the immersion time, indicating that the corrosion rate of the alloys gradually decreased with an increase in immersion time. It can be clearly observed that the corrosion current density of the alloys decreased after extrusion. This indicates that the corrosion resistance of the alloys is improved after extrusion. There is no difference in the corrosion current density between 350-E and 320-E alloys, and the above results are consistent with the mass loss results (Figure 6a). The current density of the alloys at -1.8 VSCE was taken to statistically compare cathode activity. The extrusion alloys always have the lowest cathodic activity and are more stable than the HT-ZXK alloys. There is little difference in cathode activity between the 320-E and 350-E alloys (Figure 6b). The lower corrosion potential indicates a greater corrosion tendency, and the corrosion potential of the HT-ZXK alloy is higher than that of the two extruded alloys (Figure 6c). Contrary to the actual corrosion rate results, it indicates that a high corrosion tendency does not mean a high corrosion rate.
To analyze the protective effect of the surface film formed during the immersion process of the studied alloy, we anodically polarized the alloy immersed for 14 days, as shown in Figure 7. The 320-E and 350-E alloys exhibited a clear breakdown potential, indicating that the surface film remained intact. However, no breakdown potential was observed for the HT-ZXK alloy, which indicates that the surface film of the alloy had been destroyed. Therefore, after extrusion, the surface film has a stronger protective effect on the magnesium matrix; this is due to the denser surface film of the extruded alloy.
Figure 8 displays the macroscopic corrosion morphology of the studied alloys. Cathodic active sites are clearly visible in all three alloys after a 10 min immersion. As the immersion time increases, the product coverage of the active site of the cathode also increases. At 7 days, the HT-ZXK alloy exhibited a dark corrosion site, which increased and expanded at 14 days (Figure 8a). The 320-E and 350-E alloys showed numerous dark corrosion sites at 10 days (Figure 8b,c). Upon removal of the corrosion products, the HT-ZXK alloy exhibited the most significant local corrosion pits, while no obvious corrosion pits were observed on the surface of the extruded alloys, as indicated by the arrows (Figure 8).

3.3. Microscopic Corrosion Morphology Analysis

To compare galvanic corrosion behavior between the Zr-rich phase and magnesium matrix before and after extrusion of the alloy, microscopic corrosion behavior was observed by SEM. Figure 9 shows the micromorphologies of the HT-ZXK alloy immersed for different times. When immersed for 10 s, the Zr-rich phase was covered by a small amount of corrosion products (Figure 9a). After removal of the corrosion products, no significant corrosion was observed (Figure 9d). After immersion for 30 min, the corrosion products increased, and both the substrate and the Zr-rich phase were covered (Figure 9b). After removing the corrosion products, it is observed that annular corrosion occurs around the Zr-rich phase, while corrosion near the Zr-rich phase is lighter. After immersion for 6 h, the increase in corrosion products on the Zr-rich phase was most obvious, and the corrosion products were significantly higher than the magnesium matrix (Figure 9c). After removal of the corrosion products, annular corrosion became severe, and light corrosion occurred near the Zr-rich phase (Figure 9f). Figure 10 shows the microscopic corrosion behavior of the extruded alloy immersed in SBF solution for 30 min. Similarly, the Zr-rich phase is also covered by more corrosion products (Figure 10a,b), and the magnesium matrix is uniformly covered by corrosion products (Figure 10c). After removal of the corrosion products, it can be observed that annular corrosion near the Zr-rich phase is more obvious (Figure 10d,e), and corrosion of the magnesium matrix is more uniform and less corroded (Figure 10f).

3.4. Mechanical Properties

Figure 11 displays the tensile engineering stress–strain curve at room temperature for two extrusion temperatures. Low-temperature extrusion of the 320-E alloy exhibits a high engineering stress of approximately 188.8 MPa for yield strength, 236.9 MPa for ultimate tensile strength, and 20.2% for elongation. As the extrusion temperature increases, the yield strength of the 350-E alloy decreases to 163.4 MPa, the ultimate tensile strength to 225.2 MPa, and elongation to 22.9%.
Figure 12 shows the fracture morphology of the samples after tensile tests. Typical ductile cracks with pits were found in both alloys at both extrusion temperatures, indicating a ductile fracture mode.

4. Discussion

4.1. Phase Formation

Based on the calculated phase diagram in Figure 13a, the HT-ZXK alloy should be composed of ɑ-Mg only. However, a Zr-rich phase containing a small amount of Fe, Al, and Si was found. It can be seen from (b), (c), and (d) in Figure 13 that Zr can form ZrxFey, ZrxAly, and ZrxSiy phases with Al and Si [46,47]. However, Zr content in the Zr-rich phase in the present work is much higher than Zr content in the ZrxFey, ZrxAly, and ZrxSiy phases shown in the calculated phase diagrams. Thus, the Zr-rich phase might be undissolved Zr particles from the added Mg–Zr master alloy, and trace impurities of Fe, Al, and Si only reacted with the surface of the Zr-rich particles. Qian et al. [48,49,50] also demonstrated that irregularly shaped undissolved zirconium particles in magnesium alloys can contain a small amount of iron impurities, and the atomic ratio of Zr/Fe in these particles is much higher than that of Zr–Fe intermetallic compounds.

4.2. Influence of Zr-Rich Phase on Corrosion Behavior

The Zr-rich phase is detrimental to the corrosion resistance of magnesium alloys. The voltage potential of the Zr-rich phase is approximately 426 mV higher than that of the magnesium matrix [26,51,52,53]. The potential difference between the Zr-rich phase and the magnesium matrix in this study may be greater due to the presence of impurity elements in the Zr-rich phase. From a thermodynamic perspective, a high voltage potential difference can provide a strong driving force for micro-galvanic corrosion. Thus, the Zr-rich phase can accelerate corrosion of the magnesium matrix. Most studies have shown that solute Zr atoms increase the corrosion rate by enhancing anodic dynamics by changing the properties of the corrosion product film [54,55,56,57]. However, this effect of Zr was not found in the present work, which is probably because the Zr amount is too low.
Figure 14 shows a schematic diagram of the corrosion mechanism. With an increase in corrosion time, the magnesium matrix gradually dissolves. The Zr-rich phase is the main cathode active site. Hydrogen evolution reactions occur on the Zr-rich phase, and the produced OH- anions continuously combine with the nearby Mg2+ to form Mg(OH)2 and deposit on the Zr-rich phase. The deposited corrosion product film can inhibit the cathodic activity of the Zr-rich phase to a certain extent, which depends on the size of the Zr-rich phase. For example, as shown in Figure 14d–f for extruded alloys, because the Zr-rich phase is refined, the corrosion product is more likely to cover and deposit on the Zr-rich phase; the cathodic activity is reduced, and the corrosion resistance of the extruded alloy is improved. Many studies have shown that the corrosion resistance of magnesium alloys can be improved by refinement of the second phase [58,59,60]. In addition, a decrease in grain size will also reduce the corrosion rate of magnesium alloy [61,62] because as the number of grain boundaries increases, the denser the surface corrosion film and the stronger the adhesion [35,63].

5. Conclusions

The effect of the extrusion process on the microstructure, corrosion properties, and mechanical properties of Mg–0.5Zn–0.3Ca–0.03Zr alloy has been studied in the present work. Conclusions can be drawn as follows:
  • In addition to a small amount of Zr-rich phase, no other precipitated phase was detected in the homogenized alloy. After extrusion at 320 °C and 350 °C, the size of Zr-rich particles was significantly reduced, and the extrusion temperature has little effect on the size of Zr-rich particles. However, the mechanical properties of the alloy decrease with an increase in extrusion temperature.
  • The corrosion rate of the alloy decreases after extrusion. This is because the smaller Zr-rich phase is easier to cover by the deposited corrosion products, which reduced the cathodic activity of the Zr-rich phase in the extruded alloys. Additionally, a much smaller grain size can promote the formation of a more uniform corrosion film on the surface of the extruded alloys.
  • The alloy extruded at 320 °C shows good comprehensive mechanical properties. The alloy extruded at 320 °C possesses excellent comprehensive mechanical properties and corrosion resistance. Specifically, the yield strength (TYS) amounts to 188.8 MPa; the elongation (EL) reaches 20.2%; and the corrosion rate is 0.12 mm/year. These properties are anticipated to enable its application in the domain of medical biological magnesium alloys.

Author Contributions

Z.Y.: data curation, writing—original draft preparation; W.H.: conceptualization, methodology, writing—review and editing; Z.C.: methodology, visualization; L.S.: resources, investigation; L.Y.: conceptualization, writing—reviewing and editing; J.J.: validation; E.Z.: supervision, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

The authors would like to acknowledge financial support from the National Key Research and Development Program of China (2021YFB3501001), the Natural Science Foundation of Inner Mongolia Autonomous Region (Grant No. 2021MS05049), and Liaoning Province science and technology plan joint plan (2023021314-JH2/1017).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw/processed data required to reproduce these findings cannot be shared at this time because the data also form part of an ongoing study.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Staige, M.; Pietak, A.; Huadmai, J.; Dias, G. Magnesium and its alloys as orthopedic biomaterials: A review. Biomaterials 2006, 27, 1728–1734. [Google Scholar] [CrossRef] [PubMed]
  2. Li, X.Y.; Hu, J.L.; Yu, Z.M.; Liu, M.; Xiao, X.; Qin, G.W.; Yang, L.; Zhang, E.L. A study on the in vitro and in vivo degradation behaviour and biocompatibility of a Mg-Mn-Zn alloy with PLLA and Micro arc oxidation composite coating. Surf. Coat. Technol. 2023, 471, 129894. [Google Scholar] [CrossRef]
  3. Niu, J.L.; Xiong, M.P.; Guan, X.M.; Zhang, J.; Huang, H.; Pei, J.; Yuan, G.Y. The in vivo degradation and bone-implant interface of Mg-Nd-Zn-Zr alloy screws: 18 months post-operation results. Corros. Sci. 2016, 113, 183–187. [Google Scholar] [CrossRef]
  4. Haude, M.; Ince, H.; Abizaid, A.; Toelg, R.; Lemos, P.; Birgelen, C.; Christiansen, E.; Wijns, W.; Neumann, F.; Kaiser, C.; et al. Sustained safety and performance of the second-generation drug-eluting absorbable metal scaffold in patients with de novo coronary lesions: 12-month clinical results and angiographic findings of the BIOSOLVE-II first-in-man trial. Eur. Heart J. 2016, 37, 2701–2709. [Google Scholar] [CrossRef] [PubMed]
  5. Shi, Y.J.; Pei, J.; Zhamh, L.; Lee, B.; Yun, Y.; Zhang, J.; Li, Z.H.; Gu, S.; Park, K.; Yuan, G.Y. Understanding the effect of magnesium degradation on drug release and anti-proliferation on smooth muscle cells for magnesium-based drug eluting stents. Corros. Sci. 2017, 123, 297–309. [Google Scholar] [CrossRef]
  6. Yin, M.; Hou, L.F.; Wang, Z.W.; Bao, T.Y.; Liu, B.S.; Wei, H.; Liu, X.D.; Du, H.; Wei, Y.-h. Self-generating construction of applicable corrosion-resistant surface structure of magnesium alloy. Corros. Sci. 2021, 184, 109378. [Google Scholar] [CrossRef]
  7. Feng, B.J.; Shang, X.Q.; Xie, T.; Ying, T.; Zeng, X.Q. Influence of texture on the corrosion behavior of an as-extruded Mg-8Al-0.5In alloy sheet. J. Mater. Res. Technol. 2023, 27, 1497–1508. [Google Scholar] [CrossRef]
  8. Zomorodlan, A.; Santos, C.; Carmezim, M.; Silva, T.; Fernandes, J.; Montemor, M. “In-vitro” corrosion behaviour of the magnesium alloy with Al and Zn (AZ31) protected with a biodegradable polycaprolactone coating loaded with hydroxyapatite and cephalexin. Electrochim. Acta 2015, 179, 431–440. [Google Scholar] [CrossRef]
  9. Yang, W.L.; Liu, Z.Q.; Huang, H.L. Galvanic corrosion behavior between AZ91D magnesium alloy and copper in distilled water. Corros. Sci. 2021, 188, 109562. [Google Scholar] [CrossRef]
  10. Xie, J.S.; Zhang, J.H.; You, Z.H.; Liu, S.J.; Guan, K.; Wu, R.Z.; Wang, J.; Feng, J. Towards developing Mg alloys with simultaneously improved strength and corrosion resistance via RE alloying. J. Magnes. Alloys 2021, 9, 41–56. [Google Scholar] [CrossRef]
  11. Bazhenov, V.; Li, A.; Komissarov, A.; Koltygin, A.; Tavolzhanskll, S.; Bautin, V.; Voropaeva, O.; Mukhametshina, A.; Tokar, A. Microstructure and mechanical and corrosion properties of hot-extruded Mg-Zn-Ca-(Mn) biodegradable alloys. J. Magnes. Alloys 2021, 9, 1428–1442. [Google Scholar] [CrossRef]
  12. Rout, P.; Roy, S.; Rathore, D. Recent advances in the development of Mg-Ca-Zn alloys as biodegradable orthopedic implants. Mater. Today Proc. 2023. [CrossRef]
  13. Bakhsheshi-rad, H.; Idris, M.; Kadir, M.; Farahans, S. Microstructure analysis and corrosion behavior of biodegradable Mg-Ca implant alloys. Mater. Des. 2012, 33, 88–97. [Google Scholar] [CrossRef]
  14. Bakhsheshi-rad, H.; Hamzah, E.; Fereidouni-lotfabadi, A.; Daroonparvar, M.; Yajid, M.; Mezbahul-islam, M.; Kasiri-asgarani, M.; Medraj, M. Microstructure and bio-corrosion behavior of Mg-Zn and Mg-Zn-Ca alloys for biomedical applications. Mater. Corros. 2014, 65, 1178–1187. [Google Scholar] [CrossRef]
  15. Zheng, Y.F.; Gu, X.N.; Witte, F. Biodegradable metals. Mater. Sci. Eng. R. Rep. 2014, 77, 1–34. [Google Scholar] [CrossRef]
  16. Jeong, Y.; Kim, W. Enhancement of mechanical properties and corrosion resistance of Mg-Ca alloys through microstructural refinement by indirect extrusion. Corros. Sci. 2014, 82, 392–403. [Google Scholar] [CrossRef]
  17. Zhao, L.Q.; Wang, C.; Chen, J.C.; Ning, H.; Yang, Z.Z.; Xu, J.; Wang, H.Y. Development of weak-textured and high-performance Mg-Zn-Ca alloy sheets based on Zn content optimization. J. Alloys Compd. 2020, 849, 156640. [Google Scholar] [CrossRef]
  18. Song, G.L.; Stjohn, D. The effect of zirconium grain refinement on the corrosion behaviour of magnesium-rare earth alloy MEZ. J. Light Met. 2002, 2, 1–16. [Google Scholar] [CrossRef]
  19. Qian, M.; Stjohn, D.; Frost, M. Zirconium alloying and grain refinement of magnesium alloys. In Proceedings of the Magnesium Technology 2003, San Diego, CA, USA, 2–6 March 2003; The Minerals, Metals & Materials Society: Warrendale, PA, USA, 2003. [Google Scholar]
  20. Cao, P.; Qian, M.; Stjohn, D.; Frost, M. Influence of the Uptake of Iron on the Grain Refinement of Pure Magnesium by Zirconium. In Proceedings of the Light Metals Technology Conference, Brisbane, Australia, 18–20 September 2003. [Google Scholar]
  21. Yang, L.; Liu, G.K.; Ma, L.G.; Zhou, X.R.; Thompson, G. Effect of iron content on the corrosion of pure magnesium: Critical factor for iron tolerance limit. Corros. Sci. 2018, 139, 421–429. [Google Scholar] [CrossRef]
  22. Yang, L.; Xu, W.Q.; He, S.Z.; Zhang, E.L.; Zhang, X.X.; Zhang, T.; Qin, G.W. On the effect of trace Si on accelerating the corrosion of Mg-Mn alloys. Corros. Sci. 2022, 201, 110258. [Google Scholar] [CrossRef]
  23. Thomas, S.; Gharbi, O.; Salleh, S.; Volovitch, P.; Ohle, K.; Birbilis, N. On the effect of Fe concentration on Mg dissolution and activation studied using atomic emission spectroelectrochemistry and scanning electrochemical microscopy. Electrochim. Acta 2016, 210, 271–284. [Google Scholar] [CrossRef]
  24. Yang, L.; Zhou, X.R.; Liang, S.M.; Schmid-fetzer, R.; Fan, Z.Y.; Scamans, G.; Robson, J.; Thompson, G. Effect of traces of silicon on the formation of Fe-rich particles in pure magnesium and the corrosion susceptibility of magnesium. J. Alloys Compd. 2015, 619, 396–400. [Google Scholar] [CrossRef]
  25. Ben-hamu, G.; Eliezer, D.; Shin, K.; Cohen, S. The relation between microstructure and corrosion behavior of Mg-Y-RE-Zr alloys. J. Alloys Compd. 2007, 431, 269–276. [Google Scholar] [CrossRef]
  26. Neil, W.; Forsyth, M.; Howlett, P.; Hutchinson, C.; Hinton, B. Corrosion of magnesium alloy ZE41—The role of microstructural features. Corros. Sci. 2009, 51, 387–394. [Google Scholar] [CrossRef]
  27. Guo, Y.H.; He, X.C.; Dai, Y.B.; Zang, Q.H.; Dong, X.G.; Zhang, Z.Y. Characterization of hot extrusion deformation behavior, texture evolution, and mechanical properties of Mg-5Li-3Sn-2Al-1Zn magnesium alloy. Mater. Sci. Eng. A 2022, 858, 144136. [Google Scholar] [CrossRef]
  28. Wang, B.N.; Wang, F.; Wang, Z.; Liu, Z.; Mao, P.L. Fabrication of fine-grained, high strength and toughness Mg alloy by extrusion-shearing process. Trans. Nonferrous Met. Soc. China 2021, 31, 666–678. [Google Scholar] [CrossRef]
  29. Shiri, M.; Jafari, H.; Singh, R. Effect of extrusion parameters on degradation of magnesium alloys for bioimplant applications: A review. Trans. Nonferrous Met. Soc. China 2022, 32, 2787–2813. [Google Scholar] [CrossRef]
  30. Lu, L.W.; Liu, T.M.; Chen, J.; Wang, Z.C. Microstructure and corrosion behavior of AZ31 alloys prepared by dual directional extrusion. Mater. Des. 2012, 36, 687–693. [Google Scholar] [CrossRef]
  31. Li, Z.J.; Gu, X.N.; Lou, S.Q.; Zheng, Y.F. The development of binary Mg-Ca alloys for use as biodegradable materials within bone. Biomaterials 2008, 29, 1329–1344. [Google Scholar] [CrossRef]
  32. Alvarez-lopez, M.; Pereda, M.; Del Valle, J.; Fernandez-lorenzo, M.; Garcia-Alonso, M.; Ruano, O.; Escudero, M. Corrosion behaviour of AZ31 magnesium alloy with different grain sizes in simulated biological fluids. Acta Biomater. 2010, 6, 1763–1771. [Google Scholar] [CrossRef]
  33. Song, D.; Li, C.; Liang, N.N.; Yang, F.L.; Jiang, J.H.; Sun, J.P.; Wu, G.S.; Ma, A.B.; Ma, X.L. Simultaneously improving corrosion resistance and mechanical properties of a magnesium alloy via equal-channel angular pressing and post water annealing. Mater. Des. 2019, 166, 107621. [Google Scholar] [CrossRef]
  34. Xu, B.Q.; Sun, J.P.; Han, J.; Yang, Z.Q.; Zhou, H.; Xiao, L.R.; Xu, S.S.; Han, Y.; Ma, A.B.; Wu, G.S. Effect of hierarchical precipitates on corrosion behavior of fine-grain magnesium-gadolinium-silver alloy. Corros. Sci. 2022, 194, 109924. [Google Scholar] [CrossRef]
  35. Birbilis, N.; Ralston, K.; Virtanen, S.; Fraser, H.; Davies, C. Grain character influences on corrosion of ECAPed pure magnesium. Corros. Eng. Sci. Technol. 2010, 45, 224–230. [Google Scholar] [CrossRef]
  36. Marodkar, A.; Patil, H.; Chavhan, J.; Borkar, H. Effect of gravity die casting, squeeze casting and extrusion on microstructure, mechanical properties and corrosion behaviour of AZ91 magnesium alloy. Mater. Today Proc. 2023. [Google Scholar] [CrossRef]
  37. Wei, F.; Zhou, S.H.; Wang, J.H.; Shi, B.; Jin, P.P.; Ding, Y.; Guo, X. Effect of extrusion temperature on microstructure, mechanical properties and corrosion resistance of Mg-6Sn-3Al-1Zn alloy. Mater. Today Commun. 2023, 37, 107328. [Google Scholar] [CrossRef]
  38. Song, D.; Ma, A.B.; Jiang, J.H.; Lin, P.H.; Yang, D.H.; Fan, J.F. Corrosion behavior of equal-channel-angular-pressed pure magnesium in NaCl aqueous solution. Corros. Sci. 2010, 52, 481–490. [Google Scholar] [CrossRef]
  39. Gu, X.N.; Li, N.; Zheng, Y.F.; Kang, F.; Wang, J.T.; Ruan, L.Q. In vitro study on equal channel angular pressing AZ31 magnesium alloy with and without back pressure. Mater. Sci. Eng. B 2011, 176, 1802–1806. [Google Scholar] [CrossRef]
  40. Li, J.L.; Tan, L.L.; Wan, P.; Yu, X.M.; Yang, K. Study on microstructure and properties of extruded Mg-2Nd-0.2Zn alloy as potential biodegradable implant material. Mater. Sci. Eng. C 2015, 49, 422–429. [Google Scholar] [CrossRef]
  41. Zhang, X.B.; Yuan, G.Y.; Mao, L.; Niu, J.L.; Fu, P.H.; Ding, W.J. Effects of extrusion and heat treatment on the mechanical properties and biocorrosion behaviors of a Mg-Nd-Zn-Zr alloy. J. Mech. Behav. Biomed. Mater. 2012, 7, 77–86. [Google Scholar] [CrossRef] [PubMed]
  42. Baek, S.; Kang, J.; Kim, J.; Kim, B.; Shin, H.; Park, S. Improved corrosion resistance of Mg-8Sn-1Zn-1Al alloy subjected to low-temperature indirect extrusion. Corros. Sci. 2018, 141, 203–210. [Google Scholar] [CrossRef]
  43. Ben-haroush, M.; Ben-hamu, G.; Eliezer, D.; Eliezer, D.; Wagner, L. The relation between microstructure and corrosion behavior of AZ80 Mg alloy following different extrusion temperatures. Corros. Sci. 2008, 50, 1766–1778. [Google Scholar] [CrossRef]
  44. Miao, J.; Ye, B.; Wang, Q.D.; Peng, T. Mechanical properties and corrosion resistance of Mg-10Gd-2Y-0.5Zr alloy by hot extrusion solid-state recycling. J. Alloys Compd. 2013, 561, 184–192. [Google Scholar] [CrossRef]
  45. Mohammadi, F.; Jafari, H. Microstructure characterization and effect of extrusion temperature on biodegradation behavior of Mg-5Zn-1Y-xCa alloy. Trans. Nonferrous Met. Soc. China 2018, 28, 2199–2213. [Google Scholar] [CrossRef]
  46. Liu, G.L. The electronic structure of the microstructure of Mg-Zr alloys. Acta Phys. Sin. 2008, 57, 1043–1047. [Google Scholar] [CrossRef]
  47. Prasad, A.; Uggowitzer, P.; Shi, Z.M.; Atrens, A. Production of High Purity Magnesium Alloys by Melt Purification with Zr. Adv. Eng. Mater. 2012, 14, 477–490. [Google Scholar] [CrossRef]
  48. Qian, M. Heterogeneous nucleation on potent spherical substrates during solidification. Acta Mater. 2007, 55, 943–953. [Google Scholar] [CrossRef]
  49. Qian, M.; Zheng, L.; Graham, D.; Frost, M.; Stjohn, D. Settling of undissolved zirconium particles in pure magnesium melts. J. Light Met. 2001, 1, 157–165. [Google Scholar] [CrossRef]
  50. Qian, M.; Stjohn, D.; Frost, M. Characteristic zirconium-rich coring structures in Mg-Zr alloys. Scr. Mater. 2002, 46, 649–656. [Google Scholar] [CrossRef]
  51. Liu, J.; Yang, L.X.; Zhang, C.Y.; Zhang, B.; Zhang, T.; Yang, L.; Wu, K.M.; Wang, F.H. Role of the LPSO structure in the improvement of corrosion resistance of Mg-Gd-Zn-Zr alloys. J. Alloys Compd. 2019, 782, 648–658. [Google Scholar] [CrossRef]
  52. Coy, A.; Viejo, F.; Skeldon, P.; Thompson, G. Susceptibility of rare-earth-magnesium alloys to micro-galvanic corrosion. Corros. Sci. 2010, 52, 3896–3906. [Google Scholar] [CrossRef]
  53. Abdelgawad, M.; Usman, C.; Shunmugasamy, V.; Karaman, I.; Mansoor, B. Corrosion behavior of Mg-Zn-Zr-RE alloys under physiological environment-Impact on mechanical integrity and biocompatibility. J. Magnes. Alloys 2022, 10, 1542–1572. [Google Scholar] [CrossRef]
  54. Cao, F.Y.; Shi, Z.M.; Song, G.L.; Liu, M.; Atrens, A. Corrosion behaviour in salt spray and in 3.5% NaCl solution saturated with Mg(OH)2 of as-cast and solution heat-treated binary Mg-X alloys: X = Mn, Sn, Ca, Zn, Al, Zr, Si, Sr. Corros. Sci. 2013, 76, 60–97. [Google Scholar] [CrossRef]
  55. Gandel, D.; Easton, M.; Gibson, M.; Annott, T.; Birbilis, N. The influence of zirconium additions on the corrosion of magnesium. Corros. Sci. 2014, 81, 27–35. [Google Scholar] [CrossRef]
  56. Gandel, D.; Easton, M.; Gibson, M.; Birbilis, N. Influence of Mn and Zr on the Corrosion of Al-Free Mg Alloys: Part 2-Impact of Mn and Zr on Mg Alloy Electrochemistry and Corrosion. Corros. Sci. 2013, 69, 744–751. [Google Scholar] [CrossRef] [PubMed]
  57. Feng, Y.J.; Li, Q.; Zhao, T.L.; Pan, F.S. A quasi-passivated film formed on as-solutionized Mg-Sm-Zn-Zr alloy in NaCl solution. Corros. Sci. 2022, 198, 110136. [Google Scholar] [CrossRef]
  58. Gao, J.H.; Guan, S.; Ren, Z.; Sun, Y.; Wang, B. Homogeneous corrosion of high pressure torsion treated Mg-Zn-Ca alloy in simulated body fluid. Mater. Lett. 2011, 65, 691–693. [Google Scholar] [CrossRef]
  59. Wu, Q.; Zhu, S.J.; Wang, L.G.; Liu, Q.; Yue, G.C.; Wang, J.; Guan, S.K. The microstructure and properties of cyclic extrusion compression treated Mg-Zn-Y-Nd alloy for vascular stent application. J. Mech. Behav. Biomed. Mater. 2012, 8, 1–7. [Google Scholar] [CrossRef] [PubMed]
  60. Duley, P.; Bairagi, D.; Bairi, L.; Bandyopadhyay, T.; Mandal, S. Effect of microstructural evolution and texture change on the in-vitro bio-corrosion behaviour of hard-plate hot forged Mg-4Zn-0.5Ca-0.16Mn(wt%) alloy. Corros. Sci. 2021, 192, 109860. [Google Scholar] [CrossRef]
  61. Zhou, Y.L.; Li, Y.; Luo, D.M.; Ding, Y.; Peter, H. Microstructures, mechanical and corrosion properties and biocompatibility of as extruded Mg-Mn-Zn-Nd alloys for biomedical applications. Mater. Sci. Eng. C 2015, 49, 93–100. [Google Scholar] [CrossRef]
  62. Zeng, R.; Kainer, K.U.; Blawert, C.; Dietzel, W. Corrosion of an extruded magnesium alloy ZK60 component-The role of microstructural features. J. Alloy. Compd. 2011, 509, 4462–4469. [Google Scholar] [CrossRef]
  63. Kavyani, M.; Ebrahimi, G.R.; Ezatpour, H.R.; Jahazi, M. Microstructure refinement, mechanical and biocorrosion properties of Mg-Zn-Ca-Mn alloy improved by a new severe plastic deformation process. J. Magnes. Alloys 2022, 10, 1640–1662. [Google Scholar] [CrossRef]
Materials 17 04263 g001

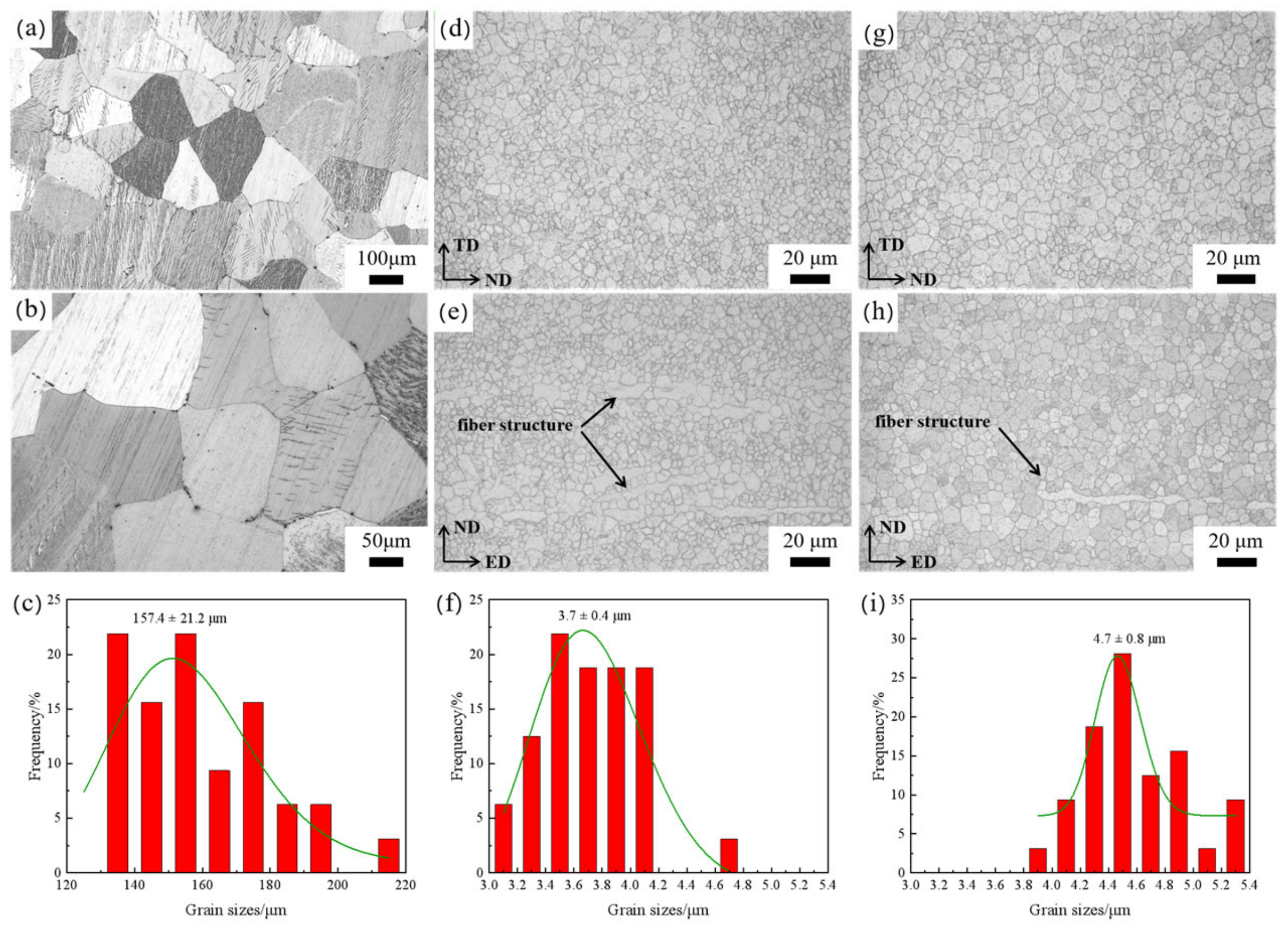

Figure 1. Optical microstructure and grain size distribution of the alloys: (a–c) HT-ZXK alloy; (d–f) 320-E alloy; (g–i) 350-E alloy. The green line represents the linear fitting outcome of the grain size distribution histogram.
Figure 1. Optical microstructure and grain size distribution of the alloys: (a–c) HT-ZXK alloy; (d–f) 320-E alloy; (g–i) 350-E alloy. The green line represents the linear fitting outcome of the grain size distribution histogram.
Materials 17 04263 g001
Materials 17 04263 g002

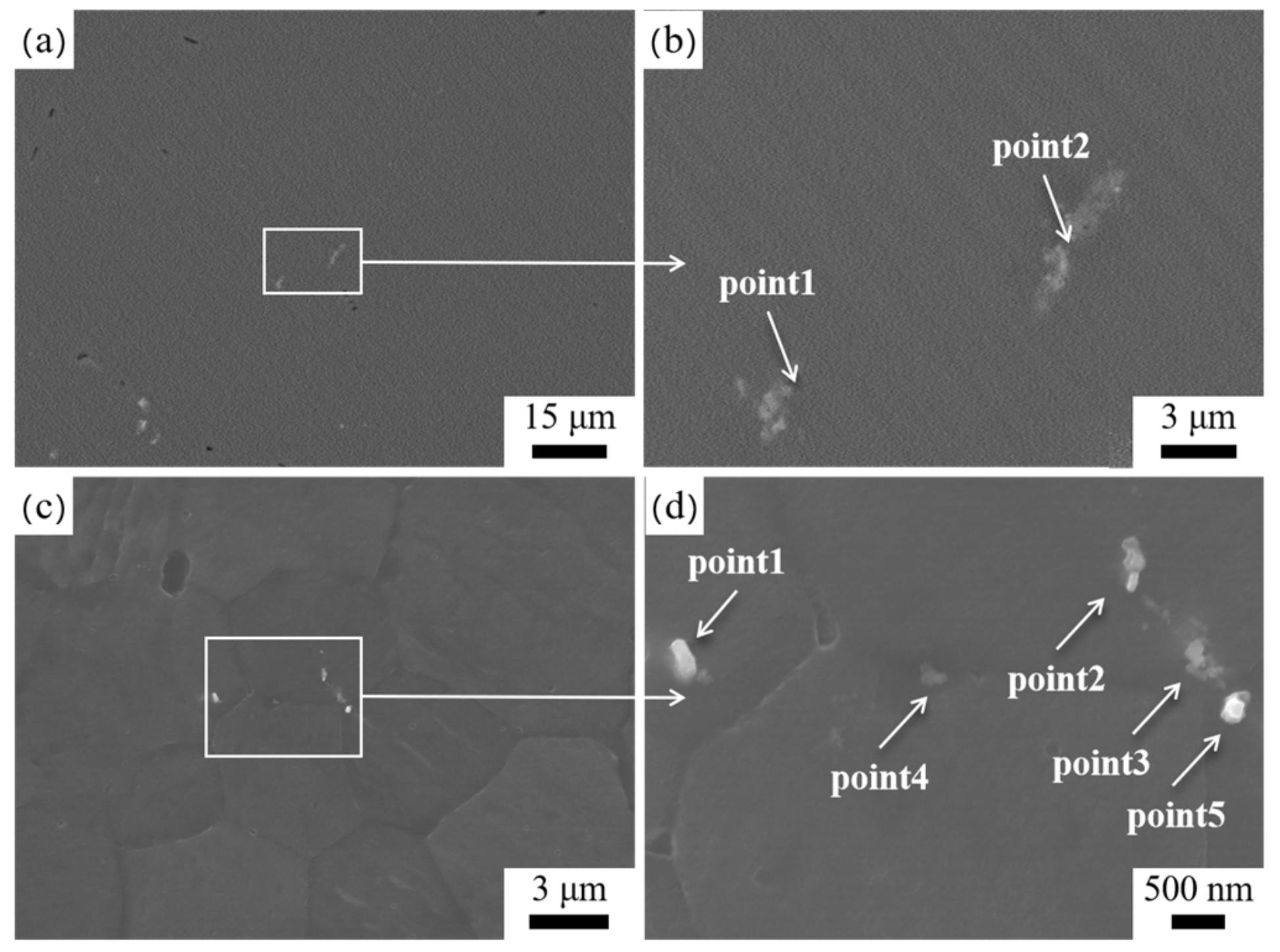

Figure 2. SEM images of the second phase in alloys: (a,b) HT-ZXK alloy; (c,d) 320-E alloy.
Figure 2. SEM images of the second phase in alloys: (a,b) HT-ZXK alloy; (c,d) 320-E alloy.
Materials 17 04263 g002
Materials 17 04263 g003

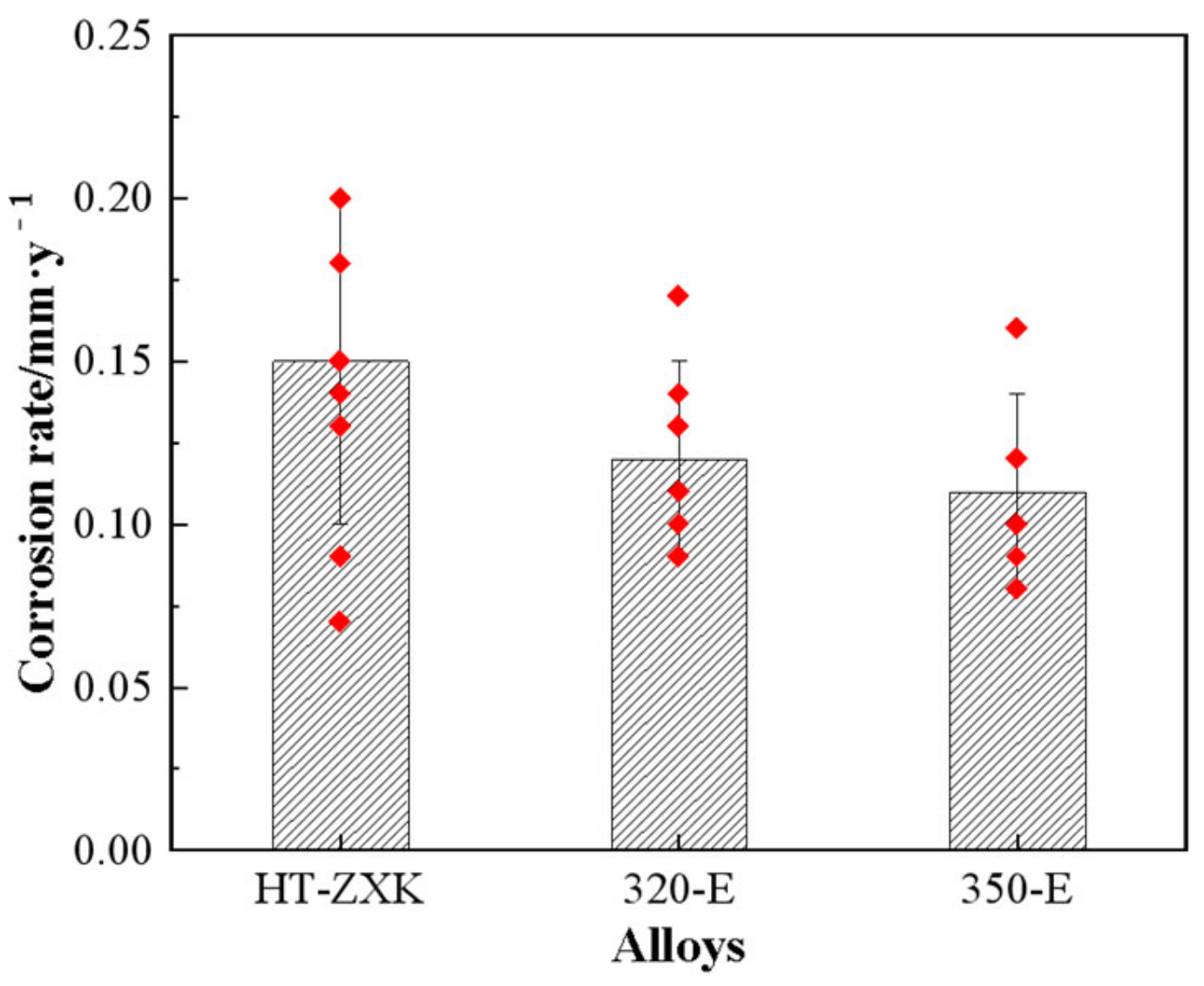

Figure 3. The corrosion rate of the studied alloys after immersion in SBF solution for 21 days, which is measured by mass loss. (The red dots represent the mass loss rate of parallel specimens).
Figure 3. The corrosion rate of the studied alloys after immersion in SBF solution for 21 days, which is measured by mass loss. (The red dots represent the mass loss rate of parallel specimens).
Materials 17 04263 g003
Materials 17 04263 g004

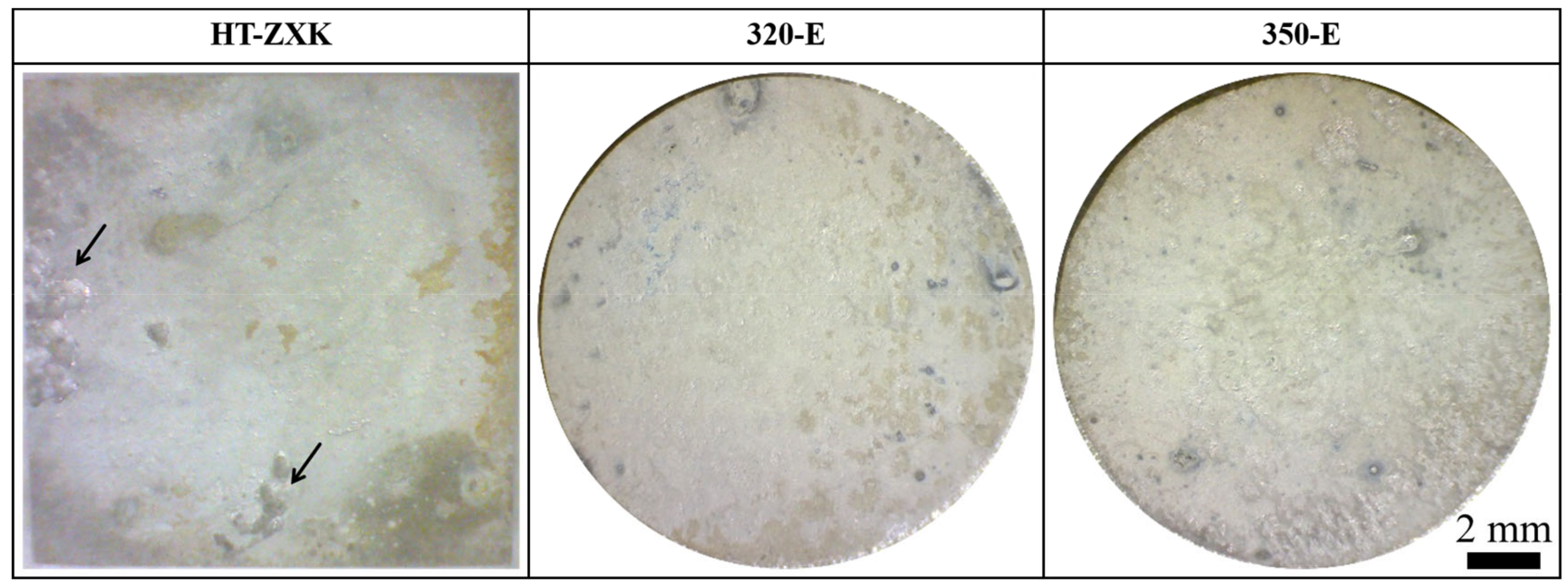

Figure 4. Optical images of the specimens after the mass loss test and removal of corrosion products.
Figure 4. Optical images of the specimens after the mass loss test and removal of corrosion products.
Materials 17 04263 g004
Materials 17 04263 g005

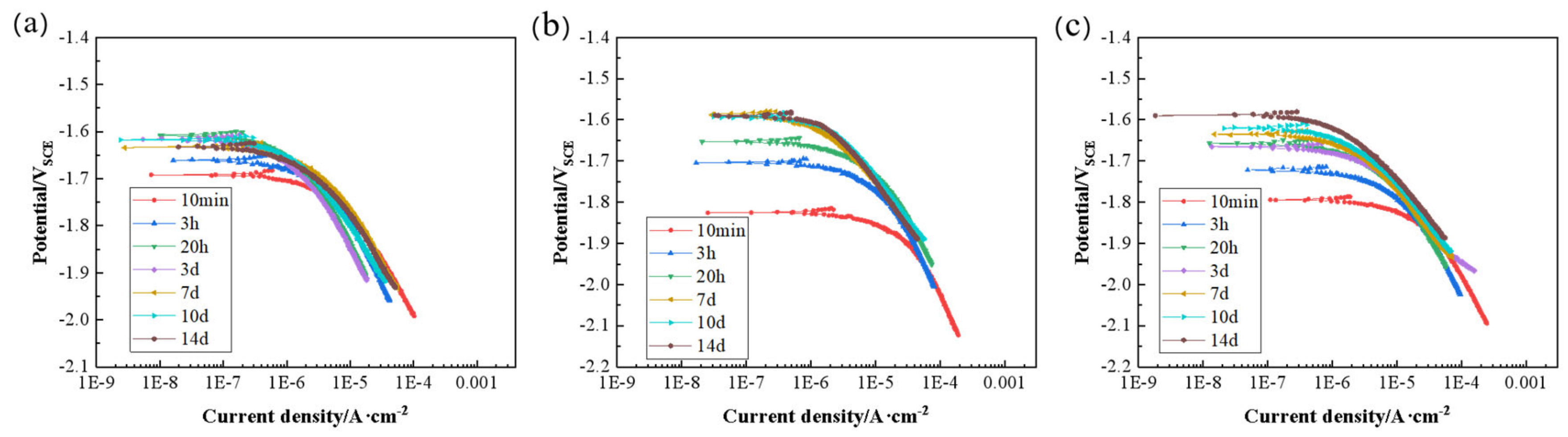

Figure 5. Cathodic polarization curves of the studied alloys after immersion in SBF for 10 min, 3 h, 20 h, 3 days, 7 days, 10 days, and 14 days: (a) HT-ZXK; (b) 320-E; (c) 350-E.
Figure 5. Cathodic polarization curves of the studied alloys after immersion in SBF for 10 min, 3 h, 20 h, 3 days, 7 days, 10 days, and 14 days: (a) HT-ZXK; (b) 320-E; (c) 350-E.
Materials 17 04263 g005
Materials 17 04263 g006

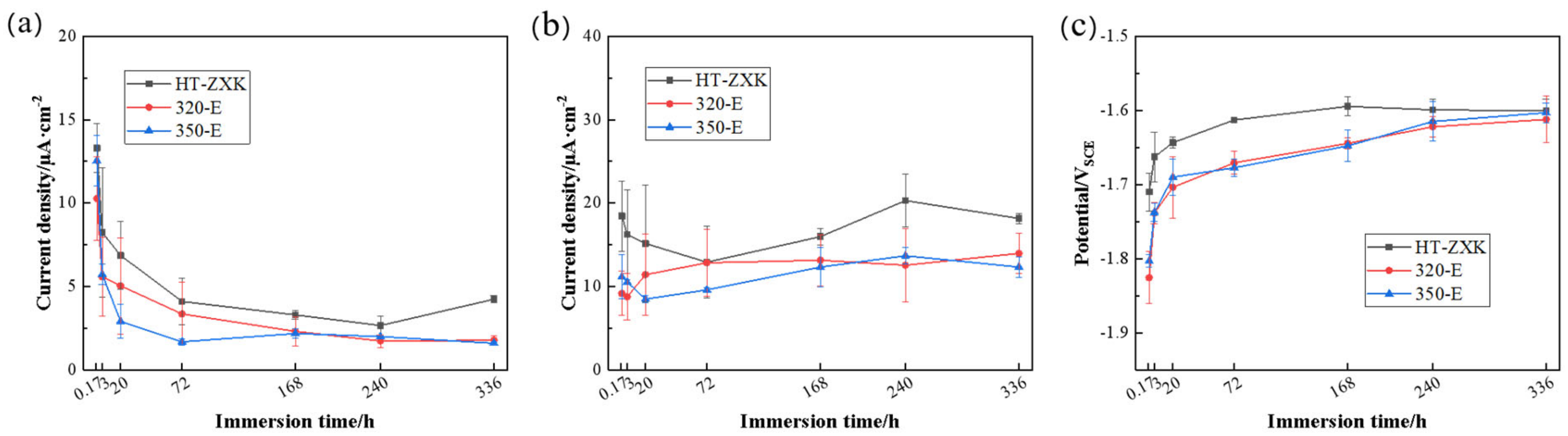

Figure 6. Cathode polarization parameters: (a) corrosion current density; (b) current density at −1.8 VSCE; (c) corrosion potential.
Figure 6. Cathode polarization parameters: (a) corrosion current density; (b) current density at −1.8 VSCE; (c) corrosion potential.
Materials 17 04263 g006
Materials 17 04263 g007

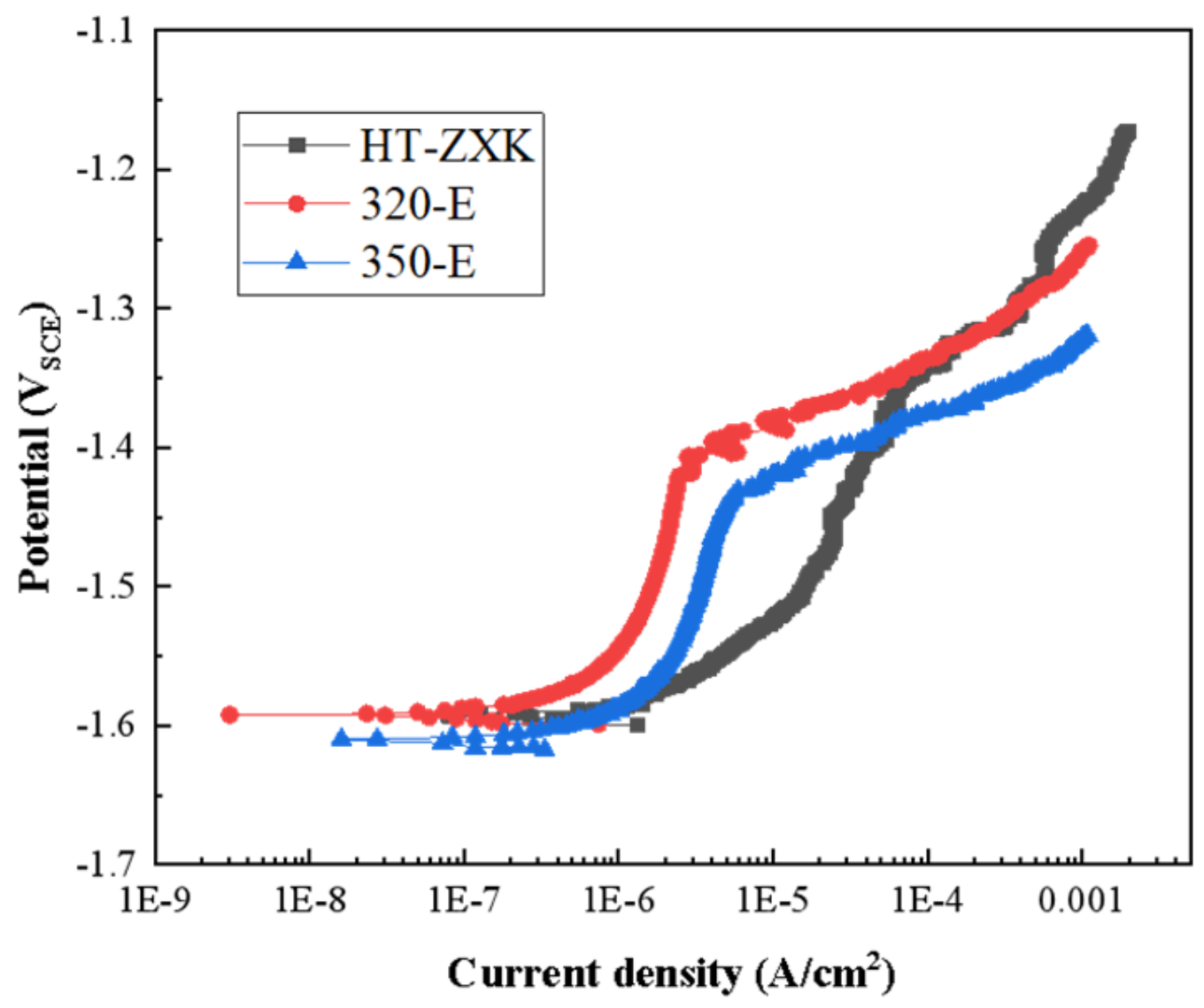

Figure 7. Anodic polarization curves of the studied alloys after immersion in SBF solution for 14 days.
Figure 7. Anodic polarization curves of the studied alloys after immersion in SBF solution for 14 days.
Materials 17 04263 g007
Materials 17 04263 g008

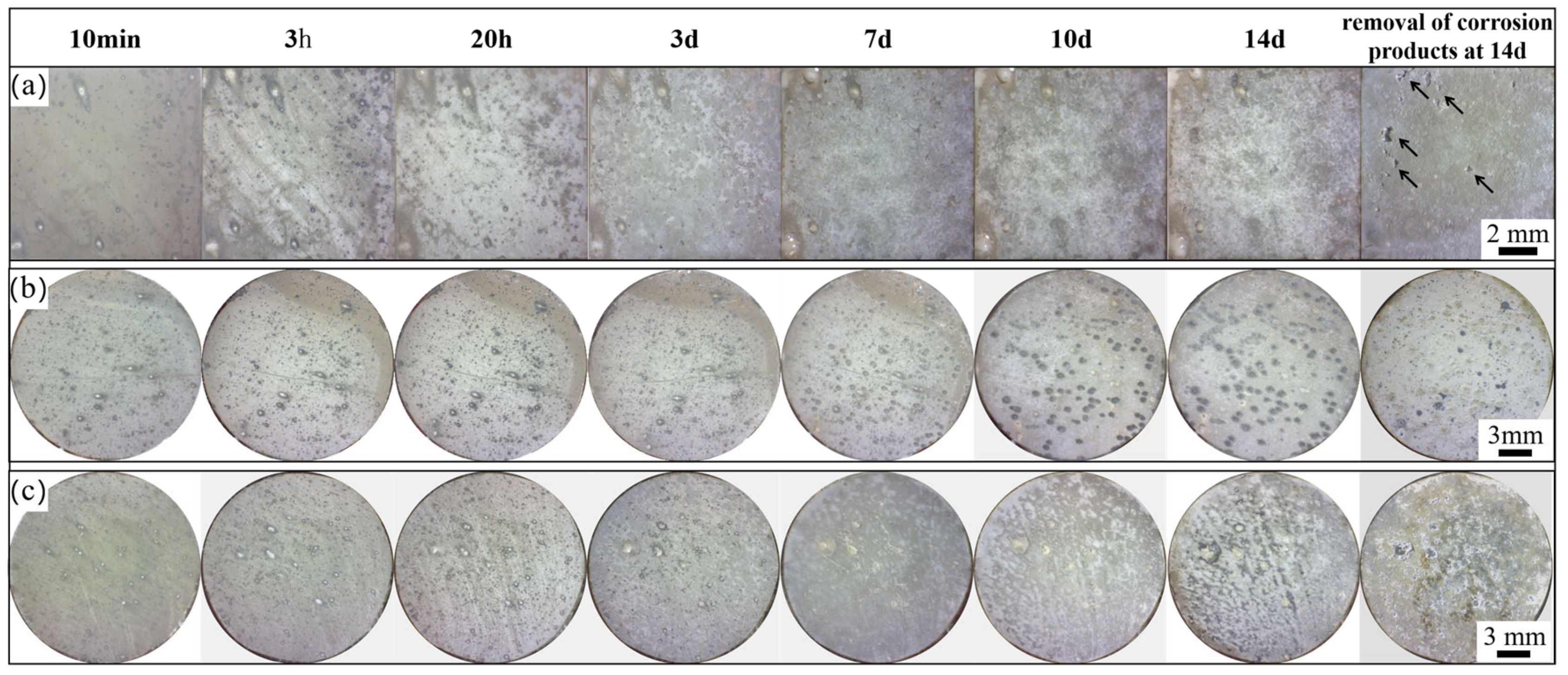

Figure 8. Optical images of the studied alloys after immersion in SBF solution for different times: (a) HT-ZXK alloy; (b) 320-E; (c) 350-E. (Arrows indicate localized corrosion sites).
Figure 8. Optical images of the studied alloys after immersion in SBF solution for different times: (a) HT-ZXK alloy; (b) 320-E; (c) 350-E. (Arrows indicate localized corrosion sites).
Materials 17 04263 g008
Materials 17 04263 g009

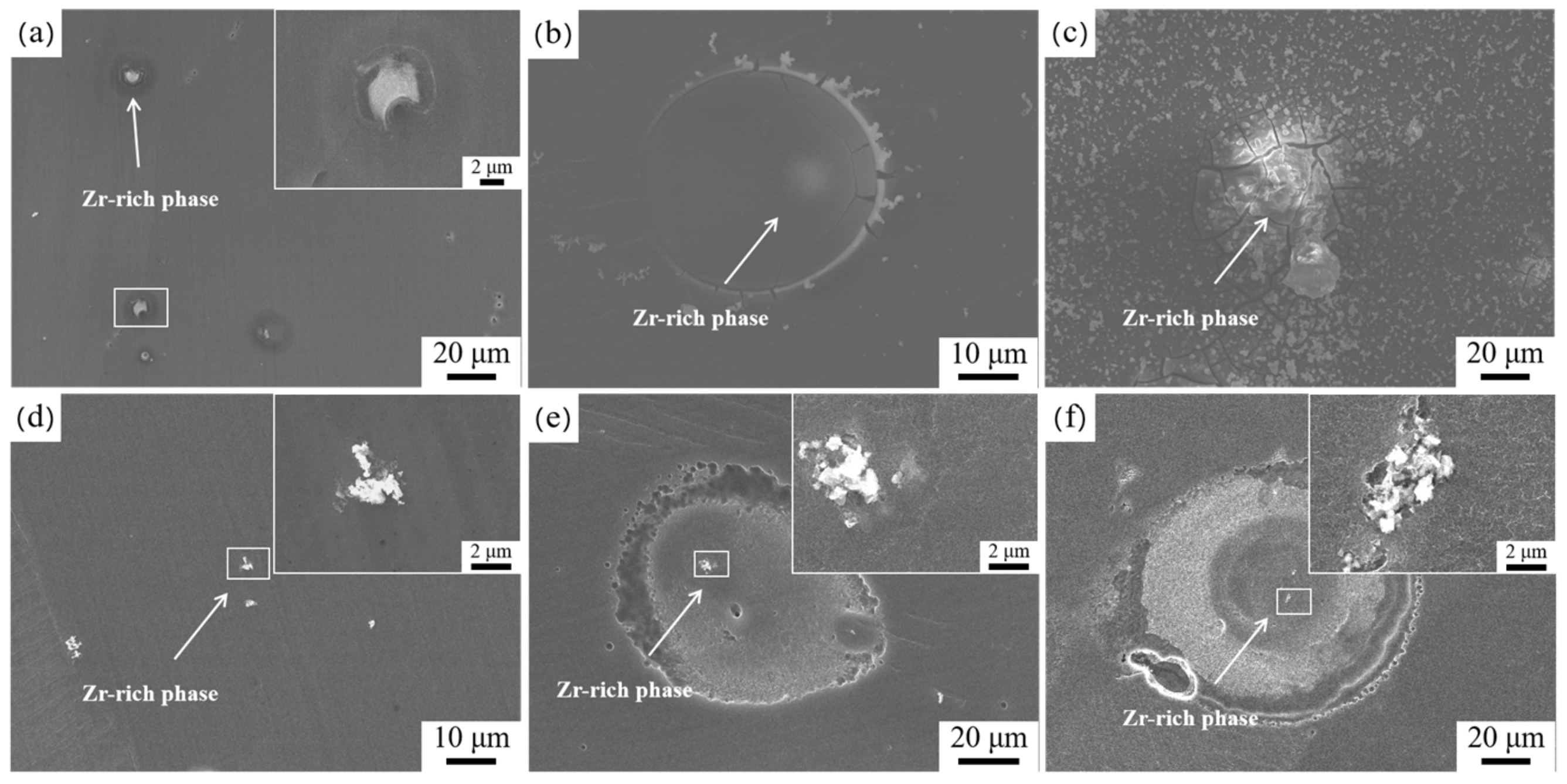

Figure 9. Micro-galvanic corrosion between Zr-rich phase and ɑ-Mg matrix in HT-ZXK alloy in SBF solution. Before removing corrosion products: (a) after immersion for 10 s; (b) after immersion for 30 min; (c) after immersion for 6 h. After removing corrosion products: (d) after immersion for 10 s; (e) after immersion for 30 min; (f) after immersion for 6 h.
Figure 9. Micro-galvanic corrosion between Zr-rich phase and ɑ-Mg matrix in HT-ZXK alloy in SBF solution. Before removing corrosion products: (a) after immersion for 10 s; (b) after immersion for 30 min; (c) after immersion for 6 h. After removing corrosion products: (d) after immersion for 10 s; (e) after immersion for 30 min; (f) after immersion for 6 h.
Materials 17 04263 g009
Materials 17 04263 g010

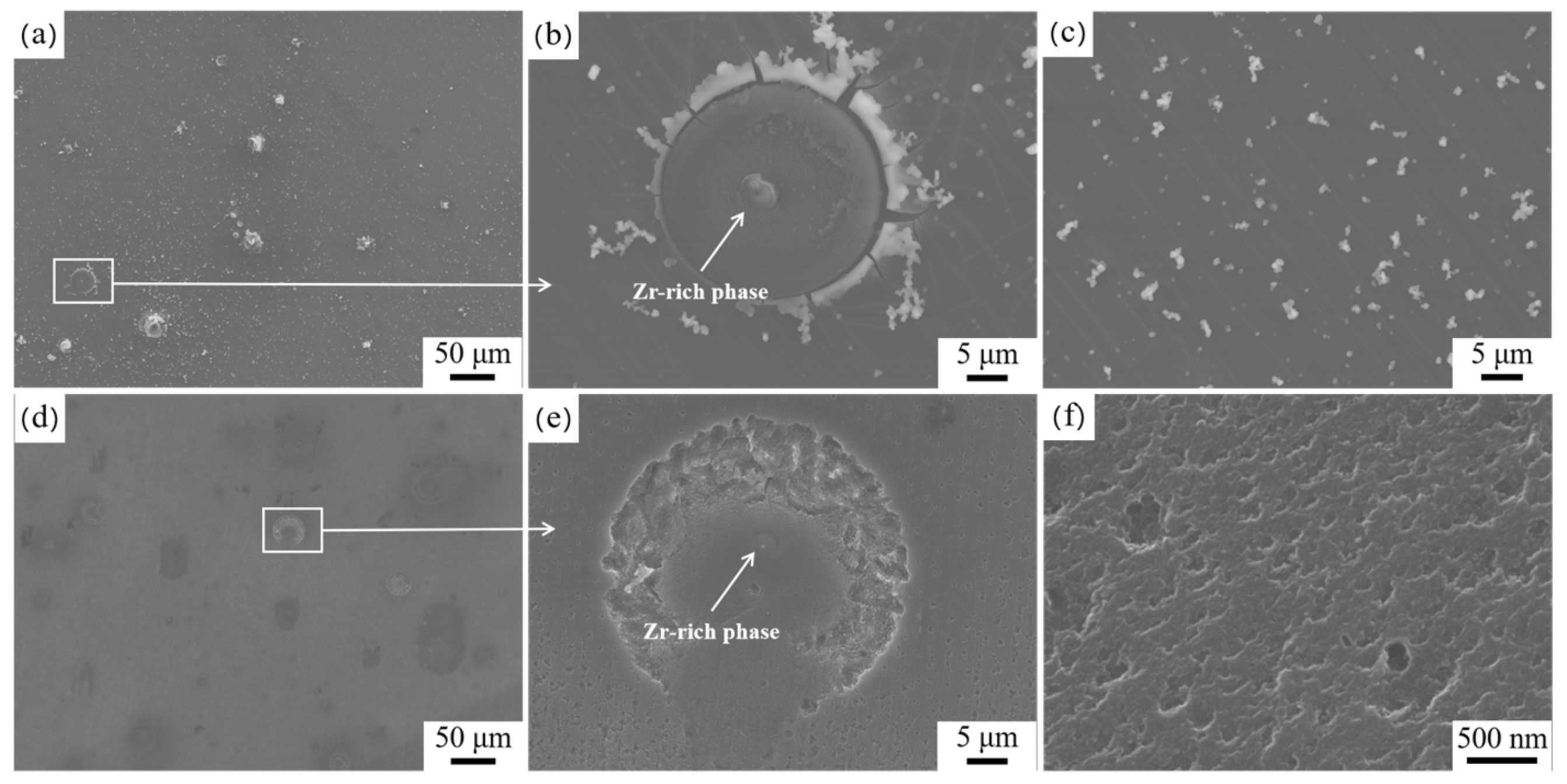

Figure 10. Micro-galvanic corrosion morphology between Zr-rich phase and ɑ-Mg matrix in 320-E alloy after immersion in SBF solution for 30 min. Before removing corrosion products: (a) low magnification; (b) Zr-rich phase; (c) magnesium matrix. After removing corrosion products: (d) low magnification; (e) Zr-rich phase; (f) magnesium matrix.
Figure 10. Micro-galvanic corrosion morphology between Zr-rich phase and ɑ-Mg matrix in 320-E alloy after immersion in SBF solution for 30 min. Before removing corrosion products: (a) low magnification; (b) Zr-rich phase; (c) magnesium matrix. After removing corrosion products: (d) low magnification; (e) Zr-rich phase; (f) magnesium matrix.
Materials 17 04263 g010
Materials 17 04263 g011

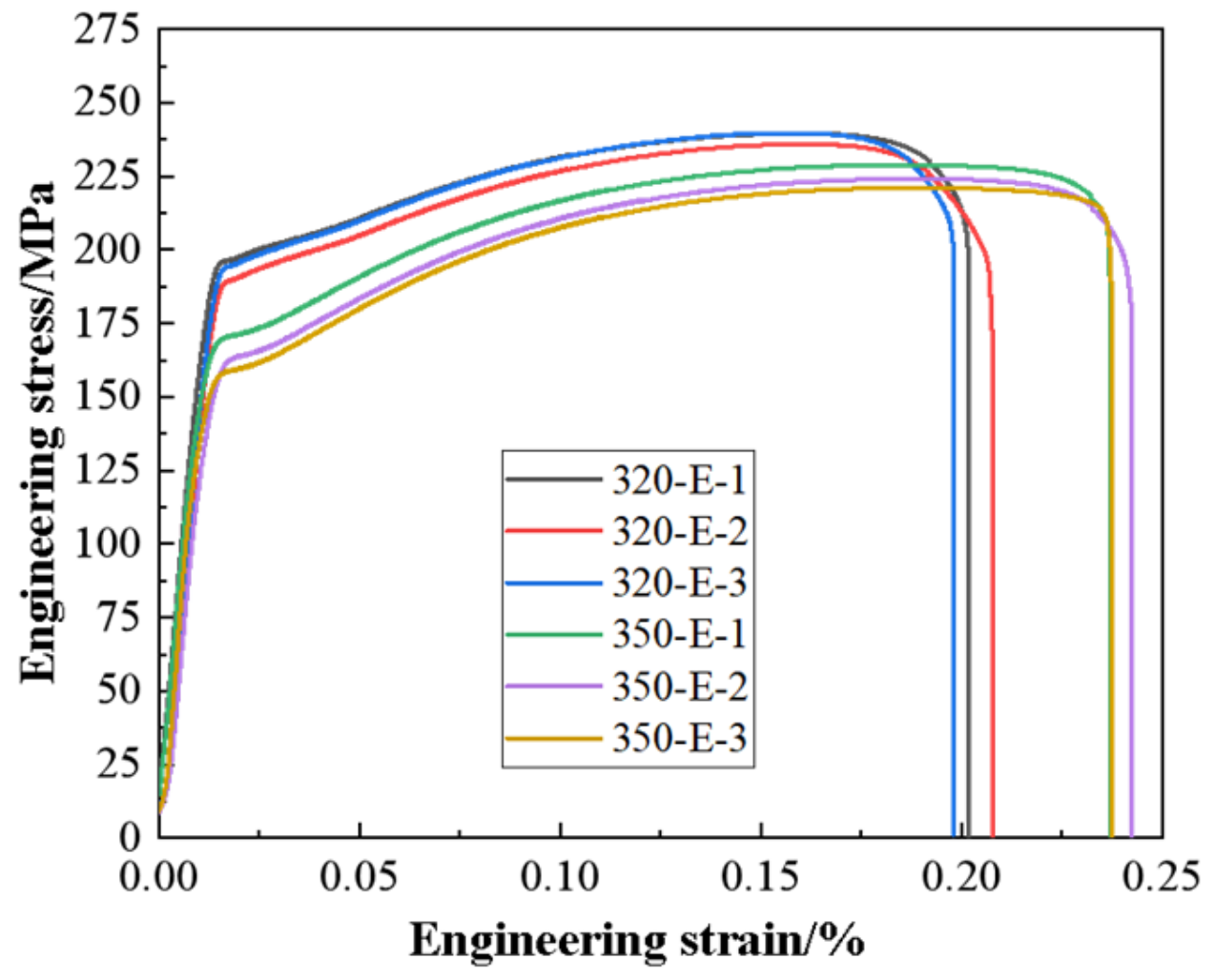

Figure 11. Engineering stress–strain curves of as-extruded alloys at room temperature.
Figure 11. Engineering stress–strain curves of as-extruded alloys at room temperature.
Materials 17 04263 g011
Materials 17 04263 g012
Figure 12. Images of fracture morphology of the as-extruded alloys: (a) 320-E; (b) 350-E.
Figure 12. Images of fracture morphology of the as-extruded alloys: (a) 320-E; (b) 350-E.
Materials 17 04263 g012
Materials 17 04263 g013

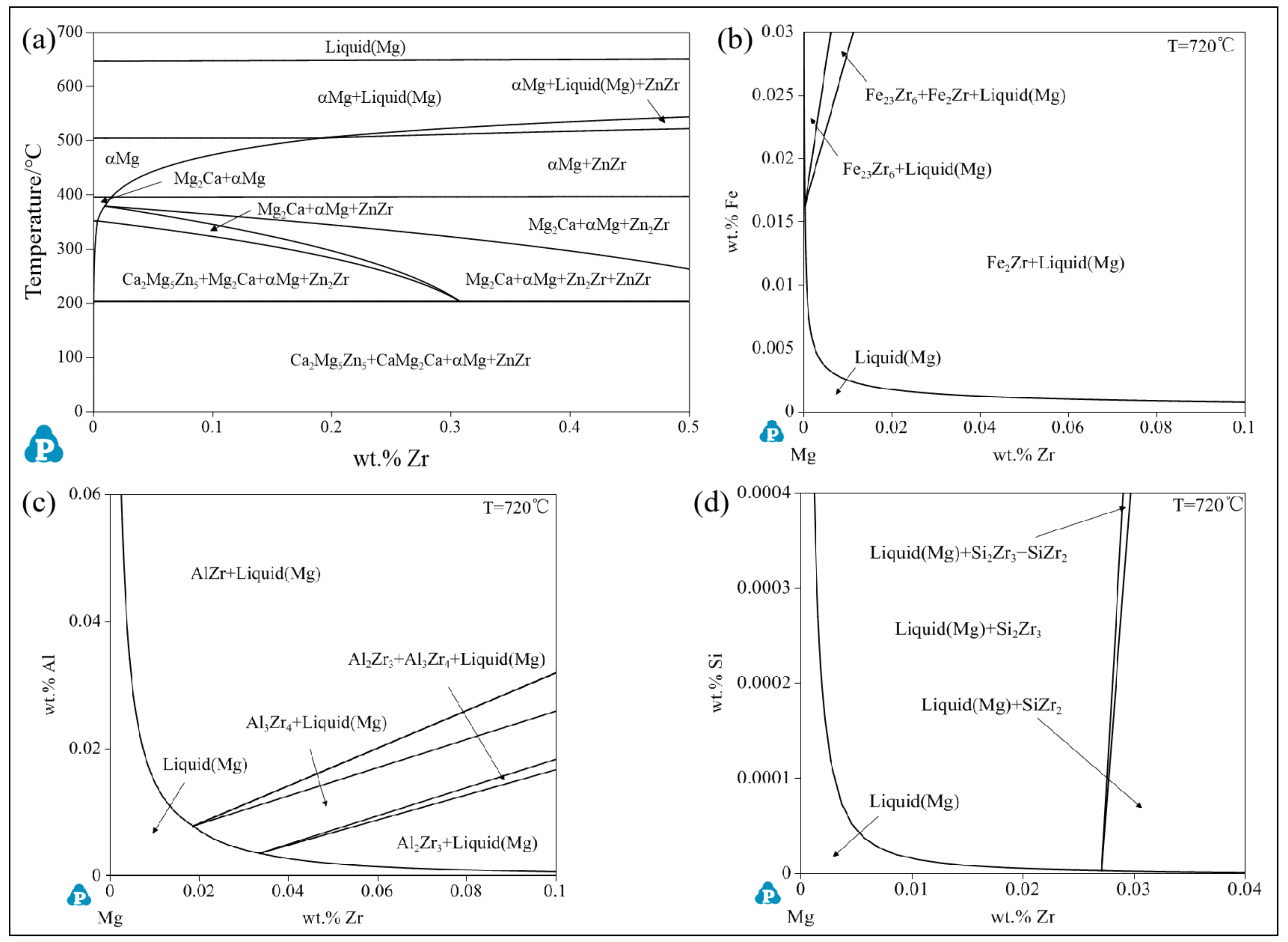

Figure 13. Phase diagram calculated using Pandat software: (a) Mg–0.5Zn–0.3Ca–xZr (wt.%) phase diagram at the Mg-rich corner; (b–d) are the isothermal cross-sections of the ternary phase diagrams for Mg–Fe–Zr, Mg–Al–Zr, and Mg–Si–Zr at 720 °C, respectively.
Figure 13. Phase diagram calculated using Pandat software: (a) Mg–0.5Zn–0.3Ca–xZr (wt.%) phase diagram at the Mg-rich corner; (b–d) are the isothermal cross-sections of the ternary phase diagrams for Mg–Fe–Zr, Mg–Al–Zr, and Mg–Si–Zr at 720 °C, respectively.
Materials 17 04263 g013
Materials 17 04263 g014

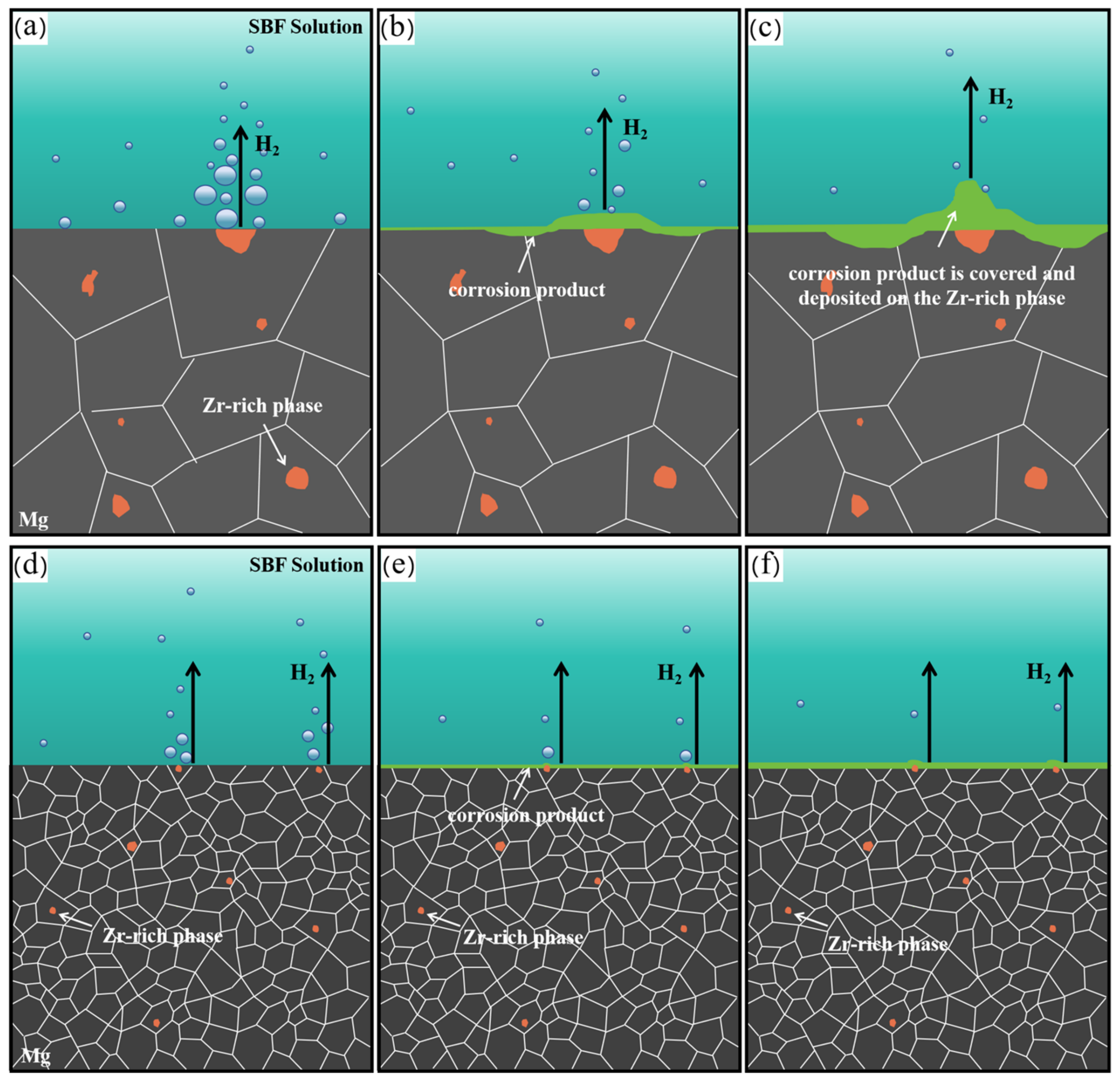

Figure 14. Schematic diagram of corrosion mechanism of Zr-rich phase: (a) initial corrosion behavior of HT-ZXK alloy; (b) continuous corrosion behavior of HT-ZXK alloy; (c) further corrosion behavior of HT-ZXK alloy; (d) initial corrosion behavior of as-extruded alloy; (e) continuous corrosion behavior of as-extruded alloy; (f) further corrosion behavior of as-extruded alloy.
Figure 14. Schematic diagram of corrosion mechanism of Zr-rich phase: (a) initial corrosion behavior of HT-ZXK alloy; (b) continuous corrosion behavior of HT-ZXK alloy; (c) further corrosion behavior of HT-ZXK alloy; (d) initial corrosion behavior of as-extruded alloy; (e) continuous corrosion behavior of as-extruded alloy; (f) further corrosion behavior of as-extruded alloy.
Materials 17 04263 g014
Table 1. Compositions of the magnesium alloys studied in the present work (wt%).
Table 1. Compositions of the magnesium alloys studied in the present work (wt%).
SampleZnCaZrFeNiSiMg
Mg–0.5Zn–0.3Ca–0.05Zr0.4610.2720.0340.00290.00021<0.00001Balance
Table 2. EDS result statistics of the second phase of the alloy in Figure 2. (wt.%).
Table 2. EDS result statistics of the second phase of the alloy in Figure 2. (wt.%).
AlloysPrecipitatesOMgZnCaZrFeAlSi
HT-ZXKPoint15.1281.510.970.0811.440.250.100.53
Point26.5077.981.060.2213.950.19-0.21
320-EPoint16.2974.711.170.2815.030.371.680.46
Point25.7290.640.770.242.44--0.62
Point311.3966.671.050.3817.260.631.970.65
Point410.3578.441.160.299.50 0.170.08
Point55.5175.780.640.5015.350.320.481.42
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yu, Z.; Hu, W.; Chen, Z.; Shi, L.; Yang, L.; Jin, J.; Zhang, E. Effect of Extrusion Process on Microstructure, Corrosion Properties, and Mechanical Properties of Micro-Alloyed Mg–Zn–Ca–Zr Alloy. Materials 2024, 17, 4263. https://doi.org/10.3390/ma17174263

AMA Style

Yu Z, Hu W, Chen Z, Shi L, Yang L, Jin J, Zhang E. Effect of Extrusion Process on Microstructure, Corrosion Properties, and Mechanical Properties of Micro-Alloyed Mg–Zn–Ca–Zr Alloy. Materials. 2024; 17(17):4263. https://doi.org/10.3390/ma17174263

Chicago/Turabian Style

Yu, Zemin, Wenxin Hu, Zhiqiang Chen, Lei Shi, Lei Yang, Jianfeng Jin, and Erlin Zhang. 2024. "Effect of Extrusion Process on Microstructure, Corrosion Properties, and Mechanical Properties of Micro-Alloyed Mg–Zn–Ca–Zr Alloy" Materials 17, no. 17: 4263. https://doi.org/10.3390/ma17174263

APA Style

Yu, Z., Hu, W., Chen, Z., Shi, L., Yang, L., Jin, J., & Zhang, E. (2024). Effect of Extrusion Process on Microstructure, Corrosion Properties, and Mechanical Properties of Micro-Alloyed Mg–Zn–Ca–Zr Alloy. Materials, 17(17), 4263. https://doi.org/10.3390/ma17174263

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
