Electrochemical Behavior of Plasma-Nitrided Austenitic Stainless Steel in Chloride Solutions

by
Viera Zatkalíková
1,*,
Petra Drímalová
1,
Katarzyna Balin
2,
Martin Slezák
1 and
Lenka Markovičová
1
1
Department of Materials Engineering, Faculty of Mechanical Engineering, University of Žilina, Univerzitná 8215/1, 010 26 Žilina, Slovakia
2
A. Chełkowski Institute of Physics, University of Silesia in Katowice, 75 Pułku Piechoty 1, 41-500 Chorzów, Poland
*
Author to whom correspondence should be addressed.
Materials 2024, 17(17), 4189; https://doi.org/10.3390/ma17174189
Submission received: 10 July 2024 / Revised: 18 August 2024 / Accepted: 22 August 2024 / Published: 24 August 2024
(This article belongs to the Special Issue Advances in Metal Coatings for Wear and Corrosion Applications)
Browse Figures
Versions Notes

Abstract

:
The application possibilities of austenitic stainless steels in high friction, abrasion, and sliding wear conditions are limited by their inadequate hardness and tribological characteristics. In order to improve these properties, the thermochemical treatment of their surface by plasma nitriding is suitable. This article is focused on the corrosion resistance of conventionally plasma-nitrided AISI 304 stainless steel (530 °C, 24 h) in 0.05 M and 0.5 M sodium chloride solutions at room temperature (20 ± 3 °C), tested by potentiodynamic polarization and electrochemical impedance spectroscopy. Optical microscopy, scanning electron microscopy, energy-dispersive X-ray spectroscopy, and X-ray photoelectron spectroscopy are used for nitrided layer characterization. The experiment results confirmed the plasma-nitrided layer formation of increased micro-hardness related to the presence of Cr2N chromium nitrides and higher surface roughness compared to the as-received state. Both of the performed independent electrochemical corrosion tests point to a significant reduction in corrosion resistance after the performed plasma nitriding, even in a solution with a very low chloride concentration (0.05 mol/L).

1. Introduction

Austenitic stainless steels are commonly used in various fields of human activity because of the combination of high corrosion resistance and satisfactory mechanical properties. However, their utilization as a construction material in applications where they are subjected to friction, abrasion, or sliding wear is limited by their insufficient hardness and poor tribological properties [1,2,3,4,5,6]. The above problem can be solved by nitriding, which involves the diffusion of nitrogen into the material’s surface layer. The nitrided surface has increased hardness and can exhibit lower friction coefficients, reducing friction between moving parts. This contributes to improved efficiency and reduced energy consumption. Additionally, the nitrided layer can act as a solid lubricant in some cases [7,8,9]. Older methods of nitriding were economically demanding and caused distinctive environmental problems [10,11,12].
Plasma nitriding (PN) takes place in ionized gases (N₂ + H₂, NH3) at reduced pressure under the influence of an electric field. It is less time-consuming and is environmentally friendly because it typically uses fewer hazardous chemicals than previous nitriding methods and produces minimal waste [8,9,13,14,15]. By improving hardness and wear resistance, plasma nitriding helps extend the life of austenitic stainless-steel components, which is critical in industries in which durability and longevity are essential factors [11,12,13,14,15].
The PN of stainless steels has been the subject of research for several decades, and many specific methods based on it are currently in use. The choice of method depends on factors such as the material being treated, the desired outcome, and the characteristics of the components undergoing nitriding. The ways of PN differ, especially in key process parameters (temperature, gas composition, pressure, and treatment duration), which affect the resulting properties of the nitrided stainless-steel surfaces [16,17,18,19,20]. The obtained hardness is influenced mainly by the nitriding temperature used and depends on the precipitation of hard chromium nitrides, which are typically formed at temperatures above 500 °C. Therefore, this conventional high-temperature plasma nitriding brings a significant increase in hardness and a high resistance to wear, but due to the depletion of chromium, the corrosion resistance is limited [13,18,19,20,21,22,23,24,25,26]. After high-temperature PN, the loss of the passive behavior of austenitic stainless steels in potentiodynamic polarization has been observed by several authors [8,15,17,18]. In some cases, high-temperature nitriding can also lead to a martensitic transformation of the austenitic structure [27,28,29]. Because martensite is a harder phase than austenite, further enhancing of the material’s hardness occurs [29].
However, if the nitriding temperature is around 400 °C (so-called low-temperature nitriding), an expanded austenite (“S” phase) as an oversaturated solid solution of nitrogen in the austenitic face-centered cubic lattice is created [13,14,15,19,20,22,24,26]. This process is not accompanied by chromium depletion, and the material retains its high corrosion resistance [14,19,20,21,22]. A decrease in susceptibility to the pitting corrosion in chloride solutions after low-temperature nitriding has been confirmed by authors [23,24,25]. The expanded austenite contributes to increased hardness, but the effect is not as significant as the formation of hard chromium nitrides [9,13,17]. Moreover, a considerable amount of residual austenite may remain in the structure. The authors [17] noted that the micro-hardness of AISI 316L stainless steel after 4 h low-temperature nitriding at 400 °C (about 580 HV) is approximately half that observed in high-temperature nitriding at 520 °C (about 1200 HV). The choice between low- and high-temperature austenitic stainless-steel plasma nitriding depends on the specific application requirements. If, in addition to improved tribological properties, maintaining the austenitic structure and low susceptibility to corrosion are important, low-temperature nitriding may be preferred. For maximum hardness and wear resistance, high-temperature nitriding is more suitable. A compromise between low-temperature and high-temperature nitriding is rapid, short-term, high-temperature nitriding, which results in a nitrided layer that contains both expanded austenite and chromium nitrides [30,31].
The presented paper deals with the properties of plasma-nitrided AISI 304 stainless steel. The plasma nitriding process was performed in an industrial company producing stainless-steel components with an improved hardness and tribological properties for various applications, including those for which contact with variously concentrated chloride solutions is common. The main aim is to assess to what extent this conventional plasma nitriding (530 °C, 24 h) reduces the corrosion resistance of a given material in chloride solutions, dependent on the chloride concentration used. The plasma-nitrided layer is characterized by optical microscope (OM), SEM, EDX, and X-ray photoelectron spectroscopy (XPS). The micro-hardness of the PN layer and the surface roughness parameters are assessed as well. The evaluation of the corrosion resistance is based on potentiodynamic polarization (PP) and electrochemical impedance spectroscopy (EIS), both carried out in 0.05 M and 0.5 M sodium chloride solutions at room temperature (20 ± 3 °C).

2. Materials and Methods

The experimental material AISI 304 was purchased as a 1.5 mm thick sheet with a smooth and matt surface (2B surface finish) and the following chemical composition (wt.%) specified by atomic emission spectrometry (Spectromaxx analyzer, SPECTRO Analytical Instruments GmbH, Kleve, Germany): Cr 19.09, Ni 8.15, Mn 1.33, N 0.074, C 0.03, Si 0.37, P 0.029, S 0.004, Fe balance.
For the PN process, rectangular specimens with dimensions of 15 mm × 40 mm × 1.5 mm were prepared. A part of the specimens were left in their original state (“as-received state”) for a comparison of the obtained tests results. The surfaces of the specimens to be nitrided were not mechanically or chemically treated, only rinsed with water and ethanol and then dried with a stream of air.
The PN process was performed in the specialized laboratory of Rübig SK, k.s. (Prievidza, Slovakia) in a plasma nitriding furnace (the plasma nitriding process was identical to that used by this company for nitriding the manufactured components). The recipient (furnace casing) was connected to the circuit as an anode. The process lasted 24 h and was carried out at a temperature of 530 °C. The process included argon dusting. The nitriding was followed by cooling to a temperature of 160 °C, after which, the pressure was equilibrated to atmospheric pressure, and nitrided specimens were cooled freely to a common laboratory temperature.
For characterization, the nitrided specimen’s surface was displayed and EDX mapping analyzed by a Tescan Vega scanning electron microscope (SEM). The cross-section of the plasma-nitrided specimen was observed by optical microscope (OM) after glycerine + HNO3 + HF etching.
The presence of chromium nitrides and the prevalent type were determined by XPS analysis performed in a specialized laboratory at the A. Chełkowski Institute of Physics, University of Silesia (Katowice, Poland), using a Physical Electronic XPS spectrometer (Physical Electronics PHI 5700, Lake Drive East Chanhassen, Chanhassen, MN, USA). For photoelectron excitation, the X-ray AlKα1 monochromatic radiation with energy of 1486 eV was used. The photoelectron survey and high-resolution spectra were collected from 80 μm diameter areas of the plasma-nitrided specimen, both before and after surface cleaning (Ar+, 1.5 kV, 20 mA, 5 min). The photoelectron spectra were analyzed using MULTIPAK (v.9.6.0.1, ULVAC PHI) software. The high-resolution spectra were calibrated using the C1s peak (284.6 eV).
The Vickers micro-hardness evaluation of the plasma-nitrided specimen was performed using a Zwick/Roell ZHVμ micro-hardness tester (Taicang, China) with a load of 0.01 kp (HV0.01 = 0.0981 N) and with a 10 s action of the indenter. For better visibility of the resulting indentations, the specimen was metallographically prepared (without etching) before the micro-hardness measurement. The micro-hardness measurement was performed in one measuring line.
The roughness parameter measurement was carried out by the Mitutoyo SJ 400 Rough-ness Tester (Kanagawa, Japan). For the as-received and plasma-nitrided surface, the roughness profile in the central part of the specimen (longitudinal direction, 5 sections of length 0.8 mm, i.e., a total of 4 mm) was extracted. The resulting values of the roughness parameters were obtained as the arithmetic mean.
Corrosion tests were carried out at the temperature 20 ± 3 °C in pH-neutral 0.05 M and 0.5 M sodium chloride solutions. The sodium chloride used was analytical grade.
The electrochemical corrosion tests (electrochemical impedance spectroscopy—EIS and potentiodynamic polarization—PP) were performed in the conventional three-electrode cell system with a saturated calomel electrode (SCE) and a platinum auxiliary electrode (Pt) using the BioLogic corrosion measuring system with a PGZ 100 measuring unit (Seyssinet-Pariset, France). The time for potential stabilization between the specimen and the electrolyte was set to 10 min. The exposed area of the specimen was 1 cm2. An overview of the specimen designations for the PP and EIS tests is given in Table 1.
Electrochemical impedance spectroscopy measurements were recorded at the corrosion potential over a frequency range from 100 KHz to 5 mHz (10 points per decade, 10 mV R.M.S amplitude). The results of the measurements were displayed as the Nyquist and Bode plots. The representative Nyquist curve (to display in the Figure) was selected from three measurements for the same type of surface conditions (AR/PN) and the same composition of solution (0.05 M/0.5 M). The EIS parameter values were obtained by EC-Lab software, V11.10 (Z-fit analysis of the Nyquist curves). The arithmetic means and standard deviations were calculated from three measurements under the same conditions (the same type of surface and composition of solution).
The potentiodynamic polarization curves were recorded at the sweep rate of 1 mV/s. A potential scan range was applied between −0.3 and 0.8 V vs. open circuit potential (OCP). At least three experiment repeats were carried out for each combination of conditions (AR/PN surface; 0.05 M/0.5 M solution), and the representative curve was selected (to display in the Figure). Arithmetic means and standard deviations were calculated in the above-mentioned manner.

3. Results and Discussion

3.1. Characterization of the Nitrided Layer

As the result of the applied PN process, a nitrided surface layer (approx. 45 µm thickness) observable by OM in the specimen cross-section was formed (Figure 1). The morphology of the nitrided surface obtained by SEM analysis is presented in Figure 2a. The distribution of chromium, nitrogen, and nickel displayed by EDX mapping is shown in the Figure 2b–d. The corresponding EDX spectrum of these chemical elements is presented in Figure 3. As can be seen, the resulting surface is discontinuous and rough and exhibits an uneven distribution of nitrogen (Figure 2b).
The increased roughness of the PN surface compared to the as-received one was reflected in the values of the roughness parameters: arithmetical mean deviation of the assessed profile (Ra), the average maximum peak-to-valley height (Rz), and the profile slope (Rsk), listed in Table 2. In general, the surface roughness of stainless steel significantly affects the susceptibility to corrosion. It disrupts the uniformity and stability of the passive layer and introduces defects into the microstructure. The increased surface area exposed to the corrosion environment enhances the adsorption of chlorides and conditions the presence of electrochemical heterogeneities [32,33]. All the mentioned aspects can play an important role also in the case of the rough plasma-nitrided stainless steel surface.
The performed XPS analysis aimed to identify the chemical states of the chromium (Figure 4a) and nitrogen (Figure 4b) of the surface of the plasma-nitrided specimen. If not indicated otherwise, the identification of their chemical states was carried out using the NIST X-ray Photoelectron Spectroscopy Database [34]. Chromium exists in two chemical states; before surface cleaning, the Cr2p3/2 peak at a binding energy of 575.87 eV indicates the presence of chromium in a nitrogen environment [35], while the peak at an energy of 577.17 eV can be assigned to Cr2O3 [35,36] or chromium(III) hydroxide Cr(OH)3 [36]. In addition, chromium satellite lines appeared at energies of 587.71 eV and 596.91 eV. After surface cleaning, slight shifts in the main peaks were observed; the Cr2p3/2 peak corresponding to Cr2N appeared at a binding energy of 574.73 eV [37], and the peak corresponding to Cr2O3 at 576.77 eV [38]. The N1s line revealed the nitrogen present in multiple chemical states; the predominant contribution to the N1s line corresponds to chromium nitrides. The N1s peak at 396.13 eV observed before surface cleaning can be identified as oxynitride, whereas the sputtered surface peak at 396.83 eV can be assigned to Cr2N [39]. The Cr2N phase was also confirmed by the authors [15,17] after high-temperature nitriding of austenitic stainless steels.
The nitriding temperature used obviously ensured sufficient solubility and the appropriate kinetic conditions for the intensive diffusion of nitrogen atoms into the surface layer of the material and their reactions with chromium. Due to the sufficient thermal energy of chromium atoms, the formation of chromium nitride was thermodynamically favored, unlike the lower temperatures, at which the driving force for the formation of stable nitride phases is insufficient [40,41].

3.2. Micro-Hardness Measurement

The sequence of micro-hardness measurements after PN and the obtained values are documented in Figure 5. The micro-hardness of the nitrided layer ranged from 1143 to 1572 HV 0.01, followed by a steep transition to the softer part of the specimen with micro-hardness values between 223 and 286 HV 0.01. The high hardness of the material after PN at temperatures above 500 °C is related to the Cr2N chromium nitride, which was formed under these conditions (Section 3.1) and significantly increased the hardness of the material [9,16,17,42,43]. The comparable values of the PN layer micro-hardness (about 1300 HV) on austenitic stainless steel plasma nitrided at 520 °C were recorded by de Araújo et al. [17].

3.3. Potentiodynamic Polarization (PP)

The PP curves for the as-received (non-treated) and plasma-nitrided surfaces in both 0.05 M and 0.5 M NaCl solutions are shown in Figure 6 and Figure 7, respectively. The values of PP parameters are listed in Table 3. While the curves in Figure 6 are typical for passivating metals, the curves for plasma-nitrided surfaces are without passive anodic branches, and they express the state of the active corrosion (Figure 7). This essential difference in the curve shapes points to the different control of the anodic dissolution rate. The dissolution rate for passivating metals is controlled by the passive current density and that for actively corroding metal by corrosion current density. Therefore, AR 0.05 and AR 0.5 curves were evaluated by the corrosion potential Ecorr and the pitting potential Ep (Table 3). Ecorr was identified directly from the curve as the potential of the transition from the cathodic to the anodic branch. Ep, denoting the breakdown of the passive film and the start of the stable pit growth, was determined as the potential of the strong continual increase in the current density in the passivity region (Ep locations in Figure 6 are marked by the arrows). The higher Ep value points to the higher resistance to the pitting. The PP parameters Ecorr, icorr (corrosion current density), βa, βc (anodic and cathodic Tafel slopes), and vcorr (corrosion rate), for PN 0.05 and PN 0.5 curves (Figure 7), were obtained as the result of the Tafel extrapolation using EC-LAB software.
According to the PP curves and the Ep values, the as-received surfaces reflected adequate resistance to the pitting corrosion in both variously concentrated chloride solutions. Consistent with the published results [44,45,46,47,48], the higher chloride concentration induced the more intensive penetration of chloride anions through the weakened localities of the passive film, and it led to an Ep drop compared to the AR 0.05 Ep value (Table 3). The slight difference dependent on the chloride concentration was also recorded in the thermodynamic stability expressed by the Ecorr values of the AR 0.05 and AR 0.5 specimens.
As shown in Figure 7, the applied plasma nitriding process caused the passivity loss of PN specimens even at a very low sodium chloride concentration (0.05 M solution). The kinetics of the corrosion process expressed by the corrosion current density and corrosion rate points to an active corrosion in both solutions and a decrease in the Ecorr values substantiates lower thermodynamic stability compared to the as-received state (Table 3). In order to determine the rate-determining reaction of this corrosion process, the Tafel slope values (obtained as the results of the Tafel extrapolation using EC-LAB software) were used. Taking into account that the rate-determining step is usually associated with the reaction that has the less efficient kinetics (it means a higher Tafel slope), in both the solutions, the corrosion mechanism seems to be controlled primarily by the kinetics of the cathodic reaction [49,50].
Generally, the values of the PP parameters (Table 3) indicate a reduced corrosion resistance in both solutions compared to the as-received state. This result could be related to the precipitation of chromium nitride that depletes the surrounding areas of chromium, reducing the amount of the chromium atoms available to form the protective passive oxide film [17,18].
In addition, the presented rough morphology of the plasma-nitrided surface (Figure 2a), with an uneven distribution of nitrogen (Figure 2c), and the increased roughness parameters point to the presence of discrete, separated chromium–nitrogen precipitates, which do not form a continuous layer and enable the intensive scattered penetration of chloride anions into the material. The heterogeneity introduced by the rough surface and by discrete Cr2N precipitates obviously conditioned a formation of the sites of the active corrosion (oxidation of iron: Fe → Fe2+ + 2e−) and the cathodic sites (reduction of oxygen in the aqueous solution: O2 + 2H2O + 4e− → 4OH−). Consequently, the hydrolysis of Fe2+ cations in the presence of Cl- anions proceeded (Fe2+ + 2H2O + 2Cl− → Fe(OH)2 + 2H+ + 2Cl−), and it led to an acidification of the environment and to a further acceleration of the corrosion reactions. The result was active corrosion during potentiodynamic polarization, indicating a deterioration in the corrosion resistance of the plasma-nitrided surface, which was not prevented even by a low chloride concentration (0.05 mol/L). Corrosion damage, which occurred during the potentiodynamic polarization test in the 0.05 M NaCl solution, is shown on the edge of the cross-section of the specimen for illustration (Figure 8).
De Araujo et al. [17] evaluated the corrosion behavior of AISI 316L stainless steel after ionic plasma nitriding performed at 520 °C for 4 h by potentiodynamic polarization in a 0.6 M NaCl solution. In agreement with our results, they also recorded the loss of passivity and almost the same shape of the curve. The authors Kartikasari et al. [18] came to similar results for the same stainless steel plasma nitrided at 500 and 550 °C for 3 h and tested by potentiodynamic polarization in an unspecified chloride solution. Contrary to the findings above, Mareci et al. [51] recorded a strengthening of the corrosion resistance from the potentiodynamic polarization of plasma-nitrided austenitic stainless steel (500 °C, 14 h) in 0.5 M NaCl. The obtained results were attributed to a continuous, smooth CrN layer prepared in a glow discharge plasma nitriding unit [51].

3.4. Electrochemical Impedance Spectroscopy (EIS)

Similar to the authors [51,52,53], the evaluation of the measured impedance spectra of the as-received specimens was based on the one time constant observed. Therefore, a single loop circuit consisting of electrolyte resistance (RΩ), charge transfer resistance (Rct), and the constant phase element (CPE) was applied (Figure 9a). For the plasma-nitrided specimens, the two-layer model of a porous surface film with two time constants containing RΩ, Rct1, Rct2, CPE1, and CPE2 was used (Figure 9b) [51]. CPE was used instead of an ideal capacitor because, due to factors like surface roughness and heterogeneity, the tested systems (as-received surface/solution, PN surface/solution) exhibited non-ideal capacitive behavior [54]. CPE represents the capacitor if the “n” exponent present in the equation for the mathematical CPE expression equals one [55,56]. According to Kerner et al. [57], the capacitance dispersion on solid electrodes is related to the surface disorder (i.e., heterogeneities) and to the surface roughness (i.e., geometric irregularities) much more than to the atomic scale.

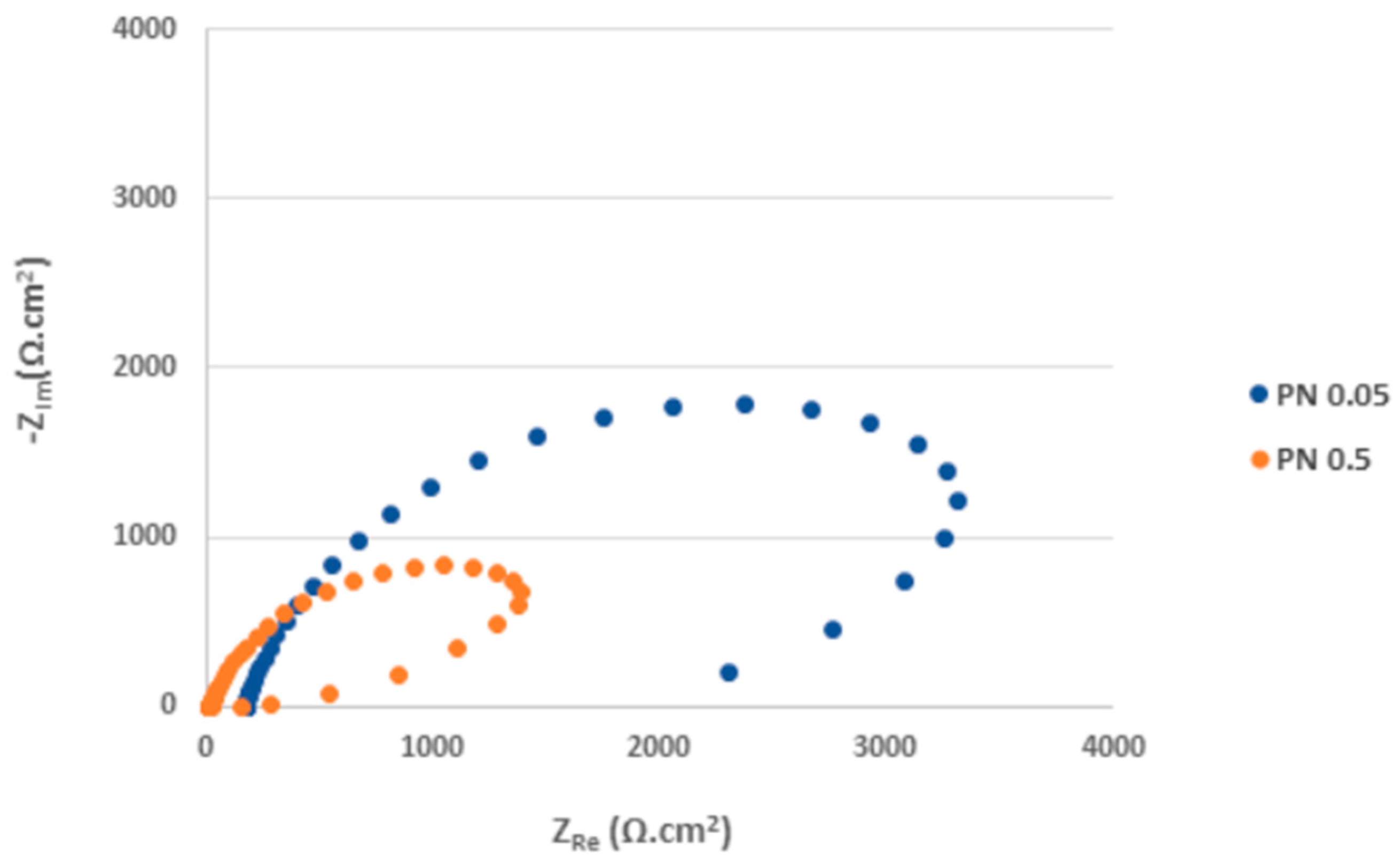

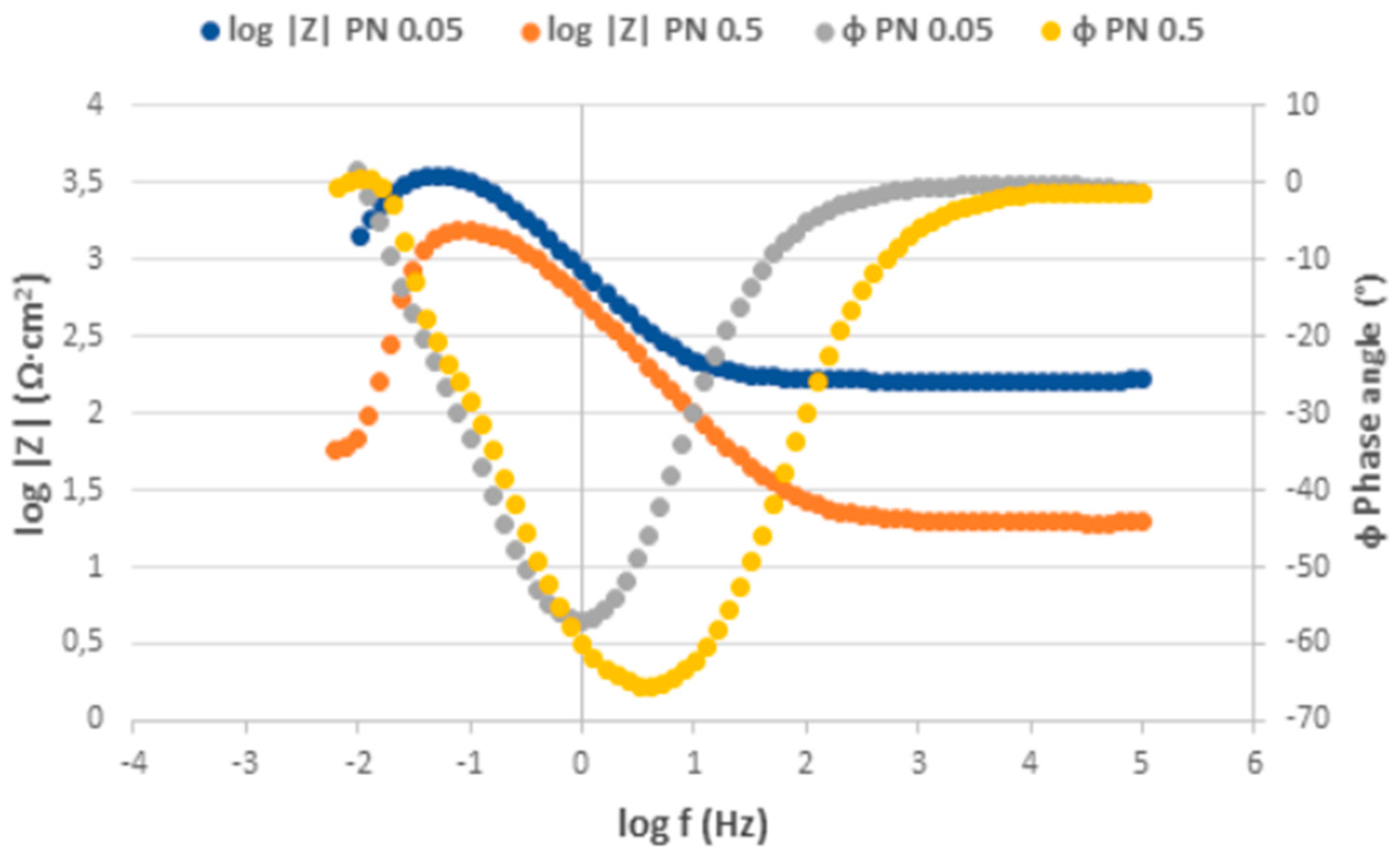

The Nyquist plots obtained from the EIS measurement for as-received surface are displayed in Figure 10, the Bode plots expressing the dependence of impedance modulus |Z| and phase angle ɸ on the measured frequency are shown in Figure 11. The Nyquist and Bode plots for PN surface are shown in Figure 12 and Figure 13 respectively. The values of the fitted impedance parameters obtained by Z-fit extrapolation of the Nyquist curves (EC-LAB software) are presented in Table 4 and Table 5. The values of charge transfer resistance Rct for the as-received surfaces, derived from the Nyquist curves (Figure 10), confirmed the presence of the passive surface film recorded also at the PP measurement [58]. This result is consistent with the Bode plots (Figure 11), showing the high values of impedance modulus |Z| in the low-frequency region, which points to the high corrosion resistance of the bare metal [59].
In contrast to the PP measurement, the effect of the chloride concentration on the quality and resistance of the passive oxide film was more pronounced during the EIS measurement (almost 6x lower Rct in the 0.5 M NaCl solution compared to the 0.05 M solution). A significant decrease in the Rct of the AISI 304 stainless steel with a rise in the concentration of the NaCl solution was also noted by Yin [48].
According to the EIS results (Figure 12, Table 5), the total Rct values (Rct1 + Rct2), i.e., 4.48 kΩ·cm2 for PN 0.05 and 3.71 kΩ·cm2 for PN 0.5 specimens, are very low and less dependent on the chloride concentration compared to the AR ones. It points to the increased electrical conductivity of the plasma-nitrided surface leading to an acceleration of ongoing electrochemical reactions [56]. This result was confirmed by the Bode curves (Figure 13), in which significantly lower |Z| values compared to the as-received surface in the low-frequency region were recorded [59].
A higher electrical conductivity can be related to the discontinuous plasma nitride surface (Figure 2a) with more active sites for the adsorption and penetration of chloride anions and, consequently, for efficient charge transfer processes. Moreover, the precipitation of chromium nitrides causes chromium depletion in adjacent areas, supports the suppression of passive oxide film, and facilitates easier electron transfer [15,18,40].

4. Conclusions

  • The plasma nitriding of AISI 304 stainless steel performed at a temperature of 530 °C for 24 h induced the formation of a nitrided surface layer (thickness approx. 45 µm) with a rough, discontinuous surface (Table 2) and with an uneven distribution of nitrogen.
  • XPS analysis of the surface nitrided layer proved the presence of bonds between chromium and nitrogen. The predominant contribution to the N1s line corresponds to chromium nitrides; sputtered surface peak at 396.83 eV can be assigned to the Cr2N phase. This phase was also confirmed by the Cr2p3/2 peak that appeared at a binding energy of 574.73 eV.
  • The plasma nitriding process significantly increased the micro-hardness of the surface layer compared to the inner parts of the material (1143 to 1572 HV 0.01 in the nitride layer; 223 to 286 HV 0.01 in the inner part).
  • Potentiodynamic polarization revealed the loss of the passive behavior of the material after plasma nitriding in both solutions—the shape of PP curves and the icorr values obtained by Tafel analysis (Table 3) are typical for an actively corroding metal. According to the Tafel slope values, the cathodic reaction was the rate-determining reaction in both of the NaCl solutions.
  • The results of the EIS measurements show a significant decrease in total Rct values after plasma nitriding (Table 4 and Table 5), which means an increase in the rate of electrochemical reactions at the material/solution interface.
It can be stated that the results of the EIS and potentiodynamic polarization measurements are in good agreement, and they confirmed a significant reduction in corrosion resistance after plasma nitriding (530 °C/24 h), even in a solution with a very low concentration of chlorides (0.05 mol/L). Therefore, it is not recommended to use AISI 304 steel thermochemically treated in the above-described way in any chloride solutions.

Author Contributions

Conceptualization, V.Z.; methodology, V.Z., K.B. and M.S.; software, M.S. and K.B.; validation, V.Z., P.D. and L.M; investigation, V.Z. and K.B.; resources, M.S., L.M. and P.D.; writing—original draft preparation, V.Z.; writing—review and editing, V.Z.; visualization, K.B. and P.D.; supervision, V.Z; project administration, L.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Scientific Grant Agency of the Ministry of Education, Science, and Sport of the Slovak Republic and the Slovak Academy of Sciences, grant KEGA 016ŽU-4/2023.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Saravanan, M.; Deveraju, A.; Venkateshwaran, N.; Krishnakumari, A.; Saarvesh, J. A review on recent progress in coatings on AISI austenitic stainless steel. Mater. Today Proc. 2018, 5, 14392–14396. [Google Scholar] [CrossRef]
  2. Lai, J.K.L.; Lo, K.H.; Shek, C.H. Austenitic stainless steel. In Stainless Steels: An introduction and Recent Developments; Bentham Science Publexecutive STE Y-2: Sharjah, United Arab Emirates, 2012; pp. 23–40. [Google Scholar]
  3. Lipińsky, T. Investigation of corrosion rate of X55CrMo14 stainless steel at 65% nitrate acid at 348 K. Prod. Eng. Arch. 2021, 27, 2. [Google Scholar] [CrossRef]
  4. Chvalníková, V.; Uhríčik, M.; Palček, P.; Slezák, M.; Šikyňa, L.; Drímalová, P. Austenitic steel AISI 304 under static and cyclic loading. Manuf. Technol. 2023, 23, 623–629. [Google Scholar] [CrossRef]
  5. Priyambodo, B.H.; Margono, M.; Nugroho, C. Corrosion Protection on AISI 304 by Shot Peening Treatment with Variation of Particle Size and Shooting Pressure. Mater. Sci. Forum. 2022, 105, 1153–1159. [Google Scholar] [CrossRef]
  6. Aparicio, M.; Jitianu, A.; Rodriguez, G.; Degnah, A.; Al-Marzoki, K.; Mosa, J. Corrosion protection of AISI 304 stainless steel with melting gel coatings. Electrochim. Acta 2016, 202, 325–332. [Google Scholar] [CrossRef]
  7. Kovács, D.; Dobránszky, J. Effects of Thermochemical Surface Treatments on the Industrially Important Properties of X2CrNiMo 17-12-2 Austenitic Stainless Steel. Period. Polytech. Mech. Eng. 2019, 63, 214–219. [Google Scholar] [CrossRef]
  8. Zhang, Z.; Bi, Y.; Zhang, M.; Li, Y.; Zhao, F.; Zhang, S.; He, Y. Properties of stainless-steel surface after hollow cathode assisted plasma nitriding. Mater. Res. Express 2020, 7, 116524. [Google Scholar] [CrossRef]
  9. Wang, L. Surface modification of AISI 304 austenitic stainless steel by plasma nitriding. Appl. Surf. Sci. 2003, 211, 308–314. [Google Scholar]
  10. Baranowska, J.; Arnold, B. Corrosion resistance of nitrided layers on austenitic steel. Surf. Coat. Technol. 2006, 200, 6623–6628. [Google Scholar] [CrossRef]
  11. Zhou, Y.L.; Xia, F.; Xie, A.J.; Peng, H.P.; Wang, J.H.; Li, Z.W. A Review—Effect of Accelerating Methods on Gas Nitriding: Accelerating Mechanism, Nitriding Behavior, and Techno-Economic Analysis. Coatings 2023, 13, 1846. [Google Scholar] [CrossRef]
  12. Funch, C.V.; Christiansen, T.L.; Somers, M.A.J. Gaseous nitriding of additively manufactured maraging steel; nitriding kinetics and microstructure evolution. Surf. Coat. Technol. 2022, 432, 128055. [Google Scholar] [CrossRef]
  13. Escalada, L.; Dalibon, E.L.; Brühl, S.P.; Manova, D.; Mändl, S.; Simison, S. Influence of Inclusions in the Corrosion Behavior of Plasma Nitrided Stainless Steel. Adv. Eng. Mater. 2023, 25, 2201112. [Google Scholar] [CrossRef]
  14. Biehler, J.; Hoche, H.; Oechsner, M.; Kaestner, P.; Bunk, K.; Bräuer, G. Influence of the microstructure on the corrosion resistance of plasma-nitrided austenitic stainless steel 304L and 316L. Materialwiss. Werkstofftech. 2014, 45, 10. [Google Scholar] [CrossRef]
  15. Olzon-Dionysio, M.; Olzon-Dionysio, D.; Campos, M.; Takemitsu Shigeyosi, W.; De Souza, S.D.; De Souza, S. Corrosion resistance of AISI 316L plasma nitrided at different temperatures and times. Hyperfine Interact. 2019, 240, 26. [Google Scholar] [CrossRef]
  16. Lanzoni, F.; Cislaghi, L.; Sisti, V.; Trasatti, S. Influence of process parameters of plasma nitriding on corrosion resistance of stainless steels. Metall. Ital. 2014, 2, 27–33. [Google Scholar]
  17. De Araújo, E.; Marinho Bandeira, R.; Dorigão Manfrinato, M.; Aparecido Moreto, J.; Borges, R.; Santos Valese, S.; Atsushi Suzuki, P.; Sgarbi Rossino, L. Effect of ionic plasma nitriding process on the corrosion and micro-abrasive wear behavior of AISI 316L austenitic and AISI 470 super-ferritic stainless steels. JMR&T 2019, 8, 2180–2191. [Google Scholar]
  18. Kartikasari, R.; Sutrisna, A.; Aziz, I. Corrosion Behavior of Plasma Nitrided SS316L Biomaterial. Open Mater. Sci. 2017, 11, 29–37. [Google Scholar] [CrossRef]
  19. Flis-Kabulska, I.; Sunb, Y.; Flis, J. Monitoring the near-surface pH to probe the role of nitrogen in corrosion behaviour of low-temperature plasma nitrided 316L stainless steel. Electrochim. Acta 2013, 104, 208–215. [Google Scholar] [CrossRef]
  20. Mukherjee, S.; Raole, P.M.; Kumar, A.; Chattoraj, I.; Rao, K.R.M.; Manna, I. Studies on low-energy nitrogen plasma immersion ion implantation on austenitic stainless steel and Cu-strengthened HSLA-100 steel. Surf. Coat. Technol. 2004, 186, 282–286. [Google Scholar] [CrossRef]
  21. Gupta, D. Plasma Immersion Ion Implantation (PIII) Process-Physics AND Technology. Int. J. Adv. Technol. 2011, 2, 471–490. [Google Scholar]
  22. Liu, C.L.; Chu, P.K.; Lin, G.Q.; Qi, M. Anti-corrosion characteristics of nitride-coated AISI 316L stainless steel coronary stents. Surf. Coat. Technol. 2006, 201, 2802–2805. [Google Scholar] [CrossRef]
  23. Adachi, S.; Egawa, M.; Yamaguchi, T.; Ueda, N. Low-Temperature Plasma Nitriding for Austenitic Stainless Steel Layers with Various Nickel Contents Fabricated via Direct Laser Metal Deposition. Coatings 2020, 10, 365. [Google Scholar] [CrossRef]
  24. Saravanan, P.; Raja, V.S.; Mukherjee, S. Effect of plasma immersion ion implantation of nitrogen on the wear and corrosion behavior of 316LVM stainless steel. Surf. Coat. Technol. 2007, 201, 8131–8135. [Google Scholar] [CrossRef]
  25. Borgioli, F.; Galvanetto, E.; Bacci, E. Low temperature nitriding of AISI 300 and 200 series austenitic stainless steels. Vacuum 2016, 127, 51–60. [Google Scholar] [CrossRef]
  26. Borgioli, F. The Corrosion Behavior in Different Environments of Austenitic Stainless Steels Subjected to Thermochemical Surface Treatments at Low Temperatures: An Overview. Metals 2023, 13, 776. [Google Scholar] [CrossRef]
  27. Mumtaz, K.; Takahashi, S.; Echigoya, J.; Zhang, L.; Kamada, Y.; Sato, M. Temperature dependence of martensitic transformation in austenitic stainless steel. J. Mater. Sci. 2003, 22, 423–427. [Google Scholar]
  28. Manova, D.; Eichentopf, I.M.; Hirsch, D.; Mändl, S.; Neumann, H.; Rauschenbach, B. Influence of Microstructure on Nitriding Properties of Stainless Steel. IEEE Trans. Plasma Sci. 2006, 34, 1136–1140. [Google Scholar] [CrossRef]
  29. Bhadeshia, H.; Honeycombe, R. Stainless steels: Microstructure and properties. In Steels; Bhadeshia, H., Honeycombe, R., Eds.; Elsevier Ltd.: Amsterdam, The Netherlands, 2017; pp. 343–376. [Google Scholar]
  30. Li, Y.; Wang, Z.; Wang, L. Surface properties of nitrided layer on AISI 316L austenitic stainless steel produced by high temperature plasma nitriding in short time. Appl. Surf. Sci. 2014, 298, 243–250. [Google Scholar] [CrossRef]
  31. Li, Y.; He, Y.Y.; Zhang, S.Z.; Wang, W.; Zhu, Y.J. Microstructure and corrosion resistance of nitrogen-rich surface layers on AISI 304 stainless steel by rapid nitriding in a hollow cathode discharge. Appl. Phys. A-Mater. 2018, 124, 65. [Google Scholar] [CrossRef]
  32. Oh, S.; Kim, D.; Kim, K.; Kim, D.I.; Chung, W.; Shin, B.H. The effect of surface roughness on re-passivation and pitting corrosion of super duplex stainless steel UNS S 32760. Int. J. Electrochem. Sci. 2023, 18, 100351. [Google Scholar] [CrossRef]
  33. Wang, J.; Xue, H.; Zhao, Y.; Zhang, T.; Wang, F. Effect of Surface Roughness on the Corrosion of HP-13Cr Stainless Steel in the Dynamic Aggressive Oilfield Environment. Metals 2024, 14, 280. [Google Scholar] [CrossRef]
  34. NIST X-ray Photoelectron Spectroscopy Database. NIST Standard Reference Database Number 20; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2000; p. 20899. [Google Scholar]
  35. Lippitz, A.; Hübert, T. XPS investigations of chromium nitride thin films. Surf. Coat. Technol. 2005, 200, 250–253. [Google Scholar] [CrossRef]
  36. Moffat, T.P.; Latanision, R.M.; Ruf, R.R. An X-ray photoelectron spectroscopy study of chromium-metalloid alloys—III. Electrochim. Acta 1995, 40, 1723–1734. [Google Scholar] [CrossRef]
  37. Nishimura, O.; Yabe, K.; Iwaki, M. X-ray photoelectron spectroscopy studies of high-dose nitrogen ion implanted-chromium: A possibility of a standard material for chemical state analysis. J. Electron Spectros. Relat. Phenom. 1989, 49, 335–342. [Google Scholar] [CrossRef]
  38. Sleigh, C.; Pijpers, A.P.; Jaspers, A.; Coussens, B.; Meier, R.J. On the determination of atomic charge via ESCA including application to organometallics. J. Electron Spectros. Relat. Phenom. 1996, 77, 41–57. [Google Scholar] [CrossRef]
  39. Yuan, Y.; Zhang, B.; Sun, J.; Jonnard, P.; Le Guen, K.; Tu, Y.; Lan, R. Structure and optical properties of CrOxNy films with composition modulation. Surf. Eng. 2019, 36, 411–417. [Google Scholar] [CrossRef]
  40. Tenelanda-Osorio, L.I.; Vélez, M.E. First principles study of the thermodynamic, mechanical and electronic properties of crystalline phases of Chromium Nitrides. J. Phys. Chem. Solids 2021, 148, 109692. [Google Scholar] [CrossRef]
  41. De Las Heras, E.; Ybarra, G.; Lamas, D.G.; Cabo, A.; Dalibon, E.L.; Brühl, S.P. Plasma nitriding of 316L stainless steel in two different N2-H2 atmospheres—Influence on microstructure and corrosion resistance. Surf. Coat. Technol. 2017, 313, 47–54. [Google Scholar] [CrossRef]
  42. Yetim, A.F.; Yildiz, F.; Alsaran, A.; Celik, A. Surface modification of 316L stainless steel with plasma nitriding. Kovove Mater. 2008, 46, 105–116. [Google Scholar]
  43. Scheuer, C.J.; Zanetti, F.I.; Cardoso, R.P.; Brunatto, S.F. Influence of process temperature on phase formation in plasma nitride AISI 420 steel. In Proceedings of the 22º CBECiMat—Congresso Brasileiro de Engenharia e Ciência dos Materiais, Natal, RN, Brazil, 6–10 November 2016. [Google Scholar]
  44. Saefuloh, I.; Kanani, N.; Gumelar Ramadhan, F.; Rukmayadi, Y.; Yusuf, Y.; Abdullah, S.; Susilo, S. The Study of Corrosion Behavior and Hardness of AISI Stainless Steel 304 in Concentration of Chloride Acid Solution and Temperature Variations. J. Phys. Conf. 2020, 1477, 052058. [Google Scholar] [CrossRef]
  45. Liu, W.; Yang, H.; Li, X.; Zhang, Z.; Lin, Y.; Deng, K. Effect of Chloride and Iodide on the Corrosion Behavior of 13Cr Stainless Steel. Metals 2022, 12, 1833. [Google Scholar] [CrossRef]
  46. Rustandi, A.; Setiawan, S.; Fathurrahman, I. The Effect of Sodium Chloride Concentration on Corrosion Resistance of Austenitic Stainless Steel 316L and SMA Weldment. Sol. St. Phen. 2017, 263, 120–124. [Google Scholar] [CrossRef]
  47. Asaduzzaman, M.D.; Mustafa, C.M.; Islam, M. Effects of concentration of sodium chloride solution on the pitting corrosion behavior of AISI-304L austenitic stainless steel. Chem. Ind. Chem. Eng. Q. 2011, 17, 477–483. [Google Scholar] [CrossRef]
  48. Yin, Z. Effect of Chloride Ion Concentration on the Corrosion Behavior of 304 Stainless Steel Used in the Electric Water Heater. Int. J. Electrochem. Sci. 2022, 17, 220415. [Google Scholar] [CrossRef]
  49. Hadzima, B.; Liptáková, T. Základy Elektrochemickej Korózie Kovov (Fundamentals of Electrochemical Corrosion Of Metals); EDIS: Žilina, Slovakia, 2008; pp. 41–51. [Google Scholar]
  50. Amegroud, H.; Boudalia, M.; Elhawary, M.; Garcia, A.J.; Bellaouchou, A.; Amin, H.M.A. Electropolymerized conducting polyaniline coating on nickel-aluminum bronze alloy for improved corrosion resistance in marine environment. Colloids Surf. A Physicochem. Eng. Asp. 2024, 691, 133909. [Google Scholar] [CrossRef]
  51. Mareci, D.; Strugaru, S.I.; Munteanu, C.; Bolat, G. Evaluation of the corrosion resistance of plasma nitrided austenitic stainless steel. Int. J. Mater. Res. (formerly Z. Metallkd.) 2015, 106, 267–274. [Google Scholar] [CrossRef]
  52. Brytan, Z.; Niagaj, R.; Reiman, L. Corrosion studies using potentiodynamic and EIS electrochemical techniques of welded lean duplex stainless steels UNSS82441. Appl. Surf. Sci. 2016, 388, 160–168. [Google Scholar] [CrossRef]
  53. Noah, G.G.; Muruve, N.G.; Cheng, Y.F.; Feng, Y.; Liu, T.; Muruve, D.A.; Hasset, D.J.; Irvin, R.T. Peptide-based biocoatings for corrosion protection of stainless steel biomaterial in a chloride solution. Mat. Sci. Eng. C 2016, 68, 695–700. [Google Scholar]
  54. Eddahhaoui, F.Z.; Najem, A.; Elhawary, M.; Boudalia, M.; Campos, O.S.; Tabyaoui, M.; Garcia, A.J.; Bellaouchou, A.; Amin, H.M.A. Experimental and computational aspects of green corrosion inhibition for low carbon steel in HCl environment using extract of Chamaerops humilis fruit waste. J. Alloys Compd. 2024, 977, 173307. [Google Scholar] [CrossRef]
  55. Yuan, X.Z.R.; Song, C.; Wang, H.; Zhang, J. Electrochemical Impedance Spectroscopy in PEM Fuel Cells: Fundamentals and Applications; Springer–Verlag: London, UK, 2010; pp. 39–93. [Google Scholar]
  56. Hernández, H.H.; Ruiz Reinoso, A.M.; Trinidad Gonzáles, J.C.; González Morán, C.O.; Miranda Hernández, J.G. Electrochemical Impedance Spectroscopy (EIS): A Review Study of Basic Aspects of the Corrosion Mechanism Applied to Steels. Open Access Peer-Reviewed Chapter 2020. Available online: https://www.intechopen.com/chapters/74147 (accessed on 17 June 2024).
  57. Kerner, Z.; Pajkossy, T. On the origin of capacitance dispersion of rough electrodes. Electrochim. Acta 2000, 46, 207–211. [Google Scholar] [CrossRef]
  58. Olsson, C.O.A.; Landolt, D. Passive films on stainless steels–chemistry, structure and growth. Electrochim. Acta 2003, 48, 1093–1104. [Google Scholar] [CrossRef]
  59. Jokar, M.; Darvishi, S.; Torkaman, R.; Kharaziha, M.; Karbasi, M. Corrosion and bioactivity evaluation of nanocomposite PCL-forsterite coating applied on 316L stainless steel. Surf. Coat. Technol. 2016, 307, 324–331. [Google Scholar] [CrossRef]
  60. Zhang, L.; Dai, Y.; Li, C.; Dang, Y.; Zheng, R.; Wang, Z.; Wang, Y.; Cui, Y.; Arandiyan, H.; Shao, Z.; et al. Recent advances in electrochemical impedance spectroscopy for solid-state batteries. Energy Storage Mater. 2024, 69, 103378. [Google Scholar] [CrossRef]
Materials 17 04189 g001

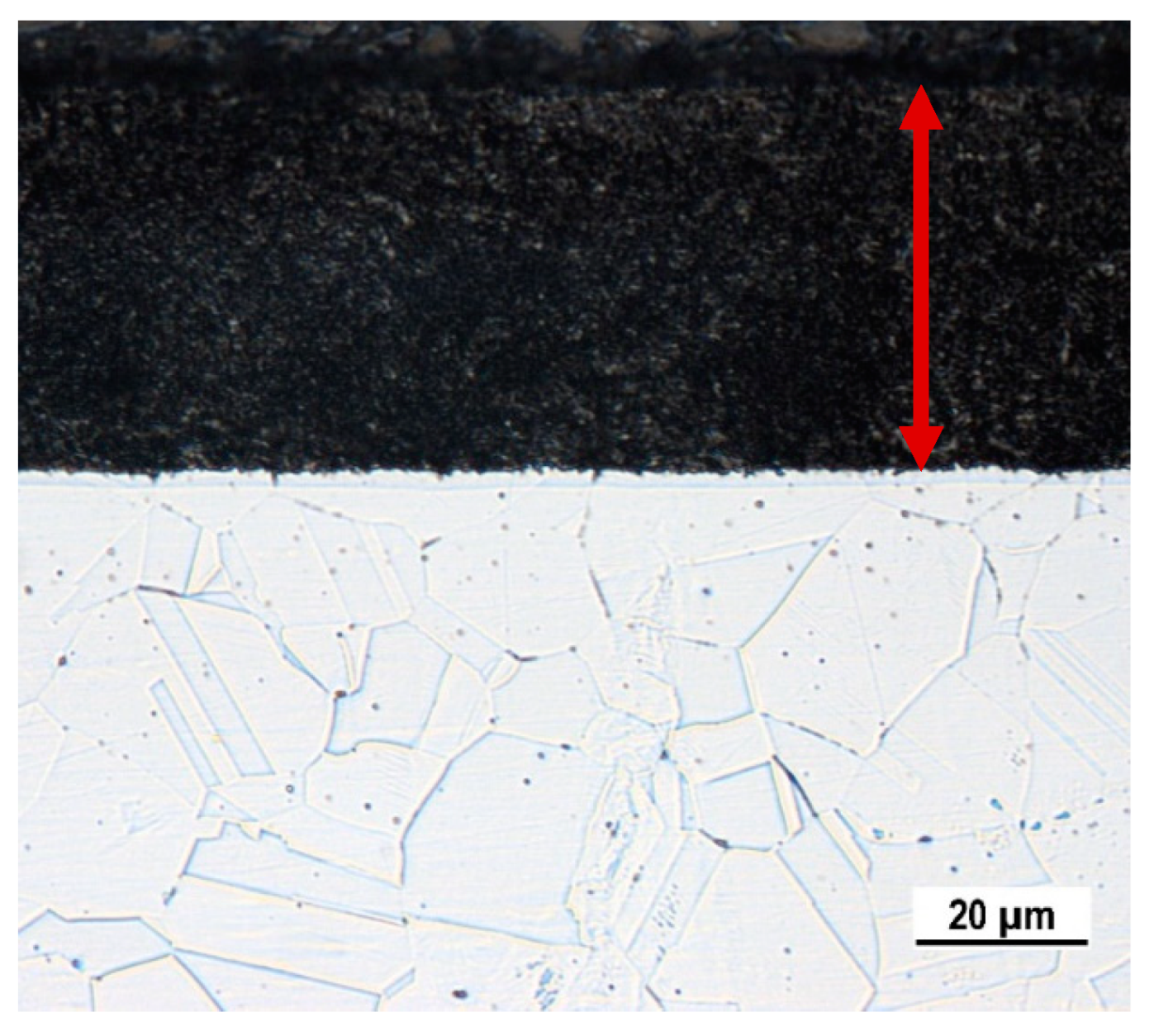

Figure 1. A cross-section edge of the plasma-nitrided specimen: OM, glycerine + nitric acid + hydrofluoric acid etching (the thickness of PN layer is marked by the red arrow).
Figure 1. A cross-section edge of the plasma-nitrided specimen: OM, glycerine + nitric acid + hydrofluoric acid etching (the thickness of PN layer is marked by the red arrow).
Materials 17 04189 g001
Materials 17 04189 g002
Figure 2. Plasma-nitrided surface of AISI 304 specimen: (a) morphology shown by SEM; (b) distribution of chromium; (c) distribution of nitrogen; and (d) distribution of nickel, shown by EDX analysis.
Figure 2. Plasma-nitrided surface of AISI 304 specimen: (a) morphology shown by SEM; (b) distribution of chromium; (c) distribution of nitrogen; and (d) distribution of nickel, shown by EDX analysis.
Materials 17 04189 g002
Materials 17 04189 g003

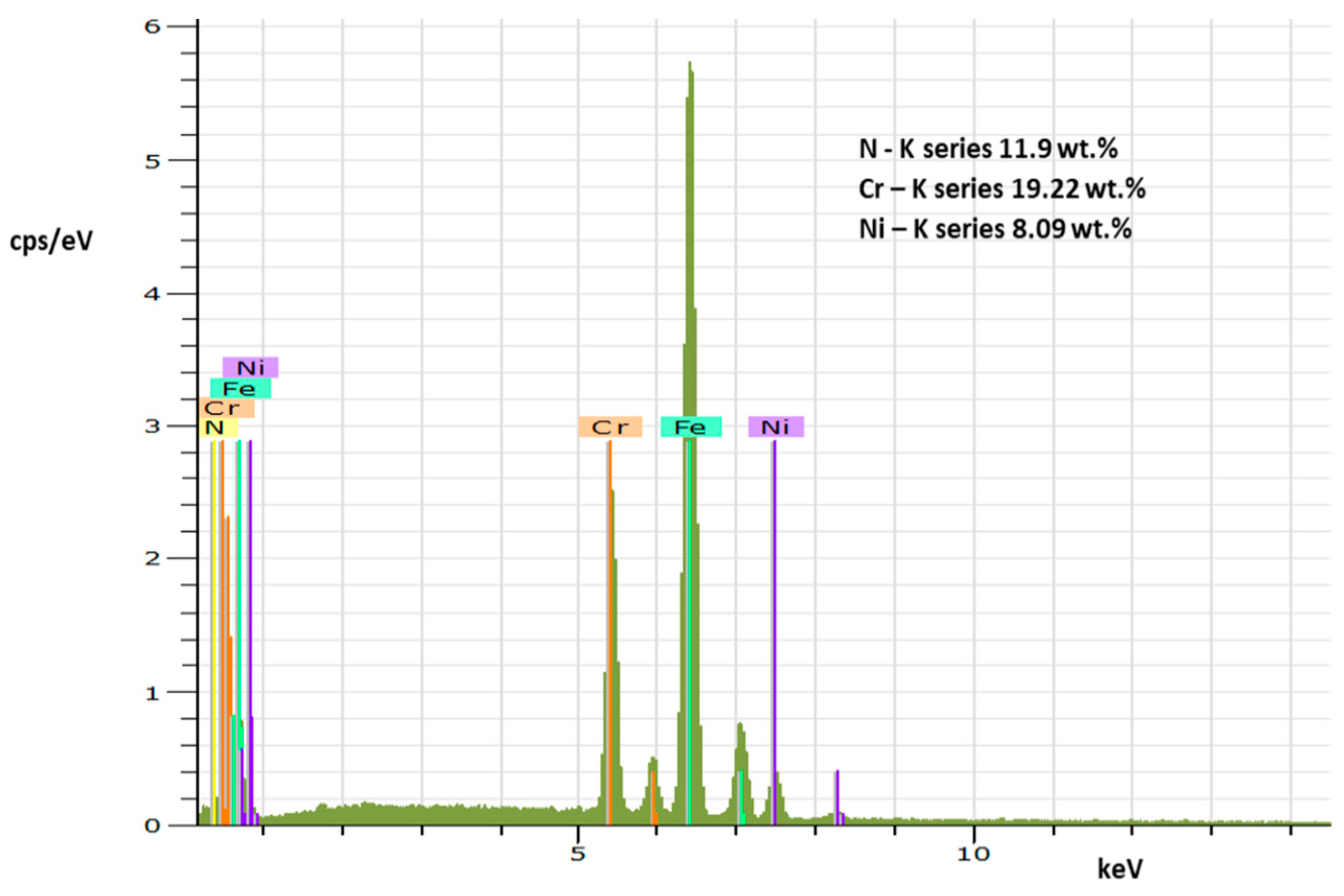

Figure 3. The EDX spectrum of the selected chemical elements.
Figure 3. The EDX spectrum of the selected chemical elements.
Materials 17 04189 g003
Materials 17 04189 g004

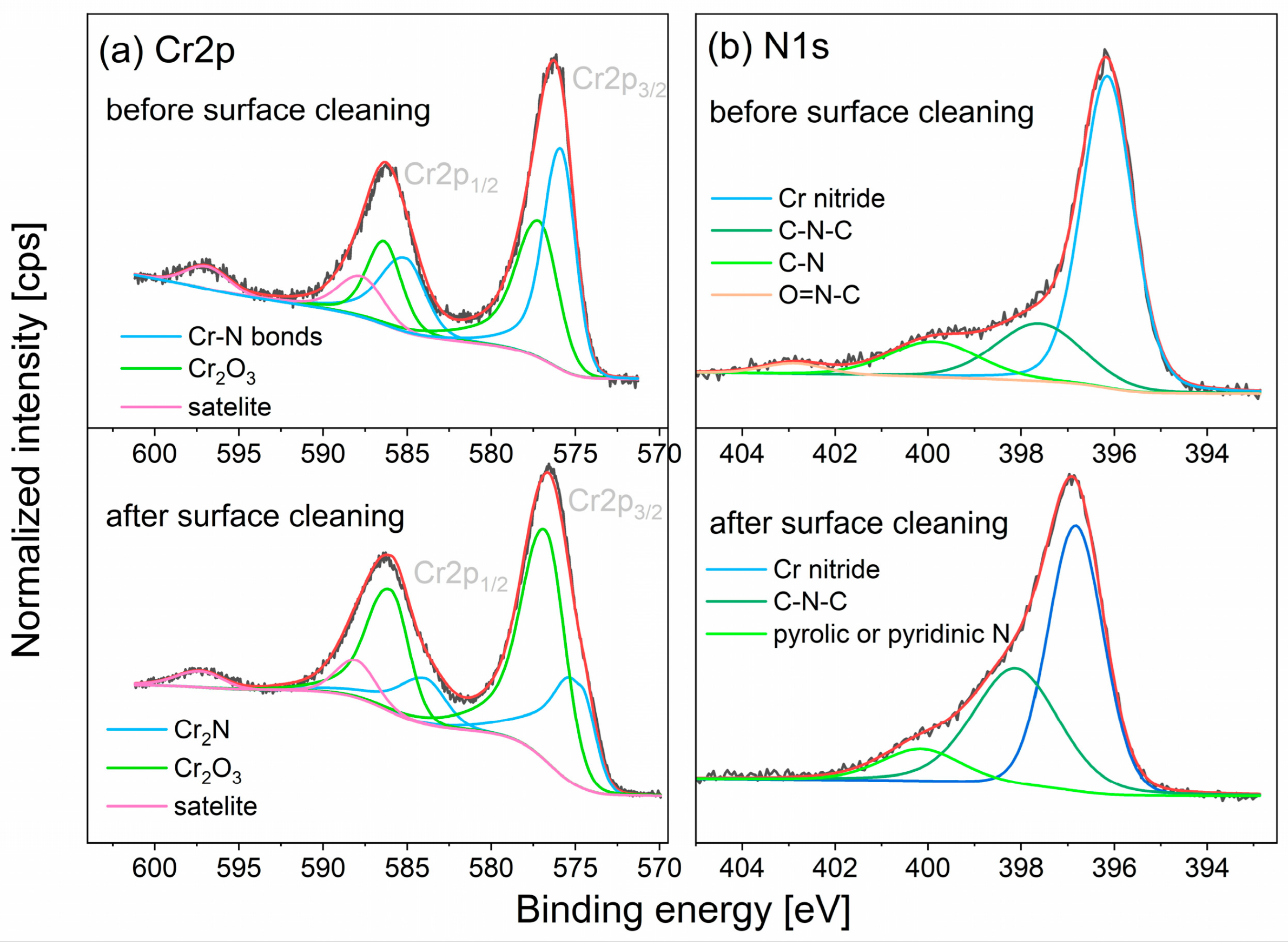

Figure 4. High-resolution spectra of chromium and nitrogen: (a) Cr2p and (b) N1s on plasma-nitrided layer before and after Ar+ cleaning.
Figure 4. High-resolution spectra of chromium and nitrogen: (a) Cr2p and (b) N1s on plasma-nitrided layer before and after Ar+ cleaning.
Materials 17 04189 g004
Materials 17 04189 g005

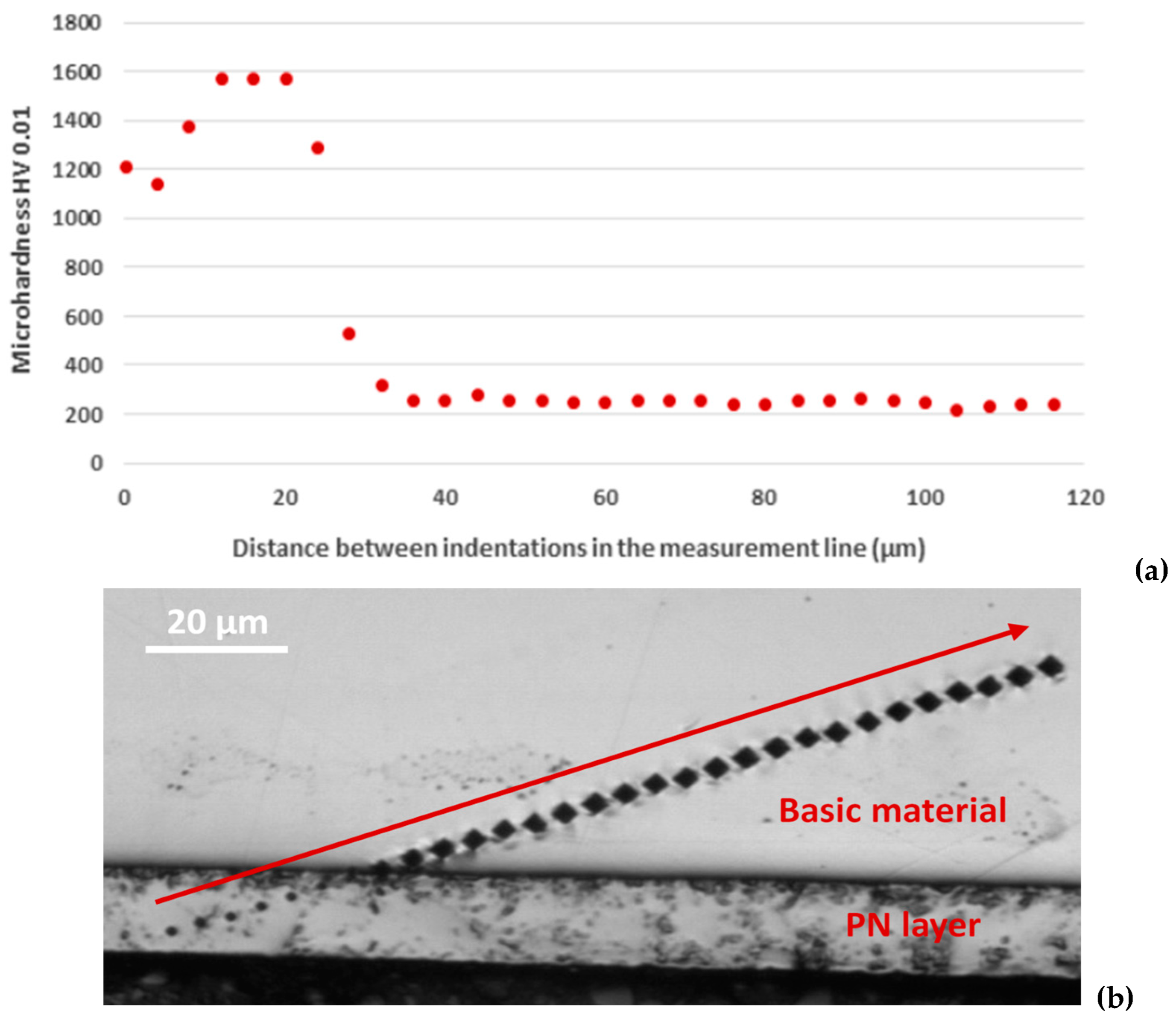

Figure 5. Course of AISI 304 micro-hardness after plasma nitriding: (a) graph of micro-hardness, (b) measurement line.
Figure 5. Course of AISI 304 micro-hardness after plasma nitriding: (a) graph of micro-hardness, (b) measurement line.
Materials 17 04189 g005
Materials 17 04189 g006

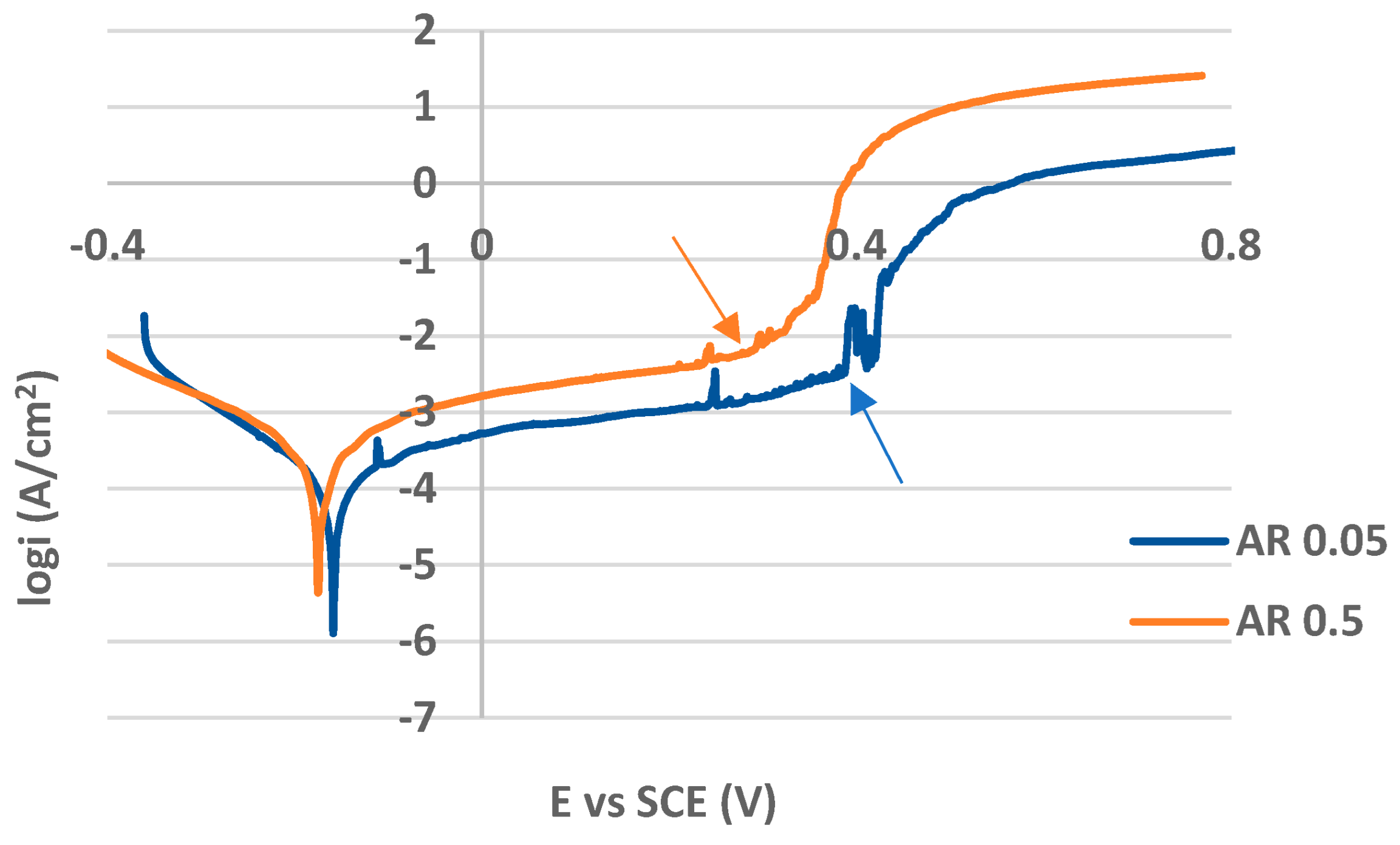

Figure 6. The potentiodynamic polarization curves for the as-received AISI 304 in 0.05 M and 0.5 M sodium chloride solutions (Ep locations are marked by the arrows).
Figure 6. The potentiodynamic polarization curves for the as-received AISI 304 in 0.05 M and 0.5 M sodium chloride solutions (Ep locations are marked by the arrows).
Materials 17 04189 g006
Materials 17 04189 g007

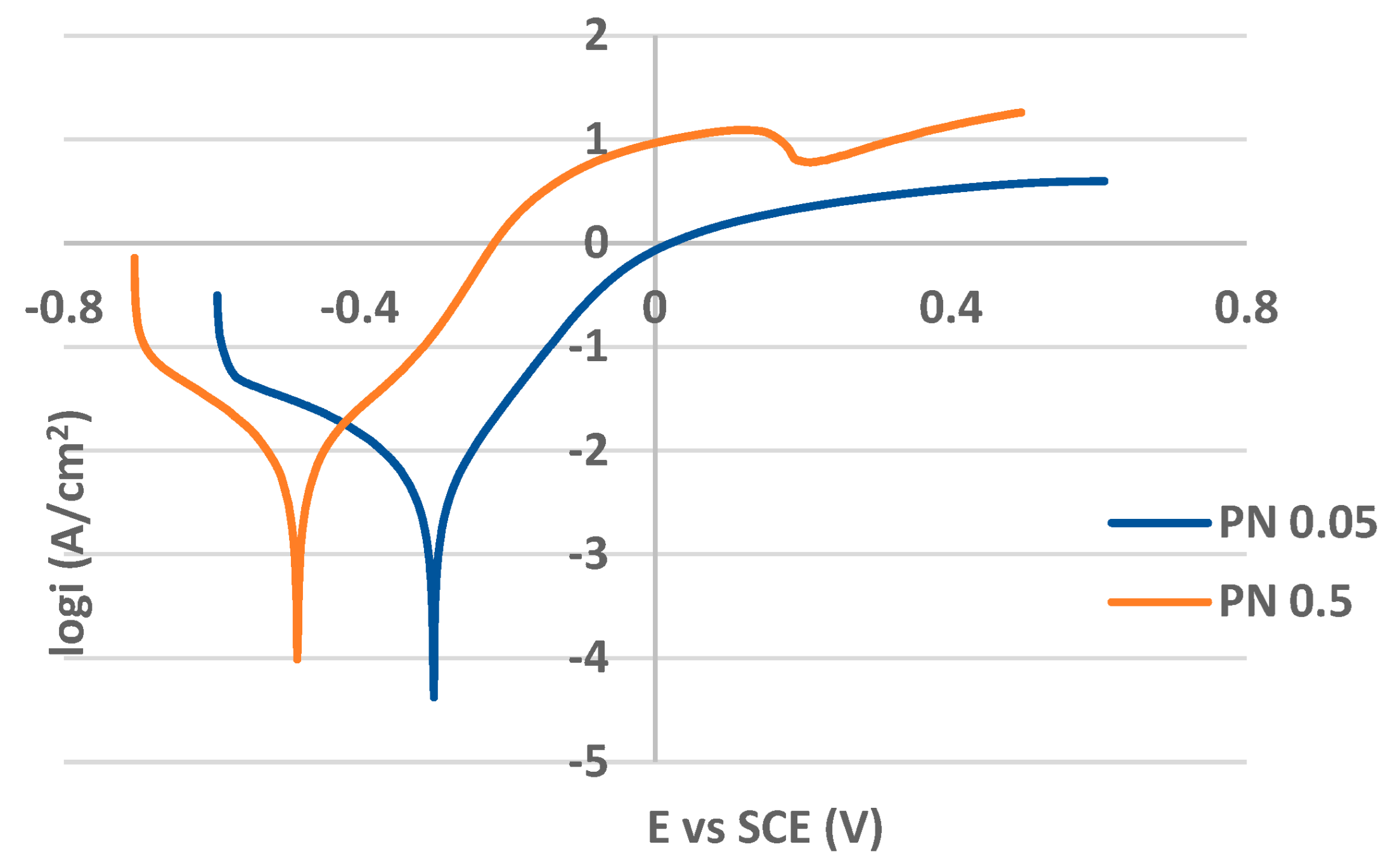

Figure 7. Potentiodynamic polarization curves for plasma-nitrided AISI 304 in 0.05 M and 0.5 M sodium chloride solutions.
Figure 7. Potentiodynamic polarization curves for plasma-nitrided AISI 304 in 0.05 M and 0.5 M sodium chloride solutions.
Materials 17 04189 g007
Materials 17 04189 g008
Figure 8. The corrosion damage created during the potentiodynamic polarization test in a 0.05 M NaCl solution; the edge of the cross-section of the specimen.
Figure 8. The corrosion damage created during the potentiodynamic polarization test in a 0.05 M NaCl solution; the edge of the cross-section of the specimen.
Materials 17 04189 g008
Materials 17 04189 g009

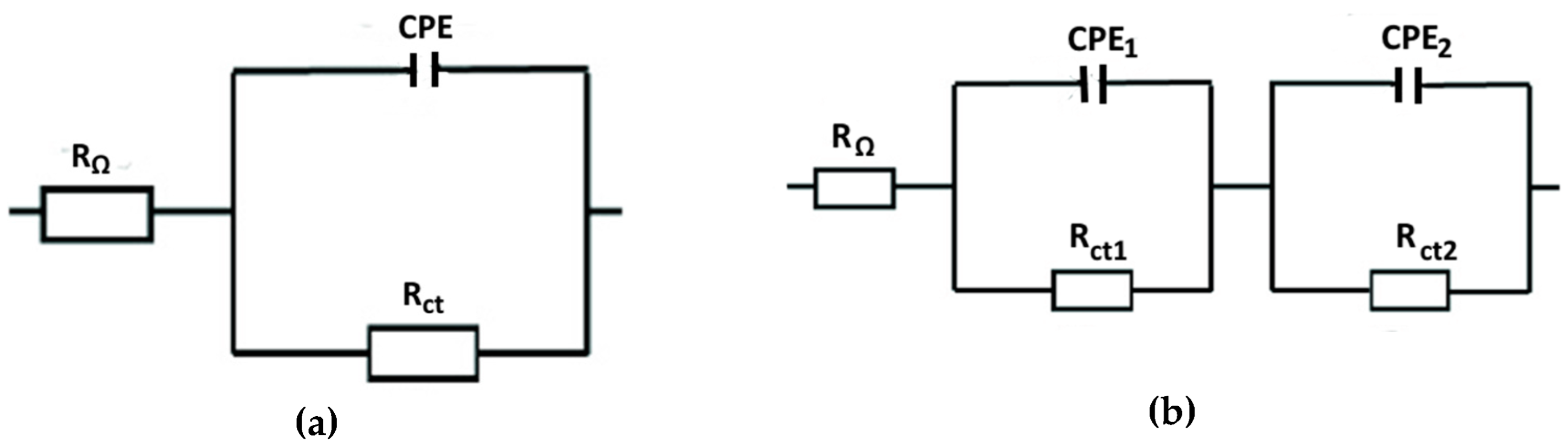

Figure 9. Equivalent circuits for the fitting of the impedance data: (a) circuit with one time constant, (b) circuit with two time constants.
Figure 9. Equivalent circuits for the fitting of the impedance data: (a) circuit with one time constant, (b) circuit with two time constants.
Materials 17 04189 g009
Materials 17 04189 g010

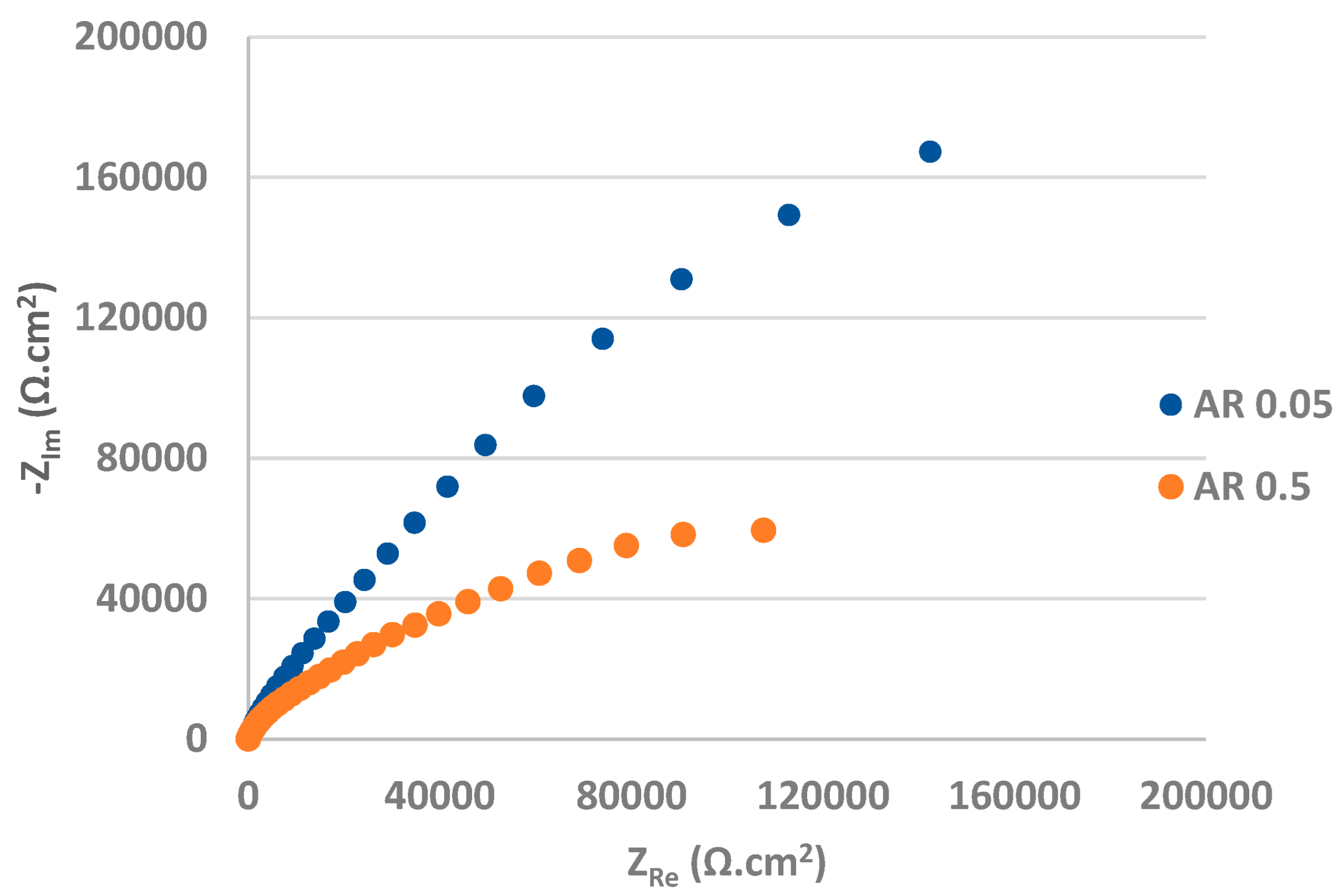

Figure 10. Nyquist curves for as-received AISI 304 in 0.05 M and 0.5 M sodium chloride solutions.
Figure 10. Nyquist curves for as-received AISI 304 in 0.05 M and 0.5 M sodium chloride solutions.
Materials 17 04189 g010
Materials 17 04189 g011

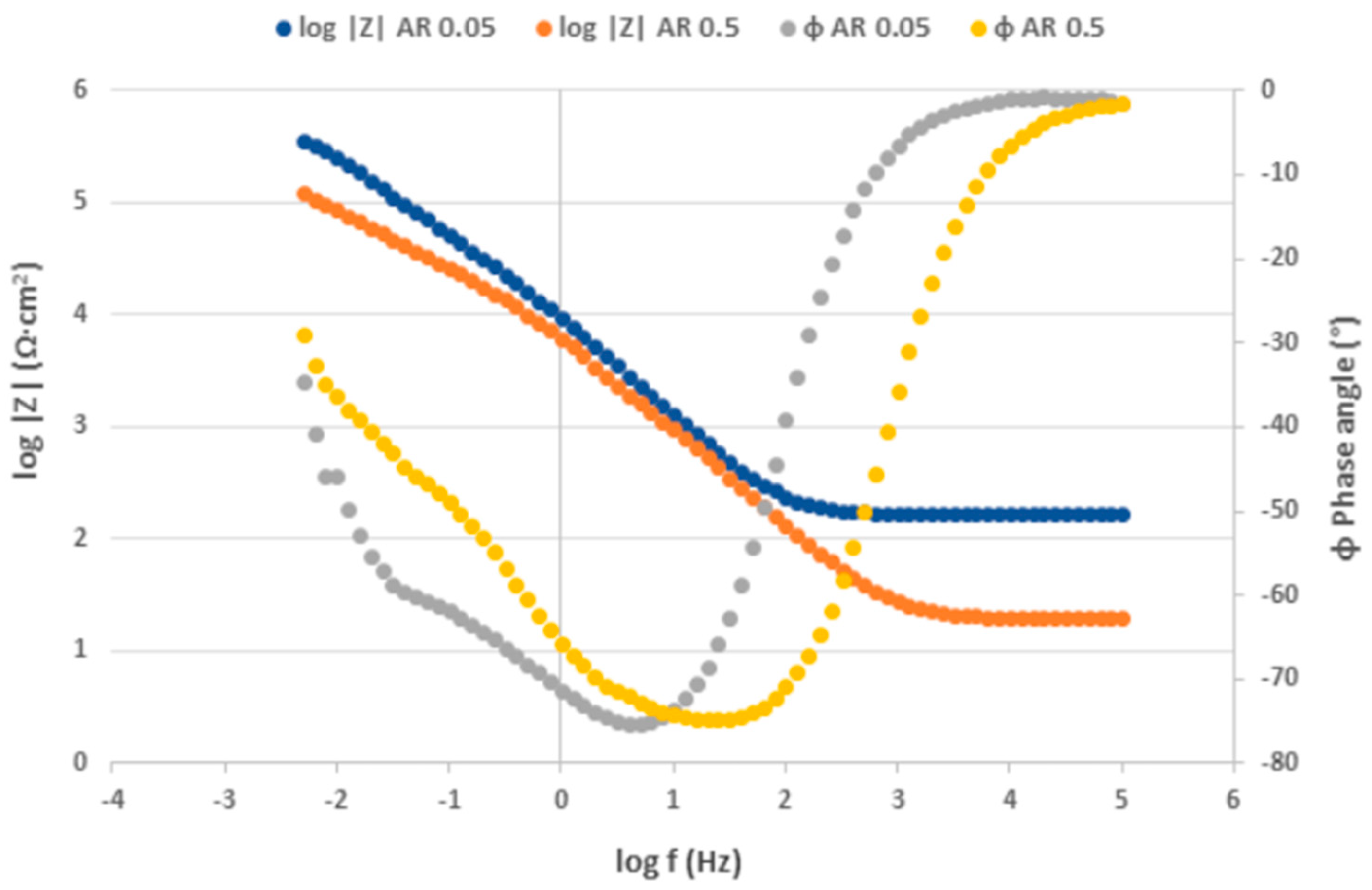

Figure 11. Bode curves for as-received AISI 304 in 0.05 M and 0.5 M sodium chloride solutions.
Figure 11. Bode curves for as-received AISI 304 in 0.05 M and 0.5 M sodium chloride solutions.
Materials 17 04189 g011
Materials 17 04189 g012
Figure 12. Nyquist curves for plasma-nitrided AISI 304 in 0.05 M and 0.5 M sodium chloride solutions. (The tail in the PN 0.5 Nyquist curve indicates that the impedance in low frequencies might be affected by transport processes, e.g., diffusion [60]).
Figure 12. Nyquist curves for plasma-nitrided AISI 304 in 0.05 M and 0.5 M sodium chloride solutions. (The tail in the PN 0.5 Nyquist curve indicates that the impedance in low frequencies might be affected by transport processes, e.g., diffusion [60]).
Materials 17 04189 g012
Materials 17 04189 g013
Figure 13. Bode curves for plasma-nitrided AISI 304 in 0.05 M and 0.5 M sodium chloride solutions.
Figure 13. Bode curves for plasma-nitrided AISI 304 in 0.05 M and 0.5 M sodium chloride solutions.
Materials 17 04189 g013
Table 1. An overview of the specimen designations.
Table 1. An overview of the specimen designations.
Specimen DesignationType of Surface/Solution
AR 0.05As-received, non-treated/0.05 M NaCl
AR 0.5As-received, non-treated/0.5 M NaCl
PN 0.05Plasma-nitrided/0.05 M NaCl
PN 0.5Plasma-nitrided/0.5 M NaCl
Table 2. The values of roughness parameters: the arithmetical mean deviation of the assessed profile (Ra), the average maximum peak-to-valley height (Rz), and the profile slope (Rsk).
Table 2. The values of roughness parameters: the arithmetical mean deviation of the assessed profile (Ra), the average maximum peak-to-valley height (Rz), and the profile slope (Rsk).
Specimen DesignationRa (μm)Rz (μm)Rsk (-)
AR0.101.02−1.58
PN0.242.59−1.63
Table 3. The values of the potentiodynamic polarization parameters.
Table 3. The values of the potentiodynamic polarization parameters.
Specimen DesignationCorrosion
Potential Ecorr
(V vs SCE)		Pitting Potential
Ep (V vs SCE)		Corrosion
Current Density icorr (10−3 mA/cm2)		Cathodic Tafel Slope βc
(V/Decade)		Anodic Tafel Slope βa
(V/Decade)		Corrosion Rate vcorr (mm/Year)
AR 0.05−0.16 ± 0.020.39 ± 0.04----
AR 0.5−0.18 ± 0.030.29 ± 0.05----
PN 0.05−0.30 ± 0.03-3.19 ± 0.190.15 ± 0.050.10 ± 0.050.04 ± 0.002
PN 0.5−0.48 ± 0.05-6.81 ± 0.210.18 ± 0.040.15 ± 0.050.08 ± 0.002
Table 4. The values of the fitted impedance parameters for the as-received specimens: RΩ—electrolyte resistance, Rct—charge transfer resistance, CPE—constant phase element, n—exponent.
Table 4. The values of the fitted impedance parameters for the as-received specimens: RΩ—electrolyte resistance, Rct—charge transfer resistance, CPE—constant phase element, n—exponent.
Specimen DesignationRΩ (kΩ·cm2)Rct (kΩ·cm2)nCPE (µF/cm2)
AR 0.050.161 ± 0.004236.68 ± 0.90.85 ± 0.00324.64 ± 0.12
AR 0.50.019 ± 0.00240.68 ± 0.20.85 ± 0.00233.5 ± 0.18
Table 5. The values of the fitted impedance parameters for plasma-nitrided specimens: RΩ—electrolyte resistance; Rct1, Rct2—charge transfer resistances; CPE1, CPE2—constant phase elements; n1, n2—exponents.
Table 5. The values of the fitted impedance parameters for plasma-nitrided specimens: RΩ—electrolyte resistance; Rct1, Rct2—charge transfer resistances; CPE1, CPE2—constant phase elements; n1, n2—exponents.
Specimen DesignationRΩ
(kΩ·cm2)		Rct1 (kΩ·cm2)Rct2 (kΩ·cm2)CPE1 (µF/cm2)CPE2 (µF/cm2)n1n2
PN 0.050.122 ± 0.0032.11 ± 0.13.37 ± 0.2247 ± 1.214.82 ± 0.80.87 ± 0.0020.50 ± 0.002
PN 0.50.018 ± 0.0021.95 ± 0.11.76 ± 0.2376 ± 1.46.11 ± 0.20.82 ± 0.0020.75 ± 0.002
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zatkalíková, V.; Drímalová, P.; Balin, K.; Slezák, M.; Markovičová, L. Electrochemical Behavior of Plasma-Nitrided Austenitic Stainless Steel in Chloride Solutions. Materials 2024, 17, 4189. https://doi.org/10.3390/ma17174189

AMA Style

Zatkalíková V, Drímalová P, Balin K, Slezák M, Markovičová L. Electrochemical Behavior of Plasma-Nitrided Austenitic Stainless Steel in Chloride Solutions. Materials. 2024; 17(17):4189. https://doi.org/10.3390/ma17174189

Chicago/Turabian Style

Zatkalíková, Viera, Petra Drímalová, Katarzyna Balin, Martin Slezák, and Lenka Markovičová. 2024. "Electrochemical Behavior of Plasma-Nitrided Austenitic Stainless Steel in Chloride Solutions" Materials 17, no. 17: 4189. https://doi.org/10.3390/ma17174189

APA Style

Zatkalíková, V., Drímalová, P., Balin, K., Slezák, M., & Markovičová, L. (2024). Electrochemical Behavior of Plasma-Nitrided Austenitic Stainless Steel in Chloride Solutions. Materials, 17(17), 4189. https://doi.org/10.3390/ma17174189

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
