Mg Doping of N-Polar, In-Rich InAlN

Institute of Electrical Engineering, Slovak Academy of Sciences, 831 04 Bratislava, Slovakia
International Laser Centre, Slovak Centre of Scientific and Technical Information, 811 04 Bratislava, Slovakia
Author to whom correspondence should be addressed.
Materials 2023, 16(6), 2250;
Submission received: 6 February 2023 / Revised: 8 March 2023 / Accepted: 9 March 2023 / Published: 10 March 2023
(This article belongs to the Special Issue Electronic and Optical Properties of Heterostructures)


Metal organic chemical vapor deposition was used to grow N-polar In0.63Al0.37N on sapphire substrates. P-doping was provided by a precursor flow of Cp2Mg between 0 and 130 nmol/min, reaching a Cp2Mg/III ratio of 8.3 × 10−3. The grain structure of 360 nm thick InAlN was spoiled by pits after introducing a flow of CP2Mg at 30 nmol/min. The surface quality was improved with a flow of 80 nmol/min; however, detrimental deterioration appeared at 130 nmol/min. This correlated with the XRD shape and determined density of dislocations, indicating a phase separation at the highest flow. Degenerated n-type conduction and a free carrier concentration of ~1019 cm−3 were determined in all samples, with a minor compensation observed at a CP2Mg flow of 30 nmol/min. The room temperature (RT) electron mobility of ~40 cm2/Vs of the undoped sample was reduced to ~6 and ~0.3 cm2/Vs with a CP2Mg flow of 30 and 80 nmol/min, respectively. Scattering at ionized acceptor/donor Mg-related levels is suggested. RT photoluminescence showed a red shift of 0.22 eV from the virgin 1.73 eV peak value with Mg doping. Mobility degradation was found to be the main factor by InAlN resistivity determination, which increased by two orders of magnitude, approaching ~0.5 Ωcm, at the highest Cp2Mg flow.

1. Introduction

There is a need for novel material systems that can open a window for sub-THz-frequency electronics. In this respect, because of its record calculated electron velocity, InN is among the hottest candidates [1]. Indeed, an evaluation of the state-of-the art InN, which was grown by molecular-beam epitaxy, indicated an electron velocity of approximately 1 × 108 cms−1 [2]. However, an experimental demonstration of InN-channel transistors is missing to date because of the large misfit between InN and ordinary GaN buffers. Elsewhere, it was suggested that InAlN buffer layers with a high In content could resolve this issue by providing better matching [3]. Additionally, if an InAlN buffer is grown with N-polarity, the InN channel layer can stay on the top of the epitaxial structure [3].
The In0.6Al0.4N reported by us was grown at approximately 720 °C by using metal-organic chemical vapor deposition (MOCVD) [4,5]. By employing a short nitridation and direct growth on a sapphire substrate, N-polarity and a high In content in a readily relaxed InAlN layer were obtained. The orientation of the bonds was explained by a dissociation of an AlON interlayer and verified using high-resolution transmission electron microscopy [4,5]. Occasional inversion domains were linked with the formation of isolated Al-polar AlN islands [5]. Elsewhere, an off-axis sapphire cut was suggested to suppress these irregularities [6,7]. Finally we grew on-axis N-polar InN/InAlN heterostructures, which were unique in having an InN channel (transistor-like) thickness of only 20 nm. Still, the room temperature (RT) electron mobility was as high as 720 cm2 V−1 s−1 [7]. Reduction of the InN dislocation density by diminishing the still-existing misfit to InAlN was suggested to enhance the electron mobility further [7]. It was also emphasized that for the functionality of InN-channel transistors, the compensation of unintentional donors in the InAlN buffer layer is necessary.
Unfortunately, In-rich InAlN compounds show inherently degenerate n-type conduction as the Fermi level rises above the conduction band with an In fraction higher than ~0.6 [8]. This was reflected by the Hall-method-determined free electron concentration of ~1019 cm3 in an undoped, MOCVD-grown In0.57Al0.43N reported by us [7], or in InN even after p-type doping [9]. Still, the compensation of residual donors in III-N buffer layers using relatively easily ionized Mg acceptors (when compared with C or Fe acceptors) may be the most viable method, as was already demonstrated in AlGaN/GaN transistors [10]. In MOCVD, Mg-doping is typically achieved by adding the bis(cyclopentadienyl) magnesium Cp2Mg precursor flow [9,10,11,12,13]. In GaN layers, when a Cp2Mg/trimethylgalium (TMG) flow ratio between 0.6 and 1.6 × 10−3 is used, the Mg concentration reaches approximately 2 × 1019 cm−3 [11,12]. In such cases, as the Mg-related acceptor level is 0.25 eV above the valence band, providing an ionization rate of approximately 4 % at RT, the hole concentrations are ~1017 cm−3 [10,11,12]. In other words, GaN can easily become semi-insulating or show p-type conduction if virgin GaN is only lightly n-type doped (electron concentration ≤1017 cm−3). However, for Cp2Mg/TMG ≥ 2 × 10−3, Mg becomes amphoteric, while the GaN crystallographic quality deteriorates with an appearance of pyramidal defects and Mg segregation [11,12]. The situation is slightly different for InGaN compounds in which, similar to InAlN, the concentration of residual free electrons increases with the In molar fraction, which requires a more intense delivery of Mg to achieve full compensation and/or p-type conduction [13]. In particular, Cp2Mg/(triethylgalium (TEG)+trimethylindium (TMI)) as high as ~4 × 10−2 was needed to induce holes in In0.2Ga0.8N while maintaining decent crystallographic quality. On the other hand, phase separation occurred for the same flows but a higher In molar fraction of 0.37 without achieving p-type conduction [13].
As indicated above, the complete compensation of donors and/or hole (p-type) conduction in In-rich/In-containing compounds is hard to achieve. In particular, MOCVD-grown InN showed only n-type conduction in the whole range of Mg doping, with only a slight drop in conduction at the lowest Cp2Mg/TMI flow ratio of 5 × 10−3 [9]. In InN reported elsewhere, p-type conduction was suggested. This claim however, was based only on a capacitance–voltage analysis without performing the Hall experiment [14]. As high-background n-type doping demands a high Mg concentration, problems arise due to Mg’s amphoteric behavior and increase in dislocations. With a high density of dislocations, free carrier mobility also becomes severely limited [15].
Mg doping also significantly influences the optical properties of III-N layers [9,10]. The low-temperature photoluminiscence (PL) spectra of GaN showed several Mg-related peaks within the bandgap with a rising intensity depending on the Cp2Mg flow. The peaks merged into a single broad signal for an Mg concentration of 8 × 1018 cm−3 when the virgin bound exciton at 3.48 eV practically disappeared [10]. On the other hand, the RT PL of optimized p-type N-polar GaN was dominated by a single donor–acceptor peak separated by ~0.12 eV from the near band-edge emission at 3.4 eV [16]. With increasing Mg doping, an additional blue-luminescence peak at 2.8 eV was assigned to self-compensation [16].
In our work, we studied the Mg doping of MOCVD-grown, N-polar InAlN with an In molar fraction of approximately 0.62. The Cp2Mg/(trimethylaluminum (TMA) + TMI) ratio was increased to a level of 8.3 × 10−3 at which the material resistance began to saturate and InAlN phase separation occurred.

2. Experiment

The InAlN growth was performed using an AIXTRON 3 × 2″ flip-top, close-coupled showerhead MOCVD system; the process recipe was analogous to our previous reports [4,5]. Initially, c-plane sapphire substrates were exposed to NH3 at approximately 1015 °C for 300 s. After ramping down to 710 °C, the AlN interlayer growth was performed for 35 s. In respect of the InAlN growth, TMA, TMI, NH3, and the total flow were kept at 4.74 µmol/min, 10.95 µmol/min, 3 slm, and 10 slm, respectively, targeting an In molar fraction of 0.63. The Mg doping was varied by setting the Cp2Mg flow between 0 and 130 nmol/min, reaching the highest CP2Mg/(TMA + TMI) flow ratio of 8.3 × 10−3. The InAlN growth was performed at the pressure of 20 kPa for 8440 s. The growth process was monitored using an in situ LayTec EpiCurve®TT optical (632.7 nm) reflectance system.
High-resolution X-ray diffraction (HR-XRD) characterization was performed using a Bruker D8 DISCOVER diffractometer with a rotating Cu anode operating at 12 kW. InAlN diffractions 0004 and 11 2 ¯ 4 diffractions were measured to determine the molar fractions, lattice parameters, and strain states [7]. The density of the screw- (NdisS) and edge-type dislocations (NdisE) were evaluated from the symmetric— 0002 and skew— 10 1 ¯ 1 diffractions. Calculations were performed assuming NdisS = Г 0 ° 2 1.88 b s 2   , NdisE  = Г 90 ° 2 1.88 b e 2   , where Г χ represents the full-width at half-maximum (FWHM) of the rocking curves at the inclination angles χ = 0 ° and 90°, and bs = c and be = a are the Burgers vectors of the corresponding dislocations [17,18].
The depth-resolved elemental composition of the Mg-doped InAlN was analyzed using secondary ion mass spectroscopy (SIMS) by Ion-TOF GmbH. An NT-MDT NTEGRA Prima atomic force microscope (AFM) in tapping mode and a FEI Quanta 250 FEG scanning electron microscope (SEM) were used to study the surface morphology of the grown samples. The TEM analyses were performed by conventional TEM JEOL JEM1200EX, using cross-sectional TEM specimens prepared with the FIB technique.
The Hall transport parameters were measured in the temperature range between RT and 4 K using a standard Van der Pauw configuration. The resistivity of the grown layers was also investigated using transmission-line-method (TLM) test structures [19], with differently spaced, non-annealed ohmic contacts composed of Ti/Al/Ni/Au. RT PL spectra were acquired using an Ar+ laser at 488 nm for sample excitation and an Si photodiode for signal detection.

3. Results and Discussions

The XRD analysis of InAlN (0002) diffractions shown in Figure 1 indicates that by increasing the CP2Mg flow to 80 nmol/min, the position of the (0002) reflection shifted to higher angles while the FWHM of the signal increased. This was caused by a minor decrease in the In molar fraction (by up to 0.03) and by generating additional screw- and edge-type dislocations (a combined increase of 45 % for the CP2Mg/(TMA + TMI) flow ratio of 8.3 × 10−3), quantified in Table 1. An allusive side maximum was notable for the highest CP2Mg flow, suggesting that the InAlN underwent phase separation. A minor reduction in the growth rate with the introduction of the Mg doping was also observed.
Figure 2 shows the elemental SIMS profiles of the InAlN sample doped at a 130 nmol/min CP2Mg flow. MgO and MgN ions were detected with an almost stable intensity of ~10 counts/s in good alignment with those of the other InAlN elements. This proved a stable concentration of Mg through the sample cross-section with a marginal memory effect at the onset of doping. We note that unless a careful calibration of the SIMS method in In0.6Al0.4N is performed, any Mg quantification is meaningless. Nevertheless, taking into account the relatively high CP2Mg/(TMA + TMI) flow ratio when compared to the CP2Mg/TMG ratio of GaN doping [11,12], we expect that the Mg concentration might be in the range of 1019–1020 cm−3.
A typical grain mosaic structure [7,20] and a root mean square (RMS) roughness of 5.9 nm were deduced from the 5 × 5 μm2 AFM scan of the undoped InAlN, shown in Figure 3a. A number of pits and surface roughness deterioration (RMS ~8.9 nm) appeared with the introduction of CP2Mg flow of 30 nmol/min, shown in Figure 3b. Point defects disappeared as the flow was further increased to 80 nmol/min in addition to the enlargement of grains and smoothing of the InAlN surface (RMS ~7.5 nm), shown in Figure 3c. Interestingly, these surface improvements at a CP2Mg flow of 80 nmol/min correlated well with a decreased density of screw-type dislocations, shown in Table 1. Finally, the surface detrimentally deteriorated and exhibited a number of misoriented grains at a CP2Mg flow of 130 nmol/min (Figure 3d). This partially surprising trend (smoothing of the surface with a CP2Mg flow of 80 nmol/min) is also well illustrated in the SEM views shown in Figure 4.
A TEM analysis revealed inner microstructure changes due to different Cp2Mg flows during the layer growth. Figure 5 presents bright field (BF) and weak-beam, dark-field (WBDF) images using the specimen orientations specific for the visualization of dislocations. The weak-beam, dark-field image using 0002 diffraction illustrates a situation in which the invisibility criterion is fulfilled for pure edge dislocations, while the WBDF using 1 1 ¯ 00 or 11 2 ¯ 0 diffractions makes pure screw dislocations invisible. The TEM analysis becomes important for defects which cannot be easily reflected by an XRD analysis of InAlN 0002 diffractions. In particular, grains with a larger, out-of-plane rotation are shown as U-shaped grains in Figure 5a–c for the undoped InAlN. The addition of a Cp2Mg flow of 30 nmol/min did not suppress the U-shaped grains (as was indicated by SEM in Figure 4b) and increased the surface roughness. However, when out-of-plane grain growth was suppressed, the InAlN layer surface smoothness was improved, and the majority of pits also disappeared in the layer grown with a Cp2Mg flow of 80 nmol/min (Figure 4c and Figure 5g–i for SEM and TEM, respectively). Simultaneously, stacking faults were introduced into the sample and are reflected as the layered structure shown in Figure 5g–i. In general, by summarizing results from the XRD, AFM, SEM, and TEM analyses, we can conclude that by introducing a sufficiently high Cp2Mg flow, the microstructure of InAlN layers was improved with fewer pits and a suppressed growth of misoriented grains. However, the last sample with the highest Cp2Mg flow showed a high level of lattice disorder (Figure 5j–l), connected with a loss of the continuous “columnar” growth and an initiated, intense growth of conical grains with a large, out-of-plane misorientation (shown in Figure 4d).
Our findings can be further correlated with the InAlN resistivity values extracted using the TLM method, shown in Figure 6. When compared with the undoped InAlN, Mg doping led to a steep resistivity increase by two orders of magnitude, reaching ~0.2 Ωcm for the CP2Mg flow of 80 nmol/min. On the other hand, a tendency of resistivity saturation could be observed at the flow of 130 nmol/min.
As was pointed out in the Introduction, the resistivity increase observed by the TLM measurement is an expected and desired outcome of the InAlN Mg doping. To analyze the electric conduction further, we separated the free carrier mobility (μ) and concentration (N) quantities using Hall experiments from RT down to 4 K. This analysis was performed for all samples except for the one prepared at the 130 nmol/min flow, as that sample was already structurally degraded. In the following, we used the CP2Mg flow rate as a label to distinguish the μ and N data. What we found in all cases was an n-type conduction, even though various T-dependences were observed. For the undoped InAlN (CP2Mg flow = 0) we acquired a bell-like T-dependence for μ(0), shown in Figure 7a, and a partial freeze-out for N(0), shown in Figure 7b. This implies a combination of scattering at ionized impurities, particularly at the low temperature range and at charged threading dislocations [15,21]. However, μ(0) changed only slightly, and thus both the scattering mechanisms with opposite T-dependence seem to be almost balanced, as similarly observed elsewhere for highly doped and defective GaN [15]. Regarding the scattering centers, in the undoped InAlN, similar to GaN, unintentional impurities can be linked to N vacancies and/or oxygen atoms [16] which are responsible for the high background electron concentration. Electrons can be partially trapped at their respective donor states as T decreases, shown in Figure 7b. High concentrations of threading dislocations are typical for the In-rich InAlN [20], and the same was observed in our case, shown in Table 1.
With adding a CP2Mg flow of 30 nmol/min, the situation changed significantly. In this case, the mobility dropped by one order of magnitude compared with that of the undoped InAlN, while μ(30) increased steadily with T, shown in Figure 8a. This scenario strongly indicates the dominance of a new impurity scattering mechanism related to the Mg doping. We do not assume a significant role of threading dislocations in this case as their density remained almost intact. As was reported earlier for GaN, Mg doping generates various new levels and complexes, such as MgGa or multiple-charged (MgGa –VN) [21]. Similar Mg-related levels can be expected in our study, representing new impurity scattering centers. We noticed an approximately 10 % lower N(30) compared to N(0), likely because of the partial compensation of donors, shown in Figure 8b. However, compared with the undoped InAlN, N(30) decreased with an increasing T between ~50 and 300 K. The reason for this is unknown to us. We can speculate that some kind of phonon-assisted compensation mechanism took place, similar to what was reported for the (MgGa–VN)-related phonon-assisted luminescence transitions in GaN [21].
Finally, the observed trend in N and μwith the CP2Mg flow became even more pronounced for 80 nmol/min, shown in Figure 9. In this case, however, N(80) was higher than N(0), suggesting amphoteric behavior of Mg. Still, μ(80) exhibited an additional dramatic decrease, likely because of new, Mg-related ionized impurities and/or defects in InAlN. Consequently, the flow of 80 nmol/min produced the most resistive sample (see the evolution in Figure 10). The acquired data in Figure 9 are scattered because the highly resistive samples were measured with insufficient precision.
In Figure 11, we compare the RT PL signal of the undoped InAlN sample with the two p-doped samples grown at CP2Mg flows of 30 and 80 nmol/min. The PL maximum of the undoped InAlN appeared at ~1.71 eV and was well correlated with the XRD-detected In molar fraction of 0.62 and in agreement with expected bowing of the InAlN band gap dependence [8]. With the introduction of Mg doping, the peak of the PL signal was red-shifted by ~0.22 eV, similar to what was reported for the donor–acceptor pair in Mg-doped GaN [10]. Our finding is in agreement with the Hall experiment, shown in Figure 8b, where the partial compensation of residual donors was linked to Mg-related acceptors. We also noticed an increase of the PL FWHM from 258 meV to 466 meV. Finally, RT PL was also taken from the InAlN doped at the higher CP2Mg flow of 80 nmol/min. In this case, however, the signal dropped below the detection limit. This can be explained by the Mg’s amphoteric behavior, which provided non-radiative recombination through newly generated donor levels or defects, similar to what was reported for highly Mg-doped InN [9].
The PL maximum shift introduced by doping could be a consequence of the radiative recombination involving acceptors and of the effective band gap narrowing caused by defect-related potential fluctuations. In the semiconductor with a high doping level, the fluctuations stemmed from a random dopant distribution in combination with some crystalline defects. Their spectra typically reflect the Gaussian distribution of probability. In a ternary compound, they also stem from local fluctuations of the composition. A basic formulation of the band-tail-state model was created by Eliseev et al. [22,23], and it was then developed into the PL model of the localized state ensemble by Li et al. [24]. The model was used recently by Hidouri et al. to quantitatively evaluate the temperature dependence of PL band features in ternary and quaternary epitaxial layers [25,26,27] and the respective quantum wells [28].
To estimate the extent to which the density of states in our samples correspond to the tail-state model, we made Gaussian fits to the PL spectra (shown in Figure 11). The PL spectrum of the undoped sample could be almost ideally fitted by a single Gaussian line. This is a sign that the dominant part of the transitions was most probably a recombination through the band-tails. For the 30 nmol/min Mg-doped sample, the spectrum could be described by a combination of two Gaussian curves shifted in the energy levels (with the maxima at 1.385 eV and 1.610 eV, respectively). One could speculate whether this is the result of a mix of band-to-band and band–acceptor transitions, both shaped by the band-tail energy distribution. However, this should be further proven by a broader and more representative set of experiments.

4. Conclusions

We studied the Mg doping of MOCVD-grown, N-polar, In-rich InAlN with varied CP2Mg flows between 0 and 130 nmol/min. Degenerate n-type conduction was observed in the reference, undoped InAlN and attributed to the high In molar fraction of 0.63 and an inherent Fermi level location close to the conduction band. Scattering at ionized unintentional impurities and threading dislocations were identified as the main factors that determined the free electron mobility values from RT down to 4 K. The situation changed through the introduction of a CP2Mg flow at 30 nmol/min when Mg-related acceptors became the dominant scattering centers and the mobility decreased by one order of magnitude. A partial compensation of unintentional donors was also achieved when the PL signal could be interpreted considering acceptor levels ~0.22 eV above the valence band. We noticed a slight deterioration of the surface mosaic structure with the appearance of pits and a slight increase in the density of screw dislocations. However, when increasing the CP2Mg flow to 80 nmol/min, the surface surprisingly improved; the pits disappeared, and the mobility continued to steeply decrease. This drop can be linked to scattering on additionally generated, Mg-related levels and complexes, as the Mg’s amphoteric nature was indicated by the Hall experiment in this case. Nevertheless, with Mg doping, the InAlN resistivity increased by two orders of magnitude, which was the desired outcome of our experiment. We can suggest that the CP2Mg flow of 80 nmol/min was close to the upper limit of reasonable conditions. Beyond this, the InAlN underwent a phase separation and developed a number of misoriented grains at the surface, which were observed at 130 nmol/min. In general, we can conclude that by Mg doping the In-rich InAlN, the mobility of free electrons is the main factor which controls the material resistivity. In future, Mg-doped InAlN material can be tested for the buffer layer in the design of novel InN/InAlN transistor structures.

Author Contributions

Conceptualization, J.K.; Investigation, O.P., S.H., M.B., R.S., E.D., A.R., M.K., F.G., D.G., M.P. and A.V.; Data curation, O.P., S.H., M.B., R.S., E.D., A.R., M.K., F.G., D.G., M.P. and A.V.; Writing—original draft, J.K.; Funding acquisition, J.K. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Slovak Research and Development Agency grant number APVV- 21-0008, and by the VEGA project grant numbers 2/0005/22 and 2/0068/21.

Data Availability Statement

Data can be provided upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Palacios, T. Beyond the AlGaN/GaN HEMT: New concepts for high-speed transistors. Phys. Status Solidi A 2009, 206, 1145–1148. [Google Scholar] [CrossRef]
  2. Kuzmik, J.; Adikimenakis, A.; Ťapajna, M.; Gregušová, D.; Haščík, Š.; Dobročka, E.; Tsagaraki, K.; Stoklas, R. InN: Breaking the limits of solid-state electronics. AIP Adv. 2021, 11, 125325. [Google Scholar] [CrossRef]
  3. Kuzmik, J. N-Polarity InN/GaN/InAlN High-Electron-Mobility Transistors. Appl. Phys. Express 2012, 5, 044101. [Google Scholar] [CrossRef]
  4. Chauhan, P.; Hasenöhrl, S.; Dobročka, E.; Minj, A.; Gucmann, F.; Vančo, Ľ.; Kováč, J., Jr.; Kret, S.; Ruterana, P.; Kuball, M.; et al. Evidence of relationship between strain and In-incorporation: Growth of N-polar In-rich InAlN buffer layer by OMCVD. J. Appl. Phys. 2019, 125, 105304. [Google Scholar] [CrossRef] [Green Version]
  5. Chauhan, P.; Hasenöhrl, S.; Minj, A.; Chauvat, M.P.; Ruterana, P.; Kuzmik, J. Growth evolution of N-polar indium-rich InAlN layer on c-sapphire via strain relaxation by ultrathin AlON interlayer. Appl. Surf. Sci. 2020, 502, 144086. [Google Scholar] [CrossRef]
  6. Keller, S.; Li, H.; Laurent, M.; Hu, Y.; Pfaff, N.; Lu, J.; Brown, D.F.; Fichtenbaum, N.A.; Speck, J.S.; DenBaars, S.P.; et al. Recent progress in metal-organic chemical vapor deposition of (000-1) N-polar group-III nitrides. Semicond. Sci. Technol. 2014, 29, 113001. [Google Scholar] [CrossRef]
  7. Hasenöhrl, S.; Dobročka, E.; Stoklas, R.; Gucmann, F.; Rosová, A.; Kuzmík, J. Growth and Properties of N-Polar InN/InAlN Heterostructures. Phys. Stat. Solidi A 2020, 217, 2000197. [Google Scholar] [CrossRef]
  8. King, P.D.C.; Veal, T.D.; Adikimenakis, A.; Lu, H.; Bailey, L.R.; Iliopoulos, E.; Georgakilas, A.; Schaff, W.J.; McConville, C.F. Surface electronic properties of undoped InAlN alloys. Appl. Phys. Lett. 2008, 92, 172105. [Google Scholar] [CrossRef] [Green Version]
  9. Yamamoto, A.; Nagai, Y.; Niwa, H.; Miwa, H.; Hashimoto, A. Electrical and optical properties of MOVPE InN doped with Mg using CP2Mg. J. Cryst. Growth 2007, 298, 399. [Google Scholar] [CrossRef] [Green Version]
  10. Ko, K.; Lee, K.; So, B.; Heo, C.; Lee, K.; Kwak, T.; Han, S.-W.; Cha, H.-Y.; Nam, O. Mg-compensation effect in GaN buffer layer for AlGaN/GaN high-electron-mobility transistors grown on 4H-SiC substrates. Jpn. J. Appl. Phys. 2017, 56, 015502. [Google Scholar] [CrossRef]
  11. Papamichail, A.; Kakanakova-Georgieva, A.; Sveinbjörnsson, E.Ö; Persson, A.R.; Hult, B.; Rorsman, N.; Stanishev, V.; Le, S.P.; Persson, P.Å; Nawaz, M.; et al. Mg-doping and free-hole properties of hot-wall MOCVD GaN. J. Appl. Phys. 2022, 131, 185704. [Google Scholar] [CrossRef]
  12. Narita, T.; Ikarashi, N.; Tomita, K.; Kataoka, K.; Kachi, T. Wide range doping control and defect characterization of GaN layers with various Mg concentrations. J. Appl. Phys. 2018, 124, 165706. [Google Scholar] [CrossRef]
  13. Islam, M.R.; Sugita, K.; Horie, M.; Hashimoto, A.; Yamamoto, A. Mg doping behavior of MOVPE InxGa1 × xN (x~0.4). J. Cryst. Growth 2009, 311, 2817. [Google Scholar] [CrossRef]
  14. Wang, X.; Che, S.-B.; Ishitani, Y.; Yoshikawa, A. Systematic study on p-type doping control of InN with different Mg concentrations in both In and N polarities. Appl. Phys. Lett. 2007, 91, 242111. [Google Scholar] [CrossRef]
  15. Kyle, E.C.H.; Kaun, S.W.; Burke, P.G.; Wu, F.; Wu, Y.-R.; Speck, J.S. High-electron-mobility GaN grown on free-standing GaN templates by ammonia-based molecular beam epitaxy. J. Appl. Phys. 2014, 115, 193702. [Google Scholar] [CrossRef]
  16. Rathkanthiwar, S.; Szymanski, D.; Khachariya, D.; Bagheri, P.; Kim, J.H.; Mita, S.; Reddy, P.; Kohn, E.; Pavlidis, S.; Kirste, R.; et al. Low resistivity, p-type, N-polar GaN achieved by chemical potential control. Appl. Phys. Express 2022, 15, 081004. [Google Scholar] [CrossRef]
  17. Kuzmik, J.; Fleury, C.; Adikimenakis, A.; Gregušová, D.; Ťapajna, M.; Dobročka, E.; Haščík, Š.; Kučera, M.; Kúdela, R.; Androulidaki, M.; et al. Current conduction mechanism and electrical break-down in InN grown on GaN. Appl. Phys. Lett. 2017, 110, 232103. [Google Scholar] [CrossRef] [Green Version]
  18. Gallinat, G.S.; Koblmüller, G.; Wu, F.; Speck, J.S. Evaluation of threading dislocation densities in In- and N-face InN. J. Appl. Phys. 2010, 107, 053517. [Google Scholar] [CrossRef]
  19. Schroder, D.K. Semiconductor Material and Device Characterization, 3rd ed.; Wiley-Interscience: Hoboken, NJ, USA, 2005; p. 135. [Google Scholar]
  20. Kariya, M.; Nitta, S.; Yamaguchi, S.; Amano, H.; Akasaki, I. Mosaic Structure of Ternary Al1−xInxN Films on GaN Grown by Metalorganic Vapor Phase Epitaxy. Jpn. J. Appl. Phys. 1999, 38, L984. [Google Scholar] [CrossRef]
  21. Yan, Q.; Janotti, A.; Scheffler, M.; Van de Walle, C.G. Role of nitrogen vacancies in the luminescence of Mg-doped GaN. Appl. Phys. Lett. 2012, 100, 142110. [Google Scholar] [CrossRef]
  22. Eliseev, P.G.; Krasilnikov, A.I.; Manko, M.A.; Pinsker, I.Z. Band-Filling Model for Injection Luminescence at Higher Temperatures. Phys. Status Solidi 1967, 23, 587. [Google Scholar] [CrossRef]
  23. Eliseev, P.G. The red σ2/kT spectral shift in partially disordered semiconductors. J. Appl. Phys. 2003, 93, 5404–5415. [Google Scholar] [CrossRef]
  24. Li, Q.; Xu, S.J.; Xie, M.H.; Tong, S.Y. A model for steady-state luminescence of localized-state ensemble. Europhys. Lett. 2005, 71, 994–1000. [Google Scholar] [CrossRef] [Green Version]
  25. Hidouri, T.; Saidi, F.; Maaref, H.; Rodriguez, P.; Auvray, L. Localized state exciton model investigation of B-content effect on optical properties of BGaAs/GaAs epilayers grown by MOCVD. Vacuum 2016, 132, 10–15. [Google Scholar] [CrossRef]
  26. Hidouri, T.; Hamila, R.; Fraj, I.; Saidi, F.; Maaref, H.; Rodriguez, P.; Auvray, L. Investigation of the localization phenomenon in quaternary BInGaAs/GaAs for optoelectronic applications. Superlattices Microstruct. 2017, 103, 386–394. [Google Scholar] [CrossRef]
  27. Hidouri, T.; Mal, I.; Samajdar, D.; Saidi, F.; Das, T. Impact of localization phenomenon and temperature on the photoluminescence spectra of GaSbBi alloys and GaSbBi/GaAs quantum dots. Superlattices Microstruct. 2019, 129, 252–258. [Google Scholar] [CrossRef]
  28. Hidouri, T.; Saidi, F.; Al-Shahri, B.M. Tuning spontaneous emission in BInGaAs/GaAs QWs by varying the growth temperature: Above 1.2 μm emission and solar cells application. Opt. Quantum Electron. 2021, 53, 532. [Google Scholar] [CrossRef]

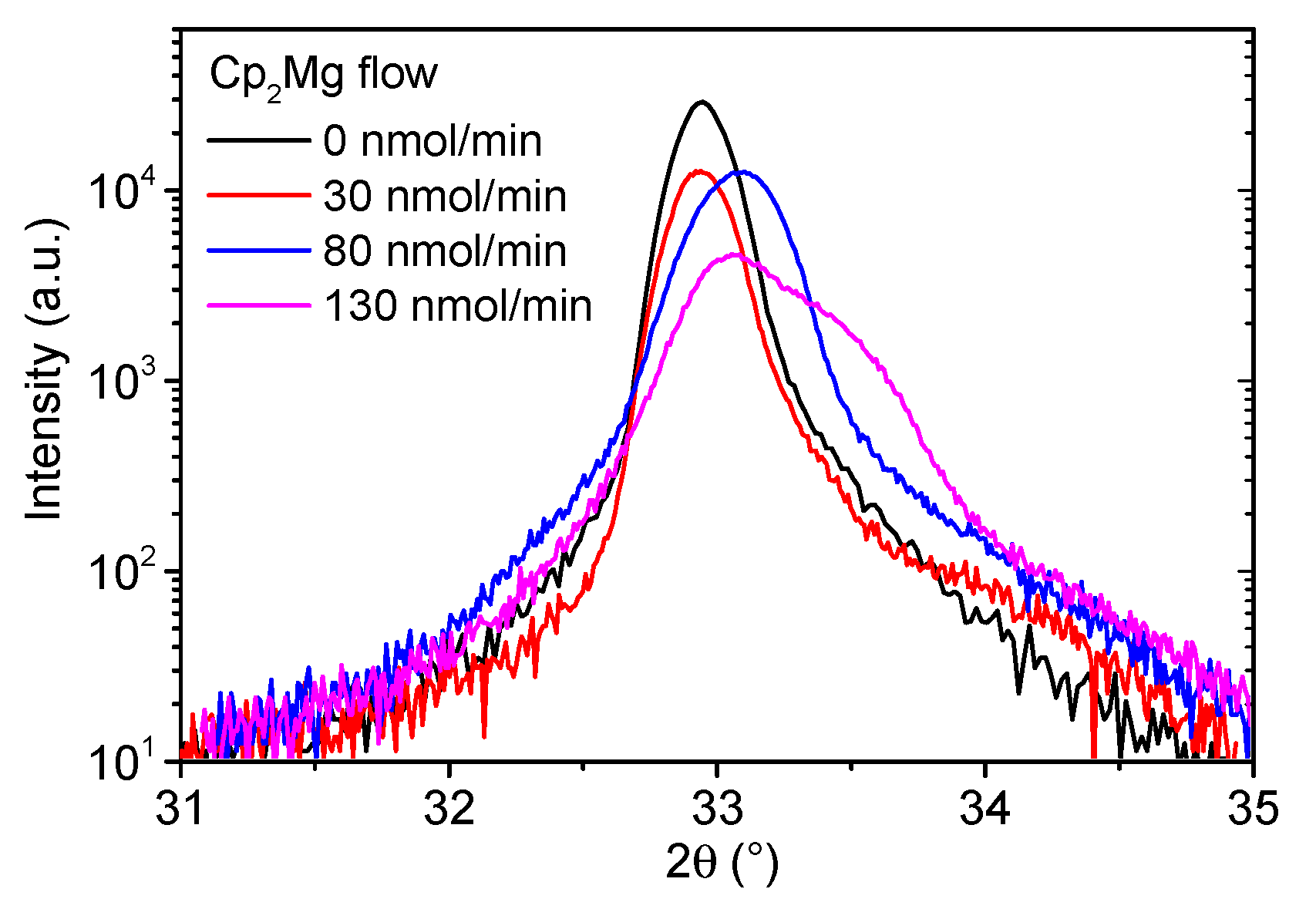

Figure 1. XRD 2 Θ/ω scan of InAlN (0002) XRD diffractions for different Cp2Mg flow.
Figure 1. XRD 2 Θ/ω scan of InAlN (0002) XRD diffractions for different Cp2Mg flow.
Materials 16 02250 g001

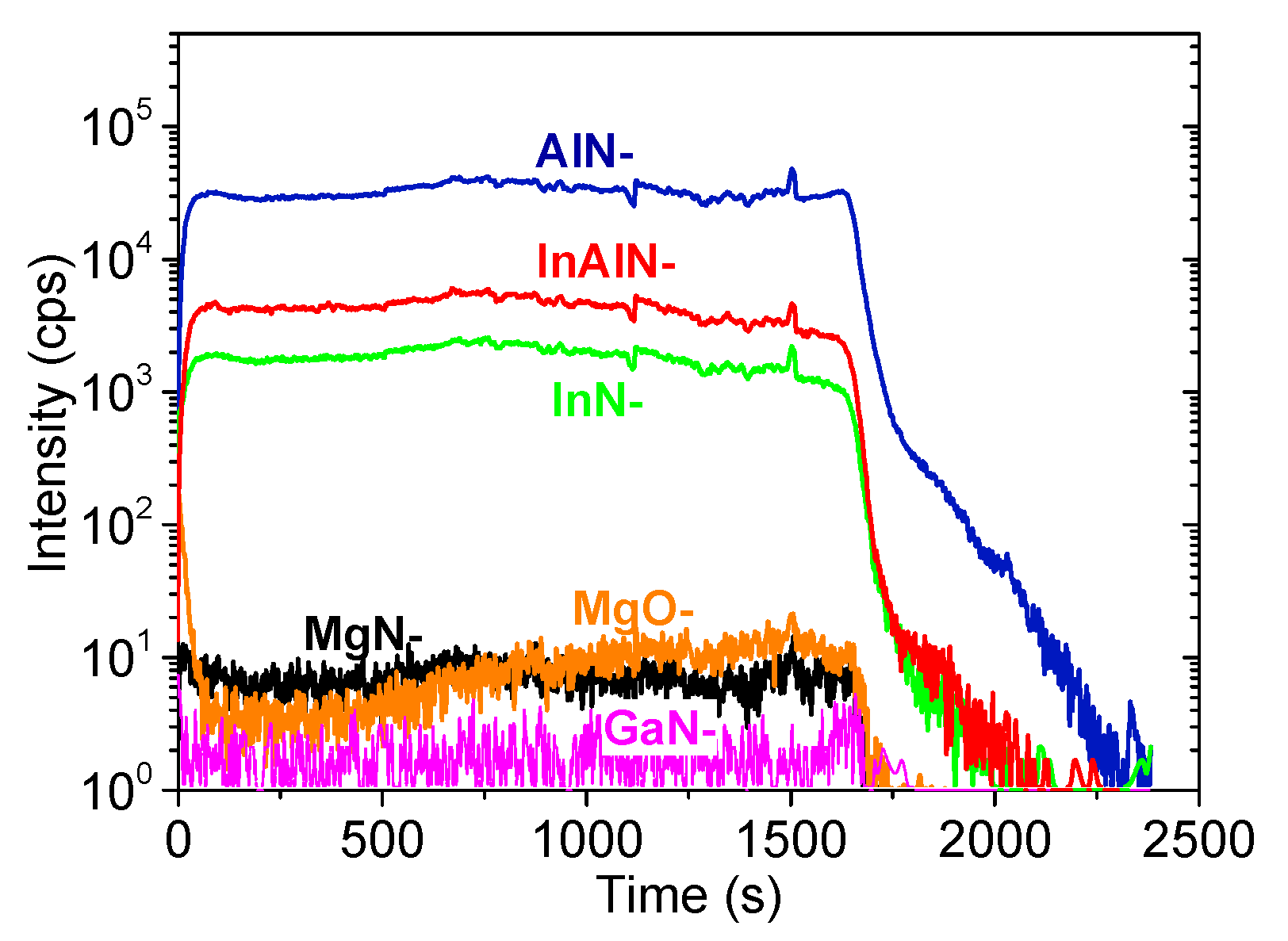

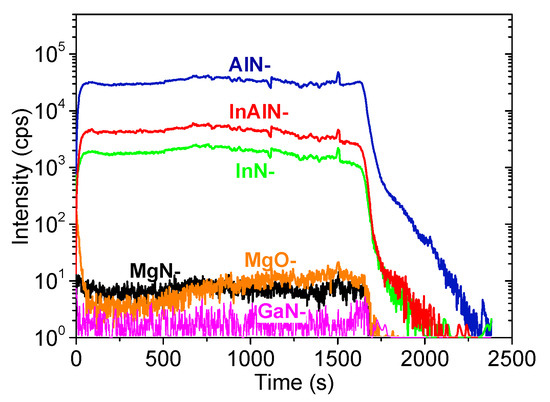

Figure 2. SIMS depth analysis of InAlN grown with 130 nmol/min Cp2Mg flow. X-axis refers to sputtering time by profiling.
Figure 2. SIMS depth analysis of InAlN grown with 130 nmol/min Cp2Mg flow. X-axis refers to sputtering time by profiling.
Materials 16 02250 g002

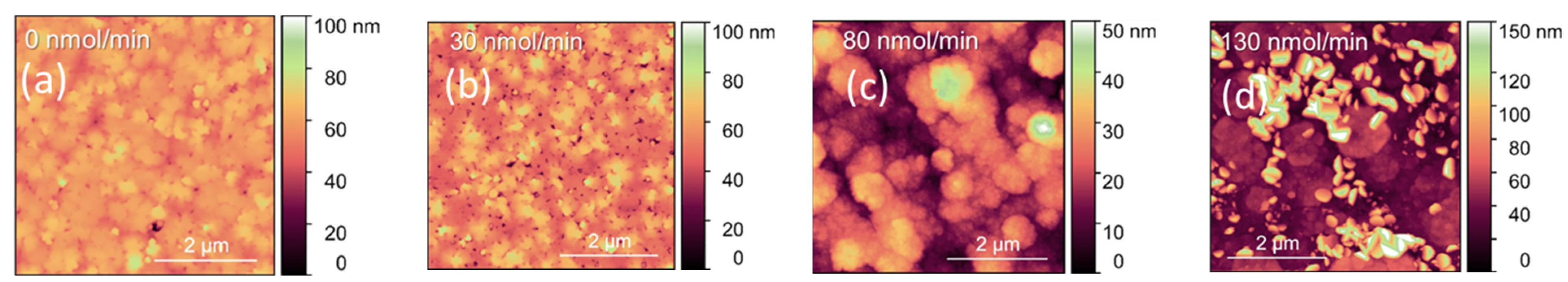

Figure 3. InAlN layers AFM analysis for Cp2Mg flow of (a) 0 nmol/min, (b) 30 nmol/min, (c) 80 nmol/min, and (d) 130 nmol/min.
Figure 3. InAlN layers AFM analysis for Cp2Mg flow of (a) 0 nmol/min, (b) 30 nmol/min, (c) 80 nmol/min, and (d) 130 nmol/min.
Materials 16 02250 g003

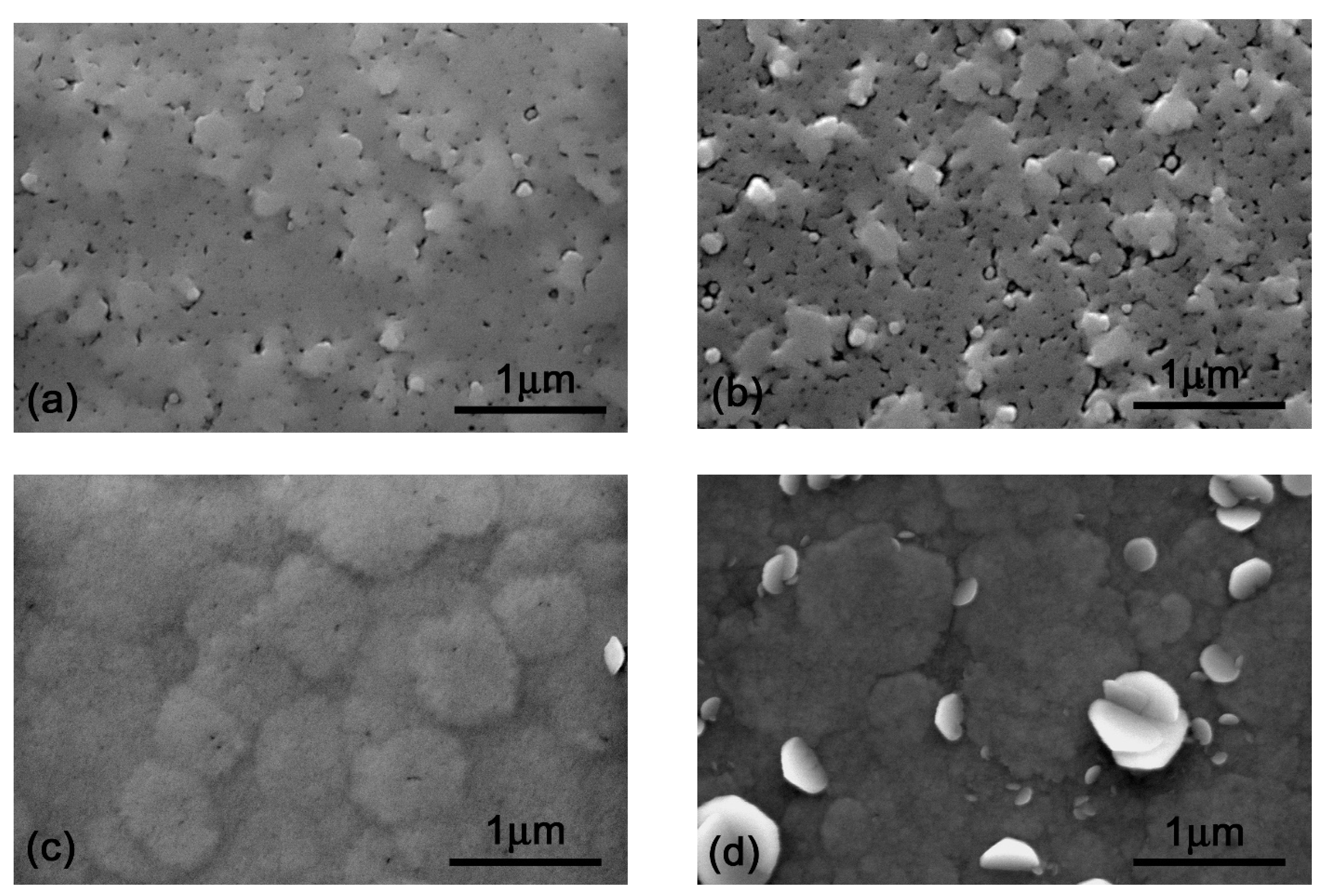

Figure 4. InAlN layers SEM analysis for Cp2Mg flow of (a) 0 nmol/min, (b) 30 nmol/min, (c) 80 nmol/min, and (d) 130 nmol/min.
Figure 4. InAlN layers SEM analysis for Cp2Mg flow of (a) 0 nmol/min, (b) 30 nmol/min, (c) 80 nmol/min, and (d) 130 nmol/min.
Materials 16 02250 g004

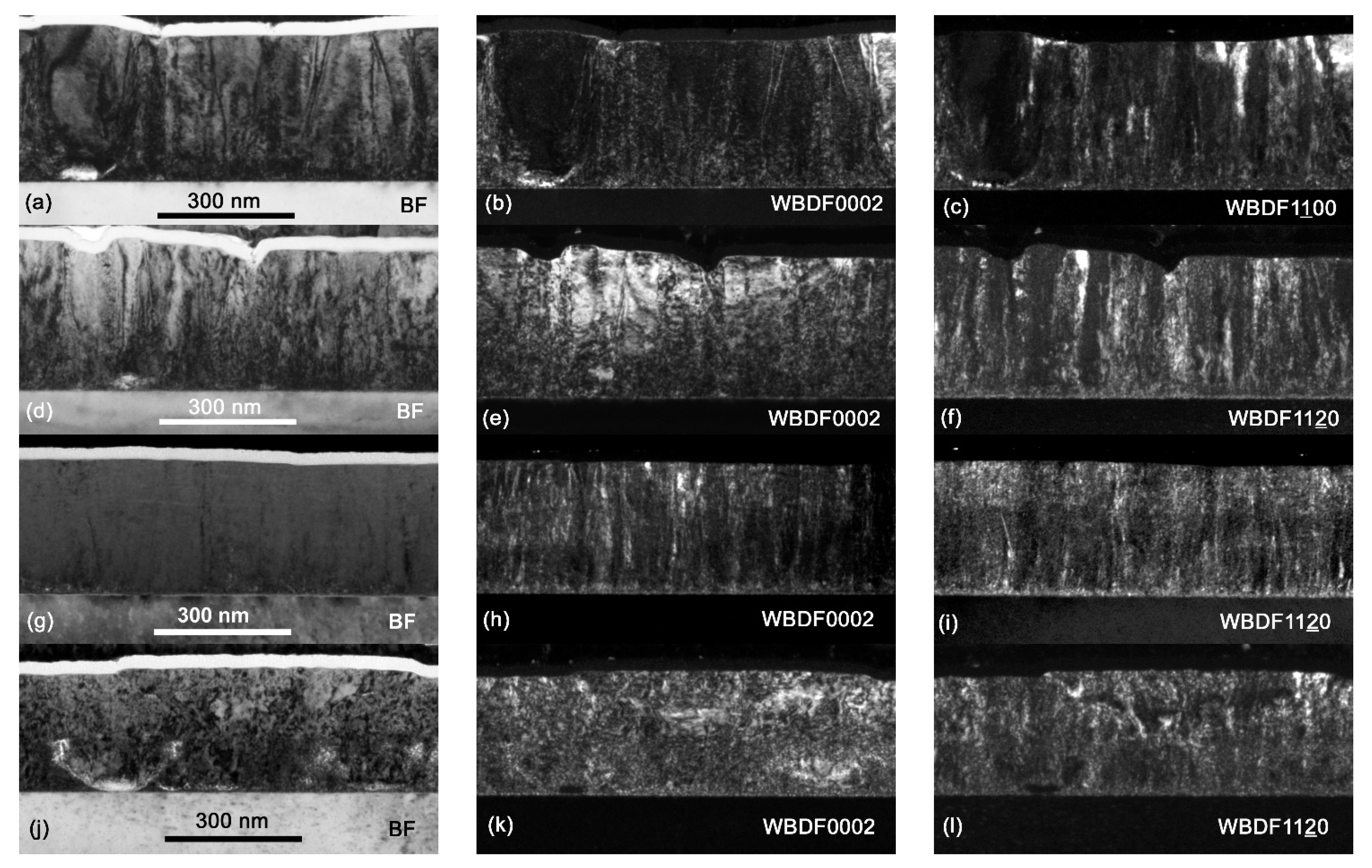

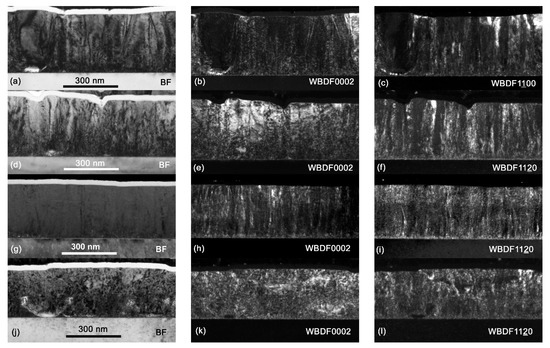

Figure 5. InAlN layers TEM analysis for Cp2Mg flow of (ac) 0 nmol/min, (df) 30 nmol/min, (gi) 80 nmol/min, (jl) 130 nmol/min. The images are taken as bright field (BF) or weak beam dark field (WBDF) images using diffraction beams indicated in the images.
Figure 5. InAlN layers TEM analysis for Cp2Mg flow of (ac) 0 nmol/min, (df) 30 nmol/min, (gi) 80 nmol/min, (jl) 130 nmol/min. The images are taken as bright field (BF) or weak beam dark field (WBDF) images using diffraction beams indicated in the images.
Materials 16 02250 g005

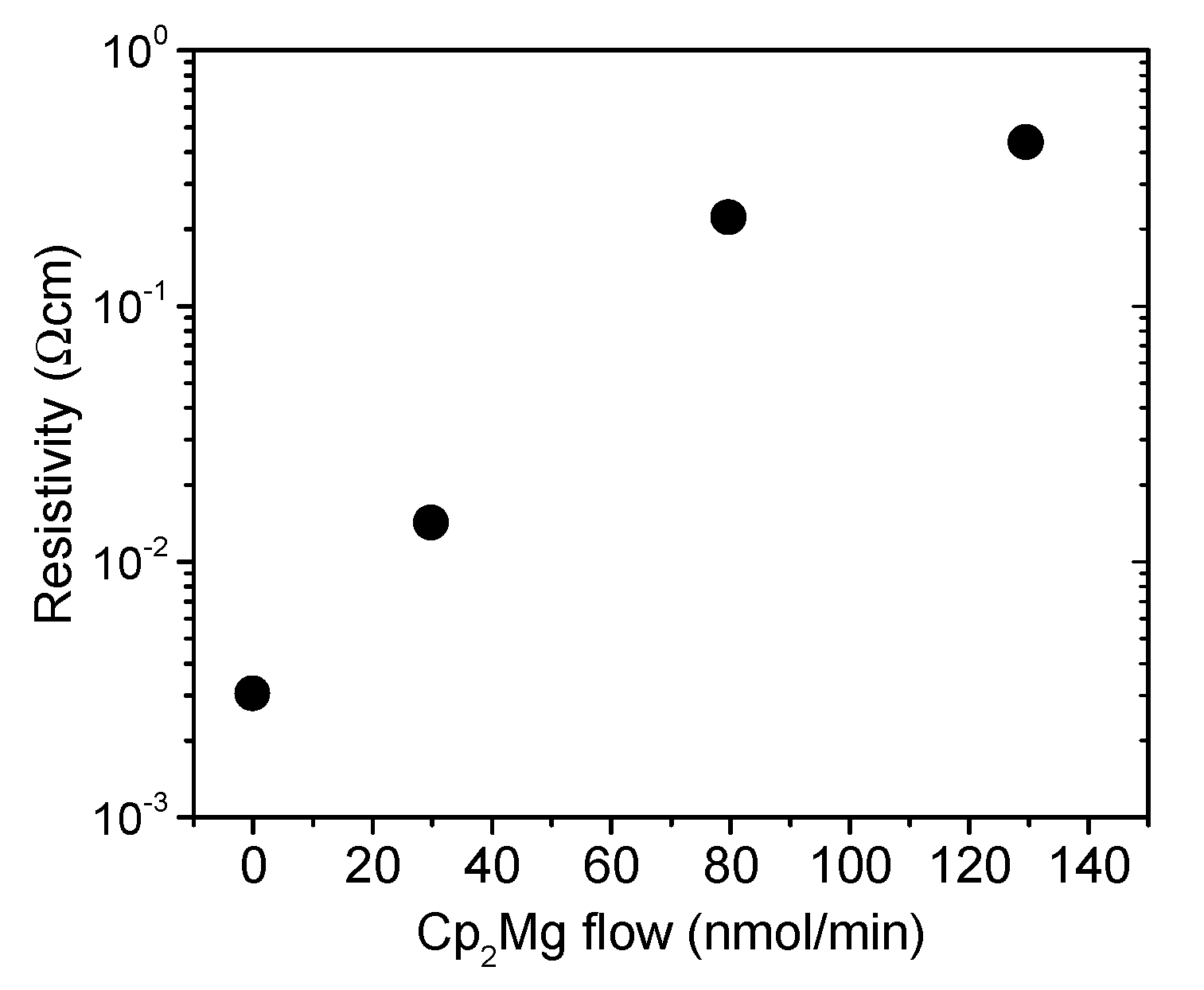

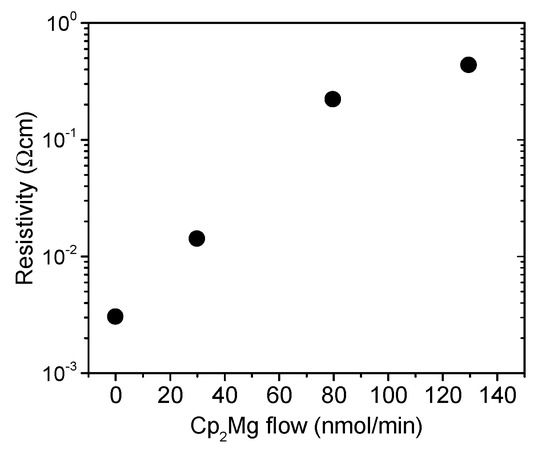

Figure 6. InAlN resistivity TLM method values for different Cp2Mg flow.
Figure 6. InAlN resistivity TLM method values for different Cp2Mg flow.
Materials 16 02250 g006

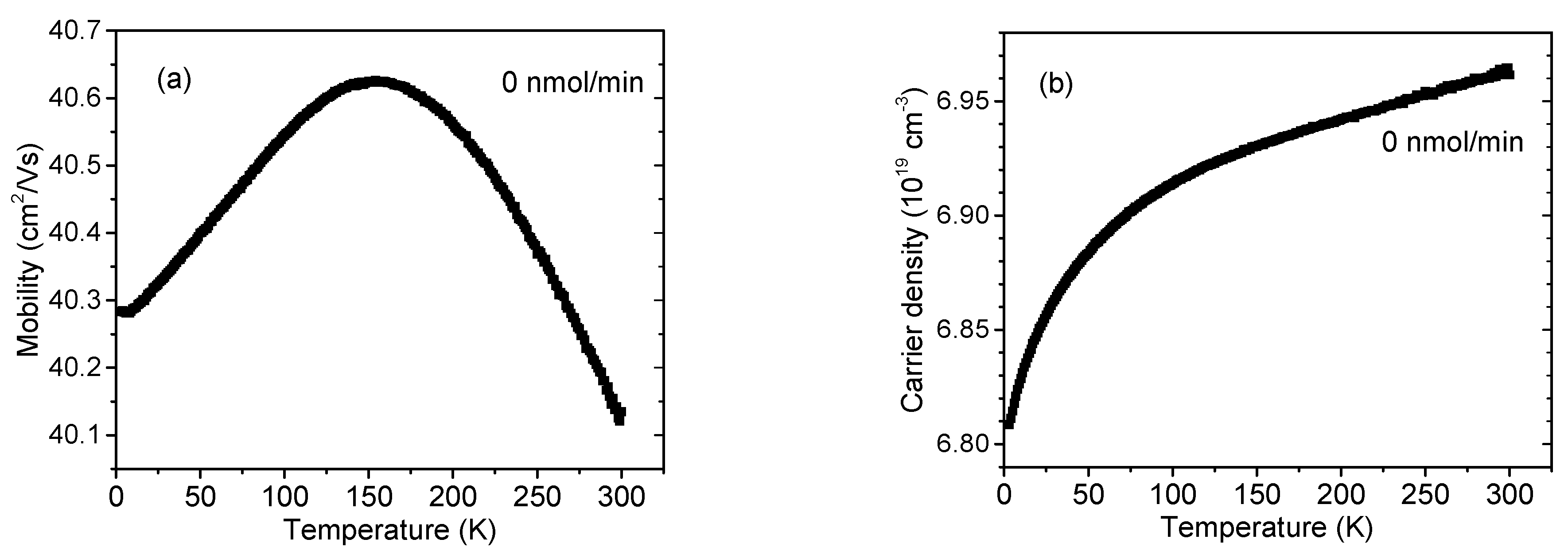

Figure 7. InAlN layer free electron (a) mobility and (b) concentration. Cp2Mg flow during the growth was 0 nmol/min.
Figure 7. InAlN layer free electron (a) mobility and (b) concentration. Cp2Mg flow during the growth was 0 nmol/min.
Materials 16 02250 g007
Figure 8. InAlN layer free electron (a) mobility and (b) concentration. Cp2Mg flow during the growth was 30 nmol/min.
Figure 8. InAlN layer free electron (a) mobility and (b) concentration. Cp2Mg flow during the growth was 30 nmol/min.
Materials 16 02250 g008

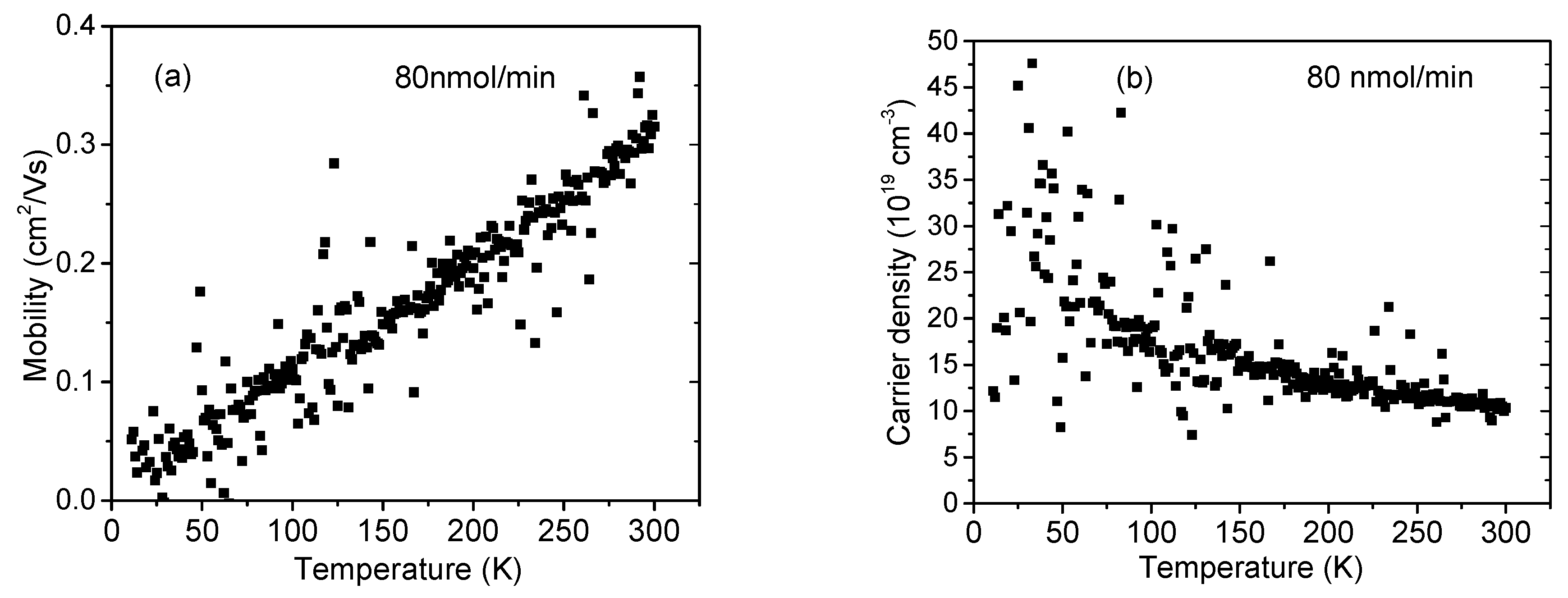

Figure 9. InAlN layer (a) electron mobility and (b) free electron carrier concentration. Cp2Mg flow during the growth was 80 nmol/min.
Figure 9. InAlN layer (a) electron mobility and (b) free electron carrier concentration. Cp2Mg flow during the growth was 80 nmol/min.
Materials 16 02250 g009

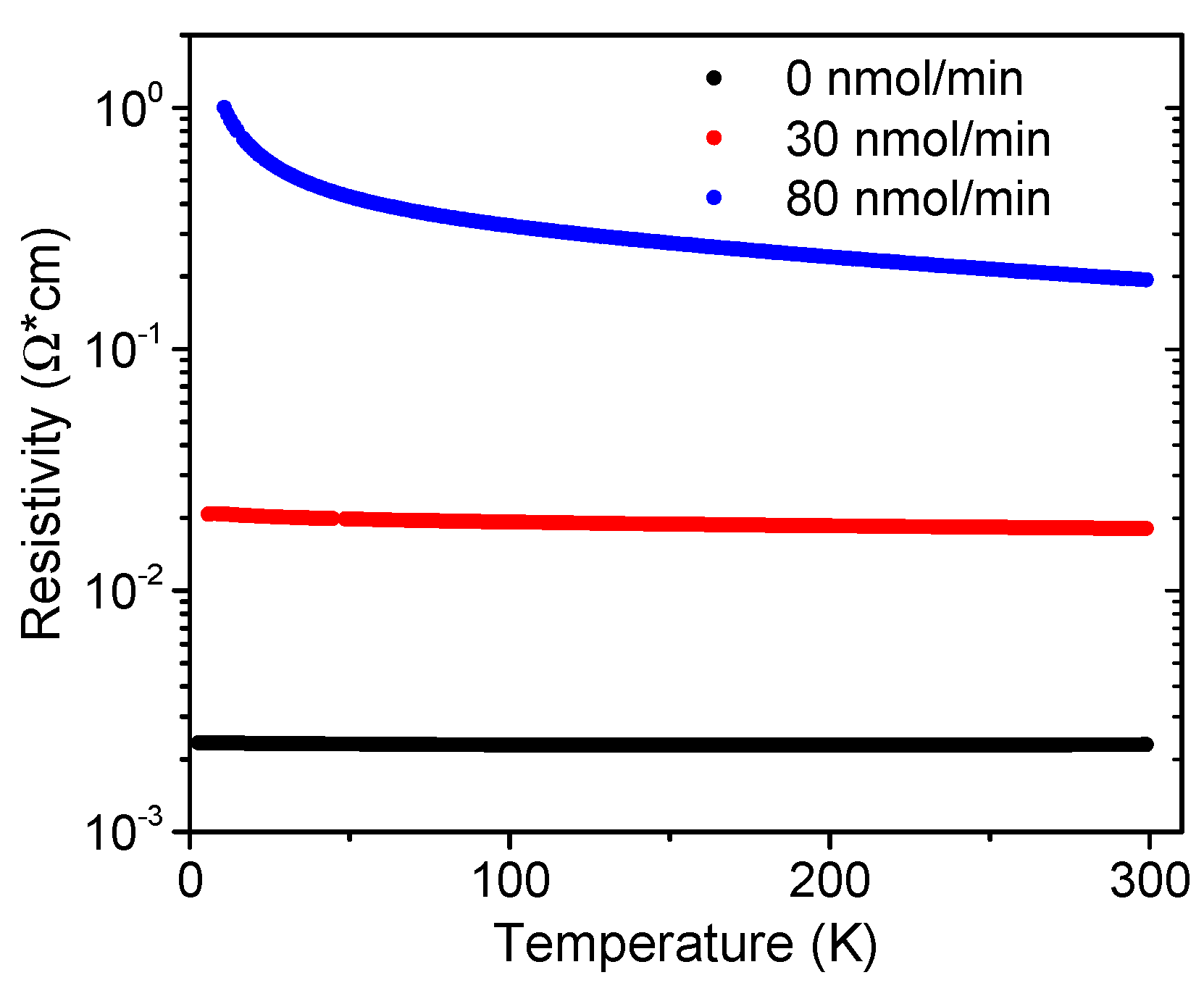

Figure 10. Dependence of the InAlN Hall resistivity on temperature for different Cp2Mg flows.
Figure 10. Dependence of the InAlN Hall resistivity on temperature for different Cp2Mg flows.
Materials 16 02250 g010

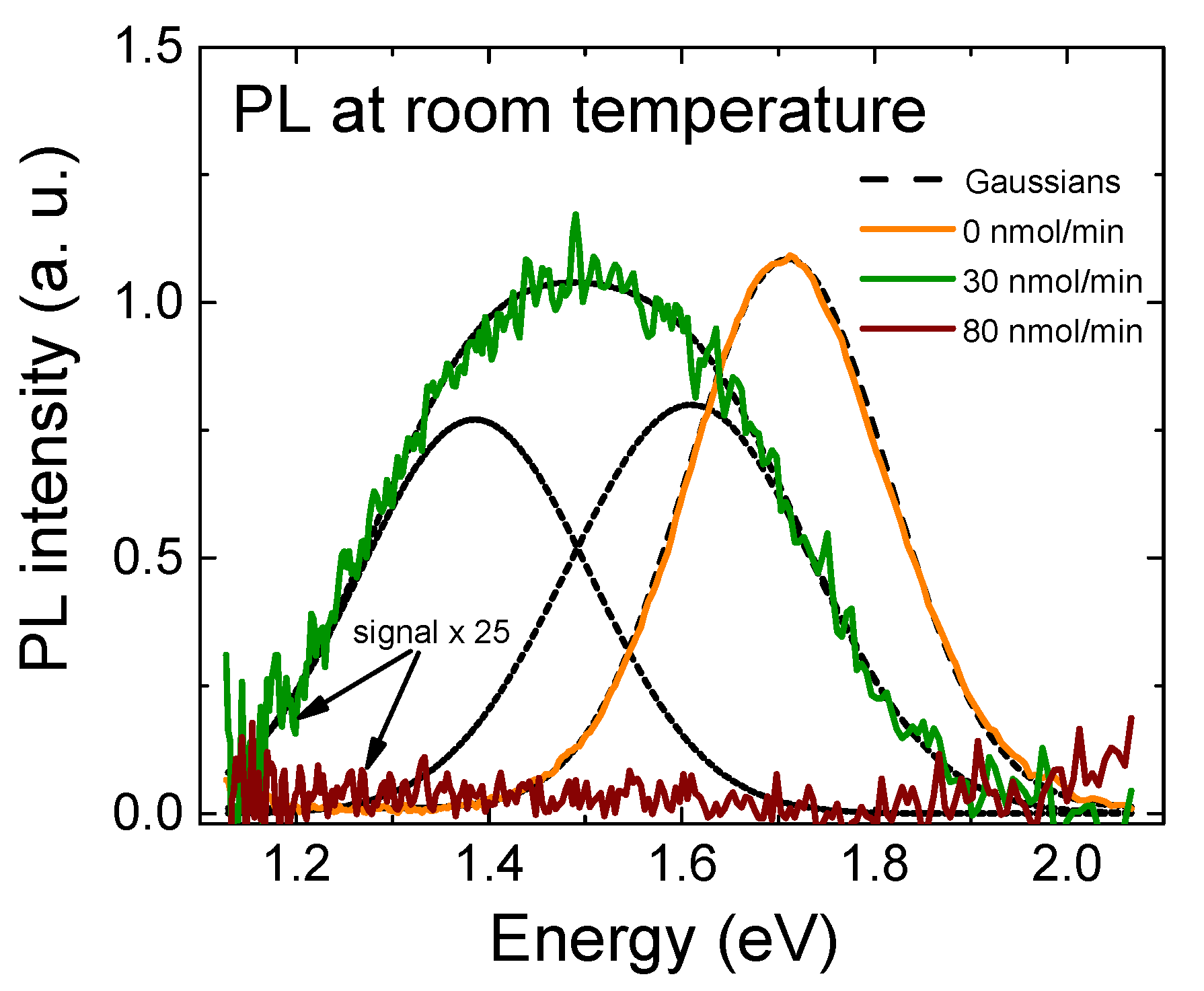

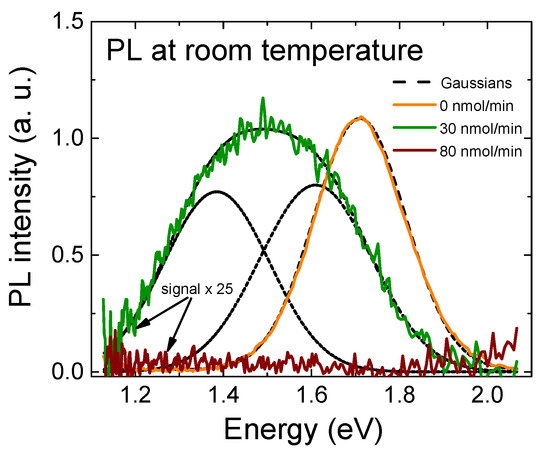

Figure 11. InAlN room temperature photoluminescence for different Cp2Mg flow. Combination of two Gaussian curves fit the 30 nmol/min sample.
