Article

CO2-Switchable Hierarchically Porous Zirconium-Based MOF-Stabilized Pickering Emulsions for Recyclable Efficient Interfacial Catalysis

by
Xiaoyan Pei
*,
Jiang Liu
,
Wangyue Song
,
Dongli Xu
,
Zhe Wang
and
Yanping Xie
College of Chemistry and Chemical Engineering, Xinyang Normal University, Xinyang 464000, China
*
Author to whom correspondence should be addressed.
Materials 2023, 16(4), 1675; https://doi.org/10.3390/ma16041675
Submission received: 24 December 2022 / Revised: 8 January 2023 / Accepted: 7 February 2023 / Published: 17 February 2023
(This article belongs to the Special Issue Novel Nanomaterials for Energy Storage and Catalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Stimuli-responsive Pickering emulsions are recently being progressively utilized as advanced catalyzed systems for green and sustainable chemical conversion. Hierarchically porous metal–organic frameworks (H-MOFs) are regarded as promising candidates for the fabrication of Pickering emulsions because of the features of tunable porosity, high specific surface area and structure diversity. However, CO2-switchable Pickering emulsions formed by hierarchically porous zirconium-based MOFs have never been seen. In this work, a novel kind of the amine-functionalized hierarchically porous UiO-66-(OH)2 (H-UiO-66-(OH)2) has been developed using a post-synthetic modification of H-UiO-66-(OH)2 by (3-aminopropyl)trimethoxysilane (APTMS), 3-(2-aminoethylamino)propyltrimethoxysilane (AEAPTMS) and 3-[2-(2-aminoethylamino)ethylamino]propyl-trimethoxysilane (AEAEAPTMS), and employed as emulsifiers for the construction of Pickering emulsions. It was found that the functionalized H-UiO-66-(OH)2 could stabilize a mixture of toluene and water to give an emulsion even at 0.25 wt % content. Interestingly, the formed Pickering emulsions could be reversibly transformed between demulsification and re-emulsification with alternate addition or removal of CO2. Spectral investigation indicated that the mechanism of the switching is attributed to the reaction of CO2 with amino silane on the MOF and the generation of hydrophilic salts, leading to a reduction in MOF wettability. Based on this strategy, a highly efficient and controlled Knoevenagel condensation reaction has been gained by using the emulsion as a mini-reactor and the emulsifier as a catalyst, and the coupling of catalysis reaction, product isolation and MOF recyclability has become accessible for a sustainable chemical process.

Graphical Abstract

1. Introduction

Pickering emulsions, stabilized by solid colloid particles, are versatile systems that show great significance for the pharmaceutical, food and biomedical industries [1,2]. More recently, Pickering emulsions have been considered an ideal platform for biphasic catalytic reactions on the basis of their large organic solvent–aqueous interface [3]. Moreover, Pickering interfacial catalysis has been rapidly developed to provide a more environmentally friendly procedure with good selectivity and conversion [4,5]. Although some achievements have been gained in this regard, extensive efforts are still needed for product isolation and catalyst recyclability from the emulsion system due to the tedious demulsification process [3]. Stimuli-responsive Pickering emulsions as advanced catalyzed systems offer considerable advantages for green and sustainable chemical transformation owing to their switchable emulsification and demulsification as required [6]. In this context, various attempts have been devoted to the development of stimuli-responsive emulsifiers. Up to now, numerous surface-active colloid particles, for instance, silica, cellulose nanocrystal, chitosan, lignin, polymer, latex and graphene oxide, have been presented to respond to external stimuli such as light [7,8,9], pH [10,11,12,13], redox [14,15,16], temperature [17,18,19,20,21], magnetism [22,23], pH–temperature [24,25,26], pH–magnetism [27,28] and temperature–magnetism [29,30], which have been used to successfully build switchable Pickering emulsions.
CO2 is ample, cheap, non-poisonous and environmentally friendly, and thus can be employed as an absorbing trigger to control many procedures [31,32,33]. Metal–organic frameworks (MOFs), constructed through the exquisite assembly of metal ions or clusters and organic linkers, are booming as a kind of fascinating porous material [34,35]. Their permanent porosity, functional tunability and structural diversity invest MOFs with impressive potential as Pickering emulsifiers. Despite most of the Pickering emulsions formed by MOFs exhibiting excellent stability [36,37,38,39,40,41], they could not be efficiently emulsified and demulsified on command. Until recently, exceptional efforts have been dedicated to developing pH-, CO2- and thermal-triggered MOF-stabilized Pickering emulsions [42,43,44]. However, most of the reported MOF emulsifiers are limited to the specific microporous regime, which may restrict substrate diffusion to the active sites of MOFs and hinder large guest molecules from entering the MOF channels, thus greatly limiting their employment, particularly in catalysis. Therefore, it is of critical importance to develop innovative stimuli-responsive MOFs for the formation of Pickering emulsions to achieve their tunable demulsification and diverse applications. Hierarchically porous MOFs (H-MOFs), integrating the advantages of pores of different sizes, are especially desired for the improvement of the diffusion rate, promotion of mass transport, and enhancement of catalytic active sites [45,46]. Therefore, the design and development of functionalized H-MOF emulsifiers combined with micropores, mesopores and macropores are necessary and urgent, but challenging. To the best of our knowledge, CO2-switchable Pickering emulsions formed by H-MOFs have not been reported.
Zirconium-based MOFs (UiO-66) are specifically selected on account of their extraordinary thermal and chemical stability in organic solvents and aqueous solutions [47]. In this work, a series of amine-functionalized hierarchically porous UiO-66-(OH)2 was designed and synthesized through the post-synthetic modification of H-UiO-66-(OH)2 by (3-aminopropyl)trimethoxysilane (APTMS), 3-(2-aminoethylamino)propyltrimethoxysilane (AEAPTMS) and 3-[2-(2-aminoethylamino)ethylamino]propyl-trimethoxysilane (AEAEAPTMS), denoted as H-UiO-66-(OAPTMS)2, H-UiO-66-(OAEAPTMS)2 and H-UiO-66-(OAEAEAPTMS)2, respectively, and then used as emulsifiers for the fabrication of Pickering emulsions. It turns out that all the amine-functionalized H-UiO-66-(OH)2 could stabilize organic–aqueous mixtures to form emulsions even at the content of 0.25 wt % (Figure 1). Moreover, the formed emulsions could be reversibly converted between demulsification and re-emulsification with alternate CO2 and N2 addition. Mechanism studies suggested that the switchable phase transition is ascribed to the efficient reaction of CO2 with different types of amino silane and the generation of hydrophilic ammonium salts. Based on this, the CO2-responsive Pickering emulsions have been employed as a mini-reactor and the hierarchically porous MOFs as a catalyst for the Knoevenagel condensation reaction.

2. Materials and Methods

2.1. Synthesis of H-UiO-66-(OH)2

H-UiO-66-(OH)2 was synthesized according to the literature [48]. Typically, ZrCl4 (0.120 g, 0.5 mmol), benzoic acid (1.830 g, 15 mmol), Zn(NO)3⸳6H2O (0.148 g, 0.5 mmol) and 2,5-dihydroxyterephthalic acid (0.198 g, 1 mmol) were added to 20 mL of N, N-dimethylformamide (DMF) in a Teflon liner vessel. The obtained mixture was sonicated for about 20 min to gain a transparent solution and then heated at 120 °C for 24 h. Upon cooling to room temperature, the obtained powder was separated using centrifugation and washed three times with DMF. The resulting solid was then dispersed in a solution of hydrochloric acid (pH = 1.0) and agitated for about 10 min to break the acid-labile metal–organic assembly template. The final product was isolated using centrifugation and then washed multiple times with DMF and acetone, respectively, to discard the decomposed template residues and then dried overnight at 70 °C under vacuum.

2.2. Synthesis of the Amine-Functionalized H-UiO-66-(OH)2

The amine-functionalized H-UiO-66-(OH)2 was prepared as follows [49]. Briefly, 0.5 g of the as-synthesized H-UiO-66-(OH)2 was firstly dispersed in 60 mL of toluene, and 0.092 g of APTMS, 0.117 g of AEAPTMS or 0.147 g of AEAEAPTMS were subsequently added. The resulting mixtures were stirred at atmospheric temperature for 24 h. The final solids were isolated using centrifugation, washed several times with toluene and ethanol, in turn, and dried at 70 °C overnight, known as H-UiO-66-(OAPTMS)2, H-UiO-66-(OAEAPTMS)2 and H-UiO-66-(OAEAEAPTMS)2, respectively.

2.3. Preparation of the CO2-Responsive Pickering Emulsions

As an example, the H-UiO-66-(OAEAEAPTMS)2 was added to the toluene–water system (3:2, v/v) followed by high-speed homogenization to give an emulsion. Contents of the H-UiO-66-(OAEAEAPTMS)2 were denoted by mass fraction (wt %) with respect to water. The formed emulsions were found to be able to stabilize for more than one month. The emulsion type was determined using the drop test approach. In addition, CO2 or N2 addition was accomplished using a syringe fitted with a needle at the rate of 60 mL min−1. The other emulsions stabilized by H-UiO-66-(OAPTMS)2 and H-UiO-66-(OAEAPTMS)2 were obtained in a similar way.

2.4. General Procedure for Knoevenagel Condensation Reaction

Toluene (3 mL), water (2 mL), the functionalized H-UiO-66-(OH)2 (0.025 g), aldehydes (0.05 mmol) and malononitrile (0.25 mmol) were added to a glass tube and then homogenized at 10,000 rpm for 1 min. The formed emulsion was kept at 25 °C for 2 h in a N2 atmosphere, which was monitored with GC-MS. Once the reaction was completed, demulsification of the emulsion was achieved to separate the product and catalyst with the addition of CO2. At this time, the product was in the upper layer (toluene phase) and the MOF catalyst was in the lower layer (aqueous phase). Then, the product could be acquired with vacuum evaporation, and the toluene phase was then gathered for the next cycles. Once CO2 was driven out, the functionalized H-UiO-66-(OH)2 in the water phase could return to toluene. When reactants were added to the recycled system, followed by re-homogenization, the reaction proceeds as before.

3. Results and Discussion

3.1. The Structure and Morphology of the Amine-Functionalized H-UiO-66-(OH)2

The amine-functionalized H-UiO-66-(OH)2 was produced by anchoring CO2-switchable functional groups onto the pristine H-UiO-66-(OH)2 at ambient temperature. X-ray photoelectron spectrum (XPS), a powerful surface analysis approach, has been applied for the analysis of the compositional and chemical states of H-UiO-66-(OAPTMS)2, H-UiO-66-(OAEAPTMS)2 and H-UiO-66-(OAEAEAPTMS)2, respectively. As shown in Figure S1, all the functionalized H-UiO-66-(OH)2 consisted of zirconium, silicon, carbon, nitrogen and oxygen elements, and the percentages of each element are listed in Table S1. From their high-resolution XPS results, the binding energies of Zr 3d5/2 and Zr 3d3/2 were observed at 179.2 and 181.5 eV (Figures S2a–S4a), suggesting the existence of an oxo–zirconium (IV) cluster in the functionalized H-UiO-66-(OH)2. The peaks of 284.2, 285.4 and 287.8 eV were ascribed to C-C/C=C, C-N and C=O (Figures S2b and S3b and Figure 2a) [35], respectively. The N 1s spectrum displayed two peaks at 398.6 eV for C-N and 399.7 eV for N-H (Figures S2c, S3c and S4b). The binding energies of Si 2p3/2 and Si 2p1/2 were located at 99.4 and 100.1 eV (Figures S2d, S3d and S4c), respectively. This is good proof for the post-synthetic modification of the pristine H-UiO-66-(OH)2 by various types of amine silane. Nuclear magnetic resonance (NMR) is a useful method that can be used to characterize the structure of H-MOFs at the molecular level in both dry and wet states. Herein, the solid-state 13C NMR spectra of the pristine and functionalized H-UiO-66-(OH)2 were obtained, as presented in Figure S5, showing that except for the pristine H-UiO-66-(OH)2 resonances, other resonances from amine silane were also obvious. It is clear that the peaks of the functionalized H-UiO-66-(OH)2 at about 9.56, 21.67, 35.24 and 42.79 ppm belonged to the CH2 moiety of amine silane, and the signals at nearly 117.32, 133.24 and 150.74 ppm were attributed to the benzene ring, and the carboxyl peaks were in the range of 159.61 to 173.03 ppm. Whereas the weak peaks at 31.43–44.09 ppm from the pristine H-UiO-66-(OH)2 were probably due to residual DMF in its nanopores. Thermogravimetric analysis (TGA) (Figure 2b) showed that the grafting amounts of amine silane on the H-UiO-66-(OH)2 were about 5.10 mmol/g for H-UiO-66-(OAPTMS)2, 3.98 mmol/g for H-UiO-66-(OAEAPTMS)2 and 3.43 mmol/g for H-UiO-66-(OAEAEAPTMS)2. X-ray diffraction (XRD) patterns were employed to evaluate the crystalline structures of H-UiO-66-(OAPTMS)2, H-UiO-66-(OAEAPTMS)2 and H-UiO-66-(OAEAEAPTMS)2. It was found that all the functionalized H-MOFs reserved the basic crystal structure of the pristine H-UiO-66-(OH)2 (Figure 2c), despite the partial amorphization that was found for them owing to the continued exposure of H-UiO-66-(OH)2 to diluted amine silane in the process of functionalization. The morphologies of the pristine and functionalized H-UiO-66-(OH)2 were also obtained using scanning electron microscopy (SEM). As shown in Figure 2d–f and Figure S6, it can be observed that the size of the functionalized H-UiO-66-(OH)2 particles were not obviously changed after modification (about 300 nm).

3.2. CO2-Responsive Demulsification and Re-Emulsification of Pickering Emulsions

In the experimental process, the functionalized H-UiO-66-(OH)2 were employed as emulsifiers for the construction of Pickering emulsions with toluene as the oil phase. It was found that stable Pickering emulsions could be gained by homogenizing the mixture of toluene and water with the added H-UiO-66-(OAPTMS)2, H-UiO-66-(OAEAPTMS)2 and H-UiO-66-(OAEAEAPTMS)2. As an example, Figure 3a presents the Pickering emulsions, formed by homogenizing toluene at 10,000 rpm for 1 min in the water phase containing H-UiO-66-(OAEAEAPTMS)2. It was found that even at the content of 0.25 wt %, H-UiO-66-(OAEAEAPTMS)2 can still effectively emulsify toluene and water to form Pickering emulsions. The morphology and microstructure of the emulsion droplets were recorded with the microscope, as shown in Figure 3b. It is obvious that the droplets of these emulsions were spherical and micrometer-sized. Moreover, their average sizes were found to decrease with the increase in emulsifier content from 0.25 to 1.35 wt %. Similar results were observed for H-UiO-66-(OAPTMS)2 and H-UiO-66-(OAEAPTMS)2 in the same conditions (Figures S7 and S8). In addition, the type of the emulsion was judged to be toluene-in-water (o/w) according to the drop test.
Interestingly, the as-prepared Pickering emulsions were shown to be able to demulsify within 10 min of CO2 addition. Taking Pickering emulsion stabilized by H-UiO-66-(OAEAEAPTMS)2 as a representative example, it turned out to be very stable even if excess water was removed from the emulsion system. Upon adding CO2 using a syringe fitted with a needle at an airflow rate of 60 mL min−1 for 5 min at normal temperature, the emulsion could be destabilized, resulting in the toluene/water phase separation. Significantly, the Pickering emulsion could be formed again once N2 was added at a similar rate at 60 °C for about 20 min. Figure 4 provides five cycles of CO2-responsive demulsification and re-emulsification of the H-UiO-66-(OAEAEAPTMS)2-stabilized Pickering emulsion, indicating excellent reversible switching of Pickering emulsions formed by the functionalized H-UiO-66-(OH)2. In addition, in the optimization process of Pickering emulsions, the common organic solvents such as benzene, ethyl acetate, dichloromethane, trichloromethane, n-hexane and cyclohexane, which were usually used as oil phases to form emulsions, were also selected as representatives to demonstrate the influence of organic solvents on the formation of Pickering emulsions. It was found that benzene, n-hexane and cyclohexane could also be employed as the oil phase to form Pickering emulsions. Moreover, the formed emulsions were capable of transition between emulsification and demulsification with alternate CO2 and N2 addition (Figures S9–S17). This means that the functionalized H-UiO-66-(OH)2 reported here may have extensive application prosperity in various oil–water biphasic systems for oil recovery, interface catalysis and as templates for functional material preparation.

3.3. Mechanism Analysis for CO2-Responsive Demulsification of Emulsions

To provide insight into the mechanism of CO2-responsive demulsification and re-emulsification of Pickering emulsions, the zeta potential, contact angle, NMR and XPS spectra of the functionalized H-UiO-66-(OH)2 before and after bubbling CO2 were further determined. It was found that the fresh functionalized H-UiO-66-(OH)2 showed the zeta potentials of 18.9 mV for H-UiO-66-(OAPTMS)2 (Figure S18a), 21.8 mV for H-UiO-66-(OAEAPTMS)2 (Figure S19a) and 22.4 mV for H-UiO-66-(OAEAEAPTMS)2 (Figure 5a) pure water. Upon adding CO2 into the system, the zeta potentials were found to increase to 25.9 mV for H-UiO-66-(OAPTMS)2, 32.2 mV for H-UiO-66-(OAEAPTMS)2 and 35.0 mV for H-UiO-66-(OAEAEAPTMS)2. This may be attributed to the fact that the switchable amine groups anchored onto these H-MOFs were ionized by adding CO2. Ionization of the functionalized H-UiO-66-(OH)2 reduced particle wettability and lowered the emulsion stability. Despite the fact that the electrostatic repulsion appeared between both the dispersed H-MOF particles and emulsion droplets stabilized by the particles, the accessional electronic stabilization via adding CO2 was inadequate to overcome the destabilization influence of CO2 on emulsions owing to a lowered wettability of the H-MOF particles. Once CO2 was removed, the functionalized H-UiO-66-(OH)2 returned back to their original states by a reverse reaction, accompanied by the recovery of the zeta potential values. In addition, the water contact angles of H-UiO-66-(OAPTMS)2, H-UiO-66-(OAEAPTMS)2 and H-UiO-66-(OAEAEAPTMS)2 were determined before and after adding CO2 for further clarification. It was found that their contact angle values showed an evident decrease from 59° to 25° for H-UiO-66-(OAPTMS)2 (Figure S18a), 55° to 22° for H-UiO-66-(OAEAPTMS)2 (Figure S19a) and 51° to 21° for H-UiO-66-(OAEAEAPTMS)2 upon adding CO2. Taking into account these results, one can readily conclude that the formation of cationic ammonium on the H-MOFs makes them more hydrophilic, which reduces H-MOF wettability and destabilizes the Pickering emulsions.
In an effort to afford further explanations for CO2-responsive demulsification and re-emulsification of Pickering emulsions, we attempted to obtain solid-state 13C NMR spectroscopy of the functionalized H-UiO-66-(OH)2 before and after adding CO2 to present their structural changes. However, the unique signals from the reacted H-MOFs were not seen, most likely because of the presence of the carboxylic acid group in the MOFs themselves, overshadowing the newly formed equivalents, and the absence of water. Therefore, the liquid-state NMR spectra of the pure silane coupling agent were measured before and after adding CO2 (Figure 5b and Figures S18b and S19b). It is clear that two new peaks appeared at about 158.4 and 162.6 ppm for all the amine silanes, ascribing to bicarbonate and carbamate, respectively, implying the production of hydrophilic salts from the reaction of CO2 with amines of the H-MOFs. In addition, the new signals vanished once CO2 was expelled by N2 addition, indicating the reversible reaction process.
XPS, as a favorable approach, was carried out to distinguish the patterns and binding sites of the surface groups of the reacted functionalized H-UiO-66-(OH)2. As a typical example, a new signal at 291.9 eV was observed for the C 1s spectrum of H-UiO-66-(OAEAEAPTMS)2 (Figure 5c), assigning to bicarbonate [50]. The new peak at 401.2 eV was attributed to the N 1s spectra of ammonium (Figure 5d), revealing the generation of ammonium salts [51]. Therefore, it was concluded that the CO2-responsive demulsification and re-emulsification of Pickering emulsions were involved in the reversible reaction of amino silane with CO2 and the production of hydrophilic salts, which reduced the H-MOF wettability and lowered the stabilization of emulsions. Once CO2 was expelled, the functionalized H-MOFs returned back to their original state, and the emulsions could be built again.

3.4. Application of CO2-Responsive Pickering Emulsions for Knoevenagel Condensation

The Knoevenagel condensation reaction serves as an imperative and valuable condensation approach in organic chemistry because of the synthesis of important intermediates for fine chemicals such as pharmaceuticals, biologically active compounds, natural products and functional polymers through creating new carbon–carbon bonds between carbonyl compounds and active methylene [52,53,54]. Until now, most of Knoevenagel condensation reactions reported have been carried out under homogeneous conditions. However, it is still challenging for homogeneous systems to efficiently achieve catalyst recovery and product separation from the reaction medium. Hence, it is highly desired but remains an arduous task for the development of new catalysis systems to solve the aforementioned drawbacks. The CO2-responsive functionalized H-UiO-66-(OH)2-stabilized Pickering emulsions reported here are considered to be promising candidates for the effective coupling of reaction separation and catalyst recovery via CO2-induced demulsification. As an application example, the switchable Pickering emulsion has been utilized as a mini-reactor and the functionalized H-UiO-66-(OH)2 as catalysts for the efficient integration of Knoevenagel condensation, separation of products and recovery of catalysts.
During the process, Pickering emulsions were initially formed by homogenizing the mixture consisting of toluene, water, reactants (benzaldehyde and malononitrile) and H-UiO-66-(OAEAEAPTMS)2. The reaction for the synthesis of 2-benzylidenemalononitrile in Pickering emulsion progressed well at 25 °C under the catalysis of H-UiO-66-(OAEAEAPTMS)2 (Figure 6a), which was monitored with GC-MS. The yield variation of 2-benzylidenemalononitrile with reaction time in the H-UiO-66-(OAEAEAPTMS)2-stabilized Pickering emulsion is presented in Figure S20. It was found that the yield remained basically the same after 2 h even if the reaction time was extended. Once the reaction was over, the Pickering emulsion was destabilized to separate the product and H-UiO-66-(OAEAEAPTMS)2 by adding CO2. At this time, the product was in the toluene phase and the H-UiO-66-(OAEAEAPTMS)2 catalyst was dispersed in aqueous solution. GC analysis for the reaction mixture showed that 2-benzylidenemalononitrile was generated at 99% GC yield. The product was then obtained using rotary evaporation under reduced pressure for further purification (Figure S21), toluene was collected for the following cycles and the H-UiO-66-(OAEAEAPTMS)2 in the aqueous phase was utilized directly in the next cycle. As given in Figure 6b, when new reactant was added to the mixture of toluene and water followed by homogenization, along with the removal of CO2, the reaction proceeded well again. After three cycles, the yield could still be 97% (Figure S22), and the crystalline structure of H-UiO-66-(OAEAEAPTMS)2 did not change markedly (Figure S23).
To extend the range of reaction substrates in the Pickering emulsion, various aldehyde derivatives were selected as reactants, and medium to superior yields were achieved under the same circumstances (Table 1, Figures S24–S28). Moreover, it was found that these yields almost remained the same after three cycles (Table S3). By comparing with other catalyzed systems [55], the CO2-responsive Pickering emulsion proves special catalytic performance for Knoevenagel condensation, and isolation of products from the reaction system could be readily realized by the destabilization of emulsion, and the functionalized H-MOFs could be directly employed for the following cycles. Therefore, an effective combination of catalysis reaction, product isolation and catalyst recovery was obtained to give rise to a sustainable reaction process.

4. Conclusions

In summary, a series of amine-functionalized H-MOFs were prepared and used to form toluene-in-water Pickering emulsions. It was found that the formed emulsions could be switched between demulsification and re-emulsification by alternately adding CO2 and N2 at atmospheric pressure. Mechanism studies showed that the reaction of CO2 with amine anchored on the H-MOFs results in the production of hydrophilic salts, lowering the MOF wettability and reducing the emulsion stability. Once CO2 was expelled, a stable Pickering emulsion could be rebuilt after homogenization through a reverse reaction. Based on the strategy, a highly effective Knoevenagel condensation reaction was gained, and a sustainable synthesis procedure was achieved to couple the catalysis reaction, product separation and MOF recovery. This work provides us with insight into the reversible switching of H-MOF-stabilized Pickering emulsions and paves the way for the design and preparation of other types of emulsion reactors, thus significantly prompting further investigation of green and sustainable procedures for various chemical reactions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma16041675/s1.

Author Contributions

Conceptualization, X.P.; methodology, D.X., J.L. and Y.X.; validation, X.P., D.X. and Y.X.; investigation, X.P., J.L., W.S. and Z.W.; data curation, X.P.; writing—original draft preparation, X.P.; writing—review and editing, X.P. and D.X.; supervision, D.X. and Y.X.; project administration, X.P.; funding acquisition, X.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No. 22003055), and the Nanhu Scholars Program for Young Scholars of Xinyang Normal University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request from the authors.

Acknowledgments

This work is supported by the National Natural Science Foundation of China (No. 22003055), and the Nanhu Scholars Program for Young Scholars of Xinyang Normal University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xu, M.; Jiang, J.; Pei, X.; Song, B.; Cui, Z.; Binks, B.P. Novel oil-in-water emulsions stabilised by ionic surfactant and similarly charged nanoparticles at very low concentrations. Angew. Chem. Int. Ed. 2018, 57, 7738–7742. [Google Scholar] [CrossRef] [PubMed]
  2. Binks, B.P.; Rodrigues, J.A. Double inversion of emulsions by using nanoparticles and a di-chain surfactant. Angew. Chem. Int. Ed. 2007, 46, 5389–5392. [Google Scholar] [CrossRef] [PubMed]
  3. Rodriguez, A.M.B.; Binks, B.P. Catalysis in Pickering emulsions. Soft Matter 2020, 16, 10221–10243. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, M.; Wei, L.; Chen, H.; Du, Z.; Binks, B.P.; Yang, H. Compartmentalized Droplets for Continuous Flow Liquid-Liquid Interface Catalysis. J. Am. Chem. Soc. 2016, 138, 10173–10183. [Google Scholar] [CrossRef]
  5. Chang, F.; Vis, C.M.; Ciptonugroho, W.; Bruijnincx, P.C.A. Recent developments in catalysis with Pickering Emulsions. Green Chem. 2021, 23, 2575–2594. [Google Scholar] [CrossRef]
  6. Tang, J.; Quinlan, P.J.; Tam, K.C. Stimuli-responsive Pickering emulsions: Recent advances and potential applications. Soft Matter 2015, 11, 3512–3529. [Google Scholar] [CrossRef]
  7. Li, Z.; Shi, Y.; Zhu, A.; Zhao, Y.; Wang, H.; Binks, B.P.; Wang, J. Light-responsive, reversible emulsification and demulsification of oil-in-water Pickering emulsions for catalysis. Angew. Chem. Int. Ed. 2021, 60, 3928–3933. [Google Scholar] [CrossRef]
  8. Chen, Z.; Zhou, L.; Bing, W.; Zhang, Z.; Li, Z.; Ren, J.; Qu, X. Light controlled reversible inversion of nanophosphor-stabilized Pickering emulsions for biphasic enantioselective biocatalysis. J. Am. Chem. Soc. 2014, 136, 7498–7504. [Google Scholar] [CrossRef]
  9. Jiang, J.; Ma, Y.; Cui, Z.; Binks, B.P. Pickering emulsions responsive to CO2/N2 and light dual stimuli at ambient temperature. Langmuir 2016, 32, 8668–8675. [Google Scholar] [CrossRef]
  10. Morse, A.J.; Armes, S.P.; Thompson, K.L.; Dupin, D.; Fielding, L.A.; Mills, P.; Swart, R. Novel Pickering emulsifiers based on pH-responsive poly(2-(diethylamino)ethyl methacrylate) latexes. Langmuir 2013, 29, 5466–5475. [Google Scholar] [CrossRef] [Green Version]
  11. Liu, H.; Wang, C.; Zou, S.; Wei, Z.; Tong, Z. Simple, reversible emulsion system switched by pH on the basis of chitosan without any hydrophobic modification. Langmuir 2012, 28, 11017–11024. [Google Scholar] [CrossRef] [PubMed]
  12. Yang, H.; Zhou, T.; Zhang, W. A strategy for separating and recycling solid catalysts based on the pH-triggered Pickering-emulsion inversion. Angew. Chem. Int. Ed. 2013, 52, 7455–7459. [Google Scholar] [CrossRef] [PubMed]
  13. Kim, J.; Cote, L.J.; Kim, F.; Yuan, W.; Shull, K.R.; Huang, J. Graphene oxide sheets at interfaces. J. Am. Chem. Soc. 2010, 132, 8180–8186. [Google Scholar] [CrossRef] [PubMed]
  14. Gu, X.; Yang, Y.; Hu, M.; Hu, Y.; Wang, C. Redox responsive diselenide colloidosomes templated from Pickering emulsions for drug release. J. Control. Release 2015, 213, e119–e120. [Google Scholar] [CrossRef]
  15. Quesada, M.; Muniesa, C.; Botella, P. Hybrid PLGA-organosilica nanoparticles with redox-sensitive molecular gates. Chem. Mater. 2013, 25, 2597–2602. [Google Scholar] [CrossRef]
  16. Jiang, Q.; Sun, N.; Li, Q.; Si, W.; Li, J.; Li, A.; Gao, Z.; Wang, W.; Wang, J. Redox-responsive Pickering emulsions based on silica nanoparticles and electrochemical active fluorescent molecules. Langmuir 2019, 35, 5848–5854. [Google Scholar] [CrossRef]
  17. Saigal, T.; Dong, H.; Matyjaszewski, K.; Tilton, R.D. Pickering emulsions stabilized by nanoparticles with thermally responsive grafted polymer brushes. Langmuir 2010, 26, 15200–15209. [Google Scholar] [CrossRef]
  18. Binks, B.P.; Murakami, R.; Armes, S.P.; Fujii, S. Temperature-induced inversion of nanoparticle-stabilized emulsions. Angew. Chem. Int. Ed. 2005, 44, 4795–4798. [Google Scholar] [CrossRef]
  19. Zoppe, J.O.; Venditti, R.A.; Rojas, O.J. Pickering emulsions stabilized by cellulose nanocrystals grafted with thermo-responsive polymer brushes. J. Colloid Interface Sci. 2012, 369, 202–209. [Google Scholar] [CrossRef]
  20. Wang, X.; Zeng, M.; Yu, Y.-H.; Wang, H.; Mannan, M.S.; Cheng, Z. Thermosensitive ZrP-PNIPAM Pickering emulsifier and the controlled-release behavior. ACS Appl. Mater. Interfaces 2017, 9, 7852–7858. [Google Scholar] [CrossRef]
  21. Thompson, K.L.; Fielding, L.A.; Mykhaylyk, O.O.; Lane, J.A.; Derry, M.J.; Armes, S.P. Vermicious thermo-responsive Pickering emulsifiers. Chem. Sci. 2015, 6, 4207–4214. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Zhou, J.; Qiao, X.; Binks, B.P.; Sun, K.; Bai, M.; Li, Y.; Liu, Y. Magnetic Pickering emulsions stabilized by Fe3O4 nanoparticles. Langmuir 2011, 27, 3308–3316. [Google Scholar] [CrossRef] [PubMed]
  23. Teixeira, I.F.; da Silva Oliveira, A.A.; Christofani, T.; Camilo Moura, F.C. Biphasic oxidation promoted by magnetic amphiphilic nanocomposites undergoing a reversible emulsion process. J. Mater. Chem. A 2013, 1, 10203–10208. [Google Scholar] [CrossRef]
  24. Richtering, W. Responsive emulsions stabilized by stimuli-sensitive microgels: Emulsions with special non-Pickering properties. Langmuir 2012, 28, 17218–17229. [Google Scholar] [CrossRef]
  25. Tang, J.; Lee, M.F.X.; Zhang, W.; Zhao, B.; Berry, R.M.; Tam, K.C. Dual responsive Pickering emulsion stabilized by poly[2-(dimethylamino)ethyl methacrylate] grafted cellulose nanocrystals. Biomacromolecules 2014, 15, 3052–3060. [Google Scholar] [CrossRef]
  26. Yi, C.; Liu, N.; Zheng, J.; Jiang, J.; Liu, X. Dual-responsive poly(styrene-alt-maleic acid)-graft-poly(N-isopropyl acrylamide) micelles as switchable emulsifiers. J. Colloid Interfaces Sci. 2012, 380, 90–98. [Google Scholar] [CrossRef]
  27. Wang, X.; Shi, Y.; Graff, R.W.; Lee, D.; Gao, H. Developing recyclable pH-responsive magnetic nanoparticles for oil-water separation. Polymer 2015, 72, 361–367. [Google Scholar] [CrossRef]
  28. Yoon, K.Y.; Li, Z.; Neilson, B.M.; Lee, W.; Huh, C.; Bryant, S.L.; Bielawski, C.W.; Johnston, K.P. Effect of adsorbed amphiphilic copolymers on the interfacial activity of superparamagnetic nanoclusters and the emulsification of oil in water. Macromolecules 2012, 45, 5157–5166. [Google Scholar] [CrossRef]
  29. Chen, Y.; Bai, Y.; Chen, S.; Ju, J.; Li, Y.; Wang, T.; Wang, Q. Stimuli-responsive composite particles as solid-stabilizers for effective oil harvesting. ACS Appl. Mater. Interfaces 2014, 6, 13334–13338. [Google Scholar] [CrossRef]
  30. Brugger, B.; Richtering, W. Magnetic, thermosensitive microgels as stimuli-responsive emulsifiers allowing for remote control of separability and stability of oil in water-emulsions. Adv. Mater. 2007, 19, 2973–2978. [Google Scholar] [CrossRef]
  31. Jessop, P.G.; Heldebrant, D.J.; Li, X.; Eckert, C.A.; Liotta, C.L. Reversible nonpolar-to-polar solvent. Nature 2005, 436, 1102. [Google Scholar] [CrossRef] [PubMed]
  32. Pei, X.; Li, Z.; Wang, H.; Zhou, Q.; Liu, Z.; Wang, J. CO2-Switchable phase separation of nonaqueous surfactant-free ionic liquid-based microemulsions. ACS Sustain. Chem. Eng. 2022, 10, 1777–1785. [Google Scholar] [CrossRef]
  33. Pei, X.; Liu, J.; Rao, W.; Ma, X.; Li, Z. CO2-Switchable reversible phase transfer of carbon dot. Ind. Eng. Chem. Res. 2021, 60, 9296–9303. [Google Scholar] [CrossRef]
  34. Shi, Y.; Wang, Z.; Li, Z.; Wang, H.; Xiong, D.; Qiu, J.; Tian, X.; Feng, G.; Wang, J. Anchoring LiCl in the nanopores of metal-organic frameworks for ultra-high uptake and selective separation of ammonia. Angew. Chem. Int. Ed. 2022, 61, e202212032. [Google Scholar] [CrossRef] [PubMed]
  35. Pei, X.; Tian, C.; Wang, Y.; Li, Z.; Xiong, Z.; Wang, H.; Ma, X.; Cao, X.; Li, Z. CO2-Driven reversible transfer of amine-functionalized ZIF-90 between organic and aqueous phases. Chem. Commun. 2022, 58, 10372–10375. [Google Scholar] [CrossRef]
  36. Xiao, B.; Yuan, Q.; Williams, R.A. Exceptional function of nanoporous metal organic framework particles in emulsion stabilisation. Chem. Commun. 2013, 49, 8208–8210. [Google Scholar] [CrossRef] [Green Version]
  37. Huo, J.; Marcello, M.; Garai, A.; Bradshaw, D. MOF-polymer composite microcapsules derived from Pickering emulsions. Adv. Mater. 2013, 25, 2717–2722. [Google Scholar] [CrossRef]
  38. Zhang, B.; Zhang, J.; Liu, C.; Peng, L.; Sang, X.; Han, B.; Ma, X.; Luo, T.; Tan, X.; Yang, G. High-internal-phase emulsions stabilized by metal-organic frameworks and derivation of ultralight metal-organic aerogels. Sci. Rep. 2016, 6, 21401–21409. [Google Scholar] [CrossRef] [Green Version]
  39. Jin, P.; Tan, W.; Huo, J.; Liu, T.; Liang, Y.; Wang, S.; Bradshaw, D. Hierarchically porous MOF/polymer composites via interfacial nanoassembly and emulsion polymerization. J. Mater. Chem. A 2018, 6, 20473–20479. [Google Scholar] [CrossRef] [Green Version]
  40. Bian, Z.; Xu, J.; Zhang, S.; Zhu, X.; Liu, H.; Hu, J. Interfacial growth of metal organic framework/graphite oxide composites through Pickering emulsion and their CO2 capture performance in the presence of humidity. Langmuir 2015, 31, 7410–7417. [Google Scholar] [CrossRef]
  41. Li, Z.; Zhang, J.; Luo, T.; Tan, X.; Liu, C.; Sang, X.; Ma, X.; Han, B.; Yang, G. High internal ionic liquid phase emulsion stabilized by metal-organic frameworks. Soft Matter 2016, 12, 8841–8846. [Google Scholar] [CrossRef] [PubMed]
  42. Jiang, W.-L.; Fu, Q.-J.; Yao, B.-J.; Ding, L.-G.; Liu, C.-X.; Dong, Y.-B. Smart pH-responsive polymer-tethered and Pd NP-loaded NMOF as the Pickering interfacial catalyst for one-pot cascade biphasic reaction. ACS Appl. Mater. Interfaces 2017, 9, 36438–36446. [Google Scholar] [CrossRef] [PubMed]
  43. Shi, Y.; Xiong, D.; Li, Z.; Wang, H.; Qiu, J.; Zhang, H.; Wang, J. Ambient CO2/N2 switchable Pickering emulsion emulsified by TETA-functionalized metal-organic frameworks. ACS Appl. Mater. Interfaces 2020, 12, 53385–53393. [Google Scholar] [CrossRef] [PubMed]
  44. Yao, B.-J.; Fu, Q.-J.; Li, A.-X.; Zhang, X.-M.; Li, Y.-A.; Dong, Y.-B. A thermo-responsive polymer-tethered and Pd NP loaded UiO-66 NMOF for biphasic CB dichlorination. Green Chem. 2019, 21, 1625–1634. [Google Scholar] [CrossRef]
  45. Cai, G.; Yan, P.; Zhang, L.; Zhou, H.-C.; Jiang, H.-L. Metal-organic framework-based hierarchically porous materials: Synthesis and applications. Chem. Rev. 2021, 121, 12278–12326. [Google Scholar] [CrossRef] [PubMed]
  46. Yue, Y.; Qiao, Z.-A.; Fulvio, P.F.; Binder, A.J.; Tian, C.; Chen, J.; Nelson, K.M.; Zhu, X.; Dai, S. Template-free synthesis of hierarchical porous metal−organic frameworks. J. Am. Chem. Soc. 2013, 135, 9572–9575. [Google Scholar] [CrossRef]
  47. Venturi, D.M.; Campana, F.; Marmottini, F.; Costantino, F.; Vaccaro, L. Extensive screening of green solvents for safe and sustainable UiO-66 synthesis. ACS Sustain. Chem. Eng. 2020, 8, 17154–17164. [Google Scholar] [CrossRef]
  48. Huang, H.; Li, J.-R.; Wang, K.; Han, T.; Tong, M.; Li, L.; Xie, Y.; Yang, Q.; Liu, D.; Zhong, C. An in situ self-assembly template strategy for the preparation of hierarchical-pore metal-organic frameworks. Nat. Commun. 2015, 6, 8847–8854. [Google Scholar] [CrossRef] [Green Version]
  49. Liang, C.; Liu, Q.; Xu, Z. Surfactant-free switchable emulsions using CO2-responsive particles. ACS Appl. Mater. Interfaces 2014, 6, 6898–6904. [Google Scholar] [CrossRef]
  50. Lin, J.; Huang, Y.; Wang, S.; Chen, G. Microwave-assisted rapid exfoliation of graphite into graphene by using ammonium bicarbonate as the intercalation agent. Ind. Eng. Chem. Res. 2017, 56, 9341–9346. [Google Scholar] [CrossRef]
  51. Ye, X.; Qin, X.; Yan, X.; Guo, J.; Huang, L.; Chen, D.; Wu, T.; Shi, Q.; Tan, S.; Cai, X. π–π conjugations improve the long-term antibacterial properties of graphene oxide/quaternary ammonium salt nanocomposites. Chem. Eng. J. 2016, 304, 873–881. [Google Scholar] [CrossRef]
  52. Antonangelo, A.R.; Hawkins, N.; Tocci, E.; Muzzi, C.; Fuoco, A.; Carta, M. Tröger’s base network polymers of intrinsic microporosity (TB-PIMs) with tunable pore size for heterogeneous catalysis. J. Am. Chem. Soc. 2022, 144, 15581–15594. [Google Scholar] [CrossRef] [PubMed]
  53. Mancipe, S.; Castillo, J.-C.; Brijaldo, M.H.; López, V.P.; Rojas, H.; Macías, M.A.; Portilla, J.; Romanelli, G.P.; Martínez, J.J.; Luque, R. B-Containing hydrotalcites effectively catalyzed synthesis of 3-(Furan-2-yl)acrylonitrile derivatives via the Knoevenagel condensation. ACS Sustain. Chem. Eng. 2022, 10, 12602–12612. [Google Scholar] [CrossRef]
  54. Sutar, P.; Maji, T.K. Bimodal self-assembly of an amphiphilic gelator into a hydrogel-nanocatalyst and an organogel with different morphologies and photophysical properties. Chem. Commun. 2016, 52, 13136–13139. [Google Scholar] [CrossRef]
  55. Tuci, G.; Luconi, L.; Rossin, A.; Berretti, E.; Ba, H.; Innocenti, M.; Yakhvarov, D.; Caporali, S.; Pham-Huu, C.; Giambastiani, G. Aziridine-Functionalized Multiwalled Carbon Nanotubes: Robust and Versatile Catalysts for the Oxygen Reduction Reaction and Knoevenagel Condensation. ACS Appl. Mater. Interfaces 2016, 8, 30099–30106. [Google Scholar] [CrossRef]
Materials 16 01675 g001 550

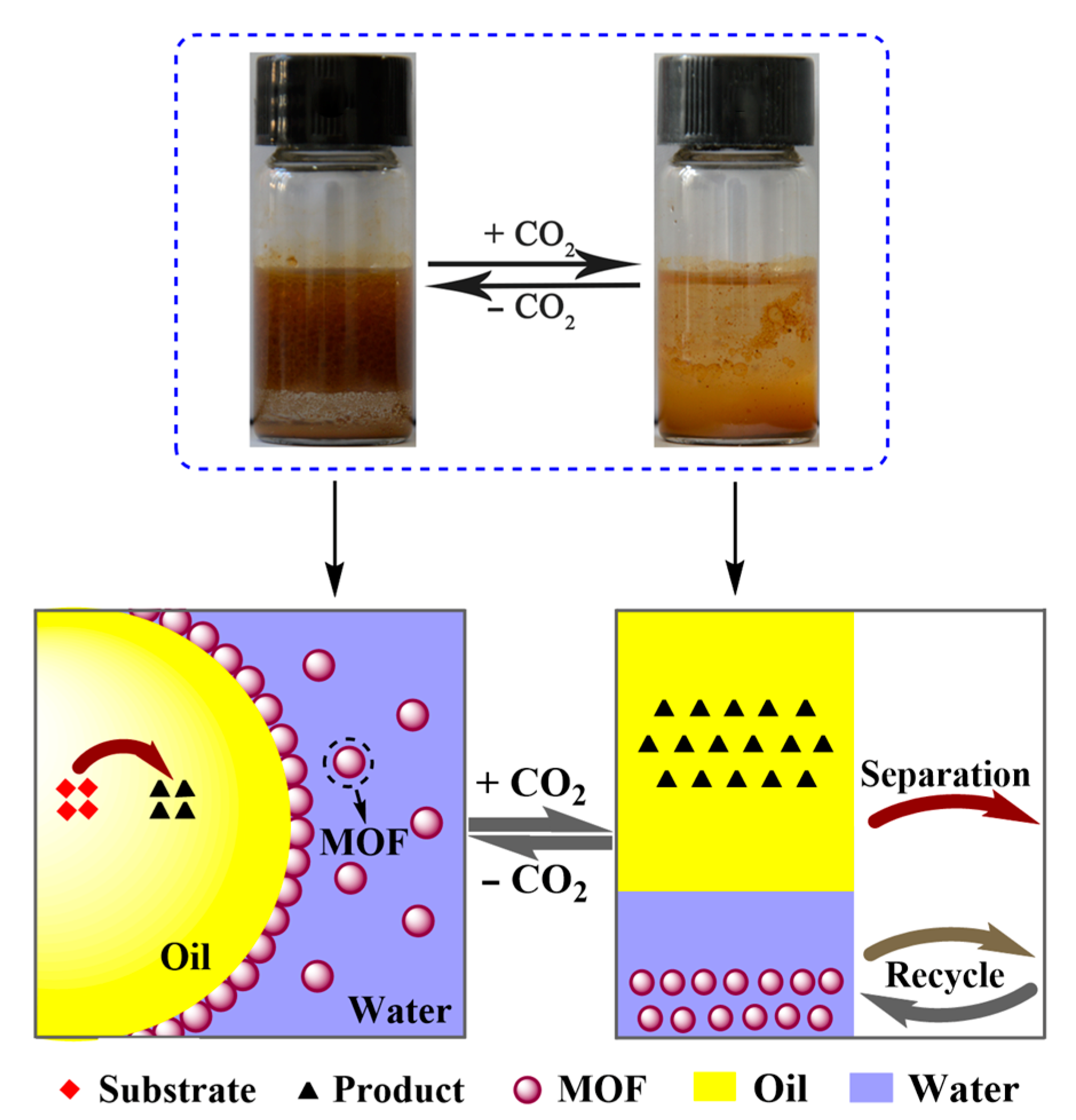

Figure 1. Schematic diagram for CO2-switchable demulsification and re-emulsification of the functionalized H-UiO-66-(OH)2 stabilized Pickering emulsions.
Figure 1. Schematic diagram for CO2-switchable demulsification and re-emulsification of the functionalized H-UiO-66-(OH)2 stabilized Pickering emulsions.
Materials 16 01675 g001
Materials 16 01675 g002 550

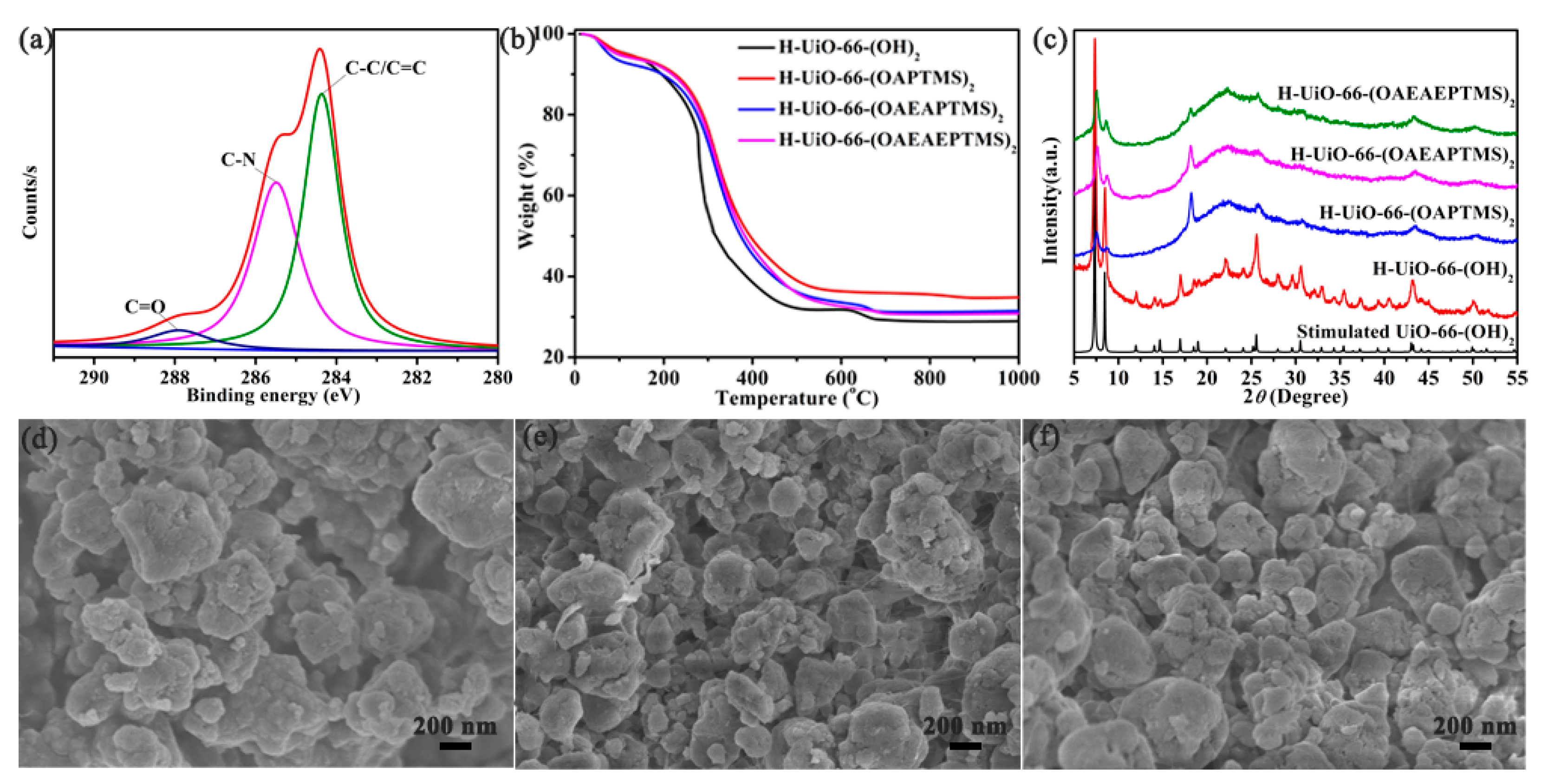

Figure 2. High-resolution C 1s XPS spectra of H-UiO-66-(OAEAEAPTMS)2 (a), TGA curves (b) and XRD patterns (c) of the functionalized H-UiO-66-(OH)2 and SEM images of H-UiO-66-(OAPTMS)2 (d), H-UiO-66-(OAEAPTMS)2 (e) and H-UiO-66-(OAEAEAPTMS)2 (f).
Figure 2. High-resolution C 1s XPS spectra of H-UiO-66-(OAEAEAPTMS)2 (a), TGA curves (b) and XRD patterns (c) of the functionalized H-UiO-66-(OH)2 and SEM images of H-UiO-66-(OAPTMS)2 (d), H-UiO-66-(OAEAPTMS)2 (e) and H-UiO-66-(OAEAEAPTMS)2 (f).
Materials 16 01675 g002
Materials 16 01675 g003 550

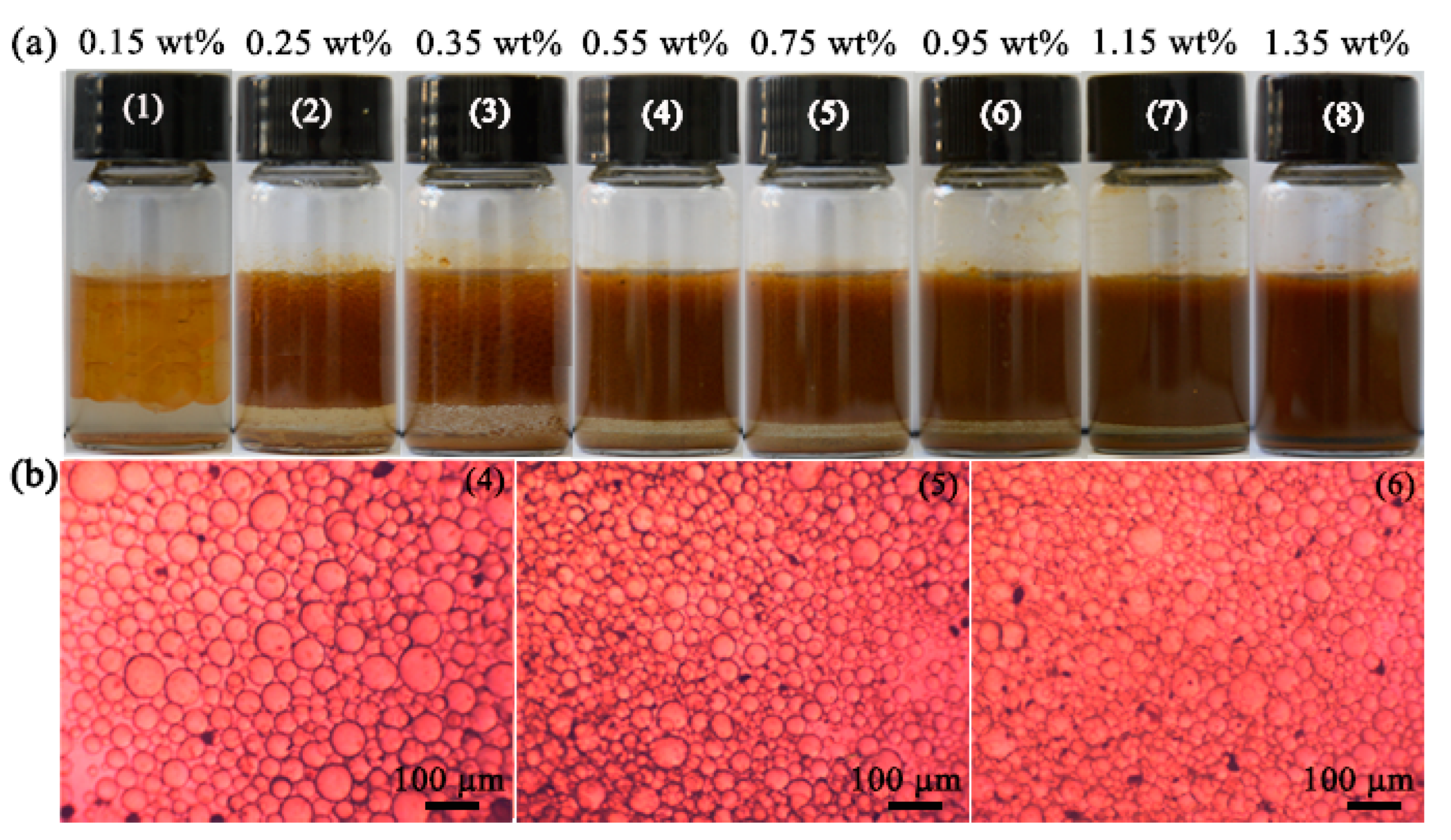

Figure 3. Photographs of toluene-in-water emulsions stabilized by H-UiO-66-(OAEAEAPTMS)2 (a) and chosen micrographs for (4), (5) and (6) in (a,b).
Figure 3. Photographs of toluene-in-water emulsions stabilized by H-UiO-66-(OAEAEAPTMS)2 (a) and chosen micrographs for (4), (5) and (6) in (a,b).
Materials 16 01675 g003
Materials 16 01675 g004 550

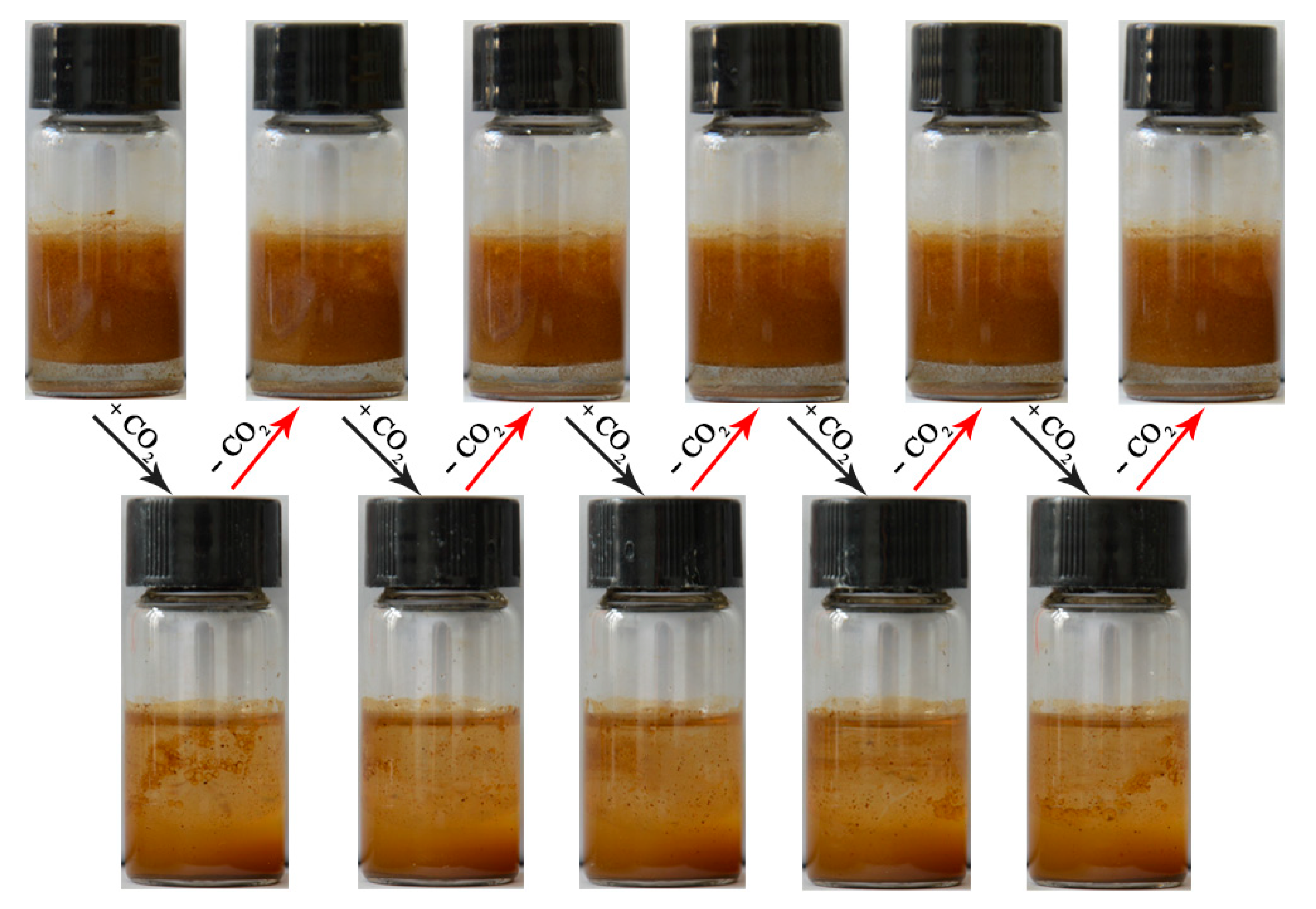

Figure 4. Five cycles of the CO2-triggered demulsification and re-emulsification process of the H-UiO-66-(OAEAEAPTMS)2-stabilized Pickering emulsion.
Figure 4. Five cycles of the CO2-triggered demulsification and re-emulsification process of the H-UiO-66-(OAEAEAPTMS)2-stabilized Pickering emulsion.
Materials 16 01675 g004
Materials 16 01675 g005 550

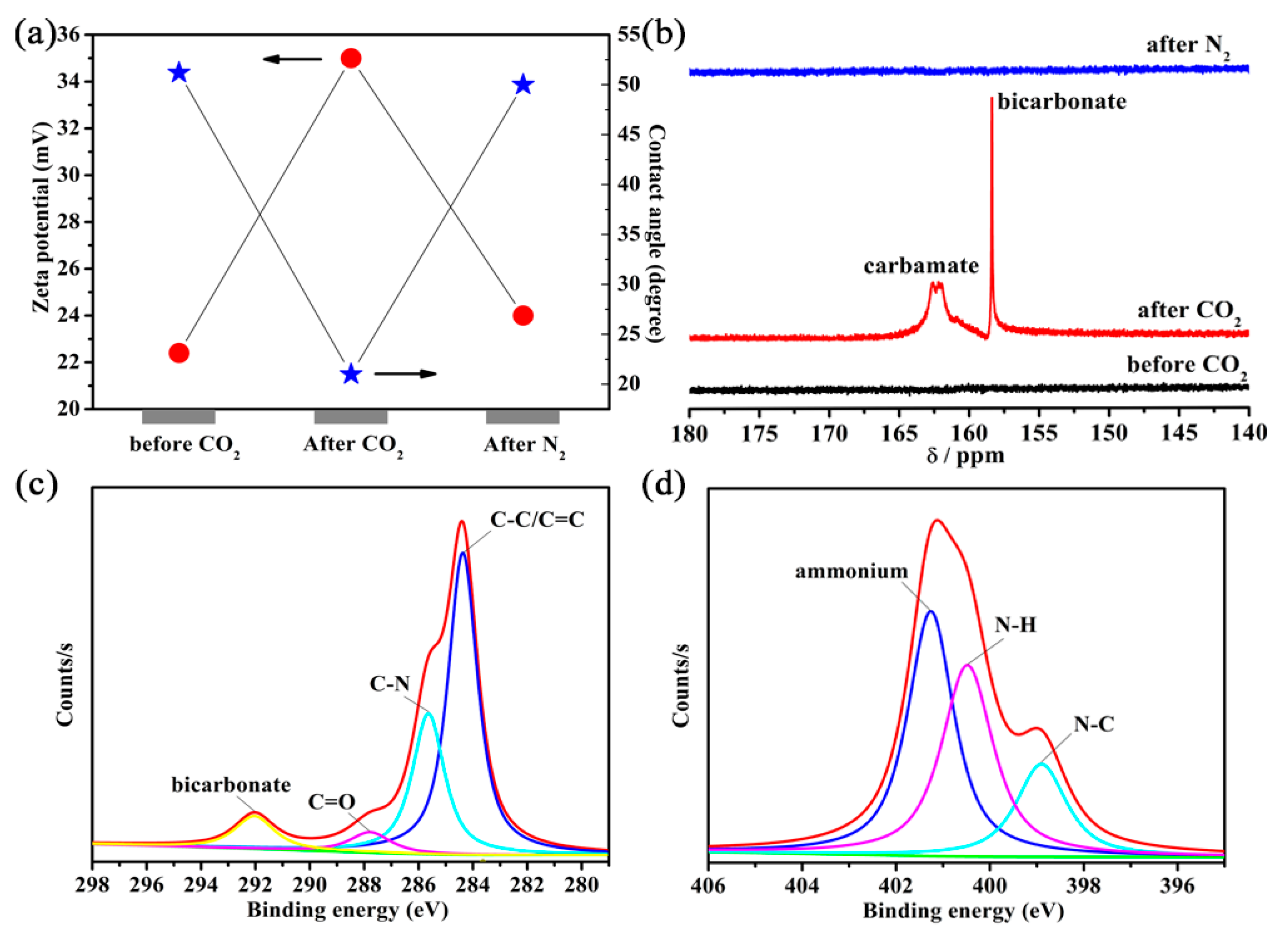

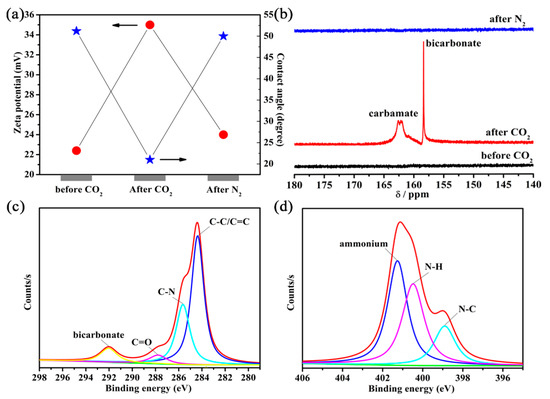

Figure 5. Zeta potentials and water contact angles of H-UiO-66-(OAEAEAPTMS)2 (a); 13C NMR spectra of AEAEAPTMS in methanol-d4 before and after CO2 bubbling as well as after N2 bubbling (b); and high-resolution C 1s (c) and N 1s (d) XPS data of H-UiO-66-(OAEAEAPTMS)2 after CO2 bubbling. Circles in (a) stand for zeta potentials, stars stand for water contact angles, and arrows are used to illustrate what the symbol represents.
Figure 5. Zeta potentials and water contact angles of H-UiO-66-(OAEAEAPTMS)2 (a); 13C NMR spectra of AEAEAPTMS in methanol-d4 before and after CO2 bubbling as well as after N2 bubbling (b); and high-resolution C 1s (c) and N 1s (d) XPS data of H-UiO-66-(OAEAEAPTMS)2 after CO2 bubbling. Circles in (a) stand for zeta potentials, stars stand for water contact angles, and arrows are used to illustrate what the symbol represents.
Materials 16 01675 g005
Materials 16 01675 g006 550

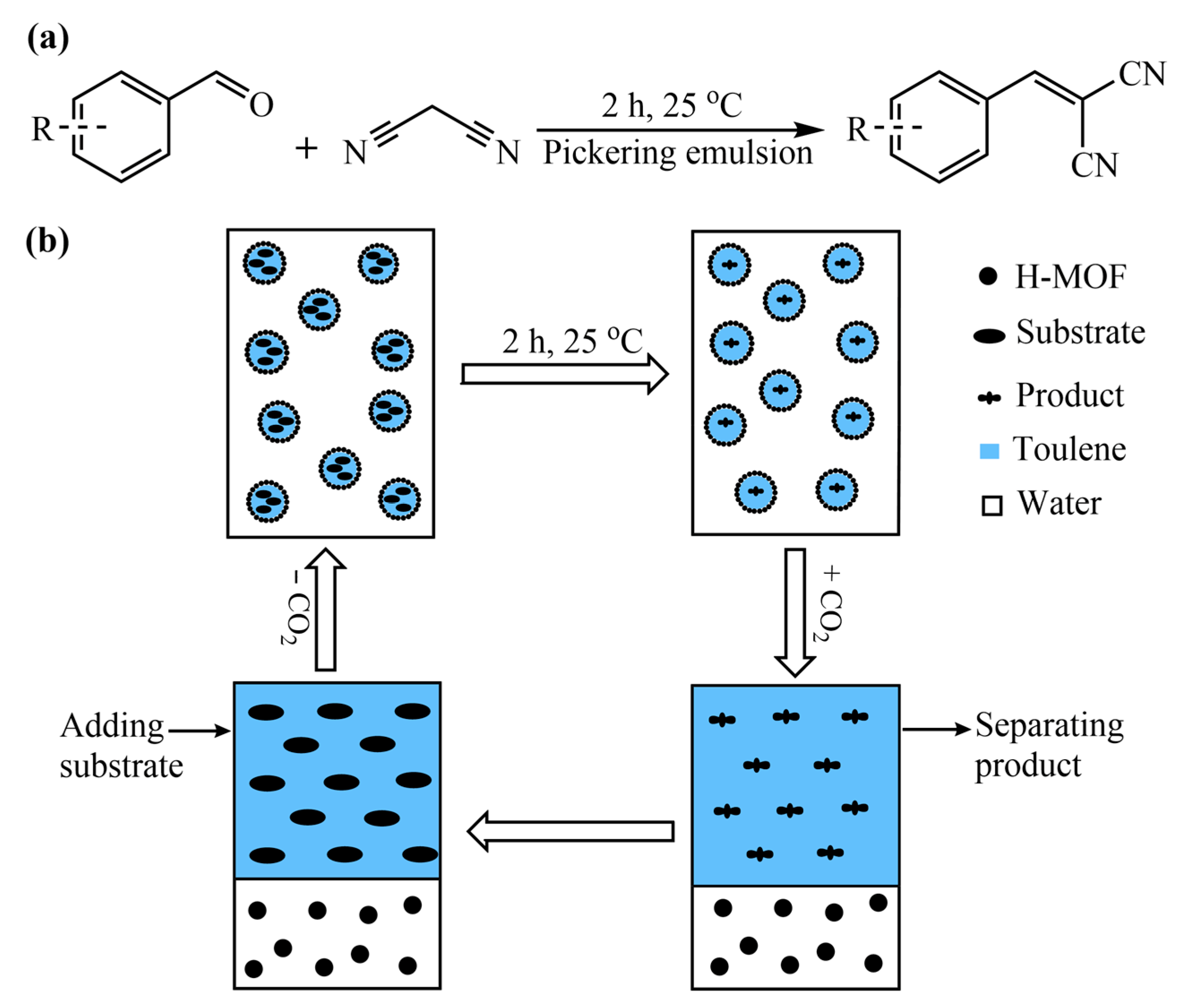

Figure 6. Reaction between aldehydes and malononitrile catalyzed by H-UiO-66-(OAEAEAPTMS)2 (a), and the reaction separation procedure for (a,b).
Figure 6. Reaction between aldehydes and malononitrile catalyzed by H-UiO-66-(OAEAEAPTMS)2 (a), and the reaction separation procedure for (a,b).
Materials 16 01675 g006
Table
Table 1. Knoevenagel reaction of various aromatic aldehydes.
Table 1. Knoevenagel reaction of various aromatic aldehydes.
EntrySubstrateProductGC Yield (%)
1R = p-HR = p-H99
2R = o-NO2R = o-NO299
3R = p-NO2R = p-NO299
4R = p-CH3R = p-CH398
5R = p-FR = p-F64
6R = p-BrR = p-Br74
