Article

Assessment of the Laser Beam Welding of Galvanized Car Body Steel with an Additional Organic Protective Layer

by
Jacek Górka
1,*,
Wojciech Suder
2,
Monika Kciuk
3 and
Sebastian Stano
4
1
Department of Welding Engineering, Silesian University of Technology, Konarskiego Str. 18a, 44-100 Gliwice, Poland
2
Welding and Additive Manufacture, Cranfield University, Cranfield MK43 0AL, UK
3
Department of Engineering Materials and Biomaterials, Silesian University of Technology, Konarskiego Str. 18a, 44-100 Gliwice, Poland
4
Łukasiewicz Research Network—Institute of Welding, Bl. Czesława 16-18, 44-100 Gliwice, Poland
*
Author to whom correspondence should be addressed.
Materials 2023, 16(2), 670; https://doi.org/10.3390/ma16020670
Submission received: 13 December 2022 / Revised: 3 January 2023 / Accepted: 6 January 2023 / Published: 10 January 2023
(This article belongs to the Topic Laser Welding of Metallic Materials)
Browse Figures
Versions Notes

Abstract

:
This study discusses the effect of laser beam welding parameters on the structure, mechanical properties and corrosion resistance of 1.2 mm thick galvanized sheets made of low-carbon steel DC04 provided with a ZE36/36 GardoprotectOC2BU organic coating. The test laser beam butt welded joints were made without the filler metal, using a variable welding rate, where linear welding energy was restricted within the range of 30 J/mm to 90 J/mm. The joints were subjected to non-destructive tests, destructive tests and corrosion resistance tests. The tests revealed the possibility of making joints meeting the criteria specified in the ISO 15614-11 standard. Regardless of the value of linear welding energy applied in the process, all the joints were characterised by high mechanical and plastic properties. It was noticed that an increase in linear welding energy from 30 J/mm to 90 J/mm was accompanied by the widening of the weld and that of the heat-affected zone (HAZ). In addition, an increase in linear welding energy was accompanied by a decrease in the maximum weld hardness to approximately 250 HV0.2. In the HAZ, hardness was restricted within the range of 190 HV0.2 to 230 HV0.2 and decreased along with increasing linear welding energy. In the static tensile test, regardless of the value of linear welding energy, the test specimen ruptured in the base material. In the bend test, regardless of the value of linear welding energy, a bend angle of 180° was obtained without partial tear or scratches; unit elongation was restricted within the range of 29% to 42%. The electrochemical tests and experiments performed in the salt spray chamber revealed the very high effectiveness of the corrosion protections against aggressive chloride ions.

1. Introduction

In the automotive industry, steel is responsible for most of the car weight. Figures for the year 2017 show that steel and cast elements constitute approximately 55% of the car weight, whereas plastics are responsible for approximately 11% and aluminium alloys constitute approximately 9% of the vehicle weight [1,2,3,4,5,6,7]. The development of the automotive industry entails an increased demand for new structural materials. Competing carmakers try to reach the largest market share and, because of this, try to satisfy consumers’ expectations related to increasingly good product quality. In addition to satisfying customers’ needs, high quality positively affects users’ safety and increases the level of vehicle reliability [8,9,10,11,12,13,14,15]. When manufacturing high-quality components, particular attention should be paid to the quality of welded joints. Until recently, the most common technology used when joining car body elements has been resistance spot welding. However, because of its numerous advantages, laser beam welding is increasingly often applied in the aforesaid part of the manufacturing process. The selection of the best joining method for state-of-the-art engineering and car body production is a delicate matter. Taking into account the fact that the design engineer has, basically, only three parameters that must be combined in order to obtain an optimum solution (i.e., geometrical shape, material and joining method), the selection of an appropriate joining technique is of great importance. The foregoing partly explains why new assembly technologies are enjoying growing popularity at the cost of traditional welding methods [16,17,18,19,20,21,22,23,24,25].
Galvanized steel sheets are used in various industrial sectors as zinc coatings provide the former with favourable corrosion resistance in adverse weather conditions. The welding of zinc-coated materials requires complying with special HSE regulations as the joining process may trigger the emission of harmful zinc oxide (zinc melting point being 419.5 °C) [26,27,28,29,30,31]. In addition, molten zinc can penetrate steel grain boundaries, ultimately reducing the plasticity of joints. During intense heating, evaporating zinc may lead to weld porosity. The stability of optimum welding process parameters and the quality of edge preparation are key factors in laser beam welding. An increase in the welding rate narrows the width of the weld face as well as that of the heat-affected zone and of the weld root. Exceeding a certain welding rate value may lead to the formation of welding imperfections, such as the excessively large reinforcement on the root or the incompletely filled groove [13,32,33,34,35,36].
Galvanized sheets provided with organic coatings, designed having in view high anti-corrosion properties combined with press-formability and weldability, are enjoying an increasingly high popularity. During the manufacturing process, metal sheets are first provided with a zin coating and, afterwards, with a thin (up to approximately 20 μm) layer based on epoxy resin with an addition of metal particles (up to between 65% and 75% of the volume). The aforesaid material was invented as early as in the 1970’s, where the high content of metallic compounds in the coating layer was used to facilitate arc welding processes [37,38,39,40]. The market offer includes first and second-generation anti-corrosive coatings. The technologies used to obtain the first-generation coatings are applied during the chromium-free pre-treatment of sheets, where the coating thickness is restricted within the range of 2.5 μm to 4.0 μm. Corrosion protection obtained in such a process is between three and four times higher than that obtainable in the conventional galvanising process without the application of the prime coat. In turn, the second-generation prime coatings are applied during the chromium-free pre-treatment of sheets, which were previously subjected to electro or hot galvanizing processes. The coating thickness restricted within the range of 3 μm to 5 μm provides corrosion protection being between 6 and 8 times higher than that obtained during galvanizing without additional painting and two-fold higher than that obtainable by means of the first-generation prime coatings. The laser beam welding of advanced steels is also possible during the fabrication of sheets provided with protective coatings. In such cases, the making of joints is identical to the process used during the welding of mild steel. However, it should be noted that the welding of steels provided with zinc coatings necessitates leaving a narrow gap (between 0.1 mm and 0.2 mm) between elements to be joined (to prevent the formation of porosity). Interestingly, it is also possible to weld such sheets without leaving the gap, yet in such a case, the joining process requires the application of two laser beams, where the first beam heats up the zinc layer (causing the evaporation of the latter), whereas the second beam is used to weld the elements [41,42,43,44,45].
In the conducted own research, an attempt was made to assess the influence of the linear energy of laser beam welding on the properties and corrosion resistance of butt-welded joints made of galvanized steel with an organic coating applied. For such thin sheets used in the automobile industry, they are usually lap welded, the article presents the results of butt welding because they are interesting from the research point of view; there are few works on joining such thin sheets in the automotive industry [46,47].

2. Materials and Methods

The research work discussed in the article aimed to identify the effect of laser beam welding parameters on the structure, mechanical properties and corrosion resistance of 1.2 mm thick galvanized sheets made of steel DC04 provided with a ZE36/36 GardoprotectOC2BU protective coating. The test sheets made of low-carbon, cold workable and deep-drawing steel DC04 were provided with a zinc coating and an organic layer. The zinc and organic coatings protect the sheet surface against the corrosive activity of an external environment. The steel protected in the above-presented manner is used in the production of car bodies. The chemical composition and properties of the test material are presented in Table 1 and Table 2.

2.1. Welding Process

The sheets made of galvanized steel DC04 provided with the organic coating had dimensions of 300 mm × 150 mm × 1.2 mm. The test pieces were subjected to cleaning and degreasing. The butt test joints, made using a TruLaser Robot 5120 robotic station equipped with a TruDisk 12002 disk laser, were welded without the filler metal. The welding process was carried out using a CFO head equipped with a fiber optic cable with a diameter of 400 μm. The focal length of the collimator lens was 200 mm, the focal length was 300 mm, the focal diameter of the beam was 0.6 mm. The specimens were made using various welding rates. The welding process parameters are presented in Table 3. The weld face and the weld root are presented in Figure 1.

2.2. Tests of Welded Joints

First, the welded joints were subjected to non-destructive tests: visual tests, magnetic-particle tests and radiographic tests. Visual tests (VT) were carried out based on requirements of the PN-EN ISO 17637:2011 standard. After visual tests, in order to detect possible cracks, surface tests were carried out using the magnetic particle method based on the guidelines of the standards PN-EN ISO 3059:2005, PN-EN ISO 9934-2:2003, PN-EN ISO 9934-3:2003. MR 72 agent was used as a white contrasting base, while the magnetic powder MR 76S was used to carry out the tests, the tests were carried out with the use of a yoke electromagnet. In order to reveal volumetric defects, radiographic tests were carried out based on the PN-EN 1435 standard with a CERAM type 235 X-ray tube with a beam of X-rays with a diameter of d = 2 mm at voltage U = 180 kV, the intensity I = 3 mA, using reinforcing covers OW −0.15 mm. The test results were recorded on AGFA type C5 photographic film, using the exposure time t = 2.3 min and the focal length f = 700 mm. The 13FEEN bar indicator was used to assess image quality.
After the non-destructive tests, macro and microscopic metallographic tests were carried out to determine structural changes. Macroscopic metallographic tests performed using an Olympus SZX9 stereoscopic light microscope; the specimens were subjected to etching in Adler’s reagent. Microscopic metallographic tests performed using a NIKON ECLIPSE MA100 light microscope; the specimen were subjected to etching in Nital. The strength properties were determined on the basis of a static tensile test and a bending test with stretching from the side of the weld face and from the side of the weld root. The hardness measurement was carried out using the Vickers method along one measuring line. A corrosion potential test was carried out performed using a three-electrode measurement system and an ATLAS 0531 EU potentiostat-galvanostat (Atlas-Sollich, Rebiechowo, Poland). The electrolyte used in the tests was the aqueous solution of sodium chloride having a mass concentration of 3%; the reference electrode was a saturated silver-silver chloride electrode (Ag, AgCl), whereas the counter electrode was made of stainless steel. The recording of polarisation curves followed the determination of corrosion potential (after approximately one hour); measurements were performed at a potential change rate of 0.01 V/s. corrosion tests performed in accordance with the requirements specified in the PN-EN ISO 9227 standard, using a CC450iP salt spray chamber (Ascott, Singapore). The specimens were exposed to the 3.5% salt mist of the aqueous solution of sodium chloride at a temperature of 35 °C and a humidity of 100%; the time of exposure amounted to 96 h. In order to assess corrosion changes, tests were carried out—fractographic tests, using a ZEISS SteREO Discovery V12 stereoscopic microscope at 100× magnification.

3. Results and Discussion

The visual and magnetic particle tests of the joints made using a variable welding rate restricted within the range of 30 J/mm to 90 J/mm did not reveal the presence of surface-breaking welding imperfections such as cracks, porosity, incomplete fusion, lacks of penetration, burn-through, etc.
All of the welded joints represented quality level B in accordance with the ISO 13919-1 standard. The macroscopic tests did not reveal the presence of welding imperfections in the weld area or in the HAZ (Figure 2). The surface of the test sheets was provided with the protective layer.
The microscopic metallographic tests revealed the effect of linear welding energy on the structure and the grain size in the weld area and in the HAZ. The base material is characterized by a ferritic-pearlitic structure, Figure 3. In cases of the welds made using the lowest linear welding energy (i.e., 30 J/mm) it was possible to observe both the ferritic-bainitic structure and martensitic islands. An increase in linear welding energy was accompanied by an increase in a ferrite content and a decrease in a martensite content in the weld. The structure of the weld in the joint made using a linear welding energy of 90 J/mm was ferritic-bainitic. The HAZ was characterised by grain size variability. In the HAZ area, an increase in linear welding energy was accompanied by a decrease in the grain size (see Figure 4).
The analysis of the hardness test results confirmed the observations of the microscopic metallographic tests. The hardness test results (Figure 5) depicted an increase in hardness in the HAZ and in the weld if compared with that of the base material (amounting to approximately 175 HV0.2). The highest hardness value was obtained in the weld of joint 1, made using the lowest linear welding energy (i.e., 30 J/mm) and characterised by the presence of martensitic structures. An increase in linear welding energy was accompanied by a decrease in the maximum hardness of the weld to approximately 250 HV0.2. In the HAZ area, hardness values were restricted within the range of 190 HV0.2 to 230 HV0.2 and decreased along with increasing linear welding energy (which was connected with the grain size—see Figure 5).
The static tensile tests revealed that all of the joints were characterised by high tensile strength (of approximately 570 MPa) and that the rupture, regardless of linear welding energy, took place outside the welded joint area (see Table 4, Figure 6).
Both the face and root bend tests of the butt weld enabled the obtainment of a bend angle of 180°, which indicated the high plastic properties of the test joint.
The electrochemical tests aimed to determine the corrosion resistance of the test material and the test joints under predefined corrosive conditions. The corrosion tests were performed in a 3.5% NaCl environment, simulating seawater. The recording of polarisation curves followed the determination of corrosion potential (after approximately one hour, see Figure 7). Measurements were performed at a potential change rate of 0.01 V/s. The corrosion potential measurement results are presented in Table 5.
The characteristics of the corrosion resistance of the initial material and of the welded joints were determined using linear polarisation, aimed to identify the kinetic parameters of the corrosion process, i.e., current density (Icor), corrosion potential (Ecor) and polarisation resistance (Rp). Corrosion potential Ecor of the base material was restricted within the range of −0.95 V to −0.99 V, the values of polarisation resistance were restricted within the range of 51.8 kΩ cm2 to 67.6 kΩ cm2, whereas corrosion potential amounted to −0.99 V and −0.95 V respectively.
The analysis of the parameters determined in the tests revealed that the highest corrosion resistance was that of welded joints nos. 3_1 and 3_2, which was manifested by the lowest values of current density (amounting to 4.60250 × 10−9 and 1.96567 × 10−9 V) as well as by the highest values of polarisation resistance (amounting to 1.46 cm2 and 2.88 MΩ cm2 respectively). The service life and reliability of the organic coatings on the zinc layer surface (the so-called metal-organic coatings) were primarily affected by the initial state of the zinc coating, the manner of surface preparation and the proper methodology of coating deposition. In addition, the deposition of the coatings on the galvanized material was impeded by the lack of sufficient adhesion of the coating to the zinc surface, which resulted, among other things, from the amphoteric nature of zinc, its chemical activity and the reactivity of zinc corrosion products. The organic coating provides a continuous barrier protecting the steel surface against aggressive ions present in a corrosive environment. In the event of the perforation of the organic coating, the protective function of the steel surface is taken over by the zinc coating. Zinc, as metal characterised by lower electrochemical potential than that of iron, becomes the anode in the corrosion cell and undergoes destruction, thus protecting the steel substrate.
The reduced corrosion resistance of welded joints nos. 1_1, 1_2, 2_1 and 2_2 was probably connected with the loss or damage to a part of the zinc galvanic coating triggered by the welding process (Table 5). The defective coating surface enabled corrosion agents to penetrate the gaps in the surface, which led to the development of the local corrosion of the steel substrate. The corrosion resistance tests were also performed in a salt spray chamber, in accordance with the requirements specified in the PN-EN ISO 9227 standard. The specimens were placed in the salt spray chamber and exposed to the 5% salt mist of the aqueous solution of sodium chloride at a temperature of 35 °C (Figure 8). The time of exposure amounted to 96 h.
Corrosion-induced changes of the test specimens were assessed in a gravimetric manner, on the basis of their mass depletion and the depletion of mass in relation to the surface (Table 6). The mass depletion of the specimens placed in the salt spray chamber was slight and, after 96 h’ exposure, amounted to a maximum of 4.6552 g/m2. In accordance with the PN EN 9227 standard, concerning galvanized specimens, the value of mass depletion below 50 ± 25 g/m2 after 48 h is satisfactory.
The identification of the type and nature of corrosion-induced damage required the performance of tests concerned with the morphology of the test specimen surface after the corrosion tests. The morphology-related tests were performed using a SteREO Discovery V12 stereoscopic microscope (ZEISS). The methodology applied in the tests enabled the proper assessment of the service life of corrosion protections. The surface of the specimens subjected to analysis contained few corrosion centres located both within the weld and in the heat-affected zone (Figure 9).
The areas affected by corrosion-triggered damage were characterised by varied geometry, yet, because of the slight depletion of specimen mass, corrosion pit penetration was probably not significantly deep. The areas affected by corrosion were those where the corrosion protection was damaged or eliminated entirely through welding. The local defects were characteristic of pitting corrosion (taking place in an autocatalytic manner) and probably resulted from the penetration of aggressive chloride ions (Cl−) deep inside the unprotected material. The base material, where anti-corrosion layers were not damaged, was not affected by the corrosion environment.

4. Conclusions

The tests concerning 1.2 mm thick laser beam welded joints made of low-carbon galvanized steel DC04 provided with the ZE36/36 GardoprotectOC2BU organic coating revealed the possibility of obtaining joints satisfying the requirements of the ISO 15614-11 standard. Regardless of linear welding energy, all of the joints were characterised by favourable mechanical and plastic properties.
The analysis of macrostructural cross-sectional images made it possible to determine the effect of present welding parameters on the geometrical dimensions of the test welds. The above-named analysis revealed that an increase in linear welding energy from 30 J/mm to 90 J/mm led to the widening of the weld and that of the HAZ. The microscopic tests revealed the fine-grained structure of the base material and the grain growth within the weld area.
The microscopic test results confirmed those obtained in the hardness measurements. The highest hardness was obtained in the weld of joint 1 (made using a linear welding energy of 30 J/mm), which was connected with the presence of martensitic structures. An increase in linear welding energy was accompanied by a decrease in the maximum hardness of the weld to approximately 250 HV0.2. In the HAZ areas, hardness values were restricted within the range of 190 HV0.2 to 230 HV0.2 and decreased along with increasing linear welding energy, which, in turn, was related to the grain size. In the static tensile test, regardless of linear welding energy, the specimen ruptured in the base material, which confirmed high mechanical properties of the test joints.
The tensile strength of the test specimens was restricted within the range of 564 MPa to 571 MPa. It was possible to observe a slight decrease in Rm along with an increase in linear welding energy. In the bend test, regardless of the value of linear welding energy, a bend angle of 180° was obtained without partial tear or scratches. The values of unit elongation were restricted within the range of 29% to 42%, thus confirming the high plastic properties of the joints.
The electrochemical tests and experiments performed in the salt spray chamber revealed the very high effectiveness of the corrosion protections against aggressive chloride ions. The values of corrosion current density and those of corrosion potential made it possible to identify correlation log ǀIcorǀ = f(Ecor). In each case it was possible to observe the characteristic shape of polarisation curves.
The analysis of the parameters identified in the tests and of all the characteristics revealed that the highest corrosion resistance was observed in the welded joints designated as 3_1 and 3_2. The foregoing was manifested by the low value of corrosion current and the high value of polarisation resistance. Slight damage observed in the weld area and in the HAZ resulted from the welding process and the subsequent heat-triggered removal of the protective layers.

Author Contributions

Conceptualization, J.G. and W.S.; methodology, J.G. and M.K.; formal analysis, J.G.; investigation, J.G., S.S. and M.K.; writing—original draft preparation, J.G.; writing—review and editing J.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available because the authors do not wish to publish Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Takeaways from IABC 2019 USA. Automotive Body Congress, Detroit. 2019, p. 6. Available online: https://www.ssab.com/products/brands/docol/automotive-insights/2019/5-takeaways-from-iabc-2019-usa (accessed on 19 December 2019).
  2. Matlock, D.K.; Speer, J.G.; de Moor, E. Recent AHSS developments for automotive applications: Processing, microstructures, and properties. In Proceedings of the Addressing Key Technology Gaps in Implementing Advanced High-Strength Steels for Automotive Light Weighting, Southfield, MI, USA, 9–10 February 2012. [Google Scholar]
  3. Pawar, N. Automotive Advanced High Strength Steel (AHSS) Market Professional Survey Report 2019; Analytical Research Cognizance (ARCX001); Grand Research Store: New York, NY, USA, 2019; p. 101. [Google Scholar]
  4. Mojtaba, E.; Rouhollah, M.; Esfahani, M.M.; Pezzato, L.; Karimi, E. Effect of cold forging on mechanical and corrosion behaviors of carbon steel plate. Int. J. Press. Vessel. Pip. 2022, 198, 104659. [Google Scholar] [CrossRef]
  5. DOCOL the Automotive Steel. In The Most Sustainable Solution: Setting the New Standard for the Automotive Industry; SSAB: Borlänge, Sweden, 2019.
  6. Nayak, S.S.; Biro, E.; Shou, Y. Laser welding of advanced high-strength steels (AHSS). In Welding and Joining of Advanced High Strength Steels; Woodhead Publishing: Sawston, UK, 2015; pp. 71–92. [Google Scholar]
  7. Billur, E. Hot Stamping of Ultra High-Strength Steels; Springer: New York, NY, USA, 2018; ISBN 978-3-319-98868-9. [Google Scholar]
  8. Gronostajski, Z.; Pater, Z.; Madej, L.; Gontarz, A.; Lisiecki, L.; Łukaszek-Sołek, A.; Łuksza, J.; Mróz, S.; Muskalski, Z.; Muzykiewicz, W.; et al. Recent Development Trends in Metal Forming. Arch. Civ. Mech. Eng. 2019, 19, 898–941. [Google Scholar] [CrossRef]
  9. Ma, J.; Kong, F.; Carlson, B.; Kovacevic, R. Two-pass laser welding of galvanized high-strength dual-phase steel for a zero-gap lap joint configuration. J. Mater. Process. Technol. 2013, 213, 495–507. [Google Scholar] [CrossRef]
  10. Kong, H.; Chao, Q.; Rolfe, B.; Beladi, H. One-Step Quenching and Partitioning Treatment of a Tailor Welded Blank of Boron and TRIP Steels for Automotive Applications. Mater. Des. 2019, 174, 107799. [Google Scholar] [CrossRef]
  11. Mei, L.; Chen, G.; Jin, X.; Zhang, Y.; Wu, Q. Research on laser welding of high-strength galvanized automobile steel sheets. Opt. Lasers Eng. 2009, 47, 1117–1124. [Google Scholar] [CrossRef]
  12. Węgrzyn, T.; Piwnik, J.; Łazarz, B.; Hadryś, D. Main micro-jet cooling gases for steel welding. Arch. Metall. Mater. 2013, 58, 555–557. [Google Scholar] [CrossRef] [Green Version]
  13. Lisiecki, A. Welding of thermomechanically rolled fine-grain steel by different types of lasers. Arch. Metall. Mater. 2014, 59, 1625–1631. [Google Scholar] [CrossRef]
  14. Węgrzyn, T.; Miroslawski, J.; Silva, A.P.; Pinto, D.G.; Miros, M. Oxide inclusions in steel welds of car body. Mater. Sci. Forum 2010, 6, 585–591. [Google Scholar] [CrossRef]
  15. Chen, Z.; Yang, S.; Wang, C.; Hu, X.; Shao, X.; Wang, J. A study of fiber laser welding of galvanized steel using a suction method. J. Mater. Process. Technol. 2014, 214, 1456–1465. [Google Scholar] [CrossRef]
  16. Janicki, D. Disk laser welding of armor steel. Arch. Metall. Mater. 2014, 59, 1641–1646. [Google Scholar] [CrossRef]
  17. Węgrzyn, T.; Piwnik, J.; Hadryś, D. Oxygen in steel WMD after welding with micro-jet cooling. Arch. Metall. Mater. 2013, 58, 1067–1070. [Google Scholar] [CrossRef] [Green Version]
  18. Gu, X.; Wu, S.; Duan, Z.; Zhu, L. Effect of welding parameters on weld formation quality and tensile-shear property of laser welded SUS301L stainless steel lap filet weld. J. Mater. Res. Technol. 2020, 9, 4840–4854. [Google Scholar] [CrossRef]
  19. Esfahani, M.M.; Manesh, H.D.; Esmailzadeh, M.; Roshanaei, E. Microstructure and wear characteristics of 1050Al/Fe surface composites by friction stir processing. Mater. Res. Express 2018, 5, 126518. [Google Scholar] [CrossRef]
  20. Grajcar, A.; Różański, M.; Kamińska, M.; Grzegorczyk, B. Effect of gas atmosphere on the non-metallic inclusions in laser-welded TRIP steel with Al and Si additions. Mater. Tehnol. 2016, 50, 945–950. [Google Scholar] [CrossRef]
  21. Opiela, M. Thermodynamic analysis of the precipitation of carbonitrides in microalloyed steels. Mater. Technol. 2015, 49, 395–401. [Google Scholar] [CrossRef]
  22. Żuk, M.; Górka, J.; Czupryński, A.; Adamiak, M. Properties and structure of the weld joints of quench and tempered 4330V steel. Metalurgija 2016, 55, 613–616. [Google Scholar]
  23. Mei, L.; Yi, J.; Yan, D.; Liu, J.; Chen, G. Comparative study on CO2 laser overlap welding and resistance spot welding for galvanized steel. Mater. Des. 2012, 40, 433–442. [Google Scholar] [CrossRef]
  24. Milberg, J.; Trautmann, A. Defect-free joining of zinc-coated steels by bifocal hybrid laser welding. Prod. Eng. 2009, 3, 9–15. [Google Scholar] [CrossRef]
  25. Ramakrishna, R.V.S.M.; Amrutha, P.H.S.L.R.; Rahman, R.A.; Palanisamy, S. Narrow gap laser welding (NGLW) of structural steels—A technological review and future research recommendations. Int. J. Adv. Manuf. Technol. 2020, 111, 2277–2300. [Google Scholar] [CrossRef]
  26. Górka, J. Microstructure and properties of the high-temperature (HAZ) of thermo-mechanically treated S700MC high-yield-strength steel. Mater. Technol. Mater. Technol. 2016, 50, 617–621. [Google Scholar] [CrossRef]
  27. Coroado, J.; Ganguly, S.; Suder, W.; Williams, S.; Meco, S.; Pardal, G. Selection of parameters in nanosecond pulsed wave laser micro-welding. Int. J. Adv. Manuf. Technol. 2021, 115, 2929–2944. [Google Scholar] [CrossRef]
  28. Kim, J.; Oh, S.; Ki, H. Effect of keyhole geometry and dynamics in zero-gap laser welding of zinc-coated steel sheets. J. Mater. Process. Technol. 2016, 232, 131–141. [Google Scholar] [CrossRef]
  29. Yang, S.; Wang, J.; Carlson, B.E.; Zhang, J. Vacuum-Assisted Laser Welding of ZincCoated Steels in a Gap-Free Lap Joint Configuration. Weld. J. 2013, 92, 197–204. [Google Scholar]
  30. Mician, M.; Harmaniak, D.; Nový, F.; Winczek, J.; Moravec, J.; Trško, L. Effect of the t(8/5) Cooling Time on the Properties of S960MC Steel in the HAZ of Welded Joints Evaluated by Thermal Physical Simulation. Metals 2020, 10, 229. [Google Scholar] [CrossRef] [Green Version]
  31. Górka, J.; Janicki, D.; Fidali, M.; Jamrozik, W. Thermographic Assessment of the HAZ Properties and Structure of Thermomechanically Treated Steel. Int. J. Ther. 2017, 38, 183. [Google Scholar] [CrossRef] [Green Version]
  32. Janicki, D. Fiber laser welding of nickel based superalloy Rene 77. In Proceedings of the Laser Technology 2012: Applications of Lasers, Szczecin, Poland, 24–28 September 2012; Volume 8703. [Google Scholar] [CrossRef]
  33. Lisiecki, A. Effect of heat input during disk laser bead-on-plate welding of thermomechanically rolled steel on penetration characteristics and porosity formation in the weld metal. Arch. Metall. Mater. 2016, 61, 93–102. [Google Scholar] [CrossRef] [Green Version]
  34. Grajcar, A.; Różański, M.; Stano, S.; Kowalski, A. Microstructure characterization of laser-welded Nb-microalloyed silicon-aluminum TRIP steel. J. Mater. Eng. Perform. 2014, 23, 3400–3406. [Google Scholar] [CrossRef] [Green Version]
  35. Suder, W.; Williams, S. Investigation of the effects of basic laser material interaction parameters in laser welding. J. Laser Appl. 2012, 24, 032009. [Google Scholar] [CrossRef]
  36. Grajcar, A.; Różański, M.; Kamińska, M.; Grzegorczyk, B. Study on Non-Metallic Inclusions in Laser-Welded TRIP-Aided Nb-Microalloyed Steel. Arch. Metall. Mater. 2014, 59, 1163–1169. [Google Scholar] [CrossRef]
  37. Krupitzer, M. Designing and Manufacturing Vehicles with Advanced Strength Steels. In Proceedings of the Galvatech’04: 6th International Conference on Zinc and Zinc Alloy Coated Steel Sheet, Chicago, IL, USA, 4–7 April 2004; pp. 31–50. [Google Scholar]
  38. Banat, D.; Ganguly, S.; Meco, S.; Harrison, P. Application of high power pulsed nanosecond fibre lasers in processing ultra-thin aluminium foils. Opt. Lasers Eng. 2020, 129, 106075. [Google Scholar] [CrossRef]
  39. Moravec, M.; Kik, T.; Stano, S.; Różański, M.; Grajcar, A. Numerical Simulation and Experimental Analysis of Thermal Cycles and Phase Transformation Behavior of Laser-Welded Advanced Multiphase Steel. Symmetry 2022, 14, 477. [Google Scholar] [CrossRef]
  40. Górka, J.; Stano, S. The structure and properties of filler metal-free laser beam welded joints in steel S700MC subjected to TMCP. In Proceedings of the Laser Technology 2016: Progress and Applications of Lasers, Jastarnia, Poland, 26–30 September 2016; Volume 101590, pp. 183–190. [Google Scholar] [CrossRef]
  41. Grajcar, A.; Morawiec, M.; Różański, M.; Stano, S. Twin-spot laser welding of advanced high-strength multiphase microstructure steel. Opt. Laser Technol. 2017, 92, 52–61. [Google Scholar] [CrossRef]
  42. Skowrońska, B.; Szulc, J.; Chmielewski, T.; Sałaciński, T.; Swiercz, R. Properties and microstructure of hybride Plasma+MAG welded joints of thermomechanically treated S700MC steel. In Proceedings of the 27th Anniversary International Conference on Metallurgy and Materials (METAL), Brno, Czech Republic, 25 May 2018. [Google Scholar]
  43. Tzeng, Y. Gap-free lap welding of zinc-coated steel using pulsed CO2 laser. Int. J. Adv. Manuf. Technol. 2006, 29, 287–295. [Google Scholar]
  44. Zhang, Y.; Li, S.; Chen, G.; Zhang, H.; Zhang, M. Characteristics of zinc behavior during laser welding of zinc ‘‘sandwich’’ sample. Opt. Laser Technol. 2012, 44, 2340–2346. [Google Scholar] [CrossRef]
  45. Chen, W.; Ackerson, P.; Molian, P. CO2 laser welding of galvanized steel sheets using vent holes. Mater. Des. 2009, 30, 245–251. [Google Scholar] [CrossRef]
  46. Hu, Y.; Wu, S.; Guo, Y.; Shen, Z.; Korsunsky, A.M.; Yu, Y.; Zhang, X.; Fu, Y.; Che, Z.; Xiao, T.; et al. Inhibiting weld cracking in high-strength aluminium alloys. Nat. Commun. 2022, 13, 5816. [Google Scholar] [CrossRef]
  47. Hu, Y.; Wu, S.; Song, Z.; Fu, Y. Fatigue Property and Fracture Behavior of 7020 Aluminum Alloys Welded by Laser-MIG Hybrid Welding. Chin. J. Lasers 2018, 45, 0302003. [Google Scholar] [CrossRef]
Materials 16 00670 g001a 550Materials 16 00670 g001b 550

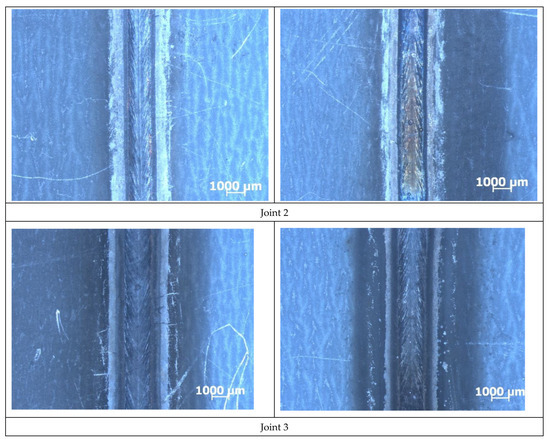

Figure 1. View of welded joints from the weld face and weld root side, welding parameters and joint markings in accordance with the data in Table 3.
Figure 1. View of welded joints from the weld face and weld root side, welding parameters and joint markings in accordance with the data in Table 3.
Materials 16 00670 g001aMaterials 16 00670 g001b
Materials 16 00670 g002a 550Materials 16 00670 g002b 550

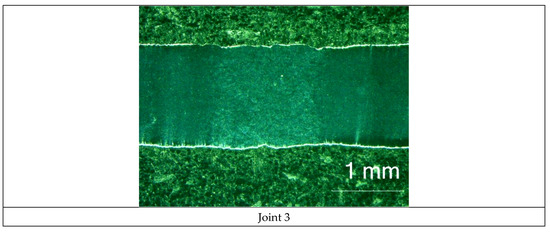

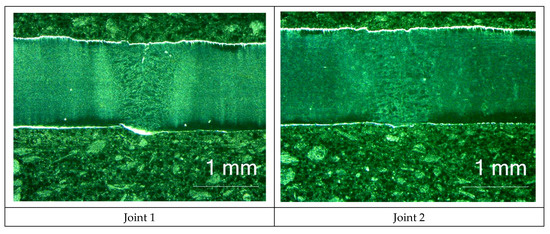

Figure 2. Macrostructure of welded joints.
Figure 2. Macrostructure of welded joints.
Materials 16 00670 g002aMaterials 16 00670 g002b
Materials 16 00670 g003 550

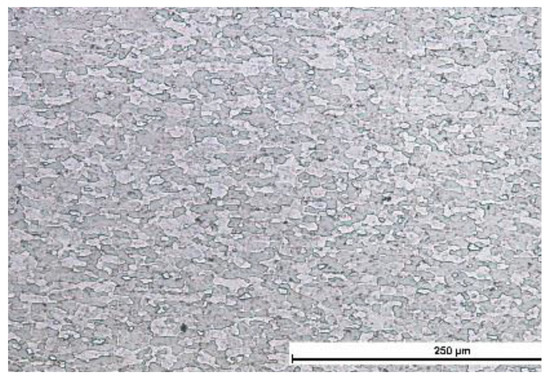

Figure 3. Microstructure of base material.
Figure 3. Microstructure of base material.
Materials 16 00670 g003
Materials 16 00670 g004 550

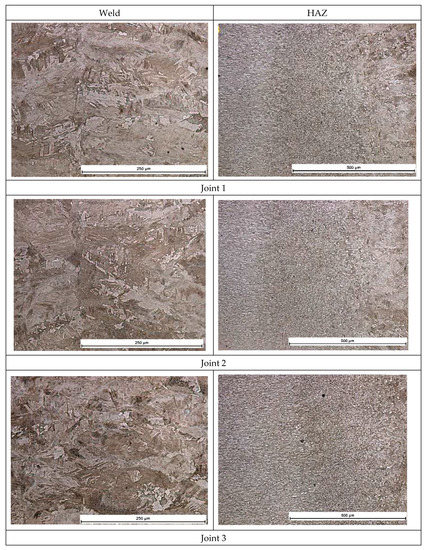

Figure 4. Microstructure of joints made with variable linear welding energy.
Figure 4. Microstructure of joints made with variable linear welding energy.
Materials 16 00670 g004
Materials 16 00670 g005 550

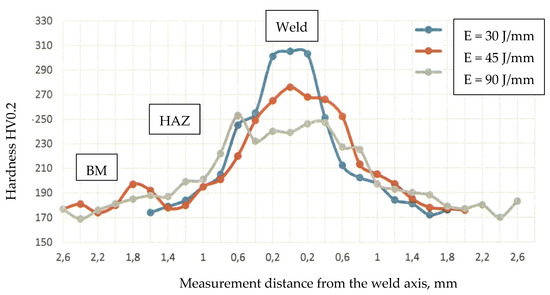

Figure 5. Hardness distribution of welded joints.
Figure 5. Hardness distribution of welded joints.
Materials 16 00670 g005
Materials 16 00670 g006 550

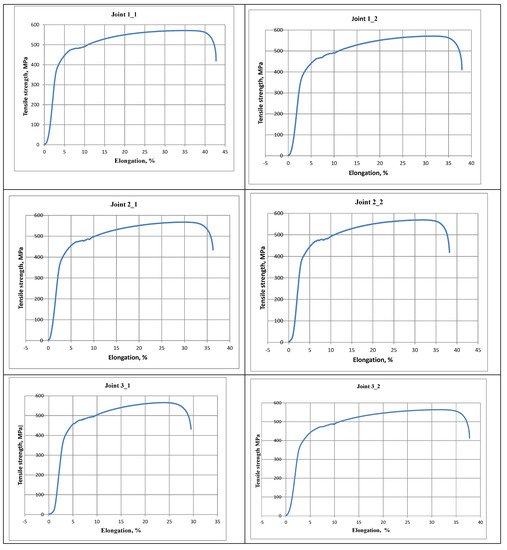

Figure 6. Tensile strength chart.
Figure 6. Tensile strength chart.
Materials 16 00670 g006
Materials 16 00670 g007 550

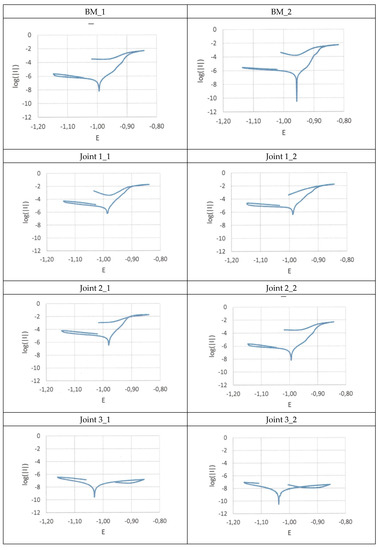

Figure 7. Polarization curves.
Figure 7. Polarization curves.
Materials 16 00670 g007
Materials 16 00670 g008 550

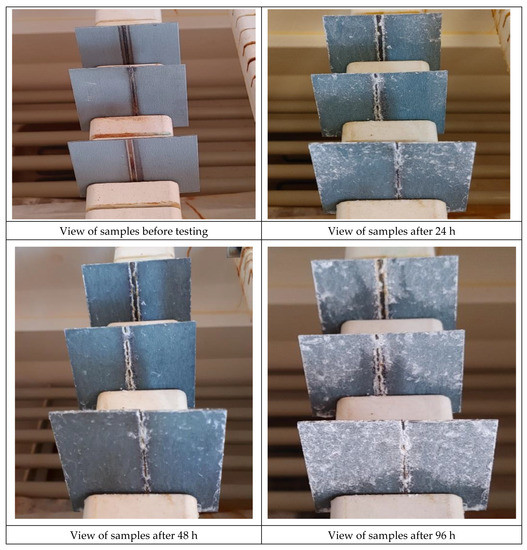

Figure 8. View of the samples during the salt spray test.
Figure 8. View of the samples during the salt spray test.
Materials 16 00670 g008
Materials 16 00670 g009a 550Materials 16 00670 g009b 550

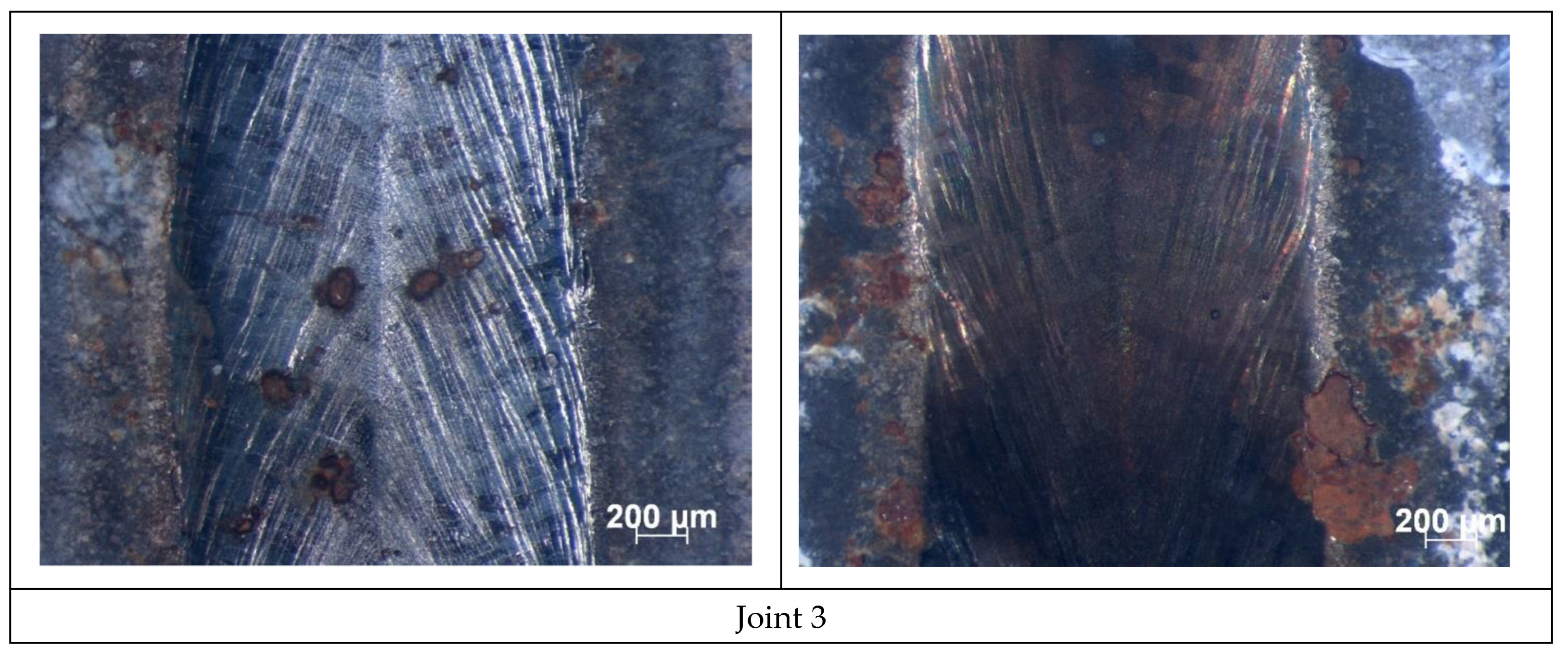

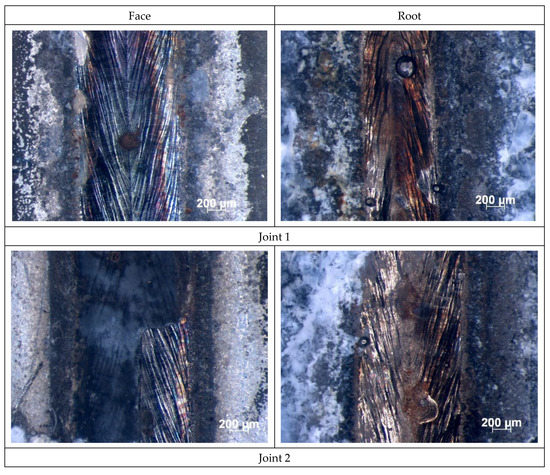

Figure 9. Surface of welded joints after corrosion tests in 5% NaCl solution.
Figure 9. Surface of welded joints after corrosion tests in 5% NaCl solution.
Materials 16 00670 g009aMaterials 16 00670 g009b
Table
Table 1. Chemical composition of the DC04 steel.
Table 1. Chemical composition of the DC04 steel.
Element Concentration, wt %
CPSMn
≤0.080.030.030.40
Table
Table 2. Selected properties of DC04 steel in the tempered state.
Table 2. Selected properties of DC04 steel in the tempered state.
Yield Strength Re, MPaTensile Strength Rm, MPaElongation A80, %Hardness, HV
Min. 460490–59037155–185
Table
Table 3. Parameters of the welding process of test joints.
Table 3. Parameters of the welding process of test joints.
Joint DesignationBeam Power, WWelding Speed V, m/minWelding Line Energy, J/mm
Joint 11500330
Joint 21500245
Joint 31500190
Table
Table 4. Static tensile test results and sample dimensions.
Table 4. Static tensile test results and sample dimensions.
Joint DesignationTensile Strength
Rm, Mpa		Elongation
At, %		Sample Thickness
a0, mm		Sample Width
b0, mm		S0, mm2The Place of the Breakup
Joint 1_1571421.21012BM
Joint 1_2571371.21012BM
Joint 2_1567361.21012BM
Joint 2_2569381.21012BM
Joint 3_1565291.21012BM
Joint 3_2564371.21012BM
Table
Table 5. Corrosion potential measurement results.
Table 5. Corrosion potential measurement results.
Joint DesignationCurrent Density, Icor, A/cm2Corrosion Potential, Ecor, VPolarisation Resistance, Rpol, Ωcm2
BM_15.88212 × 10−8−0.99356262567,636.270
BM_23.83675 × 10−8−0.95698627651,785.238
Joint 1_11.34020 × 10−6−0.9860445682667.442
Joint 1_21.16184 × 10−6−0.9864148182390.899
Joint 2_11.51086 × 10−6−0.9787030741957.343
Joint 2_21,19116 × 10−6−0.9879518112634.453
Joint 3_14.60250 × 10−9−1.0299280001,459,048.000
Joint 3_21.96567 × 10−9−1.0203560002,877,017.000
Table
Table 6. Results of mass loss and mass loss relative to the surface after corrosion tests.
Table 6. Results of mass loss and mass loss relative to the surface after corrosion tests.
Joint 1Joint 2Joint 3
Dimensions, mm60 × 6752 × 6752 × 67
Weight before test, g39.475234.262034.1426
Weight after test, g39.469634.245834.1264
Loss of weight, g0.00560.01620.0162
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Górka, J.; Suder, W.; Kciuk, M.; Stano, S. Assessment of the Laser Beam Welding of Galvanized Car Body Steel with an Additional Organic Protective Layer. Materials 2023, 16, 670. https://doi.org/10.3390/ma16020670

AMA Style

Górka J, Suder W, Kciuk M, Stano S. Assessment of the Laser Beam Welding of Galvanized Car Body Steel with an Additional Organic Protective Layer. Materials. 2023; 16(2):670. https://doi.org/10.3390/ma16020670

Chicago/Turabian Style

Górka, Jacek, Wojciech Suder, Monika Kciuk, and Sebastian Stano. 2023. "Assessment of the Laser Beam Welding of Galvanized Car Body Steel with an Additional Organic Protective Layer" Materials 16, no. 2: 670. https://doi.org/10.3390/ma16020670

APA Style

Górka, J., Suder, W., Kciuk, M., & Stano, S. (2023). Assessment of the Laser Beam Welding of Galvanized Car Body Steel with an Additional Organic Protective Layer. Materials, 16(2), 670. https://doi.org/10.3390/ma16020670

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
