# Effect of Convective Cooling on the Temperature in a Friction System with Functionally Graded Strip

^{*}

## Abstract

**:**

_{2}—Ti-6Al-4V) strip in combination with the cast iron semi-space. The influence of the convective cooling intensity (Biot number) on the temperature field in the considered friction system was investigated. The developed mathematical model allows for a quick estimation of the maximum temperature of systems, in which one of the elements (FGM strip) is heated on the friction surface and cooled by convection on the free surface.

## 1. Introduction

## 2. Statement to the Problem

## 3. Exact Solution

## 4. Some Special Cases of Solution

## 5. Numerical Analysis

_{2}, and on the second component of material the titanium alloy Ti-6Al-4V was selected. Properties of these materials at the initial temperature ${T}_{0}=20\xb0\mathrm{C}$ are given in Table 1. For the same volume fraction of ZrO

_{2}and Ti-6Al-4V, effective specific heat and density of the strip material amounted to ${c}_{1}=495.55\hspace{0.17em}\mathrm{J}\hspace{0.17em}{\mathrm{kg}}^{-1}{\mathrm{K}}^{-1}$ and ${\rho}_{1}=\hspace{0.17em}5266.98\mathrm{kg}\hspace{0.17em}{\mathrm{m}}^{-3}$, respectively. By means of Equation (8), the dimensionless gradient of selected FGM was also established ${\gamma}^{\ast}=1.26$. The rest dimensionless input parameters for the calculations are spatial variable $\zeta $, Fourier number $\tau $ and Biot number $Bi$ (9).

## 6. Conclusions

_{2}—Ti-6Al-4V), sliding against the cast iron half-space (ChNMKh). The following was established:

- (1)
- Applying of FGM for one element of the friction couple (strip) allows for a decrease in the temperature on the contact surface in comparison to the case of the homogeneous strip (zirconium dioxide);
- (2)
- A convective heat exchange with the environment on the free surface of the strip causes a decrease in the temperature on the contact surface at the values of the Biot number $0\le Bi\le 10$. However, the greatest drop in temperature on the free surface of the strip occurs in the range of changes $0\le Bi\le 60$;
- (3)
- Most part of the frictional heat is absorbed by the cast iron semi-space ($\approx 85\%$) in the initial stage of the heating process. With the elapse of the slipping time and the increase in the cooling intensity of the free surface of strip, the amount of heat absorbed by the half-space decreases to 73% for $\tau =1$ and $Bi=100$. The amount of heat directed to the FGM strip increases accordingly;
- (4)
- Obtained asymptotic solutions for small and large values of the Fourier number $\tau $ can be used to quickly estimate the temperature of both elements of the system, with high accuracy. At the same time, the solution for large values of the Fourier number is useful for determining the temperature at any time during the friction heating process at $\tau >0$;
- (5)
- Convective cooling of the FGM strip allows for a reduction in the effective depth of heating, i.e., the distance from the contact surface at which the temperature of each element reaches significant values;
- (6)
- The space–time distribution of isotherms in the strip and semi-space depends on the time profile of the specific friction power. With a constant friction power during sliding, the temperature monotonically increases with the increasing heating time (Fourier number $\tau $). However, in the case of braking with constant deceleration, the temperature of the friction surface reaches its maximum value around half the stopping time ${\tau}_{s}$.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

$Bi$ | Biot number |

$c$ | Specific heat ($\mathrm{J}\hspace{0.17em}{\mathrm{kg}}^{-1}{\mathrm{K}}^{-1}$) |

$d$ | Thickness of the strip ($\mathrm{m}$) |

$f$ | Coefficient of friction |

$h$ | Coefficient of convective heat exchange ($\mathrm{W}\hspace{0.17em}{\mathrm{m}}^{-2}{\mathrm{K}}^{-1}$) |

${\mathrm{I}}_{\mathrm{n}}(\cdot )$ | Modified Bessel functions of the nth order of the first kind |

${\mathrm{J}}_{\mathrm{n}}(\cdot )$ | Bessel functions of the nth order of the first kind |

${\mathrm{K}}_{\mathrm{n}}(\cdot )$ | Modified Bessel functions of the nth order of the second kind |

$k$ | Thermal diffusivity (${\mathrm{m}}^{2}{\mathrm{s}}^{-1}$) |

$K$ | Thermal conductivity ($\mathrm{W}\hspace{0.17em}{\mathrm{m}}^{-1}{\mathrm{K}}^{-1}$) |

$p$ | Parameter of the Laplace integral transform |

${p}_{0}$ | Nominal pressure on the contact surface (Pa) |

$q$ | Specific power of friction ($\mathrm{W}\hspace{0.17em}{\mathrm{m}}^{-2}$) |

${q}_{0}$ | Nominal value of the specific friction power ($\mathrm{W}\hspace{0.17em}{\mathrm{m}}^{-2}$) |

$t$ | Time ($\mathrm{s}$) |

${t}_{s}$ | Stop moment of the process ($\mathrm{s}$) |

$T$ | Temperature (${}^{\circ}\mathrm{C}$) |

${T}_{0}$ | Initial temperature (${}^{\circ}\mathrm{C}$) |

${V}_{0}$ | Sliding velocity ($\mathrm{m}\hspace{0.17em}{\mathrm{s}}^{-1}$) |

${\mathrm{Y}}_{\mathrm{n}}(\cdot )$ | Bessel functions of the nth order of the second kind |

$z$ | Spatial coordinate in axial direction ($\mathrm{m}$) |

${\gamma}^{\ast}$ | Gradient parameter of FGM |

$\mathsf{\Lambda}$ | Temperature rise scaling factor (${}^{\circ}\mathrm{C}$) |

$\epsilon $ | Dimensionless coefficient of thermal activity |

$\Theta $ | Temperature rise (${}^{\circ}\mathrm{C}$) |

${\Theta}^{\ast}$ | Dimensionless temperature rise |

$\rho $ | Density ($\mathrm{kg}\hspace{0.17em}{\mathrm{m}}^{-3}$) |

$\tau $ | Dimensionless time |

${\tau}_{s}$ | Fourier number |

$\zeta $ | Dimensionless spatial coordinate in axial direction |

## References

- Newcomb, T.P. Temperatures reached in disc brakes. J. Mech. Eng. Sci.
**1960**, 2, 167–177. [Google Scholar] [CrossRef] - Day, A.J. Braking of Road Vehicles; Butterworth-Heinemann/Elsevier: Oxford, UK, 2014. [Google Scholar]
- Bauzin, J.G.; Keruzore, N.; Laraqi, N.; Gapin, A.; Diebold, J.F. Identification of the heat flux generated by friction in an aircraft braking system. Int. J. Therm. Sci.
**2018**, 130, 449–456. [Google Scholar] [CrossRef] - Nosko, A.L.; Belyakov, N.S.; Nosko, A.P. Application of the generalized boundary condition to solving thermal friction problems. J. Frict. Wear
**2009**, 30, 455–462. [Google Scholar] [CrossRef] - Carlslaw, H.C.; Jaeger, J.J. Conduction of Heat in Solids, 2nd ed.; Clarendon Press: Oxford, UK, 1959. [Google Scholar]
- Ling, F.F. Surface Mechanics; Wiley: New York, NY, USA, 1973. [Google Scholar]
- Chichinadze, A.V. (Ed.) Polymers in Friction Assemblies of Machines and Devices: A Handbook; Allerton Press Inc.: New York, NY, USA, 1984. [Google Scholar]
- Chichinadze, A.V.; Kozhemyakina, V.D.; Suvorov, A.V. Method of temperature-field calculation in model ring specimens during bilateral friction in multidisk aircraft brakes with the IM-58-T2 new multipurpose friction machine. J. Frict. Wear
**2010**, 31, 23–32. [Google Scholar] [CrossRef] - Yevtushenko, A.A.; Kuciej, M. Temperature in a frictionally-heated ceramic-metal patch and cast iron disc during braking. Numer. Heat Transf. Part A Appl.
**2009**, 56, 97–108. [Google Scholar] [CrossRef] - Yevtushenko, A.A.; Kuciej, M. Influence of convective cooling on the temperature in a frictionally heated strip and foundation. Int. Comm. Heat Mass Trans.
**2009**, 36, 129–136. [Google Scholar] [CrossRef] - Yevtushenko, A.A.; Kuciej, M.; Różniakowska, M. The contact heat transfer between the plane-parallel strip and the semi-infinite foundation. Int. Comm. Heat Mass Trans.
**2009**, 36, 787–793. [Google Scholar] [CrossRef] - Yevtushenko, A.A.; Kuciej, M. Influence of the convective cooling nd the thermal resistance on the temperature of the pad/disc tribosystem. Int. Comm. Heat Mass Trans.
**2010**, 37, 337–342. [Google Scholar] [CrossRef] - Barber, J.R.; Comninou, M. Thermoelastic contact problems. In Thermal Stresses, 3rd ed.; Hetnarsky, R.R., Ed.; Elsevier: Amsterdam, The Netherlands, 1989; pp. 1–105. [Google Scholar]
- Nosko, A.L.; Nosko, A.P. Solution of contact heating problem with account for heat transfer between the friction members. J. Frict. Wear
**2006**, 27, 35–40. [Google Scholar] - Sathish, M.; Radhika, N.; Saleh, B.A. Critical review on functionally graded coatings: Methods, properties, and challenges. Compos. Part B Eng.
**2021**, 225, 109278. [Google Scholar] [CrossRef] - Polajnar, M.; Kalin, M.; Thorbjornsson, I.; Thorgrimsson, J.T.; Valle, N.; Botor-Probierz, A. Friction and wear performance of functionally graded ductile iron for brake pads. Wear
**2017**, 382, 85–94. [Google Scholar] [CrossRef] - Govindaraju, M.; Megalingam, A.; Murugasan, J.; Vignesh, V.R.; Kota, K.P.; Ram, S.A.; Lakshana, P.; Kumar, N.V. Investigations on the tribological behavior of functionally gradient iron-based brake pad material. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci.
**2020**, 234, 2474–2486. [Google Scholar] [CrossRef] - Genao, F.Y.; Kim, J.; Żur, K.K. Nonlinear finite element analysis of temperature-dependent functionally graded porous micro-plates under thermal and mechanical loads. Compos. Struct.
**2021**, 256, 112931. [Google Scholar] [CrossRef] - Mahamood, R.M.; Akinlabi, E.T. Functionally Graded Materials; Springer: Cham, Switzerland, 2017. [Google Scholar]
- Yaghoobi, M.P.; Ghannad, M. An analytical solution for heat conduction of FGM cylinders with varying thickness subjected to non-uniform heat flux using a first-order temperature theory and perturbation technique. Int. Commun. Heat Mass Transf.
**2020**, 116, 104684. [Google Scholar] [CrossRef] - Hosseini, T.P.; Talebi, M. Stress and temperature distribution study in a functionally graded brake disk. Int. J. Automot. Eng.
**2012**, 2, 172–179. [Google Scholar] - Jin, Z.H. An asymptotic solution of temperature field in a strip of a functionally graded material. Int. Commun. Heat Mass Transf.
**2002**, 29, 887–895. [Google Scholar] [CrossRef] - Zhao, J.; Li, Y.; Ai, X. Analysis of transient thermal stress in sandwich plate with functionally graded coatings. Thin Solid Film.
**2008**, 516, 7581–7587. [Google Scholar] [CrossRef] - Delouei, A.A.; Emamian, A.; Karimnejad, S.; Sajjadi, H.; Jing, D. Two-dimensional temperature distribution in FGM sectors with the power-law variation in radial and circumferential directions. J. Therm. Anal. Calorim.
**2021**, 144, 611–621. [Google Scholar] [CrossRef] - Delouei, A.A.; Emamian, A.; Karimnejad, S.; Sajjadi, H.; Jing, D. Asymmetric Conduction in an Infinite Functionally Graded Cylinder: Two-Dimensional Exact Analytical Solution Under General Boundary Conditions. ASME J. Heat Transfer.
**2020**, 142, 044505. [Google Scholar] [CrossRef] - Zhou, J.; Shen, F.; Liu, J.; El-Borgi, S.; Ke, L. Thermoelastic rotating contact of an FGM coating with temperature-dependent and arbitrary varying properties. Sci. China Technol. Sci.
**2023**, 66, 1038–1049. [Google Scholar] [CrossRef] - Fu, P.; Zhao, J.; Zhang, X.; Kang, G.; Wang, P.; Kan, Q. Thermo-mechanically coupled sliding contact shakedown analysis of functionally graded coating-substrate structures. Int. J. Mech. Sci.
**2022**, 222, 107241. [Google Scholar] [CrossRef] - Balci, M.N.; Dag, S. Solution of the dynamic frictional contact problem between a functionally graded coating and a moving cylindrical punch. Int. J. Solids Struct.
**2019**, 161, 267–281. [Google Scholar] [CrossRef] - Shahzamanian, M.M.; Shahrjerdi, A.; Sahari, B.B.; Wu, P.D. Steady-State Thermal Analysis of Functionally Graded Rotating Disks Using Finite Element and Analytical Methods. Materials
**2022**, 15, 5548. [Google Scholar] [CrossRef] [PubMed] - Burlayenko, V.N.; Altenbach, H.; Sadowski, T.; Dimitrova, S.D.; Bhaskar, A. Modelling functionally graded materials in heat transfer and thermal stress analysis by means of graded finite elements. Appl. Math. Model.
**2017**, 45, 422–438. [Google Scholar] [CrossRef] - Liu, J.; Ke, L.L.; Wang, Y.S. Two-dimensional thermoelastic contact problem of functionally graded materials involving frictional heating. Int. J. Solids Struct.
**2011**, 48, 2536–2548. [Google Scholar] [CrossRef] [Green Version] - Liu, J.; Ke, L.; Zhang, C. Axisymmetric thermoelastic contact of an FGM-coated half-space under a rotating punch. Acta Mech.
**2021**, 232, 2361–2378. [Google Scholar] [CrossRef] - Tian, J.H.; Jiang, K. Heat conduction investigation of the functionally graded materials plates with variable gradient parameters under exponential heat source load. Int. J. Heat Mass Trans.
**2018**, 122, 22–30. [Google Scholar] [CrossRef] - Yevtushenko, A.; Topczewska, K.; Zamojski, P. The Effect of Functionally Graded Materials on Temperature during Frictional Heating: Under Uniform Sliding. Materials
**2021**, 14, 4285. [Google Scholar] [CrossRef] - Yevtushenko, A.; Topczewska, K.; Zamojski, P. Use of functionally graded material to decrease maximum temperature of a coating–substrate system. Materials
**2023**, 16, 2265. [Google Scholar] [CrossRef] - Yevtushenko, A.; Topczewska, K.; Zamojski, P. Influence of functionally graded protective coating on the temperature in braking system. Materials
**2023**, 16, 4308. [Google Scholar] [CrossRef] - Mao, J.J.; Ke, L.L.; Yang, J.; Kitipornchai, S.; Wang, Y.S. The coupled thermoelastic instability of FGM coatings with arbitrarily varying properties: In-plane sliding. Acta Mech.
**2018**, 229, 2979–2995. [Google Scholar] [CrossRef] - Alinia, Y.; Espo, M. Sliding contact problem of an FGM coating/substrate system with two-dimensional material property grading. Acta Mech.
**2020**, 231, 649–659. [Google Scholar] [CrossRef] - Sneddon, I.N. The Use of Integral Transforms; McGraw-Hill: New York, NY, USA, 1972. [Google Scholar]
- Abramowitz, M.; Stegun, I. Handbook of Mathematical Functions with Formulas, Graphs, and Mathematical Tables; United States Department of Commerce; National Bureau of Standards (NBS): Washington, DC, USA, 1964. [Google Scholar]
- Bateman, H.; Erdelyi, A. Tables of Integrals Transforms; McGraw-Hill: New York, NY, USA, 1954; Volume 1. [Google Scholar]
- Özis̨ik, N.M. Heat Conduction; John Wiley: New York, NY, USA, 1993. [Google Scholar]
- Piessens, R.; De Doneker-Kapenga, E.; Überhuber, C.W.; Kahaner, D.K. Quadpack: A Subroutine for Automatic Integration; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2012; Volume 1. [Google Scholar]
- Yang, Y.; Wu, B.; Shen, Q.; Xiao, G. Numerical simulation of the frictional heat problem of subway brake discs considering variable friction coefficient and slope track. Eng. Fail. Anal.
**2021**, 130, 105794. [Google Scholar] [CrossRef] - Wang, Z.; Han, J.; Liu, X.; Li, Z.; Yang, Z.; Chen, E. Temperature evolution of the train brake disc during high-speed braking. Adv. Mech. Eng.
**2019**, 11, 1687814018819563. [Google Scholar] [CrossRef] [Green Version]

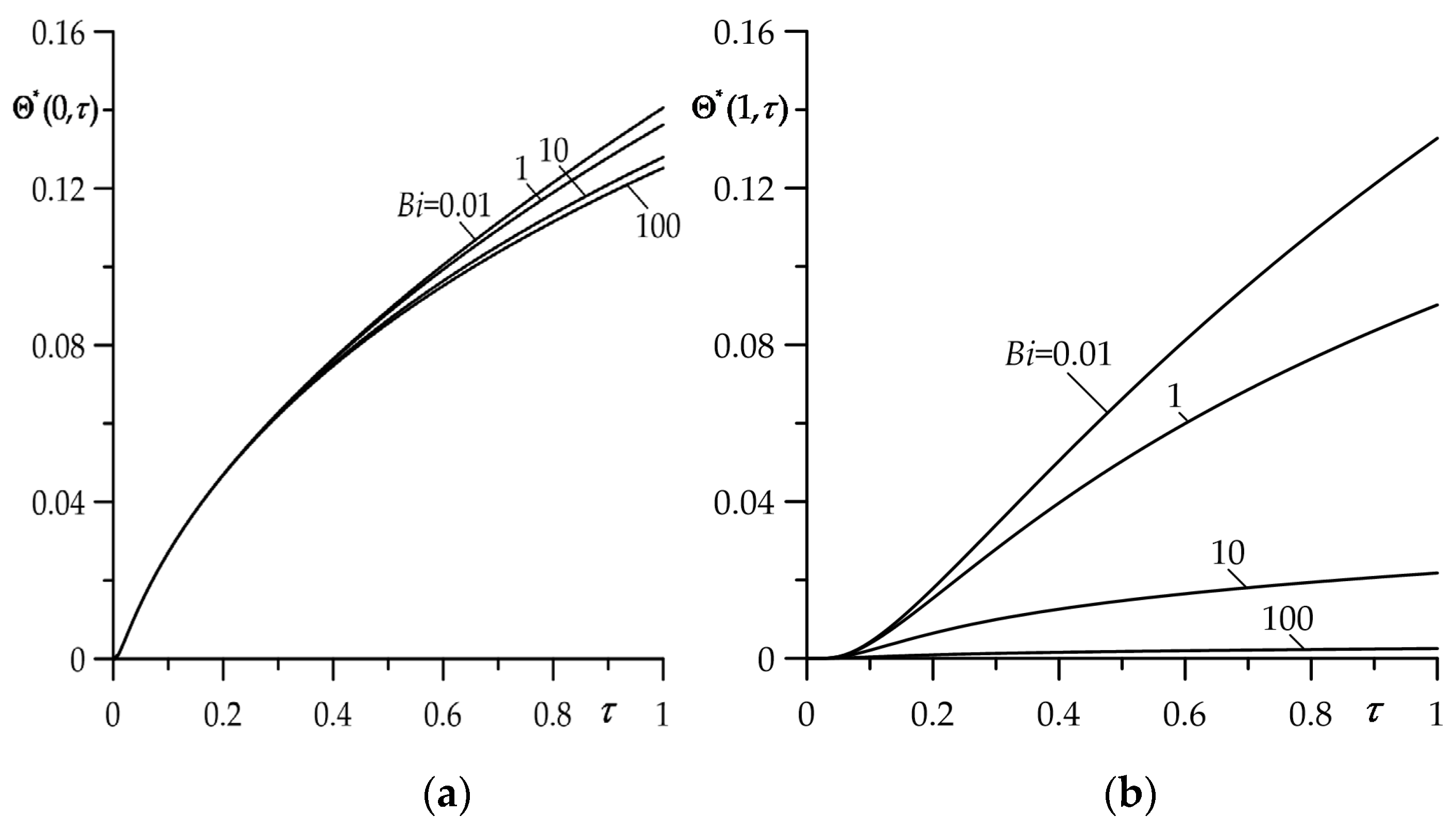

**Figure 2.**Evolutions of dimensionless temperature rise ${\Theta}^{\ast}$ for selected values of Biot number: (

**a**) on the contact surface $\zeta =0$; (

**b**) on the free surface of the strip $\zeta =1$.

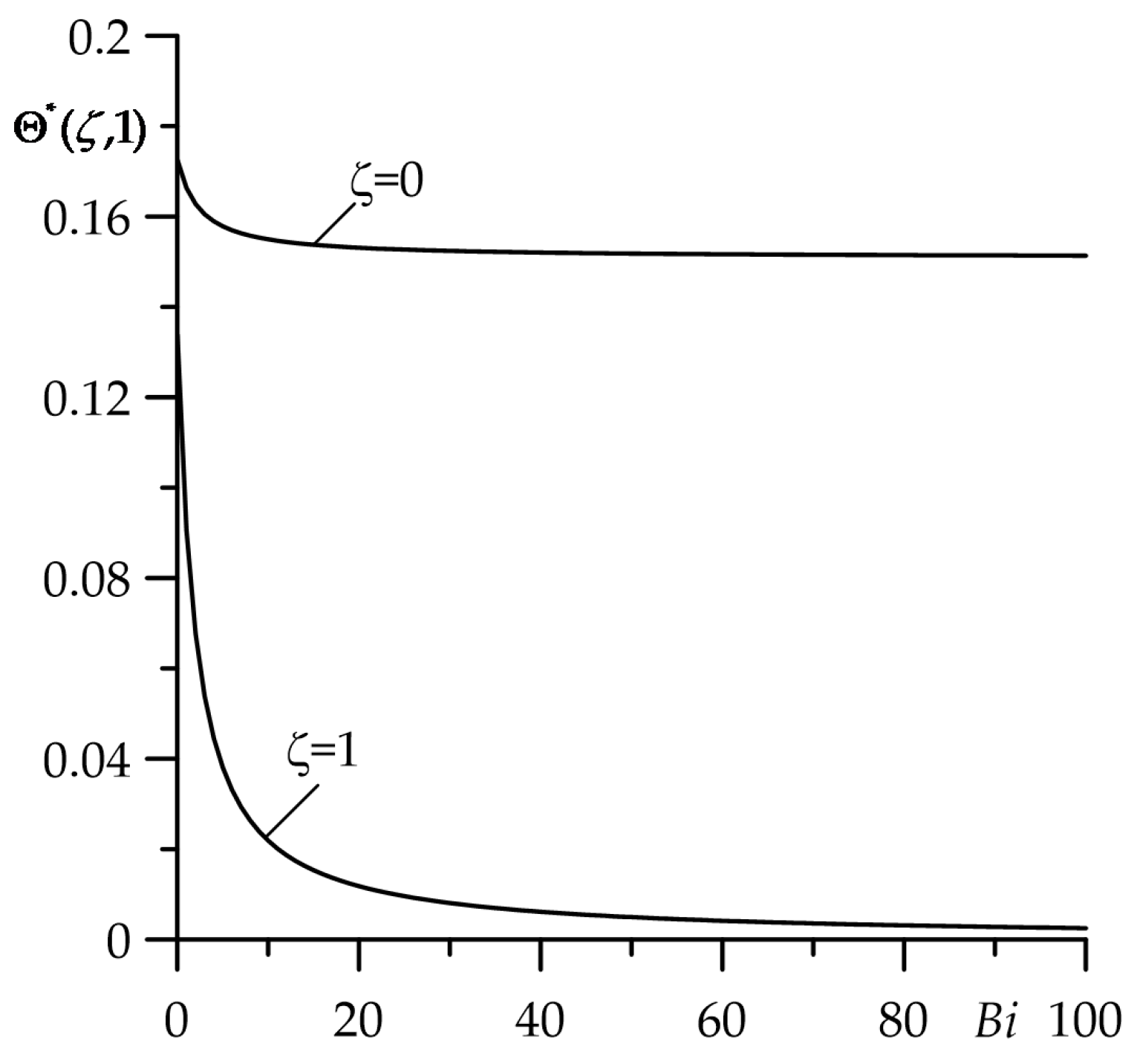

**Figure 3.**Dependence of dimensionless temperature rise ${\Theta}^{\ast}$ on the Biot number $Bi$ on the surfaces $\zeta =0$ and $\zeta =1$ for $\tau =1$.

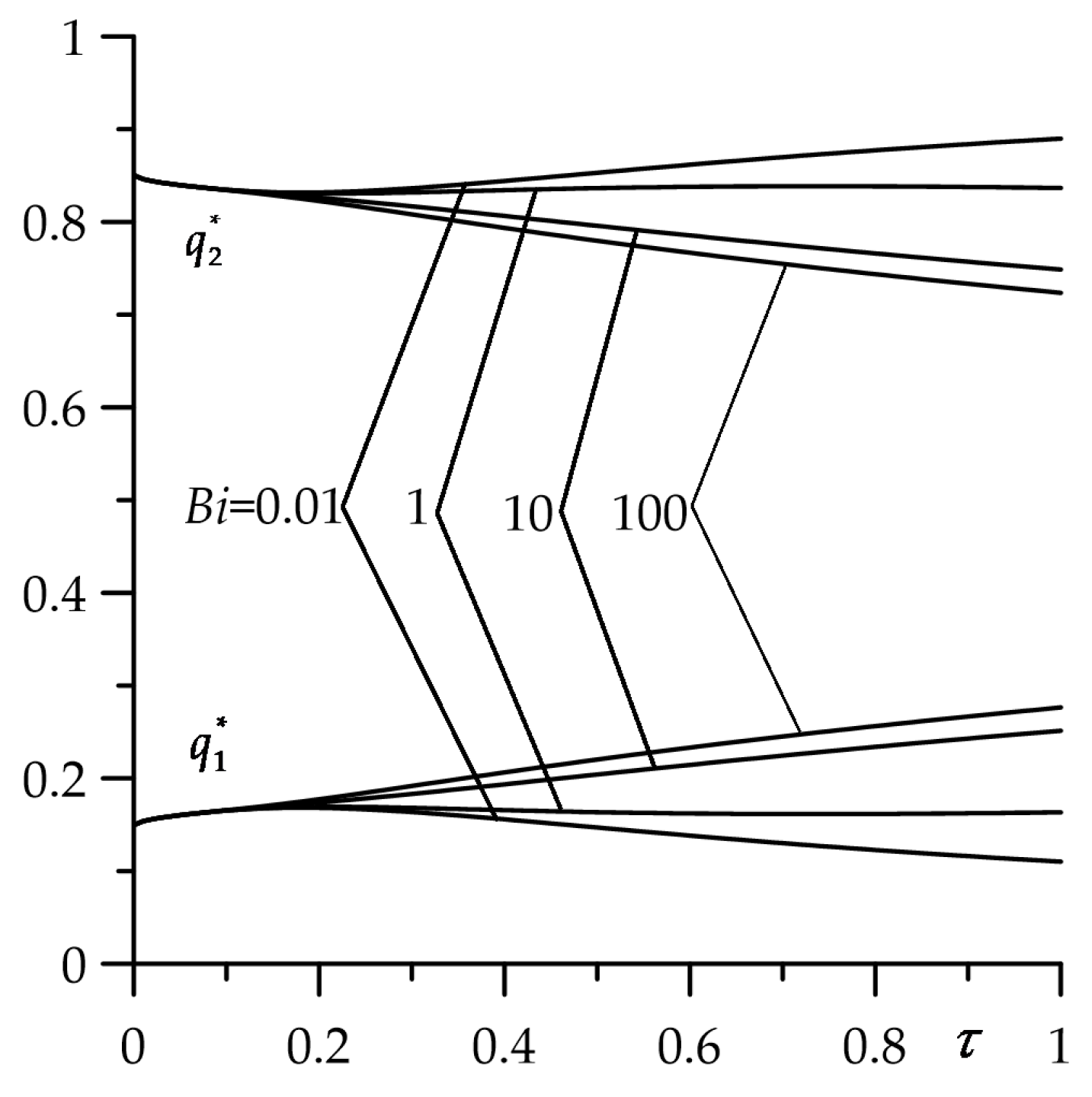

**Figure 4.**Evolutions of dimensionless intensities of a ${q}_{l}^{\ast}(\tau )$ heat fluxes absorbed by FGM strip ($l=1$) and homogeneous half-space ($l=2$) for selected values of the Biot number $Bi$.

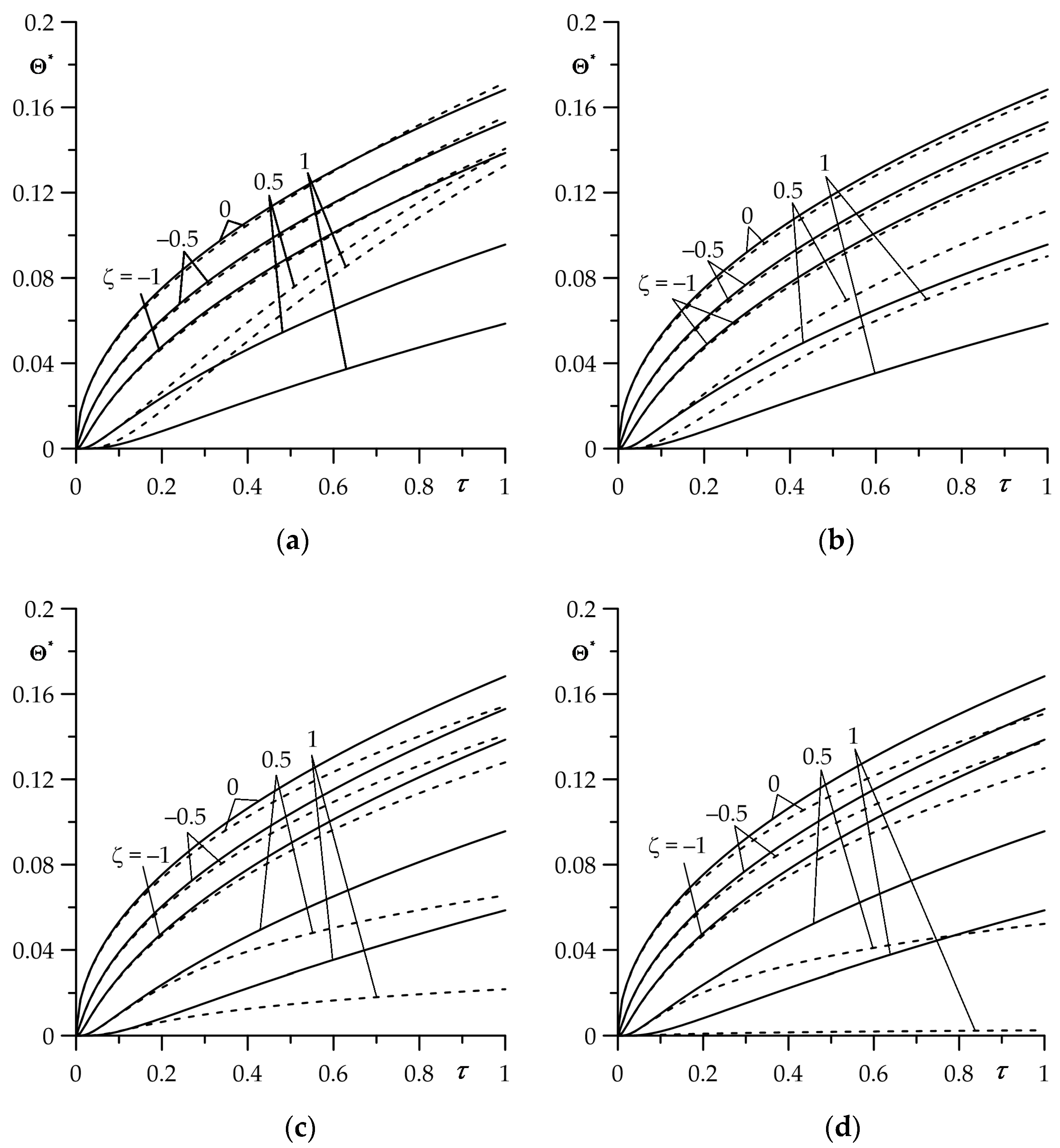

**Figure 5.**Evolutions of dimensionless temperature rise ${\Theta}^{\ast}$ for different values of dimensionless spatial variable $\zeta $ for (

**a**) $Bi=0.01$; (

**b**) $Bi=1$; (

**c**) $Bi=10$; and (

**d**) $Bi=100$. The solid curves are the exact solution (35)–(44), and the dashed curves are the asymptotic solution (64) and (65) for small values of the Fourier number $\tau $.

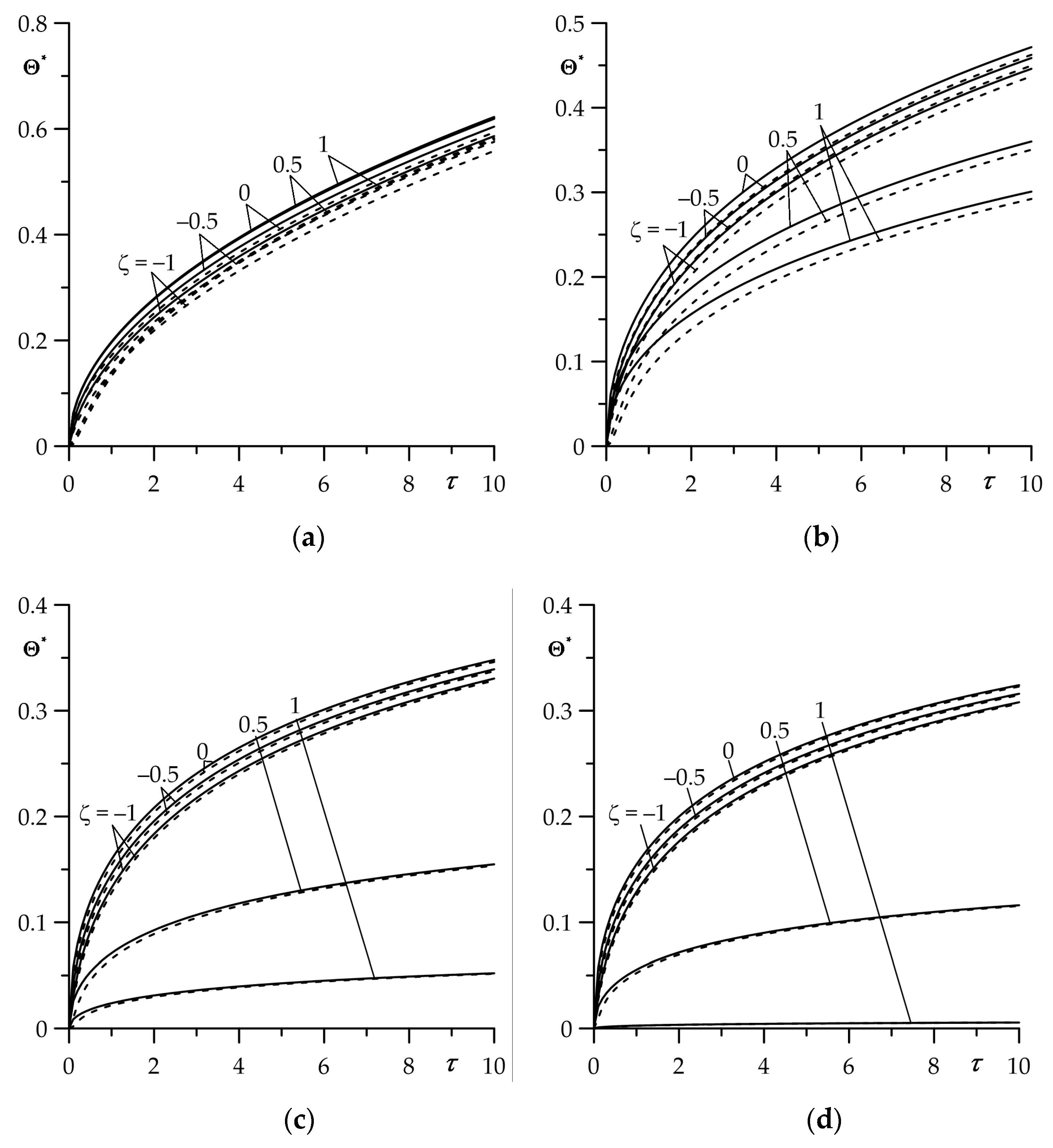

**Figure 6.**Evolutions of dimensionless temperature rise ${\Theta}^{\ast}$ for different values of dimensionless spatial variable $\zeta $ for (

**a**) $Bi=0.01$; (

**b**) $Bi=1$; (

**c**) $Bi=10$; and (

**d**) $Bi=100$. The solid curves are the exact solution(35)–(44), and the dashed curves are the asymptotic solution (74) and (75) for large values of the Fourier number $\tau $.

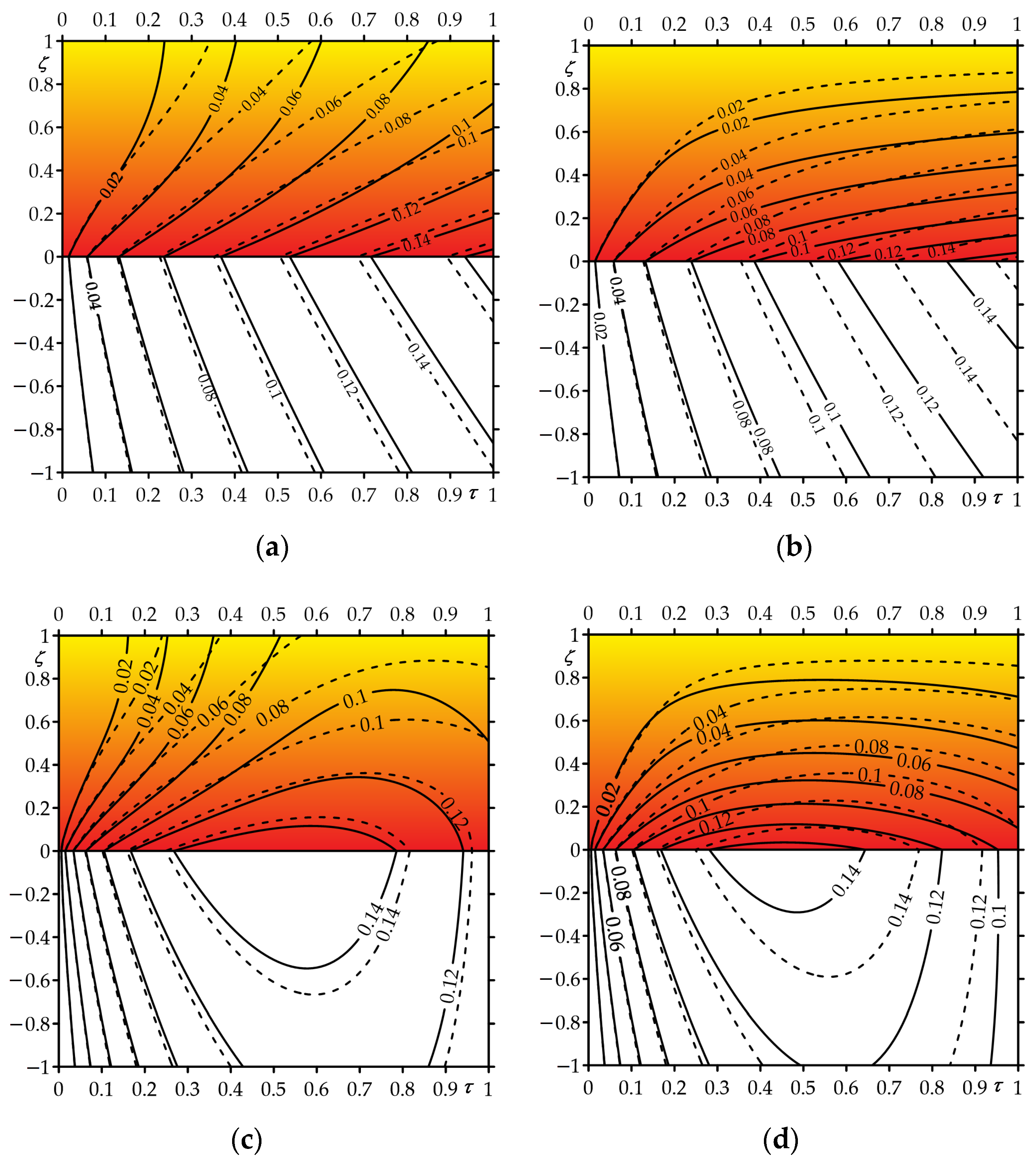

**Figure 7.**Isotherms of dimensionless temperature rise ${\Theta}^{\ast}(\zeta ,\tau )$ during sliding with specific friction surface: (

**a**,

**b**)—constant; (

**c**,

**d**)—linearly increasing in time for (

**a**,

**c**)—$Bi=1$; (

**b**,

**d**)—$Bi=100$. Solid lines—strip made of FGM ZrO

_{2}—Ti-6Al-4V, dashed lines—homogeneous strip made of ZrO

_{2}.

**Table 1.**Materials’ properties [36].

Material | Thermal Conductivity ${\mathbf{Wm}}^{-1}{\mathbf{K}}^{-1}$ | Specific Heat $\mathbf{J}\hspace{0.17em}{\mathbf{kg}}^{-1}{\mathbf{K}}^{-1}$ | Density $\hspace{0.17em}\mathbf{kg}\hspace{0.17em}{\mathbf{m}}^{-3}$ |
---|---|---|---|

ZrO_{2} | ${K}_{1,1}=1.94$ | ${c}_{1,1}=\hspace{0.17em}452.83$ | ${\rho}_{1,1}=\hspace{0.17em}6102.16$ |

Ti-6Al-4V | ${K}_{1,2}=6.87$ | ${c}_{1,2}=\hspace{0.17em}538.08$ | ${\rho}_{1,2}=\hspace{0.17em}4431.79$ |

ChNMKh | ${K}_{2}=52.17$ | ${c}_{2}=\hspace{0.17em}444.6$ | ${\rho}_{2}=\hspace{0.17em}7100$ |
