Hybrid Lime–Pozzolan Geopolymer Systems: Microstructural, Mechanical and Durability Studies

by
Ariel Rey Villca
,
Lourdes Soriano
,
María Victoria Borrachero
*,
Jordi Payá
,
José María Monzó
and
Mauro Mitsuuchi Tashima
Institute of Concrete Science and Technology (ICITECH), Universitat Politècnica de València, 46022 Valencia, Spain
*
Author to whom correspondence should be addressed.
Materials 2022, 15(8), 2736; https://doi.org/10.3390/ma15082736
Submission received: 9 March 2022 / Revised: 3 April 2022 / Accepted: 6 April 2022 / Published: 8 April 2022
(This article belongs to the Special Issue The Durability Characteristics of Advanced Building Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
This work studies the possibility of using geopolymer materials to enhance the mechanical and durability properties of hydrated lime–pozzolan mixtures, which gave rise to the so-called “hybrid systems”. Two different waste types were used as pozzolan in the lime–pozzolan system: rice husk ash (RHA) and spent fluid catalytic cracking (FCC). The geopolymer fabricated with FCC was activated with commercial reagents (NaOH and Na2SiO3), and also with alternative sources of silica to obtain a lower carbon footprint in these mixtures. The alternative silica sources were RHA and residual diatomaceous earth (RDE) from the beer industry. The geopolymer mixture substituted the lime–pozzolan mixture for 30% replacement in weight. The hybrid systems showed better mechanical strengths for the short and medium curing ages in relation to the lime–pozzolan mixtures. Thermogravimetric analyses were performed to characterise the types of products formed in these mixtures. In the durability studies, hybrid systems better performed in freeze–thaw cycles and obtained lower capillarity water absorption values.

1. Introduction

Both the restoration and conservation of cultural heritage must be carried out to ensure compatibility with the original materials, while also meeting certain durability and mechanical strength standards.
The latter is important for those buildings constructed in seismic areas [1]. The heritage of cultures like the Roman one has reached our days, and many of these constructions were made with lime and natural pozzolan [2,3].
In recent decades, many studies have focused on restoring ancient buildings employing mixtures of lime with natural and artificial pozzolans [4,5,6,7]. Fernandez et al. [6] used metakaolin (MK) and natural volcanic material as pozzolans to prepare mortars with hydrated lime and hydraulic lime. They also added nano-TiO2 and perlite to the mixture. These authors concluded that adding nano-TiO2 and perlite produced lower compressive strengths than mortars with only lime and pozzolans but, in turn, the behaviour related to resistance to salts attacks was better.
Despite many publications having studied its properties, using lime–pozzolan mixtures is a less developed research line than the cement–pozzolan mixture. In the present work, two pozzolans for which studies endorse their use were tested: rice husk ash (RHA) and spent fluid catalytic cracking (FCC) residue.
RHA employed as pozzolan in mixtures with lime has been previously studied under different conditions. Pavia et al. [8] studied lime–RHA mixtures in proportions 1:0, 2:1, 1:1, 1:2 and 1:3 with water binder ratios of 0.86, 0.78, 0.70, 0.64 and 0.61, respectively, and at a constant sand/binder ratio of 1.5. They concluded that the 1:3 proportion conferred the mixture higher compressive strength at 28 curing days. This mortar reached 8.66 MPa compressive strength versus 0.86 MPa obtained by the 1:0 mortar for the same curing age. The presence of RHA accelerated setting time and enhanced bulk density. Méndez et al. [9] reported similar or slightly better results than Pavía et al. [8] using lime–RHA ratios of 1:1, 1:2 and 1:3 with constant water:binder and aggregate:binder ratios of 0.8 and 3. At 28 curing days, the authors obtained compressive strength close to 10 MPa for the 1:2 mortar. In all the systems, compressive strength increased with curing age, with 12, 18 and 18 MPa for systems 1:1, 1:2 and 1:3, respectively. Other authors have made mixtures with the RHA, MK and lime combination [10]. The presence of MK develops additional reaction products, such as hydrated gehlenite, which enhances the matrix and increases the absolute density of mixtures. The mortars with a 25% proportion of MK and 75% RHA and a 3:1 pozzolan:lime ratio obtained a compressive strength of 19 MPa at 28 curing days.
Arizzi and Cultrone [11] compared FCC and MK in lime–pozzolan mixtures. These authors substituted lime for MK and FCC at different percentages (10%, 15% and 20% per weight). The higher compressive strength of the mortars cured at 28 days was obtained for the mortar with 20% MK (9.12 MPa) versus the mortar with the same quantity of FCC, which only achieved 3.34 MPa. The authors established that the bigger FCC particle size was the reason for this pozzolan’s lower reactivity (the particle size of half the FCC volume went from 10 to 250 µm). García et al. [12] obtained better results by employing lime and FCC mixtures: the use of FCC was compared to RHA, but with a different lime:pozzolan proportion, with 1:1 for FCC and 1:3 for RHA. At 28 curing days, the mortar with FCC gave 10 MPa compressive strength and the RHA mortar achieved 8 MPa.
Other monuments that have remained in perfect condition throughout history, whose construction has aroused interest, are the pyramids of Egypt. Davidovits is the creator of the term “geopolymer”, and bases much of his research on the theory that the binder of these pyramids is mainly a mixture of natron, crushed limestone, clay, lime and water [13]. By applying this theory, Arcones et al. [14] conducted research using sodium carbonate, lime and MK as a binder material. The authors prepared two batches of mixtures in a constant proportion of 60% sand and 40% binder. In batch A, the water:binder ratio was 0.75 and the lime proportions were 5% and 10% substitutions of sodium carbonate and MK, respectively. In batch B, the water:binder ratio was 1.00 and the lime substitution percentages were 30%, 60% and 100%. The alkalinity of mixtures was limited and, consequently, the highest compressive strengths obtained for the mortars with 10% and 30% lime were around 8 MPa. Microstructural studies have demonstrated that the presence of lime in the binder promotes the formation of geopolymeric structures with the formation of N-A-S-H and N-(C)-A-S-H and the co-existence of C-S-H.
Using lime in alkaline activation mixtures has been explored in many research works. In the majority of them, the use of lime is limited to quantities between 1 and 20%, but normally at <10% [15,16,17,18,19]. Chakraborty et al. [15] used sewage sludge ash (SSA), quick lime and blast furnace slag (BFS) as precursors activated with NaOH. The best combination yielded a compressive strength of 31.3 MPa at 28 curing days with the mixture formed by 70% SSA, 20% quick lime and 10% BFS. Aziz et al. [16] activated natural pozzolan with lime (4–12% pozzolan replacement), and employed a mixture of NaOH and sodium silicate as an activator. Das et al. [17] studied the use of fly ash, silica fume and lime. All the papers generally demonstrated that limited quantities of lime enhance mechanical strength and shorten setting times.
This study proposes employing alternative geopolymeric materials (based on alternative silica sources such as RHA and RDE [20,21,22]) to enhance the early -mechanical strength of lime–pozzolan mixture throughout a new hybrid lime–pozzolan–geopolymer on the formation of hydrated-products in hybrid system. In the same way, durability aspects such as freeze–thaw cycles and capillarity water absorption were assessed.

2. Materials and Methods

Hydrated lime CL90-S (according to UNE-EN 459-1 [23]) was used to prepare mortars and pastes (supplied by Cales Pascual, Paterna, Spain). Siliceous sand with a fineness modulus of 4.1 was employed to produce mortars. NaOH pellets (98% purity, from Panreac S.L.U, Barcelona, Spain) and commercial Na2SiO3 (8% Na2O, 28% SiO2 and 64% H2O, from Merck S.L.U, Barcelona, Spain) were utilised to prepare alkaline-activating solutions.
This study employed: spent FCC residue, supplied by BP Oil España S.A.U (Grao de Castellón, Spain); RHA from Dacsa S.A (Tabernes Blanques, Spain); RDE, which came from Heineken España (Quart de Poblet, Spain). The chemical compositions of these materials are shown in Table 1.
These materials’ particle size distributions, as determined by a laser dispersion analysis, are depicted in Figure 1. FCC and RHA were previously milled in an industrial ball mill and respectively yielded a mean particle diameter of 17.12 μm and 20.30 μm. RDE was oven-dried at 105 °C for 24 h to remove moisture before using it. This material’s mean particle diameter was 46.40 μm.
Figure 2 shows some FESEM micrographs of the assessed materials. For FCC and RHA (Figure 2a,b, respectively), homogeneous powder material is observed due to the milling process. For RDE (Figure 2c), the typical skeletons of diatoms (microalgae) with a microporous structure are detected.

Experimental Procedure

Table 2 summarises the mix proportions of the assessed mortars. All the mortars were produced at a set sand:binder ratio of 3. For traditional mortars (containing only lime and pozzolan), the binder is considered the sum of lime and pozzolan. For hybrid mortars, the binder is composed of 30 wt.% of FCC (precursor of the geopolymeric binder), and 70 wt.% of the binder is used for traditional mortars (lime–pozzolan mixture). This dosage was proposed in view of previous results obtained by the research group. In Table 2, the mix proportion of the assessed mortars is separately presented (lime–pozzolan binder and geopolymeric binder) to help to understand the mix proportions of hybrid systems.
The geopolymeric binder was produced using two different alkaline activating solutions: the first with commercial reagents (NaOH and Na2SiO3), and the second with alternative alkaline-activating solutions based on NaOH and alternative silica sources (RHA or RDE). All the activating solutions were prepared at a SiO2/Na2O molar ratio of 1.17, a water:binder ratio of 0.6 and 1.69 mol of Na2O per kg of precursor [24].
Otherwise, the lime–pozzolan proportions employed for the traditional mortars were set according to previously performed studies: a water:binder ratio of 0.8, and a lime/pozzolan proportion of 1:1 for lime:FCC and one of 1:2 for lime:RHA [9,12].
The nomenclature assigned to the traditional mixtures based on lime–pozzolan is “T-X”, where “T” indicates a traditional mixture and “X” is related to the used pozzolan: “FCC” or “RHA”. For hybrid systems, the adopted nomenclature is H-X/Y, where “H” indicates hybrid systems, “X” is related to the pozzolan used in the previously explained traditional mixture (lime–pozzolan) and “Y” denotes the type of alkaline-activating solution: “C“ stands for commercial solution (NaOH and Na2SiO3), “RHA” for an alternative solution using RHA as the alternative silica source and “RDE” for an alternative solution employing RDE as an alternative silica source. For example, a mortar named H-FCC/RHA represents a hybrid mortar using 70 wt.% of lime–FCC (from the traditional mortar) and 30 wt.% of FCC (a precursor of a geopolymeric binder) activated with an alternative alkaline-activating solution based on RHA.
Similarly, pastes with similar proportions (without sand), and cured under the same conditions, were prepared according to the microstructural analysis.
A universal test machine was used for the compressive strength tests of the cubic specimens (4 × 4 × 4 cm3) for 3, 7, 28 and 90 curing days. The TGA in pastes was carried out for 3, 28 and 90 curing days by TGA 850 Mettler-Toledo equipment. Experiments were performed at a heating rate of 10°C min−1 from 50 °C to 600 °C in a nitrogen atmosphere using pin-holed aluminium-sealed crucibles. The microstructure of the selected pastes was assessed by field emission electron microscopy (FESEM). Images were taken at 2kV and samples were previously carbon coated.
Prismatic specimens (4 × 4 × 16 cm3; cured for 90 days) were used for the durability tests. The capillarity water absorption coefficient (CWAC) was determined following the procedure described in UNE-EN 1015-18 [25]. The freeze–thaw test was run in a climate chamber following the recommendations adapted from UNE-EN 12,371 [26]. Thirty 6 h freeze–thaw cycles were performed, where freeze comprised 4 h (1 h at −10 °C and 3 h at −15 °C), and thaw comprised 2 h at 20 °C.

3. Results

3.1. Compressive Strength

The compressive strength development of all the assessed mixtures is depicted in Figure 3. The mechanical development of the T-FCC mortars is shown in Figure 3a. Compressive strengths of about 10 MPa and 15 MPa were achieved after 28 and 90 curing days, respectively. The T-RHA mortars underwent (Figure 3b) very slow mechanical development, and yielded about 12.5 MPa after 90 curing days. These results agree with the literature [12] and demonstrate the effectiveness of FCC compared to RHA mainly for the first 28 curing days.
The positive effect of hybrid systems versus traditional mixtures was evident. After 3 curing days, all the hybrid mixtures yielded similar or even higher compressive strength values than traditional mixtures (lime–pozzolan) after 90 curing days regardless of the employed pozzolan type.
Properties were enhanced for the hybrid binders containing lime–FCC. After comparing the effect of the alkaline-activating solution on the compressive strength of the H-FCC/Y systems, the RHA employed as an alternative silica source gave better results than RDE and the commercial reagents. Moreover, the hybrid mortars prepared using RDE as an alternative silica source yielded a similar compressive strength to the hybrid systems using commercial reagents for 3–28 curing days. These results are very interesting from an environmental point of view because of the high carbon footprint associated with Na2SiO3 reagent production [27]. The effect of the alternative silica source on geopolymeric systems has been reported in the literature. According to this study, RHA led to more enhanced compressive strength than RDE [21].
For the H-RHA/Y systems, a similar trend was observed independently of the type of alkaline-activating solution: commercial reagents, RHA and RDE as alternative silica sources. The maximum compressive strength (about 20 MPa) was achieved after 90 curing days for H-RHA/C. The fact that the results were similar was probably due to the smaller amount of amorphous Al2O3 employed in mixtures to form C-(N)-A-S-H gels.
The geopolymeric binder generally improved the compressive strength for the proposed hybrid systems, which obtained good values at 3–7 curing days. This fact could contribute to the large-scale application of these new hybrid binders to the conservation and restoration of cultural heritage.
In view of the results obtained, we can assume that another possible application of these mortars could be in the manufacture of simple prefabricated elements such as curbs, tiles, pavers, etc.

3.2. Durability Studies in Mortars

3.2.1. Freeze-Thaw Cycles

All the specimens were water saturated for 24 h and then weighed under dry-surface-saturated (SSD) conditions before the freeze–thaw cycles. Specimens were measured after the 6th and 30th freeze–thaw cycles to make comparisons to the initial values (0 cycles). Figure 4 depicts mass variation (%) in relation to the initial mass of specimens after the 6th and 30th freeze–thaw cycles.
All the assessed systems presented incremented mass for the 6th freeze–thaw cycle vs. the initial mass to yield up to 12%. This was probably due to the entrained water in cracks/microcracks caused by water volume variation [28,29]. After the 30th freeze–thaw cycle, some specimens presented less mass variation than the samples after the 6th freeze–thaw cycle. This behaviour was evidenced by the reduced dimensions in the corners of some specimens (sample H-FCC/C), as Figure 5 illustrates Nevertheless, in most cases no significant mass variation occurred from the 6th to the 30th cycle, which indicates these specimens’ good stability.
Figure 6 represents the percentage of loss in compressive and flexural strengths. As we can see, flexural strength was affected more by freeze–thaw cycles than compressive strength. The percentages of loss mass in flexural strength for all the mortars were higher than 50%. Hybrid systems did not present enhanced behaviour compared to traditional systems.
The values of the flexural and compressive strengths of the mortars after the cycles are represented in Figure 7.
Compressive strength was less affected, and all the loss percentages were below 50%. Once again, hybrid systems achieved similar losses to traditional lime–pozzolan systems. No significant differences were found for using RHA or FCC. For comparison purposes, T-FCC yielded 10.22 MPa in compressive strength after 30 cycles, whereas H-FCC/RHA and H-FCC/RDE yielded 16.43 and 16.46 MPa, respectively. This finding means that the mechanical properties for the hybrid systems after the freeze–thaw cycles were significantly better than for the traditional hydrated lime–based system. Similarly to RHA, T-RHA had 6.92 MPa compressive strength after 30 cycles, whereas the corresponding hybrid systems with RHA and RDE obtained 12.04 MPa and 11.95 MPa.
The good behaviour found indicates that these mixtures would be suitable for applications in aggressive freeze–thaw environments.

3.2.2. Capillary Water Absorption

Capillary water absorption is directly related to pore structure characteristics: size, pore shape, connectivity, among other factors [30]. An inverse relation between the capillary water absorption coefficient and compressive strength has been reported by several authors [31,32].
Figure 8 represents the capillary water absorption coefficient (CWAC) values of all the assessed systems.
As the results of the resistances revealed, the influence of using a setting accelerator had positive effects during the first 24 h of curing. At 28 curing days, both resistances came very close to the results of the mortars without the setting accelerator.
Throughout the entire series, the lime–pozzolan mixture values were higher than those of their respective hybrid mortars containing geopolymer. Lime–RHA was the mortar with the highest CWAC value. The CWAC values in the lime and lime–pozzolan mortars obtained by Veiga et al. [33] were 1.1–1.6 kg/(m2min0.5). For example, the value of the mortar with MK was 1.4 kg/(m2min0.5). These values are consistent with those obtained in the present work.
Figure 9 includes a comparison to corroborate this inverse relation between CWAC and compressive strength. Except for the CWAC value of 1.85 obtained by the lime–RHA mortar, we observe that the higher the compressive strength values are, the lower the obtained CWAC values.

3.3. Studies in Pastes

Thermogravimetric Analysis

Figure 10 presents the DTG curves for all the pastes at 3, 28 and 90 curing days. This figure also shows the lime–FCC paste in which four peaks are highlighted. Zone 1 (100–180 °C) is associated with loss of the combined water associated with calcium silicate hydrates (C-S-H). Zone 2 (180–240 °C) and Zone 3 (240–300 °C) are attributed to loss of combined water from calcium aluminate hydrates (C-A-H) and calcium aluminosilicate hydrates (C-A-S-H). Finally, Zone 4 (500–600 °C) is attributed to loss of water from the decomposition of hydrated lime [34]. The most developed area in the lime–FCC paste is associated with the formation of C-A-H and C-A-S-H because of the high pozzolan content. Unreacted hydrated lime was present in pastes until 28 curing days. At 90 days, the pozzolanic reaction had completely consumed all the lime. When geopolymer was added, the DTG of this hybrid paste differed from the lime–FCC paste. As depicted in Figure 10b–d, Zone 4 is attributed to the presence of lime, which disappeared after 3 curing days. The DTG curves of all the pastes fabricated with the commercial and alternative silica sources looked alike. In these pastes, the most developed peak changed to temperatures around 100–180 °C. Within this range, geopolymeric gels (N-A-S-H and N(C)-A-S-H) also lost combined water similarly to C-S-H. The N-A-S-H gel was produced by the reaction of Al2O3/SiO2 from FCC by alkaline activation [35]. In a paste in which a geopolymeric reaction takes place, the presence of calcium leads to N(C)-A-S-H formation [36].
It seemed evident that the geopolymeric reaction predominated when the geopolymeric binder was added to the binary lime–FCC system, and the presence of an alkaline activator promoted the formation of new products. These data agree with those obtained by other authors who confirmed in MK/lime pastes with a higher concentration of hydroxides (high alkalinity) that geopolymeric gel predominated over pozzolanic products, which became secondary products [37,38]. Regarding the conversion of N-A-S-H gels into C(N)-A-S-H, García-Lodeiro et al. [36] pointed out that, depending on the amount of calcium, total conversion into C-A-S-H gel could occur.
Figure 11a presents the DTG curves for the lime–RHA system. For these pastes, peaks only appeared in Zones 1 and 4, and the peak in Zone 4 was only visible at 3 curing days. This behaviour was because the quantity of lime was smaller than in that of the pastes with FCC. The principal product to form during the pozzolanic reaction was C-S-H [10]. In the hybrid pastes, the main peak was observed in Zone 1. Within this range, water loss from C-S-H, N-A-S-H and C(N)-A-S-H decomposition took place, and this technique did not allow them to be distinguished from one another.

4. Conclusions

The present research work demonstrates the viability of using various waste types from different sources as construction material. Hybrid mortars can be employed as restoration materials with better mechanical performance than pozzolan–lime mortars. We conclude that:
-
The hybrid binder improves compressive strength and yields good values at 3–7 curing days.
-
The systems with alternative silica sources obtain similar results to commercial reagents. This is a very important goal for achieving more environmentally friendly systems.
-
The CWAC values of the hybrid systems are lower than those of their respective traditional systems. This behaviour is positive in durability terms.
-
The mechanical properties after the freeze–thaw cycles for the hybrid systems are significantly better than for the traditional hydrated lime-based system.
-
The TGA performed with the cured pastes shows that the nature of cementing gels changes with the presence of geopolymeric binders, and the consumption of hydrated lime is completed at early curing ages because of C(N)-A-S-H gel formation.

Author Contributions

Conceptualisation, M.V.B. and L.S.; methodology, A.R.V., L.S.; formal analysis, A.R.V., L.S., J.P.; investigation, A.R.V., L.S., J.M.M. and M.M.T.; resources, M.V.B. and J.P.; writing—original draft preparation, L.S. and M.M.T.; writing—review and editing, J.P., J.M.M., M.M.T., L.S. and M.V.B.; supervision, J.P., L.S. and M.V.B.; project administration J.M.M.; funding acquisition, J.M.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research forms part of a project supported by MINECO and FEDER funds (ECOSOST RTI2018-097612-B-C21-AR).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The authors are grateful to not only Dacsa Group S.A., BP Oil España S.A.U. and Heineken España, but also to the technicians of the Electron Microscopy Service of the Universitat Politècnica de València. Finally, M.M. Tashima wishes to thank the Spanish Ministry of Universities and the Universitat Politècnica de València for the grant “María Zambrano for attraction of international talent”, funded by European Union—Next Generation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Monaco, M.; Aurilio, M.; Tafuro, A.; Guadagnoulo, M. Sustainable mortars for application in the cultural heritage field. Materials 2021, 14, 598. [Google Scholar] [CrossRef] [PubMed]
  2. Silva, D.A.; Wenk, H.R.; Monteiro, P.J. Comparative investigation of mortars from Roman Colosseum and cistern. Thermochim. Acta 2005, 438, 35–40. [Google Scholar] [CrossRef]
  3. Izzo, F.; Arizzi, A.; Cappelletti, P.; Cultrone, G.; De Bonis, A.; Geminario, C.; Graziano, S.F.; Grifa, C.; Guarino, V.; Mercurio, M.; et al. The art of building in the Roman period (89 B.C-79 A.D): Mortars plasters and mosaic floors from ancient Stabiae (Naples, Italy). Constr. Build. Mater. 2016, 117, 129–143. [Google Scholar] [CrossRef]
  4. Matias, G.; Faria, P.; Torres, I. Lime mortars with ceramic wastes: Characterization of components and their influence on the mechanical behaviour. Constr. Build. Mater. 2014, 73, 523–534. [Google Scholar] [CrossRef]
  5. Vejmelková, E.; Keppert, M.; Rovnanìková, P.; Keršner, Z.; Černý, R. Application of burnt clay shale as pozzolan addition to lime mortar. Cem. Concr. Compos. 2014, 73, 523–534. [Google Scholar] [CrossRef]
  6. Fernández, F.; Germinario, S.; Basile, R.; Kapetanaki, K.; Gobakis, K.; Lolokotsa, D.; Lagou, A.M.; Dania, P.; Enna, M.T.; Mangiapane, M.; et al. Development of eco-friendly and self-cleaning lime-pozzolan plasters for bio-construction and cultural heritage. Buildings 2020, 10, 172. [Google Scholar] [CrossRef]
  7. Aggelakopoulou, E.; Bakolas, A.; Moropoulou, A. Design and evaluation of concrete for restoration interventions on Byzantine monuments. J. Cult. Herit. 2014, 73, 523–534. [Google Scholar] [CrossRef]
  8. Pavía, S.; Walker, R.; Veale, P.; Wood, A. Impact of the properties and reactivity of rice husk as on lime mortar properties. J. Mater. Civ. Eng. 2014, 26, 04014066. [Google Scholar] [CrossRef]
  9. Méndez, R.; Borrachero, M.V.; Payá, J.; Monzó, J. Mechanical strength of lime-rice husk ash mortars: A preliminary study. Key Eng. Mater. 2012, 517, 495–499. [Google Scholar] [CrossRef]
  10. Billong, N.; Melo, U.C.; Kamseu, E.; Kinuthia, J.M.; Njopwouo, D. Improving hydraulic properties of lime-rice hush ash (RHA) binders with metakaolin (MK). Constr. Build. Mater. 2011, 25, 2157–2161. [Google Scholar] [CrossRef]
  11. Arizzi, A.; Cultrone, G. Comparing the pozzolanic activity of aerial lime mortars made with metakaolin and fluid catalytic cracking catalyst residue: A petrographic and physical-mechanical study. Constr. Build. Mater. 2018, 184, 382–390. [Google Scholar] [CrossRef]
  12. García, J.; Borrachero, M.V.; Payá, J.; Monzó, J. Reutilización de ceniza de cascarilla de arroz y residuo de catalizador de craqueo catalítico de bajo coste económico y medioambiental. In Proceedings of the 6th Amazon & Pacific Green Materials Congress and Sustainable Construction Materials, Cali, Colombia, 27–29 April 2016; ISBN 9585954400/9789585954403. (In Spanish). [Google Scholar]
  13. Davidovits, J.; Morris, M. Why the Pharaohs Built the Pyramids with Fake Stones; Geopolymer Institute: Saint-Quentin, France, 2009; ISBN 9782951482043. [Google Scholar]
  14. Arcones, G.; Hernández, F.; Sepulcre, A. Comparative properties of a lime mortar with different metakaolin and natron additions. Constr. Build. Mater. 2016, 114, 747–754. [Google Scholar] [CrossRef]
  15. Chakraborty, S.; Wan, B.; Ho, J.; Baloch, Z. Effectiveness of sewage sludge ash combined with waste pozzolanic minerals in developing sustainable construction material: An alternative approach for waste management. J. Clean. Prod. 2017, 153, 253–263. [Google Scholar] [CrossRef]
  16. Aziz, A.; El Hassani, I.; El Khadiri, A.; Sadik, C.; El Bouari, A.; Ballil, A.; El Haddar, A. Effect of slaked lime on geopolymers synthesis of natural pozzolan from Moroccan middle atlas. J. Aust. Ceram. 2020, 56, 67–78. [Google Scholar] [CrossRef]
  17. Das, S.K.; Mustakim, S.M.; Adesina, A.; Mishra, J.; Alomayri, T.S.; Assaedi, H.S.; Kaze, C.R. Fresh, strength and microstructure properties of geopolymer concrete incorporating lime and silica fume as replacement. J. Build. Eng. 2020, 32, 101780. [Google Scholar] [CrossRef]
  18. Huang, G.; Ji, Y.; Li, J.; Hou, Z.; Dong, Z. Improving strength of calcinated coal gangue geopolymer mortars via increasing calcium content. Constr. Build. Mater. 2018, 166, 760–768. [Google Scholar] [CrossRef]
  19. Arham, A.; Hayati, N.; Wayan, I.; Rupang, N. The effect of lime addition on the setting time and strength of ambient cured fly ash based geopolymer binder. MATEC Web Conf. 2016, 47, 01015. [Google Scholar] [CrossRef]
  20. Villaquirán-Caicedo, M.A. Studying different silica sources for preparation of alternative waterglass used in preparation of binary geopolymer binders from metakaolin/boiler slag. Constr. Build. Mat. 2019, 227, 116621. [Google Scholar] [CrossRef]
  21. Font, A.; Soriano, L.; Reig, L.; Tashima, M.M.; Borrachero, M.V.; Monzó, J.; Payá, J. Use of residual diatomaceous earth as a silica source in geopolymer production. Mater. Lett. 2018, 223, 10–13. [Google Scholar] [CrossRef] [Green Version]
  22. Bernal, S.A.; Rodríguez, E.D.; Mejía de Gutiérrez, R.; Provis, J. Performance at high temperature of alkali-activated slag pastes produced with silica fume and rice husk ash based activators. Mater. Construcc. 2015, 65, e049. [Google Scholar] [CrossRef]
  23. UNE-EN 459-1; Building Lime. Part I: Definitions, Specifications and Conformity Criteria. AENOR: Madrid, Spain, 2016.
  24. Bouzón, N.; Payá, J.; Borrachero, M.V.; Soriano, L.; Tashima, M.M.; Monzó, J. Refluxed rice husk ash/NaOH suspension for preparing alkali activated binders. Mater. Lett. 2014, 115, 72–74. [Google Scholar] [CrossRef]
  25. UNE-EN 1015-18; Methods of Test for Mortar for Masonry. Part 18: Determination of Water Absorption Coefficient Due to Capillary Action of Hardened Mortar. AENOR: Madrid, Spain, 2003.
  26. UNE-EN 12371; Natural Stone Test Methods. Determination of Frost Resistance. AENOR: Madrid, Spain, 2011.
  27. Habert, G.; d´Espinose de Lcaillerie, J.B.; Roussel, N. An environmental evaluation of geopolymer based concrete production: Reviewing current research trends. J. Clean. Prod. 2011, 19, 1229–1238. [Google Scholar] [CrossRef]
  28. Silva, B.; Ferreira, A.P.; Gomes, A.; Candeias, A. Admixtures potential role on the improvement of the freeze-thaw resistance of lime mortars. J. Build. Eng. 2021, 35, 101977. [Google Scholar] [CrossRef]
  29. Nunes, C.; Sližková, Z. Freezing and thawing resistance of aerial lime mortar with metakaolin and a traditional water-repellent admixture. Constr. Build. Mater. 2016, 114, 896–905. [Google Scholar] [CrossRef]
  30. Beck, K.; Al-Mukhtar, M. Formulation and characterization of an appropriate lime-based mortar for use with a porous limestone. Environ. Geol. 2008, 56, 715–725. [Google Scholar] [CrossRef]
  31. Maras, M.M. Characterization of performable geopolymer mortars for use as repair material. Struct. Concr. 2021, 22, 3173–3188. [Google Scholar] [CrossRef]
  32. Zhang, P.; Wittmann, F.H.; Vogel, M.; Harald, S.M.; Zhao, T. Influence of freeze-thaw cycles on capillary absorption and chloride penetration into concrete. Cem. Concr. Res. 2017, 100, 60–67. [Google Scholar] [CrossRef]
  33. Veiga, M.R.; Velosa, A.; Magalhães, A. Experimental applications of mortars with pozzolanic additions: Characterization and performance evaluation. Constr. Build. Mater. 2009, 23, 318–327. [Google Scholar] [CrossRef]
  34. Payá, J.; Monzó, J.; Borrachero, M.V.; Velázquez, S.; Bonilla, M. Determination of the pozzolanic activity of fluid catalytic cracking residue. Thermogravimetric analysis studies on FC3R-lime pastes. Cem. Concr. Res. 2003, 33, 1085–1091. [Google Scholar] [CrossRef]
  35. Tashima, M.M.; Soriano, L.; Aksaki, J.L.; Castaldelli, V.N.; Monzó, J.; Payá, J.; Borrachero, M.V. Spent FCC catalyst for preparing alkali-activaded binders: An opportunity for a high-degree valorization. Key Eng. Mater. 2014, 600, 709–716. [Google Scholar] [CrossRef] [Green Version]
  36. García-Lodeiro, I.; Fernández-Jiménez, A.; Palomo, A. Variation in hybrid cements over time. Alkaline activation of fly ash-portland cement blends. Cem. Concr. Res. 2013, 52, 112–122. [Google Scholar] [CrossRef]
  37. Alonso, S.; Palomo, A. Alkaline activation of metakaolin and calcium hydroxide mixtures: Influence of temperature, activator concentration and solids ratios. Mater. Lett. 2001, 47, 55–62. [Google Scholar] [CrossRef]
  38. Alonso, S.; Palomo, A. Calorimetric study of alkaline activation of calcium hydroxide-metakaolin solid mixtures. Cem. Concr. Res. 2001, 31, 25–30. [Google Scholar] [CrossRef]
Materials 15 02736 g001 550
Figure 1. Particle size distribution curves of FCC, RHA and RDE.
Figure 1. Particle size distribution curves of FCC, RHA and RDE.
Materials 15 02736 g001
Materials 15 02736 g002 550

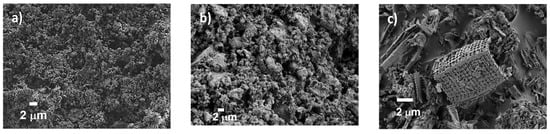

Figure 2. FESEM micrographs of materials: (a) FCC; (b) RHA; (c) RDE.
Figure 2. FESEM micrographs of materials: (a) FCC; (b) RHA; (c) RDE.
Materials 15 02736 g002
Materials 15 02736 g003 550
Figure 3. Compressive strength of mortars after 3, 7, 28 and 90 curing days: (a) FCC systems; (b) RHA systems.
Figure 3. Compressive strength of mortars after 3, 7, 28 and 90 curing days: (a) FCC systems; (b) RHA systems.
Materials 15 02736 g003
Materials 15 02736 g004 550

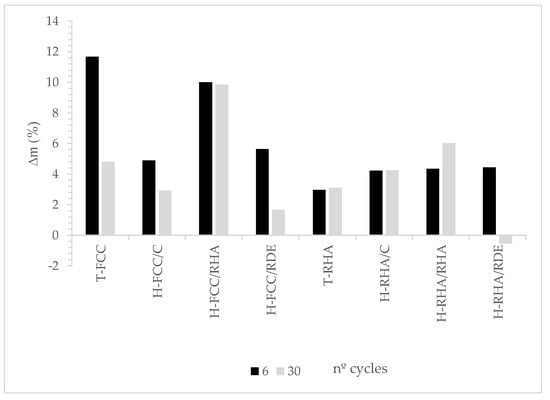

Figure 4. Mass variation (∆m, %) of all the assessed systems after the 6th and 30th freeze–thaw cycles.
Figure 4. Mass variation (∆m, %) of all the assessed systems after the 6th and 30th freeze–thaw cycles.
Materials 15 02736 g004
Materials 15 02736 g005 550
Figure 5. Photograph of the H-FCC/C mortar after 0 (left) and 30 (right) freeze–thaw cycles.
Figure 5. Photograph of the H-FCC/C mortar after 0 (left) and 30 (right) freeze–thaw cycles.
Materials 15 02736 g005
Materials 15 02736 g006 550

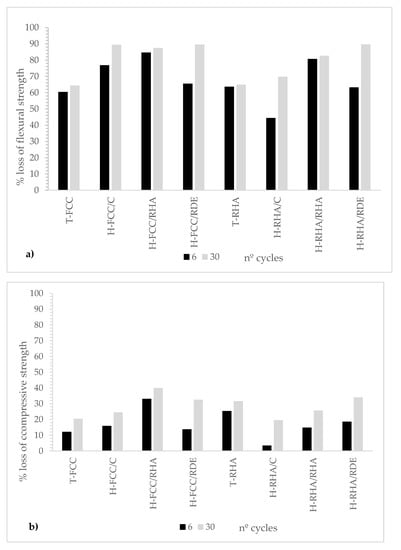

Figure 6. Mechanical properties after freeze–thaw cycles: (a) percentage of loss in flexural strength; (b) percentage of loss in compressive strength.
Figure 6. Mechanical properties after freeze–thaw cycles: (a) percentage of loss in flexural strength; (b) percentage of loss in compressive strength.
Materials 15 02736 g006
Materials 15 02736 g007a 550Materials 15 02736 g007b 550
Figure 7. Mechanical properties after freeze–thaw cycles: (a) flexural strength; (b) compressive strength.
Figure 7. Mechanical properties after freeze–thaw cycles: (a) flexural strength; (b) compressive strength.
Materials 15 02736 g007aMaterials 15 02736 g007b
Materials 15 02736 g008 550

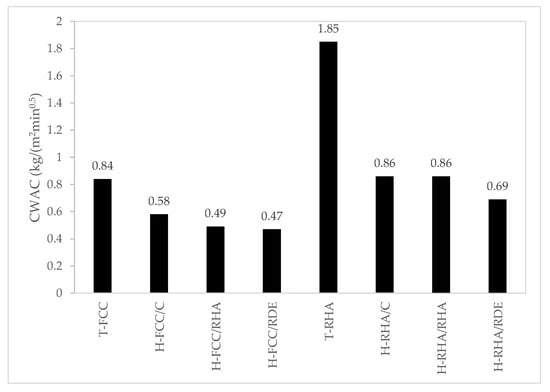

Figure 8. The capillary water absorption coefficient (CWAC) values (kg/(m2min0.5) of mortars.
Figure 8. The capillary water absorption coefficient (CWAC) values (kg/(m2min0.5) of mortars.
Materials 15 02736 g008
Materials 15 02736 g009 550

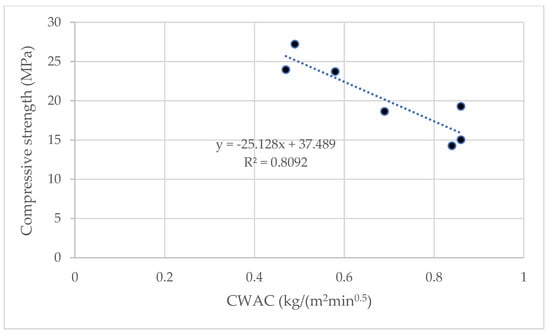

Figure 9. Relation between compressive strength (RC) and the capillary water absorption coefficient (CWAC).
Figure 9. Relation between compressive strength (RC) and the capillary water absorption coefficient (CWAC).
Materials 15 02736 g009
Materials 15 02736 g010a 550Materials 15 02736 g010b 550
Figure 10. DTG curves of pastes at 3, 28 and 90 curing days: (a) T-FCC; (b) H-FCC/C; (c) H-FCC/RHA; (d) H-FCC/RDE.
Figure 10. DTG curves of pastes at 3, 28 and 90 curing days: (a) T-FCC; (b) H-FCC/C; (c) H-FCC/RHA; (d) H-FCC/RDE.
Materials 15 02736 g010aMaterials 15 02736 g010b
Materials 15 02736 g011 550

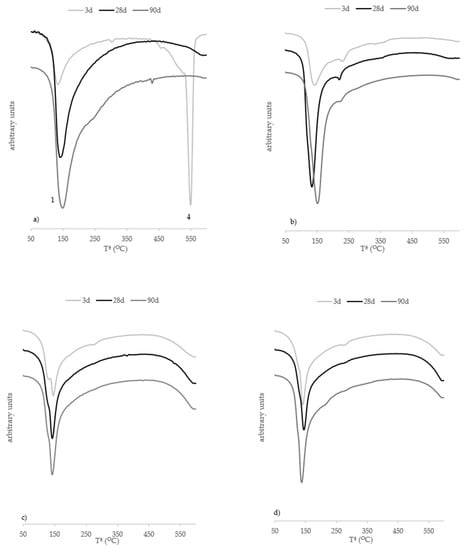

Figure 11. DTG curves of pastes at 3, 28 and 90 curing days: (a) T-RHA; (b) H-RHA/C; (c) H-RHA/RHA; (d) H-RHA/RDE.
Figure 11. DTG curves of pastes at 3, 28 and 90 curing days: (a) T-RHA; (b) H-RHA/C; (c) H-RHA/RHA; (d) H-RHA/RDE.
Materials 15 02736 g011
Table
Table 1. Chemical compositions (wt%) of the spent FCC catalyst, RHA and RDE from the beer industry.
Table 1. Chemical compositions (wt%) of the spent FCC catalyst, RHA and RDE from the beer industry.
Al2O3SiO2CaOFe2O3K2ONa2OP2O5MgOSO3OtherLOI
FCC49.2647.760.110.600.020.310.010.170.021.230.51
RHA0.2585.581.830.213.39-0.670.500.260.326.99
RDE5.6781.701.283.710.861.300.360.41-1.373.34
Table
Table 2. Mix proportions of traditional and hybrid mortars.
Table 2. Mix proportions of traditional and hybrid mortars.
Lime–Pozzolan BinderGeopolymeric BinderSand
LimePozzolanH2OFCCAlkaline-Activating Solution
H2ONaOHNa2SiO3RHA or RDE
T-FCC262.5262.5420.0-----1575.0
H-FCC/C183.8183.8294.0157.537.819.288.6-1575.0
H-FCC/RHA183.8183.8294.0157.594.537.8-27.61575.0
H-FCC/RDE183.8183.8294.0157.594.537.8-27.61575.0
T-RHA175350.0420.0-----1575.0
H-RHA/C122.5245.0294.0157.537.819.288.6-1575.0
H-RHA/RHA122.5245.0294.0157.594.537.8-27.61575.0
H-RHA/RDE122.5245.0294.0157.594.537.8-27.61575.0
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Villca, A.R.; Soriano, L.; Borrachero, M.V.; Payá, J.; Monzó, J.M.; Tashima, M.M. Hybrid Lime–Pozzolan Geopolymer Systems: Microstructural, Mechanical and Durability Studies. Materials 2022, 15, 2736. https://doi.org/10.3390/ma15082736

AMA Style

Villca AR, Soriano L, Borrachero MV, Payá J, Monzó JM, Tashima MM. Hybrid Lime–Pozzolan Geopolymer Systems: Microstructural, Mechanical and Durability Studies. Materials. 2022; 15(8):2736. https://doi.org/10.3390/ma15082736

Chicago/Turabian Style

Villca, Ariel Rey, Lourdes Soriano, María Victoria Borrachero, Jordi Payá, José María Monzó, and Mauro Mitsuuchi Tashima. 2022. "Hybrid Lime–Pozzolan Geopolymer Systems: Microstructural, Mechanical and Durability Studies" Materials 15, no. 8: 2736. https://doi.org/10.3390/ma15082736

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
