Effects of Coal and Sewage Sludge Ashes on Macronutrient Content in Maize (Zea mays L.) Grown on Soil Contaminated with Eco-Diesel Oil

by
Mirosław Wyszkowski
1,*,
Jadwiga Wyszkowska
2,*,
Natalia Kordala
1 and
Agata Borowik
2
1
Department of Agricultural and Environmental Chemistry, University of Warmia and Mazury in Olsztyn, Łódzki 4 Sq., 10-727 Olsztyn, Poland
2
Department of Soil Science and Microbiology, University of Warmia and Mazury in Olsztyn, Łódzki 3 Sq., 10-727 Olsztyn, Poland
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(2), 525; https://doi.org/10.3390/ma15020525
Submission received: 19 December 2021 / Revised: 7 January 2022 / Accepted: 8 January 2022 / Published: 11 January 2022
(This article belongs to the Special Issue Advances in Eco-Friendly Adsorbent Materials for Removal of Inorganic and Organic Pollutants)
Browse Figures
Versions Notes

Abstract

:
Petroleum hydrocarbons, as aggressive components of diesel oils, after migration to the land environment can alter the activity and efficiency of ecosystems. They can also be dangerous to animal and human health. Eco-friendly methods for the reclamation of affected soils is necessary to manage degraded lands. One such method is the use of ashes. The aim of this research was to determine how soil pollution with diesel oil (brand name, Eco-Diesel) affects the chemical composition of maize (Zea mays L.) and whether the application of ash from a combined heat and power plant, as well as from sewage sludge incineration, could reduce the potentially adverse impact of diesel oil on plants. The research results demonstrated that soil contamination with Eco-Diesel oil modified the content of selected macronutrients in the analyzed crop plant. Eco-Diesel oil had a negative effect on maize yield. The highest diesel oil dose in a series without neutralizing substances had a positive effect on the accumulation of most elements, except nitrogen and sodium. Soil enrichment with ash differentiated the content of macronutrients, mainly nitrogen and phosphorus, in the aerial biomass of maize. The ashes increased the yield of maize and content of some macronutrients, mainly nitrogen but also calcium, the latter in a series where soil was treated with ash from sewage sludge thermal recycling. Both types of ash also resulted in a decrease in the plant content of phosphorus, while ash from hard coal caused a slight reduction in the content of potassium in maize. Ash of different origins can be an effective solution in the reclamation of degraded soils, which may then be used for growing energy crops.

1. Introduction

Maize is a plant species with considerable economic importance and versatile use. Its biomass can serve for generation of energy through direct incineration or be processed to produce liquid and gas fuels [1,2]. The high yielding potential of this plant, up to 30–50 Mg (megagrams) per 1 hectare [3], has stimulated interest in using maize in biochemical processes, i.e., biogas production (fresh mass, silage) or bioethanol production (grain) [4], but also in direct incineration and thermo-chemical processes, such as pyrolysis or gasification employed to produce methanol, biogas and pyrolytic oils [1]. The high calorific value of the biomass, in the range of approximately 15.5 to 18.1 MJ kg−1, is an additional argument for using maize for energy purposes [3,5,6].
Use of plant biomass is one of the ways to achieve diversification in sources of energy and engine fuels, thereby reducing the negative impact of burning fossil fuels and economic development on the environment [7,8]. As well as being the main source of energy in many areas of communal life, crude oil is fundamental to the efficient functioning of economies around the world. The release of oil derivatives, both incidental, and due to planned human activities, is the main cause of soil pollution [9]. Being aggressive agents, petroleum hydrocarbons, once released into the environment, can alter the activity and efficiency of ecosystems and even pose a threat to human health [10,11]. As they are hardly degradable and highly toxic, petroleum hydrocarbons are persistent and hazardous organic pollutants [12]. Hydrocarbons show carcinogenic effects, limit the supply of major nutrients, such as nitrogen and phosphorus [13], raise the hydrophobicity of soil and increase the emission of CO2 [14], in addition to which they change the chemical composition of plants [15,16] and contribute to chlorosis and necrosis of plant tissues [17,18].
The number of potentially polluted sites in the European Union is estimated at 2.5 million, of which 342,000 have had the origin of contamination identified. The prevalent pollutants are diesel oil and trace elements [19]. Because of the scale of this problem and global ecological policies, reclamation of polluted soils, including the search for novel technologies, is an issue attracting growing interest and greater need for studies.
Waste from incineration processes, especially fly ash from conventional heat and power generation or from thermal conversion of sewage sludge, is a by-product that is difficult to dispose of and recycle [20,21]. In accordance with the principles of sustainable development, it is harmful for the environment to dispose of such waste on landfills [22]. Ash from heat and power plants, fired with coal or ash produced during the recycling of sewage sludge, is treated as waste containing some elements useful in agricultural production (Ca, Mg, P, Fe, Zn, Mo, Mn, Cu) [23,24] and, therefore, can be added to soil to improve some of its physicochemical properties (e.g., higher sorption capacity, higher base saturation, better water relations and lower acidity), especially in the case of light oils [20,25]. Because of its chemical composition, such ash can also be treated as a substitute or ingredient of mineral fertilizers [26,27]. Supplementation of soil with waste ash can improve the balance of nutrients in the environment [21,28,29] and limit the adverse effect of its excessive concentration in the vicinity of landfills or heaps. Ash shows a positive effect on the properties and yield of plants [30,31,32], including energy crops [22,33], and on reclamation of degraded lands [30,34,35]. By using waste ash for fertilization purposes, we satisfy some principles of sustainable growth, mainly the preservation and closed circulation of nutrients in an entire ecosystem.
It is not sufficient to set up energy crop plantations to enlarge the share of biomass in energy generation [36]. While it is necessary to manage degraded lands for this purpose, eco-friendly methods for the reclamation of such soils need to be developed. At the same time, particular attention should be paid to the proper selection of plants to reduce pollutants, which are a large threat to the environment, but also reduce agricultural productivity of soils [37,38,39]. Further, to detoxify soil polluted with petroleum products, it is necessary to search for various materials that chelate hydrocarbons and substances that improve the oxygenation of soils. This treatment can speed up the degradation of hydrocarbons [40,41]. A faster degradation of petroleum products will positively affect the improvement of the chemical composition of plants [42,43]. It seems that such a versatile approach can provide the global community with energy-related, economic and environmental benefits. Furthermore, efficient recycling of various forms of ash for the reclamation of degraded soils, which could then be used for growing energy crops, would correspond well with the concept of sustainable development and environmental protection, broadly understood.
In the current study, we hypothesized that the application of ashes (coal ash and sewage sludge ash) to the soil would limit the negative impact of Eco-Diesel oil on biomass and the content of macronutrients in maize (Zea mays L.). This led to detailed predictions that: (1) Eco-Diesel oil impact on the biomass of maize would be negative, with increased content of macronutrients in the aerial parts of maize, (2) the application of ashes to the soil would limit the effect of Eco-Diesel oil on plants, (3) sewage sludge ash would have a greater effect than coal ash on the content of macronutrients and biomass of maize.

2. Materials and Methods

2.1. Design of the Experiment

A plant-growing pot experiment was carried out in a greenhouse at the University of Warmia and Mazury in Olsztyn (north-eastern Poland), using soil which, according to the soil taxonomy by the International Union of Soil Sciences and the United States Department of Agriculture [44], had the texture of sandy loam (sand >0.05 mm, 51.20%; silt 0.02–0.05 mm, 45.34%; and clay <0.002 mm, 1.46%). Polyethylene pots were each filled with 2.8 kg of soil (classified as eutric cambisol) contaminated with increasing doses of diesel oil, brand name Eco-Diesel: 0, 10 and 20 cm3 kg−1 dry matter (d.m.) of soil. The substance applied to alleviate the contamination was ash from incineration of hard coal and ash from the burning of sewage sludge, in amounts of 0, 0.25, 0.5, 1 and 2 g kg−1 of soil. Therefore, the following substrates were used in the experiment: (1) uncontaminated soil, (2) soil contaminated with Eco-Diesel oil (ED), (3) uncontaminated soil with the addition of coal ash, (4) soil contaminated with ED with the addition of coal ash, (5) uncontaminated soil with the addition of sewage sludge ash, and (6) soil contaminated with ED with the addition of sewage sludge ash. The physicochemical composition of the soil and ash used in the experiment is presented in Table 1. Additionally, soil in each pot was mixed with macronutrients in the following doses and forms: nitrogen, 112 mg [CO(NH2)2]; phosphorus, 39 mg [KH2PO4]; potassium, 112 mg [KH2PO4 + KCl]; magnesium, 15 mg kg−1; and sulfur, 19.8 mg d.m. of soil [MgSO4·7H2O]. The test plant was maize (Zea mays L.) of the variety LG 32.58 (variety registered in European Union), with six plants seeded in every pot, and each experimental variant set up in 4 replications. The soil moisture was maintained at a constant level (60% of the capillary water capacity) throughout the entire experiment (60 days). Maize was harvested after the emergence of panicles (BBCH 59) for collecting plant samples for laboratory analyses.

2.2. Research Procedures

Samples of the aerial parts of maize plants were cut, dried and ground. Then, the plant samples were wet-ashed in concentrated 96% sulfuric acid with the addition of 30% H2O2 [45]. The mineralized samples underwent the following determinations: content of total nitrogen, by Kjeldahl’s method [46]; phosphorus, by colorimetry [45]; and potassium, calcium, magnesium and sodium, by atomic absorption/emission spectrometry ASA [45] on a SpectrAA 240FS spectrophotometer apparatus (Varian Inc., Mulgrave, VIC, Australia).
The following soil properties were analyzed before setting up the experiment: The areometric method was used to determine the granulometric composition of soil [47]. This is a method belonging to a group of sedimentation methods. The shaded soil is sieved through a sieve with a diameter of 2 mm meshes to separate the skeleton parts from the soil part. Then the soil parts are analyzed using the areometer. Determination of granulometric composition consists in measuring the soil slurry density during sedimentation of soil particles at a constant temperature. The other soil properties were analyzed as follows: pH in 1 M KCl with the potentiometric method [48], hydrolytic acidity and sum of exchangeable base cations with Kappen’s method [49], content of total nitrogen with Kjeldahl’s method [50], organic carbon with Tiurin’s method [51], available phosphorus and potassium with Egner–Riehm’s method [52] and available magnesium with Schachtschabel’s method [53].

2.3. Statistical Analysis

The results were processed statistically in a Statistica [54] package (TIBCO Software Inc., Palo Alto, CA, USA), by calculating the following: two-way analysis of variance (ANOVA), Pearson’s simple correlation coefficients, principal component analysis (PCA), percentage of observed variation using the η2 coefficient and the ANOVA method.

3. Results

3.1. The Effect of Eco-Diesel Oil Contamination on Maize

Maize growth and development was influenced more by Eco-Diesel oil than by ash. Maize plants grown on the soil polluted with a higher dose of ED were fragile and had signs of chlorosis (Figure 1). A dose of 10 cm3 ED kg−1 d.m. of soil caused a reduction of plant yield by 61%, and a dose of 20 cm3 ED kg−1 d.m. of soil by as much as 87% (Table 2). The content of macronutrients in the aerial biomass of maize was correlated with the doses of Eco-Diesel oil and the doses of the remediation substances (Table 3 and Table 4). The contamination of soil with diesel oil had a significant effect on the content of macronutrients, especially on the accumulation of phosphorus, potassium and calcium in the aerial organs of maize. The biggest changes were observed for calcium. In the series without added ash and treated with the highest dose of diesel oil (20 cm3 kg−1 of soil), the content of this element in the aerial parts of maize was twice as high as in the control (not polluted with diesel oil). No significant effect of the pollution was noticed only in the case of magnesium.
In the series without the remediation substances, soil contamination with increasing doses of the pollutant caused a decrease in the content of nitrogen and sodium in the maize aerial parts, by 8.3% and 15.2%, respectively, in comparison to the control. However, these changes were not significant statistically.

3.2. The Effect of Ashes Application on Maize on Soil Contaminated with Eco-Diesel Oil

The effect of ashes on the growth of plants grown in unpolluted soil was comparable. In the case of soil contaminated with a higher dose of Eco-Diesel oil (20 cm3 kg−1 d.m. of soil), a mitigating effect of ashes on maize was observed in objects supplemented with coal ash in the amount of 0.25 g kg−1 d.m. of soil and sewage sludge ash in the amount of 0.25 and 0.5 g kg−1 d.m. of soil (Figure 1, Table 2). The study has demonstrated that the soil incorporation of ash affected the chemical composition of maize (Table 3 and Table 4). When hard coal ash was added to soil in a dose of 2 g kg−1 d.m. of soil, a decrease in the content of phosphorus (by 12.6%) and potassium (by 2.6%) in the aerial parts of maize was determined compared to the control. However, no significant changes in the content of sodium, calcium and magnesium in the aerial organs of maize were noted. The soil application of this type of ash resulted in a varied increase in the content of nitrogen, depending on the dose of ash. The most beneficial effect (an increase by 8.8%) was recorded when the lowest dose of hard coal ash, i.e., 0.25 g kg−1 d.m. of soil, was tested.
The soil remediation with ash from sewage sludge incineration favored the accumulation of nitrogen and calcium in the maize aerial parts, while lowering the accumulation of phosphorus versus the control. The application of the highest tested dose of this ash (2 g kg−1 d.m. of soil) resulted in an 11.4% increase in the content of calcium compared to the control sample. In turn, the plant content of nitrogen changed the most in response (an 10.2% increase) to the ash dose of 0.5 g kg−1 d.m. of soil. However, no significant effect of this type of ash was determined with respect to potassium, sodium and magnesium in maize.

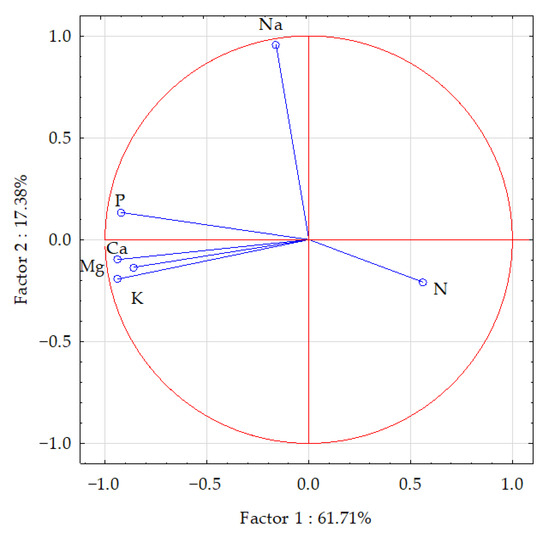

The statistical analysis of the results (using PCA and Pearson’s linear correlation coefficient) showed a cumulative effect of soil pollution with Eco-Diesel oil and the application of the soil remediation agents on the content of macronutrients in the aerial parts of maize, which is illustrated by the correlation coefficients in Table 5 and vector variables in Figure 2. The PCA revealed that the principal components explained 61.71% of the input data variation, dividing the data into two groups (the first, phosphorus, potassium, calcium and magnesium; the second, nitrogen and sodium). Vectors of most of the analyzed elements were similar in length, except for nitrogen and magnesium, which were shorter, indicating their smaller contribution to the variation. The strongest positive correlation appeared between calcium versus potassium and phosphorus, and between phosphorus versus calcium and potassium. The strongest negative correlation appeared between nitrogen versus phosphorus, potassium, calcium and magnesium. Dispersion of the points in Figure 3 suggested that the application of the soil remediation agents tended to have a positive influence on the content of the analyzed elements in the aerial parts of maize.

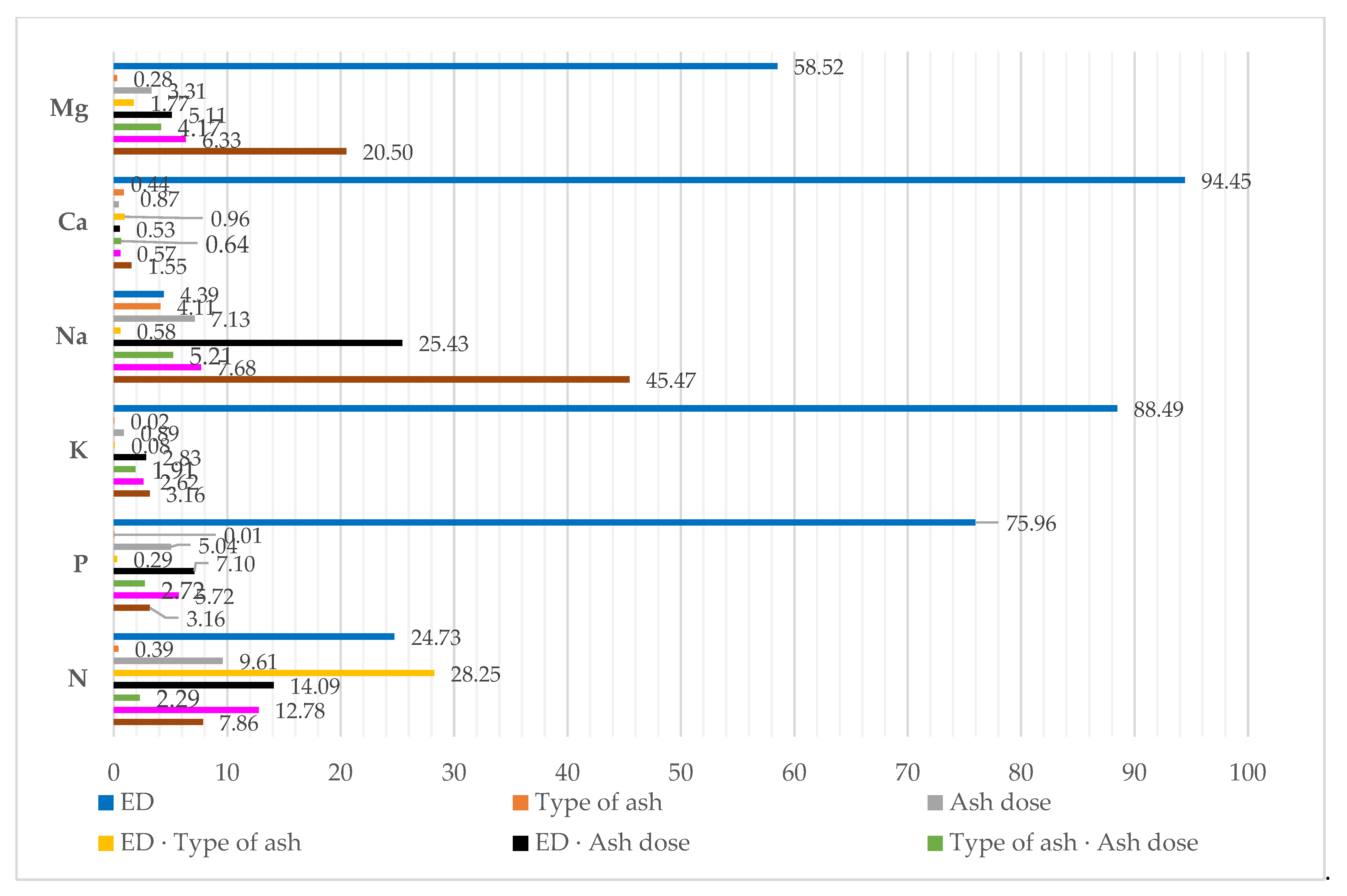

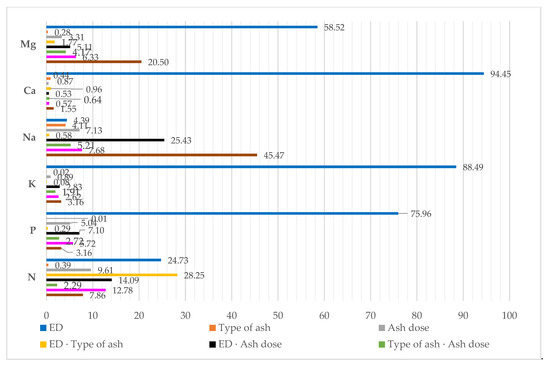

The percentage of the observed variation identified with η2, using the ANOVA method, showed that the content of macronutrients in maize was mostly affected by the dose of diesel oil polluting the soil. As for calcium, potassium, phosphorus and magnesium, this factor was responsible for 94.45%, 88.49%, 75.96% and 58.52% of the variation of the respective variables (Figure 4). Much smaller values were obtained for the other elements, i.e., sodium and nitrogen. They were 4.39% and 24.73%, respectively. The effect of the type and doses of ash on the chemical composition of aerial parts of maize was demonstrably weaker and never exceeded 10%, while being the strongest for a dose of ash and the content of nitrogen.

4. Discussion

4.1. The Effect of Eco-Diesel Oil Contamination on Plants

Plant biomass, which is widely available, renewable and relatively inexpensive to acquire, is a promising raw material to be used for energy purposes [55]. Maize is one of the target plant species with high yielding potential, particularly for production of high-quality biofuels [56,57]. It is distinguished by its high productivity of green mass per unit area [36,58], high efficiency of photosynthesis (1.5–2 times more efficient than that of C3 plants), moderate soil requirements and high adaptability to changing weather conditions [3,36]. The necessity to protect nature, limited resources of fossil fuel and increasing prices of petroleum require the development of alternative energy generation solutions [59].
Diesel oil, made from petroleum, is one of the most widespread soil contaminants [60]. Chemically, it is a mixture of saturated (e.g., paraffin, naphthenic) and aromatic (e.g., naphthalene and its derivatives, toluene, anthracene and phenanthrene) hydrocarbons [61]. Once they have entered soil, hydrocarbons, especially polycyclic aromatic hydrocarbons, have an adverse impact on the soil microbiome [62,63] and yield of different plant species [64,65,66], and, in high quantities, they can inhibit the germination of plants and induce necrosis of seedlings [67]. Additionally, they limit the soil capacity for exchange of calcium, magnesium and potassium, thereby lowering the availability of macronutrients and modifying their concentrations in particular plant organs [68,69]. In this study, increasing doses of Eco-Diesel oil added to soil resulted in the maize plants increasing the accumulation of phosphorus, potassium and calcium, while decreasing that of sodium and nitrogen. Similar dependences were demonstrated by Wyszkowski et al. [15], who applied diesel oil in a dose of 15 cm3 kg−1 d.m. of soil and observed an increase in the phosphorus and calcium content of aerial parts of oat by 38% and 34%, respectively, relative to the control. A positive correlation between soil pollution with diesel oil and the content of potassium in aerial parts of winter wheat has also been determined by Rusin et al. [70]. Wyszkowski and Ziółkowska [71] observed that diesel oil caused a rise in the content of available forms of potassium and magnesium in soil, which can explain their elevated levels in aerial parts of maize noted in this experiment. An analogous tendency has been recorded by Borowik and Wyszkowska [66] in their experiment, where the content of available phosphorus and magnesium, as well as exchangeable magnesium and potassium, increased in soil contaminated with a dose of diesel oil equal to 10 cm3 kg−1.
The decreasing content of nitrogen in aerial parts of maize observed in this experiment had been previously reported by Wyszkowski and Wyszkowska [72] to have occurred in oat biomass harvested from soil contaminated with 24 g of diesel oil per kg of soil. In the same experiment, but in a parallel series, diesel oil favored the accumulation of most macronutrients in the aerial parts of maize. The contamination of soil with petroleum substances leads to some disturbance in the carbon to nitrogen ratio [73], which may cause a change in the course of nitrogen transformations in soil, affecting the intensity of ammonification and nitrification processes [74,75]. In consequence, soil nitrogen losses occur [73,74], and the phytoavailability of this element suffers, so that, eventually, the content of nitrogen in plant biomass is reduced.

4.2. The Effect of Ashes Application on Plants on Soil Contaminated with Eco-Diesel Oil

The application of ash to soil may preferentially affect the yield of maize. According to Gao and DeLuca [76], ash application into the soil has a positive impact on the growth and development of plants and increases their yield and nutrient uptake by plants. In studies by Hale et al. [77] the effect of ashes on maize yield was stronger than biochar and lime. In their studies, ash caused a 9-fold increase in the yield of maize. According to Saletnik et al. [78], a favorable effect on the yield of plants was smaller, though positive (maximum increase in yield of 68%). A beneficial effect of ashes on maize yield was confirmed in our own studies, however, their impact was smaller than those obtained in other authors’ experiments [77,78]. Too high doses of ashes do not increase, and can even have a negative effect on, the yield of plants [79].
The enrichment of soil with ash differentiated the chemical composition of maize in our experiment. Fly ash from the heat and power plant stimulated the accumulation of nitrogen while decreasing the concentrations of phosphorus and potassium in the aerial parts of the test plant. A similar effect of fly ash on the content of phosphorus in maize aerial organs has been noted by Antonkiewicz [80], who determined the highest coefficient of variation for magnesium (V = 32.55%), and the lowest for potassium (V = 18.40%). An increasing content of magnesium, calcium and phosphorus, as well as a decreasing content of potassium, in shoots of lucerne with increasing doses of fly ash (0–40%), were demonstrated by He et al. [21]. The differences in results may have been a consequence of the applied soil (lessivé soil) and doses of ash used in the cited experiments. The enrichment of soil with fly ash in a study conducted by Padhy et al. [81] raised the content of potassium and phosphorus in rice grain, but did not affect the level of sodium, which partly agrees with our results. In their 6-year field experiment, Antonkiewicz et al. [82] noted a decreased content of phosphorus in the biomass of a mixture of grasses and legumes, grown on soil enriched with fly ash in doses of 5–10 kg m−2. The reduced accumulation of phosphorus is likely to be associated with the occurrence of this element in poorly phytoavailable forms, e.g., calcium phosphates or hydroxyapatites, in soils enriched with hard coal fly ash [83]. Additionally, Li et al. [84] state that fly ash can bind phosphorus in soil, thereby diminishing its uptake by plants.
Despite the small content of nitrogen in fly ash (0–0.2%) [85], the uptake of this element by plants is higher in soils enriched with ash material. This is probably caused by the stimulating effect of ash on the mineralization of organic matter, which increases the pool of inorganic nitrogen available to plants [86].
The fly ash used in this experiment originating from the incineration of sewage sludge contributed to an increase in the content of nitrogen and calcium in the aerial biomass of maize. It limited the accumulation of phosphorus, while having no effect on the plant content of the remaining macronutrients submitted to analysis. Increase in the accumulation of nitrogen (14.7%) and calcium (8.6%) in maize growing on soil previously treated with ash from thermal conversion of sewage sludge was also reported by Iżewska and Wołoszyk [87]. In that experiment, the highest dose of fly ash (65.40 kg ha−1) resulted in an increase in the content of phosphorus and calcium in grain by 33.0% and 33.6%, respectively, compared to the series treated with mineral fertilizers (NPK). Zalewska et al. [88] concluded that fly ash obtained from incineration of sewage sludge is a good source of available phosphorus, magnesium and potassium in maize cultivation. Its soil application resulted in an over 5-fold higher yield relative to the control, and an increased uptake of the mentioned elements by the test plant. However, the content of macronutrients in the maize biomass from the control series was higher than in the other experimental variants, which the authors suggested was a consequence of a very small yield in the control series and subsequent conversion of the results per dry matter.
Pidlisnyuk et al. [89] evaluated the possibility of growing a perennial energy crop, such as Miscanthus giganteus, on land polluted with diesel oil (in a range from 250 mg kg−1 to 5000 mg kg−1). In response to increasing doses of the pollutant, these researchers observed a lower height of the plants and a smaller number of leaves. The application of sewage sludge biochar, wood waste and biohumus to soil enriched the soil’s pool of nutrients, extended the plant growing period and improved the plants’ morphological and physiological traits, alleviating the consequences of the abiotic stress. An addition of biochar from sewage sludge enabled the Miscanthus giganteus plant to achieve the highest biomass productivity during harvest. According to these authors, the use of biochar can be an effective method of reclamation of soil contaminated with diesel oil, so that such soil can be then used for growing crops with an alternative use, such as production of fuels.
Maize is one of the most important cultivated plants in the world. It constitutes 12% (second place) of global production of cultivated plants [90]. Production of maize in recent years has increased and, according to forecasts, will grow in subsequent years (by 10% in 2030 compared to 2018–2020) [91]. The results obtained in our own studies, since the test plant was maize, which is grown on all continents, can be used in every area of the world.

5. Conclusions

The yield and chemical composition of maize depended on the degree of soil pollution with Eco-Diesel oil and on soil enrichment with neutralizing substances. Eco-Diesel oil had a negative effect on maize yield. A positive relationship was demonstrated between increasing doses of Eco-Diesel oil and the accumulation of all macronutrients in the aerial parts of maize, except nitrogen and sodium. The enrichment of soil with fly ash increased maize biomass and the content of some macronutrients, especially nitrogen, and calcium, the latter in the series where soil was treated with fly ash from the thermal conversion of sewage sludge. Additionally, both types of fly ash resulted in a decreased content of phosphorus, while hard coal fly ash led to a small reduction in the content of potassium in maize.
Fly ash of different origins can be an effective instrument for reclamation of degraded soils intended for growing energy crops. The positive results of our own research were obtained with maize, which is one of the most important plants in the world used for production of feed and food. The maize-growing area in the world allows for the managed use of ashes, as a waste material, on a large scale.

Author Contributions

Conceptualization and methodology, J.W. and A.B.; analysis, N.K.; writing—review and editing, N.K., M.W. and J.W.; M.W. and J.W., corresponding authors. All authors have read and agreed to the published version of the manuscript.

Funding

The results presented in this paper were obtained as part of a comprehensive study financed by the University of Warmia and Mazury in Olsztyn, Faculty of Agriculture and Forestry, Department of Agricultural and Environmental Chemistry (grant No. 30.610.004-110) and the Department of Soil Science and Microbiology (grant No. 30.610.006-110). The project was financially supported by the Minister of Education and Science in the range of the program entitled “Regional Initiative of Excellence” for the years 2019–2022, Project No. 010/RID/2018/19, amount of funding 12,000,000 PLN.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available by contacting the authors.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Voloshin, R.A.; Rodionova, M.V.; Zharmukhamedov, S.K.; Veziroglu, T.N.; Allakhverdiev, S.I. Review: Biofuel production from plant and algal biomass. Int. J. Hydrogen Energy 2016, 41, 17257–17273. [Google Scholar] [CrossRef]
  2. Mazurkiewicz, J.; Marczuk, A.; Pochwatka, P.; Kujawa, S. Maize straw as a valuable energetic material for biogas plant feeding. Materials 2019, 12, 3848. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Konieczna, A.; Roman, K.; Roman, M.; Śliwiński, D.; Roman, M. Energy Efficiency of maize production technology: Evidence from Polish farms. Energies 2021, 14, 170. [Google Scholar] [CrossRef]
  4. Pokój, T.; Gusiatin, Z.M.; Bułakowska, K.; Dubis, B. Production of biogas using maize silage supplemented with residual glycerine from biodiesel manufacturing. Arch. Environ. Prot. 2014, 40, 17–29. [Google Scholar] [CrossRef] [Green Version]
  5. Ambrosio, R.; Pauletti, V.; Barth, G.; Povh, F.P.; da Silva, D.A.; Blum, H. Energy potential of residual maize biomass at different spacings and nitrogen doses. Agric. Sci. 2017, 41, 626–633. [Google Scholar] [CrossRef] [Green Version]
  6. Paul, S.; Dutta, A.; Thimmanagari, M.; Defersha, F. Techno-economic assessment of corn stover for hybrid bioenergy production: A sustainable approach. Case Stud. Therm. Eng. 2019, 13, 100408. [Google Scholar] [CrossRef]
  7. Katircioglu, S.T. International tourism, energy consumption, and environmental pollution: The case of Turkey. Renew. Sustain. Energy Rev. 2014, 36, 180–187. [Google Scholar] [CrossRef]
  8. Wang, T.; Lin, B. Fuel consumption in road transport: A comparative study of China and OECD countries. J. Clean. Prod. 2019, 206, 156–170. [Google Scholar] [CrossRef]
  9. Uyizeye, O.C.; Thiet, R.K.; Knorr, M.A. Effects of community-accessible biochar and compost on diesel-contaminated soil. Bioremediat. J. 2019, 23, 107–117. [Google Scholar] [CrossRef]
  10. Sajna, K.V.; Sukumaran, R.K.; Gottumukkala, L.D.; Pandey, A. Crude oil biodegradation aided by biosurfactants from Pseudozyma sp. NII 08165 or its culture broth. Bioresour. Technol. 2015, 191, 133–139. [Google Scholar] [CrossRef] [PubMed]
  11. Abdel-Shafy, H.I.; Mansour, M.S.M. A review on polycyclic aromatic hydrocarbons: Source, environmental impact, effect on human health and remediation. Egypt. J. Petrol. 2016, 25, 107–123. [Google Scholar] [CrossRef] [Green Version]
  12. Pawluśkiewicz, B.; Gnatowski, T.; Maria, J. The influence of soil contamination with diesel oil on germination dynamics and seedling development of selected species of the Fabaceae family. J. Ecol. Eng. 2020, 21, 201–218. [Google Scholar] [CrossRef]
  13. Fatima, K.; Imran, A.; Naveed, M.; Afzal, M. Plant-bacteria synergism: An innovative approach for the remediation of crude oil contaminated soils. Soil Environ. 2017, 36, 93–113. [Google Scholar] [CrossRef]
  14. Hewelke, E.; Szatyłowicz, J.; Hewelke, P.; Gnatowski, T.; Aghalarov, R. The impact of diesel oil pollution on the hydrophobicity and CO2 efflux of forest soils. Water Air Soil Pollut. 2018, 229, 51. [Google Scholar] [CrossRef] [Green Version]
  15. Wyszkowski, M.; Wyszkowska, J.; Borowik, A.; Kordala, N. Contamination of soil with diesel oil, application of sewage sludge and content of macroelements in oats. Water Air Soil Pollut. 2020, 231, 546. [Google Scholar] [CrossRef]
  16. Wyszkowski, M.; Wyszkowska, J.; Borowik, A.; Kordala, N. Sewage sludge as a tool in limiting the content of trace elements in Avena sativa L. on the soil polluted with diesel oil. Materials 2021, 14, 4003. [Google Scholar] [CrossRef] [PubMed]
  17. Ziółkowska, A.; Wyszkowski, M. Toxicity of petroleum substances to microorganisms and plants. Ecol. Chem. Eng. S 2010, 17, 73–82. Available online: https://drive.google.com/file/d/1IfsFlFVf3-2vO1OlkNuu09220UjUAwWs/view (accessed on 27 November 2021).
  18. Hawrot-Paw, M.; Wijatkowski, A.; Mikiciuk, M. Influence of diesel and biodiesel fuel-contaminated soil on microorganisms, growth and development of plants. Plant Soil Environ. 2015, 61, 189–194. [Google Scholar] [CrossRef] [Green Version]
  19. Panagos, P.; van Liedekerk, M.; Yigini, Y.; Montanarella, L. Contaminated sites in Europe: Review of the current situation based on data collected through a European network. J. Environ. Public Health 2013, 2013, 158764. [Google Scholar] [CrossRef]
  20. Ukwattage, N.L.; Ranjith, P.G.; Bouazza, M. The use of coal combustion fly ash as a soil amendment in agricultural lands (with comments on its potential to improve food security and sequester carbon). Fuel 2013, 109, 400–408. [Google Scholar] [CrossRef]
  21. He, H.; Dong, Z.; Peng, Q.; Wang, X.; Fan, C.; Zhang, X. Impacts of coal fly ash on plant growth and accumulation of essential nutrients and trace elements by alfalfa (Medicago sativa) grown in a loessial soil. J. Environ. Manag. 2017, 197, 428–439. [Google Scholar] [CrossRef] [PubMed]
  22. Roy, M.; Roychowdhury, R.; Mukherjee, P. Remediation of fly ash dumpsites through bioenergy crop plantation and generation: A review. Pedosphere 2018, 28, 561–580. [Google Scholar] [CrossRef]
  23. Lombard, K.; Neil, M.O.; Ulery, A.; Mexal, J.; Onken, B.; Foster-Cox, S.; Sammis, T. Fly ash and composted biosolids as a source of Fe for hybrid poplar: A greenhouse study. Appl. Environ. Soil Sci. 2011, 2011, 475185. [Google Scholar] [CrossRef] [Green Version]
  24. Yu, C.L.; Deng, Q.; Jian, S.; Li, J.; Dzantor, E.K.; Hui, D. Effects of fly ash application on plant biomass and element accumulations: A meta-analysis. Environ. Pollut. 2019, 250, 137–142. [Google Scholar] [CrossRef]
  25. Blissett, R.S.; Rowson, N.A. A review of the multi-component utilisation of coal fly ash. Fuel 2012, 97, 1–23. [Google Scholar] [CrossRef]
  26. Jastrzębska, M.; Kostrzewska, M.; Treder, K.; Makowski, P.; Saeid, A.; Jastrzębski, W.; Okorski, A. Fertiliser from sewage sludge ash instead of conventional phosphorus fertilisers? Plant Soil Environ. 2018, 64, 504–511. [Google Scholar] [CrossRef] [Green Version]
  27. Hartmann, T.E.; Möller, K.; Meyer, C.; Möller, T. Partial replacement of rock phosphate by sewage sludge ash for the production of superphosphate fertilizers. J. Plant Nutr. Soil Sci. 2020, 183, 233–237. [Google Scholar] [CrossRef] [Green Version]
  28. Pandey, V.C.; Singh, N. Impact of fly ash incorporation in soil systems. Agric. Ecosyst. Environ. 2010, 136, 16–27. [Google Scholar] [CrossRef]
  29. Yao, Z.; Ji, X.; Sarker, P.; Tang, J.; Ge, L.; Xia, M.; Xi, Y. A comprehensive review on the applications of coal fly ash. Earth Sci. Rev. 2015, 141, 105–121. [Google Scholar] [CrossRef] [Green Version]
  30. Shaheen, S.M.; Hooda, P.S.; Tsadilas, C.D. Opportunities and challenges in the use of coal fly ash for soil improvements e a review. J. Environ. Manag. 2014, 145, 249–267. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Nayak, A.K.; Raja, R.; Rao, K.S.; Shukla, A.K.; Mohanty, S.; Shahid, M.; Tripathi, R.; Panda, B.B.; Bhattacharyya, P.; Kumar, A. Effect of fly ash application on soil microbial response and heavy metal accumulation in soil and rice plant. Ecotoxicol. Environ. Saf. 2015, 114, 257–262. [Google Scholar] [CrossRef] [PubMed]
  32. Shakeel, A.; Khan, A.A.; Hakeem, K.R. Growth, biochemical, and antioxidant response of beetroot (Beta vulgaris L.) grown in fly ash-amended soil. SN Appl. Sci. 2020, 2, 1378. [Google Scholar] [CrossRef]
  33. Wyszkowski, M.; Chełstowski, A.; Ciećko, Z.; Szostek, R. Long-time effect of hard coal ash on the content of some elements in soil. J. Ecol. Eng. 2014, 15, 55–60. [Google Scholar] [CrossRef]
  34. Ram, L.C.; Masto, R.E. Fly ash for soil amelioration: A review on the influence of ash blending with inorganic and organic amendments. Earth Sci. Rev. 2014, 128, 52–74. [Google Scholar] [CrossRef]
  35. Tsadilas, C.D.; Hu, Z.; Bi, Y.; Nikoli, T. Utilization of coal fly ash and municipal sewage sludge in agriculture and for reconstruction of soils in disturbed lands: Results of case studies from Greece and China. Int. J. Coal Sci. Technol. 2018, 5, 64–69. [Google Scholar] [CrossRef] [Green Version]
  36. Jankowski, K.J.; Dubis, B.; Budzyński, W.S.; Bórawski, P.; Bułkowska, K. Energy efficiency of crops grown for biogas production in a large-scale farm in Poland. Energy 2016, 109, 277–286. [Google Scholar] [CrossRef]
  37. Alengebawy, A.; Abdelkhalek, S.T.; Qureshi, S.R.; Wang, M.-Q. Heavy metals and pesticides toxicity in agricultural soil and plants: Ecological risks and human health implications. Toxics 2021, 9, 42. [Google Scholar] [CrossRef]
  38. Borowik, A.; Wyszkowska, J.; Kucharski, J.; Baćmaga, M.; Tomkiel, M. Response of microorganisms, and enzymes to soil contamination with a mixture of terbuthylazine, mesotrione, and S-metolachlor. Environ. Sci. Pollut. Res. 2017, 24, 1910–1925. [Google Scholar] [CrossRef] [Green Version]
  39. Zhang, B.; Zhang, L.; Zhang, X. Bioremediation of petroleum hydrocarbon-contaminated soil by petroleum-degrading bacteria immobilized on biochar. RSC Adv. 2019, 9, 35304–35311. [Google Scholar] [CrossRef] [Green Version]
  40. Borowik, A.; Wyszkowska, J.; Kucharski, J. Microbiological study in petrol-spiked soil. Molecules 2021, 26, 2664. [Google Scholar] [CrossRef] [PubMed]
  41. Wyszkowska, J.; Borowik, A.; Kucharski, J. The resistance of Lolium perenne L. × hybridum, Poa pratensis, Festuca rubra, F. arundinacea, Phleum pratense and Dactylis glomerata to soil pollution by diesel oil and petroleum. Plant Soil Environ. 2019, 65, 307–312. [Google Scholar]
  42. Ite, A.E.; Ibok, U.J. Role of plants and microbes in bioremediation of petroleum hydrocarbons contaminated soils. Int. J. Environ. Bioremediat. Biodegrad. 2019, 7, 1–19. [Google Scholar] [CrossRef]
  43. Odukoya, J.; Lambert, R.; Sakrabani, R. Understanding the impacts of crude oil and its induced abiotic stresses on agrifood production: A review. Horticulturae 2019, 5, 47. [Google Scholar] [CrossRef] [Green Version]
  44. IUSS Working Group WRB. World Reference Base for Soil Resources 2014; World Soil Resources Report. In International Soil Classification System for Naming Soils and Creating Legends for Soil Maps. Update 2015. World Soil Resources; Reports No. 106; FAO: Rome, Italy, 2015; p. 182. Available online: https://www.fao.org/3/i3794en/I3794en.pdf (accessed on 18 November 2021).
  45. Ostrowska, A.; Gawliński, S.; Szczubiałka, Z. Methods for Analysis and Evaluation of Soil and Plant Properties; Institute of Environmental Protection: Warsaw, Poland, 1991; pp. 1–334. [Google Scholar]
  46. Bremner, J.M. Total nitrogen. In Methods of Soil Analysis, Part 2. Chemical and Microbiological Properties (Agronomy 9); Norman, A.G., Ed.; American Society of Agronomy: Madison, WI, USA, 1965; pp. 1149–1178. [Google Scholar]
  47. PN-R-04032; Soil and Mineral Materials–Sampling and Determination of Particle Size Distribution. Polish Committee for Standardization: Warsaw, Poland, 1998; pp. 1–12.
  48. ISO 10390; Soil Quality–Determination of pH. International Organization for Standardization: Geneva, Switzerland, 2005.
  49. Carter, M.R.; Gregorich, E.G. (Eds.) Soil Sampling and Methods of Analysis, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2008; p. 1224. [Google Scholar]
  50. ISO 11261; Soil Quality–Determination of Total Nitrogen-Modified. International Organization for Standardization: Geneva, Switzerland, 1995.
  51. Nelson, D.W.; Sommers, L.E. Total carbon, organic carbon, and organic matter. In Method of Soil Analysis: Chemical Methods; Sparks, D.L., Ed.; American Society of Agronomy: Madison, WI, USA, 1996; pp. 1201–1229. [Google Scholar]
  52. Egner, H.; Riehm, H.; Domingo, W.R. Untersuchungen über die chemische Bodenanalyse als Grundlage für die Beurteilung des Nährstoffzustandes der Böden. II. Chemische Extractionsmethoden zur Phospor- und Kaliumbestimmung. Ann. R. Agric. Coll. Swed. 1960, 26, 199–215. [Google Scholar]
  53. Schlichting, E.; Blume, H.P.; Stahr, K. Bodenkundliches Praktikum. Pareys Studientexte 81; Blackwell Wissenschafts-Verlag: Berlin, Germany, 1995. [Google Scholar]
  54. Tibco Software Inc. Statistica, Version 13; Data Analysis Software System; Tibco Software Inc.: Palo Alto, CA, USA, 2021; Available online: http://statistica.io (accessed on 18 October 2021).
  55. Menardo, S.; Airoldi, G.; Cacciatore, V.; Balsari, P. Potential biogas and methane yield of maize stover fractions and evaluation of some possible stover harvest chains. Biosyst. Eng. 2015, 129, 352–359. [Google Scholar] [CrossRef]
  56. Sarkar, N.; Gosh, S.K.; Bannerjee, S.; Aikat, K. Bioethanol production from agricultural wastes: An overview. Renew. Energy 2012, 37, 19–27. [Google Scholar] [CrossRef]
  57. Zhao, Y.; Damgaard, A.; Christensen, T.H. Bioethanol from corn stover—A review and technical assessment of alternative biotechnologies. Prog. Energy Combust. Sci. 2018, 67, 275–291. [Google Scholar] [CrossRef] [Green Version]
  58. Muylle, H.; Van Hullea, S.; de Vliegher, A.; Baert, J.; Van Bockstaele, E.; Roldán-Ruiz, I. Yield and energy balance of annual and perennial lignocellulosic crops for bio-refinery use: A 4-year field experiment in Belgium. Eur. J. Agron. 2015, 63, 62–70. [Google Scholar] [CrossRef]
  59. Karimi, S.; Karri, R.R.; Yaraki, M.T.; Koduru, J.R. Processes and separation technologies for the production of fuel-grade bioethanol: A review. Environ. Chem. Lett. 2021, 19, 2873–2890. [Google Scholar] [CrossRef]
  60. Mitter, E.K.; Germida, J.J.; de Freitas, J.R. Impact of diesel and biodiesel contamination on soil microbial community activity and structure. Sci. Rep. 2021, 11, 10856. [Google Scholar] [CrossRef]
  61. Nazri, M.K.H.M.; Sapawe, N. A short review on photocatalytic reaction in diesel degradation. Mater. Today Proc. 2020, 31, A33–A37. [Google Scholar] [CrossRef]
  62. Borowik, A.; Wyszkowska, J.; Kucharski, M.; Kucharski, J. Implications of soil pollution with diesel oil and BP Petroleum with ACTIVE Technology for soil health. Int. J. Environ. Res. Public Health 2019, 16, 2474. [Google Scholar] [CrossRef] [Green Version]
  63. Borowik, A.; Wyszkowska, J.; Kucharski, M.; Kucharski, J. The role of Dactylis glomerata and diesel oil in the formation of microbiome and soil enzyme activity. Sensors 2020, 20, 3362. [Google Scholar] [CrossRef]
  64. Okonokhua, B.O.; Ikhajiagbe, B.; Anoliefo, G.O.; Emede, T.O. The effects of spent engine oil on soil properties and growth of maize (Zea mays L.). J. Appl. Sci. Environ. Manag. 2007, 11, 147–152. [Google Scholar] [CrossRef] [Green Version]
  65. Wyszkowska, J.; Borowik, A.; Kucharski, J. Response of Avena sativa, microorganisms and enzymes to contamination of soil with diesel oil. Plant Soil Environ. 2015, 61, 483–488. [Google Scholar] [CrossRef]
  66. Borowik, A.; Wyszkowska, J. Remediation of soil contaminated with diesel oil. J. Elem. 2018, 23, 767–788. [Google Scholar] [CrossRef]
  67. Bona, C.I.; de Rezende, M.; de Oliveira Santos, G.; de Souza, L.A. Effect of soil contaminated by diesel oil on the germination of seeds and the growth of Schinus terebinthifolius Raddi (Anacardiaceae) seedlings. Braz. Arch. Biol. Technol. 2011, 54, 1379–1387. [Google Scholar] [CrossRef] [Green Version]
  68. Wyszkowski, M.; Ziółkowska, A. Effect of compost, bentonite and calcium oxide on content of some macroelements in plants from soil contaminated by petrol and diesel oil. J. Elem. 2009, 14, 405–418. [Google Scholar] [CrossRef]
  69. Shukry, W.M.; Al-Hawas, G.H.S.; Al-Moaik, R.M.S.; El-Bendary, M.A. Effect of petroleum crude oil on mineral nutrient elements and soil properties of jojoba plant (Simmondsia chinensis). Acta Bot. Hung. 2013, 55, 117–133. [Google Scholar] [CrossRef]
  70. Rusin, M.; Gospodarek, J.; Barczyk, G.; Nadgórska-Socha, A. Antioxidant responses of Triticum aestivum plants to petroleum-derived substances. Ecotoxicology 2018, 27, 1353–1367. [Google Scholar] [CrossRef] [Green Version]
  71. Wyszkowski, M.; Ziółkowska, A. Effect of Petrol and Diesel Oil on Content of Organic Carbon and Mineral Components in Soil. Am. Eurasian J. Sustain. Agric. 2008, 2, 54–60. Available online: http://www.aensiweb.net/AENSIWEB/aejsa/aejsa/2008/54-60.pdf (accessed on 27 November 2021).
  72. Wyszkowski, M.; Wyszkowska, J. Effect of enzymatic activity of diesel oil contaminated soil on the chemical composition of oat (Avena sativa L.) and maize (Zea mays L.). Plant Soil Environ. 2005, 51, 360–367. [Google Scholar] [CrossRef] [Green Version]
  73. Devatha, C.P.; Vishal, A.V.; Rao, J.P.C. Investigation of physical and chemical characteristics on soil due to crude oil contamination and its remediation. Appl. Water Sci. 2019, 9, 89. [Google Scholar] [CrossRef] [Green Version]
  74. John, R.C.; Akpan, M.M.; Essien, J.P.; Ikpe, D.I. Impact of crude oil pollution on the densities of nitrifying and denitrifying bacteria in the rhizosphere of tropical legumes grown on wetland soil. Niger. J. Microbiol. 2010, 24, 2088–2094. [Google Scholar]
  75. Kucharski, J.; Tomkiel, M.; Boros, E.; Wyszkowska, J. The effect of soil contamination with diesel oil and petrol on the nitrification process. J. Elem. 2010, 15, 111–118. [Google Scholar] [CrossRef]
  76. Gao, S.; DeLuca, T.H. Influence of biochar on soil nutrient transformations, nutrient leaching and crop yield. Adv. Plants Agric. Res. 2016, 4, 00150. [Google Scholar] [CrossRef] [Green Version]
  77. Hale, S.E.; Nurida, N.L.; Jubaedah; Mulder, J.; Sørmo, E.; Silvani, L.; Abiven, S.; Joseph, S.; Taherymoosavi, S.; Cornelissen, G. The effect of biochar, lime and ash on maize yield in a long-term field trial in a Ultisol in the humid tropics. Sci. Total Environ. 2020, 719, 137455. [Google Scholar] [CrossRef] [PubMed]
  78. Saletnik, B.; Zagula, G.; Bajcar, M.; Czernicka, M.; Puchalski, C. Biochar and Biomass Ash as a Soil Ameliorant: The Effect on Selected Soil Properties and Yield of Giant Miscanthus (Miscanthus x giganteus). Energies 2018, 11, 2535. [Google Scholar] [CrossRef] [Green Version]
  79. Lehmann, J.; Gaunt, J.; Rondon, M. Biochar sequestration in terrestrial ecosystems—A review. Mitig. Adapt. Strateg. Glob. Chang. 2006, 11, 395–419. [Google Scholar] [CrossRef]
  80. Antonkiewicz, J. The effect of hard coal ashes on the amount and quality of maize yield. Pol. J. Chem. Technol. 2007, 9, 20–25. [Google Scholar] [CrossRef] [Green Version]
  81. Padhy, R.N.; Nayak, N.; Dash-Mohini, R.R.; Rath, S.; Sahu, R.K. Growth, metabolism and yield of rice cultivated in soils amended with fly ash and cyanobacteriaand metal loads in plant parts. Rice Sci. 2016, 23, 22–32. [Google Scholar] [CrossRef] [Green Version]
  82. Antonkiewicz, J.; Popławska, A.; Kołodziej, B.; Ciarkowska, K.; Gambuś, F.; Bryk, M.; Babula, J. Application of ash and municipal sewage sludge as macronutrient sources in sustainable plant biomass production. J. Environ. Manag. 2020, 264, 110450. [Google Scholar] [CrossRef]
  83. Irshad, M.; Hafeez, F.; Naseem, M.; Rizwan, M.; Al-Wabel, M.I. Effect of coal and wood ash on phosphorus immobilization in different textured soils. Arab. J. Geos. 2018, 11, 536. [Google Scholar] [CrossRef]
  84. Li, S.; Cooke, R.A.; Huang, X.; Christianson, L.; Bhattarai, R. Evaluation of fly ash pellets for phosphorus removal in a laboratory scale denitrifying bioreactor. J. Environ. Manag. 2018, 207, 269–275. [Google Scholar] [CrossRef] [PubMed]
  85. Mupambwa, H.A.; Dube, E.; Mnkeni, P.N.S. Fly ash composting to improve fertiliser value—A review. S. Afr. J. Sci. 2015, 111, 1–6. [Google Scholar] [CrossRef]
  86. Mortensen, L.H.; Cruz-Paredes, C.; Schmidt, O.; Rønna, R.; Vestergård, M. Ash application enhances decomposition of recalcitrant organic matter. Soil Biol. Biochem. 2019, 135, 316–322. [Google Scholar] [CrossRef]
  87. Iżewska, A.; Wołoszyk, C. Yields of grain and straw, their content and ionic proportions of macroelements in maize fertilized with ash from municipal sewage sludge combustion. J. Elem. 2015, 20, 319–329. [Google Scholar] [CrossRef]
  88. Zalewska, M.; Stępień, A.; Wierzbowska, J. Agronomic evaluation of dried sewage sludge and sewage sludge ash as sources of nutrients for maize. J. Elem. 2020, 25, 771–785. [Google Scholar] [CrossRef]
  89. Pidlisnyuk, V.; Herts, A.; Khomenchuk, V.; Mamirova, A.; Kononchuk, O.; Ust’ak, S. Dynamic of morphological and physiological parameters and variation of soil characteristics during Miscanthus x giganteus cultivation in the diesel-contaminated land. Agronomy 2021, 11, 798. [Google Scholar] [CrossRef]
  90. FAO; IFAD; UNICEF; WFP; WHO. The State of Food Security and Nutrition in the World 2020. Transforming Food Systems for Affordable Healthy Diets; FAO: Rome, Italy; IFAD: Rome, Italy; UNICEF: Rome, Italy; WFP: Rome, Italy; WHO: Rome, Italy, 2020; p. 320. [Google Scholar] [CrossRef]
  91. OECD/FAO. OECD-FAO Agricultural Outlook 2021–2030; OECD Publishing: Paris, France, 2021; p. 337. Available online: https://www.oecd.org/development/oecd-fao-agricultural-outlook-19991142.htm (accessed on 30 December 2021).
Materials 15 00525 g001 550

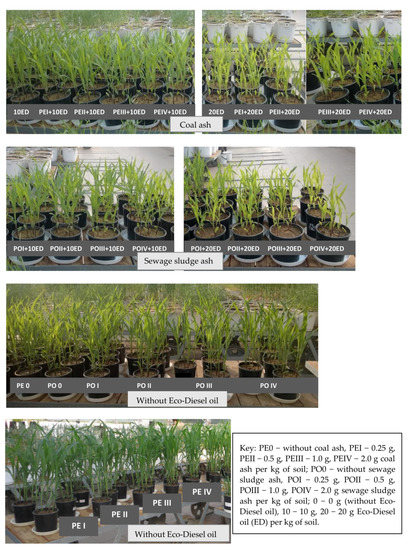

Figure 1. Pot experiment conducted in a greenhouse in the leaf development phase of maize-Zea mays L. (6–7 leaves, BBCH 16–17).
Figure 1. Pot experiment conducted in a greenhouse in the leaf development phase of maize-Zea mays L. (6–7 leaves, BBCH 16–17).
Materials 15 00525 g001
Materials 15 00525 g002 550
Figure 2. Content of macroelements in the aerial parts of maize (Zea mays L.) illustrated with the PCA method. Key: vectors represent analyzed variables (content of N, P, K, Na, Ca and Mg).
Figure 2. Content of macroelements in the aerial parts of maize (Zea mays L.) illustrated with the PCA method. Key: vectors represent analyzed variables (content of N, P, K, Na, Ca and Mg).
Materials 15 00525 g002
Materials 15 00525 g003 550
Figure 3. Effect of amendments on content of macroelements in the aerial parts of maize (Zea mays L.) illustrated with the PCA method. Key: points show the samples with elements (PE0—without coal ash, PEI—0.25 g, PEII—0.5 g, PEIII—1.0 g, PEIV—2.0 g; ash per kg of soil; PO0—without sewage sludge ash, POI—0.25 g, POII—0.5 g, POIII—1.0 g, POIV—2.0 g ash per kg of soil; 0—0 g (control), 1—10 g, 2—20 g eco-diesel oil per kg of soil.
Figure 3. Effect of amendments on content of macroelements in the aerial parts of maize (Zea mays L.) illustrated with the PCA method. Key: points show the samples with elements (PE0—without coal ash, PEI—0.25 g, PEII—0.5 g, PEIII—1.0 g, PEIV—2.0 g; ash per kg of soil; PO0—without sewage sludge ash, POI—0.25 g, POII—0.5 g, POIII—1.0 g, POIV—2.0 g ash per kg of soil; 0—0 g (control), 1—10 g, 2—20 g eco-diesel oil per kg of soil.
Materials 15 00525 g003
Materials 15 00525 g004 550
Figure 4. Percent contribution of variable factors according to the content of macroelements in aerial parts of maize (Zea mays L.): ED—Eco-diesel oil dose.
Figure 4. Percent contribution of variable factors according to the content of macroelements in aerial parts of maize (Zea mays L.): ED—Eco-diesel oil dose.
Materials 15 00525 g004
Table
Table 1. Physicochemical parameters of soil and ashes used in research.
Table 1. Physicochemical parameters of soil and ashes used in research.
Physicochemical ParametersUnitSoilCoal AshSewage Sludge Ash
pH in 1 M KCl 6.73
Hydrolytic aciditymM(+) kg−18.0
Cation exchange capacity (CEC)126.7
Total exchangeable bases (TEB)134.7
Base saturation (BS)%94.6
Organic carbon (TOC)g kg−1 d.m.12.60
Total nitrogen1.081.4294.638
Total phosphorus 10.2088.11
Total potassium 1.40812.833
Total calcium 2.49216.832
Total magnesium 10.0414.60
Total sodium 3.3321.722
Available phosphorusmg kg−1 d.m.83.28
Available potassium178.50
Available magnesium3.20
Table
Table 2. Yield of aerial mass of maize-Zea mays L., g fresh weight (f.w.) pot−1.
Table 2. Yield of aerial mass of maize-Zea mays L., g fresh weight (f.w.) pot−1.
Eco-Diesel Oil Dose (cm3 kg−1 d.m. of Soil)Ash Dose (g kg−1 d.m. of Soil)Average
00.250.512
Coal ash
0283.02 d295.26 c316.13 b292.57 cd291.17 cd295.63 B
10111.29 ef122.08 e113.31 ef113.54 ef120.88 e116.22 C
2036.03 ghij42.14 ghij32.44 j31.20 j33.70 ij35.10 F
Average143.45 V153.16 II,III,IV153.96 II,III,IV145.77 V148.58 III,IV,V148.98
Sewage sludge ash
0283.02 d311.65 b291.38 cd317.18 b334.76 a307.60 A
10111.29 ef104.89 f103.60 f107.49 f112.74 ef108.00 D
2036.03 ghij46.72 gh47.63 g44.67 ghi39.99 ghij43.01 E
Average143.45 V154.42 II,III147.54 IV,V156.44 II162.50 I152.87
Values denoted by the different letters and Roman numbers are significantly different at p ≤ 0.01: A–E for Eco-Diesel oil dose, I–V for ash dose and a–j for interaction between Eco-Diesel oil dose and ash dose (Anova, Tukey’s HSD test).
Table
Table 3. Content of total-N (N), phosphorus (P) and potassium (K) in aerial parts of maize-Zea mays L. (g kg−1 d.m.).
Table 3. Content of total-N (N), phosphorus (P) and potassium (K) in aerial parts of maize-Zea mays L. (g kg−1 d.m.).
Eco-Diesel Oil Dose (cm3 kg−1 d.m. of Soil)Ash Dose (g kg−1 d.m. of Soil)Average
00.250.512
Total-N (N)
Coal ash
06.720 abc8.120 d7.420 cd7.140 bcd6.720 abc7.224 A
106.300 abc5.880 a6.300 abc6.300 abc6.580 abc6.272 B
206.160 ab6.860 abc6.580 abc6.580 abc7.140 bcd6.664 C
Average6.393 I6.953 II6.767 I,II6.673 I,II6.813 I,II6.720
Sewage sludge ash
06.720 abcde7.140 bcde7.280 cde7.140 bcde6.860 abcde7.028 A
106.300 abc7.280 cde7.840 e7.700 de7.000 abcde7.224 A
206.160 abc5.880 a6.020 ab6.020 ab6.580 abcd6.132 B
Average6.393 I6.767 I,II7.047 II6.953 II6.813 I,II6.795
Phosphorus (P)
Coal ash
02.409 cde2.426 cde1.679 a1.831 ab1.877 abc2.044 A
102.714 defg2.744 defg2.649 defg2.472 def2.314 bcd2.579 B
203.034 fg2.758 defg3.173 g3.065 g2.937 efg2.993 C
Average2.719 III2.643 II,III2.500 I,II,III2.456 I,II2.376 I2.539
Sewage sludge ash
02.409 abcd1.959 a1.997 ab2.214 abc1.967 a2.109 A
102.714 de2.622 cde2.459 bcd2.543 cd2.551 cd2.578 B
203.034 ef2.817 def2.765 de2.844 def3.282 f2.948 C
Average2.719 II2.466 I2.407 I2.534 I,II2.600 I,II2.545
Potassium (K)
Coal ash
011.48 ab12.75 ab11.30 ab10.68 a10.65 a11.37 A
1016.42 cd16.57 cd17.60 cd19.45 d14.67 bc16.94 B
2017.18 cd17.47 cd17.26 cd18.93 d18.59 d17.88 B
Average15.03 I,II15.60 I,II15.39 I,II16.35 II14.64 I15.40
Sewage sludge ash
011.48 a11.61 a11.57 a10.95 a10.94 a11.31 A
1016.42 b18.47 b16.91 b16.38 b17.06 b17.05 B
2017.18 b17.83 b17.61 b16.79 b18.44 b17.57 B
Average15.03 I15.97 I15.36 I14.71 I15.48 I15.31
Values denoted by the different letters and Roman numbers are significantly different at p ≤ 0.01: A–C for Eco-Diesel oil dose, I–III for ash dose and a–g for interaction between Eco-Diesel oil dose and ash dose (Anova, Tukey’s HSD test).
Table
Table 4. Content of sodium (Na), calcium (Ca) and magnesium (Mg) in aerial parts of maize-Zea mays L. (g kg−1 d.m.).
Table 4. Content of sodium (Na), calcium (Ca) and magnesium (Mg) in aerial parts of maize-Zea mays L. (g kg−1 d.m.).
Eco-Diesel Oil Dose (cm3 kg−1 d.m. of Soil)Ash Dose (g kg−1 d.m. of Soil)Average
00.250.512
Sodium (Na)
Coal ash
00.934 a0.738 a0.607 a0.772 a0.792 a0.768 A
100.730 a0.764 a0.761 a0.699 a0.712 a0.734 A
200.792 a0.828 a0.758 a0.795 a0.783 a 0.791 A
Average0.819 I0.777 I0.709 I0.756 I0.762 I0.764
Sewage sludge ash
00.934 b0.791 ab0.809 ab0.730 a0.748 ab0.803 A
100.730 a0.774 ab0.818 ab0.768 ab0.824 ab0.783 A
200.792 ab0.834 ab0.813 ab0.775 ab0.834 ab0.809 A
Average0.819 I0.800 I0.813 I0.758 I0.802 I0.798
Calcium (Ca)
Coal ash
07.778 a7.359 a8.790 ab7.522 a7.581 a7.806 A
1012.272 c12.331 cd12.252 c11.350 bc12.346 cd12.110 B
2015.467 de15.926 e15.645 e16.108 e15.614 e15.752 C
Average11.839 I11.872 I12.229 I11.660 I11.847 I11.889
Sewage sludge ash
07.778 a8.198 a8.129 a8.312 a8.452 a8.174 A
1012.272 b14.089 bc13.603 bc13.890 bc14.164 bc13.604 B
2015.467 cd15.491 cd15.027 cd15.696 cd16.956 d15.727 C
Average11.839 I12.593 I,II12.253 I,II12.633 I,II13.190 II12.502
Magnesium (Mg)
Coal ash
01.995 a1.899 a2.017 a1.859 a2.007 a1.955 A
102.378 a2.528 a2.391 a2.210 a2.105 a2.322 B
202.312 a2.521 a2.112 a2.372 a2.319 a2.327 B
Average2.228 I2.316 I2.173 I2.147 I2.144 I2.202
Sewage sludge ash
01.995 a1.850 a1.875 a1.866 a1.842 a1.886 A
102.378 a2.361 a2.314 a2.278 a2.620 a2.390 B
202.312 a2.234 a2.102 a2.200 a2.402 a2.250 B
Average2.228 I2.148 I2.097 I2.115 I2.288 I2.175
Values denoted by the different letters and Roman numbers are significantly different at p ≤ 0.01: A–C for Eco-Diesel oil dose, I–III for ash dose and a–g for interaction between Eco-Diesel oil dose and ash dose (Anova, Tukey’s HSD test).
Table
Table 5. Correlation coefficients (r) between content of macroelements in aerial parts of maize (Zea mays L.).
Table 5. Correlation coefficients (r) between content of macroelements in aerial parts of maize (Zea mays L.).
MacroelementsPKNaCaMg
N−0.477 **−0.397 **−0.114−0.407 **−0.342 **
P 0.834 **0.2580.862 **0.683 **
K −0.0010.903 **0.821 **
Na 0.080.07
Ca 0.765 **
Significant at ** p ≤ 0.01.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wyszkowski, M.; Wyszkowska, J.; Kordala, N.; Borowik, A. Effects of Coal and Sewage Sludge Ashes on Macronutrient Content in Maize (Zea mays L.) Grown on Soil Contaminated with Eco-Diesel Oil. Materials 2022, 15, 525. https://doi.org/10.3390/ma15020525

AMA Style

Wyszkowski M, Wyszkowska J, Kordala N, Borowik A. Effects of Coal and Sewage Sludge Ashes on Macronutrient Content in Maize (Zea mays L.) Grown on Soil Contaminated with Eco-Diesel Oil. Materials. 2022; 15(2):525. https://doi.org/10.3390/ma15020525

Chicago/Turabian Style

Wyszkowski, Mirosław, Jadwiga Wyszkowska, Natalia Kordala, and Agata Borowik. 2022. "Effects of Coal and Sewage Sludge Ashes on Macronutrient Content in Maize (Zea mays L.) Grown on Soil Contaminated with Eco-Diesel Oil" Materials 15, no. 2: 525. https://doi.org/10.3390/ma15020525

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
