On the Effect of the Co-Introduction of Al and Ga Impurities on the Electrical Performance of Transparent Conductive ZnO-Based Thin Films
Abstract
:1. Introduction
2. Materials and Methods
3. Results

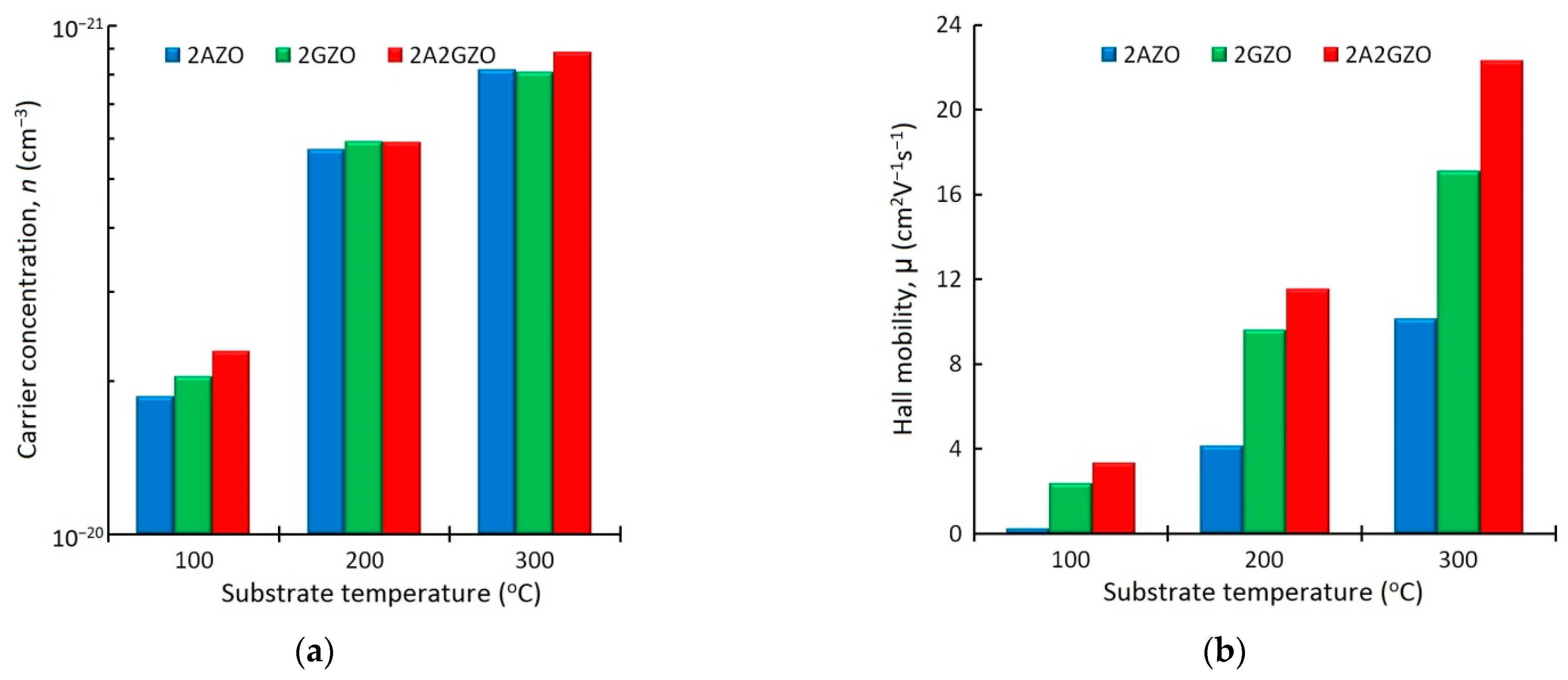

- For film compositions with their total impurity content at 2% (2AZO, 2GZO, and 1A1GZO), at each substrate temperature, the values of the film resistivity of co-doped films were always less than those of the films single-doped with Al but greater than that of the case of single doping of ZnO with Ga, i.e., ρ2GZO < ρ1A1GZO < ρ2GZO;
- By comparison, the co-doped 2A2GZO thin films, in which Al and Ga were simultaneously present in equal amounts at the level of 2%, demonstrated the best values in terms of resistivity.
- Ga-doped ZnO thin films performed better than Al-doped ZnO thin films in terms of their resistivity and mobility;
- In order to achieve the maximum values of electrical performance in Ga-doped ZnO films, it was necessary to carry out sputtering at elevated substrate temperatures (close to 300 °C) and a doping level above 1%;
- The introduction of an additional amount of Al impurity into the ZnO film with 2 at.% Ga further reduced its resistivity, mainly due to an increase in mobility μ.
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Hofmann, A.I.; Cloutet, E.; Hadziioannou, G. Materials for Transparent Electrodes: From Metal Oxides to Organic Alternatives. Adv. Electron. Mater. 2018, 4, 1700412. [Google Scholar] [CrossRef]
- Wang, T.; Lu, K.; Xu, Z.; Lin, Z.; Ning, H.; Qiu, T.; Yang, Z.; Zheng, H.; Yao, R.; Peng, J. Recent Developments in Flexible Transparent Electrode. Crystals 2021, 11, 511. [Google Scholar] [CrossRef]
- Qin, L.-H.; Yan, Y.-Q.; Yu, G.; Zhang, Z.-Y.; Zhama, T.; Sun, H. Research Progress of Transparent Electrode Materials with Sandwich Structure. Materials 2021, 14, 4097. [Google Scholar] [CrossRef] [PubMed]
- Li, Z.; Liu, X.; Zhou, M.; Zhang, S.; Cao, S.; Lei, G.; Lou, C.; Zhang, J. Plasma-induced oxygen vacancies enabled ultrathin ZnO films for highly sensitive detection of triethylamine. J. Hazard. Mater. 2021, 415, 125757. [Google Scholar] [CrossRef]
- Swami, S.K.; Chaturvedi, N.; Kumar, A.; Kumar, V.; Garg, A.; Dutta, V. Spray deposited gallium doped zinc oxide (GZO) thin film as the electron transport layer in inverted organic solar cells. Sol. Energy 2022, 231, 458. [Google Scholar] [CrossRef]
- Alhammadi, S.; Park, H.; Kim, W.K. Optimization of Intrinsic ZnO Thickness in Cu(In,Ga)Se2-Based Thin Film Solar Cells. Materials 2019, 12, 1365. [Google Scholar] [CrossRef]
- Cao, W.; Li, J.; Chen, H.; Xue, J. Transparent electrodes for organic optoelectronic devices: A review. J. Photonics Energy 2014, 4, 040990. [Google Scholar] [CrossRef]
- Mallick, A.; Ghosh, S.; Basak, D. Highly conducting and transparent low-E window films with high figure of merit values based on RF sputtered Al and In co-doped ZnO. Mater. Sci. Semicond. Process. 2020, 119, 105240. [Google Scholar] [CrossRef]
- Li, J.; Cheng, F.; Li, H.; Zhang, H.; Wang, G.; Pan, D. Two-step deposition of Ag nanowires/Zn2SnO4 transparent conductive films for antistatic coatings. RSC Adv. 2021, 11, 14730–14736. [Google Scholar] [CrossRef]
- Abduev, A.K.; Akhmedov, A.K.; Asvarov, A.S. The structural and electrical properties of Ga-doped ZnO and Ga, B-codoped ZnO thin films: The effects of additional boron impurity. Sol. Energy Mater. Sol. Cells 2007, 91, 258. [Google Scholar] [CrossRef]
- Vorobyeva, N.A.; Rumyantseva, M.N.; Vasiliev, R.B.; Kozlovskiy, V.F.; Soshnikova, Y.M.; Filatova, D.G.; Zaytsev, V.B.; Zaytseva, A.V.; Gaskov, A.M. Doping effects on electrical and optical properties of spin-coated ZnO Thin films. Vacuum 2015, 114, 198. [Google Scholar] [CrossRef]
- Pham, D.P.; Nguyen, H.T.; Phan, B.T.; Cao, T.D.; Hoang, V.D.; Dao, V.A.; Yi, J.; Tran, C.V. In and Ga Codoped ZnO Film as a Front Electrode for Thin Film Silicon Solar Cells. Adv. Condens. Matter Phys. 2014, 2014, 971528. [Google Scholar] [CrossRef]
- Chen, C.-C.; Wu, H.-C. Electronic Structure and Optical Property Analysis of Al/Ga-Codoped ZnO through First-Principles Calculations. Materials 2016, 9, 164. [Google Scholar] [CrossRef] [PubMed]
- Istrate, A.-I.; Mihalache, I.; Romanitan, C.; Tutunaru, O.; Vulpe, S.; Nastase, F.; Veca, L.M. Ca-Doped ZnO:Al Thin Films: Synthesis and Characterization. Coatings 2021, 11, 1023. [Google Scholar] [CrossRef]
- Lin, Y.C.; Chen, T.Y.; Wang, L.C.; Lien, S.Y. Comparison of AZO, GZO, and AGZO Thin Films TCOs Applied for a-Si Solar Cells. J. Electrochem. Soc. 2012, 159, H599–H604. [Google Scholar] [CrossRef]
- Akhmedov, A.; Abduev, A.; Murliev, E.; Asvarov, A.; Muslimov, A.; Kanevsky, V. The ZnO-In2O3 Oxide System as a Material for Low-Temperature Deposition of Transparent Electrodes. Materials 2021, 14, 6859. [Google Scholar] [CrossRef]
- Aleksandrova, M.; Ivanova, T.; Strijkova, V.; Tsanev, T.; Singh, A.K.; Singh, J.; Gesheva, K. Ga-Doped ZnO Coating—A Suitable Tool for Tuning the Electrode Properties in the Solar Cells with CdS/ZnS Core-Shell Quantum Dots. Crystals 2021, 11, 137. [Google Scholar] [CrossRef]
- Gondoni, P.; Ghidelli, M.; Di Fonzo, F.; Russo, V.; Bruno, P.; Martí-Rujas, J.; Bottani, C.E.; Li Bassi, A.; Casari, C.S. Structural and functional properties of Al:ZnO thin films grown by Pulsed Laser Deposition at room temperature. Thin Solid Films 2012, 520, 4707. [Google Scholar] [CrossRef]
- Ponja, S.D.; Sathasivam, S.; Parkin, I.P.; Carmalt, J. Highly conductive and transparent gallium doped zinc oxide thin films via chemical vapor deposition. Sci. Rep. 2020, 10, 638. [Google Scholar] [CrossRef]
- Hacini, N.; Ghamnia, M.; Dahamni, M.A.; Boukhachem, A.; Pireaux, J.-J.; Houssiau, L. Compositional, Structural, Morphological, and Optical Properties of ZnO Thin Films Prepared by PECVD Technique. Coatings 2021, 11, 202. [Google Scholar] [CrossRef]
- Koralli, P.; Fiat Varol, S.; Mousdis, G.; Mouzakis, D.E.; Merdan, Z.; Kompitsas, M. Comparative Studies of Undoped/Al-Doped/In-Doped ZnO Transparent Conducting Oxide Thin Films in Optoelectronic Applications. Chemosensors 2022, 10, 162. [Google Scholar] [CrossRef]
- Akhmedov, A.K.; Asvarov, A.S.; Muslimov, A.E.; Kanevsky, V.M. A Multi-Position Drum-Type Assembly for Simultaneous Film Deposition at Different Temperatures in a Single Sputter Cycle–Application to ITO Thin Films. Coatings 2020, 10, 1076. [Google Scholar] [CrossRef]
- Jung, K.; Choi, W.-K.; Yoon, S.-J.; Kim, H.J.; Choi, J.-W. Influence of substrate temperature on the electrical and optical properties of Ga-doped ZnO thin films fabricated by continuous composition spread. Ceram. Int. 2012, 38, S605. [Google Scholar] [CrossRef]
- Asvarov, A.; Abduev, A.; Akhmedov, A.; Abdullaev, A. Effects of a high humidity environment and air anneal treatments on the electrical resistivity of transparent conducting ZnO-based thin films. Phys. Status Solidi C 2010, 7, 1553. [Google Scholar] [CrossRef]
- Gabás, M.; Landa-Cánovas, A.; Costa-Krämer, J.L.; Agulló-Rueda, F.; González-Elipe, A.R.; Díaz-Carrasco, P.; Hernández-Moro, J.; Lorite, I.; Herrero, P.; Castillero, P.; et al. Differences in n-type doping efficiency between Al- and Ga-ZnO films. J. Appl. Phys. 2013, 113, 163709. [Google Scholar] [CrossRef]
- Gómez, H.; Olvera, M.L. Ga-doped ZnO thin films: Effect of deposition temperature, dopant concentration, and vacuum-thermal treatment on the electrical, optical, structural and morphological properties. Mater. Sci. Eng. B 2006, 134, 20–26. [Google Scholar] [CrossRef]
- Kim, N.-J.; Shin, N.; Hwang, C.-S. Optical and electrical characteristics of Ga-Zn-O thin films prepared by RF magnetron co-sputtering system. Superlattices Microstruct. 2017, 101, 68–75. [Google Scholar] [CrossRef]
- Howard, D.P.; Marchand, P.; Johnson, I.D.; Carmalt, C.J.; Parkin, I.P.; Darr, J.A. Conducting Al and Ga-doped zinc oxides; rapid optimisation and scale-up. J. Mater. Chem. A 2016, 4, 12774–12780. [Google Scholar] [CrossRef]
- Mahdhi, H.; Ben Ayadi, Z.; Alaya, S.; Gauffier, J.L.; Djessas, K. The effects of dopant concentration and deposition temperature on the structural, optical and electrical properties of Ga-doped ZnO thin films. Superlattices Microstruct. 2014, 72, 60–71. [Google Scholar] [CrossRef]
- Sernelius, B.E.; Berggren, K.-F.; Jin, Z.-C.; Hamberg, I.; Granqvist, C.G. Band-gap tailoring of ZnO by means of heavy Al doping. Phys. Rev. B 1988, 37, 10244. [Google Scholar] [CrossRef] [Green Version]
- Lu, J.G.; Fujita, S.; Kawaharamura, T.; Nishinaka, H.; Kamada, Y.; Ohshima, T.; Ye, Z.Z.; Zeng, Y.J.; Zhang, Y.Z.; Zhu, L.P.; et al. Carrier concentration dependence of band gap shift in n-typeZnO:Al films. J. Appl. Phys. 2007, 101, 083705. [Google Scholar] [CrossRef]
- Abduev, A.; Akmedov, A.; Asvarov, A.; Chiolerio, A. A Revised Growth Model for Transparent Conducting Ga Doped ZnO Films: Improving Crystallinity by Means of Buffer Layers. Plasma Process. Polym. 2015, 12, 725. [Google Scholar] [CrossRef]
- Jeong, S.H.; Park, B.N.; Yoo, D.-G.; Boo, J.-H. Al-ZnO Thin Films as Transparent Conductive Oxides: Synthesis, Characterization, and Application Tests. J. Korean Phys. Soc. 2007, 50, 622. [Google Scholar]
- Rembeza, S.I.; Prosvetov, R.E.; Rembeza, E.S.; Vinokurov, A.A.; Makagonov, V.A.; Agapov, B.L. Influence of Al impurities on the electrical properties of ZnO films. Lett. Mater. 2019, 9, 288. [Google Scholar] [CrossRef]
- Sieber, I.; Wanderka, N.; Urban, I.; Dorfel, I.; Schierhorn, E.; Fenske, F.; Fuhs, W. Electron microscopic characterization of reactively sputtered ZnO films with different Al-doping levels. Thin Solid Films 1998, 330, 108. [Google Scholar] [CrossRef]
- Ungula, J.; Dejene, F.B.; Swart, H.C. Effects of different Ga doping concentration on structural and optical properties of Ga-doped ZnO nanoparticles by precipitation reflux method. In Proceedings of the 61st Annual Conference of the South African Institute of Physics, Johannesburg, South Africa, 4–8 July 2016. [Google Scholar]
- Ebrahimifard, R.; Golobostanfard, M.R.; Abdizadeh, H. Sol–gel derived Al and Ga co-doped ZnO thin films: An optoelectronic study. Appl. Surf. Sci. 2014, 290, 252–259. [Google Scholar] [CrossRef]
- Holzwarth, U.; Gibson, N. The Scherrer equation versus the ‘Debye-Scherrer equation’. Nat. Nanotech. 2011, 6, 534. [Google Scholar] [CrossRef]
- Macdonald, F.; Lide, D.R. CRC handbook of chemistry and physics: From paper to web. Abstr. Pap. Am. Chem. S 2003, 225, U552. [Google Scholar]
- Gabas, M.; Torelli, P.; Barrett, N.T.; Sacchi, M.; Barrado, J.R.R. Electronic structure of Al- and Ga-doped ZnO films studied by hard X-ray photoelectron spectroscopy. APL Mater. 2014, 2, 012112. [Google Scholar] [CrossRef]
- Abduev, A.K.; Akhmedov, A.K.; Asvarov, A.S.; Muslimov, A.E.; Kanevsky, V.M. Effect of the Working Gas Pressure on the Structure of ZnO Layers. Crystallogr. Rep. 2020, 65, 995. [Google Scholar] [CrossRef]
- Abduev, A.; Akhmedov, A.; Asvarov, A. The formation of nanoparticles, ceramics, and thin films of ZnO in the environment of zinc vapor. J. Phys. Conf. Ser. 2011, 291, 012039. [Google Scholar] [CrossRef]
- Nomoto, J.-I.; Oda, J.-I.; Miyata, T.; Minami, T. Effect of inserting a buffer layer on the characteristics of transparent conducting impurity-doped ZnO thin films prepared by dc magnetron sputtering. Thin Solid Films 2010, 519, 1587. [Google Scholar] [CrossRef]
- Kusayanagi, M.; Uchida, A.; Oka, N.; Jia, J.; Nakamura, S.-I.; Shigesato, Y. Al-doped ZnO films deposited on a slightly reduced buffer layer by reactive dc unbalanced magnetron sputtering. Thin Solid Films 2014, 555, 93. [Google Scholar] [CrossRef]
Impurity Content in the Target | Thin Film Sample Abbreviation | |
---|---|---|
at.% Al | at.% Ga | |
0 | 0 | ZnO |
1 | 0 | 1AZO |
0 | 1 | 1GZO |
1 | 1 | 1A1GZO |
2 | 0 | 2AZO |
0 | 2 | 2GZO |
2 | 2 | 2A2GZO |
Sample | Data for (002) XRD Peak in Thin Films | ||
---|---|---|---|
I, cps | 2θ, deg | β, deg | |
ZnO | 10,248 | 34.39 | 0.511 |
1AZO | 5155 | 34.33 | 0.572 |
1GZO | 6812 | 34.21 | 0.592 |
1A1GZO | 1905 | 34.31 | 0.636 |
2AZO | 909 | 34.28 | 0.755 |
2GZO | 13,799 | 34.25 | 0.546 |

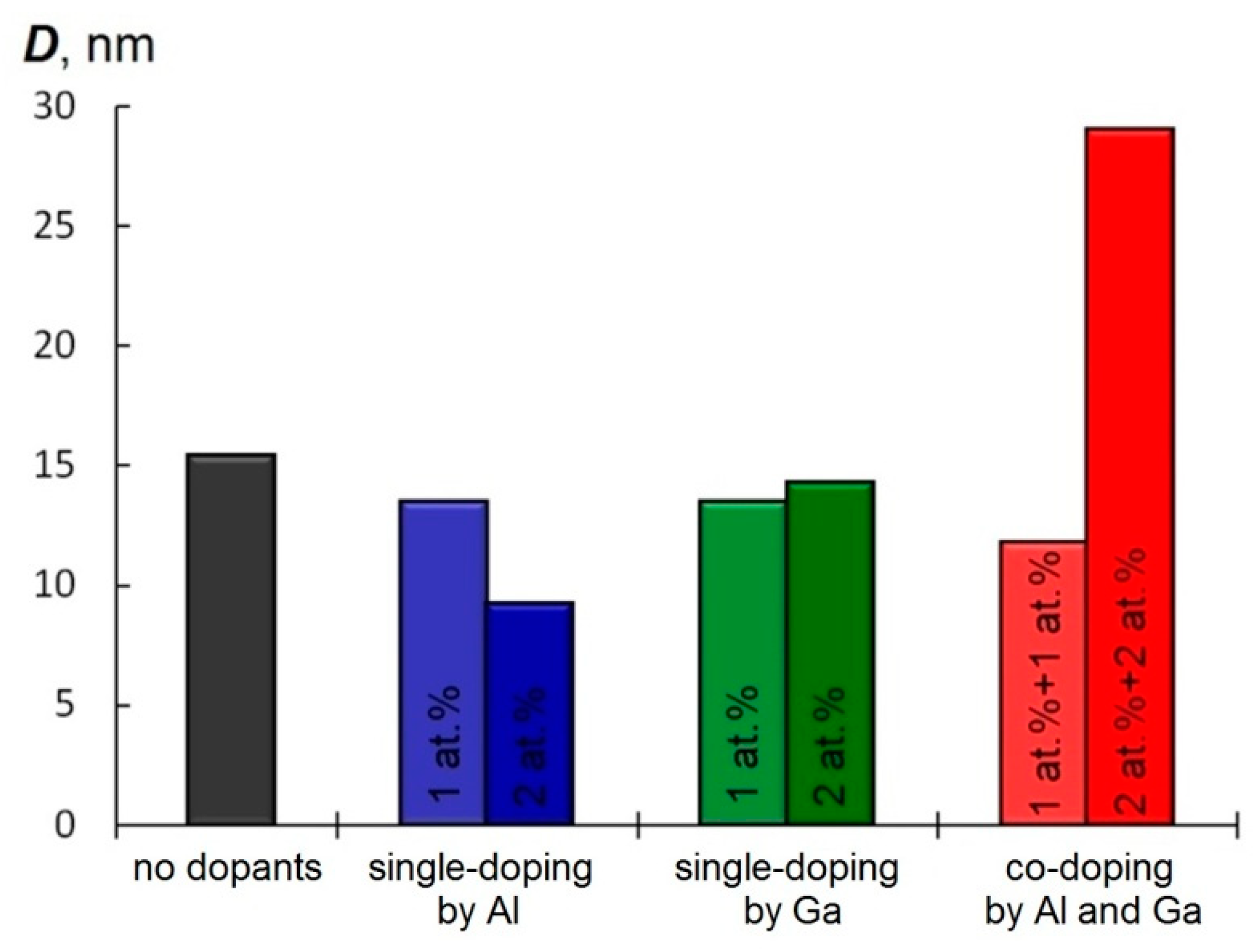

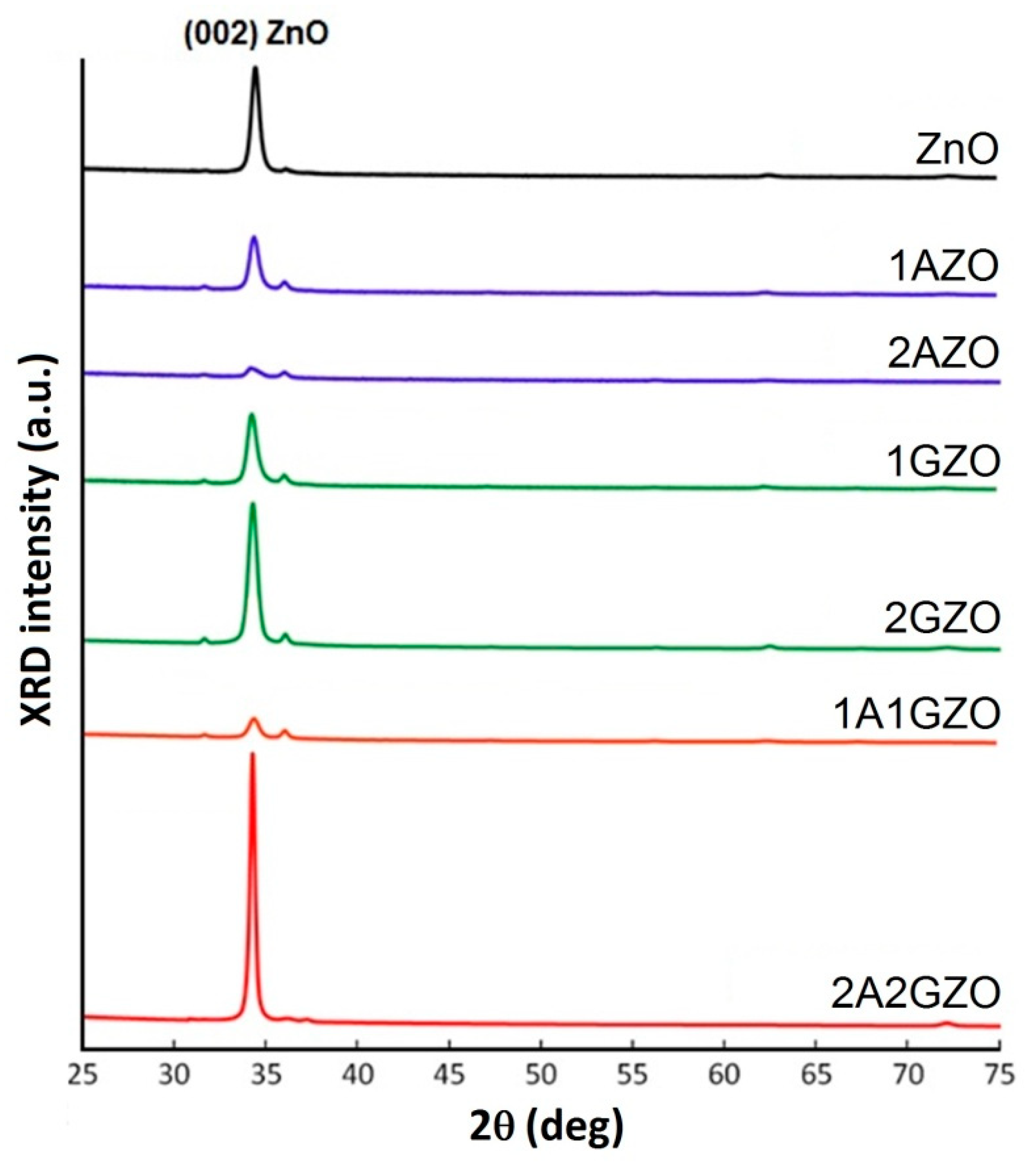

2A2GZO | 27,436 | 34.24 | 0.279 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Asvarov, A.S.; Abduev, A.K.; Akhmedov, A.K.; Kanevsky, V.M. On the Effect of the Co-Introduction of Al and Ga Impurities on the Electrical Performance of Transparent Conductive ZnO-Based Thin Films. Materials 2022, 15, 5862. https://doi.org/10.3390/ma15175862
Asvarov AS, Abduev AK, Akhmedov AK, Kanevsky VM. On the Effect of the Co-Introduction of Al and Ga Impurities on the Electrical Performance of Transparent Conductive ZnO-Based Thin Films. Materials. 2022; 15(17):5862. https://doi.org/10.3390/ma15175862
Chicago/Turabian StyleAsvarov, Abil S., Aslan K. Abduev, Akhmed K. Akhmedov, and Vladimir M. Kanevsky. 2022. "On the Effect of the Co-Introduction of Al and Ga Impurities on the Electrical Performance of Transparent Conductive ZnO-Based Thin Films" Materials 15, no. 17: 5862. https://doi.org/10.3390/ma15175862
