# Topology Optimization of Piezoelectric Energy Harvesters for Enhanced Open-Circuit Voltage Subjected to Harmonic Excitations

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Finite Element Analysis of Piezoelectric Structures

## 3. Optimization Model and Sensitivity Analysis

$\mathrm{find}:$ | ${\mathbf{\rho}}_{\mathrm{pzt}}$ | (11) |

$\mathrm{max}:$ | ${\eta}_{\mathrm{energy}}\mathrm{or}\text{}{\eta}_{\mathrm{voltage}}$ | |

$\mathrm{s}.\mathrm{t}.$ | ${\overline{K}}_{uu}U+{K}_{u\varphi}\Phi =F$ ${K}_{\varphi u}U-{K}_{\varphi \varphi}\Phi =Q$ $V\left({\mathbf{\rho}}_{\mathrm{pzt}}\right)/{V}_{0}\le \overline{V}$ $0\le {\mathbf{\rho}}_{\mathrm{pzt}}\le 1$ |

## 4. Numerical Examples

_{11}= 120.3 GPa, c

_{12}= 75.2 GPa, c

_{13}= 75.1 GPa, c

_{33}= 110.8 GPa, c

_{44}= 21.1 GPa, c

_{66}= 22.6 GPa, e

_{31}= −5.4 C/m

^{2}, e

_{33}= 15.8 C/m

^{2}, e

_{15}= 12.3 C/m

^{2}, κ

_{11}= 919.1, κ

_{33}= 826.6, κ

_{0}= 8.55 × 10

^{−12}F/m, and the density is 7500 kg/m

^{3}. The Young’s modulus, density and Poisson’s ratio of the aluminum are 71 GPa, 2700 kg/m

^{3}and 0.33, respectively. A harmonic pressure load with an amplitude of 10 kPa was applied on the bottom surface. For the optimization process, we used the in-house MATLAB code that considers the dynamic pressure loads. The developed FE code was then verified using commercial software COMSOL. The parameters of the applied piezoelectric material PZT-5A are given as follows:

- Elastic matrix: ${C}_{2\mathrm{D}}^{\mathrm{E}}=\left[\begin{array}{ccc}120.3& 75.1& 0\\ 75.1& 110.8& 0\\ 0& 0& 21.1\end{array}\right]$ GPa;
- Piezoelectric coupling matrix: ${e}_{2\mathrm{D}}^{\mathrm{T}}=\left[\begin{array}{c}\begin{array}{ccc}0& 0& 12.3\end{array}\\ \begin{array}{ccc}-5.4& 15.8& 0\end{array}\end{array}\right]$ C/m
^{2}; - Dielectric matrix: ${\mathsf{\kappa}}_{2\mathrm{D}}^{\mathrm{s}}=\left[\begin{array}{cc}919.1& 0\\ 0& 826.6\end{array}\right]\times 8.55\times {10}^{-12}$ F/m.

#### 4.1. Design for Enhanced Energy Conversion Efficiency

#### 4.2. Design for Enhanced Open-Circuit Voltage

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A

## References

- Yang, Z.; Zhou, S.; Zu, J.; Inman, D. High-Performance piezoelectric energy harvesters and their applications. Joule
**2018**, 2, 642–697. [Google Scholar] [CrossRef] [Green Version] - Safaei, M.; Sodano, A.H.; Anton, S.R. A review of energy harvesting using piezoelectric materials: State-of-the-art a decade later (2008–2018). Smart Mater. Struct.
**2019**, 28, 113001. [Google Scholar] [CrossRef] - Cho, J.H.; Richards, R.F.; Bahr, D.F.; Richards, C.D.; Anderson, M.J. Efficiency of energy conversion by piezoelectrics. Appl. Phys. Lett.
**2006**, 89, 104107. [Google Scholar] [CrossRef] - Yang, Z.; Erturk, A.; Zu, J. On the efficiency of piezoelectric energy harvesters. Extreme Mech. Lett.
**2017**, 15, 26–37. [Google Scholar] [CrossRef] - Thein, C.K.; Liu, J.S. Numerical modeling of shape and topology optimisation of a piezoelectric cantilever beam in an energy-harvesting sensor. Eng. Comput.
**2017**, 33, 137–148. [Google Scholar] [CrossRef] - Park, J.; Lee, S.; Kwak, B.M. Design optimization of piezoelectric energy harvester subject to tip excitation. J. Mech. Sci. Technol.
**2012**, 26, 137–143. [Google Scholar] [CrossRef] - Nabavi, S.; Zhang, L. Nonlinear multi-mode wideband piezoelectric MEMS vibration energy harvester. IEEE Sens. J.
**2019**, 19, 4837–4848. [Google Scholar] [CrossRef] - Yi, Z.; Hu, Y.; Ji, B.; Liu, J.; Yang, B. Broad bandwidth piezoelectric energy harvester by a flexible buckled bridge. Appl. Phys. Lett.
**2018**, 113, 183901. [Google Scholar] [CrossRef] - Benasciutti, D.; Moro, L.; Zelenika, S.; Brusa, E. Vibration energy scavenging via piezoelectric bimorphs of optimized shapes. Microsyst. Technol.
**2010**, 16, 657–668. [Google Scholar] [CrossRef] - Goldschmidtboeing, F.; Woias, P. Characterization of different beam shapes for piezoelectric energy harvesting. J. Micromech. Microeng.
**2008**, 18, 104013. [Google Scholar] [CrossRef] - Hosseini, R.; Nouri, M. Shape design optimization of unimorph piezoelectric cantilever energy harvester. J. Comput. Appl. Math.
**2016**, 47, 247–259. [Google Scholar] - Ayed, S.B.; Abdelkefi, A.; Najar, F.; Hajj, M.R. Design and performance of variable-shaped piezoelectric energy harvesters. J. Intell. Mater. Syst. Struct.
**2014**, 25, 174–186. [Google Scholar] [CrossRef] - Raju, S.S.; Uma, G.; Umapathy, M. Cantilever piezoelectric energy harvester with multiple cavities. Smart Mater. Struct.
**2015**, 24, 115023. [Google Scholar] [CrossRef] - Čeponis, A.; Mažeika, D.; Bakanauskas, V. Trapezoidal cantilevers with irregular cross-sections for energy harvesting systems. Appl. Sci.
**2017**, 7, 134. [Google Scholar] [CrossRef] [Green Version] - Bendsøe, M.P.; Sigmund, O. Topology Optimization Theory, Methods and Applications, 1st ed.; Springer: Berlin, Germany, 2003; pp. 1–28. [Google Scholar]
- Nanthakumar, S.S.; Lahmer, T.; Zhuang, X.; Park, H.S.; Rabczuk, T. Topology optimization of piezoelectric nanostructures. J. Mech. Phys. Solids
**2016**, 94, 316–335. [Google Scholar] [CrossRef] - Cao, Y.; Huang, H.; Ding, Y. Isogeometric optimization of piezoelectric functionally graded material for energy harvester. Compos. Struct.
**2021**, 273, 114261. [Google Scholar] [CrossRef] - Zheng, B.; Chang, C.J.; Gea, H.C. Topology optimization of energy harvesting devices using piezoelectric materials. Struct. Multidiscipl. Optim.
**2009**, 38, 17–23. [Google Scholar] [CrossRef] - Chen, S.; Gonella, S.; Chen, W.; Liu, W.K. A level set approach for optimal design of smart energy harvesters. Comput. Methods Appl. Mech. Eng.
**2010**, 199, 2532–2543. [Google Scholar] [CrossRef] - Wang, M.Y.; Wang, X.; Guo, D. A level set method for structural topology optimization. Comput. Methods Appl. Mech. Eng.
**2003**, 192, 227–246. [Google Scholar] [CrossRef] - Wei, P.; Wang, W.; Yang, Y.; Wang, M.Y. Level set band method: A combination of density-based and level set methods for the topology optimization of continuums. Front. Mech. Eng.
**2020**, 15, 390–405. [Google Scholar] [CrossRef] - Kim, J.E.; Kim, D.S.; Ma, P.S.; Kim, Y.Y. Multi-physics interpolation for the topology optimization of piezoelectric systems. Comput. Methods Appl. Mech. Eng.
**2010**, 199, 3153–3168. [Google Scholar] [CrossRef] - Vatanabe, S.L.; Paulino, G.H.; Silva, E.C.N. Design of functionally graded piezocomposites using topology optimization and homogenization-toward effective energy harvesting materials. Comput. Methods Appl. Mech. Eng.
**2013**, 266, 205–218. [Google Scholar] [CrossRef] - Almeida, B.V.; Pavanello, R. Topology optimization of the thickness profile of bimorph piezoelectric energy harvesting devices. J. Appl. Math. Comp. Mech.
**2019**, 5, 113–127. [Google Scholar] - Huang, X.; Xie, Y. Convergent and mesh-independent solutions for the bi-directional evolutionary structural optimization method. Finite Elem. Anal. Des.
**2007**, 43, 1039–1049. [Google Scholar] [CrossRef] - He, M.; Zhang, X.; Fernandez, L.S.; Molter, A.; Xia, L.; Shi, T. Multi-material topology optimization of piezoelectric composite structures for energy harvesting. Compos. Struct.
**2021**, 265, 113783. [Google Scholar] [CrossRef] - Noh, J.Y.; Yoon, G.H. Topology optimization of piezoelectric energy harvesting devices considering static and harmonic dynamic loads. Adv. Eng. Softw.
**2012**, 53, 45–60. [Google Scholar] [CrossRef] - Amlashi, A.H.; Schlinquer, T.; Ousaid, A.M.; Rakotondrabe, M. 2D topology optimization MATLAB codes for piezoelectric actuators and energy harvesters. Struct. Multidiscipl. Optim.
**2020**, 63, 983–1014. [Google Scholar] [CrossRef] - Anton, S.R.; Sodano, H.A. A review of power harvesting using piezoelectric materials (2003–2006). Smart Mater. Struct.
**2007**, 16, R1. [Google Scholar] [CrossRef] - Rupp, C.J.; Evgrafov, A.; Maute, K.; Dunn, M.L. Design of piezoelectric energy harvesting systems: A topology optimization approach based on multilayer plates and shells. J. Intell. Mater. Syst. Struct.
**2009**, 20, 1923–1939. [Google Scholar] [CrossRef] - Lee, S.; Youn, B.D. A design and experimental verification methodology for an energy harvester skin structure. Smart Mater. Struct.
**2011**, 20, 057001. [Google Scholar] [CrossRef] - Vatanabe, S.L.; Paulino, G.H.; Silva, E.C.N. Influence of pattern gradation on the design of piezocomposite energy harvesting devices using topology optimization. Compos. B Eng.
**2012**, 43, 2646–2654. [Google Scholar] [CrossRef] - Wein, F.; Kaltenbacher, M.; Stingl, M. Topology optimization of a cantilevered piezoelectric energy harvester using stress norm constraints. Struct. Multidiscipl. Optim.
**2013**, 48, 173–185. [Google Scholar] [CrossRef] - Lerch, R. Simulation of piezoelectric devices by two- and three-dimensional finite elements. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**1990**, 37, 233. [Google Scholar] [CrossRef] [PubMed] - Silva, E.C.N.; Kikuchi, N. Design of piezoelectric transducers using topology optimization. Smart Mater. Struct.
**1999**, 8, 350–364. [Google Scholar] [CrossRef] - Sharma, A.K.; Kosta, M.; Shmuel, G.; Amir, O. Gradient-based topology optimization of soft dielectrics as tunable phononic crystals. Compos. Struct.
**2022**, 280, 114846. [Google Scholar] [CrossRef] - Sharma, A.K.; Joglekar, M.M.; Joglekar, D.M.; Alam, Z. Topology optimization of soft compressible phononic laminates for widening the mechanically tunable band gaps. Compos. Struct.
**2022**, 289, 115389. [Google Scholar] [CrossRef] - Kim, S.; Clark, W.W.; Wang, Q.M. Piezoelectric energy harvesting with a clamped circular plate: Experimental study. J. Intell. Mater. Syst. Struct.
**2005**, 16, 855–863. [Google Scholar] [CrossRef] - Kim, S.; Clark, W.W.; Wang, Q.M. Piezoelectric energy harvesting with a clamped circular plate: Analysis. J. Intell. Mater. Syst. Struct.
**2005**, 16, 847–854. [Google Scholar] [CrossRef] - Svanberg, K. The method of moving asymptotes-a new method for structural optimization. Int. J. Numer. Methods Eng.
**1987**, 24, 359–373. [Google Scholar] [CrossRef] - Sigmund, O.; Maute, K. A critical review of established methods of structural topology optimization. Struct. Multidiscipl. Optim.
**2013**, 48, 1031–1055. [Google Scholar] [CrossRef]

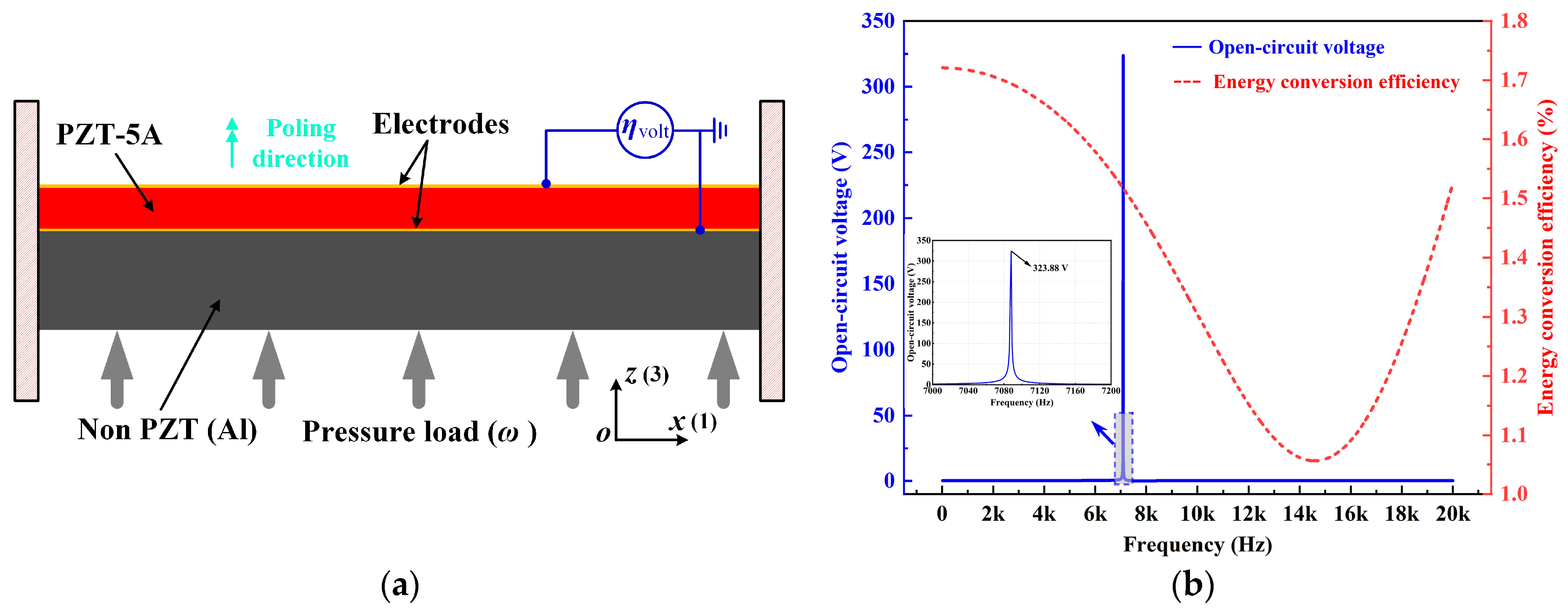

**Figure 2.**Schematic diagram and frequency response curve of PEH. (

**a**) Schematic cross-section of a harmonically pressured clamped–clamped piezoelectric plate; (

**b**) frequency responses of the open-circuit voltage and the energy conversion efficiency.

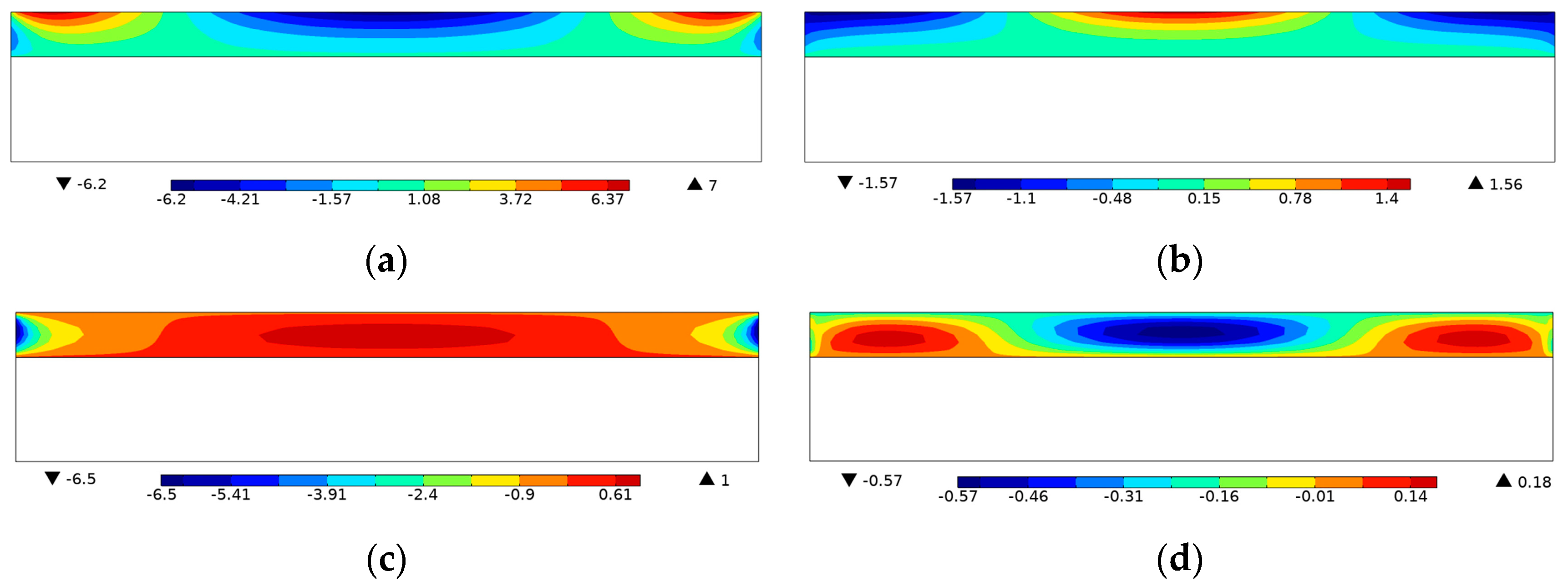

**Figure 3.**Influence of the equipotential boundary conditions on voltage contour. (

**a**) Without equipotential constraint f = 4 kHz; (

**b**) without equipotential constraint f = 16 kHz; (

**c**) with equipotential constraint f = 4 kHz; (

**d**) with equipotential constraint f = 16 kHz.

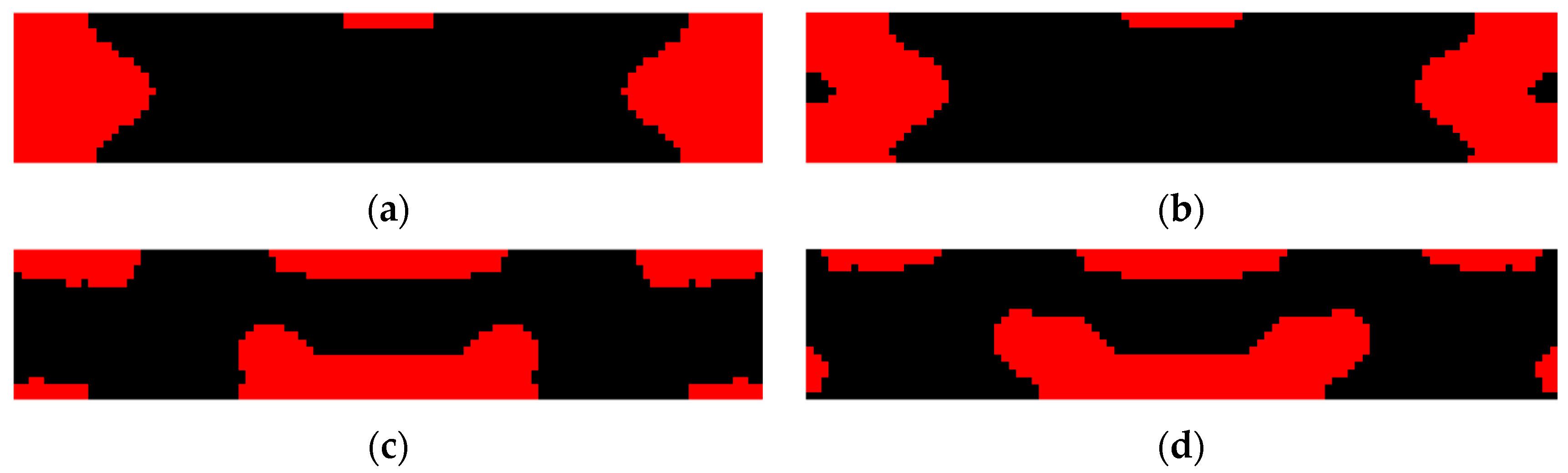

**Figure 4.**Energy conversion efficiency enhanced designs for variant excitation frequencies. (

**a**) f = 4 kHz; (

**b**) f = 8 kHz; (

**c**) f = 12 kHz; (

**d**) f = 16 kHz.

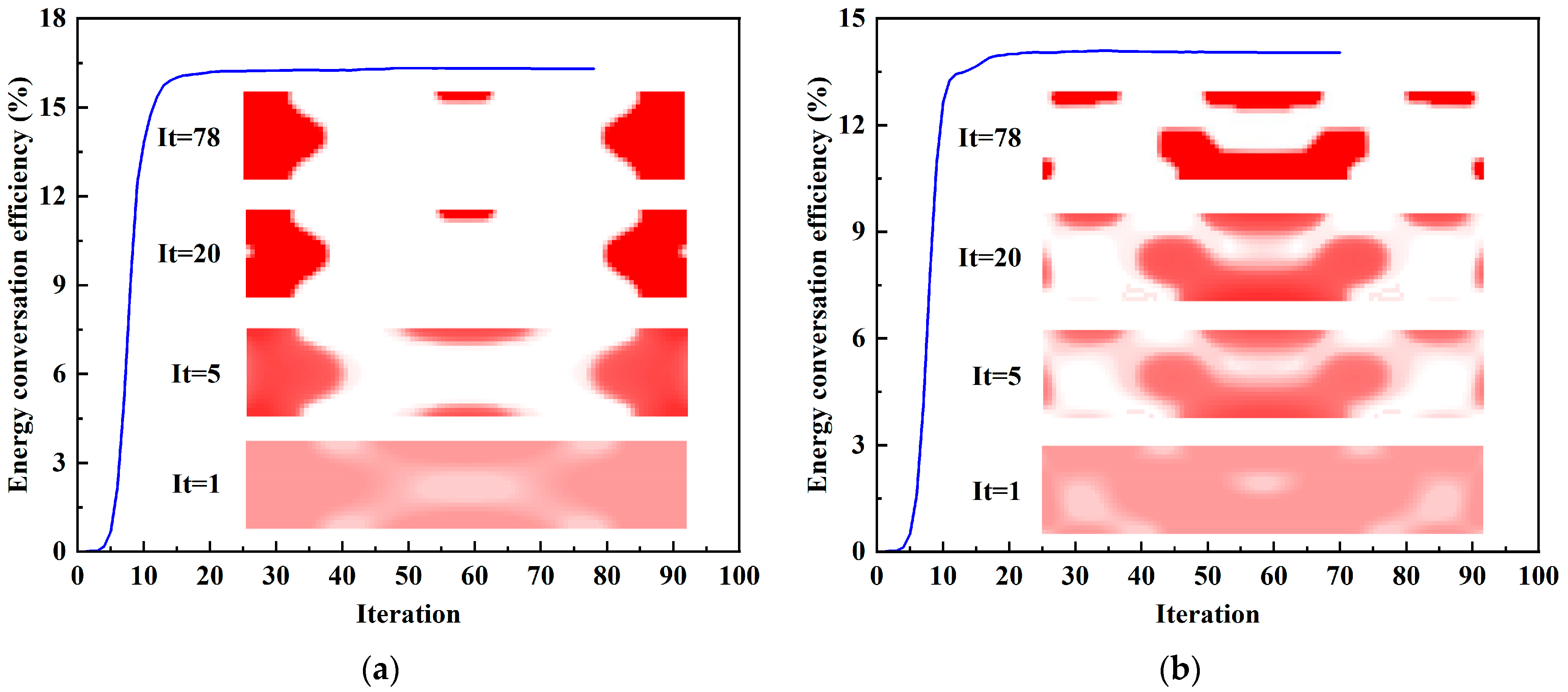

**Figure 6.**Iterative history and topological evolution for energy conversion efficiency designs. (

**a**) f = 4 kHz; (

**b**) f = 16 kHz.

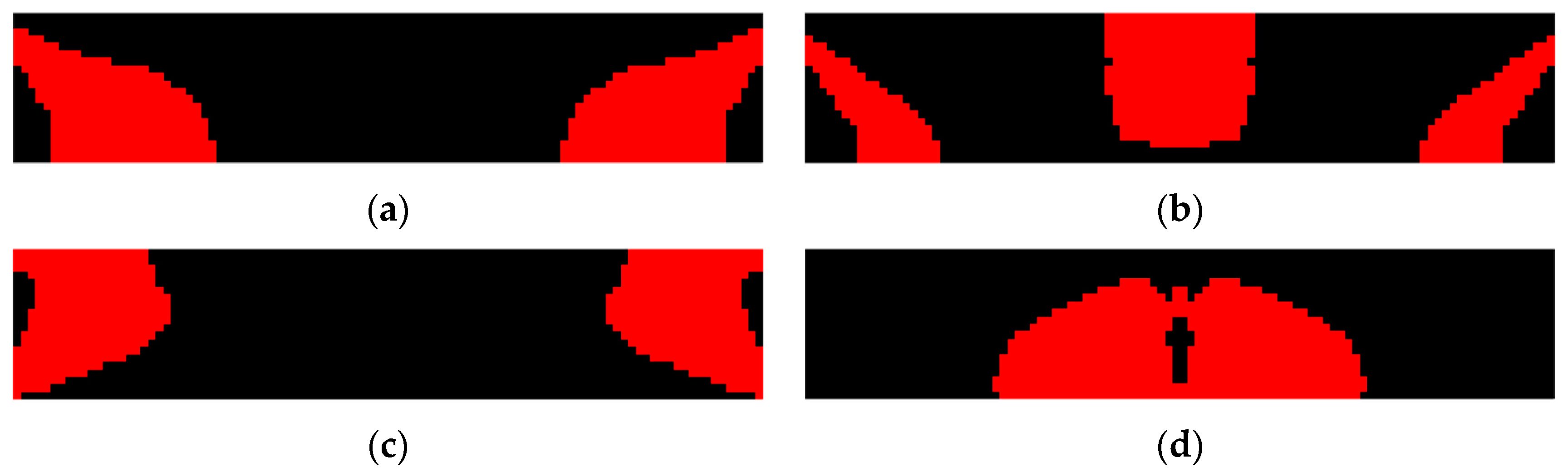

**Figure 8.**Open-circuit voltage enhanced designs for variant excitation frequencies. (

**a**) f = 4 kHz; (

**b**) f = 6 kHz; (

**c**) f = 10 kHz; (

**d**) f = 16 kHz.

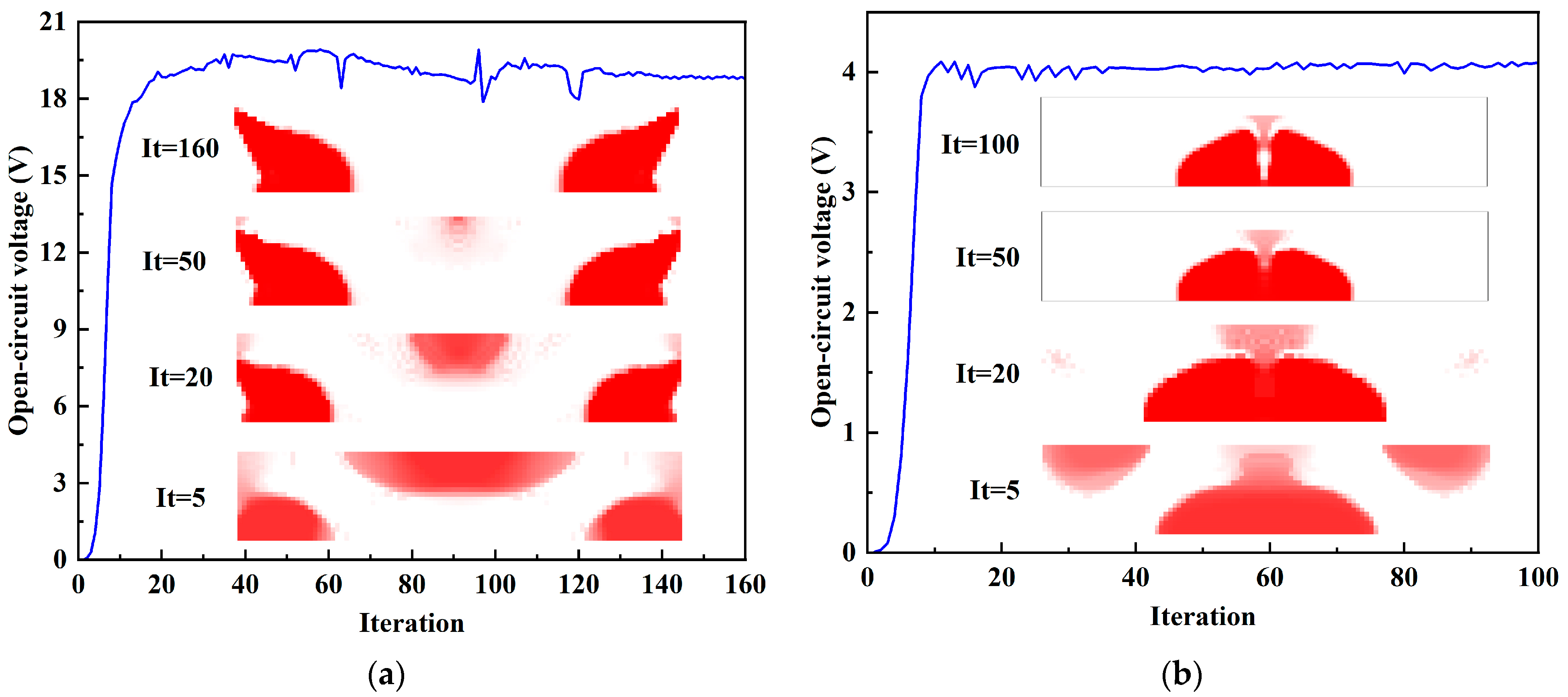

**Figure 10.**Iterative history and topological evolution for open-circuit voltage designs. (

**a**) f = 4 kHz; (

**b**) f = 16 kHz.

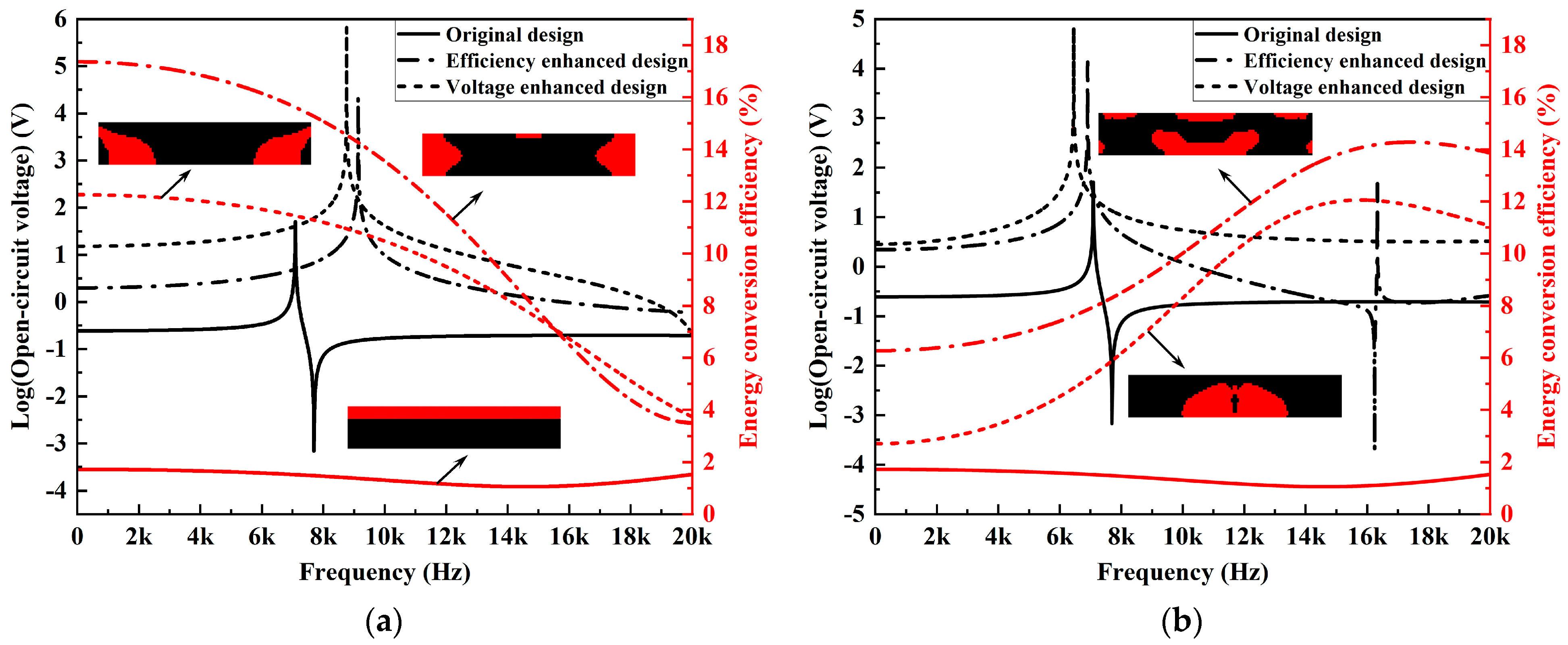

**Figure 11.**Frequency response results of the open-circuit voltage and energy conversion efficiency in different designs. (

**a**) f = 4 kHz; (

**b**) f = 16 kHz.

Boundary Conditions | Frequency | Energy Conversion Efficiency | Open-Circuit Voltage |
---|---|---|---|

Without equipotential constraint | f = 4 kHz | 4.84% | Not applicable |

f = 16 kHz | 4.33% | Not applicable | |

With equipotential constraint | f = 4 kHz | 1.66% | 0.26 V |

f = 16 kHz | 1.09% | 0.19 V |

Frequency | Energy Conversion Efficiency | Open-Circuit Voltage |
---|---|---|

f = 4 kHz | 16.85% | 2.46 V |

f = 8 kHz | 15.21% | 8.91 V |

f = 12 kHz | 12.31% | 0.51 V |

f = 16 kHz | 14.12% | 0.13 V |

Frequency | Voltage | Efficiency | 1st Eigenfrequency | 2nd Eigenfrequency |
---|---|---|---|---|

f = 4 kHz | 18.78 V | 12.02% | 8755 Hz | 17,344 Hz |

f = 6 kHz | 21.07 V | 7.42% | 7075 Hz | 18,815 Hz |

f = 10 kHz | 41.78 V | 13.53% | 9188 Hz | 18,966 Hz |

f = 16 kHz | 3.26 V | 12.05% | 6450 Hz | 16,509 Hz |
