Article

Investigation of Effect of Preliminary Annealing on Superplasticity of Ultrafine-Grained Conductor Aluminum Alloys Al-0.5%Mg-Sc

1
Materials Science Department, Physical-Technical Research Institute, Lobachevsky State University of Nizhniy Novgorod, 603022 Nizhny Novgorod, Russia
2
Laboratory of Vacuum Plasma Coating, Physical-Technical Institute, National Academy of Sciences of Belarus, 220141 Minsk, Belarus
3
Center Collective Use “Materials Science and Metallurgy”, National University of Science and Technology “MISIS”, 119991 Moscow, Russia
4
Laboratory “FIANIT”, Laser Materials and Technology Research Center, A.M. Prokhorov General Physics Institute, Russian Academy of Sciences, 119991 Moscow, Russia
*
Author to whom correspondence should be addressed.
Materials 2022, 15(1), 176; https://doi.org/10.3390/ma15010176
Received: 29 November 2021 / Revised: 17 December 2021 / Accepted: 24 December 2021 / Published: 27 December 2021
(This article belongs to the Special Issue Materials Science of Non-Ferrous Metals and Alloys)

Abstract

:
Effect of preliminary precipitation of Al3Sc particles on the characteristics of superplastic conductor Al-0.5%Mg-X%Sc (X = 0.2, 0.3, 0.4, 0.5 wt.%) alloys with ultrafine-grained (UFG) microstructure has been studied. The precipitation of the Al3Sc particles took place during long-time annealing of the alloys at 300 °C. The preliminary annealing was shown to affect the superplasticity characteristics of the UFG Al-0.5%Mg-X%Sc alloys (the elongation to failure, yield stress, dynamic grain growth rate) weakly but to promote more intensive pore formation and to reduce the volume fraction of the recrystallized microstructure in the deformed and non-deformed parts of the aluminum alloy specimens. The dynamic grain growth was shown to go in the deformed specimen material nonuniformly–the maximum volume fraction of the recrystallized microstructure was observed in the regions of the localization of plastic deformation.

1. Introduction

At present, microdoped high-strength Al alloys are considered to be promising materials for electrical engineering, in particular, for the replacement of copper alloys in small-sized avionics wiring by the Al alloys [1,2,3]. It will allow reducing the weight of the on-board wiring of modern aircraft and increasing the load capacity, energy efficiency, etc., of these ones in the future. The conductor Al alloys should have high strength and thermal stability [1,2,3] as well as good plasticity at room and elevated temperatures to ensure the possibility of making small-sized bimetallic wires of 0.2–0.5 mm in diameter by drawing or rolling from workpieces.
The Al alloys microalloyed with additives of rare earth elements (REEs) and of transition metals (TMs)–Sc, Zr, Hf, etc., are promising conductor materials [4,5,6,7,8,9,10,11,12]. Nucleation of Al3(REE,TM) nanoparticles with Ll2 structure allows providing a high level of the thermal stability of the ultrafine-grained (UFG) microstructure in the severely deformed Al alloys [13,14,15,16,17,18,19,20,21,22,23] and, as a consequence, high superplastic characteristics of these ones [24,25,26,27,28,29,30]. The studies on the superplasticity characteristics of the UFG conductor aluminum alloys with ultra-low Mg content are almost absent. There are few papers on the superplasticity of UFG conductor 6061 aluminum alloys [31,32,33] and UFG Al-1%Zr alloys [34]. Numerous papers demonstrated the reduction of the grain sizes d down to nano- and submicron scale to result in higher strength, hardness, and fatigue resistance of the Al-Mg-Sc alloys [5,12,15,16,18,19,35,36,37].
It was shown in [30] that intensive pore formation in the Al3Sc incoherent particles may be one of the factors limiting the ultimate superplastic characteristics of the UFG Al-0.5%Mg-Sc alloys. It should be stressed here that the formation of the Al3Sc particles in the investigated UFG alloys at reduced temperatures goes via a discontinuous precipitation mechanism (see [4,30,38]) similar to the low-temperature discontinuous solid solution decomposition in Al-Zr alloys [39,40,41,42,43,44,45,46,47,48,49].
The micropore formation in large Al3Sc particles may be related to the damping of cutting of such incoherent particles by lattice dislocations and disclination-type defects will form in the course of superplastic deformation [44,45]. Such a defect forming at an incoherent particle with the radius R located inside the grain boundary during the deformation in the first approximation can be described as a disclination loop with the radius R and power ω(τ), the magnitude of which grows proportionally to the number of defects occurring at the grain boundary [44,45]. As it has been shown in [44,45], at certain critical power ω*, the excess energy of the disclination loop becomes so high that it becomes energetically favorable for the grain boundary to “release” from the source of this latent energy. At the elevated test temperatures, such a “relaxation” of the accumulated energy may take place through the micropore formation at the interphase boundaries “Al3Sc particle–Al” [30]. In the course of the superplastic deformation, such micropores can become the origins of cavitation fractures in the UFG Al-0.5%Mg-Sc alloys [30].
The present papers were aimed at an additional verification of the hypothesis proposed in [30] on the effect of the Al3Sc particles on the superplastic characteristics of the UFG Al-0.5%Mg-Sc alloys. Note that the intermittent decomposition of solid solution leads to the formation of large dashed linewise Al3(REE,TM) incoherent particles at the grain boundaries in the Al alloys (see [30,39,40]). It may lead to an increased number of failures of the small-sized wires of 0.2–0.3 mm in diameter in the course of fabrication by drawing, rolling, or extraction. In this connection, the issue considered is of high practical importance for solving the problem of choice of the optimal thermal treatment regimens of the UFG Al-0.5%Mg-Sc alloys prior to fabricating the small-sized wires.

2. Materials and Methods

The Al-0.5 wt.%Mg alloys with different Sc contents (0.2, 0.3, 0.4, and 0.5 wt.%Sc) were the objects of investigation. The alloy specimens 22 × 22 × 150 mm in sizes were obtained by induction casting in INDUTHERM® VTC-200 casting machine (Indutherm GmbH, Walzbachtal, Germany) according to the procedure described in [30,38]. After casting, the alloys were not subjected to homogenization. The UFG structure in the workpieces was formed by Equal Channel Angular Pressing (ECAP) using Ficep® HF 400 L hydraulic press (Ficep® S.P.A., Varese, Italy) by the modes: temperature TECAP = 225 °C, strain rate 0.4 mm/c, number of cycles–N = 4, ECAP regime–Bc. The warm-up time of the workpiece prior to ECAP was 10 min, the holding time of the UFG workpiece in the instrumentation after ECAP did not exceed 5 min.
The mechanical tension testing of the flat double-blade shaped specimens with working parts 3 mm long and 2 × 2 mm in cross-sections was carried out using Tinius Olsen H25K-S tension machine (Tinius Olsen Ltd., Surrey, UK). Testing was performed in the temperature range from 300 to 500 °C; the tension rate varied from 10−3 to 3.3 × 10−1 s−1. The holding time of the specimen in the furnace prior to the superplasticity experiments was 5 min. The uncertainty of the temperature maintenance during the superplasticity tests was ±5 °C. The temperature was measured by a thermocouple placed as close as possible to the specimen clamping area. During the experiment, the “stress (σ)–strain (ε)” curves were acquired, which the values of the relative elongation to failure (δ) and of the yield stress (σb) were determined from.
Chemical analysis was performed using iCAP® 6300-ICP-OES Radial View™ spectrometer with induction-coupled plasma (Thermo Scientific, Waltham, MA, USA). To study the macro- and microstructure of the alloys, a Leica® IM DRM metallographic optical microscope (Leica Microsystems GmbH, Wetzlar, Germany), a Jeol® JSM-6490 Scanning Electron Microscope (SEM), and a Jeol® JEM-2100 Transmission (TEM) were used (Jeol Ltd., Tokyo, Japan). To study the macro- and microstructure, the specimen surfaces were subjected to mechanical grinding with diamond pastes to the roughness <1 μm followed by polishing in 8%HClO4 + 9%H2O + 10%C6H14O2 + 73%C2H5OH solution. The microstructure was revealed by etching in a glycerin-based solution (1%HF + 1.5%HCl + 2.5%HNO3 + 95% glycerine); the macrostructure-by etching in 40%HNO3 + 40%HCl + 20% HF solution. The mean grain sizes (d) and the volume fraction of the recrystallized microstructure (fR) were determined using GoodGrains software (UNN, Nizhny Novgorod, Russia). The mean sizes of the Al grains and Al3Sc particles were determined by the chord method. The microhardness (Hv) measurements were performed using an HVS1000 hardness tester (INNOVATEST Europe BV, Maastricht, The Netherlands). The areas of the microstructure and microhardness areas are marked by yellow dashed lines in Figure 1.
The fractographic analysis of the fractures was carried out using Jeol® JSM-6490 SEM. The analysis of the specimen fractures was carried out according to the classification described in [43].
The microstructure and microhardness measurements on the specimens after the superplasticity testing were performed in two areas–in the non-deformed area of the specimen (Zone I) and in the deformed one, the closest to the destruction center (Zone II). For the investigations, the specimens were pressed into a WEM REM mixture (Cloeren Technology GmbH, Berlin, Germany) and subjected to mechanical grinding, electrochemical polishing, and wet chemical etching according to the procedure described above. In the case when the destruction area was not in the center of the tested specimen, the part of the specimen, which has been subjected to the highest tensile strain in the course of testing was selected for the microstructure and fractographic analysis.
The annealing of the specimens was performed in an EKPS-10 air furnace (Smolensk SKTB SPU JSC, Smolensk, Russia). The uncertainty of the temperature maintenance in the furnace was ±10 °C. After annealing, the specimens were cooled down in the air.

3. Results

3.1. Microstructure Investigation

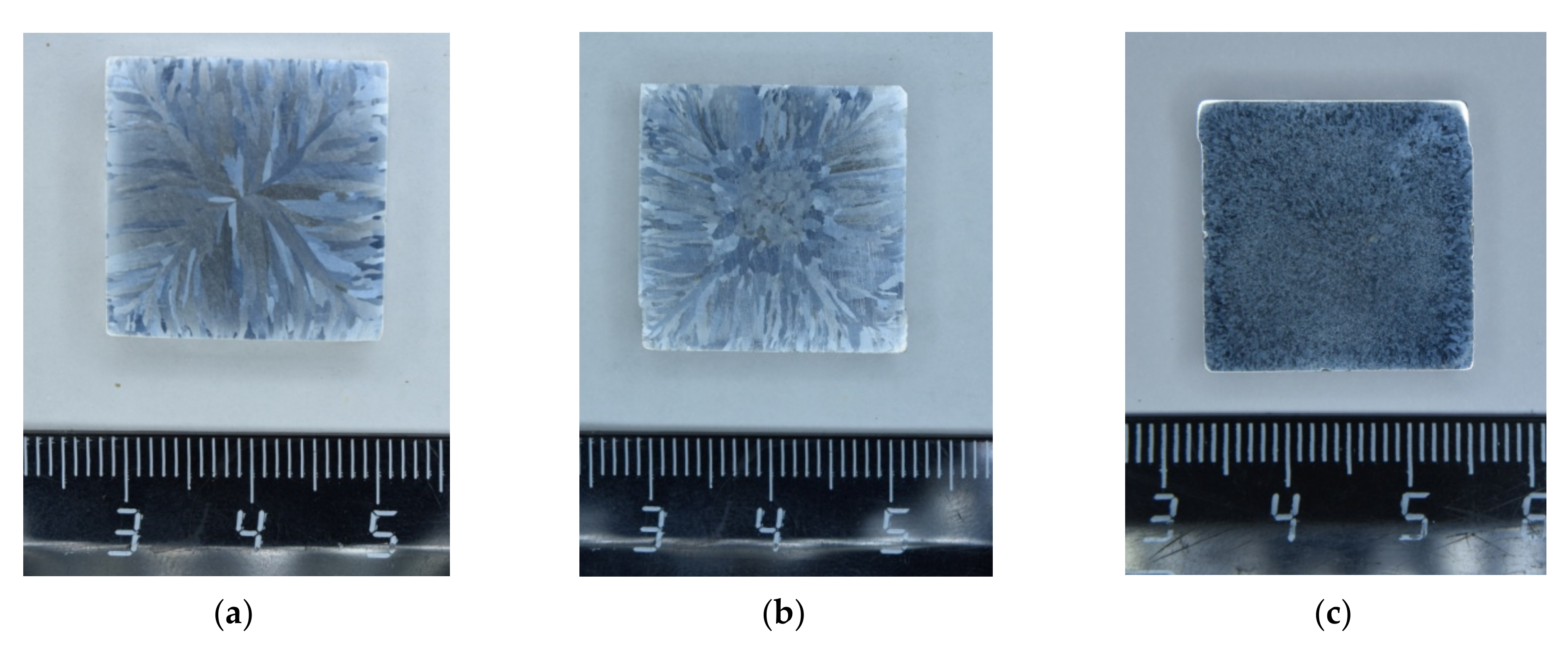

The Al-0.5%Mg-Sc cast alloys had a dendrite-wise coarse-grained macrostructure: columnar crystals in the rapid cool-down zone at the specimen edges and equiaxial grains in the central parts of the bulks (Figure 2). The polished area occupied by the equiaxial grains increased with increasing Sc content. In the alloy with 0.5%Sc, a uniform macrostructure was formed (Figure 2c) consisting of the grains with nearly equiaxial shapes almost completely. At the sides of the Al-0.5%Mg-0.5%Sc bulk, there were large equiaxial grains of ~0.5 mm in size. The residual dendrite macrostructure in the alloy with 0.5%Sc was observed in the upper part of the bulk only. The average grain sizes in the central parts of the bulks decreased from 1.0–1.2 mm (Figure 2a) down to 30–100 μm with increasing Sc content from 0.2 up to 0.5% (Figure 2e). The porosity of the central parts of the bulks was absent.

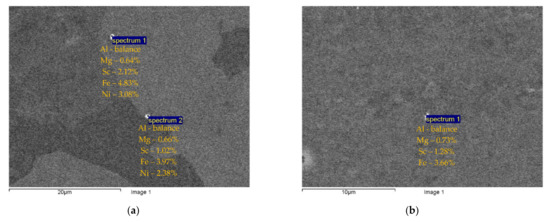

The microstructure investigations have shown large light-colored micron-sized particles consisting of Sc and Al only in the cast alloys with 0.4 and 0.5%Sc (Figure 3). According to [4,13,14,15,16,17], these are probably Al3Sc particles. Primary Al3Sc particles contain Fe and Ni in their composition (Figure 3). The particles are distributed uniformly enough inside the bulk; an insufficient increase of the volume fraction of the primary particles in the central parts of the bulks of the alloys with 0.4% and 0.5%Sc was observed.
In the metallographic investigations, the macrostructure of the UFG alloys after four cycles of ECAP (TECAP = 225 °C) comprises the crossing microbands of localized plastic deformation (Figure 4a). The presence of the localized deformation strips affects the grain morphology in the areas of the bands crossing (Figure 4b).
After ECAP, a uniform UFG structure formed, the average grain sizes were 0.4–0.6 μm and almost did not depend on the Sc concentration (see Figure 5a,b). There were no abnormally large grains in the UFG alloys after ECAP (Figure 4b and Figure 5a,b). In the UFG alloys, there were few submicron Al3Sc particles (Figure 5c,d). An insufficient increase of the volume fraction of the primary Al3Sc particles with increasing Sc content was observed (Figure 5c,d); the particle sizes almost did not change. The parameters (the sizes, the quantity, the positions inside the workpiece) and the composition of the particles in the cast and UFG alloys were close to each other (Figure 3). It allows suggesting that the submicron Al3Sc particles observed in the UFG alloys form during the bulk crystallization. The Al3Sc particles were coherent to the Al crystal lattice: the elastic strain fields were observed near the particles while the interphase boundaries between the Al3Sc particles and the Al crystal lattice were diffused (Figure 5e,f, see also [38]). No large elongated Al3Sc particles, the presence of which evidences the intermittent mechanism of the particle nucleation (see [39,40,41,42,43,44,45,46,47,48,49]) were found.
According to [30,38], the temperature of the recrystallization during 30-min annealing of the UFG Al-0.5%Mg-Sc alloys is ~350–375 °C. The high thermal stability of the UFG structure of the alloys originates from the early nucleation of the Al3Sc particles. In [38], the dependence of the specific electrical resistivity (SER) on the annealing temperature has been investigated. From the analysis of the results, the solid solution decomposition in the UFG Al-0.5%Mg-Sc alloy was shown to begin at 200–225 °C and to almost complete after 30-min annealing at 325–375 °C. Heating up to temperatures over 425 °C results in an increase of the SER, obviously, due to the dissolving of the Al3Sc particles nucleated earlier.
According to the TEM data, several types of Al3Sc particles are formed in the UFG Al-0.5%Mg-Sc alloys in the course of long-time annealing (up to 300 h) at 275–300 °C. In the annealed UFG alloy, coherent nanoparticles of 10–30 nm in sizes nucleated inside the grains and at the grain boundaries were observed, as well as large dashed-linewise Al3Sc particles of 50–200 nm in sizes nucleated near the grain boundaries via the discontinuous precipitation mechanism (Figure 6). It should be stressed here that the mean grain sizes almost did not change during annealing, and the annealed alloys preserved the UFG microstructure (Figure 7). The results of investigations by electron microscopy presented in Figure 6 supported the conclusion made in [38] on the two-stage character of the Al3Sc particle nucleation during annealing the UFG Al-0.5%Mg-Sc alloys. In [38], on the basis of analysis of the results of investigations of the dependence of the specific electrical resistivity on the annealing time, the two-stage character of the Al3Sc particle nucleation was shown to originate from the competition of the grain boundary diffusion (small holding times) and diffusion along the lattice dislocation cores (large isothermic holding times and/or elevated annealing temperatures).
As has been noted above, the microstructure of the UFG alloys comprises a site of crossing localized strain bands (Figure 4a). The metallographic investigations have shown the deformation “banding” formed during ECAP to reproduce well in the microstructure of the UFG alloys after long-time holding at 300 °C. As one can see in Figure 8, the localized strain bands were seen clearly after preliminary low-temperature annealing and electrochemical polishing. It is interesting to note that the low-temperature pre-recrystallization annealing did not affect the mean spacing between the bands, which was ~20–30 μm but allowed revealing these ones more clearly as compared to the UFG state after ECAP.
As has been mentioned above, the recrystallization in UFG Al-0.5%Mg-Sc alloys begins after heating up to ~350 °C (30 min). No deformation bands were found in the completely recrystallized alloys after annealing at 450–500 °C (see [38]); a uniform fine-grained structure was formed in the alloys. The mean sizes of the recrystallized grains (dR) and the volume fraction of the recrystallized material (fR) decreased with increasing Sc content. After annealing at 500 °C (30 min), the increasing of Sc content from 0.2% up to 0.5% resulted in a decreasing fR from ~100% down to ~60–70% and to a decreasing of dR from ~250 μm down to ~5 μm (see [38]). No abnormally large, recrystallized grains were observed in the UFG alloys after long-time annealing at 300 °C (Figure 8).
For the superplasticity tests, the specimens of the cast and UFG Al-0.5%Mg-Sc alloys were annealed at 300 °C for various times. The annealing was aimed at the forming of a uniform fine-grained structure with the maximum volume fraction of nucleated Al3Sc particles in the UFG alloys. The annealing time for each alloy was selected on the basis of the results of investigations of the solid solution decomposition presented in [38]. The annealed cast specimens of the cast and UFG Al-0.5%Mg-Sc alloys were tested for superplasticity. The results of the testing were compared to the data for the non-annealed alloys presented in [30].

3.2. Superplasticity Testing

3.2.1. Cast Alloys

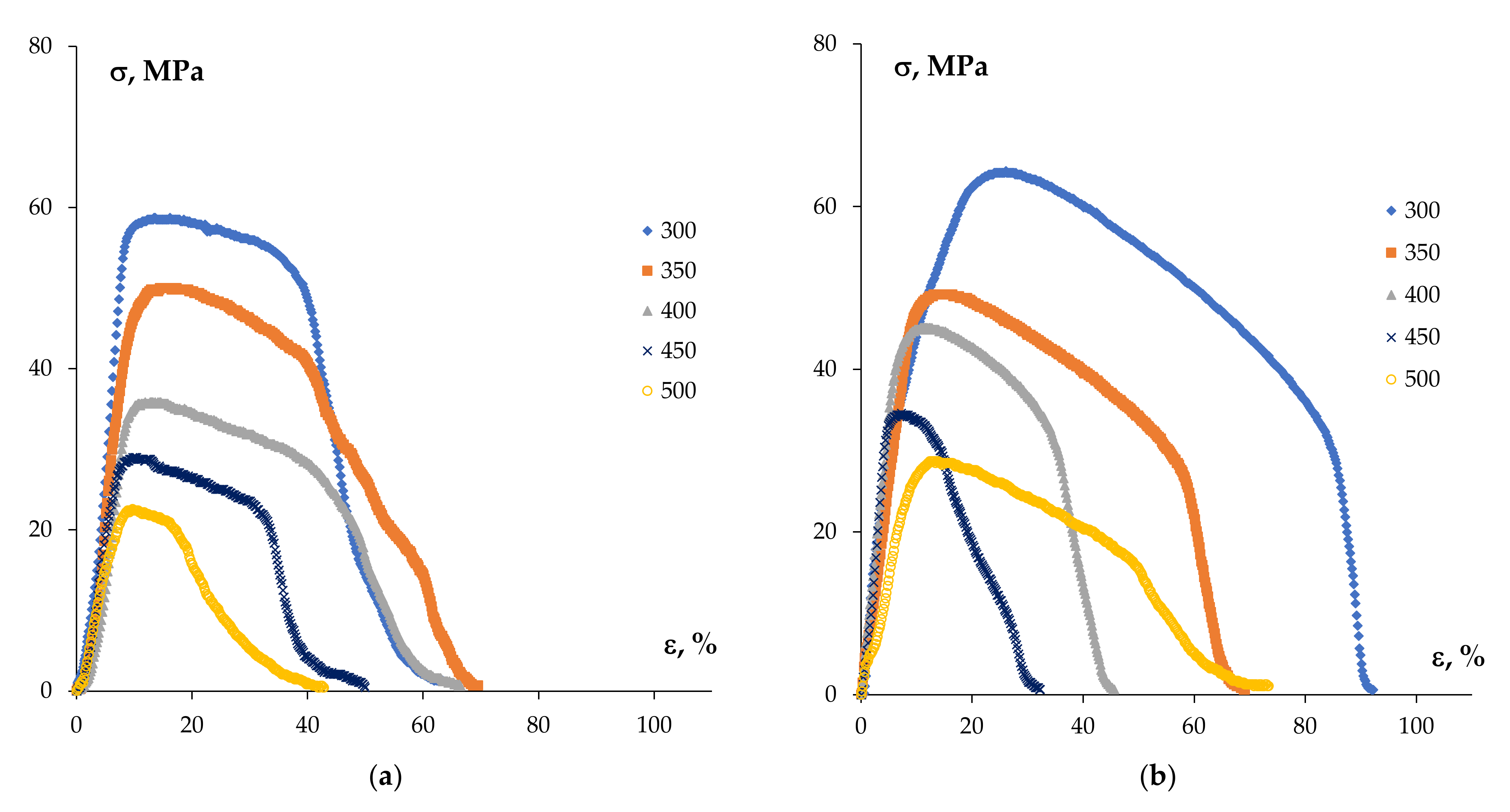

As an example, the tension curves σ(ε) for the specimens of some cast alloys in the initial state and of the ones subjected to preliminary at 300 °C are presented in Figure 9. As one can see in Figure 9a, the tension curves σ(ε) of the coarse-grained Al-0.5%Mg-Sc alloys had classical three-stage character typical enough for the tension of highly plastic alloys: a short stage of the strain hardening transforming into a long stage of stable plastic flow, and, finally, the stage of localized plastic deformation finishing by the destruction of the specimen. The values of the yield stress b) and of the relative elongation to failure (δ) are presented in Table 1. As one can see in Figure 9a and from Table 1, the temperature of testing does not affect the shapes of the σ(ε) curves considerably. The yield stress and elongation to failure decrease with increasing test temperature from 300 up to 500 °C: the values of σb decreased from 70 MPa down to 29–30 MPa and δ decreased from ~62–64% down to ~43% (Table 1).
In our opinion, the reduction of δ in the cast alloys is related to the blocking of the lattice dislocation motion by the Al3Sc particles. At the same time, the Al3Sc particles nucleated earlier, dissolving partly with an increasing temperature that leads to an increase of the specific electrical resistance of the alloys (see [38]). The decreasing of the volume fraction and the coalescence of the Al3Sc particles may reduce the effect of these ones on the tensile behavior of the cast Al-0.5%Mg-Sc alloys at elevated temperatures. This leads to an insufficient increase of the elongation of the cast Al-0.5%Mg-Sc alloys at 500 °C (as compared to the one at 450 °C) again.
Long-time annealing of the cast Al-0.5%Mg-Sc alloys at 300 °C resulted in changes in the shapes of the σ(ε) curves. As one can see in Figure 9b, the stable plastic flow stages in the σ(ε) curves were absent, the stages of strain hardening transformed into one of the plastic strain localization directly.
The results of the metallographic investigations evidenced the formation of large pores of several tens of microns in size in the destruction region (Figure 10a). The large pores were located along the dendrite boundaries whereas the small ones–both along the grain boundaries and inside the grains. The sizes and the volume fraction of the pores decreased with increasing distance from the place of destruction. At the testing temperature of 500 °C, the zone of intensive pore formation was ~1.5–2 mm from the destruction region (Figure 10b). No pore formation was observed in the non-deformed region.
The results of the fractographic analysis of the fractures of the cast Al-0.5%Mg-Sc alloy specimens after the tension testing at elevated temperatures are presented in Figure 11a,c. At the macroscopic level, the specimen fractures were of the same type and comprised large shear elements, the directions of which coincided with one of the dendrite grains (see Figure 2 in [38]). At the vertices of the shear elements, the pits of various geometries were observed evidencing a viscous nature of the destruction of cast alloys (Figure 11). The variations of the deformation temperature and rate did not affect the general fracture pattern of the cast Al-0.5%Mg-Sc alloy specimens (Figure 11a,c). From the comparison of Figure 11b,d, one can see the increase of the deformation temperature to result in an increase of the pit sizes in the destruction zone of the cast alloy specimen; after testing at elevated temperatures, the pits had strongly elongated shapes (Figure 11d).

3.2.2. UFG Alloys

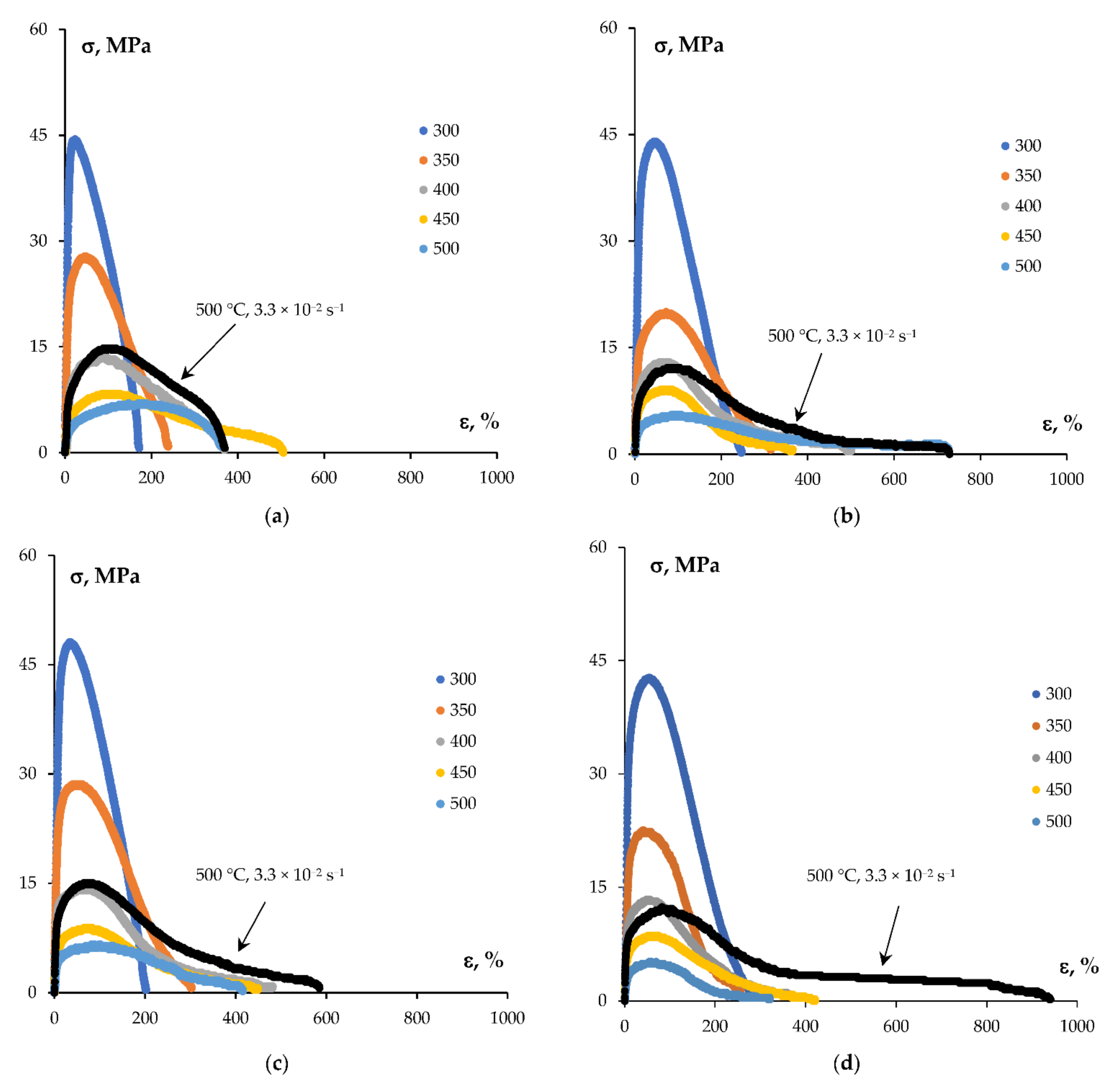

Figure 12 presents the σ(ε) curves for the specimens of UFG alloys with different Sc contents. Table 2 presents the values of σb and δ for the alloys investigated at various temperatures and strain rates. The σ(ε) curves acquired at 300 and 350 °C were typical enough for severely deformed metals–short stages of intensive strain hardening followed by the rapid softening were observed in the σ(ε) curves. At higher test temperatures (400–500 °C), an increase in the duration of the uniform elongation stage was observed, which reached ~200% for the UFG Al-0.5%Mg-0.2%Sc alloy at 500 °C. The degree of uniform strain decreased slightly with increasing Sc content and did not exceed 80% for the UFG Al-0.5%Mg-0.5%Sc alloy. However, a considerable general increase in the elongation to failure was observed (see Table 1). As in the case of the cast alloys, the increase of the test temperature resulted in a decrease in the yield stress but the plasticity of the UFG alloys increased essentially (Figure 12, Table 2). The dependencies δ(T) and δ( ε · ) had monotonous characters with maxima that are typical enough for the superplastic behavior of the fine-grained alloys (see [24,25,26,27,28,29,47,48,49]). At the strain rate ε · = 10−2 s−1, the maximum values of δmax for the majority of UFG Al-0.5%Mg-Sc alloys were achieved at 450 °C.
As one can see from Table 2, the preliminary annealing resulted in a decrease of the yield stress of the UFG alloys regardless of the Sc content as well as to the test temperature and strain rate. The largest decrease of the yield stress was observed in the case of strain at 300 and 350 °C. The strain in the temperature range 450–500 °C, the differences between the values in σb between the non-annealed and annealed specimens did not exceed 2–3 MPa.
The effect of preliminary annealing on the plasticity of the UFG alloys had a more complex character. As one can see from Table 2, the preliminary annealing did not affect the elongation to failure considerably when testing at 300–350 °C. However, it resulted in some decreasing of plasticity of the UFG Al-0.5%Mg-Sc alloys at elevated test temperatures (450 and 500 °C) and at increased strain rates (from 10−1 s−1 and higher).

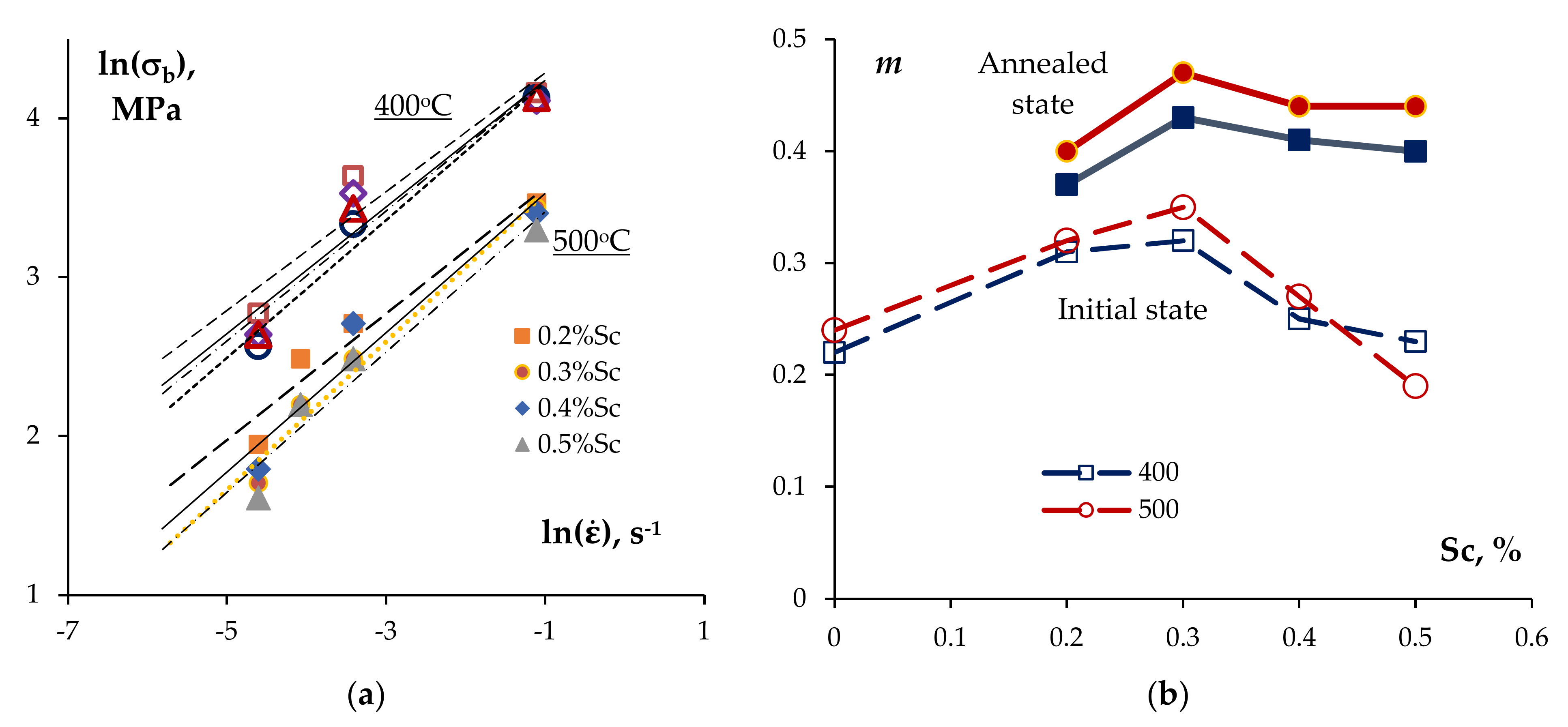

The values of the strain rate sensitivity coefficient m were calculated from the slopes of the dependencies σ b ε · , which can be interpolated by a straight line in the logarithmic axes ln( σ b ) − ln ε · with good accuracy (Figure 13a). Figure 13b presents the dependencies of the strain rate sensitivity coefficient m = ln σ b / ln ε · on the Sc concentration. The analysis of the results obtained has shown the magnitude of the coefficient m in the annealed alloys at the test temperatures 400 °C and 450 °C to be 0.37–0.43 and 0.40–0.47, respectively. The values of coefficient m in the annealed alloys were slightly higher than the ones in the non-annealed alloys. Note also that no essential decreasing of m was observed at high Sc concentrations (0.4–0.5%) (Figure 13b).
The metallographic investigations of the destroyed specimen surfaces evidenced an intensive pore formation during the superplasticity testing of the UFG alloys (Figure 14d). The largest pores are formed in the destruction region as well as within the localized deformation areas. Note also that the mean pore sizes in the deformed parts of the UFG alloy specimens were smaller than the ones in the destroyed parts of the cast alloy specimens. In the metallographic studies, in the case of the use of the same magnifications, it was manifested visually in several specimens as a decreasing of the volume fraction of pores.
The results of fractographic analysis have shown the fractures of all UFG alloy specimens after the superplasticity testing to have a viscous character. These can be described as a set of pits of various sizes (Figure 11). Variations of test temperature and strain rate did not affect the fracture character considerably.

3.3. Dynamic Grain Growth

The metallographic and electron microscopy investigations conducted have shown no essential changes in the microstructure of the cast Al-0.5%Mg-Sc alloys during the superplastic deformation. The dependence of the microhardness on the heating temperature had a two-stage character with a maximum similar qualitatively to the one of the dependence of the microhardness on the 30-min annealing temperature (see [30,38]). It allows suggesting the character of the microhardness changes in the cast alloys with increasing test temperature to be determined by nucleation and growth of the Al3Sc particles. The microhardness values for the deformed areas and for the non-deformed ones differ no more than in 50–60 MPa. The maximum values of the microhardness in the alloy with the maximum Sc content (0.5%) were 600–610 MPa that is ~1.5 times higher than the ones of the cast Al-0.5%Mg-0.5%Sc alloy in the initial state (400 MPa, see [38]). However, these values appeared to be lower than the maximum microhardness values (~900 MPa, see [38]) in the cast Al-0.5%Mg-0.5%Sc alloy after annealing at 350–375 °C for 30 min. Lower values of microhardness of the cast specimens after the tensile testing, in our opinion, are caused by differences in the heating times. In the case of the tensile testing at 400 °C with the rate of 10−2 s−1, it was <15 min (taking into account the 10-min holding in the furnace prior to the start of testing).

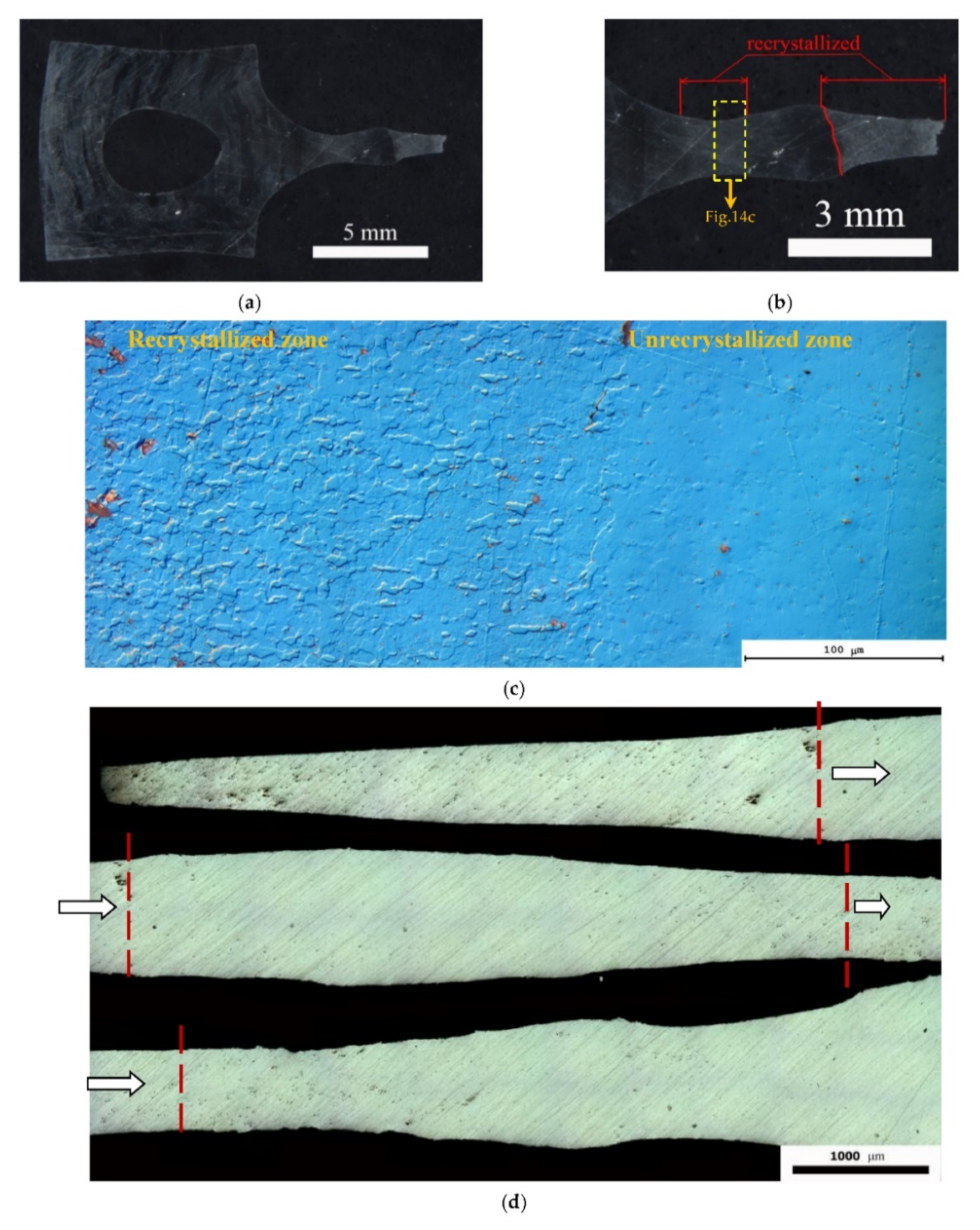

Prior to describing the results of investigations of the dynamic grain growth in the UFG alloys, it is worth noting that in the specimens deformed in the conditions close to the optimal ones for the superplasticity, clearly expressed plastic deformation localization areas (so called “neckings”) were observed. A typical view of a UFG alloy specimen with the deformation localization areas is presented in Figure 14. Electron microscopy and metallographic investigations have shown the recrystallization processes inside the areas of plastic deformation localization and outside the ones to be different. The volume fraction of the recrystallized structure (fR) inside the areas of plastic deformation localization was very high whereas outside the ones fR did not exceed 10–15%. Additionally, it is interesting to note that an increased porosity was observed in the areas of plastic deformation localization in some specimens despite the quite large distance from the destruction areas (Figure 14c). It should be stressed that the effect of plastic deformation localization was observed also in the non-annealed specimens of the UFG Al-0.5%Mg-Sc alloys (see Figure 7a in [30]). However, the degree of deformation localization (the magnitude of specimen thinning) was lower considerably.
Next, we studied the microstructure parameters (the volume fraction of the recrystallized structure fR and the mean sizes of the recrystallized grains d) and the microhardness in the regions, the size of which did not exceed 0.5–1 mm from the destruction points.
It should be stressed here that the preliminary annealing at 300 °C resulted in the stabilization of the microstructure of the UFG Al-0.5%Mg-Sc alloys. The volume fraction of the recrystallized structure in the non-annealed specimens exceeded 80% after the superplasticity testing at 300 and 350 °C. At elevated test temperatures (450, 500 °C), the whole deformed parts of specimens were recrystallized almost completely. As one can see from Table 3 after the superplasticity testing, considerably smaller volume fractions of the recrystallized structure were observed in the specimens annealed in advance as compared to the non-annealed specimens. In the non-deformed areas of the UFG Al-0.5%Mg-0.2%Sc alloy specimens, the volume fraction of the recrystallized structure did not exceed 10% even after testing at 500 °C. The maximum volume fraction of the recrystallized microstructure (fR~80%) in the deformed part of the UFG alloy Al-0.5%Mg-0.2%Sc specimen was observed after testing at 500 °C with the strain rate 10−2 s−1 (Table 3).
The increase of the strain rate resulted in a decrease in the volume fraction of the recrystallized structure and of the mean grain sizes in the deformed region d2 (Table 3). The dependence of the volume fraction of the recrystallized structure (fR) on the heating time can be described using the Avrami equation: fR = 1− exp(−t/τ)n where n is a numerical coefficient and τ is the characteristic time of the diffusion-controlled process, which, in the first approximation, can be described by the equation: τ = τ0⋅exp(Q/kT). A similar equation is used often to describe the dependence of fR on the strain degree (ε): fR = 1 − exp(−B·ε)m where m and B are some numerical parameters. In most cases, the increase of the strain rate would lead to the decreasing of the tensile time (t) and to the decreasing of the degree of elongation to failure (δ) (see Table 2). In this connection, one can consider the dependence of the volume fraction of the recrystallized structure on the strain rate fR( ε · ) to be described well (in the first approximation) by the Avrami equation.
Figure 15 presents the images of the recrystallized grain microstructure of the UFG Al-0.5%Mg-Sc alloys in the deformed regions and in the non-deformed ones after tension testing. As one can see in Figure 15, intensive dynamic grain growth takes place during superplastic deformation. The mean grain sizes in the deformed regions (d2) exceeded the ones in the non-deformed regions (d1). The values of d1 and d2 are presented in Table 3. In Figure 16, the dependencies of d1 and d2 on the test temperature are presented. As one can see from Table 3 and Figure 16, an increase in the mean grain size and of the volume fraction of the recrystallized microstructure with increasing test temperature was observed.
The increasing of the Sc content resulted in a decreasing of the volume fraction of the recrystallized structure and of the mean grain sizes in both deformed and non-deformed parts of the specimens. As one can see from Table 3, in the UFG alloys with 0.3–0.5%Sc, the volume fraction of the recrystallized microstructure of the non-deformed parts of the specimens was 1% or less. The mean grain sizes were close to the initial ones.

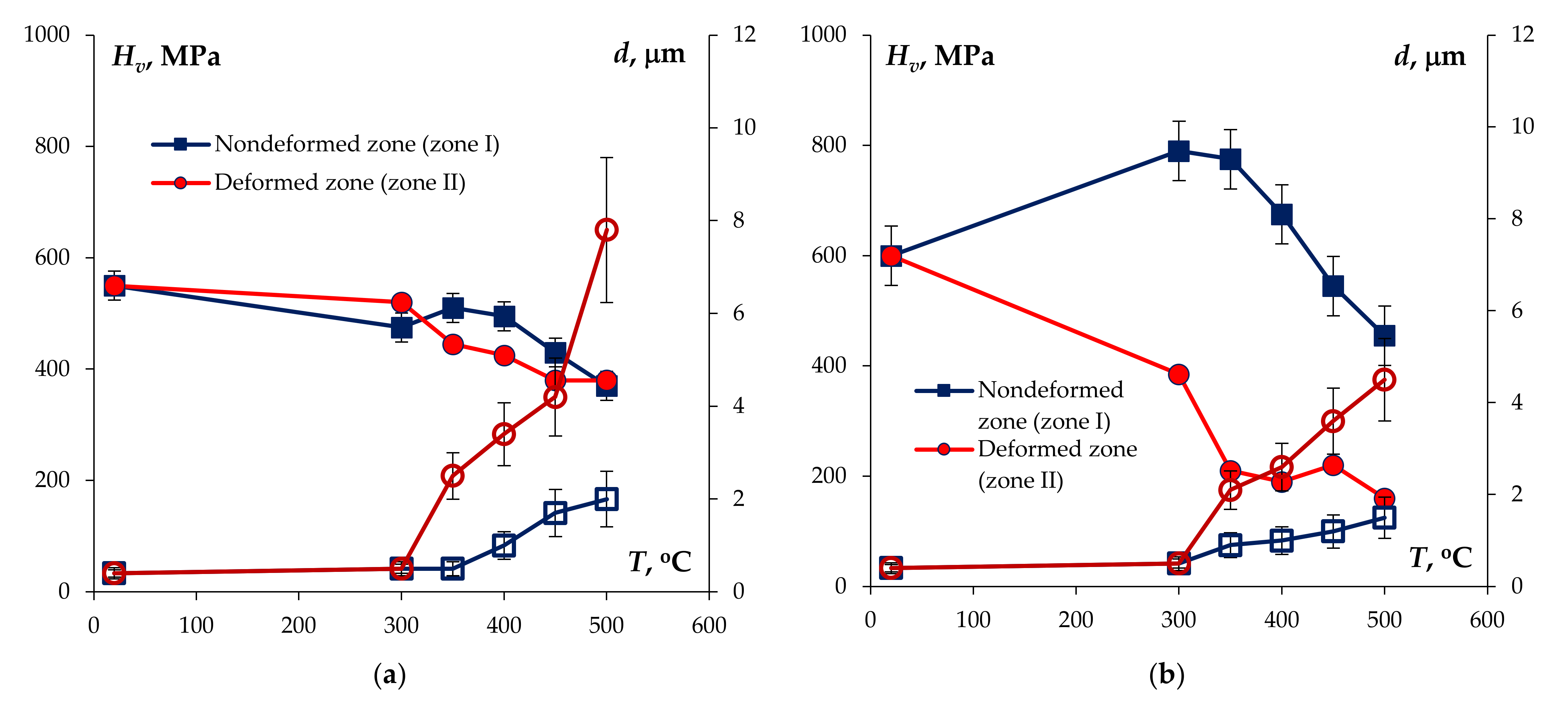

The analysis of the dependencies of the microhardness on the test temperature presented in Figure 16 shows the microhardness in the deformed parts of the specimens to be considerably lower than the one in the non-deformed parts. In our opinion, it is related to the intensive dynamic grain growth in the deformed parts of the UFG alloy specimens, which leads to the mean grain sizes d2 to be considerably higher than the ones in the non-deformed parts (d1).

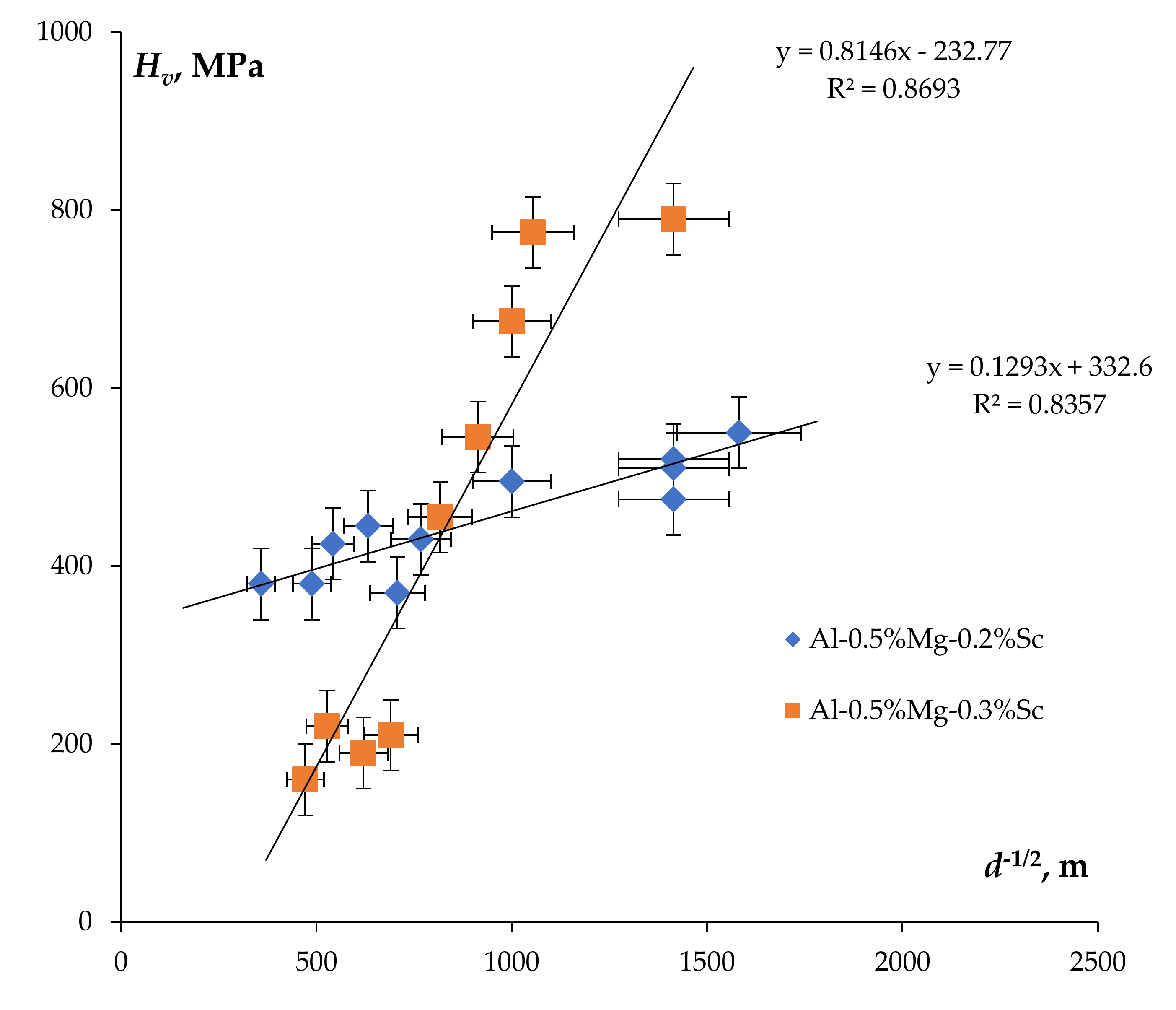

The dependencies of the microhardness on the mean grain size for the deformed parts of the UFG Al-0.5%Mg-Sc alloy specimens can be described with good accuracy using the Hall–Petch equation: H v = H v 0 + K / d where Hv0 is the microhardness of the crystal lattice, K is the grain boundary hardening coefficient (Hall–Petch coefficient). One can see in Figure 17 that the dependencies Hv(d) in the Hvd−1/2 axes can be interpolated by straight lines with a satisfactory accuracy (for the majority of alloys, the reliability of the linear approximation R2 > 0.8). The magnitude of the coefficient K for the annealed alloys increased with increasing Sc concentration in the UFG alloys and was close to the values of parameter K in the non-annealed UFG alloys (see [38]).
It is interesting to note that higher values of the coefficient K were observed in the alloys with increased Sc content. The formation of the second phase (Al3Sc) particles at the grain boundaries would dampen the crossing of the grain boundaries by the dislocation bunches and make the functioning of the Frank–Reed source in the adjacent grains difficult. To explain this effect, the model described in [50] can be used also. According to this model, the dislocation loops may form around the non-coherent second phase particles (see also [51,52,53,54,55]). At the same time, it is worth noting that the negative values of the coefficient Hv0 for the UFG alloys with increased Sc content (see Figure 17) were unexpected since the nucleation of the Al3Sc particles was expected to result in an increase of Hv0 (see [50,55]). The analysis of the nature of this effect in the dynamic grain growth in the superplasticity conditions will be continued in our further studies.

4. Discussion

The mechanisms of superplastic deformation of the UFG Al-0.5Mg-Sc alloys were described in [30]. It should be stressed only that the high values of the strain rate sensitivity coefficient (m = 0.40–0.47 at the test temperature 450 °C, see Figure 13b) evidence for the grain boundary sliding to be the primary mechanism of the high-temperature deformation of the UFG alloys. The equiaxial shapes of the grains in the destruction zone (Figure 11) are also indirect sign evidence in favor of this suggestion. In the coarse-grained Al alloys, the primary mechanism of the high-temperature plastic deformation is the power-law creep [47,48], the strain rate of which is much lower than the one of the grain boundary sliding in the UFG alloys. The difference in the deformation mechanisms in the cast and UFG alloys resulted in the differences in the values of the relative elongation to failure for the cast and UFG alloys (see Table 1 and Table 2). Different characters of the effect of the test temperature on the elongation for the cast and UFG Al-0.5%Mg-Sc alloys are evidence in favor of this suggestion indirectly.
Let us analyze the effect of preliminary annealing on the ultimate characteristics of the superplastic deformation and on the kinetics of the dynamic grain growth in the UFG Al-0.5%Mg-Sc alloys.
Note that the goal of the preliminary annealing at 300 °C was the nucleation of the Al3Sc particles providing the stabilization of the nonequilibrium microstructure in the UFG Al-0.5%Mg-Sc alloys. Therefore, preliminary annealing was expected to allow forming smaller grains in the UFG alloys, decreasing the intensity of the dynamic grain growth, and, as a consequence, improving the plasticity of the alloys at elevated test temperatures. As one can see from Table 2, this effect was not achieved–the elongation to failure of the annealed UFG alloys differed from the magnitudes of δ for the non-annealed alloys insufficiently.
In our opinion, there are at least two reasons why the increased plasticity of the UFG Al-0.5%Mg-Sc alloys was not achieved.
The main reason is that the ultimate elongation to failure in the UFG Al-0.5%Mg-Sc alloys is controlled likely by the pore formation at the large Al3Sc particles (see [30] as well as Introduction). The preliminary annealing leads to the nucleation of the Al3Sc particles, in particular, to the formation of large, elongated particles near the grain boundaries via the discontinuous precipitation mechanism (Figure 6). These large particles are the points of formation and growth of the pores and, as a consequence, promote the cavitation destruction of the UFG Al-0.5%Mg-Sc alloy specimens. According to the model [41,42], for the initiation of a micropore, the power of the disclination loop forming at Al3Sc particle during the superplastic deformation should reach its critical value ω*. The magnitude of the critical power of a disclination loop can be calculated easily from the equality of the energy of disclination and the one of the free surface of a pore or a crack of a given size. Accordingly, one can expect the disclination loops forming at the large Al3Sc particles to reach the critical value ω* faster. So far, the nucleation of the large Al3Sc particles in the course of preliminary annealing provides the conditions limiting the maximum plasticity of the UFG alloys. To ensure higher ultimate characteristics of superplasticity, one should minimize the volume fraction of the Al3Sc particles forming via the discontinuous precipitation mechanism.
The second factor, which does not allow providing the improved superplastic characteristics of the UFG alloys is the specifics of the dynamic grain growth in the annealed UFG Al-0.5%Mg-Sc alloys. As it has been shown above, the annealed UFG alloys are featured by an increased tendency to the plastic deformation localization at the microscopic level (Figure 1 and Figure 14).
The origin (or the origins) of the effect of the preliminary annealing on the character of the plastic deformation localization in the UFG Al-0.5%Mg-Sc alloys are not clear at the moment and additional investigations are necessary. Can be one of the possible origins of this the presence of the residual dendrite macrostructure, which was manifested in the metallographic investigations of the non-deformed parts of the specimens (Figure 1). The nucleation of the Al3Sc particles at the dendrite boundaries damping the motion of dislocations, in our opinion, may promote the enhanced tendency of the Al-0.5%Mg-Sc alloys to the plastic deformation localization. We suppose that the disappearance of the uniform plastic flow stage in the annealed cast Al-0.5%Mg-Sc alloy specimens is also evidence in favor of this assumption indirectly. Note also that the characteristic distance between the macro-neckings of the plastic deformation localization (Figure 14) was close to the one between the dendrite boundaries, which was 0.3–1 mm (Figure 1). In our opinion, it also evidences an important role of the dendrite macrostructure in the manifestation of the plastic deformation localization in the UFG Al-0.5%Mg-Sc alloys. In order to increase the uniformity of the plastic flow of the UFG Al-0.5%Mg-Sc alloys at the macroscopic level, it is necessary to apply the technologies of preliminary hot deformation processing allowing removing the dendrite nonuniformity macrostructures completely.
As it has been shown above, the macrolocalization of the plastic deformation leads to a nonuniformity of recrystallization inside the specimens. The presence of the regions with different grain sizes in the structure of the material and, as a consequence, with different values of hardness (Figure 18) suppresses the possibility of uniform plastic flow of the material. It is a negative factor, which should be taken into account when selecting the optimal regimes of fabricating the small-sized wires using the hot deformation method (drawing, rolling, extraction, etc.).
Let us analyze the kinetics of the dynamic grain growth during the superplastic deformation of the UFG Al-0.5%Mg-Sc alloys. To describe the dynamic grain growth in the UFG Al-0.5%Mg-Sc alloys, we will use the approach developed earlier within the framework of the theory of structural superplasticity [56,57] and of the theory of nonequilibrium grain boundaries in fine-grained metals [58]. Within the framework of this approach, the grain growth rate in the UFG materials is governed by the defects at the grain boundaries, which generate the long-range internal stress fields σi. According to [56,58], the interactions of the defects distributed inside the grain boundary with the fields of the external stress (σ) and of the internal stress (σi) result in the arising of additional driving forces for the grain boundary migration:
P = σ + σ i ρ b Δ b + ω = σ ¯ ρ b Δ b + ω = P ρ + P ω
where σi is the internal stress field generated by the defects distributed inside the grain boundaries and in the triple joints of the ones:
σ i = α 1 G ρ b s t Δ b + α 2 G ω
Here G is the shear modulus, ρ b s t is the stationary density of the orientation mismatch dislocations (OMDs) in the non-equilibrium grain boundaries in the UFG metal, Δb is the Burgers vector of OMD, α1 and α2 are the numerical coefficients.
Besides, the defects affect the diffusion mobility of the grain boundaries M. At high power of the disclination dipoles, these ones can limit the mobility [58]:
M 1 = M b 1 + M ρ 1 + M ω 1
where Mb is the mobility coefficient of a defectless grain boundary, Mρ is the mobility coefficient of the OMDs distributed inside grain boundary, and Mω is the mobility coefficient of the joint disclinations [58]. The values of contributions Mb, Mρ, and Mω can be calculated using the following formulas [58]:
M ρ = A ρ C b b / d b / G 1 ρ b s t Δ b ,   M ω = A ω C b b / d ω 2 b / G ,   M b = A b C b b / d 2 b / G ,
where C b = G δ D b / k T , A ρ = 2 π / ln d / b , A ω ~ 1 , A b = 5 V m / Δ b d 0 / b 4 G b / γ b , Vm is the grain growth rate during annealing measured experimentally, δ = 2b is the grain boundary width, b is the Burgers vector, Db is the grain boundary diffusion coefficient, k is the Boltzmann constant, and γb is the grain boundary energy.
The grain growth rate Vm can be related to the effective migration mobility M and to the driving force P by usual relation [58]:
V g = M P
At low power of the joint disclinations, the mobility of the grain boundaries is determined by the mobility of the OMDs, and the driving force is related to the interaction of these ones with the external stress field [56,58]:
V g = d · = A ρ C b σ / G b / d b
In the case of high ω, the mobility of the grain boundaries in the superplasticity regime is governed by the mobility of the disclination dipoles Mω, ant the driving force is related to the interaction of the disclination dipoles with each other [56,57]:
V g = d · = A ω C b b / d 2 b
In the intermediate case, the dynamic grain growth rate can be written in more general form:
d · = A d / b x
where A C b b σ / G 2 x and the magnitude of the exponent x takes the values from 1 to 2 subject to the joint disclination power ω. At low ω, x = 1, and A = A ρ C b b σ / G . At high ω, x = 2, and A = A ω C b .
The efficiency of application of the theoretical models described in [56,57,58] has been demonstrated earlier when describing the dynamic grain growth in the non-annealed UFG Al-0.5%Mg-Sc alloys (see [30]).

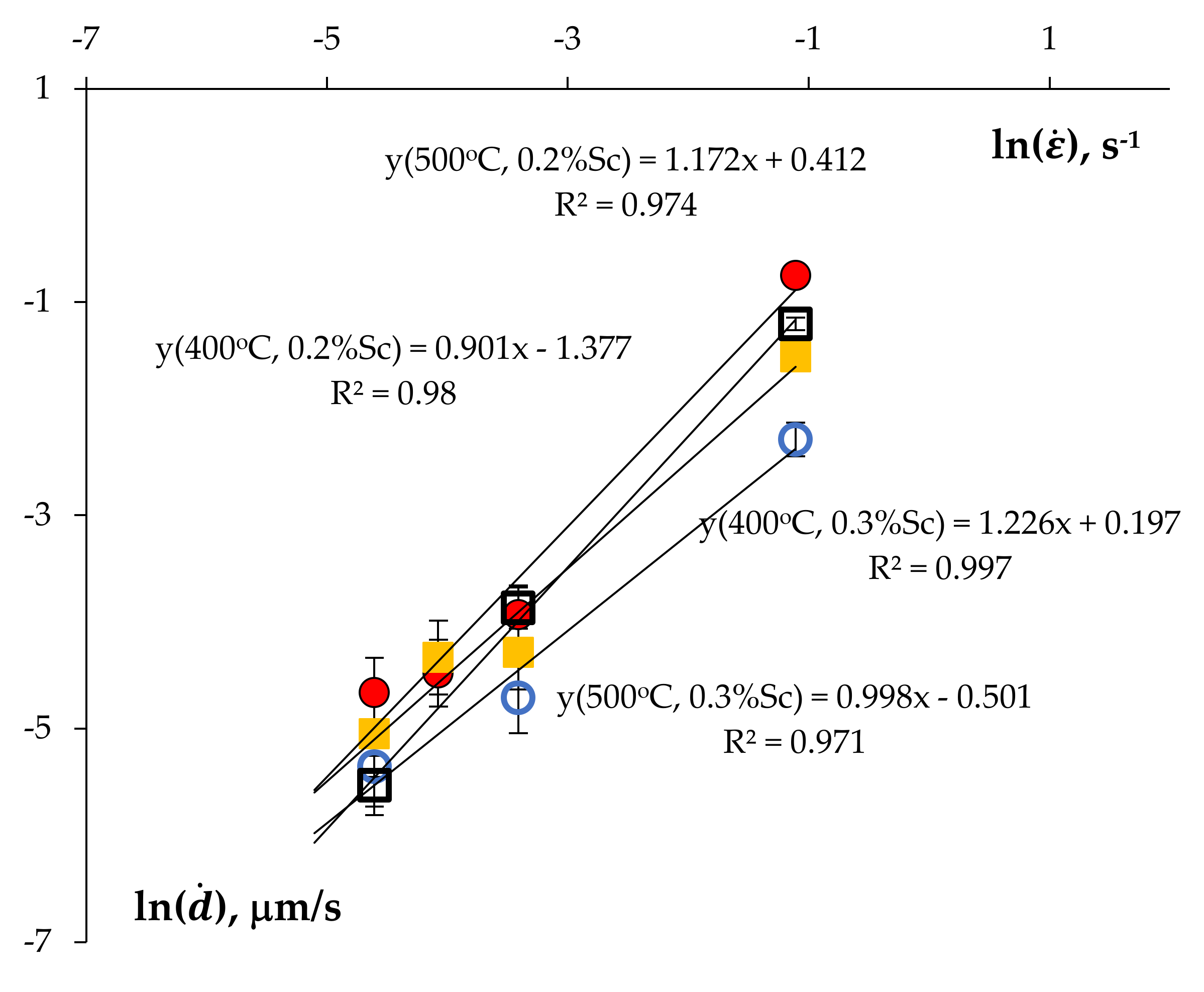

According to [47,56,57], usually, the dependence of the grain growth rate on the strain rate measured experimentally is expressed in the form d · ~ ε · k where the parameter k depends on the strain rate ε · can be determined from the slope of the curve lg( d · ) − lg( ε · ) at fixed values of the strain degree. As one can see in Figure 19, the measured magnitude of the coefficient kexp for the UFG Al-0.5%Mg-Sc alloys at 400 °C and 500 °C varied from ~0.9 to ~1.2. The calculated values of kexp agree well with the values for the non-annealed UFG Al-0.5%Mg-Sc alloys (see Figure 16 in [30]). Comparing the values of kexp with the theoretical ones kth presented in [30] shows the kinetics of the dynamic grain growth in the annealed UFG alloys to be governed by the mobility of the OMDs.

5. Conclusions

  • The superplasticity of the cast and ultrafine-grained (UFG) Al-0.5%Mg-Sc alloys with the Sc contents from 0.2 to 0.5 wt.% has been studied. The cast structure in the alloys was formed by induction casting without application of subsequent homogenization. The UFG structure was formed by ECAP. The stabilization of the nonequilibrium UFG structure was provided by preliminary annealing at 300 °C that did not exceed the recrystallization temperature in the investigated alloys. In the course of preliminary annealing, the Al3Sc particles of two types, nucleated–coherent Al3Sc nanoparticles inside the grains and relatively large (50–200 nm) elongated fan-shaped Al3Sc particles formed via the discontinuous decay mechanism.
  • The UFG alloys have good superplastic characteristics–in the annealed UFG Al-0.5%Mg-0.5%Sc alloy, the relative elongation to failure reached 900% (test temperature 500 °C, strain rate 3.3 × 10−2 s−1). The magnitude of strain rate sensitivity coefficient m was 0.4–0.47. At reduced test temperatures (300–350 °C) not exceeding the recrystallization temperature, the elongation to failure in the annealed UFG alloys varied from 170% to 320%.
  • The values of the elongation to failure for the annealed UFG Al-0.5%Mg-Sc alloys are comparable to the ones for the non-annealed alloys tested in the same temperature and rate strain conditions. The close values of elongation in the UFG alloys with different grain sizes are caused likely by the following factors:
    (a)
    The formation of pores at large Al3Sc particles forming via the discontinuous decay mechanism during preliminary low-temperature annealing. The generation and growth of the pores at the large Al3Sc particles leads to accelerated cavitation destruction of the UFG Al-0.5%Mg-Sc alloys.
    (b)
    Nonuniformity of the plastic deformation at the macroscopic level and the formation of the macro-neckings of the localized plastic deformation. The low-temperature annealing leads to the increase of the macro-localization scale during the superplastic deformation of the UFG Al-0.5%Mg-Sc alloys.
    (c)
    Accelerated dynamic grain growth, the kinetics of which is determined by the mobility of the orientation mismatch dislocations in the non-equilibrium grain boundaries in the UFG alloys.

Author Contributions

Conceptualization, A.N. and V.C.; methodology, A.N.; formal analysis, A.N., O.P. and E.S.; investigation, M.G., S.S., C.L., V.K., M.C., I.S. and N.T.; data curation, A.N. and O.P.; writing—original draft preparation, A.N.; writing—review and editing, V.C. and A.N.; supervision, V.C.; project administration, A.N.; funding acquisition, A.N. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by Russian Science Foundation (grant No. 20-19-00672). The TEM study of the structure was carried out on the equipment of the Center Collective Use “Materials Science and Metallurgy” at National University of Science and Technology “MISIS” supported by Ministry of Science and Higher Education of Russian Federation (grant No. 075-15-2021-696).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

Authors thank V.V. Zakharov (Russian Institute of Light Alloys (VILS), Moscow, Russia) for recommendations on the choice of the casting regimes of the Al alloys.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Matveev, Y.A.; Gavrilova, V.P.; Baranov, V.V. Light conducting materials for aircraft wires. Cables Wires 2006, 5, 22–23. (In Russian) [Google Scholar]
  2. Yang, C.; Masquellier, N.; Gandiolle, C.; Sauvage, X. Multifunctional properties of composition graded Al wires. Scr. Mater. 2020, 189, 21–24. [Google Scholar] [CrossRef]
  3. Moisy, F.; Gueydan, A.; Sauvage, X.; Keller, C.; Guillet, A.; Nguyen, N.; Martinez, M.; Hug, E. Elaboration of architectured copper clad aluminum composites by a multi-step drawing process. Mater. Sci. Forum 2018, 941, 1914–1919. [Google Scholar] [CrossRef]
  4. Røyset, J.; Ryum, N. Kinetics and mechanisms of precipitation in an Al-0.2wt.%Sc alloy. Mater. Sci. Eng. A 2005, 396, 409–422. [Google Scholar] [CrossRef]
  5. Latynina, T.A.; Mavlyutov, A.M.; Valiev, R.Z.; Murashkin, M.Y.; Orlova, T.S. The effect of hardening by annealing in ultrafine-grained Al-0.4Zr alloy: Influence of Zr microadditives. Philos. Mag. 2019, 99, 2424–2443. [Google Scholar] [CrossRef]
  6. Pozdnyakov, A.V.; Barkov, R.Y. Microstructure and mechanical properties of novel Al-Y-Sc alloys with high thermal stability and electrical conductivity. J. Mater. Sci. Technol. 2020, 36, 1–6. [Google Scholar] [CrossRef]
  7. Barkov, R.Y.; Mikhaylovskaya, A.V.; Yakovtseva, O.A.; Loginova, I.S.; Prosviryakov, A.S.; Pozdniakov, A.V. Effect of thermomechanical treatment on the microstructure, precipitation strengthening, internal friction, and thermal stability of Al-Er-Yb-Sc alloys with good electrical conductivity. J. Alloys Compd. 2021, 855, 157367. [Google Scholar] [CrossRef]
  8. Belov, N.; Korotkova, N.; Akopyan, T.; Murashkin, M.; Timofeev, V. Structure and properties of Al-0.6wt.%Zr wire alloy manufactured by direct drawing of electromagnetically cast wire rod. Metals 2020, 10, 769. [Google Scholar] [CrossRef]
  9. Pozdnyakov, A.V.; Barkov, R.Y.; Prosviryakov, A.S.; Churyumov, A.Y.; Golovin, I.S.; Zolotorevskiy, V.S. Effect of Zr on the microstructure, recrystallization behavior, mechanical properties and electrical conductivity of the novel Al-Er-Y alloy. J. Alloys Compd. 2018, 765, 1–6. [Google Scholar] [CrossRef]
  10. Pozdnyakov, A.V.; Osipenkova, A.A.; Popov, D.A.; Makhov, S.V.; Napalkov, V.I. Effect of low additions of Y, Sm, Gd, Hf and Er on the structure and hardness of alloy Al-0.2%Zr-0.1%Sc. Met. Sci. Heat Treat. 2017, 58, 537–542. [Google Scholar] [CrossRef]
  11. Barkov, R.Y.; Yakovtseva, O.A.; Mamzurina, O.I.; Loginova, I.S.; Medvedeva, S.V.; Prosviryakov, A.S.; Mikhaylovskaya, A.V.; Pozdniakov, A.V. Effect of Yb on the structure and properties of an electroconductive Al-Y-Sc alloy. Phys. Met. Metallogr. 2020, 121, 604–609. [Google Scholar] [CrossRef]
  12. Nokhrin, A.; Shadrina, I.; Chuvil’deev, V.; Kopylov, V. Study of structure and mechanical properties of fine-grained aluminum alloys Al-0.6wt.%Mg-Zr-Sc with ratio Zr:Sc = 1.5 obtained by cold drawing. Materials 2019, 12, 316. [Google Scholar] [CrossRef][Green Version]
  13. Toropova, L.S.; Eskin, D.G.; Kharakterova, M.L.; Dobatkina, T.V. Advanced Aluminum Alloys Containing Scandium; Taylor and Francis: London, UK, 2017. [Google Scholar]
  14. Røyset, J.; Ryum, N. Scandium in aluminum alloys. Int. Mater. Rev. 2005, 50, 19–44. [Google Scholar] [CrossRef]
  15. Filatov, Y.A.; Elagin, V.I.; Zakharov, V.V. New Al-Mg-Sc alloys. Mater. Sci. Eng. A 2000, 280, 97–101. [Google Scholar] [CrossRef]
  16. Davydov, V.G.; Rostova, T.D.; Zakharov, V.V.; Filatov, Y.A.; Yelagin, V.I. Scientific principles of making an alloying of scandium to aluminium alloys. Mater. Sci. Eng. A 2000, 280, 30–36. [Google Scholar] [CrossRef]
  17. Eskin, D.G. Sc applications in aluminum alloys: Overview of Russian research in the 20th century. Miner. Met. Mater. Ser. 2018, F4, 1565–1572. [Google Scholar] [CrossRef][Green Version]
  18. Eskin, D.G. The scandium story—Part II: Impact on aluminum alloys and their applications. Light Met. Age 2020, 78, 40–44. [Google Scholar]
  19. Buranova, Y.; Kulitskiy, V.; Peterlechner, M.; Mogucheva, A.; Kaibyshev, R.; Divinski, S.V.; Wilde, G. Al3(Sc,Zr)-based precipitates in Al-Mg alloy: Effect of severe deformation. Acta Mater. 2017, 124, 210–224. [Google Scholar] [CrossRef]
  20. Mochugovskiy, A.G.; Tabachkova, N.Y.; Ghayoumabadi, M.E.; Cheverkin, V.V.; Mikhaylovskaya, A.V. Joint effect of quasicrystalline icosahedral and L12-strcutured phases precipitation on the grain structure and mechanical properties of aluminum based alloys. J. Mater. Sci. Technol. 2021, 87, 196–206. [Google Scholar] [CrossRef]
  21. Ocenasek, V.; Slamova, M. Resistance to recrystallization due to Sc and Zr addition to Al-Mg alloys. Mater. Charact. 2001, 47, 157–162. [Google Scholar] [CrossRef]
  22. Jones, M.J.; Humphreys, F.J. Interactions of recrystallization and precipitation: The effect of Al3Sc on the recrystallization behaviour of deformed aluminium. Acta Mater. 2003, 51, 2149–2159. [Google Scholar] [CrossRef]
  23. Riddle, Y.W.; Sanders, T.H., Jr. A study of coarsening, recrystallization, and morphology of microstructure in Al-Sc-(Zr)-(Mg) alloys. Metall. Mater. Trans. A Phys. Metall. Mater. Sci. 2004, 35, 341–350. [Google Scholar] [CrossRef]
  24. Komura, S.; Berbon, P.B.; Furukawa, M.; Horita, Z.; Nemoto, M.; Langdon, T.G. High strain rate superplasticity in an Al-Mg alloy containing scandium. Scr. Mater. 1998, 38, 1851–1856. [Google Scholar] [CrossRef]
  25. Musin, F.; Kaibyshev, R.; Motohashi, Y.; Itoh, G. High strain rate superplasticity in a commercial Al-Mg-Sc alloy. Scr. Mater. 2004, 50, 511–516. [Google Scholar] [CrossRef]
  26. Lee, S.; Utsunomiya, A.; Akamatsu, H.; Neishi, K.; Furukawa, M.; Horita, Z.; Langdon, T.G. Influence of scandium and zirconium on grain stability and superplastic ductilities in ultrafine-grained Al-Mg alloys. Acta Mater. 2002, 50, 553–564. [Google Scholar] [CrossRef]
  27. Komura, S.; Horita, Z.; Furukawa, M.; Nemoto, M.; Langdon, T.G. Influence of scandium on superplastic ductilities in an Al-Mg-Sc alloy. J. Mater. Res. 2000, 15, 2571–2576. [Google Scholar] [CrossRef]
  28. Mikhaylovskaya, A.V.; Yakovtseva, O.A.; Cheverkin, V.V.; Kotov, A.D.; Portnoy, V.K. Superplastic behaviour of Al-Mg-Zn-Zr-Sc-based alloys at high strain rates. Mater. Sci. Eng. A 2016, 659, 225–233. [Google Scholar] [CrossRef]
  29. Perevezentsev, V.N.; Chuvil’deev, V.N.; Kopylov, V.I.; Sysoev, A.N.; Langdon, T.G. High-strain-rate superplasticity of Al-Mg-Sc-Zr alloys. Russ. Metall. Met. 2004, 2004, 28–35. (In Russian) [Google Scholar]
  30. Chuvil’deev, V.N.; Gryaznov, M.Y.; Shotin, S.V.; Kopylov, V.I.; Nokhrin, A.V.; Likhnitskii, C.V.; Chegurov, M.K.; Bobrov, A.A.; Tabachkova, N.Y.; Pirozhnikova, O.E. Investigation of superplasticity and dynamic grain growth in ultrafine-grained Al-0.5%Mg-Sc alloys. J. Alloys Compd. 2021, 877, 160099. [Google Scholar] [CrossRef]
  31. Bobruk, E.A.; Safargalina, Z.A.; Golubev, O.V.; Baykov, D.; Kazykhanov, V.U. The effect of ultrafine-grained states on superplastic behavior of Al-Mg-Si alloy. Mater. Lett. 2019, 255, 126503. [Google Scholar] [CrossRef]
  32. Kim, W.J.; Kim, J.K.; Park, T.Y.; Hong, S.I.; Kim, D.I.; Kim, Y.S.; Lee, J.D. Enhancement of strength and superplasticity in a 6061 Al alloy processed by equal-channel-angular-pressing. Metall. Mater. Trans. A 2002, 33, 3155–3164. [Google Scholar] [CrossRef]
  33. Khamei, A.A.; Dehghani, K. Effects of strain rate and temperature on hot tensile deformation of severe plastic deformed 6061 aluminum alloy. Mater. Sci. Eng. A 2015, 627, 1–9. [Google Scholar] [CrossRef]
  34. Katsas, S.; Dashwood, R.; Grimes, R.; Jackson, M.; Todd, G.; Henein, H. Dynamic recrystallization and superplasticity in pure aluminum with zirconium addition. Mater. Sci. Eng. A 2007, 444, 291–297. [Google Scholar] [CrossRef]
  35. Malopheyev, S.; Kulitskiy, V.; Kaibyshev, R. Deformation structure and strengthening mechanisms in an Al-Mg-Sc-Zr alloy. J. Alloys Compd. 2017, 698, 957–966. [Google Scholar] [CrossRef]
  36. Vinogradov, A. Fatigue limit and crack growth in ultra-fine grain metals produced by severe plastic deformation. J. Mater. Sci. 2007, 42, 1797–1808. [Google Scholar] [CrossRef]
  37. Vinogradov, A.; Washikita, A.; Kitagawa, K.; Kopylov, V.I. Fatigue life of fine-grained Al-Mg-Sc alloys produced by Equal-Channel Angular Pressing. Mater. Sci. Eng. A 2003, 349, 318–326. [Google Scholar] [CrossRef]
  38. Chuvil’deev, V.N.; Shadrina, Y.S.; Nokhrin, A.V.; Kopylov, V.I.; Bobrov, A.A.; Gryaznov, M.Y.; Shotin, S.V.; Tabachkova, N.Y.; Chegurov, M.K.; Melekhin, N.V. An investigation of thermal stability of structure and mechanical properties of Al-0.5Mg-Sc ultrafine-grained aluminum alloys. J. Alloys Compd. 2020, 831, 154805. [Google Scholar] [CrossRef]
  39. Mikhaylovskaya, A.V.; Mochugovskiy, A.G.; Levchenko, V.S.; Tabachkova, N.Y.; Mufalo, W.; Portnoy, V.K. Precipitation behavior of L12 Al3Zr phase in Al-Mg-Zr alloy. Mater. Charact. 2018, 139, 30–37. [Google Scholar] [CrossRef]
  40. Mochugovskiy, A.G.; Mikhaylovskaya, A.V.; Zadorognyy, M.Y.; Golovin, I.S. Effect of heat treatment on the grain size control, superplasticity, internal friction, and mechanical properties of zirconium-bearing aluminum-based alloy. J. Alloys Compd. 2021, 856, 157455. [Google Scholar] [CrossRef]
  41. Mochugovskiy, A.G.; Mikhaylovskaya, A.V. Comparison of precipitation kinetics and mechanical properties in Zr and Sc-bearing aluminum-based alloys. Mater. Lett. 2020, 275, 128096. [Google Scholar] [CrossRef]
  42. Nes, E.; Ryun, N. On the formation of fan-shaped precipitates during the decomposition of a highly supersaturated Al-Zr alloy solid solution. Scr. Metall. 1971, 5, 987–989. [Google Scholar] [CrossRef]
  43. Mochugovskiy, A.G.; Mikhaylovskaya, A.V.; Tabachkova, N.Y.; Portnoy, V.K. The mechanism of L12 phase precipitation, microstructure and tensile properties of Al-Mg-Er-Zr alloy. Mater. Sci. Eng. A 2019, 744, 195–205. [Google Scholar] [CrossRef]
  44. Perevezentsev, V.N.; Rybin, V.V.; Chuvil’deev, V.N. The theory of structural superplasticity: IV. Cavitation during superplastic deformation. Acta Metall. Mater. 1992, 40, 915–923. [Google Scholar] [CrossRef]
  45. Rybin, V.V.; Perevezentsev, V.N.; Chuvil’deev, V.N. Pore nucleation at the precipitate-matrix interface under superplastic deformation. Surface 1986, 11, 130–139. (In Russian) [Google Scholar]
  46. Fellows, J.A.; Boyer, H.E. Metals Handbook. V. 9. Fractography and Atlas of Fractographs, 8th ed.; Boyer, H.E., Ed.; American Society for Metals: Metals Park, OH, USA, 1974. [Google Scholar]
  47. Nieh, T.G.; Wadsworth, J.; Sherby, O.D. Superplasticity in Metals and Ceramics; Cambridge University Press: Cambridge, UK, 1997. [Google Scholar]
  48. Novikov, I.I.; Portnoy, V.K. Superplasticity of Fine-Grained Alloys; Metallurgiya: Moscow, Russia, 1981. (In Russian) [Google Scholar]
  49. Perevezentsev, V.N.; Rybin, V.V.; Chuvil’deev, V.N. The theory of structural superplasticity: I. The physical nature of the superplasticity phenomenon. Acta Metall. Mater. 1992, 40, 887–894. [Google Scholar] [CrossRef]
  50. Safyari, M.; Moshtaghi, M.; Hojo, T.; Akiyama, E. Mechanisms of hydrogen embrittlement in high-strength aluminum alloys containing coherent and incoherent dispersoids. Corros. Sci. 2022, 194, 109895. [Google Scholar] [CrossRef]
  51. Teixeira, J.C.; Cram, D.G.; Bourgeois, L.; Bastow, T.J.; Hill, A.J.; Hutchinson, C.R. On the strengthening response of aluminum alloys containing shear-resistant plate-shaped precipitates. Acta Mater. 2008, 56, 6109–6122. [Google Scholar] [CrossRef]
  52. Krasilnikov, V.S.; Mayer, A.E. Dislocation dynamics in aluminum containing θ’ phase: Atomistic simulation and continuum modeling. Int. J. Plast. 2019, 119, 21–42. [Google Scholar] [CrossRef]
  53. Zuiko, I.; Kaibyshev, R. Deformation structures and strengthening mechanisms in an Al-Cu alloy subjected to extensive cold rolling. Mater. Sci. Eng. A 2017, 702, 53–64. [Google Scholar] [CrossRef]
  54. Fribourg, G.; Brechet, Y.; Deschamps, A.; Simar, A. Microstructure-based modeling of isotropic and kinematic strain hardening in a precipitation-hardening aluminum alloy. Acta Mater. 2011, 59, 3621–3635. [Google Scholar] [CrossRef]
  55. Chuvil’deev, V.N.; Nokhrin, A.V.; Smirnova, E.S.; Kopylov, V.I. Slid solution decomposition mechanisms in as-cast and microcrystalline Al-Sc alloys: IV. Effect of the decomposition of solid solution on the mechanical properties of the alloys. Russ. Metall. Met. 2013, 2013, 676–690. [Google Scholar] [CrossRef]
  56. Perevezentsev, V.N.; Rybin, V.V.; Chuvil’deev, V.N. The theory of structural superplasticity: III. Boundary migration and grain growth. Acta Metall. Mater. 1992, 40, 907–914. [Google Scholar] [CrossRef]
  57. Perevezentsev, V.N.; Pirozhnikova, O.E.; Chuvil’deev, V.N. Grain growth during superplastic deformation of microduplex alloys. Phys. Met. Metallogr. 1991, 71, 29–36. (In Russian) [Google Scholar]
  58. Segal, V.M.; Beyerlein, I.J.; Tome, C.N.; Chuvil’deev, V.N.; Kopylov, V.I. Fundamentals and Engineering of Severe Plastic Deformation; Nova Science Publishers: New York, NY, USA, 2010. [Google Scholar]

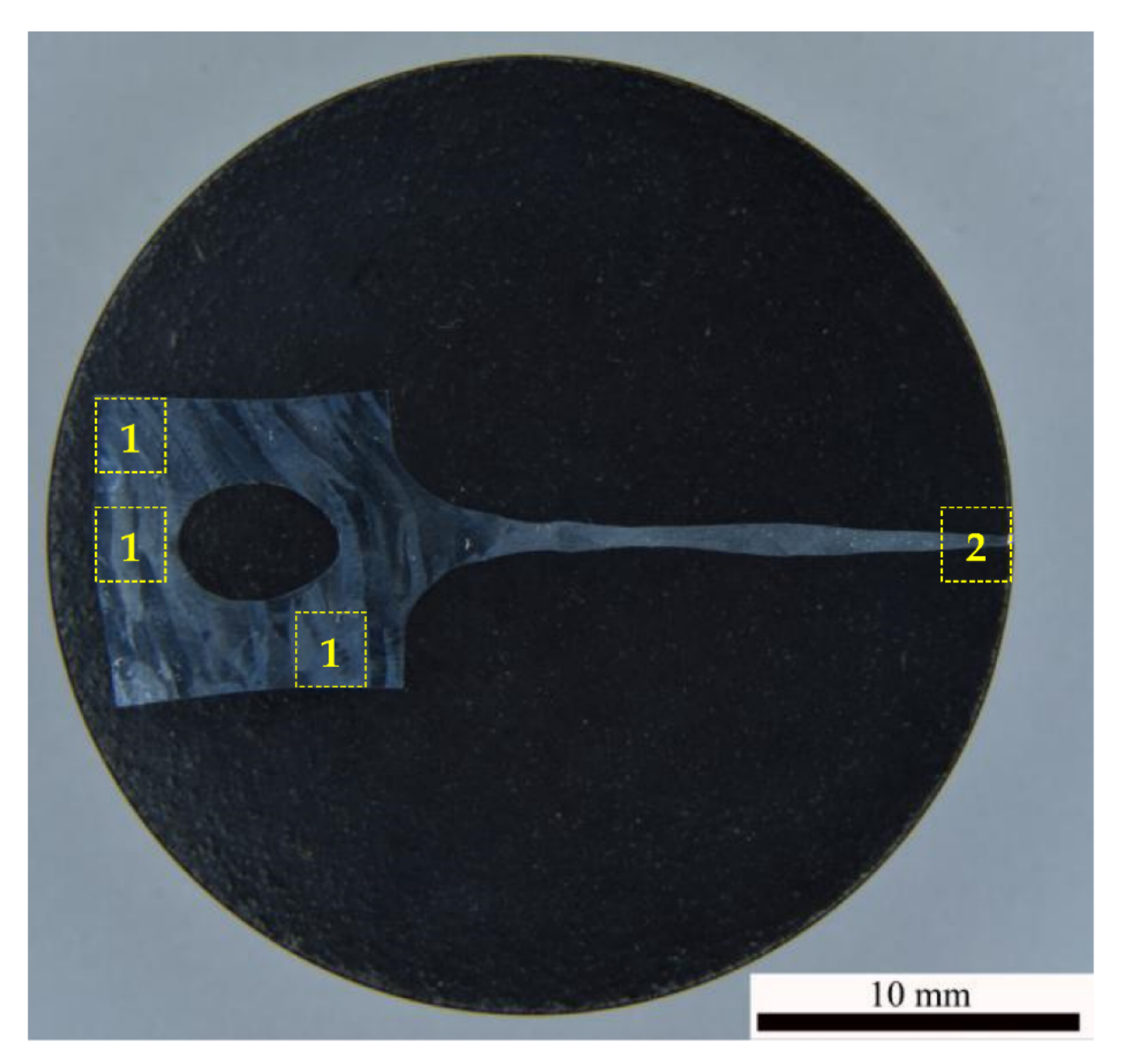

Figure 1. General view of a specimen of UFG alloy Al-0.5%Mg-0.5%Sc after the superplasticity testing (500 °C, 10−2 s−1). The areas of investigation of the grain microstructure and measuring the microhardness in the non-deformed and deformed parts are marked as (1) and (2), respectively. In the non-deformed part, the dendrite boundaries are visible, inside which a uniform UFG microstructure was formed.
Figure 1. General view of a specimen of UFG alloy Al-0.5%Mg-0.5%Sc after the superplasticity testing (500 °C, 10−2 s−1). The areas of investigation of the grain microstructure and measuring the microhardness in the non-deformed and deformed parts are marked as (1) and (2), respectively. In the non-deformed part, the dendrite boundaries are visible, inside which a uniform UFG microstructure was formed.
Materials 15 00176 g001
Figure 2. Macrostructure of the cast Al-0.5%Mg-Sc alloy with different Sc contents: (a) 0.2%Sc; (b) 0.3%Sc; (c) 0.5%Sc [38]. (d)—the edge, (e)—the center of the Al-0.5%Mg-0.5%Sc alloy bulk. The cross-section of the bulk sample.
Figure 2. Macrostructure of the cast Al-0.5%Mg-Sc alloy with different Sc contents: (a) 0.2%Sc; (b) 0.3%Sc; (c) 0.5%Sc [38]. (d)—the edge, (e)—the center of the Al-0.5%Mg-0.5%Sc alloy bulk. The cross-section of the bulk sample.
Materials 15 00176 g002aMaterials 15 00176 g002b
Figure 3. Al3Sc primary particles in the cast (a) and UFG alloy (b) Al-0.5%Mg-0.5%Sc. SEM.
Figure 3. Al3Sc primary particles in the cast (a) and UFG alloy (b) Al-0.5%Mg-0.5%Sc. SEM.
Materials 15 00176 g003
Figure 4. Macrostructure (a) and microstructure (b) of the UFG Al-0.5%Mg-0.5%Sc alloy after ECAP. SEM.
Figure 4. Macrostructure (a) and microstructure (b) of the UFG Al-0.5%Mg-0.5%Sc alloy after ECAP. SEM.
Materials 15 00176 g004
Figure 5. Microstructure of the UFG Al-0.5%Mg-0.2%Sc (a,c,e) and Al-0.5%Mg-0.5%Sc alloys (b,d,f) after ECAP: (a,b) bright-field images of the microstructure of UFG alloys; (c,d) dark field images of the Al3Sc particles c; (d,f) bright field images of the Al3Sc nanoparticles. TEM.
Figure 5. Microstructure of the UFG Al-0.5%Mg-0.2%Sc (a,c,e) and Al-0.5%Mg-0.5%Sc alloys (b,d,f) after ECAP: (a,b) bright-field images of the microstructure of UFG alloys; (c,d) dark field images of the Al3Sc particles c; (d,f) bright field images of the Al3Sc nanoparticles. TEM.
Materials 15 00176 g005aMaterials 15 00176 g005b
Figure 6. Nucleation of the Al3Sc particles in the UFG Al-0.5%Mg-Sc alloys after long-time annealing at 300 °C: (a,b) Al-0.5%Mg-0.2%Sc; (c) Al-0.5%Mg-0.3%Sc; (d) Al-0.5%Mg-0.4%Sc.
Figure 6. Nucleation of the Al3Sc particles in the UFG Al-0.5%Mg-Sc alloys after long-time annealing at 300 °C: (a,b) Al-0.5%Mg-0.2%Sc; (c) Al-0.5%Mg-0.3%Sc; (d) Al-0.5%Mg-0.4%Sc.
Materials 15 00176 g006
Figure 7. Microstructure of the UFG Al-0.5%Mg-Sc alloys after long-time annealing at 300 °C: (a) Al-0.5%Mg-0.3%Sc; (b) Al-0.5%Mg-0.4%Sc.
Figure 7. Microstructure of the UFG Al-0.5%Mg-Sc alloys after long-time annealing at 300 °C: (a) Al-0.5%Mg-0.3%Sc; (b) Al-0.5%Mg-0.4%Sc.
Materials 15 00176 g007
Figure 8. Macrostructure of the UFG Al-0.5%Mg-Sc alloys after long-time annealing at 300 °C: (a) Al-0.5%Mg-0.2%Sc; (b) Al-0.5%Mg-0.3%Sc.
Figure 8. Macrostructure of the UFG Al-0.5%Mg-Sc alloys after long-time annealing at 300 °C: (a) Al-0.5%Mg-0.2%Sc; (b) Al-0.5%Mg-0.3%Sc.
Materials 15 00176 g008
Figure 9. Tension curves σ(ε) for the cast Al-0.5%Mg-0.5%Sc alloys: (a) alloys in the initial stage; (b) alloys after long-time annealing at 300 °C (300 h).
Figure 9. Tension curves σ(ε) for the cast Al-0.5%Mg-0.5%Sc alloys: (a) alloys in the initial stage; (b) alloys after long-time annealing at 300 °C (300 h).
Materials 15 00176 g009
Figure 10. General view of the surfaces of the cast Al-0.5%Mg-0.5%Sc alloy specimens after the tension tests at 300 °C (a), 350 °C (b) and 500 °C (c). Metallographic optical microscopy.
Figure 10. General view of the surfaces of the cast Al-0.5%Mg-0.5%Sc alloy specimens after the tension tests at 300 °C (a), 350 °C (b) and 500 °C (c). Metallographic optical microscopy.
Materials 15 00176 g010
Figure 11. Fractographic analysis of the fractures of the specimens of the cast (ad) and UFG (eh) Al-0.5%Mg-0.5%Sc alloys after the tension tests at 300 °C (a,b,e,f) and 500 °C (c,d,g,h) SEM.
Figure 11. Fractographic analysis of the fractures of the specimens of the cast (ad) and UFG (eh) Al-0.5%Mg-0.5%Sc alloys after the tension tests at 300 °C (a,b,e,f) and 500 °C (c,d,g,h) SEM.
Materials 15 00176 g011aMaterials 15 00176 g011b
Figure 12. Tension curves σ(ε) for the UFG Al-0.5%Mg-Sc alloys after long-time annealing at 300 °C: (a) Al-0.5%Mg-0.2%Sc; (b) Al-0.5%Mg-0.3%Sc; (c) Al-0.5%Mg-0.4%Sc; (d) Al-0.5%Mg-0.5%Sc. Strain rate 10−2 s−1. Dark line—500 °C, 3.3 × 10−2 s−1.
Figure 12. Tension curves σ(ε) for the UFG Al-0.5%Mg-Sc alloys after long-time annealing at 300 °C: (a) Al-0.5%Mg-0.2%Sc; (b) Al-0.5%Mg-0.3%Sc; (c) Al-0.5%Mg-0.4%Sc; (d) Al-0.5%Mg-0.5%Sc. Strain rate 10−2 s−1. Dark line—500 °C, 3.3 × 10−2 s−1.
Materials 15 00176 g012
Figure 13. Analysis of the superplasticity test results for the UFG Al-0.5%Mg-Sc alloy specimens: (a) dependencies of the yield stress on the strain rate in the logarithmic axes ln( σ b ) − ln ε · ; (b) dependencies of the strain rate sensitivity coefficient m = ln σ b / ln ε · on the Sc concentration: test temperature—400 °C (squares) and 500 °C (circles); empty symbols–initial state [30]; full symbols–annealed state.
Figure 13. Analysis of the superplasticity test results for the UFG Al-0.5%Mg-Sc alloy specimens: (a) dependencies of the yield stress on the strain rate in the logarithmic axes ln( σ b ) − ln ε · ; (b) dependencies of the strain rate sensitivity coefficient m = ln σ b / ln ε · on the Sc concentration: test temperature—400 °C (squares) and 500 °C (circles); empty symbols–initial state [30]; full symbols–annealed state.
Materials 15 00176 g013
Figure 14. General view of the deformed parts of the UFG alloy specimens after the tension tests (500 °C, 10−2 s−1). The area of the plastic deformation localization: (ac) Al-0.5%Mg-0.2%Sc; (d) Al-0.5%Mg-0.3%Sc.
Figure 14. General view of the deformed parts of the UFG alloy specimens after the tension tests (500 °C, 10−2 s−1). The area of the plastic deformation localization: (ac) Al-0.5%Mg-0.2%Sc; (d) Al-0.5%Mg-0.3%Sc.
Materials 15 00176 g014
Figure 15. Microstructure of the non-deformed (a,c,e) and deformed (b,d,f) parts of the UFG alloy specimens Al-0.5%Mg-0.2%Sc (af) and Al-0.5%Mg-0.2%Sc (g,h) after the tension tests. Strain rate 10−2 s−1. Test temperature 350 °C (a,b); 400 °C (c,d), 500 °C (eh).
Figure 15. Microstructure of the non-deformed (a,c,e) and deformed (b,d,f) parts of the UFG alloy specimens Al-0.5%Mg-0.2%Sc (af) and Al-0.5%Mg-0.2%Sc (g,h) after the tension tests. Strain rate 10−2 s−1. Test temperature 350 °C (a,b); 400 °C (c,d), 500 °C (eh).
Materials 15 00176 g015aMaterials 15 00176 g015b
Figure 16. Dependencies of the mean grain sizes (empty symbols) and of the microhardness (full symbols) in the non-deformed (1) and deformed (2) parts on the test temperature and strain rate: UFG alloys with 0.2%Sc (a) and 0.3%Sc (b).
Figure 16. Dependencies of the mean grain sizes (empty symbols) and of the microhardness (full symbols) in the non-deformed (1) and deformed (2) parts on the test temperature and strain rate: UFG alloys with 0.2%Sc (a) and 0.3%Sc (b).
Materials 15 00176 g016
Figure 17. Dependence of the microhardness on the grain size in the Hvd−1/2 axes. Analysis of the results is presented in Figure 12.
Figure 17. Dependence of the microhardness on the grain size in the Hvd−1/2 axes. Analysis of the results is presented in Figure 12.
Materials 15 00176 g017
Figure 18. Results of the microhardness and microstructure investigations in different areas of the deformed part of the UFG Al-0.5%Mg-0.2%Sc alloy specimen after the tension tests at the temperature 450 °C and strain rate 10−2 s−1.
Figure 18. Results of the microhardness and microstructure investigations in different areas of the deformed part of the UFG Al-0.5%Mg-0.2%Sc alloy specimen after the tension tests at the temperature 450 °C and strain rate 10−2 s−1.
Materials 15 00176 g018aMaterials 15 00176 g018b
Figure 19. Dependence of the dynamic grain growth rate on the strain rate in the logarithmic axes. UFG alloys with 0.2%Sc (circles) and 0.3%Sc (squares). Test temperature 400 °C (empty markers) and 500 °C (full markers).
Figure 19. Dependence of the dynamic grain growth rate on the strain rate in the logarithmic axes. UFG alloys with 0.2%Sc (circles) and 0.3%Sc (squares). Test temperature 400 °C (empty markers) and 500 °C (full markers).
Materials 15 00176 g019
Table 1. Results of the superplasticity tests of the coarse-grained cast alloys.
Table 1. Results of the superplasticity tests of the coarse-grained cast alloys.
T, °C ε · , s−1Sc Concentration in the Alloy, wt.%
0.3%0.5%
Initial StateAnnealing
300 °C, 10 h
Annealing
300 °C, 300 h
Initial StateAnnealing
300 °C, 10 h
Annealing
300 °C, 300 h
σb,
MPa
δ,
%
σb,
MPa
δ,
%
σb,
MPa
δ,
%
σb,
MPa
δ,
%
σb,
MPa
δ,
%
σb,
MPa
δ,
%
30010−2435355565590586670856490
35010−2325138383746506852755068
40010−2215126523146366638804542
3.3 × 10−2--409040524676521005487
3.3 × 10−143695490468563777011570110
45010−2154521502530295031703430
50010−2112418301733224325582970
1.7 × 10−2----2260----3390
3.3 × 10−2184622502453265529553350
3.3 × 10−1----28703680--4075
Table 2. Results of the superplasticity tests of the UFG alloys.
Table 2. Results of the superplasticity tests of the UFG alloys.
T, °C ε · , s−1Sc Concentration in the Alloy, wt.%
0.2%0.3%0.4%0.5%
Initial State [30]Annealing 300 °C, 300 hInitial State [30]Annealing 300 °C, 1 hInitial State [30]Annealing 300 °C, 300 hInitial State [30]Annealing 300 °C, 1 h
σb, MPaδ, %σb, MPaδ, %σb, MPaδ, %σb, MPaδ, %σb, MPaδ, %σb, MPaδ, %σb, MPaδ, %σb, MPaδ, %
30010−26516044170592054425056225482005734542275
35010−23329028235322952032028280283003332022250
4003.3 × 10−39275--7510--10250--11290--
10−21056015360124901348012350144601326013370
3.3 × 10−22035039220184252830017460352802148032300
10−124290--20360--23320--23680--
3.3 × 10−1--65130--62220--60150--62130
45010−21335010500104909350105009440144008420
5003.3 × 10−34400--4540--4330--4520-
10−28265736058205.57004530642056705320
1.7 × 10−2--12330--9440--9380--9500
3.3 × 10−2935015370662512720884015580775012900
10−114220--13400--71060--91055--
3.3 × 10−1--32175--313301550030240--26410
Table 3. Results of investigations of the dynamic grain growth in the specimens of Al-0.5%Mg-Sc alloys after tensile testing 1,2.
Table 3. Results of investigations of the dynamic grain growth in the specimens of Al-0.5%Mg-Sc alloys after tensile testing 1,2.
T, °C ε · , s−1Sc Concentration in the Alloy, wt.%
0.2%0.3%0.4%0.5%
Initial State [30]Annealing 300 °C, 300 hInitial State [30]Annealing 300 °C, 1 hInitial State [30]Annealing 300 °C, 300 hInitial State [30]Annealing 300 °C, 1 h
d1,
μm 1
d2,
μm 1
d1,
μm
(fR,%)
d2,
μm
(fR,%)
d1,
μm
d2,
μm
d1,
μm
(fR,%)
d2,
μm
(fR,%)
d1,
μm
d2,
μm
d1,
μm
(fR,%)
d2,
μm
(fR,%)
d1,
μm
d2,
μm
d1,
μm
(fR,%)
d2,
μm
(fR,%)
2010−20.4–0.50.5–0.80.4–0.50.5–0.70.4–0.50.5–0.70.4–0.50.5–0.7
30010−20.4–0.50.4–0.50.5–0.8
(<1)
0.5–0.8
(<1)
0.4–0.50.4–0.50.5–0.8
(0)
2.3
(<1)
0.4–0.51.50.5–0.7
(0)
0.5–0.7
(<1)
0.4–0.50.4–0.50.5–0.7
(0)
0.5–0.7
(0)
35010−20.4–0.52.51.6
(<10)
3.4
(55)
0.4–0.52.10.5–0.8
(0)
2.5
(35)
0.4–0.52.00.5–0.7
(0)
1.9
(45)
0.4–0.51.90.5–0.7
(0)
1–1.5
(<10)
4003.3 × 10−31.54.8--1.33.3--1.23.1--1.23.1--
10−21.34.1--1.22.9--1–1.22.9--1–1.22.60.9
(<1)
1.7–1.9
(<10)
3.3 × 10−20.8–1.23.41.9
(<10)
3.6
(60)
0.8–12.70.6–0.8
(0)
2.7
(45)
0.52.20.5–0.7
(0)
2.4
(20)
0.52.20.5–0.7
(0)
1.5
(<10)
10−10.72.81.7
(<10)
2.3
(15)
0.52.60.6–0.8
(0)
2.6
(20)
0.52.10.5–0.7
(0)
2.2
(20)
0.52.10.5–0.7
(0)
1–1.5
(<10)
3.3 × 10−1----------------
45010−2--1.5
(<10)
1.9
(<10)
--0.6–0.8
(0)
2.6
(<10)
------1.5
(<1)
2.3
(20)
5003.3 × 10−31.74.22.0
(<10)
5.0
(70)
1.23.60.6–0.9
(<1)
2.9
(50)
1.22.80.5–0.7
(<1)
2.7
(40)
1–1.22.40.5–0.7
(<1)
2.5
(20)
10−22.510.3--2.18.0--1.56.0--1.24.50.9–2
(<1)
3.8
(20)
1.7 × 10−22.28.8--1.75.6--1.25.3--1.2–1.33.6--
3.3 × 10−22.07.82.9
(<10)
6.3
(80)
1.54.50.7–1
(<1)
5.5
(70)
1.04.60.8–0.9
(<1)
4.8
(60)
1.03.50.8–0.9
(<1)
4.6
(55)
10−1--2.6
(<10)
4.8
(30)
--0.7–0.9
(<1)
4.2
(30)
--------
3.3 × 10−10.55.62
(<10)
4.2
(25)
0.53.30.6–0.9
(<1)
3.7
(25)
0.53.90.5–0.7
(<1)
2.9
(25)
0.53.20.6–1
(<1)
2.7
(20)
--<1
(<10)
3.5
(<10)
--0.6–0.9
(<1)
2.8
(<10)
--------
1d1 and d2 are the average grain sizes in the non-deformed zone (Zone II) of the specimens and in the deformed zone (Zone I) ones after the tensile testing. 2 Mean uncertainty of measuring the volume fraction of recrystallized structure was 5 vol.%. The value of fR < 1% in Table 3 means that few recrystallized grains were identified by metallographic or SEM methods. Mean sizes of these grains are given in the same column. The value fR = 0% in Table 3 means that we could not identify any recrystallized grains in the investigated areas of the specimens by metallographic or SEM methods.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gryaznov, M.; Shotin, S.; Nokhrin, A.; Chuvil’deev, V.; Likhnitskii, C.; Kopylov, V.; Chegurov, M.; Tabachkova, N.; Shadrina, I.; Smirnova, E.; Pirozhnikova, O. Investigation of Effect of Preliminary Annealing on Superplasticity of Ultrafine-Grained Conductor Aluminum Alloys Al-0.5%Mg-Sc. Materials 2022, 15, 176. https://doi.org/10.3390/ma15010176

AMA Style

Gryaznov M, Shotin S, Nokhrin A, Chuvil’deev V, Likhnitskii C, Kopylov V, Chegurov M, Tabachkova N, Shadrina I, Smirnova E, Pirozhnikova O. Investigation of Effect of Preliminary Annealing on Superplasticity of Ultrafine-Grained Conductor Aluminum Alloys Al-0.5%Mg-Sc. Materials. 2022; 15(1):176. https://doi.org/10.3390/ma15010176

Chicago/Turabian Style

Gryaznov, Mikhail, Sergey Shotin, Aleksey Nokhrin, Vladimir Chuvil’deev, Constantine Likhnitskii, Vladimir Kopylov, Mikhail Chegurov, Nataliya Tabachkova, Iana Shadrina, Elena Smirnova, and Olga Pirozhnikova. 2022. "Investigation of Effect of Preliminary Annealing on Superplasticity of Ultrafine-Grained Conductor Aluminum Alloys Al-0.5%Mg-Sc" Materials 15, no. 1: 176. https://doi.org/10.3390/ma15010176

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
