1. Introduction
Composites of multi-component ceramics have been the subject of research and wider applications in materials engineering [
1,
2]. Among strengthening ceramics, WC, TiC, and TiB
2 are some of the most popular materials because of their large Young’s modulus, good thermal stability, low density, and chemical compatibility with metals such as iron, nickel, cobalt, and titanium [
3]. To improve the thermal conductivity and abrasive wear and erosion resistance of the working surface of drilling tools used in mining, Sue et al. [
4] developed an innovative material suitable for surfacing with powder plasma-transferred arc welding (PPTAW) or laser metal deposition (LMD) techniques. The composite consisted of spherical fused tungsten carbide (SFTC) particles, with WC-W
2C evenly distributed in the Ni-Si-B matrix. Compared with conventional hard layers padded with composite powder containing WC-W
2C tungsten carbide particles and Ni-Cr-Si-B-Fe alloy, the developed material was characterized by a significantly higher thermal resistance and lower wear by abrasion and erosion. This improved the durability and increased the economic efficiency of the steel bits and polycrystalline diamond compact (PDC).
In recent years, research has also been conducted on composites using TiB
2-TiC as a hard reinforcing phase, which are promising materials for use in the surfacing of parts that are resistant to abrasive wear and high temperatures [
5,
6]. According to Baoshuai et al. [
7], the hardness and wear resistance of the laser plane was significantly improved due to the presence of TiB
2 particles in an iron matrix. Similar observations were made by Tijo et al. (2018) [
8], who investigated the mechanical properties of a composite coating on a Ti-6Al-4V alloy matrix containing TiC-TiB
2 particles, which was obtained via in situ plating using the TIG method. The coating showed high strength and high abrasion resistance during pin-on-disc tests. A prospective ceramic metal matrix reinforcement in overlaid composite layers is polycrystalline synthetic diamond (PD). The previously presented results of research on the tribological properties of composite layers welded with the PPTAW method showed that compared with the wear-resistant AR 400 steel, the addition of polycrystalline diamond particles to the nickel matrix increased the wear resistance of the metal-mineral type by more than 11 times [
9]. In the case of the cobalt warp, the increase was almost 140 times [
10]. The properties of ceramic materials used to reinforce metal matrixes in surfaced composite layers are presented in
Table 1.
The mechanical and tribological properties of the composite surfacing layers are particularly important for preventive protection and the regeneration of contact surfaces of the inserts of drilling tools. In recent years, drilling in the oil and gas mining sector has predominantly used cutter drill bits with polycrystalline synthetic diamond compact (PDC) blades. Among diamond tools, they reduce the working load of the drilling machine. In terms of construction, they are characterized by a steel or matrix body and segmented, ribbed, or winged arrangement of their blades (
Figure 1).
The steel body of a drill bit is made of one piece of heat-treated alloy steel and reinforced with inserts on the outer peripheral surface made of cemented carbide or polycrystalline synthetic diamond. The matrix body of the bit is manufactured by infiltrating tungsten carbide particles, macrocrystalline WC, or fused-and-crushed WC-W
2C, or a mixture of them, with a Cu-Ni-Zn-Mn alloy [
4]. The steel body is more resistant to shock loading than the matrix body. The main disadvantage of the steel body is that it is quite susceptible to abrasive wear and erosion due to contact with the rock material to be mined. To protect the steel core of the rock cutting core from damage caused by tribological wear during operation, a coating is usually sprayed onto its surface or a layer more resistant to abrasion and erosion is deposited on its surface. The overarching goal of producing a durable steel body is to provide a hardfacing filler that has abrasion, erosion, and impact resistance equal to or better than that of the matrix body.
So far, the commonly used methods to protect the surface of the PDC steel body against wear include flame surfacing with powders based on the Ni-Cr-Si-B-Fe alloy matrix with the addition of irregular particles of angular fused-and-crushed (FTC) WC-W
2C with a diameter of 10–160 μm. Large particles of spherical fused tungsten carbide (SFTC) WC-W
2C with a diameter of 750–1200 μm have also been used. According to Badish et al. [
13], these layers ensure the correct operation of the PDC drill for over 10 years. Examples of the chemical compositions of filler materials used for the hardfacing of tools working in the extraction, mining, and cement industries are presented in
Table 2.
In recent years, the geological conditions of the exploitation of mineral, oil, and natural gas deposits have become more difficult. The filler materials and surfacing technologies currently used in most drilling applications do not sufficiently protect the steel body of the PDC drill bit; therefore, research was undertaken to develop a next-generation composite (MMC), dedicated to plasma surfacing that effectively protects the working surface of the PDC steel drill body against abrasive wear, erosion, high temperatures, and impact loading [
9,
10].
Powders based on cobalt and nickel belonging to Co3 and Ni3 alloys (in accordance with EN 147000) [
19] with a hard strengthening phase containing, among others, WC, TiC, TiB
2 particles, and of tungsten-coated synthetic polycrystalline diamond (PD-W). Powders based on these alloys often contain non-metallic elements such as B and Si. Higher contents of silicon and boron in the cladding powder resulted in more efficient melting of matrix components and improved the wetting of the reinforcing phase particles in composites. At the same time, when Si >1%, the plastic properties of the padded layer decrease, and with higher boron contents, the tendency to form austenite grains increases. The content of silicon and boron in the produced PPTAW hardfacing powders were optimized individually for each of the alloys depending on the type, shape, and size of particles included in the reinforcing components of the matrix metal. At the stage of preliminary preparation of the filler material, the content of silicon and boron in the metallic powders was changed from 0 to 2.5% in 0.5% incremental steps. Plasma arc melting of small volumes of composite powders allowed to select the filler material with the best weldability properties. In general, the silicon and boron contents were slightly lower than that of commercial hardfacing alloys. The use of spherical ceramic particles in the form of fused tungsten carbide WC-W
2C and polycrystalline synthetic diamond determined the stable feeding of the filler material to the weld pool and the continuity of the surfacing process. Moreover, these particles in combination with a matrix of alloys of the Ni3 and Co3 groups had the effect of high hardness and stress reduction in the composite layer. Due to the larger surface of the carbide, there was a higher proportion of WC-W
2C and TiC particles with irregular shapes in the hard reinforcing phase of the composite. This required a slightly higher content of fluxing components in the powder mixture, which enabled the production of powders for the plasma surfacing of steel body bits and tools with a “matrix-type armor” for drilling applications. In materials science, it is important to properly qualify materials for specific engineering applications. Usually, this is done based on the results of mechanical tests, in which material parameters such as Young’s modulus, proportionality limit, yield point, or temporary strength are determined; however, these are not the only mechanical properties used in engineering practice. The parameter defined within the framework of linear-elastic fracture mechanics is also taken into account, i.e., the stress intensity factor,
KI, which is used to determine the fracture toughness of a material. It is generally accepted that for composite coatings, the critical value of the stress intensity factor determines its mechanical resistance to cracking under an impact load; thus, the evaluation of the
KIc parameter value is very important for ceramic-reinforced composite coatings produced in via in situ surfacing processes, where the percentage content of the composition varies depending on technological conditions. Determination of the critical values of fracture toughness
KIc, crack tip opening displacement (CTOD), δ
Ic, or J
Ic integrals according to the
I crack growth model in accordance with the standards [
20,
21] is difficult and burdensome and requires appropriate laboratory equipment. These difficulties result from the methods used to make and prepare test samples and the need to maintain appropriate test conditions and procedures [
22]. For these reasons, the relationship between the results of standard tests of the mechanical properties of the material and the critical values of the fracture toughness parameters is constantly sought. Many research results on the fracture toughness of composite coatings are based on the indentation method and the formula proposed by Evans and Wilshaw [
23]. Several researchers have used this method to evaluate the fracture toughness of a brittle composite coating developed using various methods and compared the results with the fracture toughness measured by standard methods [
24,
25]. These are most often the dependencies connecting the results of the work of impact breaking of samples with a Charpy V–KV sharp notch (expressed in Joule units) with the critical values
KIc and
δIc. There are also papers that discuss other methods for determining these values, e.g., determining the
KIc value for plasma-sprayed coatings based on measuring the length of cracks around the impression formed during hardness measurements using the Vickers method [
26]. Such alternative approaches for determining the fracture toughness of a material are generally applicable to industrial conditions. This article presents the analytical evaluation of the resistance to brittle fracture under a dynamic load of abrasion-resistant metal matrix composite layers for protection against wear of working surfaces of drilling tools used in the oil and natural gas mining sector. There is no information related to tests concerning the brittle fracture resistance of the MMC layers reinforced with metal-diamond composite, obtained using the powder plasma transferred arc welding or the laser metal deposition methods. The analysis of related reference publications and the results of personal research led to the conclusion that it is possible to obtain a ceramic reinforcement-metal matrix composite surface layer characterized by microstructure and brittle fracture resistance similar to the classic metal surfacing weld. The original article achievement is, by selecting the right research methodology and analytical tools, obtaining information about the shock load resistance of innovative composite layers.
2. Materials and Methods
For PPTAW, four different powders with a proprietary chemical composition were used—cobalt Co3 and nickel Ni3 matrix composites (chemical compositions in accordance with EN 147,000 [
19]) containing super hard phases in the form of ceramic particles with crushed sharp-edged TiC, spherical fused tungsten carbide particles (SFTC) WC-W
2C, fused tungsten carbide (FTC) WC-W
2C, fine particles of titanium diboride TiB
2, and spherical particles of polycrystalline synthetic diamond with a tungsten coating PD-W (Harmony Industry Diamond, Zhengzhou, China). The chemical composition of the hardfacing powders is given in
Table 3.
A SEM image of the micromorphology of the powder components used for PPTAW cladding is shown in
Figure 2. The density of the powders was tested by the volumetric pycnometric method using an AccuPyc II 1340 density analyzer (Micromeritics Instrument Corporation, Norcross, GA, USA) with a measurement accuracy of 0.03%. The volume of the samples was determined as part of a previously marked measuring chamber that was not filled with gas (helium pressure 134,447.77 Pa). The obtained values of five measurements for each type of powder indicate the repeatability of its density. The powders were dried before use in an S 60/03 chamber dryer (LAC, Židlochovice, Czech Republic) in a 6-h cycle at 150 °C.
The particle sizes of the powders constituting the additional material for cladding were measured by laser diffraction using an Analysette 22 MicroTec plus laser particle size meter (Fritsch GmbH, Idar-Oberstein, Germany) equipped with two semiconductor laser sources: green (λ = 532 nm, 7 mW) and infrared (λ = 940 nm, 9 mW). Measurements were made using a wet dispersion unit with an ultrasonic exciter.
The surfacing tests were carried out on an automated welding station equipped with a Eutronic GAP 2501 DC power source, EP2 powder feeder, and E52 universal plasma torch (Castolin Eutectic, Gliwice, Poland), as shown in
Figure 3. Single-pass padding was deposited on samples with dimensions of 75 × 10 × 8 mm, made of low-alloy AISI 4715 structural steel (
Table 4). Surfacing was performed with constant technological parameters, which were the same for each type of powder (
Table 5).
Fracture toughness tests of the parent material and steel samples with wear-resistant composite surfacing welds were carried out in accordance with ISO 148 [
28] using a standard Charpy SUNPOC JB-300B impact hammer (Sunpoc, Guiyang City, China) with a hammer with a rounding radius in an impact point of 2 mm.
The apparent density, porosity, and water absorption of the composite layers were determined by Archimedes’ method in accordance with the ASTM D792-00 standard [
29]. An AS 220.R2 Plus analytical balance (Radwag, Radom, Poland) with a reading accuracy of ±0.1 mg was used to measure the mass. The analytical balance was equipped with a set KIT 85 for determining the density of solids using the hydrostatic weighing method.

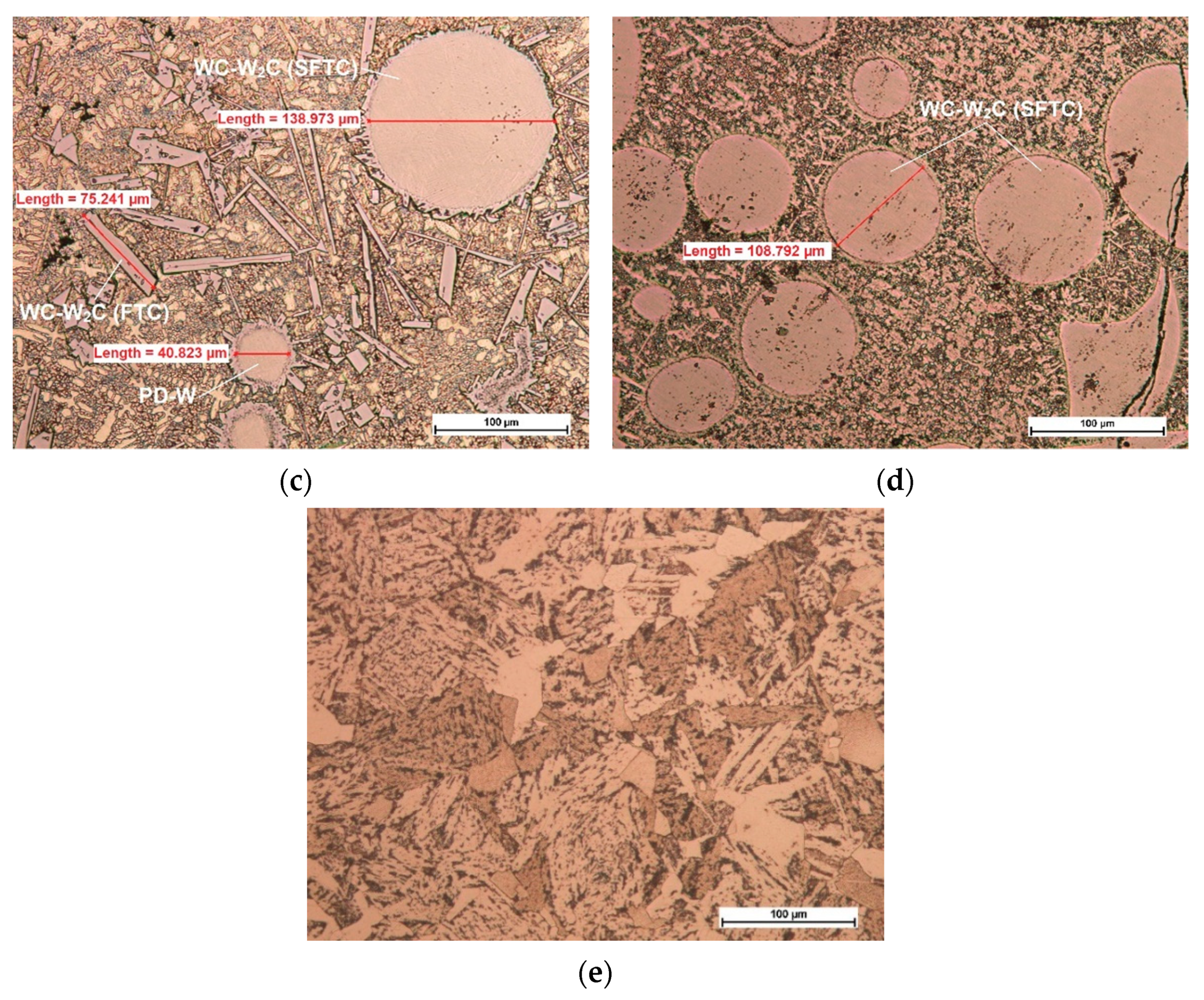

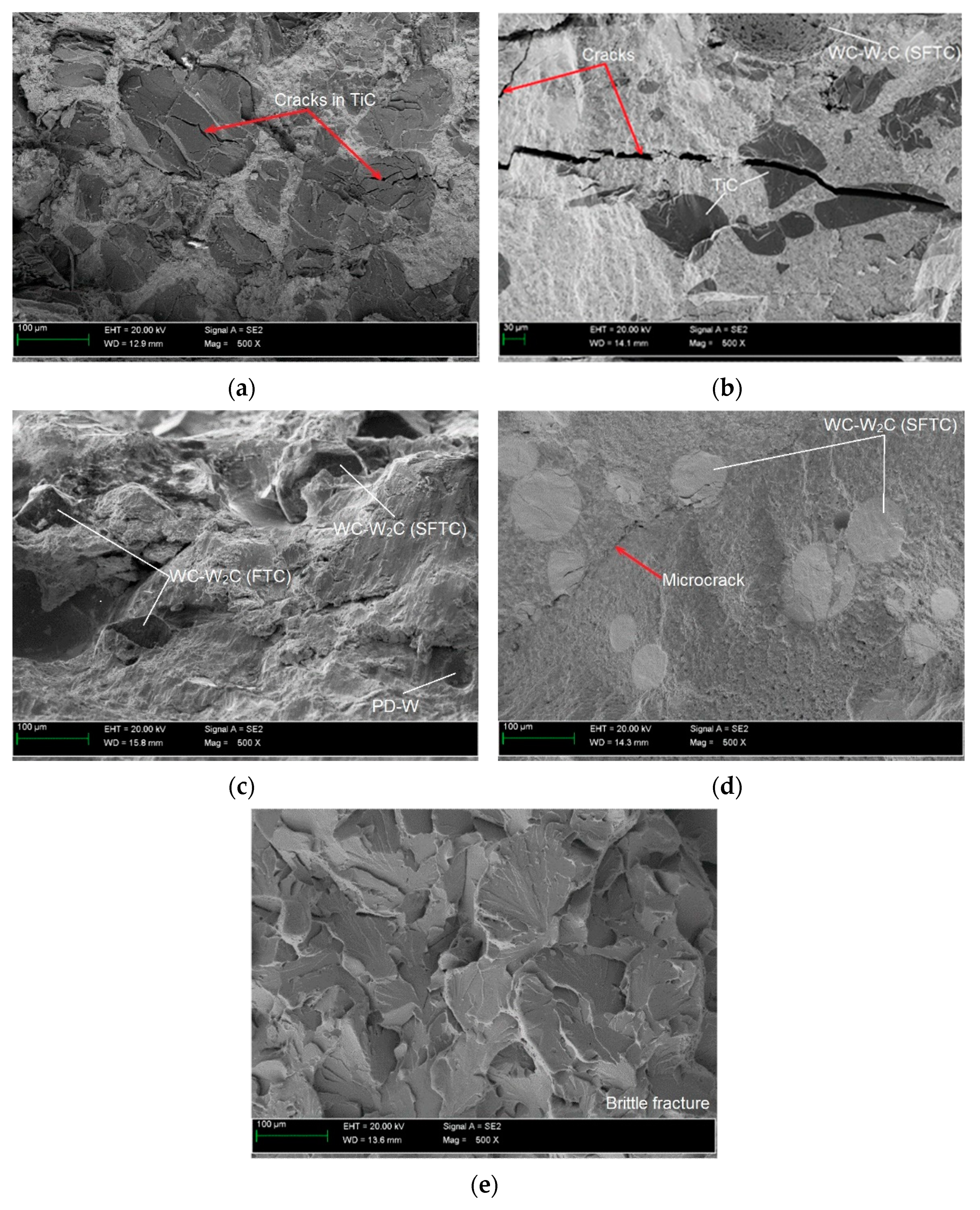

The metallographic examination of the structures of the wear-resistant surfacing layers and the parent material was carried out in accordance with ISO 17639 [
30]. Metallographic specimens were prepared in a standard manner and were collected perpendicularly and parallel to the cladding direction. The polished specimens were etched in a mixture of concentrated hydrochloric acid and concentrated nitric acid in a volume ratio of 3:1. The etching time was selected experimentally, individually for each of the layer materials. Observation and registration of microstructure images were performed with an Olympus GX 71 inverted metallographic microscope (Olympus Corporation, Tokyo, Japan). The surface topography of impact fractures was studied using a Zeiss Supra 25 system (Carl Zeiss AG, Oberkochen, Germany) using the secondary electron (SE) detector, with an accelerating voltage of 20 kV.
