Material Monitoring of a Composite Dome Pavilion Made by Robotic Coreless Filament Winding

Mindermann, Pascal; Rongen, Bas; Gubetini, Drilon; Knippers, Jan; Gresser, Götz T.

doi:10.3390/ma14195509

Open AccessArticle

Material Monitoring of a Composite Dome Pavilion Made by Robotic Coreless Filament Winding

by

Pascal Mindermann

^1,2,*

,

Bas Rongen

³,

Drilon Gubetini

³

,

Jan Knippers

³

and

Götz T. Gresser

^1,2

¹

Institute for Textile and Fiber Technologies, University of Stuttgart, Pfaffenwaldring 9, 70569 Stuttgart, Germany

²

German Institutes of Textile and Fiber Research Denkendorf, Körschtalstraße 26, 73770 Denkendorf, Germany

³

Institute of Building Structures and Structural Design, University of Stuttgart, Keplerstraße 11, 70174 Stuttgart, Germany

^*

Author to whom correspondence should be addressed.

Materials 2021, 14(19), 5509; https://doi.org/10.3390/ma14195509

Submission received: 28 August 2021 / Revised: 19 September 2021 / Accepted: 21 September 2021 / Published: 23 September 2021

(This article belongs to the Section Construction and Building Materials)

Download

Browse Figures

Versions Notes

Abstract

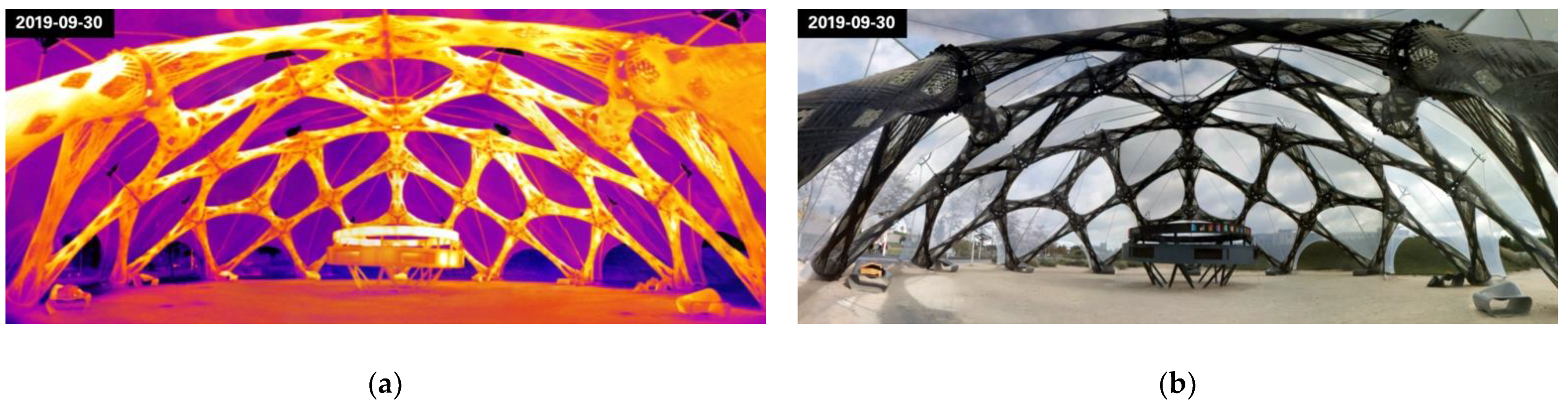

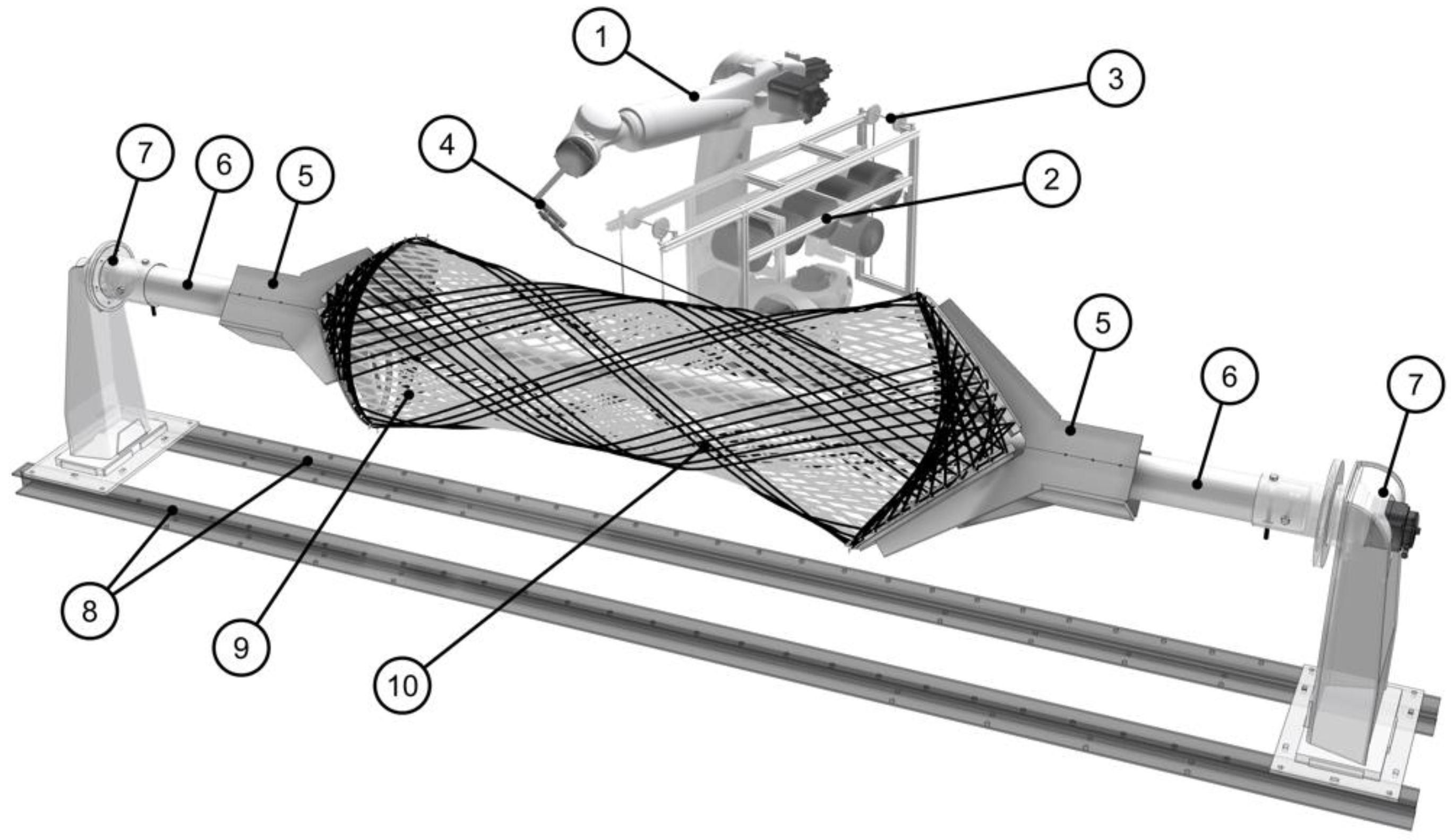

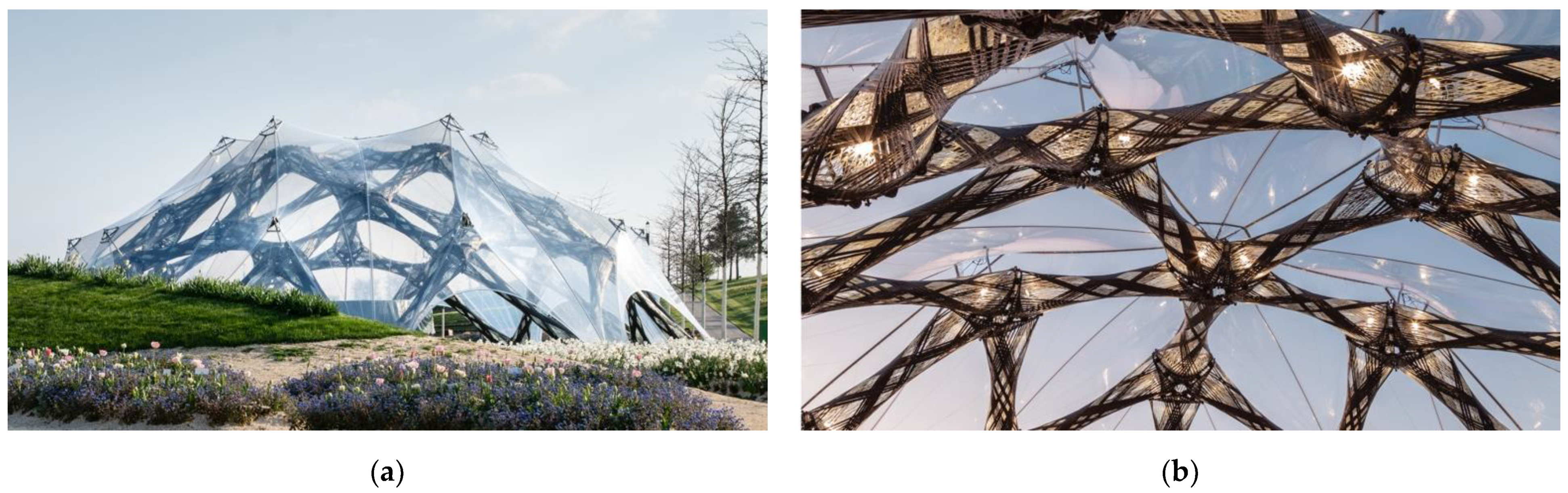

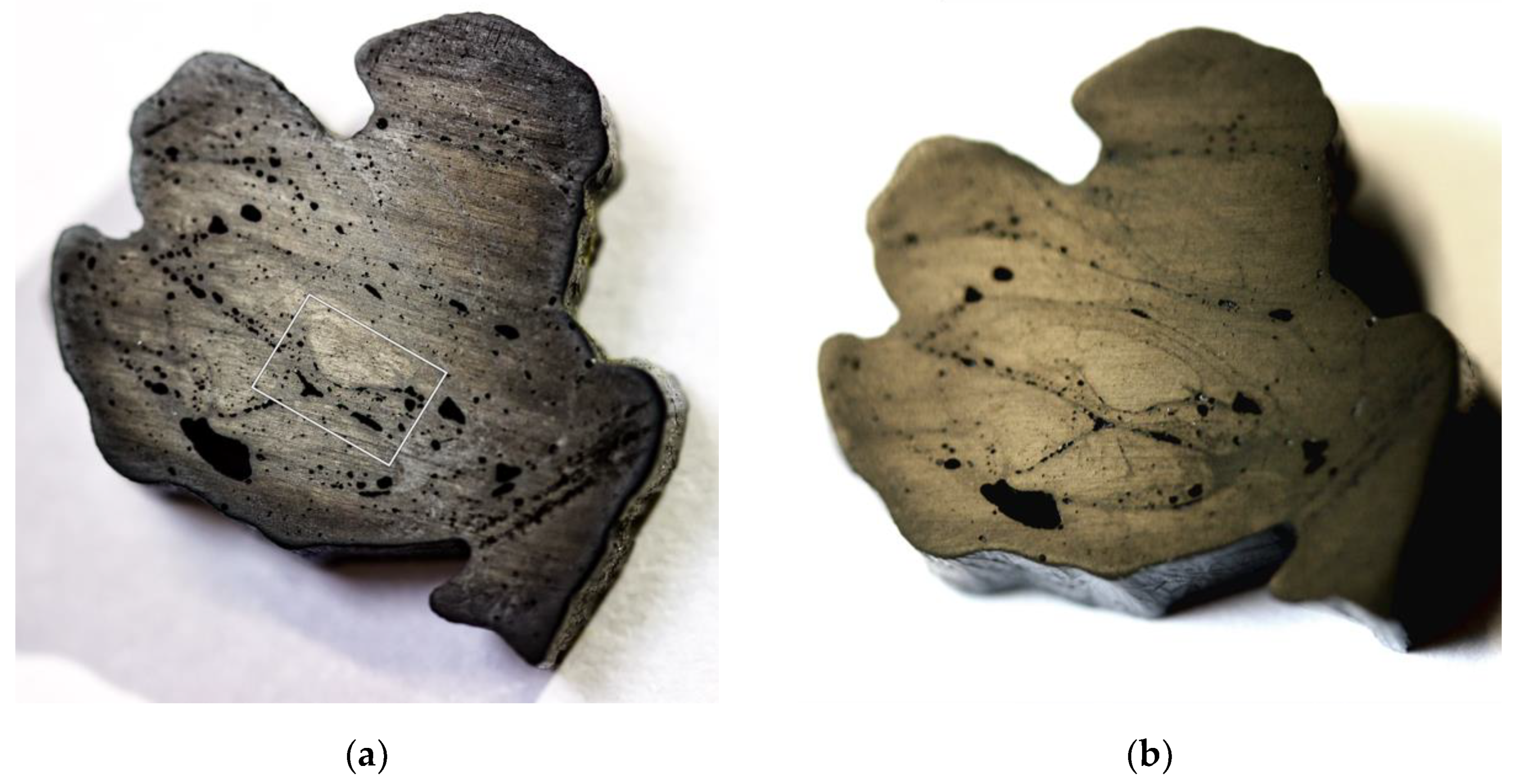

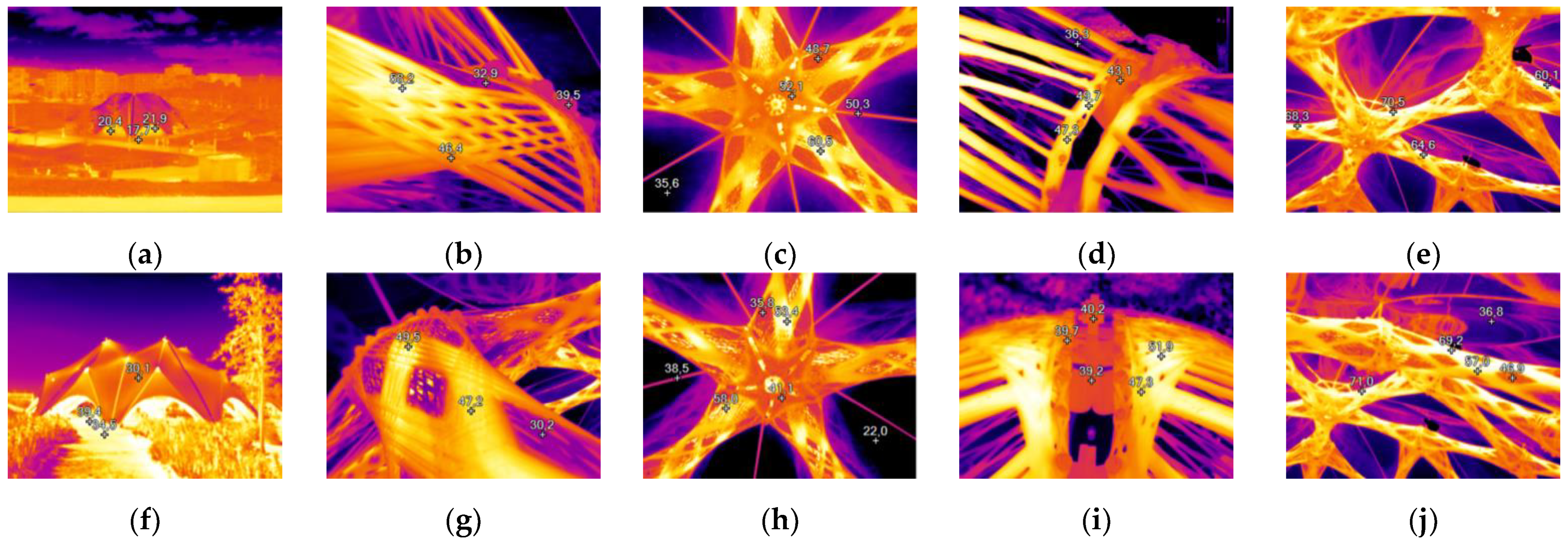

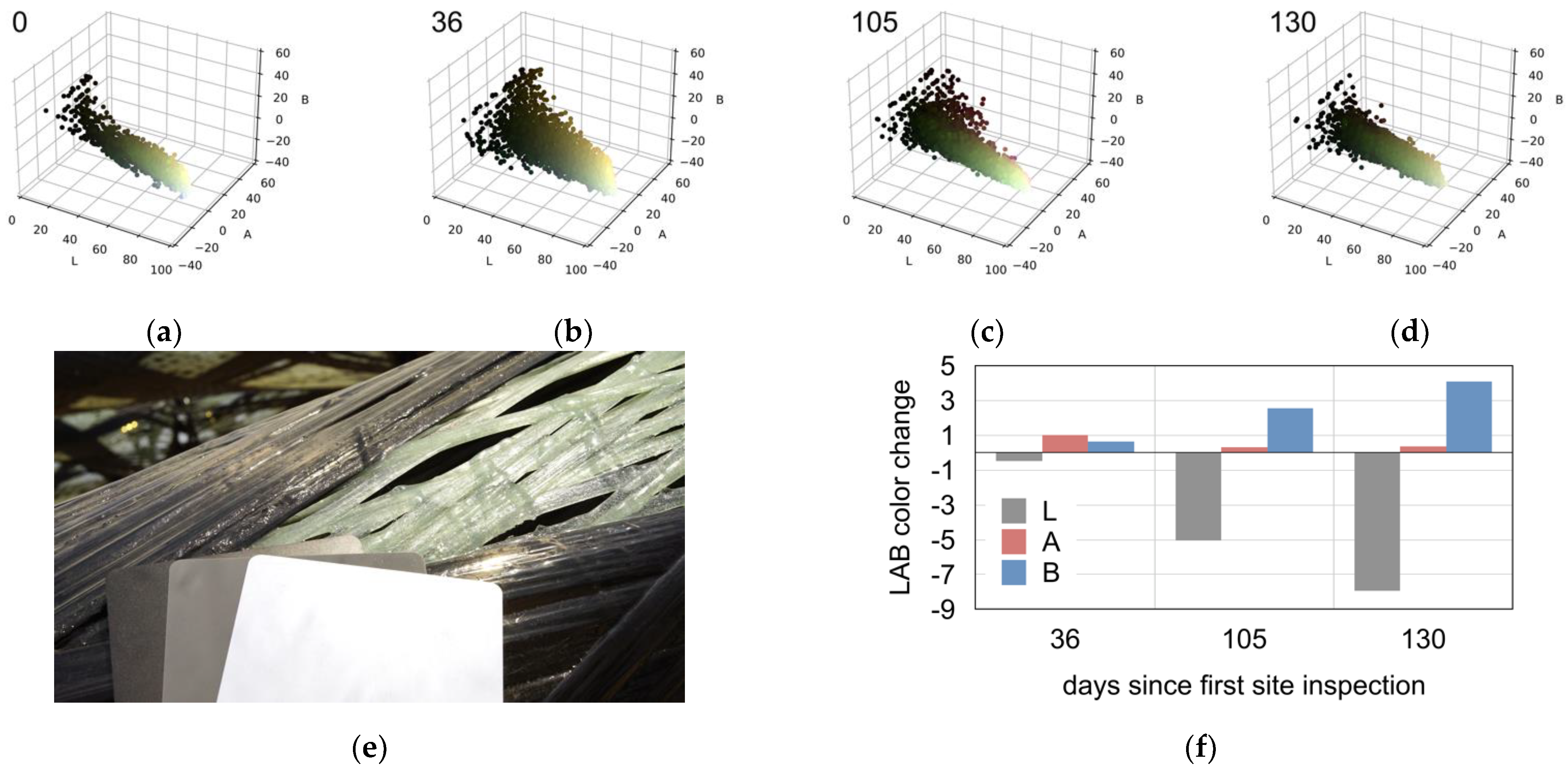

A hemispherical research demonstration pavilion was presented to the public from April to October 2019. It was the first large-scale lightweight dome with a supporting roof structure primarily made of carbon- and glass-fiber-reinforced composites, fabricated by robotic coreless filament winding. We conducted monitoring to ascertain the sturdiness of the fiber composite material of the supporting structure over the course of 130 days. This paper presents the methods and results of on-site monitoring as well as laboratory inspections. The thermal behavior of the pavilion was characterized, the color change of the matrix was quantified, and the inner composition of the coreless wound structures was investigated. This validated the structural design and revealed that the surface temperatures of the carbon fibers do not exceed the guideline values of flat, black façades and that UV absorbers need to be improved for such applications.

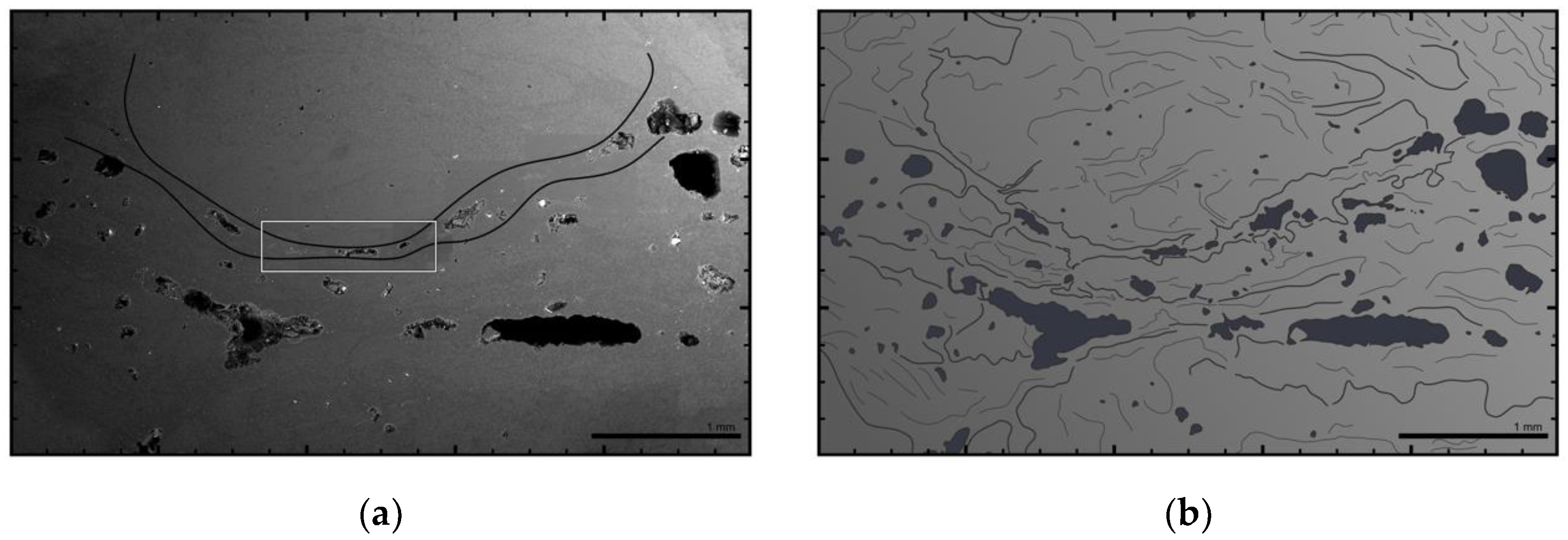

Keywords: robotic coreless filament winding; lightweight dome structure; on-site inspection; thermal imaging; scanning electron microscopy; outdoor weathering; BUGA Fiber Pavilion
