Article

Ironsand (Titanomagnetite-Titanohematite): Chemistry, Magnetic Properties and Direct Applications for Wireless Power Transfer

1
Earth Resources & Materials, Geological and Nuclear Science, National Isotope Centre, 30 Gracefield Road, Lower Hutt 5040, New Zealand
2
The MacDiarmid Institute for Advanced Materials and Nanotechnology, Victoria University of Wellington, Wellington 6140, New Zealand
3
Robinson Research Institute, Victoria University of Wellington, 69 Gracefield Road, Lower Hutt 5010, New Zealand
4
Verum Group, 68 Gracefield Road, Lower Hutt 5010, New Zealand
5
Department of Electrical and Computer Engineering, Faculty of Engineering, University of Auckland, Auckland 1142, New Zealand
6
Department of Physics, Boston University, Boston, MA 02215, USA
7
Advanced Light Source, E. O. Lawrence Berkeley National Laboratory, Berkeley, CA 94720, USA
*
Author to whom correspondence should be addressed.
Academic Editor: Artur Chrobak
Materials 2021, 14(18), 5455; https://doi.org/10.3390/ma14185455
Received: 27 August 2021 / Revised: 14 September 2021 / Accepted: 15 September 2021 / Published: 21 September 2021

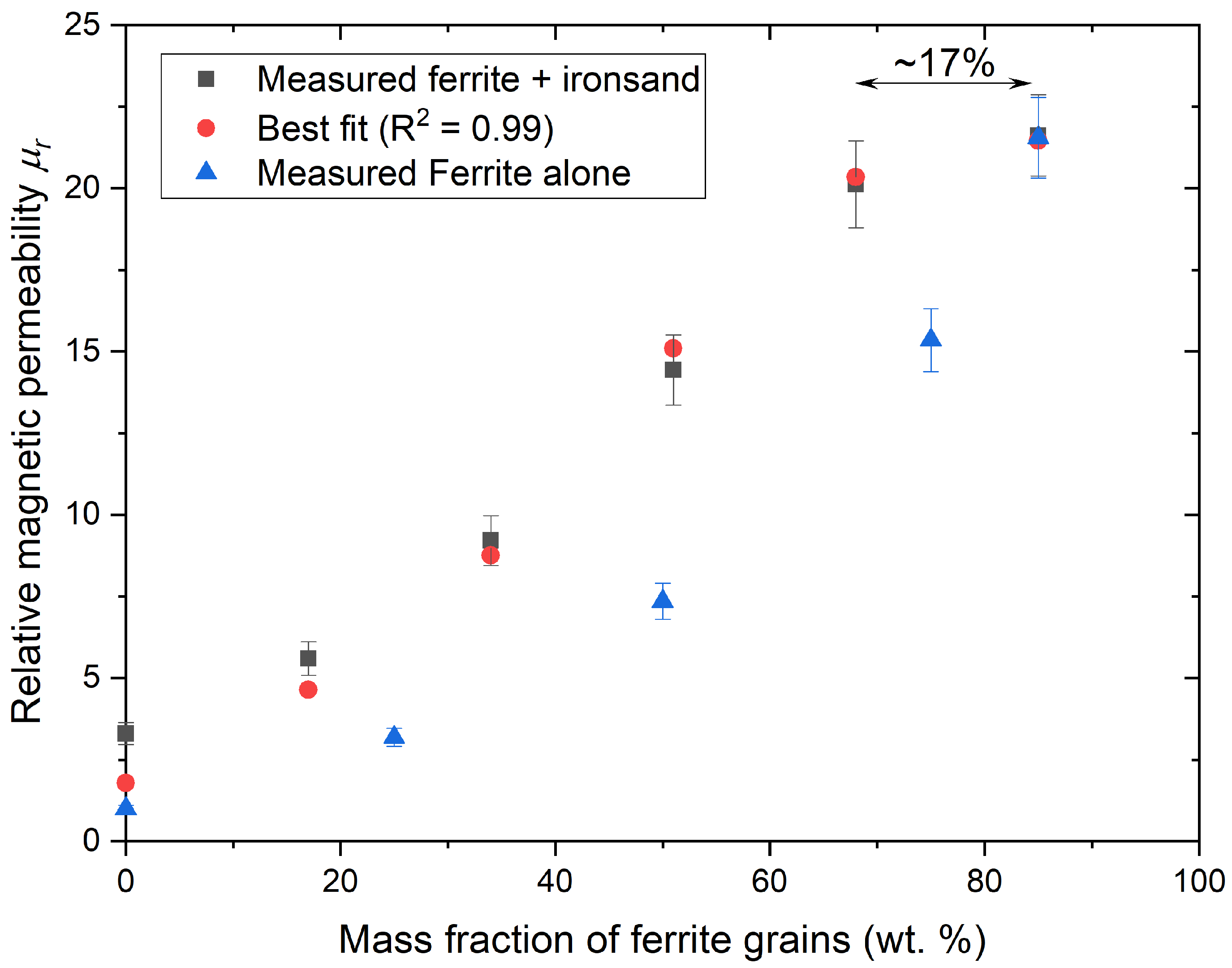

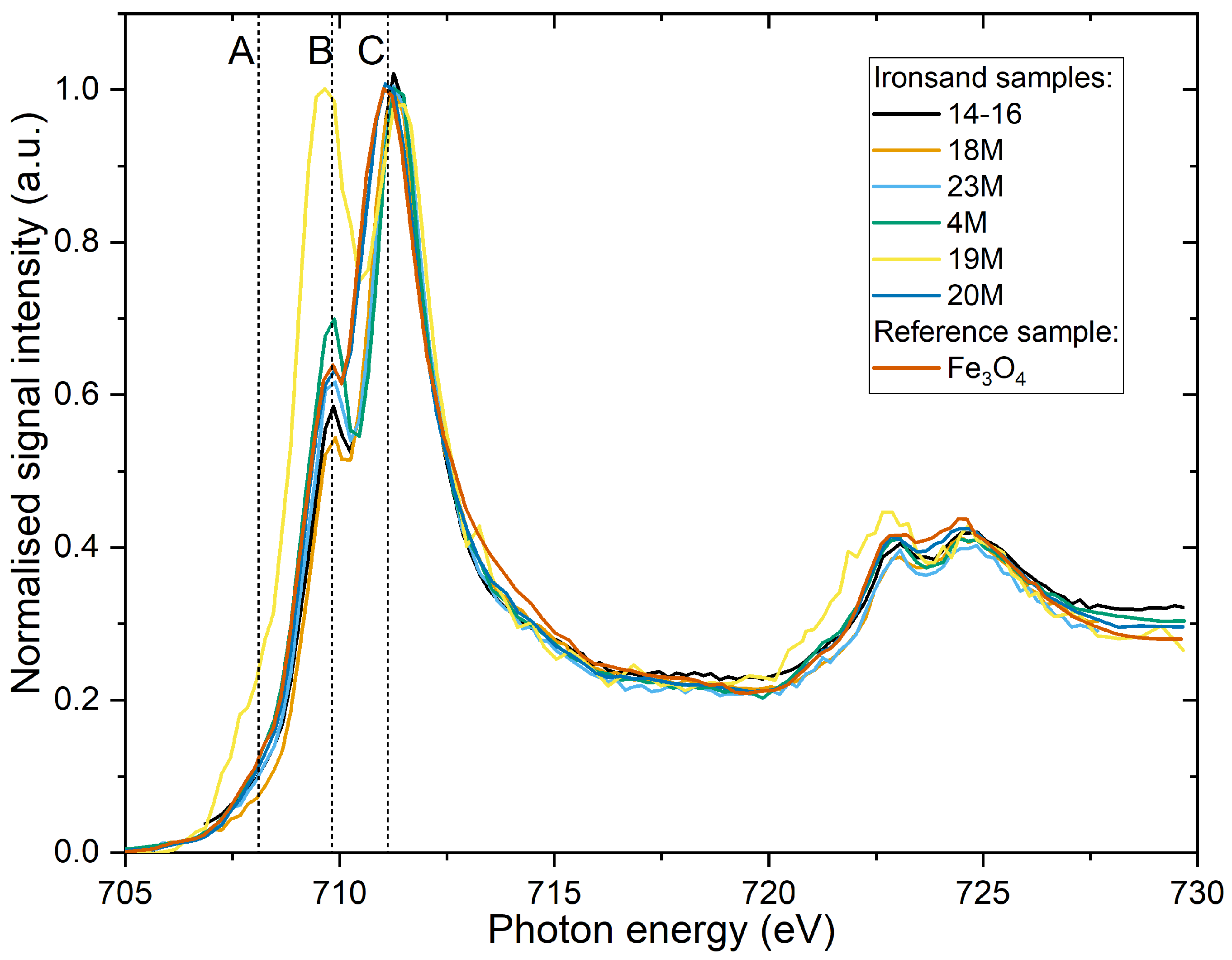

Ironsand is an abundant and inexpensive magnetic mineral resource. However, the magnetic properties of unprocessed ironsand are often inadequate for any practical applications. In this work, the applicability of ironsand for use as a component in a soft magnetic composite for large-scale inductive power transfer applications was investigated. After magnetic separation, the chemical, structural and magnetic properties of ironsand sourced from different locations were compared. Differences observed in the DC magnetic properties were consistent with changes in the chemical compositions obtained from X-ray Absorption Near-Edge Spectroscopy (XANES), which suggests varying the titanohematite to titanomagnetite content. Increased content in titanomagnetite and magnetic permeability correlated well with the total Fe content in the materials. The best-performing ironsand with the highest permeability and lowest core losses was used alongside Mn,Zn-Ferrite particles (ranging from ∼100 μm to 2 mm) to fabricate toroid cores with varying magnetic material loading. It was shown that ironsand can be used to replace up to 15 wt.% of the magnetic materials with minimal impact on the composite magnetic performance, thus reducing the cost. Ironsand was also used as a supporting material in a single-rail wireless power transfer system, effectively increasing the power transfer, demonstrating potential applications to reduce flux leakage. View Full-Text
Keywords: magnetic materials; inductive power transfer; ironsand; titanomagnetite; titanohematite; soft magnetic composite; X-ray Absorption Near-Edge Spectroscopy (XANES) magnetic materials; inductive power transfer; ironsand; titanomagnetite; titanohematite; soft magnetic composite; X-ray Absorption Near-Edge Spectroscopy (XANES)
