Phase Formation during Heating of Amorphous Nickel-Based BNi-3 for Joining of Dissimilar Cobalt-Based Superalloys

Naalchian, Mojtaba; Kasiri-Asgarani, Masoud; Shamanian, Morteza; Bakhtiari, Reza; Bakhsheshi-Rad, Hamid Reza; Berto, Filippo; Das, Oisik

doi:10.3390/ma14164600

Open AccessArticle

Phase Formation during Heating of Amorphous Nickel-Based BNi-3 for Joining of Dissimilar Cobalt-Based Superalloys

by

Mojtaba Naalchian

¹,

Masoud Kasiri-Asgarani

^1,*,

Morteza Shamanian

^2,*

,

Reza Bakhtiari

³,

Hamid Reza Bakhsheshi-Rad

^1,*,

Filippo Berto

^4,* and

Oisik Das

⁵

¹

Advanced Materials Research Center, Department of Materials Engineering, Najafabad Branch, Islamic Azad University, Najafabad, Iran

²

Department of Materials Engineering, Isfahan University of Technology, Isfahan 84156-83111, Iran

³

Department of Materials Engineering, Faculty of Engineering, Razi University, Kermanshah, Iran

⁴

Department of Mechanical and Industrial Engineering, Norwegian University of Science and Technology, 7491 Trondheim, Norway

⁵

Structural and Fire Engineering Division, Department of Civil, Environmental and Natural Resources Engineering, Luleå University of Technology, 97187 Luleå, Sweden

^*

Authors to whom correspondence should be addressed.

Materials 2021, 14(16), 4600; https://doi.org/10.3390/ma14164600

Submission received: 12 July 2021 / Revised: 3 August 2021 / Accepted: 5 August 2021 / Published: 16 August 2021

(This article belongs to the Special Issue Surface Processing Technology for High-Temperature Resistant Materials)

Download

Browse Figures

Versions Notes

Abstract

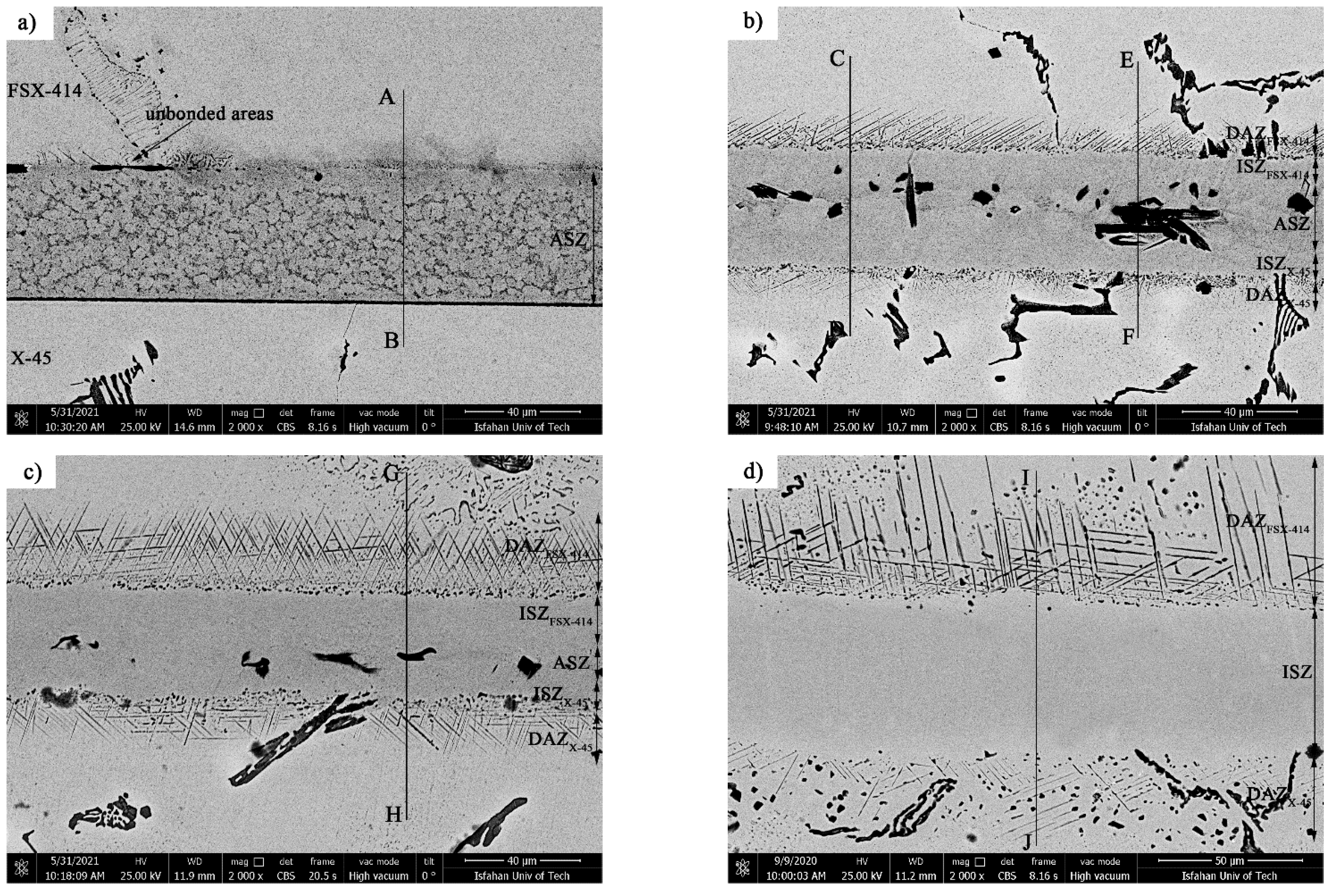

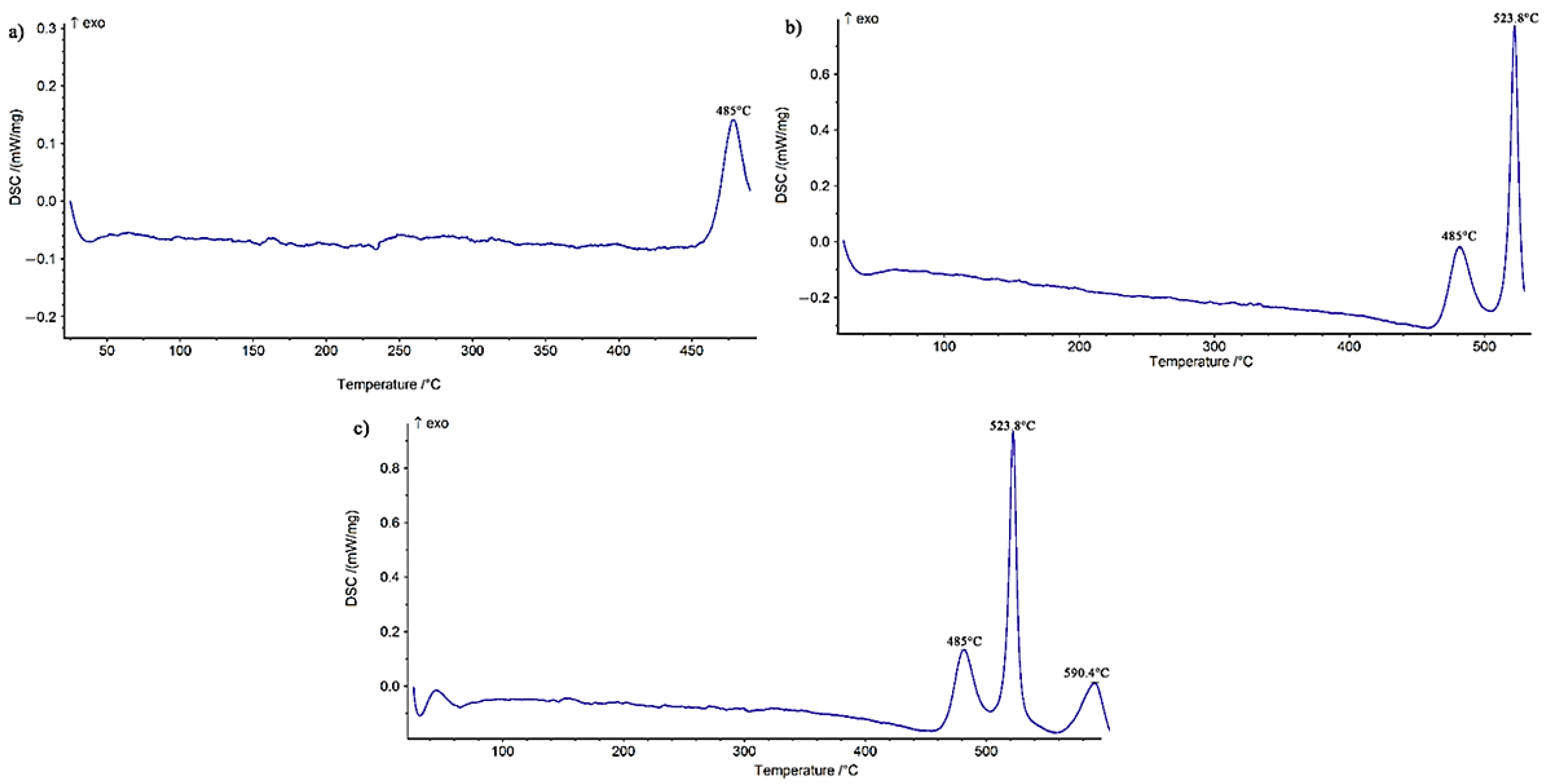

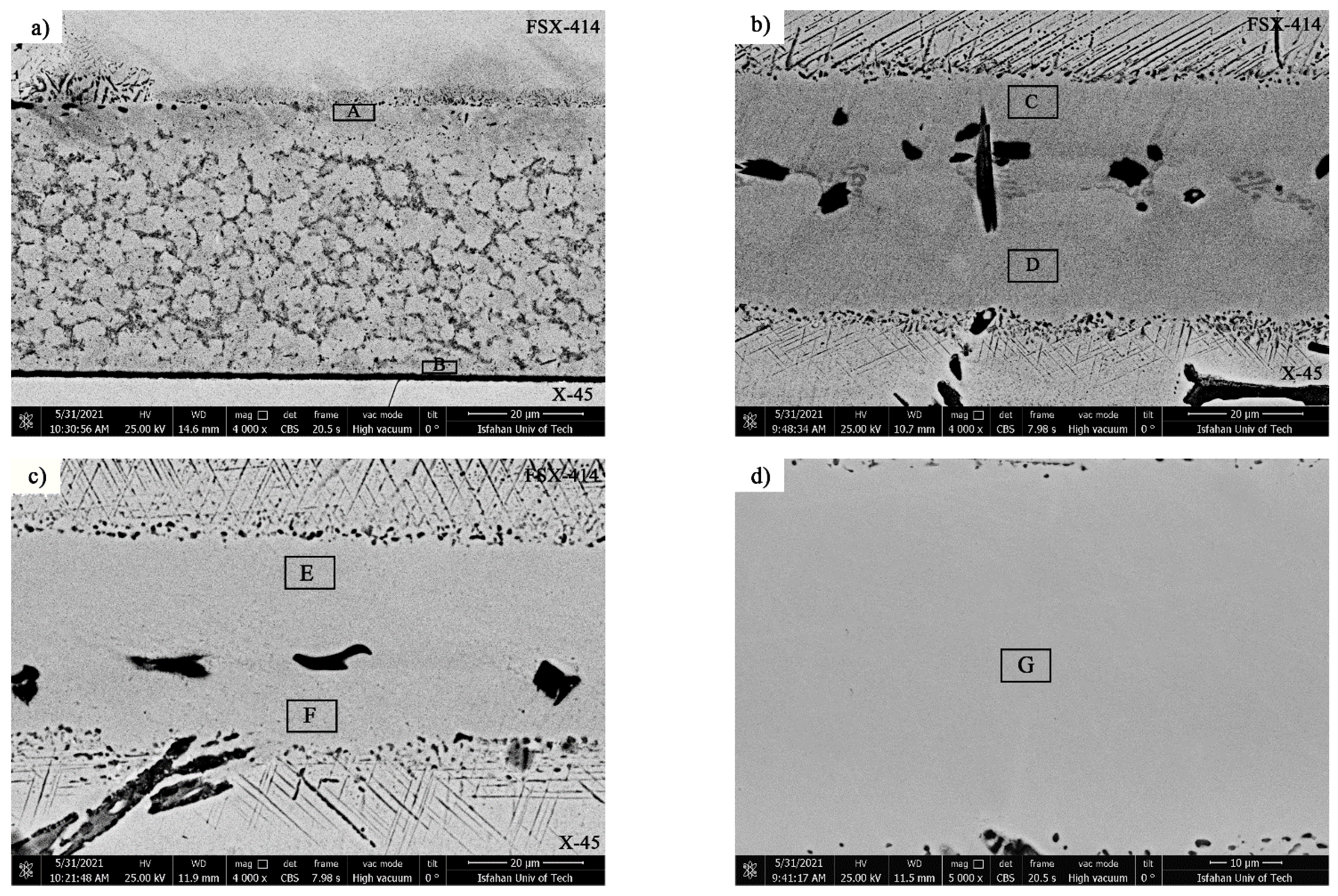

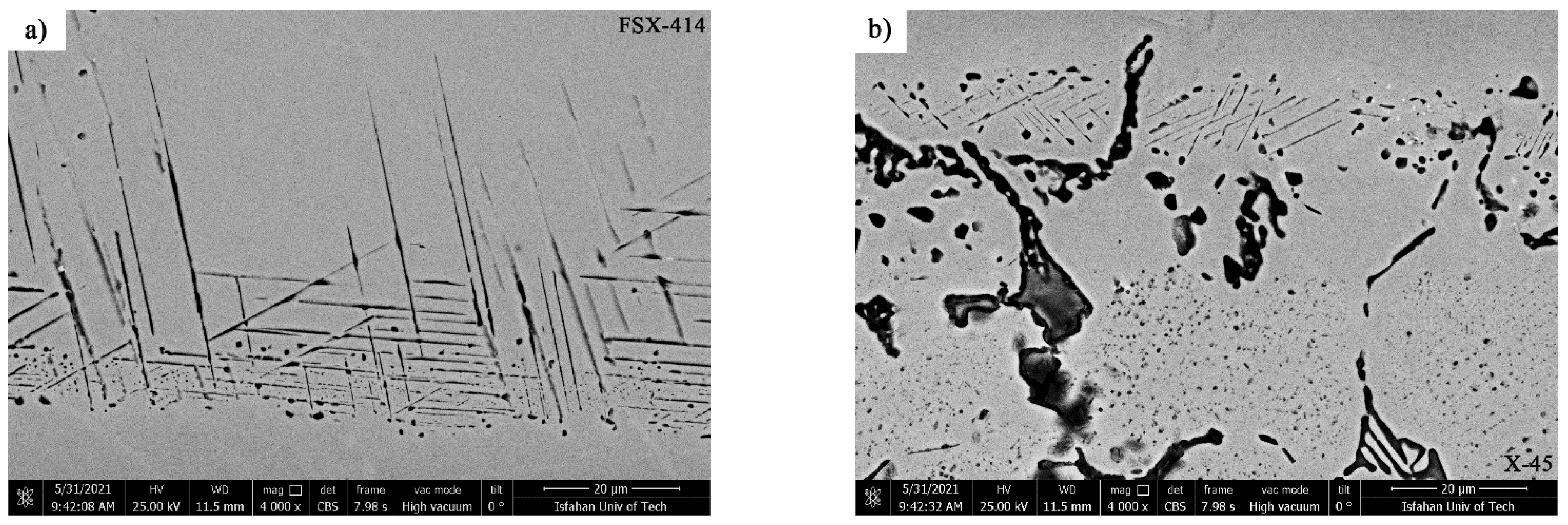

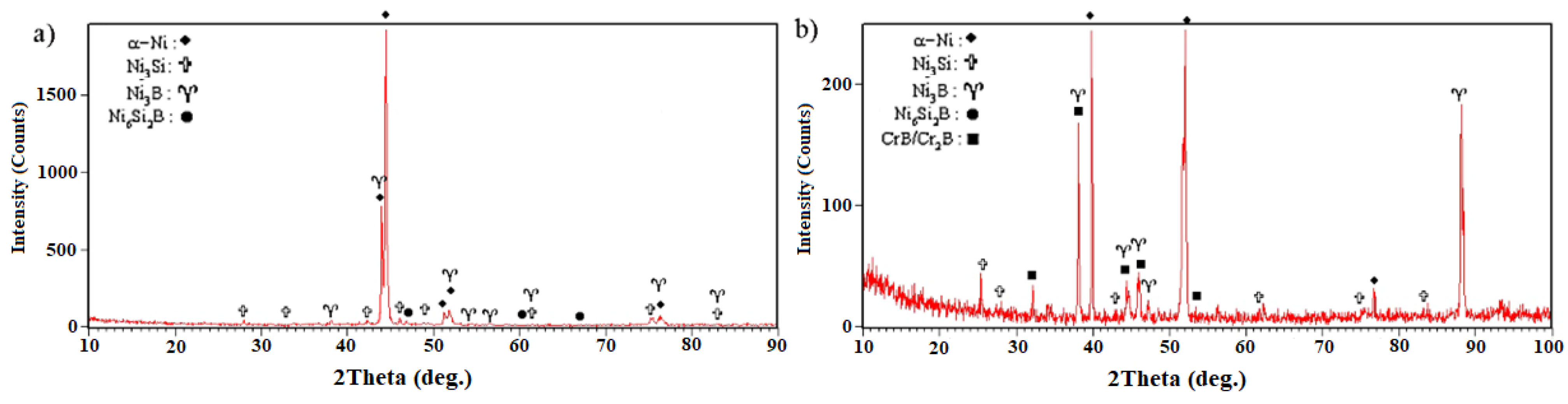

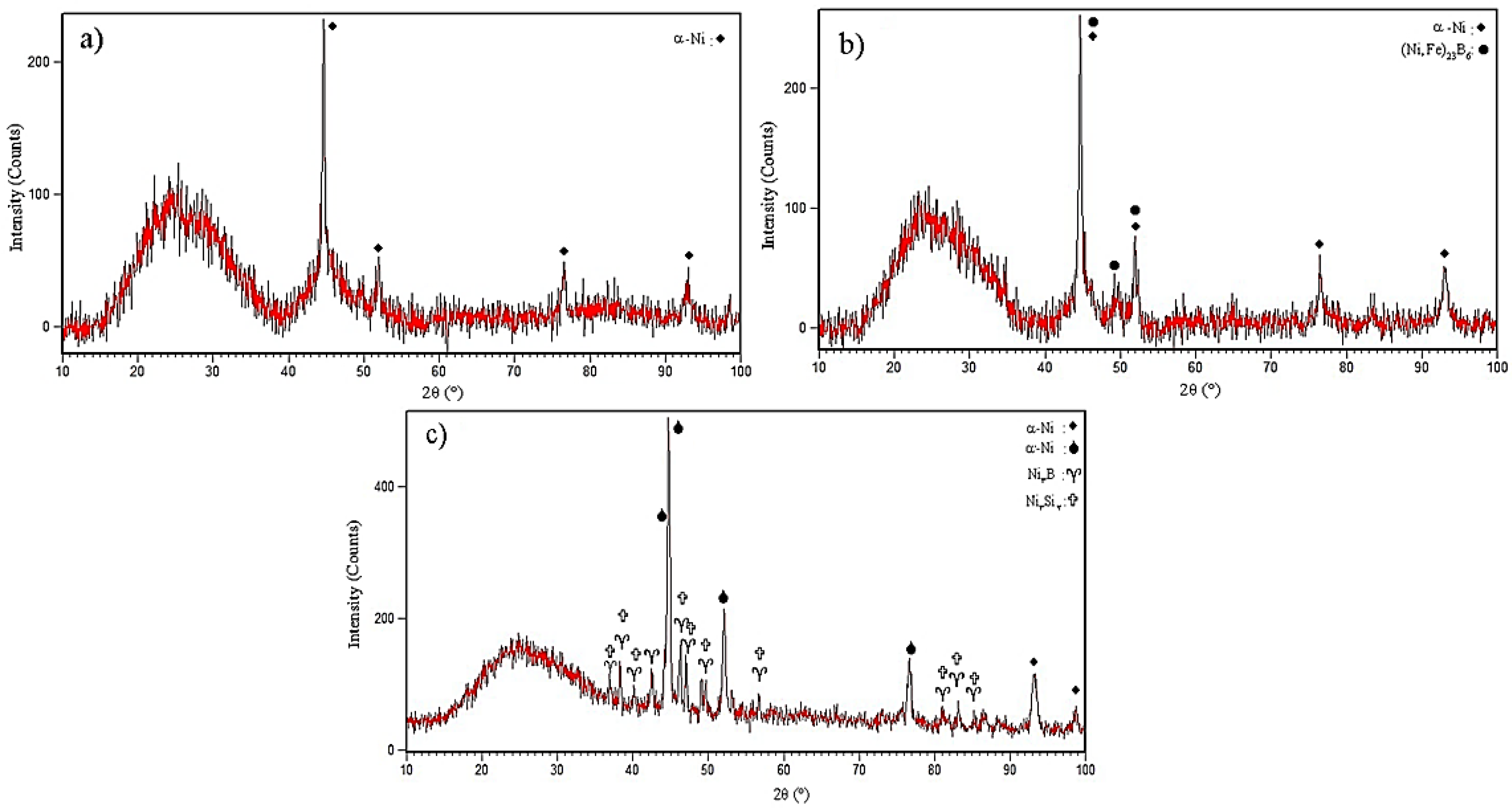

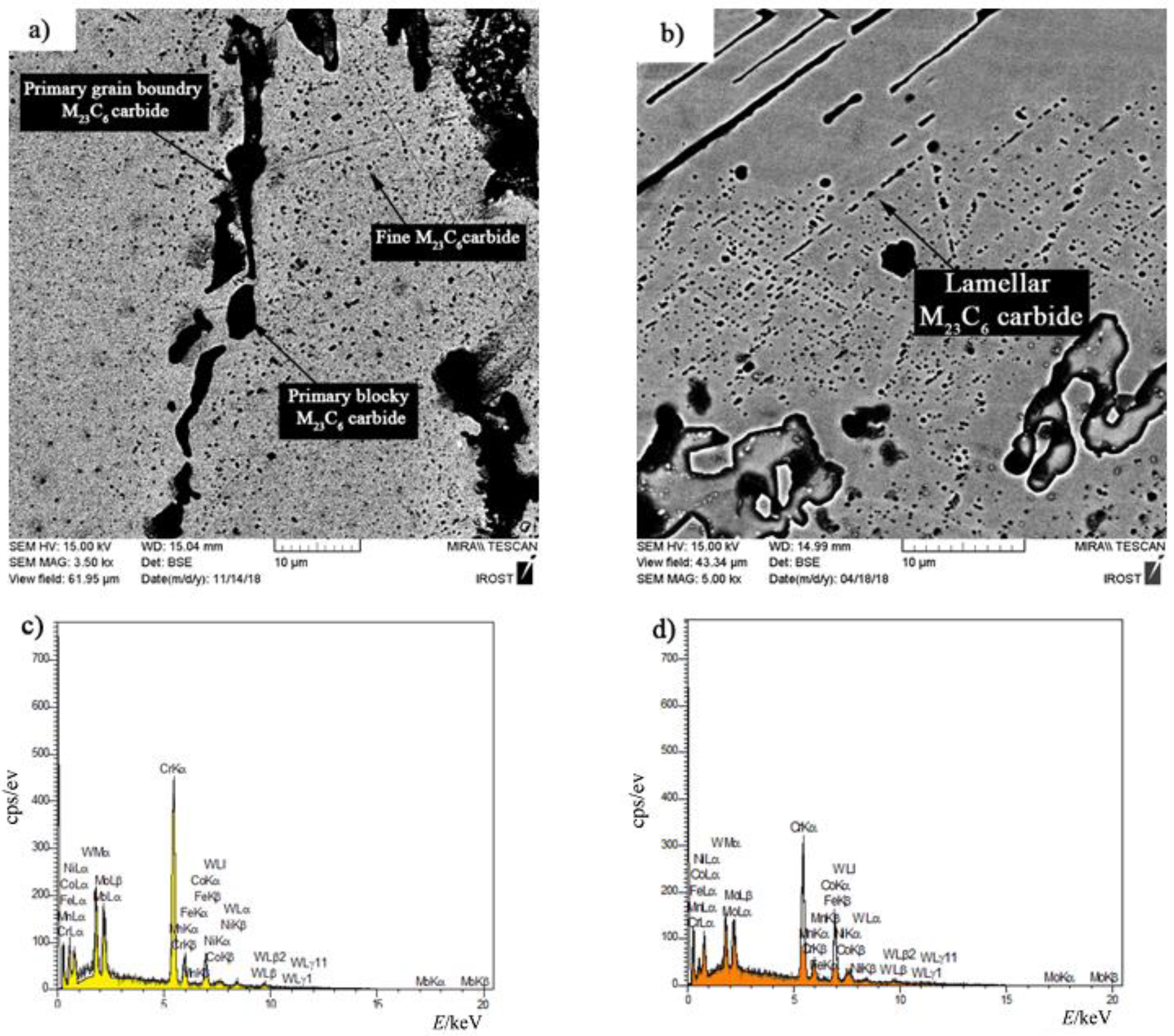

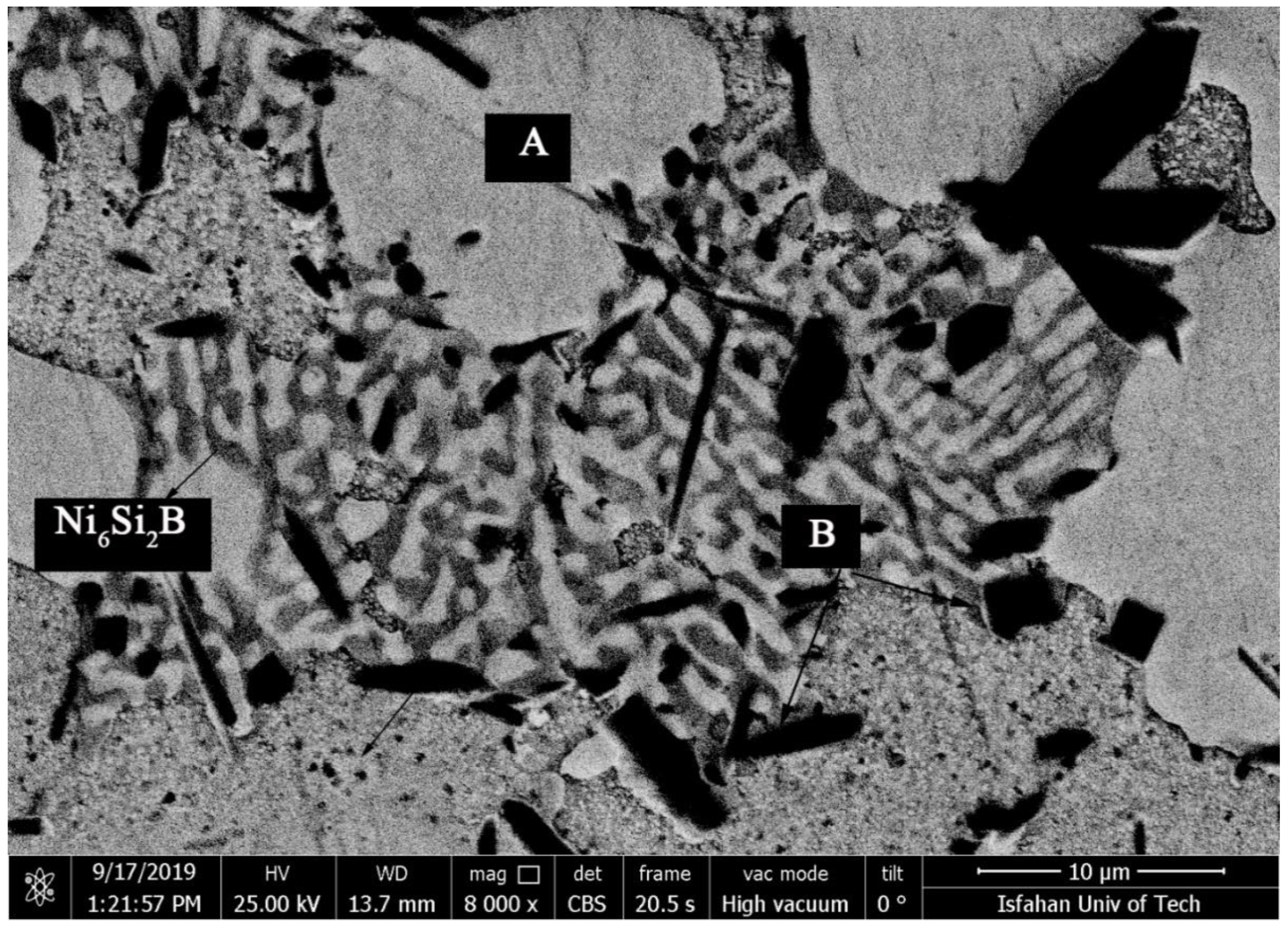

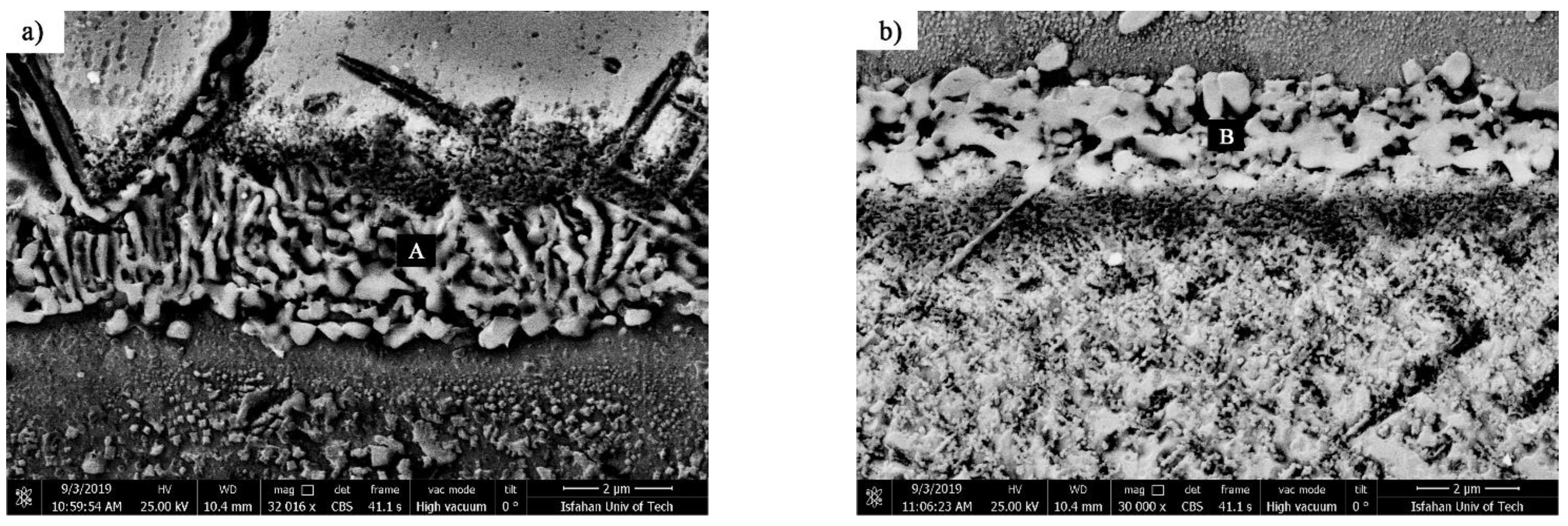

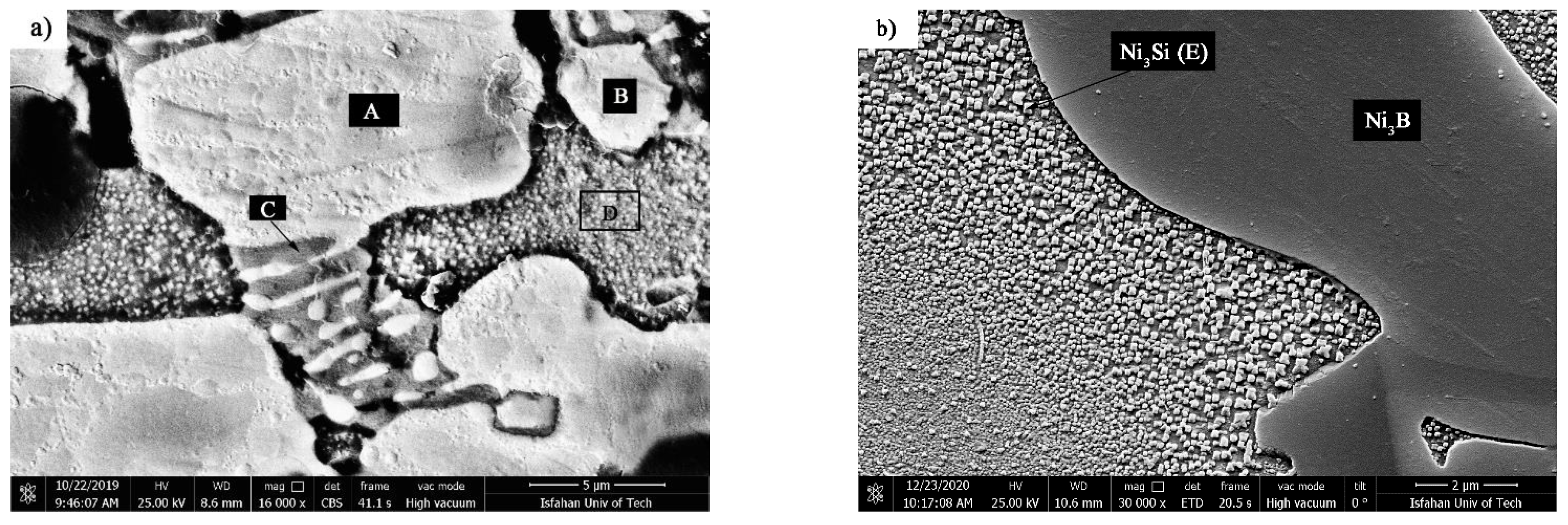

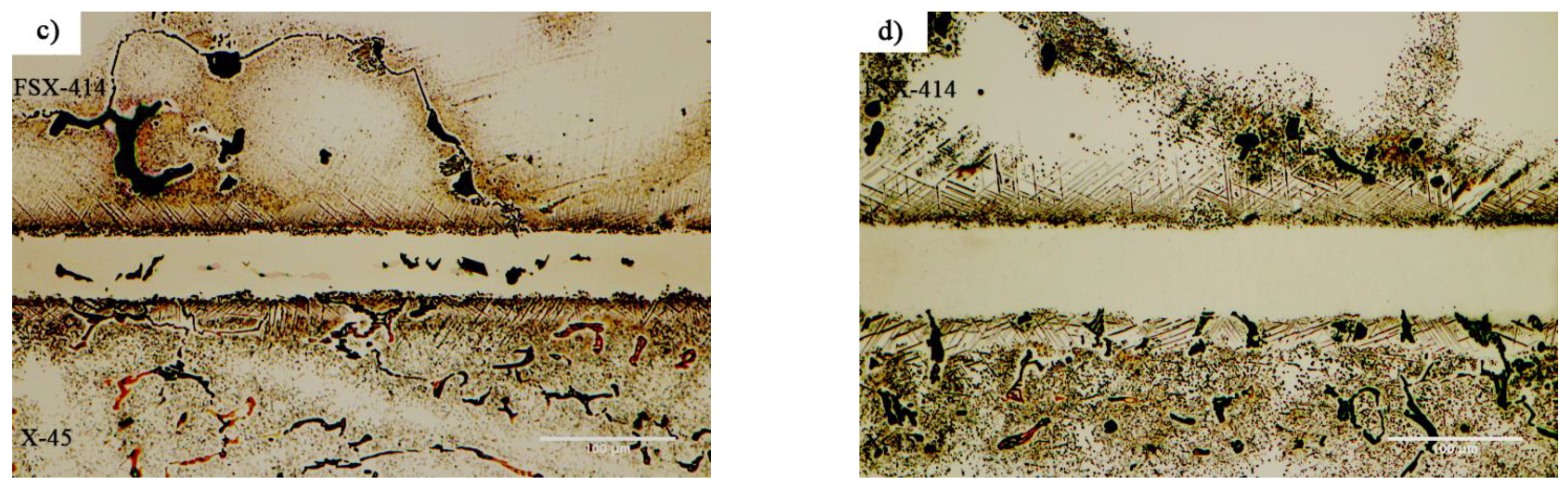

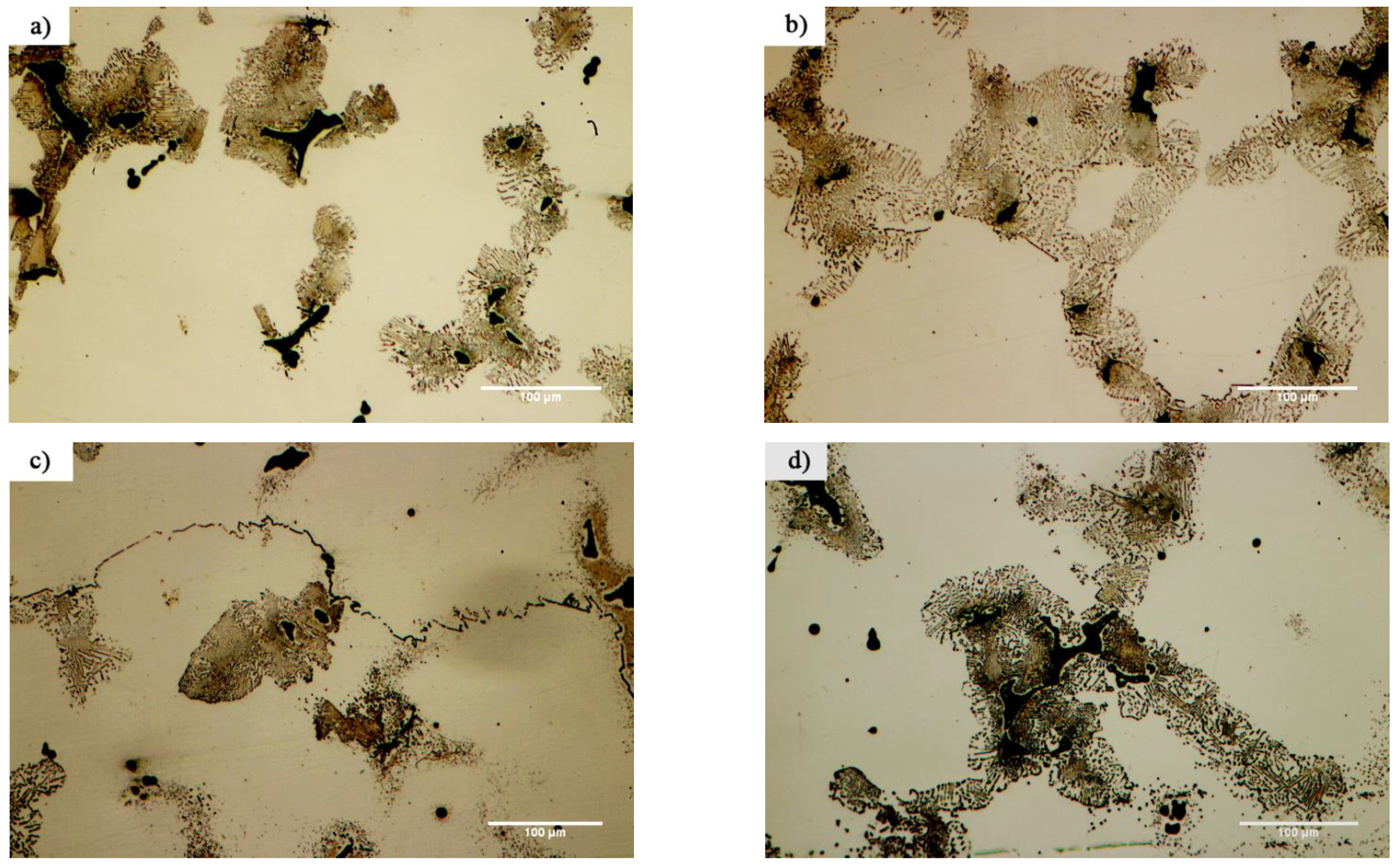

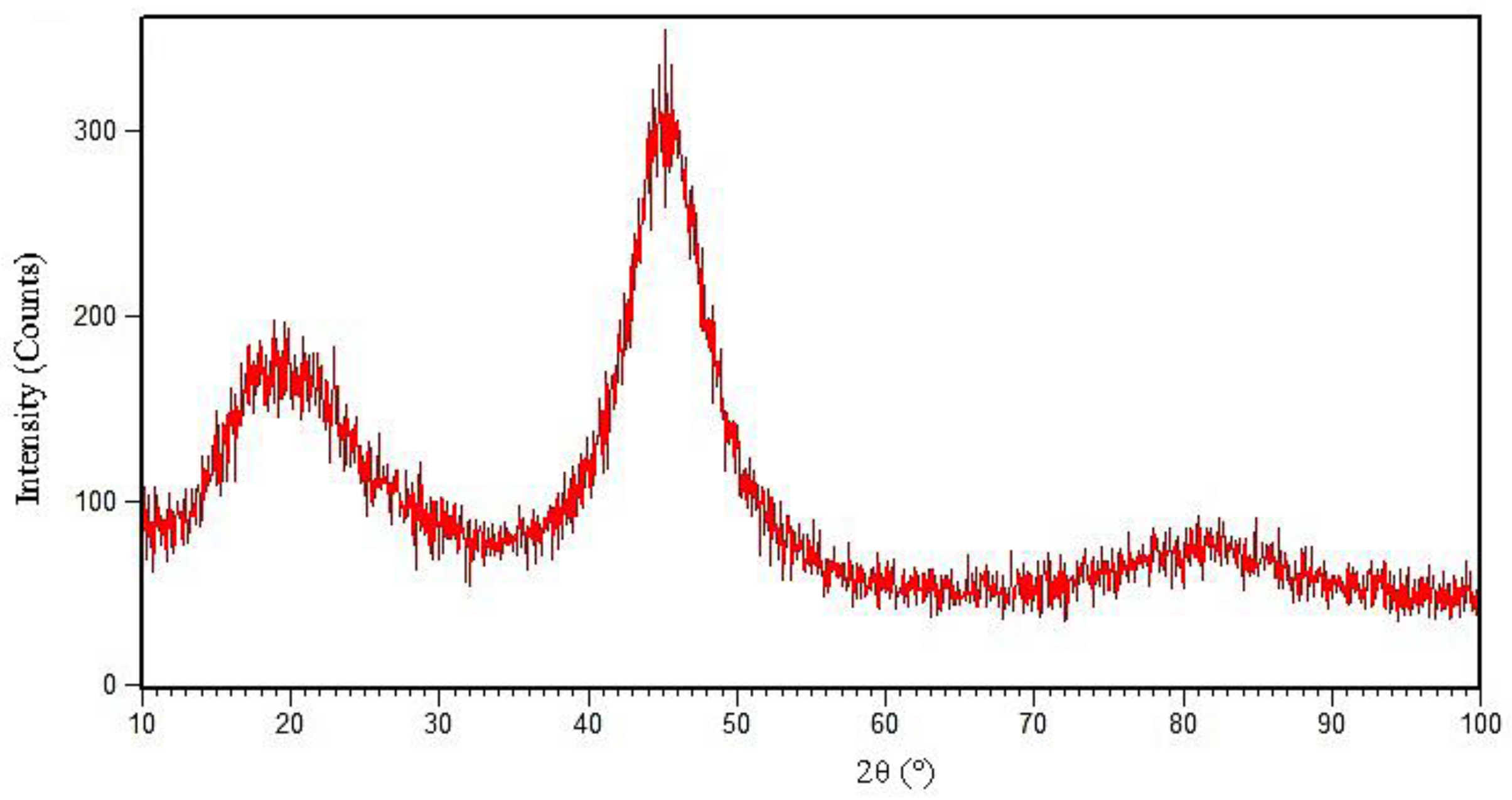

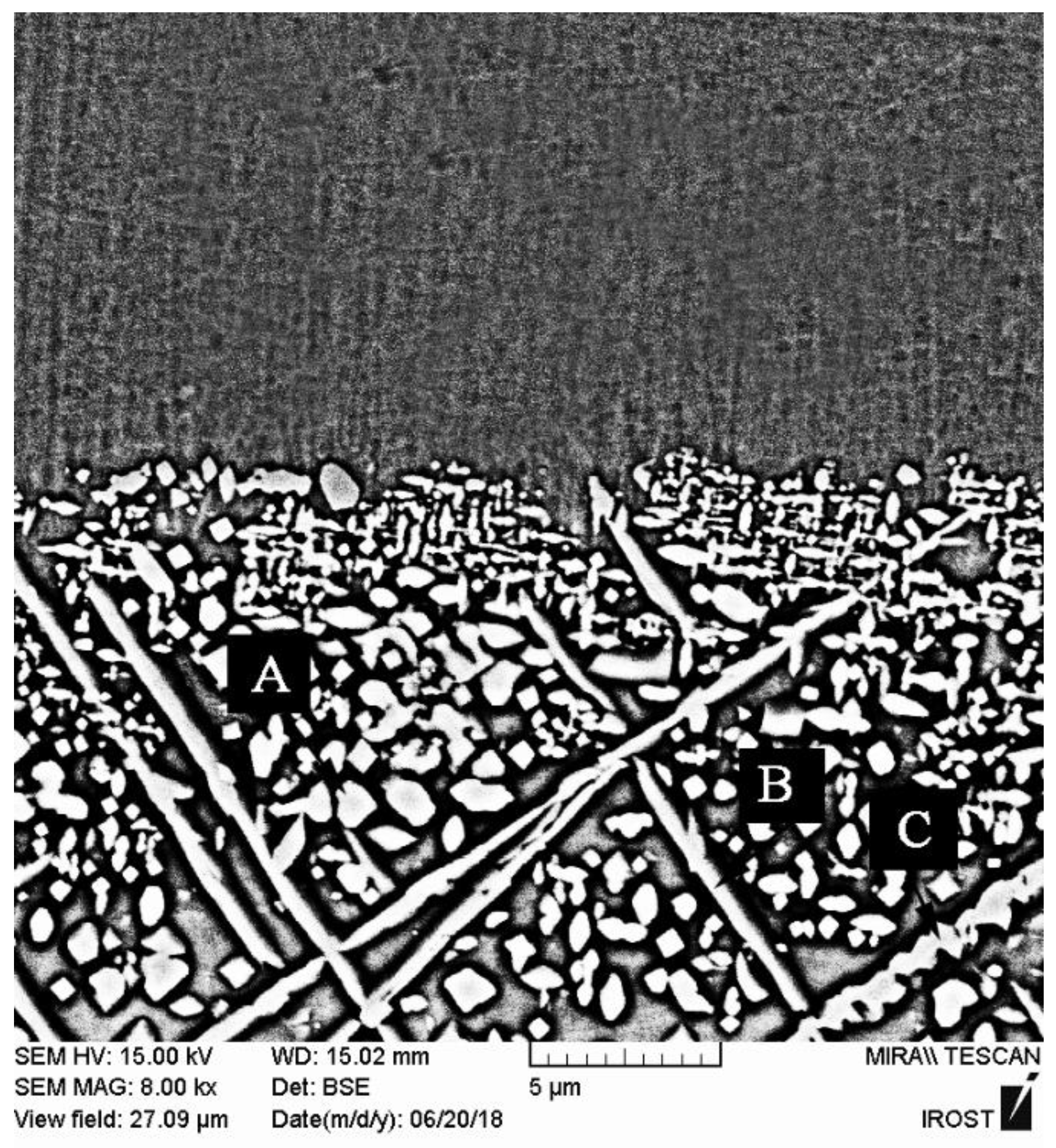

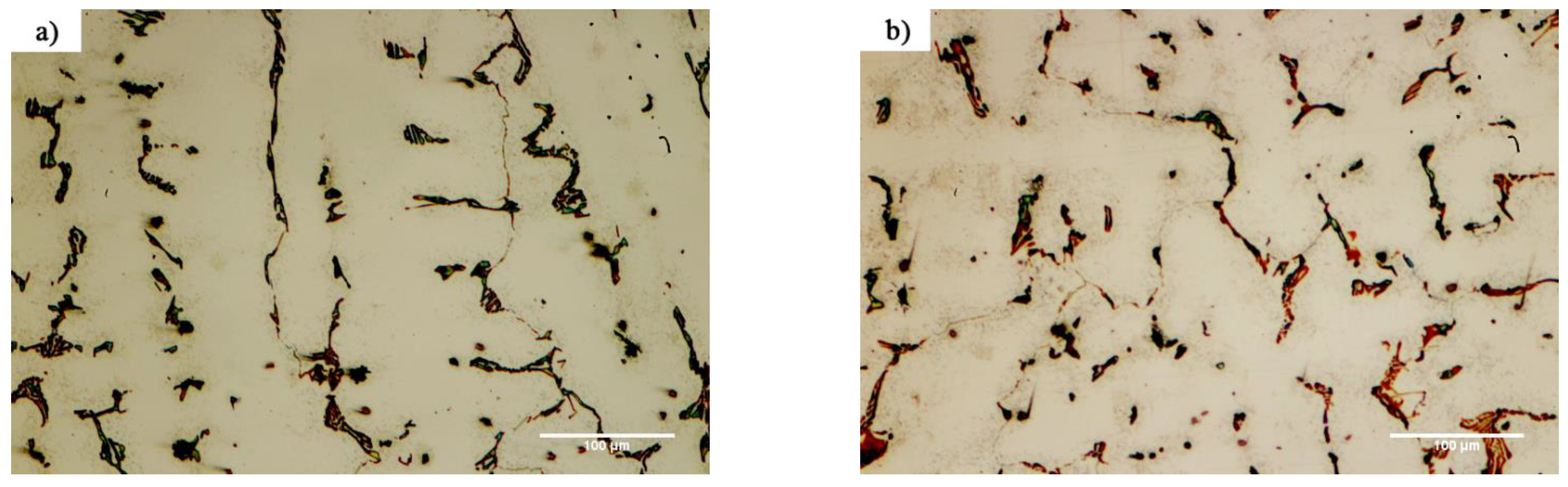

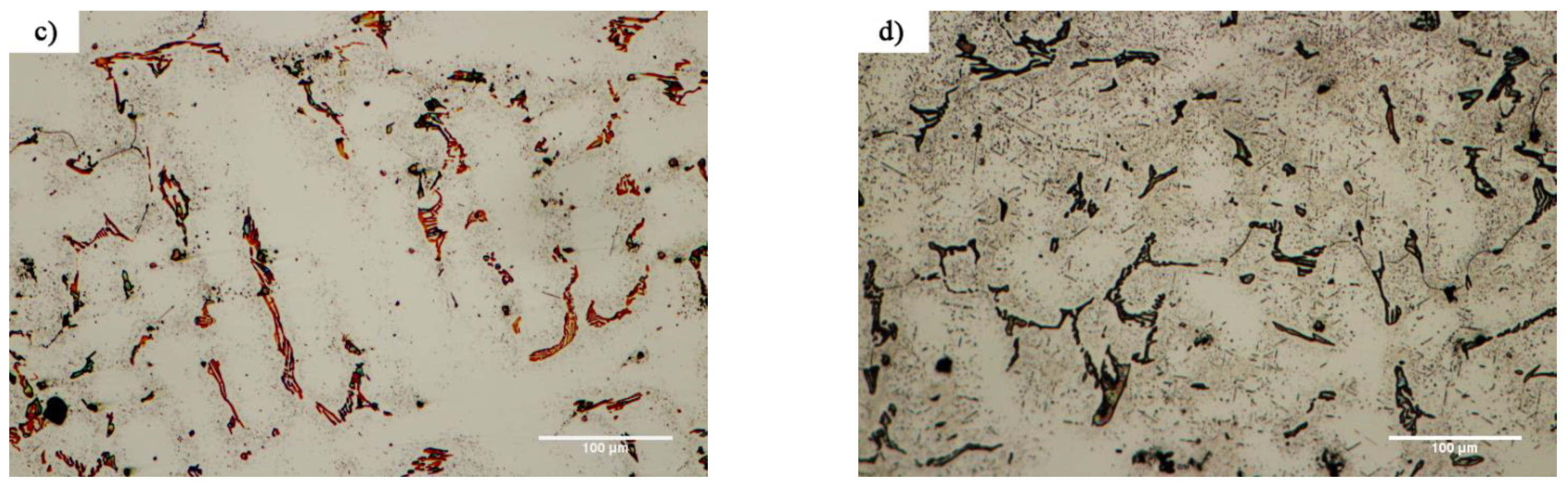

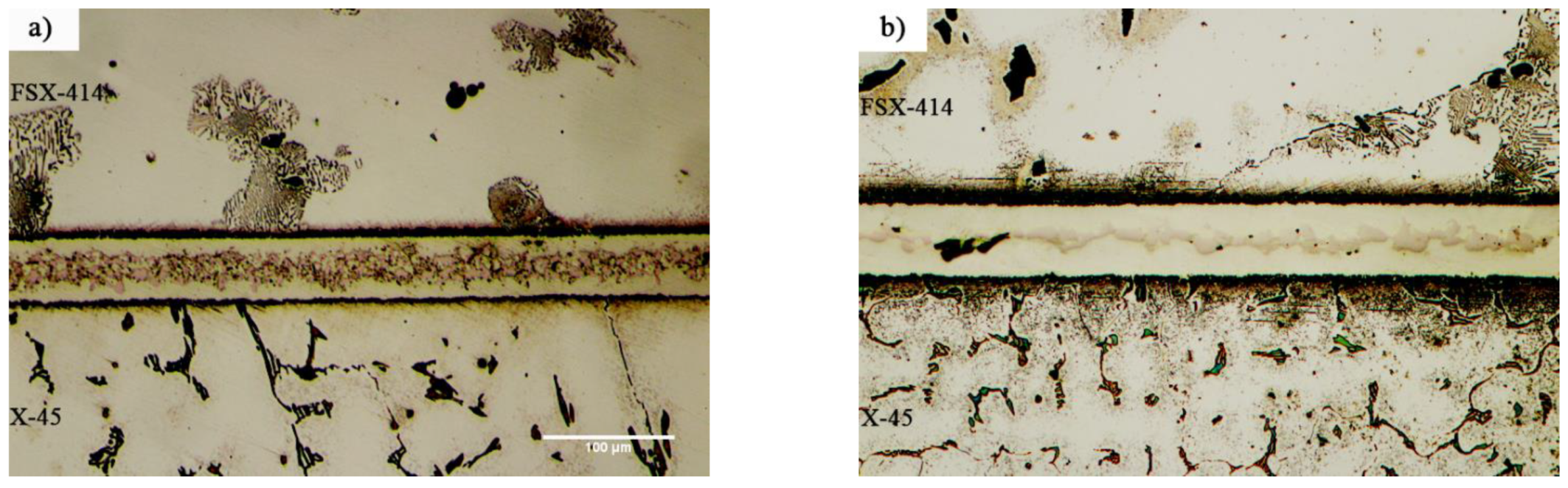

Phase transformations and the melting range of the interlayer BNi-3 were investigated by differential scanning calorimetry, which showed three stages of crystallization during heating. There were three exothermic peaks that indicated crystallization in the solid state. The cobalt-based X-45 and FSX-414 superalloys were bonded with interlayer BNi-3 at a constant holding time of 10 min with bonding temperatures of 1010, 1050, 1100, and 1150 °C using a vacuum diffusion brazing process. Examination of microstructural changes in the base metals with light microscopy and scanning electron microscopy coupled with X-ray spectroscopy based on the energy distribution showed that increasing temperature caused a solidification mode, such that the bonding centerline at 1010 °C/10 min included a γ-solid solution, Ni₃B, Ni₆Si₂B, and Ni₃Si. The athermally solidified zone of the transient liquid phase (TLP)-bonded sample at 1050 °C/10 min involved a γ-solid solution, Ni₃B, CrB, Ni₆Si₂B, and Ni₃Si. Finally, isothermal solidification was completed within 10 min at 1150 °C. The diffusion-affected zones on both sides had three distinct zones: a coarse block precipitation zone, a fine and needle-like mixed-precipitation zone, and a needle-like precipitation zone. By increasing the bonding temperature, the diffusion-affected zone became wider and led to dissolution.

Keywords: microstructural changes; mechanical properties; cobalt-based superalloy; transient liquid phase bonding

Share and Cite

MDPI and ACS Style

Naalchian, M.; Kasiri-Asgarani, M.; Shamanian, M.; Bakhtiari, R.; Bakhsheshi-Rad, H.R.; Berto, F.; Das, O. Phase Formation during Heating of Amorphous Nickel-Based BNi-3 for Joining of Dissimilar Cobalt-Based Superalloys. Materials 2021, 14, 4600. https://doi.org/10.3390/ma14164600

AMA Style

Naalchian M, Kasiri-Asgarani M, Shamanian M, Bakhtiari R, Bakhsheshi-Rad HR, Berto F, Das O. Phase Formation during Heating of Amorphous Nickel-Based BNi-3 for Joining of Dissimilar Cobalt-Based Superalloys. Materials. 2021; 14(16):4600. https://doi.org/10.3390/ma14164600

Chicago/Turabian Style

Naalchian, Mojtaba, Masoud Kasiri-Asgarani, Morteza Shamanian, Reza Bakhtiari, Hamid Reza Bakhsheshi-Rad, Filippo Berto, and Oisik Das. 2021. "Phase Formation during Heating of Amorphous Nickel-Based BNi-3 for Joining of Dissimilar Cobalt-Based Superalloys" Materials 14, no. 16: 4600. https://doi.org/10.3390/ma14164600

APA Style

Naalchian, M., Kasiri-Asgarani, M., Shamanian, M., Bakhtiari, R., Bakhsheshi-Rad, H. R., Berto, F., & Das, O. (2021). Phase Formation during Heating of Amorphous Nickel-Based BNi-3 for Joining of Dissimilar Cobalt-Based Superalloys. Materials, 14(16), 4600. https://doi.org/10.3390/ma14164600

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Menu

Phase Formation during Heating of Amorphous Nickel-Based BNi-3 for Joining of Dissimilar Cobalt-Based Superalloys

Abstract

Share and Cite

Article Metrics

Article Access Statistics

Further Information

Guidelines

MDPI Initiatives

Follow MDPI
