Sintering, Microstructure, and Dielectric Properties of Copper Borates for High Frequency LTCC Applications

by
Dorota Szwagierczak
1,*,
Beata Synkiewicz-Musialska
1,
Jan Kulawik
1 and
Norbert Pałka
2
1
Łukasiewicz Research Network–Institute of Microelectronics and Photonics, Kraków Division, Zabłocie 39, 30-701 Kraków, Poland
2
Institute of Optoelectronics, Military University of Technology, ul. gen. S. Kaliskiego 2, 00-908 Warszawa, Poland
*
Author to whom correspondence should be addressed.
Materials 2021, 14(14), 4017; https://doi.org/10.3390/ma14144017
Submission received: 10 June 2021 / Revised: 25 June 2021 / Accepted: 13 July 2021 / Published: 18 July 2021
(This article belongs to the Special Issue The 44th IMAPS Poland Conference)
Browse Figures
Versions Notes

Abstract

:
New ceramic materials based on two copper borates, CuB2O4 and Cu3B2O6, were prepared via solid state synthesis and sintering, and characterized as promising candidates for low dielectric permittivity substrates for very high frequency circuits. The sintering behavior, composition, microstructure, and dielectric properties of the ceramics were investigated using a heating microscope, X-ray diffractometry, scanning electron microscopy, energy dispersive spectroscopy, and terahertz time domain spectroscopy. The studies revealed a low dielectric permittivity of 5.1–6.7 and low dielectric loss in the frequency range 0.14–0.7 THz. The copper borate-based materials, owing to a low sintering temperature of 900–960 °C, are suitable for LTCC (low temperature cofired ceramics) applications.

1. Introduction

Modern high frequency communication systems create demand for new substrate materials with specific dielectric characteristics comprising a low dielectric permittivity, a low dielectric loss, and a low temperature coefficient of dielectric permittivity. Such dielectric properties of a substrate for microwave and mm-wave circuits improve the signal speed and quality, selectivity, and temperature stability of the operating frequency [1,2,3,4,5].
Silicates, such as cordierite, forsterite, diopside, mullite, and willemite, are well-known conventional materials for low dielectric permittivity substrates for microwave circuits [6,7,8,9,10,11,12]. Recently, with the tendency to decrease the sintering temperature, new materials have attracted more attention. Besides molybdates, tungstates, and phosphates, some borates are good candidates for new materials with a low sintering temperature [13,14,15,16,17,18,19,20,21,22,23,24].
The copper metaborate CuB2O4 crystallizes in a tetragonal structure with I-42d space group [25,26,27]. Its structure is composed of a BO4 tetrahedra sharing four common oxygen ions. Cu2+ ions are situated between them in two different crystallographic positions corresponding to a planar square or an elongated octahedral coordination [25,26,27].
Cu3B2O6 has a more complex structure and a lower symmetry [28] as compared with CuB2O4. The best known is Cu3B2O6 with a triclinic structure, although the crystallization of this compound in the monoclinic and orthorhombic structures was also reported. In Cu3B2O6, Cu2+ ions occupy 16 nonequivalent crystallographic positions, which can be divided into the following three types—predominant square planar positions (CuO4) with the coordination number four, distorted square pyramids (CuO5) with the coordination number five, and distorted octahedral positions (CuO6) with the coordination number six. For this compound, the calculated average effective coordination number is close to four for the triclinic structure. In Cu3B2O6, boron also shows different coordination numbers—(BO3) and (B2O5) groups occur with shorter B–O bonds than for tetrahedral (BO4) groups in CuB2O4 [28].
Besides broad studies of the magnetic properties of CuB2O4 and Cu3B2O6 crystals, potential magneto-optical, piezoelectric, multiferroic, and photocatalytic applications of CuB2O4 were also reported [25,26,27,29,30,31,32,33,34,35,36,37]. Furthermore, Cu3B2O6 was applied for active electrodes of lithium-ion batteries [38,39]. However, the characterization of dielectric properties at THz frequencies for ceramic substrates made of copper borates has remained an unexplored area thus far.
This work reports on sintering behavior, microstructure, and dielectric properties in the THz range of new ceramics based on two pure copper borates, CuB2O4 and Cu3B2O6, and CuB2O4–Cu3B2O6 mixtures. These ceramics offer a low dielectric permittivity and a low dielectric loss at very high frequencies, and a relatively low sintering temperature adequate for LTCC (low temperature cofired ceramics) technology.

2. Materials and Methods

Two copper borates, CuB2O4 and Cu3B2O6, were synthesized using the conventional solid state reaction method. The high purity starting materials, H3BO3 and CuO (Sigma Aldrich, St. Louis, MO, USA), were mixed in stoichiometric proportions, ball milled (Pulverisette 5, Fritsch, Germany) for 8 h in isopropyl alcohol, and dried. Then, the powders were pressed into pellets and calcined in a two-step process—at 200–400 °C for 2 h to decompose boric acid, and at 700 °C for 5 h to carry out solid state syntheses.
The resulting materials were ball milled for 8 h to obtain fine CuB2O4 and Cu3B2O6 powders. In addition, three CuB2O4–Cu3B2O6 mixtures containing 35, 50, and 70 wt.% Cu3B2O6 were prepared by ball milling for 8 h. For the last two compositions, 5 wt.% CuBi2O4 was added as a sintering aid. Finally, the powders were granulated with polyvinyl alcohol, pressed into pellets, and sintered in the temperature range 900–960 °C.
The phase compositions of the materials were investigated using the X-ray diffraction method (Empyrean, PANalytical, Almelo, The Netherlands) using Cu Kα1 radiation within a 2Ɵ range of 10 to 90°. Optimal sintering conditions and melting points of the samples were established based on observations in a heating microscope (Leitz, Germany) in the temperature range 20–1040 °C. Scanning electron microscopy and X-ray energy dispersive spectroscopy (FEI Nova Nano SEM 200 with EDAX Genesis EDS system, Hillsboro, OR, USA) were used to characterize the microstructure and elemental composition of the ceramics.
Dielectric properties at room temperature in the frequency range 0.12–2.5 THz were studied using time domain spectroscopy (TDS) (TPS Spectra 3000, Teraview, Cambridge, UK) according to the procedure reported previously [12]. The measurements were performed in purged air to avoid interference related to the presence of water vapor.

3. Results and Discussion

3.1. Phase Composition

As illustrated in Figure 1a,b, the XRD phase analysis confirmed the presence of the planned copper borates CuB2O4 and Cu3B2O6 as crystalline phases. CuB2O4 shows the tetragonal structure with the space group I-42, while Cu3B2O6 was detected as triclinic Cu15B10O30 with the space group P-1. For the compositions prepared as CuB2O4–Cu3B2O6 mixtures with a 5% CuBi2O4 addition, the XRD analysis revealed two main crystalline copper borate phases, but additional crystalline phases were not detected (Figure 1d). This implies that the sintering aid, CuBi2O4, formed an amorphous phase or entered the crystal lattice of the main crystalline components.

3.2. Heating Microscope Studies

Figure 2 presents some selected images from a heating microscope that provided insight into the behavior of the samples during heating from room temperature to 1040 °C.
These studies helped to establish the optimal firing profiles for each composition based on information about the temperature range in which the shrinkage occurs and about the softening and melting points. For pure copper borates (Figure 2a,b), the samples start to shrink at 891 and 893 °C, and the relevant optimal sintering temperatures are 940 and 930 °C for CuB2O4 and Cu3B2O6, respectively. The melting points are 1000 °C for CuB2O4 and 1040 °C for Cu3B2O6. The Cu3B2O6 ceramic shows a higher melting point than CuB2O4, but it has a similar temperature of the shrinkage onset and exhibits an advantageous feature of a broader sintering range. Consequently, its optimal sintering temperature is close or even lower as compared with CuB2O4. For mixed copper borates, the optimal sintering temperatures were established as 960, 920, and 900 °C for 65% CuB2O4–35% Cu3B2O6, 50% CuB2O4–50% Cu3B2O6 with 5% CuBi2O4, and 30% CuB2O4–70% Cu3B2O6 with 5% CuBi2O4, respectively.

3.3. Microstructural Studies

The SEM studies of all the sintered samples based on pure and mixed copper borates showed a very compact microstructure with a small contribution of porosity. It follows from the comparison of the images in Figure 3a,b that the microstructure for pure copper borates is similar, fine-grained, and uniform, with grain sizes in the 0.5–3 μm range.
For the mixed borates compositions, the dense microstructure was preserved, although there was a more significant variation in grain sizes as compared with the single-phase copper borate ceramics. For the ceramics with 5% CuBi2O4 added (Figure 3c,d), small grains 1–3 μm in diameter prevail, although a fraction of much bigger grains appears with sizes ranging from 4 to 12 μm. Thus, it seems that the sintering aid causes a grain growth effect, even though the sintering temperature is slightly lower as compared with pure copper borates. Table 1 presents the results of the EDS analysis at the points marked in Figure 3d for 30% CuB2O4–70% Cu3B2O6 ceramic doped with 5% CuBi2O4. Point one represents a big grain attributed to CuB2O4 (Cu/B ratio close to 0.5), while points two, four, and five were assigned to smaller grains of Cu3B2O6 (Cu/B ratio close to 1.5). Grain boundaries were enriched with Bi originating from the dopant CuBi2O4 (point three). The EDS results are distorted due to the imprecise detection of boron using this method.

3.4. Dielectric Properties

A theoretical prediction of dielectric permittivity based on the knowledge about the composition and crystal structure of the compound should be considered to design a substrate material with dielectric properties tailored for high frequency applications. For a simple assessment of the real part of relative dielectric permittivity εr, one can use the Clausius–Mossotti equation, which relates this quantity with the polarizability α:
α =4πVm/3[(εr − 1)( εr + 2)]
where Vm is the molar volume.
For a compound, molecular polarizability can be calculated using the additive rule, as a sum of the polarizabilities of particular ions that built the molecule. Thus, the molecular polarizabilities of the investigated copper borates can be expressed as follows:
α(CuB2O4) = α(Cu2+) + 2α(B3+) +4α(O2−)
α(Cu3B2O6) = 3α(Cu2+) + 2α(B3+) +6α(O2−)
The polarizabilities of the constituent ions are 2.11, 0.05, and 2.01 Å3 for Cu2+, B3+, and O2−, respectively [40]. The molar volumes (calculated as the unit cell volume per the number of formula units in the unit cell) are 61.76 and 112.54 Å3 for CuB2O4 and triclinic Cu3B2O6, respectively. Thus, the theoretical relative dielectric permittivities of CuB2O4 and Cu3B2O6 calculated from the Clausius–Mossotti equation are 7.83 and 7.61, respectively. These values are close to each other.
However, the predictions based on the Clausius–Mossotti relationship are consistent with the experimentally measured values mainly for a high symmetry cubic crystallographic system. For the materials characterized by structural peculiarities related to the presence of “rattling” or “compressed” cations, ionic or electronic conductivity, dipolar impurities, or piezoelectric behavior, distinct deviations from the additivity rule were observed [40].
Low polarizability is responsible for confining ionic polarization in a material. A lower average bond length diminishes the rattling effect of cations in a polyhedral structural unit. A lower cell volume restricts the interaction of polarizable dipoles [41,42,43]. Qin et al. [41] proposed a universal model based on machine learning for predicting microwave dielectric permittivity. These authors stated that there are three most important features related to the crystal structure of a compound determining its dielectric permittivity. According to this model, the dielectric permittivity decreases with a decrease in the polarizability per unit cell volume ppv and with a decrease in the average bond length blm. The average cell volume per atom va is also an important parameter that should be maintained in an optimal range. Qin et al. [41] stated that the ranges of the decisive parameters that favor creating materials with a low dielectric permittivity are ppm < 0.15, va 11–16 Å3, and blm < 2.3 Å.
The relevant values for CuB2O4 and Cu3B2O6 obtained in this work are 0.17 and 0.16 for ppm, and 17.6 and 10.2 for va, respectively. The bond lengths reported for CuB2O4 are 1.999 Å for prevailing Cu–O shorter bonds, 2.864 Å for Cu–O longer bonds, and 1.444–1.487 Å for B–O bonds [26]. For Cu3B2O6, the average Cu–O bond length is 2.1 Å [28]. The analysis of ppm, va, and blm values for CuB2O4 and Cu3B2O6 leads to the conclusion that these parameters are close to the ranges indicated in [41] for low permittivity candidate materials.
Figure 4a,b compare the frequency dependences of the dielectric permittivities and the dissipation factors of copper borate ceramics at 20 °C in the 0.12–2.5 THz range.
In the 0.14–0.7 THz range, the dielectric permittivities are low, at a level of 5.3–5.4 for CuB2O4, 6.4–6.7 for Cu3B2O6, 5.1–5.2 for 65% CuB2O4–35% Cu3B2O6, 5.8–6.0 for 50% CuB2O4–50% Cu3B2O6 with 5% CuBi2O4, and 5.8–6.1 for 30% CuB2O4–70% Cu3B2O6 with 5% CuBi2O4. The lowest dielectric permittivities were shown by pure CuB2O4 ceramic and 65% CuB2O4–35% Cu3B2O6 ceramic without the sintering aid. For all the materials under investigation, the dielectric permittivity changes very slightly with a frequency up to 0.7 THz and then reaches a maximum at about 1 THz for Cu3B2O6 and at about 0.9 THz for the rest of the copper borate-based ceramics.
Figure 5a,b show the comparison of the dielectric permittivities and dissipation factors of the CuB2O4 ceramics sintered at three different temperatures—930, 940, and 950 °C. The dielectric permittivity increases, while the dissipation factor decreases with an increasing sintering temperature. This is typical behavior that can be attributed to a lower porosity of the samples sintered at higher temperatures.
The dissipation factors are relatively low (0.004–0.01) in the 0.14–0.7 THz range, with a flat minimum at 0.4–0.6 THz. A few peaks on the dissipation factor versus frequency plots were observed above 0.9 THz at the positions corresponding to those of the dielectric permittivity maxima.
At very high THz frequencies, some types of dielectric polarization, such as space charge and dipolar polarizations, cannot follow the changes of the external electrical field. In this case, the dielectric behavior is determined by ionic, atomic, and electronic polarization. The dielectric properties can be described by the damped harmonic oscillators model [44]. This model explains the observed frequency independent constant value of the real part of dielectric permittivity ε’, an increase in its imaginary part ε” and, consequently, the dissipation factor (ε”/ε’) in the region of THz frequencies.
Peaks on the dielectric permittivity/dissipation factor versus frequency plots that occur above 0.7 THz are supposed to be attributed to phonon modes related to vibrations in Cu–O complexes [26,28]. Due to the large number of atoms that form the unit cells of both copper borates (42 atoms for CuB2O4, 110 atoms for Cu3B2O6 [26,28]), phonon modes for these compounds are numerous, which was confirmed using infrared and Raman spectroscopic studies [26,27,28,29].
In Figure 6a,b, the dielectric permittivities and dissipation factors for a few frequencies in the 0.2–0.7 Hz range (the region of a weak frequency dependence) are plotted as a function of temperature in the range 30–150 °C for the CuB2O4 ceramic. The temperature dependence of dielectric permittivity is very weak up to 90 °C, while the dissipation factor is almost temperature independent in the whole analyzed range. The frequencies corresponding to the peaks of dielectric permittivity and dissipation factor do not change with temperature, which implies that the phenomena responsible for these peaks are not thermally activated processes. It was found that the temperature coefficient of dielectric permittivity of CuB2O4 ceramic in the temperature range 30–90 °C is negative and changes from −19 to −55 ppm/°C in the 0.2–0.7 THz range.
The dielectric permittivities determined experimentally in this work are distinctly lower than those calculated using the Clausius–Mossotti equation. This discrepancy cannot be assigned only to porosity, considering the high relative density of the sintered samples at a level of 95–98%. It is supposed to be related to the complex noncentrosymmetric crystallographic structures of the copper borates under investigation. For such systems, deviations from the Clausius–Mossotti relationship have often been observed [40].
For commercially available LTCC materials, the values of dielectric permittivity in the range 4–7 and tanδ below 0.012 at 1 THz are considered low values, suitable for millimeter wave systems. The dielectric properties of CuB2O4 and CuB2O4–Cu3B2O6 ceramics in the 0.14–0.7 THz range are comparable with those reported for the commercial LTCC material Ferro A6M at 1 THz (εr’ = 6.06, tanδ = 0.012) [45]. We plan to use the developed powders based on copper borates for tape casting and the fabrication of multilayer LTCC substrates appropriate for very high frequency applications in future work.

4. Conclusions

New ceramics based on two copper borates, CuB2O4 and Cu3B2O6, were successfully prepared via solid state synthesis and sintering processes. These ceramics exhibit the following advantageous features: a low sintering temperature suitable for LTCC technology, a very dense microstructure, a low and temperature stable dielectric permittivity (5.1–6.7), and a low dielectric loss (0.004–0.01) in the 0.14–0.7 THz range. The developed ceramics are promising substrate materials for submillimeter wave applications and have been investigated for the first time in such a frequency range.

Author Contributions

Conceptualization, D.S.; data curation, B.S.-M.; formal analysis, D.S., B.S.-M., and N.P.; funding acquisition, D.S.; investigation, D.S., B.S.-M., J.K., and N.P.; methodology, B.S.-M., J.K., and N.P.; project administration, D.S.; resources, J.K.; supervision, D.S.; validation, D.S. and N.P.; visualization, B.S.-M.; writing—original draft, D.S.; writing—review and editing, D.S. and N.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the NATIONAL SCIENCE CENTRE, Poland, grant number 2019/35/B/ST5/02674.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available as the data also form part of an ongoing study.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Muhammad, R.; Iqbal, Y.; Rambo, C.R.; Khan, H. Research trends in microwave dielectrics and factors affecting their properties: A review. Int. J. Mater. Res. 2014, 105, 431–439. [Google Scholar] [CrossRef]
  2. Raveendran, R.A.; Sebastian, M.T.; Raman, S. Applications of microwave materials: A review. J. Electron. Mater. 2019, 48, 2601–2634. [Google Scholar] [CrossRef] [Green Version]
  3. Sebastian, M.T.; Ubic, R.; Jantunen, H. Low-loss dielectric ceramic materials and their properties. Int. Mater. Rev. 2015, 60, 392–412. [Google Scholar] [CrossRef]
  4. Song, H.J. Packages for terahertz electronics. Proc. IEEE 2017, 105, 1121–1138. [Google Scholar] [CrossRef] [Green Version]
  5. Rappaport, T.S.; Sun, S.; Mayzus, R.; Zhao, H.; Azar, Y.; Wang, K.; Wong, G.N.; Schulz, J.K.; Samimi, M.; Gutierrez, F. Millimeter wave mobile communications for 5G cellular: It will work! IEEE Access 2013, 1, 335–349. [Google Scholar] [CrossRef]
  6. Tsunooka, T.; Ando, M.; Suzuki, S.; Yasufuku, Y.; Ohsato, H. Research & developments for millimeter-wave dielectric forsterite with low dielectric constant, high Q, and zero temperature coefficient of resonant frequency. Jpn. J. Appl. Phys. 2013, 52, 09KH02. [Google Scholar] [CrossRef]
  7. Bafrooei, H.B.; Liu, B.; Su, W.; Song, K.X. Ca3MgSi2O8: Novel low-permittivity microwave dielectric ceramics for 5G application. Mater. Lett. 2020, 263, 127248. [Google Scholar] [CrossRef]
  8. Szwagierczak, D.; Synkiewicz, B.; Kulawik, J. Low dielectric constant composites based on B2O3 and SiO2 rich glasses, cordierite and mullite. Ceram. Int. 2018, 44, 14495–14501. [Google Scholar] [CrossRef]
  9. Lan, X.K.; Li, J.; Wang, F.; Wang, X.; Lu, W.Z.; Hu, M.Z.; Lei, W. A novel low permittivity LiAl0.98(Zn0.5Si0.5)0.02O2 based microwave dielectric ceramics for LTCC application. Int. J. Appl. Ceram. Tech. 2020, 17, 745–750. [Google Scholar] [CrossRef]
  10. Weng, Z.Z.; Song, C.X.; Xiong, Z.X.; Xue, H.; Sun, W.F.; Zhang, Y.; Yang, B.; Reece, M.J.; Yan, H.X. Microstructure and broadband dielectric properties of Zn2SiO4 ceramics with nano-sized TiO2 addition. Ceram. Int. 2019, 45, 13251–13256. [Google Scholar] [CrossRef]
  11. Hu, X.; Huang, X.J.; Chen, Y.H.; Li, Y.; Ling, Z.Y. Phase evolution and microwave dielectric properties of SrTiO3 added ZnAl2O4-Zn2SiO4-SiO2 ceramics. Ceram. Int. 2020, 46, 7050–7054. [Google Scholar] [CrossRef]
  12. Synkiewicz-Musialska, B.; Szwagierczak, D.; Kulawik, J.; Pałka, N.; Bajurko, P.R. Impact of additives and processing on microstructure and dielectric properties of willemite ceramics for LTCC terahertz applications. J. Eur. Ceram. Soc. 2020, 40, 362–370. [Google Scholar] [CrossRef]
  13. Sasidharanpillai, A.; Kim, C.H.; Lee, C.H.; Sebastian, M.T.; Kim, H.T. Environmental friendly approach for the development of ultra-low firing Li2WO4 ceramic tapes. ACS Sustain. Chem. Eng. 2018, 6, 6849–6855. [Google Scholar] [CrossRef]
  14. Yin, C.; Li, C.; Yang, G.; Fang, L.; Yuan, Y.; Shu, L.; Khaliq, J. NaCa4V5O17: A low-firing microwave dielectric ceramic with low permittivity and chemical compatibility with silver for LTCC applications. J. Eur. Ceram. Soc. 2020, 40, 386–390. [Google Scholar] [CrossRef]
  15. Oliveira, R.G.M.; Silva, R.A.; de Morais, J.E.V.; Batista, G.S.; Silva, M.A.S.; Goes, J.C.E.; de Andrade, H.D.; Queiroz Júnior, I.S.; Singh, C.; Sombra, A.S.B. Effects of CaTiO3 addition on the microwave dielectric properties and antenna properties of BiVO4 ceramics. Compos. Part B Eng. 2019, 175, 107122. [Google Scholar] [CrossRef]
  16. Joseph, N.; Varghese, J.; Teirikangas, M.; Sebastian, M.T.; Jantunen, H. Ultra-low sintering temperature ceramic composites of CuMoO4 through Ag2O addition for microwave applications. Compos. Part B Eng. 2018, 141, 214–220. [Google Scholar] [CrossRef]
  17. Faouri, S.S.; Mostaed, A.; Dean, J.S.; Wang, D.; Sinclair, D.C.; Zhang, S.; Whittow, W.G.; Vardaxoglou, Y.; Reaney, I.M. High quality factor cold sintered Li2MoO4-BaFe12O19 composites for microwave applications. Acta Mater. 2019, 166, 202–207. [Google Scholar] [CrossRef] [Green Version]
  18. Wang, D.; Zhang, S.; Wang, G.; Vardaxoglou, Y.; Whittow, W.; Cadman, D.; Zhou, D.; Song, K. Cold sintered CaTiO3-K2MoO4 microwave dielectric ceramics for integrated microstrip patch antennas. Appl. Mater. Today 2020, 18, 100519. [Google Scholar] [CrossRef]
  19. Dou, G.; Guo, M.; Li, Y.; Lin, J. The effect of LMBS glass on the microwave dielectric properties of the Mg3B2O6 for LTCC. J. Mater. Sci. Mater. Electron. 2015, 26, 4207–4211. [Google Scholar] [CrossRef]
  20. Zhou, D.; Pang, L.X.; Wang, D.W.; Qi, Z.M.; Reaney, I.M. High quality factor, ultralow sintering temperature Li6B4O9 microwave dielectric ceramics with ultralow density for antenna substrates. ACS Sustain. Chem. Eng. 2018, 6, 11138–11143. [Google Scholar] [CrossRef] [Green Version]
  21. Szwagierczak, D.; Synkiewicz-Musialska, B.; Kulawik, J.; Pałka, N. LTCC and Bulk Zn4B6O13–Zn2SiO4 Composites for Submillimeter Wave Applications. Materials 2021, 14, 1014. [Google Scholar] [CrossRef]
  22. Xi, J.; Shang, F.; Liu, F.; Xu, J.; Chen, G. A facile preparation of temperature–Stable borate ultra-low permittivity microwave ceramics for LTCC applicatons. Ceram. Int. 2020, 46, 19650–19653. [Google Scholar] [CrossRef]
  23. Szwagierczak, D.; Synkiewicz-Musialska, B.; Kulawik, J.; Czerwińska, E.; Pałka, N.; Bajurko, P.R. Low temperature sintering of Zn4B6O13 based substrates, their microstructure and dielectric properties up to the THz range. J. Alloys Compd. 2020, 819, 153025. [Google Scholar] [CrossRef]
  24. Peng, R.; Li, Y.; Su, H.; Lu, Y.; Yun, Y.; Zhang, Q. A detailed study of the substitution mechanism for improved zinc-borate: High-performance and its crystal structure variation. J. Mater. Res. Technol. 2021, 12, 1360–1367. [Google Scholar] [CrossRef]
  25. Martinez-Ripoll, M.; Martínez-Carrera, S.; García-Blanco, S. The crystal structure of copper metaborate, CuB2O4. Acta Cryst. 1971, 27, 677–681. [Google Scholar] [CrossRef]
  26. Pisarev, R.V.; Boldyrev, K.N.; Popova, M.N.; Smirnov, A.N.; Davydov, V.Y.; Bezmaternykh, L.N.; Smirnov, M.B.; Kazimirov, V.Y. Lattice dynamics of piezoelectric copper metaborate CuB2O4. Phys. Rev. B 2013, 88, 024301. [Google Scholar] [CrossRef]
  27. Imasaka, K.; Pisarev, R.V.; Bezmaternykh, L.N.; Shimura, T.; Kalashnikova, A.M.; Satoh, T. Excitation of multiple phonon modes in copper metaborate CuB2O4 via nonresonant impulsive stimulated Raman scattering. Phys. Rev. B 2018, 98, 054303. [Google Scholar] [CrossRef] [Green Version]
  28. Molchanova, A.D.; Prosnikov, M.A.; Dubrovin, R.M.; Davydov, V.Y.; Smirnov, A.N.; Pisarev, R.V.; Boldyrev, K.N.; Popova, M.N. Lattice dynamics and electronic transitions in a structurally complex layered copper borate Cu3(BO3)2. Phys. Rev. B 2017, 96, 174305. [Google Scholar] [CrossRef] [Green Version]
  29. Mero, R.D.; Lai, C.H.; Du, C.H.; Liu, H.L. Spectroscopic signature of spin–charge–lattice coupling in CuB2O4. J. Phys. Chem. C 2021, 125, 4322–4329. [Google Scholar] [CrossRef]
  30. Saito, M.; Taniguchi, K.; Arima, T.H. Gigantic optical magnetoelectric effect in CuB2O4. J. Phys. Soc. Jpn. 2008, 77, 013705. [Google Scholar] [CrossRef] [Green Version]
  31. Petrakovskii, G.A.; Sablina, K.A.; Velikanov, D.A.; Vorotynov, A.M.; Volkov, N.V.; Bovina, A.F. Synthesis and magnetic properties of copper metaborate single crystals CuB2O4. Crystallogr. Rep. 2000, 45, 853–856. [Google Scholar] [CrossRef]
  32. Pisarev, R.V.; Kalashnikova, A.M.; Schöps, O.; Bezmaternykh, L.N. Electronic transitions and genuine crystal-field parameters in copper metaborate CuB2O4. Phys. Rev. B 2011, 84, 075160. [Google Scholar] [CrossRef]
  33. Kawamata, T.; Sugawara, N.; Haidar, S.M.; Adachi, T.; Noji, T.; Kudo, K.; Kobayashi, N.; Fujii, Y.; Kikuchi, H.; Chiba, M.; et al. Thermal conductivity and magnetic phase diagram of CuB2O4. J. Phys. Soc. Jpn. 2019, 88, 114708. [Google Scholar] [CrossRef]
  34. Toyod, S.; Abe, N.; Arima, T. Gigantic directional asymmetry of luminescence in multiferroic CuB2O4. Phys. Rev. B 2016, 93, 2011091. [Google Scholar] [CrossRef] [Green Version]
  35. Sasaki, R.; Nii, Y.; Onose, Y. Surface acoustic wave coupled to magnetic resonance on a multiferroic CuB2O4. Phys. Rev. B 2019, 99, 014418. [Google Scholar] [CrossRef] [Green Version]
  36. Kudlacik, D.; Ivanov, V.Y.; Yakovlev, D.R.; Sapega, V.F.; Schindler, J.J.; Debus, J.; Bayer, M.; Pisarev, R.V. Exciton and exciton-magnon photoluminescence in the antiferromagnet CuB2O4. Phys. Rev. B 2020, 102, 035128. [Google Scholar] [CrossRef]
  37. Ursu, D.; Dabici, A.; Miclau, M.; Miclau, N. Low-temperature hydrothermal synthesis of hierarchical flower-like CuB2O4 superstructures. Process. Appl. Ceram. 2020, 14, 113–118. [Google Scholar] [CrossRef]
  38. Liu, J.; Wen, S.; Zou, X.; Feng, P. Visible-light-responsive copper(II) borate photocatalysts with intrinsic midgap states for water splitting. J. Mater. Chem. A 2013, 1, 1553–1556. [Google Scholar] [CrossRef]
  39. Luo, S.; Wang, F.; Yu, K.; Shao, J.; Peng, L.; Zeng, Q. Enhancement of visible-light photocatalytic activity of Cu3B2O6 hybridized with g-C3N4. Coll. Surf. A 2017, 520, 409–419. [Google Scholar] [CrossRef]
  40. Shannon, R.D. Dielectric polarizabilities of ions in oxides and fluorides. J. Appl. Phys. 1993, 73, 348–366. [Google Scholar] [CrossRef]
  41. Qin, J.; Liu, Z.; Ma, M.; Li, Y. Machine learning approaches for permittivity prediction and rational design of microwave dielectric ceramics. J. Mater. 2021, Article in press. [Google Scholar] [CrossRef]
  42. Kim, E.S.; Chun, B.S.; Freer, R.; Cernik, R.J. Effects of packing fraction and bond valence on microwave dielectric properties of A2+B6+O4 (A2+: Ca, Pb, Ba; B6+: Mo, W) ceramics. J. Eur. Ceram. Soc. 2010, 30, 1731–1736. [Google Scholar] [CrossRef]
  43. Li, J.; Han, Y.; Qiu, T.; Jin, C. Effect of bond valence on microwave dielectric properties of (1-x)CaTiO3-x(Li0.5La0.5)TiO3 ceramics. Mater. Res. Bull. 2012, 47, 2375–2379. [Google Scholar] [CrossRef]
  44. Kamba, S.; Petzelt, J.; Buixaderas, E.; Haubrich, D.; Vanek, P.; Kuzel, P.; Jawahar, I.N.; Sebastian, M.T.; Mohanan, P. High frequency dielectric properties of A5B4O15 microwave ceramics. J. Appl. Phys. 2001, 89, 3900–3906. [Google Scholar] [CrossRef]
  45. Ma, M.; Wang, Y.; Navarro-Cia, M.; Liu, F.; Zhang, F.; Liu, Z.; Li, Y.; Hanham, S.M.; Hao, Z. The dielectric properties of some ceramic substrate materials at terahertz frequencies. J. Eur. Ceram. Soc. 2019, 39, 4424–4428. [Google Scholar] [CrossRef]
Materials 14 04017 g001 550
Figure 1. Diffraction patterns of the ceramics: (a) CuB2O4, (b) Cu3B2O6, (c) 65% CuB2O4–35% Cu3B2O6, and (d) 30% CuB2O4–70% Cu3B2O6 doped with 5% CuBi2O4.
Figure 1. Diffraction patterns of the ceramics: (a) CuB2O4, (b) Cu3B2O6, (c) 65% CuB2O4–35% Cu3B2O6, and (d) 30% CuB2O4–70% Cu3B2O6 doped with 5% CuBi2O4.
Materials 14 04017 g001
Materials 14 04017 g002 550

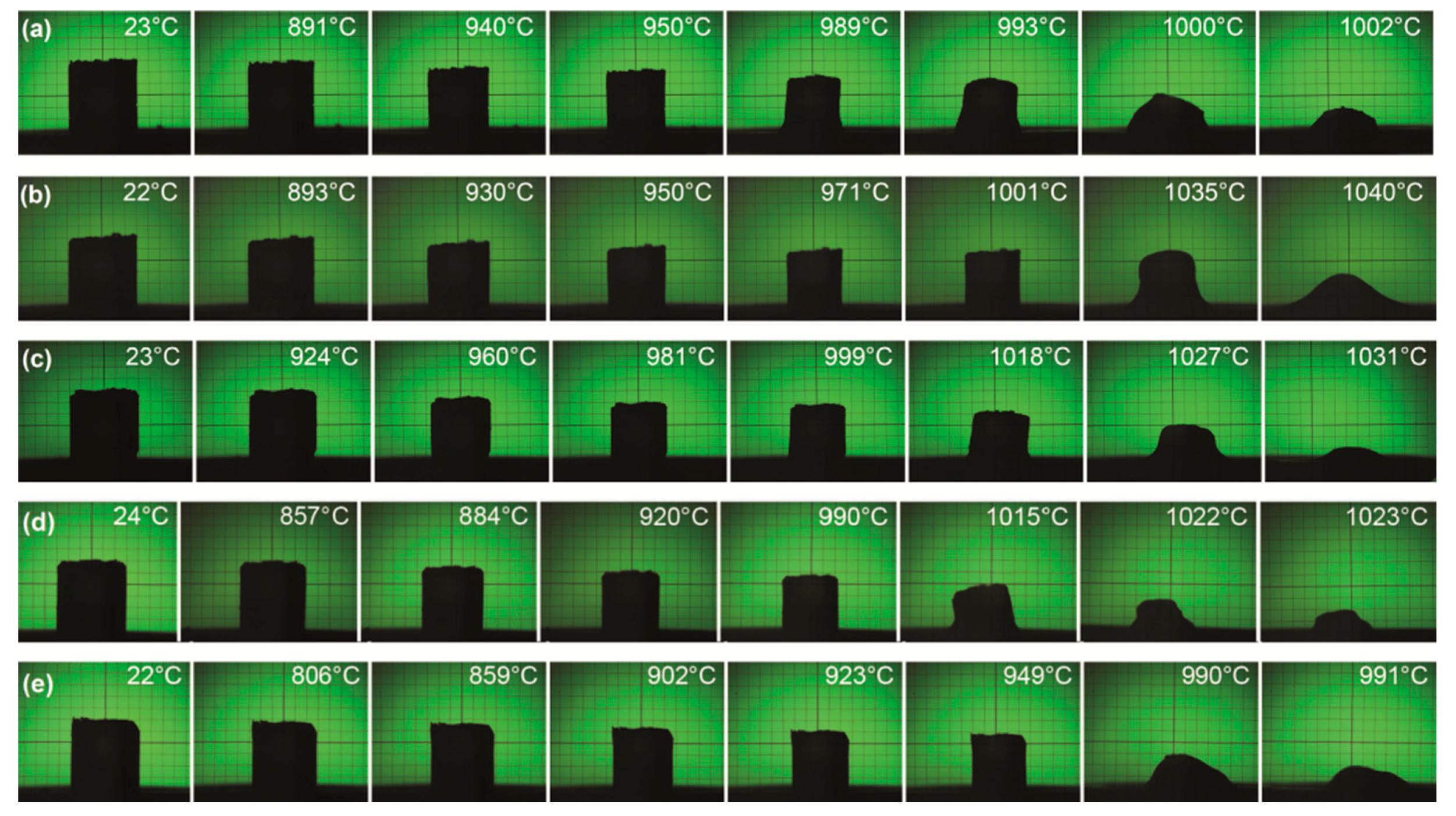

Figure 2. Selected images from a heating microscope for: (a) CuB2O4, (b) Cu3B2O6, (c) 65% CuB2O4–35% Cu3B2O6, (d) 50% CuB2O4–50% Cu3B2O6 doped with 5% CuBi2O4, (e) 30% CuB2O4–70% Cu3B2O6 doped with 5% CuBi2O4.
Figure 2. Selected images from a heating microscope for: (a) CuB2O4, (b) Cu3B2O6, (c) 65% CuB2O4–35% Cu3B2O6, (d) 50% CuB2O4–50% Cu3B2O6 doped with 5% CuBi2O4, (e) 30% CuB2O4–70% Cu3B2O6 doped with 5% CuBi2O4.
Materials 14 04017 g002
Materials 14 04017 g003 550
Figure 3. SEM images of fractured cross-sections of ceramic samples: (a) CuB2O4 sintered at 940 °C, (b) Cu3B2O6 sintered at 930 °C, (c) 50% CuB2O4–50% Cu3B2O6 doped with 5% CuBi2O4 sintered at 920 °C, and (d) 30% CuB2O4–70% Cu3B2O6 doped with 5% CuBi2O4 sintered at 900 °C, ×10,000.
Figure 3. SEM images of fractured cross-sections of ceramic samples: (a) CuB2O4 sintered at 940 °C, (b) Cu3B2O6 sintered at 930 °C, (c) 50% CuB2O4–50% Cu3B2O6 doped with 5% CuBi2O4 sintered at 920 °C, and (d) 30% CuB2O4–70% Cu3B2O6 doped with 5% CuBi2O4 sintered at 900 °C, ×10,000.
Materials 14 04017 g003
Materials 14 04017 g004 550

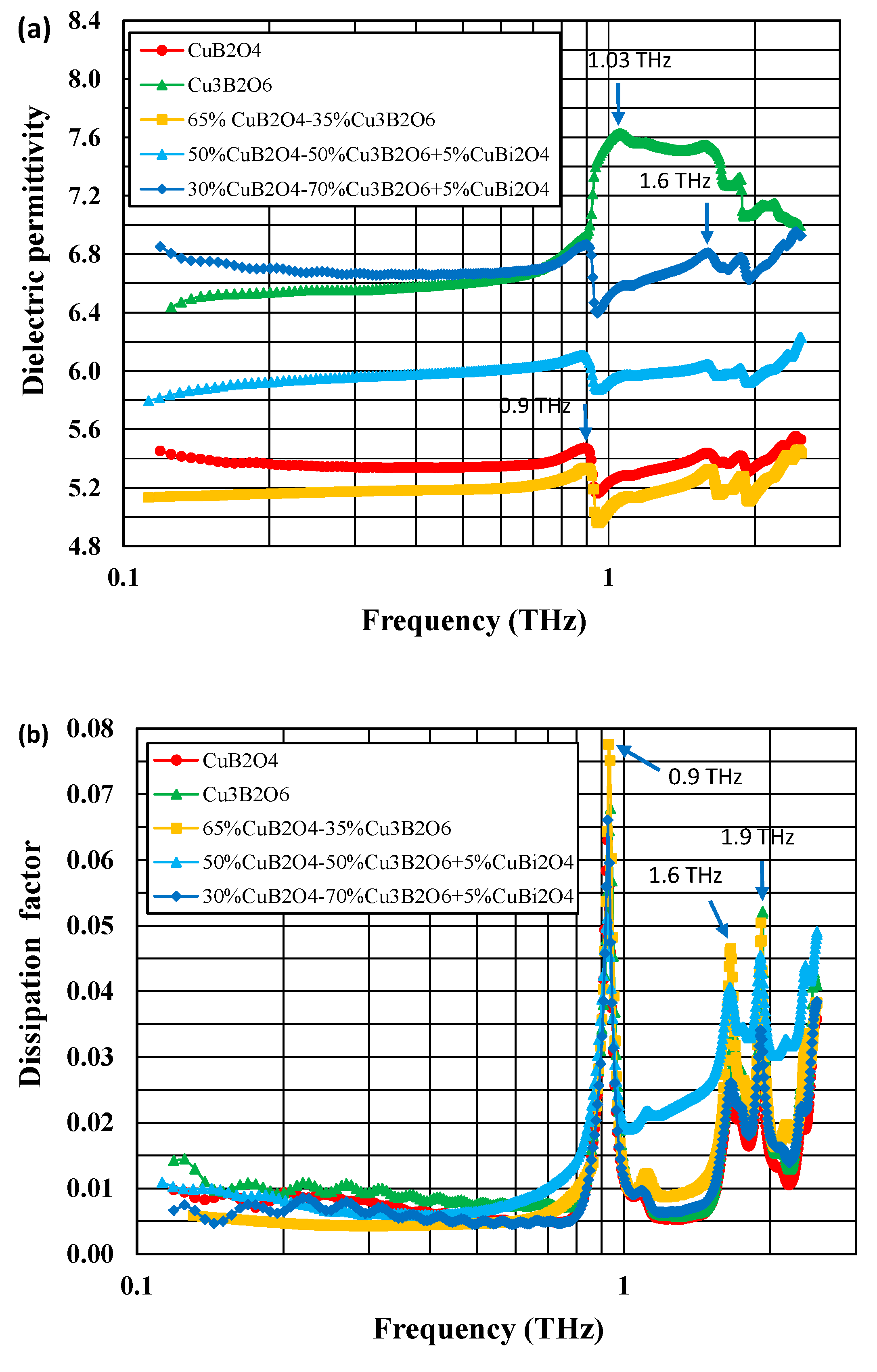

Figure 4. Comparison of dielectric permittivity (a) and dissipation factor (b) at 20 °C as a function of frequency in the range 0.12–2.5 THz for CuB2O4, Cu3B2O6, and CuB2O4–Cu3B2O6 ceramics.
Figure 4. Comparison of dielectric permittivity (a) and dissipation factor (b) at 20 °C as a function of frequency in the range 0.12–2.5 THz for CuB2O4, Cu3B2O6, and CuB2O4–Cu3B2O6 ceramics.
Materials 14 04017 g004
Materials 14 04017 g005 550
Figure 5. Comparison of dielectric permittivity (a) and dissipation factor (b) versus frequency in the range 0.12–2.5 THz for CuB2O4 ceramics sintered at 930, 940, and 950 °C.
Figure 5. Comparison of dielectric permittivity (a) and dissipation factor (b) versus frequency in the range 0.12–2.5 THz for CuB2O4 ceramics sintered at 930, 940, and 950 °C.
Materials 14 04017 g005
Materials 14 04017 g006 550

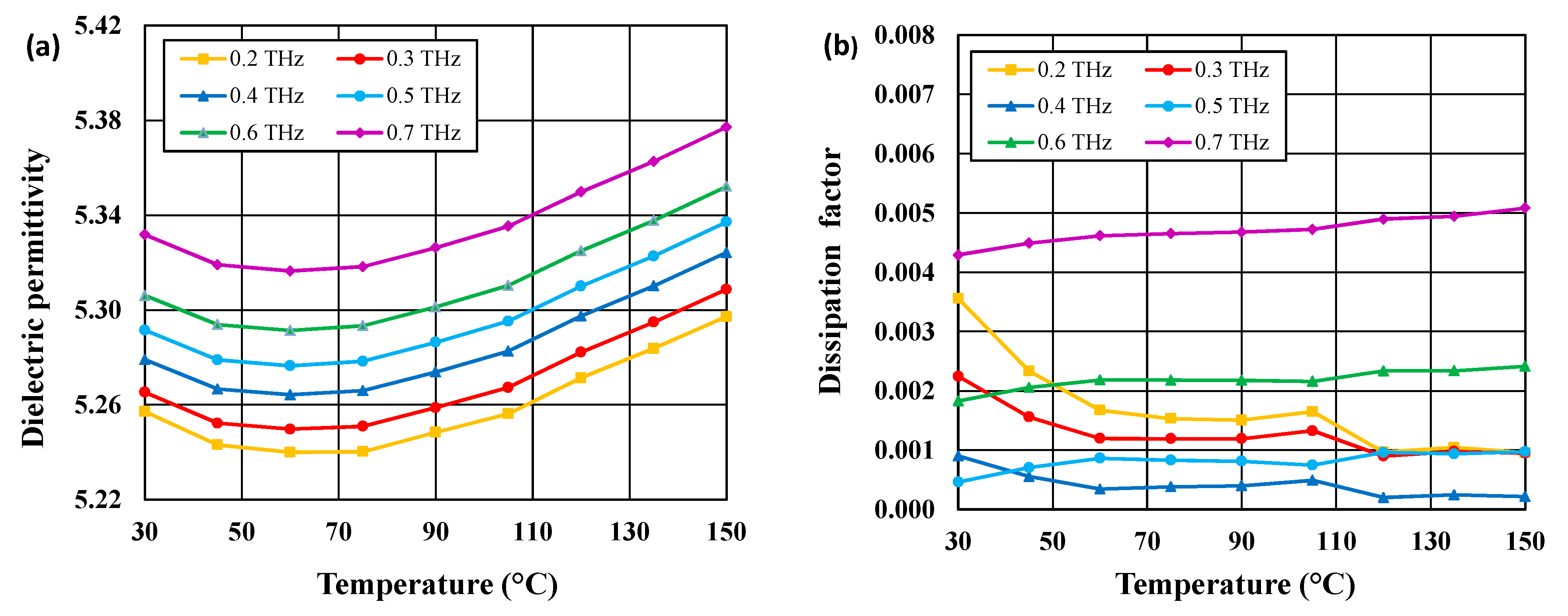

Figure 6. Comparison of dielectric permittivity (a) and dissipation factor (b) of CuB2O4 ceramic sintered at 940 °C as a function of temperature in the range 30–150 °C for a few frequencies in the 0.2–0.7 THz range.
Figure 6. Comparison of dielectric permittivity (a) and dissipation factor (b) of CuB2O4 ceramic sintered at 940 °C as a function of temperature in the range 30–150 °C for a few frequencies in the 0.2–0.7 THz range.
Materials 14 04017 g006
Table
Table 1. Results of EDS analysis at the points marked in Figure 3d for 30% CuB2O4–70% Cu3B2O6 ceramic doped with 5% CuBi2O4, sintered at 900 °C.
Table 1. Results of EDS analysis at the points marked in Figure 3d for 30% CuB2O4–70% Cu3B2O6 ceramic doped with 5% CuBi2O4, sintered at 900 °C.
Elementat. %
Point 1Point 2Point 3Point 4Point 5
B45.7626.0628.2031.6326.31
O31.4016.7525.1526.6517.11
Bi0.200.620.920.470.74
Cu22.6456.5745.7341.2555.84
Cu/B0.492.171.621.302.12
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Szwagierczak, D.; Synkiewicz-Musialska, B.; Kulawik, J.; Pałka, N. Sintering, Microstructure, and Dielectric Properties of Copper Borates for High Frequency LTCC Applications. Materials 2021, 14, 4017. https://doi.org/10.3390/ma14144017

AMA Style

Szwagierczak D, Synkiewicz-Musialska B, Kulawik J, Pałka N. Sintering, Microstructure, and Dielectric Properties of Copper Borates for High Frequency LTCC Applications. Materials. 2021; 14(14):4017. https://doi.org/10.3390/ma14144017

Chicago/Turabian Style

Szwagierczak, Dorota, Beata Synkiewicz-Musialska, Jan Kulawik, and Norbert Pałka. 2021. "Sintering, Microstructure, and Dielectric Properties of Copper Borates for High Frequency LTCC Applications" Materials 14, no. 14: 4017. https://doi.org/10.3390/ma14144017
