An Experimental and Empirical Study on the Use of Waste Marble Powder in Construction Material
Abstract
:1. Introduction
1.1. The Use of Various Types of Waste Materials in Clay Bricks
1.2. The Use of Rice Husk Ash
1.3. The Use of Rice Fly Ash, Silica Fume, Wood Dust, Slags and Dry Grass
1.4. The Use of Wood Ash, Marble Powder, and Other Types of Waste Powders
1.5. The Use of Glass Wastes
1.6. The Use of Natural Fibers
1.7. The Use of Marble Dust in Clay Bricks
1.8. The Use of Marble Powder in Cement-Based Materials
2. Research Significance

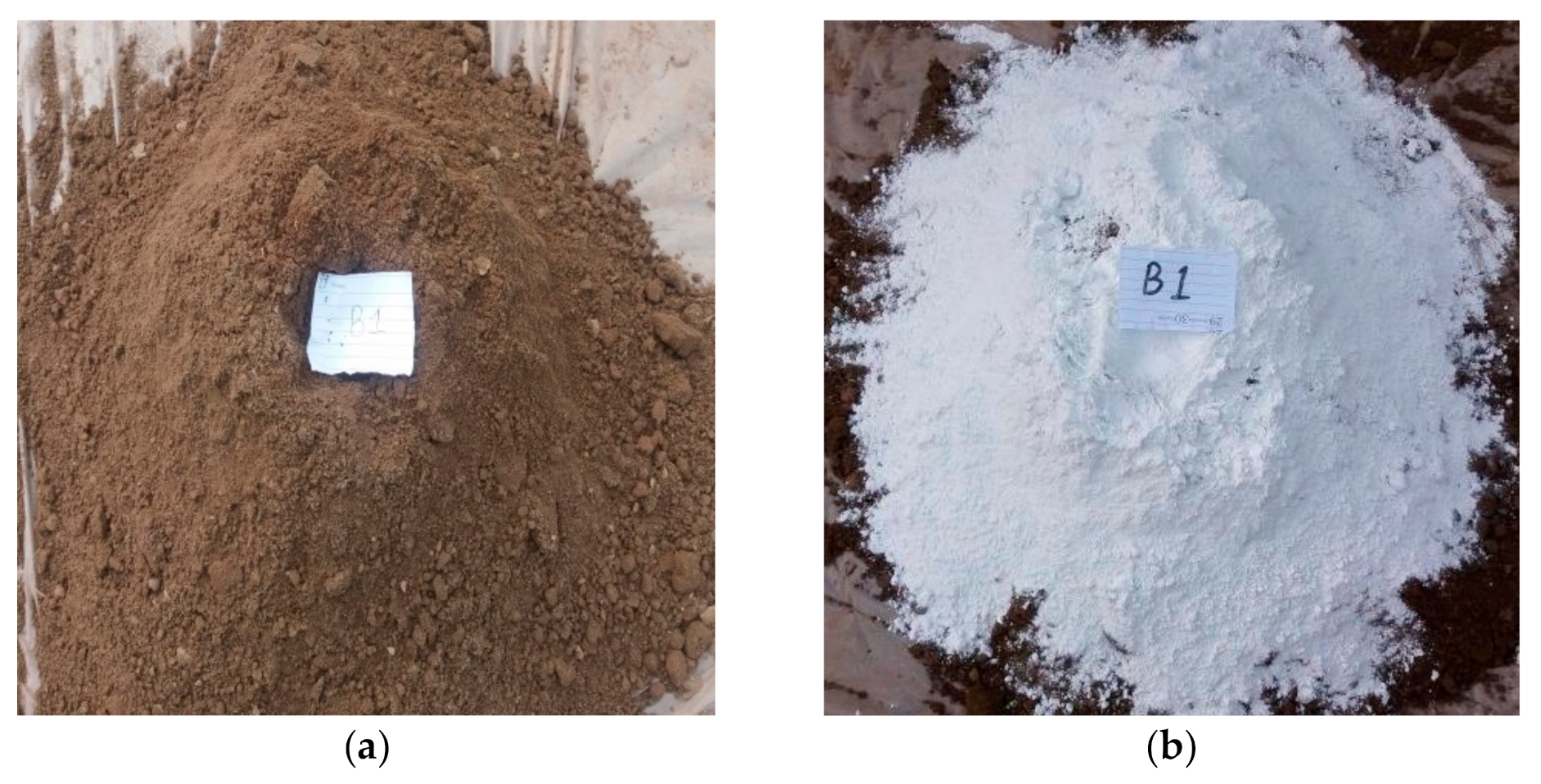

3. Materials and Experimental Methodology

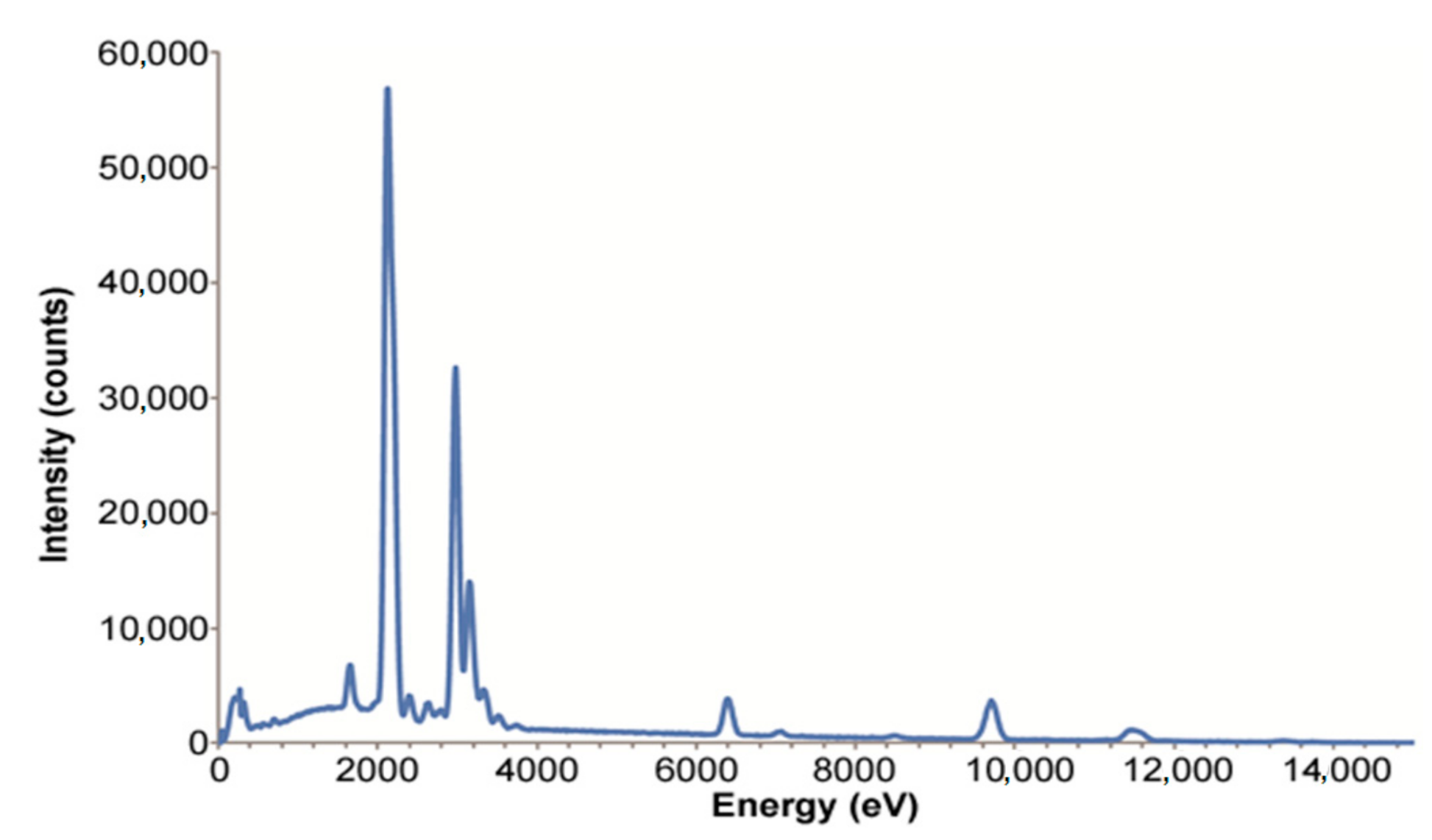

3.1. Energy Dispersive X-ray (EDX) Test of Marble Powder

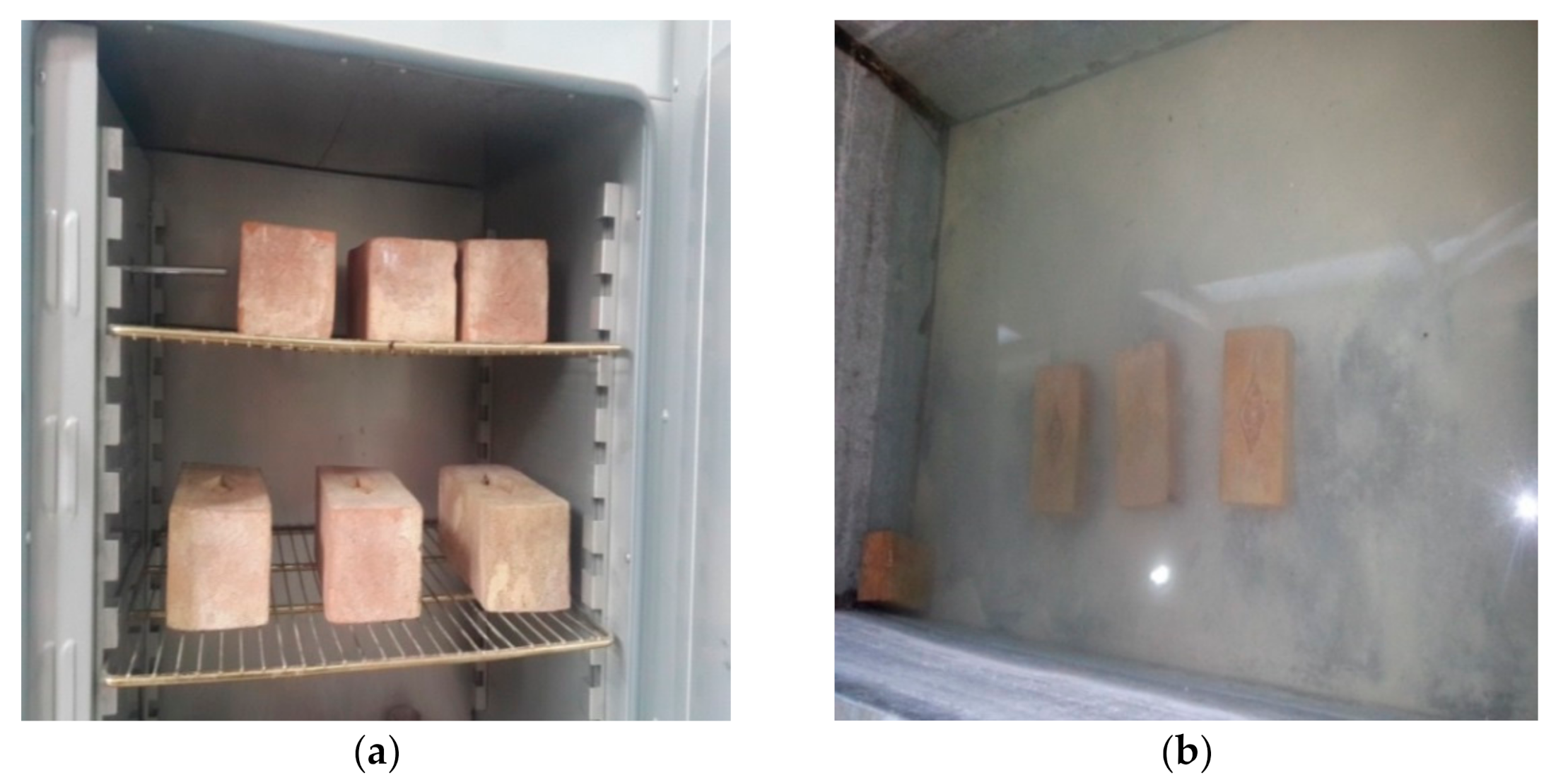

3.2. Water Absorption Test

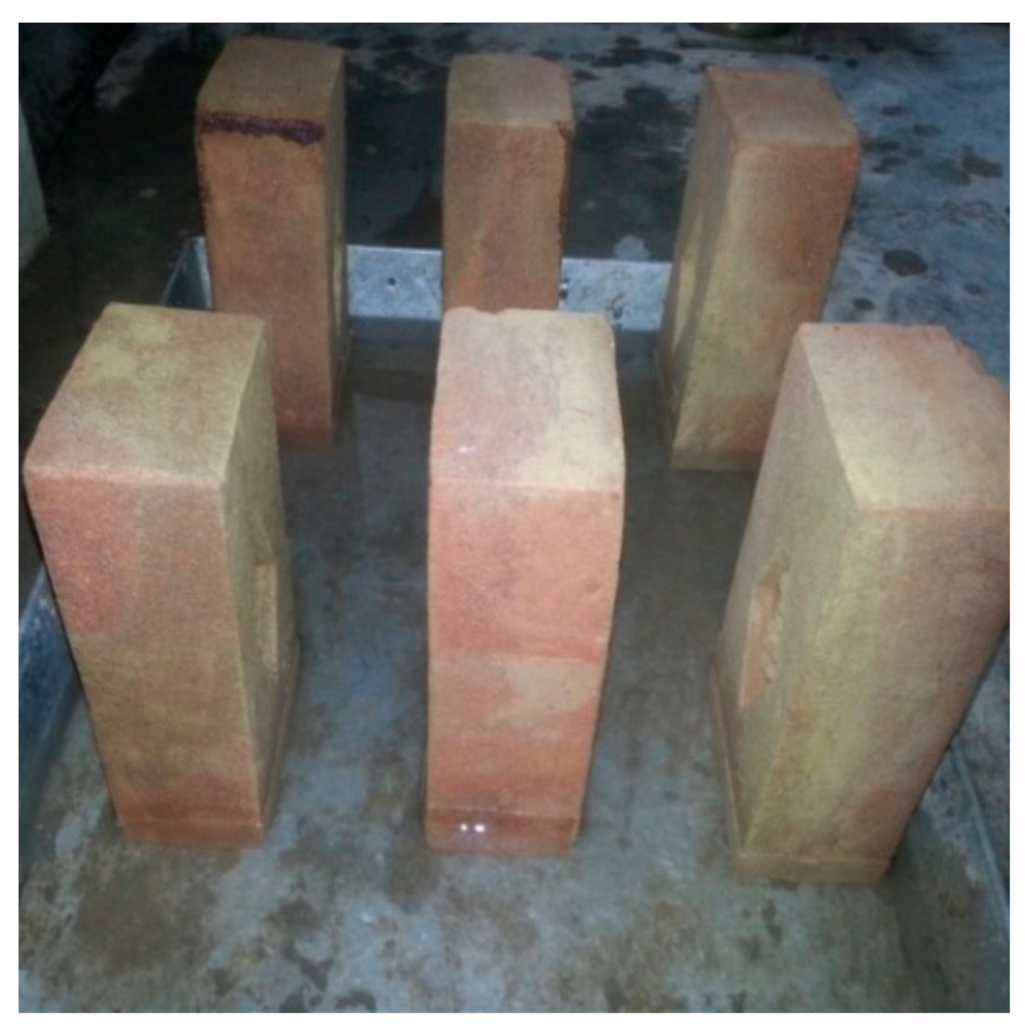

3.3. Efflorescence Test
3.4. Bulk Density Test
3.5. Porosity Test

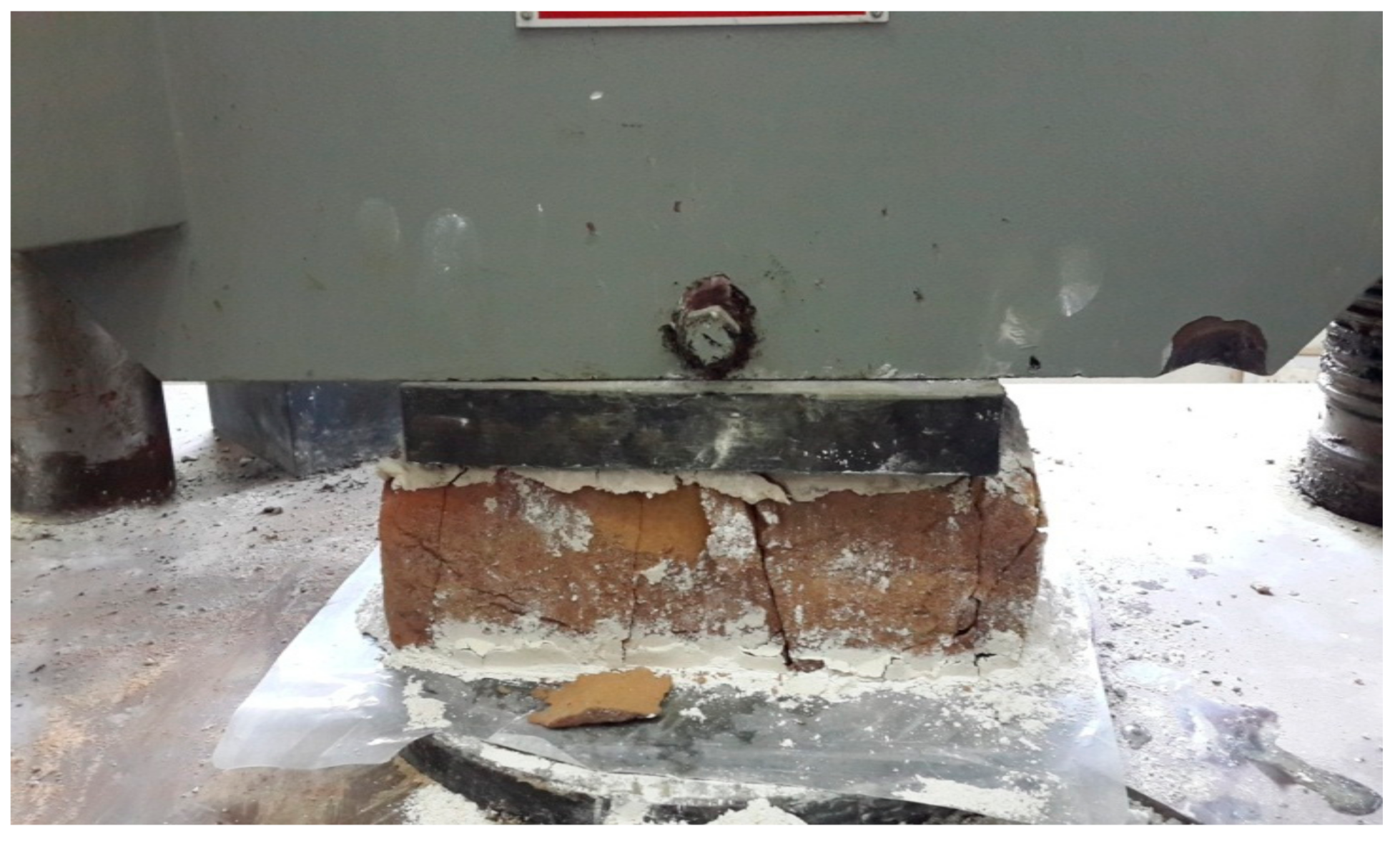

3.6. Compressive Strength Test
4. Test Results and Discussion

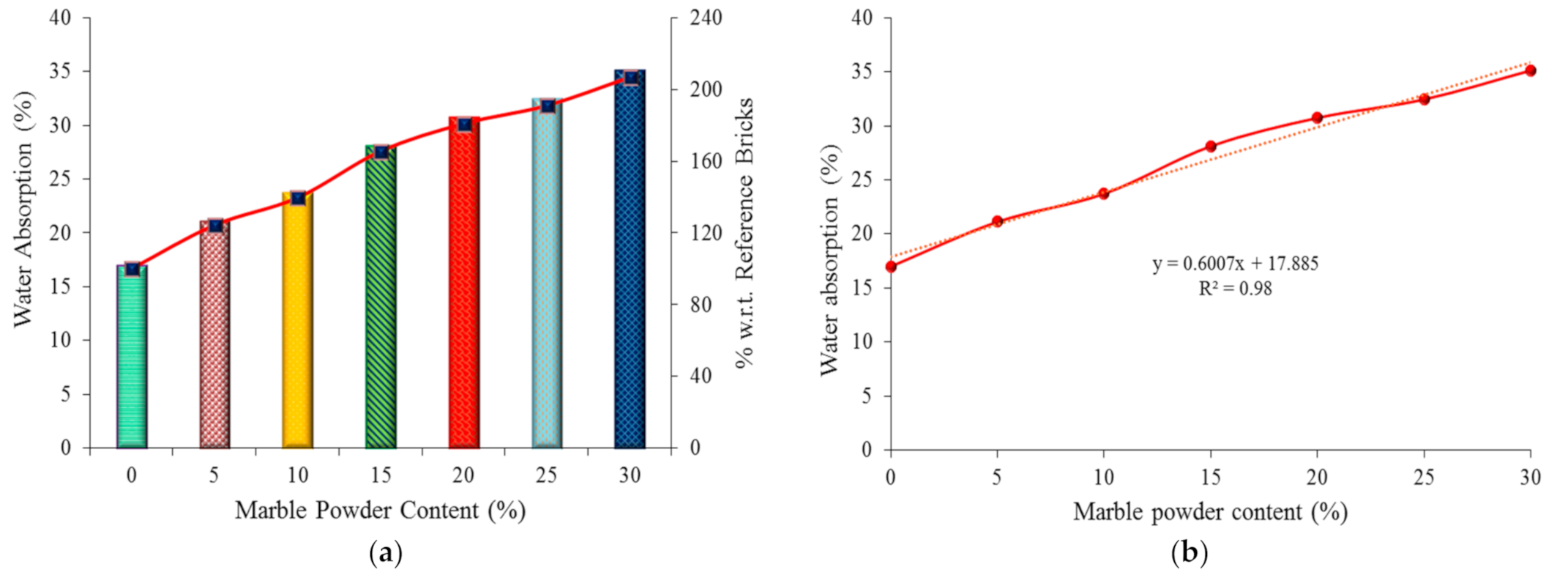

4.1. Water Absorption Test Results

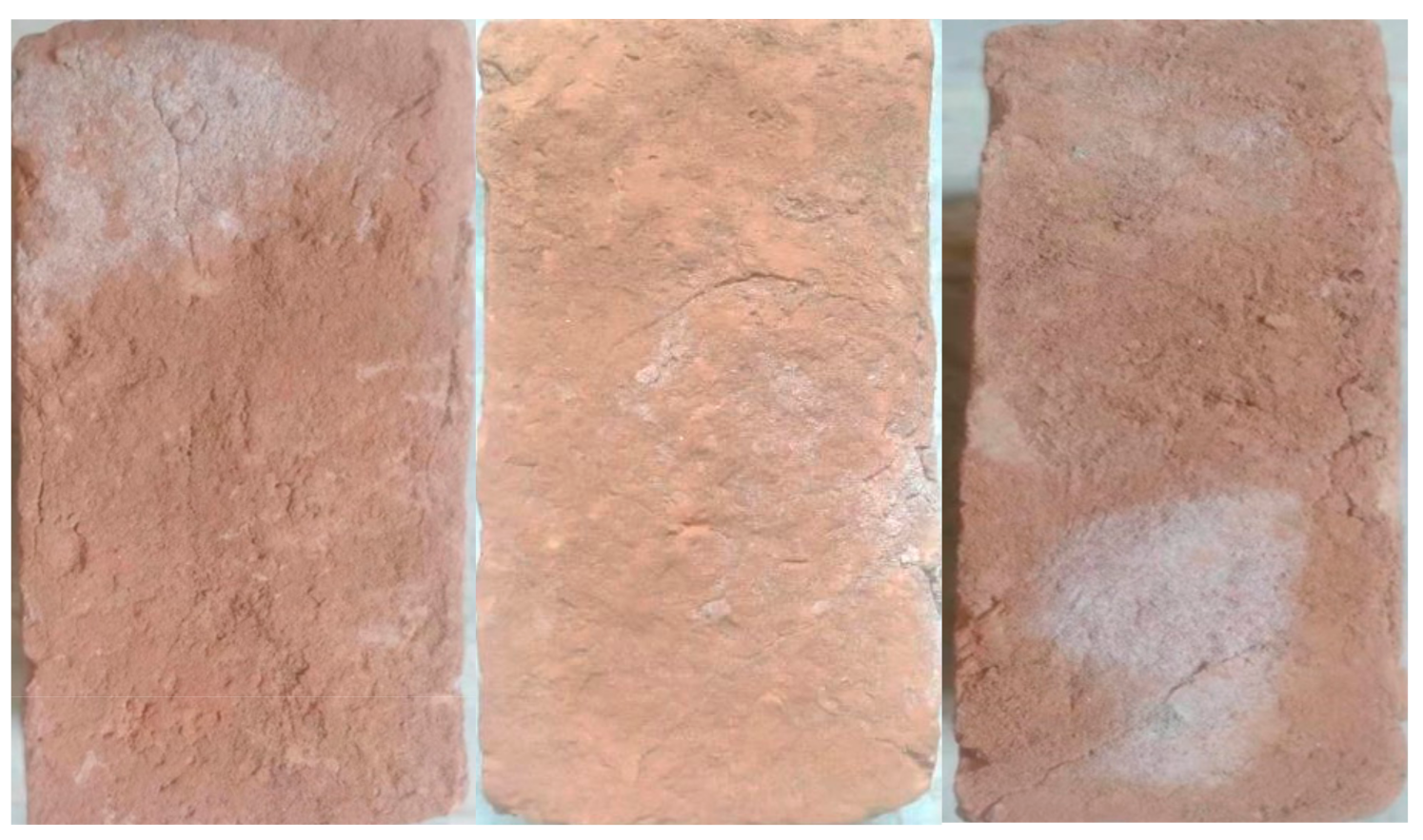

4.2. Efflorescence Test Results

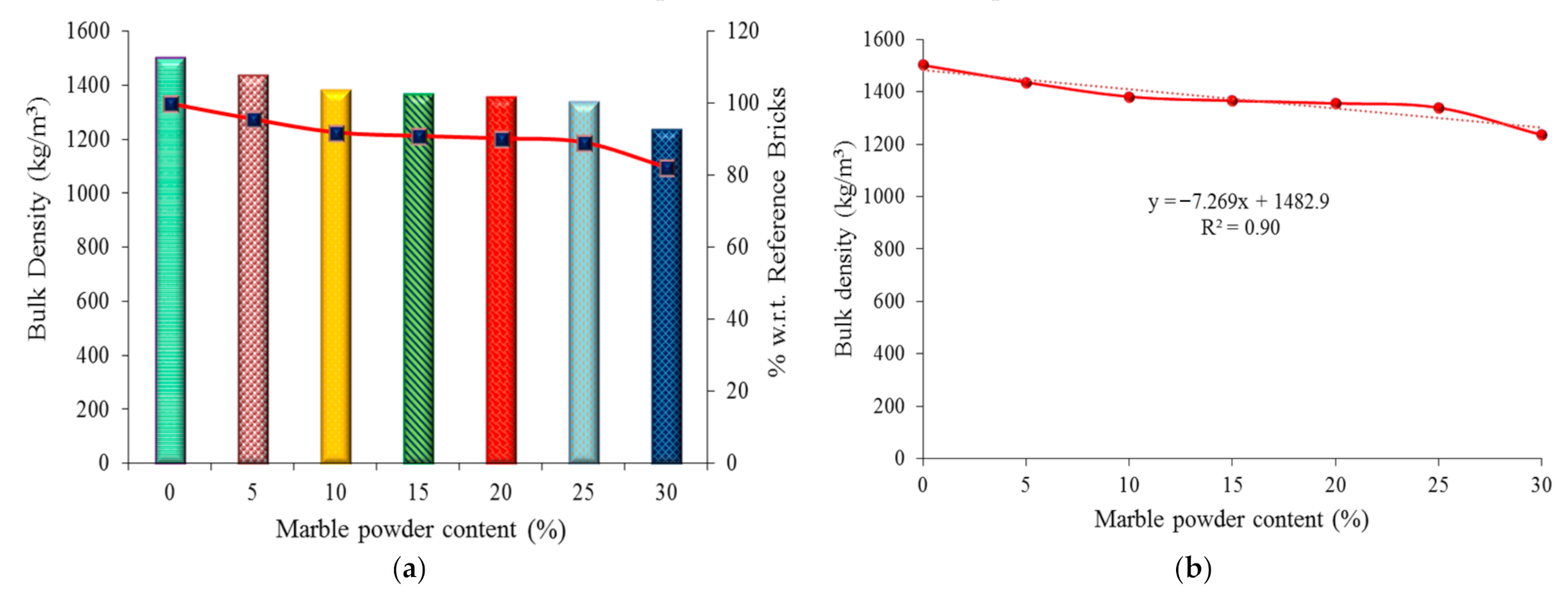

4.3. Bulk Density Test Results

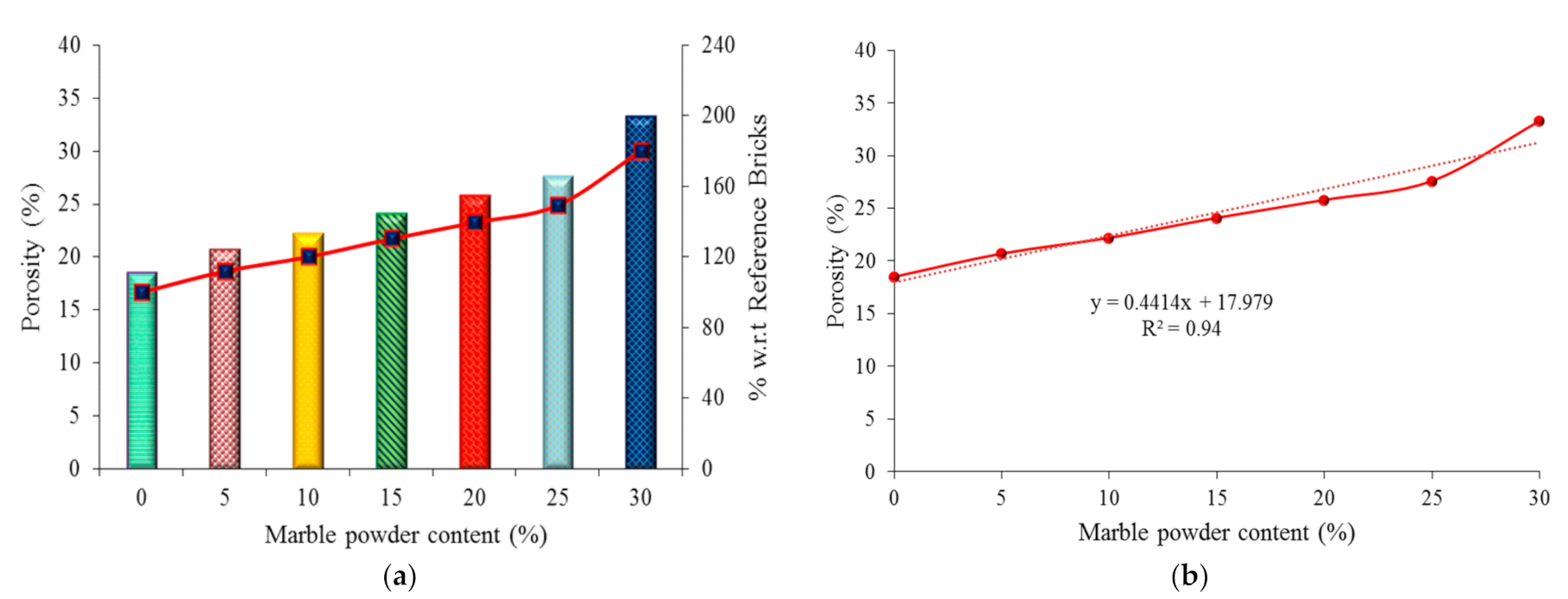

4.4. Porosity Test Results
4.5. Compressive Strength Test Results

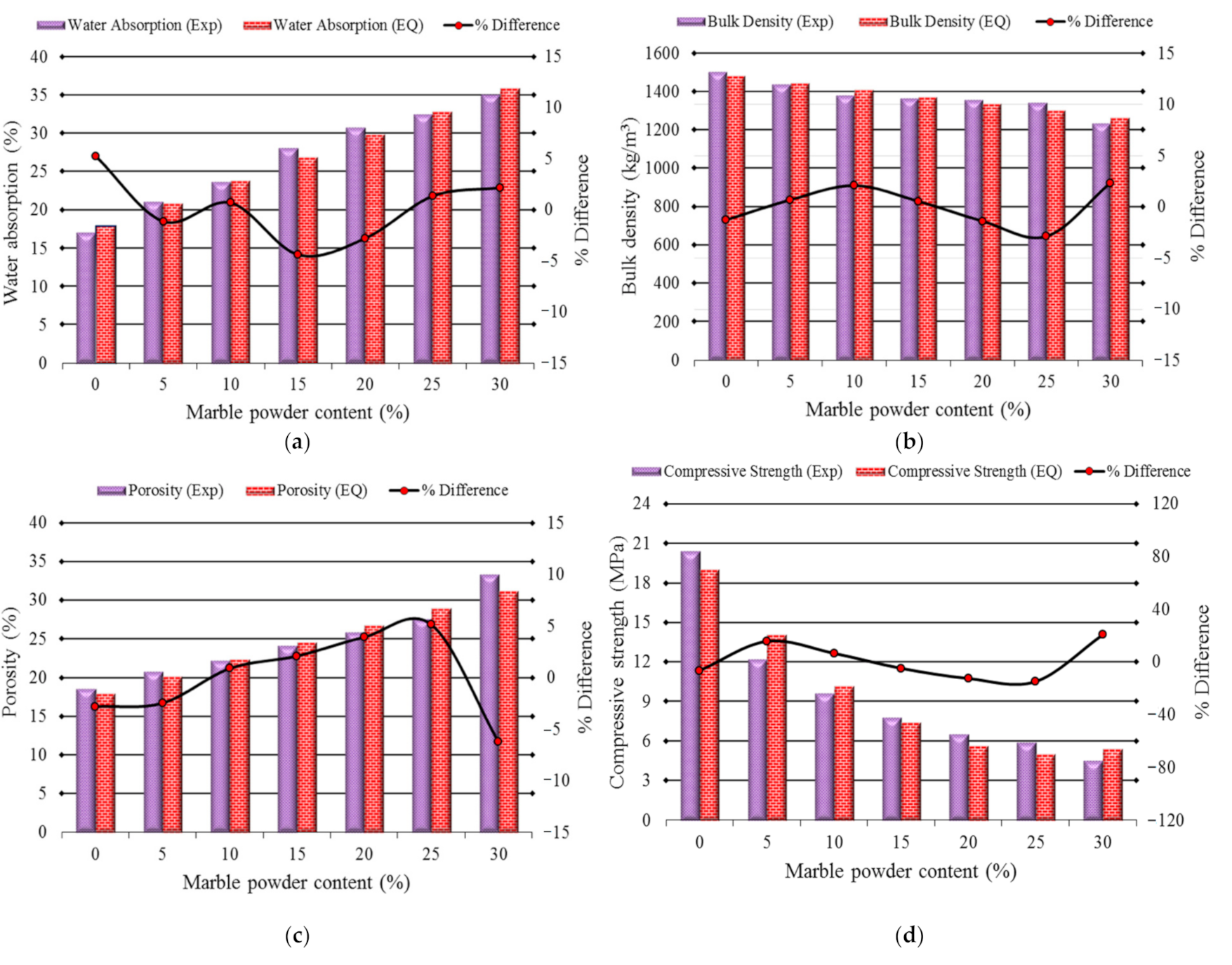

5. Comparison of the Experimental Results and Empirical Results
6. Application of Waste Marble Powder in Eco-Friendly Bricks
6.1. Practical Use of the Designed Bricks in the Construction Industry
6.2. Cost Comparison
7. Conclusions
- The water absorption capacity of the bricks increased with an increase in the content of marble powder.
- In general, the addition of marble waste to bricks does not significantly affect the amount of salt efflorescence. However, a minor effect of efflorescence was observed when 25% and 30% of marble powder was used in the bricks. The effect of efflorescence was related to the porosity of the bricks, i.e., if the bricks are porous, the effect of efflorescence will be more visible.
- The bulk density of the bricks declined with a rise in the amount of marble powder, causing the porosity to increase and the weight of the bricks to decrease.
- The amount of marble powder in clay bricks influences their compressive strength, i.e., as the percentage of marble powder in clay bricks increases, the compressive strength decreases due to increased porosity.
- The marble powder bricks were lighter in weight than the reference clay bricks. The weight of the bricks decreased as the marble powder content increased. This drop in the weight of the brick samples can result in a large savings for the construction industry, i.e., a higher quantity of bricks and lower structural load.
- The conducted empirical analysis showed a great compatibility with the laboratory test results regarding the following properties of bricks, i.e., water absorption, bulk density, porosity and compressive strength.
- Marble clay bricks can be used in emergency situations where high strength is not needed, such as refugee camps, emergency hospitals during flooding and earthquakes, street flooring, and pavements. In such situations, marble clay sustainable bricks with a 5% to 20% marble powder content as are suggested for use as a sustainable construction material.
- Due to high porosity, the water absorption capacity of marble bricks increased. Therefore, because of this property, it is recommended that marble bricks be used for construction in such areas and countries where the moisture rate in air is relatively low or the bricks are protected against moisture.
- The use of waste marble powder as a partial replacement for clay in the manufacturing of bricks is cost efficient, as the cost of bricks decreases with the inclusion of marble powder, which has a direct influence on project costs. This study suggests using 5% to 20% waste marble powder as a clay substitute, which reduces the cost of bricks by 1.6% to 6.3%, respectively.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- More, A. Marble Market Share and Size 2021 Global Growth, New Updates, Trends, Industry Expansion, Demand by Regions Opportunities. Available online: https://www.marketwatch.com/press-release/marble-market-size-2021-with-global-market-top-players-industry-share-trend-industry-news-business-growth-and-statistics-with-research-methodology-by-forecast-to-2024-2021-06-26 (accessed on 22 April 2021).
- Dodge, H. Decorative Stones for Architecture In The Roman Empire. Oxf. J. Archaeol. 1988, 7, 65–80. [Google Scholar] [CrossRef]
- TDAP A Report on Marble & Granite. 2010. Available online: https://www.scribd.com/document/154135371/Tdap-Report-on-Marble-and-Granite (accessed on 2 May 2021).
- Sütçü, M.; Alptekin, H.; Erdogmus, E.; Er, Y.; Gencel, O. Characteristics of fired clay bricks with waste marble powder addition as building materials. Constr. Build. Mater. 2015, 82, 1–8. [Google Scholar] [CrossRef]
- Demirel, B. The effect of the using waste marble dust as fine sand on the mechanical properties of the concrete. Phys. Sci. Int. J. 2010, 5, 1372–1380. [Google Scholar]
- Mann, H.S.; Brar, G.S.; Mann, K.S.; Mudahar, G.S. Experimental Investigation of Clay Fly Ash Bricks for Gamma-Ray Shielding. Nucl. Eng. Technol. 2016, 48, 1230–1236. [Google Scholar] [CrossRef] [Green Version]
- ERPS Kushwah. Disposal system of Marble Slurry for Clean and Green Environment. Int. J. Eng. Sci. Res. Technol. Sci. 2014, 3, 500–503. [Google Scholar]
- Shakir, A.A.; Naganathan, S.; Mustapha, K.N. Development of Bricks from Waste Material: A Review Paper. Aust. J. Basic Appl. Sci. 2013, 7, 812–818. [Google Scholar]
- Ma, B.; Wang, J.; Tan, H.; Li, X.; Cai, L.; Zhou, Y.; Chu, Z. Utilization of waste marble powder in cement-based materials by incorporating nano silica. Constr. Build. Mater. 2019, 211, 139–149. [Google Scholar] [CrossRef]
- Zia, A.; Khan, A.A. Effectiveness of Bagasse Ash for Performance Improvement of Asphalt Concrete Pavements. SN Appl. Sci. 2021, 3, 502. [Google Scholar] [CrossRef]
- Kadir, A.A.; Mohajerani, A. Bricks: An Excellent Building Material for Recycling Wastes—A Review. In Proceedings of the IASTED International Conference Environmental Management and Engineering, Banff, AB, Canada, 6–8 July 2011; pp. 108–115. [Google Scholar] [CrossRef] [Green Version]
- Velasco, P.M.; Ortiz, M.P.M.; Giró, M.M. Fired clay bricks manufactured by adding wastes as sustainable construction material—A review. Constr. Build. Mater. 2014, 63, 97–107. [Google Scholar] [CrossRef]
- Fernando, P.R. Experimental Investigation of the Effect of Fired Clay Brick on Partial Replacement of Rice Husk Ash (RHA) with Brick Clay. Adv. Recycl. Waste Manag. 2017, 2, 2–5. [Google Scholar]
- Rao, B.J. Effect of different Waste Materials Addition on the Properties of Clay Bricks. Int. J. Res. Appl. Sci. Eng. Technol. 2019, 7, 2552–2557. [Google Scholar] [CrossRef]
- Kadir, A.A.; Sarani, N.A. An Overview of Wastes Recycling in Fired Clay Bricks. Int. J. Integr. Eng. 2012, 4, 53–69. [Google Scholar]
- Zhang, L. Production of bricks from waste materials—A review. Constr. Build. Mater. 2013, 47, 643–655. [Google Scholar] [CrossRef]
- Baspinar, M.S.; Demir, I.; Orhan, M. Utilization potential of silica fume in fired clay bricks. Waste Manag. Res. 2010, 28, 149–157. [Google Scholar] [CrossRef]
- Abbas, S.; Saleem, M.A.; Kazmi, S.M.; Munir, M.J. Production of sustainable clay bricks using waste fly ash: Mechanical and durability properties. J. Build. Eng. 2017, 14, 7–14. [Google Scholar] [CrossRef]
- Phonphuak, N. Application of Dry Grass for Clay Brick Manufacturing. Key Eng. Mater. 2017, 757, 35–39. [Google Scholar] [CrossRef]
- Oorkalan, A.S.; Gopinath, V.; Abhilash, M.; Manikandan, P.U.H. Experimental investigations of bricks using ceramic powder, marble dust and wood ash. Int. Res. J. Eng. Technol. 2020, 7, 2914–2920. [Google Scholar]
- Ngayakamo, B.H.; Bello, A.; Onwualu, A.P. Development of eco-friendly fired clay bricks incorporated with granite and eggshell wastes. Environ. Chall. 2020, 1, 100006. [Google Scholar] [CrossRef]
- Xin, Y.; Mohajerani, A.; Kurmus, H.; Smith, J.V. Possible recycling of waste glass in sustainable fired clay bricks: A review. Int. J. 2021, 20, 57–64. [Google Scholar]
- Mobili, A.; Giosuè, C.; Tittarelli, F. Valorisation of GRP Dust Waste in Fired Clay Bricks. Adv. Civ. Eng. 2018, 2018, 1–9. [Google Scholar] [CrossRef]
- Kazmi, S.M.S.; Abbas, S.; Nehdi, M.L.; Saleem, M.A.; Munir, M.J. Feasibility of Using Waste Glass Sludge in Production of Ecofriendly Clay Bricks. J. Mater. Civ. Eng. 2017, 29, 04017056. [Google Scholar] [CrossRef]
- Zia, A.; Ali, M. Behaviour of fiber reinforced concrete in controlling the rate of cracking in canal-lining. Constr. Build. Mater. 2017, 155, 726–739. [Google Scholar] [CrossRef]
- Kadir, A.A.; Zulkifly, S.N.M.; Abdullah, M.M.A.B.; Sarani, N.A. The Utilization of Coconut Fibre into Fired Clay Brick. Key Eng. Mater. 2016, 673, 213–222. [Google Scholar] [CrossRef]
- Abdul Kadir, A.; Sarani, N.A.; Abd Kadir, S.A. Incorporation of Palm Kernel Shell into Fired Clay Brick. In Proceedings of the MATEC Web of Conferences, Bandung, Indonesia, 28–29 November 2017. [Google Scholar]
- Bilgin, N.; Yeprem, H.; Arslan, S.; Bilgin, A.; Günay, E.; Marşoglu, M. Use of waste marble powder in brick industry. Constr. Build. Mater. 2012, 29, 449–457. [Google Scholar] [CrossRef]
- Memon, N.A.; Abro, F.R.; Bhutto, M.A.; Sumadi, S.R. Marble powder as stabilizer in natural clayey soils. J. Sci. Int. 2015, 27, 4105–4110. [Google Scholar]
- Kannadason, R.; Ravindra, J. Effect of Partial Replacement of Marble Powder and Rice Husk Ash in Brick Material. Int. J. Emerg. Technol. Eng. Res. 2017, 5, 187–190. [Google Scholar]
- Kathiresan, M.; Gunasekar, M.; Sonia, M.T. Experimental study on manufacturing bricks by using marble sludge powder for acid resistance test. SSRG Int. J. Civ. Eng. 2017, 120–124. [Google Scholar]
- Seghir, N.T.; Mellas, M.; Sadowski, Ł.; Krolicka, A.; Żak, A.; Ostrowski, K. The Utilization of Waste Marble Dust as a Cement Replacement in Air-Cured Mortar. Sustainability 2019, 11, 2215. [Google Scholar] [CrossRef] [Green Version]
- Aarthi, G.M.; Arthi, S.; Ishwarya, S.K.S. Experimental Study on Fly Ash Bricks with Hollow Balls. Int. Res. J. Eng. Technol. 2020, 7, 798–802. [Google Scholar]
- Rehman, W.; Riaz, M.; Ishaq, M.; Faisal, M. Utilization of Marble Waste Slurry in the Preparation of Bricks. J. Pakistan Inst. Chem. Eng. 2014, 42, 47–54. [Google Scholar]
- Ashish, D.K. Concrete made with waste marble powder and supplementary cementitious material for sustainable development. J. Clean. Prod. 2019, 211, 716–729. [Google Scholar] [CrossRef]
- Singh, M.; Choudhary, K.; Srivastava, A.; Sangwan, K.S.; Bhunia, D. A study on environmental and economic impacts of using waste marble powder in concrete. J. Build. Eng. 2017, 13, 87–95. [Google Scholar] [CrossRef]
- Shah, M.; Usman, M.; Hanif, M.; Naseem, I.; Farooq, S. Utilization of Solid Waste from Brick Industry and Hydrated Lime in Self-Compacting Cement Pastes. Materials 2021, 14, 1109. [Google Scholar] [CrossRef] [PubMed]
- Li, L.; Huang, Z.; Tan, Y.; Kwan, A.; Liu, F. Use of marble dust as paste replacement for recycling waste and improving durability and dimensional stability of mortar. Constr. Build. Mater. 2018, 166, 423–432. [Google Scholar] [CrossRef]
- Sadek, D.M.; El-Attar, M.M.; Ali, H.A. Reusing of marble and granite powders in self-compacting concrete for sustainable development. J. Clean. Prod. 2016, 121, 19–32. [Google Scholar] [CrossRef]
- Rodrigues, R.; de Brito, J.; Sardinha, M. Mechanical properties of structural concrete containing very fine aggregates from marble cutting sludge. Constr. Build. Mater. 2015, 77, 349–356. [Google Scholar] [CrossRef]
- Talah, A.; Kharchi, F.; Chaid, R. Influence of Marble Powder on High Performance Concrete Behavior. Procedia Eng. 2015, 114, 685–690. [Google Scholar] [CrossRef] [Green Version]
- Aliabdo, A.A.; Elmoaty, A.E.M.A.; Auda, E.M. Re-use of waste marble dust in the production of cement and concrete. Constr. Build. Mater. 2014, 50, 28–41. [Google Scholar] [CrossRef]
- Elmaghraby, M.; Ismail, A. Utilization of Some Egyptian Waste Kaolinitic Sand as Grog for Bricks and Concrete. Silicon 2015, 8, 299–307. [Google Scholar] [CrossRef]
- Nandhini, K.; Karthikeyan, J.; Nandhini, K.; Karthikeyan, J. Influence of Industrial and Agricultural by-Products as Cementitious Blends in Self-Compacting Concrete—A Review. Silicon 2021, 1–22. [Google Scholar] [CrossRef]
- Rahim, H.U. Comparative Analysis of Soil Physio-Chemical Properties of Two Different Districts Peshawar and Swabi, KP, Pakistan. Int. J. Environ. Sci. Nat. Resour. 2017, 7, 7. [Google Scholar] [CrossRef] [Green Version]
- American Society for Testing and Materials. ASTM Committee C-15 on Manufactured Masonry Units. In Test Methods for Sampling and Testing Brick and Structural Clay; C15 Committee; ASTM Int.: West Conshohocken, PA, USA, 2008; pp. 1–12. [Google Scholar] [CrossRef]
- ASTM C134. Test Methods for Size, Dimensional Measurements, and Bulk Density of Refractory Brick and Insulating Firebrick; C08 Committee; ASTM Int.: West Conshohocken, PA, USA, 2016; Volume 95, pp. 1–4. [Google Scholar] [CrossRef]
- ASTM C20-00. Standard Test Methods for Apparent Porosity, Water Absorption, Apparent Specific Gravity, and Bulk Density of Burned Refractory Brick and Shapes by Boiling Water; ASTM Int.: West Conshohocken, PA, USA, 2015; pp. 1–3. [Google Scholar] [CrossRef]
- PN-B-12011:1997. Wyroby Budowlane Ceramiczne—Cegły Kratówki. Available online: https://sklep.pkn.pl/pn-b-12011-1997p.html (accessed on 20 June 2021).
- PN-EN 771-1. Requirements for Masonry Components—Part 1: Ceramic Masonry Components; iTeh Standards: Etobicoke, ON, Canada, 2011. [Google Scholar]
- Available online: https://pndajk.gov.pk/uploadfiles/downloads/brick%20works%2011.pdf (accessed on 20 June 2021).
Brick Groups | Number of Bricks | % of Marble by Weight | % of Clay by Weight | Marble Weight (kg) | Clay Weight (kg) |
---|---|---|---|---|---|
A | 15 | 0 | 100 | 0 | 50 |
B1 | 15 | 5 | 95 | 2.5 | 47.5 |
B2 | 15 | 10 | 90 | 5 | 45 |
B3 | 15 | 15 | 85 | 7.5 | 42.5 |
B4 | 15 | 20 | 80 | 10 | 40 |
B5 | 15 | 25 | 75 | 12.5 | 37.5 |
B6 | 15 | 30 | 70 | 15 | 35 |
Element | Weight % | Atomic % |
---|---|---|
CK | 11.40 | 18.33 |
OK | 53.66 | 64.76 |
MgK | 0.25 | 0.20 |
CaK | 34.69 | 16.71 |
Total | 100% | 99.80% |
Brick Sample | Marble Powder by Weight % | Clay by Weight % | Marble Powder Price per Ton of Mixture $ | Clay Price per Ton of Mixture (USD) | Total Cost of Mix per Ton (USD) |
---|---|---|---|---|---|
A | 0 | 100 | 0.0 | 92.90 | 92.90 |
B1 | 5 | 95 | 3.18 | 88.26 | 91.44 |
B2 | 10 | 90 | 6.36 | 83.61 | 89.97 |
B3 | 15 | 85 | 9.54 | 78.97 | 88.51 |
B4 | 20 | 80 | 12.72 | 74.32 | 87.04 |
B5 | 25 | 75 | 15.9 | 69.70 | 85.60 |
B6 | 30 | 70 | 19.08 | 65.03 | 84.11 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Sufian, M.; Ullah, S.; Ostrowski, K.A.; Ahmad, A.; Zia, A.; Śliwa-Wieczorek, K.; Siddiq, M.; Awan, A.A. An Experimental and Empirical Study on the Use of Waste Marble Powder in Construction Material. Materials 2021, 14, 3829. https://doi.org/10.3390/ma14143829
Sufian M, Ullah S, Ostrowski KA, Ahmad A, Zia A, Śliwa-Wieczorek K, Siddiq M, Awan AA. An Experimental and Empirical Study on the Use of Waste Marble Powder in Construction Material. Materials. 2021; 14(14):3829. https://doi.org/10.3390/ma14143829
Chicago/Turabian StyleSufian, Muhammad, Safi Ullah, Krzysztof Adam Ostrowski, Ayaz Ahmad, Asad Zia, Klaudia Śliwa-Wieczorek, Muhammad Siddiq, and Arsam Ahmad Awan. 2021. "An Experimental and Empirical Study on the Use of Waste Marble Powder in Construction Material" Materials 14, no. 14: 3829. https://doi.org/10.3390/ma14143829
