Review

Recent Progress in Cathode Materials for Sodium-Metal Halide Batteries

by
Xiaowen Zhan
1,†,
Minyuan M. Li
2,†,
J. Mark Weller
2,†,
Vincent L. Sprenkle
2 and
Guosheng Li
2,*
1
College of Chemistry & Chemical Engineering, Anhui University, Hefei 230601, China
2
Battery Materials and Systems Group, Pacific Northwest National Laboratory, Richland, WA 99352, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to the manuscript.
Materials 2021, 14(12), 3260; https://doi.org/10.3390/ma14123260
Submission received: 22 May 2021 / Revised: 4 June 2021 / Accepted: 8 June 2021 / Published: 12 June 2021
(This article belongs to the Special Issue Battery Technology and Materials Development for Grid Energy Storage)
Browse Figures
Versions Notes

Abstract

:
Transitioning from fossil fuels to renewable energy sources is a critical goal to address greenhouse gas emissions and climate change. Major improvements have made wind and solar power increasingly cost-competitive with fossil fuels. However, the inherent intermittency of renewable power sources motivates pairing these resources with energy storage. Electrochemical energy storage in batteries is widely used in many fields and increasingly for grid-level storage, but current battery technologies still fall short of performance, safety, and cost. This review focuses on sodium metal halide (Na-MH) batteries, such as the well-known Na-NiCl2 battery, as a promising solution to safe and economical grid-level energy storage. Important features of conventional Na-MH batteries are discussed, and recent literature on the development of intermediate-temperature, low-cost cathodes for Na-MH batteries is highlighted. By employing lower cost metal halides (e.g., FeCl2, and ZnCl2, etc.) in the cathode and operating at lower temperatures (e.g., 190 °C vs. 280 °C), new Na-MH batteries have the potential to offer comparable performance at much lower overall costs, providing an exciting alternative technology to enable widespread adoption of renewables-plus-storage for the grid.

1. Introduction

Mass deployment of renewable energy is crucial to achieve ambitious net-zero power generation in the 21st century. While renewables such as wind and solar are increasingly cost-competitive with conventional fossil-fuel-based power generation, intermittency precludes straightforward incorporation into the current power grid and can even potentially destabilize it with supply/demand mismatch (e.g., >20% in supply), leading to negative pricing and wasted power [1]. These factors motivate large-scale, and potentially long-duration, energy storage coupled with renewable electricity production, which can improve revenue generation by storing electricity during low-demand periods and delivering it to the grid during high-demand periods [2]. Of the various energy storage technologies available, electrochemical energy storage is the most generally deployable, not requiring specific geography like pumped hydro or compressed air energy storage and has a wide range of chemistries allowing tuning of energy or power density for the desired application [1,3].
Unfortunately, most electrochemical energy storage technologies coupled to a renewable power source are not economically competitive with fossil fuels at present. A recent technoeconomic analysis indicates that energy storage capacity with a cost less than $20 per kilowatt-hour (kWh) is required for meeting 100% of demand with renewables [3]. If demand only needs to be met 95% of the time, a more achievable but still very low cost of $150 per kWh for energy storage capacity is feasible [3]. Various electrochemical energy storage technologies are being investigated for grid-level storage, including common low-temperature batteries such as lead-acid batteries, redox-flow batteries (RFB), and lithium-ion batteries (LIB) [1,4,5]. Others include high-temperature batteries utilizing molten Li anodes such as Li-S or Li metal-halide (Li-MH) batteries [6,7,8,9] or molten Na anodes such as Na-S or Na-MH (sometimes called ZEBRA [10,11]) batteries [1,4,5,12]. Among these battery technologies, conventional LIBs have been widely used in various consumer electronics and electrical vehicle applications owing to their high energy density, and they heavily dominate current grid scale demonstrations worldwide. However, LIBs rely on scarce raw materials and have major safety concerns associated with the reactivity and flammability of the organic electrolyte, which call into question the viability of large-scale deployment. Thus, identifying new battery technologies that maximize energy density, rely on inexpensive, Earth-abundant materials, and offer high battery safety, is crucial to enable substantial grid decarbonization and widespread use of renewables. Therefore, targeted development of electrochemical energy storage technologies with both performance and economics in view is needed.
Na-based batteries are of particular interest due to relatively high cell voltages (~2 and 2.58 V vs. Na/Na+ for Na-S and Na-NiCl2, respectively), high theoretical specific energy densities (~790 W h kg−1), and the abundance of Na and other components used in the batteries [1,12,13,14]. Both Na-S and Na-MH batteries most commonly use a tubular β″-Al2O3 solid-electrolyte (BASE) separator to separate molten Na from the cathode material (Figure 1). Na-S batteries use molten S /Na2Sx as the cathode, whereas Na-MH batteries use a metal halide cathode and NaAlCl4 as a secondary electrolyte [15,16]. In both cases, high temperatures (265 C for Na-NiCl2, and 350 C for Na-S) are required to promote high ionic conductivity through BASE and enable redox reactions, such as melting sulfur or polysulfides at the cathode and wetting of metallic sodium at the anode. While both types of Na batteries are of technological interest, Na-MH batteries such as Na-NiCl2 batteries are particularly promising due to their inherent safety in the case of cell failure relative to Na-S batteries [10,11,12,15,16], the less corrosive nature of the active materials compared to S and polysulfides [12], and the ability to assemble cells in the discharged state [10,11,15,16].
Despite great interest in high-temperature Na batteries, both Na-S and Na-MH batteries are hindered from widespread adoption in grid-level energy storage. Current variations of these batteries using a tubular BASE electrolyte require complex ceramic fabrication process [10,11,15,16]. Further, the materials of construction for containment of the electrode materials, current collectors, and sealing tend to be expensive due to the corrosive nature of the cell components, particularly reactive S/Na2Sx and NaAlCl4 used in Na-S and Na-MH batteries, respectively [1,3,13]. Materials for hermetic sealing of the cell must not only resist corrosion, but also be tolerant of high continuous operating temperatures, which imposes further costs on cell sealing components (glass seals and thermal compression bonding, etc.) and fabrication/processing [4,13,17].
While Na-MH batteries using Ni are promising, the high cost of Ni is a hindrance for further developing cost-effective battery systems. Some researchers have focused on reducing the amount of Ni required for Na-NiCl2 batteries by using ‘Ni-less’ batteries at low temperatures [18], as well as using carbon-Ni composites such as Ni-coated graphite [17] or carbon nanowires [19]. Further, cathode degradation due to Ni particle coarsening can severely limit the cycle life of Na-NiCl2 batteries [20]. This fact has prompted some researchers to use more complex cathode materials such as Ni nanowires, which can improve cycle life but can be expected to be more costly than conventional Ni powder [21]. Recently, Li et al. demonstrated that cathode degradation in Na-NiCl2 batteries can be easily mitigated by operating at a lower temperature (i.e., 190 °C vs. 280 °C), without requiring complex forms of Ni in the cathode [20,22]. In addition to improved cycle life, lower operating temperatures can improve resistance to hot corrosion [4] of cell components as well as enable less expensive materials of construction such as polymer seals instead of glass seals that can operate at lower temperatures [23]. On the other hand, many cost-related challenges with Ni-based Na-MH batteries can be effectively mitigated by replacing Ni with less expensive metals such as Zn [24,25] or Fe [26,27].
Finally, new cell designs based on simple planar geometry along with inexpensive surface treatments [28] effectively mitigate the problem of poor Na-wetting on the solid electrolyte at low temperatures, and also make scalable fabrication of the BASE electrolyte easier, requiring e.g., a simple tape-casting process [20] rather than complex processing of tubular electrolytes [10,11,12,13]. With these major challenges solved, intermediate-temperature, low-cost Na-MH batteries provide new opportunities for scalable, inexpensive, grid-level energy storage to address the urgent need for increased utilization of renewables and their effective incorporation. This review aims to highlight some of the recent work on intermediate-temperature Na-MH battery chemistries, focusing on Ni, as well as low-cost Fe-, Cu-, and Zn-based cathode chemistries that will be crucial to reach the low-cost targets to unlock economical and scalable electrochemical energy storage.

2. Ni-Based Cathode Materials for Na-MH Battery Systems

2.1. Basic Working Principle

As far as 40 years ago, safety issues in developing high-temperature Na-S batteries prompted active investigation into new cathode materials. While similar corrosion problems persisted, a secondary cell with SCl4 cathode in molten NaAlCl4 showed attractive energy density and higher battery safety [29]. In 1986, Coetzer et al. reported ZEBRA batteries with transition metal halides as the cathodes in a NaAlCl4 secondary electrolyte (m.p. 157 °C), which transported Na+ between the active materials and solid-state electrolytes [30]. The solid metal halides were more stable and less corrosive at high temperatures, resolving multiple problems in the Na-S system. Among all metal halides (NiCl2, FeCl2, ZnCl2, CuCl2, etc.) compatible with the ZEBRA battery concept, the Na-NiCl2 battery has been most widely studied. It was a promising candidate for large-scale energy storage application, with the overall redox reaction below with E0 = 2.58 V at 300 °C (Equation (1)) [30,31].
2NaCl + Ni (discharged state) ⇄ 2Na + NiCl2 (charged state),
To circumvent the handling of anhydrous nickel chloride and highly reactive sodium associated with the charged state, a typical Na-NiCl2 battery is usually assembled in the discharged state with nickel powder, sodium chloride, sodium tetrachloroaluminate, and a few additives [10,11]. During charging, Na+ ions diffuse through the β”-Al2O3 solid electrolyte (BASE) and are reduced at the anode side as sodium metal. On the cathode side, oxidized NiCl2 coats the Ni surface. During discharging, Na+ ions shuttle back through the BASE electrolyte and form NaCl with Cl− ions from NiCl2 concurrent with reduction of NiCl2 to Ni.

2.2. Electrochemical Mechanism and Additives

To take advantage of the high cell voltage, superior energy efficiency, simple assembly, and good cycle life of a Na-NiCl2 battery, research efforts have explored the electrochemical mechanism of Na-NiCl2 cells in depth and identified factors limiting the cycling performance, including passivation from nickel chloride [22,32], dissolution loss of nickel in the NaAlCl4 melt [32], and capacity decline due to Ni/NaCl particle growth. In response, various chemical additives were introduced.
Bones et al. witnessed severe early capacity loss at 250 °C (~50% in <10 cycles), which related to the growth of the nickel grains [33]. At the same time, they found that sulfur additive in NaAlCl4 melt could develop an active, metallic phase with high surface area on the cathode. As a result, the long-term cyclability improved, retaining >75% of capacity over 2000 cycles with a negligible increase in the cell resistance [33]. Ratnakumar et al. verified the effect of sulfur additives on limiting Ni growth during cycling and determined the optimal amount between 0.5 and 1.0 wt.% [34]. Prakash et al. identified the nickel chloride layer formation during charging as another factor in the nickel cathode degradation [35]. Although the NiCl2 layer initially increased the area capacity of a nonporous nickel electrode by decreasing the impedance between 200 °C and 225 °C, the highly resistive surface layer ultimately led to an accumulation of unutilized NaCl in the chloroaluminate melt and limited the areal capacity at higher temperatures.
In addition to sulfur, researchers explored other additives including NaI/NaBr, Al, FeS, and Ni3S2. By doping the NaAlCl4 melt with NaI or NaBr, NiBr2 or NiI2 with larger lattice parameters than NiCl2 formed in the surface layer. Those surface phases could offer faster mass transport and in turn improve the nickel utilization [32].
Al participated in the electrochemical reaction at around 1.58 V (Figure 2a,b) and alleviated the sudden polarization at the end-of-discharge by the following reaction, (Equation (2))
4NaCl + Al ⇄ 3Na + NaAlCl4,
Furthermore, the dissolution of Al via Equation (2) left fine pores inside the cathode, which enhanced high-rate performance of the Na-NiCl2 battery [11].
FeS showed signature intermediate plateaus in the voltage profile (Figure 2a,b) and could stabilize the nickel grain size similar to elemental sulfur additives [11]. Li et al. systematically investigated the role of FeS in initial activation and subsequent degradation in Na-NiCl2 cells. Figure 2c,d shows the first-cycle charge-discharge curves of cells with no FeS (0X) and 1 mol% FeS (1X) loadings. The voltage of a cell without FeS quickly rose to 2.8 V at 10 mA, with no observed plateau at ~2.6 V corresponding to Ni/Ni2+. X-ray photoelectron spectroscopy (XPS) analysis on raw Ni powder indicated a passivating surface layer (oxides and hydroxides), which not only increased the ohmic resistance but also decreased the electrochemically active surface area (Figure 2e,f). The addition of FeS largely removed the passivation layer on Ni powder during the low-current charging period, indicated by the shrinking peaks of Ni2+ species in XPS. The formation of polysulfide species likely accounted for the surface activation. An optimal level of FeS was necessary to remove surface passivation completely while not inducing Ni particle growth that would later hinder cell performance [36].
Recently, Ao et al. [37,38] showed that the surface modification of Ni powder by Ni3S2, from either S or Ni3S2, can mitigate Ni particle aggregation and promote reversibility. The proposed self-repairing process and mitigation to Ni particle growth relied on in situ Ni3S2 surface layer formation, schematically illustrated in Figure 3. Although more added sulfur led to the longer sustained self-repairing in the cathode, the layer thickness in excess would degrade cycle performance, owing to the poor electrical conductivity of sulfur and Ni3S2 [38].

2.3. Effects of Operating Temperature and Electrode Morphology

The operating temperature and electrode morphology were two key aspects dictating the interfacial solid–solid conversion, an interplay of thermodynamic and kinetic forces behind performance optimization. Early study by Hosseinifar et al. correlated the performance and aging of ZEBRA cells with operating temperatures of 260 °C and 350 °C [39]. At 350 °C, a combination of high temperature, accelerated NiCl2 dissolution in molten NaAlCl4, and the formation of the Ni3S2 phase enabled nickel grain growth, which resulted in a significant capacity loss. Lu et al. constructed a planar-type Na-NiCl2 cell that could be cycled at C/3 at a low temperature of 175 °C [40]. Despite the mitigated particle growth, high cell resistance and thus large cell polarization appeared, arising from either slow Na+ transport within the NaAlCl4 melt or poor wettability of sodium on the BASE at lower operating temperatures.
Later, Li et al. demonstrated that a planar Na-NiCl2 battery operating at an intermediate temperature of 190 °C with ultra-high energy density (Figure 4) [20]. Discharged at C/5, the cell showed a capacity increase for the first 100 cycles before stabilizing at 137 mAh/g. In contrast, the cell cycled at 280 °C, despite a high initial capacity, exhibited major capacity fading after 100 cycles. Furthermore, the intermediate-temperature cell delivered an impressive energy density of 350 Wh/kg over 1000 cycles with negligible capacity decay. The higher initial capacity observed at 280 °C than at 190 °C was ascribed to the better sodium wetting on the BASE. From the voltage profiles vs. state of charge (SOC) (Figure 4a,b), the cell operated at 280 °C had a stable SOC at end of discharge (SOCEOD). However, its SOC at end of charge (SOCEOC) dropped rapidly over 200 cycles, indicating that cathode degradation was mainly responsible for capacity fade. This assertion was further supported by morphology analysis using scanning electron microscopy (SEM) with energy dispersive X-ray (EDX) spectroscopy, where the particle growth of both NaCl and Ni at 280 °C was much faster than at 190 °C (Figure 4c,d). Conceptually, lower operating temperatures would not only decrease the solubilities of cathode materials (NaCl and NiCl2) but also the diffusion coefficients of the corresponding ions, due to an increased viscosity of the melt. This combined effect hampers diffusion-influenced growth [41]. As a result, Ostwald ripening, previously identified as the underlying particle growth mechanism at 280 °C [22], is significantly suppressed at lower operating temperatures to maintain metal grain size and prolong cell life [20].
Since Na-MH batteries rely on solid–solid conversion chemistry, a large, active cathode interface between NaCl and Ni is important to achieve good electrochemical performance. Prakash et al. investigated three different cathode morphologies (a nonporous nickel substrate, a nickel felt, and a porous sintered nickel electrode) and achieved the best cell performance with the porous sintered electrode. They demonstrated that both surface area and the pore accessibility were critical to performance optimization [42]. Kim et al. compared the electrochemical performance of Na-NiCl2 cells using Ni powders with different initial particle sizes (0.5, 6, and 30 µm), showing that smaller particle size (i.e., larger surface area) allowed higher initial charge capacities and more complete utilization of the NaCl [43]. However, capacity fade occurred quickly in cells initially assembled in the discharged state with smaller Ni particles, apparently resulting from particles becoming disconnected from the electron conduction framework due to volume expansion from the formation of surface NiCl2 on charging followed by volume contraction on the reduction back to Ni [43]. This problem was mitigated by using ‘reticular’ Ni to maintain the large surface area of the active material while ensuring an interconnected electron conducting framework.
Li et al. carried out extensive studies of the cell performance in correlation to morphology evolution of NaCl and Ni particles, by varying Ni/NaCl ratios and cut-off voltages for EOC [22]. A high current density and a low Ni/NaCl ratio favored the Ni particle growth, while a wide cycling capacity window was mainly responsible for the growth of NaCl. More importantly, excess Ni alleviated performance degradation due to particle growth by offering an additional active electrode surface and electron pathways. As a result, the cell with a cathode Ni/NaCl ratio of 1.8 was able to maintain high capacity over extended cycling. To further lower cell cost by cutting expensive Ni, a recent work by Chang et al. reduced the Ni/NaCl ratio to 1.25 without losing the cell performance at 190 °C [18]. Among many Ni/NaCl ratios, a Ni/NaCl ratio of 1.25 delivered a cell with the highest specific energy density of 405 Wh/kg, with almost no capacity fading over 300 cycles. Morphology analysis showed no significant particle growth after 300 cycles for cells with Ni/NaCl ≥ 1.25. Although the cell did not have the highest capacity at high currents due to low Ni content, it was the most cost-effective with a 30% lower cost of Ni.
Clearly, the microstructure of the cathode material, which enables electrical connection to small, high-surface-area particles, has a significant influence on electrochemical performance over extended cycling and is therefore crucial to optimize. In another study, a core-shell microarchitecture of nickel-coated graphite reduced the Ni loading by 40%. The cell operating at 190 °C showed high initial energy density (133 Wh/kg at ~C/4) and excellent capacity retention (94% over 150 cycles). The decent electrochemical performance was ascribed to the fact that the graphite core successfully retained active surface and structural integrity for fast electron transport [17].
The incorporation of carbon-based current collectors into the Ni cathode was further developed by Wen’s group through nano engineering [19,21,44]. This approach was effective in providing a continuous electron-conducting network and mitigating particle growth of NaCl and Ni. For example, a free-standing Ni-less cathode with Ni/NaCl particles uniformly distributed in the three-dimensional (3D) conductive matrix constructed from carbon fiber (CF) and multiwalled carbon nanotubes (MWCNTs) is shown in Figure 5a,b [44]. The 3D hierarchical structure via a low-cost vacuum infiltration method (Figure 5a) offered sufficient void space to accommodate the NaCl particle growth and effectively enhance the electronic conductivity of the composite cathode. As a result, at a Ni/NaCl ratio of 1, the MWCNTs/CF/Ni/NaCl-1 cathode achieved an initial reversible capacity of 172 mAh/g, up to 96.5% of its theoretical capacity. In stark contrast, the traditional Ni/NaCl cathode only delivered around 40% of its theoretical capacity in the first conditioning cycle. At a lower ratio of Ni/NaCl of 0.5, the MWCNTs/CF/Ni/NaCl-1 cathode exhibited a capacity of 215 mAh/g, which further confirmed the excellent electronic conductivity within the 3D porous network (Figure 5c). Recently, Gao et al. reported another high-rate and long-life intermediate-temperature Na-NiCl2 battery enabled by a dual-functional Ni-carbon composite nanofiber (NCCN) network. The NCCNs could not only offer a continuous conductivity network but also limit the growth of Ni and NaCl grains [19]. The porosity of the cathode, which was controlled primarily by the grain size of the cathode metal, can now be tuned with precise structural engineering on a nanoscale.

2.4. Cathode Reaction Kinetics with Respect to Halides

Reducing the operating temperature of Na-NiCl2 battery can provide higher long-term cyclability and the adoption of inexpensive polymer materials for cell sealing [20]. However, the reduction in operating temperature results in inferior rate performance. Specifically, the Na-ion transport within the BASE, within the secondary electrolyte, and through the BASE/Na interface, is slower at lower temperatures. More significantly, the cathode reaction processes (such as the formation of NiCl2 and dissolution of NaCl) critical to the battery rate performance are also more sluggish. If Na-MH batteries are to become commercially competitive with increased market penetration, the reaction kinetics at lower temperatures require significant improvement [4].
Zhan et al. recently adopted a strategy of manipulating the halides in the Na-MH battery cathodes [45]. Comparing the typical voltage profiles of NaCl/Ni, NaBr/Ni, and NaI/Ni cathodes shown in Figure 6a–c, NaCl/Ni and NaI/Ni cathodes exhibited a single plateau for charging and the discharging process. On the contrary, the NaBr/Ni cathode showed an extra discharge plateau at ~2.47 V with a larger overpotential, which was a result of phase relaxations among multiple NaBrxCl1-x based on high-resolution synchrotron X-ray diffraction (XRD) and ion chromatography analysis. This cathode showed a significant improvement in rate capacity among the three compositions (Figure 6d,e) and excellent cycling performance over 400 cycles (>100 days) at 30 mA (10 mA/cm2) with negligible capacity fading in the example of NaBr/Ni (Figure 6f). Combining inductively coupled plasma-optical emission spectroscopy (ICP-OES), cyclic voltammetry (CV), and SEM characterizations, the observed rate improvement was attributed to faster NaBr dissolution in molten NaAlCl4.
This finding also strongly suggested that the rate-limiting step of the intermediate-temperature Na-MH batteries was the dissolution of sodium salts (e.g., NaCl) rather than metal halide (e.g., NiCl2) formation during the charging process (Figure 6g). While the ion diffusion coefficient of NiBr2 was the lowest among the three halide salts obtained through cyclic voltammetry, the solubility of NaBr was the highest obtained through ICP-OES. If the rate-limiting step was the formation of NiX2 (X = Cl, Br, or I) during the charging process, then the cell would expect passivation by NiBr2 deposition at 100% SOC due to a high concentration of standing Br− and low mobility of NiBr2. Instead, no significant features appeared in backscatter SEM images. Furthermore, the low-rate sensitivity of the specific discharge capacity implied sufficient supply of standing Br− at all times, cementing NaX salt dissolution as the rate-limiting step.

3. Fe-Based Cathode Materials

3.1. Basic Working Principle and Mechanism

The lower cost of Fe has motivated replacing Ni with Fe as the cathode material during the development of the Na-MH batteries. Examples of solid-state FeCl2 cathodes in conjunction with NaAlCl4 molten salt as the electrolyte date back to 1980 [30,46,47,48], with an open-circuit voltage of 2.35 V at 250 °C (Figure 7a, red dash line). Like the Na-NiCl2 cell, the Na-FeCl2 cell was also loaded in the discharged state with Fe and NaCl in the cathode compartment for the ease of assembly. When the cell was overcharged (Figure 7a, purple dash line), the resulting FeCl3 that dissolved in NaAlCl4 could poison the BASE, leading to a rise in resistance [47]. This undesired side reaction could be mitigated by Ni additives, which offer an overcharge protection by undergoing a reversible cell reaction at 2.59 V (black dash line, Figure 7a) and forming insoluble NiCl2. On the other hand, the cell reaction at 1.60 V (blue dash line, Figure 7a) corresponds to the reduction of NaAlCl4 to Al and NaCl, serving as a good over-discharge protection. It was also shown to be important to keep the NaAlCl4 melt basic (NaCl/AlCl3 ≥ 1), ensuring an intimate contact amongst Fe, FeCl2, and NaCl in the cathode [46,47].
Unlike a single-stage reaction in Na-NiCl2 cell, the partially discharged Na-FeCl2 cell contained various intermediate phases with a general formula of Na8-xFexCl8 [48]. At 250 °C, Adendorff et al. found that the electrochemical reaction proceeded in a two-stage manner (Equations (3) and (4)):
6Na + 4FeCl2 ⇄ 3Fe + Na6FeCl8,
2Na + Na6FeCl8 ⇄ Fe + 8NaCl,
The intermediate Na6FeCl8 crystalized into a defected rock-salt structure (Fm 3 ¯ m) where 1/8 of the octahedral sites were empty. Raising the operating temperature to 350 °C, two other phases, orthorhombic Na2FeCl4 (Pbam) and trigonal Na2Fe3Cl8 (R 3 ¯ m), also formed. Unlike FeCl3, the formation of these complex intermediate phases showed neither significant poisoning of the BASE by Fe2+ ions, nor structural disintegration of the sintered iron electrode even after hundreds of cycles [48]. Moseley et al. investigated the potential effects of iron incorporation on BASE stability and cell performance in Na/FeCl2 cells. Their findings suggested that cells operated under the normal temperature (i.e., 250 °C) with overcharge/over-discharge protections were free from the concerns of iron incorporation into β″ grains [46]. Ratnakumar et al. confirmed the abovementioned stepwise conversion of FeCl2 cathode based on cyclic voltammetry results. The potentials of reaction (3) and (4) were determined to be 2.353 V and 2.341 V, respectively, with a separation of 12 mV. Slight asymmetry between the oxidation and reduction peaks was also observed, corresponding to the relative kinetics of individual charge transfer steps and the relative amounts of the intermediate species [49]. Coetzer et al. evaluated the electrochemical behaviors of iron electrodes with NaCl-saturated NaAlCl4 in the temperature range 175–400 °C [50]. Remarkably, the results pointed to a predominantly solid-state reaction mechanism near 250 °C, which was further confirmed by the successful operation of a solid-state Na-FeCl2 cell with no liquid electrolyte. At high temperatures (300–400 °C), dissolved species such as FeCl2 contributed increasingly to the cathode reaction mechanism. Orchard et al. modeled the discharge behavior of the Na-FeCl2 cells [51]. Their calculations, where the solubilities of FeCl2 and NaCl were disregarded, agreed with the cathode reaction as effectively a solid-state process.
Battery activation and ease of assembly were also important to Na-FeCl2 cells. An early approach by Coetzer et al. used pre-sintering of the Fe cathode in a reducing environment to form electron-conducting paths for initial charging of batteries assembled in the discharged state [30,50]. Alternatively, Bones et al. exploited gaseous chlorination of the Fe cathode by Cl2 and then assembled the battery with a partially charged Fe/FeCl2 cathode and a sodium metal anode [47]. Both approaches introduced complications due to the handling of hazardous/sensitive materials like reduced Fe, FeCl2, or metallic sodium. Recently, Li et al. proposed an easy discharged-state assembly of a Na-FeCl2 battery utilizing sulfur-based additives [26]. As shown in Figure 7b, the cell with 4 mol.% S addition showed a significant reduction of Fe3+ related (Fe2O3) peaks by XPS, indicating the successful removal of oxide layers on the Fe cathode during the cell conditional cycling. The oxide removal not only freed Fe metal surface for Fe/FeCl2 electrochemical conversion (Figure 7c), but also reduced cell resistance to lower overall cell polarization. As a result, the cell using an optimal amount of sulfur additives exhibited excellent cycling performance with no capacity fade and minimum end-of-charge (EOD) voltage degradation up to 100 cycles [26].

3.2. Fast-Charging Capability

In addition to the low cost and abundance of raw materials (Fe and NaCl), Na-FeCl2 batteries have also been demonstrated with fast-charging capability [27]. Following the successful self-activation of a Fe powder cathode enabled by sulfur-based additives, Zhan et al. recently reported a high-rate Na-FeCl2 battery operated at 190 °C with voltage profile shown in Figure 8a. NaCl first transformed to Na6FeCl8 (Equation (5)) then to FeCl2 (Equation (6)) during the charging process and overall reaction can be written as Equation (7):
8NaCl + Fe (discharged state) ⇄ 2Na + Na6FeCl8, 0 25% SOC,
Na6FeCl8 + 3Fe ⇄ 6Na + 4FeCl2 (charged state), 25 100% SOC,
Overall reaction: 2NaCl + Fe ⇄ 2Na + FeCl2,
As shown in Figure 8b, NaCl and Na6FeCl8 shared the same rock-salt structure, despite the latter having a unit cell twice that of the former. Meanwhile, Na6FeCl8 and FeCl2 resemble each other in the arrangement of Cl− ions and alternating Fe2+ occupancy, which in part led to fast Na6FeCl8/FeCl2 phase transitions with minimal rearrangement of the atoms. These structural similarities among the three phases facilitated the charging reaction. In addition, CV and Tafel measurements indicated that the Fe/Fe2+ redox couple possessed intrinsically faster kinetics than the Ni/Ni2+. As a result, the Na-FeCl2 battery delivered unprecedented high-rate performance (Figure 8c), with a capacity of 116 mAh/g at an extremely high current of 100 mA (33.3 mA/cm2; 0.63C). When expressed as normalized capacity, this Na-FeCl2 battery doubled the conventional Na-NiCl2 battery at the same rate (Figure 8d). More encouragingly, the optimized Fe/NaCl cathode exhibited excellent cycling stability (Figure 8e) by maintaining a discharge energy density of over 135 mAh/g (295 Wh/kg) for 200 cycles at 10 mA/cm2 (≈C/5) [27].

3.3. Effect of Electrode Morphology and Fe/Ni-Mixed Cathodes

Like the Na-NiCl2 system, controlling the morphology of Fe particles was vital to maintaining a good electron conducting network and ensuring high active material utilization in a Na-FeCl2 battery. Ahn et al. prepared Na-(Ni, Fe)Cl2 cells with different microstructure designs and investigated the electrochemical behaviors of the composites [52]. Their findings suggested that the conducting metal (higher electrochemical potential, Ni in this case) should have smaller particle sizes than the active metal (Fe in this case) in order to preserve electrical connection in the cathode. With a higher weight ratio of Fe in the composite, the resulting thinner passivating surface NiCl2 layer led to better cycling performance [52]. In the aforementioned work conducted by Zhan et al., the pristine Fe cathode (with only Fe and NaCl) showed very early capacity fading. SEM studies revealed considerable pulverization of Fe particles [27]. ICP-OES tests on multiple relevant phases revealed that FeCl2 had the highest solubility (0.06 mol%) in NaAlCl4, which was twice that of Na6FeCl8 (0.03 mol%) and 20 times that of NiCl2 (0.002 mol%). It was thus proposed during the solid–solid conversion from FeCl2 to Na6FeCl8 and finally to Fe at discharge, that reduction of dissolved species from the liquid electrolyte formed fine Fe particles. These Fe particles, smaller in size with undefined precipitation locations, were more likely to depart from the electron-conduction network and become electrochemically inactive. Consequently, the proportion of active Fe particles gradually decreased with cycling, leading to the observed capacity fading. Adding 10 wt% Ni strengthened the electron-conducting chain (Figure 7c), which successfully inhibited the Fe particle pulverization and enabled stable long-term cycling (Figure 8e) [27].

4. Other Transition Metal Halide Cathode Materials

In addition to extensive development of cathodes based on ferrous and nickel chlorides, other transition-metals have also been explored. In an early study, Ratnakumar et al. demonstrated that the feasibility of a metal chloride as a cathode material was predictable by qualitatively estimating the solubility in NaAlCl4 molten electrolyte through CV [49]. Specifically, the higher oxidation peak current than the corresponding reduction implied either a porous deposit or high solubility of the oxidation product [49]. Based on this criterion, they conducted screening tests for several candidates including manganese, chromium, aluminum, silver, titanium, molybdenum, and cobalt, among which only Co and Mo chlorides displayed suitability at 250 °C with open-circuit voltages of 2.55 V and 2.64 V, respectively [53]. Parthasarathy et al. first reported a high-temperature (350 °C) Na-ZnCl2 battery using Zn cathode and a molten NaCl-ZnCl2 with over 33 mol% of ZnCl2 as the catholyte/cathode. Although the electrochemical study was limited, there was no evidence of ion exchange with BASE, which implied the viability of zinc chloride as a cathode. In 2013, Lu et al. investigated the behavior and performance of a low-cost Na-ZnCl2 battery in a planar configuration with BASE [25]. Based on the phase diagram in Figure 9a and the voltage profiles of Na-ZnCl2 cells in Figure 9b, the following four reversible stepwise reactions (Equations (8)–(11)) were proposed and validated by phase diagram calculations (NaCl utilizations) and XRD phases analysis.
4NaCl + Zn ⇄ Na2ZnCl4 + 2Na (E~1.92 V),
Na2ZnCl4 + Zn ⇄ Salt liquid (ZnCl2: 62 mol%) + Na (E~2.07 V),
Salt liquid (lower ZnCl2) + Zn ⇄ Salt liquid (higher ZnCl2) + Na (E~2.07–2.12 V),
Salt liquid (ZnCl2: 78 mol%) + Zn ⇄ ZnCl2 + Na (E~2.13 V),
Upon charging, NaCl first reacted with Zn to form Na on the anode side and Na2ZnCl4 on the cathode side. Once all the NaCl was consumed, Na2ZnCl4 and Zn reacted to form the NaCl-ZnCl2 liquid phase. At the end of charge, the liquid phase reacted with Zn to generate solid ZnCl2. The authors further identified the effect of the liquid-phase formation on electrochemical performance by testing cells at 280 °C and 240 °C. At 280 °C, cells revealed stable cyclability with the liquid phase formation during cycling. However, a rapid rise in polarization was observed at 240 °C where only a solid-state reaction occurred. SEM analysis indicated that the growth of Zn and NaCl particles was suppressed at 280 °C, where Zn and NaCl precipitated during discharge [25]. Later, Lu et al. investigated the performance and reaction mechanism of a Na-ZnCl2 battery at 190 °C. As predicted by the phase diagram (Figure 9a), two stepwise reversible reactions (Figure 9d) were identified, and the corresponding reaction mechanism was illustrated in Figure 9e. First, NaCl reacted with Zn to produce a ribbon-like Na2ZnCl4 layer. This layer existed at the NaCl–Zn interface rather than covering the Zn particles’ surfaces, resulting in excellent rate capability (Figure 9c). Subsequently, the Na2ZnCl4 transformed gradually into ZnCl2, which covered the surfaces of Zn particles. The authors suggested that the passivation by ZnCl2 during the second step blocked the electron pathway of the NaCl/Zn cathodes and limited the overall rate performance of the battery [24]. More recently, Lee et al. reported an electrochemically activated Na-ZnCl2 battery at 260 °C using a carbon matrix in the cathode compartment. By using inexpensive carbon felt to maintain efficient electron percolation in the cathode, the cell realized lower charge transfer resistance and higher capacity, as well as lower materials cost [54].
CuCl2 is also an attractive cathode material because of its high theoretical capacity of 400 mAh/g, with equilibrium potentials of 3.40 V for the CuCl2/CuCl redox couple and 2.74 V for the CuCl/Cu redox couple in Na-based battery systems [24,55,56]. However, CuCl2 is soluble in conventional organic-based liquid electrolytes and high-temperature molten salt electrolytes such as NaAlCl4, hindering its practical application. In 2014, Yang et al. proposed an advanced intermediate-temperature Na/CuCl2 battery using a NaCl-EMIC-AlCl3 catholyte and a 500 mm thick BASE film separator operating at only 150 °C [57]. Unfortunately, the study did not report cyclability or identify the fundamental parameters such as the stability of CuCl2. In the search for suitable electrolytes compatible with CuCl2, Kim et al. constructed a new ZEBRA-type room temperature Na-CuCl2 battery system with SO2-based nonflammable inorganic electrolyte. The Na-CuCl2 cell showed outstanding battery performance with a high energy density of ~580 Wh/kg based on the cathode material, a more than 97% round-trip efficiency, as well as a superior capacity retention over 1000 cycles. These excellent performances were attributed to the SO2-based inorganic electrolyte, which exhibited high ionic conductivity and high chemical/electrochemical compatibility with the CuCl2 cathode material [55].
As a final comment, a major driving force behind the intermediate-temperature sodium battery is that sodium is significantly more abundant than lithium, which provides an economic incentive for long-duration and thus low-cycle battery applications. While other metals can participate in the conversion chemistry as shown above, the scale of the upcoming energy storage target prefers an inexpensive cathode metal where the chemistry is well-understood, such as Ni or Fe.

5. Conclusions

Replacing fossil fuel-based power generation with widespread deployment of renewable energy sources is a crucial technological goal for reducing greenhouse gas emission. For this to occur, the inherent intermittency of renewables such as wind and solar must be addressed by some form of energy storage. Electrochemical energy storage using batteries is a promising option, with various storage technologies such as LIBs, Na-S batteries, RFB, and also Na-MH batteries. For such technologies to be adopted, they must have desirable performance metrics such as high voltage, high specific energy density, high-power density, and superior safety and reliability while also being inexpensive enough to be economical. Of these options, Na-MH batteries are promising due to their high operating voltage, low cost of materials, good safety in the case of cell failure, and ability to be assembled in the discharged state. However, challenges regarding high operating temperature, high cost of materials of construction, and the high cost of Ni has motivated developing Na-MH batteries with low-cost transition metal cathodes and intermediate-temperature operation.
In this review, Na-NiCl2 batteries have been discussed with a particular focus on recent work that addresses some of the challenges of conventional Na-MH batteries, specifically by using lower operating temperatures (e.g., 190 °C rather than >265 °C or higher), identifying methods to reduce the amount of expensive Ni required, employing lower-cost materials for sealing (enabled by lower temperatures), additives that improve otherwise sluggish kinetics at lower operating temperatures, and others.
Moving beyond expensive Ni, other transition metal cathodes such as Fe, Zn, or Cu, are of great interest due to the greater abundance and lower cost of raw materials. Some of these battery chemistries have been discussed in this review, showing comparable performance to widely studied Na-NiCl2 batteries but with lower-cost active materials. In some cases, these chemistries even offer superior performance compared to Na-NiCl2 cells such as the high rate capability of Na-FeCl2 cells or the high theoretical specific capacity of the Na-CuCl2 cells discussed herein. While each of these transition metal battery chemistries have some general similarities to the Na-NiCl2 system, each also has unique benefits and challenges. Although there have been valuable explorations of these non-Ni cathode systems to date, there is still much room for continued investigation to identify further potential improvements. For example, further reduction in operating temperature (e.g., <120 °C) of Na-MH batteries can expand the potential materials of construction while requiring less thermal energy management and improving safety. Such temperature reductions will require new innovations to improve Na-wettability on the anode side of BASE as well as improvements in catholyte composition to reduce the melting point while maintaining good kinetics and mass transfer on the cathode side. Potentially, interface engineering of the Na-BASE solid interface could enable high-performance solid-sodium Na-MH batteries operating at temperatures below 100 °C. Finally, the demonstration of large area planar Na-MH cells is a crucial step to scaling up this promising battery concept from the lab to the grid scale.
We expect that continued research efforts to enable intermediate-temperature Na-MH batteries with low-cost cathodes will allow battery performance that can surpass current state-of-the-art molten Na batteries while also providing much lower overall energy storage costs. By improving performance and reducing cost, not to mention taking advantage of future economies of scale, intermediate-temperature Na-MH batteries will be a critical component of an economical, renewable power grid.

Author Contributions

Conceptualization, X.Z., V.L.S. and G.L.; writing—original draft preparation, X.Z., J.M.W. and M.M.L.; writing—review and editing, M.M.L., J.M.W., X.Z. and G.L.; supervision, V.L.S. and G.L.; funding acquisition, V.L.S. and G.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by U.S. Department of Energy (DOE) Office of Electricity (OE) under contract DE-AC06-76LO1830 through Pacific Northwest National Laboratory (Cost competitive battery technology, project #70247) and the International Collaborative Energy Technology R&D Program of the Korea Institute of Energy Technology Evaluation and Planning (KETEP), the Ministry of Trade, Industry and Energy of the Republic of Korea (No. 20198510050010). X.Z. is grateful to the Start-up Grant from Anhui University for financial support of this work.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gür, T.M. Review of electrical energy storage technologies, materials and systems: Challenges and prospects for large-scale grid storage. Energy Environ. Sci. 2018, 11, 2696–2767. [Google Scholar] [CrossRef]
  2. Braff, W.A.; Mueller, J.M.; Trancik, J.E. Value of storage technologies for wind and solar energy. Nat. Clim. Change 2016, 6, 964–969. [Google Scholar] [CrossRef]
  3. Ziegler, M.S.; Mueller, J.M.; Pereira, G.D.; Song, J.; Ferrara, M.; Chiang, Y.-M.; Trancik, J.E. Storage Requirements and Costs of Shaping Renewable Energy Toward Grid Decarbonization. Joule 2019, 3, 2134–2153. [Google Scholar] [CrossRef]
  4. Dunn, B.; Kamath, H.; Tarascon, J.M. Electrical energy storage for the grid: A battery of choices. Science 2011, 334, 928–935. [Google Scholar] [CrossRef] [Green Version]
  5. Schmidt, O.; Melchior, S.; Hawkes, A.; Staffell, I. Projecting the Future Levelized Cost of Electricity Storage Technologies. Joule 2019, 3, 81–100. [Google Scholar] [CrossRef] [Green Version]
  6. Xu, J.; Liu, K.; Jin, Y.; Sun, B.; Zhang, Z.; Chen, Y.; Su, D.; Wang, G.; Wu, H.; Cui, Y. A Garnet-Type Solid-Electrolyte-Based Molten Lithium-Molybdenum-Iron(II) Chloride Battery with Advanced Reaction Mechanism. Adv. Mater. 2020, 32, 2000960. [Google Scholar] [CrossRef]
  7. Jin, Y.; Liu, K.; Lang, J.L.; Jiang, X.; Zheng, Z.K.; Su, Q.H.; Huang, Z.Y.; Long, Y.Z.; Wang, C.A.; Wu, H.; et al. High-Energy-Density Solid-Electrolyte-Based Liquid Li-S and Li-Se Batteries. Joule 2020, 4, 262–274. [Google Scholar] [CrossRef]
  8. Lang, J.L.; Liu, K.; Jin, Y.; Long, Y.Z.; Qi, L.H.; Wu, H.; Cui, Y. A molten battery consisting of Li metal anode, AlCl3-LiCl cathode and solid electrolyte. Energy Storage Mater. 2020, 24, 412–416. [Google Scholar] [CrossRef]
  9. Liu, K.; Lang, J.L.; Yang, M.Z.; Xu, J.; Sun, B.; Wu, Y.L.; Wang, K.Y.; Zheng, Z.K.; Huang, Z.Y.; Wang, C.A.; et al. Molten Lithium-Brass/Zinc Chloride System as High-Performance and Low-Cost Battery. Matter 2020, 3, 1714–1724. [Google Scholar] [CrossRef]
  10. Sudworth, J.L. Zebra Batteries. J. Power Sour. 1994, 51, 105–114. [Google Scholar] [CrossRef]
  11. Sudworth, J.L. Sodium/nickel chloride (ZEBRA) battery. J. Power Sour. 2001, 100, 149–163. [Google Scholar] [CrossRef]
  12. Yang, Z.G.; Zhang, J.L.; Kintner-Meyer, M.C.W.; Lu, X.C.; Choi, D.W.; Lemmon, J.P.; Liu, J. Electrochemical Energy Storage for Green Grid. Chem. Rev. 2011, 111, 3577–3613. [Google Scholar] [CrossRef] [PubMed]
  13. Ha, S.; Kim, J.K.; Choi, A.; Kim, Y.; Lee, K.T. Sodium-Metal Halide and Sodium-Air Batteries. ChemPhysChem 2014, 15, 1971–1982. [Google Scholar] [CrossRef]
  14. Hueso, K.B.; Armand, M.; Rojo, T. High temperature sodium batteries: Status, challenges and future trends. Energy Environ. Sci. 2013, 6, 734–749. [Google Scholar] [CrossRef]
  15. Lu, X.C.; Lemmon, J.P.; Sprenkle, V.; Yang, Z.G. Sodium-beta Alumina Batteries: Status and Challenges. JOM 2010, 62, 31–36. [Google Scholar] [CrossRef]
  16. Lu, X.C.; Xia, G.G.; Lemmon, J.P.; Yang, Z.G. Advanced materials for sodium-beta alumina batteries: Status, challenges and perspectives. J. Power Sour. 2010, 195, 2431–2442. [Google Scholar] [CrossRef]
  17. Chang, H.J.; Canfield, N.L.; Jung, K.; Sprenkle, V.L.; Li, G.S. Advanced Na-NiCl2 Battery Using Nickel-Coated Graphite with Core Shell Microarchitecture. ACS Appl. Mater. Interfaces 2017, 9, 11609–11614. [Google Scholar] [CrossRef] [PubMed]
  18. Chang, H.J.; Lu, X.C.; Bonnett, J.F.; Canfield, N.L.; Son, S.; Park, Y.C.; Jung, K.; Sprenkle, V.L.; Li, G.S. “Ni-Less” Cathodes for High Energy Density, Intermediate Temperature Na-NiCl2 Batteries. Adv. Mater. Interfaces 2018, 5, 1701592. [Google Scholar] [CrossRef]
  19. Gao, X.; Hu, Y.; Li, Y.; Wang, J.; Wu, X.; Yang, J.; Wen, Z. High-Rate and Long-Life Intermediate-Temperature Na-NiCl2 Battery with Dual-Functional Ni-Carbon Composite Nanofiber Network. ACS. Appl. Mater. Interfaces 2020, 12, 24767–24776. [Google Scholar] [CrossRef] [PubMed]
  20. Li, G.S.; Lu, X.C.; Kim, J.Y.; Meinhardt, K.D.; Chang, H.J.; Canfield, N.L.; Sprenkle, V.L. Advanced intermediate temperature sodium-nickel chloride batteries with ultra-high energy density. Nat. Commun. 2016, 7, 10683. [Google Scholar] [CrossRef]
  21. Wu, T.; Zhang, S.P.; Ao, X.; Wu, X.W.; Yang, J.H.; Wen, Z.Y. Enhanced stability performance of nickel nanowire with 3D conducting network for planar sodium-nickel chloride batteries. J. Power Sour. 2017, 360, 345–352. [Google Scholar] [CrossRef]
  22. Li, G.S.; Lu, X.C.; Kim, J.Y.; Lemmon, J.P.; Sprenkle, V.L. Cell degradation of a Na-NiCl2 (ZEBRA) battery. J. Mater. Chem. A 2013, 1, 14935–14942. [Google Scholar] [CrossRef]
  23. Chang, H.J.; Lu, X.C.; Bonnett, J.F.; Canfield, N.L.; Son, S.; Park, Y.C.; Jung, K.; Sprenkle, V.L.; Li, G.S. Development of intermediate temperature sodium nickel chloride rechargeable batteries using conventional polymer sealing technologies. J. Power Sour. 2017, 348, 150–157. [Google Scholar] [CrossRef] [Green Version]
  24. Lu, X.; Chang, H.J.; Bonnett, J.F.; Canfield, N.L.; Jung, K.; Sprenkle, V.L.; Li, G. An Intermediate-Temperature High-Performance Na-ZnCl2 Battery. ACS Omega 2018, 3, 15702–15708. [Google Scholar] [CrossRef] [Green Version]
  25. Lu, X.C.; Li, G.S.; Kim, J.Y.; Lemmon, J.P.; Sprenkle, V.L.; Yang, Z.G. A novel low-cost sodium-zinc chloride battery. Energ Environ. Sci. 2013, 6, 1837–1843. [Google Scholar] [CrossRef]
  26. Li, G.S.; Lu, X.C.; Kim, J.Y.; Viswanathan, V.V.; Meinhardt, K.D.; Engelhard, M.H.; Sprenkle, V.L. An Advanced Na-FeCl2 ZEBRA Battery for Stationary Energy Storage Application. Adv. Energy Mater. 2015, 5, 1500357. [Google Scholar] [CrossRef]
  27. Zhan, X.; Bowden, M.E.; Lu, X.; Bonnett, J.F.; Lemmon, T.; Reed, D.M.; Sprenkle, V.L.; Li, G. A Low-Cost Durable Na-FeCl2 Battery with Ultrahigh Rate Capability. Adv. Energy Mater. 2020, 10, 1903472. [Google Scholar] [CrossRef]
  28. Chang, H.-J.; Lu, X.; Bonnett, J.F.; Canfield, N.L.; Han, K.; Engelhard, M.H.; Jung, K.; Sprenkle, V.L.; Li, G. Decorating β"-alumina solid-state electrolytes with micron Pb spherical particles for improving Na wettability at lower temperatures. J. Mater. Chem. A 2018, 6, 19703–19711. [Google Scholar] [CrossRef]
  29. Mamantov, G.; Marassi, R.; Matsunaga, M.; Ogata, Y.; Wiaux, J.P.; Frazer, E.J. The Use of Tetravalent Sulfur in Molten Chloroaluminate Secondary Batteries. J. Electrochem. Soc. 1980, 127, 2319–2325. [Google Scholar] [CrossRef]
  30. Coetzer, J. A New High-Energy Density Battery System. J. Power Sour. 1986, 18, 377–380. [Google Scholar] [CrossRef]
  31. Galloway, R.C. A Sodium/Beta-Alumina/Nickel Chloride Secondary Cell. J. Electrochem. Soc. 1987, 134, 256–257. [Google Scholar] [CrossRef]
  32. Prakash, J.; Redey, L.; Vissers, D.R. Electrochemical behavior of nonporous Ni/NiCl2 electrodes in chloroaluminate melts. J. Electrochem. Soc. 2000, 147, 502–507. [Google Scholar] [CrossRef]
  33. Bones, R.J.; Teagle, D.A.; Brooker, S.D.; Cullen, F.L. Development of a Ni, NiCl2 Positive Electrode for a Liquid-Sodium (Zebra) Battery Cell. J. Electrochem. Soc. 1989, 136, 1274–1277. [Google Scholar] [CrossRef]
  34. Ratnakumar, B.V.; Surampudi, S.; Halpert, G. Effects of Sulfur Additive on the Performance of Na/NiCl2 Cells. J. Power Sour. 1994, 48, 349–360. [Google Scholar] [CrossRef]
  35. Prakash, J.; Redey, L. Corrosion studies of nickel-200 in high-temperature ZEBRA batteries at 300 degrees C. Corros. Sci. 1999, 41, 2075–2082. [Google Scholar]
  36. Li, G.S.; Lu, X.C.; Kim, J.Y.; Engelhard, M.H.; Lemmon, J.P.; Sprenkle, V.L. The role of FeS in initial activation and performance degradation of Na-NiCl2 batteries. J. Power Sour. 2014, 272, 398–403. [Google Scholar] [CrossRef] [Green Version]
  37. Ao, X.; Wen, Z.Y.; Hu, Y.Y.; Wu, T.; Wu, X.W.; He, Q.M. Enhanced cycle performance of a Na/NiCl2 battery based on Ni particles encapsulated with Ni3S2 layer. J. Power Sour. 2017, 340, 411–418. [Google Scholar] [CrossRef]
  38. Ao, X.; Wen, Z.Y.; Wu, X.W.; Wu, T.; Wu, M.F. Self-Repairing Function of Ni3S2 Layer on Ni Particles in the Na/NiCl2 Cells with the Addition of Sulfur in the Catholyte. ACS Appl. Mater. Interfaces 2017, 9, 21234–21242. [Google Scholar] [CrossRef]
  39. Hosseinifar, M.; Petric, A. High temperature versus low temperature Zebra (Na/NiCl2) cell performance. J. Power Sour. 2012, 206, 402–408. [Google Scholar] [CrossRef]
  40. Lu, X.C.; Li, G.S.; Kim, J.Y.; Lemmon, J.P.; Sprenkle, V.L.; Yang, Z.G. The effects of temperature on the electrochemical performance of sodium-nickel chloride batteries. J. Power Sour. 2012, 215, 288–295. [Google Scholar] [CrossRef]
  41. Li, G.S.; Lu, X.C.; Coyle, C.A.; Kim, J.Y.; Lemmon, J.P.; Sprenkle, V.L.; Yang, Z.G. Novel ternary molten salt electrolytes for intermediate-temperature sodium/nickel chloride batteries. J. Power Sour. 2012, 220, 193–198. [Google Scholar] [CrossRef]
  42. Prakash, J.; Redey, L.; Vissers, D.R. Morphological considerations of the nickel chloride electrodes for zebra batteries. J. Power Sour. 1999, 84, 63–69. [Google Scholar] [CrossRef]
  43. Kim, M.; Ahn, C.W.; Hahn, B.D.; Jung, K.; Park, Y.C.; Cho, N.U.; Lee, H.; Choi, J.H. Effects of Ni particle morphology on cell performance of Na/NiCl2 battery. Met. Mater. Int. 2017, 23, 1234–1240. [Google Scholar] [CrossRef]
  44. Li, Y.P.; Wu, X.W.; Wang, J.Y.; Gao, X.P.; Hu, Y.Y.; Wen, Z.Y. Ni-less cathode with 3D free-standing conductive network for planar Na-NiCl2 batteries. Chem. Eng. J. 2020, 387, 124059. [Google Scholar] [CrossRef]
  45. Zhan, X.W.; Sepulveda, J.P.; Lu, X.C.; Bonnett, J.F.; Canfield, N.L.; Lemmon, T.; Jung, K.; Sprenkle, V.L.; Li, G.S. Elucidating the role of anionic chemistry towards high-rate intermediate-temperature Na-metal halide batteries. Energy Stor. Mater. 2020, 24, 177–187. [Google Scholar] [CrossRef]
  46. Moseley, P.T.; Bones, R.J.; Teagle, D.A.; Bellamy, B.A.; Hawes, R.W.M. Stability of Beta-Alumina Electrolyte in Sodium FeCl2 (Zebra) Cells. J. Electrochem. Soc. 1989, 136, 1361–1368. [Google Scholar] [CrossRef]
  47. Bones, R.J.; Coetzer, J.; Galloway, R.C.; Teagle, D.A. A Sodium/Iron(II) Chloride Cell with a Beta Alumina Electrolyte. J. Electrochem. Soc. 1987, 134, 2379–2382. [Google Scholar] [CrossRef]
  48. Adendorff, K.T.; Thackeray, M.M. The Crystal-Chemistry of the Na/FeCl2 Battery. J. Electrochem. Soc. 1988, 135, 2121–2123. [Google Scholar] [CrossRef]
  49. Ratnakumar, B.V.; Distefano, S.; Halpert, G. Electrochemistry of Metal Chloride Cathodes in Sodium Batteries. J. Electrochem. Soc. 1990, 137, 2991–2997. [Google Scholar] [CrossRef]
  50. Coetzer, J.; Wald, G.D.; Orchard, S.W. Mechanism of the Cathode Reaction in Sodium Ferrous Chloride Secondary Cells. J. Appl. Electrochem. 1993, 23, 790–800. [Google Scholar] [CrossRef]
  51. Orchard, S.W.; Weaving, J.S. Modeling of the Sodium-Ferrous Chloride Electrochemical-Cell. J. Appl. Electrochem. 1993, 23, 1214–1222. [Google Scholar] [CrossRef]
  52. Ahn, C.W.; Kim, M.; Hahn, B.D.; Hong, I.; Kim, W.; Moon, G.; Lee, H.; Jung, K.; Park, Y.C.; Choi, J.H. Microstructure design of metal composite for active material in sodium nickel-iron chloride battery. J. Power Sour. 2016, 329, 50–56. [Google Scholar] [CrossRef]
  53. Ratnakumar, B.V.; Attia, A.I.; Halpert, G. Alternate Cathodes for Sodium-Metal Chloride Batteries. J. Electrochem. Soc. 1991, 138, 883–884. [Google Scholar] [CrossRef]
  54. Lee, Y.; Kim, H.J.; Byun, D.J.; Cho, K.K.; Ahn, J.H.; Kim, C.S. Electrochemically activated Na-ZnCl2 battery using a carbon matrix in the cathode compartment. J. Power Sour. 2019, 440, 227110. [Google Scholar] [CrossRef]
  55. Kim, B.-R.; Jeong, G.; Kim, A.; Kim, Y.; Kim, M.G.; Kim, H.; Kim, Y.-J. High Performance Na-CuCl2 Rechargeable Battery toward Room Temperature ZEBRA-Type Battery. Adv. Energy Mater. 2016, 6, 1600862. [Google Scholar] [CrossRef]
  56. Niu, C.S.; Zhang, Y.W.; Ma, S.; Wan, Y.H.; Yang, H.; Liu, X.M. An intermediate temperature sodium copper chloride battery using ionic liquid electrolyte and its degradation mechanism. Ionics 2019, 25, 4189–4196. [Google Scholar] [CrossRef]
  57. Yang, L.P.; Liu, X.M.; Zhang, Y.W.; Yang, H.; Shen, X.D. Advanced intermediate temperature sodium copper chloride battery. J. Power Sour. 2014, 272, 987–990. [Google Scholar] [CrossRef]
Materials 14 03260 g001 550

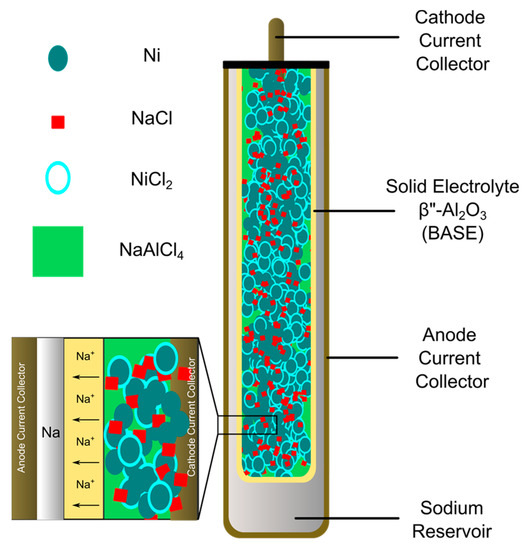

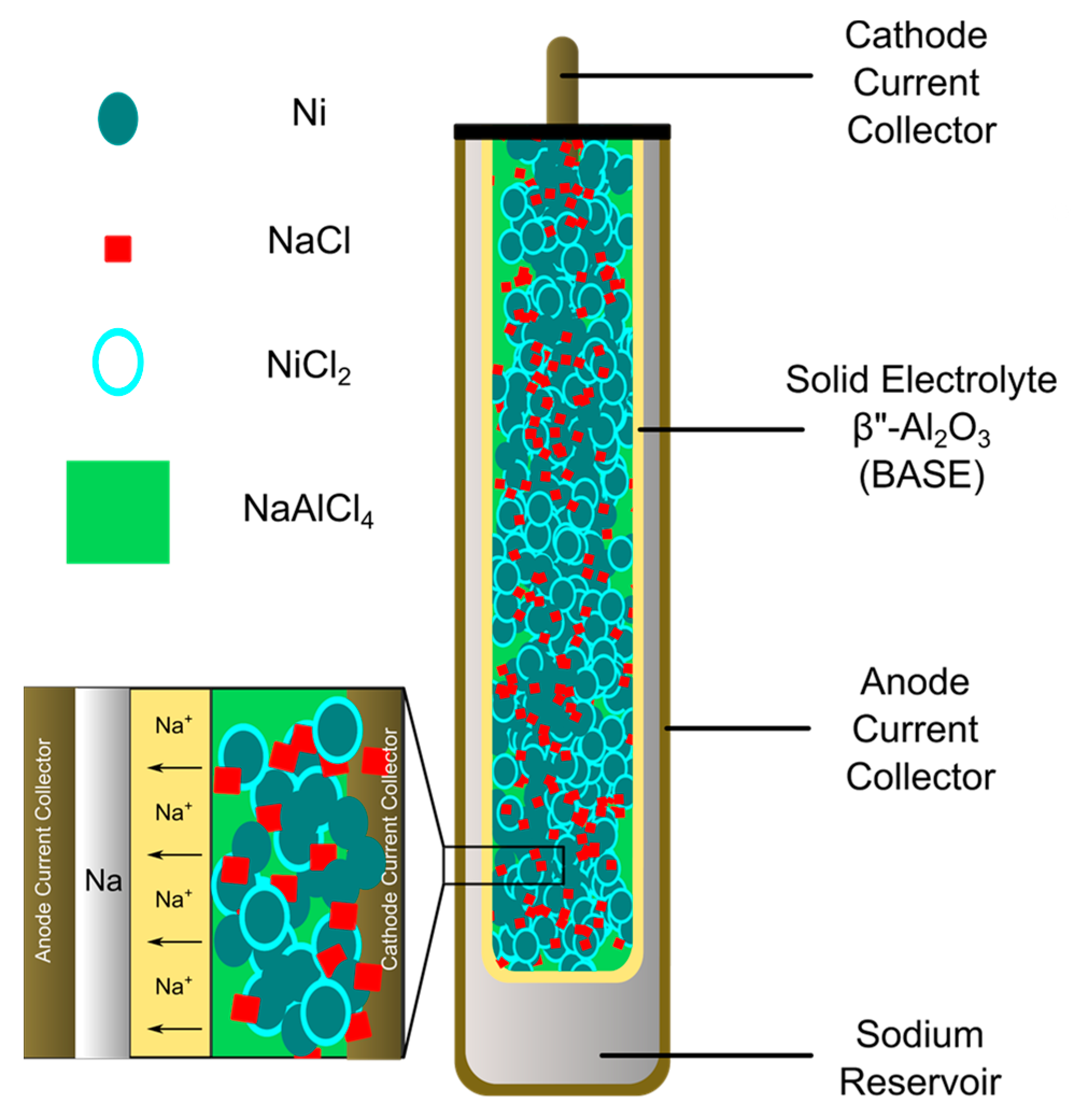

Figure 1. Schematic illustration of a Na-NiCl2 battery with a tubular β″-Al2O3 solid electrolyte (yellow). During operation, molten NaAlCl4 acts as the secondary electrolyte in the cathode to conduct sodium ions between the active materials and the solid electrolyte. Particles of Ni form a conductive network radiating from the cathode current collector. A surface coating of NiCl2 develops on the Ni particles, as sodium ions migrate across the solid electrolyte to the anode during charging.
Figure 1. Schematic illustration of a Na-NiCl2 battery with a tubular β″-Al2O3 solid electrolyte (yellow). During operation, molten NaAlCl4 acts as the secondary electrolyte in the cathode to conduct sodium ions between the active materials and the solid electrolyte. Particles of Ni form a conductive network radiating from the cathode current collector. A surface coating of NiCl2 develops on the Ni particles, as sodium ions migrate across the solid electrolyte to the anode during charging.
Materials 14 03260 g001
Materials 14 03260 g002 550

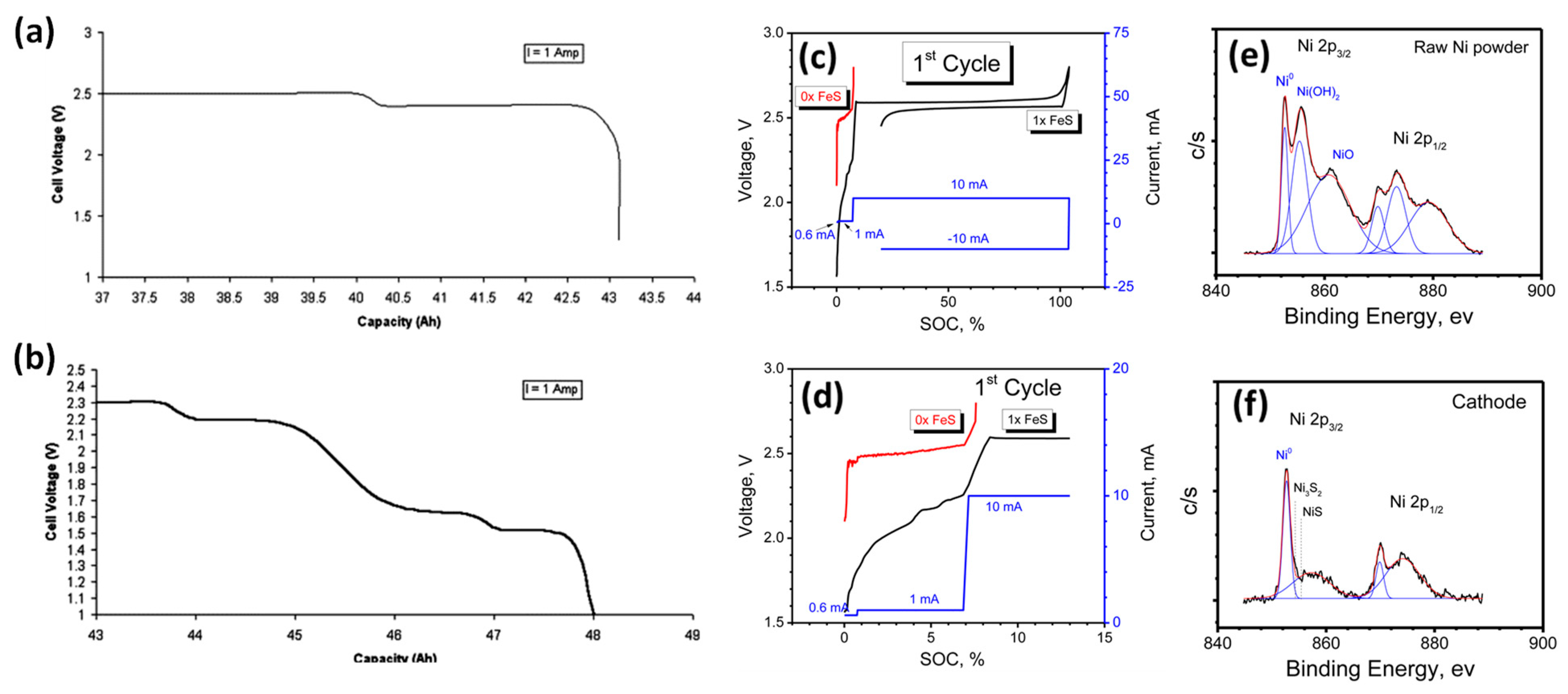

Figure 2. Voltage profiles of (a) first-generation and (b) second-generation Na-NiCl2 cells at the end of discharge. Al and FeS powders were incorporated into the cathode of only the second-generation cell (adapted with the permission from Elsevier). (c) Voltage profiles (first cycle) for batteries with and without FeS. (d) Expanded view of panel c. High-resolution XPS Ni2p spectra for (e) raw Ni powder and (f) cathode material retrieved from cells charged up to the second step (1 mAh, 10 h, see panel c, adapted with the permission from Elsevier).
Figure 2. Voltage profiles of (a) first-generation and (b) second-generation Na-NiCl2 cells at the end of discharge. Al and FeS powders were incorporated into the cathode of only the second-generation cell (adapted with the permission from Elsevier). (c) Voltage profiles (first cycle) for batteries with and without FeS. (d) Expanded view of panel c. High-resolution XPS Ni2p spectra for (e) raw Ni powder and (f) cathode material retrieved from cells charged up to the second step (1 mAh, 10 h, see panel c, adapted with the permission from Elsevier).
Materials 14 03260 g002
Materials 14 03260 g003 550

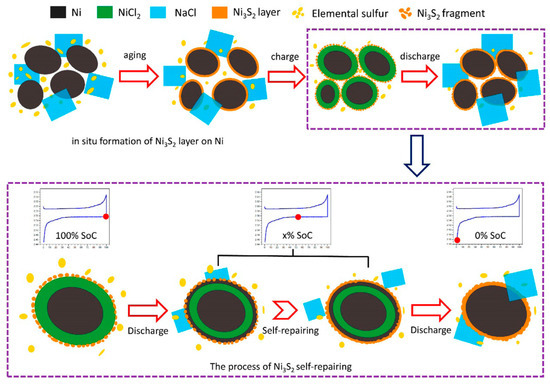

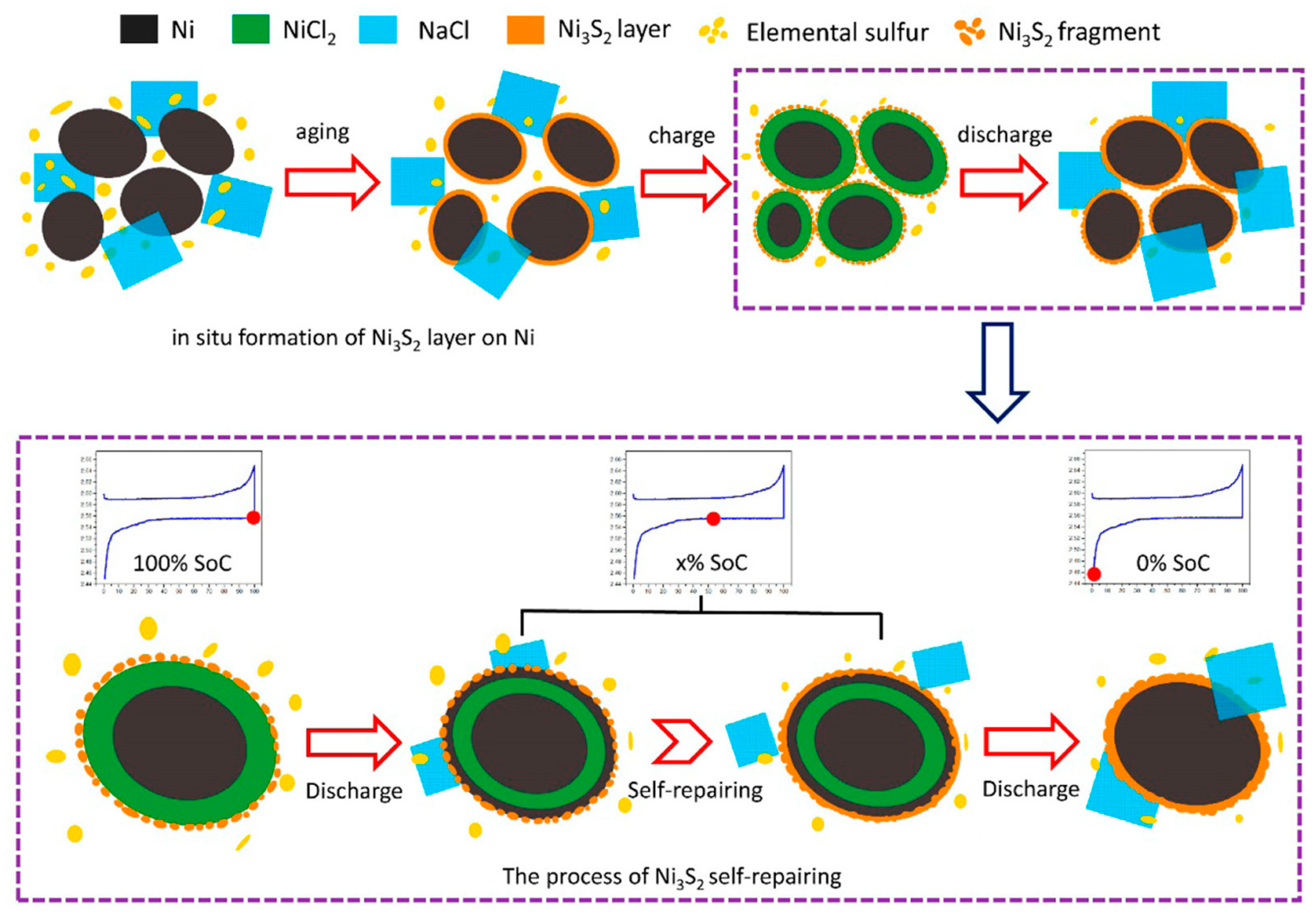

Figure 3. Schematic illustration of the Ni3S2 layer self-repairing process and the proposed mechanism of sulfur additive via preventing Ni particle growth (adapted with the permission from ACS).
Figure 3. Schematic illustration of the Ni3S2 layer self-repairing process and the proposed mechanism of sulfur additive via preventing Ni particle growth (adapted with the permission from ACS).
Materials 14 03260 g003
Materials 14 03260 g004 550

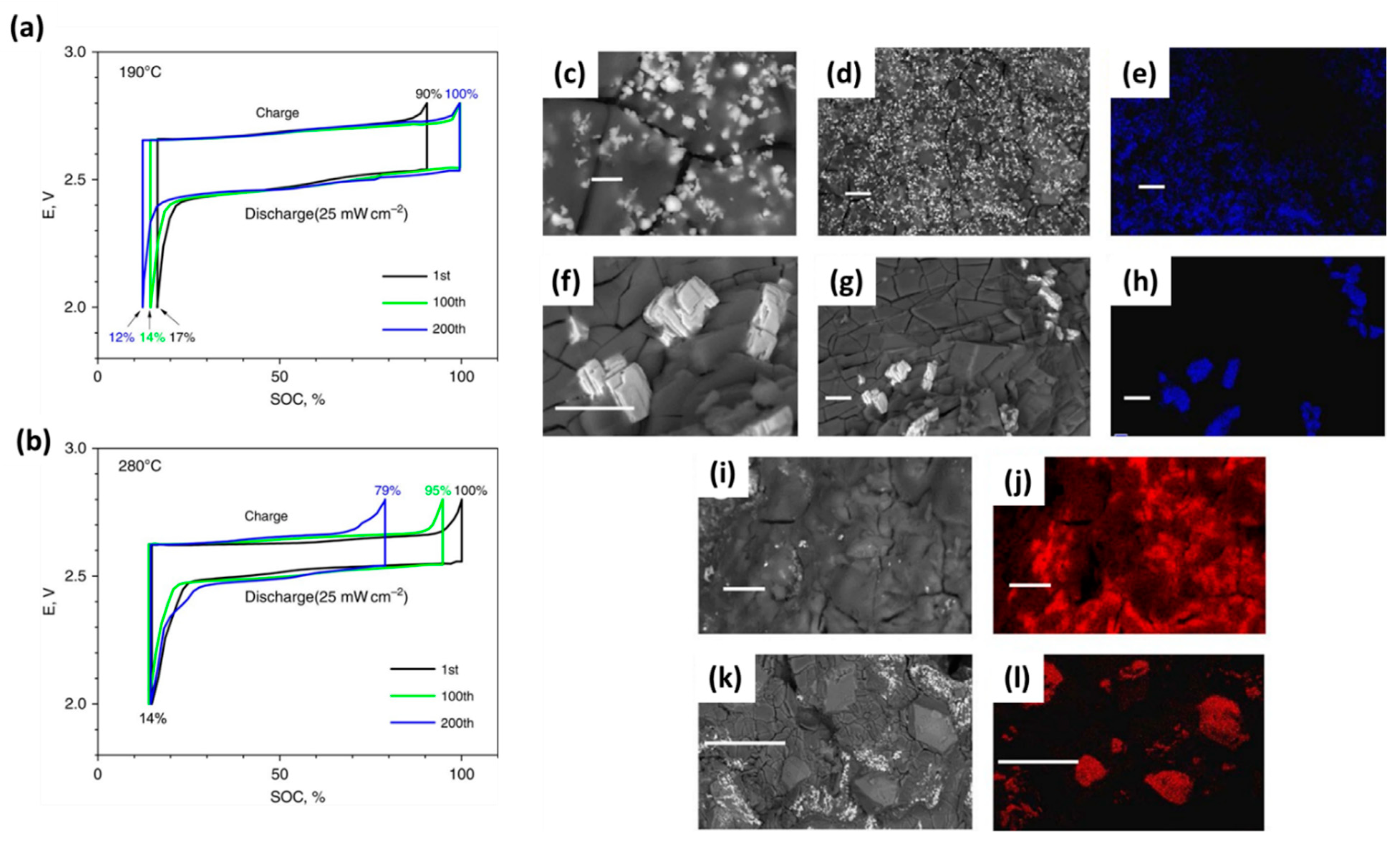

Figure 4. Voltage profiles for planar Na-NiCl2 batteries operated at (a) 190 °C and (b) 280 °C. Cells were cycled with constant-current charge (7 mA/cm2, ~C/7) and constant-power discharge (25 mW/cm2, 10 mA/cm2, ~C/5). Cathode materials were retrieved from cells operated for 200 cycles at 25 mW/cm2 and imaged via SEM with EDX mapping analysis (c–l). Ni particles are shown for cells operated at 190 °C (c,d) with corresponding EDX mapping of Ni (e), and then at 280 °C (f,g) with corresponding mapping of Ni (h). Below, NaCl particles are shown for cells operated at 190 °C (i) with corresponding EDX mapping of Na (j), and then at 280 °C (k) with corresponding EDX mapping of Na (l). Scale bars are 2 m for (c), 10 µm for (d–j), 100 µm for (k,l; adapted with the permission from Springer Nature).
Figure 4. Voltage profiles for planar Na-NiCl2 batteries operated at (a) 190 °C and (b) 280 °C. Cells were cycled with constant-current charge (7 mA/cm2, ~C/7) and constant-power discharge (25 mW/cm2, 10 mA/cm2, ~C/5). Cathode materials were retrieved from cells operated for 200 cycles at 25 mW/cm2 and imaged via SEM with EDX mapping analysis (c–l). Ni particles are shown for cells operated at 190 °C (c,d) with corresponding EDX mapping of Ni (e), and then at 280 °C (f,g) with corresponding mapping of Ni (h). Below, NaCl particles are shown for cells operated at 190 °C (i) with corresponding EDX mapping of Na (j), and then at 280 °C (k) with corresponding EDX mapping of Na (l). Scale bars are 2 m for (c), 10 µm for (d–j), 100 µm for (k,l; adapted with the permission from Springer Nature).
Materials 14 03260 g004
Materials 14 03260 g005 550

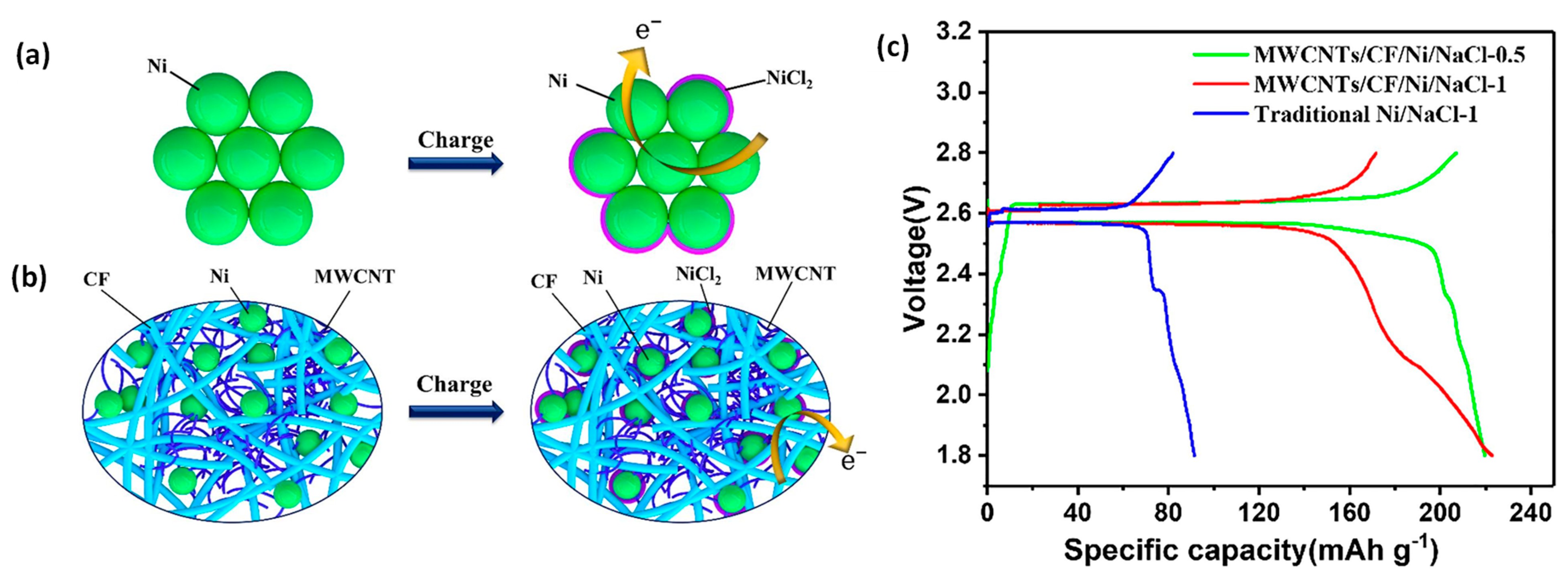

Figure 5. Schematic illustration of the charging process for (a) traditional Ni particles and (b) the MWCNTs/CF/Ni/NaCl cathode. (c) Typical voltage profiles of the traditional Ni/NaCl and MWCNTs/CF/Ni/NaCl cathodes with Ni/NaCl molar ratio of 0.5 or 1 (adapted with the permission from Elsevier).
Figure 5. Schematic illustration of the charging process for (a) traditional Ni particles and (b) the MWCNTs/CF/Ni/NaCl cathode. (c) Typical voltage profiles of the traditional Ni/NaCl and MWCNTs/CF/Ni/NaCl cathodes with Ni/NaCl molar ratio of 0.5 or 1 (adapted with the permission from Elsevier).
Materials 14 03260 g005
Materials 14 03260 g006 550

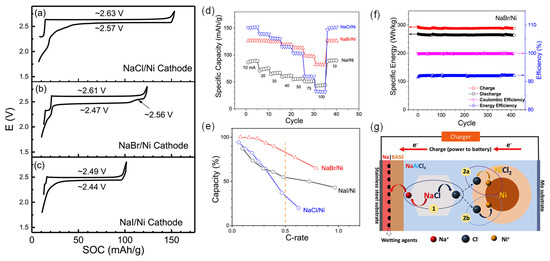

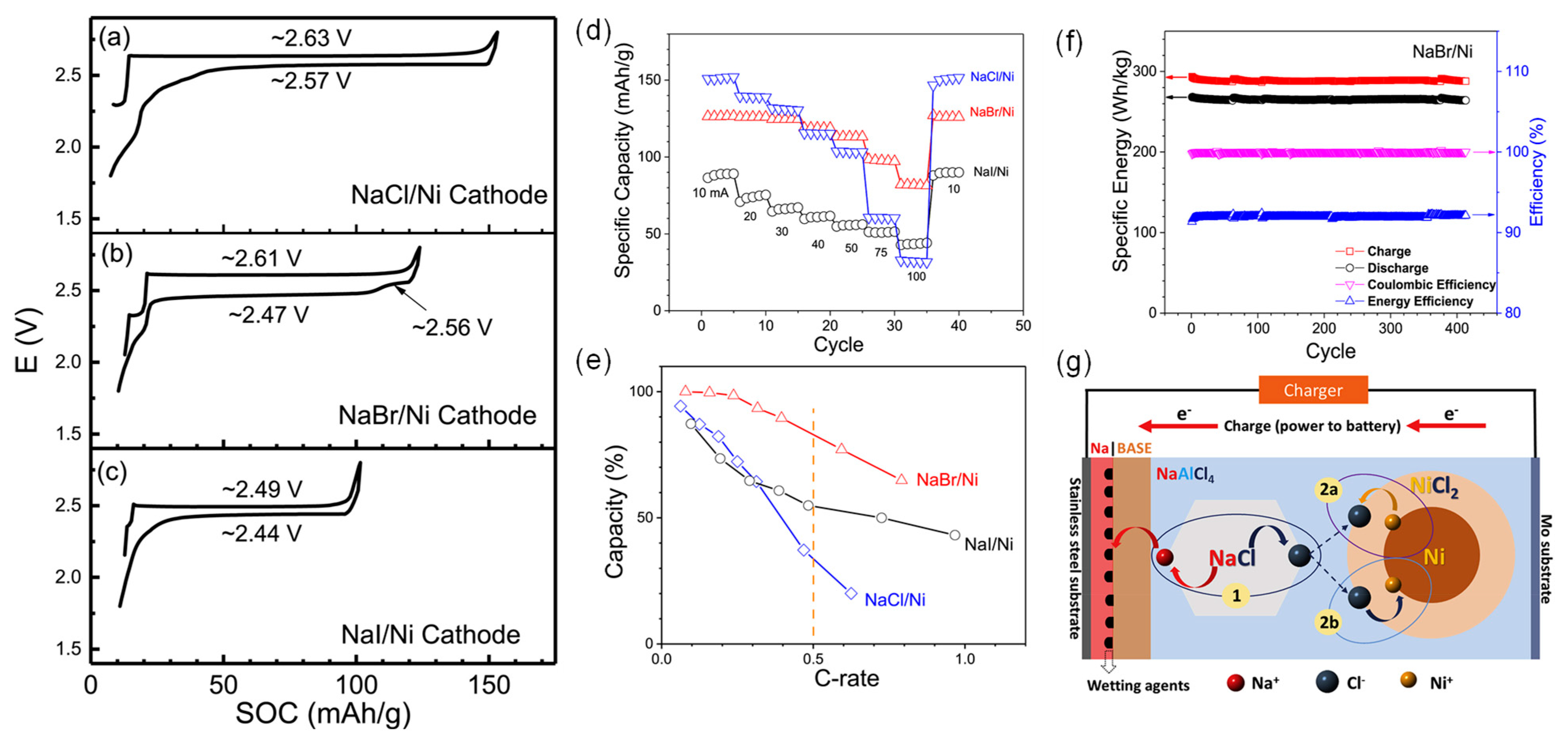

Figure 6. (a–c) Typical voltage profiles during the conditioning cycles for the (a) NaCl/Ni, (b) NaBr/Ni, and (c) NaI/Ni cathodes. The current density is 3.3 mA/cm2 for both charge and discharge, equivalent to ~C/16, ~C/13, and ~C/10 for NaCl/Ni, NaBr/Ni, and NaI/Ni, respectively, and (d) plots of the corresponding rate performance in terms of discharge capacity. (e) Capacity retention vs. C-rate for NaCl/Ni, NaBr/Ni, and NaI/Ni cells. (f) Long-term performance of (c) NaBr/Ni cell cycled at a current density of 10 mA/cm2. (g) Schematic view of reaction mechanisms for a Na-NiCl2 battery during charging (adapted with the permission from Elsevier).
Figure 6. (a–c) Typical voltage profiles during the conditioning cycles for the (a) NaCl/Ni, (b) NaBr/Ni, and (c) NaI/Ni cathodes. The current density is 3.3 mA/cm2 for both charge and discharge, equivalent to ~C/16, ~C/13, and ~C/10 for NaCl/Ni, NaBr/Ni, and NaI/Ni, respectively, and (d) plots of the corresponding rate performance in terms of discharge capacity. (e) Capacity retention vs. C-rate for NaCl/Ni, NaBr/Ni, and NaI/Ni cells. (f) Long-term performance of (c) NaBr/Ni cell cycled at a current density of 10 mA/cm2. (g) Schematic view of reaction mechanisms for a Na-NiCl2 battery during charging (adapted with the permission from Elsevier).
Materials 14 03260 g006
Materials 14 03260 g007 550

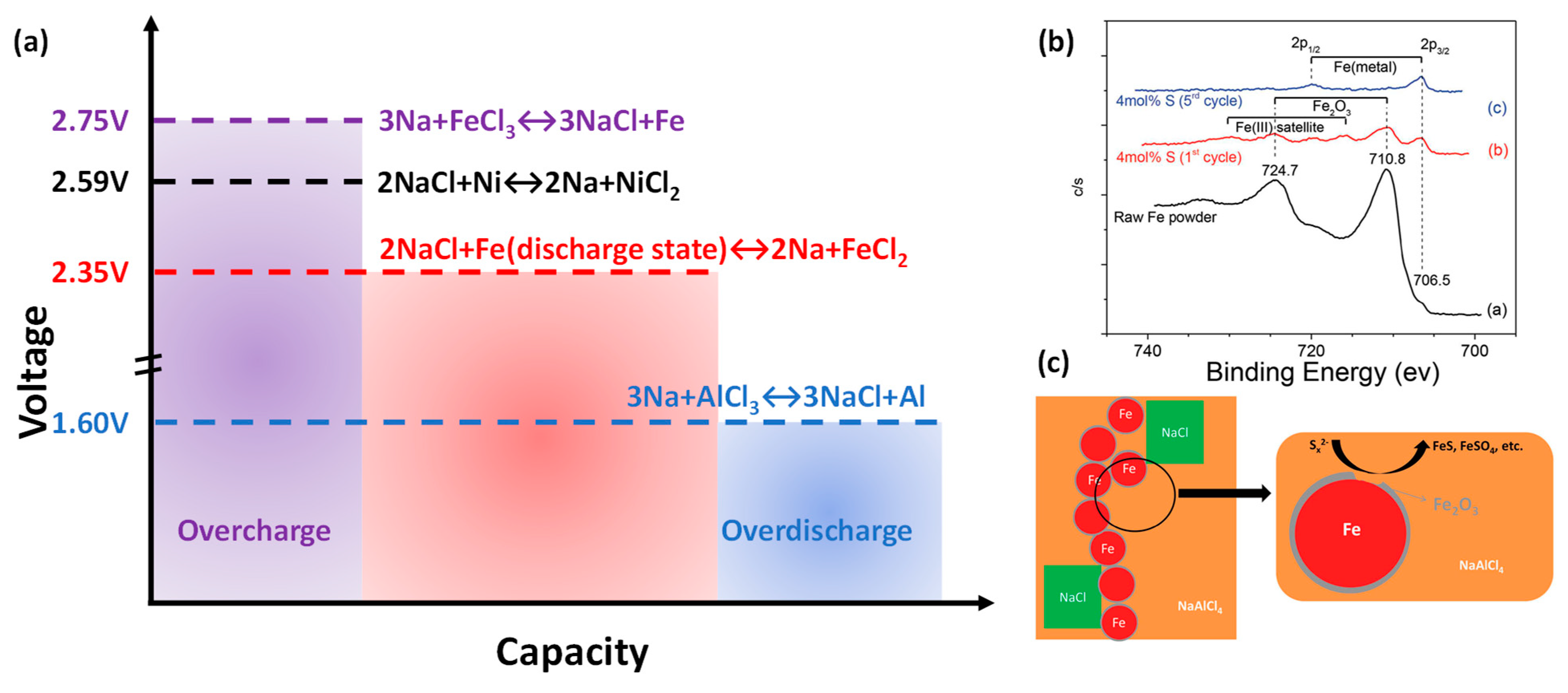

Figure 7. (a) Cell reactions in Na-MH battery using an iron chloride cathode. (b) XPS Fe2p spectra for raw Fe powder and cycled Fe cathodes (4 mol% S). (c) Proposed reaction path for removing oxide layers on Fe particles via polysulfide reaction (b,c, adapted with the permission from Wiley).
Figure 7. (a) Cell reactions in Na-MH battery using an iron chloride cathode. (b) XPS Fe2p spectra for raw Fe powder and cycled Fe cathodes (4 mol% S). (c) Proposed reaction path for removing oxide layers on Fe particles via polysulfide reaction (b,c, adapted with the permission from Wiley).
Materials 14 03260 g007
Materials 14 03260 g008 550

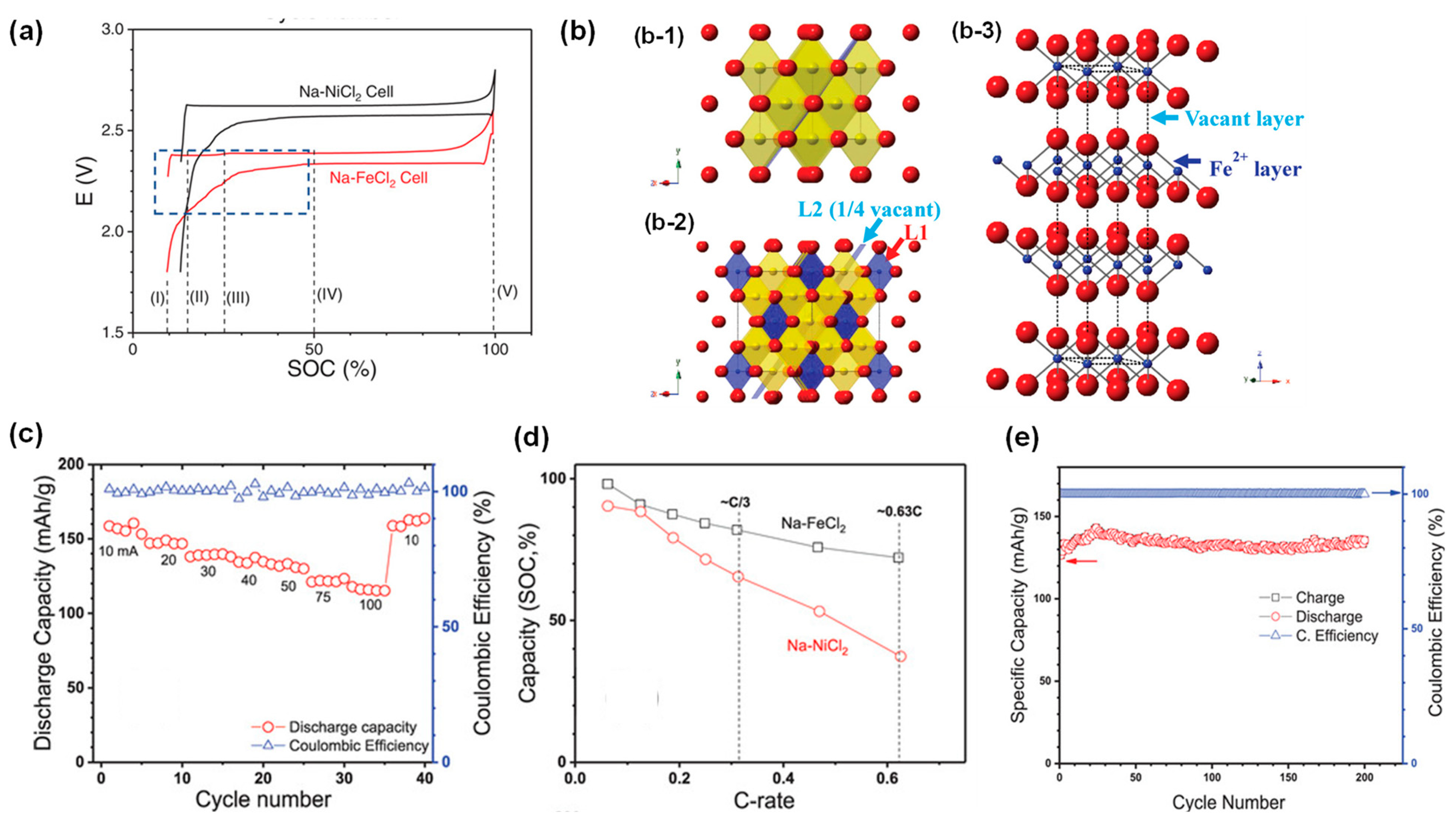

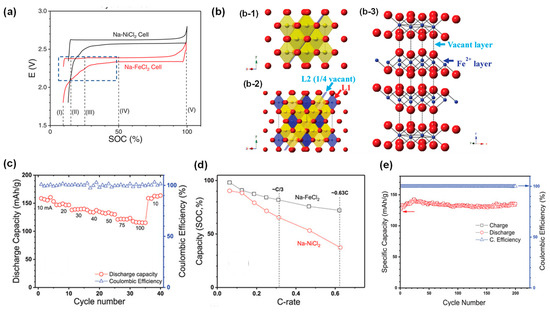

Figure 8. (a) Typical voltage vs. SOC plots of Na-NiCl2 and Na-FeCl2 cells. (b) Crystal structures of three key phases, (b-1) NaCl, (b-2) Na6FeCl8, and (b-3) FeCl2, involved in the charging process of a Na-FeCl2 battery. The red spheres represent Cl− ions, while yellow and blue octahedra are, respectively, six-coordinated NaCl6 and FeCl6. The (111) plane is indicated by light blue for NaCl and Na6FeCl8. (c) Rate performance of a Na-FeCl2 battery operated at 190 °C. (d) The evolution of normalized capacity (SOC, %) as a function of C-rate for Na-FeCl2 batteries. The data of Na-NiCl2 batteries (red points and line) were included as references. (e) Stable long-term cycling performance in terms of specific capacity of Na-FeCl2 batteries with 10 wt.% Ni as cathode additive (adapted with the permission from Wiley).
Figure 8. (a) Typical voltage vs. SOC plots of Na-NiCl2 and Na-FeCl2 cells. (b) Crystal structures of three key phases, (b-1) NaCl, (b-2) Na6FeCl8, and (b-3) FeCl2, involved in the charging process of a Na-FeCl2 battery. The red spheres represent Cl− ions, while yellow and blue octahedra are, respectively, six-coordinated NaCl6 and FeCl6. The (111) plane is indicated by light blue for NaCl and Na6FeCl8. (c) Rate performance of a Na-FeCl2 battery operated at 190 °C. (d) The evolution of normalized capacity (SOC, %) as a function of C-rate for Na-FeCl2 batteries. The data of Na-NiCl2 batteries (red points and line) were included as references. (e) Stable long-term cycling performance in terms of specific capacity of Na-FeCl2 batteries with 10 wt.% Ni as cathode additive (adapted with the permission from Wiley).
Materials 14 03260 g008
Materials 14 03260 g009 550

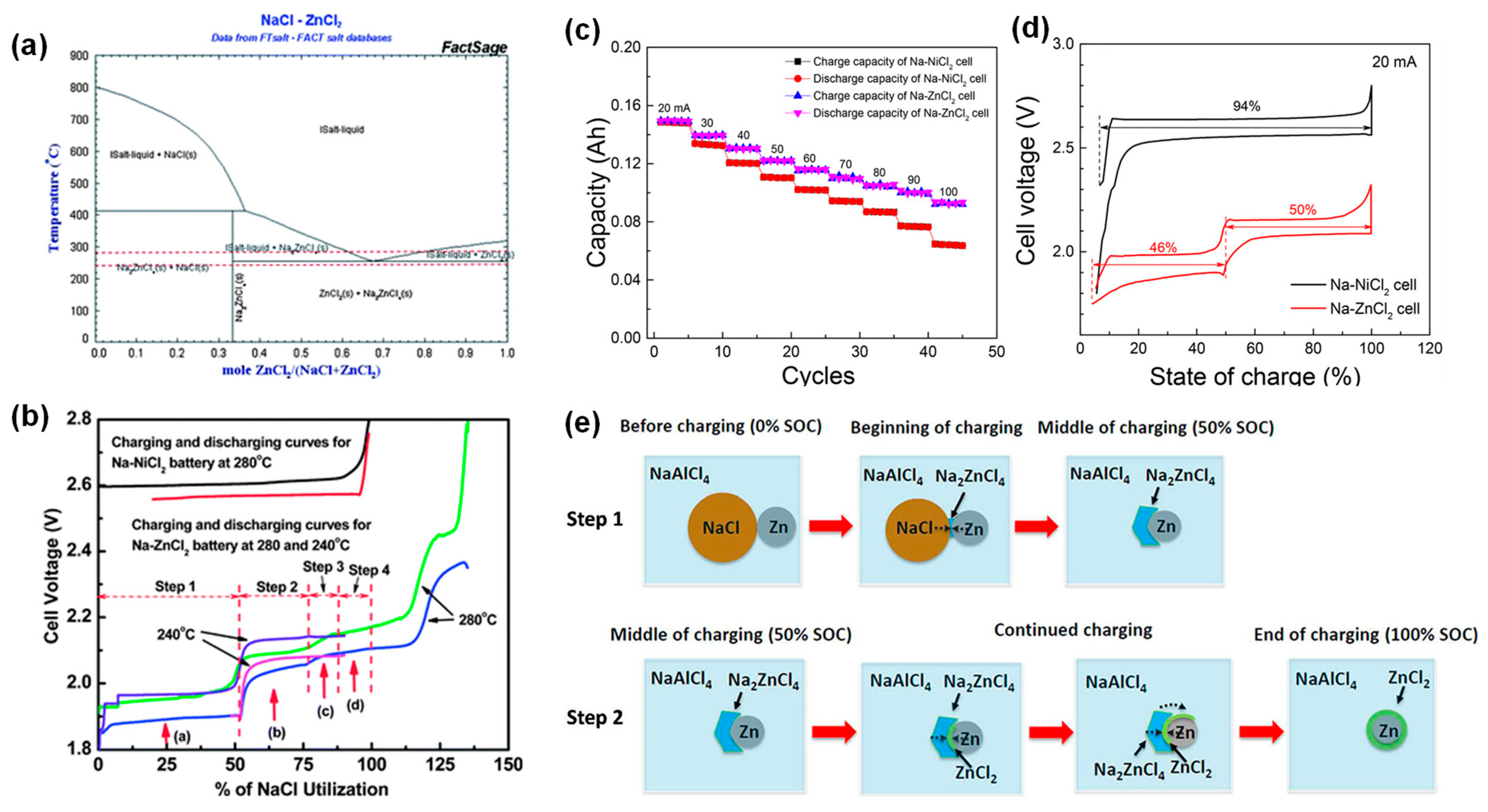

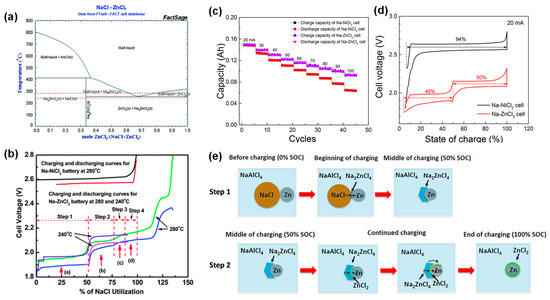

Figure 9. (a) Phase diagram between NaCl and ZnCl2. (b) Initial charge and discharge curves of a Na-ZnCl2 battery at 280 °C and 240 °C compared with a Na-NiCl2 battery (adapted with the permission from RSC). (c) Charge/discharge capacity of Na-ZnCl2 and Na-NiCl2 cells at different charging/discharging rates. (d) Voltage profiles of the two cells at constant currents of 20 mA. (e) Cathode reaction mechanisms for Na-ZnCl2 battery (adapted with permission from ACS).
Figure 9. (a) Phase diagram between NaCl and ZnCl2. (b) Initial charge and discharge curves of a Na-ZnCl2 battery at 280 °C and 240 °C compared with a Na-NiCl2 battery (adapted with the permission from RSC). (c) Charge/discharge capacity of Na-ZnCl2 and Na-NiCl2 cells at different charging/discharging rates. (d) Voltage profiles of the two cells at constant currents of 20 mA. (e) Cathode reaction mechanisms for Na-ZnCl2 battery (adapted with permission from ACS).
Materials 14 03260 g009
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhan, X.; Li, M.M.; Weller, J.M.; Sprenkle, V.L.; Li, G. Recent Progress in Cathode Materials for Sodium-Metal Halide Batteries. Materials 2021, 14, 3260. https://doi.org/10.3390/ma14123260

AMA Style

Zhan X, Li MM, Weller JM, Sprenkle VL, Li G. Recent Progress in Cathode Materials for Sodium-Metal Halide Batteries. Materials. 2021; 14(12):3260. https://doi.org/10.3390/ma14123260

Chicago/Turabian Style

Zhan, Xiaowen, Minyuan M. Li, J. Mark Weller, Vincent L. Sprenkle, and Guosheng Li. 2021. "Recent Progress in Cathode Materials for Sodium-Metal Halide Batteries" Materials 14, no. 12: 3260. https://doi.org/10.3390/ma14123260

APA Style

Zhan, X., Li, M. M., Weller, J. M., Sprenkle, V. L., & Li, G. (2021). Recent Progress in Cathode Materials for Sodium-Metal Halide Batteries. Materials, 14(12), 3260. https://doi.org/10.3390/ma14123260

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
