The Influence of Yarn and Weave Structures on Acoustic Materials and the Effect of Different Acoustic Signal Incidence Angles on Woven Fabric Absorption Possibilities
Abstract
:1. Introduction

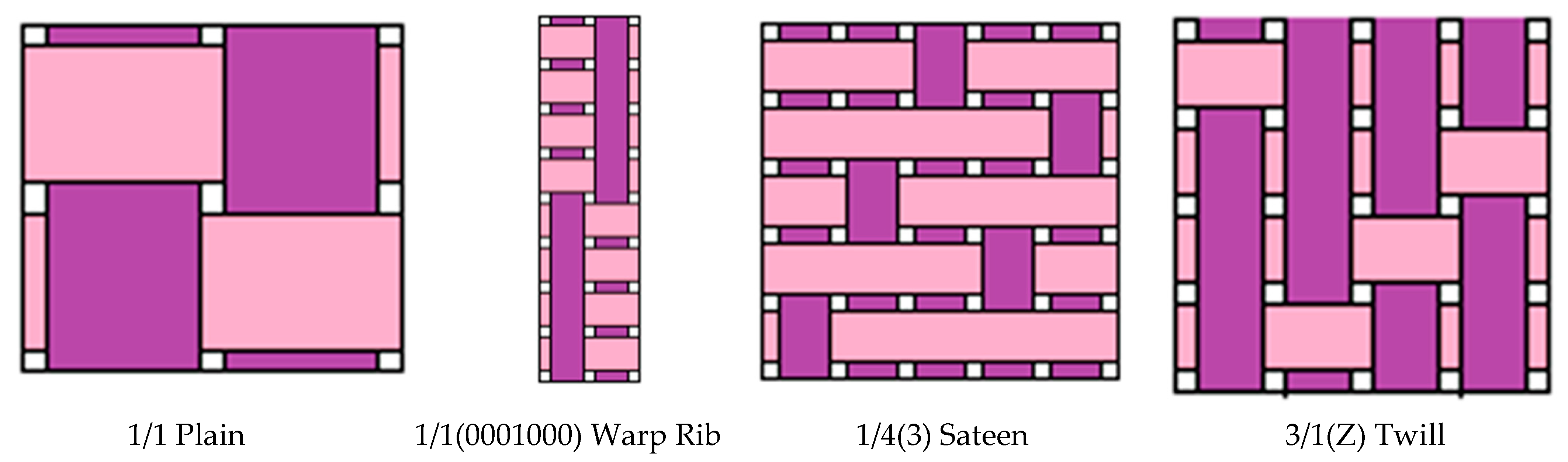

2. Materials
3. Description of Methodology
3.1. Physical Characteristics of Yarn and Fabrics
3.2. Air Permeability Test
- Q = The velocity of air flow perpendicular to a sample (mm/s)
- qv = The average mean of the air flow (dm3/min or liter/min)
- Ap = Test area of the specimen (cm2)
- 167 = Conversion factor from (dm3 or liters/min and cm2 to mm/s)

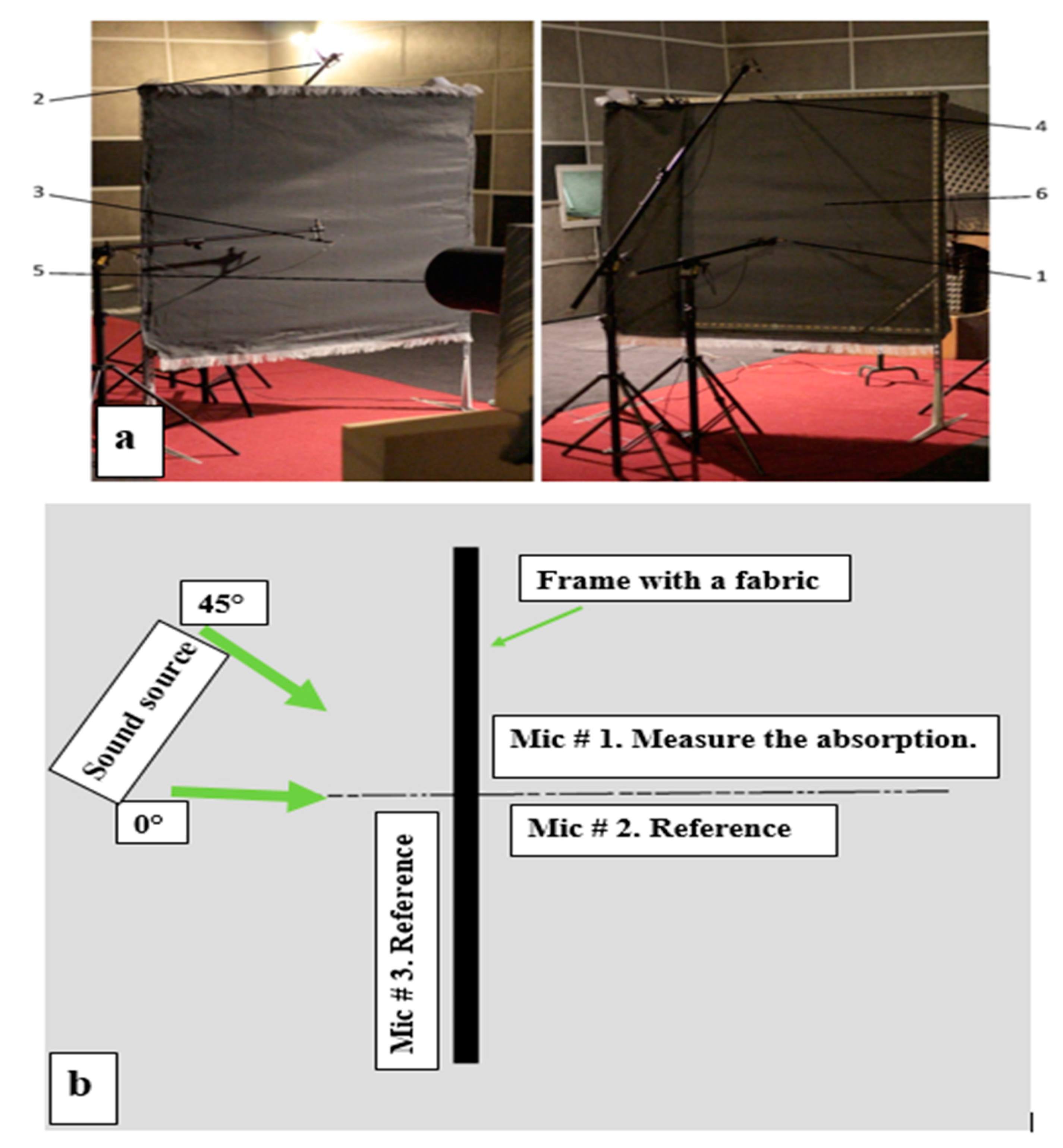

3.3. Acoustic Tests
4. Air Permeability Test Results

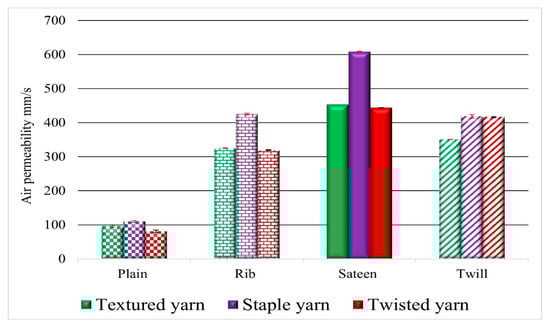

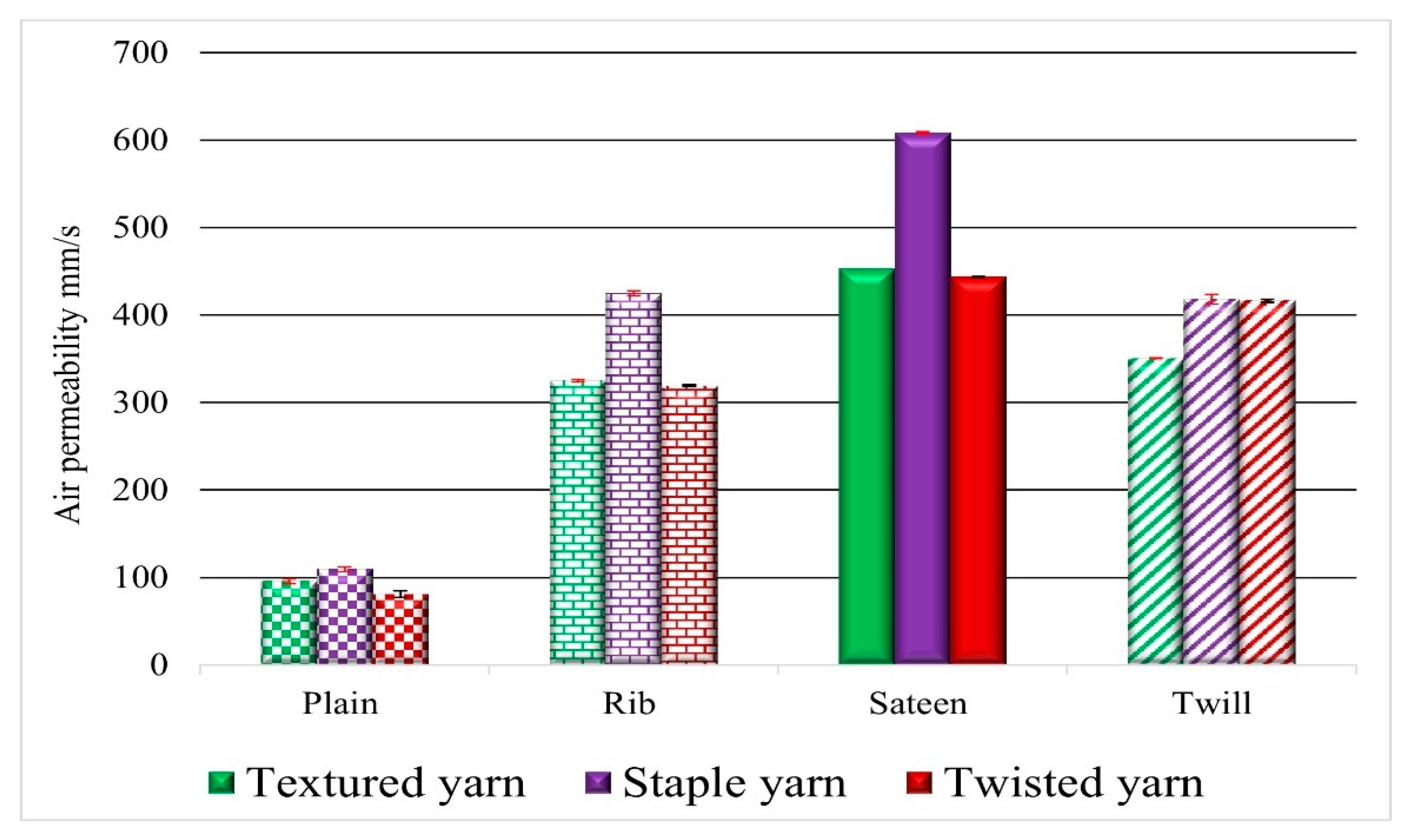

4.1. The Influence of Yarn Type on Air Permeability Results

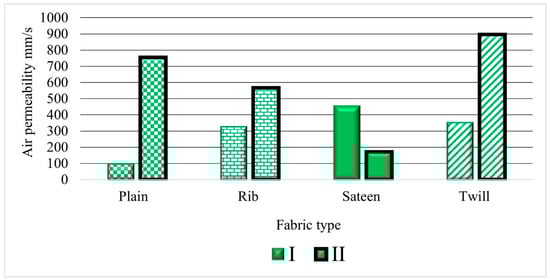

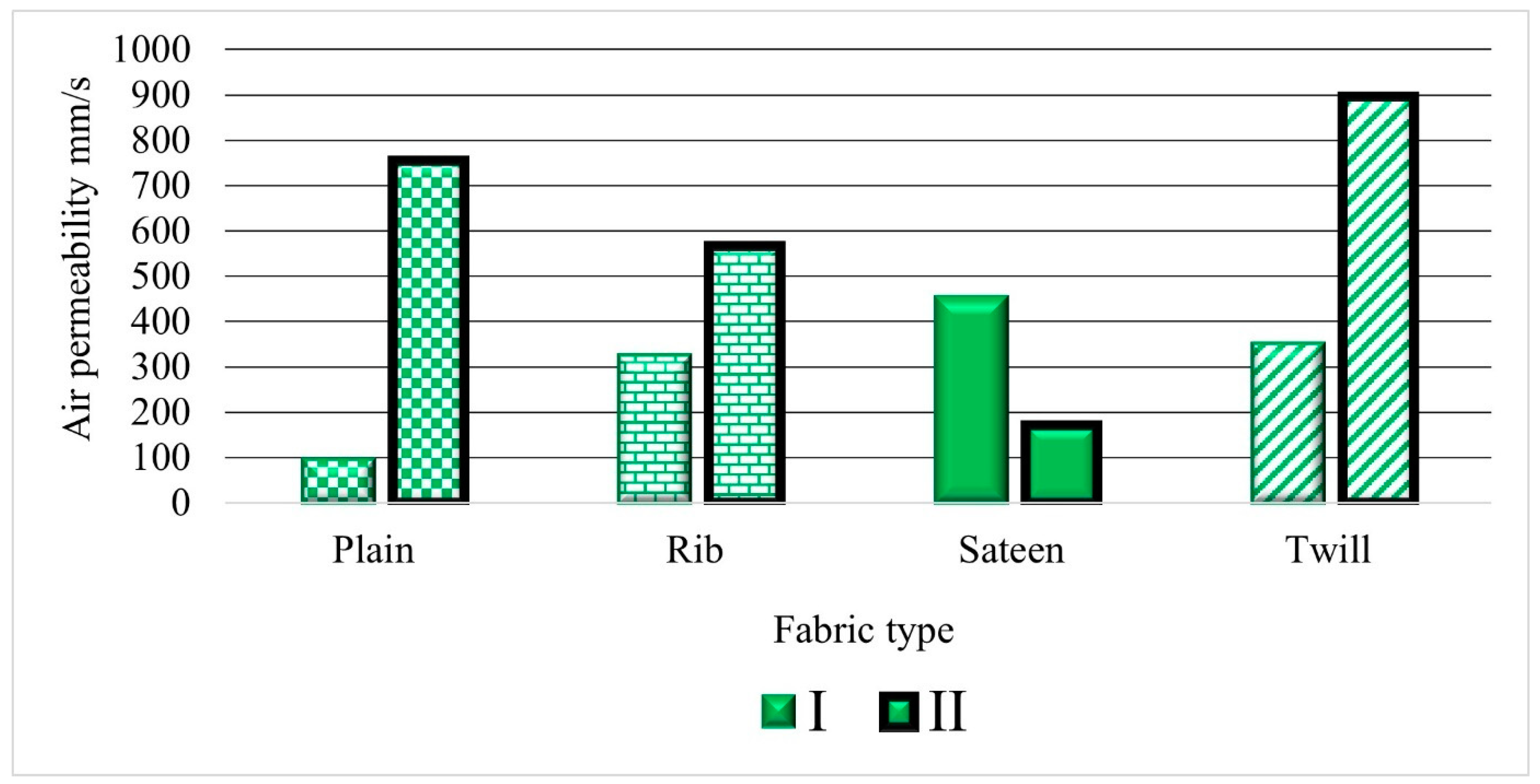

4.2. The Influence of Fabric Structure on Air Permeability Results
5. Sound Absorption Test Result

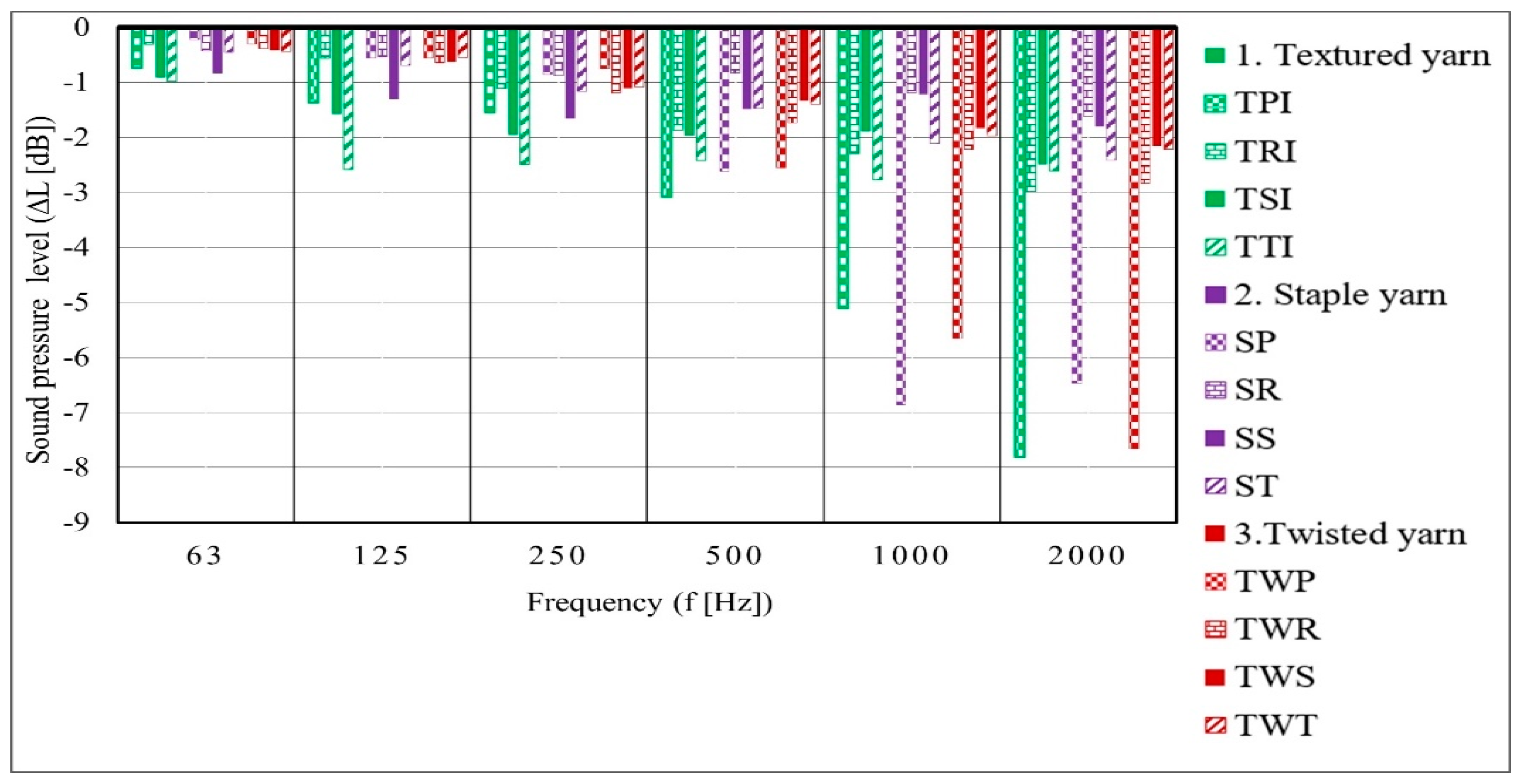

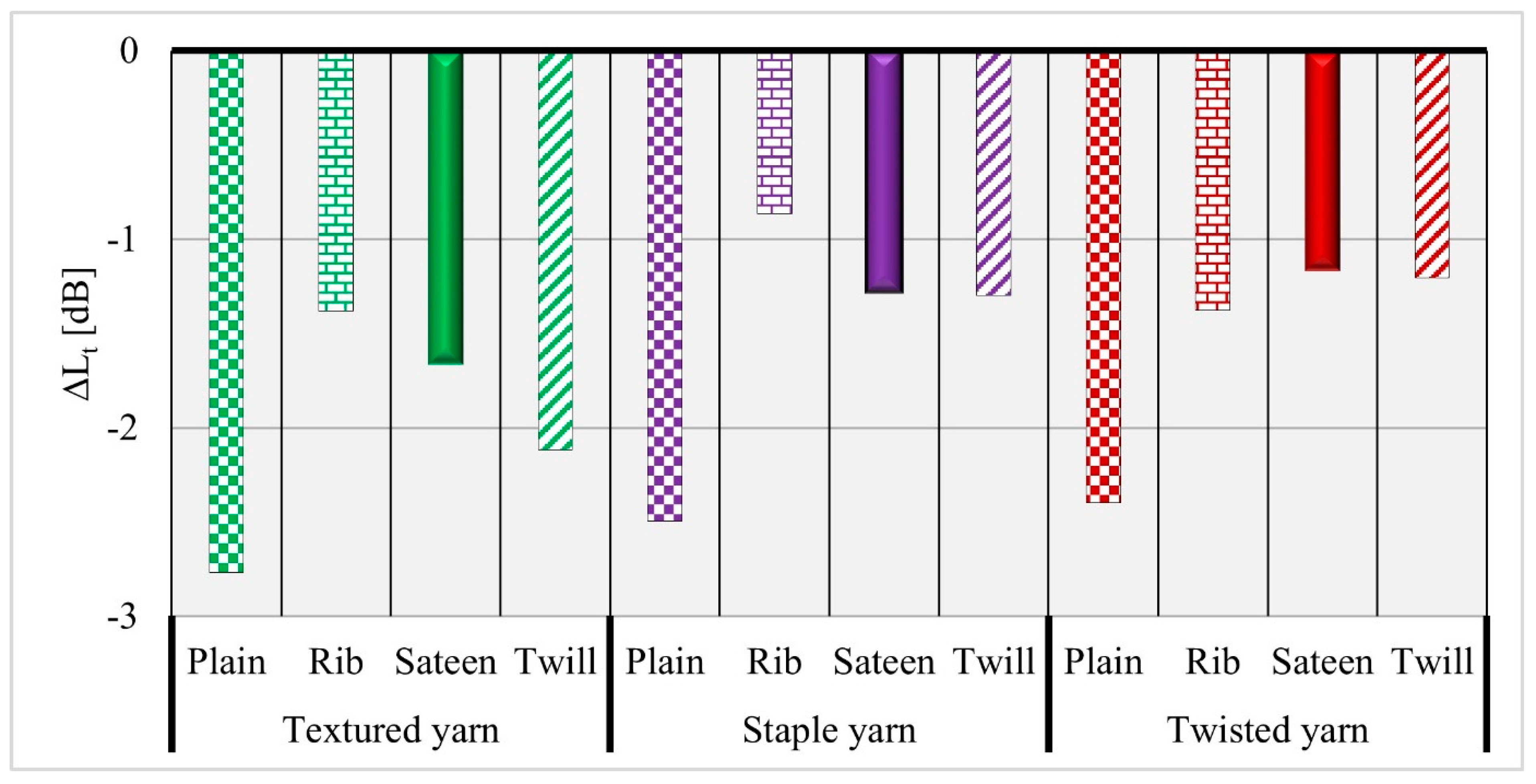

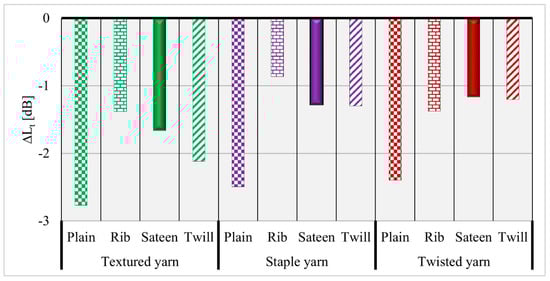

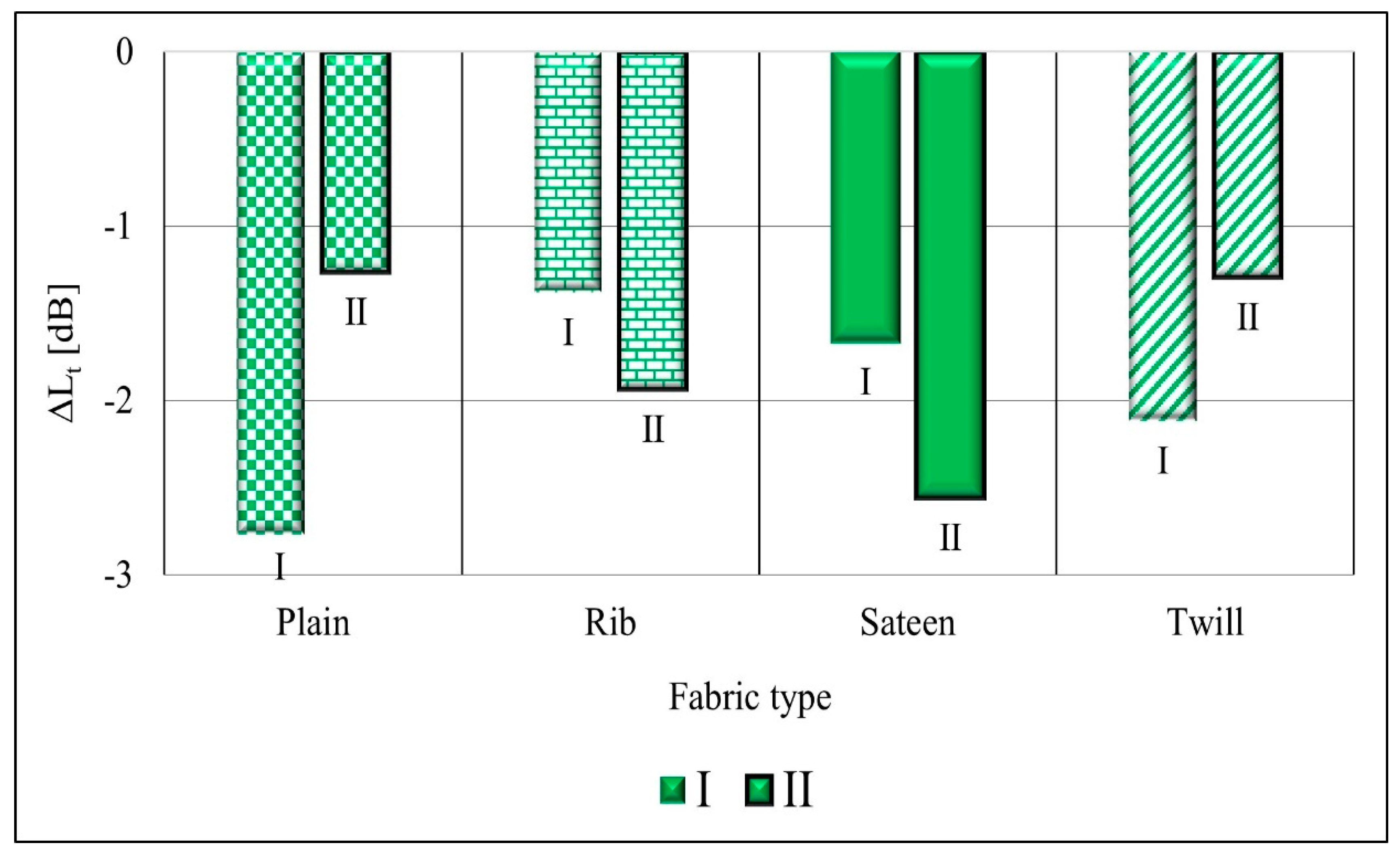

5.1. Influence of Yarn Type and Fabric Performance on Sound Absorption

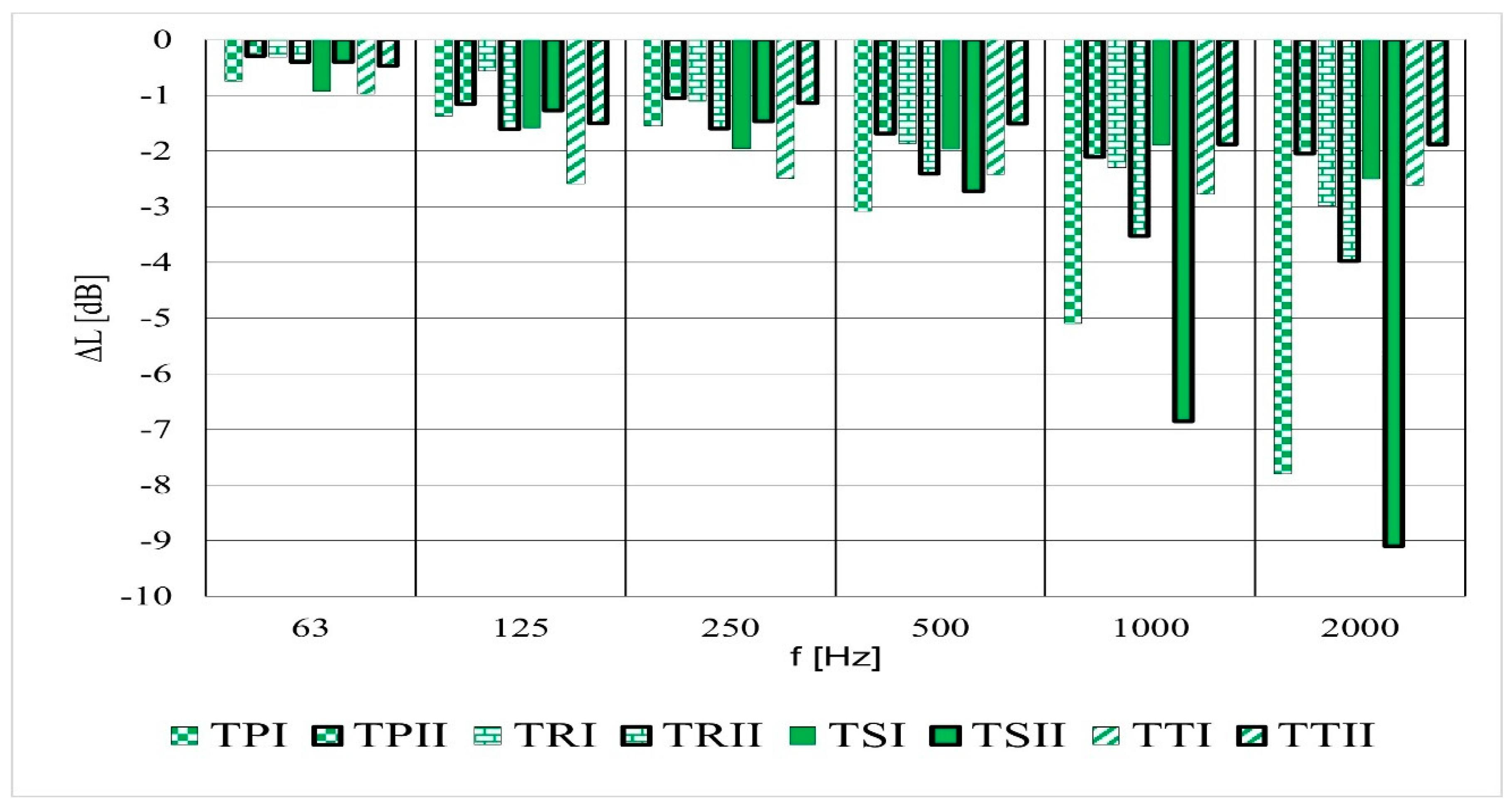

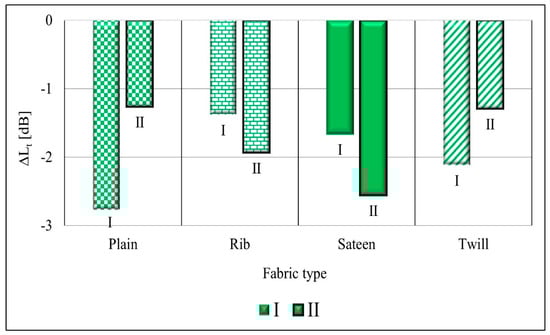

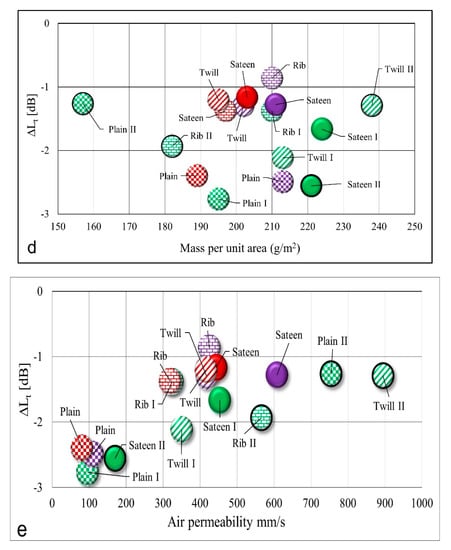

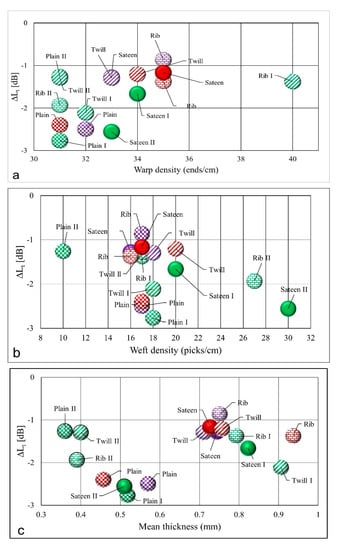

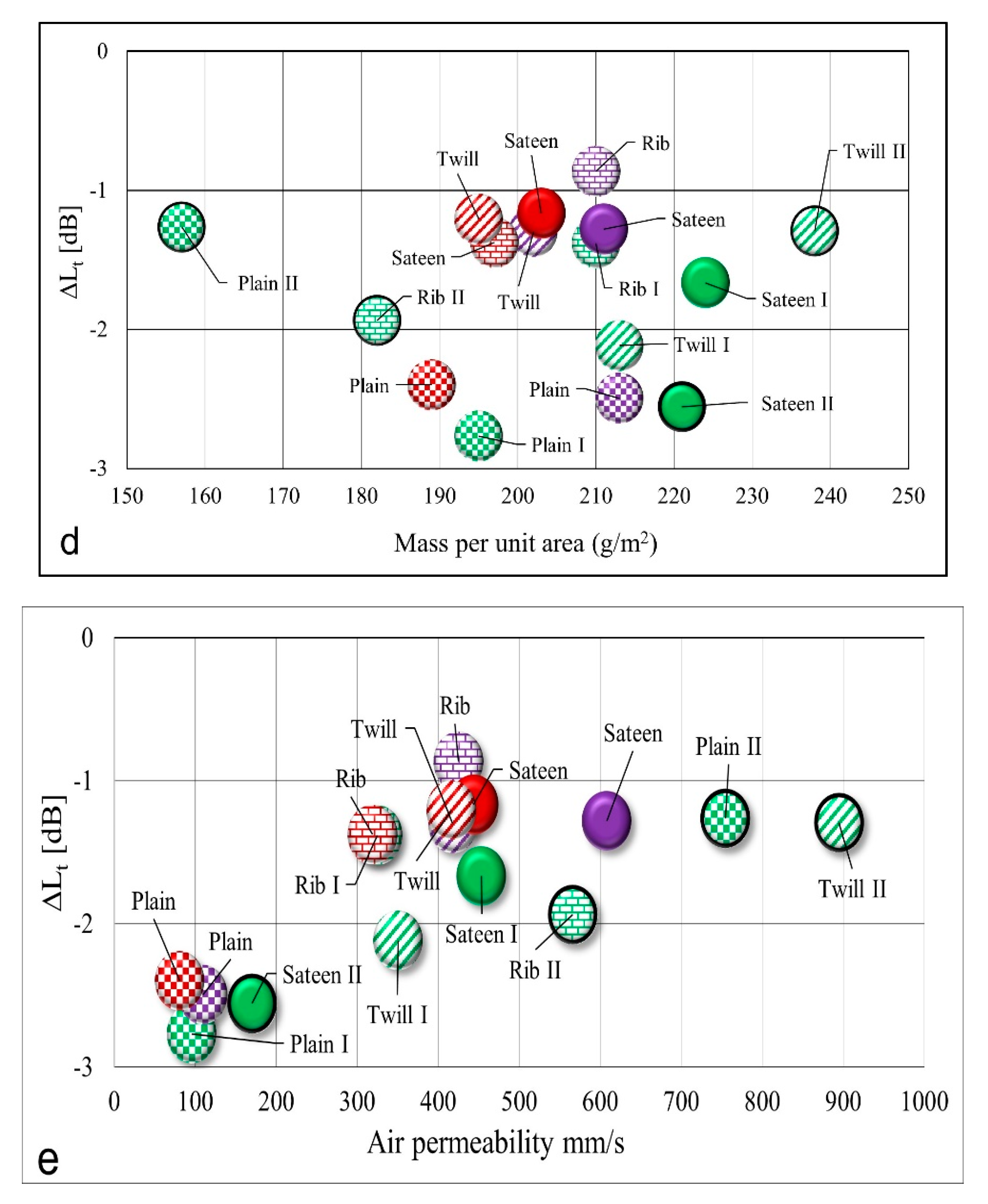

5.2. The Influence of Yarn and Weave Parameters on the Reduction of Air Permeability and Sound Absorption Potential

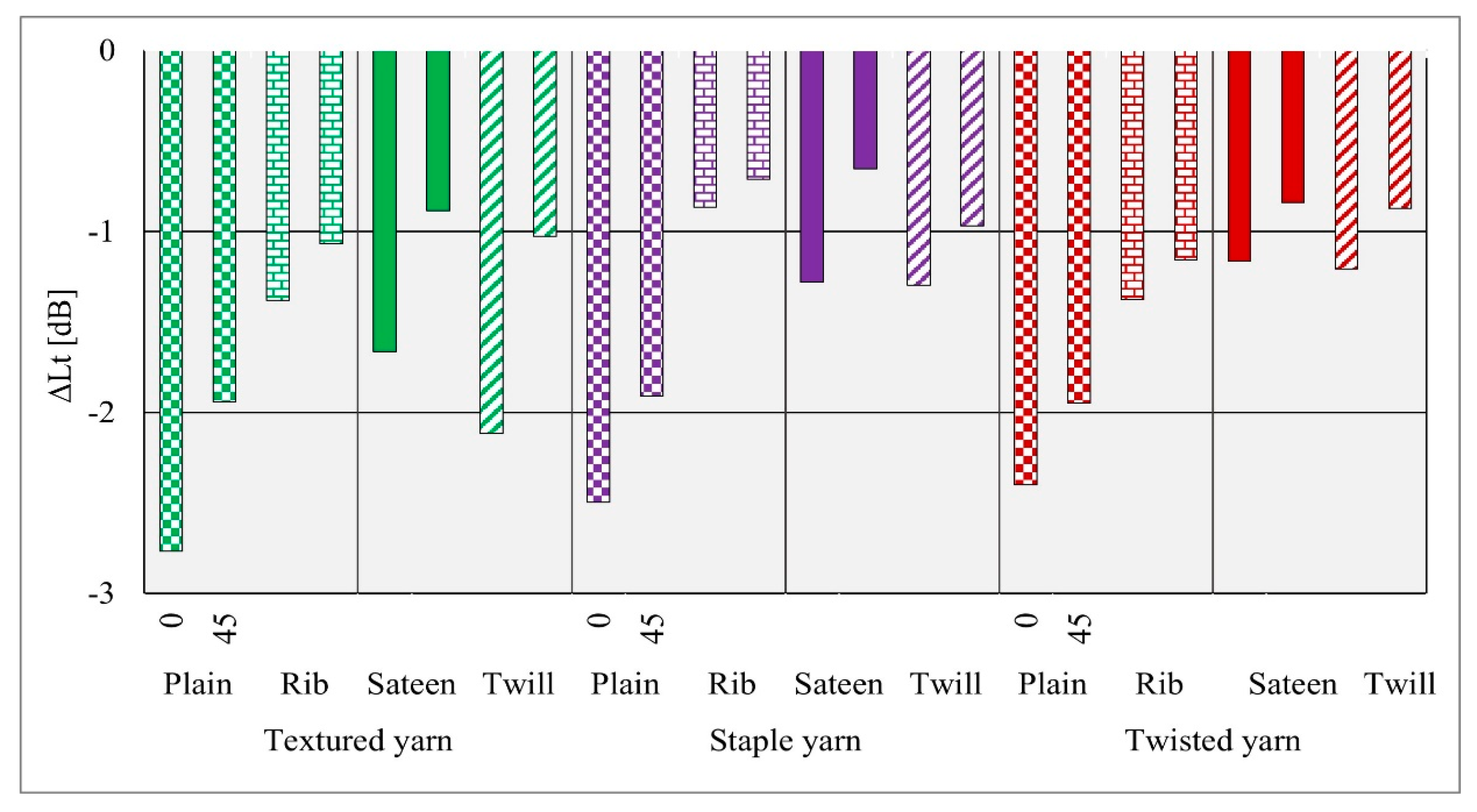

5.3. Comparison of the Sound Pressure Level Drop According to Different Angles
6. Summary and Conclusions
- -
- Regarding comparison purposes, PES staple yarn was thin and had a high number of twists per meter. The amount of twist imparted on the staple yarn may prevent the entering of sound waves into the yarn strand or it lets sound waves to pass directly without any energy exchange between the strands. The fabrics formed from staple yarn also showed such results in the sound attenuation of the fabrics. Conversely, staple yarn hairiness properties do not significantly affect sound absorption and air permeability potential. Generally, materials formed from the staple yarn show a high air permeability and low sound pressure reduction results.
- -
- Low air permeability results also were recorded for all fabrics formed from twisted yarn, except the twill fabric structure. The textured yarn (PES DTY dtex 167 f 32 × 2) has a bulky structure and thick filaments in comparison. The bulkiness enables entrance of the sound waves between the fibers, and the thickness of the filament may increase the chance of sound energy friction with the filaments. This phenomenon may have the potential to dump sound waves between the fibers. High sound absorption results were achieved by all fabrics formed from textured yarn (I).
- -
- The results of measuring in various directions in the anechoic chamber indicate that the acoustic measurements at a 0° incidence angle showed higher sound pressure level reduction properties in all low and medium frequency ranges than those obtained at a 45° incidence angle. These findings provide guidance for the use of such materials in interior applications such as cinema interior wall coverings and conference rooms.
- -
- To obtain the maximum sound absorption potential of the presented materials, the sound source setting position or the incidence angle play decisive roles. Further experiments are in progress, specifically on the relation of the porosity of woven fabrics and the influence of increasing layers on textile acoustic materials.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Nomenclature
ΔL | sound pressure level drop (dB) |
L | sound pressure level (dB) |
F | frequency (Hz) |
A | amplitude of the acoustic signal (Pa) |
P | acoustic pressure (Pa) |
References
- Soltani, P.; Zarrebini, M. Acoustic performance of woven fabrics in relation to structural parameters and air permeability. J. Text. Inst. 2013, 104, 1011–1016. [Google Scholar] [CrossRef]
- Shrivastava, A. Polymerization. In Introduction to Plastics Engineering; Shrivastava, A., Ed.; William Andrew Publishing: Norwich, NY, USA, 2018; pp. 17–48. ISBN 9780323395007. [Google Scholar]
- Cao, L.; Fu, Q.; Si, Y.; Ding, B.; Yu, J. Porous materials for sound absorption. Compos. Commun. 2018, 10, 25–35. [Google Scholar] [CrossRef]
- Soltani, P.; Zerrebini, M. Analysis of acoustical characteristics and sound absorption coeff of woven fabrics. J. Text. Inst. 2012, 82, 875–882. [Google Scholar] [CrossRef]
- Segura-Alcaraz, P.; Segura-Alcaraz, J.; Montava, I.; Bonet-Aracil, M. The use of fabrics to improve the acoustic absorption: Influence of the Woven Fabric Thread Density over a Nonwoven. Autex Res. J. 2018, 18, 269–279. [Google Scholar] [CrossRef] [Green Version]
- Barburski, M.; Blaszczak, J.R.; Pawliczak, Z. Influence of designs of weaves on acoustic attenuation of fabrics. J. Ind. Text. 2019, 49, 33–45. [Google Scholar] [CrossRef]
- Qui, H.; Enhui, Y. Effect of Thickness, Density and Cavity Depth on the Sound Absorption Properties of Wool Boards. Autex Res. J. 2018, 18, 203–208. [Google Scholar] [CrossRef] [Green Version]
- Blaszczak, J.R. Flow noise correlation with efficiency and vibration level. Syst. J. Transdiscipl. Syst. Sci. 2006, 11, 8–15. [Google Scholar]
- Blaszczak, J.R. Acoustic characteristics of an anechoic chamber with an axial two-stage LP model turbine–comparative study. CMP-Turbomachinery 2016, 149, 7–16. [Google Scholar]
- Zupin, Z.; Hladnik, A.; Dimitrovski, K. Prediction of one-layer woven fabrics air permeability using porosity parameters. Text. Res. J. 2012, 82, 117–128. [Google Scholar] [CrossRef]
- Witczak, E.; Jasińska, I.; Lao, M.; Krawczyńska, I.; Kamińska, I. The influence of structural parameters of acoustic panels textile fronts on their sound absorption properties. Appl. Acoust. 2021, 178, 1–12. [Google Scholar] [CrossRef]
- Havlova, M. Air Permeability and Constructional Parameters of Woven Fabrics. Fibres Text. East. Eur. 2013, 21, 84–89. [Google Scholar]
- Paul, R. Functional Finishes for Textiles: An overview. In Functional Finishes for Textiles; Paul., R., Ed.; Woodhead Publishing: Cambridge, UK, 2015; pp. 1–14. ISBN 9780857098399. [Google Scholar]
- Shanbeh, M.; Johari, M.S.; Zarrebini, M.; Barburski, M.; Komisarczyk, A.; Urbaniak, M. Effect of weft yarn spinning system on shear characteristics of plain woven fabrics. Text. Res. J. 2020, 90, 10–23. [Google Scholar] [CrossRef]
- Kumpikaite, E.; Ragaisiene, A.; Barburski, M. Comparable analysis of end-use properties of woven fabrics with fancy yarns. Part I: Abrasion resistance and air permeability. Fibres Text. East. Eur. 2010, 18, 56–59. [Google Scholar]
- Liu, X.; Jiang, J.; Tang, X.; Han, R.; Wang, Q.; Deng, Z. Sound absorption of hollow polyester woven fabric with honeycomb weave. Appl. Acoust. 2021, 180, 108148. [Google Scholar] [CrossRef]
- Kuczmarski, M.A.; Johnston, J.C. Acoustic Absorption in Porous Materials. 2011. Available online: https://ntrs.nasa.gov/citations/20110011143 (accessed on 16 February 2021).
- Barburski, M.; Straumit, I.; Zhang, X.; Wevers, M.; Lomov, S.V. Micro-CT analysis of internal structure of sheared textile composite reinforcement. Compos. Part A 2015, 73, 45–54. [Google Scholar] [CrossRef]
- Blaszczak, J.R.; Comte-Bellot, G.; Smolny, A. New aeroacoustic facility at the Institute of Turbomachinery, Technical University of Lodz. CMP-Turbomachinery 2005, 128, 79–86. [Google Scholar]
- Crocker, M.J. (Ed.) Handbook of Noise and Vibration Control; John Wiley & Sons: New York, NY, USA, 2007; ISBN 978-0-471-39599-7. [Google Scholar]
- ISO. Textile—Determination of Twist in Yarns—Direct Counting Method; ISO 2061:2010; ISO: Geneva, Switzerland, 2010. [Google Scholar]
- ISO. Wool—Determination of Short-Term Irregularity of Linear Density of Slivers, Rovings and Yarns, by Means of an Electronic Evenness Tester; ISO 2649:1974; ISO: Geneva, Switzerland, 1974. [Google Scholar]
- PN EN ISO. Textiles—Determination of Thickness of Textiles and TEXTILE Products; PN EN ISO 5084:1999; Polish Committee for Standardization: Warsaw, Poland, 2013. [Google Scholar]
- ISO. Textiles—Woven Fabrics—Construction—Methods of Analysis—Part 3: Determination of Crimp of Yarn in Fabric; ISO 7211-3:1984; ISO: Geneva, Switzerland, 1984. [Google Scholar]
- PN-ISO. Textiles—Fabrics—Determination of Linear and Area Mass; PN-ISO 3801:1993; Polish Committee for Standardization: Warsaw, Poland, 1993. [Google Scholar]
- ISO. Textiles—Determinations of the Permeability of Fabrics to Air; ISO 9237:1995; ISO: Geneva, Switzerland, 1995. [Google Scholar]
- ISO. Acoustics—Test Methods for the Qualification of Free Field Environments; ISO 26101:2012; ISO: Geneva, Switzerland, 2012. [Google Scholar]
Yarn Types | Weave Types | Sample Name | Set Density Warp/Weft (cm) |
---|---|---|---|
Textured | Plain I | TPI (Textured yarn-Plain weave I) | 30/16 |
Rib I | TRI (Textured yarn-Rib weave I) | 30/16 | |
Sateen I | TSI (Textured yarn-Sateen weave I) | 30/16 | |
Twill I | TTI (Textured yarn-Twill weave I) | 30/16 | |
Plain II | TPII (Textured yarn-Plain weave II) | 30/10 | |
Rib II | TRII (Textured yarn-Rib weave II) | 30/25 | |
Sateen II | TSII (Textured yarn-Sateen weave II) | 30/30 | |
Twill II | TTII (Textured yarn-Twill weave II) | 30/16 | |
Staple | Plain | SP (Staple yarn-Plain weave) | 32/16 |
Rib | SR (Staple yarn-Rib weave) | 31/16 | |
Sateen | SS (Staple yarn-Sateen weave) | 31/16 | |
Twill | ST (Staple yarn-Twill weave) | 31/16 | |
Twisted | Plain | TwP (Twisted yarn-Plain weave) | 32/16 |
Rib | TwR (Twisted yarn-Rib weave) | 31/16 | |
Sateen | TwS (Twisted yarn-Sateen weave) | 32/16 | |
Twill | TwT (Twisted yarn-Twill weave) | 31/16 |
Type of Yarn | Yarn twist/m | Yarn Hairiness | Yarn Evenness | Measured Linear Density of Yarns (Tex) | ||
---|---|---|---|---|---|---|
Thin/km | Thick/km | |||||
Textured yarn | ------ | ------ | ------ | 36.62 ± 0.04 | ||

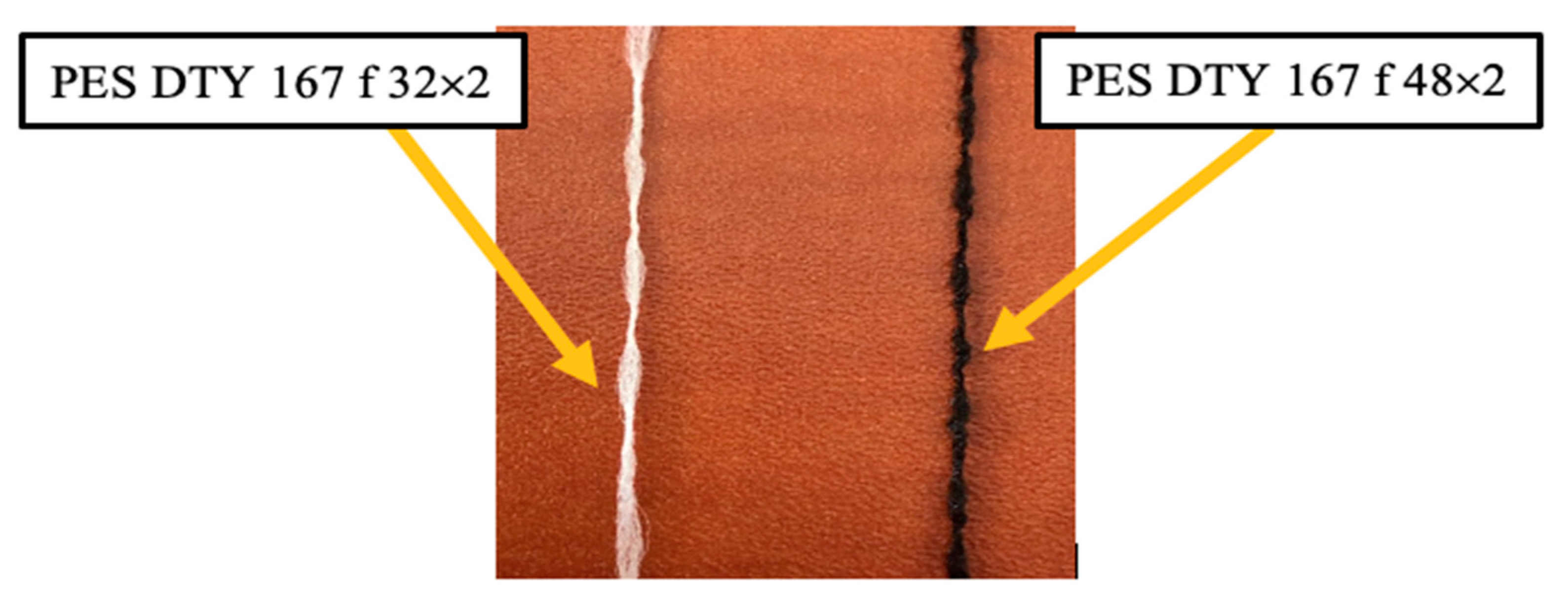

I | Warp/Weft PES DTY dtex 167 f 32 × 2 | |||||

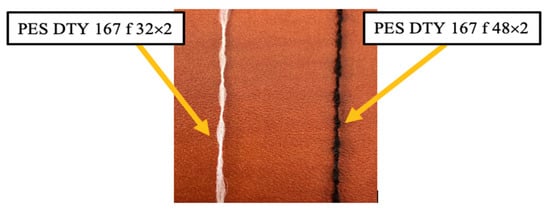

II | Warp PES DTY dtex 167 f 48 × 2 Weft PES DTY dtex 167 f 32 × 2 | |||||
Staple yarn PES 20 × 2 tex | 511.4 | 7.24 | 80 | 34.6 | 41.16 ± 0.09 | |
Twisted yarn PES dtex 334 f 64, S95 | 90.1 | ------ | ------ | ------ | 36.93 ± 0.01 |
Samples Name | Measured Warp Density (Ends/cm) | Measured Weft Density (Picks/cm) | Fabric Thickness (mm) | Crimp % | Mass Per Unit Area, (g/m2) | |
---|---|---|---|---|---|---|
Warp | Weft | |||||
TPI | 31 ± 0 | 18 ± 0 | 0.52 ± 0.01 | 8.7 ± 0.4 | 0.9 ± 0.1 | 195 ± 1.5 |
TRI | 38 ± 0 | 17 ± 0 | 0.8 ± 0.02 | 1.9 ± 0.1 | 17.9 ± 0.7 | 224 ± 2.8 |
TSI | 34 ± 0.4 | 20 ± 0.6 | 0.9 ± 0.03 | 11.1 ± 0.1 | 2 ± 0.1 | 213 ± 2.1 |
TTI | 32 ± 0 | 18 ± 0.6 | 0.79 ± 0.02 | 10.9 ± 0.2 | 1.8 ± 0.1 | 210 ± 4.2 |
TPII | 31 ± 0 | 10 ± 0 | 0.36 ± 0.01 | 6 ± 0.1 | 0.9 ± 0.1 | 157 ± 1.8 |
TRII | 31 ± 0.7 | 27 ± 0.5 | 0.5 ± 0.02 | 11.4 ± 0.1 | 0.8 ± 0.1 | 221 ± 2.4 |
TSII | 33 ± 0 | 30 ± 0.6 | 0.4 ± 0.03 | 6.5 ± 0.2 | 2.3 ± 0.1 | 238 ± 2.2 |
TTII | 31 ± 0 | 17 ± 0.6 | 0.39 ±0.02 | 7 ± 0.1 | 1.2 ± 0.2 | 182 ± 1.9 |
SP | 32 ± 0.2 | 17 ± 0.6 | 0.57 ± 0.01 | 14.7 ± 0.3 | 2.3 ± 0.1 | 213 ± 1.6 |
SR | 35 ± 0 | 17 ± 0.5 | 0.74 ± 0.01 | 1.3 ± 0.1 | 11 ± 0.2 | 211 ± 1.5 |
SS | 33 ± 1.1 | 16 ± 0 | 0.71 ± 0.03 | 6.6 ± 0.1 | 3.2 ± 0.1 | 202 ± 0.5 |
ST | 33 ± 0.2 | 18 ± 0 | 0.75 ± 0.01 | 7.5 ± 0.3 | 2.1 ± 0.1 | 210 ± 3.3 |
TwP | 31 ± 0 | 17 ± 0.8 | 0.46 ± 0.01 | 7.4 ± 0.2 | 0.3 ± 0.1 | 189 ± 0.75 |
TwR | 35 ± 0.1 | 16 ± 0.6 | 0.73 ± 0.02 | 3.1 ± 0.2 | 11.9 ± 0.2 | 203 ± 2 |
TwS | 35 ± 0 | 17 ± 1 | 0.76 ± 0.02 | 5 ± 0.2 | 2.5 ± 0.1 | 195 ± 0.63 |
TwT | 34 ± 0.2 | 20 ± 1 | 0.94 ± 0.01 | 6.7 ± 0.2 | 1.9 ± 0.1 | 197 ± 0.8 |
