Investigation into the Effect of Thermal Treatment on the Obtaining of Magnetic Phases: Fe5Y, Fe23B6, Y2Fe14B and αFe within the Amorphous Matrix of Rapidly-Quenched Fe61+xCo10−xW1Y8B20 Alloys (Where x = 0, 1 or 2)

by
Petrica Vizureanu
1,
Marcin Nabiałek
2,*,
Andrei Victor Sandu
1,3,* and
Bartłomiej Jeż
2,*
1
Faculty of Materials Science and Engineering, GheorgheAsachi Technical University of Iasi, Blvd. D. Mangeron 41, 700050 Iasi, Romania
2
Department of Physics, Faculty of Production Engineering and Materials Technology, Częstochowa University of Technology, Al. Armii Krajowej 19, 42-200 Częstochowa, Poland
3
Romanian Inventors Forum, Str. Sf.P.Movila 3, 700089 Iasi, Romania
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(4), 835; https://doi.org/10.3390/ma13040835
Submission received: 20 January 2020 / Revised: 7 February 2020 / Accepted: 9 February 2020 / Published: 12 February 2020
(This article belongs to the Special Issue Advanced Surface Treatment Technologies for Metallic Alloys)
Browse Figures
Versions Notes

Abstract

:
The paper presents the results of research on the structure and magnetic properties of Fe61+xCo10−xW1Y8B20 alloys (where x = 0, 1 or 2). The alloys were produced using two production methods with similar cooling rates: Injection casting and suction casting. The alloy samples produced were subjected to isothermal annealing at 940 K for 10 min. The structure of the materials was examined using X-ray diffraction. Isothermal annealing has led to the formation of various crystallization products depending on the chemical composition of the alloy and the structure of the alloy in a solidified state. In two cases, the product of crystallization was the hard magnetic phase Y2Fe14B. However, the mechanism of this phase formation was different in both cases. The magnetic properties of alloys were tested using a vibrating sample magnetometer and a Faraday magnetic balance. It is found that the grain crystallite size of the crystalline phases have a decisive influence on the value of the coercive field (especially in the case of hard magnetic phases). It has been shown that privileged areas can already be created during the production process. Their presence determines the crystallization process.

1. Introduction

Modern materials are expected to fulfil increasingly demanding requirements to warrant their adoption in applications. Currently, the main requirements are efficiency and the protection of the natural environment. Many modern materials are being used in very specialist fields due to their desirable properties. Iron-based materials are used, amongst others, in the power and electrochemical industries. These materials are mostly magnetic alloys which feature soft magnetic properties. Materials exhibiting soft magnetic properties are characterized by a low-value coercive field, low core losses and high saturation magnetization. Such properties are exhibited, among others, by amorphous [1,2,3,4,5,6] and nanocrystalline iron-based alloys [7,8,9,10]. These parameters are especially important for such applications as magnetic cores, where efficient demagnetization is required. The magnetic properties of the material depend not only on its chemical composition, but also on the production process, and the purity of the component elements. One production method, suitable for obtaining materials with soft magnetic properties, is the “rapid quenching” of molten iron-based compounds. The rapid solidification of the liquid alloy “freezes” the disordered atomic structure, which is characterized by the absence of a long-distance atomic order [11,12].
The first solid amorphous alloys in the form of ribbons were produced in the 1960s [13,14]. In the beginning, the production methods only allowed the manufacture of amorphous alloys in the form of very thin tapes of an approximate thickness of 30 μm, which substantially restricted their applicability. For more than 20 years, research work tried to establish production processes and conditions for obtaining amorphous alloys of thicknesses greater than 100 μm [15]. Finally, A. Inoue [7] formulated three criteria which allowed the production of amorphous material samples with greater thicknesses and using a lower quenching speed than that used for the production of the classical amorphous ribbons [16,17,18,19]. Currently, there are several production methods which allow the production of amorphous materials; two examples are the “injection-casting” and “suction-casting” methods. In these methods, the liquid alloy is injected (or drawn, in the suction-casting method) into a water-cooled copper die. The quenching speed used in these methods reaches 101–103 K/s [20,21,22,23]. Given that a suitable chemical composition is used, these methods allow the production of a disordered structure. Material with a partially crystallized structure (and a size of crystalline grains of up to 100 nm)—i.e., so-called “nanocrystalline” material—is difficult to obtain during a single-step production process. However, under certain conditions, it is possible to obtain a nanocrystalline alloy in the course of the rapid solidification method [24]. It is difficult to describe precisely the production process, due to its low repeatability. Therefore, the technique has to be adapted for each chemical composition. The nanocrystallization of an alloy could also be achieved using an appropriate thermal treatment of the amorphous alloy [25,26]. Depending on the time duration and temperature of the annealing process, the structure of an amorphous alloy will either become relaxed, or it will change into a two-phase structure consisting of an amorphous matrix with crystalline grains. In order to obtain crystalline grains, the annealing process has to be performed closeto the crystallization temperature of the alloy. The duration of the annealing process affects the size and number of the created crystalline grains. The nanocrystalline alloys, resulting from appropriate thermal treatment, are characterized by good soft magnetic properties [4,27]. The amorphous materials with soft magnetic properties are based on iron, cobalt, or nickel. In addition to the transition metals, whose contribution comprises more than 50% of the alloy, selected non-metallic elements are used; e.g., boron, silicon or germanium. The selection of elements for the chemical composition of an alloy is not haphazard. A high iron and/or cobalt content ensures good magnetic properties. The addition of boron in an appropriate proportion to iron ensures a good glass-forming ability (GFA) of the alloy. The addition of yttrium is also known to improve GFA, as well as yielding an improvement in the magnetic properties [28]. The addition of tungsten has a positive effect on the soft magnetic properties of the alloy [29]. According to the Turnbull theorem [30], this chemical composition of the alloy fulfils the relation Trg = Tg/Tl, (Trg: Reduced glass transition temperature; Tg: Glass transition temperature; Tl: Liquid temperature) where Trg is approximately 0.6, and the alloy has a eutectic composition.
To summarize, the aim of this work was to investigate the structure and magnetic properties of rapidly-quenched Fe61+xCo10−xW1Y8B20alloys (where x = 0, 1 or 2) in the amorphous, as-quenched state, as well as the state following thermal treatment. Above all, we wanted to check how a small change in the chemical composition of the alloy produced by different methods affects the creation of crystalline phases in the annealing process.

2. Materials and Methods

The component elements for the alloys were weighed to an accuracy of up to 0.0001 g. Each of the samples weighed 10 g. The weighed components were melted in an arc-furnace (Author’s device, Częstochowa, Poland), under a protective argon atmosphere. The samples were placed in the working chamber—a cavity within a copper die—and were melted using a plasma arc. The temperature of the arc was controlled by the current passing though the electrode. Before this operation, the re-melting of a titanium getter was undertaken, in order to remove any remaining oxygen and other impurities from the working chamber. The first melting of the material was undertaken using a lower electrode current to avoid material splatter. Each ingot was re-melted several times, in order to achieve a better homogeneity of the resulting alloy. After each melting process, the ingot was inverted by means of a manipulator, and this action further aided the mixing of the component elements. After this process, each ingot was divided into smaller fragments, and subjected to mechanical and ultrasonic bath cleaning.
The alloys used in this study were made by injection and suction-casting methods, in conjunction with a water-cooled copper die. These methods allowed the achievement of rapid cooling speeds of 101–103 K/s. The casting process was performed under a stable argon pressure and using identical copper dies. The samples were cast in the form of rectangular plates with the following approximate dimensions: Width = 5 mm, length = 10 mm, and thickness = 0.5 mm. Five plate samples were made for each alloy composition.
Separate X-ray diffraction (Bruker, Billerica, MA, USA) studies were performed for each of the tested plates. Tests were carried out on the surface of the samples and after crushing. Then, powders were mixed for each of the examined alloys and X-ray examinations were performed. The obtained results coincided with high accuracy with the diffraction obtained for the samples from individual plates.
Following casting, the resulting samples were crushed using a low-energy process. The powdered samples were subjected to an isothermal annealing process in a vacuum at a temperature of 940 K for 10 min. The process of the thermal treatment of samples consisted of three stages: heating (8 min), annealing (10 min) and cooling (120 min). The samples enclosed in a quartz tube were placed in an oven (author’s device, Częstochowa, Poland) preheated to 940 K. After 8 min, the sample reached oven temperature. According to the established parameters, the sample was annealed for 10 min. After this time, the oven chamber was opened and the sample was cooled to room temperature (Figure 1). The heat treatment process designed in this way affects the relaxation processes which occur in the sample volume.
The effect of the low-energy crushing on the possible segregation of alloying elements was determined using EDX analysis. A microscope was used, which was the Supra 25 Zeiss Detector SE (Oberkochen, Germany). The structure of the investigated alloys was studied by performing X-ray diffractometry on the powdered samples. A Bruker Advance D8 X-ray diffractometer (Bruker, Billerica, MA, USA) equipped with a CuKα radiation source, was used for this part of the investigation. The magnetic properties were studied by means of a LakeShore vibrating sample magnetometer (Carson, CA, USA) using an external magnetic field of up to 1.7 T. Based on the recorded static hysteresis loops, the values of the coercivity and magnetization of the samples were determined. The thermal stability of the alloys was studied using a Faraday balance (AGH, Kraków, Poland).

3. Results

Figure 2 presents SEM images for samples in the form of powder along with EDX analysis. EDX analysis was carried out for areas with a size of 10 μm. Crushing did not change the chemical composition and separation of alloy components.
In Figure 3 and Figure 4, X-ray diffraction patterns are presented for the samples of the investigated alloys using injection and suction casting in the as-cast state and following the thermal treatment (940 K/10 min).
The production method resulted in an amorphous structure in two samples, as confirmed by the resulting X-ray patterns (Figure 3a,c). However, the sample of the Fe62Co9W1Y8B20 alloy (Figure 3b), which was made under the same conditions, shows the presence of a small number of grains of the Fe5Y and αFe crystalline phases. After the isothermal annealing process, conducted at a temperature close to the crystallization temperature [31] of the alloy for 10 min, the X-ray diffraction patterns for all of the samples revealed sharp, relatively narrow, peaks, indicating the presence of crystalline phases. In the sample of the Fe61Co10W1Y8B20 alloy (Figure 3d) and the Fe63Co8W1Y8B20 alloy (Figure 3f), the presence of two crystalline phases was detected: αFe and Fe5Y. This suggests that the crystallization process occurred at similar activation temperatures for these two samples. In the case of the sample of Fe62Co9W1Y8B20alloy (Figure 3b), which was made by the injection-casting method and partially crystallized during the production process, four crystalline phases can be seen after annealing (Figure 3e). In contrast with the other two samples, in this alloy, after the annealing process, grains of the crystalline phases Y2Fe14B and Fe23B6 were observed. The first crystalline phase has been described in the literature as a magnetically hard phase [32], while the second phase is a meta-stable crystalline phase, which is often found during the initial stage of crystallization in the amorphous Fe–Co–B alloys.
For all the investigated alloy samples made using the suction-casting method and still in the as-cast state, the X-ray diffraction patterns revealed only a single broad maximum in close proximity to the 45° 2θ angle; independently of the angular position, the background could be observed. After these samples had been subjected to the thermal treatment at 940 K for 10 min, high-intensity X-ray diffraction rings originating from four different crystalline phases could be seen. For the Fe61Co10W1Y8B20alloy (Figure 4d) and the Fe62Co9W1Y8B20 alloy (Figure 4e), within the volume of each sample, crystalline grains of three crystalline phases could be found: Fe5Y, αFe and one phase which could not be identified. For the third sample of Fe63Co8W1Y8B20, (Figure 4f), the annealing process led to the creation of an additional magnetically hard crystalline phase, namely Y2Fe14B. Based on the Scherrer equation, the average sizes of the crystalline phase grains were determined (please see Table 1).
In the case of the Fe62Co9W1Y8B20 alloy in the as-cast state, the application of the Scherrer equation is more difficult, as this method should be used to estimate the size of crystallite with a diameter much larger than a few nanometers. For the isothermally annealed samples made by both methods, the grain crystallite size of the Fe5Y phase is similar. This means that, in this case, the crystallite size is independent of the production method. In the case of the αFe phase, there is a relationship between the iron content and the crystallite size: with increasing iron content in the alloy, there is an increase in the average crystallite size of the αFe phase. In addition, it could be stated that, in this case, the production method itself influences the crystallite size. A smaller average size of the αFe crystalline phase was observed for the sample made by the suction-casting method. The creation of the magnetically hard Y2Fe14B and soft Fe23B6 crystalline phases is very interesting. There is a difference in the creation of the Y2Fe14B phase between the samples made by the injection and suction-casting methods. It turns out that, despite slight changes in the chemical composition and a similar cooling rate in the volume of alloys, there is a certain segregation of atoms. This arrangement is difficult to predict. The creation of this phase is related to the method of placing the liquid alloy in a copper form. This may result in the formation of various crystalline phases in the annealing process despite the identical composition of the alloy. For the as-cast sample of Fe62Co9W1Y8B20 made by injection-casting, the size of the Fe5Y andαFe crystalline grains was found to be very small. As suggested by many Mössbauer studies of FeCoB [26,33] alloys, there are areas of differing iron concentrations present within the volume of these materials; that is, within the amorphous matrix, some areas are more favorable for the creation of crystalline grains. It can be assumed from the iron-rich amorphous matrix (the low-field component from the Mössbauer spectra) that iron and yttrium were precipitated to create the Fe5Y and αFe phases. The re-grouping of the iron and yttrium atoms within the alloy volume in certain preferred regions contributed towards the formation of areas where the atomic arrangement favors the creation of the different phases (which could be the high-field component in the Mössbauer spectra [26,34]).
As a result of the annealing process, atoms diffuse in the volume of alloys. This creates areas with lower internal energy: The nuclei of crystalline phase grains.
The migration of large atoms of yttrium within the amorphous alloy causes the collective movement of different, smaller atoms; in particular, boron.
A good example illustrating the impact of the production method on the structure and magnetic properties of amorphous alloys is its effect on the Curie temperature. In amorphous alloys produced using the injection-casting method, Tc is usually a few degrees Kelvin lower than in the same alloys produced by the suction-casting method [35,36]. Despite the fact that both methods give the possibility of producing amorphous material, these materials have a different magnetic structure. This means that the way of introducing the sample into the copper mold affects the distribution of magnetic atoms in volume. This reasoning confirms that, in the volume of amorphous samples, various clusters can be formed, which are conducive to forming various types of crystalline phases.
Therefore, it is possible that, as a result of the thermal treatment of the Fe62Co9W1Y8B20 alloy, the aforementioned migration occurs, and the Y2Fe14B and Fe23B6 phases are created. The Fe23B6 phase is the so-called pre-natal, metastable phase, in which nuclei or clusters may be created during the rapid solidification process [36]. However, due to their small sizes, they cannot always be identified during X-ray diffractometry studies. In the case of the Fe63Co8W1Y8B20 alloy produced by the suction-casting method, the mechanism for the creation of this phase is similar. However, it has to be highlighted that the alloy in the as-cast state has an amorphous structure, and therefore there is lack of preferred areas. In this case, the rapid solidification process has not resulted in the nucleation or creation of clusters of the Fe23B6 phase. The thermal stability of the magnetic saturation polarization is a very important parameter for describing soft magnetic properties. From the analysis of the μ0Ms–T curves (measured at a constant magnetic field of 0.7 T), it could be seen that the individual phases which are present in the volume of the sample affect its thermal stability. In Figure 5 and Figure 6, the thermomagnetic curves, measured over the temperature range from room temperature up to 850 K, are presented. The heating speed was 10 K/min and curves were recorded in both directions. The shapes of the magnetic saturation polarization curves for all of the samples in the as-cast state are similar. However, for the samples of the injection-cast Fe62Co9W1Y8B20 alloy and the suction-cast Fe63Co8W1Y8B20 alloy, the area under the curve (with a bend on the curve at around 580 K) is significantly higher than for all the other investigated samples. These small changes in the shape of the thermomagnetic curves are related to the setup of the amorphous structure. As has been mentioned previously, the conglomerates become the areas which favor the creation of crystalline phases.
Due to the fact that amorphous alloys are characterized by a chaotic ordering of atoms, volume areas with different concentrations of atoms can be formed. Such a state may even be associated with the formation of several different magnetic phases in the amorphous structure.
A higher value of saturation magnetic polarization for the injection-cast Fe62Co9W1Y8B20 alloy and the suction-cast Fe63Co8W1Y8B20 alloy can be explained by the presence of additional magnetic ordering in the volume of these alloys. This ordering is a contribution to the creation phase Y2Fe14B after the annealing process.
In the studied temperature range, as a result of the supply of thermal energy, atomic diffusion occurs within the system, which is evident as a difference in the shape of the μ0M–T curves, taken in the directions of the heating up and cooling down of the sample. There is a major difference in the shape of the thermomagnetic curves for the samples subjected to thermal treatment. The crystallization products—in the form of crystalline grains—affect the shape of the curve. It was noticed that, in the samples of the injection-cast Fe62Co9W1Y8B20 alloy and the suction-cast Fe63Co8W1Y8B20 alloy, the contribution of the hard-magnetic phase increased at the expense of the amorphous matrix. On the assumption that the investigated magnetic samples fulfil Heisenberg assumptions, and with a critical coefficient of β = 0.36, the Curie temperatures for the investigated alloys were calculated (limited to 850 K by the equipment capability). Inserts show the linear fits of the μ0M(1/β) curves and determined TC (inserts to Figure 5 and Figure 6).
In the alloys in which the hard-magnetic phase was absent, over the studied temperature range, only the Curie temperature of the amorphous matrix was determined. In the cases of the further discussed alloys (Fe62Co9W1Y8B20 and Fe63Co8W1Y8B20), the Curie temperature of the Y2Fe14B phase was also determined. It has to be noted that, in the case of the amorphous materials, it is only possible to talk about the average value of the Curie temperature, as the process occurs within a narrow temperature range. In the case of the as-cast samples, it is evident that the production method itself influences the value of TC (Table 2). For the injection-cast samples, the TC was found to be a few degrees Kelvin lower than for the suction-cast samples [36,37]. The chemical composition of the alloy also affected the value of TC. With an increase in Co content, the Curie temperature of the alloy was slightly higher. For the Fe62Co9W1Y8B20 alloy, the TC values related to the Y2Fe14B and Fe23B6 crystalline phases were determined: they were found to be 580 K, and 680 K, respectively. For the suction-cast Fe63Co8W1Y8B20 alloy, the TC corresponding to the phase was found to be 595 K. Analyzing further the μ0M(1/β) curves for the samples of the Fe62Co9W1Y8B20 and Fe63Co8W1Y8B20 alloys, the TC for the bend on the curve above 700 K has to be considered. Neither of the aforementioned crystalline phases has a TC of this value. The degree of crystallization of these samples is quite substantial (Figure 3e and Figure 4f), and neither of the identified crystalline phases contain Co. This could suggest that the described TC in the vicinity of 700 K is the Curie temperature of the remaining amorphous matrix, which is rich in Co.
Figure 7 and Figure 8 reveal the static hysteresis loops for the studied samples. Based on the analysis of the static hysteresis loops, saturation magnetic polarization and coercivity values were determined, and these are given in Table 3. After further analysis, the differences in the magnetization curves depending on the “direction” (magnetizing/demagnetizing) of the external magnetic field were highlighted, and these are shown in the respective inserts in Figure 7a–c and Figure 8a–c.
In the literature, this shape of hysteresis loop is called the “wasp” shape [38,39]. In the initial stages of growth of the magnetically hard phases, the widening of the hysteresis loop at the beginning of the M-H system was not observed. However, the presence of the phases affected the width of the loop at higher values of the external magnetic field.
For the samples in the as-cast state, there is generally a visible increase in the value of the coercive field with decreasing Co content in the alloy; the injection-cast Fe62Co9W1Y8B20 alloy is an exception. The decrease in the value of the HC is related to the presence of small crystalline grains of the Fe5Y and αFe phases (Figure 3b).
In soft magnetic materials, the crystallite size is decisive in the case of the saturation magnetic polarization or coercive field [40]. The presence of small grains does not always lead to improved soft magnetic properties in nanocrystalline ferromagnetics. The results of the study published in [41] prove that the presence of a hard (or semi-hard magnetic phase) in relation to the soft magnetic phase can reduce the coercive field value.
The annealing process caused a major increase in the value of coercive field. Such a high coercive field value compared to the other samples tested is associated with the presence of Y2Fe14B hard magnetic phase grains in the alloy volume. In the sample of Fe62Co9Y8W1B20 alloy produced by the injection method and subjected to the annealing process, the crystallites of this phase were characterized by a smaller average dimension. In addition, the presence of other crystalline phases was identified in this sample, including two with soft magnetic properties, which resulted in a lower total coercive field value despite the presence of a hard magnetic phase.

4. Conclusions

In this work, the results of an investigation into the structure and magnetic properties of rapidly-quenched iron-based alloys are presented. Samples of the alloys Fe61+xCo10−xW1Y8B20 (where x = 0, 1 or 2) were made using two different production methods. The obtained materials were subjected to thermal treatment at a temperature of 940 K for 10 min. Each of the investigated alloys was made several times, and the results of the studies have a high repeatability.
Based on previous work by the authors concerning alloys with similar chemical compositions [42], it was found that their crystallization process is primary. This means that, after the crystallization process, there are at least two different crystallization products—the amorphous phase and the crystalline phase—with different chemical compositions.
Based on the aforementioned results, there are certain conclusions which can be drawn:
  • The injection and suction-casting methods (into a copper die) allow the manufacture of bulk amorphous alloys with the chemical composition Fe61+xCo10−xW1Y8B20 (x = 0, 2).
  • In the case of the alloy Fe62Co9W1Y8B20 in the as-cast state, the presence of a small amount of the phase Fe5Y was observed; this could be related to the minor difference in the process time between the two production methods: for the injection-casting method, the time is marginally longer, which might lead to the formation of crystallites during the production process.
  • The isothermal annealing process, carried out at a temperature close to the crystallization temperature (940 K/10 min), led to the partial crystallization of the alloys.
  • Based on the obtained magnetic test results—i.e., the thermomagnetic curves and static hysteresis loops—it was found that the tested alloys were magnetically heterogeneous materials.
  • The Curie temperature values were found to be slightly higher for the suction-cast alloys, which could be related to the different degrees of disorder in the structure.
  • The magnetic properties of the investigated alloys in the as-cast state were found to be similar, regardless of the chosen production method.
  • The low value of coercivity for the injection-cast Fe62Co9W1Y8B20 alloy is related to the presence of grains of the Fe5Y crystalline phase.
  • The carefully designed parameters of the production process for the rapidly-quenched alloys have an influence on the obtaining of fine grains of crystalline phases within the amorphous matrix during the solidification process.
  • An increase in the Fe content, at the expense of the Co content, resulted in a decrease in the Curie temperature.
  • The size of the crystalline grains was found to exert a strong influence on the value of the coercive field in terms of an increase in the crystallite size hindering the magnetization process, which was visible from the high coercivity value for the suction-cast Fe63Co8W1Y8B20 alloy. Despite the presence of the Y2Fe14B phase in the volume of the injection-cast Fe62Co9W1Y8B20 alloy, a low coercivity was achieved after annealing. This is connected with the relatively small crystallitesize of this phase and the presence of the Fe23B6 soft magnetic phase.

Author Contributions

Data curation and validation, P.V.; project administration and methodology, M.N.; visualization and writing—reviewing and editing, A.V.S.; writing, investigation and resources, B.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Geng, Y.; Zhang, Z.; Wang, Z.; Wang, Y.; Qiang, J.; Dong, C.; Wang, H.; Tegus, O. Magnetic properties and a structure model for high Fe-content Fe–B–Si–Zr bulk glassy alloys. J. Non Cryst. Solids 2016, 450, 1–5. [Google Scholar] [CrossRef]
  2. Jaafari, Z.; Seifoddini, A.; Hasani, S. Enhanced Mechanical and Magnetic Properties of [(Fe0.9Ni0.1)77Mo5P9C7.5B1.5]99.9Cu0.1 Bulk Metallic Glass by Partial Annealing. Metall. Mater. Trans. A 2019, 50, 2875–2885. [Google Scholar] [CrossRef]
  3. Han, Y.; Ding, J.; Kong, F.L.; Inoue, A.; Zhu, S.L.; Wang, Z.; Shalaan, E.; Al-Marzouki, F. FeCo-based soft magnetic alloys with high Bs approaching 1.75 T and good bending ductility. J. Alloy Compd. 2017, 691, 364–368. [Google Scholar] [CrossRef]
  4. Han, Y.; Inoue, A.; Kong, F.L.; Chang, C.T.; Shu, S.L.; Shalaan, E.; Al-Marzouki, F. Softening and good ductility for nanocrystal-dispersed amorphous FeCoB alloys with high saturation magnetization above 1.7 T. J. Alloy Compd. 2016, 657, 237–245. [Google Scholar] [CrossRef]
  5. Wang, J.; Liu, Z.W.; Zheng, Z.G.; Yu, H.Y.; Tang, G.P.; Zeng, D.C. Effect of rare earth additions on microstructure, thermal stability and crystallization behavior of melt spun Fe80.65Cu1.35Si2B14RE2 (RE = Y, Gd, Tb and Dy) soft magnetic alloys. Mater. Lett. 2015, 159, 76–79. [Google Scholar] [CrossRef]
  6. Ackland, K.; Masood, A.; Kulkarni, S.; Stamenov, P. Ultrasoftmagnetic Co-Fe-B-Si-Nb amorphous alloys for high frequency power applications. AIP Adv. 2018, 8, 056129. [Google Scholar] [CrossRef]
  7. Inoue, A. Stabilization of metallic supercooled liquid and bulk amorphous alloys. Acta Mater. 2000, 48, 279–306. [Google Scholar] [CrossRef]
  8. McHenry, M.E.; Willard, M.A.; Laughlin, D.E. Amorphous and nanocrystalline materials for applications as soft magnets. Prog. Mater. Sci. 1999, 44, 291–433. [Google Scholar] [CrossRef]
  9. Li, X.; Wang, Z.; Duan, H. The effect of the minor Al addition on microstructure and soft magnetic properties for (Fe0.5Co0.5)73.5Si13.5Nb3Cu1B9 nanocrystalline alloy. J. NonCryst. Solids 2019, 517, 114–118. [Google Scholar] [CrossRef]
  10. Nabialek, M.; Jez, B.; Jez, K. The influence of the method of producing massive amorphous materials on the defects of the structure in the alloy Fe61+xCo10-xY8W1B20 where x = 0 or 1. Rev. Chim. 2018, 69, 2545–2549. [Google Scholar] [CrossRef]
  11. Błoch, K.; Nabiałek, M. Approach to Ferromagnetic Saturation for the Bulk Amorphous Alloy: (Fe0:61Co0:10Zr0:025Hf0:025Ti0:02W0:02B0:20)97Y3. Acta Phys. Pol. A 2015, 127, 413–414. [Google Scholar] [CrossRef]
  12. Klement, W.; Willens, R.H.; Duwez, P. Non-crystalline structure in solidified Gold-Silicon alloys. Nature 1960, 187, 869–870. [Google Scholar] [CrossRef]
  13. Duwez, P.; Willens, R.H.; Crewdson, R.C. Amorphous phase in palladium—Silicon alloys. J. Appl. Phys. 1965, 36, 2267–2269. [Google Scholar] [CrossRef] [Green Version]
  14. Chen, H.S. Thermodynamic considerations on the formation and stability of metallic glasses. Acta Metall. 1974, 22, 1505–1511. [Google Scholar] [CrossRef]
  15. Wang, A.; Zhao, C.; Men, H.; He, A.; Chang, C.; Wang, X.; Li, R. Fe-based amorphous alloys for wide ribbon production with high Bs and outstanding amorphous forming ability. J. Alloy Compd. 2015, 630, 209–213. [Google Scholar] [CrossRef]
  16. Han, Y.; Chang, C.T.; Zhu, S.L.; Inoue, A.; Louzguine-Luzgin, D.V.; Shalaan, E.; Al-Marzouki, F. Fe-based soft magnetic amorphous alloys with high saturation magnetization above 1.5 T and high corrosion resistance. Intermetallics 2014, 54, 169–175. [Google Scholar] [CrossRef]
  17. Li, J.; Liu, X.; Zhao, S.; Ding, H.; Yao, K. Fe-based bulk amorphous alloys with iron contents as high as 82 at%. J. Magn. Magn. Mater. 2015, 386, 107–110. [Google Scholar] [CrossRef]
  18. Li, W.; Yang, Y.Z.; Xu, J. Crystallization and soft magnetic properties of metalloid-free Fe89Hf7Al3Zr1 amorphous alloy. J. Non Cryst. Solids 2017, 461, 93–97. [Google Scholar] [CrossRef]
  19. Trexler, M.M.; Thadhani, N.N. Mechanical properties of bulk metallic glasses. Prog. Mater. Sci. 2010, 55, 759–839. [Google Scholar] [CrossRef]
  20. Ishida, M.; Takeda, H.; Watanabe, D.; Amiya, K.; Nishiyama, N.; Kita, K.; Saotome, Y.; Inoue, A. Fillability and Imprintability of High-strength Ni-based Bulk Metallic Glass Prepared by the Precision Die-casting Technique. Mater. Trans. 2004, 45, 1239–1244. [Google Scholar] [CrossRef] [Green Version]
  21. Narayan, R.L.; Singh, P.S.; Hofmann, D.C.; Hutchinson, N.; Flores, K.M.; Ramamurty, U. On the microstructure–tensile property correlations in bulk metallic glass matrix composites with crystalline dendrites. Acta Mater. 2012, 60, 5089–5100. [Google Scholar] [CrossRef]
  22. Si, J.; Mei, J.; Wang, R.; Chen, X.; Hui, X. Fe-B-Si-Zr bulk metallic glasses with ultra high compressive strength and excellent soft magnetic properties. Mater. Lett. 2016, 181, 282–284. [Google Scholar] [CrossRef]
  23. Pietrusiewicz, P. Magnetic Properties of the Rapidly Solidified Bulk Alloy: Fe61Co10B20Y8xWyPtx (where: x = 1; 2; y = 0; 1). Acta Phys. Pol. A 2018, 133, 666–668. [Google Scholar] [CrossRef]
  24. Liu, T.; Li, F.; Wang, A.; Xie, L.; He, Q.; Luan, J.; He, A.; Wang, X.; Liu, C.T.; Yang, Y. High performance Fe-based nanocrystalline alloys with excellent thermal stability. J. Alloy Compd. 2019, 776, 606–613. [Google Scholar] [CrossRef]
  25. Jung, H.Y.; Yi, S. Nanocrystallization and soft magnetic properties of Fe23M6 (M:C or B) phase in Fe-based bulk metallic glass. Intermetallics 2014, 49, 18–22. [Google Scholar] [CrossRef]
  26. Elmanov, G.N.; Chernavskii, P.A.; Kozlov, I.V.; Dzhumaev, P.S.; Kostitsyna, E.V.; Tarasov, V.P.; Ignatov, A.S.; Gudoshnikov, S.A. Effect of heat treatment on phase transformations and magnetization of amorphous Co69Fe4Cr4Si12B11 microwires. J. Alloy Compd. 2018, 741, 648–655. [Google Scholar] [CrossRef]
  27. Xia, G.T.; Wang, Y.G.; Dai, J.; Dai, Y.D. Effects of Cu cluster evolution on soft magnetic properties of Fe83B10C6Cu1 metallic glass in two-step annealing. J. Alloy Compd. 2017, 690, 281–286. [Google Scholar] [CrossRef]
  28. Wang, W.H. Roles of minor additions in formation and properties of bulk metallic glasses. Prog. Mater. Sci. 2007, 52, 540–596. [Google Scholar] [CrossRef]
  29. Nabiałek, M. Soft magnetic and microstructural investigation in Fe-based amorphous alloy. J. Alloy Compd. 2015, 642, 98–103. [Google Scholar] [CrossRef]
  30. Chen, H.S.; Turnbull, D. Formation, stability and structure of palladium-silicon based alloy glasses. Acta Metall. 1969, 17, 1021–1031. [Google Scholar] [CrossRef]
  31. Pietrusiewicz, P.; Nabiałek, M. Analysis of the Thermal and Magnetic Properties of Amorphous Ribbons of Fe61Co10B20Y8Me1 (where Me = W, Zr, Nb, Mo). Acta Phys. Pol. A 2017, 131, 678–680. [Google Scholar] [CrossRef]
  32. Oesterreicher, H.; Abache, C. Fe//1//4R//2B type compounds for magnetic recording applications. J. Phys. Colloq. 1985, 46, 45–48. [Google Scholar] [CrossRef]
  33. Zhai, X.B.; Wang, Y.G.; Zhu, L.; Cao, C.C.; Dai, Y.D.; Chen, J.K.; Pan, F.M. Effect of heating rate on atom migration, phase structure and magnetic properties of the Fe82Si2B11P4Cu1 alloy. J. Non Cryst. Solids 2018, 499, 337–343. [Google Scholar] [CrossRef]
  34. Gondro, J.; Błoch, K.; Nabiałek, M.; Walters, K.; Szota, M. Microstructure And Magnetic Properties Of The FeZr (Y) NbCuB Amorphous Alloys. Arch. Metall. Mater. 2015, 60, 1071–1074. [Google Scholar] [CrossRef]
  35. Nabiałek, M.; Jeż, B.; Błoch, K.; Pietrusiewicz, P.; Gondro, J. The effect of the cobalt-content on the magnetic properties of iron-based amorphous alloys. J. Magn. Magn. Mater. 2019, 477, 214–219. [Google Scholar] [CrossRef]
  36. Nabiałek, M.; Jeż, K. Approach to the ferromagnetic saturation of the Fe39Co33Y8B20 alloy produced using two methods. Eur. J. Mater. Sci. Eng. 2019, 4, 23–28. [Google Scholar] [CrossRef]
  37. Imafuku, M.; Sato, S.; Koshiba, H.; Matsubara, E.; Inoue, A. Structural study of Fe-Based glassy alloys with a large super cooled liquid region. Mater. Res. Soc. Symp. Proc. 2001, 644, L1.6.1–L1.6.10. [Google Scholar]
  38. Martinez-Garcia, J.C.; Garcia, J.C.; Rivas, M. Asymmetric magnetization reversal of partially devitrified Co66Si15B14Fe4Ni1. J. Non Cryst. Solids 2008, 354, 5123–5125. [Google Scholar] [CrossRef]
  39. Bennet, L.H.; Torre, E.D. Analysis of wasp-waist hysteresis loops. J. Appl. Phys. 2005, 97, 10E502. [Google Scholar] [CrossRef]
  40. Kulik, T. Soft Magnetic Nanocrystalline Materials Obtained by Crystallization of Metallic Glasses; Warsaw University of Technology Publishing House: Warsaw, Poland, 1998. (In Polish) [Google Scholar]
  41. Gruszka, K. Properties of Bulk Nanocrystalline Materials Obtained in One-Stage Manufacturing Process and after Isothermal Heating. Ph.D. Thesis, Czestochowa University of Technology, Częstochowa, Poland, 2013. (In Polish). [Google Scholar]
  42. Nabiałek, M.; Dospiał, M.; Szota, M. Study of the mechanical and magnetic properties of Fe61Co10Zr5-xHfxW2Y2B20 (x = 0 or 3) bulk amorphous and crystalline alloys. Phys. Status Solidi C 2010, 7, 1428–1431. [Google Scholar] [CrossRef]
Materials 13 00835 g001 550

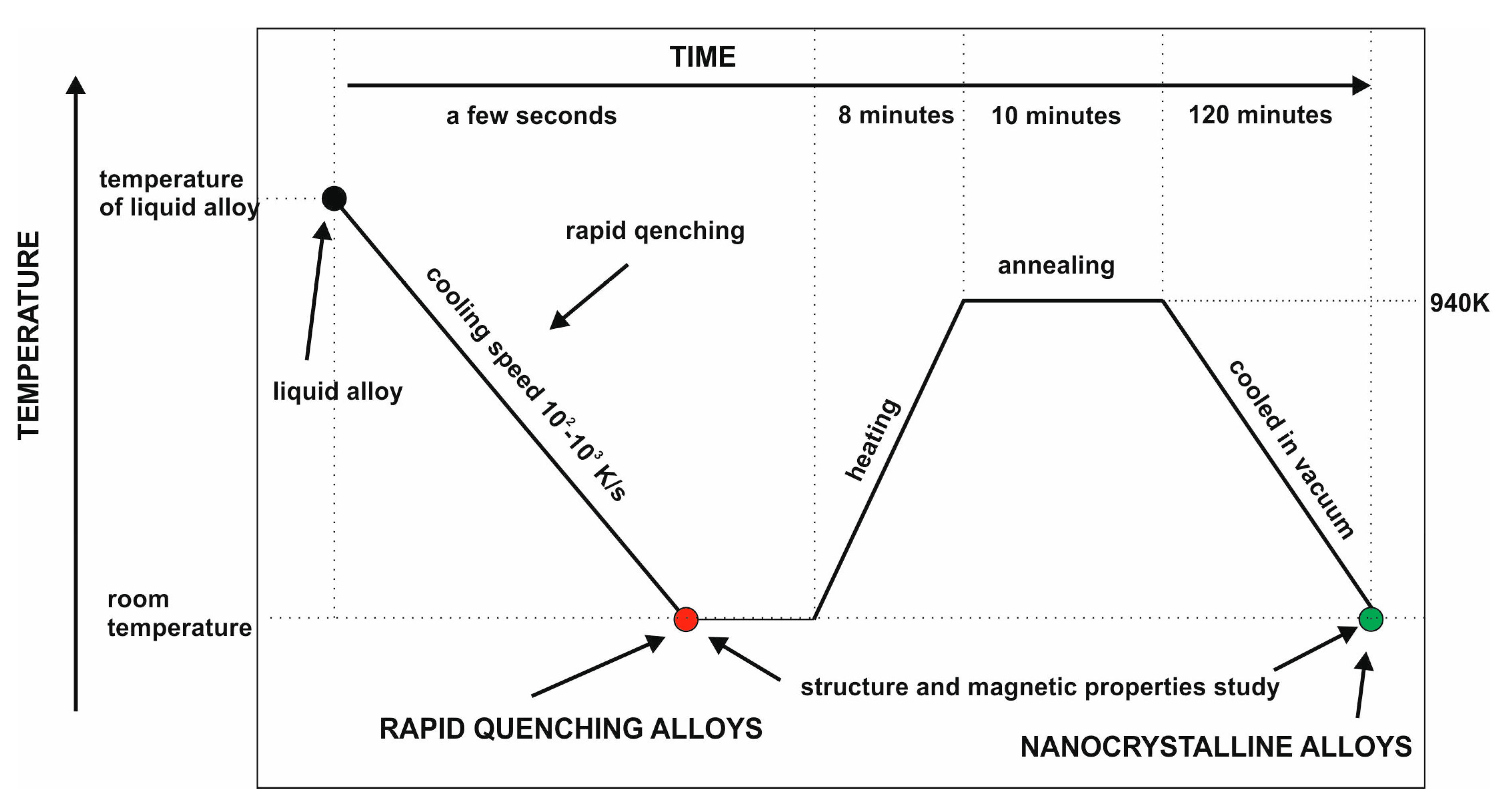

Figure 1. Thermal diagram of tested alloys.
Figure 1. Thermal diagram of tested alloys.
Materials 13 00835 g001
Materials 13 00835 g002 550

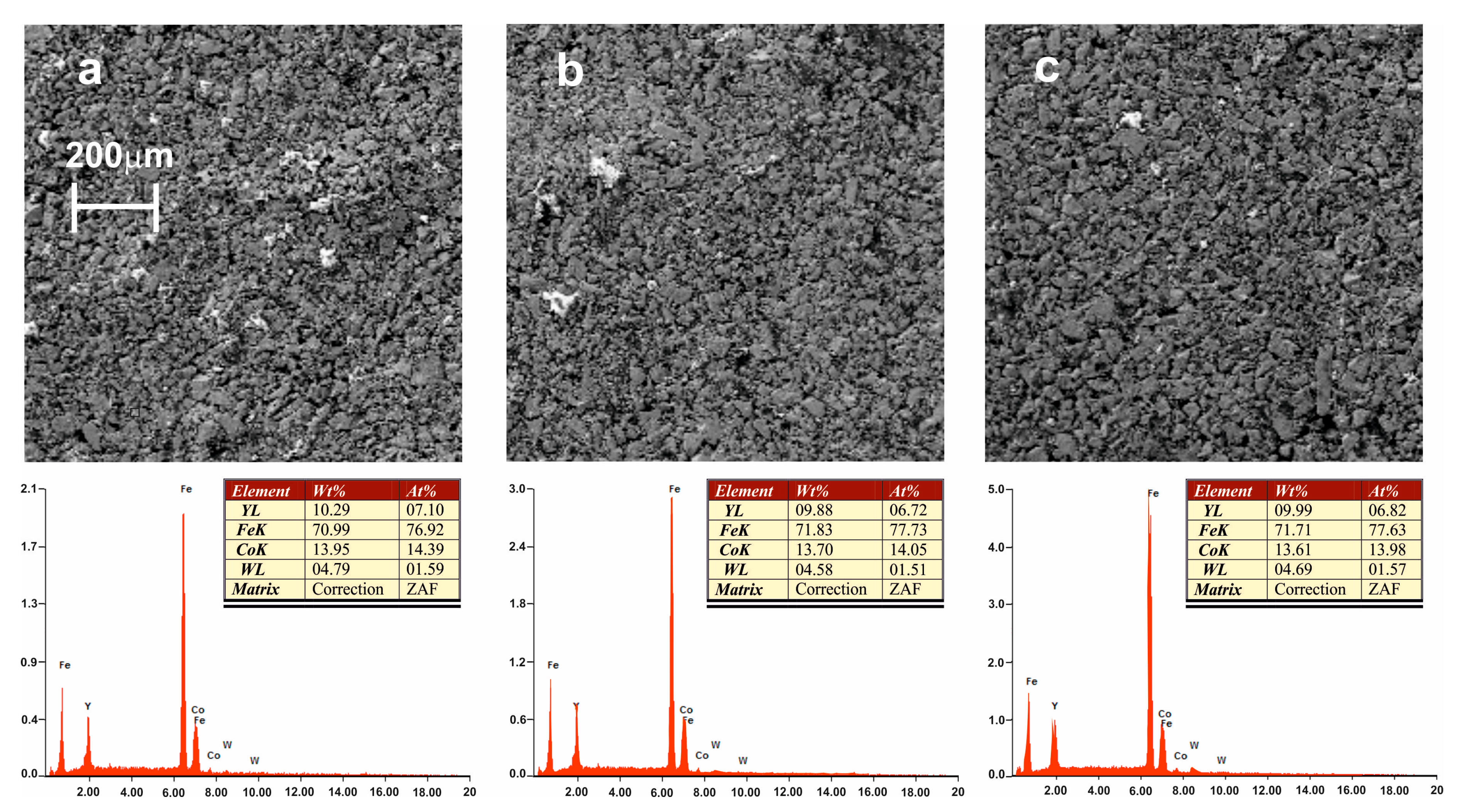

Figure 2. Structure and chemical composition of alloys produced by the suction method: (a) Fe61Co10W1Y8B20, (b) Fe62Co9W1Y8B20, (c) Fe63Co8W1Y8B20.
Figure 2. Structure and chemical composition of alloys produced by the suction method: (a) Fe61Co10W1Y8B20, (b) Fe62Co9W1Y8B20, (c) Fe63Co8W1Y8B20.
Materials 13 00835 g002
Materials 13 00835 g003 550
Figure 3. X-ray diffraction patterns for the alloys in the as-cast state (a–c) and following the thermal treatment at 940 K for 10 min (d–f) produced using the injection-casting method: Fe61Co10W1Y8B20, (a,d), Fe62Co9W1Y8B20, (b,e) Fe63Co8W1Y8B20 (c,f).
Figure 3. X-ray diffraction patterns for the alloys in the as-cast state (a–c) and following the thermal treatment at 940 K for 10 min (d–f) produced using the injection-casting method: Fe61Co10W1Y8B20, (a,d), Fe62Co9W1Y8B20, (b,e) Fe63Co8W1Y8B20 (c,f).
Materials 13 00835 g003
Materials 13 00835 g004 550

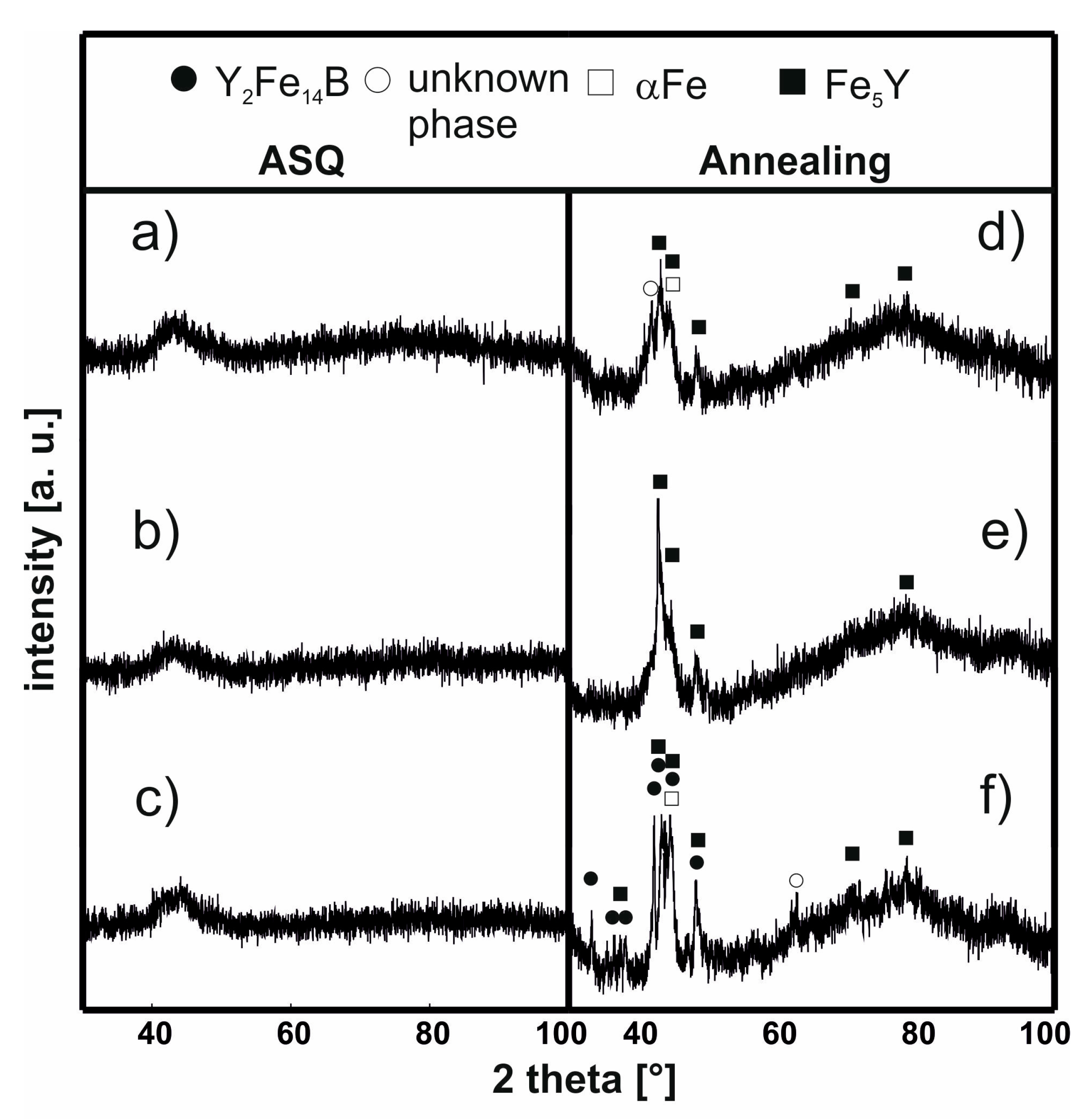

Figure 4. X-ray diffraction patterns for the alloys in the as-cast state (a–c) and following the thermal treatment at 940 K for 10 min (d–f) produced using the suction-casting method: Fe61Co10W1Y8B20, (a,d), Fe62Co9W1Y8B20,(b,e) Fe63Co8W1Y8B20 (c,f).
Figure 4. X-ray diffraction patterns for the alloys in the as-cast state (a–c) and following the thermal treatment at 940 K for 10 min (d–f) produced using the suction-casting method: Fe61Co10W1Y8B20, (a,d), Fe62Co9W1Y8B20,(b,e) Fe63Co8W1Y8B20 (c,f).
Materials 13 00835 g004
Materials 13 00835 g005 550

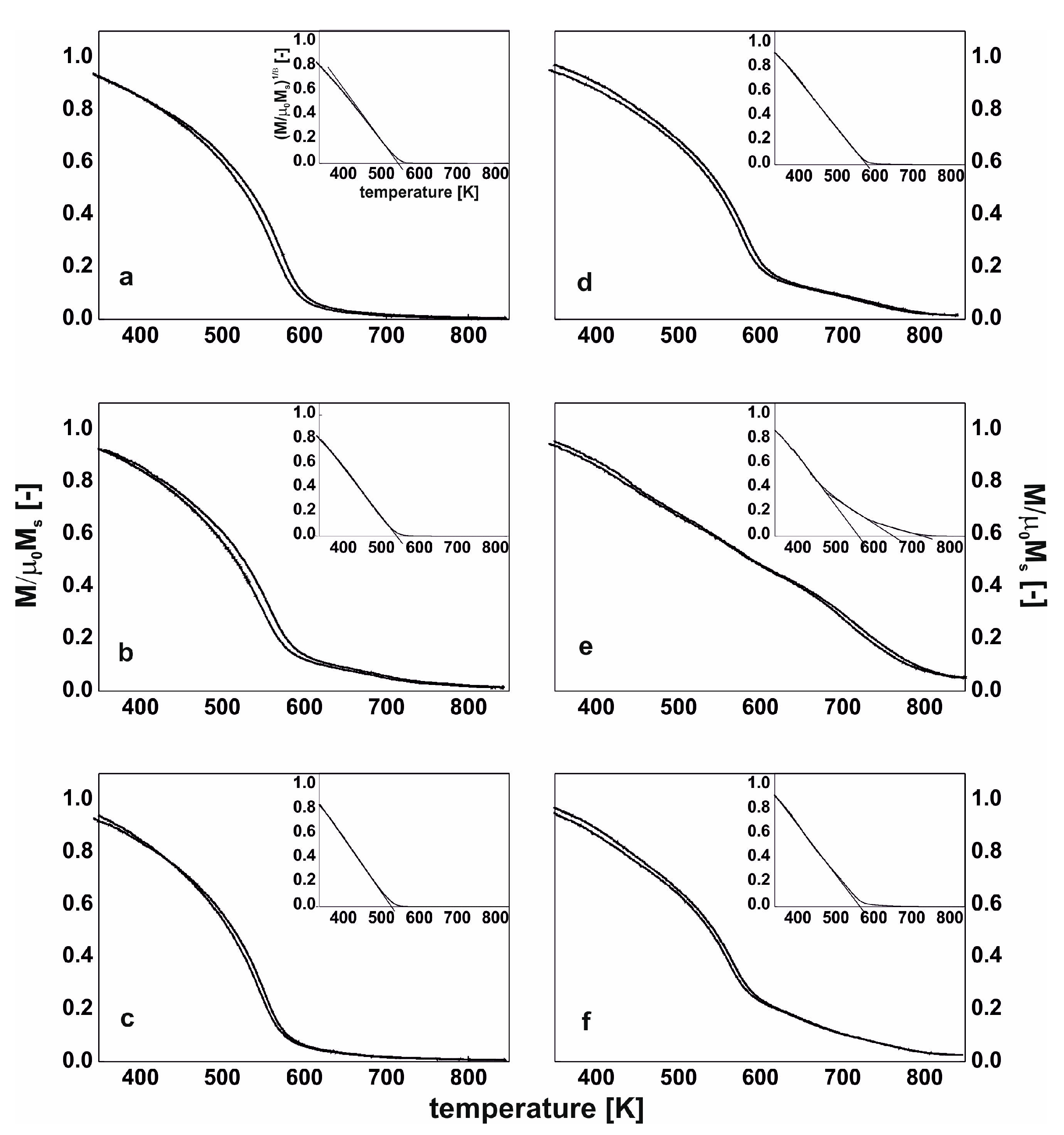

Figure 5. The magnetic saturation polarization curves for the alloys in the as-cast state (a–c) and after the thermal treatment at 940 K for 10 min (d–f) made by the injection-casting method: Fe61Co10W1Y8B20 (a,d), Fe62Co9W1Y8B20 (b,e), Fe63Co8W1Y8B20 (c,f).
Figure 5. The magnetic saturation polarization curves for the alloys in the as-cast state (a–c) and after the thermal treatment at 940 K for 10 min (d–f) made by the injection-casting method: Fe61Co10W1Y8B20 (a,d), Fe62Co9W1Y8B20 (b,e), Fe63Co8W1Y8B20 (c,f).
Materials 13 00835 g005
Materials 13 00835 g006 550

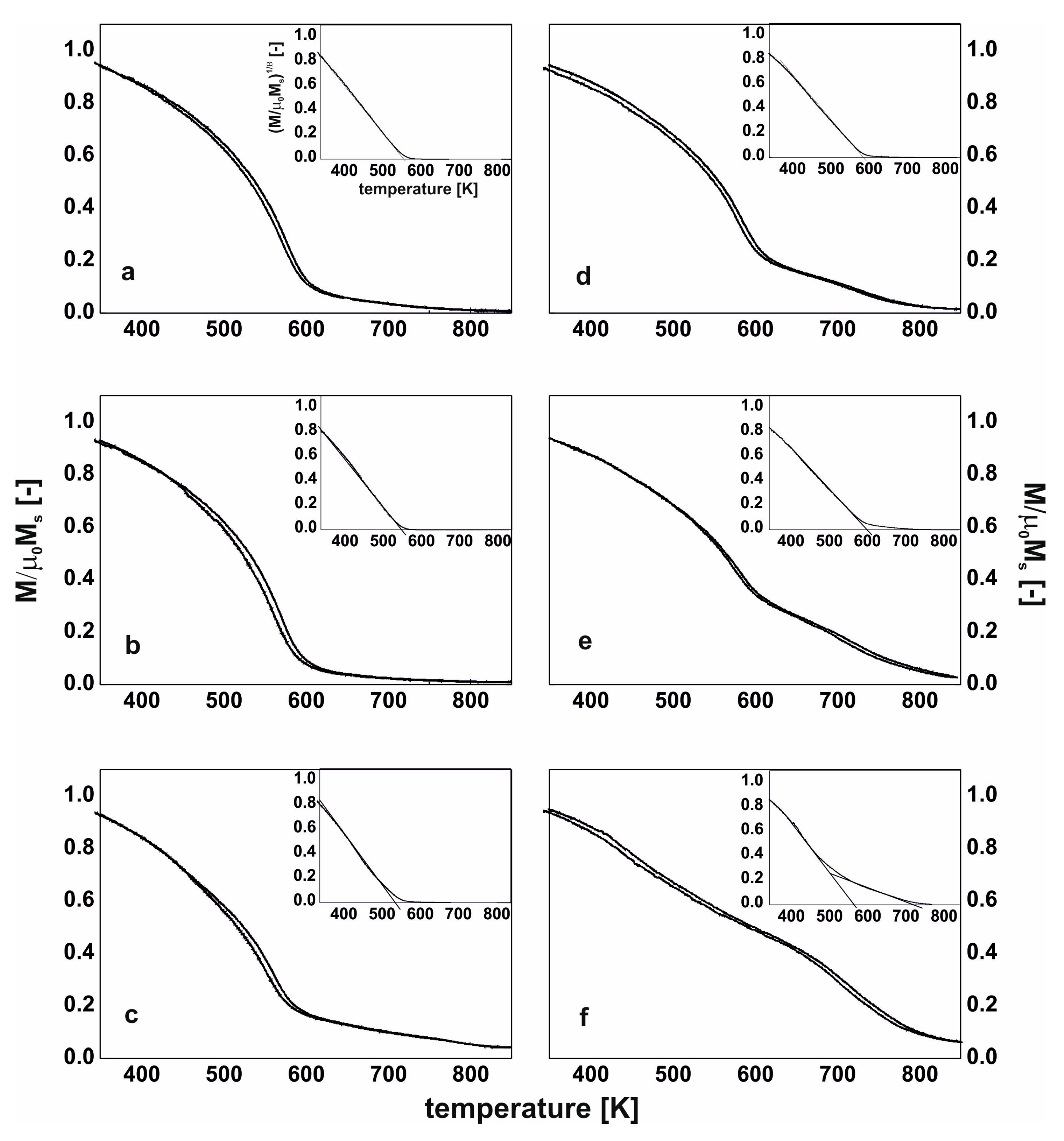

Figure 6. The magnetic saturation polarization curves for the alloys in the as-cast state (a–c) and after the thermal treatment at 940 K for 10 min (d–f) made by the suction-casting method: Fe61Co10W1Y8B20 (a,d), Fe62Co9W1Y8B20,(b,e), Fe63Co8W1Y8B20 (c,f).
Figure 6. The magnetic saturation polarization curves for the alloys in the as-cast state (a–c) and after the thermal treatment at 940 K for 10 min (d–f) made by the suction-casting method: Fe61Co10W1Y8B20 (a,d), Fe62Co9W1Y8B20,(b,e), Fe63Co8W1Y8B20 (c,f).
Materials 13 00835 g006
Materials 13 00835 g007 550

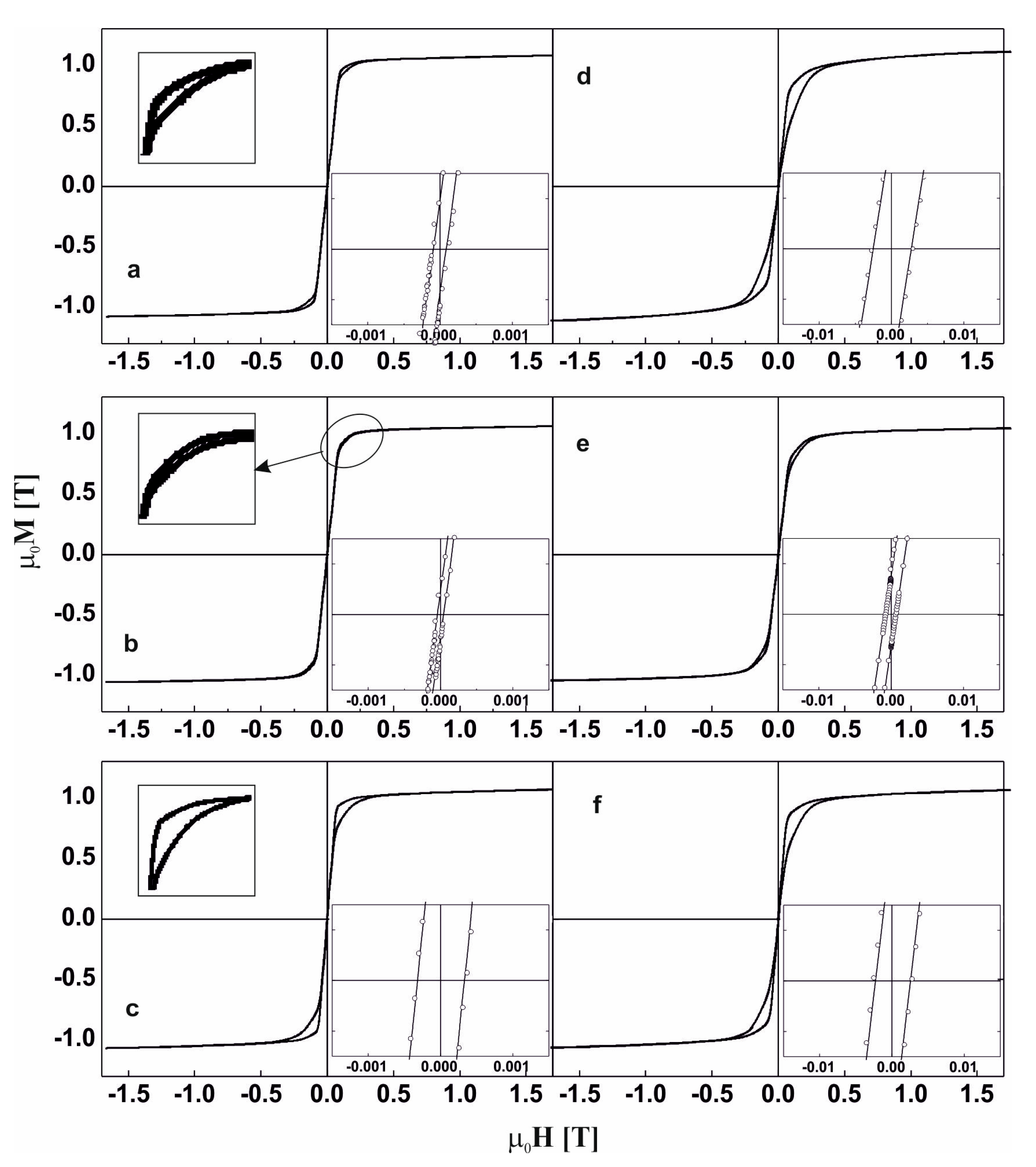

Figure 7. The static magnetic hysteresis loops for the alloys in the as-cast state (a–c) and after the thermal treatment at 940 K for 10 min (d–f) made by the injection-casting method: Fe61Co10W1Y8B20, (a,d), Fe62Co9W1Y8B20, (b,e) Fe63Co8W1Y8B20 (c,f).
Figure 7. The static magnetic hysteresis loops for the alloys in the as-cast state (a–c) and after the thermal treatment at 940 K for 10 min (d–f) made by the injection-casting method: Fe61Co10W1Y8B20, (a,d), Fe62Co9W1Y8B20, (b,e) Fe63Co8W1Y8B20 (c,f).
Materials 13 00835 g007
Materials 13 00835 g008 550

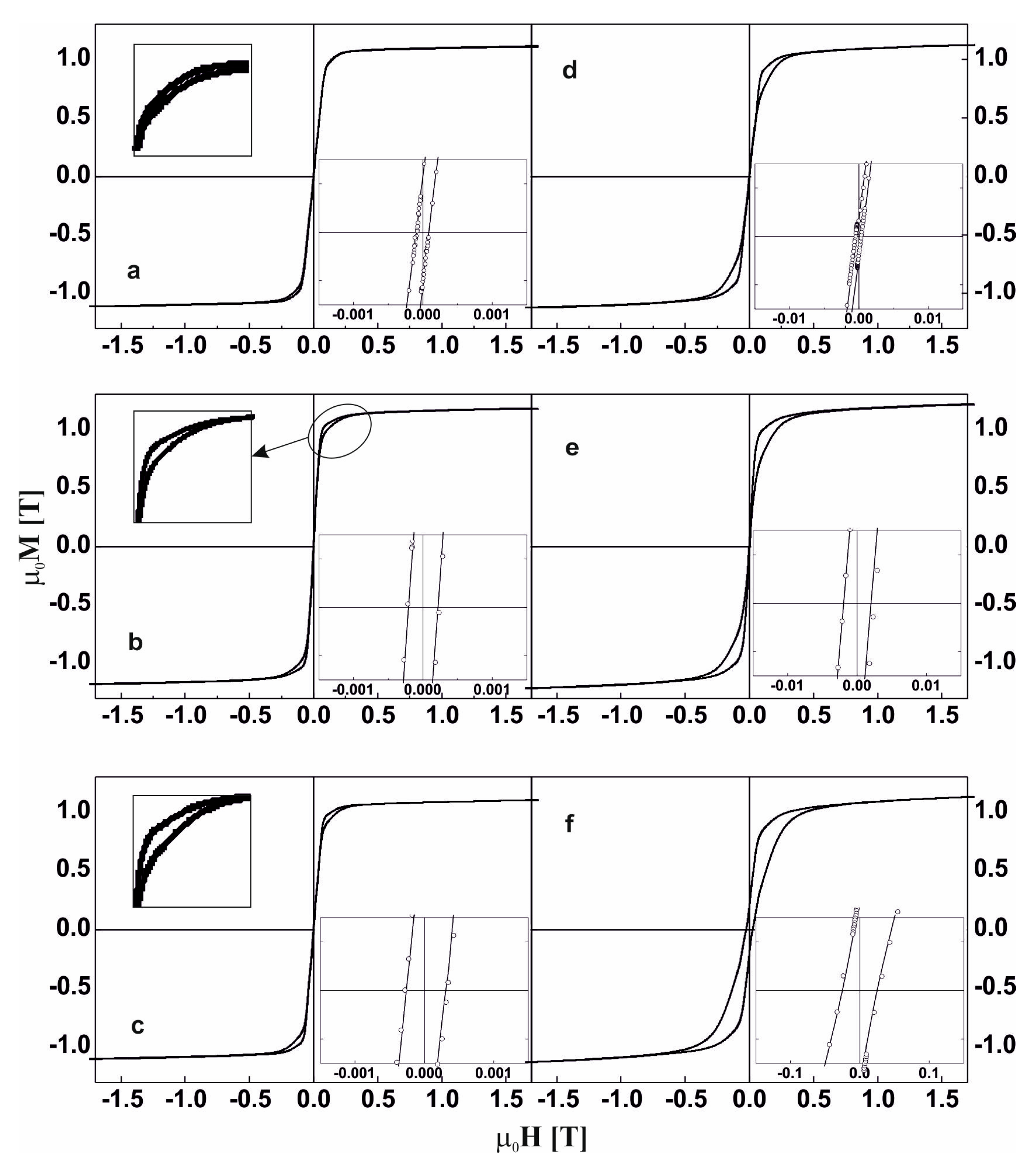

Figure 8. The static magnetic hysteresis loops for the alloys in the as-cast state (a–c) and after the thermal treatment at 940 K for 10 min (d–f) made by the suction-casting method: Fe61Co10W1Y8B20, (a,d), Fe62Co9W1Y8B20,(b,e), Fe63Co8W1Y8B20 (c,f).
Figure 8. The static magnetic hysteresis loops for the alloys in the as-cast state (a–c) and after the thermal treatment at 940 K for 10 min (d–f) made by the suction-casting method: Fe61Co10W1Y8B20, (a,d), Fe62Co9W1Y8B20,(b,e), Fe63Co8W1Y8B20 (c,f).
Materials 13 00835 g008
Table
Table 1. Estimated average size of the crystalline grains for the alloys subjected to the thermal treatment (estimated error ~2 nm).
Table 1. Estimated average size of the crystalline grains for the alloys subjected to the thermal treatment (estimated error ~2 nm).
MethodAlloyAverage Crystallite Size (nm)
Fe5YαFeY2Fe14BFe23B6
InjectionFe61Co10Y8W1B2015.019.0--
Fe62Co9Y8W1B2024.222.517.014.0
ASQ Fe62Co9Y8W1B2088--
Fe63Co8Y8W1B2027.326.5--
SuctionFe61Co10Y8W1B2012.015.0--
Fe62Co9Y8W1B2026.715.4--
Fe63Co8Y8W1B2026.825.624.8-
Table
Table 2. The Curie temperatures for the injection and suction-cast alloys Fe61+xCo10–xW1Y8B20 (where x = 0, 1 or 2) in the as-cast state (estimated error ~3 K).
Table 2. The Curie temperatures for the injection and suction-cast alloys Fe61+xCo10–xW1Y8B20 (where x = 0, 1 or 2) in the as-cast state (estimated error ~3 K).
MethodInjection CastingSuction Casting
Curie Temperature [K]
AlloyASQ [35]940 KASQ [35]940 K
Y2Fe14BFe23B6amorp.Y2Fe14Bamorp.
Fe61Co10Y8W1B20561--595568-597
Fe62Co9Y8W1B20549580655726557-600
Fe63Co8Y8W1B20541--570545595710
Table
Table 3. The values of saturation magnetic polarization and the coercive field for the investigated alloys.
Table 3. The values of saturation magnetic polarization and the coercive field for the investigated alloys.
MethodAlloySaturation Magnetic Polarization (T)Saturation Magnetic Polarization for 0.7 T (T)Coercive Field (A/m)
ASQ [35]940 KASQ [35]940 KASQ [35]940 K
Injection-castingFe61Co10Y8W1B201.111.111.101.09712148
Fe62Co9Y8W1B201.091.041.081.0433495
Fe63Co8Y8W1B201.101.061.091.042411987
Suction-castingFe61Co10Y8W1B201.141.121.131.1261293
Fe62Co9Y8W1B201.211.221.201.201591565
Fe63Co8Y8W1B201.131.131.121.1122319820
