Monocytic Cell-Induced Phase Transformation of Circulating Lipid-Based Liquid Crystalline Nanosystems

by Angel Tan 1,2,*, Yuen Yi Lam 1,2, Xiaohan Sun 1,2 and Ben Boyd 1,2,*
1
Drug Delivery, Disposition and Dynamics, Monash Institute of Pharmaceutical Sciences, Monash University, Parkville Campus, VIC 3052, Australia
2
ARC Centre of Excellence in Convergent Bio-Nano Science and Technology, Monash University, Parkville, VIC 3052, Australia
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(4), 1013; https://doi.org/10.3390/ma13041013
Received: 20 January 2020 / Revised: 19 February 2020 / Accepted: 21 February 2020 / Published: 24 February 2020
(This article belongs to the Special Issue Advances in Bio-Inspired Materials for Medical Applications)

Abstract

Both lamellar and non-lamellar configurations are naturally present in bio-membranes, and the synthetic lipid-based liquid crystalline nano-assemblies, mimicking these unique structures, (including liposomes, cubosomes and hexosomes) are applicable in the controlled delivery of bioactives. However, it remains uncertain whether these nanosystems retain their original phase identity upon contact with blood circulating cells. This study highlights a novel biological cell flow-through approach at the synchrotron-based small angle X-ray scattering facility (bio-SAXS) to unravel their real-time phase evolution when incubated with human monocytic cells (THP-1) in suspension. Phytantriol-based cubosomes were identified to undergo monocytic cell-induced phase transformation from cubic to hexagonal phase periodicity. On the contrary, hexosomes exhibited time-dependent growth of a swollen hexagonal phase (i.e., larger lattice parameters) without displaying alternative phase characteristics. Similarly, liposomes remained undetectable for any newly evolved phase identity. Consequently, this novel in situ bio-SAXS study concept is valuable in delivering new important insights into the bio-fates of various lipid-based nanosystems under simulated human systemic conditions.
Keywords: self-assembly; lipid-based liquid crystalline nanosystem; cell interaction; synchrotron small angle X-ray scattering; phase behaviour self-assembly; lipid-based liquid crystalline nanosystem; cell interaction; synchrotron small angle X-ray scattering; phase behaviour

1. Introduction

The natural formation of lamellar and non-lamellar structures within living systems are essential for enabling vital biological functions. For example, mammalian cell and organelle membranes have been observed to transiently form the cubic periodicity for controlling osmolality, as well as the hexagonal phases for regulating the calcium pump within muscle cells [1,2,3,4]. Self-assembled liquid crystalline nanosystems, mimicking these unique, hierarchically ordered structures have been cleverly engineered using lyotropic lipid-based excipients to enable various biomedical applications. Examples include bio-imaging, bio-sensing, diagnostics, and the controlled delivery of bioactives [5,6,7,8,9]. The critical packing parameter (CPP) is a concept used to describe the likely impact of molecular geometry of lipid on self-assembled morphology [10]. Typically, amphiphilic molecules with a critical packing parameter (CPP) of > 1 (i.e., a molecular space, dominated by the large hydrophobic tail relative to the hydrophilic head) tend to form negatively curved, inverse phases in water. Some commonly known non-lamellar structures include the anisotropic reverse hexagonal (H2) phase, the isotropic bi-continuous inverse cubic (V2) phase, and the reverse micellar network (denoted L2) (Figure 1a). On the other hand, lipid molecules with CPPs of 0.5–1 produce positively curved, lamellar vesicles (LV, or more commonly known as liposomes) [11].
While liposomal formulations have long-found clinical use for therapeutic delivery [12], a few non-lamellar systems (i.e., the Camurus products) have recently reached regulatory approval for internal applications [13]. Successful commercialisation has driven much of the scientific attention towards understanding the biological behavior of these lipid-based liquid crystalline (LLC) systems in the bloodstream and in tissue cells. Small angle X-ray scattering (SAXS) analysis, based on the synchrotron source, is a powerful tool to ascertain the phase characteristics of various LLC nanosystems within seconds, as compared to the timeframe of hours on the conventional laboratory SAXS instrument [8,14,15,16]. It has enabled extensive investigations into the morphological stability and phase transition of LLC systems in water or phosphate buffer saline (PBS) across different environmental and biochemical parameters: Temperature [8,17], hydration state [17,18], ionic strength and biomacromolecule effects [15,19,20,21,22], as well as pH [23,24,25]. However, their phase behaviour under physiological systemic conditions have been underexplored, to date. A majority of their bio-interaction studies have placed emphasis on cytotoxicity, cellular uptake and intracellular distribution [11,26]. Only a few reports focusing on protein corona effects revealed that biological fluids (e.g., blood serum and artificial cell culture media) could alter the lattice parameters of the LLC systems [27,28], and possibly trigger a slow transition from one phase to the other [29]. Yet, it remains unclear how the presence of human immune cells encountered by these particles in circulation influence their structural qualities.
This work, thus, presents a novel study approach that combines biological cell flow-through system with the synchrotron-based small angle X-ray scattering analysis (bio-SAXS) to probe the effects of human blood circulating cells on the phase behaviour of different LLC nanosystems. Two non-lamellar systems (i.e., cubosomes and hexosomes) and a lamellar system (i.e., liposomes) were examined for their real-time phase events under dynamic interactions with human monocytic cells, THP-1 (which are known to be phagocytic according to the American Type Culture Collection, ATCC, commercial source). To exclude chemical degradation as a factor affecting the self-assembled structures, the ‘indigestible’ lipid phytantriol (PHY, Figure 1b), which lacks an esterase-susceptible ester group, was used as a parent lipid in all formulations. This bio-SAXS technique is demonstrated to support real-time assessment of the monocytic cell-induced changes in phase behaviour of the LLC nanosystems.

2. Materials and Methods

2.1. Preparation of LLC Nanosystems

The molecular structure of each formulation component is illustrated in Figure 1b. Cubosomes were prepared from phytantriol (PHY > 95%; DSM Nutritional Products, Kaiseraugst, Switzerland) and Poloxamer 388 (Synperonic F108; Sigma-Aldrich, Saint Louis, MO, USA) at a lipid-to-stabiliser mass ratio of 10:1. Hexosomes were prepared from PHY, vitamin E acetate (Vit-EA ≥ 96%, Sigma-Aldrich, Saint Louis, USA) and F108 at a mass ratio of 10:1:1. Liposomes were formed based on PHY and 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[amino(polyethylene glycol)-2000] (DSPE-PEG2000 > 99%; Avanti Polar Lipids Inc., Alabaster, AL, USA) at a molar ratio of 95:5. For each system, PHY was pre-dissolved in chloroform and vortex-mixed with the additive (i.e., Vit-EA in the case of hexosomes), prior to solvent evaporation under vacuum conditions (40 °C) overnight. To produce cubosomes and hexosomes, each thin film of lipids were dispersed in PBS containing F108, whereas liposomes were dispersed in PBS containing DSPE-PEG2000. Each dispersion was ultrasonicated (Misonix XL2000, Misonix Inc., Farmingdale, NY, USA) for 40 min in a pulse mode (i.e., 2 s on/off cycles) at an amplitude of 20%. Water was from a MilliQ system (Millipore, Sydney, Australia).

2.2. Particle Sizing and Cryogenic Transmission Electron Microscopy (Cryo-TEM) Analysis

The particle sizes of the nanosystems were analysed by dynamic light scattering (DLS), using a Malvern Zetasizer Nano ZS instrument for samples diluted to 100 μg/mL of PHY with water (at 25 °C). The cryo-TEM analysis was performed at the Bio21 Advanced Microscopy Facility (Parkville, Australia). Negatively stained grids were observed on a FEI Tecnai F30 instrument (Field Electron and Ion Company, Eindhoven, The Netherlands) operated at 300 kV, and equipped with a Gatan quantum 965 energy filter and an upper CETA 4k × 4k CMOS camera.

2.3. Biological Cell Flow-Through Setup for Small Angle X-Ray Scattering (Bio-SAXS) Analysis

Human-derived monocytic cells (THP-1, passage 22–24; ATCC® TIB-202TM, Manassas, VA, USA) were cultured in a bio-incubator (37 °C, 5% CO2) at an initial density of 2 × 105 viable cells/mL in a T75 flask, and sub-cultured when a density of 1 × 106 cells/mL was reached. The cell cultures were replenished every 3 days with fresh RPMI-1640 medium supplemented with fetal bovine serum (FBS) at 10% (v/v) via centrifugation and removal of the old supernatant medium. Cells re-suspended at 20 × 106 cells/mL were used for the experiments at the SAXS/WAXS beamline of the ANSTO Australian Synchrotron, Clayton, VIC, Australia [16].
In the bio-SAXS setup, an open-ended quartz capillary tube (Quartz 15-SQZ 1.5 mm, Charles Supper, Natick, MA, USA) was connected through the upper end (‘input’) to a circulating peristaltic pump (Ismatec® ISM597D, Cole-Parmer, Wertheim, Germany) via silicone tubing, and the lower end (‘output’) opened to a glass vial reservoir to enable continuous recirculation of the medium. An aliquot of 0.5 mL cell suspension (20 × 106 cells/mL) was circulated through the capillary at a flow rate of 20 mL/min (i.e., simulating the human arterial wall shear stress of 10 dynes/cm2) [26]. Each nanosystem (0.5 mL) was dispersed at 2 mg/mL in the RPMI-1640/FBS medium, and introduced into the cell-rich reservoir via a syringe and needle. This resulted in a total flow-through volume of 1 mL at a ratio of approximately 1 mg lipids: 1 × 107 cells. The SAXS profiles were collected using a 13 keV X-ray at a camera-to-detector length of 1600 mm to acquire the scattering vector within a q-range of 0.01–0.6 Å−1 (calibrated against a silver behenate standard). The acquisition time was 10 s each for every 1 min.

3. Results and Discussion

3.1. Physicochemical Characteristics of Self-Assembled LLC Nanosystems

Figure 2a shows the cryo-TEM images of the negatively curved hexosomes (H2 phase), cubosomes (V2 phase), and the positively curved liposomes (LV). The H2 phase displayed the characteristic ring-like striations; the V2 phase was distinguished by the highly ordered, mesh-like network; and the LV system exhibited a mixture of uni- and multi-lamellar bilayer structures [14,30,31,32]. Particle sizing by DLS shows that the mean hydrodynamic diameters of the H2 and V2 particles span across the range of 250–400 nm (polydispersity index, PDI < 0.5), which are slightly larger than the LV system (<150 nm, PDI < 0.2). Nevertheless, these size data are comparable to other previous reports [33,34,35].
Phase characteristics at equilibrium were further established using the synchrotron-based SAXS technique. As opposed to the existing SAXS profiling of the LLC dispersed systems that typically employed lipid concentrations at > 10 mg/mL, we attempted to identify the lowest possible lipid concentrations that meet both, the SAXS instrument detection limits and the biocompatibility levels (i.e., < 1 mg/mL per 106 cells), according to previous cytotoxicity studies across different cell lines [11]. As shown in Figure 2b, the LLC phase-specific diffraction peaks were reliably acquired for each system at 1 mg/mL lipid level (i.e., ideal for 107 cells in the subsequent studies). The H2 phase (primary peak at q = 0.141 Å−1) shows three Bragg peaks at a spacing ratio of 1:√3:√4. The V2 phase was identified to be of a double diamond (Pn3m) geometry with a peak spacing ratio of √2:√3:√4:√6 (primary peak at q = 0.129 Å−1). On the other hand, the vesicular structure (LV) is characterised by a broad, diffuse band, as shown previously by other researchers [24,30,36]. The presence of THP-1 cells was also confirmed to exert negligible interference on the diffraction peak detection.

3.2. Phase Transformation of LLC Systems was Triggered by Monocytic Cells but not by Cell Culture Medium

We coupled the biological cell flow-through a capillary system with the synchrotron-SAXS to enable instantaneous acquisition of the diffraction patterns for each nanosystem every 1 min, under dynamic bio-interaction conditions. It is interesting to observe that the three different types of LLC nanosystems exhibited dissimilar phase events during their encounter with monocytic cells.
Hexosomes retained the pure H2 phase after incubation in the cell-free, FBS-containing medium for 30 min (Figure 3, control reference). The medium caused a slight shrinkage of the internal structure based on the primary peak shift from q = 0.141 Å−1 (Figure 2b) to 0.147 Å−1 (Figure 3). When monocytic cells were introduced into the circulation, new diffraction peaks initiated at the q-position of 0.123 Å−1 started to appear within 8 min (Figure 3, treatment). The intensity of the new diffraction peaks increased continuously while the original peak signals subsided over the next 24 min. Correlation with the Miller indices for known phases indicates the identity of H2 phases for both the original and the evolved structures (i.e., 1:√3:√4).
Similarly, cubosomes maintained the pure V2 phase in the cell-free medium for 30 min (Figure 4, control reference). However, the presence of monocytic cells triggered a phase transformation from a V2 phase to a mixed V2/H2 phase from 8 min onwards, where the peak intensity of the evolved H2 phase (primary q = 0.126 Å−1) increased progressively until the V2 phase became almost undetectable at the end of the 24 min analysis (Figure 4, treatment). The complete V2-to-H2 phase transformation, which could be interpreted as cell-triggered “instability”, is somewhat in agreement with other findings showing the higher fusogenic propensity of PHY-based cubic systems with cellular membranes in comparison with the hexagonal equivalents [11].
The mean lattice parameter, a, was deduced from the scattering vector (q) and the inter-planar spacing (d) of each unit cell according to equation (1) for H2 phase, and equation (2) for V2 phase, respectively,
ahexagonal = 4d/3(h2 + k2)0.5
acubic = d(h2 + k2 + l2)0.5
where d = 2π/q, and the values h, k and l are the Miller indices of the Bragg peaks [37].
From the trend of lattice parameter (Figure 5), it could be seen that the evolution of a swollen H2 phase in both hexosomes and cubosomes coincided within the same range of mean lattice parameter (i.e., 57 Å ≤ a ≤ 61 Å). The appearance of the cell-triggered H2 periodicity is intriguing and remains to be further elucidated, however the transfer of lipids between particles is known to take place, driven by entropy of mixing [38,39]. The transfer of lipid out of cubosomes would not induce a change in lattice parameter of the cubic phase, yet the gradual shift in lattice parameter, and ultimate transition to hexosomes is strongly suggestive of transfer or extraction of lipids from the cells into the cubosomes. The effect is not due to proteins in the media because the control particles in media did not exhibit a change in structure. Likewise, the hexagonal phase particles are transitioning slowly to lower lattice parameter following the behavior of the cubosomes which also suggested transfer of lipids from the cells into the particles, in order to induce such a change. The aforementioned mechanism does not preclude a fusogenic event, which may be the trigger for the change in particle structure, but the data certainly does not suggest attrition of lipid from the host particles into the cells through solution, as it is believed to be the case in a mixture of cubosomes with emulsions [38].
In the case of liposomes, the typical broad diffusive peak pattern was present throughout the 20 min of contact with monocytic cells (Figure 6). There was no detection of any identifiable new phase characteristics. This possibly reflects relatively good stability of the liposomal system as conferred by the traditional PEGylation “stealth” approach. Interfacial functionalisation with PEG has long been reported in minimising non-specific interactions with serum proteins and systemic clearance by the phagocytic cells [40,41]. However, the absence of detection may also be attributed to the limit of SAXS detection sensitivity. Nevertheless, the current bio-SAXS setup has successfully facilitated real-time determination of the bio-fate of three different LLC nanosystems in a simplified systemic environment.

4. Conclusions

This work demonstrates the viability and importance of coupling biological cell flow-through circuits and the synchrotron-based SAXS analysis (bio-SAXS) to understand the systemic bio-fate of various LLC nanostructured systems. It has generally been assumed that these thermodynamically stable nanosystems retain their original identities when applied as injectable or implantable drug delivery systems. The current findings highlight that the studied non-lamellar systems (i.e., cubosomes and hexosomes stabilised using the traditional Poloxamer-based agents were prone to modifications of their internal nanostructure (i.e., time-dependent loss of original phase characteristics) in the presence of blood circulating immune cells. In contrast, the equivalent liposomal system stabilised by PEG did not show any signs of instability upon cellular contact. Therefore, behaviour of such systems in applications such as drug release or interfacial interactions examined under cell-rich environments needs to be interpreted with care. This bio-SAXS experimental configuration will be applicable to support the process of formulation optimisation and to predict the systemic behaviour of various LLC-based drug delivery systems under cellular-rich physiological environments.

Author Contributions

Conceptualisation, A.T. and B.B.; methodology and investigation, A.T., Y.Y.L., and X.S.; data analysis and writing—original draft, review and editing, A.T. and B.B.; resources and funding acquisition, B.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Australian Research Council (ARC) Centre of Excellence in Convergent Bio-Nano Science and Technology.

Acknowledgments

The SAXS studies were performed on the SAXS/WAXS beamline at the Australian Synchrotron. The authors acknowledged the assistance of Andrew Clulow (Monash University) and Adrian Hawley (ANSTO) in establishing the bio-SAXS setup at the Australian Synchrotron; and the support of Associate Professor Eric Hanssen in conducting the cryo-TEM at the Bio21 Advanced Microscopy Facility.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Latowski, D.; Åkerlund, H.-E.; Strzałka, K. Violaxanthin De-Epoxidase, the Xanthophyll Cycle Enzyme, Requires Lipid Inverted Hexagonal Structures for Its Activity†. Biochemistry 2004, 43, 4417–4420. [Google Scholar] [CrossRef] [PubMed]
  2. Jouhet, J. Importance of the hexagonal lipid phase in biological membrane organization. Front. Plant Sci. 2013, 4, 4. [Google Scholar] [CrossRef] [PubMed]
  3. Deng, Y.; Almsherqi, Z.A. Evolution of cubic membranes as antioxidant defence system. Interface Focus 2015, 5, 20150012. [Google Scholar] [CrossRef] [PubMed]
  4. Almsherqi, Z.A.; Landh, T.; Kohlwein, S.D.; Deng, Y. Chapter 6 Cubic Membranes. Int. Rev. Cell Mol. Biol. 2009, 274, 275–342. [Google Scholar] [PubMed]
  5. Woltman, S.J.; Jay, G.D.; Crawford, G.P. Liquid-crystal materials find a new order in biomedical applications. Nat. Mater. 2007, 6, 929–938. [Google Scholar] [CrossRef] [PubMed]
  6. Lagerwall, J.P.F.; Scalia, G. A new era for liquid crystal research: Applications of liquid crystals in soft matter nano-, bio- and microtechnology. Curr. Appl. Phys. 2012, 12, 1387–1412. [Google Scholar] [CrossRef]
  7. van’t Hag, L.; Gras, S.; Conn, C.E.; Drummond, C.J. Lyotropic liquid crystal engineering moving beyond binary compositional space—ordered nanostructured amphiphile self-assembly materials by design. Chem. Soc. Rev. 2017, 46, 2705–2731. [Google Scholar]
  8. Boyd, B.J.; Dong, Y.-D.; Rades, T. Nonlamellar liquid crystalline nanostructured particles: advances in materials and structure determination. J. Liposome Res. 2009, 19, 12–28. [Google Scholar] [CrossRef]
  9. Jewell, S.A. Liquid Crystals in Living Systems and Liquid Crystals in the Development of Life. In Handbook of Liquid Crystals; Wiley: Hoboken, NJ, USA, 2014; Volume 7, pp. 1–25. [Google Scholar]
  10. Israelachvili, J.N.; Mitchell, D.J.; Ninham, B. Theory of self-assembly of hydrocarbon amphiphiles into micelles and bilayers. J. Chem. Soc. Faraday Trans. 2 1976, 72, 1525–1568. [Google Scholar] [CrossRef]
  11. Tan, A.; Hong, L.; Du, J.D.; Boyd, B.J. Self-assembled nanostructured lipid systems: Is there a link between structure and cytotoxicity? Adv. Sci. 2019, 6, 1801223. [Google Scholar] [CrossRef]
  12. Bulbake, U.; Doppalapudi, S.; Kommineni, N.; Khan, W. Liposomal Formulations in Clinical Use: An Updated Review. Pharmaceutics 2017, 9, 12. [Google Scholar] [CrossRef] [PubMed]
  13. Camurus. Development Pipeline—Pharmaceuticals. Available online: https://www.camurus.com/pipeline/ (accessed on 15 January 2020).
  14. Angelov, B.; Garamus, V.M.; Drechsler, M.; Angelova, A. Structural analysis of nanoparticulate carriers for encapsulation of macromolecular drugs. J. Mol. Liq. 2017, 235, 83–89. [Google Scholar] [CrossRef]
  15. Angelova, A.; Angelov, B.; Garamus, V.M.; Couvreur, P.; Lesieur, S. Small-Angle X-ray Scattering Investigations of Biomolecular Confinement, Loading, and Release from Liquid-Crystalline Nanochannel Assemblies. J. Phys. Chem. Lett. 2012, 3, 445–457. [Google Scholar] [CrossRef] [PubMed]
  16. Kirby, N.; Mudie, S.T.; Hawley, A.M.; Cookson, D.; Mertens, H.D.T.; Cowieson, N.; Samardzic-Boban, V. A low-background-intensity focusing small-angle X-ray scattering undulator beamline. J. Appl. Crystallogr. 2013, 46, 1670–1680. [Google Scholar] [CrossRef]
  17. Dong, Y.-D.; Dong, A.W.; Larson, I.; Rappolt, M.; Amenitsch, H.; Hanley, T.; Boyd, B.J. Impurities in Commercial Phytantriol Significantly Alter Its Lyotropic Liquid-Crystalline Phase Behavior. Langmuir 2008, 24, 6998–7003. [Google Scholar] [CrossRef]
  18. Dong, Y.-D.; Larson, I.; Hanley, T.; Boyd, B.J. Bulk and Dispersed Aqueous Phase Behavior of Phytantriol: Effect of Vitamin E Acetate and F127 Polymer on Liquid Crystal Nanostructure. Langmuir 2006, 22, 9512–9518. [Google Scholar] [CrossRef]
  19. Muir, B.; Zhen, G.; Gunatillake, P.; Hartley, P. Salt Induced Lamellar to Bicontinuous Cubic Phase Transitions in Cationic Nanoparticles. J. Phys. Chem. B 2012, 116, 3551–3556. [Google Scholar] [CrossRef]
  20. Lenné, T.; Garvey, C.J.; Koster, K.L.; Bryant, G. Effects of sugars on lipid bilayers during dehydration—SAXS/WAXS measurements and quantitative model. J. Phys. Chem. B 2009, 113, 2486–2491. [Google Scholar] [CrossRef]
  21. Wang, Z.; Zheng, L.; Inoue, T. Effect of sucrose on the structure of a cubic phase formed from a monoolein/water mixture. J. Colloid Interface Sci. 2005, 288, 638–641. [Google Scholar] [CrossRef]
  22. Mezzenga, R.; Grigorov, M.; Zhang, Z.; Servais, C.; Sagalowicz, L.; Romoscanu, A.I.; Khanna, V.; Meyer, C. Polysaccharide-Induced Order-to-Order Transitions in Lyotropic Liquid Crystals. Langmuir 2005, 21, 6165–6169. [Google Scholar] [CrossRef]
  23. Du, J.; Liu, Q.; Salentinig, S.; Nguyen, T.-H.; Boyd, B.J. A novel approach to enhance the mucoadhesion of lipid drug nanocarriers for improved drug delivery to the buccal mucosa. Int. J. Pharm. 2014, 471, 358–365. [Google Scholar] [CrossRef] [PubMed]
  24. Tajik-Ahmadabad, B.; Mechler, A.; Muir, B.; McLean, K.M.; Hinton, T.; Separovic, F.; Polyzos, A. A QCM-D and SAXS Study of the Interaction of Functionalised Lyotropic Liquid Crystalline Lipid Nanoparticles with siRNA. ChemBioChem 2017, 18, 921–930. [Google Scholar] [CrossRef] [PubMed]
  25. He, S.; Fan, W.; Wu, N.; Zhu, J.; Miao, Y.; Miao, X.; Li, F.; Zhang, X.; Gan, Y. Lipid-Based Liquid Crystalline Nanoparticles Facilitate Cytosolic Delivery of siRNA via Structural Transformation. Nano Lett. 2018, 18, 2411–2419. [Google Scholar] [CrossRef]
  26. Tan, A.; Lam, Y.Y.; Pacot, O.; Hawley, A.; Boyd, B.J. Probing cell–nanoparticle (cubosome) interactions at the endothelial interface: do tissue dimension and flow matter? Biomater. Sci. 2019, 7, 3460–3470. [Google Scholar] [CrossRef] [PubMed]
  27. Tran, N.; Hawley, A.M.; Hinton, T.; Mudie, S.T.; Giakoumatos, E.C.; Waddington, L.J.; Kirby, N.; Drummond, C.J.; Mulet, X.; Muir, B. Nanostructure and cytotoxicity of self-assembled monoolein–capric acid lyotropic liquid crystalline nanoparticles. RSC Adv. 2015, 5, 26785–26795. [Google Scholar] [CrossRef]
  28. Wibroe, P.P.; Azmi, I.D.M.; Nilsson, C.; Yaghmur, A.; Moghimi, S.M. Citrem modulates internal nanostructure of glyceryl monooleate dispersions and bypasses complement activation: Towards development of safe tunable intravenous lipid nanocarriers. Nanomed. Nanotechnol. Boil. Med. 2015, 11, 1909–1914. [Google Scholar] [CrossRef] [PubMed]
  29. Azmi, I.D.M.; Wu, L.; Wibroe, P.P.; Nilsson, C.; Østergaard, J.; Stürup, S.; Gammelgaard, B.; Urtti, A.; Moghimi, S.M.; Yaghmur, A. Modulatory Effect of Human Plasma on the Internal Nanostructure and Size Characteristics of Liquid-Crystalline Nanocarriers. Langmuir 2015, 31, 5042–5049. [Google Scholar] [CrossRef]
  30. Fong, C.; Weerawardena, A.; Sagnella, S.M.; Mulet, X.; Waddington, L.; Krodkiewska, I.; Drummond, C.J. Monodisperse nonionic phytanyl ethylene oxide surfactants: High throughput lyotropic liquid crystalline phase determination and the formation of liposomes, hexosomes and cubosomes. Soft Matter 2010, 6, 4727. [Google Scholar] [CrossRef]
  31. Schmutz, M.; Durand, D.; Debin, A.; Palvadeau, Y.; Etienne, A.; Thierry, A.R. DNA packing in stable lipid complexes designed for gene transfer imitates DNA compaction in bacteriophage. Proc. Natl. Acad. Sci. USA 1999, 96, 12293–12298. [Google Scholar] [CrossRef]
  32. Boyd, B.J.; Rizwan, S.B.; Dong, Y.-D.; Hook, S.; Rades, T. Self-Assembled Geometric Liquid-Crystalline Nanoparticles Imaged in Three Dimensions: Hexosomes Are Not Necessarily Flat Hexagonal Prisms. Langmuir 2007, 23, 12461–12464. [Google Scholar] [CrossRef]
  33. Hinton, T.; Grusche, F.; Acharya, D.; Shukla, R.; Bansal, V.; Waddington, L.J.; Monaghan, P.; Muir, B. Bicontinuous cubic phase nanoparticle lipid chemistry affects toxicity in cultured cells. Toxicol. Res. 2014, 3, 11–22. [Google Scholar] [CrossRef]
  34. Shen, H.-H.; Crowston, J.G.; Huber, F.; Saubern, S.; McLean, K.M.; Hartley, P. The influence of dipalmitoyl phosphatidylserine on phase behaviour of and cellular response to lyotropic liquid crystalline dispersions. Biomaterials 2010, 31, 9473–9481. [Google Scholar] [CrossRef]
  35. Zhai, J.; Suryadinata, R.; Luan, B.; Tran, N.; Ratcliffe, J.; Hinton, T.; Hao, X.; Drummond, C.J. Amphiphilic brush polymers produced using the RAFT polymerisation method stabilise and reduce the cell cytotoxicity of lipid lyotropic liquid crystalline nanoparticles. Faraday Discuss. 2016, 191, 545–563. [Google Scholar] [CrossRef]
  36. Li, T.; Cipolla, D.; Rades, T.; Boyd, B.J. Drug nanocrystallisation within liposomes. J. Control. Release 2018, 288, 96–110. [Google Scholar] [CrossRef] [PubMed]
  37. Kulkarni, C.V.; Wächter, W.; Salto, G.I.; Engelskirchen, S.; Ahualli, S. Monoolein: A magic lipid? Phys. Chem. Chem. Phys. 2011, 13, 3004–3021. [Google Scholar] [CrossRef] [PubMed]
  38. Tilley, A.; Dong, Y.-D.; Amenitsch, H.; Rappolt, M.; Boyd, B.J. Transfer of lipid and phase reorganisation in self-assembled liquid crystal nanostructured particles based on phytantriol. Phys. Chem. Chem. Phys. 2011, 13, 3026. [Google Scholar] [CrossRef]
  39. Salonen, A.; Moitzi, C.; Salentinig, S.; Glatter, O. Material Transfer in Cubosome−Emulsion Mixtures: Effect of Alkane Chain Length. Langmuir 2010, 26, 10670–10676. [Google Scholar] [CrossRef]
  40. Kang, B.; Okwieka, P.; Schöttler, S.; Winzen, S.; Langhanki, J.; Mohr, K.; Opatz, T.; Mailänder, V.; Landfester, K.; Wurm, F.R.; et al. Carbohydrate-Based Nanocarriers Exhibiting Specific Cell Targeting with Minimum Influence from the Protein Corona. Angew. Chem. Int. Ed. 2015, 54, 7436–7440. [Google Scholar] [CrossRef]
  41. Suk, J.S.; Xu, Q.; Kim, N.; Hanes, J.; Ensign, L. PEGylation as a strategy for improving nanoparticle-based drug and gene delivery. Adv. Drug Deliv. Rev. 2016, 99, 28–51. [Google Scholar] [CrossRef]

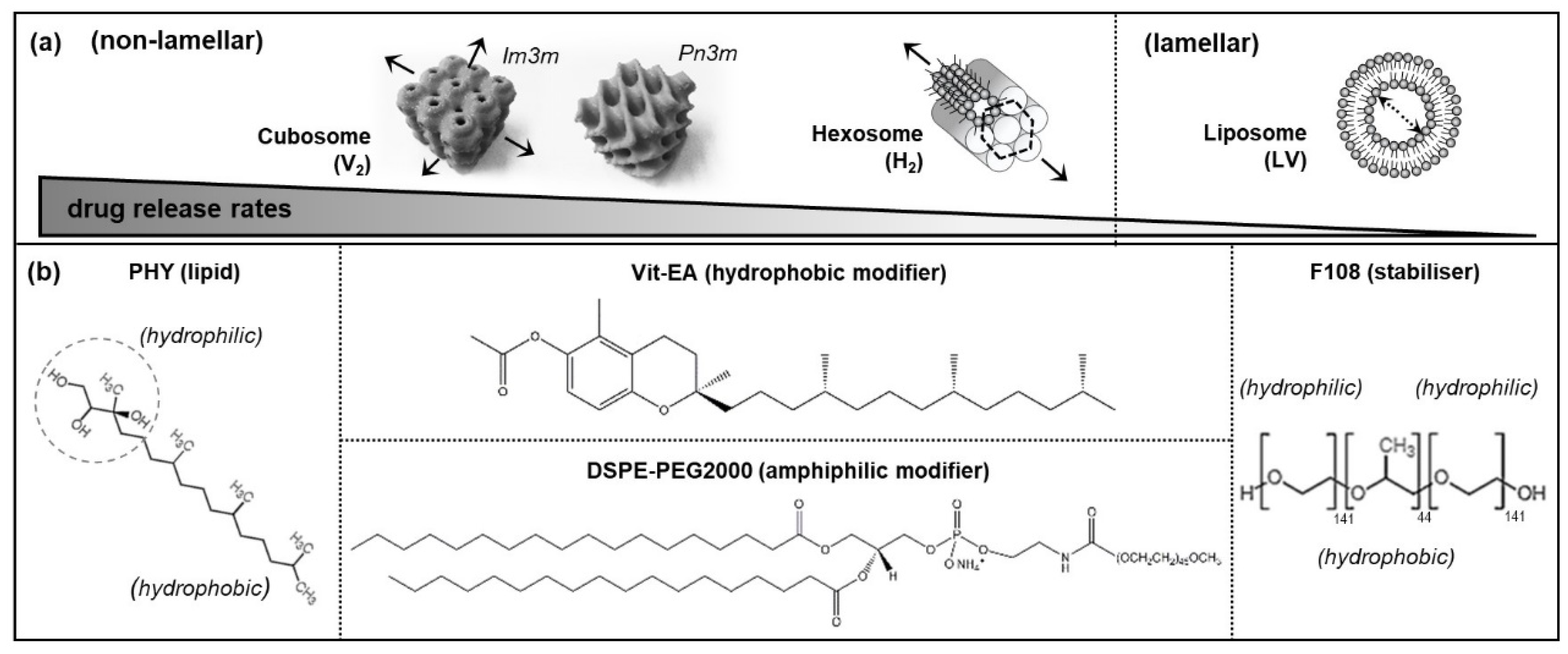

Figure 1. (a) Schematics depicting the non-lamellar and lamellar structures and their corresponding drug release rates, where the arrows indicate the possible paths of cargo release; (b) molecular structure of the formulation components: the parent lipid, phytantriol (PHY); hydrophobic modifier, Vitamin E acetate (Vit-EA); amphiphilic modifier, 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[amino(polyethylene glycol)-2000 (DSPE-PEG2000); and stabiliser, Poloxamer 388 (F108).
Figure 1. (a) Schematics depicting the non-lamellar and lamellar structures and their corresponding drug release rates, where the arrows indicate the possible paths of cargo release; (b) molecular structure of the formulation components: the parent lipid, phytantriol (PHY); hydrophobic modifier, Vitamin E acetate (Vit-EA); amphiphilic modifier, 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[amino(polyethylene glycol)-2000 (DSPE-PEG2000); and stabiliser, Poloxamer 388 (F108).
Materials 13 01013 g001

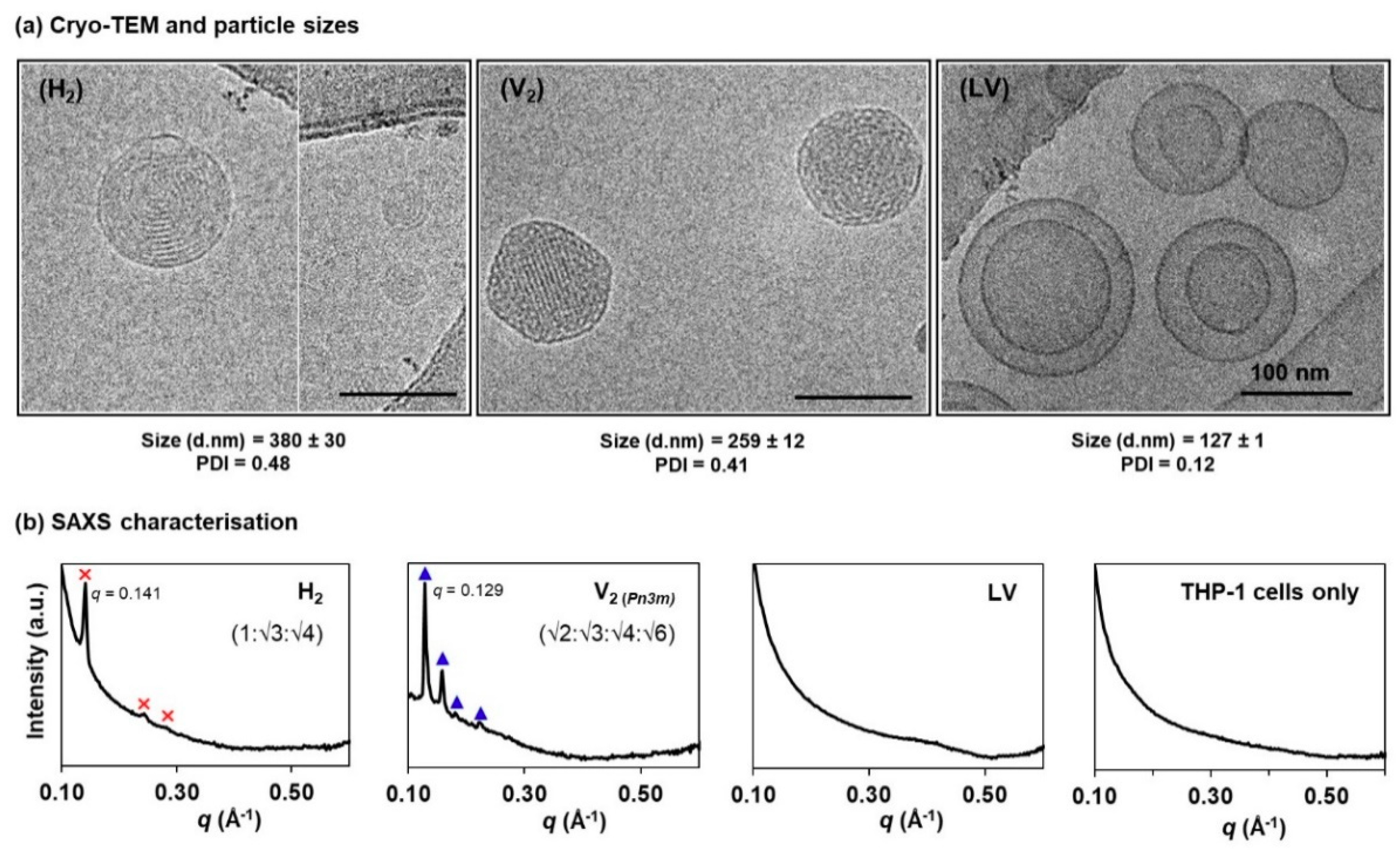

Figure 2. Structural characterisation of the lipid-based liquid crystalline (LLC) nanosystems: (a) Cryogenic transmission electron microscopy (cryo-TEM) images, and the corresponding hydrodynamic diameters (d. nm) and polydispersity index (PDI) determined using dynamic light scattering (DLS) technique; (b) synchrotron-based small angle X-ray scattering (SAXS) characterisation of the phytantriol-based hexosomes [H2, where the Bragg peaks, , could be indexed as Miller indices (hk) = (10), (11) and (20)], cubosomes [V2, where the peaks, , corresponded to Miller indices (hkl) = (110), (111), (200) and (211]), and liposomes (LV) at 1 mg/mL lipid level, as well as the blank THP-1 cells suspended in cell culture medium (i.e., 1 × 107 cells in RPMI-1640 supplemented with 10% FBS).
Figure 2. Structural characterisation of the lipid-based liquid crystalline (LLC) nanosystems: (a) Cryogenic transmission electron microscopy (cryo-TEM) images, and the corresponding hydrodynamic diameters (d. nm) and polydispersity index (PDI) determined using dynamic light scattering (DLS) technique; (b) synchrotron-based small angle X-ray scattering (SAXS) characterisation of the phytantriol-based hexosomes [H2, where the Bragg peaks, , could be indexed as Miller indices (hk) = (10), (11) and (20)], cubosomes [V2, where the peaks, , corresponded to Miller indices (hkl) = (110), (111), (200) and (211]), and liposomes (LV) at 1 mg/mL lipid level, as well as the blank THP-1 cells suspended in cell culture medium (i.e., 1 × 107 cells in RPMI-1640 supplemented with 10% FBS).
Materials 13 01013 g002

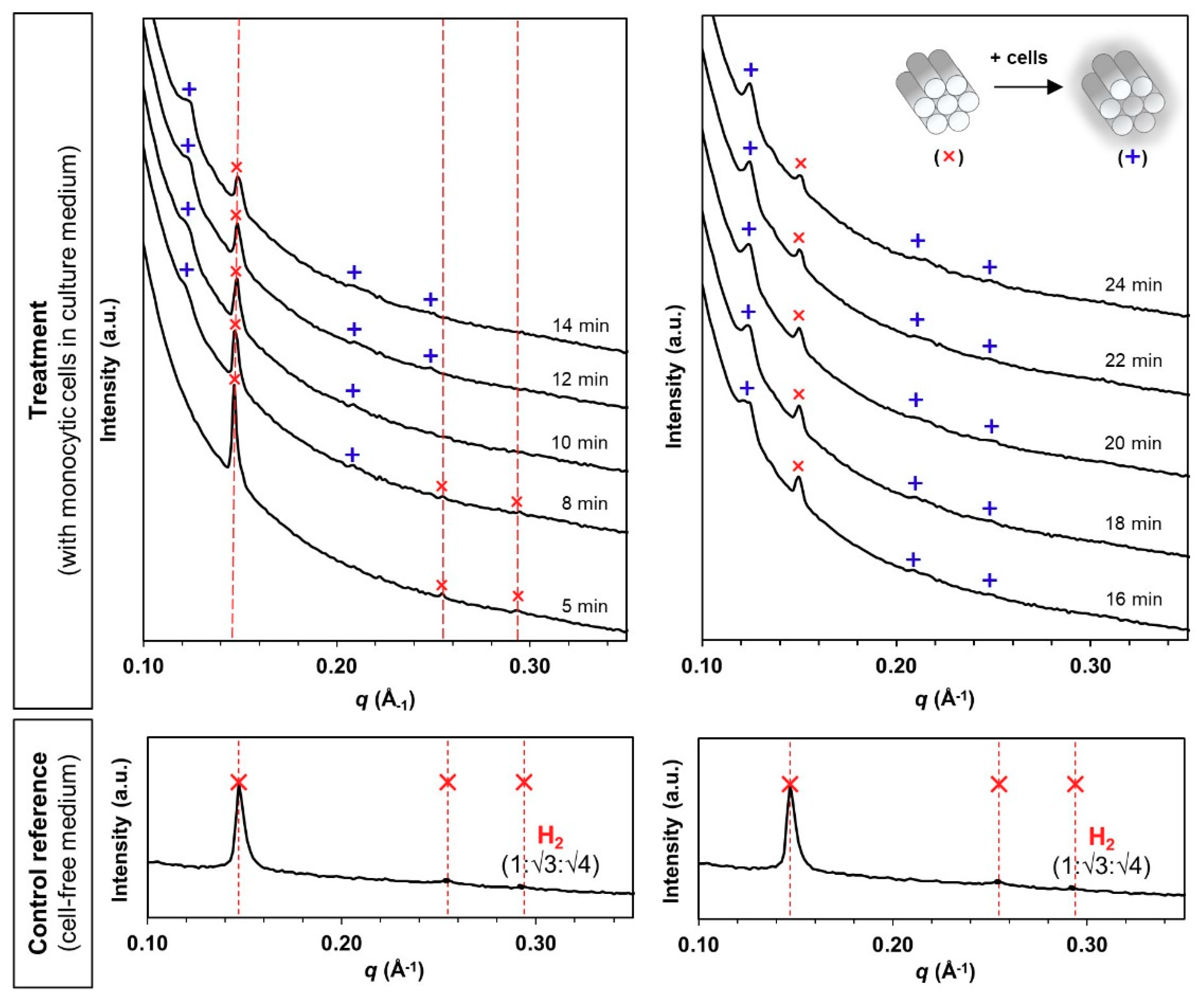

Figure 3. Bio-SAXS profiles of the phytantriol-based hexosomes (H2 phase) at 1 mg/mL under circulating flow conditions in the absence and presence of human monocytic cells (at 27 °C hutch temperature): original H2 phase (, primary q = 0.147 Å−1) and evolved H2 phase (+, primary q = 0.123 Å−1) at Bragg peak spacing ratios of 1:√3:√4 [Miller indices (hk) = (10), (11) and (20)].
Figure 3. Bio-SAXS profiles of the phytantriol-based hexosomes (H2 phase) at 1 mg/mL under circulating flow conditions in the absence and presence of human monocytic cells (at 27 °C hutch temperature): original H2 phase (, primary q = 0.147 Å−1) and evolved H2 phase (+, primary q = 0.123 Å−1) at Bragg peak spacing ratios of 1:√3:√4 [Miller indices (hk) = (10), (11) and (20)].
Materials 13 01013 g003

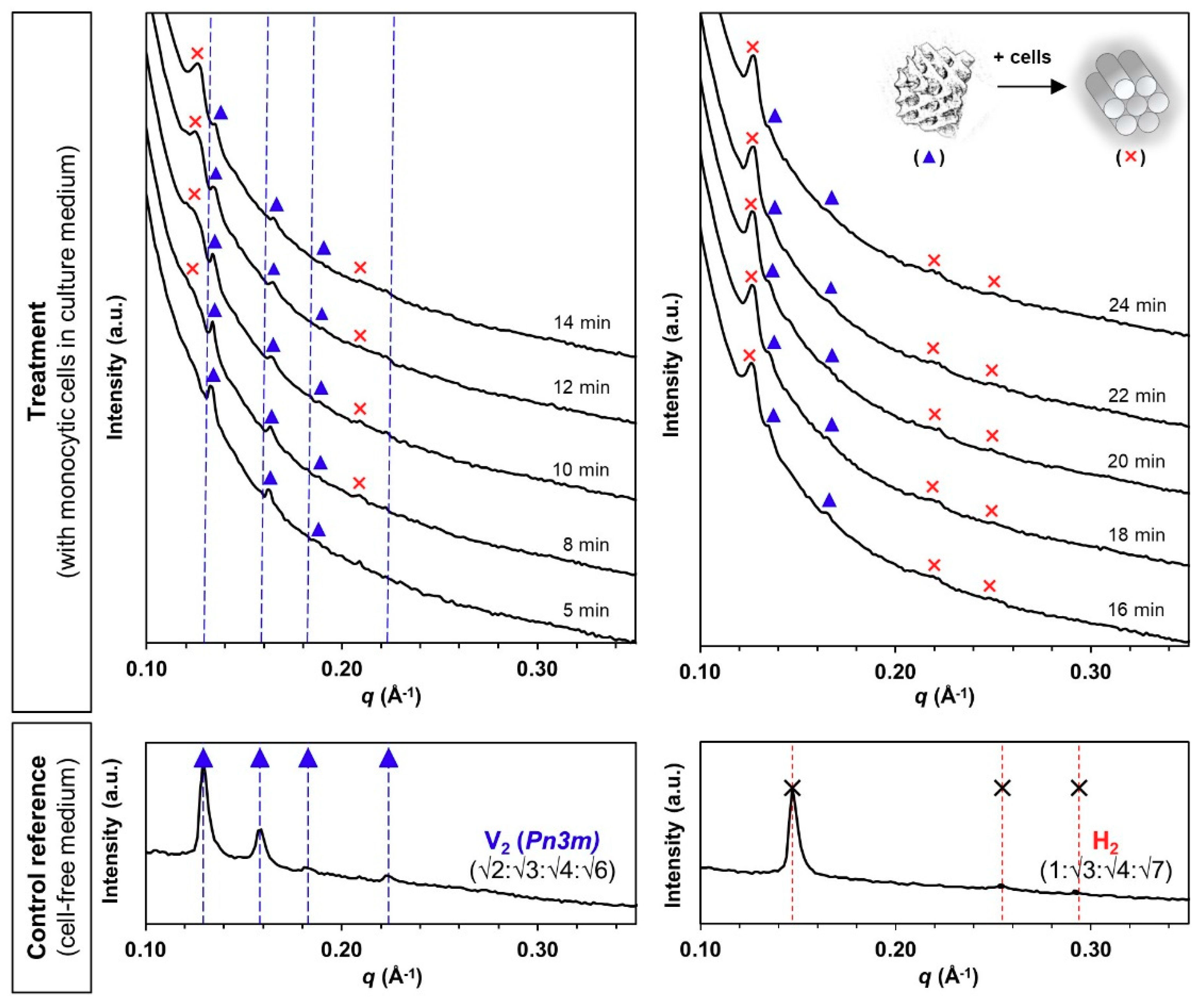

Figure 4. Bio-SAXS profiles of the phytantriol-based cubosomes (V2 phase) at 1 mg/mL lipid level under circulating flow conditions in the absence and presence of human monocytic cells (27 °C): original V2 phase (, primary q = 0.129 Å−1) at a Bragg peak spacing ratio of √2:√3:√4:√6 [Miller indices (hkl) = (110), (111), (200) and (211)], and evolved H2 phase (, primary q = 0.126 Å−1) at a Bragg peak spacing ratio of 1:√3:√4 [Miller indices (hk) = (10), (11) and (20)].
Figure 4. Bio-SAXS profiles of the phytantriol-based cubosomes (V2 phase) at 1 mg/mL lipid level under circulating flow conditions in the absence and presence of human monocytic cells (27 °C): original V2 phase (, primary q = 0.129 Å−1) at a Bragg peak spacing ratio of √2:√3:√4:√6 [Miller indices (hkl) = (110), (111), (200) and (211)], and evolved H2 phase (, primary q = 0.126 Å−1) at a Bragg peak spacing ratio of 1:√3:√4 [Miller indices (hk) = (10), (11) and (20)].
Materials 13 01013 g004

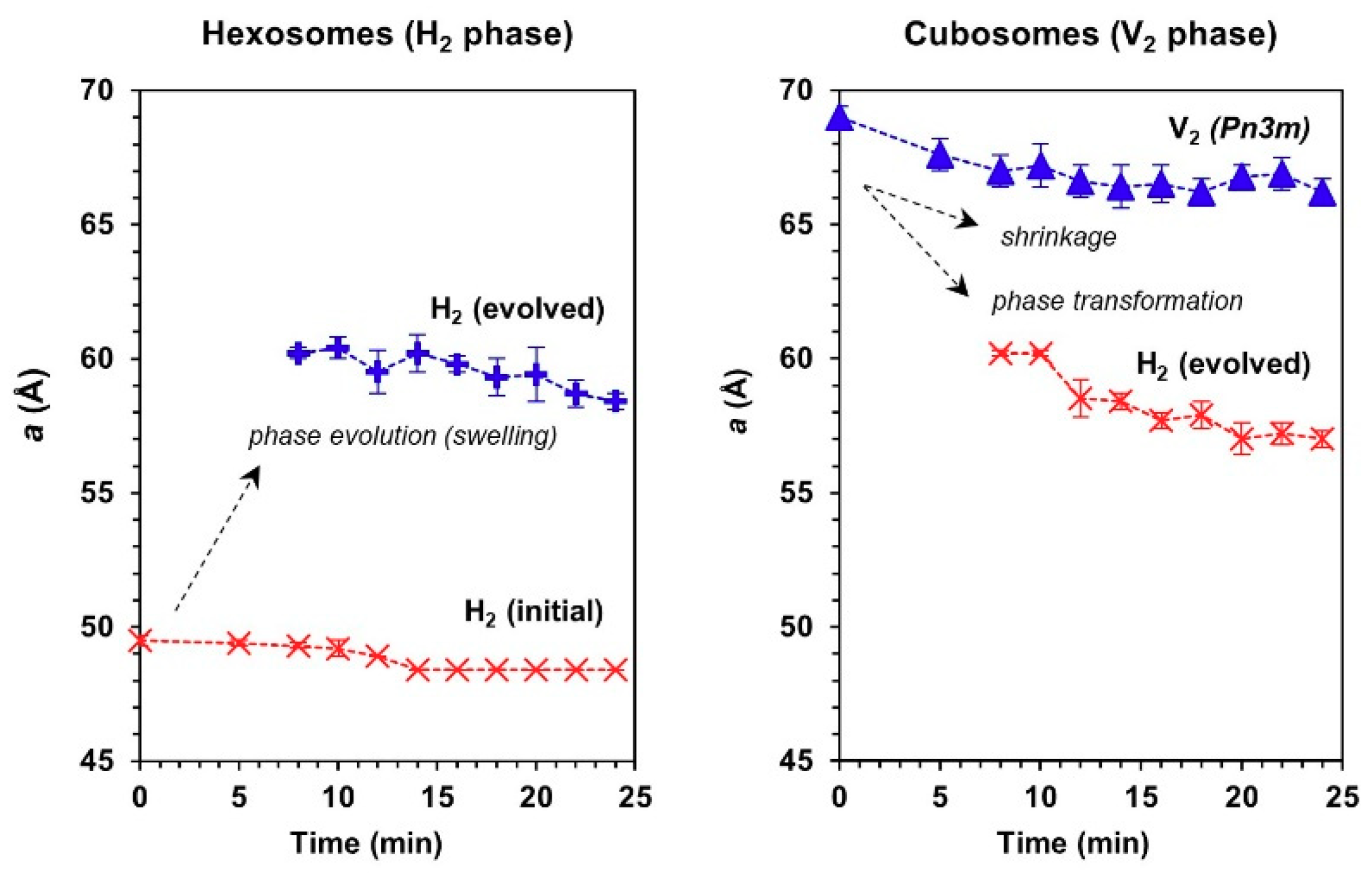

Figure 5. Changes in the mean lattice parameter, a, of hexosomes (left panel) and cubosomes (right panel) in contact with human monocytic cells under circulating flow conditions (27 °C).
Figure 5. Changes in the mean lattice parameter, a, of hexosomes (left panel) and cubosomes (right panel) in contact with human monocytic cells under circulating flow conditions (27 °C).
Materials 13 01013 g005

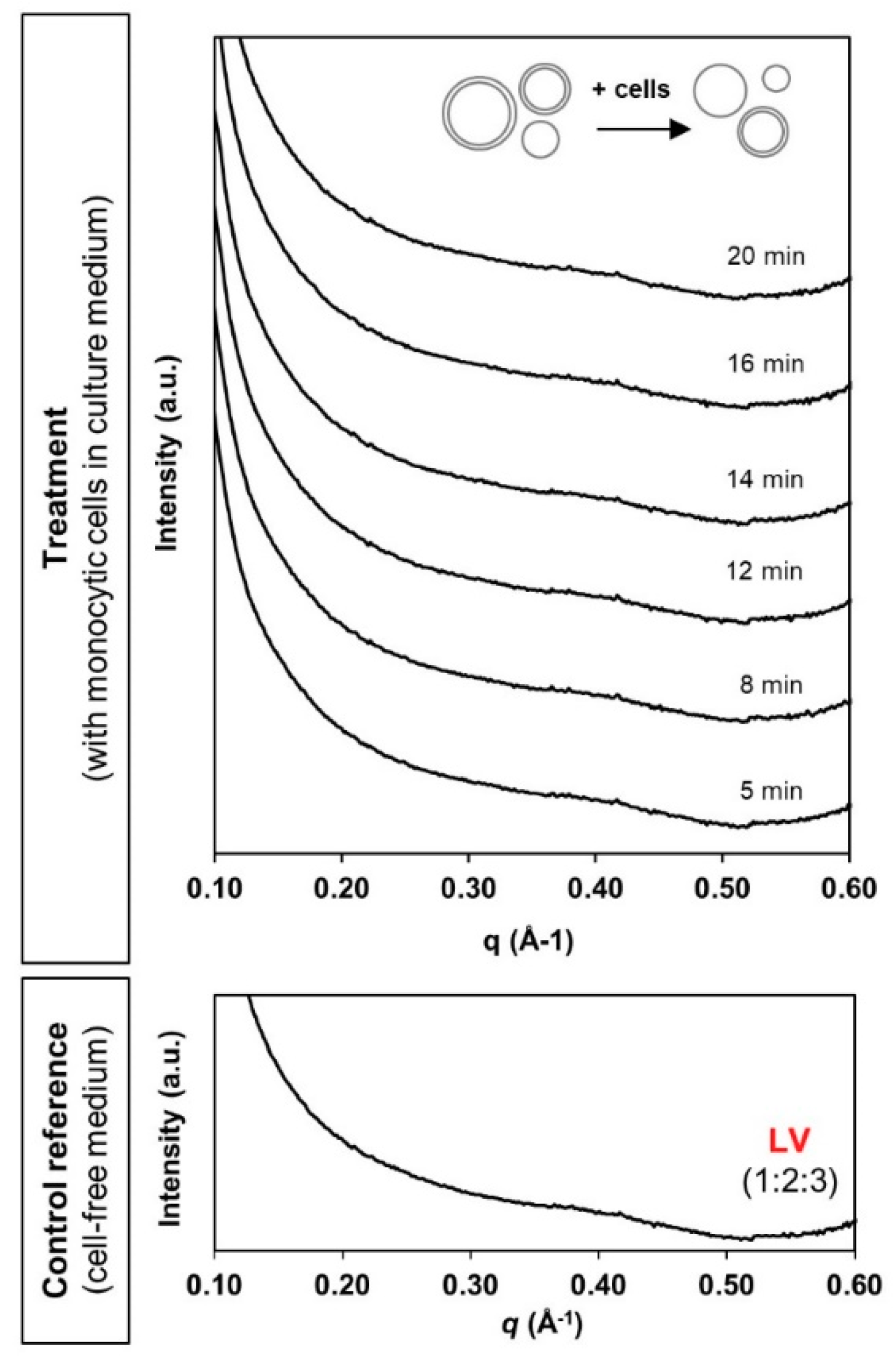

Figure 6. Bio-SAXS profiles of the phytantriol-based liposomes (LV) at 1 mg/mL lipid level under circulating flow conditions in the absence and presence of human monocytic cells (27 °C).
