Controlling the Porosity and Biocidal Properties of the Chitosan-Hyaluronate Matrix Hydrogel Nanocomposites by the Addition of 2D Ti3C2Tx MXene

Anita Rozmysłowska-Wojciechowska
Ewa Karwowska
Michał Gloc
Jarosław Woźniak
Mateusz Petrus
Bartłomiej Przybyszewski
Tomasz Wojciechowski
3 and
Agnieszka M. Jastrzębska
Faculty of Materials Science and Engineering, Warsaw University of Technology, Woloska 141, 02-507 Warsaw, Poland
Faculty of Building Services, Hydro and Environmental Engineering, Warsaw University of Technology, Nowowiejska 20, 00-653 Warsaw, Poland
Faculty of Chemistry, Warsaw University of Technology, Noakowskiego 3, 00-664 Warsaw, Poland
Author to whom correspondence should be addressed.
Materials 2020, 13(20), 4587;
Submission received: 1 August 2020 / Revised: 18 September 2020 / Accepted: 24 September 2020 / Published: 15 October 2020


A recent discovery of the unique biological properties of two-dimensional transition metal carbides (MXenes) resulted in intensive research on their application in various biotechnological areas, including polymeric nanocomposite systems. However, the true potential of MXene as an additive to bioactive natural porous composite structures has yet to be fully explored. Here, we report that the addition of 2D Ti3C2Tx MXene by reducing the porosity of the chitosan-hyaluronate matrix nanocomposite structures, stabilized by vitamin C, maintains their desired antibacterial properties. This was confirmed by micro computed tomography (micro-CT) visualization which enables insight into the porous structure of nanocomposites. It was also found that given large porosity of the nanocomposite a small amount of MXene (1–5 wt.%) was effective against gram-negative Escherichia coli, gram-positive Staphylococcus aureus, and Bacillus sp. bacteria in a hydrogel system. Such an approach unequivocally advances the future design approaches of modern wound healing dressing materials with the addition of MXenes.

Graphical Abstract

1. Introduction

Chitosan is a linear copolymer of β-(1–4) linked 2-acetamido-2-deoxy-β-D-glucopyranose and 2-amino-2-deoxy-β-D-glycopyranose. It one of the most common natural polymers obtained by alkaline deacetylation of chitin, which occurs in the skeletons of various invertebrates, such as mollusks and arthropods. It is also present in the cell wall of algae and fungi [1]. Chitosan is well-soluble and stable in an acidic environment, but insoluble in a neutral environment [2]. It is cationic which makes it unique among other polysaccharides and specific in the context of biological properties [3]. Thanks to its biocompatibility, it can be used medicinally in the area of implantation [4], wound healing promotion [5], and exhibits bacteriostatic effects [2,6,7]. Due to the positive charge at physiological pH, chitosan is also bioadhesive; this increases retention at the site of application [8]. Since chitosan is metabolized by human enzymes e.g., lysozyme, it can be considered also as a biodegradable material [9]. It also shows a variety of biological effects such as antifungal [10] and plant defense stimulation [11].
Chitosan, thanks to its hydrophilicity, functional amino groups or cationic charge, has been commonly used as a component of hydrogels, i.e., materials with high affinity for water, the dissolution of which is impossible due to chemical or physical bonds formed between polymer chains [12]. Using chitosan, hydrogels can be implemented in the intelligent delivery of macromolecular compounds such as peptides, proteins, antigens, or genes [3,13]. As can be seen, chitosan matrix composites have many positive features such as completely natural origin and excellent biocompatibility [14]. On the other hand, they are characterized by a specific porosity which is difficult to control [15]. Several techniques have been reported in the literature to control the pore size distribution of chitosan hydrogels. Salt leaching uses different salts or sugar particle sizes to determine pore sizes but requires the use of organic solvents that affect the properties of the final product [16]. The high pressure CO2 over an aqueous polymer solution with a crosslinker leads to only reduction of the fraction of large pores [17]. Currently, the feasible freeze-drying techniques are being extensively developed, but are also challenging, because the pore size in the final structure is influenced by many hardy-controllable factors [18,19,20] One feasible approaches is the addition of nanomaterials, including two-dimensional (2D) structures.
MXene phases are new materials characterized by a 2D structure first obtained in 2011 [21]. The term ‘MXene’ reflects the stoichiometry of the material i.e., Mn+1XnTx, in which M is a Group 3-7 transition metal, X corresponds to carbon or nitrogen, n = 1, 2, 3 or 4 [22], and Tx collectively refers to surface chemical groups such as -F, =O, and -OH. The synthetic method is based on the acidic etching of the initial Mn+1AXn phase [21,23], as a result of which the A atom—a group 13 or 14 metal is removed from the MAX phase structure. In this reaction the Mn+1XnTx system is formed. Among the numerous and diverse family of 2D materials, they are distinguished by the unique layered 2D structure of flakes which result in a sandwich-type arrangement of metal and non-metal layers arranged alternately. The process of obtaining delaminated 2D structure of the MXene phases is presented in Figure 1.
The presence of surface chemical groups such as -F, =O, and -OH is unique and characteristic for the MXenes family. It gives them a highly hydrophilic nature and allows for easy dispersion in various types of solvents [24,25], rising potential in hydrogel compositions [26,27,28] as well as interesting reversal adsorption properties for biomacromolecules [8,9]. A recent work [29,30] investigated adsorption of proteins with a positive surface charge, such as lysozyme or collagen. The surface of MXenes in an appropriate environment (pH change) resulted in their desorption. This is a significant advantage in surface reactivity over, for example, graphene, which is characterized by hydrophobic surface properties, and interactions that are not strong enough to provide good blending with precursor toward effective nanocomposite structures [31].
To date, several studies also indicated that MXenes have different bioactive features [32]. In 2016, Rasool et al. investigated the antimicrobial properties of the Ti3C2Tx MXene phase [33]. Studies have shown that this material showed higher biocidal activity against B. subtilis compared to E. coli at low nanomaterial concentrations, due to the interaction of nanomaterials with different cell wall structures of both strains. Jastrzębska et al. [34] compared the antibacterial properties of the two MXenes phases Ti2C and Ti3C2 against E. coli bacteria and found that the Ti2C phase did not affect the viability of the bacteria, while the Ti3C2 phase showed antimicrobial activity. Arabi Shamsabadi et al. [35] investigated the antimicrobial properties of colloidal Ti3C2Tx MXene nanoflakes against B. subtilis and E. coli, and foundthe antibacterial properties of Ti3C2Tx MXene nanoflakes depended on their size and exposure time. Because the Ti3C2Tx phase has a negative surface charge [36] it can potentially bind to the bacterial cell wall to damage the cell membrane and cell death [33]. The MXenes phases as biocides can be applied in filtration membranes [37,38,39], adsorptive removal of bacterial cells from water [32], or polymer matrix composites [40,41,42]. Composites based on synthetic polylactide were also obtained by electrospinning and they exhibited good antibacterial properties [43]. Also, due to their poor oxidation stability, different techniques were applied to stabilize MXenes e.g., addition to L-ascorbic acid (vitamin C) [44] or polyanionic salts [45]. To the best of our knowledge, these advances were not yet combined to obtain bioactive composite structures.
Taken together, data indicate the promising influence of MXenes as an additive to nanocomposite structures with bioactive properties. However, the rationale behind the usage of MXenes in polymer matrix composites was based on only increasing the content until the accepted biocidal effect was obtained [39,46]. Apart from the above, still, not enough attention has been given to fully understand how the physicochemical and especially biological properties of such composites may change. It has not been clarified whether the use of MXenes makes it possible to obtain assumed porosity of composites based on natural polymer matrices such as chitosan or even mixed compositions with the addition of sodium hyaluronate and L-ascorbic acid.
Therefore, the purpose of this work was to demonstrate the effectiveness of 2D Ti3C2Tx MXene in porous chitosan-hyaluronate matrix nanocomposites and the resulting hydrogels, stabilized by L-ascorbic acid addition. Strikingly, we observed that the addition of 2D Ti3C2Tx MXene to the nanocomposite structure adjusted the biocidal properties of the formed hydrogel. Moreover, it significantly decreased the nanocomposite porosity measured by the micro-CT technique. Altogether, our findings indicate that the usage of MXene 2D flakes in chitosan-based nanocomposites increases their application potential, by enabling porosity control of the developed structures while maintaining their antibacterial properties. Based on these findings, we envisage that the MXene materials will make the application of bioactive wound healing dressing materials more pronounced.

2. Materials and Methods

2.1. Preparation of the MAX Phase and MXenes

The Ti3AlC2 MAX phase was obtained using the Spark Plasma Sintering (SPS) technique, which was described in our previous work [47]. Briefly, the method comprises blending titanium, aluminum and synthetic graphite powders in a ball-type mill in isopropyl alcohol with a molar ratio Ti:Al:C of 3:1:1.9. Then, sieving (# = 300 µm) and drying the powders are carried out. The unique construction of the graphite matrix allows usage of the SPS pressureless technique during the reactive synthesis process [48]. The formula describing a reaction that takes place during the synthesis is presented below:
3   Ti + Al + 2   C   Ti 3 AlC 2
At 1300 °C and under a vacuum are applied for the MAX Ti3AlC2 phase synthesis process. The heating rate is 250 °C min−1. The next stage concerns cooling and grinding of the MAX phase using an automatic mortar grinder (Retsch KM100) as well as subsequent sieving (# = 300 µm).
In the next step, the Ti3AlC2 MAX phase is etched with 48% (v/v) HF hydrofluoric acid (Sigma Aldrich) in a ratio of 1 g of powder per 10 cm3 of the acid. The process is carried out by stirring the suspension at a speed of 250 rpm on a magnetic stirrer for 24 h. The sedimented Ti3C2Tx phase was washed four times with deionized water. Subsequently, obtained multilayered Ti3C2Tx MXene was dried overnight at room temperature and stored at 5 °C for further use.
The delamination process is carried out in such a way that the obtained MXenes phase is mixed on a magnetic stirrer with water containing tetramethylammonium hydroxide (TMAOH) in a ratio of 1 mg MXene/1 mL H2O/10 mg TMAOH for 24 h at room temperature. A solution of pH~10 is obtained which is subjected to mild sonication for 6 h. To adjust the pH before the final washing step, concentrated 38% HCl (Avantor) was added dropwise until pH reached 7. It is worth noting that this technique is also recommended by Mathis et al. [49]. The mixture was then washed and centrifuged (3500 rpm, 5 min per cycle). The stable colloidal system MXenes obtained in this way is collected using vacuum filtration, dispersed in deionized water, and subjected to a freeze-drying process for 24 h to obtain a powdered material.

2.2. Preparation of the Porous Chitosan-Hyaluronate Matrix Nanocomposites

The experimental approach with nanocomposite structures synthesis first comprised the preliminary optimization of the composition of a base mixture of chitosan (CH) and sodium hyaluronate (SHA). The optimization process is described in detail in Supporting Information (SI). The optimal chosen composition is CH/SHA = 2:1 wt.% ratio with 3 wt.% addition of L-ascorbic acid (LAA). We used this knowledge to subsequently obtain nanocomposites with increasing 2D Ti3C2Tx MXene content (1%, 5%, and 10% by weight of dry matter). The synthesis procedure involves ultrasound-assisted redispersion of 2D flakes in distilled and blending with a matrix mixture of CH/SHA using a magnetic stirrer (30 min). Next, the blended mixture is placed on Petri dishes at 0.2 cm high (see details in Supporting Information), freezing at −45 °C, and subsequent freeze-drying (Alpha 2-4 LD Plus, Martin Christ, Osterode am Harz, Germany). The freeze-drying process was carried out in a uniform mode for 24 h under 1 mbar pressure. The dried composites with the chitosan-hyaluronate structures are further labeled as CH/SHA. These samples were stored at ambient conditions for further studies.

2.3. Studies on the Morphology and Structure of MXene and Chitosan-Hyaluronate Structures

The morphology and structure of freeze-dried 2D Ti3C2Tx MXene flakes were analyzed using a scanning electron microscope (SEM, LEO 1530, Zeiss, Lake Buena Vista, FL, USA). The preparation involves placing samples on carbon tape, sputtering with a carbon layer and analysis at 5.0 kV of accelerating voltage. The redispersed 2D flakes were tested on the presence of the Tyndall effect, drop-casted on a copper mesh and subsequently analyzed using a transmission electron microscope (TEM, PHILIPS CM 20, Philips International B.V., Amsterdam, The Netherlands). Single flakes are observed with a high angle annular dark-field (HAADF) scanning transmission electron microscopy (STEM) imaging whereas cross-sectionally oriented observations are carried out with Fourier transformation (FFT) coupled with inverted Fourier transformation (IFFT) mode and further accompanied by band intensity pattern. The elemental composition of 2D flakes is also evaluated with Energy Dispersive X-Ray Spectroscopy (EDS) coupled with TEM (PHILIPS CM 20, Philips International B.V., Amsterdam, The Netherlands). Further analysis of the morphology of CH/SHA matrix composites was performed using SEM. The samples are placed onto sticky carbon tape and sputtered with a thin carbon layer before SEM observations (SEM S3500N, Hitachi, Chiyoda, Tokyo, Japan) at an accelerating voltage of 15.0 kV.

2.4. Porosity Measurements of the Chitosan-Hyaluronate Structures

To reveal the key features of the developed nanocomposite structures, such as the effect of the addition of the MXenes phase to the polymer matrix on the porosity of the tested material, we performed a micro computed tomography (CT) analysis using an Xradia 400CT microtomograph, Carl Zeiss, Jena, Germany. This technique is a type of spectroscopic technique that allows you to obtain layered images of the test object using X-rays. To determine the porosity of tested samples, CT cross-sections were used, with a computer image reconstruction kit. Each sample is cut into ~5 × 5 mm sections and fixed in a horizontal position to the table inside the device chamber. The measurement was carried out at the voltage of 100 kV, a power of 10 W and a current of 250 µA between the cathode and the anode of an X-ray (tungsten) lamp. The exposure time is set to 2.5 s, angular rotation step to 1° with 6 photos per degree of rotation, and a resolution of 1 µm of voxel size. Over 1000 photos were obtained over a 180-degree rotation because of a standard five-hour scanning process. After obtaining the data, image reconstruction was performed using the NRecon software program, Microphotonics Inc., Allentown, PA, USA. Appropriate modes necessary for image correction were then introduced which were post alignment, beam hardening, ring artifact correction, and smoothing. Two-dimensional visualization of samples was obtained using DataViewer software, Microphotonics Inc., Allentown, PA, USA, while three-dimensional visualization is carried out using CT Vol software, Microphotonics Inc., Allentown, PA, USA. The images obtained after the reconstruction process used for the quantitative analysis of the microstructure in the CTAn program, Microphotonics Inc., Allentown, USA. Obtaining a binary image and removing defects enables estimating the percentage of porosity. The resolution of the method was 8.81 µm.

2.5. Studies on the Chemical Composition of MXene and Chitosan-Hyaluronate Structures

The potential chemical bonds forming between 2D Ti3C2Tx MXene flakes were also studied using Fourier Transform Infrared (FT-IR) spectroscopy (Nicolet iS5, Thermo Electron, Waltham, MA, USA) equipped with an Attenuated Total Reflectance (ATR) accessory and diamond crystal. The great advantage of this technique is that the potential interactions between components in nanocomposite can be easily revealed and samples do not require additional preparation. For all measurements, the spectral resolution was 2 cm−1, and each spectrum represents an average of 60 scans. For data analysis, the OMNIC 9.8.372 (Thermo Fisher) firmware version 1.02 softwarewas used.

2.6. TGA Measurements

Thermogravimetric analysis (TGA) was performed for assessment of water adsorption capability as well as estimation of degradation onset, using TGAQ500 analyzer (TA Instruments, New Castle, IN, USA). The temperature range was 30–630 °C at a heating rate of 20 °C min−1. TGA analysis were carried out in an air atmosphere and a 70 mL min−1 flow rate.

2.7. Antibacterial Properties of Hydrogels

Bactericidal activity was examined in liquid cultures of bacteria: gram-negative Escherichia coli and gram-positive Staphylococcus aureus and Bacillus sp. The applied microorganisms came from the private collections of the Department of Biology, Faculty of Building Services, Hydro and Environmental Engineering, Warsaw University of Technology. Porous nanocomposites with different level (1, 5, and 10 wt.%) of phase Ti3C2Tx MXene, were soaked in the culture of the bacterial strain in nutrient broth (Biocorp) which allowed composites to form hydrogels. The initial number of bacteria in the culture was between 105 and 106 CFU/mL. The cultures were incubated for 24 h at 26 ± 1 °C. Serial dilutions of the cultures were accomplished and the number of bacteria was determined using a spread plate method, using agar (Biocorp) as a culture medium. The plates were incubated for 48 h at 37 ± 1 °C (E. coli and S. aureus) or 26 ± 1 °C (B. subtilis). The antimicrobial activity of the tested samples was evaluated as the percentage decrease in the number of bacteria in the cultures in the presence of the tested composites.

3. Results and Discussion

The present study concerns research on porous chitosan-hyaluronate matrix nanocomposites with the addition of 2D Ti3C2Tx MXene flakes as well as the resulting biocidal activity of the hydrogels. Before conducting biological tests, the nano-additives were thoroughly characterized. Analysis of the morphology and structure of 2D flakes of Ti3C2Tx MXene was carried out using SEMand as expected, the freeze-dried 2D Ti3C2Tx MXene flakes have irregular shapes with differently oriented edges (Figure 2a) and characteristic for this material [24,50]. These can be subsequently redispersed into a nanocolloidal solution, characterized by a presence of the Tyndall effect (Figure 2b), thereby suggesting the formation of a homogeneous aqueous dispersion of Ti3C2Tx MXene [51]. The separated micron-sized 2D flakes are visible on high angle annular dark-field (HAADF) scanning transmission electron microscopy (STEM) images (Figure 2c) and confirmed by our previous studies [52]. The high-resolution transmission electron microscopy (HREM) was taken from the randomly chosen sheet of the Ti3C2Tx. Analysis reveals a characteristic layered structure of edges of 2D flakes (Figure 2d). Such multilayered structure was previously observed by Naguib et al. [24] The layered pattern is also confirmed by a fast Fourier Transform (FFT) imaging (Figure 2e) and extracted by the inverse fast Fourier Transform (IFFT) imaging which showed alternating layers of light and dark bands (Figure 2h). It should be noted that each bright band corresponds to a single Ti3C2 layer i.e., Ti-C-Ti-C-Ti. In contrast, each dark band corresponds to the spacing between the monolayers, formed after removal of an element from the MAX phase. To determine the characteristic distances between Ti3C2 monolayers in MXene flakes (light bands), the band intensity pattern was taken based on the corresponding IFFT image. The measured distance between maximal intensities of two Ti3C2 monolayers was 1.21 nm (Figure 2g) and is characteristic of the distance widening in flakes after delamination and weakening of bonds between monolayers as also confirmed by Lao et al. [53]. The FTT analysis also confirmed the hexagonal symmetry of the Ti3C2Tx [54]
We determined the elemental composition of 2D flakes using EDS analysis (Figure 2F). Those results indicated the presence of titanium and carbon as the two strongest signals (basic components of the MXene). There are also peaks from oxygen and fluorine, which are part of surface groups such as -F, -OH, =O [55], as well as minor amounts and chlorine due to the synthetic procedure with a pH adjustment as well as of copper from the sample preparation. The spectrum also shows small amounts of Al; these being incompletely etched Ti3AlC2 MAX phases.
Altogether, the results of flake characterizations indicated the successful synthesis and delamination into 2D Ti3C2Tx MXene that can be further used in a form of dry matter (lamellar structure after freeze-drying) for CH/SHA nanocomposites preparation. The delamination process of the etched MXene phase structure is carried out to obtain 2D flakes by breaking the weak out-of-plane van der Waals bonds between the layers. The 2D flakes obtained in this way, in contrast to the etched structure, formed a stable colloidal suspension in water [39,56]. Delamination allowed the use of the Ti3C2Tx phase in composites [57] with excellent functional parameters as electrodes for electrochemical capacitors or a “paper” with an exceptional volumetric capacity of four times higher compared to etched structure [56].
In the next step, the 2D Ti3C2Tx MXene flakes were used for the preparation of porous chitosan-hyaluronate matrix nanocomposites, stabilized by the addition of L-ascorbic acid. The freeze-dried nanocomposites were characterized before water addition and hydrogel formation. The SEM images of the reference CH/SHA matrix nanocomposite as well as modified with 1, 5, and 10 wt.% of 2D Ti3C2Tx MXene flakes are presented in Figure 3a–d. They revealed the combined and porous structure with macro and micropores characteristic of CH/SHA composites [58]. In Figure 3b–d the 2D flakes of the Ti3C2Tx MXene phase present in the polymer matrix are marked with red arrows. As seen in Figure 2b, most flakes of the Ti3C2Tx phase can be seen on the cut edges of the sample. As expected, they have irregular shapes. In Figure 3c,d MXene flakes are also present inside the polymer matrix. Due to the hydrophilic nature of the 2D Ti3C2Tx MXene flakes [59] they effectively blend with the chitosan-hyaluronate matrix. Therefore, they disperse throughout the entire volume of the composite. Moreover, by analyzing the Figure 3a–d pictures, it can be concluded that a decrease in the porosity of the tested samples is noted by increasing the levels of the MXene phase in the CH/SHA composites.
Porosity measurements were also carried out on dry nanocomposites using micro-CT (Computed Tomography) analysis. This technique was used because scanning electron microscopy (SEM) or gas adsorption does not provide clear information about the internal porous structure of the tested materials and whether it is homogeneous in the entire sample volume. The computed tomography method is commonly used to visualize the porous structure of materials. An additional advantage is that the tested materials are not damaged during the test and it provides its 3D structure. Carvalho et al. [60] used computed tomography to visualize the porous structure of chitosan - gelatin hydrogel hybrids. Also, Douglas et al. [61] successfully used this technique to check the homogeneity of chitosan hydrogels. Figure 3e–h shows a 3D reconstruction of reference CH/SHA as well as those modified with 1, 5 and 10% of 2D Ti3C2Tx MXene flakes. Asseen, the increased addition of 2D MXenes flakes causes a decrease in the height of the composite and decrease of its porosity. More details on the obtained images and porosity are presented in SI.
The results of open and total porosity, determined for individual samples, are presented in Figure 4. As shown, an increase of 2D Ti3C2Tx MXene flakes in the CH/SHA composite caused a significant decrease in open and total porosity, as shown in Figure 4a. The 1 wt.% addition resulted in a decrease in total porosity by ~8% compared to the reference sample. Further addition of 5 wt.% and 10 wt.% of the 2D MXene decreased porosity by ~13%, and ~18%, respectively.
Figure 4b compares the values of open and total porosity for chitosan composites (CH) without and with 5 and 10 wt.% addition of 2D Ti3C2Tx MXenes flakes. As can be seen the CH reference sample, without the addition of the MXene phase have a similar total porosity value compared to the composite containing SHA. It follows that the addition of SHA does not change the porous structure of the composite. The addition of 5 wt.% of MXenes phase causes a decrease in total porosity of CH by ~1%, while the addition of 10 wt.% causes a decrease in CH total porosity by ~3%.
The FTIR analysis was conducted on the pristine 2D Ti3C2Tx MXene (for comparison purpose) and dry nanocomposites with the addition of 1, 5, 10 wt.% 2D flakes of Ti3C2 MXene and presented in Figure 5. As shown in the spectrum of pristine Ti3C2Tx MXene a wide band at 3500–2900 cm−1 is observedand due to the stretching vibrations of hydroxyl groups –OH [62]. These are directly bonded to the titanium atoms on the surface of MXene, or come from water adsorbed on the surface. Peaks at 1320 cm−1 and 660 cm−1 are derived from O-H and Ti-O stretching vibrations as confirmed by Zhang et al. [63]. In the pristine MXene phase spectrum, a peak from the C-F group at 948 cm-1 can be seen and had been confirmed in our earlier work [47]. In the spectrum obtained for the polymer matrix without the addition of the Ti3C2Tx MXene sheets, signals from functional groups such as NH at 3176 cm−1 or CH at 2935 cm−1 overlap with the wide –OH at 3500–2900 cm−1. There are also signals from C = O at 1670 cm−1, CH3 at 1316 cm−1, and C-O-C at 1032 cm−1. This confirmed the presence of individual functional groups in the tested material. Analogous spectra were observed for CH/SHA composites modified with 2D Ti3C2Tx MXene. Hence, the expected signals are mainly of low intensity and overlap with the intense signals from the polymer matrix.
The small intensity on the Ti-O bonds (marked in Figure 5) clearly shows the beneficial effect of L-ascorbic acid (LAA) for both acquiring the appropriate pH for the CH polymer solubilization, but also for the stabilization of 2D Ti3C2Tx MXene. As reported previously [44], LAA, as a natural antioxidant, prevents surface oxidation of MXenes. Here, we also confirm that it prevents and minimizes the formation of the Ti-O bonds in the CH/SHA/Ti3C2Tx nanocomposite structure. Therefore, the problem with the oxidation of MXene was solved here by substituting acetic acid [64], widely used for CH preparation, with LAA. It is worth noting that LAA has a dual role in these composites. The first relates to lowering the pH value of the CH dispersion which allows for solubilization. The second is prevention of MXene oxidation. Herein, we take advantage of results reported by Zhao et al. [44] who discovered proved the highly beneficial effect of natural antioxidants on Ti3C2Tx MXene oxidation prevention. Therefore, the used MXene does not oxidize in the developed nanocomposite system.
Thermal analysis was used to determine the temperature of thermal degradation of these materials as well as to verify differences in material susceptibility to water. TGA data were obtained from the unmodified CH/SHA polymer matrix and modified with 1, 5 and 10 wt.% of 2D Ti3C2Tx MXene flakes. The charts are in the Supporting Information Figure S4.
Table 1 shows the temperatures of the first and second-largest weight loss. The first weight loss gives information regardingthe number of volatile residues in the polymer structure. In our case it is caused by the associated water evaporation. This confirms the high hydrophilicity of the structure [65]. As can be seen the lowest temperature, 59.03 °C was observed for the composite CH/SHA without addition of 2D Ti3C2Tx MXene flakes, while the highest temperature 63.73 °C, was observed for the composite with the 1% addition of MXene flakes. Comparing these results with the results of water absorption (Figure S5), it can be seen that the higher the temperature of the first weight loss corresponded to the greater the swelling capacity of the tested material. TGA results confirmed the higher water absorption and susceptibility to gelation of these materials.
The mechanism of gelation is self-assembly, as thoroughly described by Tontini et al. [66]. He noted that the disadvantage of MXenes was their low capability to gelation which appears as a reduction of the interconnectivity between 2D flakes. If the concentration of MXene in the freeze-drying mixture is too low, the MXene colloid collapses into a powdered form of aerogel-like porous flakes [67]. This problem was partially solved by using various additives such as ethylenediamine (EDA) [68], thiourea dioxide, ammonia [69], polyacrylic acid (PAA) [70], or divalent metal ions. The additives enhance the interconnectivity between material branches during gelation by simply filling the available space, inducing chemical cross-linking, chemical reduction or enhancing electrostatic interactions between the chemical groups of the mixed agents [66]. In this study, we took advantage of the electrostatic interactions between the mixed and then freeze-dried materials. It was important to optimize the concentrations of the components to achieve the optimal material parameters. It is worth noting that upon increasing the MXene concentration, the concentration of the chitosan was lowered together with lowering the optimal balance between the chemical groups available for electrostatic interactions. This highly influences the gelation process and porosity of the final freeze-dried structure. Therefore, the effect of reducing the porosity of the tested material is observed due to the increase of the Ti3C2Tx MXenes phase addition.
Table 1 shows the second weight loss which is related to the onset of degradation of the tested materials. The addition of the 2D Ti3C2Tx MXene flakes to CH/SHA composites does not significantly change their degradation temperatures, all of which are ~169 °C
Miranda et al. [71] analyzed TGA in their work on hyaluronic acid (HA), chitosan and composites with a weight ratio of CH/HA 1:1, 3:7 and 7:3. The results showed that HA degraded at 225 °C, CH around 285 °C, while composites degrade between 225 and 285 °C. Bazmandeh et al. [72] obtained similar results for pure chitosan. In their work, chitosan degraded at 250 °C. As can be seen in Table 1, the obtained composite structures degraded at a temperature of ~169 °C, which may be because sodium hyaluronate was used in the composites, not hyaluronic acid, as in the case of Miranda and Bazmandeh’s works.
Damaged skin secretes a body fluid that forms a sterile wound environment [73]. The damaged epidermis can also be a habitat for different microorganisms, including bacteria species that cause inflammation [74]. Therefore, an intelligent dressing should be an active, moist environment, facilitating rapid wound healing. It was noticed that the CH/SHA/Ti3C2Tx nanocomposite readily absorbed water and formed a hydrogel [71]. Therefore, we assumed that after immersion in a water-based environment, in which bacteria cells are present, it should effectively support the disinfection of the wound, facing the most important challenges in the healing process.
Therefore, bactericidal activity was tested using three bacterial strains: gram-negative Escherichia coli and gram-positive Staphylococcus aureus and Bacillus sp. The tests were carried out on a reference CH/SHA sample and nanocomposites varying by the content of 2D Ti3C2Tx MXenes flakes (1, 5, and 10 wt.%), and those results are presented in Figure 6.
The results indicate that the addition of small amounts (1 or 5 wt.%) of the Ti3C2Tx phase to CH/SHA composites does not significantly influence the antibacterial properties of the nanocomposite, allowing for its maintenance at a desirable level.
It should be noted however that the differences in microbial susceptibility to the biocidal activity of nanocomposites can depend on the type of microorganisms. In the presence of a small amount of MXene (1 wt.%) the visible antibacterial effect (exceeding 90% of growth inhibition) was observed for all tested bacterial strains), while for the nanocomposite with 5 and 10 wt.% of MXene—only for Staphylococcus aureus and Escherichia coli.
The elimination of bacteria Staphylococcus aureus, which can be related to wound infections, exceeded 99% in this work, which is a promising result from a future practical application of this material. There is evidence that both chitosan and sodium hyaluronate are characterized by antibacterial properties [75,76]. The pure Ti3C2Tx phase (not surface-oxidized and not surface-modified) does not reveal the antimicrobial effect [47] because of the absence of the surface TixOy oxides [52]. As can be seen, increasing levels of 2D Ti3C2Tx MXene, stabilized by L-ascorbic acid, did not significantly affect the biocidal properties of the chitosan-hyaluronate hydrogels. In the case of the material characterized by the large porosity, which is a key factor. Moreover, the low requirement for the 2D Ti3C2Tx MXene which should be added to the material allowed for successful optimization of the nanocomposite in this study.

4. Conclusions

This study presents chitosan-hyaluronate matrix hydrogel nanocomposites with the addition of 2D Ti3C2Tx MXene. It was revealed that addition of 2D Ti3C2Tx MXene lowered the porosity of the chitosan-hyaluronate matrix nanocomposite structures stabilized by vitamin C without the negative impact on its antibacterial properties.
The effect of the addition of the 2D Ti3C2Tx MXene on the structural properties of chitosan-sodium hyaluronate (CH/SHA) composites was examined using micro Computed Tomography analysis. Those results showed that the addition of 2D Ti3C2Tx MXene to the CH/SHA reduced the porosity of the obtained CH/SHA/Ti3C2Tx nanocomposites. The addition of the 2D MXene to a composite containing sodium hyaluronate caused a much greater decrease in the porosity of the tested material compared to composites not containing SHA.
FTIR analysis of the chitosan-sodium hyaluronate composites without and with 1, 5 and 10 wt.% 2D sheets of Ti3C2Tx MXene showed that there was no chemical reaction between the polymer matrix and the MXenes phase; therefore, no new chemical bonds were observed. Between both materials, only short- and long-range physical interactions occured, such as van der Waals interactions or hydrogen bonding. As a result, signals from both the polymer matrix and the MXene phase were observed in the CH/SHA/Ti3C2Tx composite. Any new, non-expected signals from other chemical bonds were not observed.
The effect of the addition of the MXene phase on the biocidal properties of composites against Escherichia coli, Staphylococcus aureus, and Bacillus sp. depended on the type of bacteria. In some cases the slightly increased antimicrobial effect of the 2D MXene–modified composites was observed as compared to the reference material; however it did not exceed several percent. Therefore, the bioactivity of the material can be maintained simultaneously with the development of the porosity which is influenced by the 2D MXene addition. This can have a significant impact on the effectiveness and safety of modern dressing materials obtained from these composites.

Supplementary Materials

The following are available online at, Figure S1. SEM images of chitosan composites with 1 wt.% L-ascorbic acid (a), (b) and 5 wt.% L-ascorbic acid (c), (d), Figure S2. 3D reconstruction of samples with composition: CH, 3 wt.% LAA (a), CH, 3 wt.% LAA, 5 wt.% MXene (c), CH, 3 wt.% LAA, 10 wt.% MXene (e), examples of slices in the XY, YZ, XZ planes of samples with composition CH, 3 wt.% LAA (b), CH, 3 wt.% LAA, 5 wt.% MXene (d), CH, 3 wt.% LAA, 10 wt.% MXene (f), Figure S3. Examples of slices in the XY, YZ, XZ planes of samples with composition CH:SHA 2:1, 3 wt.% LAA (a) with the addition of the 1 wt.% (b), 5 wt.% (c), 10 wt.% (d) Ti¬3C2Tx MXene flakes, Figure S4. Results of thermogravimetric analysis for the CH/SHA matrix nanocomposites (a) modified with 1 wt.%; (b) 5 wt.%; (c) 10 wt.%; and (d) of 2D Ti3C2Tx MXene flakes, Figure S4. The swelling of the reference CH/SHA matrix nanocomposite as well as modified with 1, 5 and 10 wt.% of 2D Ti3C2Tx MXene flakes, Table S1: Optimization of composites composition, Table S2. Porosity values obtained on the basis of analysis in the CTAn program.

Author Contributions

A.R.-W. designed the concept and content of experiment, characterized studied samples, performed colloidal studies, collected and analyzed the obtained results, designed figures, coordinated and supervised the preparation of the manuscript, acquired founds, as well as coordinated the whole research; E.K. analyzed and commented on bactericidal analyses; M.G. designed and performed porosity measurements; J.W. and M.P. synthesized the starting MAX phase; B.P. performed the TGA measurements; T.W. carried out acidic etching of the MAX phase into MXene; A.M.J. carried out MXene delamination process and supervised the whole research and participated in discussion on obtained results. All authors participated in manuscript preparation and approved its final form. All authors have read and agreed to the published version of the manuscript.


A.R.-W. acknowledges funding from the National Science Centre, within the framework of the research projects ‘Preludium-17’ (reg. no 2019/33/N/ST5/02095). A.J. acknowledges funding from the National Science Centre, within the framework of the research projects ‘SONATA BIS 7′ (UMO-2017/26/E/ST8/01073), ‘OPUS-16′ (UMO-2018/31/B/ST3/03758), ‘OPUS-18′ (UMO-2019/35/B/ST5/02538). Studies were also funded by BIOTECHMED-1 project granted by Warsaw University of Technology under the program Excellence Initiative: Research University (ID-UB).

Conflicts of Interest

The authors declare no conflict of interest


  1. Kurita, K. Controlled functionalization of the polysaccharide chitin. Prog. Polym. Sci. 2001, 26, 1921–1971. [Google Scholar] [CrossRef]
  2. Sudarshan, N.R.; Hoover, D.G.; Knorr, D. Antibacterial action of chitosan. Food Biotechnol. 1992, 6, 257–272. [Google Scholar] [CrossRef]
  3. Arulmoorthy, M.P.; Anbarasi, G.; Srinivasan, M.; Vishnupriya, B. Biosynthesis and characterization of chitosan based hydrogel: A potential in vitro wound healing agent. Mater. Today 2020. [Google Scholar] [CrossRef]
  4. Patashnik, S.; Rabinovich, L.; Golomb, G. Preparation and evaluation of chitosan microspheres containing bisphosphonates. J. Drug Target. 1997, 4, 371–380. [Google Scholar] [CrossRef]
  5. Biagini, G.; Muzzarelli, R.A.A.; Giardino, R.; Castaldini, C. Biological materials for wound healing. In Advances in Chitin and Chitosan; Brine, C.J., Sandford, P.A., Zikakis, J.P., Eds.; Elsevier: Amsterdam, The Netherlands, 1992; Volume 1, pp. 16–24. [Google Scholar]
  6. Liu, X.F.; Guan, Y.L.; Yang, D.Z.; Li, Z.; Yao, K.D. Antibacterial action of chitosan and carboxymethylated chitosan. J. Appl. Polym. Sci. 2001, 79, 324–1335. [Google Scholar]
  7. Felt, O.; Carrel, A.; Baehni, P.; Buri, P.; Gurny, R. Chitosan as tear substitute: A wetting agent endowed with antimicrobial efficacy. J. Ocul. Pharmacol. Ther. 2000, 16, 261–270. [Google Scholar] [CrossRef] [PubMed]
  8. Calvo, P.; Vila-Jato, J.L.; Alonso, M.J. Evaluation of cationic polymer-coated nanocapsules as ocular drug carriers. Int. J. Pharm. 1997, 153, 41–50. [Google Scholar] [CrossRef]
  9. Kean, T.; Thanou, M. Biodegradation, biodistribution and toxicity of chitosan. Adv. Drug Deliv. Rev. 2010, 62, 3–11. [Google Scholar] [CrossRef]
  10. Allan, C.R.; Hadwiger, L.E. The fungicidal effect of chitosan on fungi of varying cell wall composition. Exp. Mycol. 1979, 3, 285–287. [Google Scholar] [CrossRef]
  11. Mauch, F.; Hadwiger, L.A.; Boller, T. Ethylene: Symptom, not signal for the induction of chitinase and ß-1,3-glucanase in pea pods by pathogens and elicitors. Plant. Physiol. 1984, 76, 607–610. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Berger, J.; Reist, M.; Mayer, J.; Felt, O.; Gurny, R. Structure and interactions in chitosan hydrogels formed by complexation or aggregation for biomedical applications. Eur. J. Pharm. Biopharm. 2004, 57, 35–52. [Google Scholar] [CrossRef]
  13. Bhattarai, N.; Gunn, J.; Zhang, M. Chitosan-based hydrogels for controlled, localized drug delivery. Adv. Drug Deliv. Rev. 2010, 62, 83–99. [Google Scholar] [CrossRef] [PubMed]
  14. Thein-Han, W.W.; Misra, R.D.K. Biomimetic chitosan–nanohydroxyapatite composite scaffolds for bone tissue engineering. Acta Biomater. 2009, 5, 1182–1197. [Google Scholar] [CrossRef] [PubMed]
  15. Vimala, K.; Mohan, Y.M.; Sivudu, K.S.; Varaprasad, K.; Ravindra, S.; Reddy, N.N.; Padma, Y.; Sreedhar, B.; Mohana Raju, K. Fabrication of porous chitosan films impregnated with silver nanoparticles: A facile approach for superior antibacterial application. Colloid Surf. B 2010, 76, 248–258. [Google Scholar] [CrossRef] [PubMed]
  16. Annabi, N.; Nichol, J.W.; Zhong, X.; Ji, C.; Koshy, S.; Khademhosseini, A.; Dehghani, F. Controlling the porosity and microarchitecture of hydrogels for tissue engineering. Tissue Eng. Part B Rev. 2010, 16, 371–383. [Google Scholar] [CrossRef] [PubMed]
  17. Ji, C.; Annabi, N.; Khademhosseini, A.; Dehghani, F. Fabrication of porous chitosan scaffolds for soft tissue engineering using dense gas CO2. Acta Biomater. 2011, 7, 1653–1664. [Google Scholar] [CrossRef]
  18. O’Brien, F.J.; Harley, B.A.; Yannas, I.V.; Gibson, L.J. The effect of pore size on cell adhesion in collagen-GAG scaffolds. Biomaterials 2005, 26, 433. [Google Scholar] [CrossRef] [PubMed]
  19. O’Brien, F.J.; Harley, B.A.; Yannas, I.V.; Gibson, L.J. Influence of freezing rate on pore structure in freeze-dried collagen-GAG scaffolds. Biomaterials 2004, 25, 1077. [Google Scholar] [CrossRef]
  20. Haugh, M.G.; Murphy, C.M.; O’Brien, F.J. Novel Freeze-Drying Methods to Produce a Range of Collagen–Glycosaminoglycan Scaffolds with Tailored Mean Pore Sizes. Tissue Eng. Part C Methods 2010, 16, 887–894. [Google Scholar] [CrossRef]
  21. Naguib, M.; Kurtoglu, M.; Presser, V.; Lu, J.; Niu, J.; Heon, M.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-dimensional nanocrystals produced by exfoliation of Ti3AlC2. Adv. Mater. 2011, 23, 4248–4253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Lipatov, A.; Alhabeb, M.; Lu, H.; Zhao, S.; Loes, M.J.; Vorobeva, N.S.; Dall’Agnese, Y.; Gao, Y.; Gruverman, A.; Gogotsi, Y.; et al. Electrical and Elastic Properties of Individual Single-Layer Nb4 C3Tx MXene Flakes. Adv. Electron. Mater. 2020. [Google Scholar] [CrossRef]
  23. Barsoum, M.W. The MN+1AXN phases: A new class of solids: Thermodynamically stable nanolaminates. Prog. Solid State Chem. 2000, 28, 201–281. [Google Scholar] [CrossRef]
  24. Maleski, K.; Mochalin, V.N.; Gogotsi, Y. Dispersions of Two-Dimensional Titanium Carbide MXene in Organic Solvents. Chem. Mater. 2017, 29, 1632–1640. [Google Scholar] [CrossRef]
  25. Lim, S.; Park, H.; Yang, J.; Kwak, C.; Lee, J. Stable Colloidal Dispersion of Octylated Ti3C2-MXenes in a Nonpolar Solvent. Colloid Surf. A 2019, 579, 123648. [Google Scholar] [CrossRef]
  26. Shang, T.; Lin, Z.; Qi, C.; Liu, X.; Li, P.; Tao, Y.; Yang, Q. 3D Macroscopic Architectures from Self-Assembled MXene Hydrogels. Adv. Funct. Mater. 2019, 29. [Google Scholar] [CrossRef] [Green Version]
  27. Xing, C.; Chen, S.; Liang, X.; Liu, Q.; Qu, M.; Zou, Q.; Li, J.; Tan, H.; Liu, L.; Fan, D.; et al. Two-Dimensional MXene (Ti3C2)-Integrated Cellulose Hydrogels: Toward Smart Three-Dimensional Network Nanoplatforms Exhibiting Light-Induced Swelling and Bimodal Photothermal/Chemotherapy Anticancer Activity. ACS Appl. Mater. Interfaces 2018, 10, 27631–27643. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, Y.-Z.; Lee, K.H.; Anjum, D.H.; Sougrat, R.; Jiang, Q.; Kim, H.; Alshareef, H.N. MXenes stretch hydrogel sensor performance to new limits. Sci. Adv. 2018, 4, eaat0098. [Google Scholar] [CrossRef] [Green Version]
  29. Rozmysłowska-Wojciechowska, A.; Wojciechowski, T.; Ziemkowska, W.; Chlubny, L.; Olszyna, A.; Jastrzębska, A.M. Surface interactions between 2D Ti3C2/Ti2C MXenes and lysozyme. Appl. Surf. Sci. 2019, 473, 409–418. [Google Scholar] [CrossRef]
  30. Rozmyslowska-Wojciechowska, A.; Szuplewska, A.; Wojciechowski, T.; Pozniak, S.; Mitrzak, J.; Chudy, M.; Ziemkowska, W.; Chlubny, L.; Olszyna, A.; Jastrzebska, A.M. A simple, low-cost and green method for controlling the cytotoxicity of MXenes. Mater. Sci. Eng. C 2020, 111, 110790. [Google Scholar] [CrossRef]
  31. Xu, Z.; Ao, Z.; Chu, D.; Younis, A.; Li, C.M.; Li, S. Reversible Hydrophobic to Hydrophilic Transition in Graphene via Water Splitting Induced by UV Irradiation. Sci. Rep. 2014, 4, 6450. [Google Scholar] [CrossRef] [Green Version]
  32. Jastrzębska, A.; Karwowska, E.; Basiak, D.; Zawada, A.; Ziemkowska, W.; Wojciechowski, T.; Jakubowska, D.; Olszyna, A. Biological Activity and Bio-Sorption Properties of the Ti2C Studied by Means of Zeta Potential and SEM. Int. J. Electrochem. Sci. 2017, 2159–2172. [Google Scholar] [CrossRef] [Green Version]
  33. Rasool, K.; Helal, M.; Ali, A.; Ren, C.E.; Gogotsi, Y.; Mahmoud, K.A. Antibacterial Activity of Ti3C2Tx MXene. ACS Nano 2016, 10, 3674–3684. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Jastrzębska, A.M.; Karwowska, E.; Wojciechowski, T.; Ziemkowska, W.; Rozmysłowska, A.; Chlubny, L.; Olszyna, A. The Atomic Structure of Ti2C and Ti3C2 MXenes is Responsible for Their Antibacterial Activity Toward E. coli Bacteria. J. Mater. Eng. Perform. 2018, 28, 1272–1277. [Google Scholar] [CrossRef]
  35. Shamsabadi, A.A.; Gh, M.S.; Anasori, B.; Soroush, M. Antimicrobial mode-of-action of colloidal Ti3C2Tx MXene nanosheets. ACS Sustain. Chem. Eng. 2018, 6, 16586–16596. [Google Scholar] [CrossRef]
  36. Rozmysłowska, A.; Wojciechowski, T.; Ziemkowska, W.; Chlubny, L.; Olszyna, A.; Poźniak, S.; Tomkiewicz, K.; Jastrzębska, A.M. Colloidal Properties and Stability of 2D Ti3C2 and Ti2C MXenes in Water. Int. J. Electrochem. Sci. 2018, 13, 10837–10847. [Google Scholar]
  37. Ding, L.; Wei, Y.; Wang, Y.; Chen, H.; Caro, J.; Wang, H. A Two-Dimensional Lamellar Membrane: MXene Nanosheet Stacks. Angew. Chem. Int. Ed. Engl. 2017, 56, 1825–1829. [Google Scholar] [CrossRef] [PubMed]
  38. Ding, L.; Wei, Y.; Li, L.; Zhang, T.; Wang, H.; Xue, J.; Gogotsi, Y. MXene molecular sieving membranes for highly efficient gas separation. Nat. Commun. 2018, 9, 155. [Google Scholar] [CrossRef]
  39. Rajavel, K.; Shen, S.; Ke, T.; Lin, D. Achieving high bactericidal and antibiofouling activities of 2D titanium carbide (Ti3C2Tx) by delamination and intercalation. 2D Mater. 2019, 6, 035040. [Google Scholar] [CrossRef]
  40. Mayerberger, E.A.; Street, R.M.; McDaniel, R.M.; Barsoum, M.W.; Schauer, C.L. Antibacterial properties of electrospun Ti3C2Tz(MXene)/chitosan nanofibers. RSC Adv. 2018, 8, 35386–35394. [Google Scholar] [CrossRef] [Green Version]
  41. Anasori, B.; Sarycheva, A.; Buondonno, S.; Zhou, Z.; Yang, S.; Gogotsi, Y. 2D metal carbides (MXenes) in fibers. Mate. Today 2017, 20, 481–482. [Google Scholar] [CrossRef]
  42. Naguib, M.; Saito, T.; Lai, S.; Rager, M.S.; Aytug, T.; Paranthaman, M.P.; Zhao, M.-Q.; Gogotsi, Y. Ti3C2Tx (MXene)–polyacrylamide nanocomposite films. RSC Adv. 2016, 102, 72069–72073. [Google Scholar] [CrossRef]
  43. Mayerberger, E.A.; Urbanek, O.; McDaniel, R.M.; Street, R.M.; Barsoum, M.W.; Schauer, C.L. Preparation and characterization of polymer-Ti3C2Tx(MXene) composite nanofibers produced via electrospinning. J. Appl. Polym. 2017, 134, 45295. [Google Scholar] [CrossRef]
  44. Zhao, X.; Vashisth, A.; Prehn, E.; Sun, W.; Shah, S.A.; Habib, T.; Chen, Y.; Tan, Z.; Lutkenhaus, J.L.; Radovic, M.; et al. Antioxidants Unlock Shelf-Stable Ti3C2Tx (MXene) Nanosheet Dispersions. Matter 2019, 1, 513–526. [Google Scholar] [CrossRef] [Green Version]
  45. Natu, V.; Hart, J.L.; Sokol, M.; Chiang, H.; Taheri, M.L.; Barsoum, M.W. Edge Capping of 2D-MXene Sheets with Polyanionic Salts to Mitigate Oxidation in Aqueous Colloidal Suspensions. Angew. Chem. Int. Ed. Engl. 2019, 58, 12655–12660. [Google Scholar] [CrossRef] [PubMed]
  46. Saththasivam, J.; Wang, K.; Yiming, W.; Liu, Z.; Mahmoud, K.A. A flexible Ti3C2Tx (MXene)/paper membrane for efficient oil/water separation. RSC Adv. 2019, 9, 16296–16304. [Google Scholar] [CrossRef] [Green Version]
  47. Rozmysłowska-Wojciechowska, A.; Mitrzak, J.; Szuplewska, A.; Chudy, M.; Woźniak, J.; Petrus, M.; Wojciechowski, T.; Vasilchenko, A.S.; Jastrzębska, A.M. Engineering of 2D Ti3C2 MXene Surface Charge and its Influence on Biological Properties. Materials 2020, 13, 2347. [Google Scholar] [CrossRef]
  48. Cui, G.; Wei, X.; Olevsky, E.A.; German, R.M.; Chen, J. The manufacturing of high porosity iron with an ultra-fine microstructure via free pressureless spark plasma sintering. Materials 2016, 9, 495. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Mathis, T.; Maleski, M.; Goad, A.; Sarycheva, A.; Anayee, M.; Foucher, A.C.; Hantanasirisakul, K.; Stach, E.; Gogotsi, Y. Modified MAX Phase Synthesis for Environmentally Stable and HighlyConductive Ti3C2 MXene. ChemRxiv 2020. [Google Scholar] [CrossRef]
  50. Naguib, M.; Mashtalir, O.; Carle, J.; Presser, V.; Lu, J.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-dimensional transition metal carbides. ACS Nano 2012, 6, 1322–1331. [Google Scholar] [CrossRef] [PubMed]
  51. Ran, J.; Gao, G.; Li, F.T.; Ma, T.Y.; Du, A. Qiao, S.Z. Ti3C2 MXene co-catalyst on metal sulfide photo-absorbers for enhanced visible-light photocatalytic hydrogen production. Nat. Commun. 2017, 8, 13907. [Google Scholar] [CrossRef] [Green Version]
  52. Jastrzębska, A.; Szuplewska, A.; Rozmysłowska-Wojciechowska, A.; Chudy, M.; Olszyna, A.; Birowska, M.; Popielski, M.; Majewski, J.A.; Scheibe, B.; Natu, V.; et al. On tuning the cytotoxicity of Ti3C2 (MXene) flakes to cancerous and benign cells by post-delamination surface modifications. 2D Mater. 2020. [Google Scholar] [CrossRef]
  53. Lao, J.; Lv, R.; Gao, J.; Wang, A.; Wu, J.; Luo, J. Aqueous Stable Ti3C2 MXene Membrane with Fast and Photo-Switchable Nanofluidic Transport. ACS Nano 2018, 12, 12464–12471. [Google Scholar] [CrossRef] [PubMed]
  54. Peng, C.; Wang, H.; Yu, H.; Peng, F. (111) TiO2-x /Ti3C2: Synergy of active facets, interfacial charge transfer and Ti3+ doping for enhance photocatalytic activity. Mater. Res. Bull. 2017, 89, 16–25. [Google Scholar] [CrossRef]
  55. Mashtalir, O.; Naguib, M.; Dyatkin, B.; Gogotsi, Y.; Barsoum, M.W. Kinetics of aluminum extraction from Ti3AlC2 in hydrofluoric acid. Mat. Chem. Phys. 2013, 139, 147. [Google Scholar] [CrossRef]
  56. Mashtalir, O.; Naguib, M.; Mochalin, V.N.; Dall’Agnese, Y.; Heon, M.; Barsoum, M.W.; Gogotsi, Y. Intercalation and delamination of layered carbides and carbonitrides. Nat. Commun. 2013, 4, 1716. [Google Scholar] [CrossRef] [PubMed]
  57. Zhao, M.-Q.; Ren, C.E.; Ling, Z.; Lukatskaya, M.R.; Zhang, C.; Van Aken, K.L.; Barsoum, M.W.; Gogotsi, Y. Flexible MXene/carbon nanotube composite paper with high volumetric capacitance. Adv. Mater. 2015, 27, 339–345. [Google Scholar] [CrossRef]
  58. Xu, H.; Zhang, L.; Bao, Y.; Yan, X.; Yin, Y.; Li, Y.; Wang, X.; Huang, Z.; Xu, P. Preparation and characterization of injectable chitosan–hyaluronic acid hydrogels for nerve growth factor sustained release. J. Bioact. Compat. Polym. 2016, 32, 146–162. [Google Scholar] [CrossRef]
  59. Guan, Y.; Zhang, M.; Qin, J.; Ma, X.; Li, C.; Tang, J. Hydrophilicity-Dependent Distinct Frictional Behaviors of Different Modified MXene Nanosheets. J. Phys. Chem. C 2020. [Google Scholar] [CrossRef]
  60. Carvalho, I.C.; Mansur, H.S. Engineered 3D-scaffolds of photocrosslinked chitosan-gelatin hydrogel hybrids for chronic wound dressings and regeneration. Mater. Sci. Eng. C 2017, 78, 690–705. [Google Scholar] [CrossRef]
  61. Douglas, T.E.L.; Pilarek, M.; Kalaszczyńska, I.; Senderek, I.; Skwarczyńska, A.; Cuijpers, V.M.J.I.; Modrzejewska, Z.; Lewandowska-Szumieł, M.; Dubruel, P. Enrichment of chitosan hydrogels with perfluorodecalin promotes gelation and stem cell vitality. Mater. Lett. 2014, 128, 79–84. [Google Scholar] [CrossRef]
  62. Nguyen-Phan, T.-D.; Pham, V.H.; Shin, E.W.; Pham, H.-D.; Kim, S.; Chung, J.S.; Kim, E.J.; Hur, S.H. The role of graphene oxide content on the adsorption-enhanced photocatalysis of titanium dioxide/graphene oxide composites. Chem. Eng. J. 2011, 170, 226–232. [Google Scholar] [CrossRef]
  63. Zhang, H.; Wang, Z.; Zhang, Q.; Wang, F.; Liu, Y. Ti3C2 MXenes Nanosheets Catalyzed Highly Efficient Electrogenerated Chemiluminescence Biosensor for the Detection of Exosomes. Biosens. Bioelectron. 2018. [Google Scholar] [CrossRef] [PubMed]
  64. Cifuentes, A.; Gómez-Gil, V.; Ortega, M.A.; Asúnsolo, Á.; Coca, S.; Román, J.S.; Álvarez-Mon, M.; Buján, J.; García-Honduvilla, N. Chitosan hydrogels functionalized with either unfractionated heparin or bemiparin improve diabetic wound healing. Biomed. Pharmacother. 2020, 129, 110498. [Google Scholar] [CrossRef] [PubMed]
  65. Kim, S.J.; Shin, S.R.; Lee, S.M.; Kim, I.Y.; Kim, S.I. Thermal characteristics of polyelectrolyte complexes composed of chitosan and hyaluronic acid. J. Macromol. Sci. A 2003, 40, 807–815. [Google Scholar] [CrossRef]
  66. Tontini, G.; Greaves, M.; Ghosh, S.; Bayram, V.; Barg, S. MXene-Based 3D Porous Macrostructures for Electrochemical Energy Storage. J. Phys. Mater. 2020. [Google Scholar] [CrossRef]
  67. Bao, W.; Tang, X.; Guo, X.; Choi, S.; Wang, C.; Gogotsi, Y.; Wang, G. Porous cryo-dried MXene for efficient capacitive deionization. Joule 2018, 2, 778–787. [Google Scholar] [CrossRef] [Green Version]
  68. Li, L.; Zhang, M.; Zhang, X.; Zhang, Z. New Ti3C2 aerogel as promising negative electrode materials for asymmetric supercapacitors. J. Power Sources 2017, 364, 234–241. [Google Scholar] [CrossRef]
  69. Wang, X.; Fu, Q.; Wen, J.; Ma, X.; Zhu, C.; Zhang, X. 3D Ti3C2TX aerogels with enhanced surface area for high performance supercapacitors. Nanoscale 2018, 10, 20828–20835. [Google Scholar] [CrossRef] [PubMed]
  70. Liu, J.; Zhang, H.B.; Xie, X.; Yang, R.; Liu, Z.; Liu, Y.; Yu, Z.Z. Multifunctional, superelastic, and lightweight mxene/polyimide aerogels. Small 2018, 14, 1–10. [Google Scholar] [CrossRef]
  71. Miranda, D.G.; Malmonge, S.M.; Campos, D.M.; Attik, N.G.; Grosgogeat, B.; Gritsch, K.A. Chitosan-hyaluronic acid hydrogel scaffold for periodontal tissue engineering. J. Biomed. Mater. 2015, 104, 1691–1702. [Google Scholar] [CrossRef] [PubMed]
  72. Bazmandeh, A.Z.; Mirzaei, E.; Fadaie, M.; Shirian, S.; Ghasemi, Y. Dual spinneret electrospun nanofibrous/gel structure of chitosan-gelatin/chitosan-hyaluronic acid as a wound dressing: In-vitro and in-vivo studies. Int. J.Biol. Macromol. 2020. [Google Scholar] [CrossRef] [PubMed]
  73. Junker, J.P.E.; Kamel, R.A.; Caterson, E.J.; Eriksson, E. Clinical Impact Upon Wound Healing and Inflammation in Moist, Wet, and Dry Environments. Adv. Wound Care (New Rochelle) 2013, 2, 348–356. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Bowler, P.G.; Duerden, B.I.; Armstrong, D.G. Wound Microbiology and Associated Approaches to Wound Management. Clin. Microbiol. Rev. 2001, 14, 244–269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Anjum, S.; Arora, A.; Alam, M.S.; Gupta, B. Development of antimicrobial and scar preventive chitosan hydrogel wound dressings. Int. J. Pharm. 2016, 508, 92–101. [Google Scholar] [CrossRef]
  76. Qi, L.; Xu, Z.; Jiang, X.; Hu, C.; Zou, X. Preparation and antibacterial activity of chitosan nanoparticles. Carbohydr. Res. 2004, 339, 2693–2700. [Google Scholar] [CrossRef]

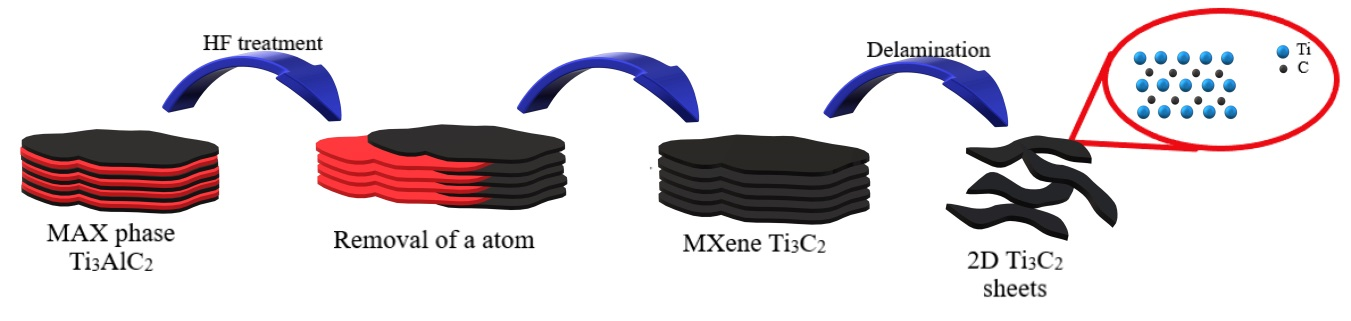

Figure 1. Schematic diagram of the preparation of 2D Ti3C2Tx MXene from starting Ti3AlC2 MAX phase.
Figure 1. Schematic diagram of the preparation of 2D Ti3C2Tx MXene from starting Ti3AlC2 MAX phase.
Materials 13 04587 g001

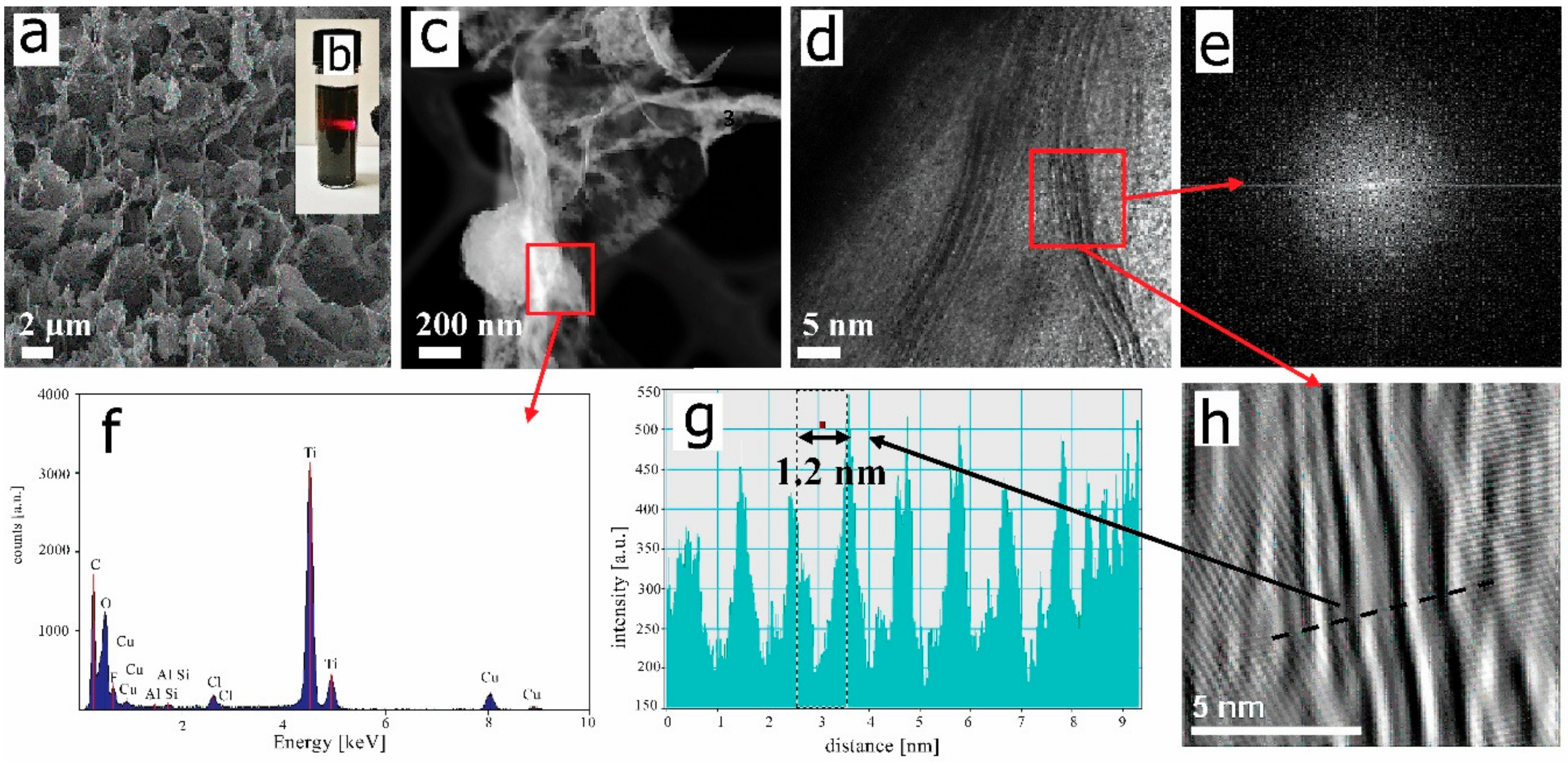

Figure 2. (a) SEM image of 2D Ti3C2Tx MXene flakes after freeze-drying. (b) Tyndall effect tested for redispersed nanocolloid. (c) STEM-HAADF and (d) HREM images of a single 2D flake after redispersion together with the corresponding (e) FFT image. (f) Results of the elemental EDS analysis. (g) Cross-sectional band intensity pattern. (h) IFFT image of the flake edge.
Figure 2. (a) SEM image of 2D Ti3C2Tx MXene flakes after freeze-drying. (b) Tyndall effect tested for redispersed nanocolloid. (c) STEM-HAADF and (d) HREM images of a single 2D flake after redispersion together with the corresponding (e) FFT image. (f) Results of the elemental EDS analysis. (g) Cross-sectional band intensity pattern. (h) IFFT image of the flake edge.
Materials 13 04587 g002

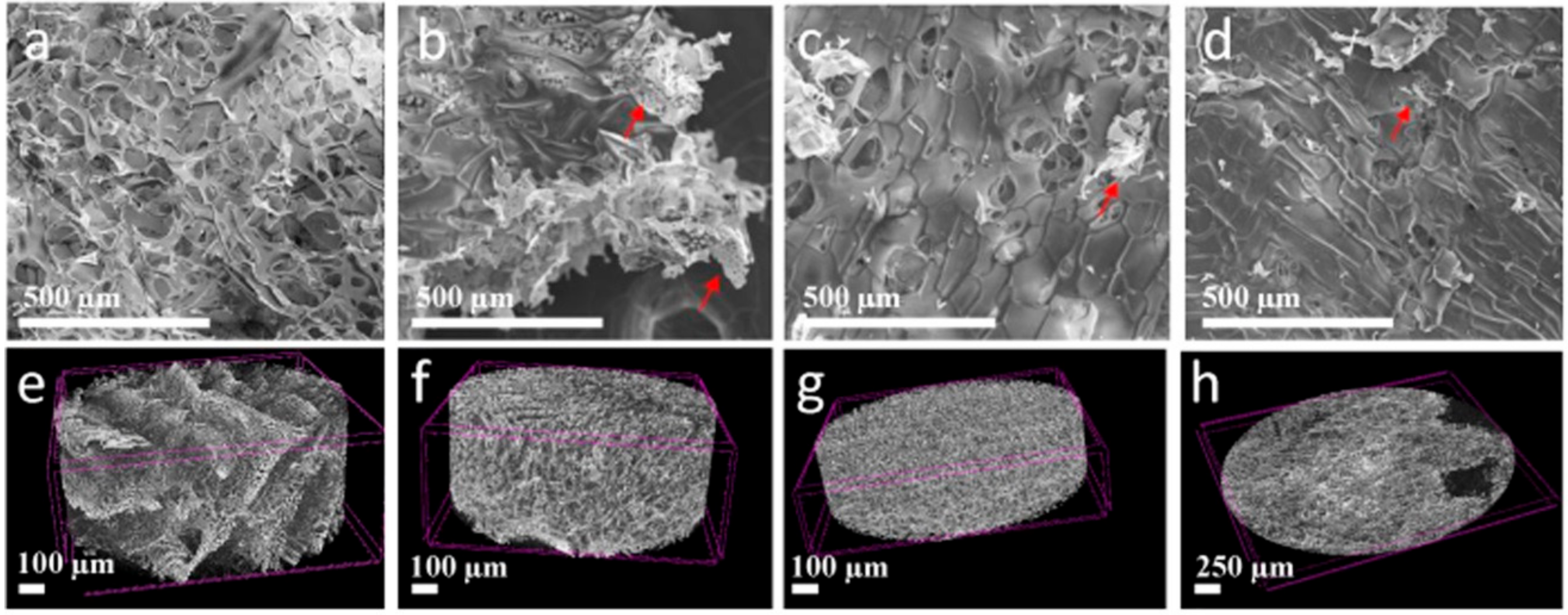

Figure 3. SEM and micro-CT images of the (a,e) reference CH/SHA matrix nanocomposite as well as modified with (b,f) 1 wt.%, (c,g) 5 wt.%, and (d,h) 10 wt.% of 2D Ti3C2Tx MXene flakes.
Figure 3. SEM and micro-CT images of the (a,e) reference CH/SHA matrix nanocomposite as well as modified with (b,f) 1 wt.%, (c,g) 5 wt.%, and (d,h) 10 wt.% of 2D Ti3C2Tx MXene flakes.
Materials 13 04587 g003

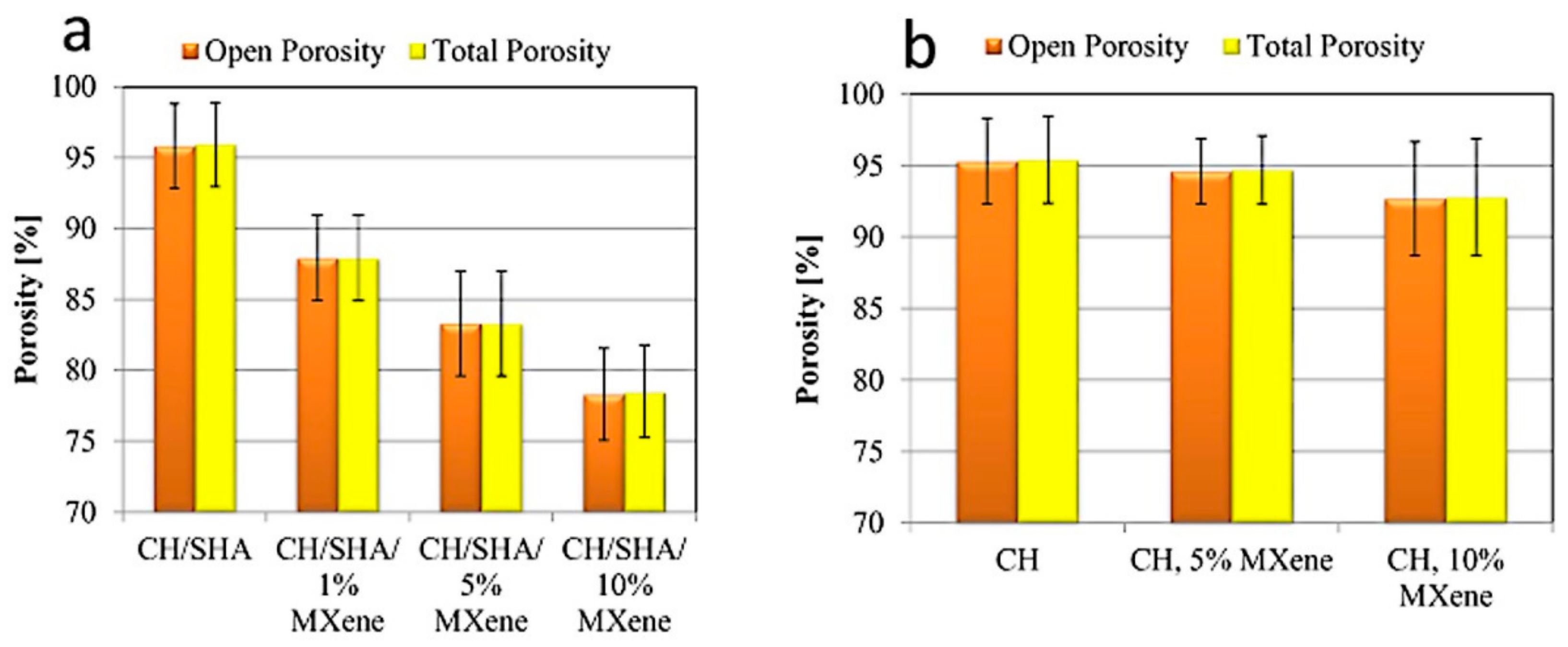

Figure 4. Results of total and open porosity calculations based on micro-CT data for the CH/SHA matrix nanocomposites modified with 1, 5, and 10 wt.% of 2D Ti3C2Tx MXene flakes (a). For comparison, results for CH composites (with no sodium hyaluronate) are shown in (b).
Figure 4. Results of total and open porosity calculations based on micro-CT data for the CH/SHA matrix nanocomposites modified with 1, 5, and 10 wt.% of 2D Ti3C2Tx MXene flakes (a). For comparison, results for CH composites (with no sodium hyaluronate) are shown in (b).
Materials 13 04587 g004

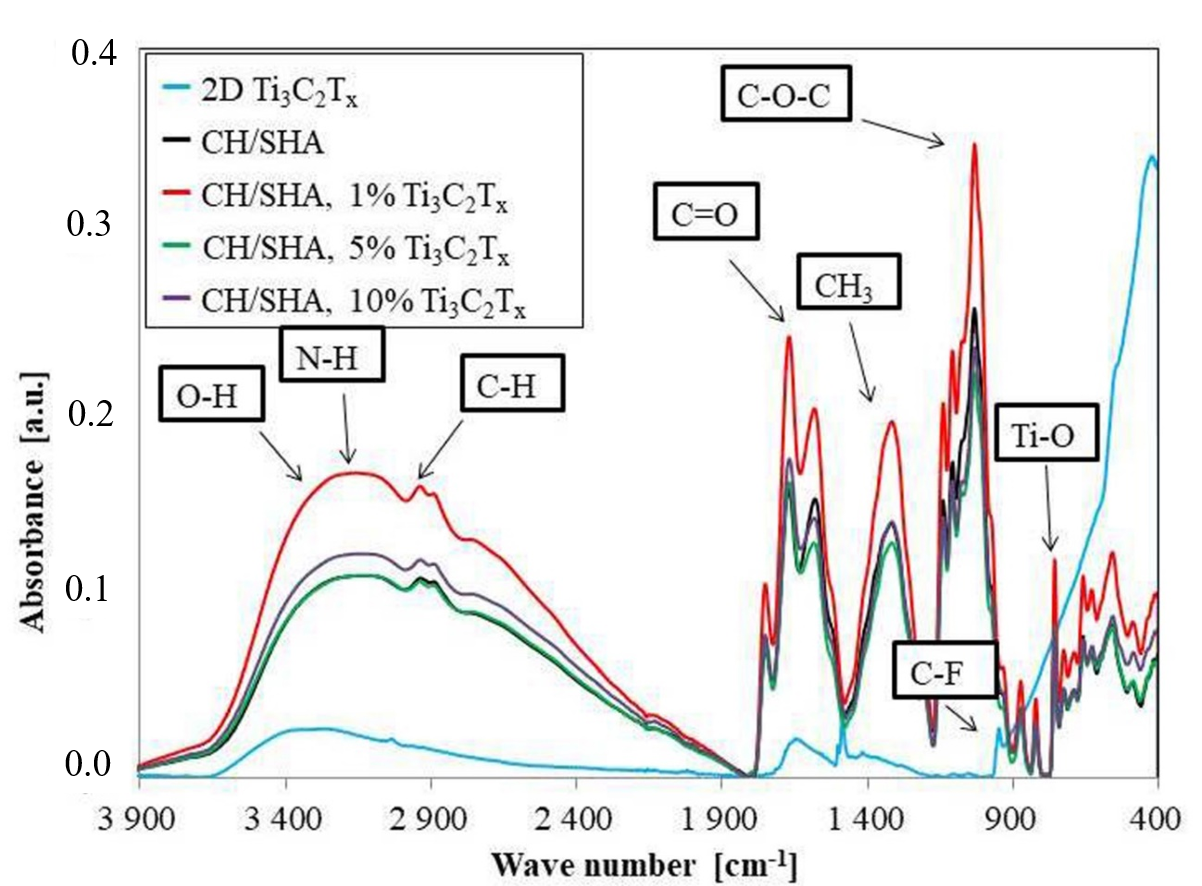

Figure 5. FTIR results for 2D Ti3C2Tx MXene flakes, reference CH/SHA matrix nanocomposite as well as modified with 1, 5, and 10 wt.% of the flakes.
Figure 5. FTIR results for 2D Ti3C2Tx MXene flakes, reference CH/SHA matrix nanocomposite as well as modified with 1, 5, and 10 wt.% of the flakes.
Materials 13 04587 g005

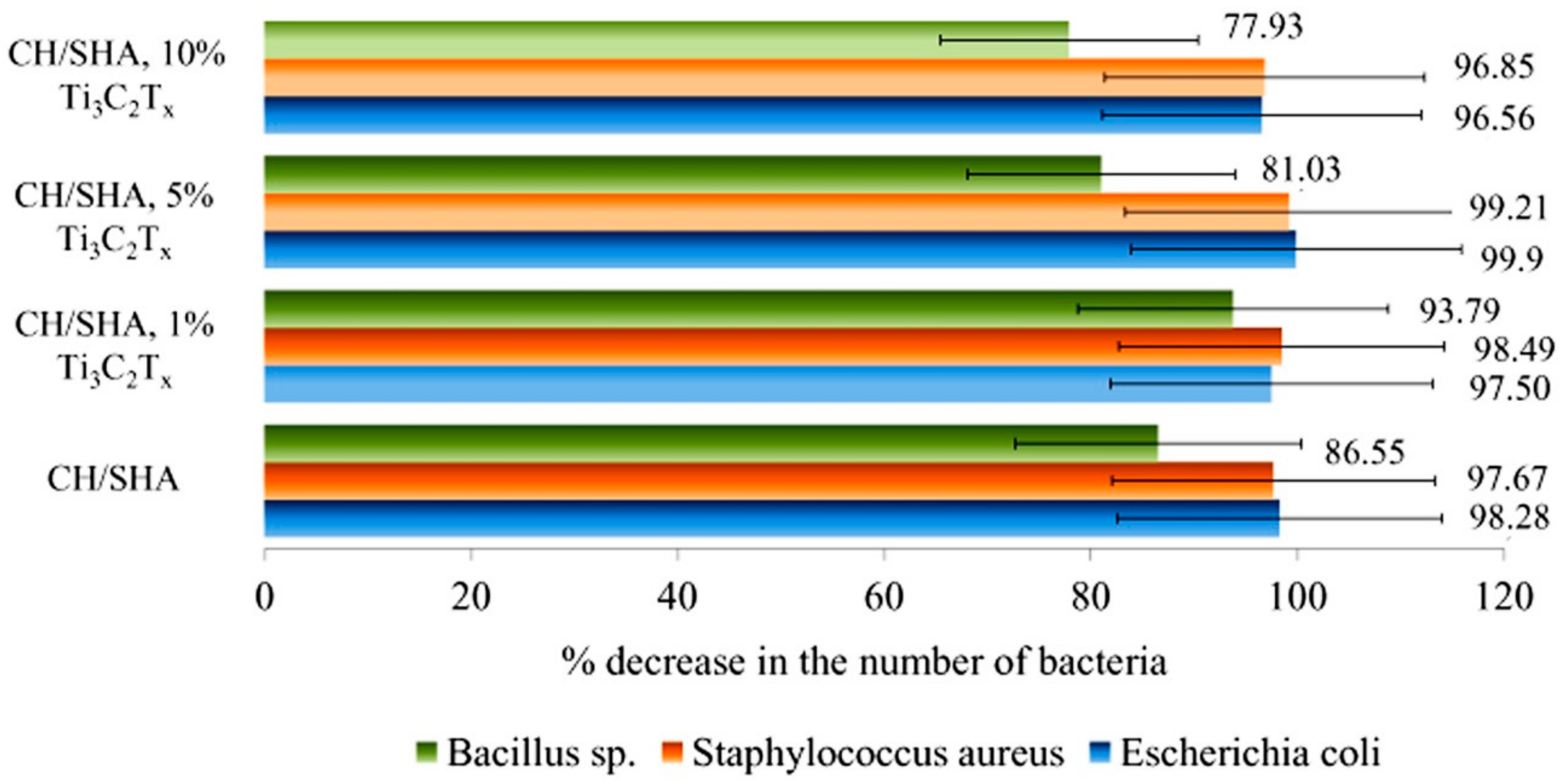

Figure 6. The effectiveness of the tested hydrogels in the elimination of bacteria in liquid culture.
Figure 6. The effectiveness of the tested hydrogels in the elimination of bacteria in liquid culture.
Materials 13 04587 g006
Table 1. TGA summary by first and second weight loss for the CH/SHA matrix nanocomposites modified with 1, 5 and 10 wt.% of 2D Ti3C2Tx MXene flakes.
Table 1. TGA summary by first and second weight loss for the CH/SHA matrix nanocomposites modified with 1, 5 and 10 wt.% of 2D Ti3C2Tx MXene flakes.
First Weight LossSecond Weight Loss
CH/SHA59.03 °C169.65 °C
CH/SHA, 1% Ti3C2Tx63.73 °C169.06 °C
CH/SHA, 5% Ti3C2Tx63.14 °C169.65 °C
CH/SHA, 10% Ti3C2Tx61.38 °C169.06 °C
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Rozmysłowska-Wojciechowska, A.; Karwowska, E.; Gloc, M.; Woźniak, J.; Petrus, M.; Przybyszewski, B.; Wojciechowski, T.; Jastrzębska, A.M. Controlling the Porosity and Biocidal Properties of the Chitosan-Hyaluronate Matrix Hydrogel Nanocomposites by the Addition of 2D Ti3C2Tx MXene. Materials 2020, 13, 4587.

AMA Style

Rozmysłowska-Wojciechowska A, Karwowska E, Gloc M, Woźniak J, Petrus M, Przybyszewski B, Wojciechowski T, Jastrzębska AM. Controlling the Porosity and Biocidal Properties of the Chitosan-Hyaluronate Matrix Hydrogel Nanocomposites by the Addition of 2D Ti3C2Tx MXene. Materials. 2020; 13(20):4587.

Chicago/Turabian Style

Rozmysłowska-Wojciechowska, Anita, Ewa Karwowska, Michał Gloc, Jarosław Woźniak, Mateusz Petrus, Bartłomiej Przybyszewski, Tomasz Wojciechowski, and Agnieszka M. Jastrzębska. 2020. "Controlling the Porosity and Biocidal Properties of the Chitosan-Hyaluronate Matrix Hydrogel Nanocomposites by the Addition of 2D Ti3C2Tx MXene" Materials 13, no. 20: 4587.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
