Influence of MXene (Ti3C2) Phase Addition on the Microstructure and Mechanical Properties of Silicon Nitride Ceramics

by
Jaroslaw Wozniak
1,*,
Mateusz Petrus
1,
Tomasz Cygan
1,
Artur Lachowski
1,
Bogusława Adamczyk-Cieślak
1,
Dorota Moszczyńska
1,
Agnieszka Jastrzębska
1,
Tomasz Wojciechowski
2,
Wanda Ziemkowska
2 and
Andrzej Olszyna
1
1
Faculty of Material Science and Engineering, Warsaw University of Technology, Wołoska 141 Str, 02-507 Warsaw, Poland
2
Faculty of Chemistry, Warsaw University of Technology, Noakowskiego 3, 00-664 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Materials 2020, 13(22), 5221; https://doi.org/10.3390/ma13225221
Submission received: 16 October 2020 / Revised: 10 November 2020 / Accepted: 16 November 2020 / Published: 19 November 2020
(This article belongs to the Special Issue New Findings of MXenes: Preparation, Properties and Applications in Biotechnology and Catalysis)
Browse Figures
Versions Notes

Abstract

:
This paper discusses the influence of Ti3C2 (MXene) addition on silicon nitride and its impact on the microstructure and mechanical properties of the latter. Composites were prepared through powder processing and sintered using the spark plasma sintering (SPS) technic. Relative density, hardness and fracture toughness, were analyzed. The highest fracture toughness at 5.3 MPa·m1/2 and the highest hardness at HV5 2217 were achieved for 0.7 and 2 wt.% Ti3C2, respectively. Moreover, the formation of the Si2N2O phase was observed as a result of both the MXene addition and the preservation of the α-Si3N4→β-Si3N4 phase transformation during the sintering process.

1. Introduction

Silicon nitride is used in many different applications thanks to its excellent mechanical properties at elevated temperatures, thermal shock resistance and good tribological and wear properties [1,2,3,4]. Silicon nitride crystallizes in two allotropic forms: low-temperature α-Si3N4 and high-temperature β-Si3N4. Both types have a hexagonal structure but different stacking sequences: ABCD in the case of α-Si3N4 and ABAB in β-Si3N4. This affects the properties of individual phases: α-Si3N4 is characterized by higher hardness, while β-Si3N4 has higher chemical resistance. The transformation of α into β takes place within the temperature range of 1300 to 1800 °C. The α-Si3N4→β-Si3N4 transformation requires the presence of a liquid phase and consists of dissolving α-Si3N4 in a liquid and precipitation on the β-Si3N4 nuclei. The grains of the β-Si3N4 phase have elongated shapes and their morphology resembles whiskers [5,6]. The α-Si3N4→β-Si3N4 transformation is a factor that facilitates densification during the sintering process. In addition to controlling the amount of the β-Si3N4 phase in the ceramic sinter and the texturization of the β-Si3N4, this transformation can be used to improve the mechanical properties of the produced Si3N4 ceramic [7]. The preparation of self-reinforced Si3N4 allows a high fracture toughness, i.e., greater than 11 MPa·m1/2, to be obtained; however, it has a negative impact on the bending strength [8,9]. A significant improvement of this parameter can be achieved by texturizing the Si3N4 microstructure [1]. Hirao et al. [9] produced textured β-Si3N4 ceramics with a fracture toughness of 11.1 MPa·m1/2 and a bending strength of 1.1 GPa. They used seeding and tape casting methods. Teshima el al. [10] obtained high values of fracture toughness (14 MPa·m1/2) and bending strength (1.4 GPa) for ceramics produced using seeding and extrusion. In addition to the above-mentioned methods, matrix composites can also be used to improve the i properties of Si3N4. Components such as TiN, SiC whiskers, ZrO2 nanofibers and graphene can be used as reinforcing phases [11,12,13,14,15,16]. Very interesting research results have been obtained in the case of composites reinforced with graphene. Cygan et al. [2] produced Si3N4-1 wt.% Gn composites using the spark plasma sintering (SPS) method. They determined the influence of the sintering temperature on the β-Si3N4 properties and phase content formed during the consolidation of the composites. They determined the optimal sintered temperature to be 1700 °C, and observed a stabilization of the α-Si3N4 phase through the addition of graphene. Similar results have been presented by Rutkowski et al. [16]. They observed a decrease in the β-Si3N4 phase content with an increase of the graphene amount for composites consolidated with an hot pressing (HP) technic. In addition to the studies listed above, MXene phases have recently attracted a lot of attention. MXene phases are a large family of materials (carbides and nitrides) with two-dimensional (2D) structures. The strong covalent bonds between M–X entail high mechanical properties, making these materials potentially useful as reinforcing phases for composites. Additionally, the good conductivity and excellent volumetric capacity of these materials mean that they are commonly used in many industries, such as medicine, optoelectronics and energy storage. MXene phases are synthesized from MAX phases. They constitute a large group of anisotropic crystalline materials and their name reflects their composition, i.e., Mn+1AXn, where M is a light transition metal, e.g., Ti, Nb, V; A is a metal from group 13 or 14; and X is carbon or nitrogen. The MAX phases exhibit a layered structure in which there is a metallic layer between M–X. In the process of synthesizing the MXene phases, this metallic layer is etched and then the products are removed in the rinsing process. In the final stage, the etched structures are delaminated into 2D structures. With regard to MXene phases, one great difficulty in using them as reinforcing phases is their thermal stability [17,18,19]. Depending on the conditions, the decomposition of MXene can occur at temperatures as low as 200 °C in an air atmosphere. In argon, the thermal stability of the MXene phases is much higher. The formation of anatase has been observed at temperatures above 800 °C. In both cases, the MXene was completely oxidized above 1000 °C and rutile was the final oxidized product [20,21]. As of yet, there are no reports in the literature on the use of MXene as a reinforcing phase in Si3N4 matrix composites. Only the preparation processes of composites based on SiC- and Al2O3-reinforced MXene have been described [22,23]. In both studies, the authors concluded that the addition of MXene improved the mechanical properties of the produced ceramics.
The use of the SPS method is extremely important with regard to limiting the MXene oxidation. Due to short heating and cooling times and the potential complete elimination of dwell time, it is possible to reduce the MXene phase decomposition, as in the case of composites reinforced with graphene [24]. For ceramic composites reinforced with graphene, it has been confirmed that the graphitization of graphene particles was reduced by using the SPS method. Moreover, a short sintering time and a lower sintering temperature also affected the properties of ceramics by limiting grain growth [25].
The main aim of this paper is to determine the effect of the addition of MXene to Si3N4 on the microstructure and mechanical properties of the obtained ceramics. To the best of our knowledge, this is the first study on the sintering of Si3N4 with the addition of MXene.

2. Materials and Methods

In the experimental work carried out to determine the effect of the addition of MXene to Si3N4, the ceramics were produced using a powder metallurgy technique. α-Si3N4 (Grade M11, H.C. Starck, Goslar, Germany) with a chemical purity of 99.95% and average particle size of 0.6 μm was used as a starting powder. Two sintering additives—2 wt.% MgO (Inframat Advance Materials, Manchester, CT, USA) with a chemical purity of 99.9% and average particle size of 0.3 μm and 2 wt.% ZrO2 (Tosoh Corpotation, Tokyo, Japan) with a chemical purity of 99.8% and average particle size of 0.4 μm—were used to improve the consolidation of the obtained ceramics. A series of five ceramics with different additions of Ti3C2–MXene (0.2, 0.5, 0.7, 1, 1.5, 2, 2.5 and 3 wt.%) were produced. Additionally, a ceramic without Ti3C2, used as a reference sample, and Si3N4-3 wt.% Ti3C2 without sintering additives were produced. Ti3AlC2 (MAX phase) was used as a starting material for the preparation of the MXene. It was synthesized using the SPS technique. Powdered Ti, Al and C were mixed in a ratio of 3:1:1.9 in a ball mill for 24 h. After drying and granulation, they were subjected to SPS synthesis (SPS HP D10, FCT Systeme GmbH, Effelder-Rauenstein, Germany) at a temperature of 1300 °C for 3 min under a vacuum. The material prepared in this way was then grinded. The preparation of MXene Ti3C2 was carried out through the acidic etching of the MAX Ti3AlC2 phase with concentrated (48%) hydrofluoric (HF) acid, under a fume hood. The MAX phase was slowly added to the HF, in portions, in amounts of 1 g MAX per 10 g of HF. The mixture was then stirred at 1000 rpm for 24 h until all available Al layers were removed. The resulting precipitate was separated from the acidic mixture and washed thoroughly with distilled water until the pH of the clay reached c.a. 7. The obtained Ti3C2 MXene was washed with ethanol, allowed to dry for 24 h at room temperature (RT) and then stored at 5 °C in the dark.
The obtained MXene powder was then subjected to the second stage of processing, in which the lamellar structure of the MXene was fragmented into single, multilayer (ML) flakes using a stepwise sonication process. This process was recently developed by the authors [26] specifically to avoid delamination into single-layered flakes, which are known to rapidly oxidize [27] and decompose in the course of the sintering process. Recent theoretical and experimental studies have shown that ML flakes are more stable compared to single-layered flakes [28]. Briefly, the first step of the sonication process was carried out in dried nonpolar hexane in a ratio of 1 g of powder to 50 cm3 of solvent for 2 h. To avoid overheating, an ice bath was used, together with a periodic working mode (1 s working, 3 s resting). The sediment was collected and dried for 2 h at RT and then subjected to sonication in dried polar isopropanol for 1 h via the same sonication procedure as in the case of hexane. After drying at RT, the 2D ML-Ti3C2Tx flakes were stored at 5 °C in the dark.
The prepared powder mixtures were homogenized in a planetary mill for 10 h in an isopropyl alcohol suspension. As a grinding media, 2 mm diameter ZrO2 balls were used with a powder-to-ball ratio of 1:10. The powder mixtures were dried at 50 °C for 24 h and then granulated using a #325 mesh sieve. The prepared mixtures were then consolidated using the SPS method. The sintering parameters used were as follows: temperature 1750 °C, heating/cooling rate 300 °C/min, dwell time 30 min, applied pressure 30 MPa, vacuum atmosphere 5 × 10−2 mbar and graphitic die and lining.
The properties of the obtained ceramics were measured using an Ultrapycnometer 1000 helium pycnometer (Quantachrome Instruments, Graz, Austria) for the skeletal density and a Vickers Hardness Tester (FV-700e, Future Tech, Kawasaki-City, Japan) for the Vickers hardness and fracture toughness (indentation method) under a load of 49 N. Before the density measurement, the samples were dried for 48 h at 60 °C. Hardness measurements were taken in accordance with EN ISO 6507-1:2007. A fracture toughness assessment was undertaken through measurement of crack lengths, propagating from the corners of the indentation as a result of pressing the Vickers indenter into the composite surface. The Niihara, Morena and Hasselman formulae were used to calculate KIC [29]. In order to determine the mechanical properties of the ceramics, tests were carried out on three samples of a given composition, with at least 10 measurements for each sample. Microstructure observations of the ceramics, as well as the powders, were carried out using a scanning electron microscope (SEM Hitachi 5500, Hitachi, Tokyo, Japan). A transmission electron microscopy (TEM, Thermo Fisher Scientific, Hillsboro, OR, USA) specimen was prepared by mechanical grinding and subsequent Ar ion polishing at 4 keV to obtain an electron-transparent material. Observations were carried out using a TECNAI G2 F20 S-TWIN microscope operating at 200 kV. A Fischione 3000 high-angle annular dark field (HAADF) detector in scanning transmission electron microscopy (STEM) mode was used to collect images. The qualitative and quantitative phase compositions were analyzed using X-ray diffraction (XRD) (Bruker D8 ADVANCE X-ray diffractometer, Bruker Corporation, Billerica, MA, USA) with radiation Cu Kα (λ = 0.154056 nm).

3. Results

Figure 1a,b show the morphology of the titanium carbide powder at each production stage. Figure 1a shows the Ti3AlC2 powder just after the synthesis and grinding process. The layered structure is visible; however, the individual layers are bonded by Al. The presence of the Ti3AlC2 phase was confirmed by the analysis of the phase composition, shown in Figure 2. It can be observed that the dominant component was Ti3AlC2; in addition to this phase, TiC was also formed as a result of the synthesis, and a small amount of unreacted graphite remained.
Figure 1b shows a powder particle after HF etching. It can be seen that the Ti3C2 layers are separated from each other. The morphology of MXene–Ti3C2 is shown in Figure 1c. The particles consisting of several layers of Ti3C2 are visible. The prepared powders were added to Si3N4 in order to determine their effect on the microstructure and properties of the obtained ceramics.
Figure 3a,b show the microstructures of a pure ceramic (Figure 3a) and of a specimen with the addition of 2 wt.% Ti3C2. In both cases, a fine-grained microstructure is visible. No large pores or discontinuities are visible. The presence of elongated grains of β-Si3N4 (marked with arrows in the figures), which were formed during the sintering process, can be observed. Moreover, it can be seen that in both the pure sample and the sample with the addition of MXene, transcrystalline fractures are the dominant fracture mechanism.
TEM analysis confirmed the observations from the scanning electron microscope. In the microstructures of the materials, both α-Si3N4 and β-Si3N4 phases with good cohesion between individual grains (Figure 4a) are visible. Also, no pores or discontinuities can be observed. Using STEM, a third phase located on the Si3N4 grain boundaries was revealed (indicated by arrows in Figure 4b). The HAADF detector shows mass thickness in contrast to higher signal intensity (brightness in the image), and so this must correspond to the presence of a relatively heavy element. In this case, the only possible element was zirconium. This was confirmed by high-resolution transmission electron microscopy (HRTEM) imaging (Figure 4c).
The fast Fourier transform (FFT) pattern obtained from the region marked with the red box in Figure 4c corresponds to a monoclinic ZrO2 phase. Again, no discontinuities in the Si3N4/ZrO2 grain boundaries can be seen. In order to determine the influence of Ti3C2 addition on the sintered silicon nitride, qualitative and semiquantitative phase analyses were performed. The results of the analyses are presented in Figure 5a–c and in Table 1. With regard to the data compiled in the table, only the main phases are presented. Hence, the sum of the phases does not equal 100%. Figure 5a shows the XRD pattern for the reference sample. It can be seen that during the sintering process, the α-Si3N4→β-Si3N4 phase transformation took place.
The amount of the β-Si3N4 phase is estimated at 27% (Table 1). The addition of MXene to the silicon nitride significantly increased the amount of the β-Si3N4 phase to 47% for 0.7 wt.% Ti3C2, and then decreased to 12 and 16% for 2 and 3 wt.% respectively. Moreover, in the case of the ceramics with the MXene addition, the appearance of a third Si2N2O phase can be observed (Figure 5b). The amount only slightly changed with the Ti3C2 content and was about 25% (Table 1).
The formation of the Si2N2O phase has already been described in the literature. Trigg et al. [30] proposed a reaction to form this phase in the presence of TiO2:
6TiO2 + 2Si3N4→6TiN + 6SiO2 + N2 (g)
The formed SiO2 reacts with Si3N4 to form Si2N2O in the following reaction:
SiO2 + Si3N4→2Si2N2O
In the case of our ceramics, TiO2 was not added during the powder mixing stage; however, it could form as a result of the oxidation of MXene during the sintering process. In the first stage of MXene phases oxidation, TiO2 was produced on their surfaces, leaving behind graphene-like carbon structures [21,31]. Their presence should have favored the formation of Si2N2O in accordance with reactions (1) and (2), but XRD phase analysis did not indicate the presence of TiN. However, the amount of this phase might have been below the detection threshold of the measurement method. Additionally, a ceramic using Ti3C2 without sintering activators was produced in order to determine whether Si2N2O phase formation is possible only in the presence of TiO2. On the basis of the obtained results (Figure 5c and Table 1), it can be seen that a very low level of β-Si3N4 content was present. This was due to the small amount of the liquid phase, which is necessary for the α-Si3N4→β-Si3N4 transformation. The small amount of this phase is related to the SiO2 which is present on the Si3N4 surface [5,6,32]. Moreover, the Si2N2O phase was not formed. This is the opposite of what is found in the literature. Wu et al. [33] investigated the effect of TiO2 and TiO2/ZrO2/Y2O3 addition to Si3N4 on the formation of the Si2N2O phase. They showed that Si2N2O does not form in ceramics with oxide sintering activators. In our case, the absence of the Si2N2O phase may be due to a small amount or lack of TiO2 in the structure. According to [34], a sintering process without an oxide agent may lead to changes in the oxidation process. Lotfi et al. showed that as a result of Ti3C2 annealing in a vacuum, Ti and C atoms were rearranged to form cubic titanium carbide (TiC). This confirms our results concerning the sintering of the sample without sintering additives. The XRD tests (Figure 5c) indicate the presence of TiC. The decrease in the β-Si3N4 phase content for samples with a higher amount of MXene is also very interesting. The blocking of the α-Si3N4→β-Si3N4 transformation can be caused by the presence of carbon structures formed at the initial stage of Ti3C2 oxidation. The range of the oxidation temperatures and α-Si3N4→β-Si3N4 transformations are similar. The presence of layered carbon structures may inhibit the growth of the β-Si3N4 phase. Similar results have been obtained for Si3N4 composites reinforced with graphene. The presence of carbon structures in the ceramics was not confirmed in our tests. However, to comply with the oxidation scheme of MXene available in the literature, it can be presumed that carbon structures were present in the microstructures within the range of the transformation temperature, and then completely decomposed at higher temperatures.
In the next part of the research, the sample without sintering additives was omitted because the absence of such additives would result in a low degree of sample consolidation, making it impossible to perform mechanical tests for this sample. Figure 6 shows the density measurement results for the obtained ceramics. All samples with MXene addition demonstrated a lower density compared to the reference sample. The change in density as a function of the Ti3C2 phase content does not show any characteristic trend. The density results oscillate around 97%.
Figure 7 shows the influence of the Ti3C2 amount on the hardness of the obtained ceramics. An increase in hardness with increasing MXene content can be seen. The highest hardness was observed for the sample with 2 wt.% Ti3C2. After exceeding 2 wt.%, the hardness of the ceramic decreases. Based on the obtained results, it can be concluded that the addition of Ti3C2 also affects the mechanical properties of the ceramics. Despite the increase in the amount of the β-Si3N4 phase, in the case of lower MXene content, the hardness increases in comparison to the reference sample. Phase α-Si3N4 is hard compared to phase β-Si3N4 [1]. Moreover, it can be seen that there is an optimal content level for α-Si3N4 and β-Si3N4 phases for which the hardness has the highest value (the ceramic with the addition of 2 wt.% Ti3C2). The Si2N2O does not have a significant effect on the ceramics’ properties, since the mechanical properties of this phase are similar to those of Si3N4.
Figure 8 shows the influence of MXene content on the fracture toughness of the obtained ceramics. There is an initial increase in KIC to 0.7 wt.% Ti3C2, followed by a decrease. This kind of change in fracture toughness is related to the β-Si3N4 phase content. For higher amounts of β-Si3N4 phase, higher KIC values are observed.

4. Conclusions

In this study, research was carried out to determine the effect of MXene phase addition on the mechanical properties and microstructure of Si3N4 ceramics. The obtained results indicate the absence of MXene phases after the sintering process. This proves that there is no possibility of producing MXene composites reinforced with the Si3N4 matrix with oxide sintering activators. The addition of Ti3C2, however, enables the modification of the phase composition of the ceramics by limiting the α-Si3N4→β-Si3N4 phase transformation and introducing an additional Si2N2O phase. By adding a certain amount of MXene, it is also possible to control mechanical properties such as hardness and fracture toughness.

Author Contributions

J.W.: article concept, manuscript preparation, ceramics preparation, SEM observation, results analysis, MAX preparation; M.P. and T.C.: mechanical properties tests, MAX preparation; A.L.: TEM observation; B.A.-C.: semi-quantitative phase analysis; D.M.: MAX powders XRD analysis; A.J., T.W., W.Z.: MXene preparation; A.O.: review and edition. All authors have read and agreed to the published version of the manuscript.

Funding

The study was accomplished thanks to the funds allotted be the National Science Centre within the framework of the research project ‘OPUS 13′ no. UMO-2017/25/B/ST8/01205.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhu, X.; Sakka, Y. Textured silicon nitride: Processing and anisotropic properties. Sci. Technol. Adv. Mater. 2008, 9. [Google Scholar] [CrossRef] [PubMed]
  2. Cygan, T.; Woźniak, J.; Kostecki, M.; Cieślak, B.A.; Olszyna, A.R. Influence of graphene addition and sintering temperature on physical properties of Si3N4 matrix composites. Int. J. Refract. Met. Hard Mater. 2016, 57, 19–23. [Google Scholar] [CrossRef]
  3. Iturriza, I.; Castro, F.; Fuentes, M. Sinter and sinter-HIP of silicon nitride ceramics with yttria and alumina additions. J. Mater. Sci. 1989, 24, 2047–2056. [Google Scholar] [CrossRef]
  4. Guedes-Silva, C.C.; Carvalho, F.M.D.S.; Bressiani, J.C. Effect of rare-earth oxides on properties of silicon nitride obtained by normal sintering and sinter-HIP. J. Rare Earths 2012, 30, 1177–1183. [Google Scholar] [CrossRef]
  5. Suematsu, H.; Mitomo, M.; Mitchell, T.E.; Petrovic, J.J.; Fukunaga, O.; Ohashi, N. The α-β Transformation in Silicon Nitride Single Crystals. J. Am. Ceram. Soc. 1997, 80, 615–620. [Google Scholar] [CrossRef]
  6. Sarin, V. On the α-to-β phase transformation in silicon nitride. Mater. Sci. Eng. A 1988, 105–106, 151–159. [Google Scholar] [CrossRef]
  7. Zhang, Z.; Duan, X.; Qiu, B.; Yang, Z.; Cai, D.; He, P.; Jia, D.; Zhou, Y. Preparation and anisotropic properties of textured structural ceramics: A review. J. Adv. Ceram. 2019, 8, 289–332. [Google Scholar] [CrossRef] [Green Version]
  8. Kawashima, T.; Okamoto, H.; Yamamoto, H.; Kitamura, A. Grain Size Dependence of the Fracture Toughness of Silicon Nitride Ceramics. J. Ceram. Soc. Jpn. 1991, 99, 320–323. [Google Scholar] [CrossRef] [Green Version]
  9. Hirao, K.; Nagaoka, T.; Brito, M.E.; Kanzaki, S. Microstructure Control of Silicon Nitride by Seeding with Rodlike beta-Silicon Nitride Particles. J. Am. Ceram. Soc. 1994, 77, 1857–1862. [Google Scholar] [CrossRef]
  10. Teshima, H.; Hirao, K.; Toriyama, M.; Kanzaki, S. Fabrication and Mechanical Properties of Silicon Nitride Ceramics with Unidirectionally Oriented Rodlike Grains. J. Ceram. Soc. Jpn. 1999, 107, 1216–1220. [Google Scholar] [CrossRef] [Green Version]
  11. Buljan, S.; Sarin, V. Silicon nitride-based composites. Composites 1987, 18, 99–106. [Google Scholar] [CrossRef]
  12. Wang, C.-A.; Yong, H.; Hongxiang, Z. The Effect of Whisker Orientation in SiC Whisker-Reinforced Si3N4 Ceramic Matrix Composites. Available online: http://www.paper.edu.cn (accessed on 10 September 2020).
  13. Ahmad, N.; Sueyoshi, H. Properties of Si3N4–TiN composites fabricated by spark plasma sintering by using a mixture of Si3N4 and Ti powders. Ceram. Int. 2010, 36, 491–496. [Google Scholar] [CrossRef]
  14. Ramirez, C.; Figueiredo, F.M.; Miranzo, P.; Poza, P.; Osendi, M.I. Graphene nanoplatelet/silicon nitride composites with high electrical conductivity. Carbon 2012, 50, 3607–3615. [Google Scholar] [CrossRef]
  15. Yang, Y.; Li, B.; Zhang, C.; Wang, S.; Liu, K.; Yang, B. Fabrication and properties of graphene reinforced silicon nitride composite materials. Mater. Sci. Eng. A 2015, 644, 90–95. [Google Scholar] [CrossRef]
  16. Rutkowski, P.; Stobierski, L.; Górny, G. Thermal stability and conductivity of hot-pressed Si3N4–graphene composites. J. Therm. Anal. Calorim. 2014, 116, 321–328. [Google Scholar] [CrossRef] [Green Version]
  17. Advances in Science and Technology of Mn+1AXn Phases; Woodhead Publishing: Cambridge, UK, 2012.
  18. Naguib, M.; Mashtalir, O.; Carle, J.; Presser, V.; Lu, J.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-Dimensional Transition Metal Carbides. ACS Nano 2012, 6, 1322–1331. [Google Scholar] [CrossRef]
  19. Eklund, P.; Rosen, J.; Persson, P.O. Å Layered ternary Mn+1AXnphases and their 2D derivative MXene: An overview from a thin-film perspective. J. Phys. D Appl. Phys. 2017, 50, 113001. [Google Scholar] [CrossRef] [Green Version]
  20. Wang, K.; Zhou, Y.; Xu, W.; Huang, D.; Wang, Z.; Hong, M. Fabrication and thermal stability of two-dimensional carbide Ti3C2 nanosheets. Ceram. Int. 2016, 42, 8419–8424. [Google Scholar] [CrossRef]
  21. Li, Z.; Wang, L.; Sun, D.; Zhang, Y.; Liu, B.; Hu, Q.; Zhou, A.-G. Synthesis and thermal stability of two-dimensional carbide MXene Ti3C2. Mater. Sci. Eng. B 2015, 191, 33–40. [Google Scholar] [CrossRef]
  22. Fei, M.; Lin, R.; Lu, Y.; Zhang, X.; Bian, R.; Cheng, J.; Luo, P.; Xu, C.; Cai, D. MXene-reinforced alumina ceramic composites. Ceram. Int. 2017, 43, 17206–17210. [Google Scholar] [CrossRef]
  23. Woźniak, J.; Petrus, M.; Cygan, T.; Jastrzębska, A.; Wojciechowski, T.; Ziemkowska, W.; Olszyna, A. Silicon carbide matrix composites reinforced with two-dimensional titanium carbide—Manufacturing and properties. Ceram. Int. 2019, 45, 6624–6631. [Google Scholar] [CrossRef]
  24. Inam, F.; Yan, H.; Reece, M.J.; Peijs, T. Structural and chemical stability of multiwall carbon nanotubes in sintered ceramic nanocomposite. Adv. Appl. Ceram. 2010, 109, 240–247. [Google Scholar] [CrossRef]
  25. Wozniak, J.; Cygan, T.; Petrus, M.; Cygan, S.; Kostecki, M.; Jaworska, L.; Olszyna, A.R. Tribological performance of alumina matrix composites reinforced with nickel-coated graphene. Ceram. Int. 2018, 44, 9728–9732. [Google Scholar] [CrossRef]
  26. Rozmysłowska, A.; Wojciechowski, T.; Ziemkowska, W.; Chlubny, L.; Olszyna, A.R.; Jastrzębska, A.M. Surface interactions between 2D Ti3C2/Ti2C MXenes and lysozyme. Appl. Surf. Sci. 2019, 473, 409–418. [Google Scholar] [CrossRef]
  27. Jastrzębska, A.M.; Szuplewska, A.; Rozmysłowska-Wojciechowska, A.; Chudy, M.; Olszyna, A.; Birowska, M.; Popielski, M.; Majewski, J.A.; Scheibe, B.; Natu, V.; et al. On tuning the cytotoxicity of Ti3C2 (MXene) flakes to cancerous and benign cells by post-delamination surface modifications. 2D Mater. 2020, 7, 025018. [Google Scholar] [CrossRef]
  28. Szuplewska, A.; Rozmysłowska-Wojciechowska, A.; Poźniak, S.; Wojciechowski, T.; Birowska, M.; Popielski, M.; Chudy, M.; Ziemkowska, W.; Chlubny, L.; Moszczyńska, D.; et al. Multilayered sTable 2D nano-sheets of Ti2NTx MXene: Synthesis, characterization, and anticancer activity. J. Nanobiotechnol. 2019, 17, 114. [Google Scholar] [CrossRef]
  29. Ponton, C.B.; Rawlings, R.D. Vickers indentation fracture toughness test Part 1 Review of literature and formulation of standardised indentation toughness equations. Mater. Sci. Technol. 1989, 5, 865–872. [Google Scholar] [CrossRef]
  30. Trigg, M.B.; McCartney, E.R. Comparison of the Reaction Systems ZrO2-Si3N4 and TiO2-Si3N4. J. Am. Ceram. Soc. 1981, 64, C-151–C-152. [Google Scholar] [CrossRef]
  31. Naguib, M.; Mashtalir, O.; Lukatskaya, M.R.; Dyatkin, B.; Zhang, C.; Presser, V.; Gogotsi, Y.; Barsoum, M.W. One-step synthesis of nanocrystalline transition metal oxides on thin sheets of disordered graphitic carbon by oxidation of MXenes. Chem. Commun. 2014, 50, 7420–7423. [Google Scholar] [CrossRef] [Green Version]
  32. Riley, F.L. Silicon Nitride and Related Materials. J. Am. Ceram. Soc. 2000, 83, 245–265. [Google Scholar] [CrossRef]
  33. Wu, L.-X.; Guo, W.-M.; Zeng, L.-Y.; Lin, H.-T. Equiaxed β-Si3N4 ceramics prepared by rapid reaction-bonding and post-sintering using TiO2-Y2O3-Al2O3 additives. J. Am. Ceram. Soc. 2017, 100, 5353–5357. [Google Scholar] [CrossRef]
  34. Lotfi, R.; Naguib, M.; Yilmaz, D.E.; Nanda, J.; Van Duin, A.C.T. A comparative study on the oxidation of two-dimensional Ti3C2MXene structures in different environments. J. Mater. Chem. A 2018. [Google Scholar] [CrossRef]
Materials 13 05221 g001 550
Figure 1. Morphology of Ti3AlC2 powder. (a) Ti3AlC2 MAX phases, (b) after hydrofluoric (HF) etching, (c) after delamination (Ti3C2 MXene).
Figure 1. Morphology of Ti3AlC2 powder. (a) Ti3AlC2 MAX phases, (b) after hydrofluoric (HF) etching, (c) after delamination (Ti3C2 MXene).
Materials 13 05221 g001
Materials 13 05221 g002 550

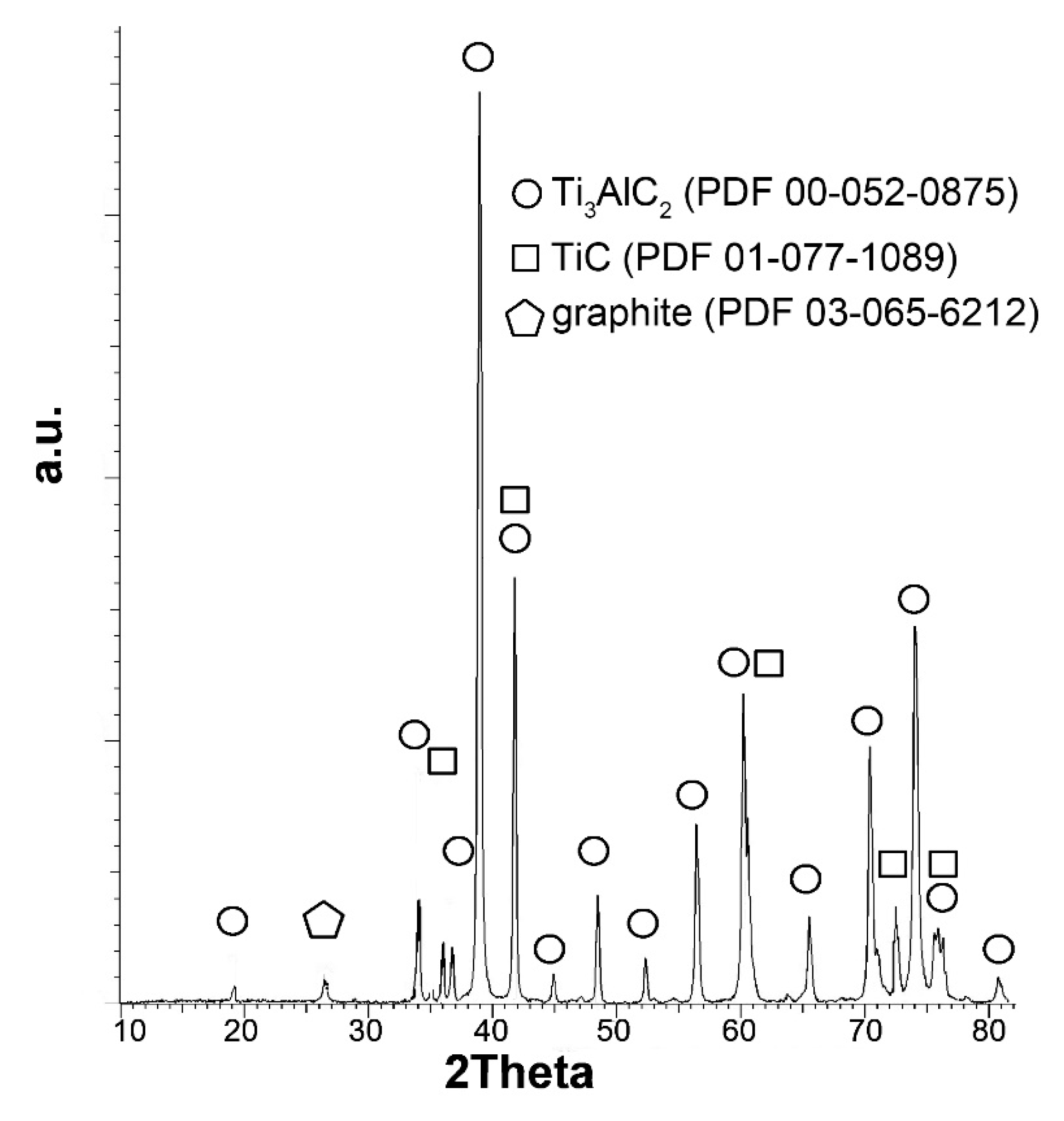

Figure 2. The X-ray diffraction (XRD) pattern obtained for synthesized Ti3AlC2.
Figure 2. The X-ray diffraction (XRD) pattern obtained for synthesized Ti3AlC2.
Materials 13 05221 g002
Materials 13 05221 g003 550
Figure 3. Fractures of (a) Si3N4 and (b) Si3N4 + 2 wt.% Ti3C2.
Figure 3. Fractures of (a) Si3N4 and (b) Si3N4 + 2 wt.% Ti3C2.
Materials 13 05221 g003
Materials 13 05221 g004 550
Figure 4. Transmission electron microscopy (TEM) analysis of Si3N4 + 2 wt.% Ti3C2. (a) Triple-point region of silicon nitride grains, (b) third phase located on Si3N4 grain boundaries, (c) high-resolution transmission electron microscopy (HRTEM) image and fast Fourier transform (FFT) pattern of third phase.
Figure 4. Transmission electron microscopy (TEM) analysis of Si3N4 + 2 wt.% Ti3C2. (a) Triple-point region of silicon nitride grains, (b) third phase located on Si3N4 grain boundaries, (c) high-resolution transmission electron microscopy (HRTEM) image and fast Fourier transform (FFT) pattern of third phase.
Materials 13 05221 g004
Materials 13 05221 g005a 550Materials 13 05221 g005b 550

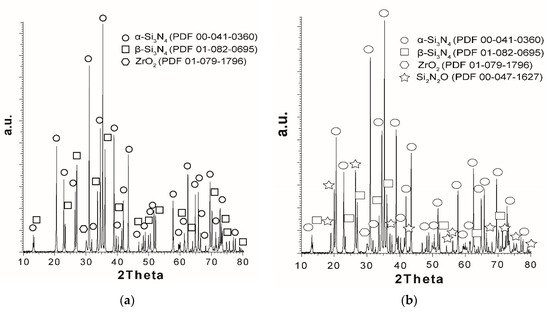

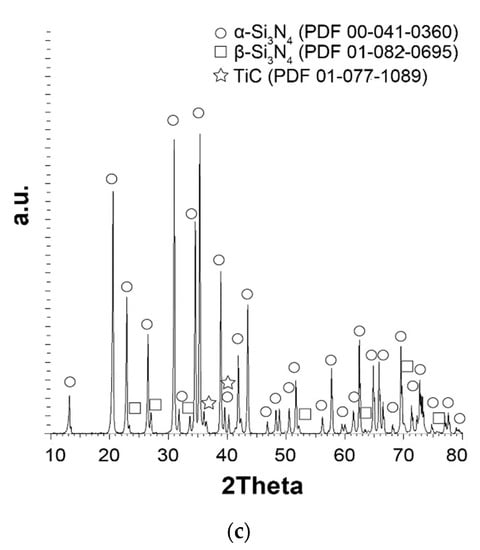

Figure 5. The XRD patterns of (a) Si3N4 ceramics, (b) Si3N4 + 3 wt.% Ti3C2, (c) Si3N4 + 3 wt.% Ti3C2 (without sintering additives).
Figure 5. The XRD patterns of (a) Si3N4 ceramics, (b) Si3N4 + 3 wt.% Ti3C2, (c) Si3N4 + 3 wt.% Ti3C2 (without sintering additives).
Materials 13 05221 g005aMaterials 13 05221 g005b
Materials 13 05221 g006 550

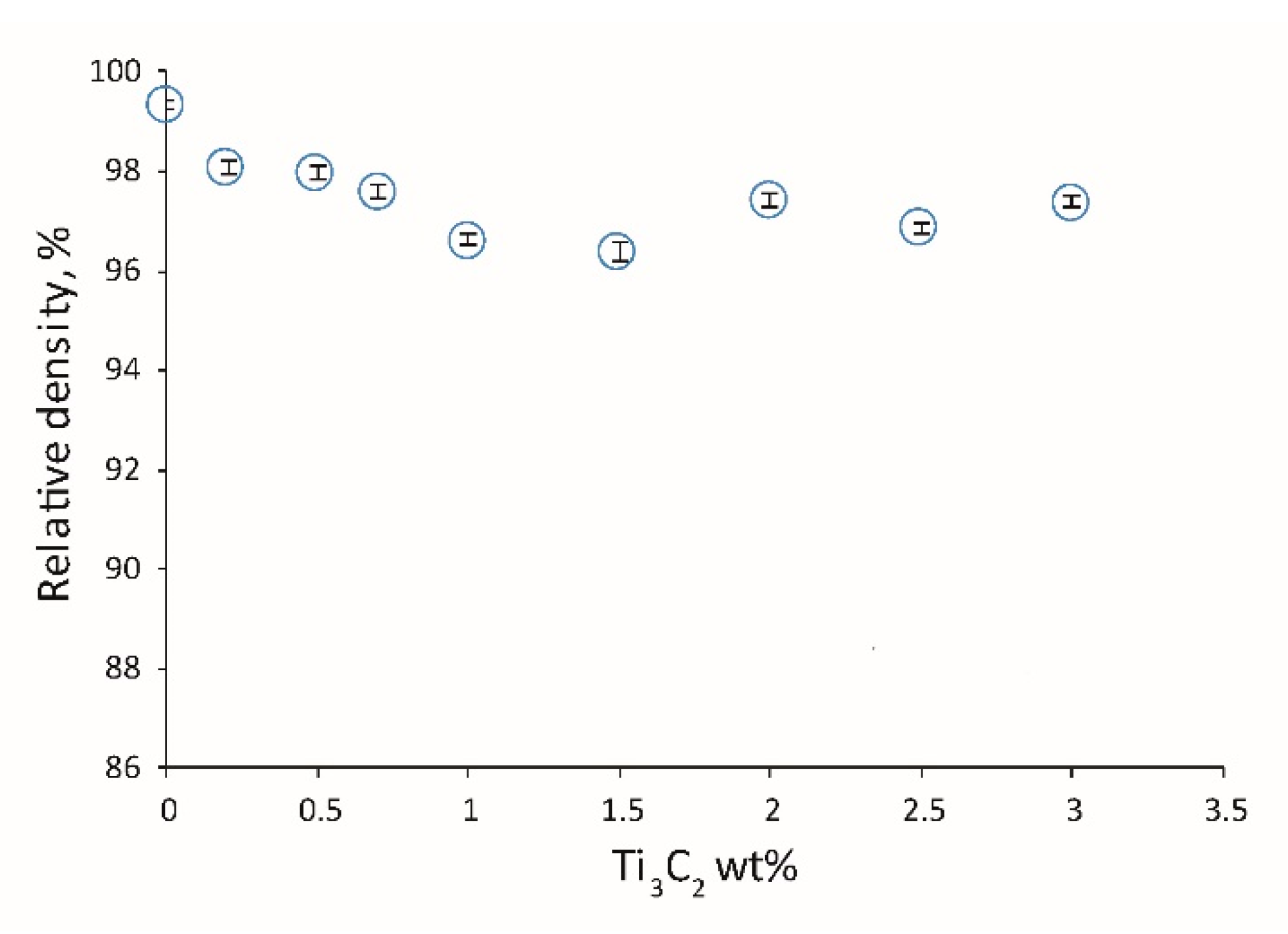

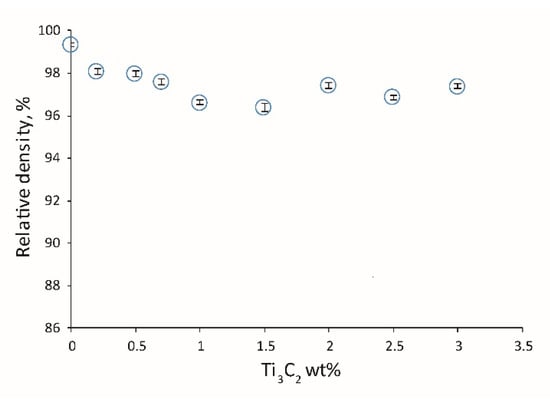

Figure 6. Influence of two-dimensional (2D) sheets of the Ti3C2 MXene weight content on the relative density of the composites.
Figure 6. Influence of two-dimensional (2D) sheets of the Ti3C2 MXene weight content on the relative density of the composites.
Materials 13 05221 g006
Materials 13 05221 g007 550

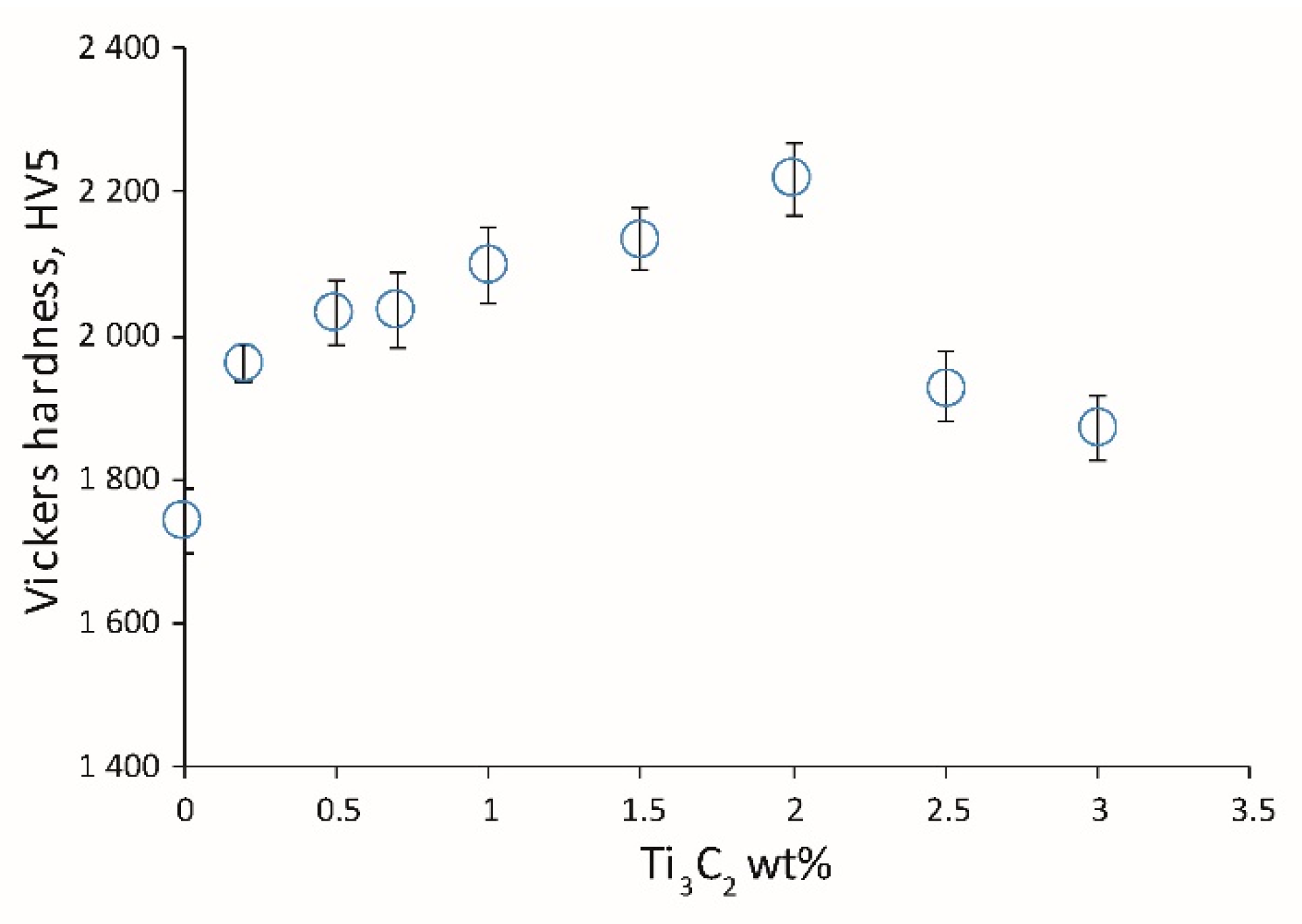

Figure 7. Influence of 2D sheets of the Ti3C2 MXene weight content on the Vickers hardness of the composites.
Figure 7. Influence of 2D sheets of the Ti3C2 MXene weight content on the Vickers hardness of the composites.
Materials 13 05221 g007
Materials 13 05221 g008 550

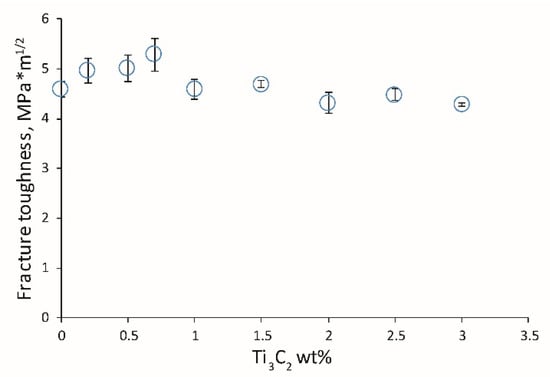

Figure 8. Influence of 2D sheets of the Ti3C2 MXene weight content on the fracture toughness of the composites.
Figure 8. Influence of 2D sheets of the Ti3C2 MXene weight content on the fracture toughness of the composites.
Materials 13 05221 g008
Table
Table 1. Influence of Ti3C2 and sintering additive content on the α and β phase amounts in Si3N4 ceramics.
Table 1. Influence of Ti3C2 and sintering additive content on the α and β phase amounts in Si3N4 ceramics.
Sample IDα-Si3N4 [%]β-Si3N4 [%]Si2N2O [%]
Si3N472270
Si3N4 + 0.7 wt.% Ti3C2304722
Si3N4 + 2 wt.% Ti3C2581229
Si3N4 + 3 wt.% Ti3C2591624
Si3N4 + 3 wt.% Ti3C2 (without sintering additives)9440
