1. Introduction
Layered double hydroxides (LDHs) also called hydrotalcite-like compounds are brucite-like layered materials, which consist of positively charged hydroxide layers and interlayered anions with a general formula [M
II1−xM
IIIx (OH)
2]
x+·(A
n−)
x/n.mH
2O, where M
II and M
III are divalent and trivalent cations, respectively. A
n− is an exchangeable anion located as water molecules in the interlayer space, and x is the molar ratio, M
III/(M
II+M
III), which determines layer charge density [
1]. These compounds have been the subject of great attention for several decades because of their use in a large number of fields ranging from the delivery of drugs to the protection against corrosion of metallurgical parts [
2,
3,
4,
5].
These performances have their origin in the very diverse chemical composition of these materials. The cationic layers accommodate a large number of metal cations while the interlayer space can accommodate a wide variety of inorganic or organic anions or even macromolecules. Besides this richness in chemical composition, LDHs exhibit interesting microstructural and structural characteristics. They present a relatively open structure due to its bi-dimensional character. Thus, the interlayer space serves as a micro-reactor where targeted anion exchange reactions can be carried out depending on the desired application (exchange reaction, exfoliation, lamination, and reconstruction.). Additionally, they can present a highly specific surface depending on the synthesis method [
6,
7,
8,
9].
In this context and thanks to their specific morphological properties and their high potential ability as ion exchangers with organic and inorganic anions, layered double hydroxides (LDHs) find their applications as sorbent agents for depolluting waste water and especially for eliminating anionic dyes, which are recognized to be a threat toward humans and ecosystems because of their high potential toxicity [
10].
A review of the literature shows that the most widely used method to synthesise these materials is the coprecipitation in an aqueous medium of the hydroxides at room temperature by varying the pH of the solution. In the majority of cases, this coprecipitation is carried out in air and in the presence of sodium carbonate. In this case and whatever the nature of the starting salts, the obtained phase is a layered double hydroxide with carbonate anion intercalated between the sheets (LDH-CO
3). This preferential intercalation is due to the great affinity of this anion for positively charged hydroxide sheets [
11]. These carbonated LDHs display weak adsorption capacities. The carbonate ion is difficult to displace by an exchange reaction and, therefore, the adsorption remains limited to the surface [
12].
To overcome this difficulty, one proceeds to the calcination of these materials at a moderate temperature between 400–500 °C in air. The oxides obtained are finely divided and show a memory effect. In fact, when put back into an aqueous solution, these oxides transform into LDH by intercalating the anions present in the solution. This intercalation in addition to the surface adsorption of these anions significantly improves the adsorption capacities compared to those of LDH-carbonates [
13].
Another strategy consists of the synthesis of layered double hydroxides by coprecipitation in an aqueous medium where more easily exchangeable anions are intercalated such as chloride [
14], nitrate [
15,
16], chlorate [
17], dodecylsulfate [
18], and sulfate [
19]. To avoid the presence of CO
2, reactions must be carried out under nitrogen, and distilled deionized water must be freshly decarbonated by vigorously boiling prior to use.
Since the nature of the intercalated anion plays an important role in adsorption capacity, we focus in this work on LDH with acetate (Ac) as an intercalated anion. To the best of our knowledge, this anion has never been used for this purpose. Furthermore, this new layered double hydroxide containing Co
2+ and Fe
3+ cations in the brucite-like layers (CoFe-Ac/
p) was produced by forced hydrolysis in a polyol medium. The advantages of this synthesis method will be discussed in light of the obtained results. The choice of the Co and Fe elements falls within the framework of our project to synthesize multifunctional LDHs based on the third transition element (Ni, Co, Fe). Like their counterparts based on Mg-Al, they present anion exchange properties, which are the basis of the work presented in this case. In addition, the presence of paramagnetic elements with several valences (Ni, Co, Fe) opens up other various application fields. These LDH are of great interest in the energy field thanks to their electrocatalytic activity for water oxidation [
20]. They also serve as precursors for obtaining finely divided particles of magnetic oxides or metal alloys sought for several applications: air depollution [
21], drug delivery [
22], and magnetic recording [
23].
To enrich and supplement this work, we investigated the anionic exchange properties of this newly synthesised LDH, along with two LDHs where carbonate anion is intercalated. The first was derived from the precursor CoFe-Ac/p by exchanging acetate with carbonate anions (CoFe-Ac/Ex) and the second (CoFe-CO3/A) synthesised by a standard coprecipitation in an aqueous medium.
Direct red 2 was chosen as a model for the toxic azoic anionic dyes. Its adsorptive capability by sorbents is seldom reported in the literature [
24,
25]. The adsorption onto CoFe-Ac/
p, CoFe-Ac/
Ex, and CoFe-CO
3/

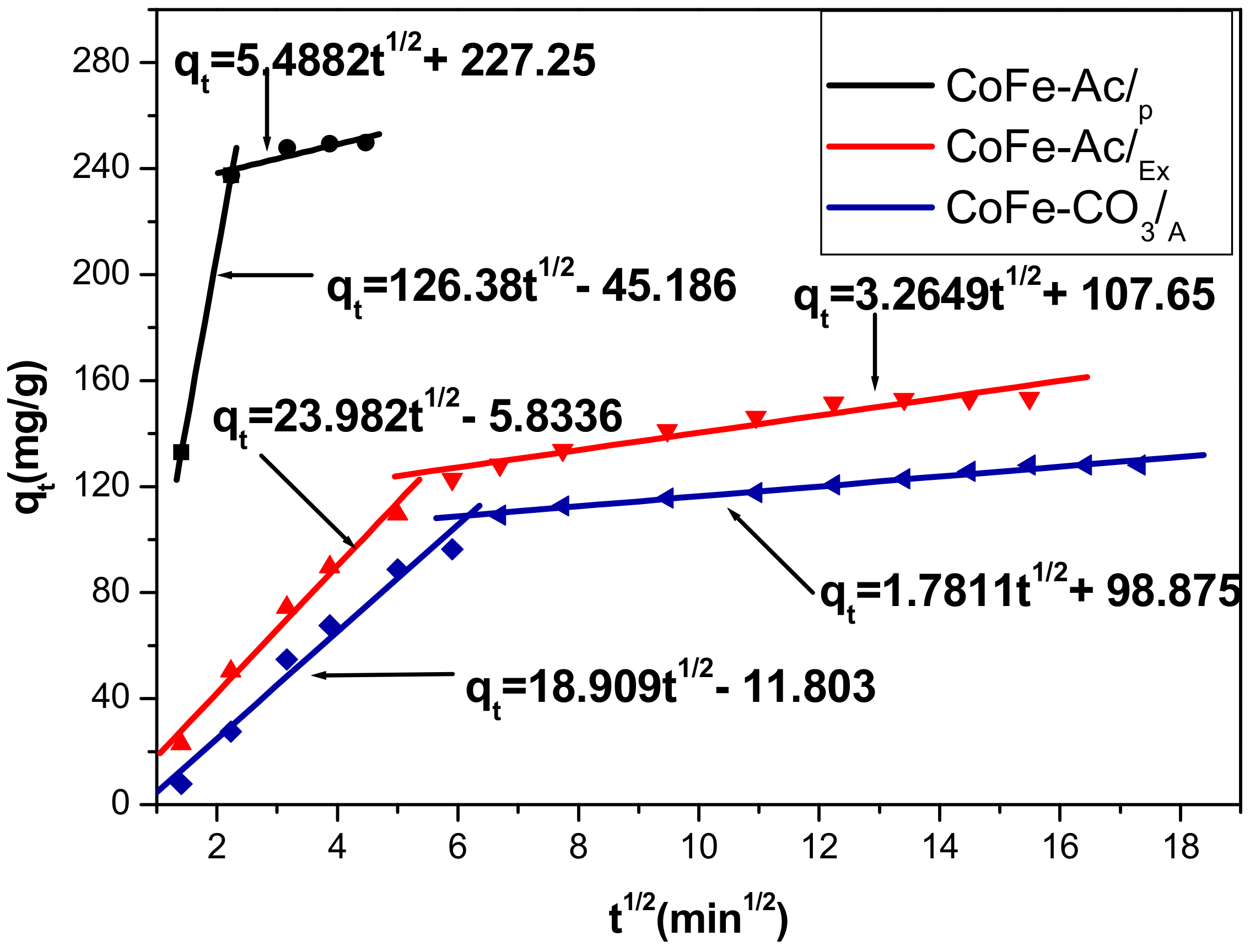

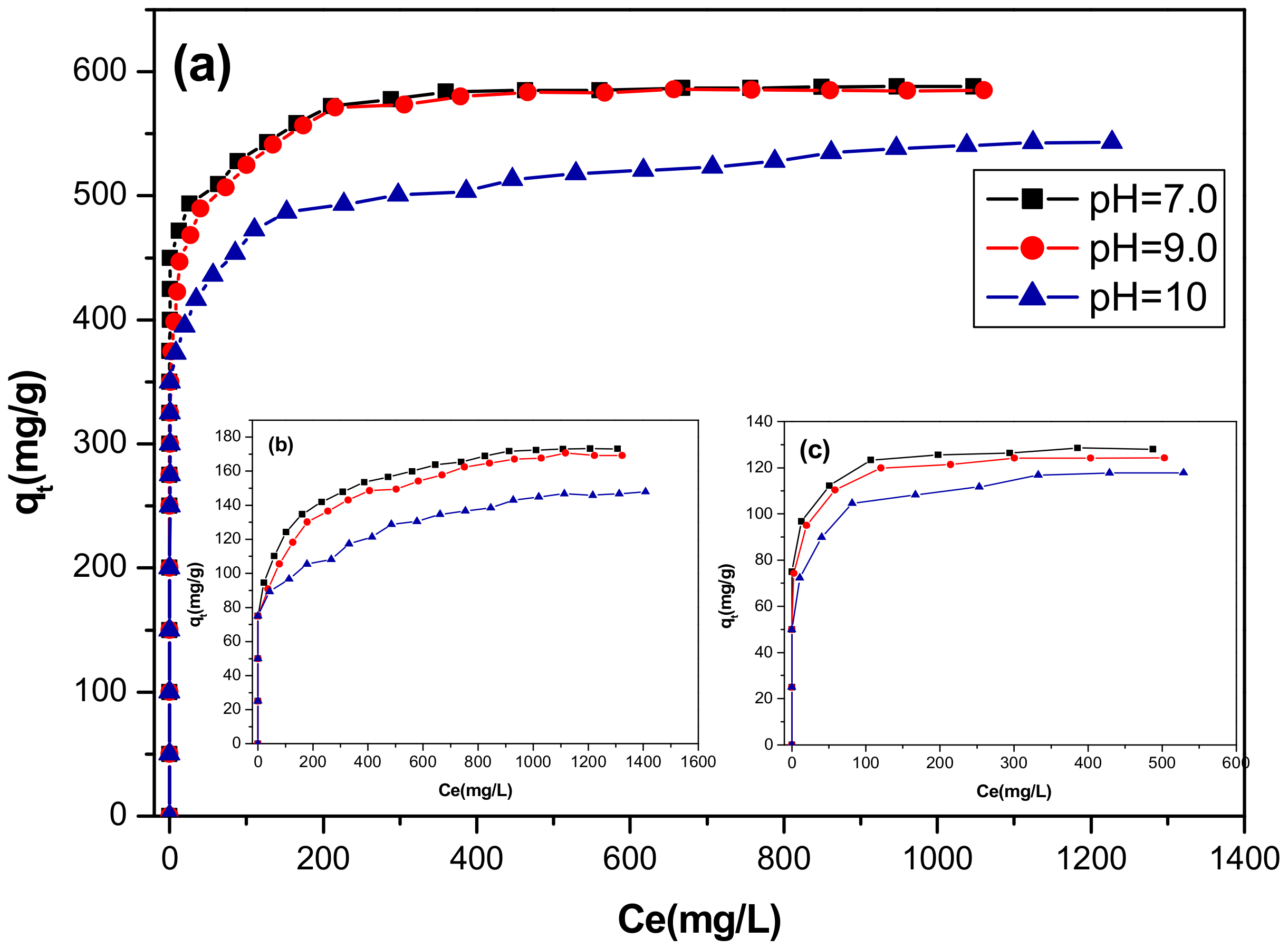

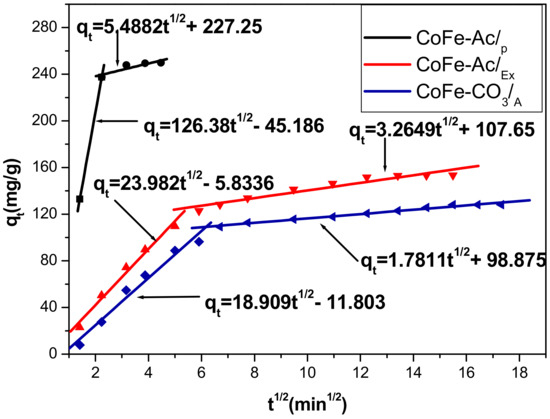

A was studied as a function of various factors such as contact time, pH, initial dye concentration, and temperature. The results were discussed and compared to those previously reported for the adsorption of direct red 2 and similar dyes on LDH materials.
4. Discussion: Mechanism of Direct Red 2 Removal and Comparison with Previous Works
Table 6 compares the results obtained during this work with the adsorption performance of azoic dyes belonging to the same family (with at least two sulfonate groups) by LDHs prepared via the common synthetic routes discussed in the introduction.

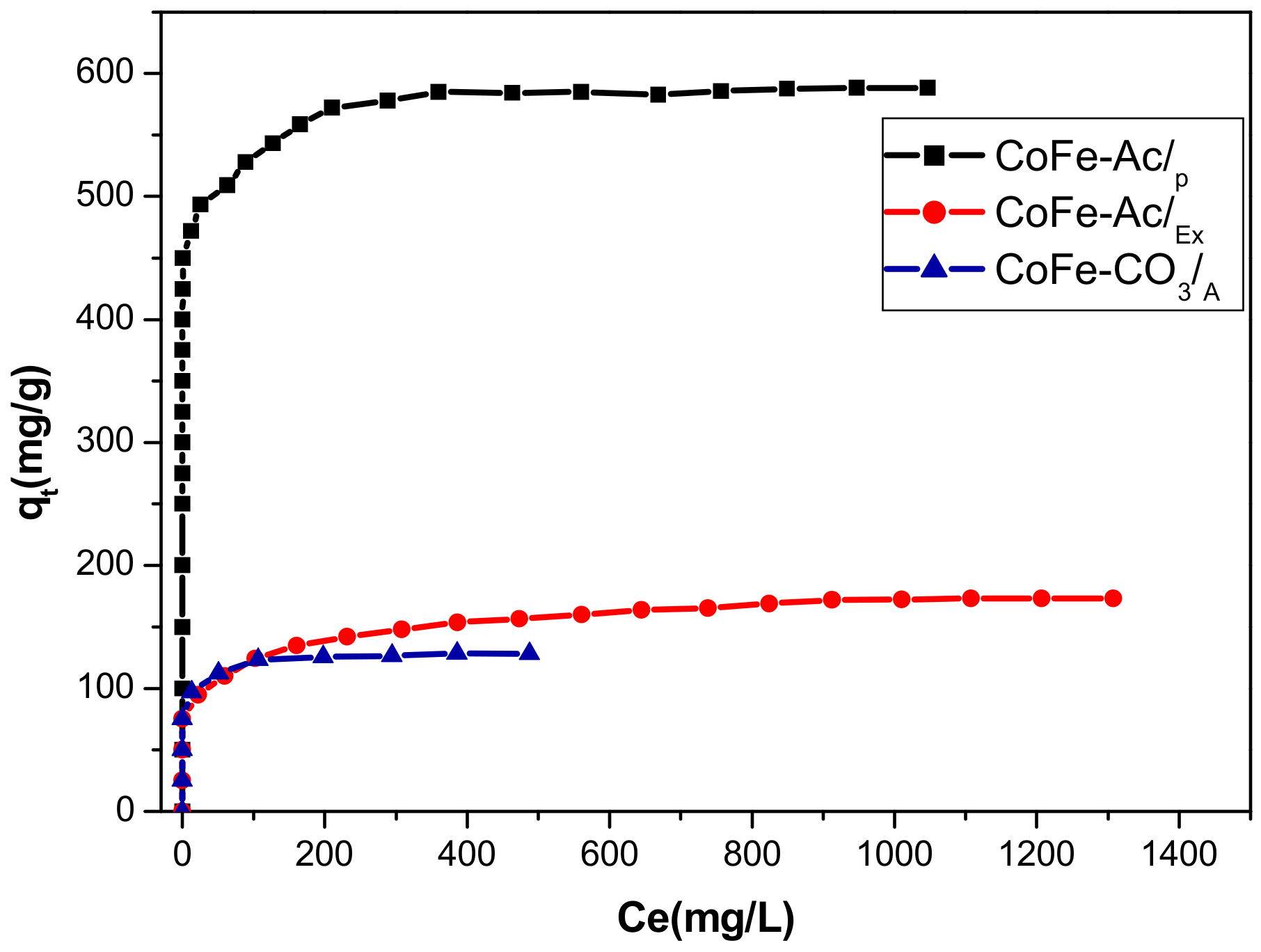

As can be seen, CoFe-CO
3/
A and CoFe-Ac/

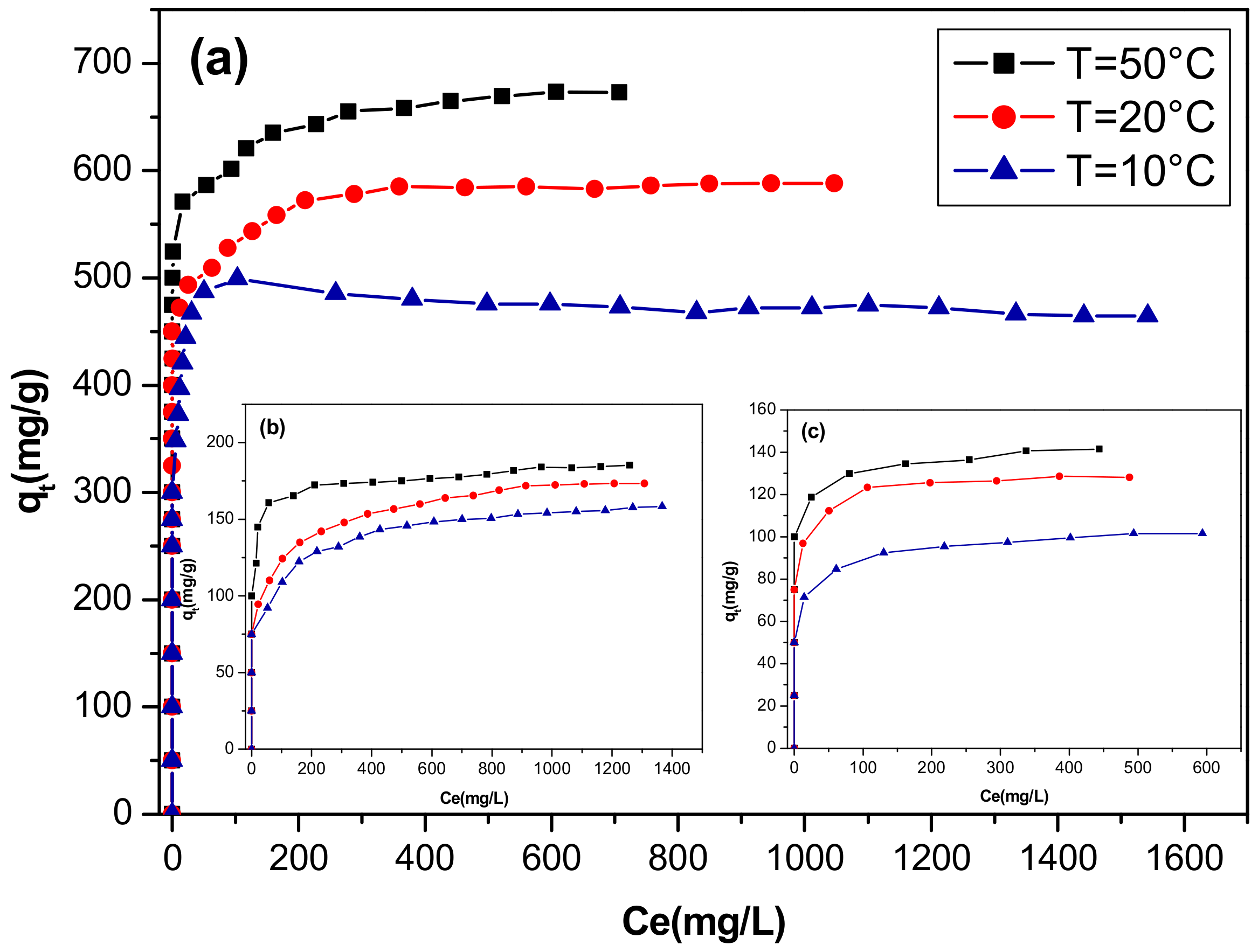

Ex behave similarly to LDHs prepared by coprecipitation in an air atmosphere. Their final interlamellar distances remain unchanged after adsorption and their removal capacities are low (128 and 175 mg/g). This is due to the great affinity of the carbonate anion with the positively charged LDH layers. Thus, the anionic exchange between the carbonate and the anionic dye is energetically disadvantaged and, exclusively, surface adsorption takes place (physisorption). This physisorption is confirmed by the small positive values of ΔH° (ΔH° < 40 kJ/mol) obtained for these two compounds (
Table 4) and by the low k
2 constant of the second order kinetic model (
Table 3).
As shown in
Table 6, LDHs with carbonate anion heated at about 500 °C present significantly higher adsorption capacities due to the high surface properties and to the memory effect resulting after calcination. In this case, besides physisorption on the external surface, the intercalation of the anionic dye appears to be the main sorption process during the reconstruction of the layer structure. The intercalation may lead to anionic dye standing perpendicularly to the lamellar sheets and giving a high basal spacing. The anionic dye may also be intercalated in a flat position, which results in a limited interlamellar distance [
69]. Even if the calcination-reconstruction process clearly improves the LDH adsorption capacities, the intercalation of the anions remains below the theoretical value allowed by the M
2+/M
3+ ratio. The charge compensation is fulfilled by the simultaneous intercalation of the carbonate anion present in the effluent as clearly shown by IR studies. Among the examples cited in
Table 6, only the intercalation of Congo Red into calcined Zn-Al-CO
3 reaches the theoretical value (1540 mg/g). The performance of LDHs also prepared by coprecipitation and containing other intercalated anions depends on the size of these anions. LDH intercalated with small anions: nitrate, chloride, and sulfate have interlamellar distances very close to the LDH-CO
3 distance. Their adsorption performance is variable as shown in
Table 6. For sulfate and nitrate, the adsorption capacity is medium or even low. Significantly larger anions such as dodecylsulfate (SDS) lead to the formation of LDH with a significant interlamellar distance (25.5 Å). This weakens cohesion interlayers and, therefore, facilitates the exchange. Such conditions are at the origin of the high adsorption capacity observed in this case (707.76 mg/g).
The sorbent proposed in the present work (LDH-CoFe-Ac/
p) is based on a new approach. This material was prepared by forced hydrolysis in a polyol medium. This route, described for the first time for the preparation of the Layered Hydroxide Salts (LHS) [
70], has been extended to the synthesis of LDH based on the 3D transition elements [
27,
39,
71]. This synthesis method presents two main advantages: (i) the reaction is conducted without atmosphere control since polyol avoids the carbonate anions’ contamination and (ii) the pH is mainly controlled by the amount of acetate anion present in the precursor salts [

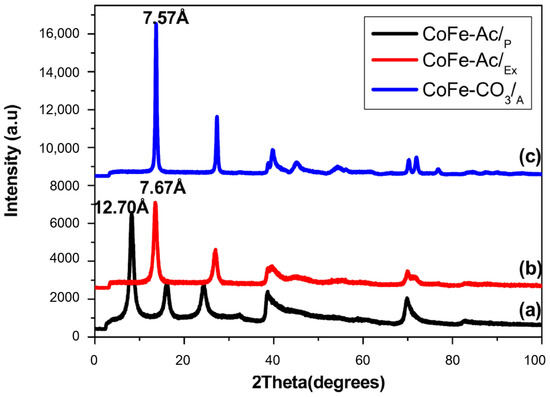

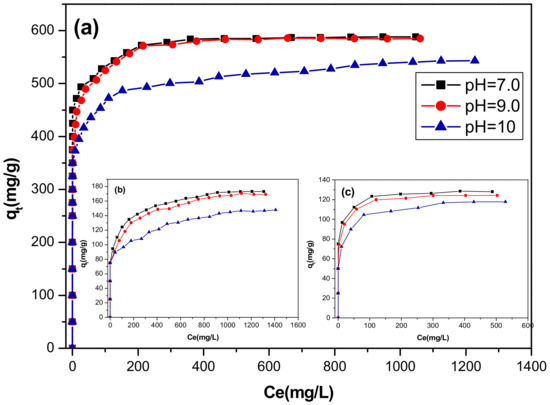

70]. In this new LDH, the acetate anion was chosen as the intercalate anion. This leads to a relatively large inter-layer distance (12.70 Å). As dodecylsulphate, this likely weakens the cohesion of sheets and, thus, will favor the exchange reaction. Such factors enhance the adsorption capacity leading to the high adsorption efficiency observed for this compound (588 mg/g). The high ΔH° value obtained ΔH° > 40 kJ/mole means that the adsorption is characterized by a physisorption effect followed by a chemical effect (intercalation reaction). This is in keeping with results reported on the sorption of EB and similar dyes on ZnAl-Cl [
14] and the sorption of direct red 2 on calcined hydrotalcite [
25]. The occurrence of both physisorption and chemical sorption via intercalation is also confirmed by the high constant K
2 of the second order-kinetic model (

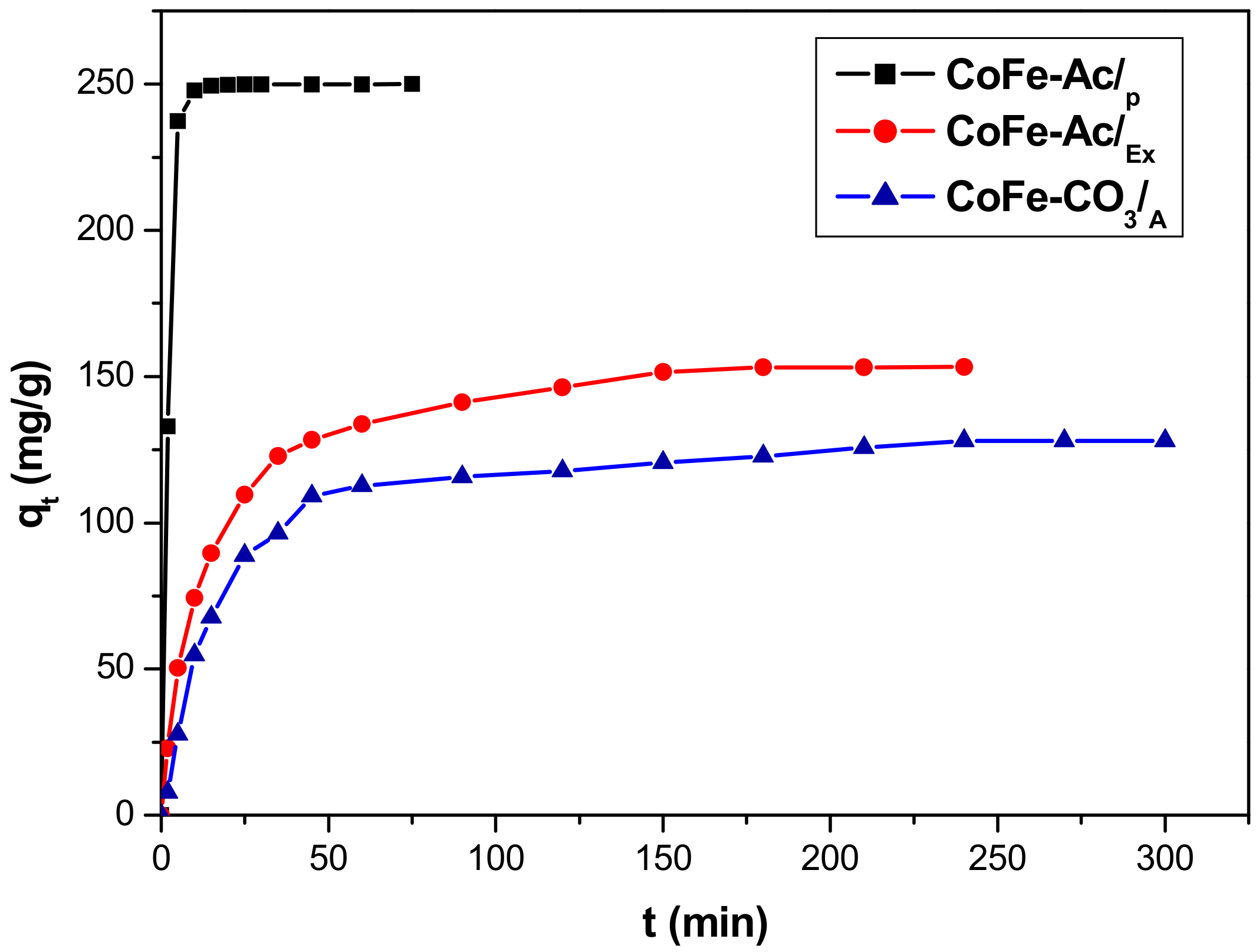

Table 3).

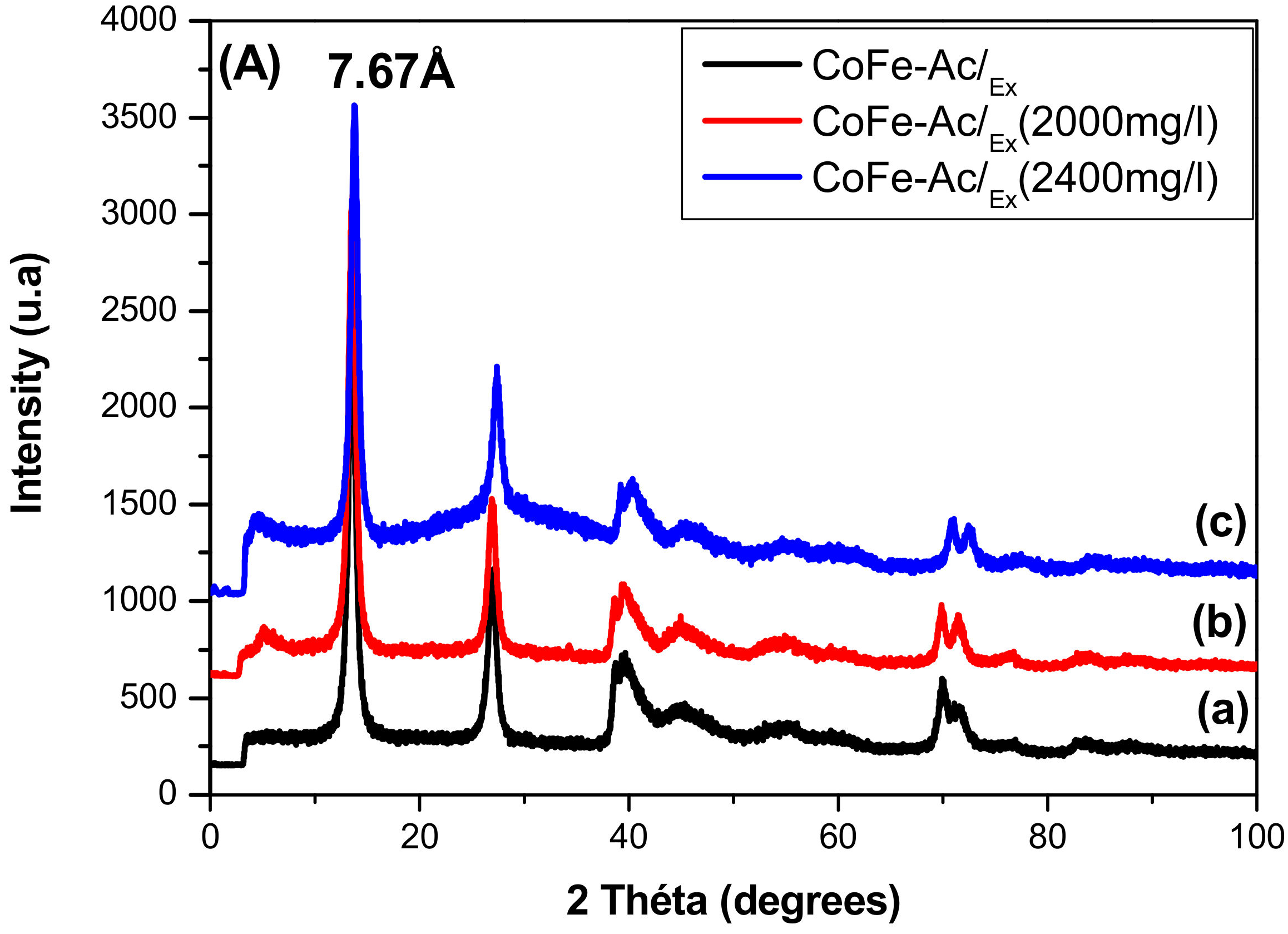

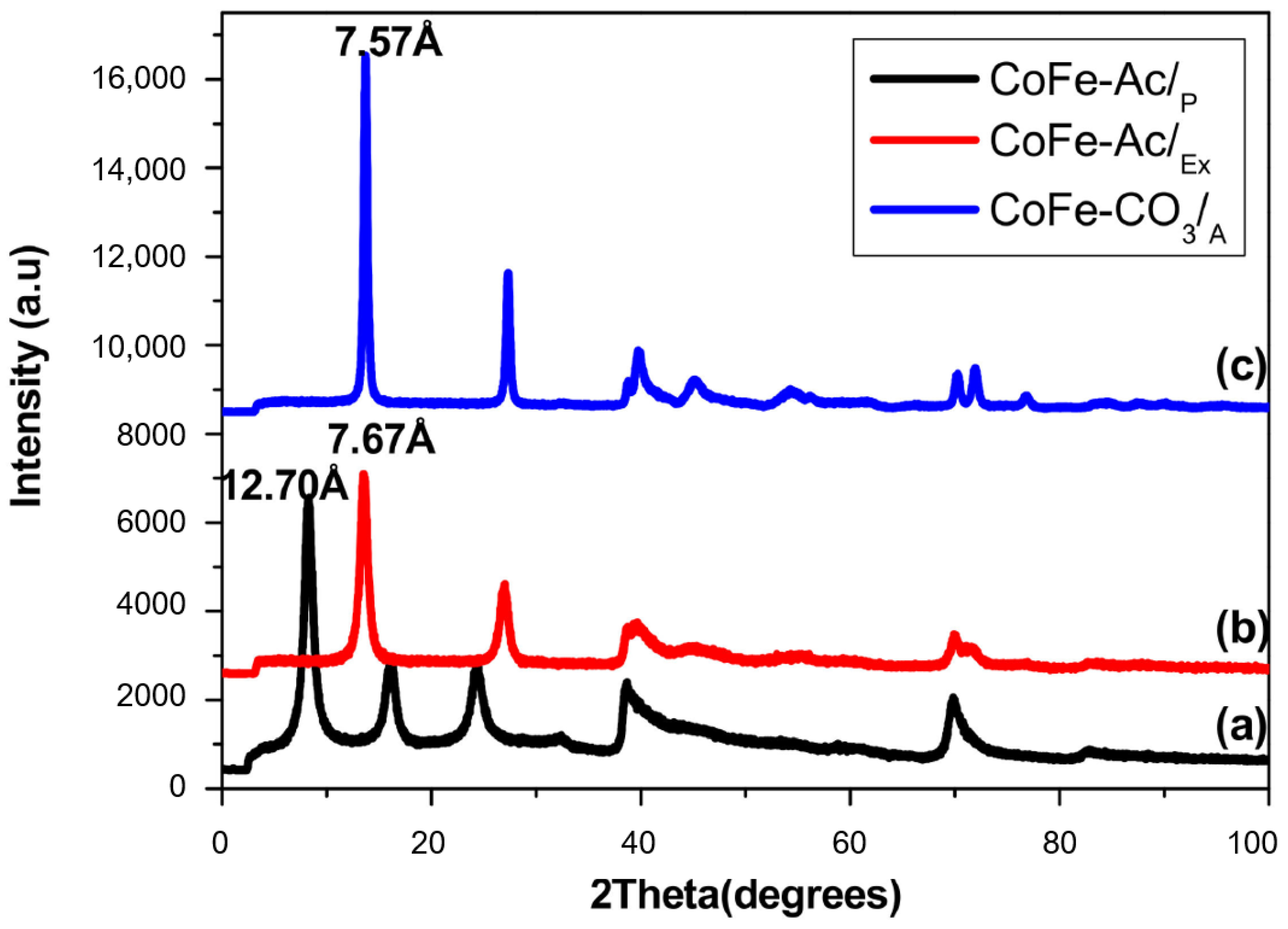

X-ray diffraction analyses clearly confirm these results. They show that the adsorption processes are mainly controlled by the dye concentration. When the concentration is low (100 mg/L), only physisorption occurred (adsorption on the external surface). No change in basal spacing (12.70 Å) was observed. XRD patterns remain identical before and after adsorption (

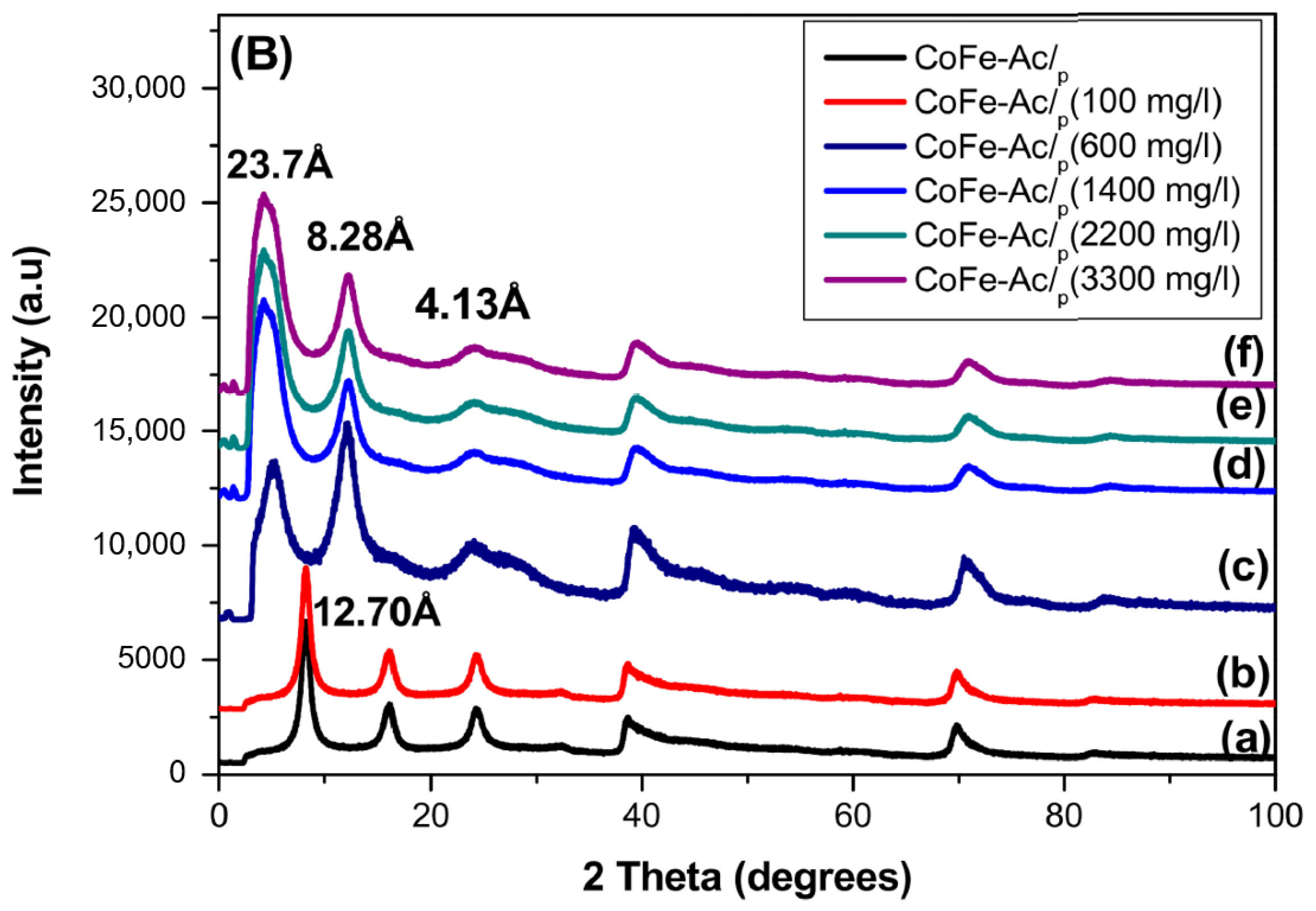

Figure 11B(a,b)). At a higher concentration, the chemisorption phenomenon (exchange/intercalation) begins to act in addition to the surface adsorption. The basal spacing 12.70 Å disappeared giving way to the appearance of two new distances (23.7 Å and 8.28 Å) (
Figure 11B(c–f)).
These results allowed us to deduce that the intercalation of direct red 2 gave rise to the formation of two LDH phases with the same brucite-like layers but with two different interlamellar distances. The first phase corresponding to the highest interlamellar distance (23.7 Å) results from the intercalation of direct red 2 in an inclined orientation toward the brucite-like layers. Taking into account the long axis length (26 Å) (
Figure 1) and the thickness of the brucite-like layer (4.8 Å), the inclination angle calculated is about 46°. Similar interlamellar distance was obtained for the adsorption of the same dye on calcined hydrotalcite [
25].
The second phase is characterized by two peaks: an intense, symmetrical peak at 8.28 Å and its harmonic at 4.13 Å with dissymmetrical shape and low intensity. This lamellar phase with an interlamellar distance of 8.28 Å can result from the intercalation of direct red 2 in an almost flat position parallel to the layers, as was previously observed for RR-3FB intercalated into MgAl-SO
4 [
19] and for RR-X-3B intercalated into calcined ZnAl-CO
3 [

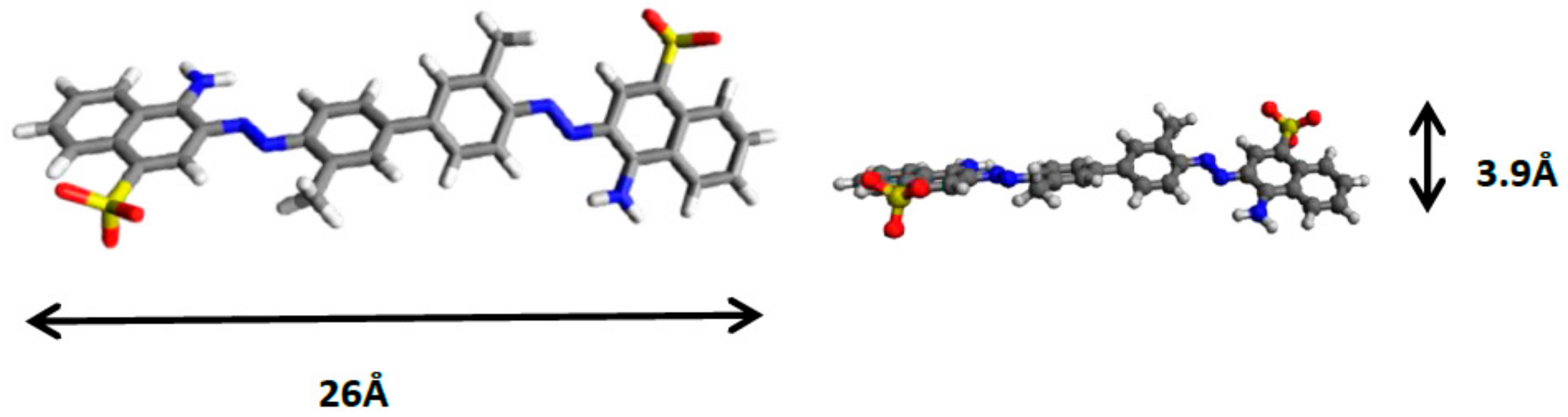

69]. The short axis length of direct red 2 (3.9 Å) (
Figure 1) is very close to that of RR-3FB (3.7 Å) and to that of RR-X-3B (4 Å). Taking into account the thickness of the brucite-like layer, a predicted interlamellar distance of 8.70 Å would be expected. This value corresponds to what was observed. This orientation corresponds to a slight inclination (7°) of the direct red 2 long axis relative to the layers.
There exists a balance between the two phases depending on the dye concentration in the solution. Relatively low concentrations favour the lamellar phase corresponding to the direct red 2 anion intercalated almost parallel to the layers (600 mg /L,
Figure 11B(c)) (Interlamellar distance 8.28 Å). Higher concentrations facilitate the organization of anions in an inclined position relative to the layers (Interlamellar distance 23.7 Å) (
Figure 11B(d–f)).
Lastly, the comparative study of both CoFe-Ac/
P and CoFe-Ac/
Ex brings an interesting insight into the relative importance of physisorption (external surface adsorption) and chemical sorption (intercalation). CoFe-Ac/
Ex, containing carbonate as an intercalate anion, was obtained by a topotactic anion exchange reaction from the CoFe-Ac/
P compound. It follows that its microstructure likely remains identical (porosity and specific surface). Thus, we can suppose that the external surface adsorption for CoFe-Ac/
p is very close to that of CoFe-Ac/
Ex (i.e., 170 mg/g). This makes it possible to estimate the contribution of intercalaion around 418 mg/g showing that chemical sorption is predominant. It corresponds to 2/3 of the theoretical exchange capacity. This difference observed with respect to the theoretical intercalation rate appears to be a common characteristic of the LDHs used as adsorbents, regardless of their synthesis method (see references cited in
Table 6 and Reference [

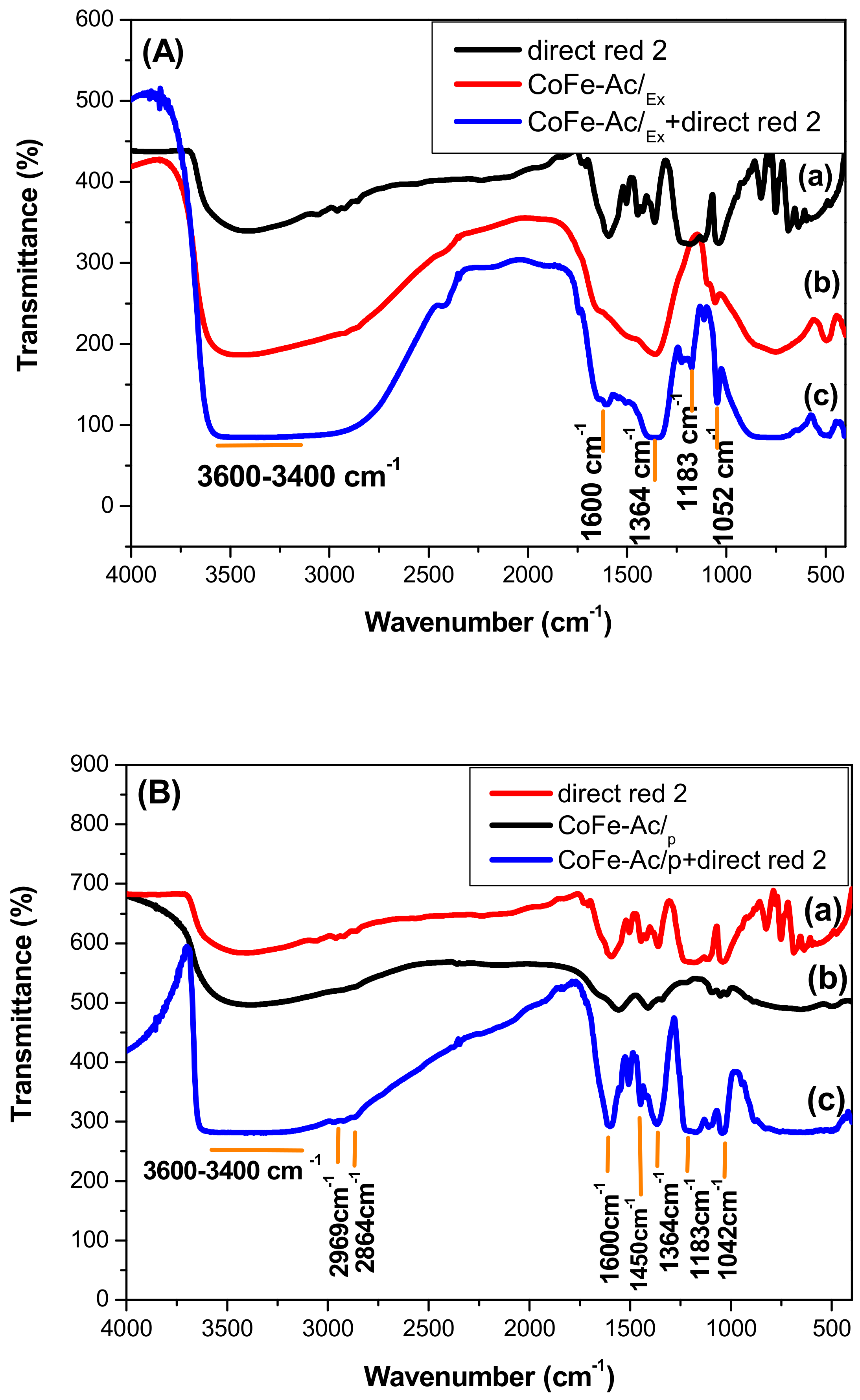

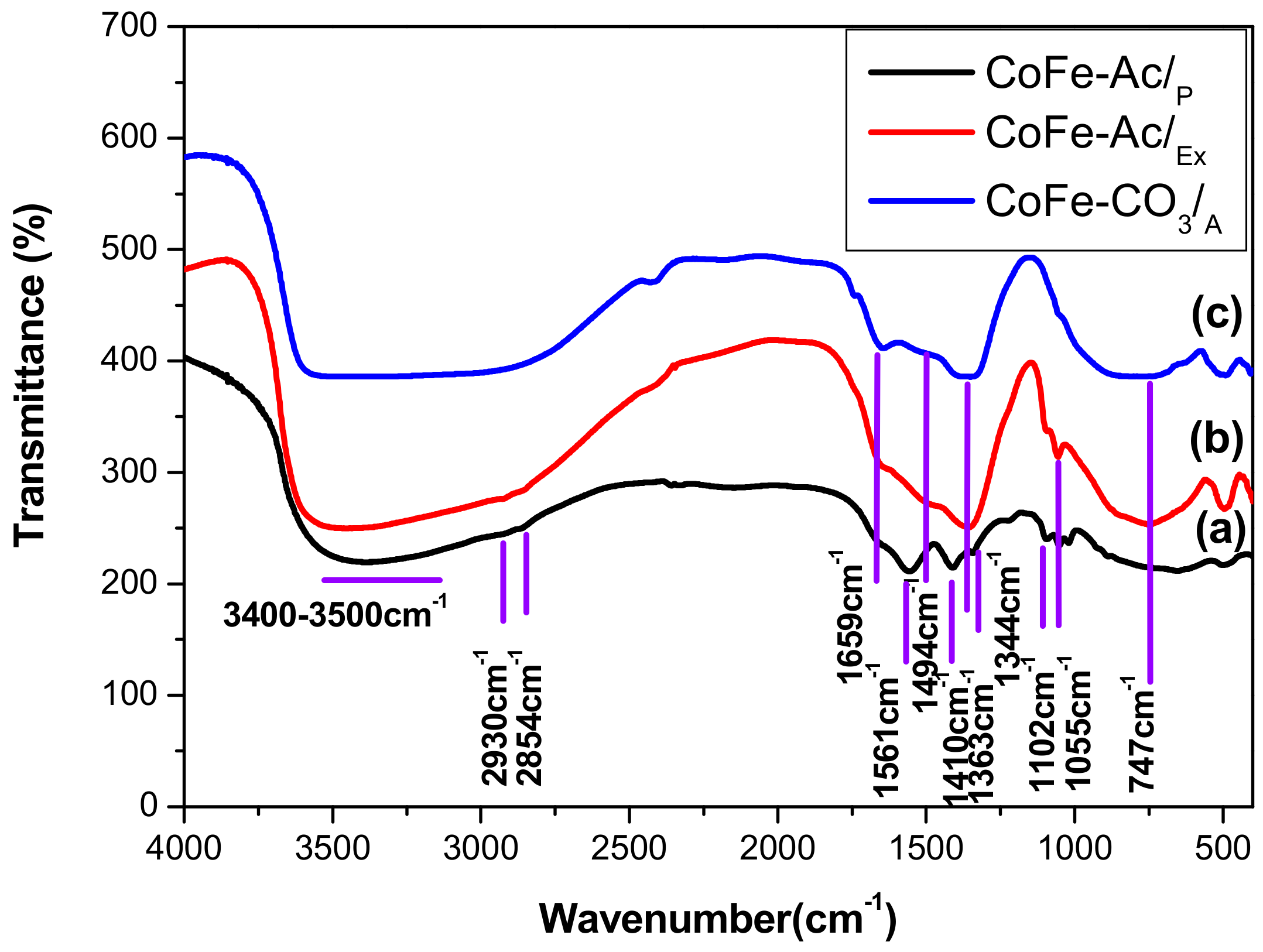

17]). In the present case, the compensating interlayer anions are mostly acetate. However, the concomitant intercalation of the carbonate ion coming from air cannot be excluded since the spectra of the two species overlap in the 1600–1300 cm
−1 domain. Such a phenomenon was also observed regarding other organic dyes such as Methyl Orange adsorbed on Ni and ZnAl-LDH where compensating anions are nitrate and/or carbonate [
72] and in the case of fluorescein on ZnAl-Hydrotalcite with perchlorate as a compensating anion [
17].
5. Conclusions

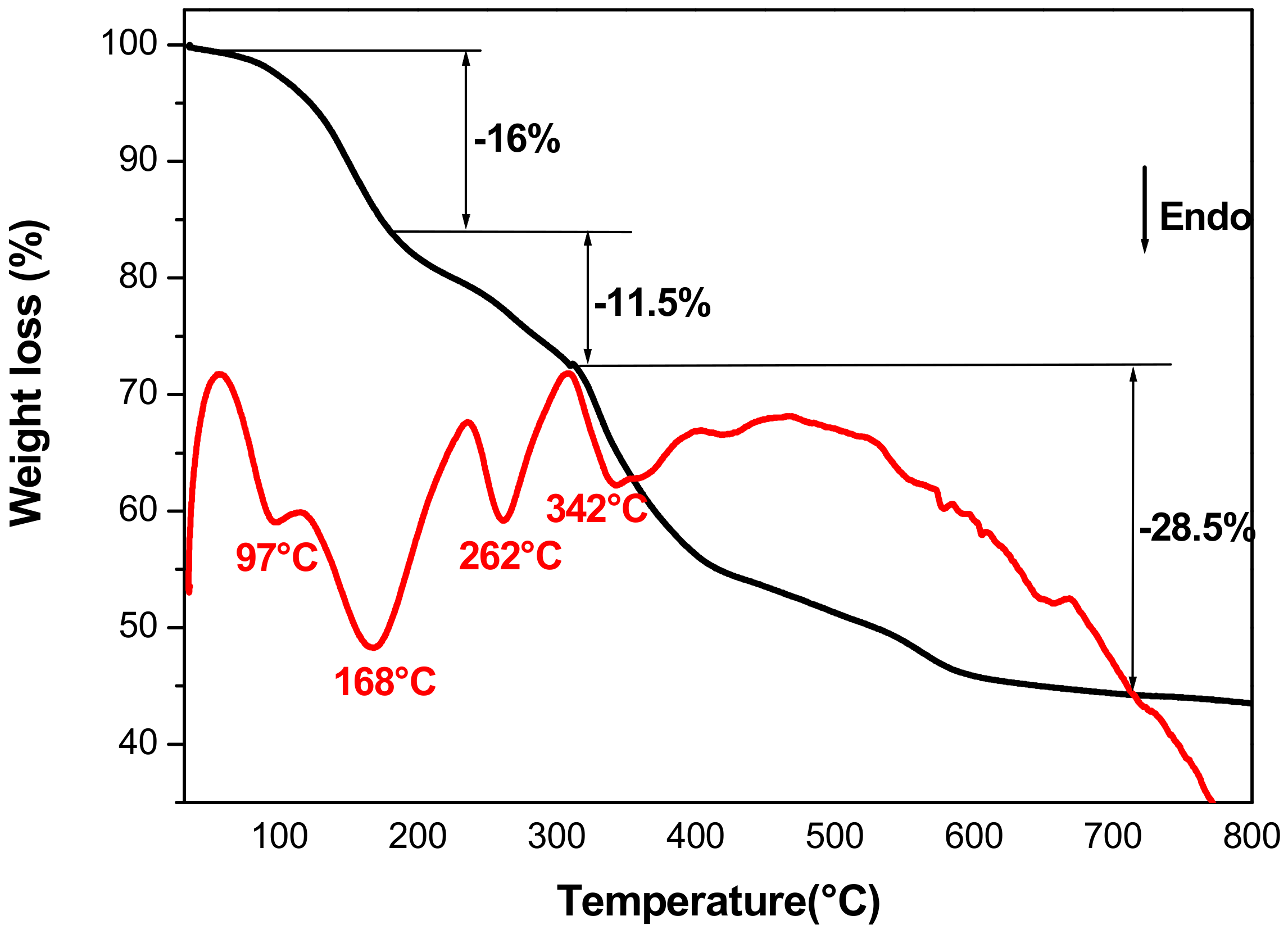

In the present study, a new CoFe-Ac/P LDH was prepared by forced hydrolysis in a polyol medium, and its structural properties were confirmed by complementary characterization techniques.
The synthesised CoFe-Ac/P LDH has shown anion exchange properties. Indeed, acetate interlayer species were successfully exchanged by carbonate anions with a topotactic reaction.
The adsorption capacities of dye on CoFe-Ac/P were significantly affected by the initial contact time, initial dye concentration, pH, temperature, and by the structural properties (the nature of the initial interlayer anion and morphology).
In comparison with CoFe-Ac/Ex and CoFe-CO3/A LDHs, it is demonstrated that the CoFe-Ac/P compound displays unique adsorption properties for direct red 2 dye. The adsorption was induced by physisorption at a low concentration of dye. High concentrations of dye favour the intercalation of dye anions via the exchange reaction with acetate anions. In addition to physisorption, this intercalation, which is considered as a chemical sorption, confers to this material an efficient uptake capacity (≈588 mg/g).
The intercalation of the azo dye anion leads to the formation of two LDH phases differing in the orientation of this anion relative to the layers. The first phase corresponds to an intercalation of the anion almost parallel to the layers. In the second phase, the azoic anions are inclined about 46° relative to the layers. Higher concentrations favour the latter orientation.
Lastly, when taking into account the obtained results, the forced hydrolysis in a polyol medium constitutes an original way and easy method to elaborate layered double hydroxides exempt of contamination by carbonates with controlled morphology, nanometric size, a more significant surface area, and, consequently, a good dispersion of particles. In addition, the acetate anion has been chosen as the intercalated specie since it leads to high interlamellar distance facilitating the exchange reaction. Altogether, these characteristics are at the origin of the efficient adsorbent capacity of this material and, accordingly, confer on it a major interest in the retention of the pollutants contained in the industrial effluents.
