Investigation of Yield Surfaces Evolution for Polycrystalline Aluminum after Pre-Cyclic Loading by Experiment and Crystal Plasticity Simulation
Previous Article in Journal
Formulation of Bicelles Based on Lecithin-Nonionic Surfactant Mixtures
Article

Characterization and Analysis of Porosities in High Pressure Die Cast Aluminum by Using Metallography, X-Ray Radiography, and Micro-Computed Tomography

Department of Mechanical Engineering, University of Memphis, Memphis, TN 38152, USA
*
Author to whom correspondence should be addressed.
Materials 2020, 13(14), 3068; https://doi.org/10.3390/ma13143068
Received: 4 June 2020 / Revised: 26 June 2020 / Accepted: 2 July 2020 / Published: 9 July 2020
(This article belongs to the Section Manufacturing Processes and Systems)

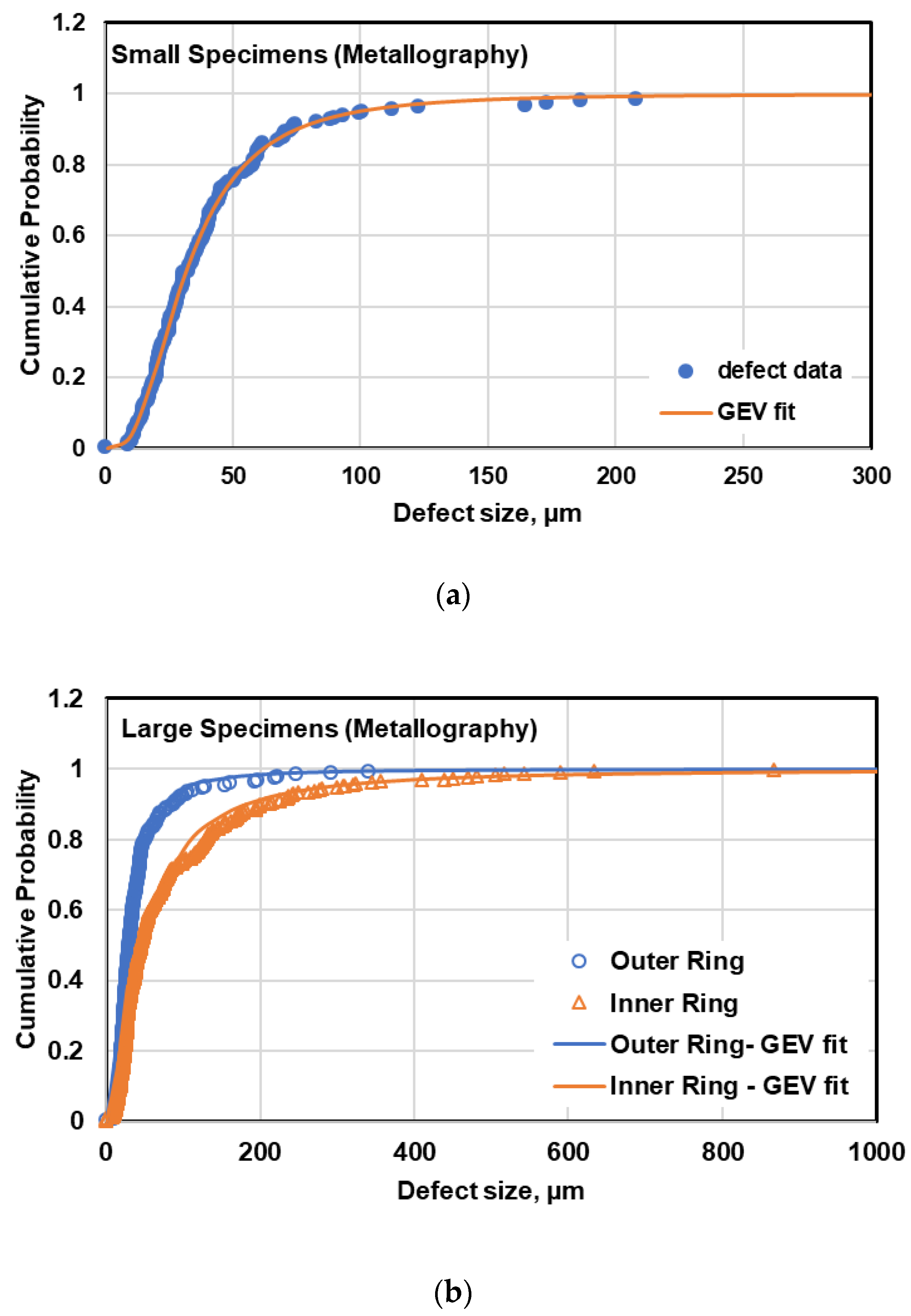

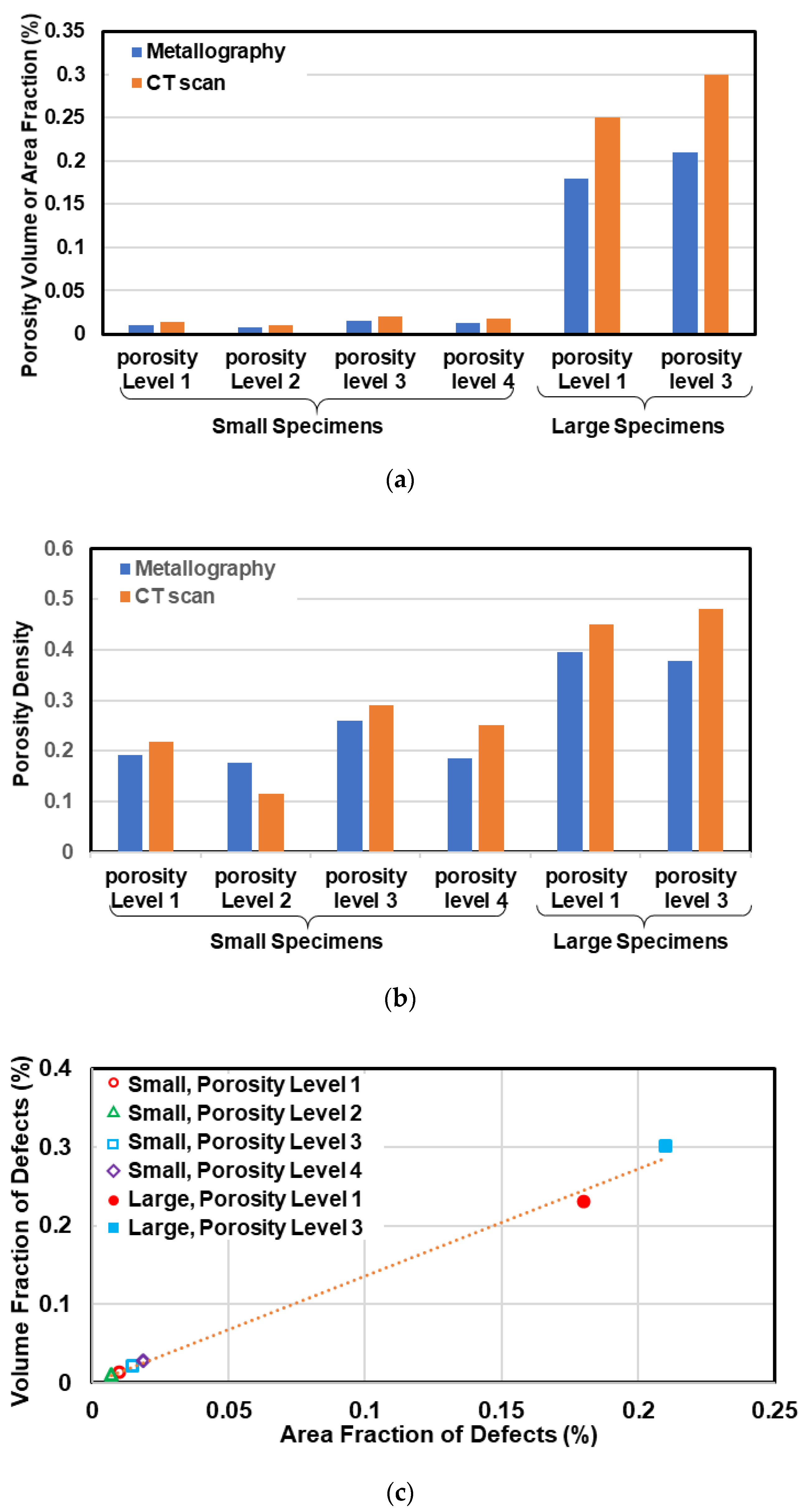

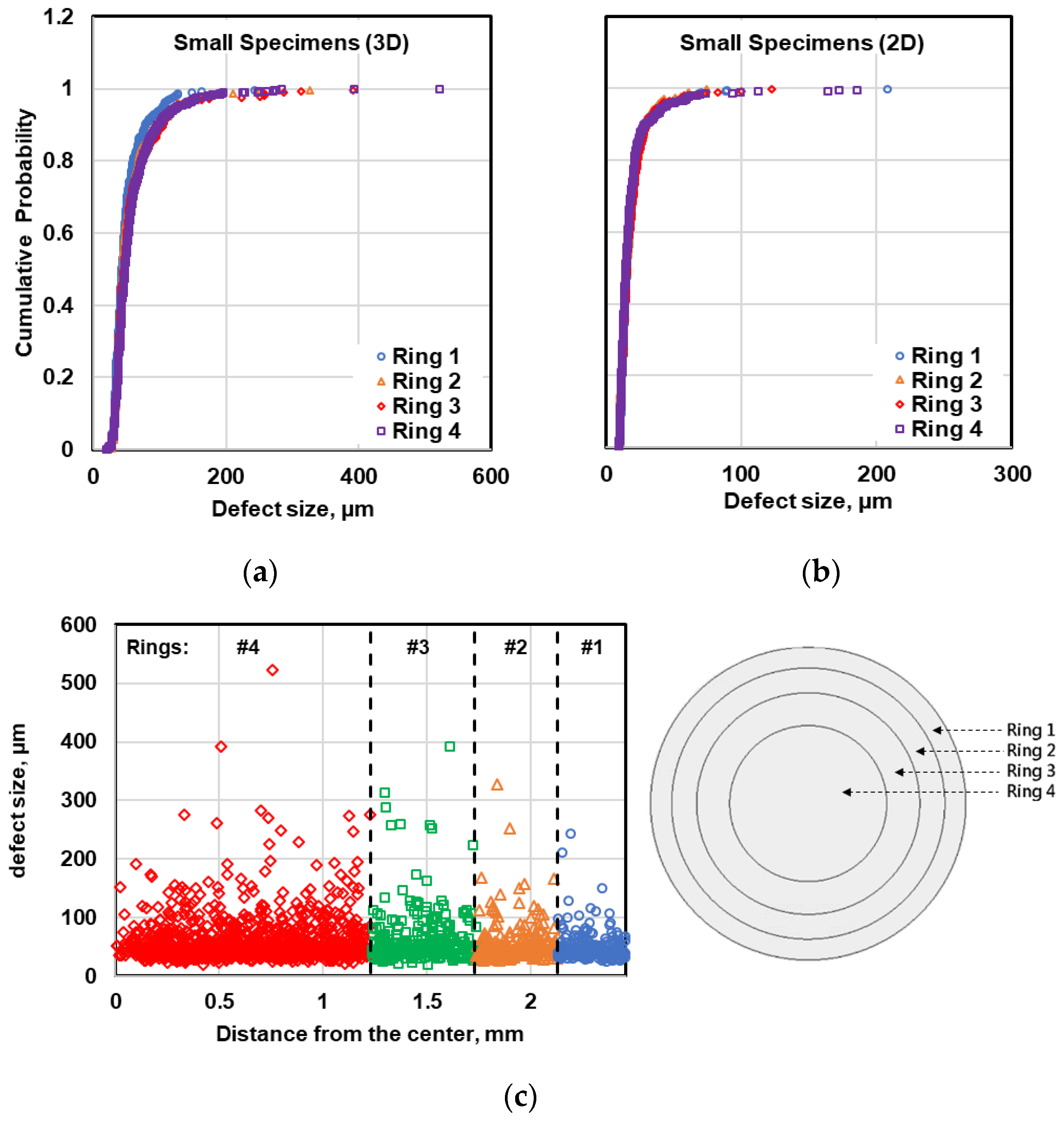

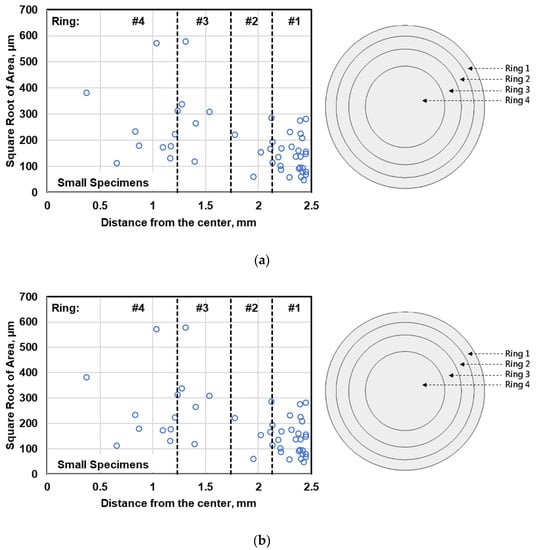

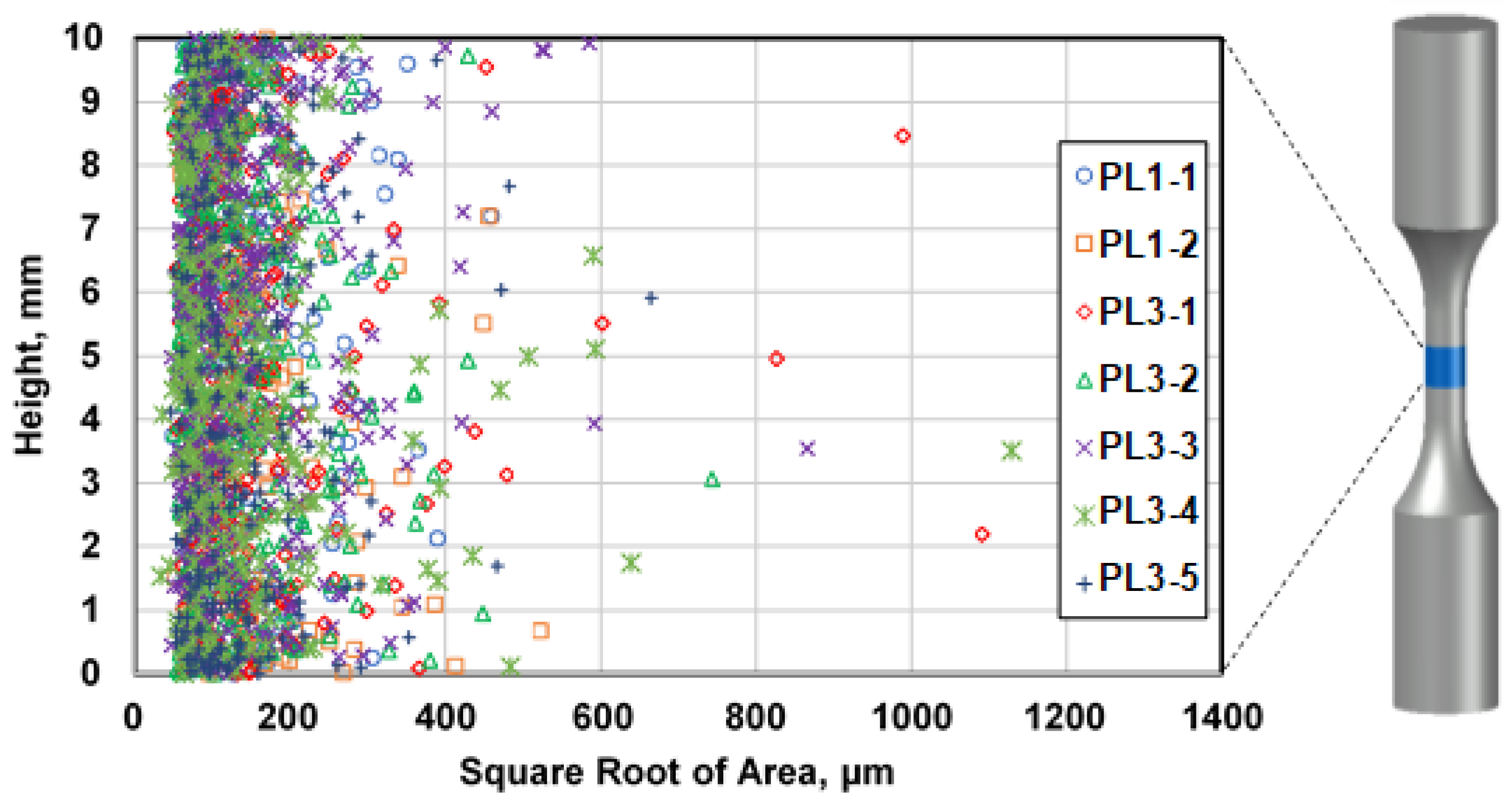

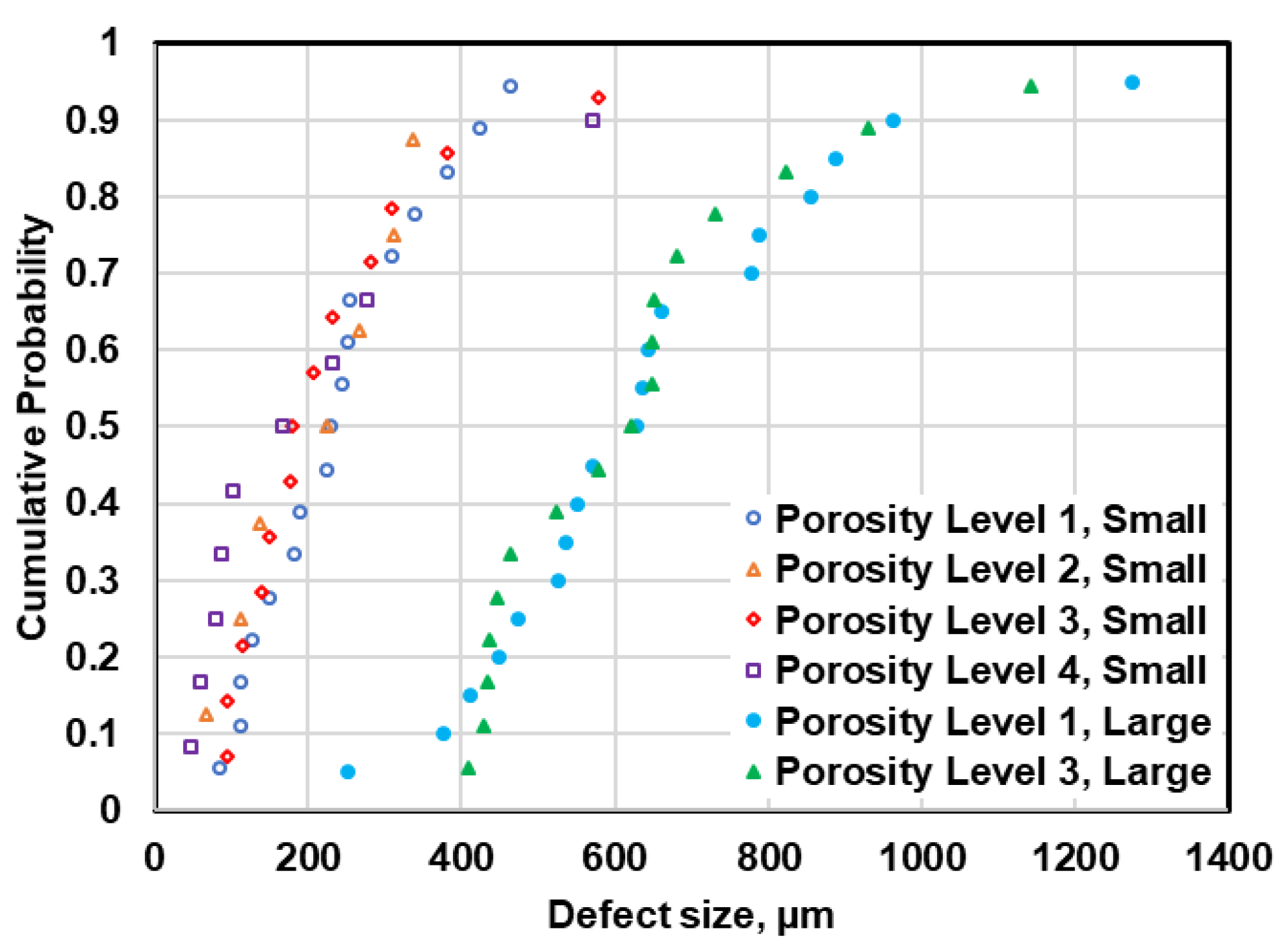

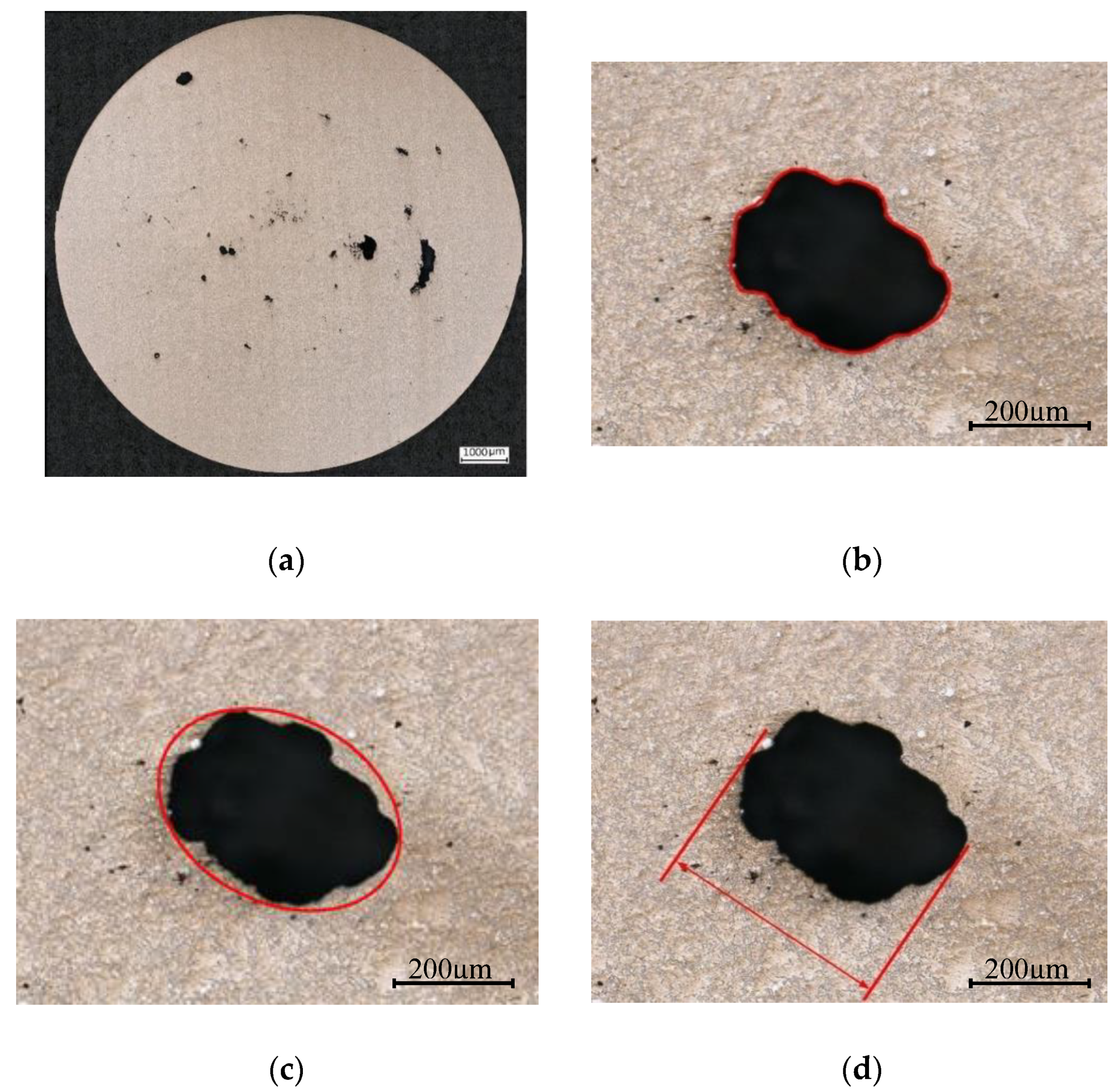

Mechanical performance of cast aluminum alloys is strongly affected by the defects formed during solidification. For example, fractography studies of the fatigue specimens have shown that fatigue failure in aluminum castings containing defects is almost always initiated from defects, among which pores are most detrimental. However, elimination of these pores is neither always economically nor technically possible. This work characterizes defects in high pressure die cast aluminum alloy as an illustrative material, but the methods used can be applicable to other types of castings and defects. The defects were evaluated using metallography as well as micro-computed tomography techniques. The variability of defects between the specimens of two sizes as well as different porosity levels are studied statistically. The distributions of defects based on location within the specimens are also analyzed. Moreover, the maximum defect size within the specimens are estimated using extreme value statistics, which can be used as an input to fatigue life prediction models. Extreme value statistics is applied on both 2D and 3D defect data. The accuracy of each approach is verified by comparing the estimated maximum defect size within the specimens with the maximum observed defects on fracture surfaces of fatigue specimens. View Full-Text
Keywords: high pressure die casting; defect characterization; extreme value statistics; aluminum castings high pressure die casting; defect characterization; extreme value statistics; aluminum castings
Show Figures

Figure 1

MDPI and ACS Style

Nourian-Avval, A.; Fatemi, A. Characterization and Analysis of Porosities in High Pressure Die Cast Aluminum by Using Metallography, X-Ray Radiography, and Micro-Computed Tomography. Materials 2020, 13, 3068. https://doi.org/10.3390/ma13143068

AMA Style

Nourian-Avval A, Fatemi A. Characterization and Analysis of Porosities in High Pressure Die Cast Aluminum by Using Metallography, X-Ray Radiography, and Micro-Computed Tomography. Materials. 2020; 13(14):3068. https://doi.org/10.3390/ma13143068

Chicago/Turabian Style

Nourian-Avval, Ahmad, and Ali Fatemi. 2020. "Characterization and Analysis of Porosities in High Pressure Die Cast Aluminum by Using Metallography, X-Ray Radiography, and Micro-Computed Tomography" Materials 13, no. 14: 3068. https://doi.org/10.3390/ma13143068
