Properties of Phosphorus-Slag-Based Cementitious Pastes for Stabilizing Lead
1
College of Hydraulic and Environmental Engineering, China Three Gorges University, Yichang 443002, China
2
Hubei Engineering Technology Research Center for Farmland Environmental Monitoring, China Three Gorges University, Yichang 443002, China
3
Engineering Research Center of Eco-environment in Three Gorges Reservoir Region, Ministry of Education, China Three Gorges University, Yichang 443002, China
*
Author to whom correspondence should be addressed.
Materials 2019, 12(23), 3831; https://doi.org/10.3390/ma12233831
Received: 9 October 2019
/
Revised: 15 November 2019
/
Accepted: 16 November 2019
/
Published: 21 November 2019

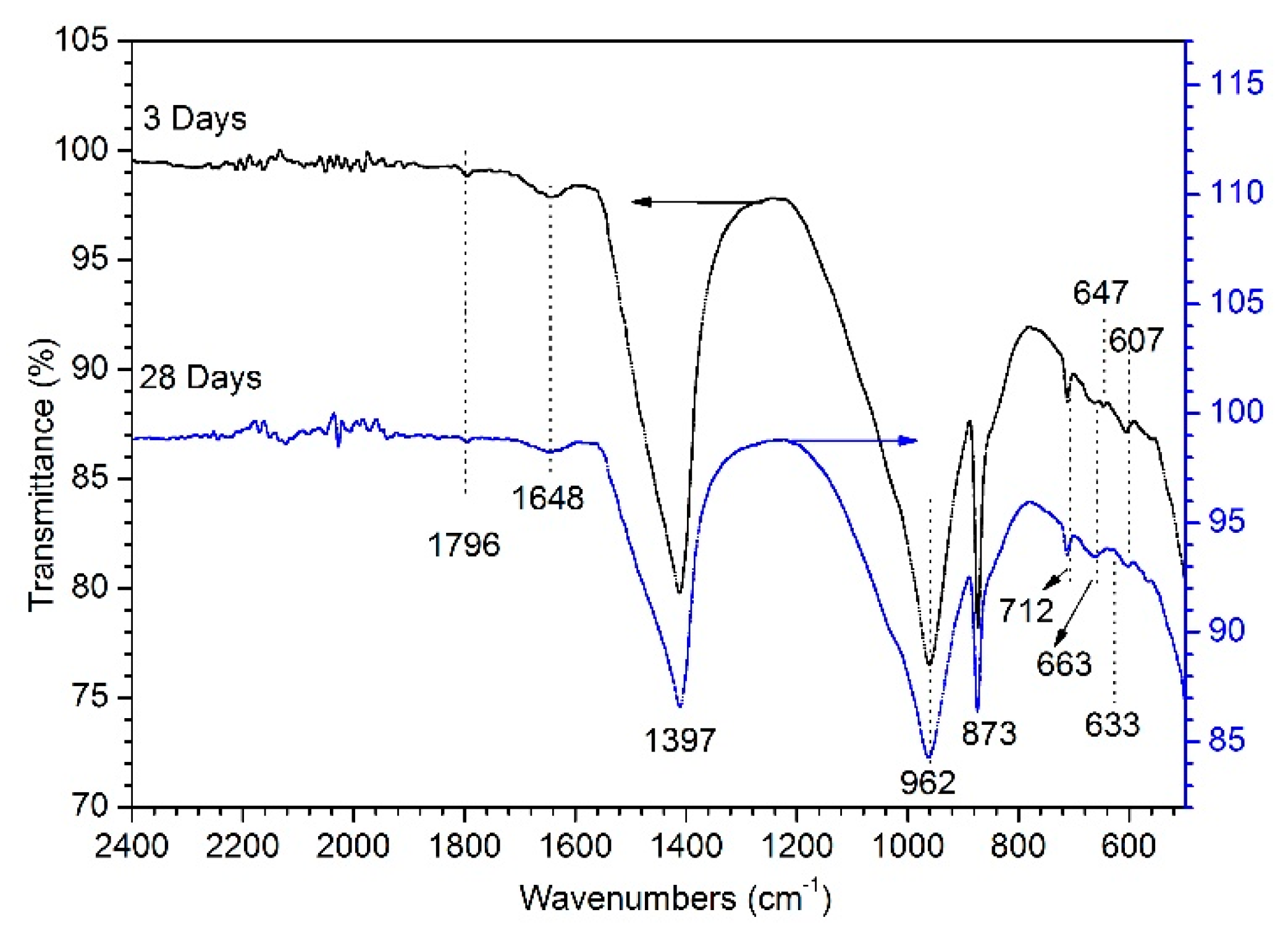

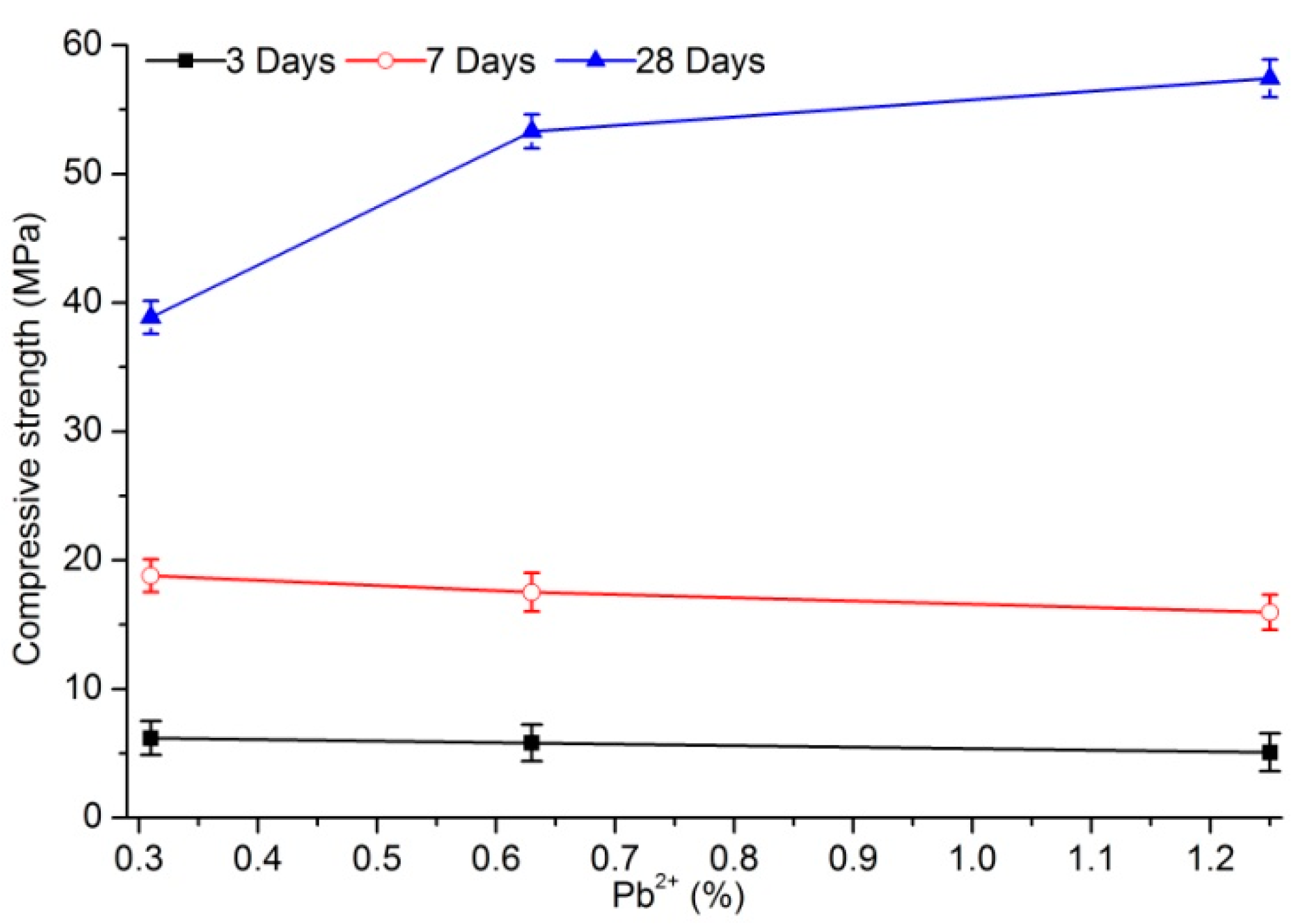

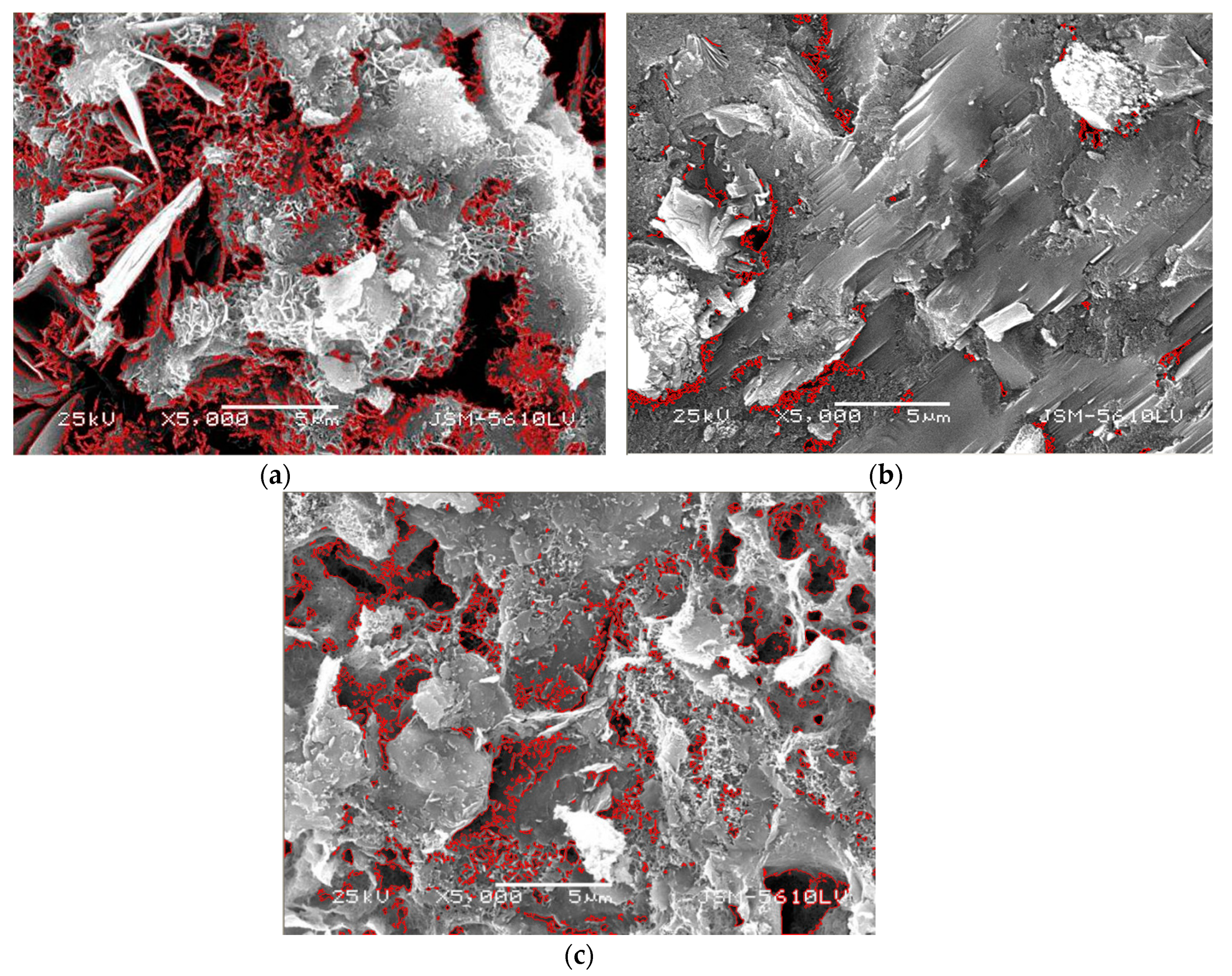

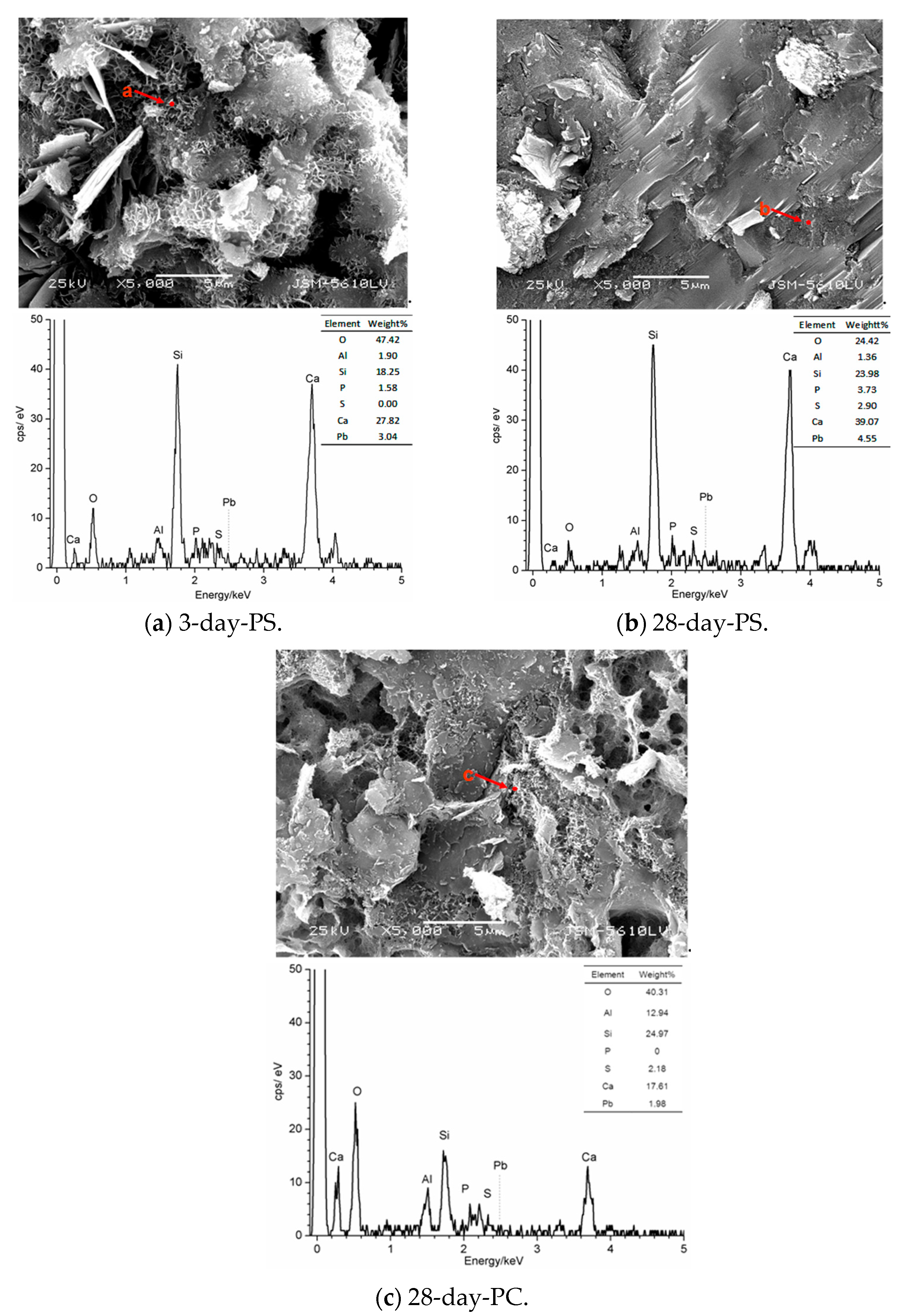

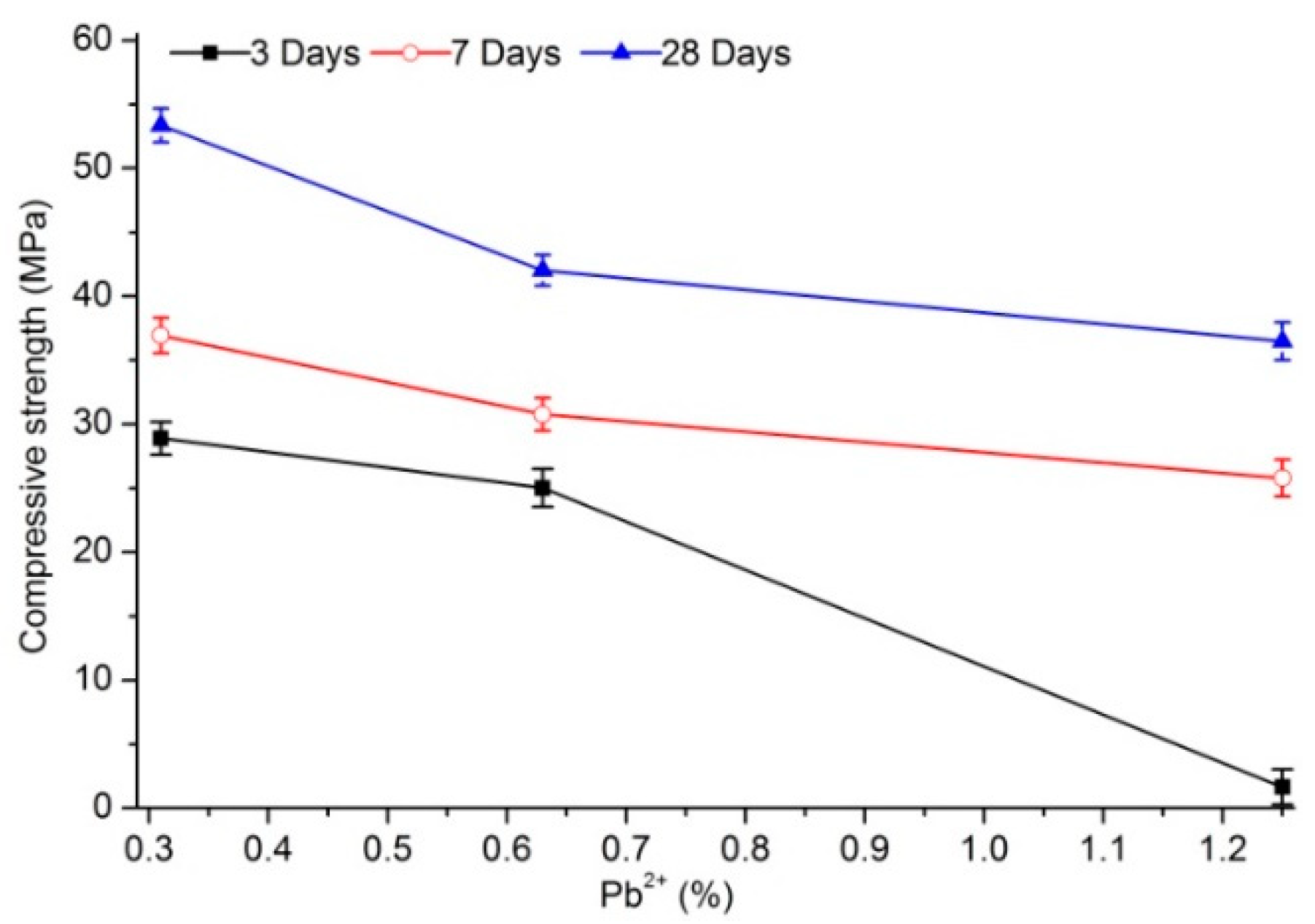

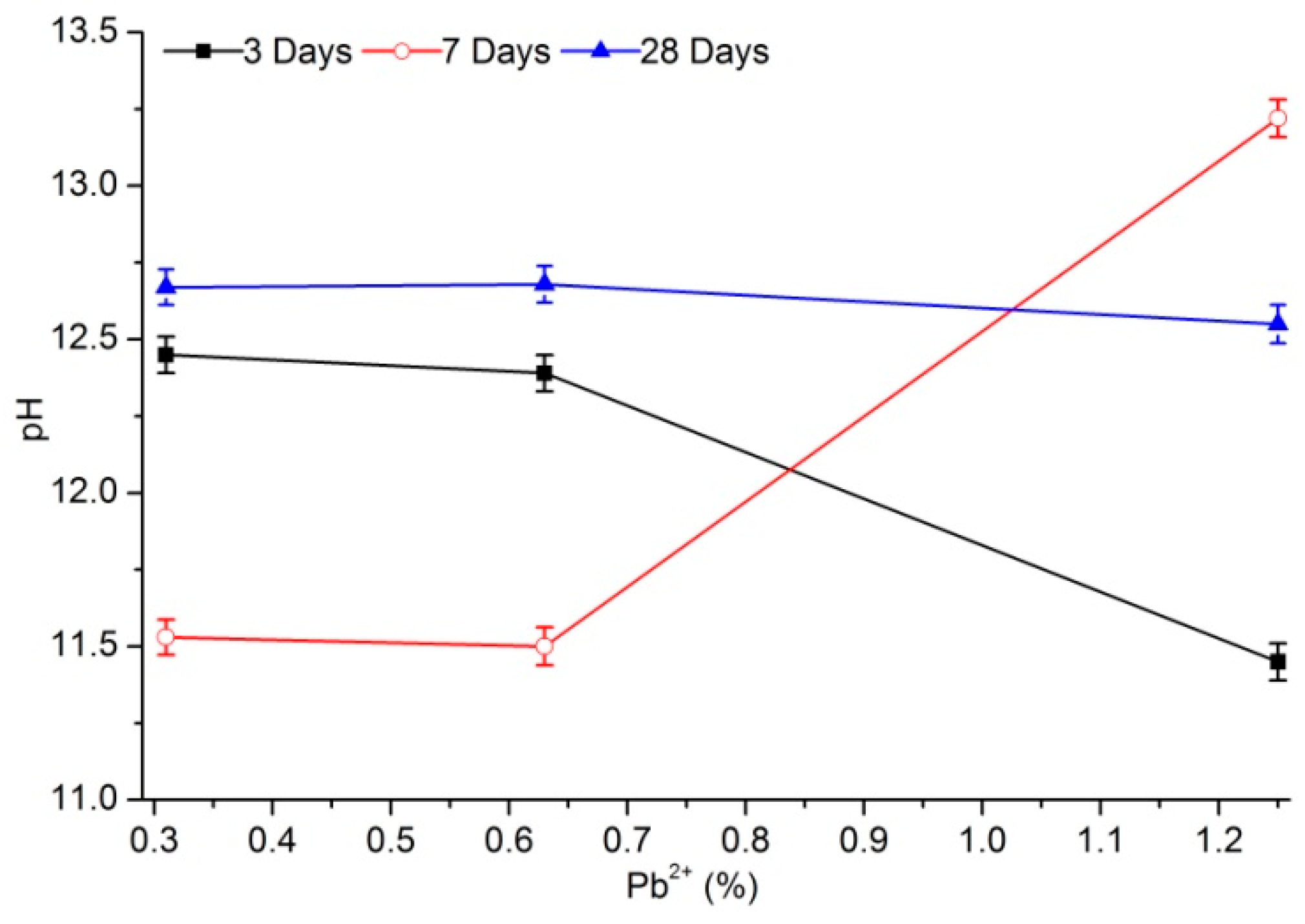

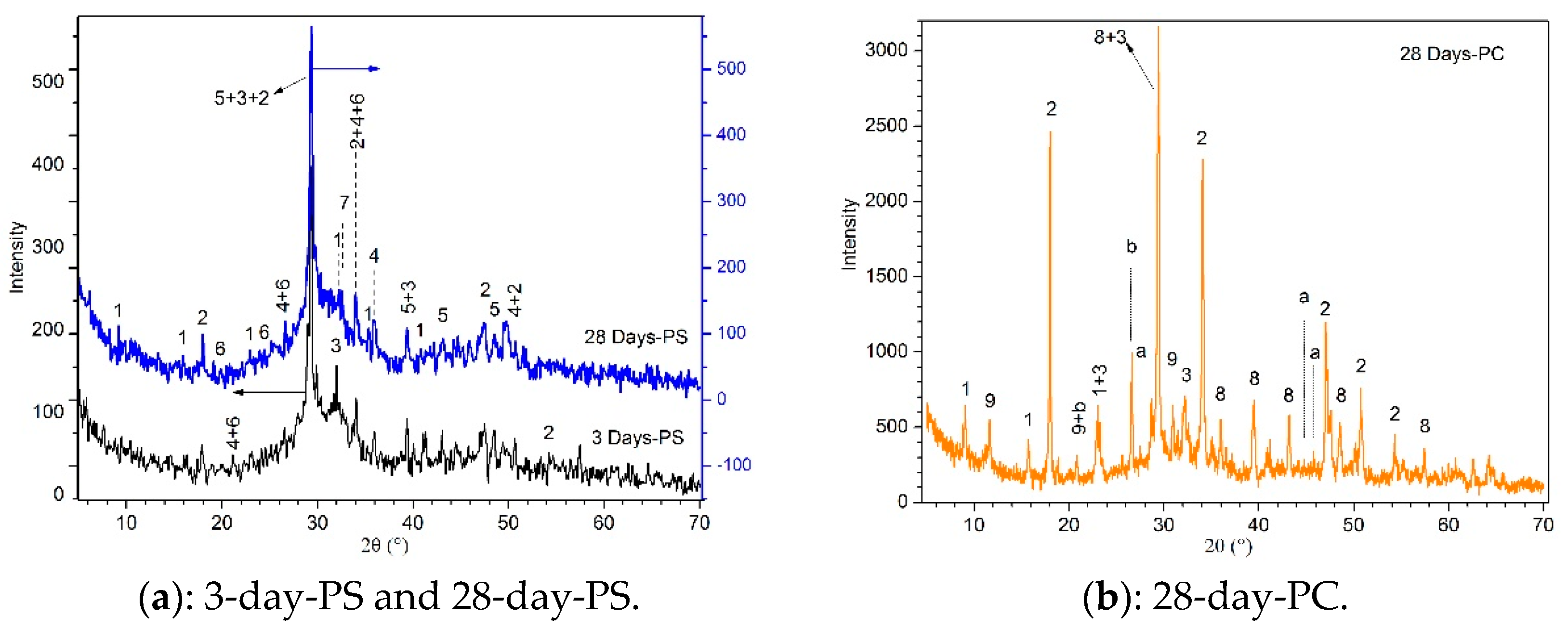

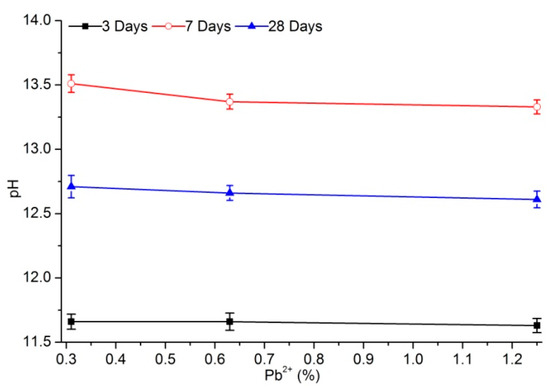

The properties and curing mechanism of leaded samples solidified with phosphorous-slag-based cementitious pastes are studied. The compressive strength, pH of percolate, and lead-ion concentrations of leaded samples stabilized with the phosphorous-slag-based cementitious pastes and cement were analyzed. Results confirmed that the phosphorous-slag-based cementitious paste performed much better than cement in terms of solidifying lead. The cured form of lead with phosphorous-slag-based cementitious pastes had higher compressive strength, lower lead leaching, and smaller change in pH. Higher lead content corresponded with more obvious advantagees of phosphorus-slag-based cementitious pastes and lower risk of environmental pollution. By means of X-ray Diffraction (XRD), Fourier Transform Infrared Spectroscopy (FTIR), and Energy Dispersive Spectrometer-Scanning Electron Microscope (EDS-SEM) analyses, we found that the hydration of phosphorus-slag-based cementitious pastes produced hydrated calcium silicate gels, ettringite and other minerals with large specific surface areas, as well as some leaded products that can combine with lead ions to form chemically stable leaded products. This finding well explained the high performance of phosphorus-slag-based cementitious pastes in terms of lead solidification and stabilization.
View Full-Text
Keywords:
phosphorus slag; lead; solidification; stabilization
▼
Show Figures

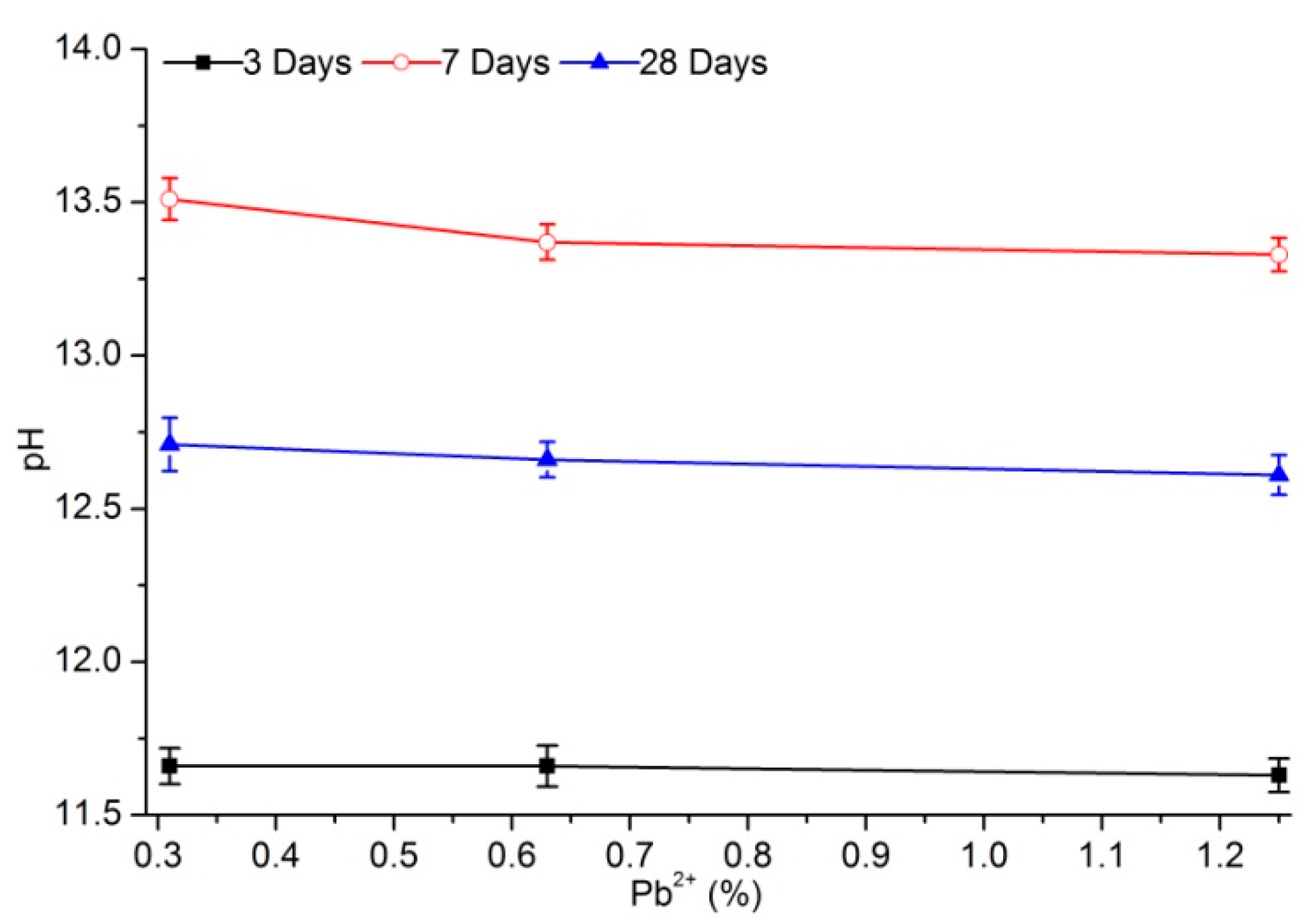

Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Huang, X.; Liu, L.; Zhao, X.; Tang, C.; Wang, X. Properties of Phosphorus-Slag-Based Cementitious Pastes for Stabilizing Lead. Materials 2019, 12, 3831. https://doi.org/10.3390/ma12233831
AMA Style
Huang X, Liu L, Zhao X, Tang C, Wang X. Properties of Phosphorus-Slag-Based Cementitious Pastes for Stabilizing Lead. Materials. 2019; 12(23):3831. https://doi.org/10.3390/ma12233831
Chicago/Turabian StyleHuang, Xuquan, Liang Liu, Xiaorong Zhao, Cilai Tang, and Xiaoshu Wang. 2019. "Properties of Phosphorus-Slag-Based Cementitious Pastes for Stabilizing Lead" Materials 12, no. 23: 3831. https://doi.org/10.3390/ma12233831
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
