Picosecond Laser Interference Patterning of Periodical Micro-Architectures on Metallic Molds for Hot Embossing
1
Institut für Fertigungstechnik, Technische Universität Dresden, George-Bähr-Str. 3c, 01069 Dresden, Germany
2
PROBIEN-CONICET, Dto. de Electrotecnia, Universidad Nacional del Comahue, Buenos Aires 1400, Neuquén 8300, Argentina
3
Fraunhofer-Institut für Werkstoff-und Strahltechnik IWS, Winterbergstr. 28, 01277 Dresden, Germany
*
Author to whom correspondence should be addressed.
Materials 2019, 12(20), 3409; https://doi.org/10.3390/ma12203409
Received: 5 September 2019
/
Revised: 10 October 2019
/
Accepted: 16 October 2019
/
Published: 18 October 2019
(This article belongs to the Special Issue Advances in Laser Technologies and Applications)

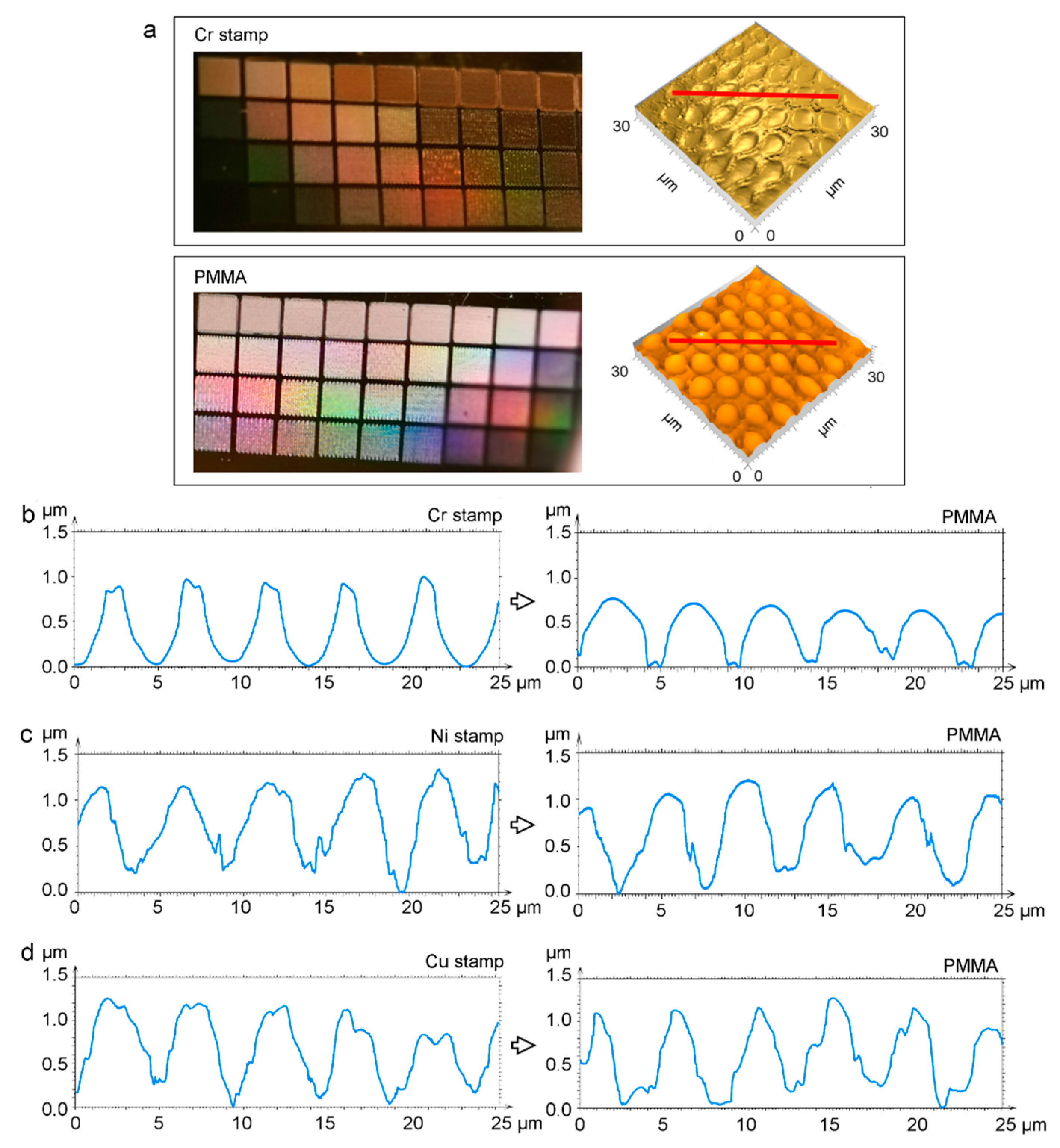

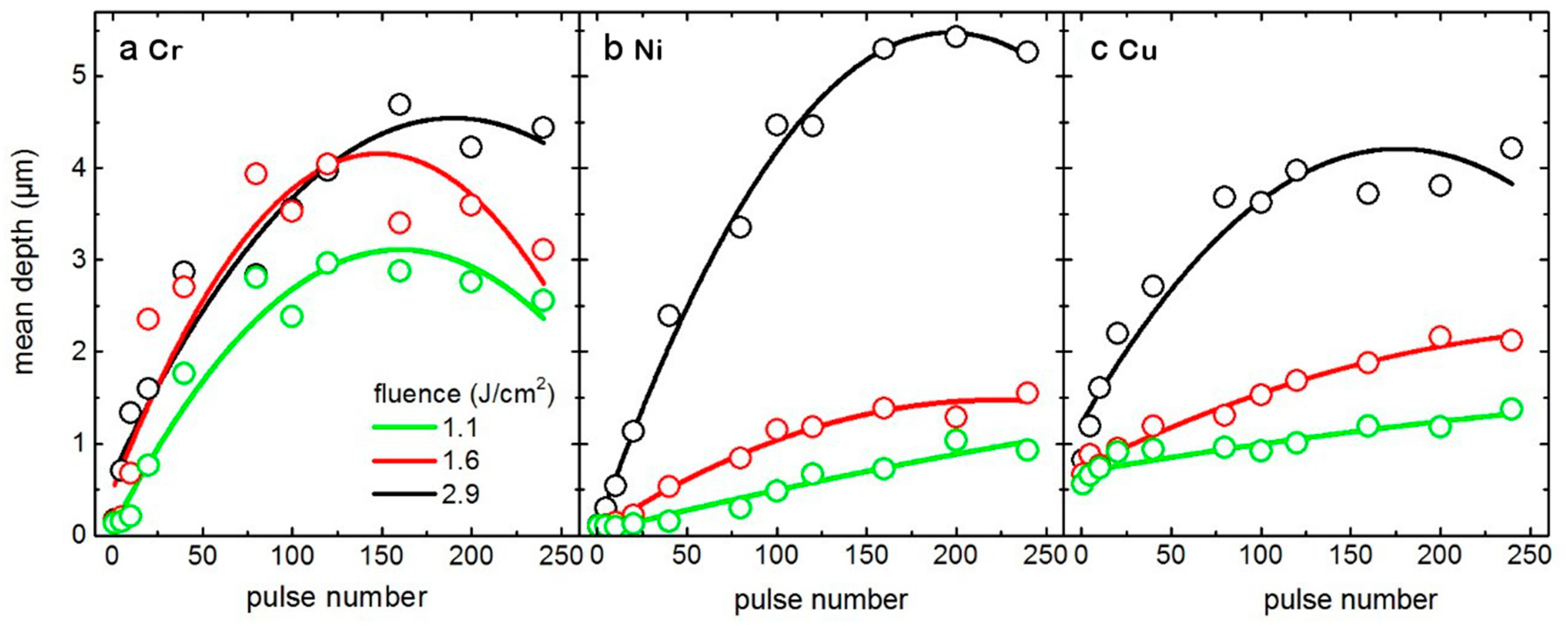

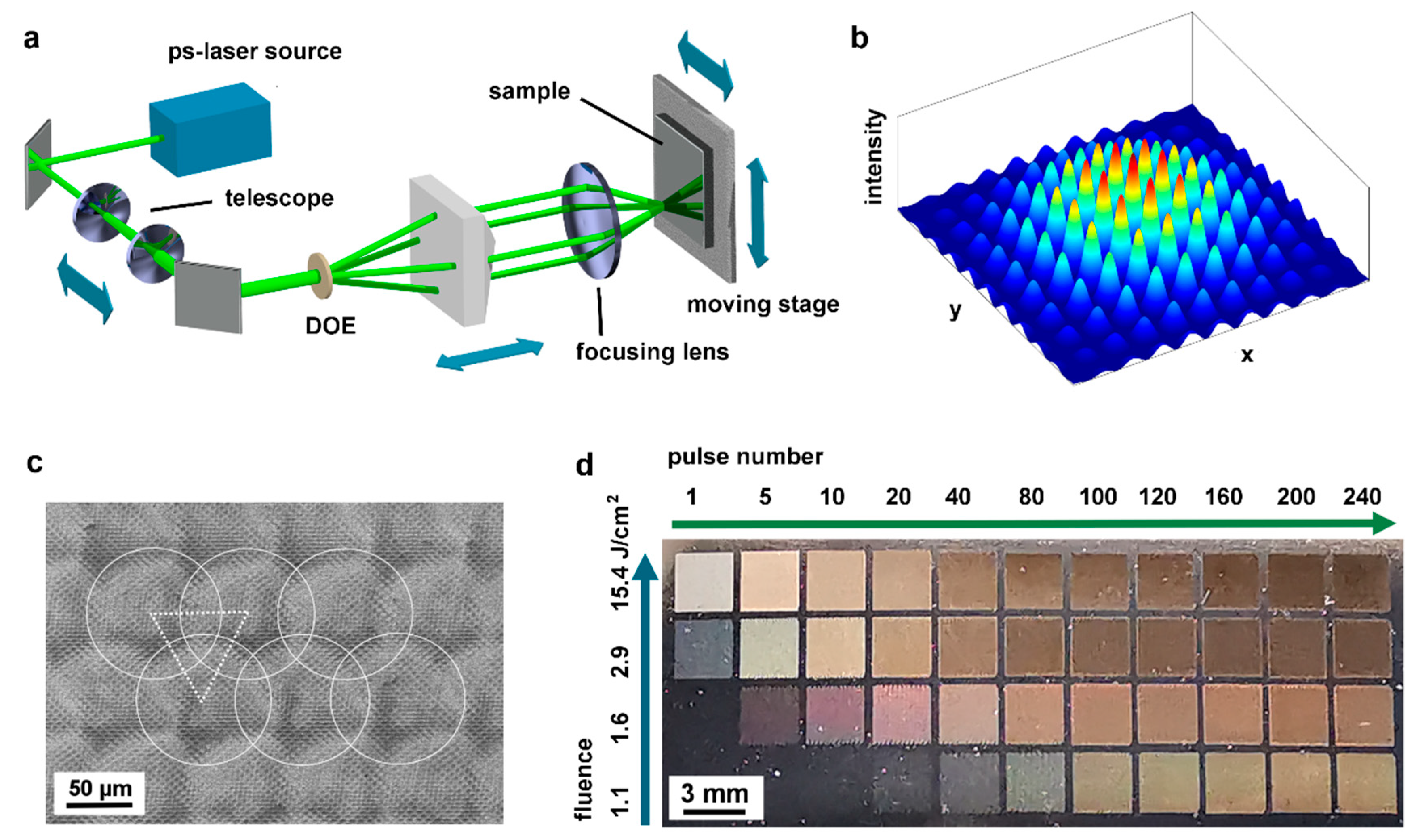

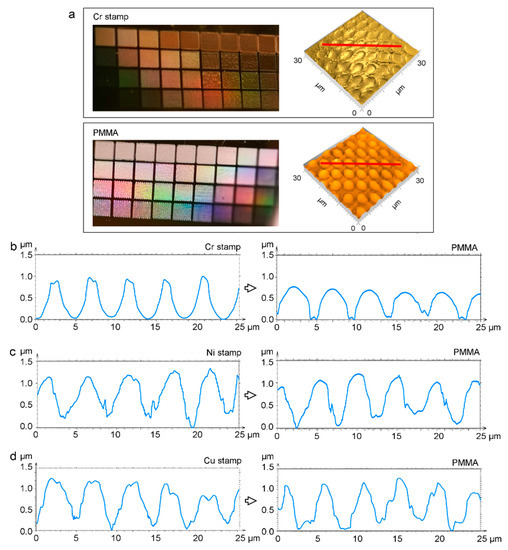

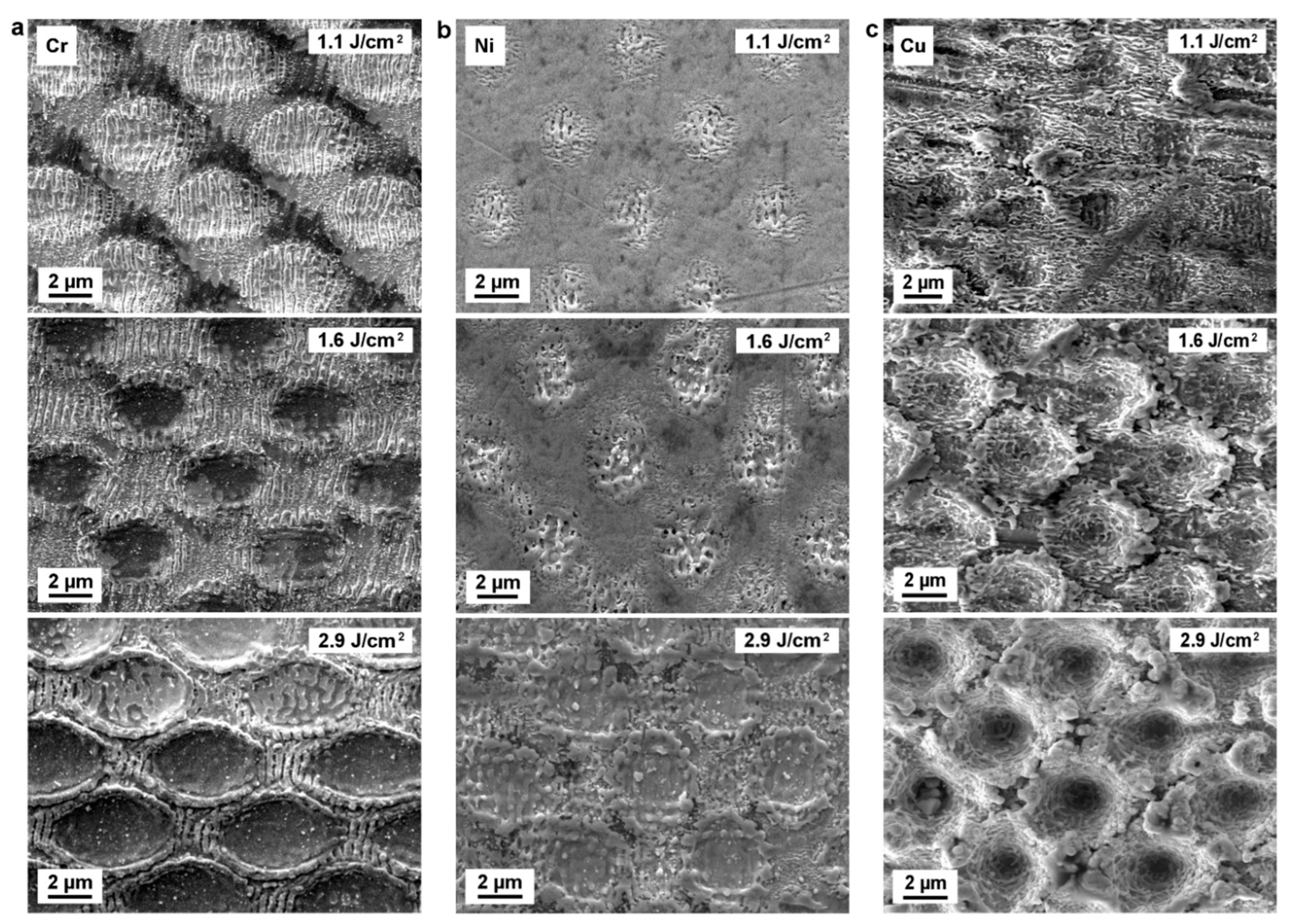

In this work, it is demonstrated that direct laser interference patterning (DLIP) is a method capable of producing microtextured metallic molds for hot embossing processes. Three different metals (Cr, Ni, and Cu), relevant for the mold production used in nanoimprinting systems, are patterned by DLIP using a picosecond laser source emitting at a 532 nm wavelength. The results show that the quality and surface topography of the produced hole-like micropatterns are determined by the laser processing parameters, such as irradiated energy density and the number of pulses. Laser-induced periodic surface structures (LIPSS) are also observed on the treated surfaces, whose shapes, periodicities, and orientations are strongly dependent on the accumulated fluence. Finally, the three structured metals are used as embossing molds to imprint microlenses on polymethyl methacrylate (PMMA) foils using an electrohydraulic press. Topographical profiles demonstrate that the obtained structures are comparable to the masters showing a satisfactory reproduction of the texture. The polymeric microlens arrays that showed the best surface homogeneity and overall quality were those embossed with the Cr molds.
View Full-Text
Keywords:
direct laser interference patterning; microstructures; laser-induced periodic surface structures; hot embossing; polymethyl methacrylate
▼
Show Figures
Graphical abstract
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Fu, Y.; Soldera, M.; Wang, W.; Voisiat, B.; Lasagni, A.F. Picosecond Laser Interference Patterning of Periodical Micro-Architectures on Metallic Molds for Hot Embossing. Materials 2019, 12, 3409. https://doi.org/10.3390/ma12203409
