Next Article in Journal
Biocompatibility of Plasma-Treated Polymeric Implants
Next Article in Special Issue
The Martensitic Transformation and Mechanical Properties of Ti6Al4V Prepared via Selective Laser Melting
Previous Article in Journal
Photocatalytic Self-Cleaning Cotton Fabrics Coated by Cu2(OH)PO4 under VIS/NIR Irradiation
Previous Article in Special Issue
Impacts of Defocusing Amount and Molten Pool Boundaries on Mechanical Properties and Microstructure of Selective Laser Melted AlSi10Mg
Article

Effect of Scanning and Support Strategies on Relative Density of SLM-ed H13 Steel in Relation to Specimen Size

Faculty of Mechanical Engineering, Centre for Advanced Manufacturing Technologies (CAMT/FPC), Wroclaw University of Science and Technology, 50-371 Wrocław, Poland
*
Author to whom correspondence should be addressed.
Materials 2019, 12(2), 239; https://doi.org/10.3390/ma12020239
Received: 21 December 2018 / Revised: 7 January 2019 / Accepted: 8 January 2019 / Published: 11 January 2019
(This article belongs to the Collection Additive Manufacturing: Alloy Design and Process Innovations)

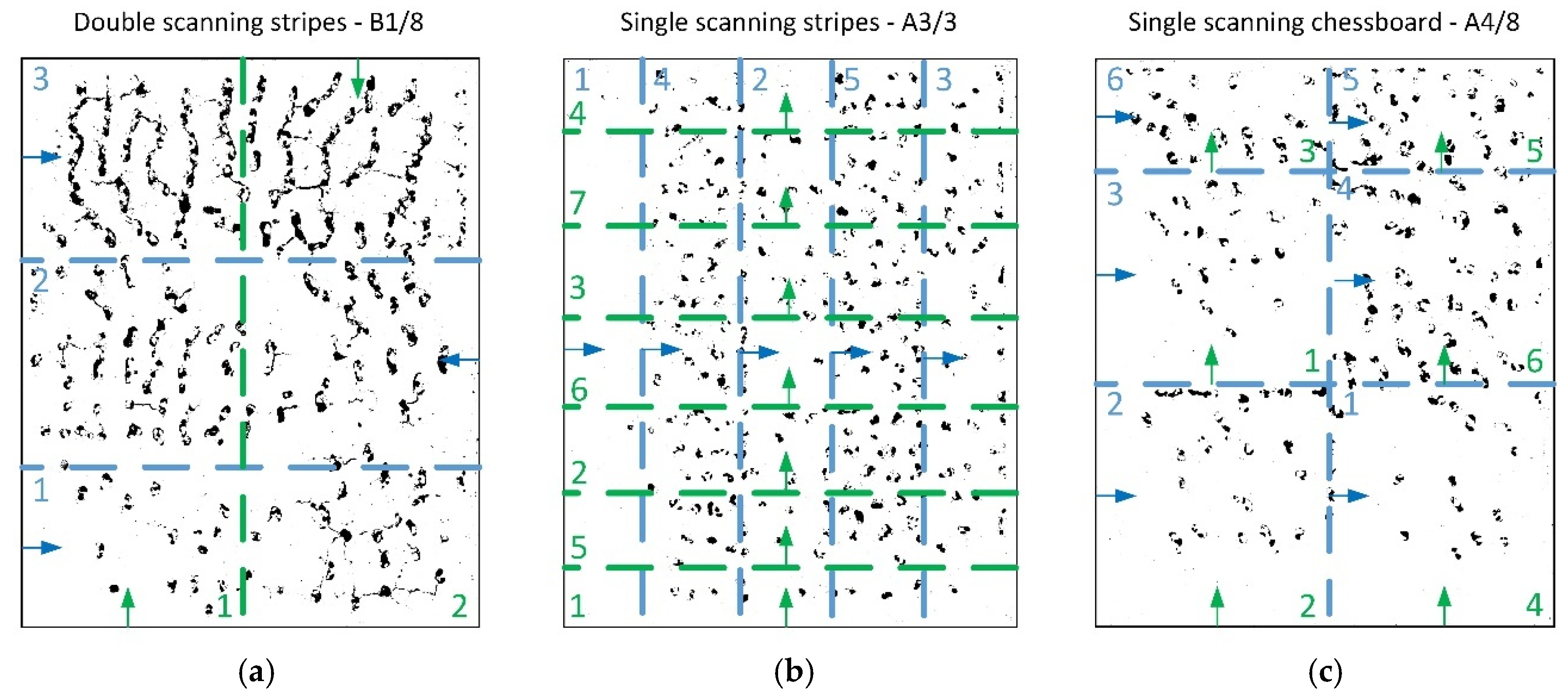

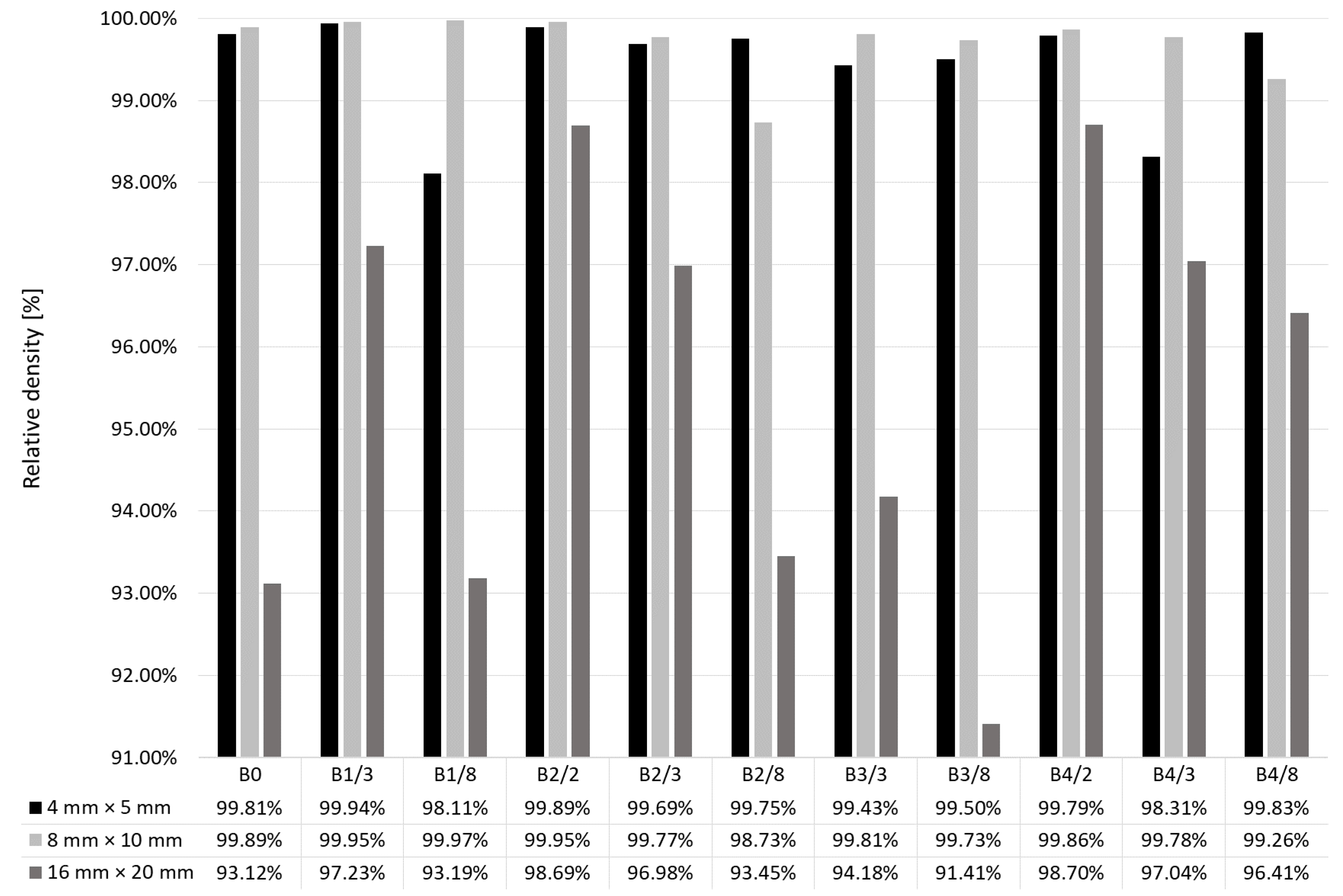

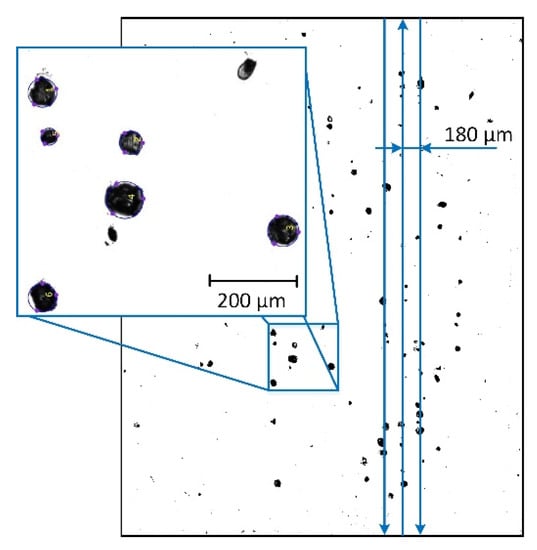

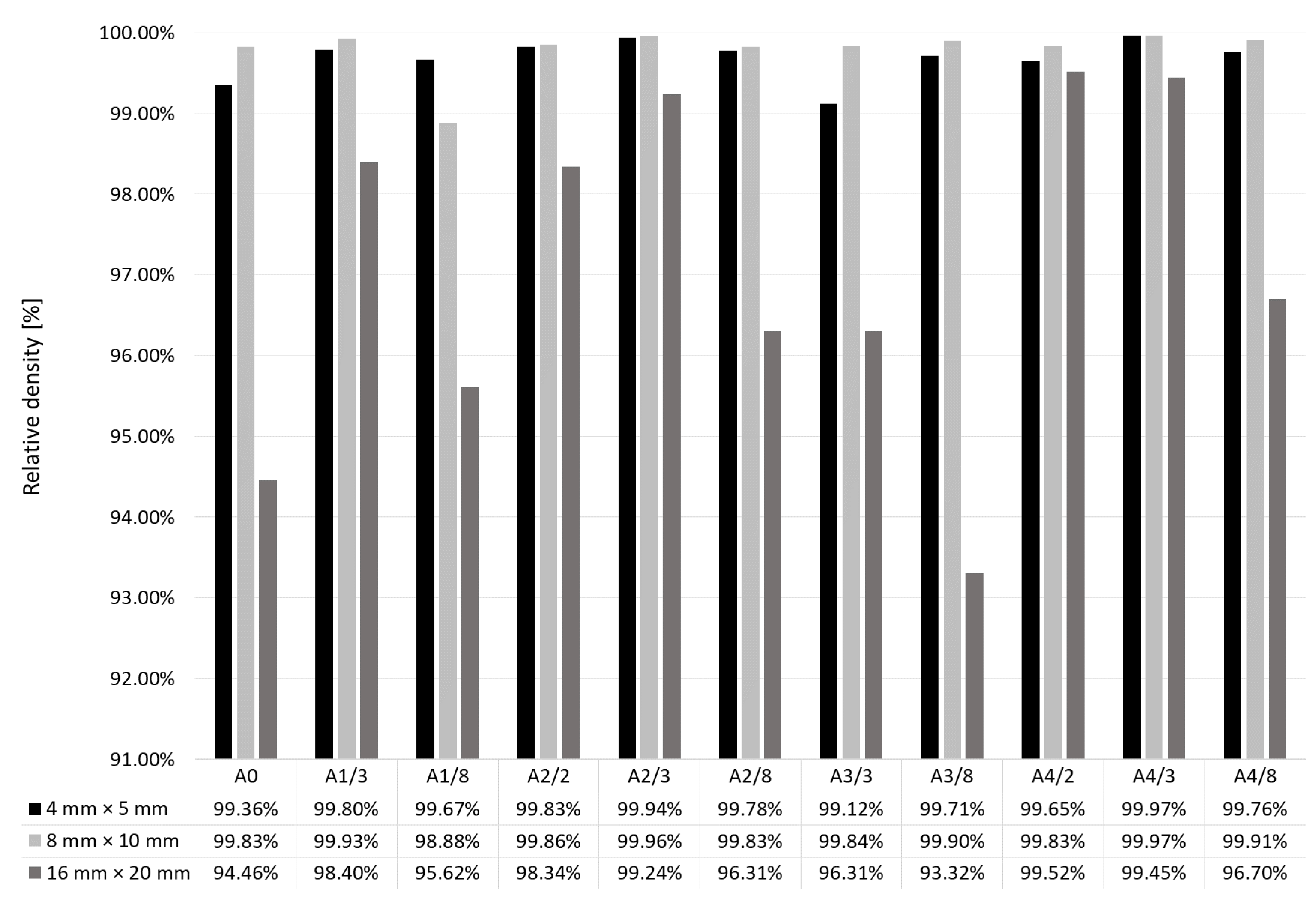

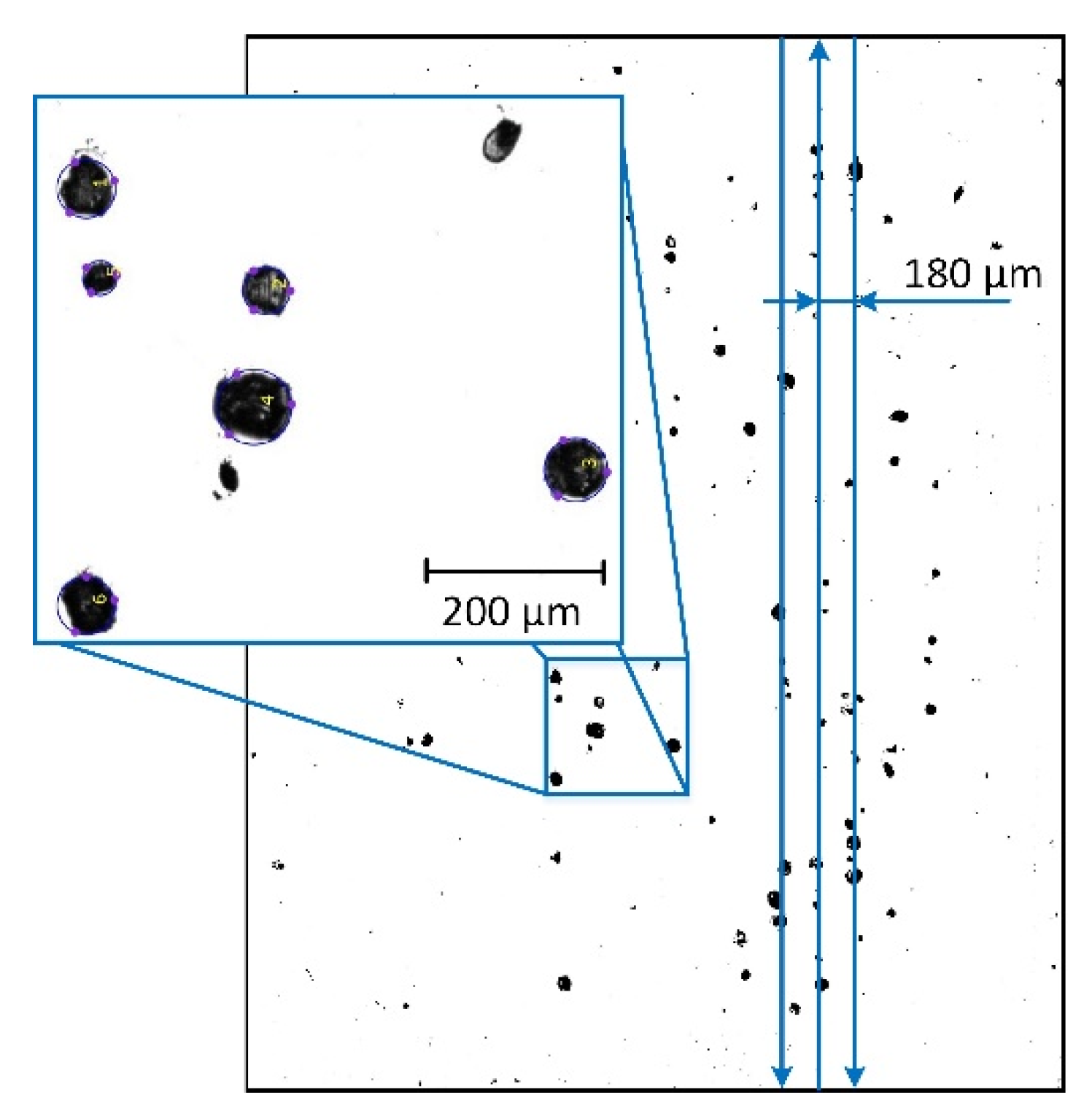

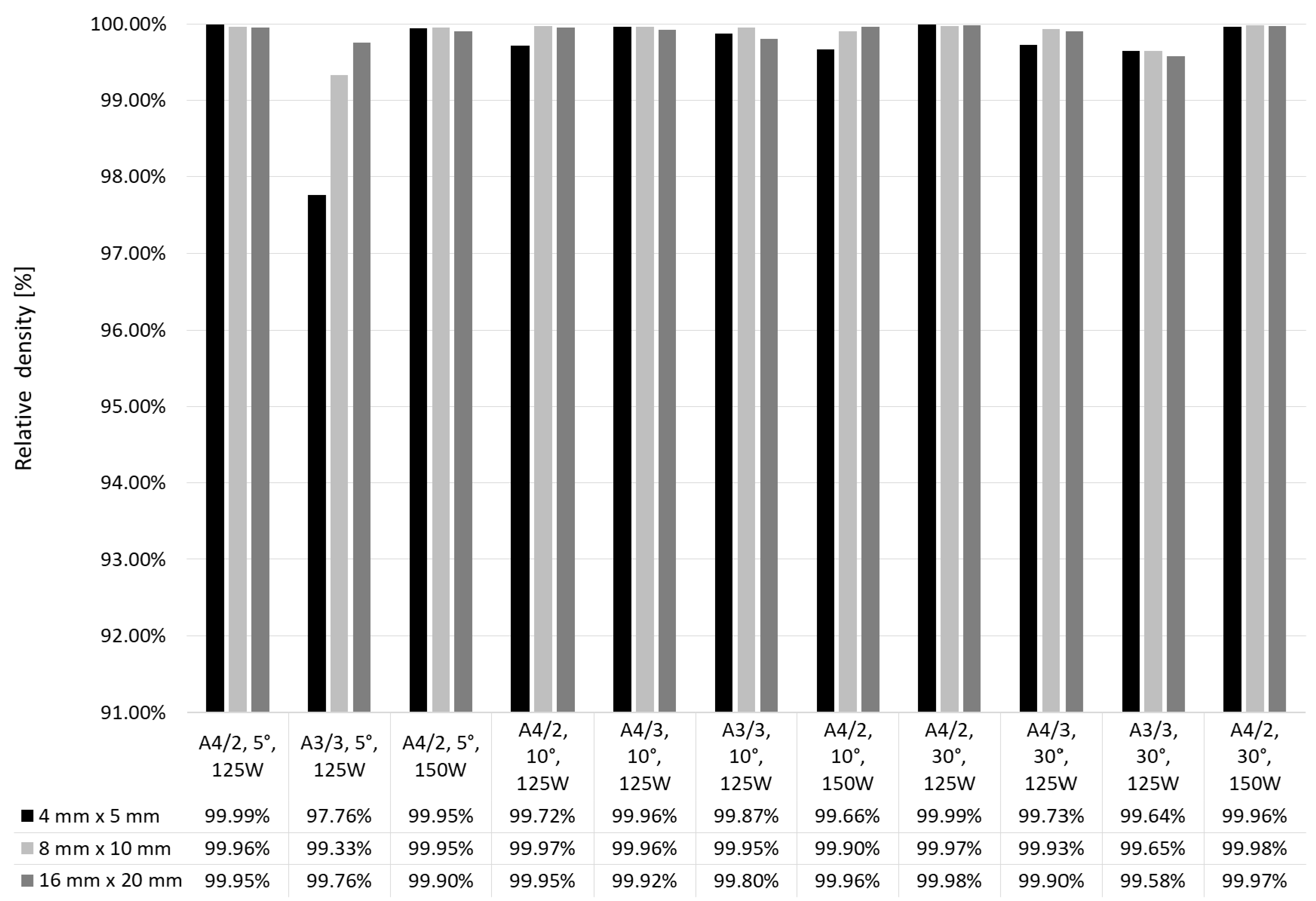

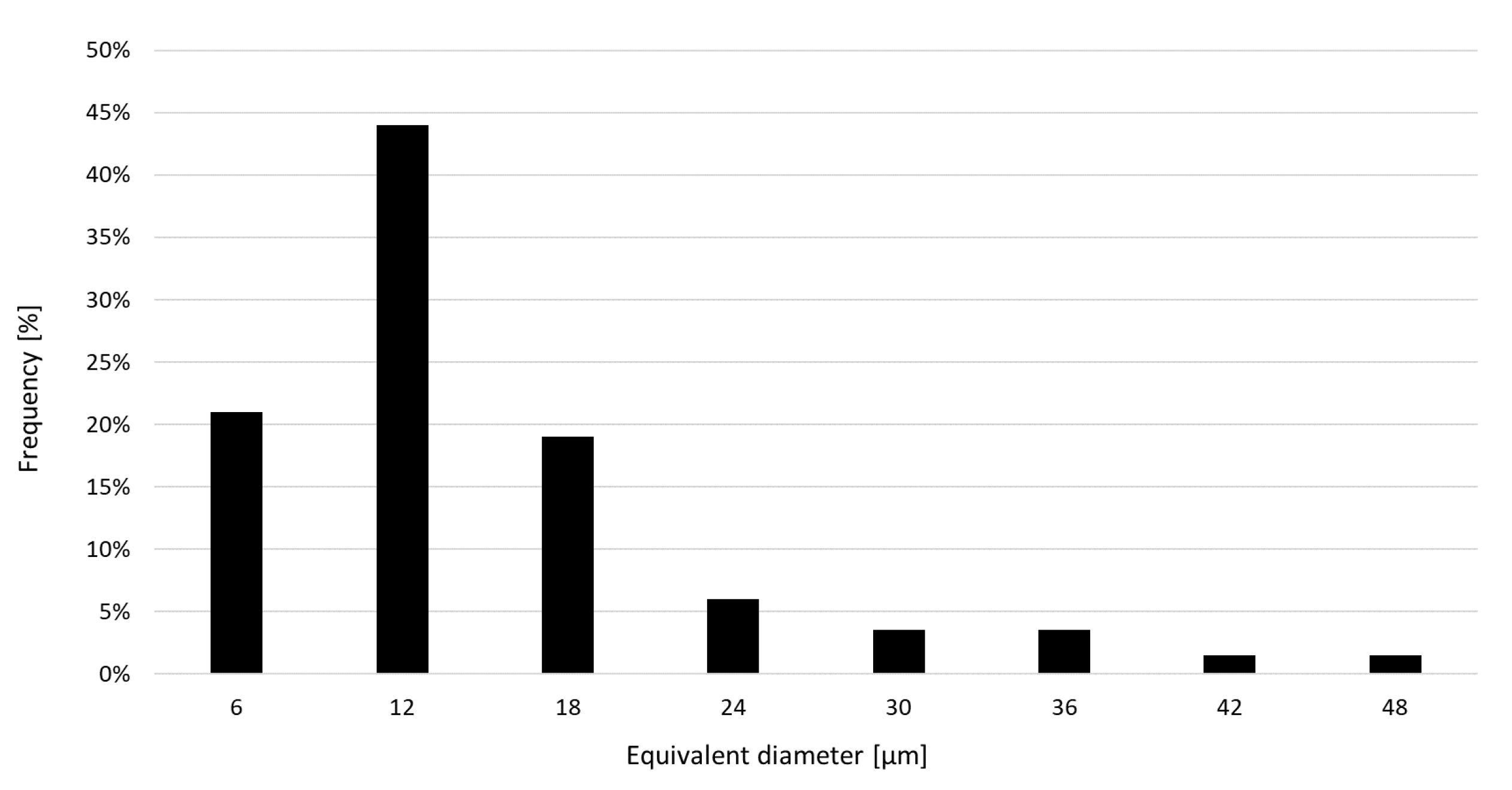

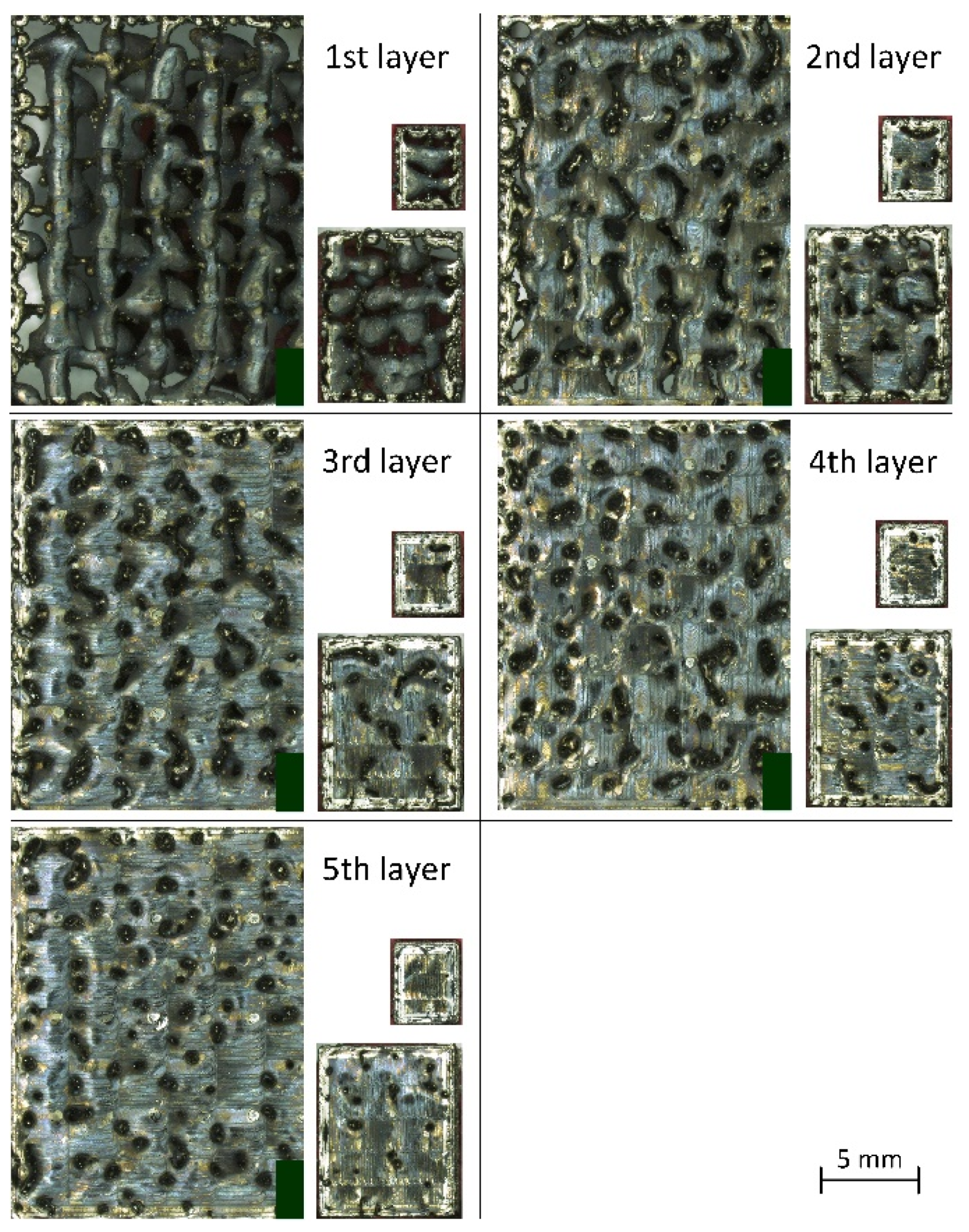

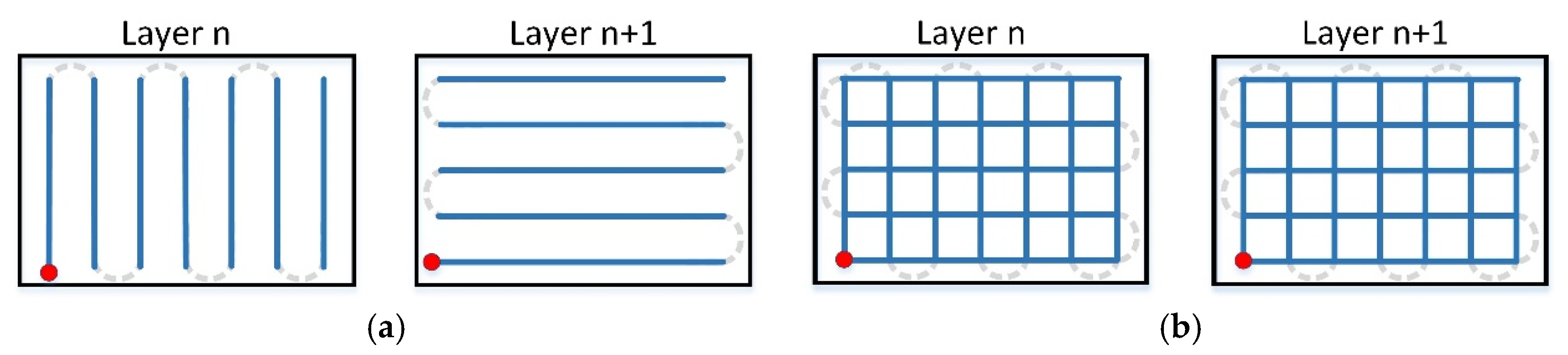

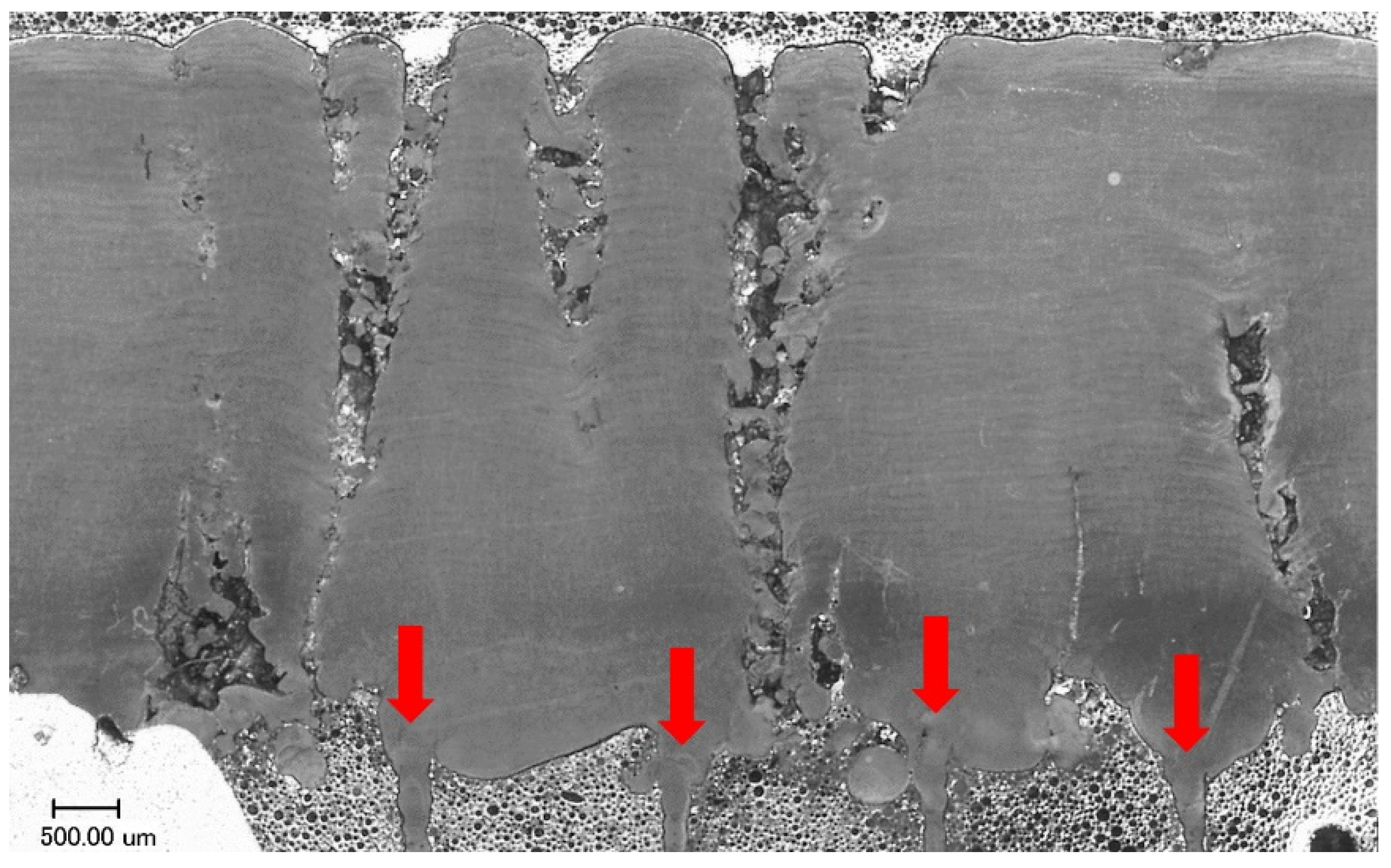

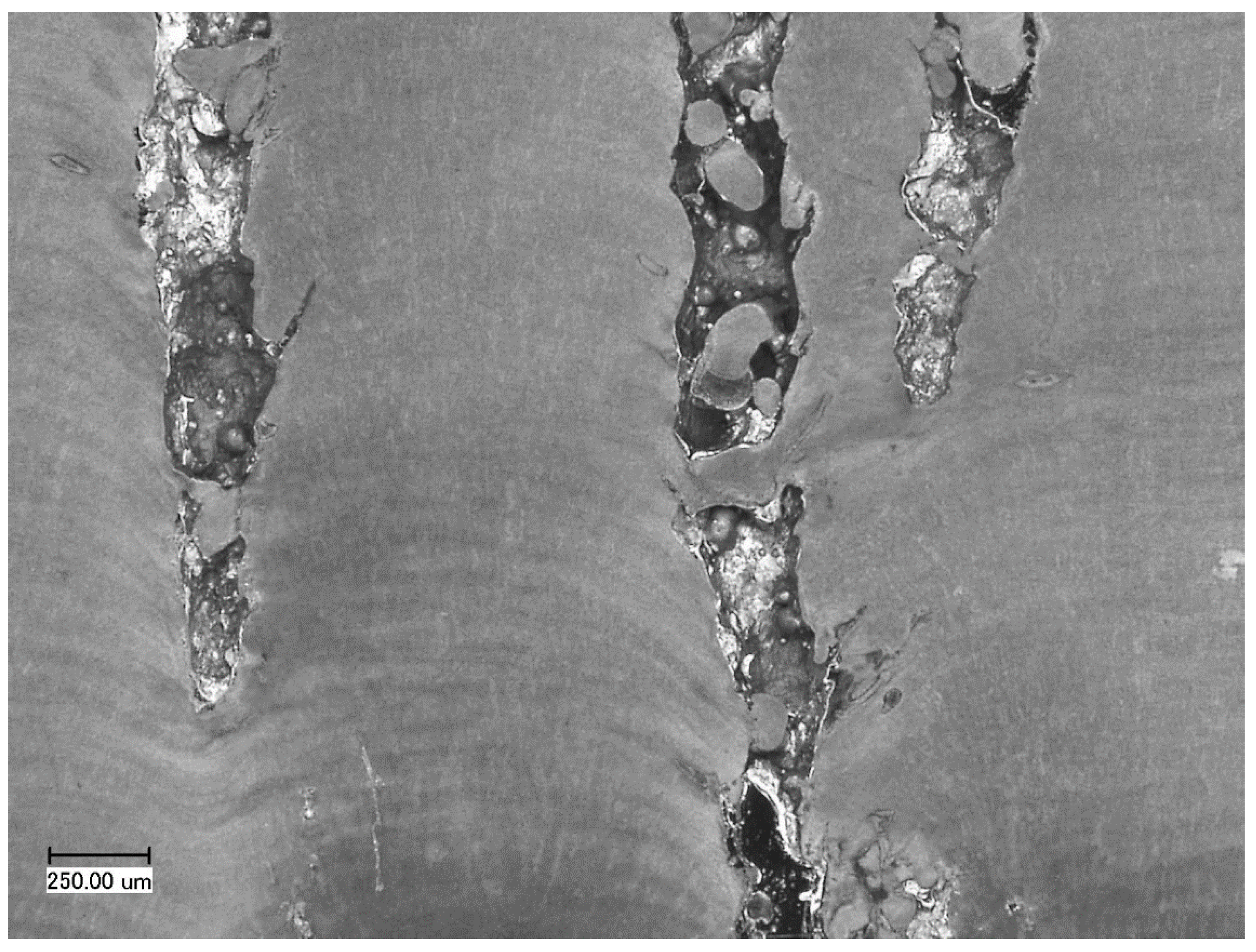

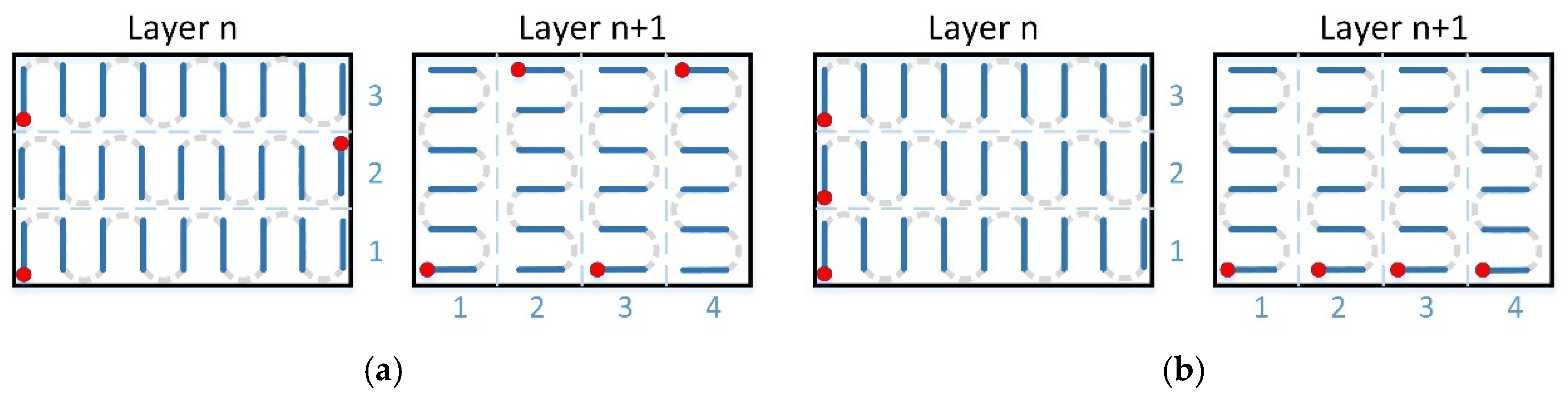

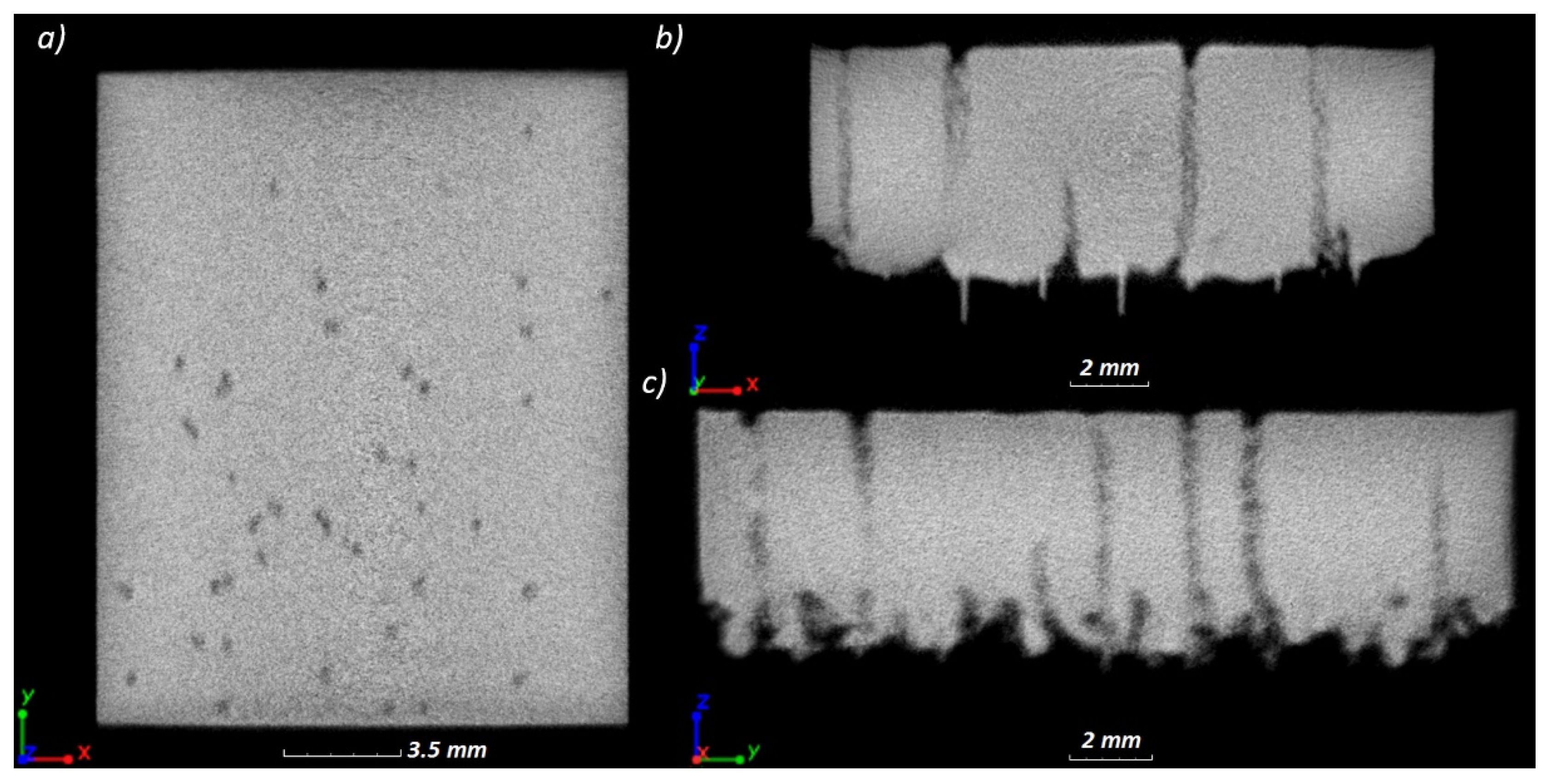

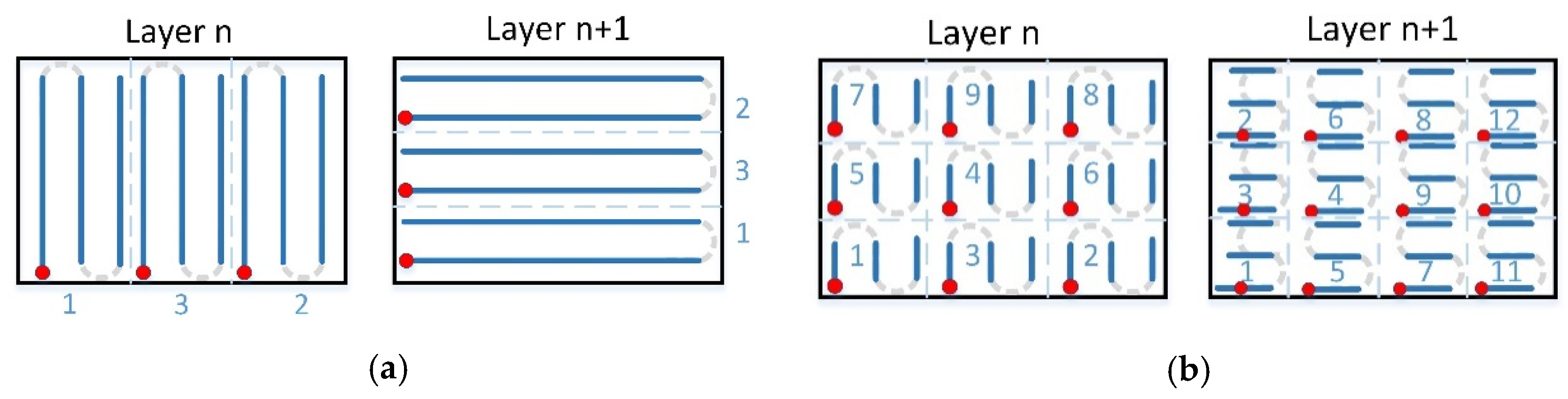

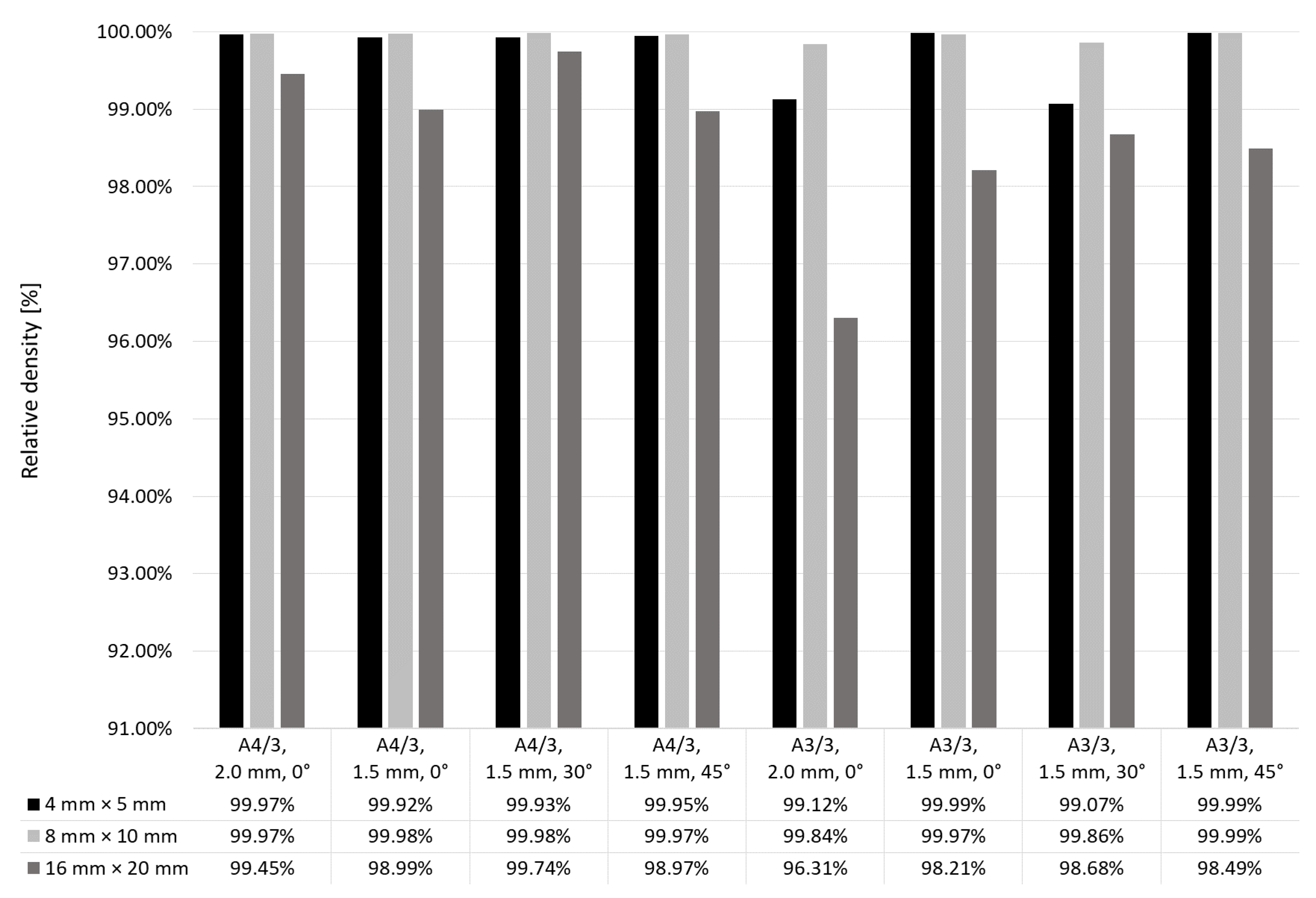

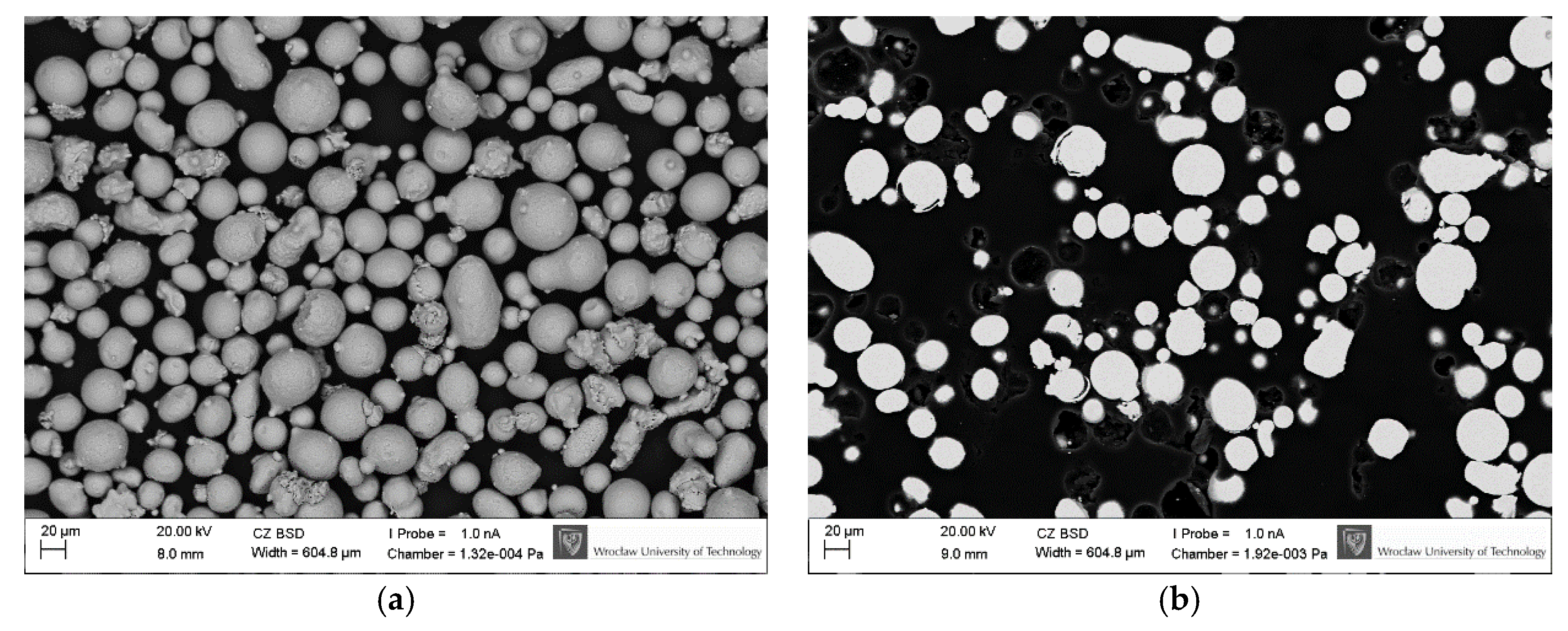

Standard experimental research works are aimed at optimization of Selective Laser Melting (SLM) parameters in order to produce material with relative density over 99% and possibly the highest scanning speed. Typically, cuboidal specimens with arbitrarily selected dimensions are built. An optimum set of parameters, determined on such specimens, is used for building parts with variable cross-section areas. However, it gives no guarantee that the density of variable-section parts produced with so selected parameters will be as high as that of the specimens measured during the parameters optimization process. The goal of this work was to improve the process of SLM parameter selection according to the criterion of maximum relative density, based on the example of AISI H13 tool steel (1.2344). A selection method of scanning strategy ensuring relative density of parts over 99%, irrespective of their dimensions, was determined. The specimens were produced using several variants of support structures. It was found that proper selection of the support strategy prevents development of columnar pores. View Full-Text
Keywords: selective laser melting; H13 tool steel; process parameters; scanning strategy; support strategy; porosity reduction selective laser melting; H13 tool steel; process parameters; scanning strategy; support strategy; porosity reduction
Show Figures

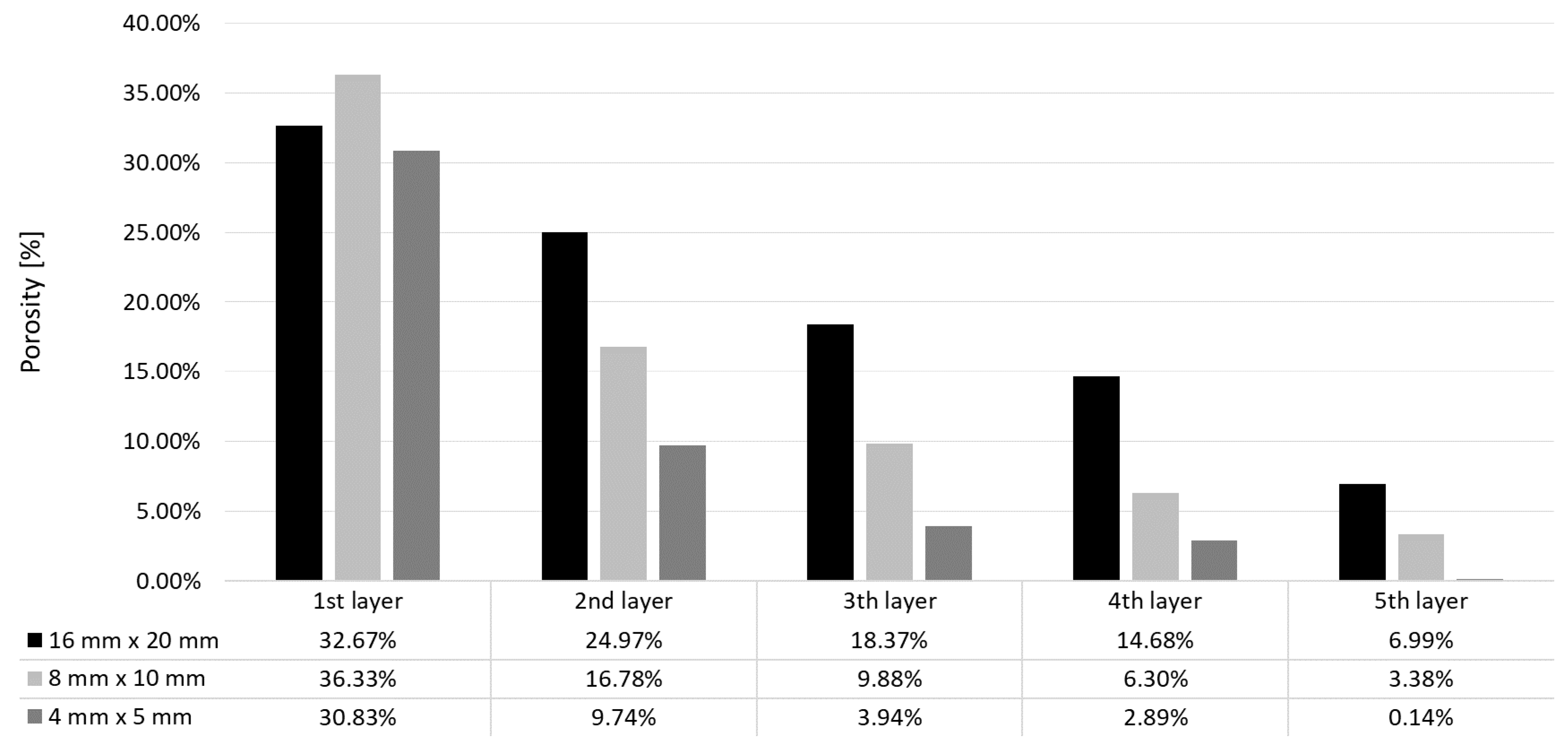

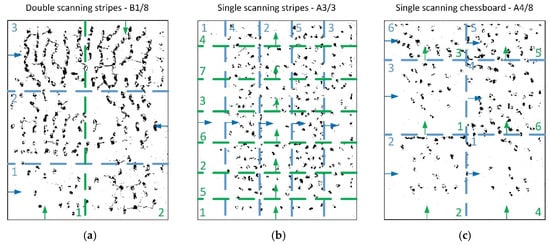

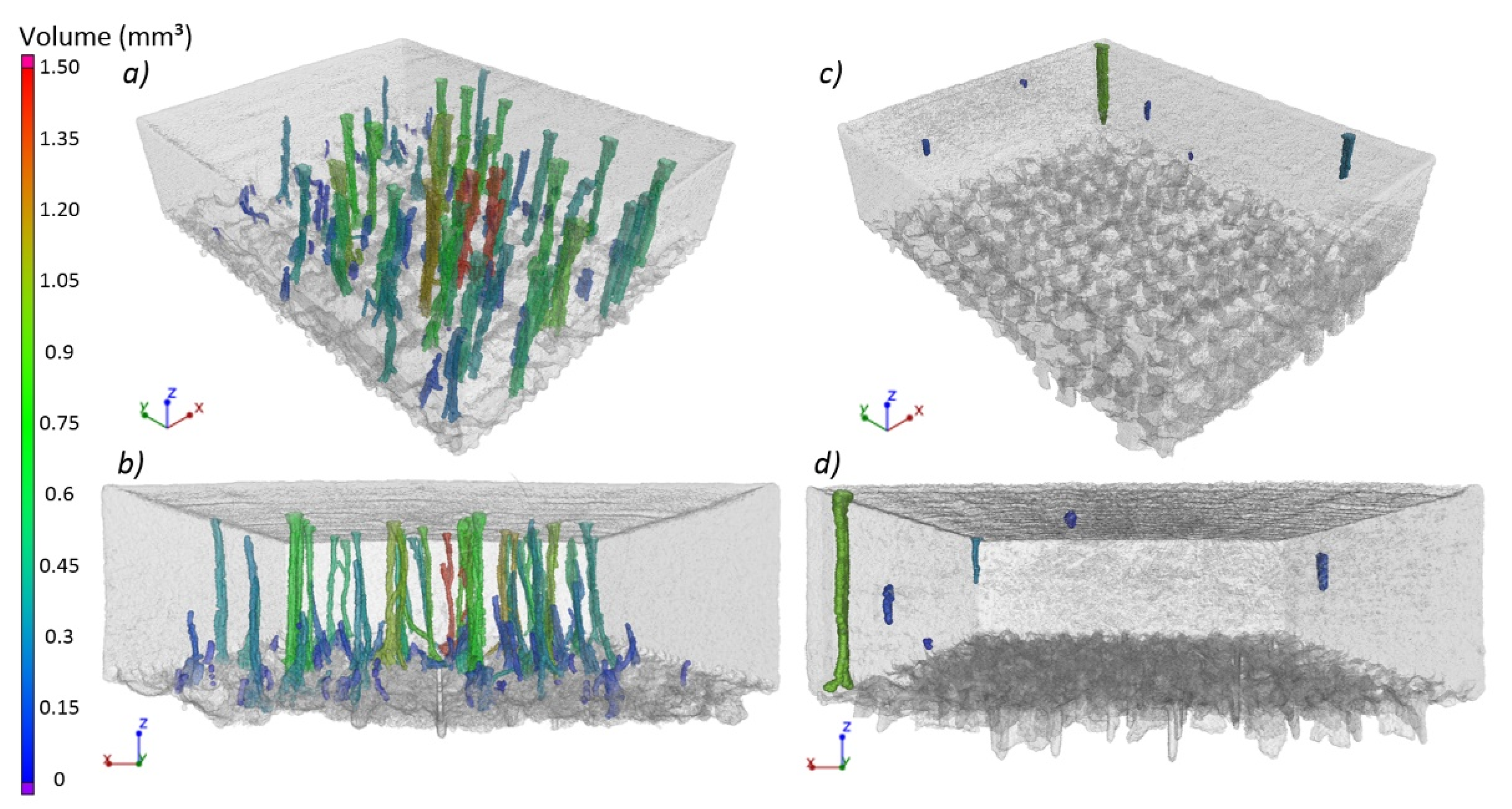

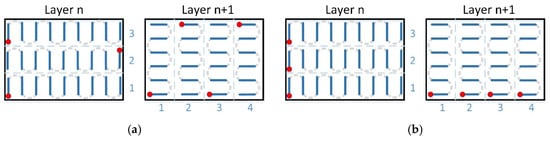

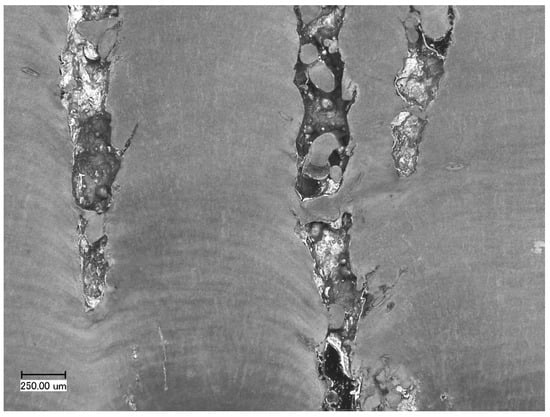

Figure 1

MDPI and ACS Style

Kurzynowski, T.; Stopyra, W.; Gruber, K.; Ziółkowski, G.; Kuźnicka, B.; Chlebus, E. Effect of Scanning and Support Strategies on Relative Density of SLM-ed H13 Steel in Relation to Specimen Size. Materials 2019, 12, 239. https://doi.org/10.3390/ma12020239

AMA Style

Kurzynowski T, Stopyra W, Gruber K, Ziółkowski G, Kuźnicka B, Chlebus E. Effect of Scanning and Support Strategies on Relative Density of SLM-ed H13 Steel in Relation to Specimen Size. Materials. 2019; 12(2):239. https://doi.org/10.3390/ma12020239

Chicago/Turabian Style

Kurzynowski, Tomasz, Wojciech Stopyra, Konrad Gruber, Grzegorz Ziółkowski, Bogumiła Kuźnicka, and Edward Chlebus. 2019. "Effect of Scanning and Support Strategies on Relative Density of SLM-ed H13 Steel in Relation to Specimen Size" Materials 12, no. 2: 239. https://doi.org/10.3390/ma12020239

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
