Article
Optical Properties of Red-Emitting Rb2Bi(PO4)(MoO4):Eu3+ Powders and Ceramics with High Quantum Efficiency for White LEDs
1
Institute of Chemistry, Vilnius University, Naugarduko 24, LT-03225 Vilnius, Lithuania
2
Centre for Physical Sciences and Technology, Sauletekio Avenue 3, LT-10257 Vilnius, Lithuania
*
Author to whom correspondence should be addressed.
Received: 4 September 2019 / Accepted: 4 October 2019 / Published: 8 October 2019

Abstract

:
There are several key requirements that a very good LED phosphor should meet, i.e., strong absorption, high quantum efficiency, high colour purity, and high luminescence quenching temperature. The reported Rb2Bi(PO4)(MoO4):Eu3+ phosphors have all these properties. The Rb2Bi(PO4)(MoO4):Eu3+ phosphors emit bright red light if excited with near-UV radiation. The calculated colour coordinates show good stability in the 77–500 K temperature range. Moreover, sample doped with 50% Eu3+ possesses quantum efficiency close to unity. Besides the powder samples, ceramic disks of Rb2Eu(PO4)(MoO4) specimen were also prepared, and the red light sources from these disks in combination with near-UV emitting LED were fabricated. The obtained results indicated that ceramic disks efficiently absorb the emission of 375 and 400 nm LED and could be applied as a red component in phosphor-converted white LEDs.
Keywords:
red phosphor; thermal quenching; quantum efficiency; luminescent ceramics; luminous efficacy; colour coordinates

1. Introduction

In 1991 Nakamura invented the first efficient blue LED [1]. This invention has started the revolution in lighting industry. Besides the conventional incandescent and fluorescent lamps, the new alternative appeared to produce white light. The very first solid state light (SSL) sources used to combine the emission form a blue-emitting InGaN semiconductor chip with a yellow luminescence from a Y3Al5O12:Ce3+ phosphor, commonly known as YAG:Ce. Unfortunately, such combination of the blue and yellow emissions yielded bluish white light. Such light sources also possessed high correlated colour temperatures (CCT) and low colour rendering indices (CRI) due to lack of intensity in the red area [2]. One of the ways to solve this problem is to shift the Ce3+ emission in garnet type materials to the red spectral region. Based on this concept, some novel garnet phosphors emitting in the orange-red region were recently developed, for instance, Lu2CaMg2(Si,Ge)3O12:Ce3+ [2], Mg3Y2(Si,Ge)3O12:Ce3+ [3], Y3Mg2AlSi2O12:Ce3+ [4], and some others [5]. The other option to compensate the lack of intensity in the red area is to use the extra red phosphor. This research, in turn, resulted in several very efficient and stable orange/red-emitting nitride and oxynitride phosphors activated with Eu2+ ions: Ca15Si20O10N30:Eu2+ [6], (Ca,Sr)AlSiN3:Eu2+ [7], (Ba,Sr,Ca)2Si5N8:Eu2+ [8], Sr[LiAl3N4]:Eu2+ [9], and many others [10]. On the other hand, the synthesis of nitride/oxynitride phosphors usually requires protective gas atmosphere due to high reactivity of reagents, complicated equipment, high annealing temperatures, and, therefore, is very costly. Moreover, because of the rather broad emission band of Eu2+ ions, some of the emission lies in the deep red region (λem > 650 nm), where the human eye sensitivity is very low. According to Zukauskas et al., the emission at wavelengths higher than 650 nm can be considered as waste, because it reduces the luminous efficacy of the light source [11]. In this sense, the phosphor with narrow emission band or line in the red spectral region would be much superior.
With regular improvement of LEDs, the efficiency of near-UV emitting LEDs also was recently considerably improved and this has opened the new way for generating white light. The near-UV emitting LED can be combined with orange/red, green, and blue-emitting phosphors to yield white light source. This concept is somewhat superior if compared with blue LED driven light sources because more phosphors can be excited with near-UV radiation if compared to the blue LED. The efficient blue (BaMgAl10O17:Eu2+, BAM) [12] and green (Ba2SiO4:Eu2+, (Ca,Sr,Ba)Si2O2N2:Eu2+) [13,14] phosphors are already developed and are commercially available. Therefore, the main issue is finding the new narrow band or line emitting red phosphors with high efficiency, thermal stability and low production costs. In such research, the Eu3+ doped phosphors gained a lot of attention, especially the ones based on molybdate and tungstate host matrices. In these matrices Eu3+ possess unusually strong absorption due to admixing of charge transfer (CT) and Eu3+ excited states [15]. Recently, some efficient Eu3+ doped red-emitting molybdate phosphors were reported (LiEu(MoO4)2 [16], Y2Mo4O15:Eu3+ [15], K2Bi(PO4)(MoO4):Eu3+ [17], Tb2Mo3O12:Eu3+ [18]) and the search for novel materials in this class is still ongoing [19]. Besides, recently interest in Mn4+ doped inorganic materials is also gaining lots of attention as an alternative for narrow band red-emitting phosphors. Elimination of lanthanide ions from the luminescent material would of course significantly reduce the phosphor price, what is a great benefit for industrial application. The research in this area now mostly concentrates on oxide and fluoride host matrices with the aim to shift Mn4+ emission from deep red to red region [20,21,22].
In this research, the Rb2Bi(PO4)(MoO4):Eu3+ luminescent materials were synthesized by conventional solid-state reaction method at fairly low temperature. The optical properties of synthesized phosphors were investigated as a function of excitation wavelength, temperature, and Eu3+ concentration. The given data will include reflection, emission and excitation spectra at room temperature and in 77–500 K interval; photoluminescence (PL) lifetimes, quantum efficiencies, luminous efficacies (LE) and CIE 1931 colour coordinates.

2. Materials and Methods

A series of Rb2Bi(PO4)(MoO4):Eu3+ samples of (where Eu3+ concentration was 0%, 1%, 5%, 10%, 25%, 50%, 75%, and 100% with respect to Bi3+) was synthesized by solid-state reaction method. The reagents, namely, MoO3 (99+%), Rb2CO3 (99+%) and Bi2O3 (99.9%) were purchased from Acros Organics (Geel, Belgium); Eu2O3 (99.99%) was purchased from Tailorlux (Münster, Germany), and NH4H2PO4 (99%) was purchased from Reachem Slovakia, (Bratislava, Slovakia). These reagents were weighed and mixed in stoichiometric amounts (accurate weight of reagents are given in Table S1). The powders were homogenized in an agate mortar with small amount of acetone as a grinding media. The mixture of reagents was poured to the porcelain crucible and sintered at 600 °C for 12 h in air three times with intermediate grinding of the product.
0.36, 0.53, and 0.80 mm thick ceramic disks were prepared by applying 30 kN force (ø 8 mm disk) on the Rb2Eu(PO4)(MoO4) phosphor powder for 3 min and the obtained pellets were additionally annealed in air at 600 °C for 4 h.
The powder XRD patterns were collected in the range of 5° ≤ 2θ ≤ 80° employing Cu Kα radiation from 9 kW rotating anode X-ray tube on a Rigaku SmartLab diffractometer (Rigaku, Tokyo, Japan) working in Bragg-Brentano focusing geometry. The step width was 0.01° and scan speed was 1°/min. Scintillation detector SC-70 (Rigaku, Tokyo, Japan) together with bent graphite monochromator (Rigaku, Tokyo, Japan) for diffracted beam was used for the measurements.
SEM images of the prepared phosphors and ceramics were taken by a field-emission scanning electron microscope Hitachi SU-70 (Hitachi, Tokyo, Japan).
IR measurements were performed on a Bruker Alpha ATR FTIR spectrometer (Bruker, Ettlingen, Germany). Data were recorded in the range from 3000 to 400 cm−1. The spectral resolution was 4 cm−1.
Edinburgh Instruments FLS980 spectrometer (Edinburgh Instruments, Livingston, UK) was used to measure reflection spectra. The spectrometer possessed a 450 W ozone free xenon arc lamp, a cooled (−20 °C) SPC photomultiplier (Hamamatsu R928P, Hamamatsu Photonics K.K., Hamamatsu, Japan) and Teflon coated integration sphere. The reflectance standard was BaSO4.
Edinburgh Instruments FLS980 spectrometer was used to record excitation and emission spectra of the synthesized samples. This spectrometer was equipped with double grating Czerny-Turner excitation and emission monochromators, a 450 W ozone-free xenon arc lamp, and cooled (−20 °C) SPC photomultiplier (Hamamatsu R928P). The recorded PL emission spectra were corrected for instrument response by a correction file provided by Edinburgh Instruments (Livingston, UK). A reference detector (Edinburgh Instruments, Livingston, UK) was used to correct the excitation spectra.
For thermal quenching (TQ) measurements a cryostat “MicrostatN” (Oxford Instruments, Abingdon, UK) was used with above-described spectrometer. The sample was cooled by liquid nitrogen. The temperature-dependent emission spectra were measured at 77 K and at 100–500 K in 50 K intervals. The stabilization time for each temperature was 120 s and temperature tolerance was ±5 K. Dried nitrogen was flushed over the cryostat window during the measurements in order to prevent water condensation at low temperatures.
μ-flash lamp was used as an excitation source for PL decay investigation. Samples were excited at 265, 393.5, and 464.5 nm while emission was monitored at 615 nm. The pulse repetition rate was 25 Hz.
Quantum efficiency (QE) values were obtained by measuring emission spectrum of BaSO4 sample (99% Sigma-Aldrich) in integration sphere coated with Teflon. Samples were excited at 260, 393.5, and 464.5 nm. The step width and integration time was 0.5 nm and 0.4 s, respectively. Measurements were repeated three times for each phosphor sample. The QE values were calculated from equation 1 [17]:
Q E = I e m ,   s a m p l e I e m , B a S O 4 I r e f , B a S O 4 I r e f , s a m p l e × 100 % = N e m N a b s × 100 %
Here I e m ,   s a m p l e   is integrated emission intensity of the phosphor sample and I e m ,   B a S O 4 is integrated emission intensity of BaSO4. I r e f ,   s a m p l e   and I r e f ,   B a S O 4 is integrated reflectance of the phosphor sample and BaSO4, respectively. Nem is the number of emitted photons and Nabs—absorbed photons.
All measurements were performed at room temperature and ambient pressure in air unless mentioned otherwise.

3. Results and Discussion

The Rb2Bi(PO4)(MoO4) compound (a = 7.0671 Å, b = 12.5150 Å, c = 20.441 Å) [23] is isostructural with its potassium counterpart (K2Bi(PO4)(MoO4)) (a = 7.0296 Å, b = 12.4845 Å, c = 19.7146 Å) [17] and adopts a body centered orthorhombic Bravais lattice with the space group of Ibca (#73) (Z = 8). The crystal structure of Rb2Bi(PO4)(MoO4) compound possesses a layered structure, which is built from [Bi(PO4)(MoO4)]2- layers, which and are interconnected by Rb+ cations similar as in K2Bi(PO4)(MoO4) compound reported by Zatovsky et al. [24]. The graphical representation of Rb2Bi(PO4)(MoO4) unit cell is given in Figure S1.
It turned out that three annealing steps were necessary in order to obtain single phase Rb2Bi(PO4)(MoO4):Eu3+ compounds. The powder XRD patterns of Rb2Eu(PO4)(MoO4) specimen after each annealing step are given in Figure S2. It is obvious that the peaks belonging to the phases other than Rb2Bi(PO4)(MoO4) disappear only after the third heat treatment. Moreover, Figure S2 also demonstrates that single phase compounds are obtained despite the increasing Eu3+ amount in the synthesized materials. The representative powder XRD pattern of Rb2Eu(PO4)(MoO4) compound is given in Figure 1. All the peaks match well with the reference pattern of K2Bi(PO4)(MoO4). The only difference in these XRD patterns is the slight shift of peaks for Rb2Eu(PO4)(MoO4) compound to the lower 2θ values. On the other hand, this can be expected since the ionic radius of potassium ions is slightly smaller than for rubidium ions, 1.51 and 1.61 Å for CN = 8, respectively [25].
The morphological features of all prepared materials were investigated by taking SEM images. No differences neither in particle size nor shape were observed with the increase of Eu3+ concentration in synthesized compounds. The representative SEM images of Rb2Bi(PO4)(MoO4):50%Eu3+ specimen are given in Figure 2a,b. The figure demonstrates that powder consists of agglomerates, which are formed from smaller crystallites with broad size range. The shape of these crystallites is mostly rod-like. Figure 2c depicts the SEM image of the surface of Rb2Eu(PO4)(MoO4) ceramic disk. The ceramic disk surface is formed from crystallites of various sizes. These crystallites are well grown together and form an even surface of the ceramic disk.
The IR spectra of undoped Rb2Bi(PO4)(MoO4) sample and specimens doped with 25%, 50%, 75% and 100% Eu3+ are shown in Figure S3. The given IR spectra contain several absorption bands in the range of 400–1100 cm−1. The three sharp absorption bands in the range of 650–450 cm−1 can be assigned to the PO4 bending vibrations. Strong absorption band at 900–700 cm−1 originates from the Mo-O stretching vibrations in MoO4 tetrahedrons, whereas strong absorption bands at 950 and 1050 cm−1 can be assigned to symmetric and asymmetric vibrations of PO4 tetrahedrons, respectively [24].
Figure 3a depicts excitation spectra of Rb2Bi(PO4)(MoO4) samples doped with 1% and 100% Eu3+ ions. The spectra consist of a broad band in the range of 250–290 nm and several sets of lines in the range of 290–600 nm. The former can be assigned to the charge transfer transition from O2− ions to Eu3+ ions, whereas the latter is assigned to the intraconfigurational transitions within Eu3+ f orbital ([Xe]4f6 → [Xe]4f6). Each set of lines in excitation spectra can be attributed to the specific transition, i.e., 7F05FJ (~298 nm), 7F05HJ (~319 nm), 7F05D4 (~362 nm), 7F05L7,8; 5GJ (~380 nm), 7F05L6 (~394 nm), 7F15D3 (~418 nm), 7F05D2 (~467 nm), 7F05D1 (~527 nm), 7F15D1 (~534 nm), 7F05D0 (~580 nm), and 7F15D0 (~590 nm) [26,27]. The lines in excitation spectra lying in the range of 360–400 nm are of great interest, since they overlap well with the emission spectra of the most efficient near-UV LEDs [15].
Emission spectra of Rb2Bi(PO4)(MoO4) specimens doped with 1% and 100% Eu3+ ions are given in Figure 3b. These spectra contain five sets of emission lines, which can be assigned to Eu3+ electronic transitions from the lowest excited 5D0 level to 7F0 (~580 nm), 7F1 (~594 nm), 7F2 (~615 nm), 7F3 (~652 nm), and 7F4 (~702 nm) [27]. The weakest emission was observed for the 5D07F0 transition since the J = 0 ↔ J′ = 0 transitions are always forbidden [28,29,30]. This transition can be observed because the local site of Eu3+ ions possesses C2 symmetry. The strongest emission of the prepared samples was observed for the electric dipole (ED) 5D07F2 transition at around 615 nm. The emission lines originating from the magnetic dipole (MD) 5D07F1 transition was more than twice less intensive. This observation indicates that Eu3+ ions occupy non-centrosymmetric lattice site in the Rb2Bi(PO4)(MoO4) host matrix. On the other hand, the intensity difference between MD and ED transitions is rather low if compared to some other molybdate host matrices doped with Eu3+ ions, for instance, Li3Ba2La3(MoO4):Eu3+ [31], Tb2Mo3O12:Eu3+ [18], La2MoO6:Eu3+ [32], LiEuMo2O8 [33], La2Mo2O9:Eu3+ [34] and so on. The rather small difference between ED and MD transitions of Eu3+ ions in Rb2Bi(PO4)(MoO4) host matrix can be assigned to relatively symmetric dodecahedral BiO8 site, which is occupied by Eu3+. Another interesting feature of the Rb2Bi(PO4)(MoO4):Eu3+ emission spectra is very intensive and finely split 5D07F4 transition. The intensity of 5D07F4 transition usually is very low in Eu3+ doped phosphors and there are very few examples reported in the literature where this transition dominates the emission spectra. Some of these matrices are garnet structure compounds: Y3(Al,Ga)5O12:Eu3+ [35]; orthophosphates: (Lu,Y,Gd,La)PO4:Eu3+ [35], BiPO4:Eu3+ [36]; borates: GdB5O9:Eu3+ [37]; molybdates: Eu2Mo4O15 [38], silicates: Na2ZnSiO4:Eu3+ [39], Ca2Ga2SiO7:Eu3+ [40]; aluminates: GdSr2AlO5:Eu3+ [41]; niobates: K2LaNb5O15:Eu3+ [42]; and even exotic uranyl phosphates: (Y,Eu,La)(UO2)3(PO4)2O(OH)·6H2O [43]. The inset in Figure 3b shows integrated emission intensity as a function of Eu3+ concentration. It can be concluded, that the strongest emission is obtained for sample doped with 50% Eu3+.
The reflection spectra of undoped Rb2Bi(PO4)(MoO4) and its fully Eu3+ substituted counterpart Rb2Eu(PO4)(MoO4) are given in Figure 3c. The powder colour of undoped Rb2Bi(PO4)(MoO4) was yellowish what is in good agreement with reflection spectra. The host material slightly absorbs the violet-blue radiation, hence, the yellowish tint of the powder. The fully Eu3+ substituted compound, in turn, was white. There are also several sets of absorption lines originating from the intraconfigurational transitions of Eu3+ ions that very well match the lines observed in excitation spectra (Figure 3b). The simplified energy level diagram of Eu3+ ions is given in Figure 3e with the most intensive transitions marked.
Figure 3d displays PL decay curves of Rb2Bi(PO4)(MoO4) specimens doped with 1% and 100% Eu3+. Samples were excited at 393.5 nm whereas the emission was monitored at 615 nm. Both PL decay curves are linear, indicating that there is only one mechanism of the excited 5D0 level depopulation. Besides, both PL decay curves are also nearly the same indicating similar PL lifetime values. This turned out to be true when the single exponential decay function was used to extract the PL lifetime values from the experimental data:
I ( t ) = A + B e t τ
Here I(t) is PL intensity at time t, A is background, B is constant, and τ is PL lifetime. The fitting results are given in Table S2. The PL lifetime values increased from 1827 μs (for 1% Eu3+) to 2044 μs (for 50% Eu3+) and then again decreased to 1932 μs (for 100% Eu3+). This goes hand in hand with the emission integral data, which showed highest intensity for 50% Eu3+ doped sample. Therefore, it can be concluded that concentration quenching in this host matrix starts when Eu3+ concentration exceeds 50%.
The temperature-dependent excitation spectra (λem = 615 nm) of Rb2Eu(PO4)(MoO4) sample recorded at 77 and 500 K are given in Figure 4a. These spectra show some considerable differences. First of all, the charge transfer band becomes much broader at elevated temperatures, meaning that electron from O2− ions is transferred to Eu3+ ions much easier at high temperatures. Besides that, some lines in excitation spectra also disappear at low temperatures. For instance, lines that originate from thermally populated 7F1 level are not observed in excitation spectra recorded at 77 K. These include 7F15D3, 7F15D1 and 7F15D0 transitions occurring at around 415, 534 and 590 nm, respectively. The absence of excitation lines from 7F1 level indicates that thermal population of 7F1 level at low temperatures is very limited.
The normalized emission spectra (λex = 393.5 nm) of Rb2Eu(PO4)(MoO4) sample recorded at 77 and 500 K are given in Figure 4b. These spectra consist of the same five sets of emission lines as spectra recorded at room temperature (see Figure 3b). The only difference between emission spectra recorded at 77 and 500 K is increased broadening of the lines at higher temperatures. This phenomenon can be attributed to the increased lattice vibrations at elevated temperatures which leads to distortion of Eu3+ local surrounding. This results in Eu3+ emission at slightly different wavelengths; hence, the broader emission lines.
The emission stability of the phosphor at elevated temperatures is an important factor determining the phosphors suitability for practical applications. The high power near-UV or blue LEDs can heat up to temperatures as high as 150 °C; therefore, the phosphor considered for such application should emit at this temperature efficiently. Besides, the temperature-dependent integrated emission spectra can also be used to determine the thermal quenching TQ1/2 (this value shows the temperature at which phosphor loses half of its efficiency) and thermal quenching activation energy Ea values. This is usually done by applying Fermi-Dirac model [18,44]:
I ( T ) I 0 = 1 1 + B e E a / k T
Here I(T) and I0 are the temperature-dependent emission integral and the highest value of emission integral, respectively. B is quenching frequency factor. Ea is thermal quenching activation energy. T is absolute temperature and k is Boltzmann constant (8.617342·10−5 eV/K) [45]. The TQ1/2 values, in turn, can be derived by slight changes of equation 3 [42]:
T Q 1 / 2 = E a k × ln ( 1 / B )
The calculated TQ1/2 and Ea values for Rb2Eu(PO4)(MoO4) specimen are 716 K ±46 K and 0.1391 eV ±0.0142 eV, respectively (see Figure 4c). These results demonstrate that Rb2Eu(PO4)(MoO4) sample would lose half efficiency at temperatures well above of the typical high power LED; therefore, it could be applied as a red component in near-UV based white LEDs. Besides, the TQ1/2 values of Rb2Eu(PO4)(MoO4) sample are also higher than those reported for its potassium counterpart K2Eu(PO4)(MoO4) reported earlier in the literature (TQ1/2 = 578 K ± 11 K) [17]. In this sense, the Rb2Eu(PO4)(MoO4) is superior if compared to K2Eu(PO4)(MoO4).
The temperature-dependent PL decay curves were also recorded for Rb2Bi(PO4)(MoO4) samples doped with 1%, 50%, and 100% Eu3+. The PL decay profile was single exponential and the PL lifetime values were calculated employing equation 2. The obtained temperature-dependent PL lifetime values for those three specimens are depicted in Figure 4d. The exact PL lifetime values together with standard deviations are summarized in Table S3. It is interesting to note that PL lifetime values of samples doped with 1% and 50% Eu3+ decreases with increasing temperature. However, the PL lifetime values of specimen doped with 100% Eu3+ increases up to 400 K and only then start to decrease. This shows, that the internal quantum efficiency of this phosphor is the highest at 400 K.
Another important specification of the phosphor considered for application in white LEDs is the colour purity. This can be evaluated by calculating the colour coordinates from the respective emission spectra. The fragments of CIE 1931 colour space diagram together with Eu3+ concentration-dependent colour coordinates at room temperature and temperature-dependent colour coordinates of 1%, 50%, and 100% Eu3+ doped samples are depicted in Figure 5a–d, respectively. All the colour coordinates are located directly on the edge of the CIE 1931 colour space diagram showing high colour purity of all synthesized materials. It is also evident that colour coordinates for samples doped with higher Eu3+ concentration shift downward the edge of the CIE 1931 colour space diagram. This shows that heavier doping leads to slightly more red emission of the samples. It turned out, that temperature also influences the colour coordinates slightly. They shift upwards the edge of the CIE 1931 colour space diagram indicating that phosphors give slightly more intensity in the orange spectral region at increased temperatures. On the other hand, the shift is relatively small and the colour coordinates can be considered stable within the 77–500 K range. The exact colour coordinate values in CIE 1931 colour space as a function of Eu3+ concentration and temperature are tabulated in Table S4 and Table S5, respectively. The colour coordinates of the prepared samples are virtually the same regardless of the excitation wavelength (265, 393.5 or 465 nm) as shown in Table S4.
The brightness of emission of the prepared samples to human eye can be evaluated by calculating the luminous efficacy (LE) values from the emission spectra. These values were obtained by employing the following equation [46]:
L E ( l m / W o p t ) = 683 ( l m / W o p t ) × I ( λ ) V ( λ ) d λ I ( λ ) d λ
Here, I(λ) is emission spectrum of the sample and V(λ) is the human eye sensitivity curve. The human eye is the most sensitive to the 555 nm electromagnetic radiation; therefore, the highest possible luminous efficacy value of 683 lm/Wopt is obtained for monochromatic green light at 555 nm. The obtained LE values for the synthesized samples as a function of Eu3+ concentration and excitation wavelength (265, 393.5, and 465 nm) are tabulated in Table S4 whereas the temperature-dependent LE values for samples doped with 1%, 50%, and 100% Eu3+ are given in Table S5. The LE values of all prepared samples were virtually the same regardless the Eu3+ concentration, excitation wavelength or temperature and varied around 200 lm/Wopt. The luminous efficacy values of the synthesized phosphors are relatively high and are close to or even superior than those reported for well-known broad band emitting Eu2+ phosphors, for instance, CaS:Eu2+ (LE = 85 lm/Wopt, λem = 650 nm), Sr2Si5N8:Eu2+ (LE = 240 lm/Wopt, λem = 620 nm), CaAlSiN3:Eu2+ (LE = 150 lm/Wopt, λem = 650 nm) [47]. On the other hand, the synthesized phosphors as was already mentioned show strong 5D07F4 emission at around 702 nm and this reduces the LE values since human eye is insensitive in this range. This leads to lower LE values if compared to other Eu3+ doped phosphors where 5D07F4 emission is not so strong, for example, Li3Ba2Eu3(MoO4)8 (LE = 312 lm/Wopt, λem = 615.5 nm) [31] or Y2Mo4O15:75%Eu3+ (LE = 242 lm/Wopt, λem = 613 nm) [15].
The quantum efficiencies (QE) of all prepared samples as a function of excitation wavelength and Eu3+ concentrations are depicted in Figure 6. The QE value for the 50% Eu3+ doped sample is close to unity under 393.5 nm excitation. Such high QE value is very favourable for practical application. Further increase of the Eu3+ concentration resulted in decreased QE values under the same excitation wavelength. Moreover, excitation at 265 and 465 nm has also resulted in somewhat lower QE values. This leads to a conclusion that the synthesized phosphors in practical application should be used with near-UV emitting LEDs.
Due to forbidden nature of the intraconfigurational Eu3+ [Xe]4f6 ↔ [Xe]4f6 transitions the absorption of Eu3+ ions in inorganic matrices are relatively low [48]. One of the ways to deal with this problem is using ceramics prepared from phosphor powder instead of phosphor powder itself. In ceramics the scattering of the incident excitation light is suppressed; therefore, the light can penetrate deeper in the phosphor and thus excite more dopant ions. In order to test this concept, we have prepared three ceramic disks with thicknesses of 0.36, 0.53, and 0.80 mm from Rb2Eu(PO4)(MoO4) sample. The quantum efficiency of this sample is 10% lower if compared to sample doped with 50% Eu3+. However, the powder of fully Eu3+ substituted phosphor possesses stronger absorption; thus, in our opinion, this trade of is very reasonable. The prepared ceramic disks were placed on three different LEDs, emitting at 375, 400, and 455 nm, and the emission spectra of the resulting light sources were measured. The obtained results are summarized in Figure 7. For comparison, the emission spectra of 375, 400, and 455 nm LEDs are given in Figure 7a–c, respectively. Figure 7d demonstrates that the absorption of electromagnetic radiation emitted by 375 nm LED increases with increasing thickness of the Rb2Eu(PO4)(MoO4) ceramic disc. The ceramic disc thickness of 0.36 mm is not sufficient to absorb all the light emitted by 375 nm LED; however, it is virtually all absorbed when the thickness of ceramic disk reached 0.80 mm. The Eu3+ 7F05L7,8; 5GJ and 7F05L6 absorption lines are clearly visible in the emission spectra of the obtained light source where 375 nm LED emits. Similar behaviour was observed for light sources prepared from 400 nm emitting LED and ceramic disks. The only difference is that 0.80 mm thickness ceramic disk is still not enough to absorb all the incident radiation; therefore, for complete absorption of 400 nm LED emission a thicker ceramic disk would be required. Here, Eu3+ absorption lines originating from Eu3+ 7F05L6 and 7F15D3 transitions are visible in emission spectra of 400 nm LED. The lowest absorption of ceramic disks was observed if 455 LED was used for excitation. This, however, is not surprising since in this spectral range only one absorption line (namely, 7F05D2) of Eu3+ ions is present. Moreover, this line is very narrow and even though nearly all LED emission at around 465 nm is absorbed, the rest of LED emission passes through the disk unabsorbed. The relatively low absorption of 375 and 465 nm LED emission by prepared ceramic disks is, of course, a disadvantage for the practical application. However, on the positive side, the unabsorbed LED emission remains available for exiting phosphors emitting in other spectral regions.
The colour coordinates and LE values of the obtained light sources were also calculated. The exact values are tabulated in Table S6 whereas the graphical representation is shown in Figure 8. The colour coordinates of the light sources obtained from Rb2Eu(PO4)(MoO4) ceramic discs and 375 nm emitting LED shift closer to the edge of CIE 1931 colour space diagram if ceramics thickness is increased (see Figure 8a). This shows high colour purity of the emitted red light. Such result also goes hand in hand with emission spectra depicted in Figure 7d, where emission from LED is completely absorbed by the thickest ceramic disk. Different results, however, were obtained when 400 nm emitting LED was used as an excitation source. The colour coordinates of these light sources lied in the purplish red spectral region of the CIE 1931 colour space diagram and shifted towards red region with increasing ceramics thickness (see Figure 8b). These results correlate well with emission spectra given in Figure 7e. The blend of Eu3+ emission in ceramic disks and unabsorbed emission from LED yields the purplish red emission colour. The fraction of LED emission decreases with increasing ceramics thickness; hence, the red shift of colour coordinate. It turned out that no red light source can be obtained by combining Rb2Eu(PO4)(MoO4) ceramic discs and 455 nm emitting LED. The absorption lines in this region by Eu3+ ions are just too narrow. Therefore, the major part of 455 nm LED emission passes through the ceramic disks unabsorbed regardless their thickness and all the colour coordinates of such light sources lie in the blue region of the CIE 1931 colour space diagram as shown in Figure 8c.
The highest LE values were obtained for light sources obtained from Rb2Eu(PO4)(MoO4) ceramic discs and 375 nm emitting LED. The LE values increased from 130 to 186 lm/Wopt with increasing ceramic thickness from 0.36 to 0.80 mm. This is associated with decreasing fraction of 375 nm LED emission for which human eye is extremely insensitive. Similar results were observed for the light sources obtained using 400 nm emitting LED. Here the LE values increased from 98 to 156 lm/Wopt. The lower LE values, if compared to devices with 375 nm emitting LED, are obtained because a larger fraction of LED emission remains unabsorbed. Finally, the lowest luminous efficacy values were calculated for light sources using 455 nm emitting LED. In this case the LE values were only 55 and 73 lm/Wopt for devices with the thinnest and the thickest ceramic disks, respectively. This is due to emission of such light sources in the blue and red spectral regions were the human eye sensitivity is low.

4. Conclusions

Single phase Rb2Bi(PO4)(MoO4):Eu3+ phosphors with Eu3+ concentration ranging from 1% to 100% were synthesized by solid state reaction method at relatively low temperatures. All samples showed bright red luminescence if excited with near-UV radiation. The most intensive emission lines of Eu3+ ions were observed for 5D07F2 and 5D07F4 transitions at 615 and 702 nm, respectively. The calculated colour coordinates also indicated high colour purity of the emission regardless the Eu3+ concentration and temperature. Samples, excited at 393.5 nm possessed high quantum efficiency reaching almost 100% for 50% Eu3+ doped specimen. Moreover, these phosphors also showed high emission stability at elevated temperatures. The extrapolation of experimental results indicated that synthesized phosphors would lose half of efficiency only at 716 K what is well beyond the operating temperature of high power LED semiconductor chip. The calculated luminous efficacies were comparable or even superior to those reported for well-established Eu2+ doped phosphors. All these properties of herein reported Rb2Bi(PO4)(MoO4):Eu3+ phosphors makes them good candidates for practical application as a red component in a near-UV LED driven solid state light sources. However, it should also be noted that the most efficient samples possess high concentration of Eu3+ which makes these phosphors relatively expensive. Moreover, these phosphors could also be considered for application in luminescent security pigments due to unique emission spectra.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/12/19/3275/s1, Figure S1: Unit cell of Rb2Bi(PO4)(MoO4) along the c-axis, Figure S2: XRD patterns of Rb2Bi(PO4)(MoO4):Eu3+ as a function of Eu3+ concentration and heating time. The reference pattern of K2Bi(PO4)(MoO4) is given for comparison, Figure S3: FTIR spectra of Rb2Bi(PO4)(MoO4):Eu3+ doped with 0% Eu3+ (a), 25% Eu3+ (b), 50% Eu3+ (c), 75% Eu3+ (d), and 100% Eu3+ (e), Table S1: The weight of reagents used for the synthesis of Rb2Bi(PO4)(MoO4):Eu3+ powders, Table S2: PL lifetime values of Rb2Bi(PO4)(MoO4):Eu3+ phosphors as a function of Eu3+ concentration and excitation wavelength, Table S3: Temperature-dependent PL lifetime values (λex = 393.5 nm, λem = 615 nm) of Rb2Bi(PO4)(MoO4) phosphors doped with 1%, 50%, and 100% Eu3+, Table S4: CIE 1931 colour coordinates and LE values of synthesized phosphors as a function of Eu3+ concentration and excitation wavelength, Table S5: CIE 1931 colour coordinates and LE values of synthesized phosphors as a function of Eu3+ concentration and temperature (λex = 393.5 nm), Table S6: CIE 1931 colour coordinates and luminous efficacies (LE) of different thicknesses Rb2Eu(PO4)(MoO4) ceramics mounted on 375, 400, and 455 nm LEDs.

Author Contributions

Conceptualization, S.S. (Simas Sakirzanovas) and A.K.; investigation, J.G., E.E., A.M. S.S. (Sandra Stanionyte) and R.J.; writing—original draft preparation, J.G.; writing—review and editing, S.S. (Simas Sakirzanovas) and A.K.; visualization, J.G. and A.K.; funding acquisition, A.K.

Funding

This research was funded by a grant (No. S-MIP-17-48) from the Research Council of Lithuania.

Acknowledgments

The authors gratefully thank Rokas Vargalis (Vilnius University) for taking SEM images.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nakamura, S. GaN Growth Using GaN Buffer Layer. Jpn. J. Appl. Phys. 1991, 30, L1705–L1707. [Google Scholar] [CrossRef]
  2. Setlur, A.A.; Heward, W.J.; Gao, Y.; Srivastava, A.M.; Chandran, R.G.; Shankar, M.V. Crystal Chemistry and Luminescence of Ce3+-Doped Lu2CaMg2(Si,Ge)3O12 and its Use in LED Based Lighting. Chem. Mater. 2006, 18, 3314–3322. [Google Scholar] [CrossRef]
  3. Lin, H.; Xu, J.; Huang, Q.; Wang, B.; Chen, H.; Lin, Z.; Wang, Y. Bandgap Tailoring via Si Doping in Inverse-Garnet Mg3Y2Ge3O12:Ce3+ Persistent Phosphor Potentially Applicable in AC-LED. ACS Appl. Mater. Interfaces 2015, 7, 21835–21843. [Google Scholar] [CrossRef] [PubMed]
  4. Katelnikovas, A.; Bettentrup, H.; Uhlich, D.; Sakirzanovas, S.; Jüstel, T.; Kareiva, A. Synthesis and Optical Properties of Ce3+-Doped Y3Mg2AlSi2O12 Phosphors. J. Lumin. 2009, 129, 1356–1361. [Google Scholar] [CrossRef]
  5. Xia, Z.; Meijerink, A. Ce3+-Doped garnet phosphors: Composition modification, luminescence properties and applications. Chem. Soc. Rev. 2017, 46, 275–299. [Google Scholar] [CrossRef] [PubMed]
  6. Park, W.B.; Singh, S.P.; Yoon, C.; Sohn, K.-S. Eu2+ Luminescence from 5 Different Crystallographic Sites in a Novel Red Phosphor, Ca15Si20O10N30:Eu2+. J. Mater. Chem. 2012, 22, 14068–14075. [Google Scholar] [CrossRef]
  7. Watanabe, H.; Kijima, N. Crystal Structure and Luminescence Properties of SrxCa1-xAlSiN3:Eu2+ Mixed Nitride Phosphors. J. Alloys Compd. 2009, 475, 434–439. [Google Scholar]
  8. Li, Y.Q.; van Steen, J.E.J.; van Krevel, J.W.H.; Botty, G.; Delsing, A.C.A.; DiSalvo, F.J.; de With, G.; Hintzen, H.T. Luminescence properties of red-emitting M2Si5N8:Eu2+ (M=Ca, Sr, Ba) LED conversion phosphors. J. Alloys Compd. 2006, 417, 273–279. [Google Scholar] [CrossRef]
  9. Pust, P.; Weiler, V.; Hecht, C.; Tücks, A.; Wochnik, A.S.; Henß, A.-K.; Wiechert, D.; Scheu, C.; Schmidt, P.J.; Schnick, W. Narrow-Band Red-Emitting Sr[LiAl3N4]:Eu2+ as a Next-Generation LED-Phosphor Material. Nat. Mater. 2014, 13, 891–896. [Google Scholar] [CrossRef]
  10. Wang, L.; Xie, R.-J.; Suehiro, T.; Takeda, T.; Hirosaki, N. Down-Conversion Nitride Materials for Solid State Lighting: Recent Advances and Perspectives. Chem. Rev. 2018, 118, 1951–2009. [Google Scholar] [CrossRef]
  11. Zukauskas, A.; Vaicekauskas, R.; Ivanauskas, F.; Vaitkevicius, H.; Shur, M.S. Spectral Optimization of Phosphor-Conversion Light-Emitting Diodes for Ultimate Color Rendering. Appl. Phys. Lett. 2008, 93, 051115. [Google Scholar] [CrossRef]
  12. Bechtel, H.; Jüstel, T.; Gläser, H.; Wiechert, D.U. Phosphors for Plasma-Display Panels: Demands and Achieved Performance. J. Soc. Inf. Display 2002, 10, 63–67. [Google Scholar] [CrossRef]
  13. Lim, M.A.; Park, J.K.; Kim, C.H.; Park, H.D.; Han, M.W. Luminescence Characteristics of Green Light Emitting Ba2SiO4:Eu2+ Phosphor. J. Mater. Sci. Lett. 2003, 22, 1351–1353. [Google Scholar] [CrossRef]
  14. Bachmann, V.; Ronda, C.; Oeckler, O.; Schnick, W.; Meijerink, A. Color Point Tuning for (Sr,Ca,Ba)Si2O2N2:Eu2+ for White Light LEDs. Chem. Mater. 2009, 21, 316–325. [Google Scholar] [CrossRef]
  15. Janulevicius, M.; Marmokas, P.; Misevicius, M.; Grigorjevaite, J.; Mikoliunaite, L.; Sakirzanovas, S.; Katelnikovas, A. Luminescence and Luminescence Quenching of Highly Efficient Y2Mo4O15:Eu3+ Phosphors and Ceramics. Sci. Rep. 2016, 6, 26098. [Google Scholar] [CrossRef]
  16. Cheng, F.; Xia, Z.; Molokeev, M.S.; Jing, X. Effects of Composition Modulation on the Luminescence Properties of Eu3+ Doped Li1-xAgxLu(MoO4)2 Solid-Solution Phosphors. Dalton Trans. 2015, 44, 18078–18089. [Google Scholar] [CrossRef]
  17. Grigorjevaite, J.; Katelnikovas, A. Luminescence and Luminescence Quenching of K2Bi(PO4)(MoO4):Eu3+ Phosphors with Efficiencies Close to Unity. ACS Appl. Mater. Interfaces 2016, 8, 31772–31782. [Google Scholar] [CrossRef]
  18. Baur, F.; Glocker, F.; Jüstel, T. Photoluminescence and Energy Transfer Rates and Efficiencies in Eu3+ Activated Tb2Mo3O12. J. Mater. Chem. C 2015, 3, 2054–2064. [Google Scholar] [CrossRef]
  19. Baur, F.; Jüstel, T. Eu3+ activated molybdates—Structure property relations. Opt. Mater. X 2019, 1, 100015. [Google Scholar] [CrossRef]
  20. Adachi, S. Review—Mn4+-Activated Red and Deep Red-Emitting Phosphors. ECS J. Solid State Sci. Technol. 2020, 9, 106001. [Google Scholar] [CrossRef]
  21. Zhou, Q.; Dolgov, L.; Srivastava, A.M.; Zhou, L.; Wang, Z.; Shi, J.; Dramićanin, M.D.; Brik, M.G.; Wu, M. Mn2+ and Mn4+ red phosphors: synthesis, luminescence and applications in WLEDs. A review. J. Mater. Chem. C 2018, 6, 2652–2671. [Google Scholar] [CrossRef]
  22. Zhou, Z.; Zhou, N.; Xia, M.; Yokoyama, M.; Hintzen, H.T. Research progress and application prospects of transition metal Mn4+-activated luminescent materials. J. Mater. Chem. C 2016, 4, 9143–9161. [Google Scholar] [CrossRef]
  23. Xia, M.J.; Li, R.K. Crystal structure and characterization of mixed anion compounds Rb2Bi(PO4)(MO4) (M=Mo, W). Solid State Commun. 2015, 201, 102–106. [Google Scholar] [CrossRef]
  24. Zatovsky, I.V.; Terebilenko, K.V.; Slobodyanik, N.S.; Baumer, V.N.; Shishkin, O.V. Synthesis, Characterization and Crystal Structure of K2Bi(PO4)(MoO4). J. Solid State Chem. 2006, 179, 3550–3555. [Google Scholar] [CrossRef]
  25. Shannon, R.D. Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides. Acta Crystallogr. 1976, A32, 751–767. [Google Scholar] [CrossRef]
  26. Carnall, W.T.; Crosswhite, H.; Crosswhite, H.M. Energy Level Structure and Transition Probabilities in the Spectra of the Trivalent Lanthanides in LaF3; Argonne National Laboratory Report: Lemont, IL, USA, 1977. [Google Scholar]
  27. Binnemans, K. Interpretation of Europium(III) Spectra. Coord. Chem. Rev. 2015, 295, 1–45. [Google Scholar] [CrossRef]
  28. Eliseeva, S.V.; Bunzli, J.-C.G. Lanthanide Luminescence for Functional Materials and Bio-Sciences. Chem. Soc. Rev. 2010, 39, 189–227. [Google Scholar] [CrossRef] [PubMed]
  29. Walsh, B.M. Judd-Ofelt Theory: Principles and Practices. In Advances in Spectroscopy for Lasers and Sensing; Di Bartolo, B., Forte, O., Eds.; Springer: Dordrecht, The Netherlands, 2006; pp. 403–433. [Google Scholar]
  30. Görller-Walrand, C.; Binnemans, K. Spectral Intensities of f-f Transitions. In Handbook on the Physics and Chemistry of Rare Earths; Gschneidner, K.A., Eyring, L., Eds.; Elsevier Science B.V.: Amsterdam, The Netherlands, 1998; pp. 101–264. [Google Scholar]
  31. Katelnikovas, A.; Plewa, J.; Sakirzanovas, S.; Dutczak, D.; Enseling, D.; Baur, F.; Winkler, H.; Kareiva, A.; Jüstel, T. Synthesis and Optical Properties of Li3Ba2La3(MoO4)8:Eu3+ Powders and Ceramics for pcLEDs. J. Mater. Chem. 2012, 22, 22126–22134. [Google Scholar] [CrossRef]
  32. Du, P.; Yu, J.S. Eu3+-activated La2MoO6-La2WO6 red-emitting phosphors with ultrabroad excitation band for white light-emitting diodes. Sci. Rep. 2017, 7, 11953. [Google Scholar] [CrossRef]
  33. Schwung, S.; Rytz, D.; Gross, A.; Rodewald, U.C.; Hoffmann, R.-D.; Gerke, B.; Heying, B.; Schwickert, C.; Pöttgen, R.; Jüstel, T. LiEuMo2O8—crystal growth, structure, and optical properties. Opt. Mater. 2014, 36, 585–590. [Google Scholar] [CrossRef]
  34. Marrero-López, D.; Núñez, P.; Abril, M.; Lavín, V.; Rodríguez-Mendoza, U.R.; Rodríguez, V.D. Synthesis, electrical properties, and optical characterization of Eu3+-doped La2Mo2O9 nanocrystalline phosphors. J. Non-Cryst. Solids 2004, 345–346, 377–381. [Google Scholar] [CrossRef]
  35. Skaudzius, R.; Katelnikovas, A.; Enseling, D.; Kareiva, A.; Justel, T. Dependence of the 5D07F4 transitions of Eu3+ on the local environment in phosphates and garnets. J. Lumin. 2014, 147, 290–294. [Google Scholar] [CrossRef]
  36. Shi, X.; Liu, Y.; Zhang, J.; Zhang, K.; Li, P.; Zuo, H. Hydrothermal Synthesis and Luminescence Property of Nanoscaled BiPO4:Eu3+ Powders. J. Nanosci. Nanotechnol. 2016, 16, 3827–3830. [Google Scholar] [CrossRef] [PubMed]
  37. Kruopyte, A.; Giraitis, R.; Juskenas, R.; Enseling, D.; Jüstel, T.; Katelnikovas, A. Luminescence and luminescence quenching of efficient GdB5O9:Eu3+ red phosphors. J. Lumin. 2017, 192, 520–526. [Google Scholar] [CrossRef]
  38. Janulevicius, M.; Grigorjevaite, J.; Merkininkaite, G.; Sakirzanovas, S.; Katelnikovas, A. Luminescence and luminescence quenching of Eu2Mo4O15. J. Lumin. 2016, 179, 35–39. [Google Scholar] [CrossRef]
  39. Liu, C.; Zhou, Z.; Zhang, Y. Synthesis and luminescence properties of novel red-emitting Na2ZnSiO4:Eu3+ phosphor with intense 5D07F4 transition and high quantum yield. J. Alloys Compd. 2019, 787, 1158–1162. [Google Scholar] [CrossRef]
  40. Behrh, G.K.; Gautier, R.; Latouche, C.; Jobic, S.; Serier-Brault, H. Synthesis and Photoluminescence Properties of Ca2Ga2SiO7:Eu3+ Red Phosphors with an Intense 5D07F4 Transition. Inorg. Chem. 2016, 55, 9144–9146. [Google Scholar] [CrossRef] [PubMed]
  41. Zhang, Y.; Zhang, X.; Zhang, H.; Zheng, L.; Zeng, Y.; Lin, Y.; Liu, Y.; Lei, B. Tunable emission from green to red in the GdSr2AlO5:Tb3+,Eu3+ phosphor via efficient energy transfer. RSC Adv. 2018, 8, 3530–3535. [Google Scholar] [CrossRef]
  42. Mackevic, I.; Grigorjevaite, J.; Janulevicius, M.; Linkeviciute, A.; Sakirzanovas, S.; Katelnikovas, A. Synthesis and optical properties of highly efficient red-emitting K2LaNb5O15:Eu3+ phosphors. Opt. Mater. 2019, 89, 25–33. [Google Scholar] [CrossRef]
  43. Baur, F.; Jüstel, T. Uranyl sensitized Eu3+ luminescence in Ln(UO2)3(PO4)2O(OH)·6H2O phosphors (Ln = Y, Eu, La) for warm-white light emitting diodes. J. Lumin. 2018, 196, 431–436. [Google Scholar] [CrossRef]
  44. Ueda, J.; Dorenbos, P.; Bos, A.J.J.; Meijerink, A.; Tanabe, S. Insight into the Thermal Quenching Mechanism for Y3Al5O12:Ce3+ Through Thermo Luminescence Excitation Spectroscopy. J. Phys. Chem. C 2015, 119, 25003–25008. [Google Scholar] [CrossRef]
  45. Lide, D.R. CRC Handbook of Chemistry and Physics, 90th ed.; CD-ROM Version 2010; CRC Press/Taylor and Francis: Boca Raton, FL, USA, 2009. [Google Scholar]
  46. Smet, P.F.; Parmentier, A.B.; Poelman, D. Selecting Conversion Phosphors for White Light-Emitting Diodes. J. Electrochem. Soc. 2011, 158, R37–R54. [Google Scholar] [CrossRef]
  47. Ronda, C.R. Luminescence: From Theory to Applications; Wiley-VCH: Weinheim, Germany, 2008. [Google Scholar]
  48. Yen, W.M.; Shionoya, S.; Yamamoto, H. Fundamentals of Phosphors; CRC Press: Boca Raton, FL, USA, 2007. [Google Scholar]

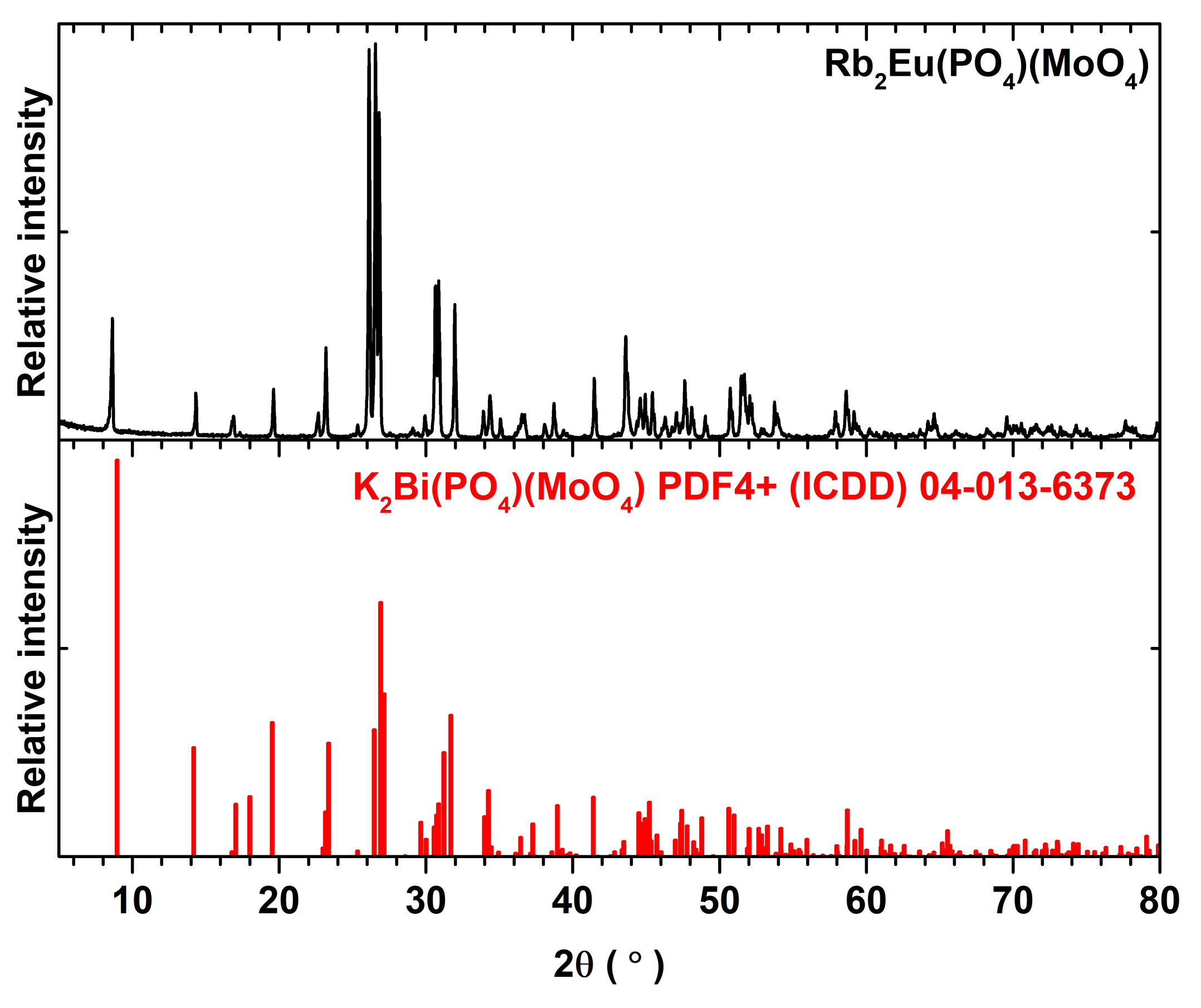

Figure 1. Powder XRD pattern of Rb2Eu(PO4)(MoO4) specimen together with reference pattern of K2Bi(PO4)MoO4) (PDF4+ (ICDD) 04-013-6373).
Figure 1. Powder XRD pattern of Rb2Eu(PO4)(MoO4) specimen together with reference pattern of K2Bi(PO4)MoO4) (PDF4+ (ICDD) 04-013-6373).
Materials 12 03275 g001

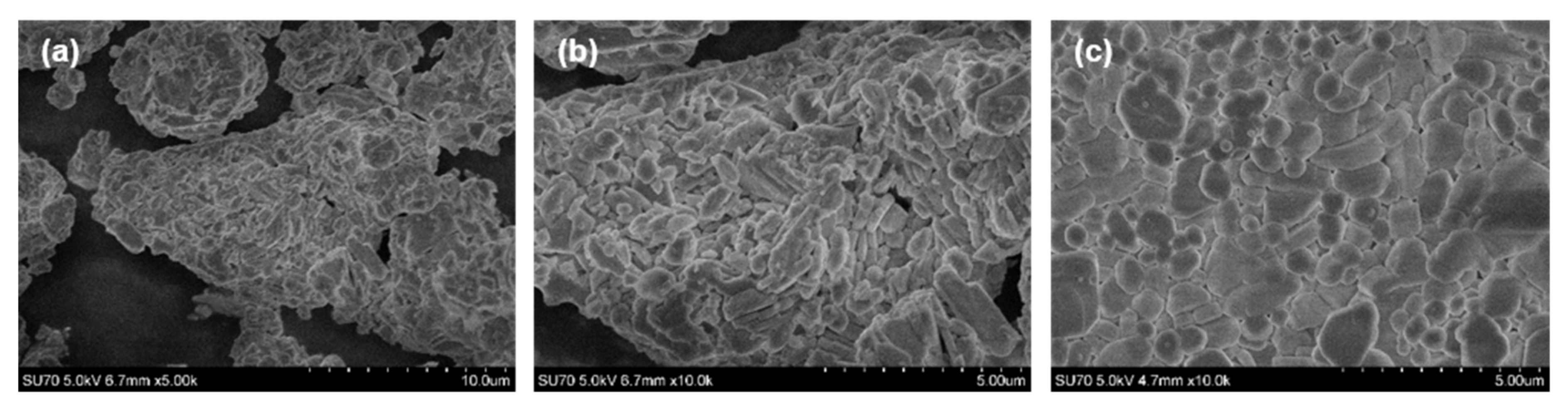

Figure 2. SEM images of Rb2Bi(PO4)(MoO4):50%Eu3+ powders (a,b) and ceramic disk of Rb2Eu(PO4)(MoO4) (c).
Figure 2. SEM images of Rb2Bi(PO4)(MoO4):50%Eu3+ powders (a,b) and ceramic disk of Rb2Eu(PO4)(MoO4) (c).
Materials 12 03275 g002

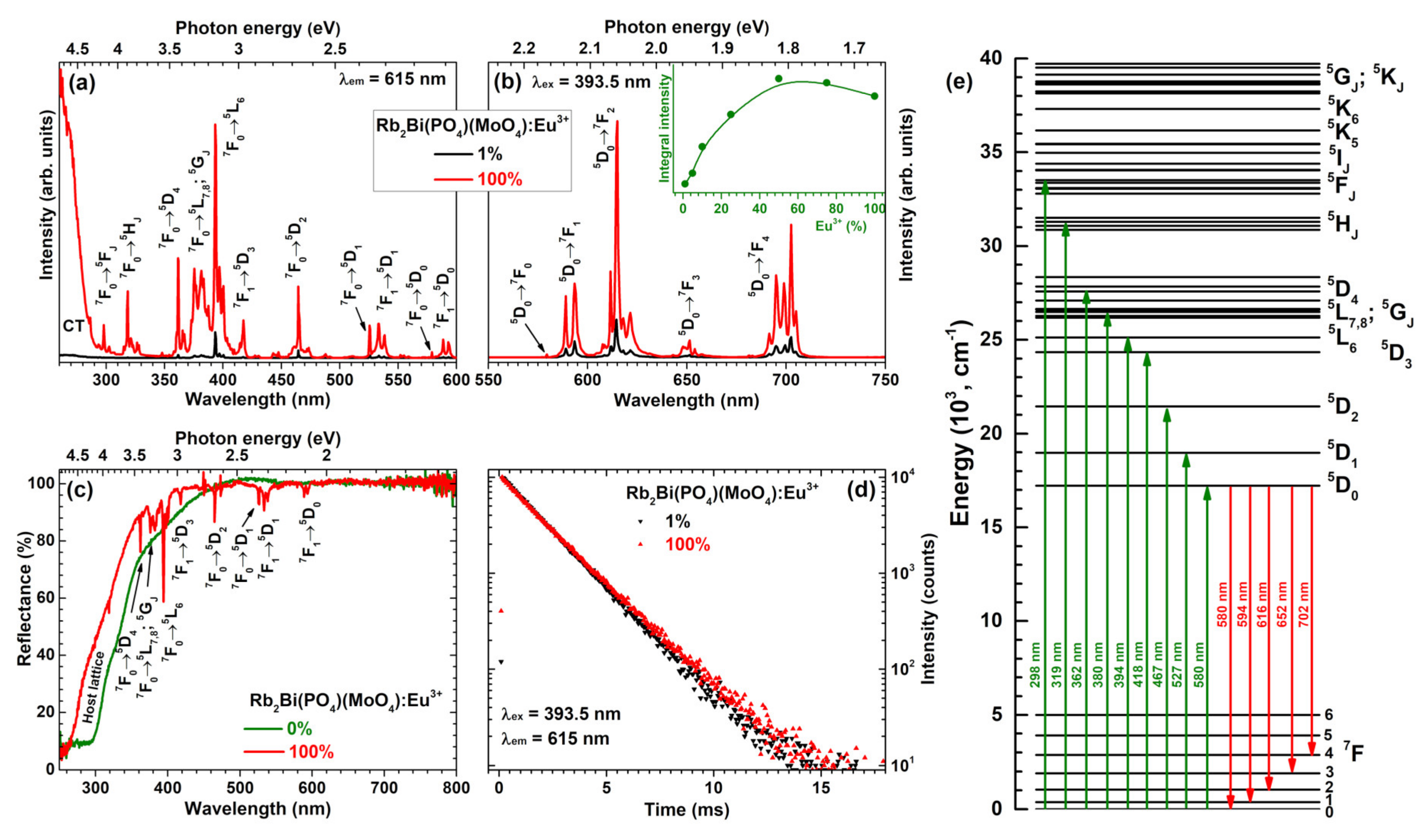

Figure 3. (a) Excitation (λem = 615 nm) and (b) emission (λex = 393.5 nm) spectra of Rb2Bi(PO4)(MoO4):Eu3+; inset shows emission integral intensity as a function of Eu3+ concentration (λex = 393.5 nm). (c) Reflection spectra of Rb2Bi(PO4)(MoO4) and Rb2Eu(PO4)(MoO4). (d) Photoluminescence decay (λex = 393.5 nm, λem = 615 nm) curves of Rb2Bi(PO4)(MoO4) samples doped with 1% and 100% Eu3+. (e) Energy levels of Eu3+ ions with wavelengths of electronic transitions.
Figure 3. (a) Excitation (λem = 615 nm) and (b) emission (λex = 393.5 nm) spectra of Rb2Bi(PO4)(MoO4):Eu3+; inset shows emission integral intensity as a function of Eu3+ concentration (λex = 393.5 nm). (c) Reflection spectra of Rb2Bi(PO4)(MoO4) and Rb2Eu(PO4)(MoO4). (d) Photoluminescence decay (λex = 393.5 nm, λem = 615 nm) curves of Rb2Bi(PO4)(MoO4) samples doped with 1% and 100% Eu3+. (e) Energy levels of Eu3+ ions with wavelengths of electronic transitions.
Materials 12 03275 g003

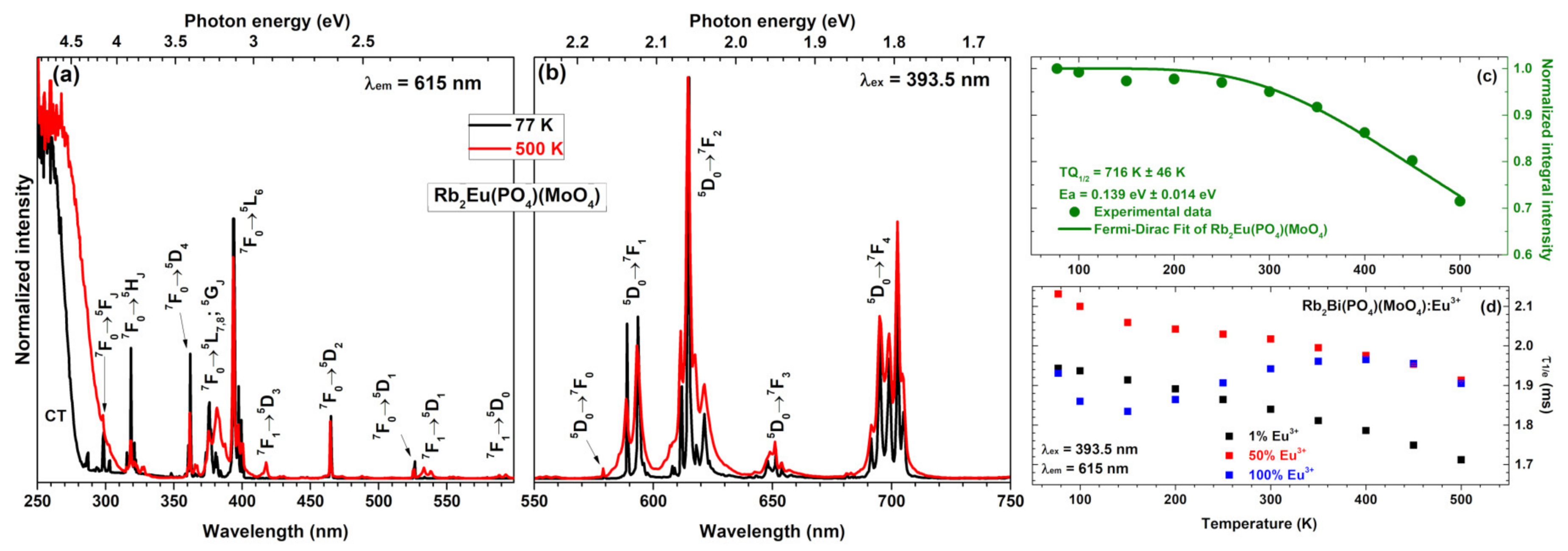

Figure 4. (a) Excitation (λem = 615 nm) and (b) emission (λex = 393.5 nm) spectra of Rb2Eu(PO4)(MoO4) at 77 and 500 K temperature. (c) Calculation of TQ1/2 value for the sample doped with 100% Eu3+ from normalized emission integral intensity. (d) Temperature-dependent photoluminescence (PL) lifetimes (τ1/e) of Rb2Bi(PO4)(MoO4) doped with 1%, 50%, and 100% Eu3+.
Figure 4. (a) Excitation (λem = 615 nm) and (b) emission (λex = 393.5 nm) spectra of Rb2Eu(PO4)(MoO4) at 77 and 500 K temperature. (c) Calculation of TQ1/2 value for the sample doped with 100% Eu3+ from normalized emission integral intensity. (d) Temperature-dependent photoluminescence (PL) lifetimes (τ1/e) of Rb2Bi(PO4)(MoO4) doped with 1%, 50%, and 100% Eu3+.
Materials 12 03275 g004
Figure 5. Fragments of the CIE 1931 colour diagrams with the colour points of (a) Rb2Bi(PO4)(MoO4):Eu3+ as a function of Eu3+ concentration and as a function of temperature of (b) 1%, (c) 50%, and (d) 100% Eu3+ doped samples. All samples were excited at 393.5 nm.
Figure 5. Fragments of the CIE 1931 colour diagrams with the colour points of (a) Rb2Bi(PO4)(MoO4):Eu3+ as a function of Eu3+ concentration and as a function of temperature of (b) 1%, (c) 50%, and (d) 100% Eu3+ doped samples. All samples were excited at 393.5 nm.
Materials 12 03275 g005

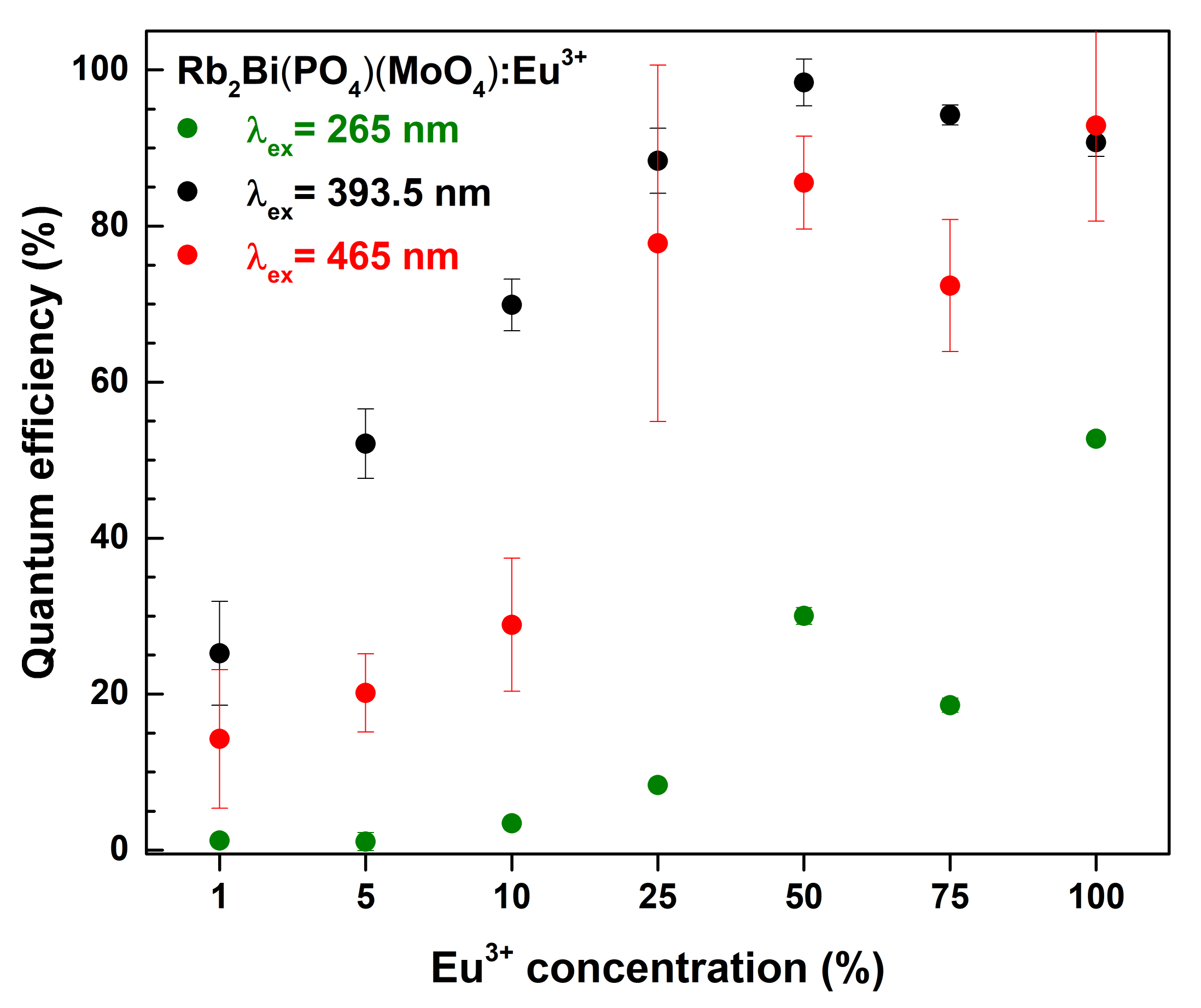

Figure 6. Quantum efficiencies of Rb2Bi(PO4)(MoO4):Eu3+ phosphors as a function of Eu3+ concentration and excitation wavelength.
Figure 6. Quantum efficiencies of Rb2Bi(PO4)(MoO4):Eu3+ phosphors as a function of Eu3+ concentration and excitation wavelength.
Materials 12 03275 g006

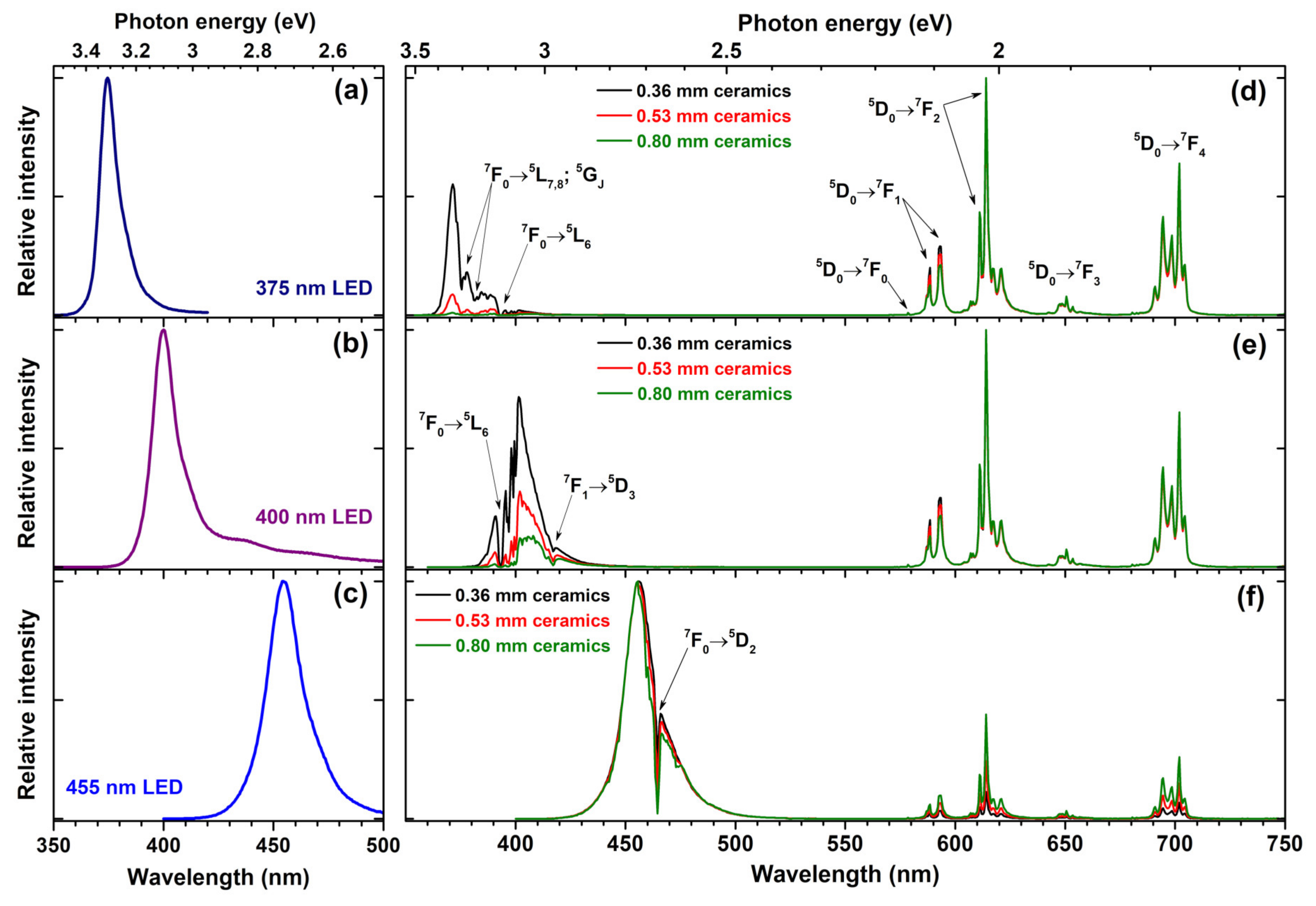

Figure 7. Emission spectra of 375 nm LED (a), 400 nm LED (b), and 455 nm LED (c). Emission spectra of Rb2Eu(PO4)(MoO4) ceramic disks excited at 375 nm LED (d), 400 nm LED (e), and 455 nm LED (f).
