Effects of Cr, W, and Mo on the High Temperature Oxidation of Ni-Based Superalloys
1
Multi-Material Research Center, Gwangju-Jeonnam Division, Korea Automotive Technology Institute, 55 Jingok-sandan-jungangro, Gwangsan-gu, Gwangju 62207, Korea
2
High Temperature Materials Group, Korea Institute of Materials Science, 797 Changwondaero, Seongsan-gu, Changwon 51508, Korea
3
Department of Materials Science and Engineering, Chosun University, 309 Pilmundaero, Dong-gu, Gwangju 61452, Korea
*
Correspondence:    [email protected]
Received: 12 August 2019 / Accepted: 3 September 2019 / Published: 11 September 2019

Abstract

:
The oxidation behavior of Ni–9.5Co–(8~12)Cr–(2.5~5.5)Mo–(4~8)W–3Al–5Ti–3Ta–0.1C–0.01B alloys was investigated at 850 °C and 1000 °C The mass change, the phase of oxides, and the cross-sectional structure of specimens were analyzed after cyclic oxidation tests. The oxide scale was composed mainly of Cr2O3 and NiCr2O4, but NiO, TiO2, and CrTaO4 were also found. Al2O3 was formed beneath the Cr oxide layer. The Cr oxide layer and internal Al oxide acted as barriers to oxidation at 850 °C, while Al oxide was predominantly protective at 1000 °C. Cr increased the mass gain after oxidation test at both temperatures. Mo increased the oxidation rate at 850 °C but decreased the oxidation rate at 1000 °C. W slightly increased the mass gain at 850 °C but did not produce a significant effect at 1000 °C. The effects of Cr, Mo, W, and the temperature were discussed as well as the volatilization of oxides, the valence number of elements, and diffusion retardation.
Keywords:
high temperature oxidation; alloying element; Ni-based superalloy; cyclic oxidation

1. Introduction

Ni-based superalloys are used for heat exchangers, gas turbine blades, and chemical reactors because of their excellent oxidation resistance and mechanical strength at high temperatures. The oxidation behavior of superalloys is influenced by their chemical compositions. Cr and Al are the representatives of protecting alloying elements [1,2,3,4,5,6,7]. Cr forms a dense Cr2O3 layer on the surface of Ni-based superalloys and reduces the oxidation rate. It is very effective in protecting the alloy at temperatures up to about 871 °C (1600 °F). Above this temperature, Cr2O3 becomes unstable and volatile CrO3 forms. The role of Al is crucial at higher temperatures. When Al forms a dense and continuous layer of Al2O3, oxidation of the alloy is significantly reduced. The formation of the Al2O3 layer depends on the temperature and alloy composition [8,9,10,11,12].
Mo and W are known to reduce the oxidation resistance of Ni-based superalloys [13,14,15,16,17]. However, some reports indicate that these elements can stabilize the Cr2O3 layer [18,19]. The effects of Mo and W have been explained as promoting or hindering the formation of Cr2O3 or Al2O3, as well as the volatilization of their oxides [20,21,22,23,24,25,26,27].
Recent studies show that an alloying element can change the role of another element so that contradictory results are obtained depending on the alloy composition and temperature [8,28,29]. For example, increasing the Ta content in alloys with a low concentration of Al reduces the oxidation rate, but there is almost no effect in alloys with a high Al content [8]. Cr increases the mass gain of alloys with W during oxidation, but decreases the mass gain of the alloys without W [29]. Furthermore, Kim et al. [30] showed that a regression model from a Response Surface Model study predicted the rankings of several commercial alloys, although they failed to predict a reasonable oxidation rate for each alloy.
In this study, the oxidation behavior at 850 and 1000 °C of Ni-based superalloys containing Co, Cr, Mo, W, Al, Ti, and Ta as alloying elements is examined as a function of the Cr, Mo, and W contents. The effects of Cr, Mo, and W on the oxidation rate are determined, and the mechanism for these are discussed.

2. Experimental Procedures

Ni-based superalloys, with compositions listed in Table 1, were used as specimens. The alloys were cast into a button by vacuum arc melting. The buttons were turned over and remelted several times to make the composition homogeneous. The homogeneity was confirmed using energy dispersive spectroscopy (EDS, S-4800, Hitachi, Japan) on multiple points on the specimens. The specimens were then cut into disks of 10 mm in diameter and 4 mm in height and smoothed with a milling machine, followed by surface finishing with #2000 SiC abrasive paper. Each sample was contained in an alumina crucible of 20 mm × 20 mm × 15 mm in size and put into a box furnace (Jeiotech MF-GH32, Daejeon, South Korea). The alumina crucibles were preheated to 1000 °C for 100 h to ensure that the weight of the crucibles did not change during the oxidation test.
The oxidation test was performed for six cycles. Each cycle consisted of the following procedures: The specimens were put into the furnace when the temperature was 400 °C. The temperature was increased up to 850 or 1000 °C over 2 h and kept constant for 15 h. After thermostatic oxidation, the specimens were slowly cooled in the closed furnace with the power off for 2 h, and then in the furnace door open for about 2 h until the temperature reached 400 °C. The samples were retrieved at 400 °C and fully cooled in air.
The weight of the oxidized samples, including the fallen scales, was measured by a precision balance to an accuracy of five digits after the decimal point. The phase of the oxide scale was analyzed by using X-ray diffraction (XRD, X’pert Pro MPD, Malvern Panalytical, UK) on the oxide layer. The structure and the composition of the cross-section were examined by using scanning electron microscopy (SEM, S-4800, Hitachi, Japan) equipped with energy dispersive spectroscopy (EDS).

3. Results

Figure 1 shows pictures of the specimens after oxidation test. The surfaces of the samples were dark gray in color. Oxidation was more severe at the higher temperature, as evidenced by spalled oxide particles around the specimens tested at 1000 °C.
The weight of the alloys increased with oxidation, as shown in Figure 2. The mass gain after six cycles of oxidation at 850 °C was 0.46~0.62 mg/cm2. The oxidation rate was relatively high in the initial cycles and then gradually reduced with successive cycles. The weight of a specimen increased quickly when the oxide layer formed on the bare surface. The oxidation rate slows down after the initial stage, because the rate of oxide growth is controlled by the diffusion of oxygen and alloying elements in the oxide scale, as implied by the parabolic trend of the curves. The final mass gain at 1000 °C was 2.0~3.4 mg/cm2, much higher than that measured at 850 °C. The mass gain curves indicate continued growth of the oxide scale, except in the case for the 8Cr–3.5Mo–6W alloy at 1000 °C. The mass gain of 8Cr–3.5Mo–6W increased up to the third cycle but thereafter it became nearly constant. This is thought to be related to the volatilization of Cr hexavalent oxide. Severe spallation of scale on 8Cr–3.5Mo–6W, as seen in Figure 1, may also be a reason that no further increase of mass gain. Because we did not use any cover on the alumina crucible, part of the spalled oxide could have been lost during the tests.
The effects of the alloy composition on the mass gain by oxidation are summarized in plots in Figure 3. Figure 3 shows the averaged mass gain of the samples as a function of the content of each element. The mass gain slightly decreased when the Cr content increased from 8 wt.% to 10 wt.% but it increased when Cr the content was increased to 12 wt.% (Figure 3a). Mo shows similar behavior in that the mass gain increased with an increase of Mo to over 4.5 wt.%. W increased the mass gain very slightly. The plots for 1000 °C (Figure 3b) suggest more clearly that Cr, Mo, and W increase the mass gain and the dependence is consistent over the composition range of this study. This result suggests that the three alloying elements do not suppress the oxidation of Ni-based superalloys effectively.
The oxide scale formed at 850 °C appeared to mainly consist of Cr2O3 and NiCr2O4 from the XRD pattern (Figure 4a). NiO, TiO2, and CrTaO4 were also detected. The peaks for Al2O3 were barely measured. At 1000 °C (Figure 4b), peaks for metallic phases (matrix and Ni3Al) were not measured, implying that the oxide scale is thick. The peaks for NiCr2O4 were the strongest among the studied oxide peaks at 1000 °C. The number and intensity of the Cr2O3, CrTaO4, and NiO peaks decreased significantly, while the peak for TiO2 seemed to be similar to the XRD patterns for 850 °C. Al2O3 was detected more frequently in the data for 1000 °C than in the data for 850 °C. The difference in the XRD patterns confirms that Cr2O3 is predominant in the scale formed at 850 °C and becomes unstable at 1000 °C.
The thickness of the oxide scale for the samples oxidized at 850 °C was several micrometers, as shown in Figure 5. The scale layer was mainly composed of Cr2O3 and discontinuous particles of Al2O3 were present just beneath the Cr2O3 layer. TiO2 was often found at the outermost part of the scale.
From the images of the (8–12)Cr–3.5Mo–6W alloys shown in Figure 5b, f and h, it is noted that the size of Al2O3 particles was larger in the alloys with lower Cr content. The high Cr content and the relatively low temperature as 850 °C are thought to be favorable for preferential formation of a stable Cr2O3 layer and hence Al2O3 might grow slowly due to the low diffusion of oxygen. The mass gain (Figure 3a) decreased with the increase in Cr content up to 10 wt.%, beyond which it then increased. These results imply that the oxidation resistance depends largely on the protectiveness of the Cr oxide layer at 850 °C but Al oxide plays an important part as well.
Figure 5c–f show the images for 10Cr–(2.5–5.5)Mo–6W alloys. The distribution depth of Al oxides tended to be smaller for the alloys with a higher Mo content, though it was not a linear function. It is anticipated that inward diffusion of oxygen is impeded by Mo, therefore the penetration depth of oxygen is limited in high Mo alloys. Mo is a high valence ion of Mo4+ or Mo6+, so it consumes more oxygen than Cr or Al. Mo is assumed to be incorporated or to form a small amounts of Mo oxide, as it was not detected by XRD (Figure 4). Since more Mo in the Cr2O3 layer bonds with more oxygen, the amount of oxygen which can diffuse into the region beneath the Cr2O3 layer is reduced in the alloys with higher Mo content. Consequently, decreased formation of Al2O3 results in increased mass gain during oxidation.
The effect of W can be seen in Figure 5a, f and g. The thickness and morphology of oxides do not seem to be so different for the three alloys, except that Al2O3 is a little continuous or large in the alloy with low W content (10Cr–3.5Mo–4W in Figure 5a). This result can be understood similarly to the case of Mo, in that W is also a high valance element that becomes W4+ or W6+ ion. Therefore, W can inhibit the diffusion of oxygen through the scale effectively. In addition, W is large in size and can retard the diffusion of other atoms nearby and the formation of internal Al2O3 is reduced, causing a relatively low oxidation rate of the alloy.
Figure 6 shows that the thickness of the oxide scale formed at 1000 °C was about 10 times thicker than that formed at 850 °C. The Cr2O3 layer formed at 1000 °C was porous and some cracks or voids are present between the Cr2O3 layer and TiO2 or NiO. Internal Al2O3 lumps had a more columnar shape than those formed at 850 °C. It can be interpreted that the stability of Cr2O3 is poor at 1000 °C and some Cr oxide were lost by volatilization of CrO3, leaving pores in the oxide layer. The porosity would increase the diffusion rate of oxygen; thus, the Al oxide could be formed at a deeper location. Diffusion of Al would also be greatly promoted at 1000 °C, so the size of Al2O3 would grow faster than at 850 °C.
We discuss the effects of the Cr content on the oxide structure, as shown in Figure 6b, f and h. The shape of Al2O3 became slightly thinner with a higher Cr content. A high Cr content suppresses the penetration of oxygen by forming Cr oxides and hinders the formation of Al2O3. However, Cr2O3 is not stable at 1000 °C and it transforms into volatile CrO3, leaving pores in the scale, or into NiCr2O4. NiCr2O4 is formed by the Cr2O3 + Ni + ½ O2 → NiCr2O4 or Cr2O3 + NiO → NiCr2O4 reaction [31,32,33,34,35,36]. This reaction involves the reduction of Cr2O3 and NiO, as confirmed by the XRD patterns in Figure 4. The protectiveness of the oxidation scale deteriorates due to the loss of Cr2O3 layer and insufficient formation of Al2O3, and the mass gain increased with the increase of Cr content as shown in Figure 3b.
For the 10Cr–(2.5–5.5)Mo–6W alloys (Figure 6c–f), the porosity of the Cr2O3 layer was notably higher in the 10Cr–(3.5–5.5)Mo–6W alloys than in the 10Cr–2.5Mo–6W alloy. Cr2O3 is a p-type semiconductor [37] with a high concentration of metal vacancies. When the higher valence metal is incorporated in the Cr2O3, the metal vacancies increase, and the metal diffusion rate through the Cr2O3 layer is enhanced. However, if Mo in the scale forms separate oxides such as MoO2 or MoO3 because of an even higher Mo content, the vacancy concentration will not increase further. It should be noted that MoO3 is also volatile [13,14,15,16,17]. The increase in metal vacancy and the increase in volatilization, as mentioned above, could be the reason for the higher porosity of the Cr oxide layer in alloys with a higher Mo content. However, it was observed that more Al2O3 lumps were formed and some of them were connected, although not completely continuous, in the alloy with a higher Mo content. It is considered that the higher oxygen diffusion through the porous Cr oxide layer formed in high Mo alloys promotes the internal oxidation of Al. Al2O3 provides protection against further oxidation. Consequentially, Mo decreased the mass gain at 1000 °C as shown in Figure 3b, when the Mo content increased up to 3.5 wt.%.
Figure 6a, f and g show the effects of W on the oxide structure. Al2O3 formed more in the 10Cr–3.5Mo–6W alloy and the thickness and porosity of Cr2O3 were also increased as the W content increased. These increments are shown in the figures for the alloys with 4–6 wt.%. W is thought to exert similar but more complicated effects than Mo, as it is a high valence element which forms a volatile oxide [38] and has a low diffusion rate because of its large size. W causes low oxygen activity due to its high valence and can result in the suppression of CrO3 formation. This proposition is also supported by Huang et al. [19], who reported that W suppresses the volatilization of Cr oxide in from Ni–Cr–W alloys at temperatures higher than 1100 °C. However, WO3 itself has volatility, making pores in the scale. The large size of W retards the diffusion of other elements and the formation of Al2O3 can also be retarded. The effects of W on various volatilizations and diffusion rates of elements are not explicitly studied in this study. We can only presume that these counteractions summed up and caused almost zero dependence of mass gain on the W content, as Figure 3b shows.
Park et al. [29] previously reported that the main effects of the alloying elements were as that Cr and Mo increased mass gain slightly, but W did not affect the mass gain by oxidation of Ni-based superalloy at 1000 °C. According to their reports for the interactions between elements, the effects of Cr and Mo were rarely affected by other elements. One exception is that the increasing effect of Cr and Mo were more prominent with alloys with 3 wt.% Al content than with alloys with higher Al content. In contrast, W slightly reduced the mass gain for the 3 wt.% alloys and slightly raised the mass gain of alloys with Mo content over 2.5 wt.%. Considering that the content of Al was 3 wt.% and that of Mo was 3.5 wt.% in the comparative study of this work, the effects of W appear to be compensated by the interactions of the Al and Mo contents.

4. Conclusions

The effects of Cr, Mo, and W on the high temperature oxidation of Ni-based superalloys were examined by cyclic oxidation tests at 850 ° and 1000 °C.
The oxidation scale consists mainly of Cr2O3 and NiCrO4 with some NiO, TiO2, and CrTaO4. Al2O3 was formed under the scale discontinuously.
The mass gain after 20 cycles of oxidation tests was increased by increasing Cr, Mo, and W at 850 °C. The alloys with higher Cr, Mo, or W contents showed oxide structures with less Al2O3. Al2O3 appears to have an important role in protecting the alloy from oxidation even at this temperature as the mass gain was lower for the alloys with more Al2O3, although the dense Cr2O3 layer is present.
The oxidation rates were much higher at 1000 °C than at 850 °C. The mass gain was increased by adding Cr but reduced by adding Mo. W did not show a clear effect. These phenomena are explained by the complex effects of the volatilization of Cr, Mo, and W oxides at this temperature, the high valence of Mo and W reducing metal vacancy in the Cr2O3 layer, and the retarded diffusion due to the large size of W.

Author Contributions

Conceptualization, S.-M.S.; Data curation, S.-J.P.; Formal analysis, S.-J.P.; Funding acquisition, S.-M.S.; Investigation, S.-J.P. and H.J.; Methodology, H.J.; Project administration, H.J.; Resources, S.-M.S., Y.-S.Y. and H.-W.J.; Supervision, H.J.; Writing—original draft, H.J.

Funding

This work was supported by a grant from the Fundamental R&D Program for Core Technology of Materials (no. 10041233) and by Human Resources Program in Energy Technology (no. 20194030202410) of the Korea Institute of Energy Technology Evaluation and Planning (KETEP), both funded by the Ministry of Trade, Industry and Energy of the Republic of Korea.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Donachie, M.J.; Donachie, S.J. Superalloys: A Technical Guide, 2nd ed.; ASM International: Almere, The Netherlands, 2002; Chapter 1. [Google Scholar]
  2. Guo, H.; Li, D.; Zheng, L.; Gong, S.; Xu, H. Effect of co-doping of two reactive elements on alumina scale growth of β-NiAl at 1200 °C. Corros. Sci. 2014, 88, 197–208. [Google Scholar] [CrossRef]
  3. Li, D.; Guo, H.; Wang, D.; Zhang, T.; Gong, S.; Xu, H. Cyclic oxidation of β-NiAl with various reactive element dopants at 1200 °C. Corros Sci. 2013, 66, 125–135. [Google Scholar] [CrossRef]
  4. Yan, K.; Guo, H.; Gong, S. High-temperature oxidation behavior of β-NiAl with various reactive element dopants in dry and humid atmospheres. Corros. Sci. 2014, 83, 335–342. [Google Scholar] [CrossRef]
  5. Dong, Z.; Peng, X.; Guan, Y.; Li, L.; Wang, F. Optimization of composition and structure of electrodeposited Ni–Cr composites or increasing the oxidation resistance. Corros. Sci. 2012, 62, 147–152. [Google Scholar] [CrossRef]
  6. Young, D.; Zurek, J.; Singheiser, L.; Quadakkers, W.; Young, D. Temperature dependence of oxide scale formation on high-Cr ferritic steels in Ar-H2-H2O. Corros. Sci. 2011, 53, 2131–2141. [Google Scholar] [CrossRef]
  7. Yang, Z.; Xia, G.-G.; Stevenson, J.W. Evaluation of Ni–Cr-base alloys for SOFC interconnect applications. J. Power Sources 2006, 160, 1104–1110. [Google Scholar] [CrossRef]
  8. Park, S.-J.; Seo, S.-M.; Yoo, Y.-S.; Jeong, H.-W.; Jang, H. Effects of Al and Ta on the high temperature oxidation of Ni-based superalloys. Corros. Sci. 2015, 90, 305–312. [Google Scholar] [CrossRef]
  9. Irving, G.; Stringer, J.; Whittle, D. The oxidation of Co-20% Cr base alloys containing Nb or Ta. Corros. Sci. 1975, 15, 337–344. [Google Scholar] [CrossRef]
  10. Guo, H.; Zhang, T.; Wang, S.; Gong, S. Effect of Dy on oxide scale adhesion of NiAl coatings at 1200°C. Corros. Sci. 2011, 53, 2228–2232. [Google Scholar] [CrossRef]
  11. Lu, X.; Tian, S.; Yu, X.; Wang, C. Oxidation behavior of a single-crystal Ni-base superalloy in air at 900 and 1050 °C. Rare Met. 2011, 30, 439–442. [Google Scholar] [CrossRef]
  12. Guo, H.; Wang, D.; Peng, H.; Gong, S.; Xu, H. Effect of Sm, Gd, Yb, Sc and Nd as reactive elements on oxidation behaviour of β-NiAl at 1200 °C. Corros. Sci. 2014, 78, 369–377. [Google Scholar] [CrossRef]
  13. Qin, L.; Pei, Y.; Li, S.; Zhao, X.; Gong, S.; Xu, H. Role of volatilization of molybdenum oxides during the cyclic oxidation of high-Mo containing Ni-based single crystal superalloys. Corros. Sci. 2017, 129, 192–204. [Google Scholar] [CrossRef]
  14. Goebel, J.A.; Pettit, F.S.; Goward, G.W. Mechanisms for the hot corrosion of nickel-base alloys. Met. Mater. Trans. A 1973, 4, 261–278. [Google Scholar] [CrossRef]
  15. Carrasco, J.G.; Adeva, P.; Aballe, M. The role of microstructure on oxidation of Ni-Cr-Al base alloys at 1023 and 1123 K in air. Oxid. Met. 1990, 33, 1–17. [Google Scholar] [CrossRef]
  16. Hashizume, R.; Yoshinari, A.; Murata, Y.; Morinaga, M. Development of Ni-based Single Crystal Superalloys for Power-generation Gas-turbine Blades. Tetsu-to-Hagane 2004, 90, 518–525. [Google Scholar] [CrossRef]
  17. Hobbs, R.; Brewster, G.; Rae, C.; Tin, S. Evaluation of Ruthenium-Bearing Single Crystal Superalloys: A Design of Experiments. Superalloys 2008, 171–180. [Google Scholar]
  18. Ul-Hamid, A.; Mohammed, A.I.; Al-Jaroudi, S.S.; Tawancy, H.M.; Abbas, N.M. Evolution of oxide scale on a Ni-Mo-Cr alloy at 900 °C. Mater. Character. 2007, 58, 13–23. [Google Scholar] [CrossRef]
  19. Huang, X.; Li, J.R.; Hu, J.; Bai, G.; Fu, H. Evolution of oxidation in Ni-Cr-W alloy at 1100 °C. Rare Metal. Mat. Eng. 2010, 39, 1908–1911. [Google Scholar]
  20. El-Dahshan, M.E.; Whittle, D.P.; Stringer, J. The oxidation of nickel-tungsten alloys. Corros. Sci. 1976, 16, 83–90. [Google Scholar] [CrossRef]
  21. Espevik, S.; Rapp, R.A.; Daniel, P.L.; Hirth, J.P. Oxidation of Ni-Cr-W ternary alloys. Oxid. Met. 1980, 14, 85–108. [Google Scholar] [CrossRef]
  22. Kofstad, P. High Temperature Corrosion; Elsevier Applied Science: London, UK, 1988. [Google Scholar]
  23. Birks, N.; Meier, G.H.; Pettit, F.S. Introduction to the High. Temperature Oxidation of Metals, 2nd ed.; Cambridge University Press: New York, NY, USA, 2006. [Google Scholar]
  24. Bai, C.-Y. Effects of electrical discharge surface modification of superalloy Haynes 230 with aluminum and molybdenum on oxidation behavior. Corros. Sci. 2007, 49, 3889–3904. [Google Scholar] [CrossRef]
  25. Khalid, F.; Hussain, N.; Shahid, K. Microstructure and morphology of high temperature oxidation in superalloys. Mater. Sci. Eng. A 1999, 265, 87–94. [Google Scholar] [CrossRef]
  26. Hussain, N.; Shahid, K.A.; Khan, I.H.; Rahman, S. Oxidation of high-temperature alloys (superalloys) at elevated temperatures in air: I. Oxid. Met. 1994, 41, 251–269. [Google Scholar] [CrossRef]
  27. Yang, Q.; Xiong, W.; Li, S.; Dai, H.; Li, J. Characterization of oxide scales to evaluate high temperature oxidation behavior of Ti(C,N)-based cermets in static air. J. Alloy. Compd. 2010, 506, 461–467. [Google Scholar] [CrossRef]
  28. Park, S.-J.; Seo, S.-M.; Yoo, Y.-S.; Jeong, H.-W.; Jang, H. Statistical Study of the Effects of the Composition on the Oxidation Resistance of Ni-Based Superalloys. J. Nanomater. 2015, 2015, 1–11. [Google Scholar] [CrossRef]
  29. Park, S.J.; Lee, K.H.; Seo, S.M.; Jeong, H.W.; Yoo, Y.S.; Jang, H.J. Statistics of oxidation resistance of Ni-(0–15)Co-(8–15)Cr-(0–5)Mo-(0–10)W-(3–8)Al-(0–5)Ti-(0–10)Ta-0.1C-0.01B superalloys at 1000 °C by compositional variations. Rare Met. 2019, in press. [Google Scholar] [CrossRef]
  30. Kim, H.-S.; Park, S.-J.; Seo, S.-M.; Yoo, Y.-S.; Jeong, H.-W.; Jang, H. High temperature oxidation resistance of Ni-(5∼13)Co-(10∼16)Cr-(5∼9)W-5Al-(1∼1.5)Ti-(3∼6)Ta alloys. Met. Mater. Int. 2016, 22, 789–796. [Google Scholar] [CrossRef]
  31. Giggins, C.S.; Pettit, F.S. Oxidation of Ni-Cr-Al Alloys Between 1000 °C and 1200 °C. J. Electrochem. Soc. 1971, 118, 1782. [Google Scholar] [CrossRef]
  32. Hass, G. Über das Wachstum und die Struktur dünner Oxydschichten auf Aluminium. Z. Anorg. Allg. Chem. 1947, 254, 96–106. [Google Scholar] [CrossRef]
  33. Kubaschewski, O.; Hopkins, B.E. Oxidation of Metals and Alloys; Butterworths: London, UK, 1962. [Google Scholar]
  34. Hauffe, K. Oxidation of Metals; Plenum Press: New York, NY, USA, 1966. [Google Scholar]
  35. Li, M. High Temperature Corrosion of Metals; Metallurgical Industry Press: Beijing, China, 2001. [Google Scholar]
  36. Hindam, H.M.; Smeltzer, W.W. Growth and Microstructure of α-Al O3 on Ni-Al Alloys: Internal Precipitation and Transition to External Scale. J. Electrochem. Soc. 1980, 127, 1622–1630. [Google Scholar] [CrossRef]
  37. Wang, J.; Gupta, A.; Klein, T.M. Plasma enhanced chemical vapor deposition of Cr2O3 thin films using chromium hexacarbonyl (Cr(CO)6) precursor. Thin Solid Films 2008, 516, 7366–7372. [Google Scholar] [CrossRef]
  38. Zengwu, T.; Rui, H.; Jinshan, L. Isothermal Oxidation Behavior of Ni-20Cr-18W Superalloy at 1100 °C. Rare Metal. Mat. Eng. 2012, 41, 2081–2085. [Google Scholar] [CrossRef]
Figure 1. Specimens after six cycles of oxidation tests (a) at 850 °C and (b) at 1000 °C.
Figure 1. Specimens after six cycles of oxidation tests (a) at 850 °C and (b) at 1000 °C.
Materials 12 02934 g001

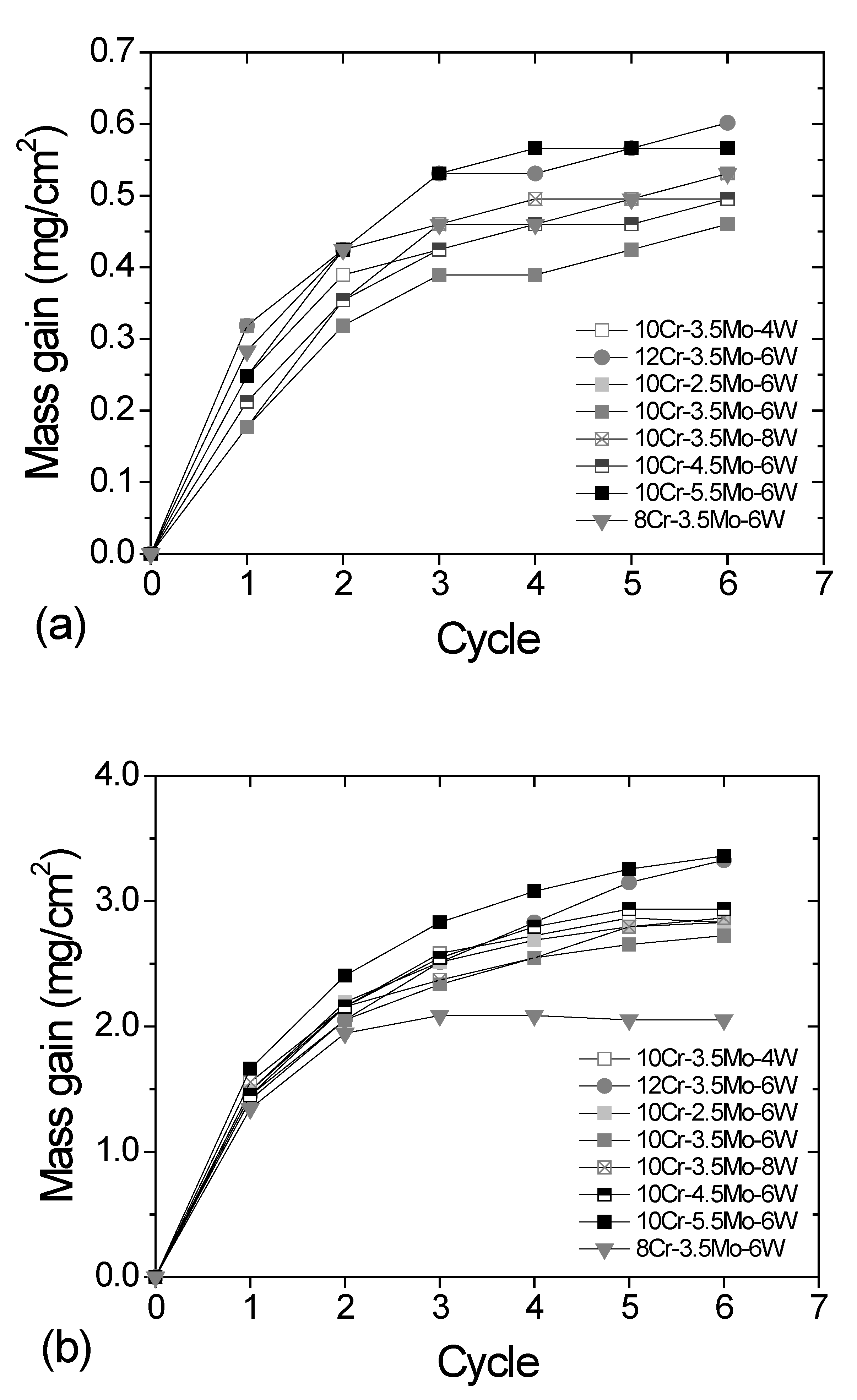

Figure 2. Mass gain during oxidation cycles (a) at 850 °C and (b) 1000 °C.
Figure 2. Mass gain during oxidation cycles (a) at 850 °C and (b) 1000 °C.
Materials 12 02934 g002

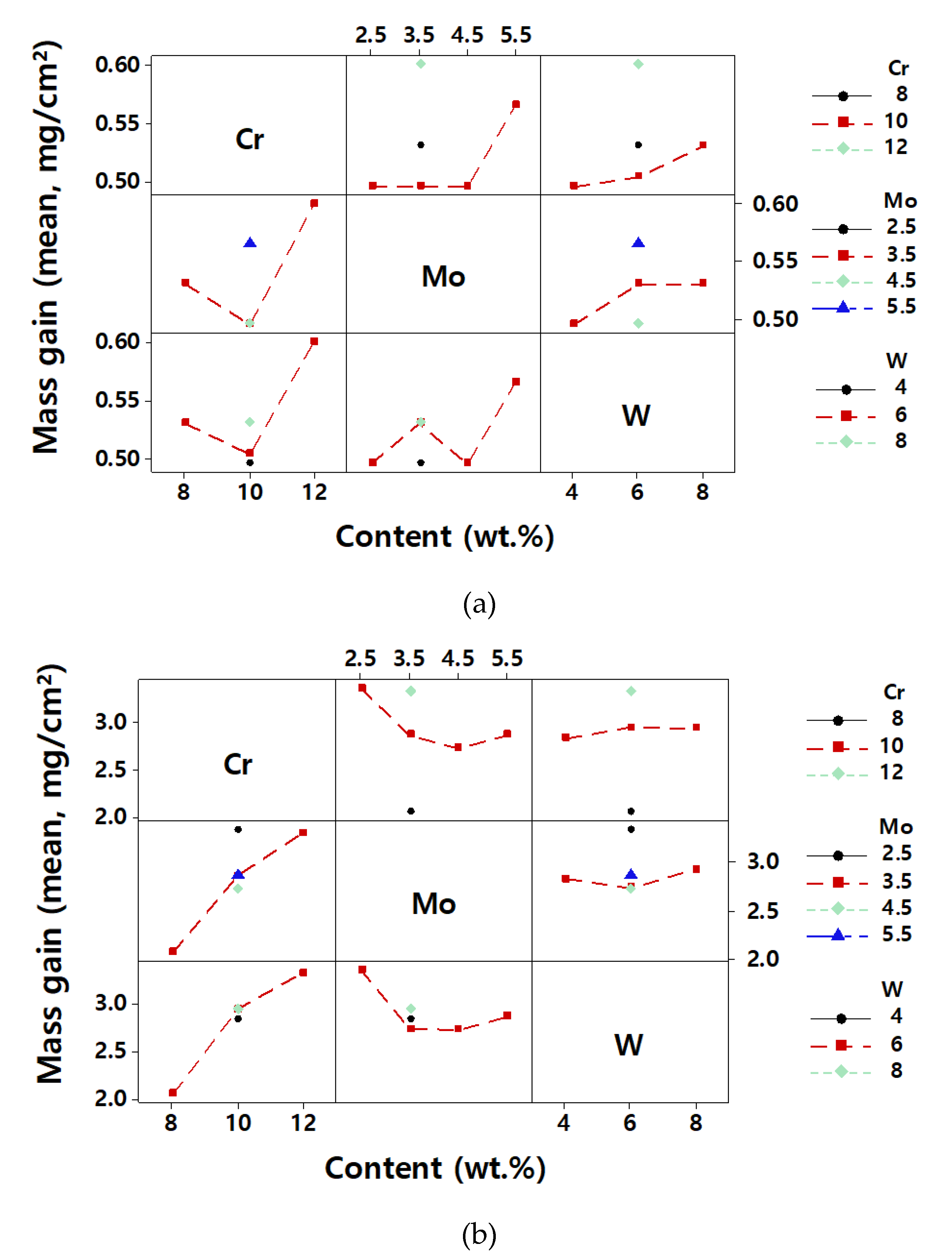

Figure 3. Final mass gain as a function of Cr, Mo, and W contents (a) at 850 °C and (b) at 1000 °C.
Figure 3. Final mass gain as a function of Cr, Mo, and W contents (a) at 850 °C and (b) at 1000 °C.
Materials 12 02934 g003

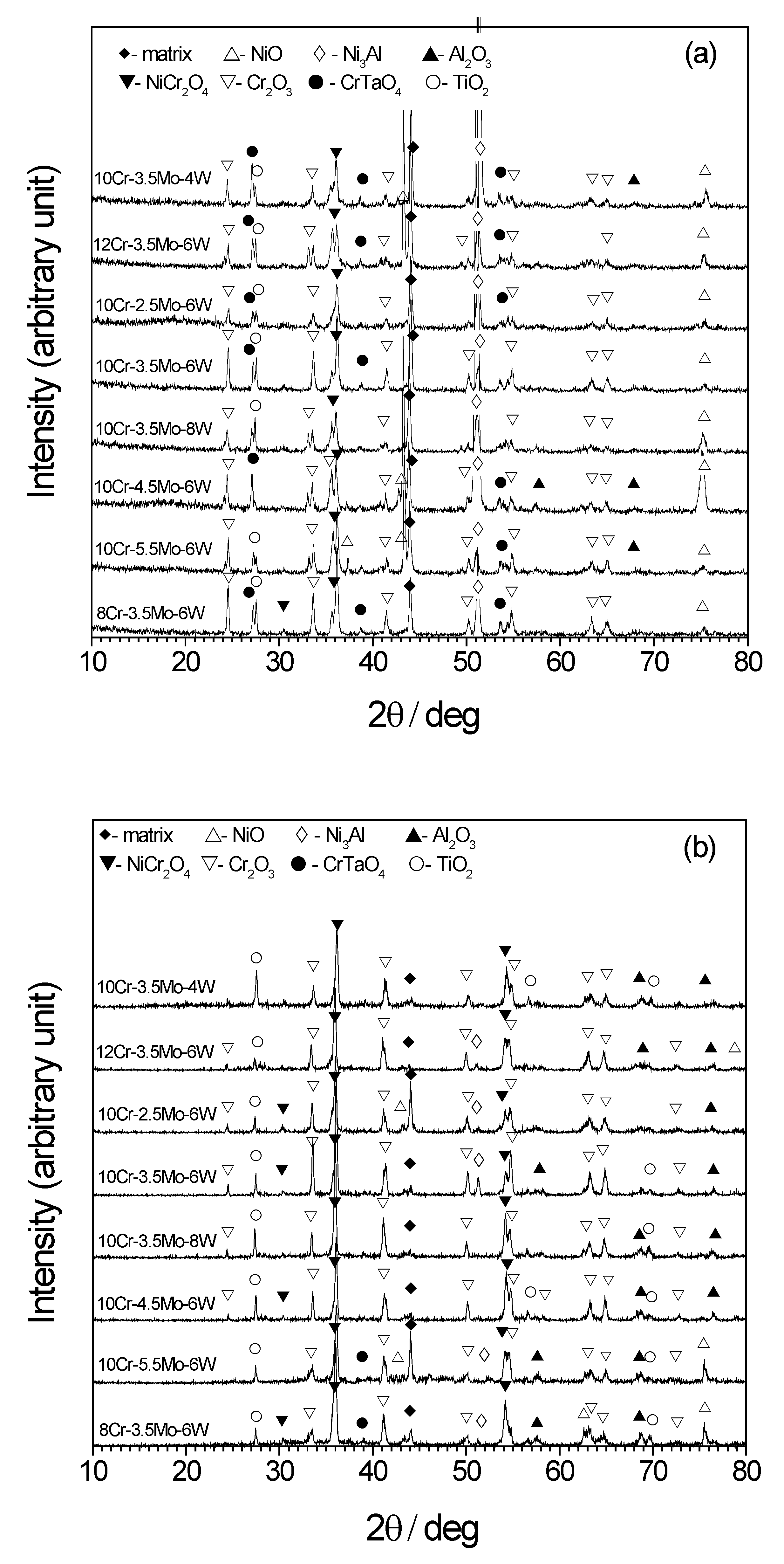

Figure 4. XRD pattern for the superalloys after oxidation tests (a) at 850 °C and (b) 1000 °C.
Figure 4. XRD pattern for the superalloys after oxidation tests (a) at 850 °C and (b) 1000 °C.
Materials 12 02934 g004

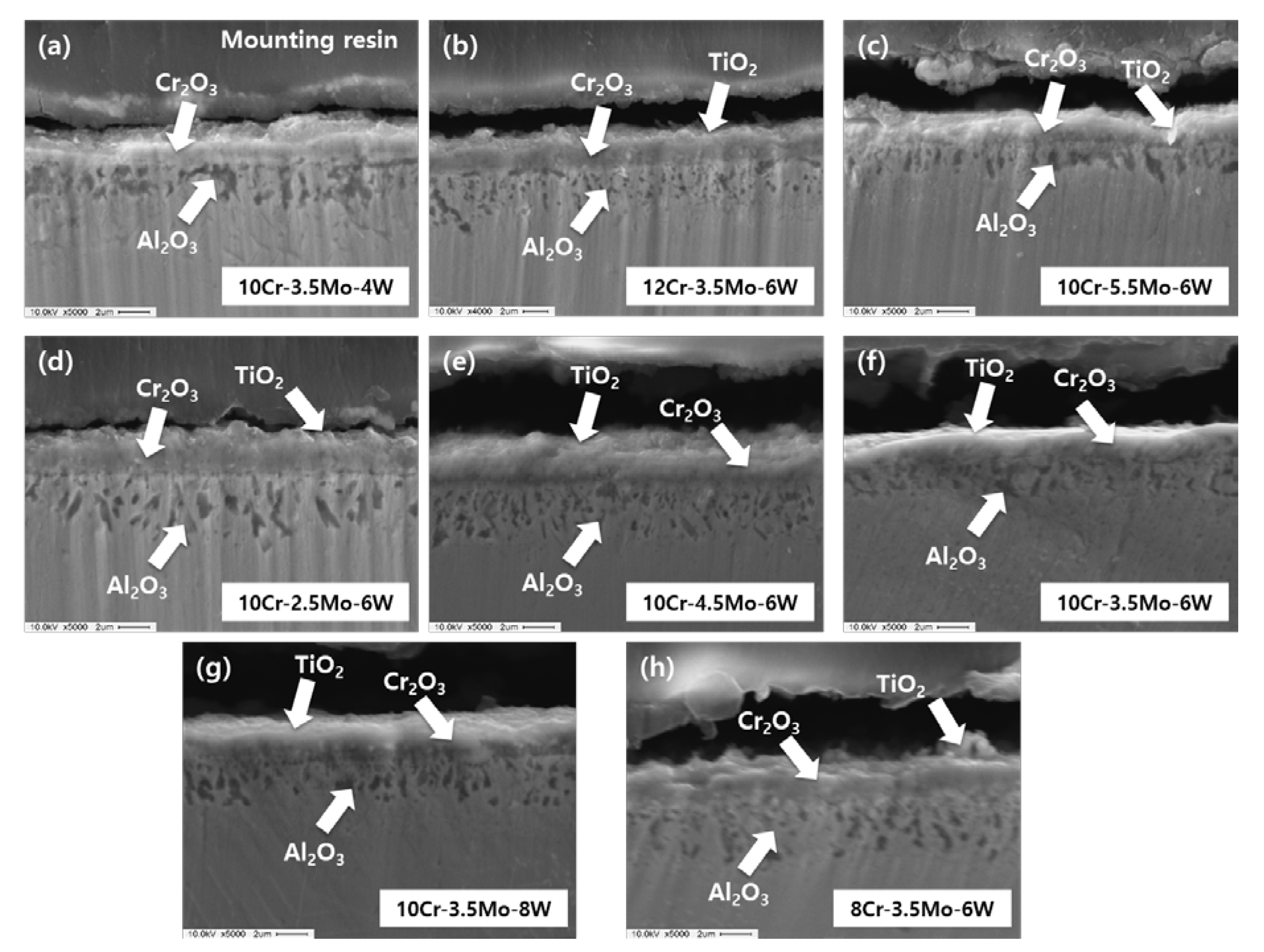

Figure 5. Cross-sectional image of (a) 10Cr–3.5Mo–4W, (b) 12Cr–3.5Mo–6W, (c) 10Cr–5.5Mo–6W, (d) 10Cr–2.5Mo–6W, (e) 10Cr–4.5Mo–6W, (f) 10Cr–3.5Mo–6W, (g) 10Cr–3.5Mo–8W, (h) 8Cr–3.5Mo–6W alloys oxidized at 850 °C.
Figure 5. Cross-sectional image of (a) 10Cr–3.5Mo–4W, (b) 12Cr–3.5Mo–6W, (c) 10Cr–5.5Mo–6W, (d) 10Cr–2.5Mo–6W, (e) 10Cr–4.5Mo–6W, (f) 10Cr–3.5Mo–6W, (g) 10Cr–3.5Mo–8W, (h) 8Cr–3.5Mo–6W alloys oxidized at 850 °C.
Materials 12 02934 g005

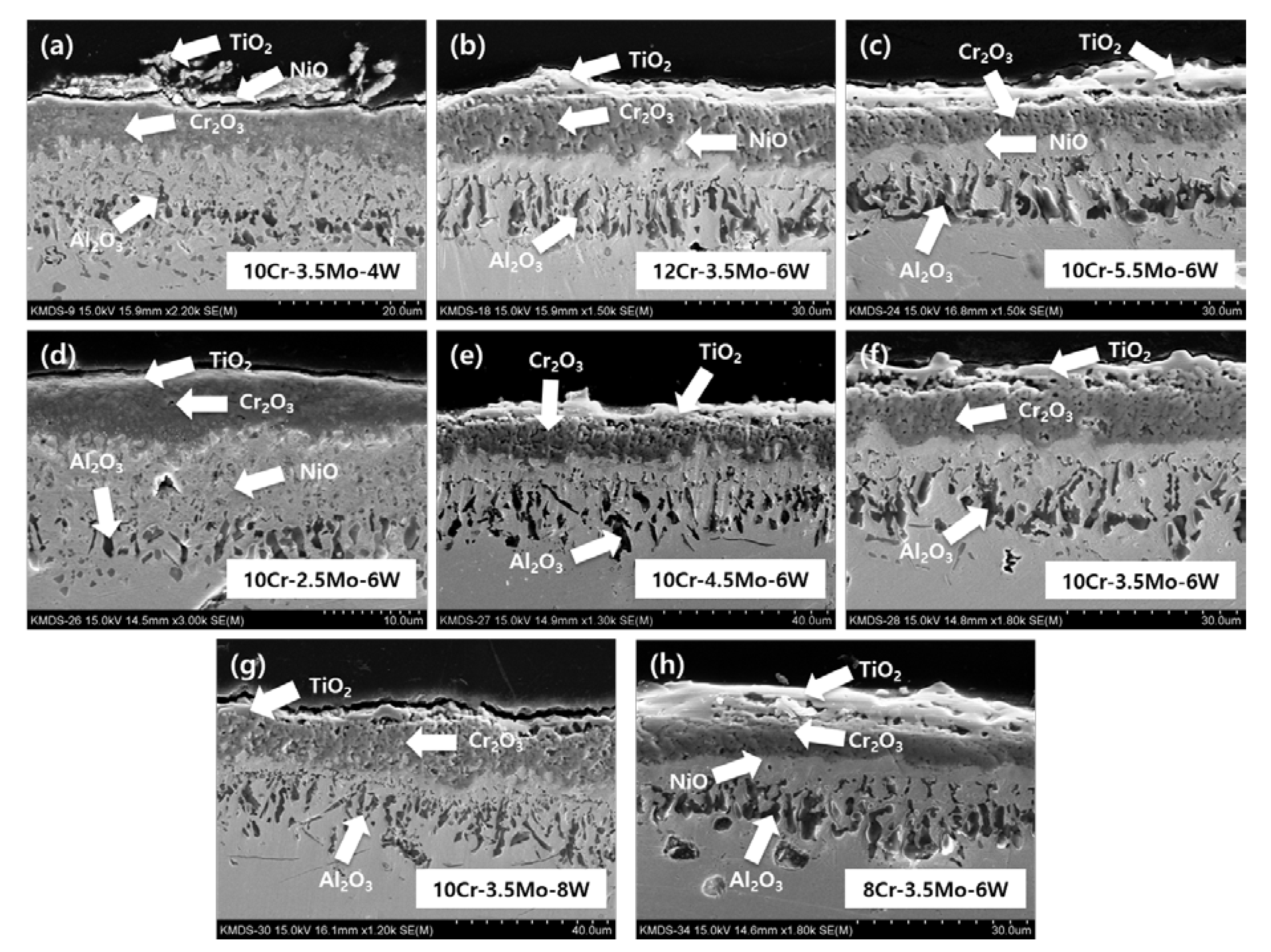

Figure 6. Cross-sectional image of (a) 10Cr–3.5Mo–4W, (b) 12Cr–3.5Mo–6W, (c) 10Cr–5.5Mo–6W, (d) 10Cr–2.5Mo–6W, (e) 10Cr–4.5Mo–6W, (f) 10Cr–3.5Mo–6W, (g) 10Cr–3.5Mo–8W, (h) 8Cr–3.5Mo–6W alloys oxidized at 1000 °C.
