Article

Magnetron Sputtering of Polymeric Targets: From Thin Films to Heterogeneous Metal/Plasma Polymer Nanoparticles

1
Department of Macromolecular Physics, Faculty of Mathematics and Physics, Charles University, V Holešovičkách 2, 180 00 Prague 8, Czech Republic
2
Department of Surface and Plasma Science, Faculty of Mathematics and Physics, Charles University, V Holešovičkách 2, 180 00 Prague 8, Czech Republic
3
Department of Physics of Materials, Faculty of Mathematics and Physics, Charles University, Ke Karlovu 5, 121 16 Prague 2, Czech Republic
*
Author to whom correspondence should be addressed.
Materials 2019, 12(15), 2366; https://doi.org/10.3390/ma12152366
Submission received: 25 June 2019 / Revised: 16 July 2019 / Accepted: 23 July 2019 / Published: 25 July 2019
(This article belongs to the Special Issue Sputtering Technologies for Growth of Advanced Thin Film)

Abstract

:
Magnetron sputtering is a well-known technique that is commonly used for the deposition of thin compact films. However, as was shown in the 1990s, when sputtering is performed at pressures high enough to trigger volume nucleation/condensation of the supersaturated vapor generated by the magnetron, various kinds of nanoparticles may also be produced. This finding gave rise to the rapid development of magnetron-based gas aggregation sources. Such systems were successfully used for the production of single material nanoparticles from metals, metal oxides, and plasma polymers. In addition, the growing interest in multi-component heterogeneous nanoparticles has led to the design of novel systems for the gas-phase synthesis of such nanomaterials, including metal/plasma polymer nanoparticles. In this featured article, we briefly summarized the principles of the basis of gas-phase nanoparticles production and highlighted recent progress made in the field of the fabrication of multi-component nanoparticles. We then introduced a gas aggregation source of plasma polymer nanoparticles that utilized radio frequency magnetron sputtering of a polymeric target with an emphasis on the key features of this kind of source. Finally, we presented and discussed three strategies suitable for the generation of metal/plasma polymer multi-core@shell or core-satellite nanoparticles: the use of composite targets, a multi-magnetron approach, and in-flight coating of plasma polymer nanoparticles by metal.

1. Introduction

Sputtering is a deposition process based on the ejection of atoms, molecules, or molecular fragments from a target that is bombarded by energetic particles (mostly ions) and subsequent condensation of emitted particles on adjacent surfaces. Since its discovery in the mid-1800s (for the history of sputtering, please refer to J.E. Green’s excellent recent review [1]), sputtering has become one of the most widely used techniques for film deposition, with thickness reaching from several nm to several μm. Despite the long history of sputter deposition, the introduction of external magnetic fields was a crucial moment that led to a massive spread of sputtering technology. Specifically, a configured magnetic field constrains the plasma to a close proximity to the cathode and enormously increases the deposition rate. Among the different configurations that are altogether termed as “magnetrons”, systems with a planar configuration appear to be the most important [2]. Since their introduction, such planar magnetrons have become irreplaceable tools for the deposition of various conductive, mostly metallic, thin films.
In addition, the demand for the production of coatings with enhanced functional properties and deposition of non-metallic/non-conductive thin films triggered the development of novel concepts of magnetron sputtering. These include high-power pulsed magnetron sputtering [3,4,5,6,7], dual-magnetron sputtering [8], and radio frequency (RF) magnetron sputtering of non-conductive targets [9]. Concerning the latter, RF magnetron sputtering was found to be suitable not only for the production of inorganic materials (e.g., glasses, metal-oxides, and nitrides) but also for the deposition of polymer-like coatings [10,11,12], i.e., the so-called plasma polymers [13,14,15,16]. As opposed to conventional polymers, such materials are characterized by considerably higher levels of cross-linking and branching, as well as by an absence of regularly repeating monomer units. Despite their random and inherently complex structure, plasma polymers appear to be a highly valuable class of materials for different applications, including dielectric separation layers, permeation barriers or gas separation membranes, laser facilities, adhesion-promoting coating, and films that enable the fine tuning of wettability and the bio-adhesive/bio-repellent behavior of surfaces [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38]. The great advantage of RF magnetron sputtering over commonly used plasma-enhanced chemical vapor deposition is the complete lack of gaseous or liquid precursors, which makes RF sputtering a “green” technology. Although much attention has been devoted to the fabrication and characterization of fluorocarbon plasma polymers [10,11,12,39,40,41,42,43,44,45,46,47], other polymers were also studied, including polyarylates [48], polyimides [45,49,50,51,52], polyethylene [50,53,54], polyetherimide [55], polypropylene [56,57], and Nylon [58].
Regardless of the sputtered material, magnetron-based deposition was primarily applied for the production of thin compact films for a long time. The situation changed in the 1990s, when Haberland and his co-workers introduced the first magnetron-based Gas Aggregation cluster Source (GAS) [59,60], which opened a completely new and highly attractive application field for magnetron sputtering technology. In this type of source, magnetron sputtering serves as a supply of supersaturated vapors that spontaneously nucleate and form clusters or nanoparticles (NPs) in the volume of the aggregation chamber at appropriate conditions (higher pressure). NPs are subsequently transferred by a carrier gas (typically argon) through a small aperture from the aggregation chamber of the GAS to the main deposition chamber, where they are collected on substrates. This deposition strategy offers several key benefits as compared to other methods used for the production of NPs—high purity, possibility to tailor kinetic energy and size distribution of produced NPs, directionality of the deposition process, which is suitable for the production of patterned surfaces, as well as the possibility to deposit NPs on the substrates of virtually any material that is compatible with high vacuum conditions. Furthermore, gas aggregation cluster sources can be easily combined with other vacuum-based deposition techniques and, hence, nanocomposite coatings with different architectures can be fabricated. For instance, our group recently reported on the fabrication of Ag/a-C:H and Cu/a-C:H nanocomposites with metallic NPs randomly distributed in the a-C:H matrix [61,62], metal/plasma polymer sandwich structures [63], gradient coatings [64,65], and multi-layered metal/plasma polymer nanocomposites [66,67,68].
In analogy to “conventional” magnetron sputtering, magnetron-based GAS systems were initially employed generally for the production of various metallic (e.g., Ag [69,70,71], Cu [72,73], Al [74], Ti [75,76,77], Co [78,79], Pt [80,81], Nb [82], Pd [83], W [84], Ni [85], Ru [86]) and metal-oxide NPs [87,88]. However, our group recently showed that GAS systems may also be easily adapted for the production of plasma polymer NPs if the polymeric target is sputtered in the RF mode [89,90,91,92,93].
Lately, the interest in the production and utilization of heterogeneous multi-component NPs led to the development of three principal approaches:
(1)
Use of bi-metallic composite targets. In this case, the targets composed of two metals were sputtered, which gave rise, depending on the operational conditions, to the formation of heterogeneous NPs with different structures (core@shell, onion-like structure, dumbbell-like structure) [94,95,96].
(2)
Multi-magnetron approach. Up to three individual planar magnetrons were placed into a single aggregation chamber. Depending on the mutual position of the magnetrons, the applied magnetron currents and the sputtered materials, alloy, core-satellite, Janus-like, core@shell or core@shell@shell NPs were produced [97,98,99,100,101].
(3)
In-flight coating/modification of NPs. In this case, NPs produced by GAS were modified/coated in-flight in an auxiliary chamber located in between the GAS and the substrate. This method was reported to be effective for oxidation of the surface layer of metallic NPs [102], production of core@shell NPs [103,104,105,106], and NPs decorated by other materials (so-called strawberry-like or core-satellite structures) [107].
The above-mentioned strategies were successfully tested by different research groups. However, the majority of the research published to date focused on the production of inorganic multi-component NPs. The aim of this featured article is to demonstrate that all three strategies are also applicable for the production of metal/plasma polymer NPs. To meet this general aim, all the examples involved sputtered Nylon (C:H:N:O) particles only. Nylon was selected on the basis of previous studies of sputter deposition of C:H:N:O plasma polymer thin films, which revealed that such materials are suitable for various bio-medical applications as they can enhance the adhesion and attachment of biomolecules or cells [108,109], and can be utilized for the design of systems for controlled drug-delivery [110]. The article is organized as follows: Section 2 briefly presents the deposition setups; Section 3.1 presents the main features for the production of C:H:N:O NPs by the GAS source with the magnetron equipped with the Nylon 6,6 target; Section 3.2, Section 3.3, and Section 3.4 present the first results that were obtained by the use of the composite target, the dual-magnetron system, and the deposition setup for the in-flight deposition of silver onto C:H:N:O NPs; and finally, the results are briefly summarized in Section 4.

2. Materials and Methods

The system schematically depicted in Figure 1a was used for the deposition of plasma polymer C:H:N:O nanoparticles and heterogeneous metal/plasma polymer particles. It was based on a planar water-cooled RF magnetron that was inserted into a water-cooled gas aggregation chamber (102 mm inner diameter). The magnetron was equipped either by the Nylon 6,6 target (Goodfellow, 81 mm in dimeter, 3 mm thick) or by the same target with a strip of a Cu plate (Figure 1b). The magnetron was powered by an RF power supply (Dressler, Cesar 133) through an automatic matching network (ADTEC, AMV-1000-EN). If not specified elsewhere in the text, Ar was used as the working gas. The aggregation chamber was terminated by a conical lid with a circular orifice 2.5 mm in diameter. The orifice separated the aggregation chamber from the rest of the deposition system. The deposition rate was measured by a quartz crystal microbalance located in the main deposition chamber.
In addition to the basic configuration, two modifications were tested as well. In the first case, a second magnetron equipped with an Ag target (Safina, 3 inch in diameter, with a thickness of 3 mm) was installed into the aggregation chamber perpendicularly to the one equipped with the Nylon 6,6 target (Figure 1c). This additional magnetron was operated in a direct current (DC) mode (Advanced energy, MDX 500). The second configuration was used for the in-flight coating of C:H:N:O nanoparticles by silver. In this case, an additional chamber was introduced between the GAS and the main deposition chamber (Figure 1d). This part of the deposition system consisted of 3 inch planar magnetron installed perpendicularly to the direction of the beam of the C:H:N:O nanoparticles and was ended by an orifice (3 mm in diameter).
The morphology of the produced particles was evaluated by means of a scanning electron microscopy (SEM, MIRA 3 Tescan, Brno, Czech Republic) or a transmission electron microscopy (TEM, JEOL2200FS, Akishima, Japan). The optical properties of the fabricated nanoparticles were determined by UV-Vis spectrophotometry (Hitachi U-2910, Tokyo, Japan) in the spectral range 325 nm–800 nm.

3. Results

3.1. Gas-Phase Fabrication of C:H:N:O Nanoparticles

The first step in this study was to investigate the properties of C:H:N:O NPs produced by the GAS system equipped with the Nylon 6,6 target. It was found that the key parameter for the production of C:H:N:O NPs was the pressure in the aggregation chamber. For low pressures, the molecular fragments emitted from the Nylon target predominantly condensed on the walls of the aggregation chamber, where they formed a thin compact film, and no NPs were detected in the main deposition chamber. The formation of thin film in the aggregation chamber was confirmed by ellipsometric measurements of the coatings deposited on Si wafers that were introduced into the aggregation chamber of the GAS at a distance of approximately 50 mm from the magnetron target. As the pressure in the aggregation chamber increased, the deposition rate of the C:H:N:O film gradually decreased and at about 100 Pa, the deposition rate of the C:H:N:O film inside the aggregation chamber approached zero (Figure 2a). At this moment, the C:H:N:O NPs became detectable by the quartz crystal microbalance (QCM) that was inserted into the main deposition chamber. This suggests that starting at a pressure of 100 Pa, the inter-molecular collisions prevented the out-diffusion of the sputtered fragments away from the plasma and forced them to recombine in the volume of the discharge that gave rise to the formation of the plasma polymer NPs [93]. Such formed NPs were afterwards transported by the flow of the carrier gas to the main deposition chamber and detected by the QCM. A further increase of the pressure subsequently led to an increased deposition rate of the C:H:N:O NPs. However, as can be seen in Figure 2b, the deposition rate was found to not be temporally stable—instead of a linear rise of the frequency shift of the QCM (the shift in the resonant frequency is directly proportional to the mass deposited) with the deposition time, the NPs arrived to the crystal in periodically repeated pulses. The frequency of these deposition bursts was approximately 1 per minute. Such behavior is well-known in the field of dusty-plasma and is connected to the charging of growing NPs, the confinement of negatively charged NPs in a plasma potential, and their subsequent release from the plasma bulk as soon as they reach a critical size [111]. The mono-dispersity of the produced NPs (see Figure 3) suggests that all the NPs reached the critical size at the same time. Furthermore, the critical size of the NPs was highly sensitive to the operational parameters (plasma density, energy of charged species, gas flow, gas temperature, working gas, etc.) and therefore the size distribution of the NPs can be finely tuned in a relatively wide range by adjusting these parameters [89,93]. An example of this behavior is presented in Figure 3, where the NPs produced using either argon or nitrogen are compared.

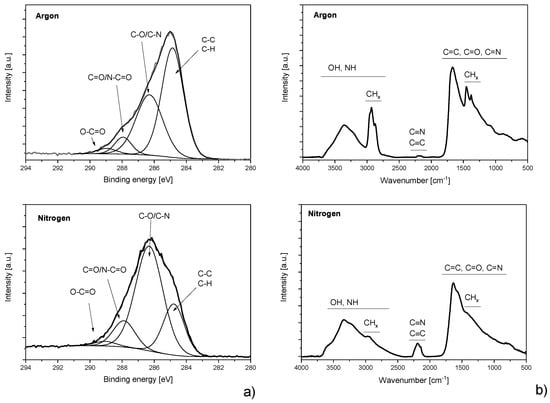

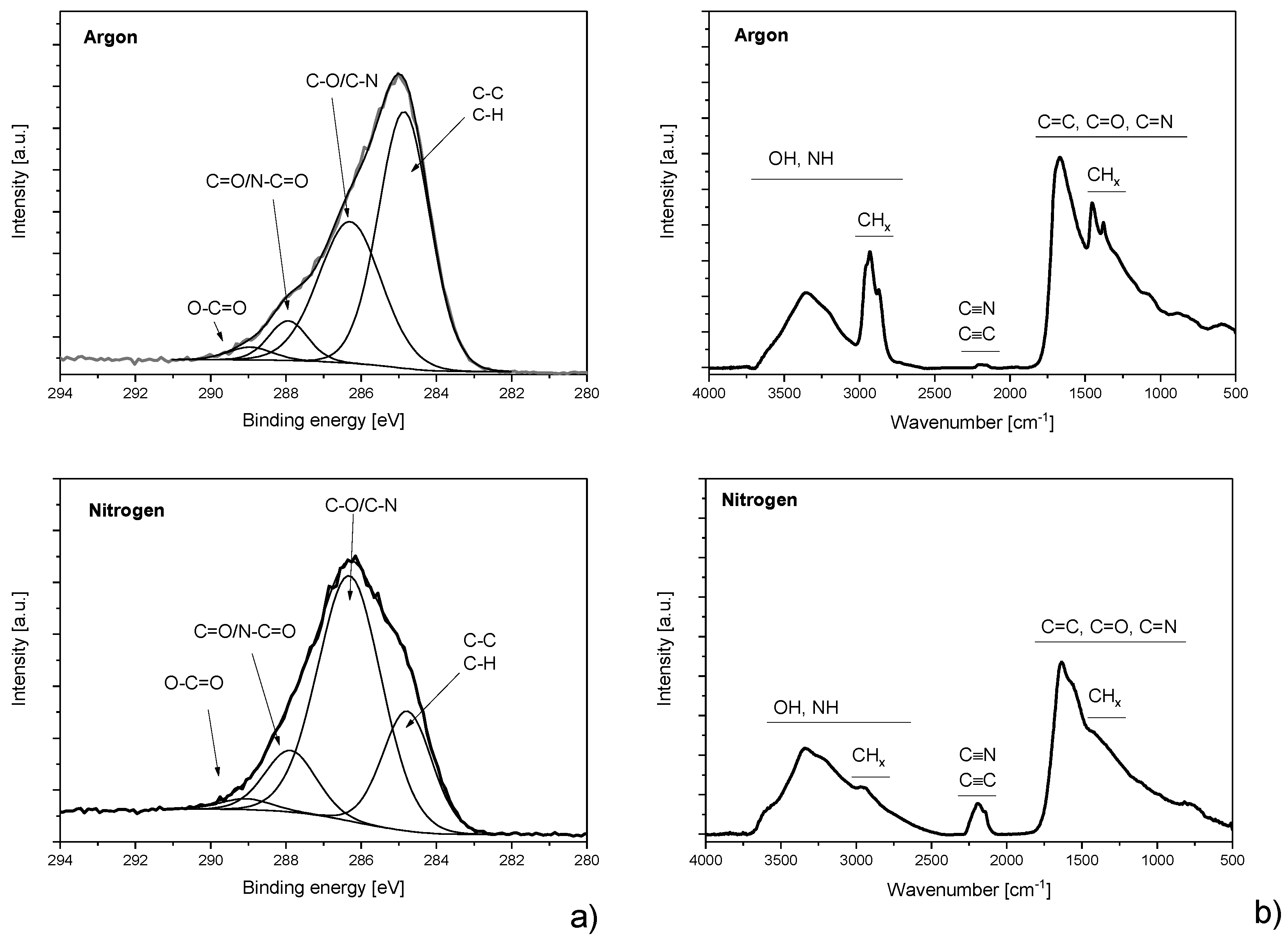

Naturally, the variation of the working gas led not only to the variation of the mean size of the produced NPs but also to the alteration of their chemical composition, in analogy to the deposition of thin films by the RF magnetron sputtering of Nylon [108]. For instance, the substitution of argon by nitrogen resulted in the formation of nitrogen-rich NPs. This is demonstrated in Figure 4, where the high-resolution C 1s X-Ray Photoelectron Spectroscopy (XPS) spectra and Fourier Transform Infrared Spectroscopy (FT-IR) spectra are compared as measured on the NPs deposited with either argon or nitrogen and in Table 1, where elemental composition of C:H:N:O NPs is presented. Evidently, the substitution of argon by nitrogen caused a substantial decrease of the fraction of C-C/C-H chemical bonds that was accompanied by the significant increase of the number of nitrogen-containing moieties. This is a very important and valuable feature as it allows for the production of NPs not only with different sizes but with altered chemical compositions and related functionalities.

3.2. Composite Nylon/Cu Target

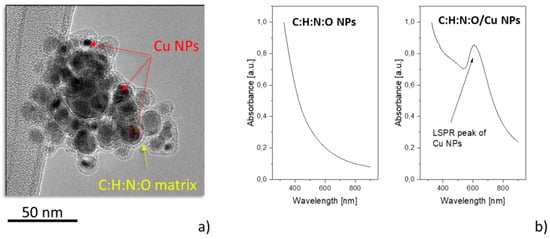

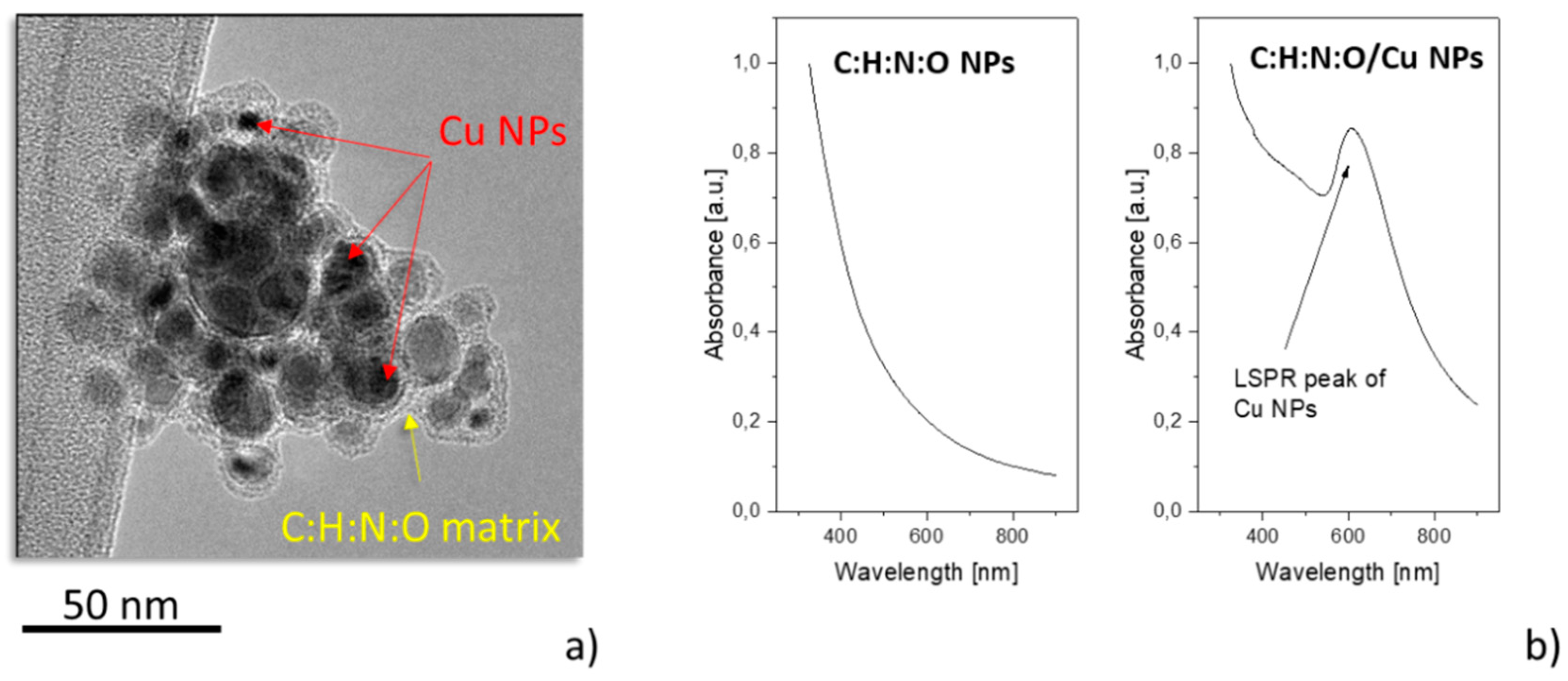

The first strategy tested with the aim to produce heterogeneous metal/C:H:N:O NPs was based on the utilization of a Cu/Nylon composite target. It was found out that the introduction of the Cu strip onto the Nylon 6,6 target resulted in the formation of composite NPs at a relatively high pressure, which assured the stable production of bare C:H:N:O NPs. However, the supplied RF power had to be increased up to 80 W to provide a sufficient supply of copper. As shown in Figure 5a, NPs produced in this way had a rather complicated structure—the NPs were composed of Cu particles with different sizes (from several nm up to almost 50 nm) that were all embedded into a plasma polymer matrix. Such a structure with multiple Cu cores enveloped by a shell of the plasma polymer resembles the structure of NPs formed when the metallic target was sputtered in the Ar/hexamethyldisiloxane mixture [112]. It is assumed that the multi-core@shell NPs originated from the competing growth of metallic and plasma polymeric NPs, plasma polymerization, phase segregation of the metal and plasma polymer, and subsequent coalescence of the produced heterogeneous NPs.
The presence of metallic NPs was also evidenced by UltraViolet-Visible (UV-Vis) spectroscopy that showed a localized surface plasmon resonance (LSPR) peak at about 600 nm, which is typical for Cu NPs embedded in plasma-sputtered nylon [66] (Figure 5b).

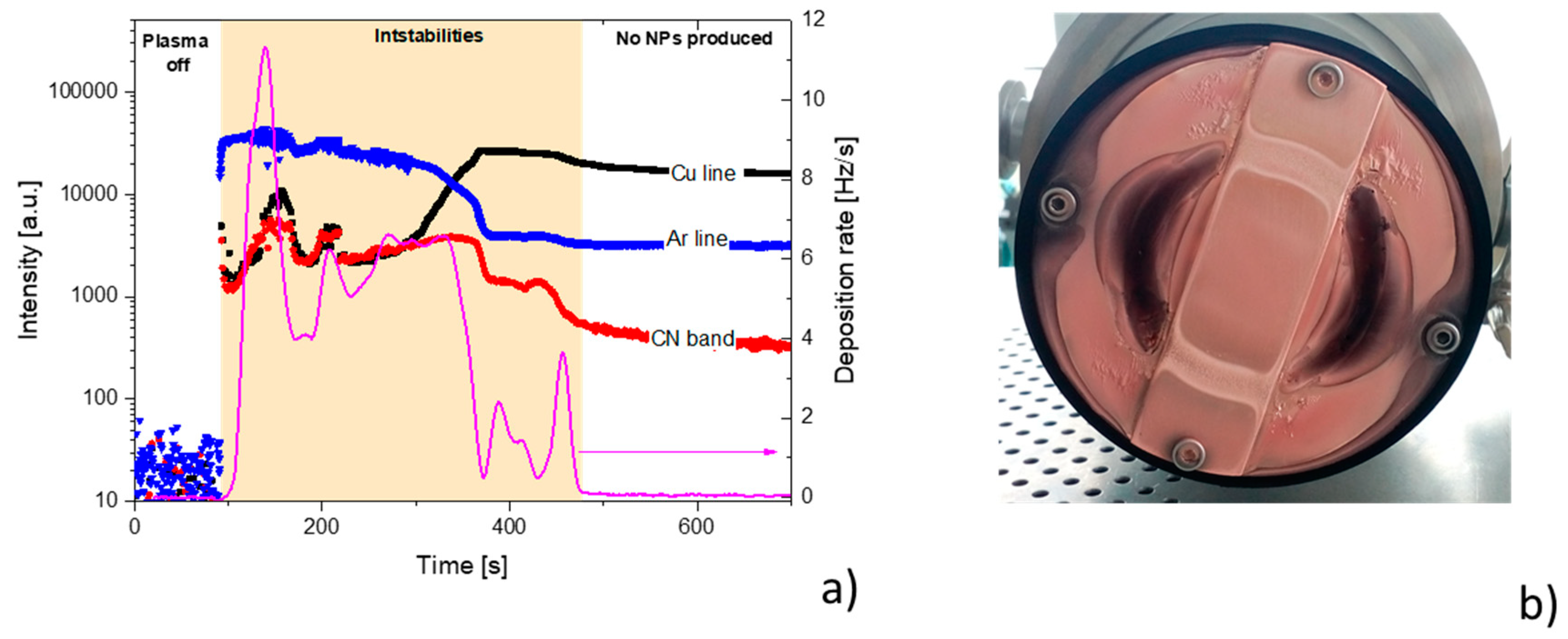

However, the deposition process was found to be very unstable. After switching on the plasma, the deposition rate initially fluctuated, with a frequency close to the one observed for the case in which only the Nylon 6,6 target was used. This changed after several minutes of the plasma operation when the production of heterogeneous Cu/C:H:N:O NPs dramatically decreased and eventually completely stopped (Figure 6a). The aforementioned temporal evolution of the deposition rate followed the same trend as the intensities of Ar (750 nm) and CN (B2Σ+−X2Σ+ at 388 nm) spectral emission lines and bands. The most noteworthy was the substantial decrease of the intensities of these spectral systems after approximately 3 min of the plasma operation, i.e., at the time at which the production of the NPs started to decrease rapidly. In contrast, the intensity of Cu spectral lines was found to significantly increase 3 min after the plasma ignition, which suggests enhanced sputtering of copper at the later stages of the plasma operation. The enhanced sputtering of Cu was accompanied by a partial re-deposition of Cu back onto the target that limited sputtering of its polymeric part. Indeed, the substantial re-deposition of copper was confirmed by a visual inspection of the target after the magnetron operation, which showed that almost all the target’s surface had been covered by copper (see Figure 6b). Because of this, the target had to be dismounted and cleaned in order to restart the production of Cu/C:H:N:O NPs, which limits the applicability of this deposition strategy. Furthermore, the high power necessary for the efficient sputtering of copper resulted in the substantial heating of the system at longer plasma durations (The temperature of the target approached 150 °C after 5 min of the plasma operation as measured by IR-thermocamera). The elevated temperature subsequently hindered the nucleation of NPs and thus no NPs were formed or detected after the prolonged plasma operation.

3.3. System with Two Independent Magnetron

In order to avoid the issues connected with the gradual covering of the Nylon part of the target by the metal re-deposit, two independent magnetrons were installed in the aggregation chamber (Figure 1c). In this situation, both the high pressure and the direction of the gas flow limited the contamination of the Nylon target by the metallic layer (silver in this case). As a result, the production of the NPs became temporally stable. Nevertheless, the synthetized NPs also exhibited a multi-core@shell structure (Figure 7) similar to the one observed when the composite target was used (Figure 5). Such a finding was expected, as both the plasma polymerization and the growth of the NPs were also running simultaneously in this case.
In contrast to the setup with the composite Cu/Nylon target, the use of two individual magnetrons offered—besides a better stability of NPs production—higher flexibility in terms of the produced materials, as it allowed for the independent control of the sputtering rates of polymer and metal. In other words, decoupling the sputtering of Nylon and metal made it possible to regulate the metal/plasma polymer ratio in the produced NPs. This effect is demonstrated in Figure 7b, where UV-Vis spectra are presented for the samples that were prepared at a constant RF power of Nylon sputtering, but at different DC magnetron currents for the sputtering of silver. For the low DC, the UV-Vis spectra had a shape similar to the spectra of the C:H:N:O NPs, with only a weak LSPR peak of silver located approximately at 450 nm. With the increasing DC magnetron current, i.e., with the increasing amount of sputtered silver, the intensity of the LSPR peak also increased, which reflects the higher number of Ag NPs embedded into the C:H:N:O matrix. In addition, the width of the silver LSPR peak dramatically broadened due to the wide size distribution of the silver inclusions in the “nanocomposite” NPs. Finally, for the magnetron current of 500 mA, the UV-Vis spectrum resembled the one obtained when only Ag NPs were produced with the RF magnetron switched off. In other words, the production of Ag NPs started to dominate over the production of the plasma polymer matrix and the NPs were mostly metallic. The absence of the plasma polymer matrix/envelope also caused a hypsochromic shift of the silver LSPR peak to 370 nm.

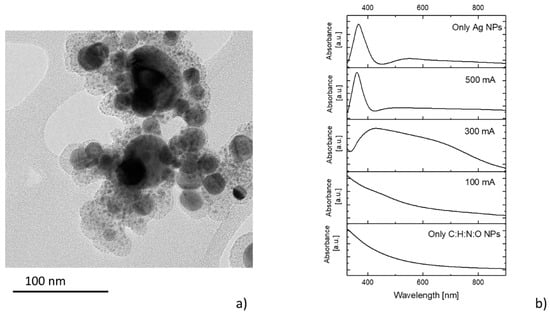

3.4. In-Flight Coating of C:H:N:O Nanoparticles

In the two previous cases, i.e., for the situations when either the composite target or the dual-magnetron system was used, multi-core@shell NPs were produced due to the fact that both the plasma polymerization and the production of NPs took place at the same time. In order to fully decouple these processes, a system for the in-flight coating of NPs was recently developed [113]. In this case, the gas-phase production of C:H:N:O NPs was separated from the deposition of metal (silver) that was performed in the auxiliary “inoculation” chamber. As a result, the final structure of the NPs differed significantly; instead of multi-core@shell NPs, C:H:N:O NPs decorated by small Ag nanoparticles were formed, as depicted in Figure 8. Such strawberry-like structures arose as a result of the condensation of supersaturated silver vapor on the C:H:N:O NPs that acted as efficient sites for the nucleation of silver NPs. Silver atoms were adsorbed onto the surface of the C:H:N:O NPs and subsequently formed small Ag NPs in a similar way to the “conventional” sputter deposition of metals onto solid substrates at lower pressures. However, the drawback of this configuration is that the volume growth of Ag NPs was not fully inhibited, thus purely silver NPs were formed alongside the metal/plasma polymer strawberry-like NPs. Such metallic NPs, which are considerably bigger than those detected on the surface of the C:H:N:O nanoparticles, are clearly visible in Figure 8, especially for the higher DC magnetron currents used for silver sputtering.

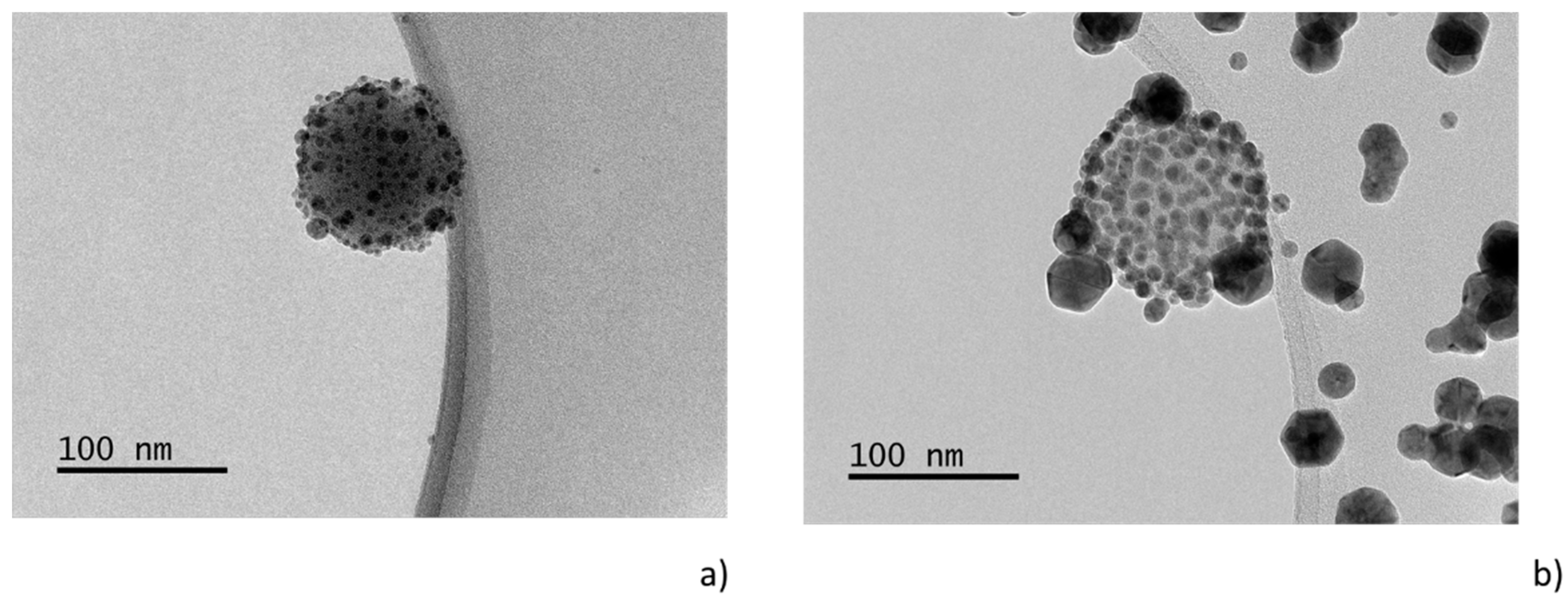

These preliminary results, which show that the strawberry-like metal/plasma polymer NPs can be prepared in a fully physical way, are very promising, as this method may substitute recently used techniques that employ wet-chemical synthesis. Further research is, however, still needed in order to enable the production of nanoparticles with tailor-made properties (e.g., amounts of metallic NPs attached to a single plasma polymer NPs).

4. Conclusions and Outlook

This featured article summarizes the principles and different strategies that utilize magnetron-based gas aggregation cluster sources for the fabrication of heterogeneous metal/plasma polymer nanoparticles. In comparison with recent results reported for metal-metal NPs, this article shows that three different strategies may be followed: (i) the use of a metal/polymer composite sputtering target, (ii) a multi-magnetron strategy, and (iii) in-flight deposition of metal onto plasma polymer NPs. It was shown that depending on the followed strategy, NPs with different structures can be produced. For the cases in which the plasma polymerization and formation of both metal and plasma polymer NPs took place at the same time, multi-core@shell nanoparticles were produced. From this point of view, the procedure that utilizes two independent magnetrons for sputtering of metal and polymer targets allows for the tailoring of the properties of the formed nanoparticles, which is not possible when a single composite target is used. Furthermore, the results reveal that the complete decoupling of plasma polymer NPs production and the sputtering of metal opens the way to synthetizing core-satellite NPs, i.e., nanoparticles, with a large plasma polymer core decorated by numerous small metallic NPs. Although emphasis was placed solely on metal/C:H:N:O NPs in this study, it is worth stressing that similar procedures may be employed for other combinations of materials. Furthermore, the physical method of NPs production reported here offers several key benefits as compared to methods based on the chemical synthesis of heterogeneous NPs and thus presents a vivid alternative to them. Nevertheless, it is also important to note that many challenges still have to be faced before the wider spread of such nanomaterials in various fields (e.g., bio-sensing, tissue engineering, drug delivery). These challenges are related to a better control of the physico-chemical and/or bio-related properties of produced NPs, which requires not only more targeted experiments using different materials/configurations/operational conditions but a better understanding of the processes that occur during the formation and growth of NPs. Thus, to conclude, the presented results should be considered as a promising starting point that opens new opportunities for the sputter deposition of functional nanomaterials.

Author Contributions

The author contributions to the paper are as follow: Writing-Original Draft Preparation, O.K.; Methodology, O.K., A.C., and H.B.; Investigation, A.S., P.P., R.Š., A.K., D.N., P.S., J.H., P.K., and M.C.; Writing-Review & Editing, A.C.; Funding Acquisition, A.C. and H.B.

Funding

This research was funded from Czech Science Foundation in the frame of grants GAČR 17-12994S (investigation of Nylon-like NPs) and GAČR 17-22016S (investigation of heterogeneous metal/plasma polymer NPs).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Greene, J.E. Review Article: Tracing the recorded history of thin-film sputter deposition: From the 1800s to 2017. J. Vac. Sci. Technol. A Vac. Surf. Films 2017, 35, 05C204. [Google Scholar] [CrossRef] [Green Version]
  2. Waits, R.K. Planar magnetron sputtering. J. Vac. Sci. Technol. 1978, 15, 179–187. [Google Scholar] [CrossRef]
  3. Musil, J.; Leština, J.; Vlček, J.; Tölg, T. Pulsed dc magnetron discharge for high-rate sputtering of thin films. J. Vac. Sci. Technol. A Vac. Surf. Films 2001, 19, 420–424. [Google Scholar] [CrossRef]
  4. Kouznetsov, V.; Macák, K.; Schneider, J.M.; Helmersson, U.; Petrov, I. A novel pulsed magnetron sputter technique utilizing very high target power densities. Surf. Coat. Technol. 1999, 122, 290–293. [Google Scholar] [CrossRef]
  5. Anders, A. Discharge physics of high power impulse magnetron sputtering. Surf. Coat. Technol. 2011, 205, S1–S9. [Google Scholar] [CrossRef] [Green Version]
  6. Anders, A. Tutorial: Reactive high power impulse magnetron sputtering (R-HiPIMS). J. Appl. Phys. 2017, 121, 171101. [Google Scholar] [CrossRef] [Green Version]
  7. Sarakinos, K.; Alami, J.; Konstantinidis, S. High power pulsed magnetron sputtering: A review on scientific and engineering state of the art. Surf. Coat. Technol. 2010, 204, 1661–1684. [Google Scholar] [CrossRef]
  8. Schiller, S.; Goedicke, K.; Reschke, J.; Kirchhoff, V.; Schneider, S.; Milde, F. Pulsed magnetron sputter technology. Surf. Coat. Technol. 1993, 61, 331–337. [Google Scholar] [CrossRef]
  9. Davidse, P.D.; Maissel, L.I. Dielectric Thin Films through rf Sputtering. J. Appl. Phys. 1966, 37, 574–579. [Google Scholar] [CrossRef]
  10. Harrop, R.; Harrop, P. Friction of sputtered PTFE films. Thin Solid Films 1969, 3, 109–117. [Google Scholar] [CrossRef]
  11. Pratt, I.H.; Lausman, T.C. Some characteristics of sputtered polytetrafluoroethylene films. Thin Solid Films 1972, 10, 151–154. [Google Scholar] [CrossRef]
  12. Biederman, H.; Ojha, S.M.; Holland, L. The properties of fluorocarbon films prepared by r.f. sputtering and plasma polymerization in inert and active gas. Thin Solid Films 1977, 41, 329–339. [Google Scholar] [CrossRef]
  13. Biederman, H.; Osada, Y. Plasma Polymerisation Processes; Elsevier: Amsterdam, The Netherlands, 1992. [Google Scholar]
  14. Friedrich, J. Mechanisms of Plasma Polymerization—Reviewed from a Chemical Point of View. Plasma Process. Polym. 2011, 8, 783–802. [Google Scholar] [CrossRef]
  15. Kylián, O.; Choukourov, A.; Biederman, H. Nanostructured plasma polymers. Thin Solid Films 2013, 548, 1–17. [Google Scholar] [CrossRef]
  16. Thiry, D.; Konstantinidis, S.; Cornil, J.; Snyders, R. Plasma diagnostics for the low-pressure plasma polymerization process: A critical review. Thin Solid Films 2016, 606, 19–44. [Google Scholar] [CrossRef]
  17. Cantini, M.; Rico, P.; Moratal, D.; Salmerón-Sánchez, M. Controlled wettability, same chemistry: Biological activity of plasma-polymerized coatings. Soft Matter 2012, 8, 5575. [Google Scholar] [CrossRef]
  18. Siow, K.S.; Britcher, L.; Kumar, S.; Griesser, H.J. Plasma Methods for the Generation of Chemically Reactive Surfaces for Biomolecule Immobilization and Cell Colonization—A Review. Plasma Process. Polym. 2006, 3, 392–418. [Google Scholar] [CrossRef]
  19. Desmet, T.; Morent, R.; de Geyter, N.; Leys, C.; Schacht, E.; Dubruel, P. Nonthermal Plasma Technology as a Versatile Strategy for Polymeric Biomaterials Surface Modification: A Review. Biomacromolecules 2009, 10, 2351–2378. [Google Scholar] [CrossRef] [Green Version]
  20. Nisol, B.; Oldenhove, G.; Preyat, N.; Monteyne, D.; Moser, M.; Perez-Morga, D.; Reniers, F. Atmospheric plasma synthesized PEG coatings: Non-fouling biomaterials showing protein and cell repulsion. Surf. Coat. Technol. 2014, 252, 126–133. [Google Scholar] [CrossRef]
  21. Inagaki, N.; Kobayashi, N.; Matsushima, M. Gas separation membranes made by plasma polymerization of perfluorobenzene/cf4 and pentafluorobenzene/cf4 mixtures. J. Membr. Sci. 1988, 38, 85–95. [Google Scholar] [CrossRef]
  22. Bitar, R.; Cools, P.; de Geyter, N.; Morent, R. Acrylic acid plasma polymerization for biomedical use. Appl. Surf. Sci. 2018, 448, 168–185. [Google Scholar] [CrossRef]
  23. Coad, B.R.; Jasieniak, M.; Griesser, S.S.; Griesser, H.J. Controlled covalent surface immobilisation of proteins and peptides using plasma methods. Surf. Coat. Technol. 2013, 233, 169–177. [Google Scholar] [CrossRef]
  24. Friedrich, J.F.; Mix, R.; Kühn, G. Functional groups bearing plasma homo and copolymer layers as adhesion promoters in metal–polymer composites. Surf. Coat. Technol. 2003, 174–175, 811–815. [Google Scholar] [CrossRef]
  25. Grundmeier, G.; Thiemann, P.; Carpentier, J.; Barranco, V. Tailored thin plasma polymers for the corrosion protection of metals. Surf. Coat. Technol. 2003, 174–175, 996–1001. [Google Scholar] [CrossRef]
  26. Deilmann, M.; Theiß, S.; Awakowicz, P. Pulsed microwave plasma polymerization of silicon oxide films: Application of efficient permeation barriers on polyethylene terephthalate. Surf. Coat. Technol. 2008, 202, 1911–1917. [Google Scholar] [CrossRef]
  27. Förch, R.; Zhang, Z.; Knoll, W. Soft Plasma Treated Surfaces: Tailoring of Structure and Properties for Biomaterial Applications. Plasma Process. Polym. 2005, 2, 351–372. [Google Scholar] [CrossRef]
  28. Brétagnol, F.; Lejeune, M.; Papadopoulou-Bouraoui, A.; Hasiwa, M.; Rauscher, H.; Ceccone, G.; Colpo, P.; Rossi, F. Fouling and non-fouling surfaces produced by plasma polymerization of ethylene oxide monomer. Acta Biomater. 2006, 2, 165–172. [Google Scholar] [CrossRef] [PubMed]
  29. Holvoet, S.; Chevallier, P.; Turgeon, S.; Mantovani, D. Toward High-Performance Coatings for Biomedical Devices: Study on Plasma-Deposited Fluorocarbon Films and Ageing in PBS. Materials 2010, 3, 1515–1532. [Google Scholar] [CrossRef] [Green Version]
  30. Choukourov, A.; Gordeev, I.; Arzhakov, D.; Artemenko, A.; Kousal, J.; Kylián, O.; Slavínská, D.; Biederman, H. Does Cross-Link Density of PEO-Like Plasma Polymers Influence their Resistance to Adsorption of Fibrinogen? Plasma Process. Polym. 2012, 9, 48–58. [Google Scholar] [CrossRef]
  31. Sardella, E.; Gristina, R.; Senesi, G.S.; D’Agostino, R.; Favia, P. Homogeneous and Micro-Patterned Plasma-Deposited PEO-Like Coatings for Biomedical Surfaces. Plasma Process. Polym. 2004, 1, 63–72. [Google Scholar] [CrossRef]
  32. Drábik, M.; Polonskyi, O.; Kylián, O.; Čechvala, J.; Artemenko, A.; Gordeev, I.; Choukourov, A.; Slavínská, D.; Matolínová, I.; Biederman, H. Super-Hydrophobic Coatings Prepared by RF Magnetron Sputtering of PTFE. Plasma Process. Polym. 2010, 7, 544–551. [Google Scholar] [CrossRef]
  33. Kuzminova, A.; Shelemin, A.; Kylián, O.; Petr, M.; Kratochvíl, J.; Solař, P.; Biederman, H. From super-hydrophilic to super-hydrophobic surfaces using plasma polymerization combined with gas aggregation source of nanoparticles. Vacuum 2014, 110, 58–61. [Google Scholar] [CrossRef]
  34. Asadollahi, S.; Profili, J.; Farzaneh, M.; Stafford, L. Development of Organosilicon-Based Superhydrophobic Coatings through Atmospheric Pressure Plasma Polymerization of HMDSO in Nitrogen Plasma. Materials 2019, 12, 219. [Google Scholar] [CrossRef] [PubMed]
  35. Macgregor, M.; Vasilev, K. Perspective on Plasma Polymers for Applied Biomaterials Nanoengineering and the Recent Rise of Oxazolines. Materials 2019, 12, 191. [Google Scholar] [CrossRef] [PubMed]
  36. Prencipe, I.; Fuchs, J.; Pascarelli, S.; Schumacher, D.W.; Stephens, R.B.; Alexander, N.B.; Briggs, R.; Büscher, M.; Cernaianu, M.O.; Choukourov, A.; et al. Targets for high repetition rate laser facilities: Needs, challenges and perspectives. High Power Laser Sci. Eng. 2017, 5, e17. [Google Scholar] [CrossRef]
  37. Margarone, D.; Kim, I.J.; Psikal, J.; Kaufman, J.; Mocek, T.; Choi, I.W.; Stolcova, L.; Proska, J.; Choukourov, A.; Melnichuk, I.; et al. Laser-driven high-energy proton beam with homogeneous spatial profile from a nanosphere target. Phys. Rev. Spec. Top. Accel. Beams 2015, 18, 071304. [Google Scholar] [CrossRef]
  38. Choukourov, A.; Hanuš, J.; Kousal, J.; Grinevich, A.; Pihosh, Y.; Slavínská, D.; Biederman, H. Thin polymer films from polyimide vacuum thermal degradation with and without a glow discharge. Vacuum 2006, 80, 923–929. [Google Scholar] [CrossRef]
  39. Robertson, T.; Morrison, D.T. Electrical properties of r.f. sputtered PTFE. Thin Solid Films 1975, 27, 19–37. [Google Scholar] [CrossRef]
  40. Lehmann, H.W.; Frick, K.; Widmer, R.; Vossen, J.L.; James, E. Reactive sputtering of PTFE films in argon-CF4 mixtures. Thin Solid Films 1978, 52, 231–235. [Google Scholar] [CrossRef]
  41. Yamada, Y.; Tanaka, K.; Saito, K. Friction and damage of coatings formed by sputtering polytetrafluoroethylene and polyimide. Surf. Coat. Technol. 1990, 43–44, 618–628. [Google Scholar] [CrossRef]
  42. Gonon, P.; Sylvestre, A. Dielectric properties of fluorocarbon thin films deposited by radio frequency sputtering of polytetrafluoroethylene. J. Appl. Phys. 2002, 92, 4584–4589. [Google Scholar] [CrossRef]
  43. Maréchal, N.; Pauleau, Y. Radio frequency sputtering process of a polytetrafluoroethylene target and characterization of fluorocarbon polymer films. J. Vac. Sci. Technol. A Vac. Surf. Films 1992, 10, 477–483. [Google Scholar] [CrossRef]
  44. Tang, G.; Ma, X.; Sun, M. Composition and chemical structure of ultra-thin a-C:F films deposited by RF magnetron sputtering with high pulsed bias. Diam. Relat. Mater. 2007, 16, 1586–1588. [Google Scholar] [CrossRef]
  45. Oya, T.; Kusano, E. Characterization of organic polymer thin films deposited by rf magnetron sputtering. Vacuum 2008, 83, 564–568. [Google Scholar] [CrossRef]
  46. Kylián, O.; Drábik, M.; Polonskyi, O.; Čechvala, J.; Artemenko, A.; Gordeev, I.; Choukourov, A.; Matolínová, I.; Slavínská, D.; Biederman, H. Deposition of nanostructured fluorocarbon plasma polymer films by RF magnetron sputtering of polytetrafluoroethylene. Thin Solid Films 2011, 519, 6426–6431. [Google Scholar] [CrossRef]
  47. Li, L.; Jones, P.M.; Hsia, Y.T. Characterization of a nanometer-thick sputtered polytetrafluoroethylene film. Appl. Surf. Sci. 2011, 257, 4478–4485. [Google Scholar] [CrossRef]
  48. Roy, R.A.; Messier, R.; Krishnaswamy, S.V. Preparation and properties of r.f.-sputtered polymer-metal thin films. Thin Solid Films 1983, 109, 27–35. [Google Scholar] [CrossRef]
  49. Biederman, H. RF sputtering of polymers and its potential application. Vacuum 2000, 59, 594–599. [Google Scholar] [CrossRef]
  50. Biederman, H. Organic films prepared by polymer sputtering. J. Vac. Sci. Technol. A Vac. Surf. Films 2000, 18, 1642–1648. [Google Scholar] [CrossRef]
  51. Uemura, A.; Kezuka, K.; Iwamori, S.; Nishiyama, I. Effects of substrate temperature on the surface of polymer thin films prepared by R.F. sputtering with a polyimide target. Vacuum 2009, 84, 607–611. [Google Scholar] [CrossRef]
  52. Choukourov, A.; Hanuš, J.; Kousal, J.; Grinevich, A.; Pihosh, Y.; Slavínská, D.; Biederman, H. Plasma polymer films from sputtered polyimide. Vacuum 2006, 81, 517–526. [Google Scholar] [CrossRef]
  53. Kholodkov, I. Plasma polymers prepared by RF sputtering of polyethylene. Vacuum 2003, 70, 505–509. [Google Scholar] [CrossRef]
  54. Pihosh, Y.; Biederman, H.; Slavinska, D.; Kousal, J.; Choukourov, A.; Trchova, M.; Mackova, A.; Boldyreva, A. Composite SiOx/hydrocarbon plasma polymer films prepared by RF magnetron sputtering of SiO2 and polyethylene or polypropylene. Vacuum 2006, 81, 32–37. [Google Scholar] [CrossRef]
  55. Hishmeh, G.A.; Barr, T.L.; Sklyarov, A.; Hardcastle, S. Thin polymer films prepared by radio frequency plasma sputtering of polytetrafluoroethylene and polyetherimide targets. J. Vac. Sci. Technol. A Vac. Surf. Films 1996, 14, 1330–1338. [Google Scholar] [CrossRef]
  56. Stelmashuk, V.; Biederman, H.; Slavínská, D.; Trchová, M.; Hlidek, P. Rf magnetron sputtering of polypropylene. Vacuum 2004, 75, 207–215. [Google Scholar] [CrossRef]
  57. Hanus, J.; Kousal, J.; Choukourov, A.; Biederman, H.; Slavinska, D. RF magnetron sputtering of poly(propylene) in a mixture of argon and nitrogen. Plasma Process. Polym. 2007, 4, 806–811. [Google Scholar] [CrossRef]
  58. Kousal, J.; Hanuš, J.; Choukourov, A.; Polonskyi, O.; Biederman, H.; Slavínská, D. In Situ Diagnostics of RF Magnetron Sputtering of Nylon. Plasma Process. Polym. 2009, 6, S803–S807. [Google Scholar] [CrossRef]
  59. Haberland, H.; Karrais, M.; Mall, M. A new type of cluster and cluster ion source. Z. Phys. D At. Mol. Clust. 1991, 20, 413–415. [Google Scholar] [CrossRef]
  60. Haberland, H.; Karrais, M. Thin films from energetic cluster impact: A feasibility study. J. Vac. Sci. Technol. A Vac. Surf. Films 1992, 10, 3266–3271. [Google Scholar] [CrossRef]
  61. Hanuš, J.; Steinhartová, T.; Kylián, O.; Kousal, J.; Malinský, P.; Choukourov, A.; Macková, A.; Biederman, H. Deposition of Cu/a-C:H Nanocomposite Films. Plasma Process. Polym. 2016, 13, 879–887. [Google Scholar] [CrossRef]
  62. Vaidulych, M.; Hanuš, J.; Steinhartová, T.; Kylián, O.; Choukourov, A.; Beranová, J.; Khalakhan, I.; Biederman, H. Deposition of Ag/a-C:H nanocomposite films with Ag surface enrichment. Plasma Process. Polym. 2017, 14, 1600256. [Google Scholar] [CrossRef]
  63. Kylián, O.; Kratochvíl, J.; Petr, M.; Kuzminova, A.; Slavínská, D.; Biederman, H.; Beranová, J. Ag/C:F Antibacterial and hydrophobic nanocomposite coatings. Funct. Mater. Lett. 2017, 10, 1750029. [Google Scholar] [CrossRef]
  64. Petr, M.; Kylián, O.; Hanuš, J.; Kuzminova, A.; Vaidulych, M.; Khalakhan, I.; Choukourov, A.; Slavínská, D.; Biederman, H. Surfaces with Roughness Gradient and Invariant Surface Chemistry Produced by Means of Gas Aggregation Source and Magnetron Sputtering. Plasma Process. Polym. 2016, 13, 663–671. [Google Scholar] [CrossRef]
  65. Kratochvíl, J.; Kuzminova, A.; Solař, P.; Hanuš, J.; Kylián, O.; Biederman, H. Wetting and drying on gradient-nanostructured C:F surfaces synthesized using a gas aggregation source of nanoparticles combined with magnetron sputtering of polytetrafluoroethylene. Vacuum 2019, 166, 50–56. [Google Scholar] [CrossRef]
  66. Kylián, O.; Kratochvíl, J.; Hanuš, J.; Polonskyi, O.; Solař, P.; Biederman, H. Fabrication of Cu nanoclusters and their use for production of Cu/plasma polymer nanocomposite thin films. Thin Solid Films 2014, 550, 46–52. [Google Scholar] [CrossRef]
  67. Kuzminova, A.; Beranová, J.; Polonskyi, O.; Shelemin, A.; Kylián, O.; Choukourov, A.; Slavínská, D.; Biederman, H. Antibacterial nanocomposite coatings produced by means of gas aggregation source of silver nanoparticles. Surf. Coat. Technol. 2016, 294, 225–230. [Google Scholar] [CrossRef]
  68. Nikitin, D.; Madkour, S.; Pleskunov, P.; Tafiichuk, R.; Shelemin, A.; Hanuš, J.; Gordeev, I.; Sysolyatina, E.; Lavrikova, A.; Ermolaeva, S.; et al. Cu nanoparticles constrain segmental dynamics of cross-linked polyethers: A trade-off between non-fouling and antibacterial properties. Soft Matter 2019, 15, 2884–2896. [Google Scholar] [CrossRef]
  69. Gracia-Pinilla, M.Á.; Ferrer, D.; Mejía-Rosales, S.; Pérez-Tijerina, E. Size-selected Ag nanoparticles with five-fold symmetry. Nanoscale Res. Lett. 2009, 4, 896–902. [Google Scholar] [CrossRef]
  70. Polonskyi, O.; Solař, P.; Kylián, O.; Drábik, M.; Artemenko, A.; Kousal, J.; Hanuš, J.; Pešička, J.; Matolínová, I.; Kolíbalová, E.; et al. Nanocomposite metal/plasma polymer films prepared by means of gas aggregation cluster source. Thin Solid Films 2012, 520, 4155–4162. [Google Scholar] [CrossRef]
  71. Kuzminova, A.; Solař, P.; Kúš, P.; Kylián, O. Double Plasmon Resonance Nanostructured Silver Coatings with Tunable Properties. J. Nanomater. 2019, 2019, 1–8. [Google Scholar] [CrossRef]
  72. Dutka, M.V.; Turkin, A.a.; Vainchtein, D.I.; de Hosson, J.T.M. On the formation of copper nanoparticles in nanocluster aggregation source. J. Vac. Sci. Technol. A Vac. Surf. Films 2015, 33, 031509. [Google Scholar] [CrossRef]
  73. Drache, S.; Stranak, V.; Berg, F.; Hubicka, Z.; Tichy, M.; Helm, C.A.; Hippler, R. Pulsed gas aggregation for improved nanocluster growth and flux. Phys. Status Solidi (A) 2014, 211, 1189–1193. [Google Scholar] [CrossRef]
  74. Luo, Z.; Woodward, W.H.; Smith, J.C.; Castleman, A.W. Growth kinetics of Al clusters in the gas phase produced by a magnetron-sputtering source. Int. J. Mass Spectrom. 2012, 309, 176–181. [Google Scholar] [CrossRef]
  75. Drabik, M.; Choukourov, A.; Artemenko, A.; Polonskyi, O.; Kylian, O.; Kousal, J.; Nichtova, L.; Cimrova, V.; Slavinska, D.; Biederman, H. Structure and Composition of Titanium Nanocluster Films Prepared by a Gas Aggregation Cluster Source. J. Phys. Chem. C 2011, 115, 20937–20944. [Google Scholar] [CrossRef]
  76. Drábik, M.; Choukourov, A.; Artemenko, A.; Kousal, J.; Polonskyi, O.; Solař, P.; Kylián, O.; Matoušek, J.; Pešička, J.; Matolínová, I.; et al. Morphology of Titanium Nanocluster Films Prepared by Gas Aggregation Cluster Source. Plasma Process. Polym. 2011, 8, 640–650. [Google Scholar] [CrossRef]
  77. Ahadi, A.M.; Zaporojtchenko, V.; Peter, T.; Polonskyi, O.; Strunskus, T.; Faupel, F. Role of oxygen admixture in stabilizing TiO x nanoparticle deposition from a gas aggregation source. J. Nanoparticle Res. 2013, 15, 2125. [Google Scholar] [CrossRef]
  78. Morel, R.; Brenac, A.; Bayle-Guillemaud, P.; Portement, C.; la Rizza, F. Growth and properties of cobalt clusters made by sputtering gas-aggregation. Eur. Phys. J. D 2003, 24, 287–290. [Google Scholar] [CrossRef]
  79. Gojdka, B.; Hrkac, V.; Strunskus, T.; Zaporojtchenko, V.; Kienle, L.; Faupel, F. Study of cobalt clusters with very narrow size distribution deposited by high-rate cluster source. Nanotechnology 2011, 22, 465704. [Google Scholar] [CrossRef]
  80. Kylián, O.; Valeš, V.; Polonskyi, O.; Pešička, J.; Čechvala, J.; Solař, P.; Choukourov, A.; Slavínská, D.; Biederman, H. Deposition of Pt nanoclusters by means of gas aggregation cluster source. Mater. Lett. 2012, 79, 229–231. [Google Scholar] [CrossRef]
  81. Kylián, O.; Prokeš, J.; Polonskyi, O.; Čechvala, J.; Kousal, J.; Pešička, J.; Hanuš, J.; Biederman, H. Deposition and characterization of Pt nanocluster films by means of gas aggregation cluster source. Thin Solid Films 2014, 571, 13–17. [Google Scholar] [CrossRef]
  82. Bray, K.R.; Jiao, C.Q.; DeCerbo, J.N. Nucleation and growth of Nb nanoclusters during plasma gas condensation. J. Appl. Phys. 2013, 113, 234307. [Google Scholar] [CrossRef]
  83. Ayesh, A.I.; Qamhieh, N.; Ghamlouche, H.; Thaker, S.; El-Shaer, M. Fabrication of size-selected Pd nanoclusters using a magnetron plasma sputtering source. J. Appl. Phys. 2010, 107, 034317. [Google Scholar] [CrossRef]
  84. Acsente, T.; Negrea, R.F.; Nistor, L.C.; Logofatu, C.; Matei, E.; Birjega, R.; Grisolia, C.; Dinescu, G. Synthesis of flower-like tungsten nanoparticles by magnetron sputtering combined with gas aggregation. Eur. Phys. J. D 2015, 69, 161. [Google Scholar] [CrossRef]
  85. D’Addato, S.; Gragnaniello, L.; Valeri, S.; Rota, A.; di Bona, A.; Spizzo, F.; Panozaqi, T.; Schifano, S.F. Morphology and magnetic properties of size-selected Ni nanoparticle films. J. Appl. Phys. 2010, 107, 104318. [Google Scholar] [CrossRef]
  86. Nielsen, R.M.; Murphy, S.; Strebel, C.; Johansson, M.; Chorkendorff, I.; Nielsen, J.H. The morphology of mass selected ruthenium nanoparticles from a magnetron-sputter gas-aggregation source. J. Nanoparticle Res. 2010, 12, 1249–1262. [Google Scholar] [CrossRef]
  87. Shelemin, A.; Kylián, O.; Hanuš, J.; Choukourov, A.; Melnichuk, I.; Serov, A.; Slavínská, D.; Biederman, H. Preparation of metal oxide nanoparticles by gas aggregation cluster source. Vacuum 2015, 120, 162–169. [Google Scholar] [CrossRef]
  88. Polonskyi, O.; Ahadi, A.M.; Peter, T.; Fujioka, K.; Abraham, J.W.; Vasiliauskaite, E.; Hinz, A.; Strunskus, T.; Wolf, S.; Bonitz, M.; et al. Plasma based formation and deposition of metal and metal oxide nanoparticles using a gas aggregation source. Eur. Phys. J. D 2018, 72, 93. [Google Scholar] [CrossRef]
  89. Polonskyi, O.; Kylián, O.; Solař, P.; Artemenko, A.; Kousal, J.; Slavínská, D.; Choukourov, A.; Biederman, H. Nylon-sputtered nanoparticles: Fabrication and basic properties. J. Phys. D Appl. Phys. 2012, 45, 495301. [Google Scholar] [CrossRef]
  90. Drábik, M.; Serov, A.; Kylián, O.; Choukourov, A.; Artemenko, A.; Kousal, J.; Polonskyi, O.; Biederman, H. Deposition of Fluorocarbon Nanoclusters by Gas Aggregation Cluster Source. Plasma Process. Polym. 2012, 9, 390–397. [Google Scholar] [CrossRef]
  91. Solař, P.; Melnichuk, I.; Artemenko, A.; Polonskyi, O.; Kylián, O.; Choukourov, A.; Slavínská, D.; Biederman, H. Nylon-sputtered plasma polymer particles produced by a semi-hollow cathode gas aggregation source. Vacuum 2015, 111, 124–130. [Google Scholar] [CrossRef]
  92. Choukourov, A.; Pleskunov, P.; Nikitin, D.; Titov, V.; Shelemin, A.; Vaidulych, M.; Kuzminova, A.; Solař, P.; Hanuš, J.; Kousal, J.; et al. Advances and challenges in the field of plasma polymer nanoparticles. Beilstein J. Nanotechnol. 2017, 8, 2002–2014. [Google Scholar] [CrossRef] [PubMed]
  93. Choukourov, A.; Shelemin, A.; Pleskunov, P.; Nikitin, D.; Khalakhan, I.; Hanuš, J. Nanoscale morphogenesis of nylon-sputtered plasma polymer particles. J. Phys. D Appl. Phys. 2018, 51, 215304. [Google Scholar] [CrossRef]
  94. Xu, Y.-H.; Wang, J.-P. Direct Gas-Phase Synthesis of Heterostructured Nanoparticles through Phase Separation and Surface Segregation. Adv. Mater. 2008, 20, 994–999. [Google Scholar] [CrossRef]
  95. Vahl, A.; Strobel, J.; Reichstein, W.; Polonskyi, O.; Strunskus, T.; Kienle, L.; Faupel, F. Single target sputter deposition of alloy nanoparticles with adjustable composition via a gas aggregation cluster source. Nanotechnology 2017, 28. [Google Scholar] [CrossRef] [PubMed]
  96. Gauter, S.; Haase, F.; Solař, P.; Kylián, O.; Kúš, P.; Choukourov, A.; Biederman, H.; Kersten, H. Calorimetric investigations in a gas aggregation source. J. Appl. Phys. 2018, 124. [Google Scholar] [CrossRef]
  97. Martínez, L.; Díaz, M.; Román, E.; Ruano, M.; Llamosa, P.D.; Huttel, Y. Generation of nanoparticles with adjustable size and controlled stoichiometry: Recent advances. Langmuir 2012, 28, 11241–11249. [Google Scholar] [CrossRef]
  98. Llamosa, D.; Ruano, M.; Martínez, L.; Mayoral, A.; Roman, E.; García-Hernández, M.; Huttel, Y. The ultimate step towards a tailored engineering of core@shell and core@shell@shell nanoparticles. Nanoscale 2014, 6, 13483–13486. [Google Scholar] [CrossRef]
  99. Mayoral, A.; Llamosa, D.; Huttel, Y. A novel Co@Au structure formed in bimetallic core@shell nanoparticles. Chem. Commun. 2015, 51, 8442–8445. [Google Scholar] [CrossRef]
  100. Singh, V.; Cassidy, C.; Grammatikopoulos, P.; Djurabekova, F.; Nordlund, K.; Sowwan, M. Heterogeneous Gas-Phase Synthesis and Molecular Dynamics Modeling of Janus and Core–Satellite Si–Ag Nanoparticles. J. Phys. Chem. C 2014, 118, 13869–13875. [Google Scholar] [CrossRef]
  101. Mattei, J.-G.; Grammatikopoulos, P.; Zhao, J.; Singh, V.; Vernieres, J.; Steinhauer, S.; Porkovich, A.; Danielson, E.; Nordlund, K.; Djurabekova, F.; et al. Gas-Phase Synthesis of Trimetallic Nanoparticles. Chem. Mater. 2019, 31, 2151–2163. [Google Scholar] [CrossRef] [Green Version]
  102. Popok, V.N.; Jeppesen, C.M.; Fojan, P.; Kuzminova, A.; Hanuš, J.; Kylián, O. Comparative study of antibacterial properties of polystyrene films with TiO x and Cu nanoparticles fabricated using cluster beam technique. Beilstein J. Nanotechnol. 2018, 9, 861–869. [Google Scholar] [CrossRef] [PubMed]
  103. Bai, J.; Wang, J.P. High-magnetic-moment core-shell-type FeCo-Au/Ag nanoparticles. Appl. Phys. Lett. 2005, 87, 1–3. [Google Scholar] [CrossRef]
  104. Kylián, O.; Kuzminova, A.; Vaydulych, M.; Cieslar, M.; Khalakhan, I.; Hanuš, J.; Choukourov, A.; Slavínská, D.; Biederman, H. Core@shell Cu/hydrocarbon plasma polymer nanoparticles prepared by gas aggregation cluster source followed by in-flight plasma polymer coating. Plasma Process. Polym. 2018, 15, 1700109. [Google Scholar] [CrossRef]
  105. Hanuš, J.; Vaidulych, M.; Kylián, O.; Choukourov, A.; Kousal, J.; Khalakhan, I.; Cieslar, M.; Solař, P.; Biederman, H. Fabrication of Ni@Ti core–shell nanoparticles by modified gas aggregation source. J. Phys. D Appl. Phys. 2017, 50, 475307. [Google Scholar] [CrossRef]
  106. Kretková, T.; Hanuš, J.; Kylián, O.; Solař, P.; Dopita, M.; Cieslar, M.; Khalakhan, I.; Choukourov, A.; Biederman, H. In-flight modification of Ni nanoparticles by tubular magnetron sputtering. J. Phys. D Appl. Phys. 2019, 52, 205302. [Google Scholar] [CrossRef]
  107. Cassidy, C.; Singh, V.; Grammatikopoulos, P.; Djurabekova, F.; Nordlund, K.; Sowwan, M. Inoculation of silicon nanoparticles with silver atoms. Sci. Rep. 2013, 3, 3083. [Google Scholar] [CrossRef] [PubMed]
  108. Kylián, O.; Hanuš, J.; Choukourov, A.; Kousal, J.; Slavínská, D.; Biederman, H. Deposition of amino-rich thin films by RF magnetron sputtering of nylon. J. Phys. D Appl. Phys. 2009, 42, 142001. [Google Scholar] [CrossRef]
  109. Finke, B.; Hempel, F.; Testrich, H.; Artemenko, A.; Rebl, H.; Kylián, O.; Meichsner, J.; Biederman, H.; Nebe, B.; Weltmann, K.-D.; et al. Plasma processes for cell-adhesive titanium surfaces based on nitrogen-containing coatings. Surf. Coat. Technol. 2011, 205, S520–S524. [Google Scholar] [CrossRef]
  110. Kratochvíl, J.; Kahoun, D.; Štěrba, J.; Langhansová, H.; Lieskovská, J.; Fojtíková, P.; Hanuš, J.; Kousal, J.; Kylián, O.; Straňák, V. Plasma polymerized C:H:N:O thin films for controlled release of antibiotic substances. Plasma Process. Polym. 2018, 15, 1700160. [Google Scholar] [CrossRef]
  111. Kovačević, E.; Stefanović, I.; Berndt, J.; Winter, J. Infrared fingerprints and periodic formation of nanoparticles in Ar/C2H2 plasmas. J. Appl. Phys. 2003, 93, 2924–2930. [Google Scholar] [CrossRef]
  112. Solař, P.; Polonskyi, O.; Olbricht, A.; Hinz, A.; Shelemin, A.; Kylián, O.; Choukourov, A.; Faupel, F.; Biederman, H. Single-step generation of metal-plasma polymer multicore@shell nanoparticles from the gas phase. Sci. Rep. 2017, 7, 8514. [Google Scholar] [CrossRef] [PubMed]
  113. Kylián, O.; Kuzminova, A.; Štefaníková, R.; Hanuš, J.; Solař, P.; Kúš, P.; Cieslar, M.; Choukourov, A.; Biederman, H. Silver/plasma polymer strawberry-like nanoparticles produced by gas-phase synthesis. Mater. Lett. 2019, 253, 238–241. [Google Scholar] [CrossRef]

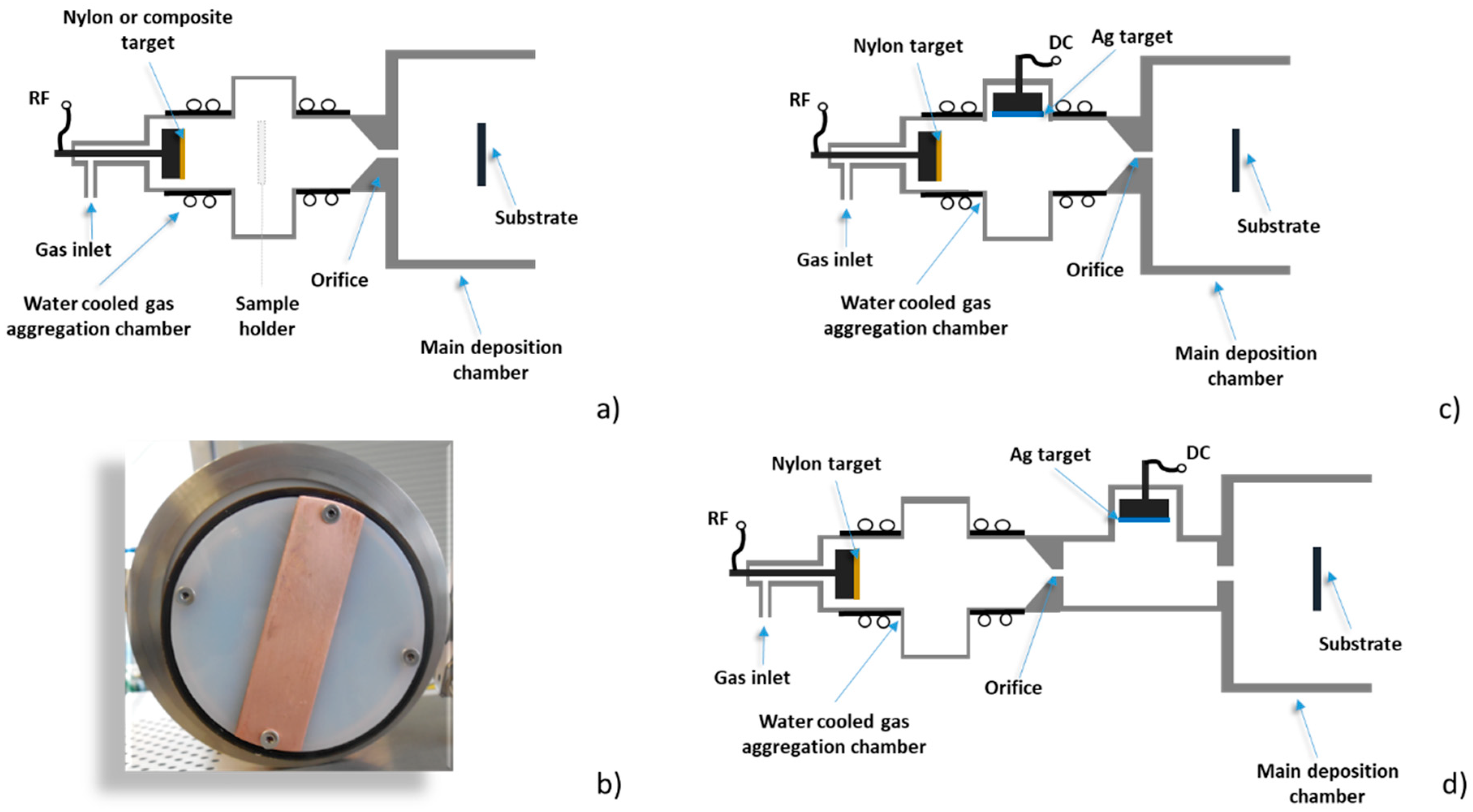

Figure 1. (a) Basic system for the deposition of plasma polymer nanoparticles (NPs). (b) Image of Nylon 6,6 with Cu strip. (c) Dual-magnetron system. (d) Setup for in-flight modification of C:H:N:O NPs by silver.
Figure 1. (a) Basic system for the deposition of plasma polymer nanoparticles (NPs). (b) Image of Nylon 6,6 with Cu strip. (c) Dual-magnetron system. (d) Setup for in-flight modification of C:H:N:O NPs by silver.
Materials 12 02366 g001

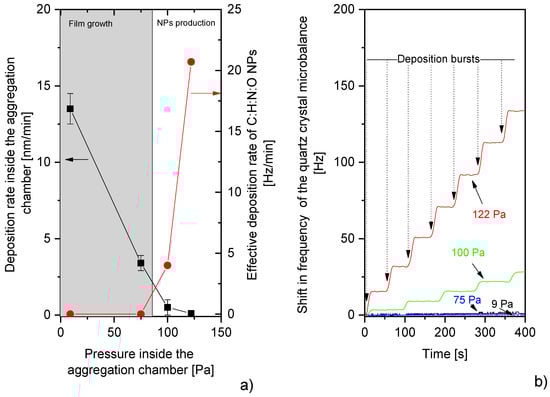

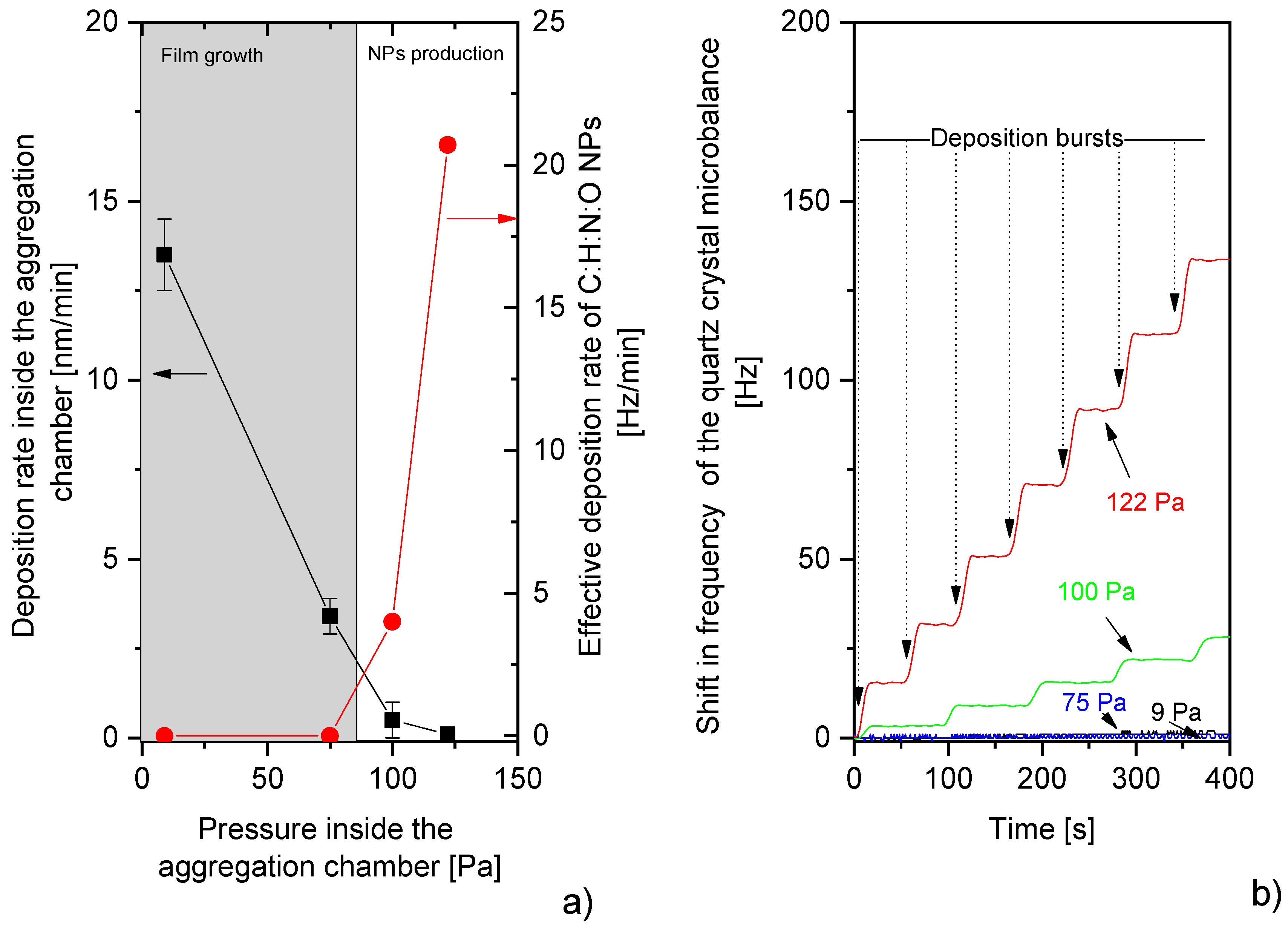

Figure 2. (a) Pressure dependences of the deposition rate of C:H:N:O film inside the aggregation chamber and effective deposition rate of C:H:N:O NPs in the main deposition chamber. (b) Pressure dependences of frequency shift on quartz crystal microbalance (QCM) installed into the main deposition chamber. The change in the frequency of quartz crystal is directly proportional to the deposited mass. RF power 40 W.
Figure 2. (a) Pressure dependences of the deposition rate of C:H:N:O film inside the aggregation chamber and effective deposition rate of C:H:N:O NPs in the main deposition chamber. (b) Pressure dependences of frequency shift on quartz crystal microbalance (QCM) installed into the main deposition chamber. The change in the frequency of quartz crystal is directly proportional to the deposited mass. RF power 40 W.
Materials 12 02366 g002
Figure 3. Scanning electron microscopy (SEM) images of C:H:N:O NPs deposited in (a) pure Ar or (b) N2. The presented mean sizes of produced NPs were evaluated from the diameters of 300 individual NPs.
Figure 3. Scanning electron microscopy (SEM) images of C:H:N:O NPs deposited in (a) pure Ar or (b) N2. The presented mean sizes of produced NPs were evaluated from the diameters of 300 individual NPs.
Materials 12 02366 g003
Figure 4. (a) High-resolution X-Ray Photoelectron Spectroscopy (XPS) spectra of C 1s peak of NPs deposited in Ar (top) and N2 (bottom) measured by XPS (Phoibos 100, Specs) with an Al Kα X-ray source (1486.6 eV, 200W, Specs). (b) Fourier Transform Infrared Spectroscopy (FT-IR) spectra of NPs deposited in pure Ar (top) and N2 (bottom) recorded by FT-IR (Bruker Equinox 55) in a reflectance-absorbance mode using gold-plated silicon wafers as substrates.
Figure 4. (a) High-resolution X-Ray Photoelectron Spectroscopy (XPS) spectra of C 1s peak of NPs deposited in Ar (top) and N2 (bottom) measured by XPS (Phoibos 100, Specs) with an Al Kα X-ray source (1486.6 eV, 200W, Specs). (b) Fourier Transform Infrared Spectroscopy (FT-IR) spectra of NPs deposited in pure Ar (top) and N2 (bottom) recorded by FT-IR (Bruker Equinox 55) in a reflectance-absorbance mode using gold-plated silicon wafers as substrates.
Materials 12 02366 g004
Figure 5. (a) Transmission electron microscopy (TEM) image of multi-core@shell Cu/C:H:N:O NPs produced when the composite target was used. (b) UV-Vis spectra of C:H:N:O NPs and heterogeneous Cu/ C:H:N:O NPs. RF power 80 W.
Figure 5. (a) Transmission electron microscopy (TEM) image of multi-core@shell Cu/C:H:N:O NPs produced when the composite target was used. (b) UV-Vis spectra of C:H:N:O NPs and heterogeneous Cu/ C:H:N:O NPs. RF power 80 W.
Materials 12 02366 g005
Figure 6. (a) Time evolution of intensities of spectral emission lines and bands of Ar, Cu, and CN measured by emission spectrometer (AvaSpec 3648, Avantes) together with the deposition rate of produced NPs. (b) Photography of Nylon/Cu composite target after the plasma operation. RF power 80 W.
Figure 6. (a) Time evolution of intensities of spectral emission lines and bands of Ar, Cu, and CN measured by emission spectrometer (AvaSpec 3648, Avantes) together with the deposition rate of produced NPs. (b) Photography of Nylon/Cu composite target after the plasma operation. RF power 80 W.
Materials 12 02366 g006
Figure 7. (a) TEM image of NPs produced when the dual-magnetron Gas Aggregation cluster Source (GAS) system was used. (b) UV-Vis spectra of produced NPs at different DC magnetron currents used for silver sputtering. RF power 40 W.
Figure 7. (a) TEM image of NPs produced when the dual-magnetron Gas Aggregation cluster Source (GAS) system was used. (b) UV-Vis spectra of produced NPs at different DC magnetron currents used for silver sputtering. RF power 40 W.
Materials 12 02366 g007
Figure 8. TEM images of Ag/C:H:N:O NPs produced by in-flight sputter deposition of silver onto C:H:N:O NPs. DC magnetron current for silver deposition (a) 100 mA and (b) 300 mA. RF power 40 W.
Figure 8. TEM images of Ag/C:H:N:O NPs produced by in-flight sputter deposition of silver onto C:H:N:O NPs. DC magnetron current for silver deposition (a) 100 mA and (b) 300 mA. RF power 40 W.
Materials 12 02366 g008
Table 1. Elemental composition of C:H:N:O NPs deposited using Ar or nitrogen and relative contributions of different bond types, resulting from spectral de-convolution of C 1s peak.
Table 1. Elemental composition of C:H:N:O NPs deposited using Ar or nitrogen and relative contributions of different bond types, resulting from spectral de-convolution of C 1s peak.
Working GasO
[at.%]
C
[at. %]
N
[at. %]
C-C/C-H
[%]
C-O/C-N
[%]
C=O/N-C=O
[%]
O-C=O
[%]
Ar127612553762
N2664302362122

Share and Cite

MDPI and ACS Style

Kylián, O.; Shelemin, A.; Solař, P.; Pleskunov, P.; Nikitin, D.; Kuzminova, A.; Štefaníková, R.; Kúš, P.; Cieslar, M.; Hanuš, J.; et al. Magnetron Sputtering of Polymeric Targets: From Thin Films to Heterogeneous Metal/Plasma Polymer Nanoparticles. Materials 2019, 12, 2366. https://doi.org/10.3390/ma12152366

AMA Style

Kylián O, Shelemin A, Solař P, Pleskunov P, Nikitin D, Kuzminova A, Štefaníková R, Kúš P, Cieslar M, Hanuš J, et al. Magnetron Sputtering of Polymeric Targets: From Thin Films to Heterogeneous Metal/Plasma Polymer Nanoparticles. Materials. 2019; 12(15):2366. https://doi.org/10.3390/ma12152366

Chicago/Turabian Style

Kylián, Ondřej, Artem Shelemin, Pavel Solař, Pavel Pleskunov, Daniil Nikitin, Anna Kuzminova, Radka Štefaníková, Peter Kúš, Miroslav Cieslar, Jan Hanuš, and et al. 2019. "Magnetron Sputtering of Polymeric Targets: From Thin Films to Heterogeneous Metal/Plasma Polymer Nanoparticles" Materials 12, no. 15: 2366. https://doi.org/10.3390/ma12152366

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
