Evolution of Rheological Behaviors of Styrene-Butadiene-Styrene/Crumb Rubber Composite Modified Bitumen after Different Long-Term Aging Processes
Abstract
:1. Introduction
2. Materials and Testing Methodology
2.1. Materials and Preparation
2.2. Test Methods
2.2.1. Aging Method
2.2.2. Multiple Stress Creep Recovery (MSCR) Test
2.2.3. Linear Amplitude Scanning (LAS) Test
- = integrity parameter;
- = complex shear modulus, MPa;
- = applied strain, %;
- t = testing time, s;
- α = 1/m, where m is the slope of the best-fit straight line with log (storage modulus) in vertical axis and log (applied frequency) on the horizontal axis;
- C0 = 1, the initial value of C;
- C1, C2 = curve-fit coefficients, then change the form as shown below:
- = at peak stress.
- f = loading frequency (10 Hz),
- k = 1 + (1 – C2), and
- B = 2.
- = the maximum expected binder strain, percent.
- = the quotient of damaged value of ;
- = the initial undamaged value of .
2.2.4. Bending Beam Rheometer Test
- , , and are the regression coefficients;
- = the test temperature (°C);
- = the critical temperature when S = 300 MPa (°C);
- = the critical temperature when m = 0.3 (°C);
- = the low service temperature (°C).
3. Results and Discussion
3.1. Multiple Stress Creep Recovery Test Results

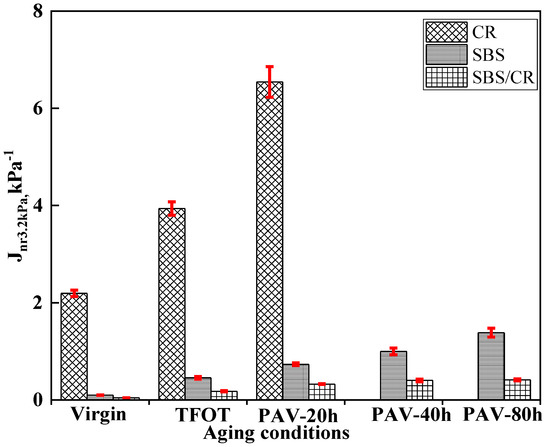

3.1.1. Analysis of Non-Recoverable Compliance at 3.2 kPa

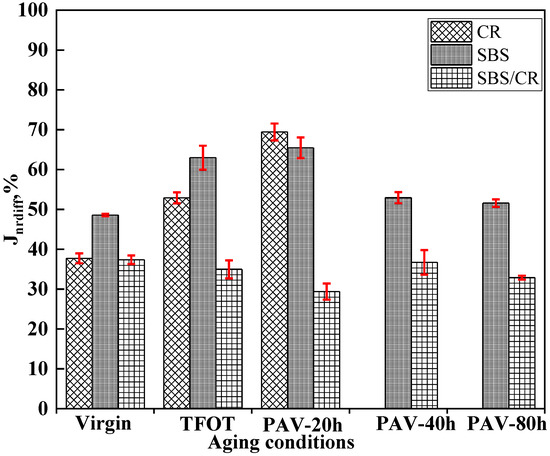

3.1.2. Evolution of Stress Sensitivity of All Kinds of Asphalt during the Aging Process

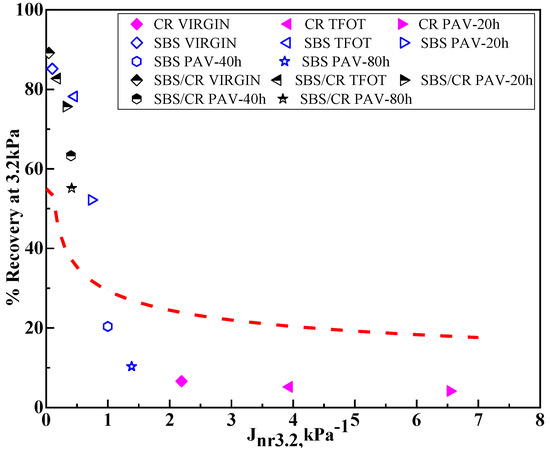

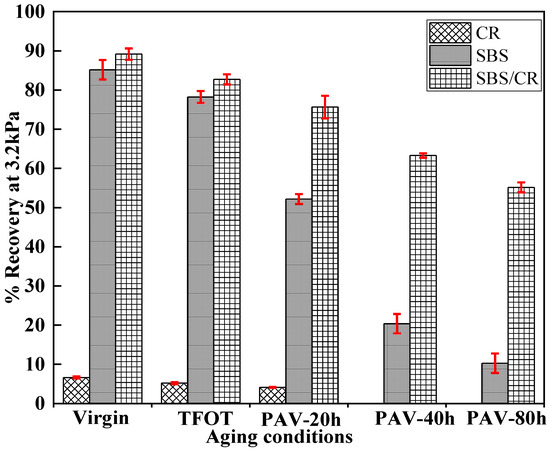

3.1.3. Analysis of Percent Recovery at 3.2 kPa
3.2. Linear Amplitude Scanning Test Results

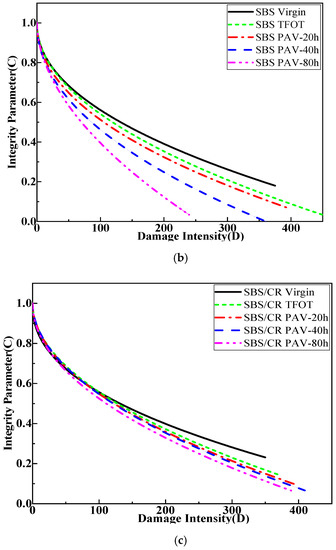

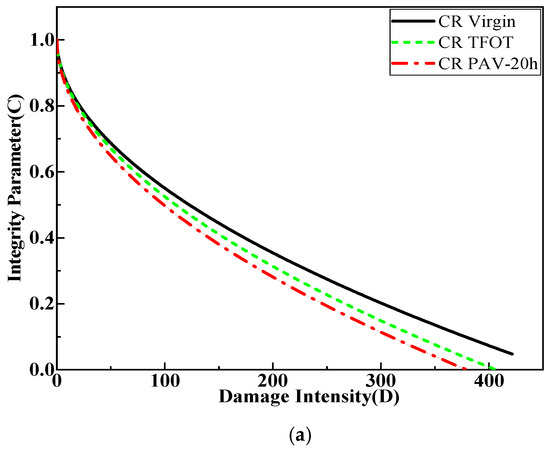

3.2.1. Evolution of the Damage Intensity and Integrity Parameters of All Kinds of Asphalt during the Aging Process

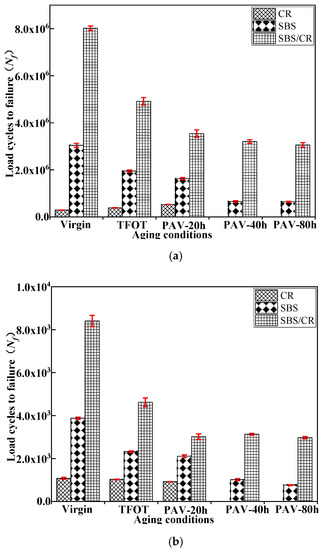

3.2.2. Effect of Aging to Fatigue Life (Nf) during the Long-Term Aging Processes

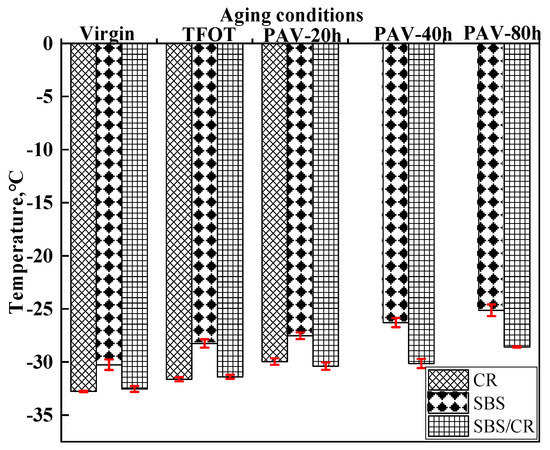

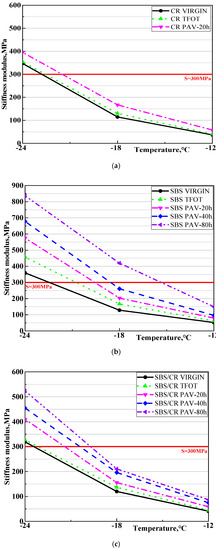

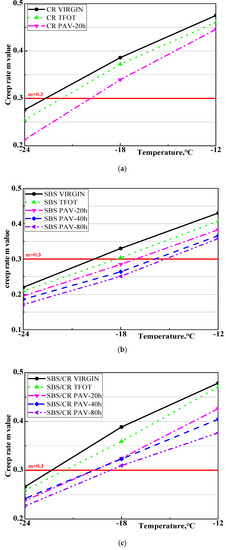

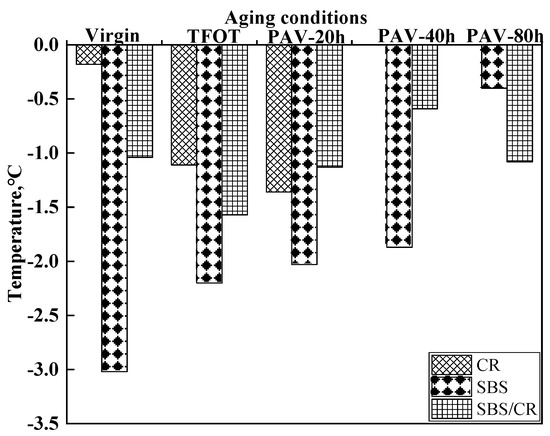

3.3. Low Temperature Performance
4. Conclusions
- (1)
- The SBS/CR composite modified asphalt possessed the best fatigue resistance, rutting resistance and a low temperature performance before and after different aging conditions. This showed the strong anti-aging ability of SBS/CRMB because of its flexibility and structure that remain in a good condition after long-term aging.
- (2)
- Compared with CR and SBS modified asphalt in the virgin condition, the elastic property of CR in SBS/CRMB improved the ability to resist low temperature thermal and fatigue cracking at the range of low and middle temperatures. In the high temperature domain, the copolymer network greatly enhanced the elastic response of the asphalt SBS/CRMB, which shows better deformation recovery.
- (3)
- Compared with CRMB and SBSMB under different long-term aging processes, there was a presence of carbon black, which released from the crumb rubber power during the process of the SBS/CR modified bitumen’s preparation. The carbon black could protect the SBS molecule from oxidizing.
- (4)
- In contrast to CRMB and SBSMB, it is recommended that SBS/CRMB be used in the subgrade of a high speed railway. It is suggested that in future research, the properties of SBS/CR modified bitumen under different aging times of ultraviolet could be studied.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Xue-Ning, M.A.; Liang, B.; Gao, F. Study on the Dynamic Properties of Slab Ballastless Track and Subgrade Structure on High-speed Railway. J. China Railw. Soc. 2011, 33, 72–78. [Google Scholar]
- Yang, J. Research on Design of Waterproof and Drainage for Subgrade of Passenger Dedicated Railway. J. Railw. Eng. Soc. 2011, 33, 85–90. [Google Scholar]
- Zhang, L.T.; Ke, W.U.; Zhang, L.W. Study on Waterproofing and Drainage System for Subgrade of Ballastless Track. Soil Eng. Found. 2010, 31, 19–24. [Google Scholar]
- Zhao, G.; Liu, X.; Gao, L.; Cai, X. Characteristic Analysis of Track Irregularity in Subgrade Frost Heave Area of Harbin-Dalian High-speed Railway. J. China Railw. Soc. 2016, 38, 105–109. [Google Scholar]
- Liu, S.; Yang, J.; Chen, X.; Yang, G.; Cai, D. Application of Mastic Asphalt Waterproofing Layer in High-Speed Railway Track in Cold Regions. Appl. Sci. 2018, 8, 667. [Google Scholar] [CrossRef]
- Liu, S.; Yang, J.; Chen, X.; Wang, M.; Zhou, W. Design of Asphalt Waterproofing Layer for High-Speed Railway Subgrade: A Case Study in Heilongjiang Province, China. In Transportation Research Board 96th Annual Meeting; Transportation Research Board: Washington, DC, USA, 2017. [Google Scholar]
- Liu, S.; Markine, V.L.; Chen, X.; Yang, J. Numerical Study on Application of Full Cross-Section Asphalt Waterproof Layer in CRTS III Slab Track. In Transportation Research Board 97th Annual Meeting; Transportation Research Board: Washington, DC, USA, 2018. [Google Scholar]
- Zhou, Z.; Gu, X.Y.; Dong, Q.; Ni, F.J.; Jiang, Y.X. Rutting and fatigue cracking performance of SBS-RAP blended binders with a rejuvenator. Constr. Build. Mater. 2019, 203, 294–303. [Google Scholar] [CrossRef]
- Liu, H.Y.; Hao, P.W.; Wang, H.N.; Adhikair, S. Effects of Physio-Chemical Factors on Asphalt Aging Behavior. J. Mater. Civ. Eng. 2014, 26, 190–197. [Google Scholar] [CrossRef]
- Yin, F.; Arambula-Mercado, E.; Martin, A.E.; Newcomb, D.; Tran, N. Long-term ageing of asphalt mixtures. Road Mater. Pavement Des. 2017, 18, 2–27. [Google Scholar] [CrossRef]
- Wang, P.; Dong, Z.J.; Tan, Y.Q.; Liu, Z.Y. Anti-ageing properties of styrene-butadiene-styrene copolymer-modified asphalt combined with multi-walled carbon nanotubes. Road Mater. Pavement Des. 2017, 18, 533–549. [Google Scholar] [CrossRef]
- Chen, J.S.; Liao, M.C.; Shiah, M.S. Asphalt modified by styrene-butadiene-styrene triblock copolymer: Morphology and model. J. Mater. Civ. Eng. 2002, 14, 224–229. [Google Scholar] [CrossRef]
- Yilmaz, M.; Yalcin, E. The effects of using different bitumen modifiers and hydrated lime together on the properties of hot mix asphalts. Road Mater. Pavement Des. 2016, 17, 499–511. [Google Scholar] [CrossRef]
- Wu, S.P.; Pang, L.; Mo, L.T.; Chen, Y.C.; Zhu, G.J. Influence of aging on the evolution of structure, morphology and rheology of base and SBS modified bitumen. Constr. Build. Mater. 2009, 23, 1005–1010. [Google Scholar] [CrossRef]
- Kok, B.V.; Yilmaz, M.; Geckil, A. Evaluation of Low-Temperature and Elastic Properties of Crumb Rubber- and SBS-Modified Bitumen and Mixtures. J. Mater. Civ. Eng. 2013, 25, 257–265. [Google Scholar] [CrossRef]
- Shu, X.; Huang, B.S. Recycling of waste tire rubber in asphalt and portland cement concrete: An overview. Constr. Build. Mater. 2014, 67, 217–224. [Google Scholar] [CrossRef]
- Abdullah, M.E.; Zamhari, K.A.; Buhari, R.; Nayan, M.N.; Hainin, M.R. Short Term and Long Term Aging Effects of Asphalt Binder Modified with Montmorillonite. In Advanced Materials Engineering and Technology Ii; Abdullah, M.M.A., Jamaludin, L., Abdullah, A., AbdRazak, R., Hussin, K., Eds.; Trans Tech Publications Ltd.: Zürich, Switzerland, 2014; Volume 594–595, pp. 996–1002. [Google Scholar]
- Yu, X.; Leng, Z.; Wang, Y.; Lin, S.Y. Characterization of the effect of foaming water content on the performance of foamed crumb rubber modified asphalt. Constr. Build. Mater. 2014, 67, 279–284. [Google Scholar] [CrossRef]
- Dong, F.Q.; Yu, X.; Liu, S.J.; Wei, J.M. Rheological behaviors and microstructure of SBS/CR composite modified hard asphalt. Constr. Build. Mater. 2016, 115, 285–293. [Google Scholar] [CrossRef]
- Tan, Y.Q.; Guo, M.; Cao, L.P.; Zhang, L. Performance optimization of composite modified asphalt sealant based on rheological behavior. Constr. Build. Mater. 2013, 47, 799–805. [Google Scholar] [CrossRef]
- Wang, Y.; Zhan, B.C.; Cheng, J. Study on preparation process of SBS/crumb rubber composite modified asphalt. In Trends in Building Materials Research; Zheng, J.J., Du, X.L., Yan, W., Li, Y., Zhang, J.W., Eds.; Trans Tech Publications Ltd.: Zürich, Switzerland, 2012; Volume 450–451, pp. 417–422. [Google Scholar]
- Golalipour, A.; Bahia, H.U.; Tabatabaee, H.A. Critical Considerations toward Better Implementation of the Multiple Stress Creep and Recovery Test. J. Mater. Civ. Eng. 2017, 29, 7. [Google Scholar] [CrossRef]
- Hintz, C.; Velasquez, R.; Johnson, C.; Bahia, H. Modification and Validation of Linear Amplitude Sweep Test for Binder Fatigue Specification. Transp. Res. Rec. 2011, 2207, 99–106. [Google Scholar] [CrossRef]
- Hintz, C.; Bahia, H. Simplification of Linear Amplitude Sweep Test and Specification Parameter. Transp. Res. Rec. 2013, 2307, 10–16. [Google Scholar] [CrossRef]
- Micaelo, R.; Pereira, A.; Quaresma, L.; Cidade, M.T. Fatigue resistance of asphalt binders: Assessment of the analysis methods in strain-controlled tests. Constr. Build. Mater. 2015, 98, 703–712. [Google Scholar] [CrossRef]
- Liu, S.T.; Cao, W.D.; Fang, J.G.; Shang, S.J. Variance analysis and performance evaluation of different crumb rubber modified (CRM) asphalt. Constr. Build. Mater. 2009, 23, 2701–2708. [Google Scholar] [CrossRef]
- Wang, H.N.; You, Z.P.; Mills-Beale, J.; Hao, P.W. Laboratory evaluation on high temperature viscosity and low temperature stiffness of asphalt binder with high percent scrap tire rubber. Constr. Build. Mater. 2012, 26, 583–590. [Google Scholar] [CrossRef]
- Fu, Y.K.; Zhang, L.; Tan, Y.Q.; Meng, D.Y. Low-Temperature Properties Evaluation Index of Rubber Asphalt; Crc Press-Taylor & Francis Group: Boca Raton, FL, USA, 2016; p. 16. [Google Scholar]
Properties | Unit | Test Results | Test Method |
---|---|---|---|
Penetration (25 °C, 100 g, 5 s) | (0.1 mm) | 68.9 | ASTM D5 |
softening point (Ring and ball method) | °C | 47.2 | ASTM D36 |
Ductility (15 °C, 5 cm/s) | cm | >100 | ASTM D113 |
Change in mass TFOT | % | −0.2 | ASTM D2872 |
Flash point, Cleveland open cup | °C | 289 | ASTM D92 |
Binder Type | Aging Conditions | %Recovery (0.1 kPa) | %Recovery (3.2 kPa) | Rdiff, % | Jnr(0.1 kPa), 1/kPa | Jnr(3.2 kPa), 1/kPa | Jnr,diff, % |
---|---|---|---|---|---|---|---|
CRMB | Virgin | 23.48 | 6.63 | 71.76 | 1.592 | 2.192 | 37.73 |
TFOT | 21.87 | 5.19 | 76.26 | 2.574 | 3.936 | 52.92 | |
PAV-20 h | 17.03 | 4.13 | 75.74 | 3.863 | 6.542 | 69.43 | |
SBSMB | Virgin | 95.21 | 85.17 | 10.54 | 0.067 | 0.099 | 48.59 |
TFOT | 90.13 | 78.22 | 13.21 | 0.279 | 0.454 | 62.97 | |
PAV-20 h | 82.11 | 52.18 | 36.45 | 0.443 | 0.733 | 65.45 | |
PAV-40 h | 50.11 | 20.36 | 59.36 | 0.652 | 0.998 | 52.93 | |
PAV-80 h | 35.48 | 10.29 | 71.00 | 0.913 | 1.384 | 51.57 | |
SBS/CRMB | Virgin | 96.01 | 89.16 | 7.14 | 0.031 | 0.042 | 37.37 |
TFOT | 92.71 | 82.71 | 10.78 | 0.132 | 0.178 | 34.97 | |
PAV-20 h | 85.22 | 75.66 | 11.22 | 0.251 | 0.325 | 29.39 | |
PAV-40 h | 81.21 | 63.29 | 22.06 | 0.294 | 0.402 | 36.71 | |
PAV-80 h | 75.71 | 55.16 | 27.14 | 0.310 | 0.413 | 32.88 |
Binder Type | Aging Conditions | C1 | C2 | A | B | ||
---|---|---|---|---|---|---|---|
CR | Virgin | 0.041 | 0.522 | 291329 | 2.474 | 1.237 | 0.142 |
TFOT | 0.042 | 0.530 | 388559 | 2.592 | 1.296 | 0.162 | |
PAV-20 h | 0.047 | 0.515 | 530604 | 2.760 | 1.379 | 0.213 | |
SBS | Virgin | 0.050 | 0.473 | 3045026 | 2.894 | 1.447 | 0.222 |
TFOT | 0.047 | 0.496 | 1949513 | 2.888 | 1.444 | 0.242 | |
PAV-20 h | 0.056 | 0.471 | 1627488 | 2.922 | 1.461 | 0.318 | |
PAV-40 h | 0.058 | 0.484 | 657644 | 2.910 | 1.455 | 0.327 | |
PAV-80 h | 0.061 | 0.536 | 641767 | 2.924 | 1.462 | 0.324 | |
SBS/CR | Virgin | 0.058 | 0.440 | 8017435 | 2.978 | 1.489 | 0.1988 |
TFOT | 0.043 | 0.504 | 4911318 | 3.026 | 1.513 | 0.2099 | |
PAV-20 h | 0.042 | 0.513 | 3055835 | 3.042 | 1.521 | 0.2496 | |
PAV-40 h | 0.044 | 0.505 | 3203419 | 3.05 | 1.525 | 0.2569 | |
PAV-80 h | 0.047 | 0.498 | 3542636 | 3.07 | 1.535 | 0.2878 |
Binder Type | Aging Conditions | TL,m | TL,S | TL | ΔTL(S-m) |
---|---|---|---|---|---|
CR | Virgin | −22.77 | −22.95 | −32.77 | −0.18 |
TFOT | −2 1.63 | −22.74 | −31.63 | −1.11 | |
PAV-20h | −19.96 | −21.32 | −29.96 | −1.36 | |
SBS | Virgin | −20.26 | −23.06 | −30.26 | −3.02 |
TFOT | −18.26 | −20.46 | −28.26 | −2.20 | |
PAV-20h | −17.53 | −19.56 | −27.53 | −2.03 | |
PAV-40h | −16.29 | −18.16 | −26.29 | −1.87 | |
PAV-80h | −15.13 | −15.53 | −25.13 | −0.40 | |
SBS/CR | Virgin | −22.54 | −23.58 | −32.54 | −1.04 |
TFOT | −21.89 | −23.46 | −31.39 | −1.57 | |
PAV-20 h | −20.39 | −21.52 | −30.39 | −1.13 | |
PAV-40 h | −20.14 | −20.93 | −30.14 | −0.59 | |
PAV-80 h | −18.58 | −19.26 | −28.58 | −1.08 |
