Next Article in Journal
Bi-Axial Buckling of Laminated Composite Plates Including Cutout and Additional Mass
Previous Article in Journal
Oxidation Behavior of Fe–Al, Fe–Si and Fe–Al–Si Intermetallics
Open AccessArticle

Differences in Dry Sliding Wear Behavior between Al–12Si–CuNiMg Alloy and Its Composite Reinforced with Al2O3 Fibers

by 1,*, 2, 2 and 2
1
College of Engineering, China Agricultural University, Beijing 100083, China
2
Beijing Institute of Space Launch Technology, Beijing 100076, China
*
Author to whom correspondence should be addressed.
Materials 2019, 12(11), 1749; https://doi.org/10.3390/ma12111749
Received: 18 May 2019 / Revised: 25 May 2019 / Accepted: 27 May 2019 / Published: 29 May 2019

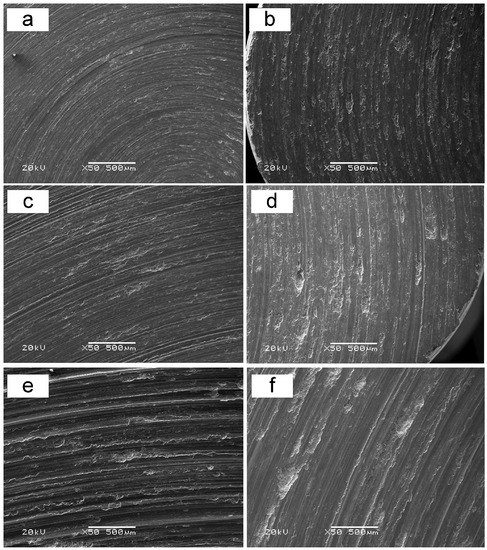

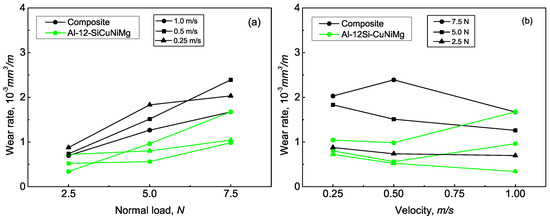

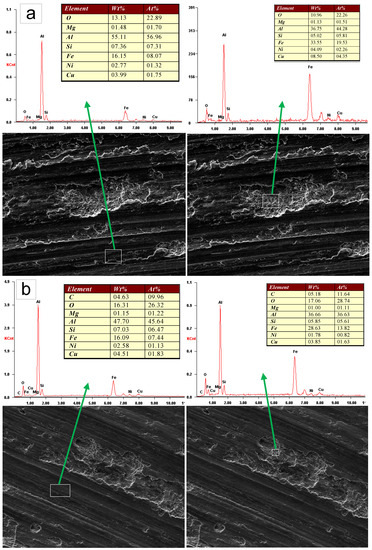

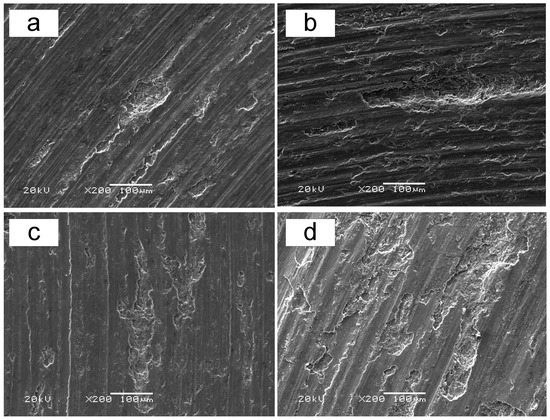

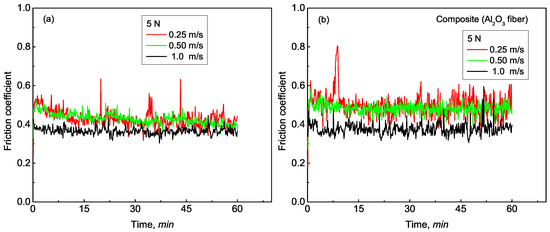

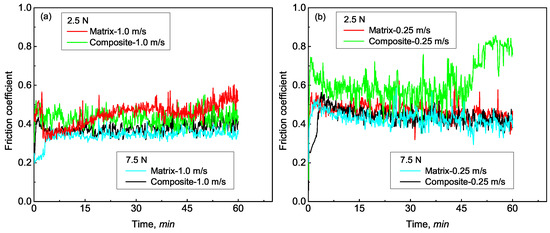

The dry sliding wear behavior of the Al-12Si-CuNiMg matrix alloy and its composite reinforced with Al2O3 fibers was investigated using a pin-on-disk wear-testing machine. The volume fraction of Al2O3 fibers in the composite was 17 vol.%. Wear tests are conducted under normal loads of 2.5, 5.0, and 7.5 N, and sliding velocities of 0.25, 0.50, and 1.0 m/s. Furthermore, the worn surfaces of the matrix alloy and the composite were examined using scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS). The results showed that the wear resistance of the composite was inferior to that of the matrix alloy, which could be attributed to the high content of reinforcement and casting porosities in the composite. Worn-surface analysis indicates that the dominant wear mechanisms of both materials were abrasive wear and adhesive wear under the present testing conditions. View Full-Text
Keywords: sliding wear; Al2O3 fiber; aluminum matrix composite; friction sliding wear; Al2O3 fiber; aluminum matrix composite; friction
Show Figures

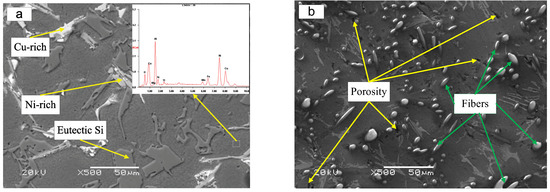

Figure 1

MDPI and ACS Style

Zhang, Q.; Gu, J.; Wei, S.; Qi, M. Differences in Dry Sliding Wear Behavior between Al–12Si–CuNiMg Alloy and Its Composite Reinforced with Al2O3 Fibers. Materials 2019, 12, 1749. https://doi.org/10.3390/ma12111749

AMA Style

Zhang Q, Gu J, Wei S, Qi M. Differences in Dry Sliding Wear Behavior between Al–12Si–CuNiMg Alloy and Its Composite Reinforced with Al2O3 Fibers. Materials. 2019; 12(11):1749. https://doi.org/10.3390/ma12111749

Chicago/Turabian Style

Zhang, Qing; Gu, Jie; Wei, Shuo; Qi, Ming. 2019. "Differences in Dry Sliding Wear Behavior between Al–12Si–CuNiMg Alloy and Its Composite Reinforced with Al2O3 Fibers" Materials 12, no. 11: 1749. https://doi.org/10.3390/ma12111749

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
